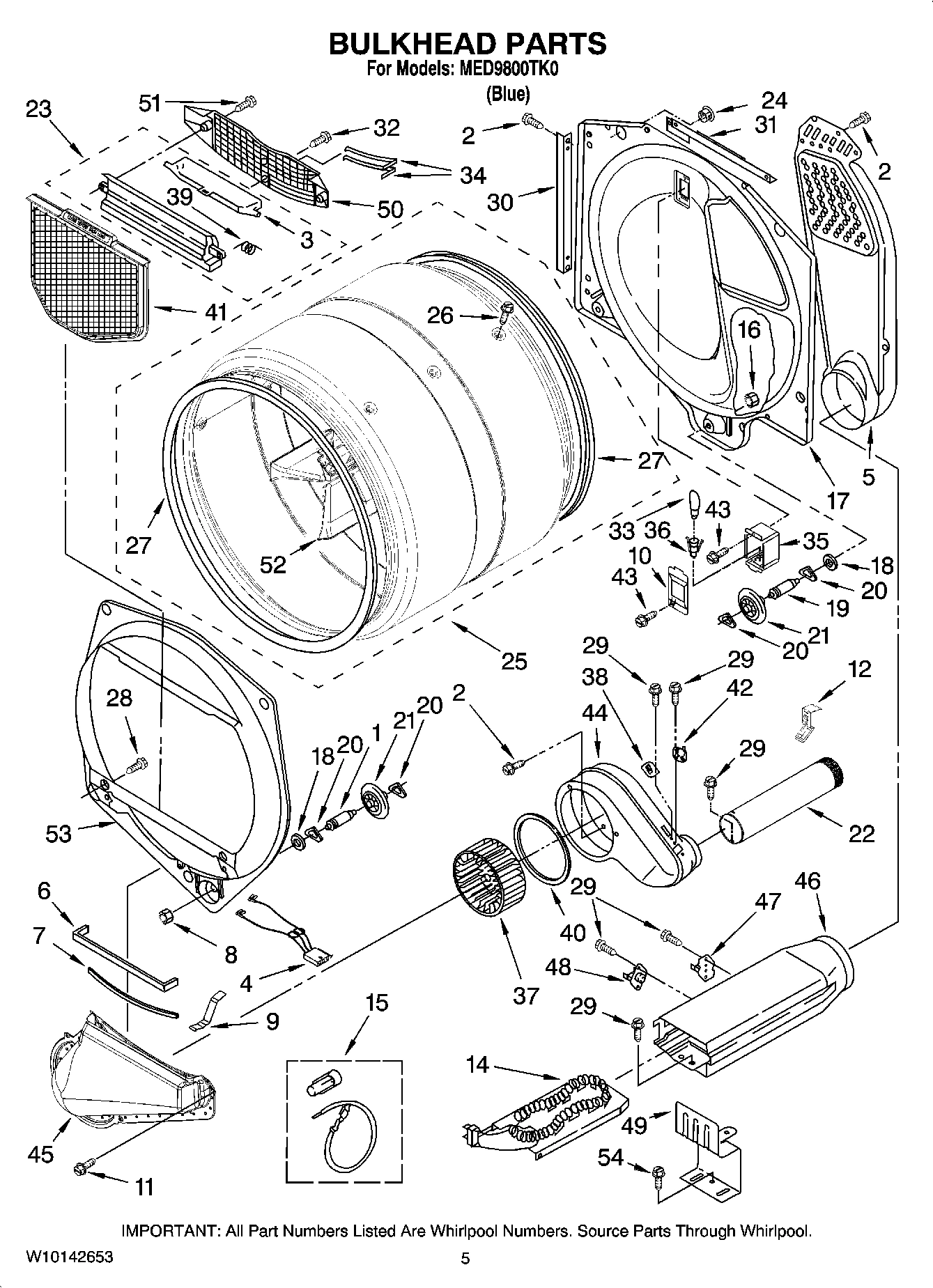

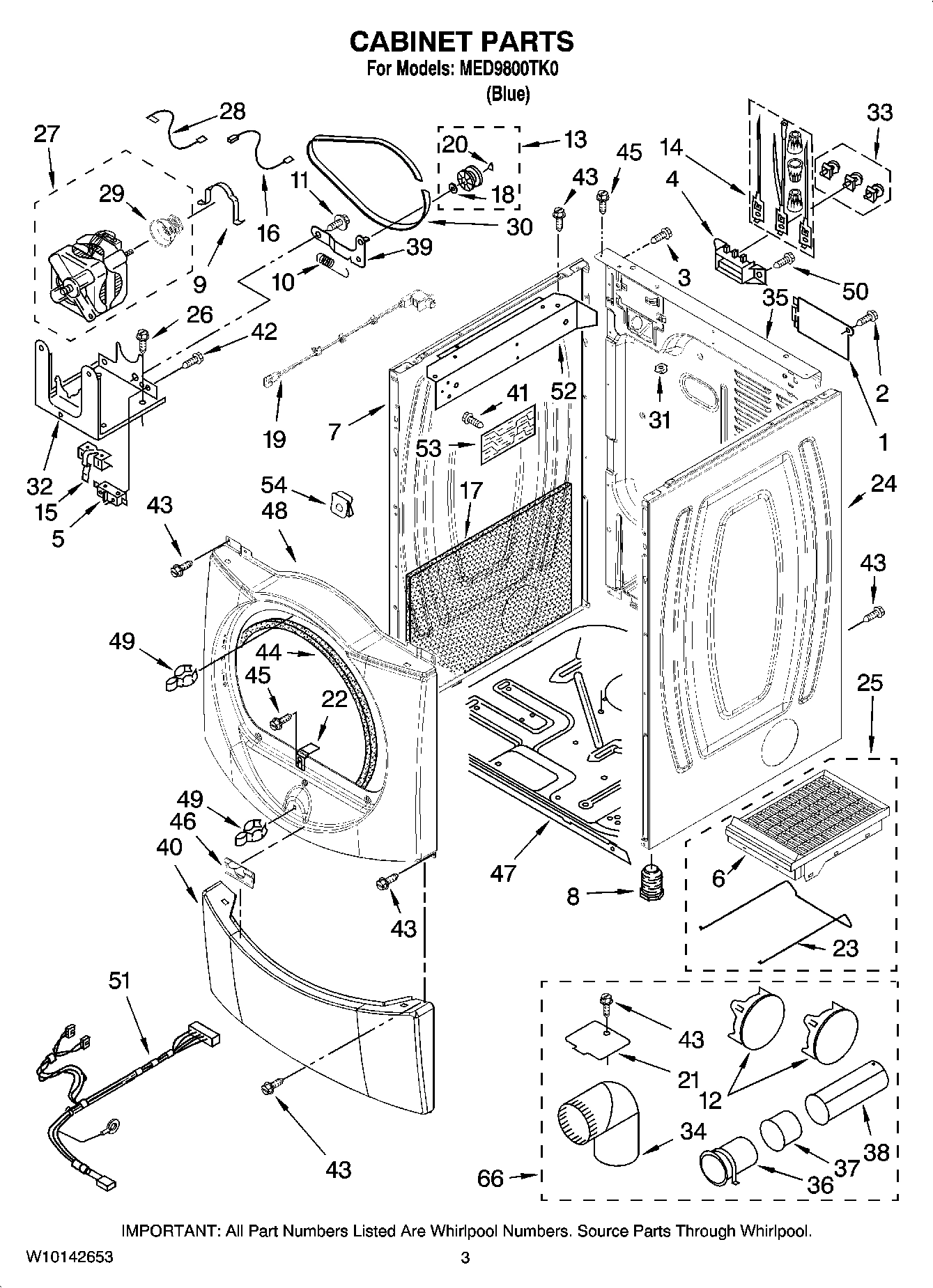

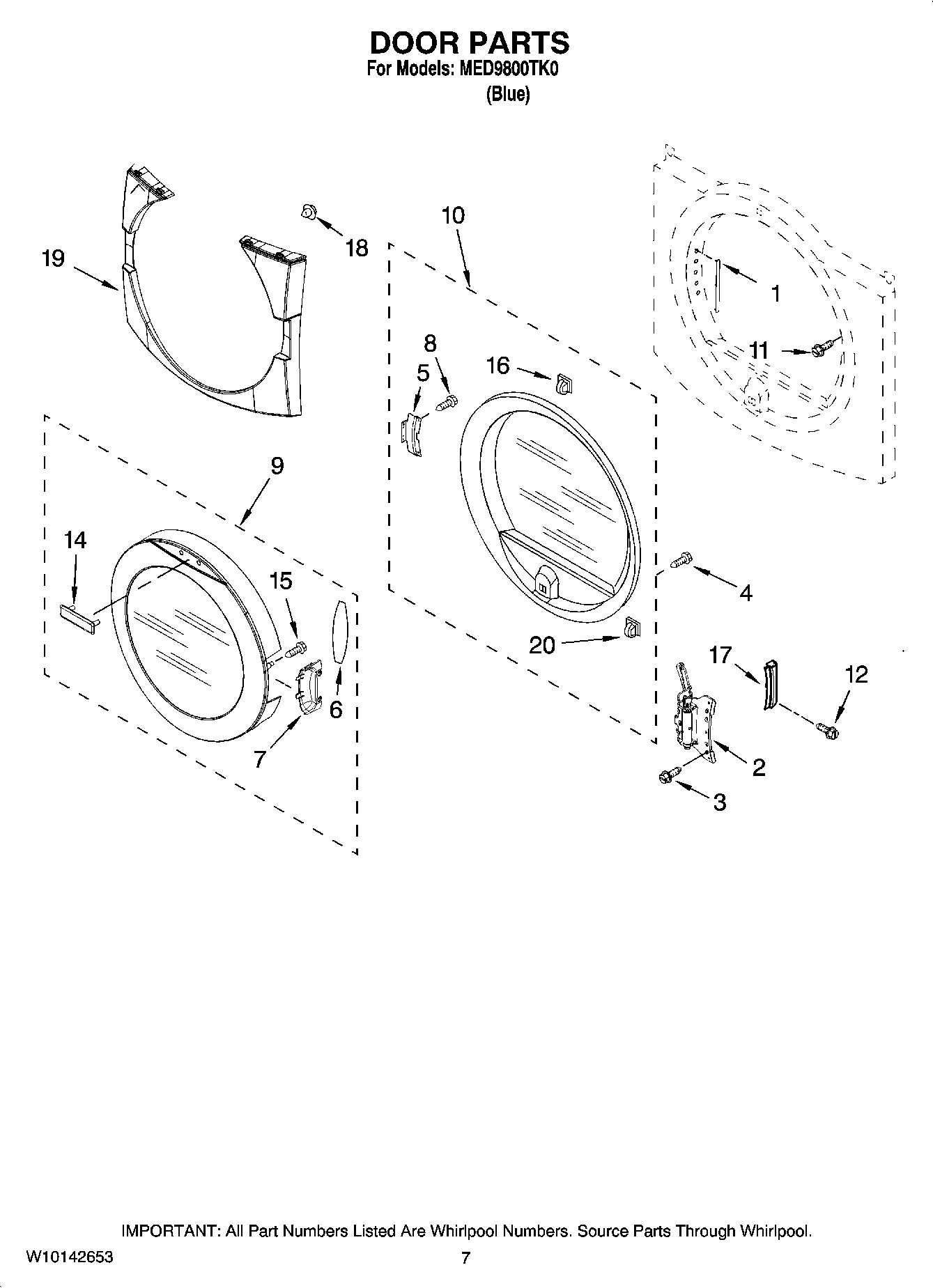

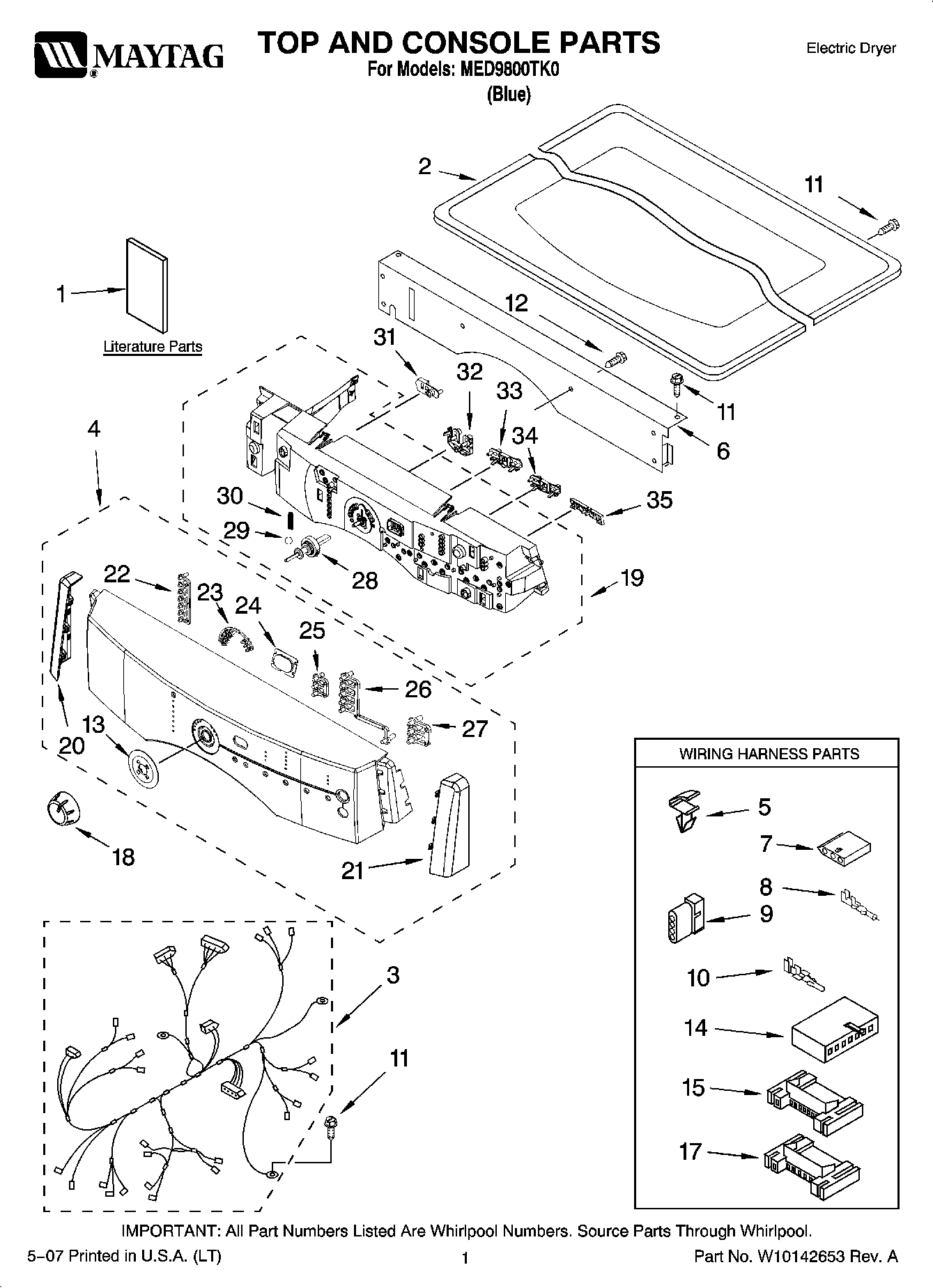

Model Whirlpool MED9800TK0 ELECTRIC DRYER – Common Parts &amp; Diagrams

1

WPW10119283 Whirlpool Terminal Cover Backorder WPL WPW10119283 $90.54

2

WP90767 Whirlpool Screw In Stock WPL WP90767 $4.26

3

W10850756 Whirlpool Screw Backorder WPL W10850756 $4.82

3

Harness, Main WPL 8576530 Contact Us For Availability

3

Screw, 10-32 x 3/8 WPL W10017850 Contact Us For Availability

4

WP3397659 Whirlpool Terminal Block In Stock WPL WP3397659 $14.75

4

WP3406653 Whirlpool Wire Harness In Stock WPL WP3406653 $81.06

4

Screw, 8-18 x 5/8 WPL 9742177 Contact Us For Availability

5

279782 Whirlpool Lid Switch In Stock WPL 279782 $40.35

5

WP3394427 Whirlpool Clip In Stock WPL WP3394427 $4.82

5

Bracket, Handle WPL 8529539 Contact Us For Availability

6

WP697813 Whirlpool Seal In Stock WPL WP697813 $4.56

6

Pad, Door Handle WPL 8541011 Contact Us For Availability

7

Connector Sensor WPL 353424 Contact Us For Availability

7

Handle, Door WPL W10133974 Contact Us For Availability

7

Panel, Side (L.H.) (White) WPL W10138989 Contact Us For Availability

7

Panel, Side (L.H.) (Pacific Blue) WPL W10138993 Contact Us For Availability

8

49621 Whirlpool Leveling Feet In Stock WPL 49621 $4.42

8

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $5.30

8

WP94614 Whirlpool Terminal Backorder WPL WP94614 $4.82

9

3936144 Whirlpool Connector Backorder WPL 3936144 $14.02

9

WP660658 Whirlpool Clamp In Stock WPL WP660658 $5.30

9

WP8066208 Whirlpool Clip Backorder WPL WP8066208 $4.82

9

Door & Window Assembly (Includes Illus. 6, 7, WPL W10133985 Contact Us For Availability

10

WPW10446781 Whirlpool Spring In Stock WPL WPW10446781 $18.11

10

Inner Door Assembly (Includes Illus. 5, 8 16 WPL 8557501 Contact Us For Availability

11

WP3389420 Whirlpool Screw In Stock WPL WP3389420 $5.02

11

WP355515 Whirlpool Screw Backorder WPL WP355515 $4.82

11

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $5.02

12

3400859 Whirlpool Screw Backorder WPL 3400859 $8.39

12

WPW10404617 Whirlpool Plug Assembly Backorder WPL WPW10404617 $48.97

13

279640 Whirlpool Dryer Idler Pulley Kit In Stock WPL 279640 $23.67

14

279318 Whirlpool Terminal In Stock WPL 279318 $56.86

14

WP3387747 Whirlpool Dryer Heating Element In Stock WPL WP3387747 $76.93

14

Medallion WPL W10116209 Contact Us For Availability

279457 Whirlpool Dryer Heating Element Wide S In Stock WPL 279457 $6.11

3395683 Whirlpool Connector Backorder WPL 3395683 $39.64

WP8066120 Whirlpool Lever Assembly Backorder WPL WP8066120 $20.67

Screw WPL 8533957 Contact Us For Availability

16

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $7.13

16

Wire, Belt Switch WPL 3394081 Contact Us For Availability

W11299301 Whirlpool Bulkhead Assembly Backorder WPL W11299301 $162.31

Sound Panel WPL W10128772 Contact Us For Availability

Cover-Hinge (White) WPL 8566486 Contact Us For Availability

Cover-Hinge (Pacific Blue) WPL W10133962 Contact Us For Availability

18

WPW10121334 Whirlpool Washer In Stock WPL WPW10121334 $4.82

18

Rotating Clip, Trim Panel WPL 8547091 Contact Us For Availability

W10128087 Whirlpool Door Switch Backorder WPL W10128087 $61.52

User Interface (Includes Illus. 28, 29 & 30) WPL 8558455 Contact Us For Availability

Trim & Clip (White Assembly) WPL 8562596 Contact Us For Availability

Trim & Clip (Pacific Blue) WPL W10133978 Contact Us For Availability

20

WP3389441 Whirlpool Door Catch In Stock WPL WP3389441 $5.30

21

WPW10354249 Whirlpool Cover Backorder WPL WPW10354249 $4.82

22

Ramp, Door WPL 8529053 Contact Us For Availability

23

Dry Rack Support WPL 8521961 Contact Us For Availability

24

Panel, Side (R.H.) (White) WPL W10139003 Contact Us For Availability

24

Panel, Side (R.H.) (Pacific Blue) WPL W10139007 Contact Us For Availability

25

8212450A Whirlpool Dryer Rack Assembly Backorder WPL 8212450A $51.16

26

WP681414 Whirlpool Screw Backorder WPL WP681414 $3.49

26

WPW10109200 Whirlpool Screw In Stock WPL WPW10109200 $5.02

27

279787 Whirlpool Dryer Drive Motor In Stock WPL 279787 $193.52

28

3398948 Whirlpool Wire Backorder WPL 3398948 $47.06

28

Shaft, Cycle Selector WPL 8542717 Contact Us For Availability

29

W10837625 Whirlpool Dryer Motor Pulley In Stock WPL W10837625 $9.23

30

661570V Whirlpool Dryer Drum Belt In Stock WPL 661570V $22.27

31

WP692400 Whirlpool Nut In Stock WPL WP692400 $5.30

32

WP3387118 Whirlpool Base Assembly Backorder WPL WP3387118 $93.54

33

279393 Whirlpool Terminal Block Screw and Nut In Stock WPL 279393 $21.53

34

WP3387223 Whirlpool Electrode Assembly In Stock WPL WP3387223 $5.19

34

WPW10416072 Whirlpool Elbow Backorder WPL WPW10416072 $15.21

35

3977373 Whirlpool Bracket Backorder WPL 3977373 $70.63

35

Pushbutton (Start/Cancel) WPL W10133971 Contact Us For Availability

35

Panel, Rear WPL W10133207 Contact Us For Availability

36

W11700522 Whirlpool Socket Backorder WPL W11700522 $50.62

36

WP8563747 Whirlpool Exhaust Pipe Backorder WPL WP8563747 $65.33

37

WP697772 Whirlpool Dryer Blower Wheel In Stock WPL WP697772 $50.46

37

WPW10331278 Whirlpool Exhaust Pipe Backorder WPL WPW10331278 $56.29

38

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $17.27

38

WP8563749 Whirlpool Exhaust Pipe Backorder WPL WP8563749 $63.22

39

W10837240 Whirlpool Dryer Idler Pulley In Stock WPL W10837240 $27.58

39

WP3394986 Whirlpool Spring Backorder WPL WP3394986 $56.83

40

WP697770 Whirlpool Blower Cover Plate Seal In Stock WPL WP697770 $5.30

40

Toe, Panel (White) WPL W10116271 Contact Us For Availability

40

Toe-Panel (Pacific Blue) WPL W10116279 Contact Us For Availability

41

3400826 Whirlpool Screw Backorder WPL 3400826 $5.51

42

WP8577274 Whirlpool Dryer Thermistor In Stock WPL WP8577274 $33.02

42

WP98129 Whirlpool Screw Backorder WPL WP98129 $4.82

43

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $5.30

44

WP3387242 Whirlpool Seal In Stock WPL WP3387242 $17.25

46

W11295573 Whirlpool Clip Backorder WPL W11295573 $14.02

47

WPL 8519207 WPL 8519207 Contact Us For Availability

48

WP3391914 Whirlpool Thermostat In Stock WPL WP3391914 $76.95

48

WPL 8562162 WPL 8562162 Contact Us For Availability

48

WPL W10133984 WPL W10133984 Contact Us For Availability

49

8066099 Whirlpool Bracket Backorder WPL 8066099 $14.67

50

W11086603 Whirlpool Dryer Link Screen Air Gri In Stock WPL W11086603 $22.04

50

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.89

51

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $4.65

51

WPL 8299925 WPL 8299925 Contact Us For Availability

52

Baffle, Drum WPL W10113136 Contact Us For Availability

52

WPL 8519273 WPL 8519273 Contact Us For Availability

53

WPL 8546219 WPL 8546219 Contact Us For Availability

53

Bulkhead, Front WPL 8519245 Contact Us For Availability

54

WPL 62825 WPL 62825 Contact Us For Availability

55

W10470674 Whirlpool Dryer Side Vent Exhaust K In Stock WPL W10470674 $73.41

350930 Whirlpool White Spray Paint In Stock WPL 350930 $30.02

350938 Whirlpool Spray Gun Backorder WPL 350938 $64.04

4392067 Whirlpool Dryer Repair Kit In Stock WPL 4392067 $39.73

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $19.58

8541503 Whirlpool Stacking Kit In Stock WPL 8541503 $48.70

W10202939 Whirlpool Touch Up Backorder WPL W10202939 $15.74

W11224254 Whirlpool Test Kit In Stock WPL W11224254 $9.23

PAINT, TOUCH-UP (1/2oz.) (Pacific Blue) WPL 4396816 Contact Us For Availability

Kit, Hold Down WPL 8529894 Contact Us For Availability
