Model Whirlpool MDG3600BWQ GAS DRYER – Common Parts &amp; Diagrams

1

WP33001789 Whirlpool Blower Housing Assembly In Stock WPL WP33001789 $85.59

1

COVER, TOP (BSQ-AS PK) WPL 33002632 Contact Us For Availability

1

INLET DUCT ASSEMBLY (GAS) WPL 33002765 Contact Us For Availability

1

WIRE HARNESS WPL 33002691 Contact Us For Availability

1

OUTLET DUCT ASSEMBLY WPL 33001799 Contact Us For Availability

1

SEAL, SHROUD WPL 33001767 Contact Us For Availability

2

W11573574 Whirlpool Screw In Stock WPL W11573574 $11.38

2

WP33001808 Whirlpool Lint Filter In Stock WPL WP33001808 $39.64

2

WP33002924 Whirlpool LP Conversion Gas In Stock WPL WP33002924 $57.79

2

HOOK, SECURITY WPL 33002597 Contact Us For Availability

2

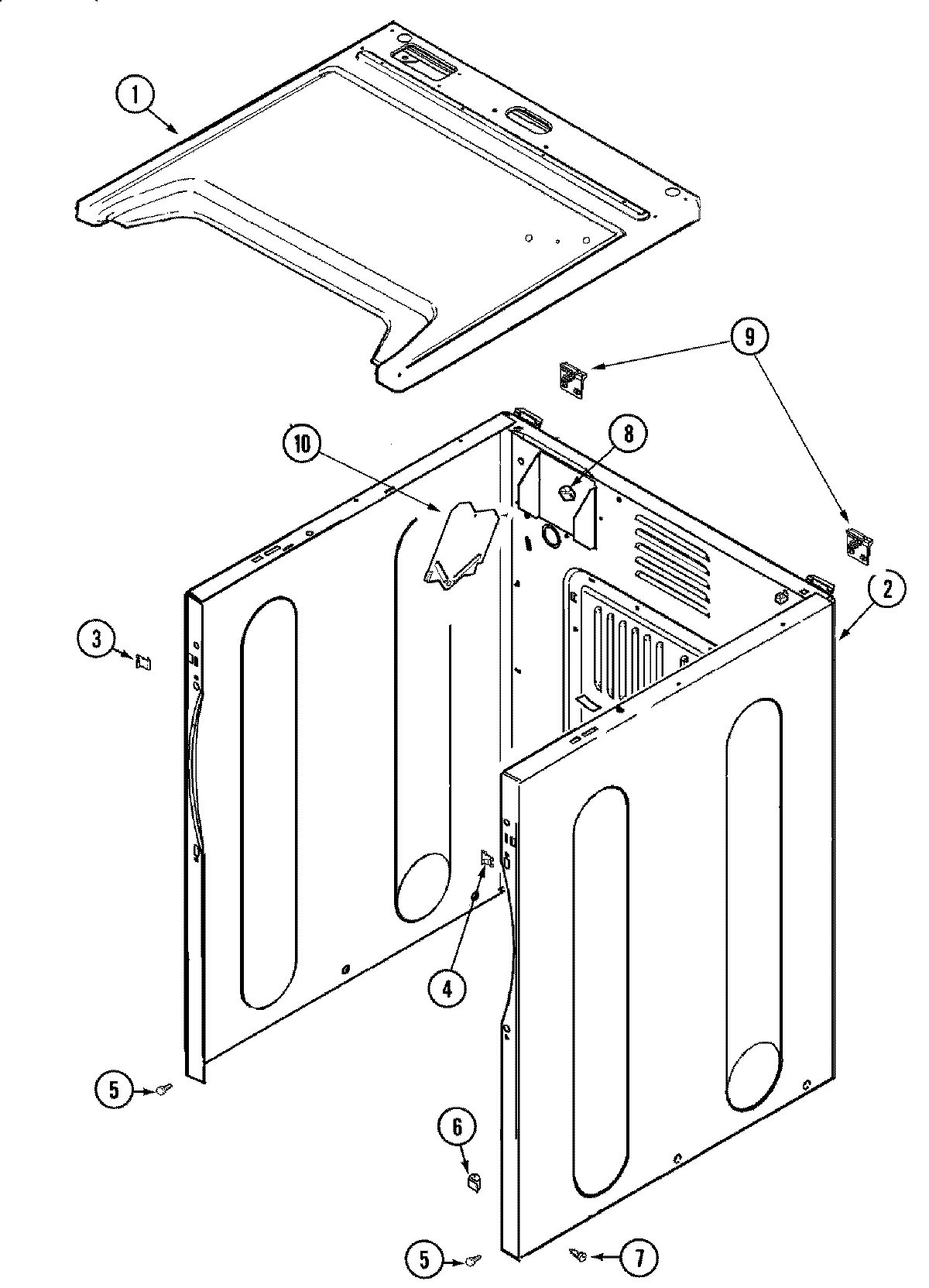

CABINET ASSY. (BSQ AS PK) WPL 22003644 Contact Us For Availability

2

MANUAL, USE & CARE WPL 33002715 Contact Us For Availability

2

DUCT ASSY., EXHAUST WPL 33001800 Contact Us For Availability

3

WP9703438 Whirlpool Snap Retaining Ring In Stock WPL WP9703438 $2.43

3

TIMER KNOB (GREY/BLUE) WPL 22003915 Contact Us For Availability

3

SCREW WPL 304971 Contact Us For Availability

3

GROMMET, CORD WPL 211881 Contact Us For Availability

3

SEAL, BLOWER WPL 33002560 Contact Us For Availability

3

SHROUD, (BSQ) WPL 33002436 Contact Us For Availability

4

33001790 Whirlpool Blower Wheel In Stock WPL 33001790 $21.72

4

4391996 Whirlpool Dryer Flat Igniter In Stock WPL 4391996 $22.45

4

WP33002789 Whirlpool Igniter In Stock WPL WP33002789 $65.16

4

WP33002797 Whirlpool Wheel In Stock WPL WP33002797 $81.99

4

CORD, POWER (AS WRAP) WPL 33002494 Contact Us For Availability

4

SCREW (No.10-3/8``) WPL 33002190 Contact Us For Availability

5

WP312967 Whirlpool Clamp In Stock WPL WP312967 $7.29

5

WP33002793 Whirlpool Burner Assembly Backorder WPL WP33002793 $132.39

5

FRONT PANEL BRACKET/FASTENER WPL 213280 Contact Us For Availability

5

RETAINER, WIRE WPL 22003298 Contact Us For Availability

5

PANEL, FRONT (BSQ) WPL 33002368 Contact Us For Availability

6

W10169313 Whirlpool Door Switch Kit In Stock WPL W10169313 $21.70

6

WP306176 Whirlpool Gas Valve In Stock WPL WP306176 $233.35

6

WP33002917 Whirlpool Screw Backorder WPL WP33002917 $4.82

6

CLIP, WIRE HARNESS WPL 33002073 Contact Us For Availability

6

FRONT, TUMBLER FRONT W/SENSOR WPL 33001868 Contact Us For Availability

7

213007 Whirlpool Screw #12 Backorder WPL 213007 $7.90

7

LENS, DRUM LIGHT WPL 33001869 Contact Us For Availability

7

SCREW WPL 33001871 Contact Us For Availability

7

BRACKET, HINGE WPL 33001760 Contact Us For Availability

8

279834 Whirlpool Dryer Gas Valve Solenoid Coi In Stock WPL 279834 $25.18

8

WP22002263 Whirlpool Dryer 10W Light Bulb In Stock WPL WP22002263 $9.39

8

WP3387134 Whirlpool Dryer Cycling Thermostat In Stock WPL WP3387134 $24.56

8

CONSOLE BACK PANEL WPL 22002529 Contact Us For Availability

8

HOLDER, LAMP (W/HOUSING) WPL 33001870 Contact Us For Availability

9

306436 Whirlpool Washer Dryer Door Catch and In Stock WPL 306436 $3.54

9

LA-1003 Whirlpool Dryer Door Catch and Metal In Stock WPL LA-1003 $13.15

9

WP90767 Whirlpool Screw In Stock WPL WP90767 $4.26

9

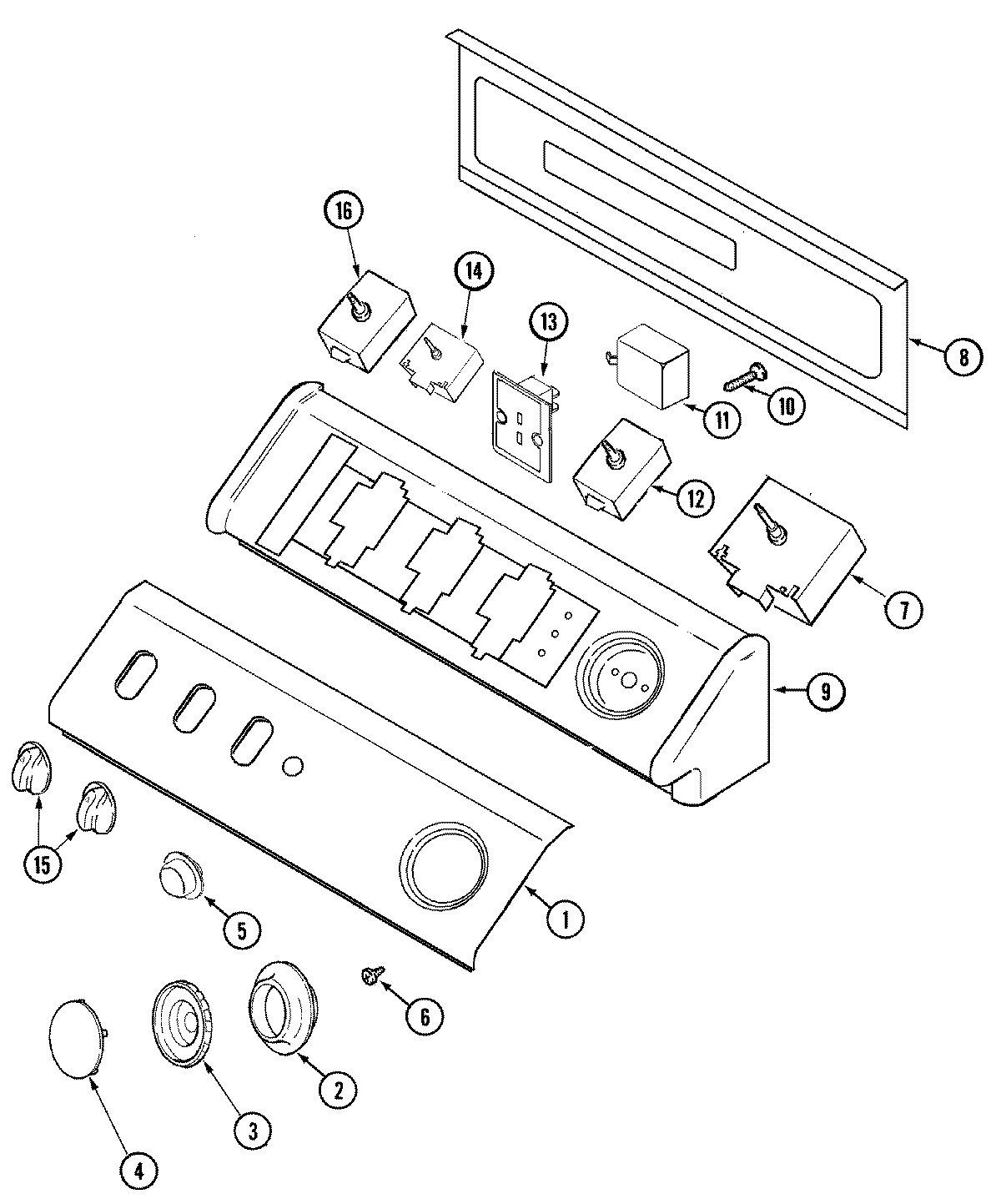

CONSOLE (BSQ) WPL 33002327 Contact Us For Availability

9

HINGE, PLASTIC WPL 22003367 Contact Us For Availability

WP33001762 Whirlpool Dryer Thermal Fuse In Stock WPL WP33001762 $39.97

WP33002094 Whirlpool Door Seal Backorder WPL WP33002094 $90.86

COVER, TERMINAL BLOCK WPL 33001795 Contact Us For Availability

BRACKET, GAS VALVE----NA WPL 33001834 Contact Us For Availability

SENSOR GROUND WIRE WPL Y303711 Contact Us For Availability

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $6.83

BUZZER, NON-ADJUSTABLE WPL 33001623 Contact Us For Availability

CLIP, WIRE HARNESS WPL Y310376 Contact Us For Availability

SENSOR BAR ASSY. WPL 33001809 Contact Us For Availability

PAD, DOOR WPL 33001268 Contact Us For Availability

12

SCREW----NA WPL 312311 Contact Us For Availability

12

CLIP, DOOR (DOUBLE) WPL 22002038 Contact Us For Availability

12

CLIP, GROUNDING WPL 22002244 Contact Us For Availability

3406051 Whirlpool Elbow Backorder WPL 3406051 $68.74

DRYNESS DISPLAY CONTROL (BSQ) WPL 33002400 Contact Us For Availability

COVER, HINGE HOLE (BSQ) WPL 33002349 Contact Us For Availability

COVER, BLOWER HOUSING----NA WPL 33001873 Contact Us For Availability

WP33001793 Whirlpool Bracket Spring Backorder WPL WP33001793 $4.82

WP33001807 Whirlpool Felt Seal In Stock WPL WP33001807 $12.54

SWITCH, TEMPERATURE (GAS) WPL 33001641 Contact Us For Availability

PIPE & BRACKET ASSY. WPL 33001735 Contact Us For Availability

W10410997 Whirlpool Drive Motor In Stock WPL W10410997 $123.19

WP33002032 Whirlpool Drum Baffle In Stock WPL WP33002032 $21.91

WP33002795 Whirlpool Drive Motor In Stock WPL WP33002795 $243.32

ROTARY KNOB ASSEMBLY (BSQ) WPL 22003919 Contact Us For Availability

STRIKE, DOOR (MALE) WPL 33001761 Contact Us For Availability

WP33001755 Whirlpool Drum Baffle In Stock WPL WP33001755 $26.50

WPY015825 Whirlpool Motor Clip Backorder WPL WPY015825 $13.87

SWITCH, ROTARY (2 POS) WPL 22001794 Contact Us For Availability

DUCT ASSY., INLET (GAS) WPL 33001810 Contact Us For Availability

WP303395 Whirlpool Thermostat In Stock WPL WP303395 $33.27

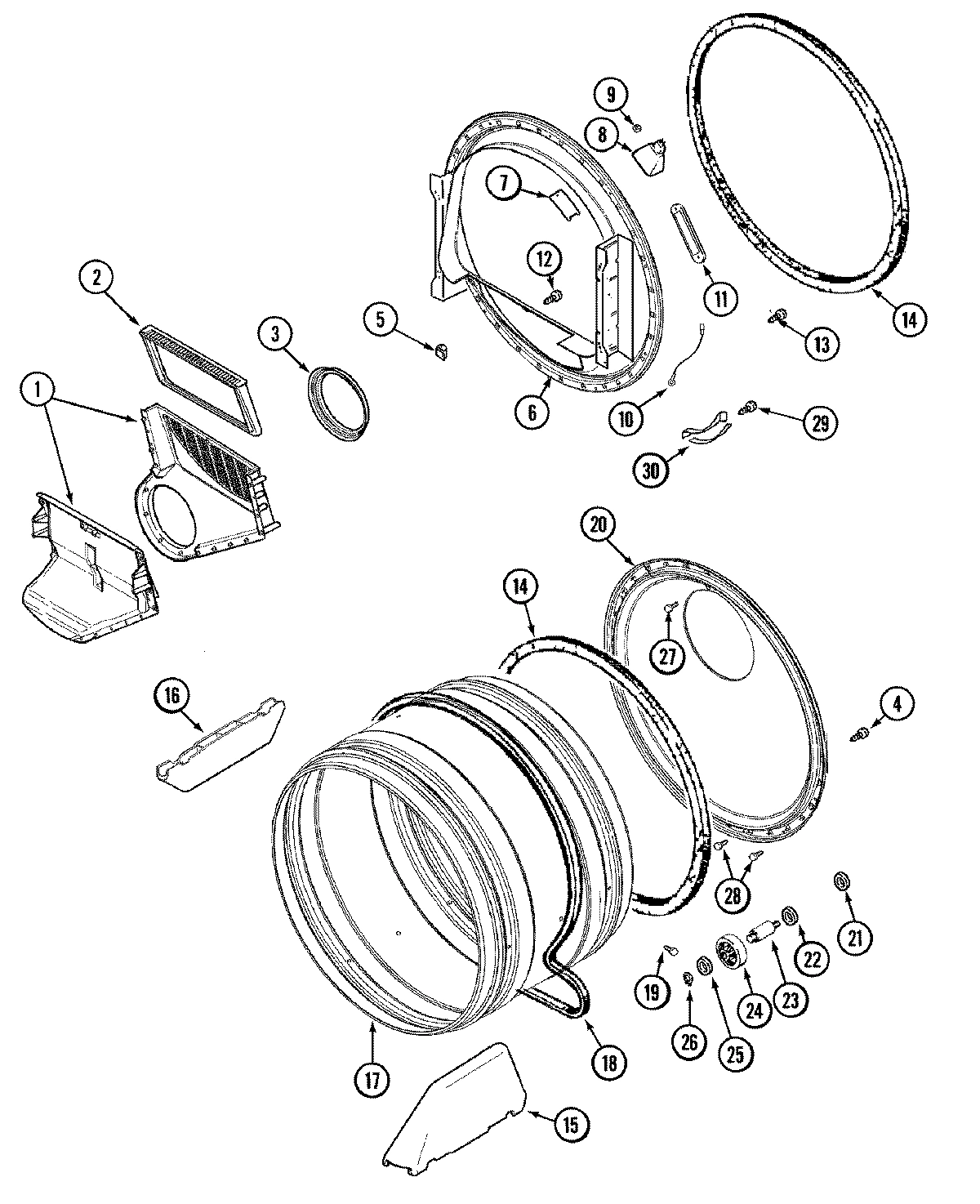

TUMBLER WPL 33001889 Contact Us For Availability

PLUG, INNER DOOR WPL 33001763 Contact Us For Availability

TIMER, MALLORY ELECTRONIC DRY WPL 33002689 Contact Us For Availability

33002459 Whirlpool Idler Spring Backorder WPL 33002459 $4.82

WP33002535 Whirlpool Dryer Drive Belt In Stock WPL WP33002535 $24.91

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $29.61

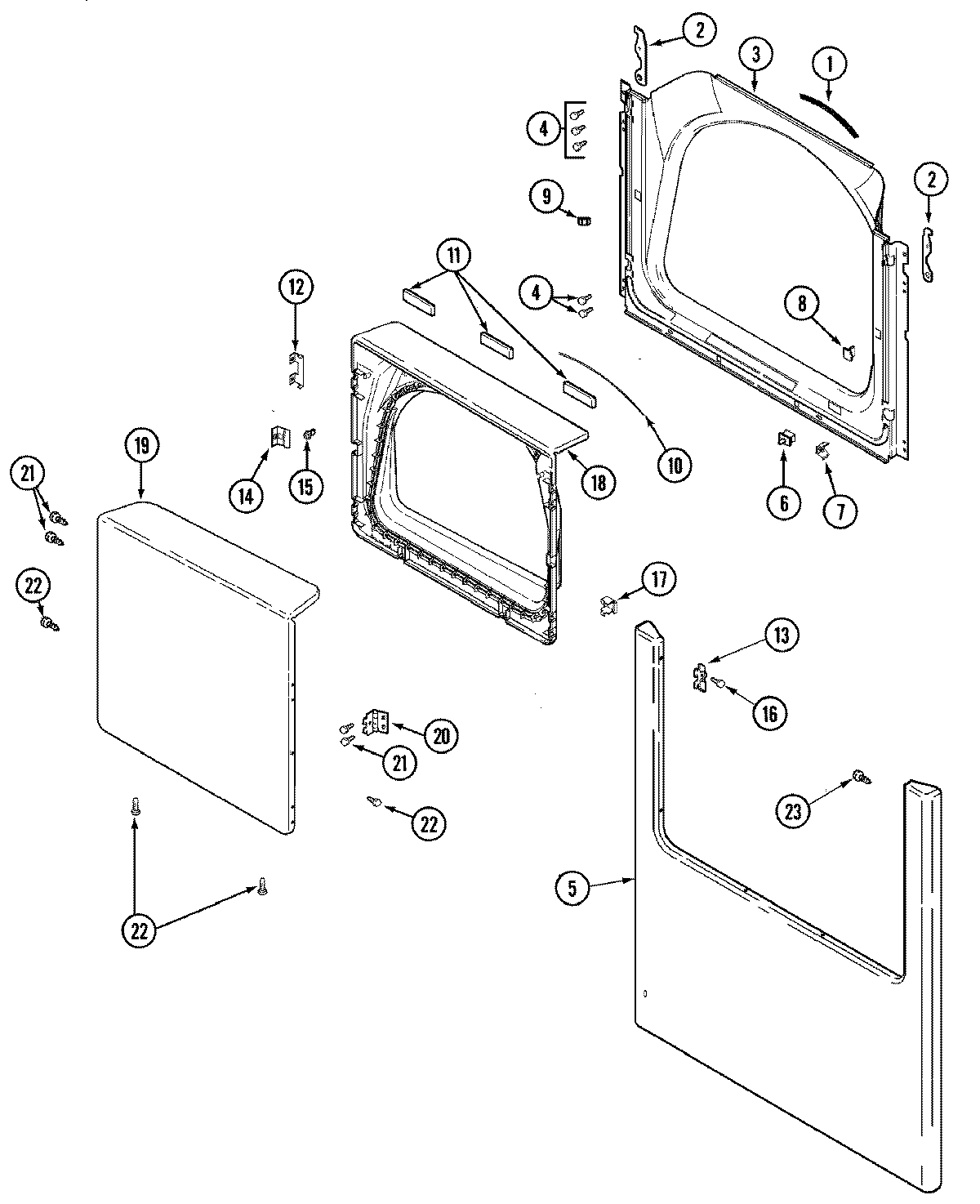

DOOR, INNER (BSQ) WPL 33002439 Contact Us For Availability

GROMMET WPL 33002157 Contact Us For Availability

PLUG FOR SPRING WPL 33002461 Contact Us For Availability

WP6-3705180 Whirlpool Idler Pulley Lever In Stock WPL WP6-3705180 $53.48

CONE ASSY., COMBUSTION WPL 33001835 Contact Us For Availability

SCREW, BAFFLE WPL 33001788 Contact Us For Availability

DOOR, OUTER (BSQ) WPL 33002371 Contact Us For Availability

WP33001759 Whirlpool Door Hinge Backorder WPL WP33001759 $56.66

WPY312527 Whirlpool Dryer Idler Shaft Washer In Stock WPL WPY312527 $6.84

CONE, EXTENSION (COMBUSTION) WPL Y303841 Contact Us For Availability

BACK, TUMBLER (W/SEAL) WPL 33001801 Contact Us For Availability

21

WP33001443 Whirlpool Hex Nut Backorder WPL WP33001443 $4.82

21

RETAINER, HEATER CHAMBER WPL Y312890 Contact Us For Availability

21

BEARING, IDLER ASSEMBLY WPL 33001783 Contact Us For Availability

WP354987 Whirlpool C-Clip In Stock WPL WP354987 $6.38

CAP, GAS PIPE WPL 33001693 Contact Us For Availability

HUB F/LINT SCREEN RETAINER WPL 312525 Contact Us For Availability

SCREW (No.8-18 OUTER DOOR (BSQ) WPL 33002351 Contact Us For Availability

23

WP315772 Whirlpool Sleeve In Stock WPL WP315772 $7.92

23

WP98006631 Whirlpool Screw Backorder WPL WP98006631 $4.82

24

12001541 Whirlpool Dryer Drum Roller Kit In Stock WPL 12001541 $11.73

24

WPY014874 Whirlpool Screw Backorder WPL WPY014874 $4.82

25

WP312535 Whirlpool Washer Backorder WPL WP312535 $7.09

25

SUPPORT, MOTOR WPL 33002466 Contact Us For Availability

26

SCREW----NA WPL Y313561 Contact Us For Availability

27

SCREW, No.8 X 9/16 CTSK WPL 210932 Contact Us For Availability

27

BASE, (LWR)----NA WPL 33002465 Contact Us For Availability

28

SPRING, WIRE HARNESS WPL 410490 Contact Us For Availability

29

ADJUSTABLE LEG & NUT WPL W10176519 No Longer Available

29

WP210720 Whirlpool Rivet Backorder WPL WP210720 $8.89

30

306508 Whirlpool Dryer Front Glide Kit In Stock WPL 306508 $6.28

30

WP62739 Whirlpool Nut Backorder WPL WP62739 $4.82

32

CLIP, LOWER FRONT PANEL WPL 22002239 Contact Us For Availability

33

SCREW WPL Y310632 Contact Us For Availability

NI

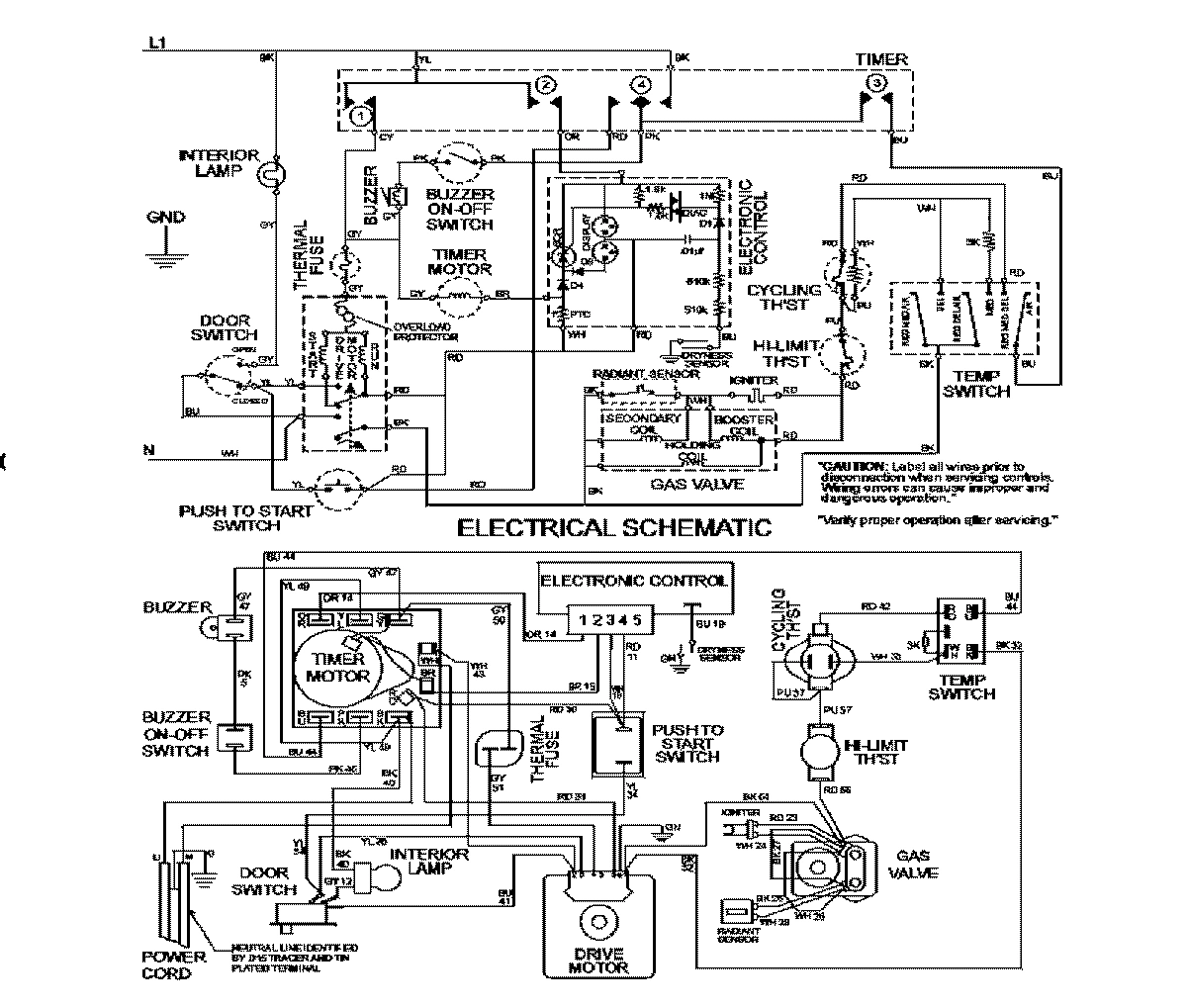

WIRING INFORMATION WPL 15002953 Contact Us For Availability
