Model Whirlpool MDG3000AWW GAS DRYER – Common Parts &amp; Diagrams

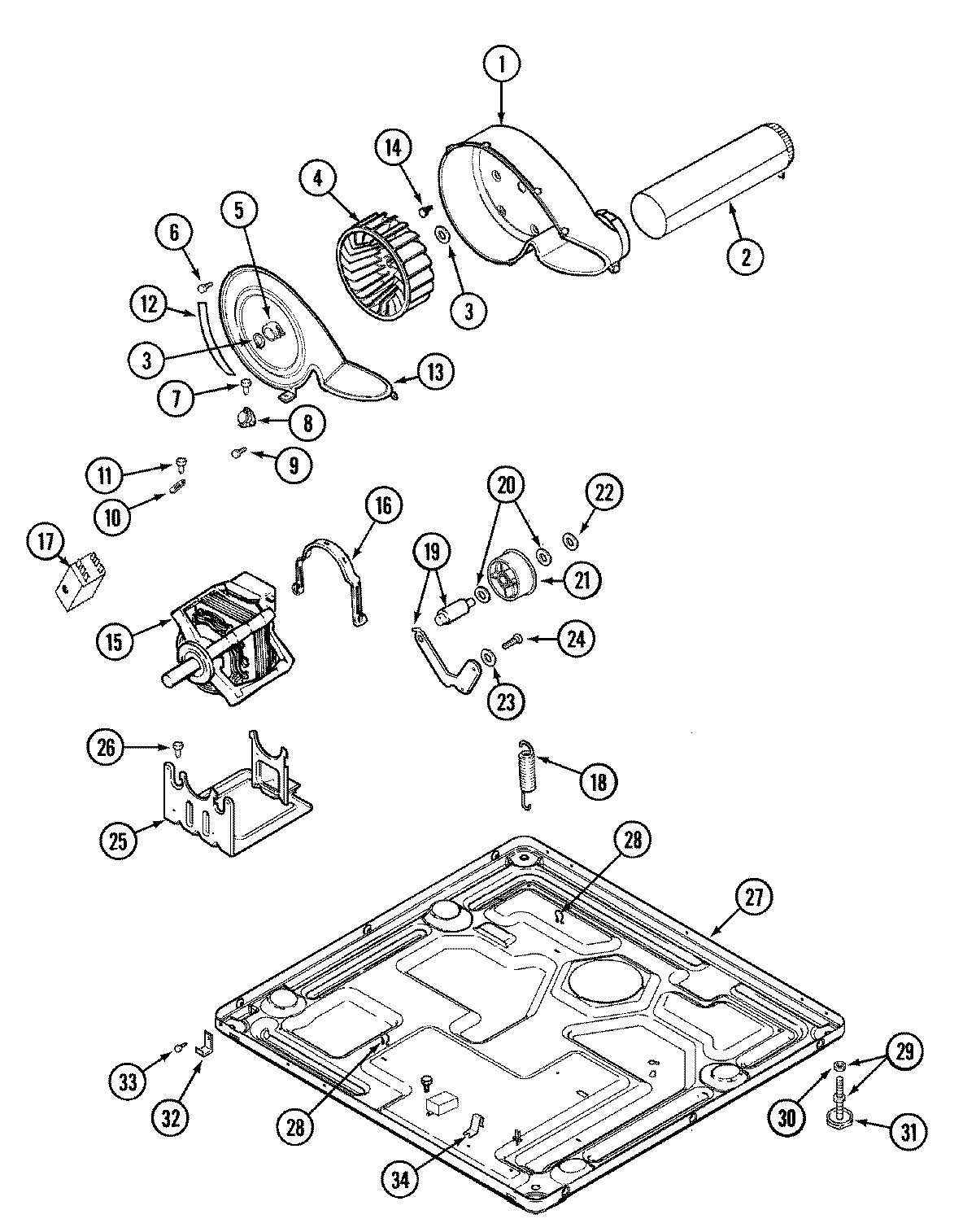

1

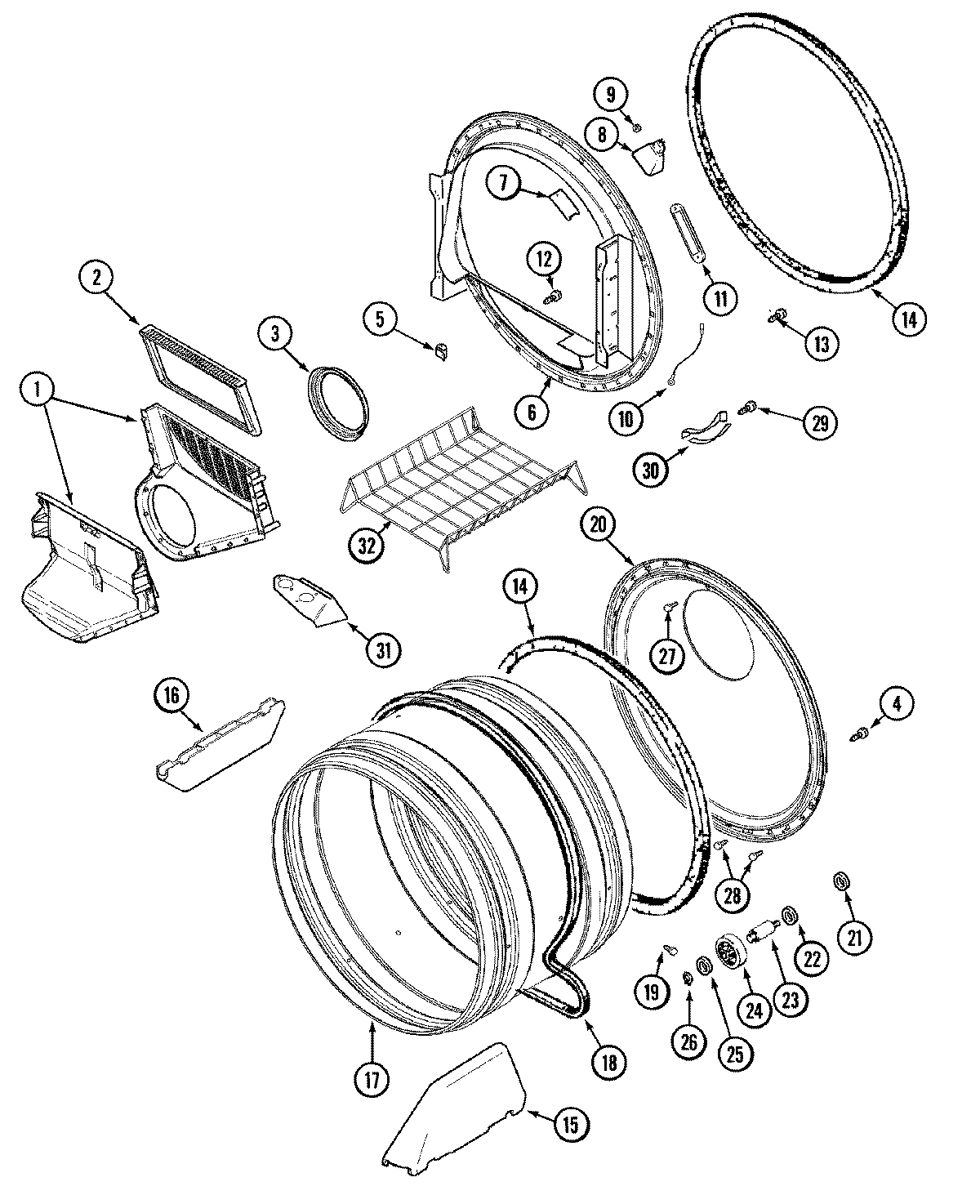

OUTLET DUCT ASSEMBLY WPL 33001799 Contact Us For Availability

1

LABEL, SAFETY WPL 33002118 Contact Us For Availability

1

LABEL, SAFETY WPL 33002119 Contact Us For Availability

1

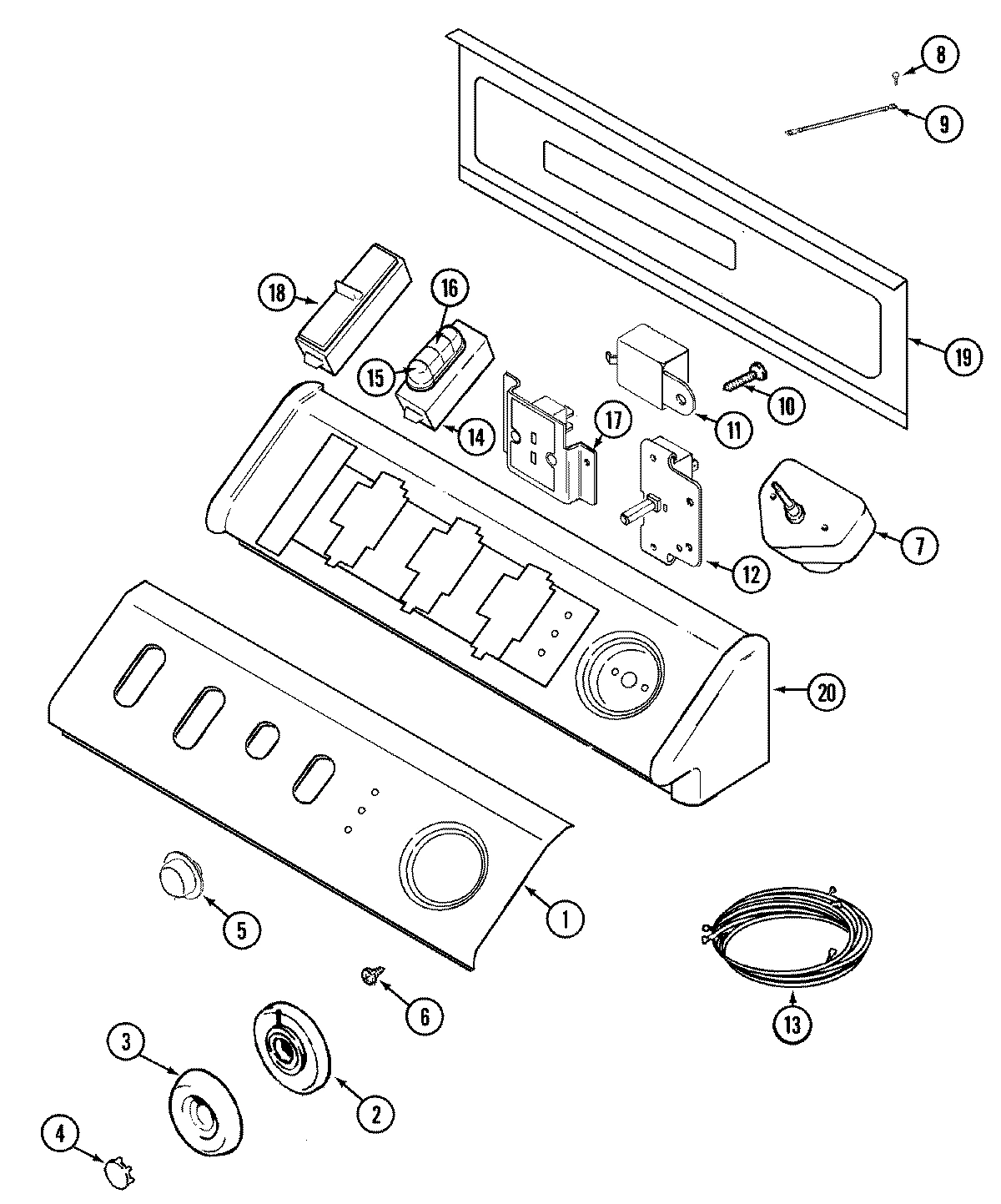

PANEL, CONTROL (WHT) WPL 33001857 Contact Us For Availability

1

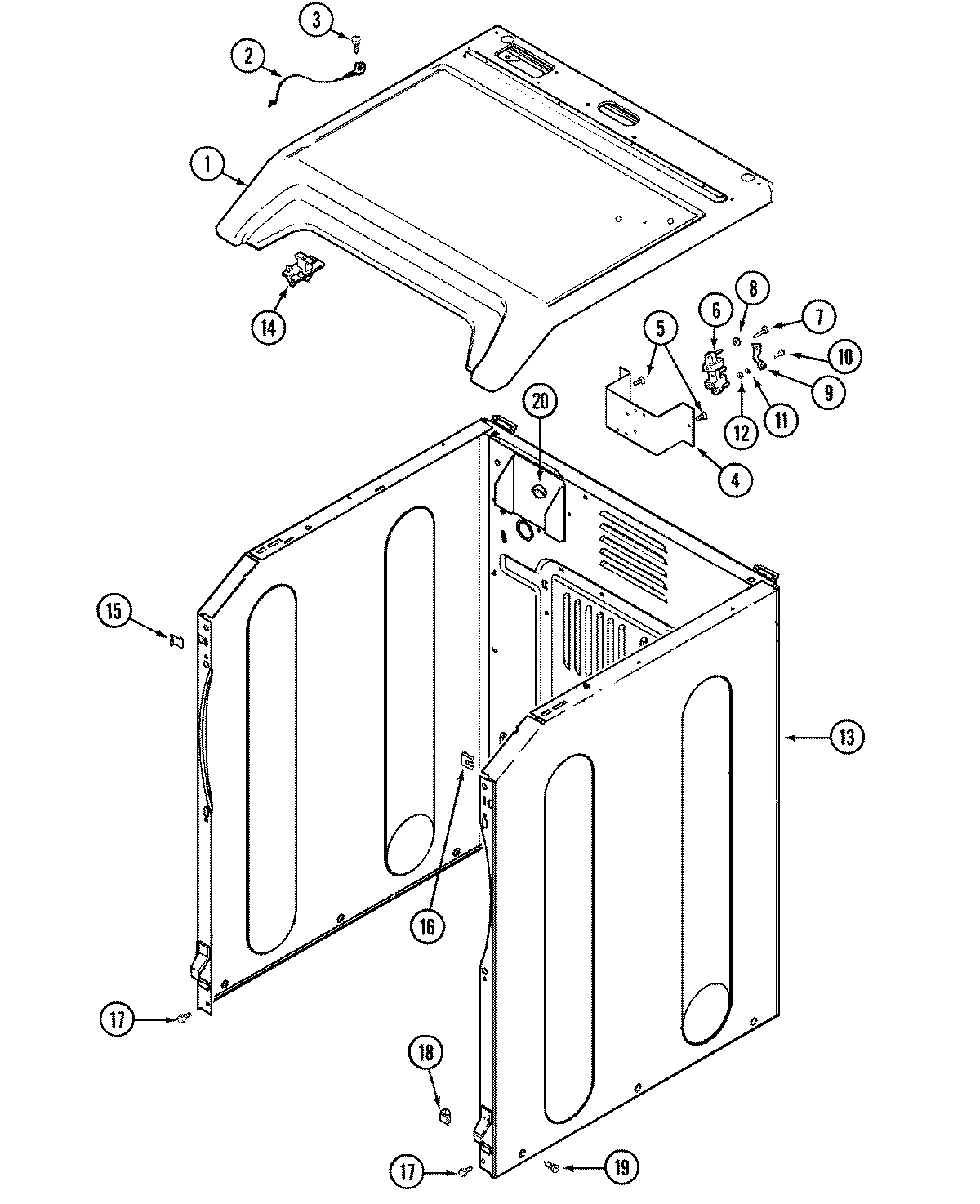

COVER, TOP (WHT) WPL 33001865 Contact Us For Availability

1

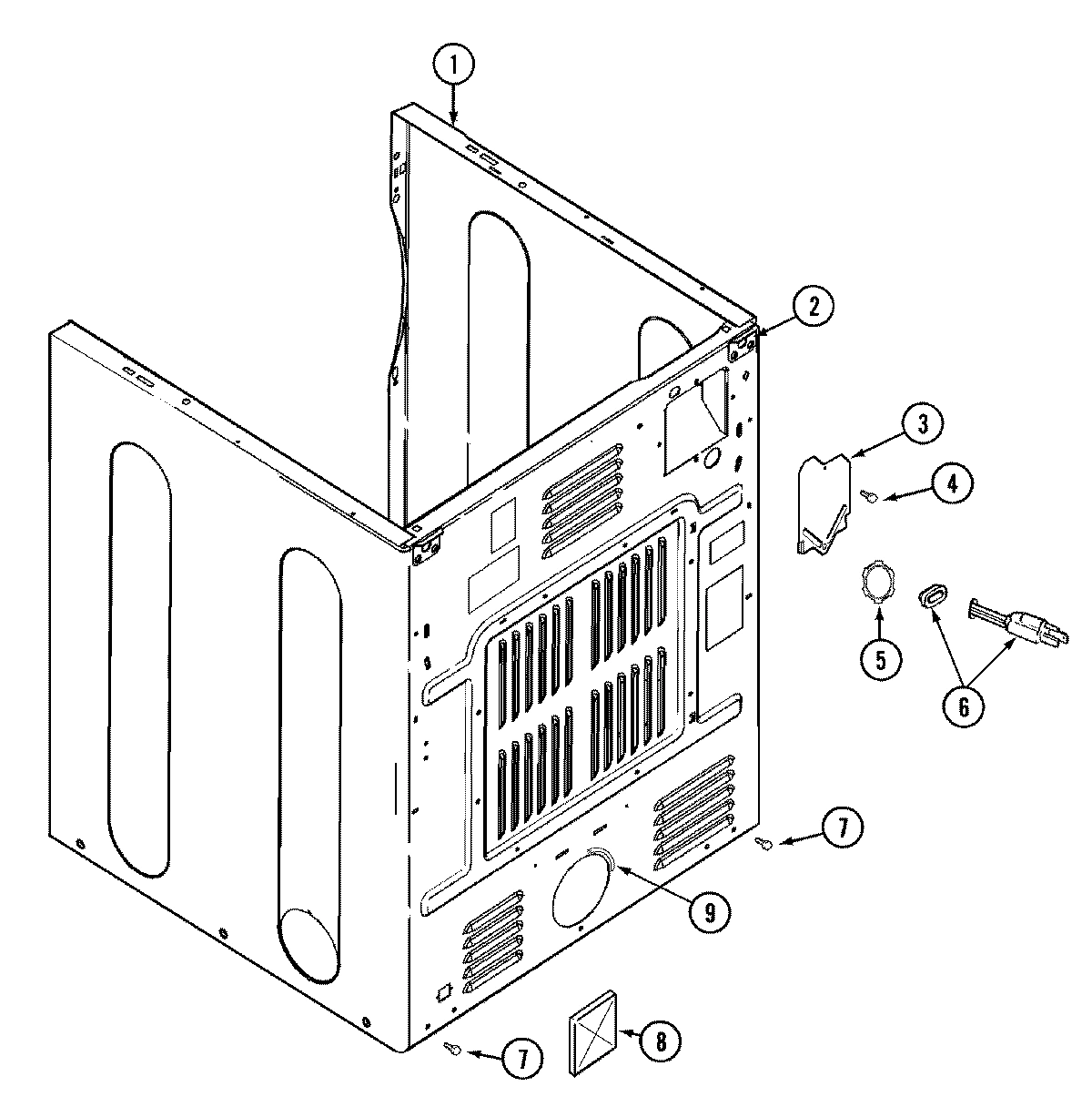

CABINET (BSQ) WPL 33002373 Contact Us For Availability

1

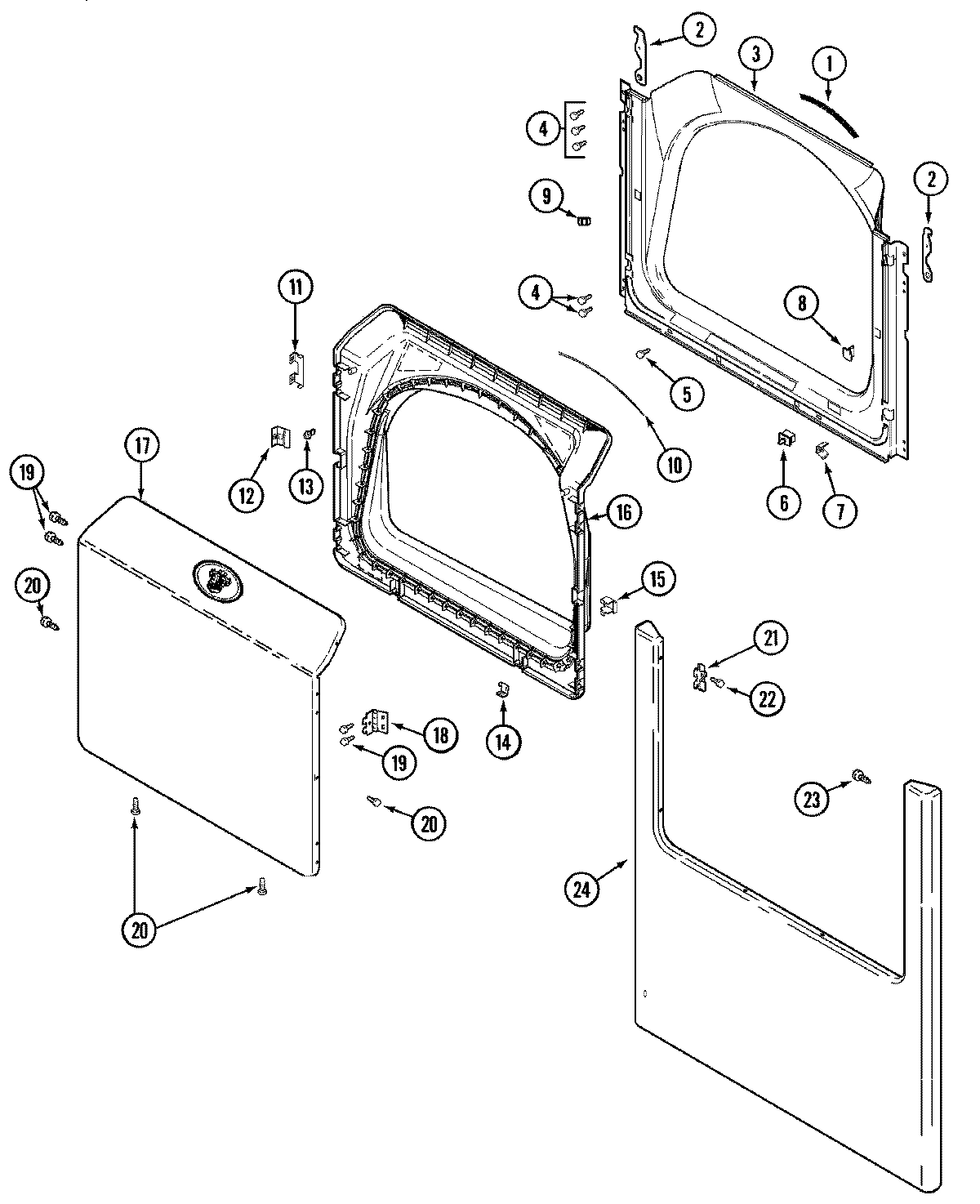

SEAL, SHROUD WPL 33001767 Contact Us For Availability

2

WP33001621 Whirlpool Dial Knob In Stock WPL WP33001621 $16.65

2

WP33001808 Whirlpool Lint Filter In Stock WPL WP33001808 $39.64

2

WP33002924 Whirlpool LP Conversion Gas In Stock WPL WP33002924 $57.79

2

BRACKET, CABINET HINGE WPL 33001827 Contact Us For Availability

2

WIRE, GROUND WPL 33001859 Contact Us For Availability

2

HOOK, SECURITY WPL 22002033 Contact Us For Availability

3

WP22001659 Whirlpool Timer Knob In Stock WPL WP22001659 $18.86

3

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $6.83

3

SCREW WPL 304971 Contact Us For Availability

3

SEAL, BLOWER WPL 33001758 Contact Us For Availability

3

COVER, TERMINAL BLOCK WPL 33001795 Contact Us For Availability

3

SHROUD (WHT) WPL 33001778 Contact Us For Availability

3

LABEL, SAFTEY WPL 33002116 Contact Us For Availability

4

33001790 Whirlpool Blower Wheel In Stock WPL 33001790 $21.72

4

4391996 Whirlpool Dryer Flat Igniter In Stock WPL 4391996 $22.45

4

W11573574 Whirlpool Screw In Stock WPL W11573574 $11.38

4

WP22001664 Whirlpool Timer Knob Backorder WPL WP22001664 $4.82

4

SCREW (No.10-3/8``) WPL 33002190 Contact Us For Availability

4

BRACKET, TERMINAL BLOCK----NA WPL 33001826 Contact Us For Availability

5

WP312967 Whirlpool Clamp In Stock WPL WP312967 $7.29

5

WP33002793 Whirlpool Burner Assembly Backorder WPL WP33002793 $132.39

5

GROMMET, CORD WPL 211881 Contact Us For Availability

5

BUTTON, PUSH TO START (WHT) WPL 33001619 Contact Us For Availability

5

SCREW, SHROUD WPL 33001768 Contact Us For Availability

6

W10169313 Whirlpool Door Switch Kit In Stock WPL W10169313 $21.70

6

W11705611 Whirlpool Block Ter In Stock WPL W11705611 $57.43

6

WP306176 Whirlpool Gas Valve In Stock WPL WP306176 $233.35

6

FRONT, TUMBLER FRONT W/SENSOR WPL 33001868 Contact Us For Availability

6

CORD, POWER WPL 33001246 Contact Us For Availability

7

W11164114 Whirlpool Screw Backorder WPL W11164114 $2.67

7

WP33001730 Whirlpool Timer In Stock WPL WP33001730 $168.73

7

LENS, DRUM LIGHT WPL 33001869 Contact Us For Availability

7

SCREW WPL 33001871 Contact Us For Availability

7

BRACKET, HINGE WPL 33001760 Contact Us For Availability

8

279834 Whirlpool Dryer Gas Valve Solenoid Coi In Stock WPL 279834 $25.18

8

LA-1003 Whirlpool Dryer Door Catch and Metal In Stock WPL LA-1003 $13.15

8

WP22002263 Whirlpool Dryer 10W Light Bulb In Stock WPL WP22002263 $9.39

8

WP3387134 Whirlpool Dryer Cycling Thermostat In Stock WPL WP3387134 $24.56

8

HOLDER, LAMP (W/HOUSING) WPL 33001870 Contact Us For Availability

8

FLAP, PIPE WPL 33001702 Contact Us For Availability

9

306436 Whirlpool Washer Dryer Door Catch and In Stock WPL 306436 $3.54

9

SCREW----NA WPL Y313561 Contact Us For Availability

9

PALNUT, END CAP WPL 214872 Contact Us For Availability

9

GUARD, EXHAUST DUCT WPL 33002283 Contact Us For Availability

9

STRAP, GROUND WPL Y312184 Contact Us For Availability

W10850756 Whirlpool Screw Backorder WPL W10850756 $4.82

WP33001762 Whirlpool Dryer Thermal Fuse In Stock WPL WP33001762 $39.97

WP33002094 Whirlpool Door Seal Backorder WPL WP33002094 $90.86

WP90767 Whirlpool Screw In Stock WPL WP90767 $4.26

BRACKET, GAS VALVE----NA WPL 33001834 Contact Us For Availability

SENSOR GROUND WIRE WPL Y303711 Contact Us For Availability

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $4.82

WP3177991 Whirlpool Screw Backorder WPL WP3177991 $4.82

SENSOR BAR ASSY. WPL 33001809 Contact Us For Availability

SIGNAL, END OF CYCLE WPL 33001660 Contact Us For Availability

SIGNAL, END OF CYCLE (CHIME) WPL 33001848 Contact Us For Availability

CLIP, DOOR (DOUBLE) WPL 22002038 Contact Us For Availability

WP311093 Whirlpool Washer 7 Backorder WPL WP311093 $4.82

WP33001793 Whirlpool Bracket Spring Backorder WPL WP33001793 $4.82

SEAL, BLOWER COVER WPL 33001772 Contact Us For Availability

SCREW WPL Y310632 Contact Us For Availability

SCREW----NA WPL 312311 Contact Us For Availability

SWITCH, PUSH TO START (WHT) WPL 33001861 Contact Us For Availability

3406051 Whirlpool Elbow Backorder WPL 3406051 $68.74

WP33002917 Whirlpool Screw Backorder WPL WP33002917 $4.82

COVER, BLOWER HOUSING----NA WPL 33001873 Contact Us For Availability

CABINET (WHT) WPL 33001843 Contact Us For Availability

WIRE HARNESS, MAIN WPL 33001864 Contact Us For Availability

WIRE HARNESS, MAIN WPL 33001887 Contact Us For Availability

STRIKE, DOOR (MALE) WPL 33001761 Contact Us For Availability

WP33001807 Whirlpool Felt Seal In Stock WPL WP33001807 $12.54

SCREW WPL 314818 Contact Us For Availability

PIPE & BRACKET ASSY. WPL 33001735 Contact Us For Availability

SWITCH, OPTION (4 POS.-WHT) WPL 22001908 Contact Us For Availability

PIN, LOCATOR WPL 33001872 Contact Us For Availability

CLIP, DOOR (SINGLE) WPL 22002039 Contact Us For Availability

W10410997 Whirlpool Drive Motor In Stock WPL W10410997 $123.19

WP33002032 Whirlpool Drum Baffle In Stock WPL WP33002032 $21.91

BUTTON, SWITCH (WHT-END) WPL 22001788 Contact Us For Availability

PLUG, INNER DOOR WPL 33001763 Contact Us For Availability

WP33001755 Whirlpool Drum Baffle In Stock WPL WP33001755 $26.50

WPY015825 Whirlpool Motor Clip Backorder WPL WPY015825 $13.87

DUCT ASSY., INLET (GAS) WPL 33001810 Contact Us For Availability

BUTTON, SWITCH (WHT-MDL) WPL 22001789 Contact Us For Availability

FRONT PANEL BRACKET/FASTENER WPL 213280 Contact Us For Availability

DOOR, INNER/ W SEAL (WHT) WPL 33001750 Contact Us For Availability

WP303395 Whirlpool Thermostat In Stock WPL WP303395 $33.27

TUMBLER WPL 33001889 Contact Us For Availability

DISPLAY, DRYNESS (WHT) WPL 33001661 Contact Us For Availability

PANEL, DOOR (WHT-W/MEDALLION) WPL 22002260 Contact Us For Availability

LABEL, OPEN DOOR (DRYER) WPL 33001893 Contact Us For Availability

33002459 Whirlpool Idler Spring Backorder WPL 33002459 $4.82

WP33001759 Whirlpool Door Hinge Backorder WPL WP33001759 $56.66

WP33002535 Whirlpool Dryer Drive Belt In Stock WPL WP33002535 $24.91

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $29.61

GROMMET WPL 33002157 Contact Us For Availability

SWITCH, TEMPERATURE (GAS) WPL 33001657 Contact Us For Availability

213007 Whirlpool Screw #12 Backorder WPL 213007 $7.90

WP6-3705180 Whirlpool Idler Pulley Lever In Stock WPL WP6-3705180 $53.48

WP98006631 Whirlpool Screw Backorder WPL WP98006631 $4.82

CONE ASSY., COMBUSTION WPL 33001835 Contact Us For Availability

SCREW, BAFFLE WPL 33001788 Contact Us For Availability

BACK, CONSOLE PANEL WPL 33001806 Contact Us For Availability

WPY312527 Whirlpool Dryer Idler Shaft Washer In Stock WPL WPY312527 $6.84

CONE, EXTENSION (COMBUSTION) WPL Y303841 Contact Us For Availability

CLIP, WIRE HARNESS WPL Y310376 Contact Us For Availability

BACK, TUMBLER (W/SEAL) WPL 33001801 Contact Us For Availability

CONSOLE (WHT) WPL 22002285 Contact Us For Availability

SCREW No.8-18AB WAFER HD WPL 22002063 Contact Us For Availability

21

WP33001443 Whirlpool Hex Nut Backorder WPL WP33001443 $4.82

21

BEARING, IDLER ASSEMBLY WPL 33001783 Contact Us For Availability

21

RETAINER, HEATER CHAMBER WPL Y312890 Contact Us For Availability

22

WP33001787 Whirlpool Screw Backorder WPL WP33001787 $7.38

22

WP354987 Whirlpool C-Clip In Stock WPL WP354987 $6.38

22

CAP, GAS PIPE WPL 33001693 Contact Us For Availability

23

WP315772 Whirlpool Sleeve Backorder WPL WP315772 $7.92

12001541 Whirlpool Dryer Drum Roller Kit In Stock WPL 12001541 $11.73

WPY014874 Whirlpool Screw Backorder WPL WPY014874 $4.82

PANEL, FRONT (WHT) WPL 22002241 Contact Us For Availability

PAD, FRONT WPL 33001867 Contact Us For Availability

25

WP312535 Whirlpool Washer Backorder WPL WP312535 $7.09

25

SUPPORT, MOTOR WPL 33001752 Contact Us For Availability

26

WP9703438 Whirlpool Snap Retaining Ring In Stock WPL WP9703438 $2.43

27

BASE WPL 33001845 Contact Us For Availability

27

SCREW, No.8 X 9/16 CTSK WPL 210932 Contact Us For Availability

28

SPRING, WIRE HARNESS WPL 410490 Contact Us For Availability

29

ADJUSTABLE LEG & NUT WPL W10176519 No Longer Available

29

WP210720 Whirlpool Rivet Backorder WPL WP210720 $8.89

30

306508 Whirlpool Dryer Front Glide Kit In Stock WPL 306508 $6.28

30

WP62739 Whirlpool Nut Backorder WPL WP62739 $4.82

32

CLIP, LOWER FRONT PANEL WPL 22002239 Contact Us For Availability

32

RACK, DRYING WPL 33001917 Contact Us For Availability

34

CLIP, GROUNDING WPL 22002244 Contact Us For Availability

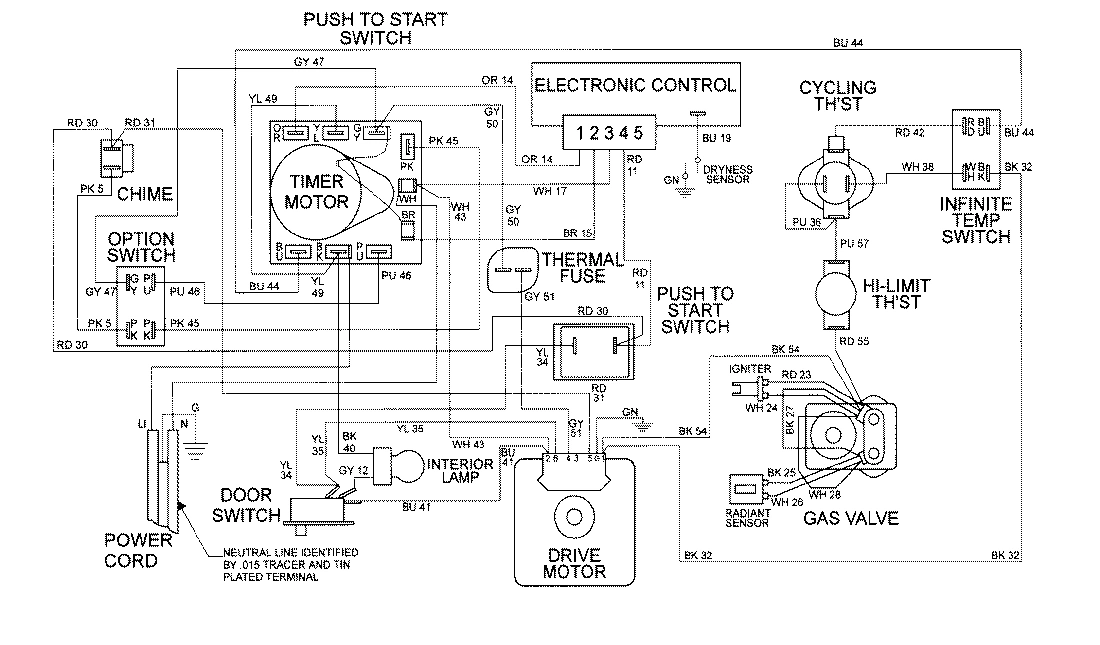

NI

WIRING INFORMATION WPL 15002204 Contact Us For Availability
