Model Whirlpool MDG26DAABG GAS DRYER – Common Parts & Diagrams

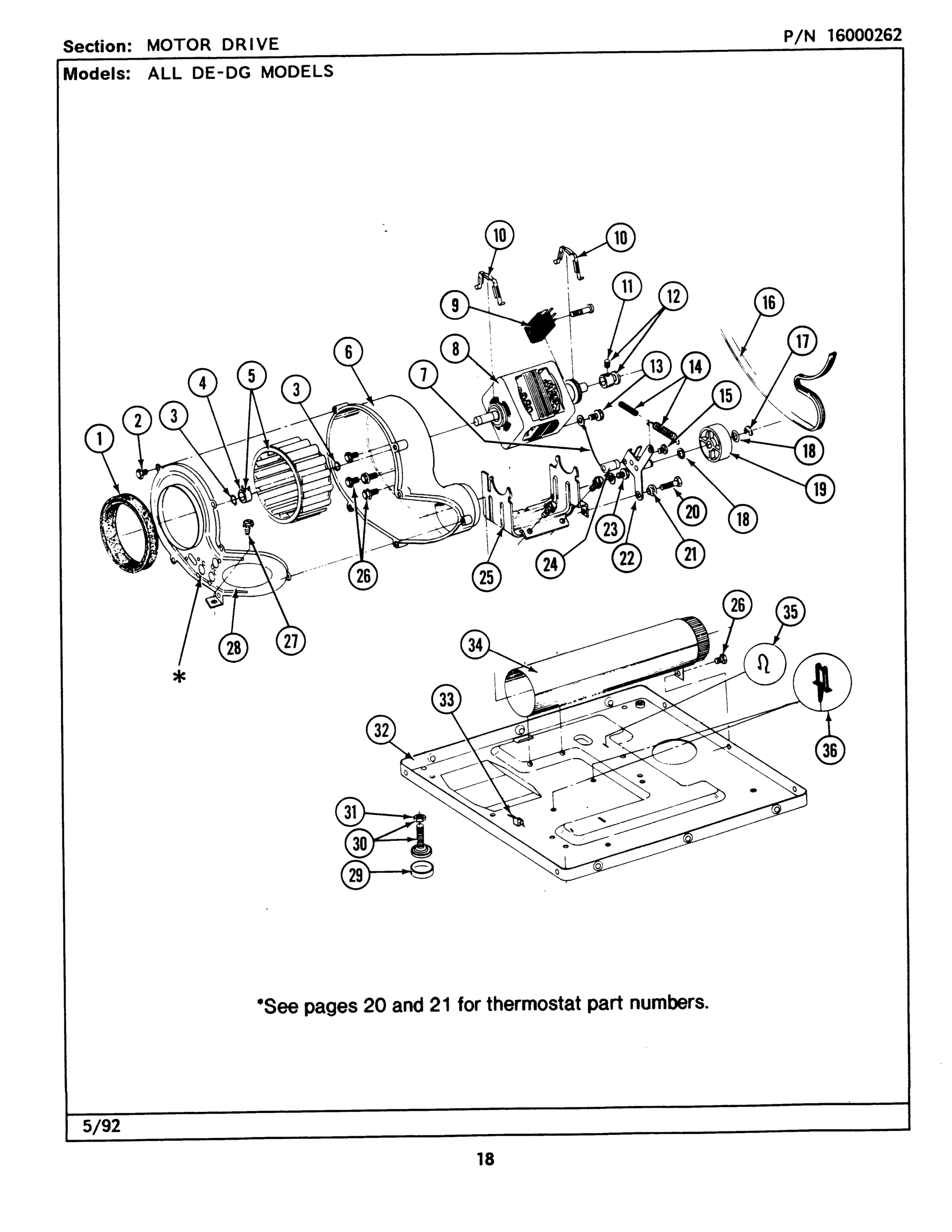

07 - MOTOR DRIVE

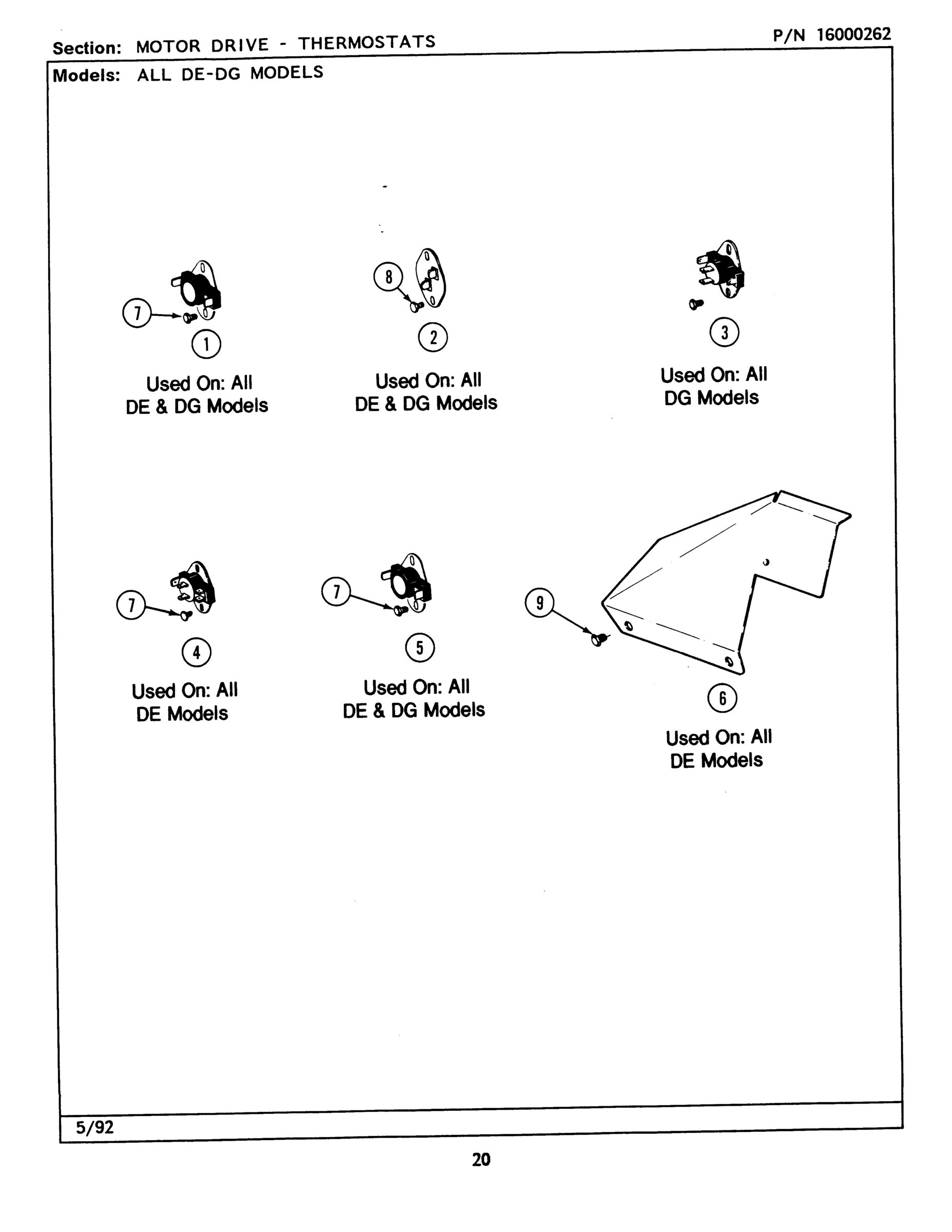

08 - MOTOR DRIVE-THERMOSTATS

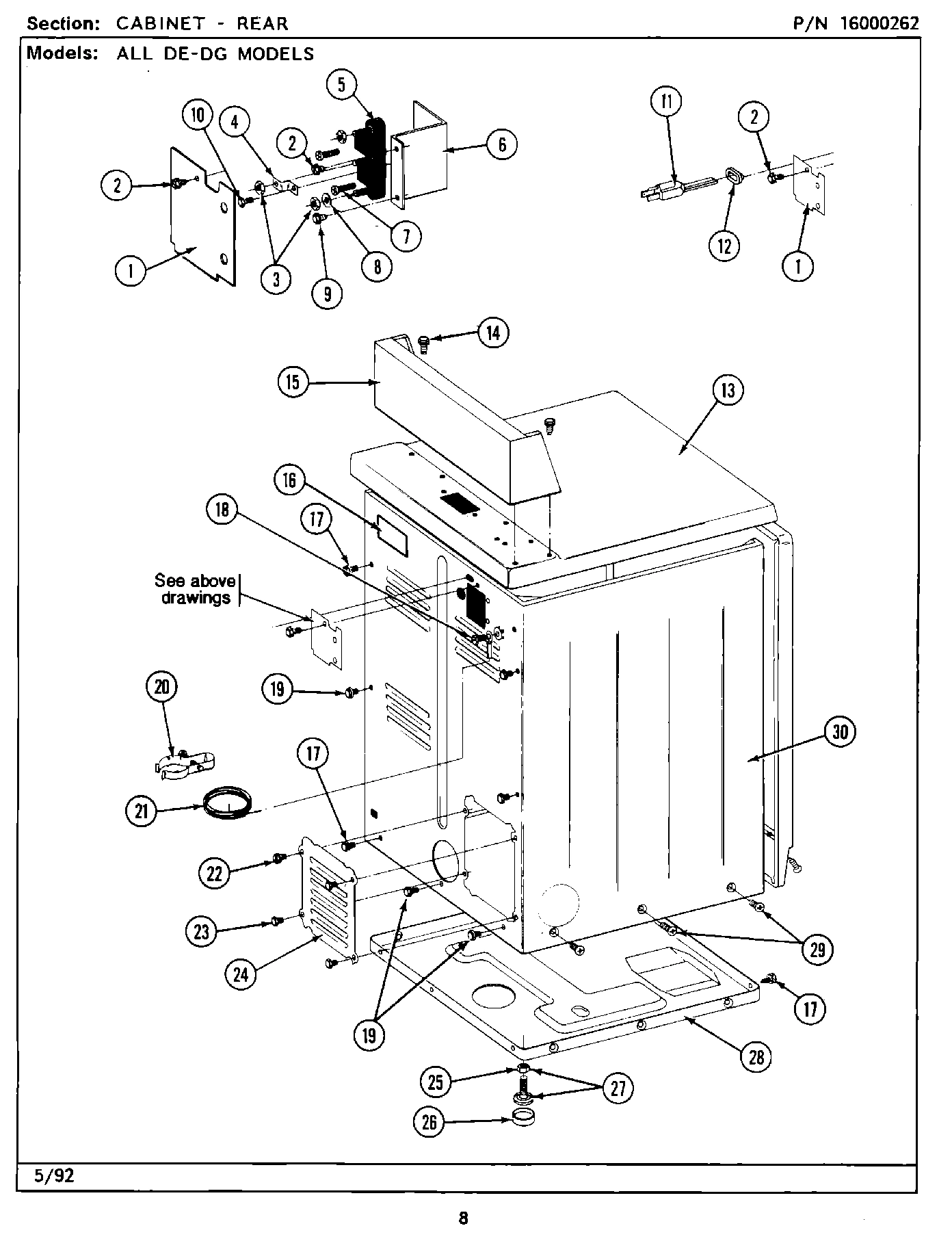

04 - CABINET-REAR

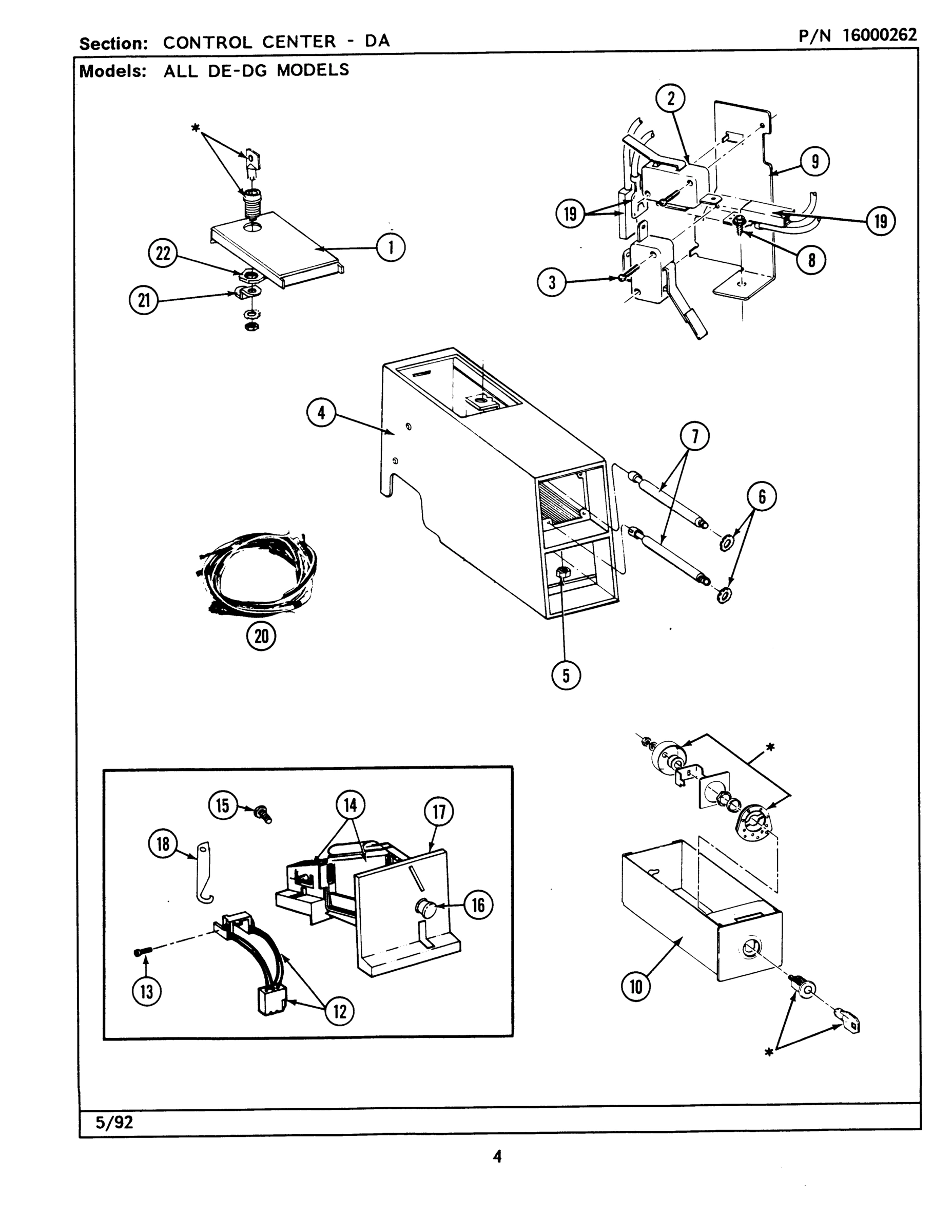

02 - CONTROL CENTER
03 - CABINET-FRONT

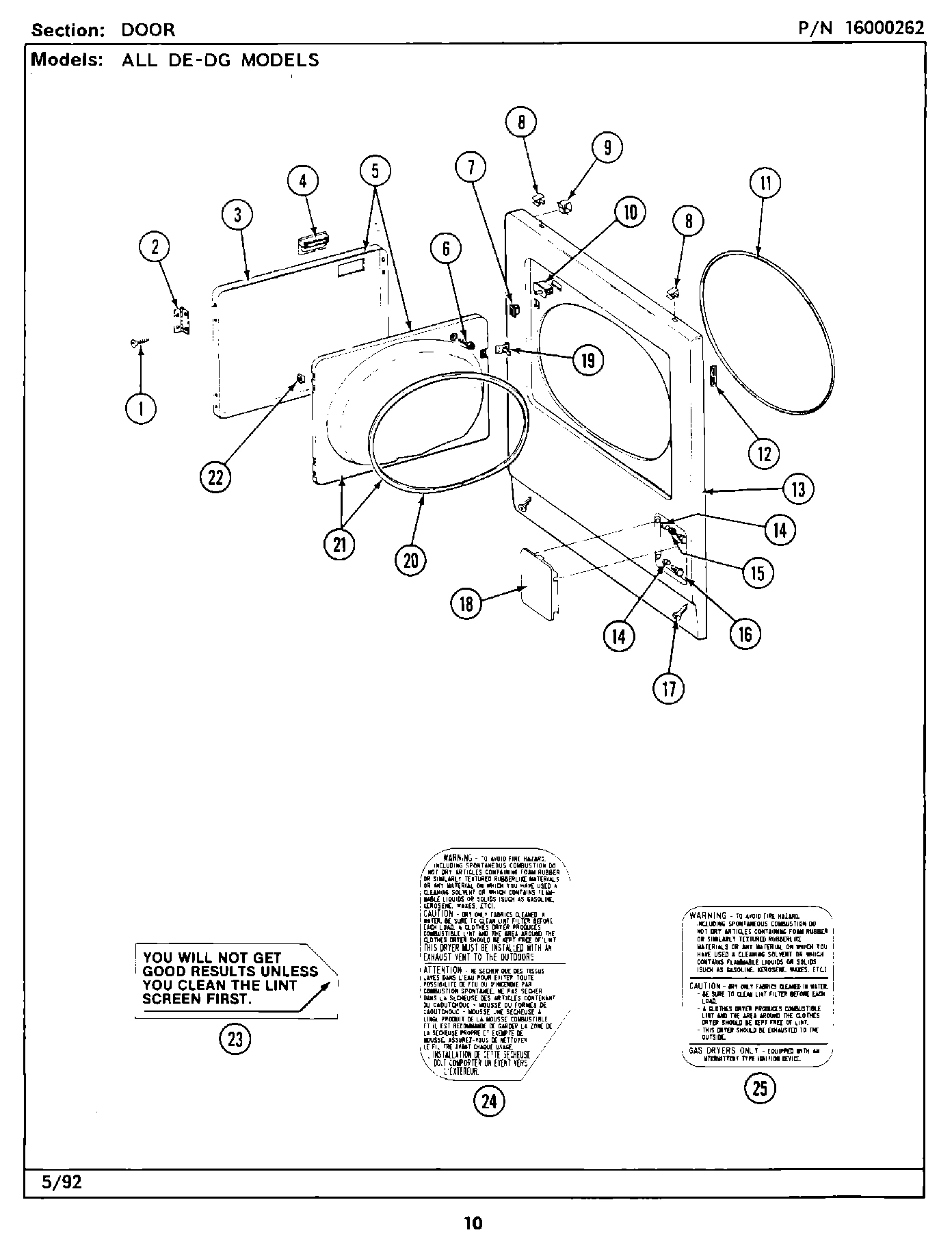

05 - DOOR

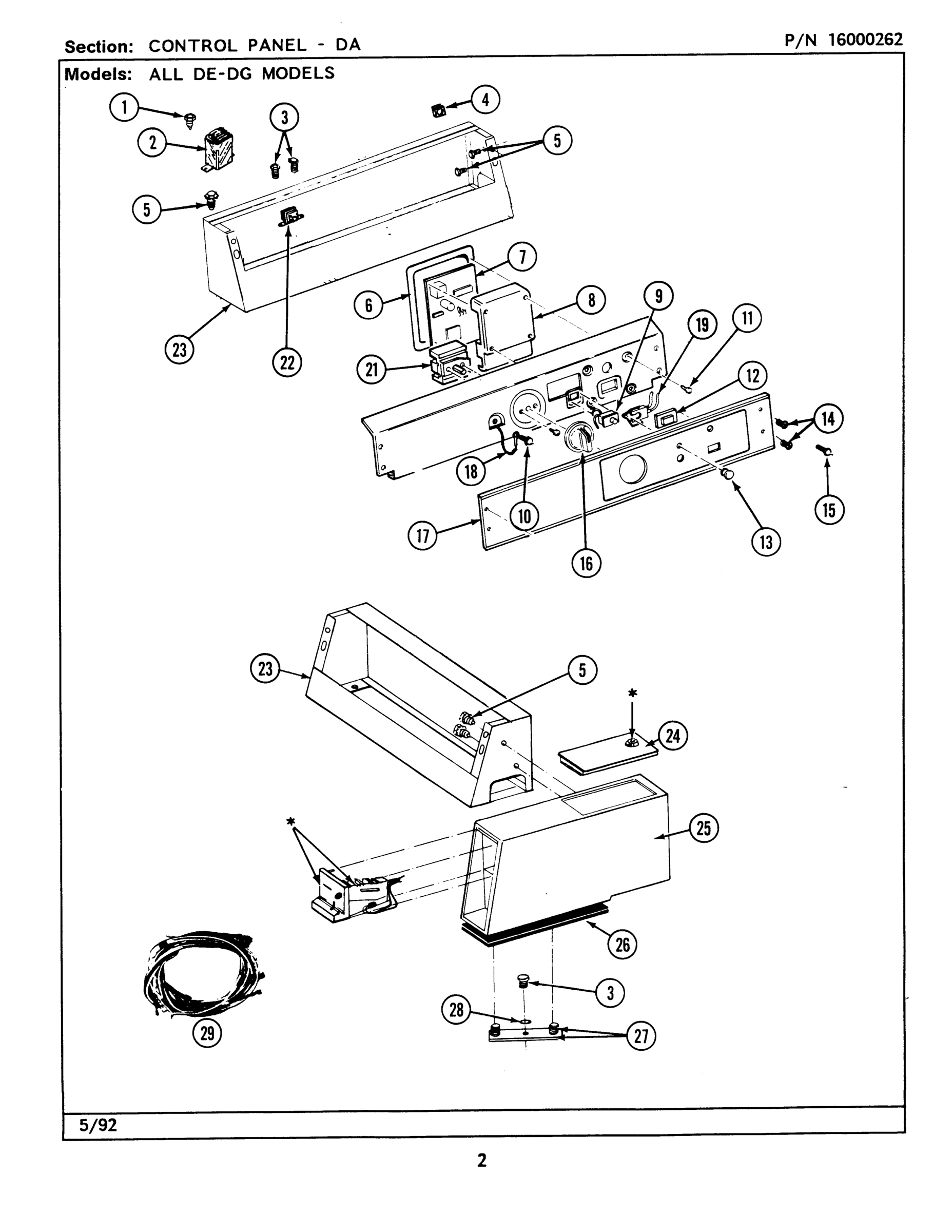

01 - CONTROL PANEL

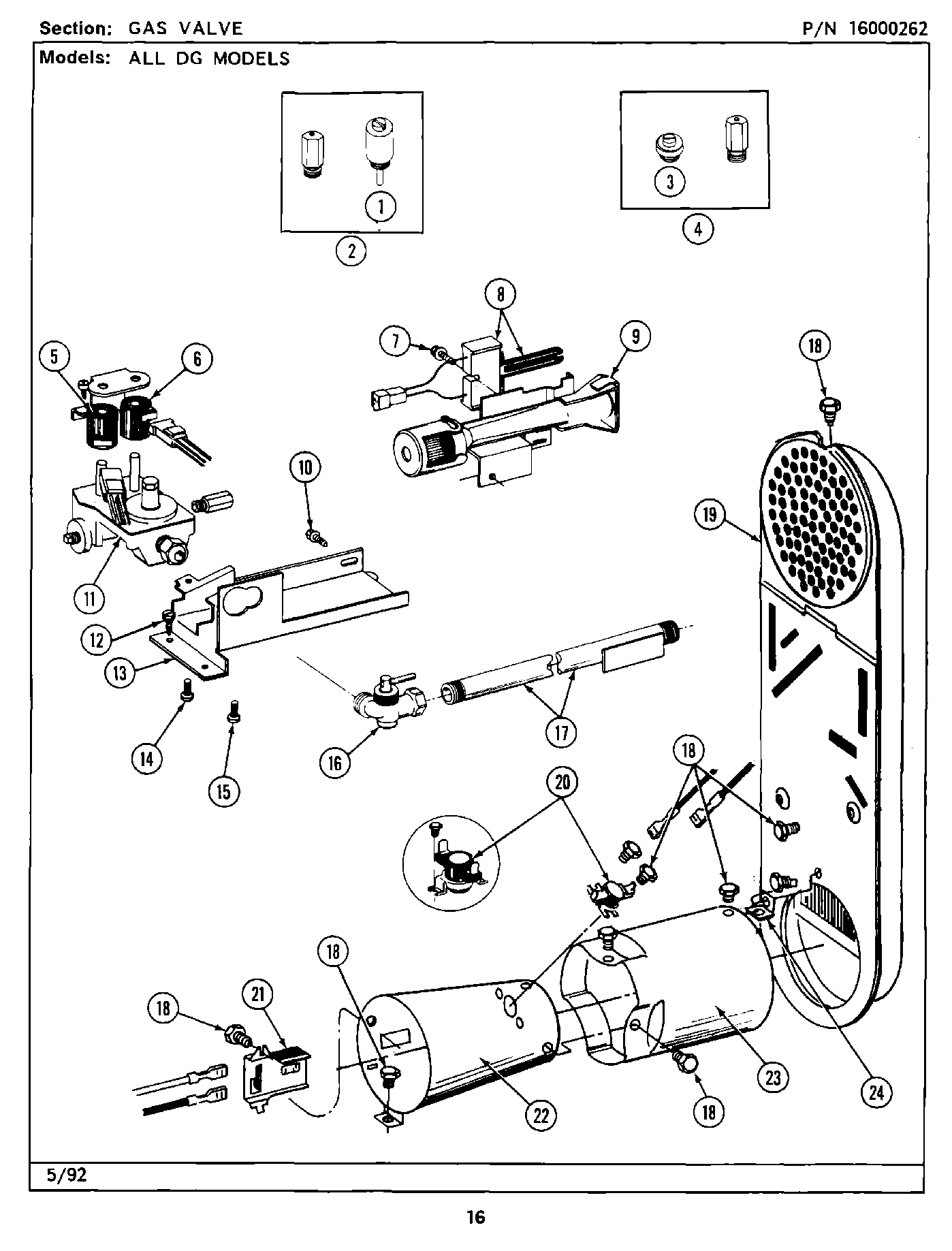

09 - GAS VALVE

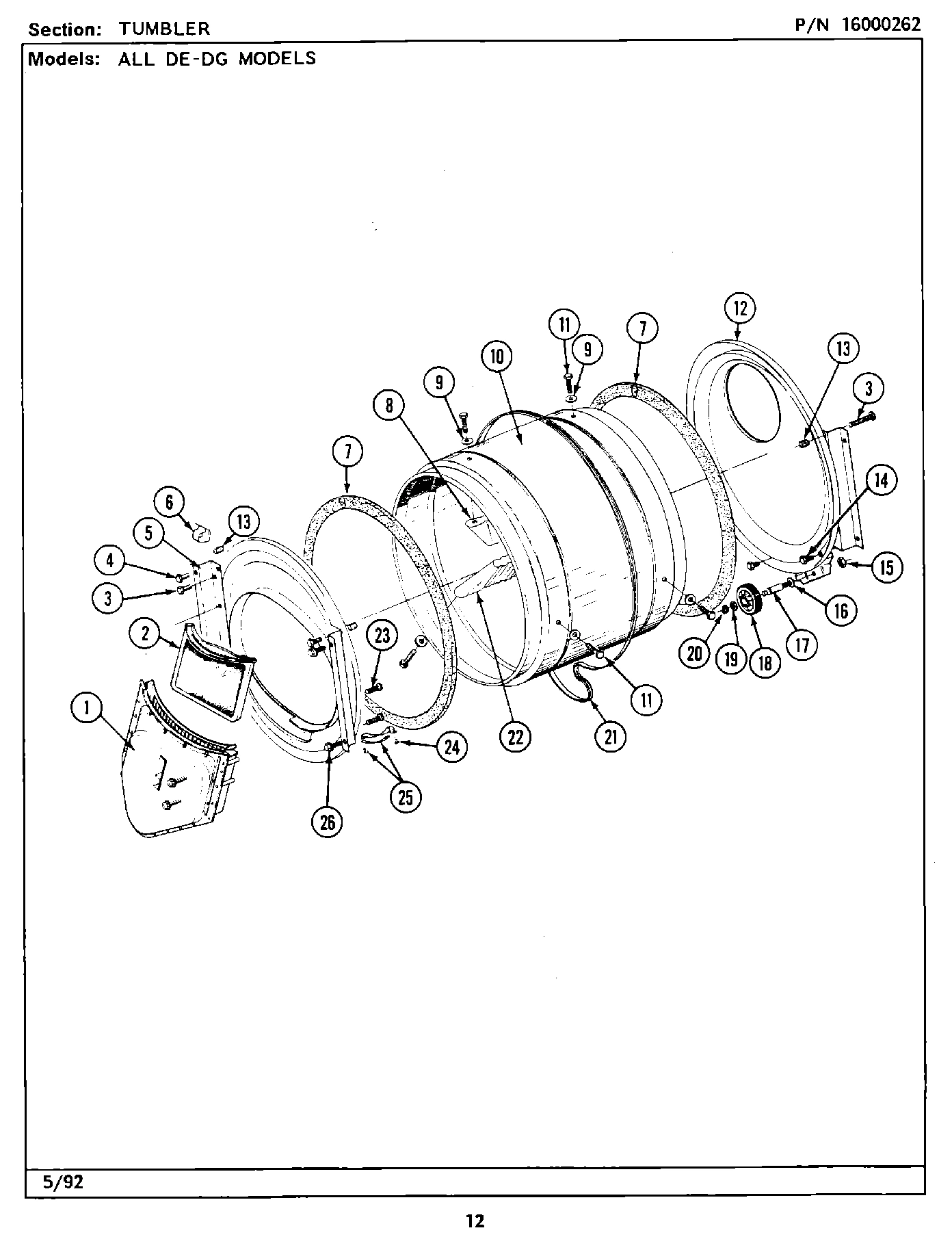

06 - TUMBLER
Common parts from model Whirlpool MDG26DAABG GAS DRYER
001
COVER, TERMINAL WPL Y312905 Contact Us For Availability
001
TOP COVER ASSY. (WHT) WPL 307105 Contact Us For Availability
001
SCREW, TERMINAL WPL Y314062 Contact Us For Availability
001
PLUG, BLOCKING (LPG REGULATOR) WPL 306184 Contact Us For Availability
001
DUCT, OUTLET ASSY. ----S WPL Y307112 Contact Us For Availability
002
HINGE WPL 307099 Contact Us For Availability
002
RELAY, HEATER MOTOR WPL 208048 Contact Us For Availability
002
CONVERSION KIT (NAT TO LP) WPL Y308378 Contact Us For Availability
002
SCREEN, LINT WPL 307108 Contact Us For Availability
003
THERMOSTAT, MULTI-TEMP WPL 306966 Contact Us For Availability
003
SCREW, SENSOR SWITCHES WPL 912012 Contact Us For Availability
003
PANEL, OUTER (WHT) WPL 314966 Contact Us For Availability
004
SCREW, TUMBLER FRONT WPL Y313561 Contact Us For Availability
004
HANDLE (WHT) WPL 314946 Contact Us For Availability
004
(ALM) WPL 314972 Contact Us For Availability
004
FASTENER, CONTROL PANEL WPL 215003 Contact Us For Availability
004
CONVERSION KIT (LP TO NAT.) WPL Y308377 Contact Us For Availability
005
THERMOSTAT, LIMIT WPL 308211 Contact Us For Availability
005
DOOR ASSY. COMPLETE (WHT) WPL Y307111 Contact Us For Availability
005
FRONT, TUMBLER (W/SEAL) WPL 307109 Contact Us For Availability
006
HOUSING, BLOWER WPL Y312893 Contact Us For Availability
006
CLIP, WIRE HARNESS WPL Y310376 Contact Us For Availability
006
WASHER, LOCK WPL 910181 Contact Us For Availability
007
BOLT, LOCKING WPL 213035 Contact Us For Availability
007
SCREW, IGNITER WPL 304971 Contact Us For Availability
008
BAFFLE (SHORT) WPL 314803 Contact Us For Availability
009
SWITCH, EXTERNAL START (MOTOR) PROD.3-3358-2, WPL Y303877 Contact Us For Availability
009
SWITCH, EXTERNAL START (MOTOR) PROD. 3-3358, WPL Y303879 Contact Us For Availability
009
WASHER, BAFFLE WPL 314158 Contact Us For Availability
010
NOT REQUIRED WPL W10124350 Contact Us For Availability
010
BOX, COIN (WHT)----SUB WPL 207912 Contact Us For Availability
010
(ALM) WPL 207912L Contact Us For Availability
010
TUMBLER W/BAFFLES WPL 306663 Contact Us For Availability
010
TUMBLER W/OUT BAFFLES WPL 314802 Contact Us For Availability
011
SCREW, TUMBLER BAFFLES WPL Y310759 Contact Us For Availability
011
SCREW, SET PULLEY WPL Y053241 Contact Us For Availability
011
CORD, POWER WPL 302521 Contact Us For Availability
011
SEAL, FRONT PANEL WPL 314937 Contact Us For Availability
011
SCREW, ENCLOSURE WPL 312956 Contact Us For Availability
012
PULLEY, MOTOR (W/SET SCREW) WPL Y305185 Contact Us For Availability
012
GROMMET, POWER CORD WPL 211881 Contact Us For Availability
012
SWITCH, OPTIC ASSY. WPL 206799 Contact Us For Availability
012
FASTENER, TWIN (HINGES) WPL Y313907 Contact Us For Availability
012
BACK, TUMBLER (W/SEAL) ---S WPL Y307114 Contact Us For Availability
012
BACK, TUMBLER (W/SEAL) ---S WPL Y308544 Contact Us For Availability
013
COVER, THREAD WPL NLA Contact Us For Availability
013
(ALM) WPL 307998L Contact Us For Availability
013
BRACKET, GAS VALVE WPL 314566 Contact Us For Availability
014
SPRING ASSY., IDLER WPL Y303945 Contact Us For Availability
014
BASE ASSY. WPL Y303361 Contact Us For Availability
014
REJECTOR, COIN (25 CENTS) WPL 207949 Contact Us For Availability
015
SLEEVE, RUBBER WPL 312369 Contact Us For Availability
016
ADJUSTABLE LEG & NUT WPL W10176519 No Longer Available
016
LABEL, ELECTRICAL INSTRUCTION WPL 214519 Contact Us For Availability
016
BUTTON, RETURN WPL 216009 Contact Us For Availability
016
SCREW, BUSHINGS WPL 212949 Contact Us For Availability
016
KNOB, SELECTOR SWITCH WPL 306938 Contact Us For Availability
016
SHUT-OFF, GAS VALVE WPL Y303349 Contact Us For Availability
017
PLATE, MOUNTING WPL 216010 Contact Us For Availability
017
SCREW & FASTENERS ASSY. WPL 204439 Contact Us For Availability
017
PIPE & BRACKET ASSY. WPL Y303383 Contact Us For Availability
018
SPRING, BUTTON WPL 216011 Contact Us For Availability
018
WIRE, GROUND WPL 205810 Contact Us For Availability
019
LIGHT, INDICATOR WPL 204075 Contact Us For Availability
019
INLET DUCT ASSY. WPL 307119 Contact Us For Availability
020
CLAMP, GROUND (W/SCREW) WPL 301548 Contact Us For Availability
020
SEAL, DOOR WPL 314935 Contact Us For Availability
020
BRACKET, BACK (WHT) WPL 315343 Contact Us For Availability
021
DOOR ASSY. COMPLETE (WHT) WPL 308061 Contact Us For Availability
021
DOOR, INNER (W/SEAL) WPL 307098 Contact Us For Availability
022
CLIP, DOOR LINER WPL Y313910 Contact Us For Availability
022
CONE, COMBUSTION WPL Y303368 Contact Us For Availability
022
CONE, COMBUSTION WPL Y308548 Contact Us For Availability
023
SCREW & FASTENER ASY. WPL 204445 Contact Us For Availability
023
LABEL, LINT SCREEN INSTR. WPL Y313340 Contact Us For Availability
023
CONE, EXTENSION (COMBUST.) WPL Y303841 Contact Us For Availability
024
COVER, ACCESS WPL Y312951 Contact Us For Availability
024
ACCESS DOOR (WHT) WPL 203188 Contact Us For Availability
024
(ALM) WPL 203188L Contact Us For Availability
024
(HVST WHEAT) WPL 203188M Contact Us For Availability
024
LABEL, INSTRUCTION WPL 314941 Contact Us For Availability
024
RETAINER, HEATER CHAMBER WPL Y312890 Contact Us For Availability
025
CASE, COIN METER (WHT) WPL 207940 Contact Us For Availability
025
(ALM) WPL 207940L Contact Us For Availability
026
SCREW, TUMBLER FRONT WPL Y310632 Contact Us For Availability
026
GASKET, METER CASE WPL 214660 Contact Us For Availability
028
COVER, BLOWER HOUSING WPL 314847 Contact Us For Availability
028
WASHER, MTG. STRAP WPL 910309 Contact Us For Availability
029
HARNESS, WIRE (SWITCHES) SENSOR SWITCHES TO C WPL 208045 Contact Us For Availability
034
DUCT, EXHAUST WPL Y303442 Contact Us For Availability
035
SPRING, WIRE HARNESS WPL 410490 Contact Us For Availability
036
RETAINER, WIRE HARNESS WPL Y313262 Contact Us For Availability
× ![]()
