Model Whirlpool MDG26CSAGL GAS DRYER – Common Parts & Diagrams
01 - FRONT

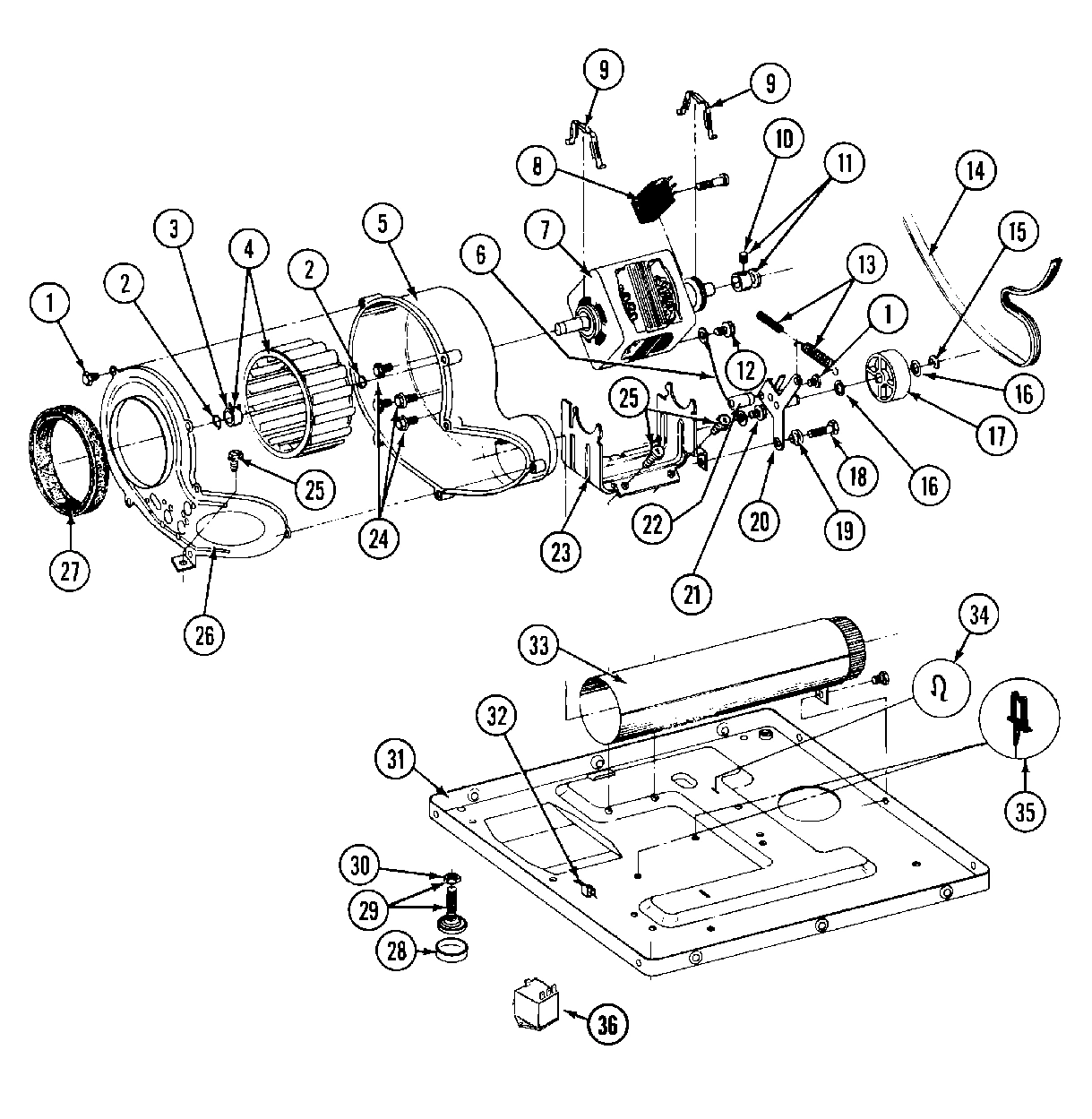

08 - MOTOR DRIVE, BLOWER & BASE FRAME

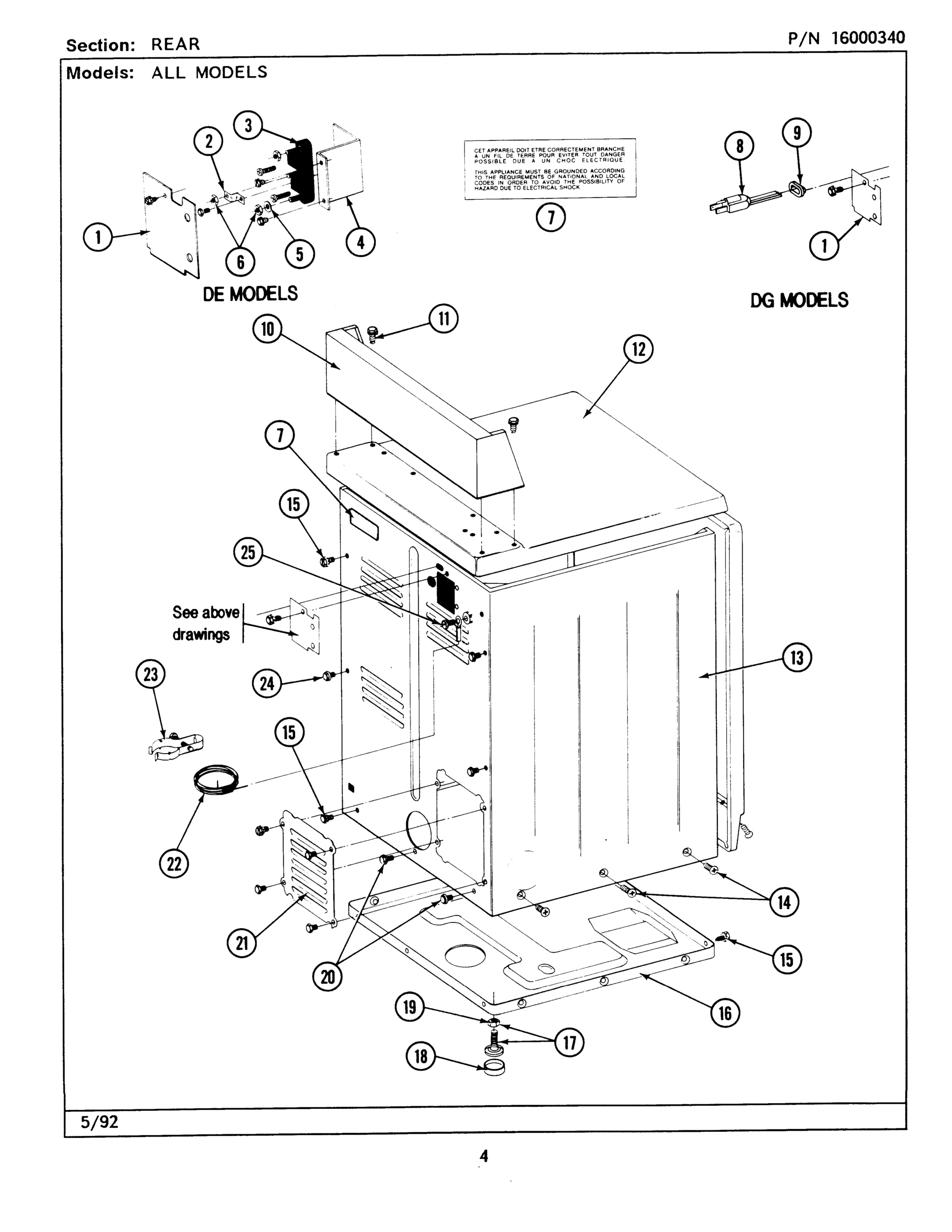

02 - REAR

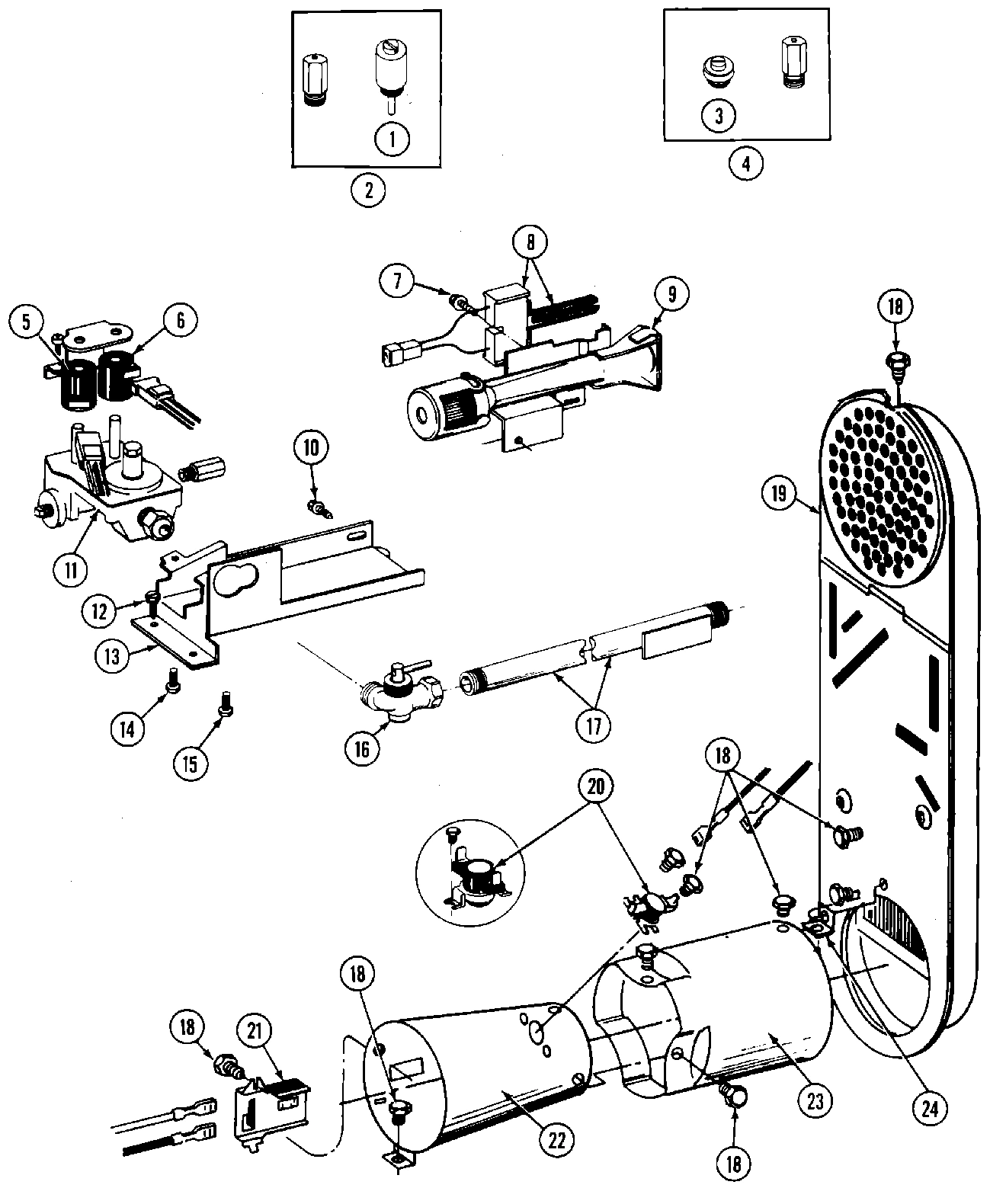

07 - GAS VALVE

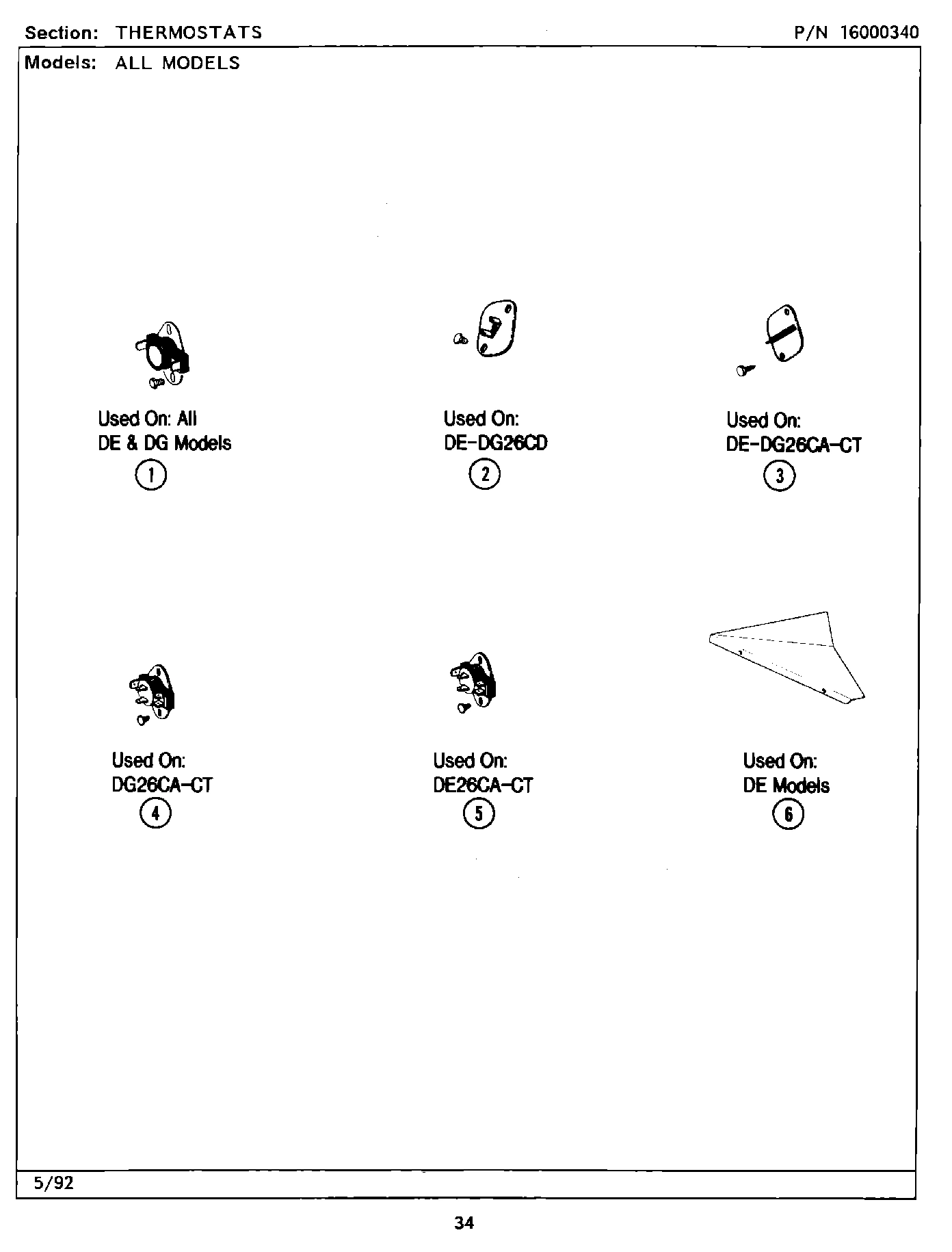

09 - THERMOSTATS

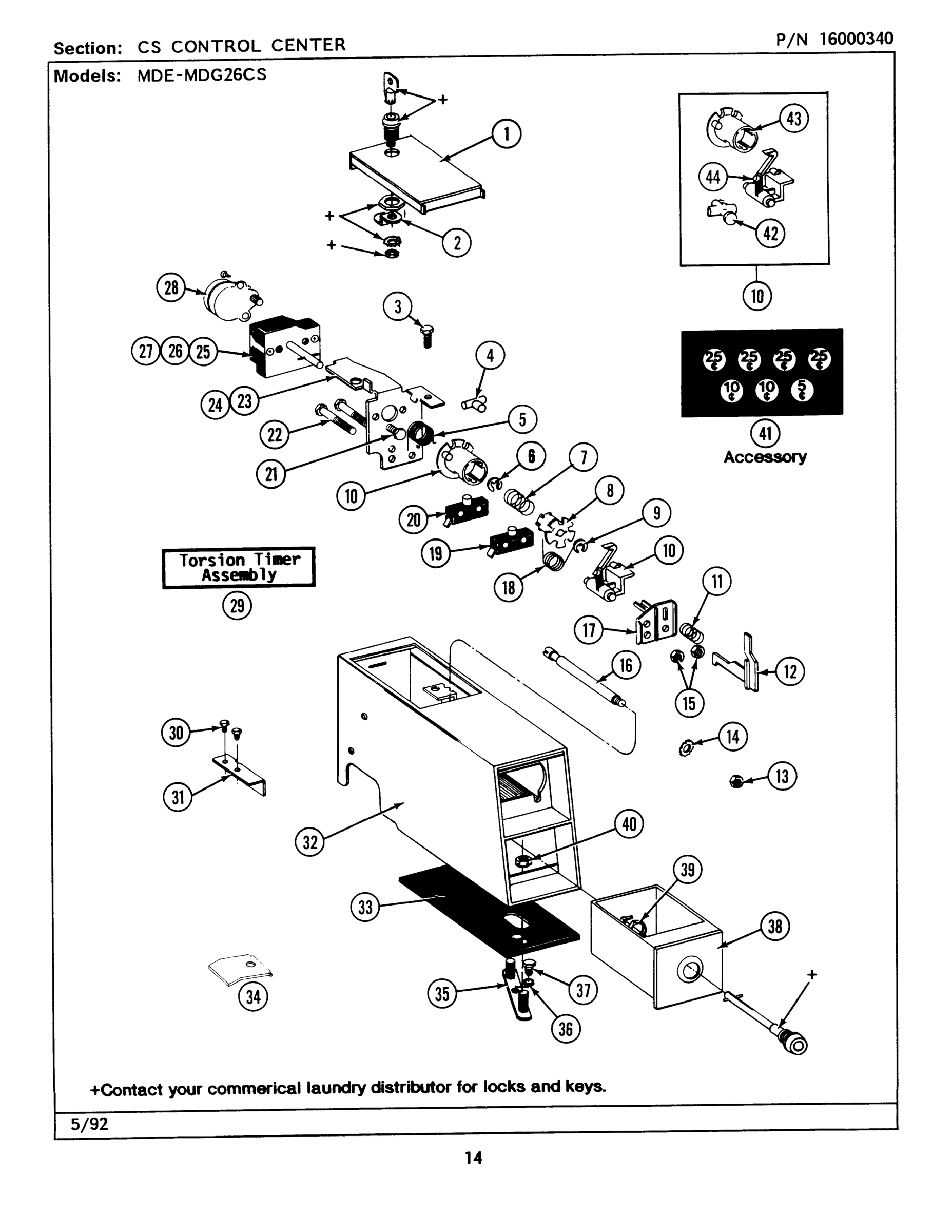

04 - CS CONTROL CENTER

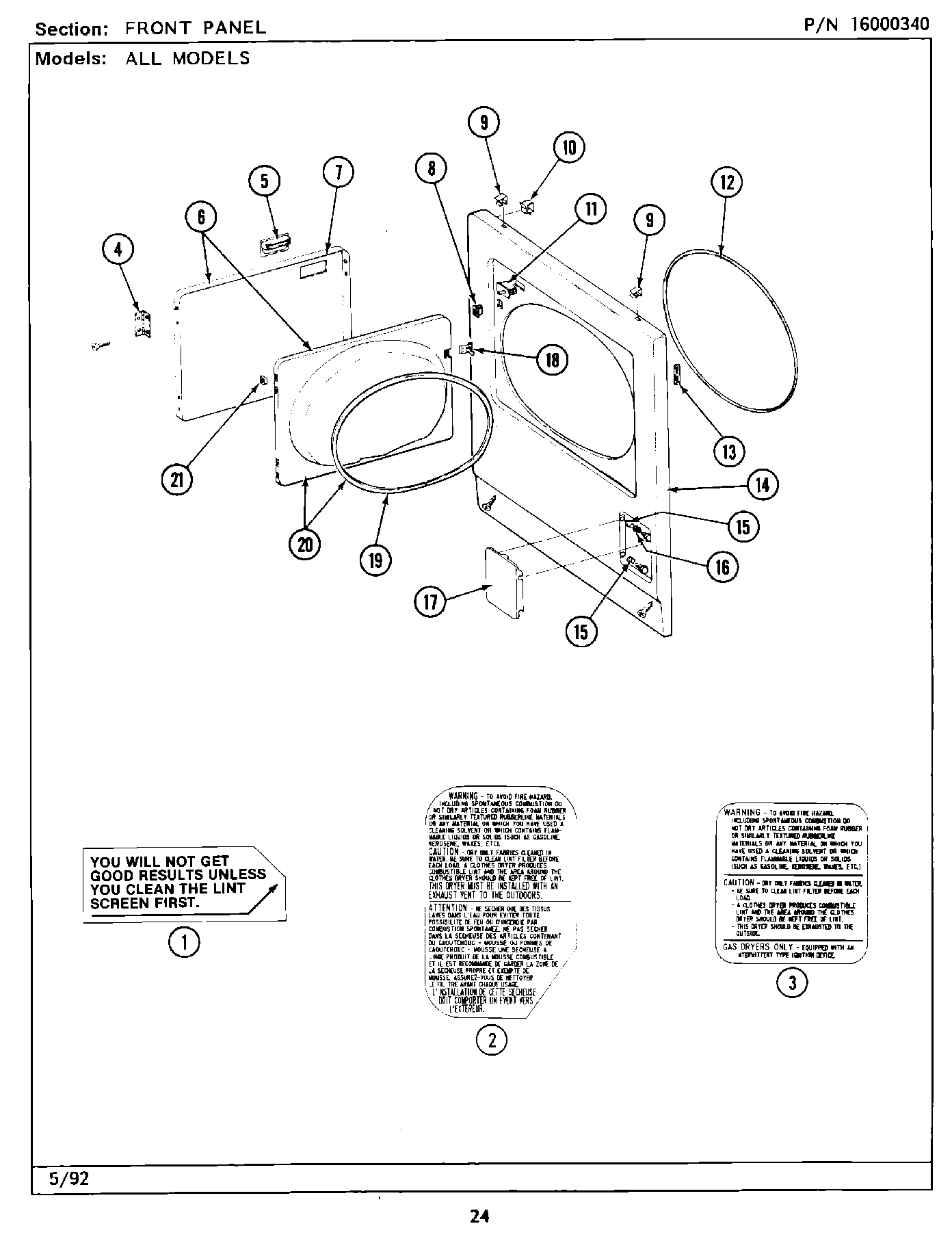

05 - FRONT PANEL
11 - 50 HZ CONVERSION LIST

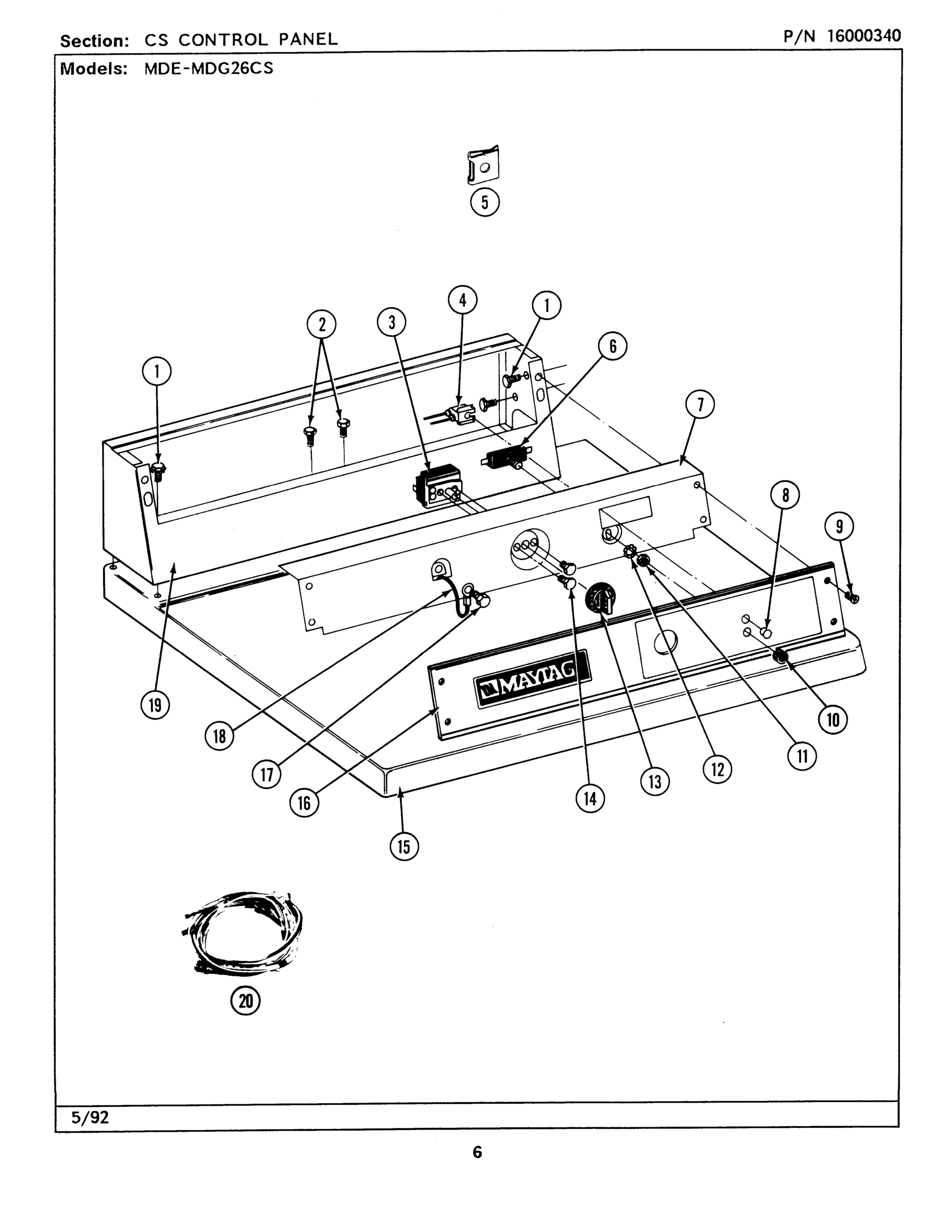

03 - CS CONTROL PANEL

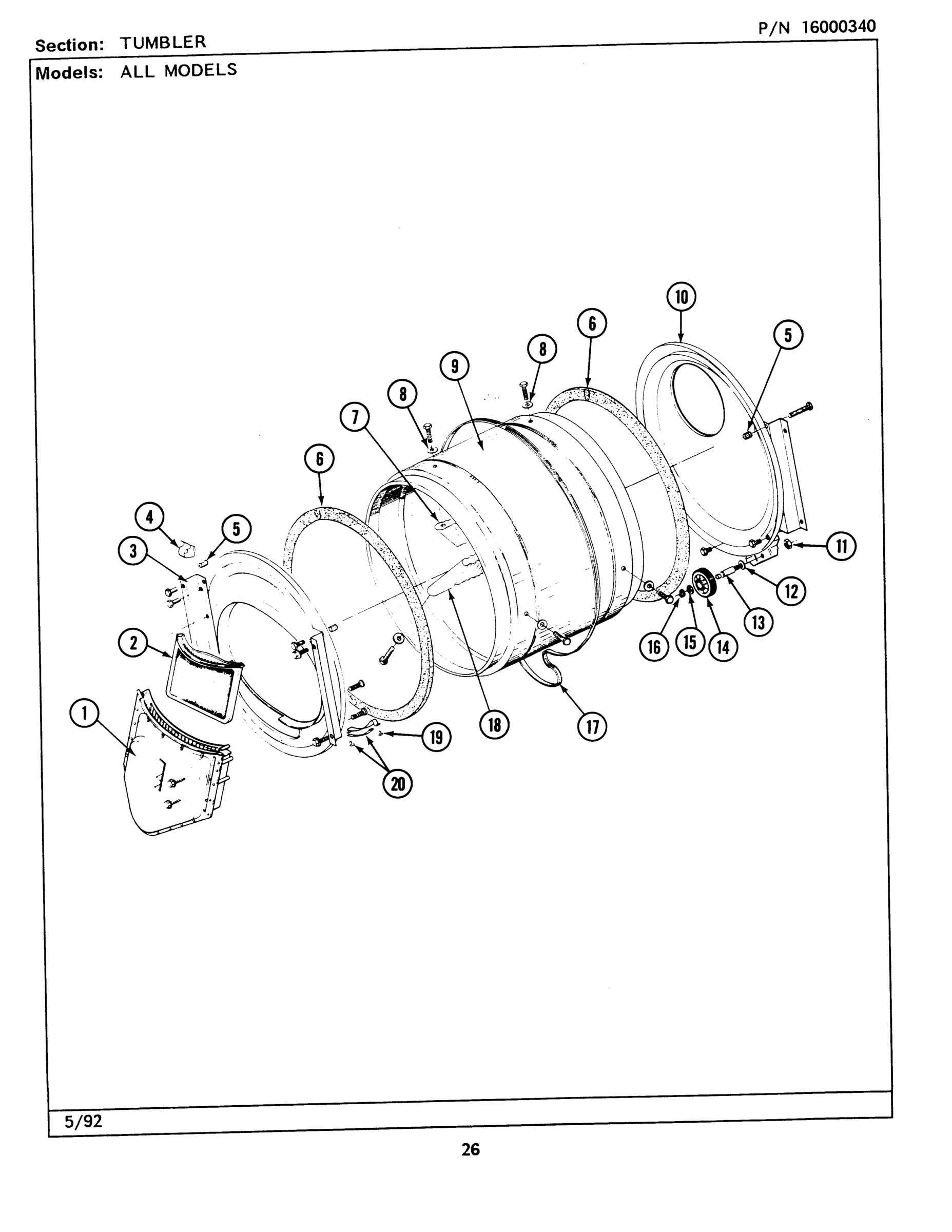

06 - TUMBLER
10 - 50 HZ GAS VALVE
Common parts from model Whirlpool MDG26CSAGL GAS DRYER
001
MOTOR 240-50 WPL Y304656 Contact Us For Availability
001
COVER, TERMINAL WPL Y312905 Contact Us For Availability
001
PART NOT USED WPL 306184 Contact Us For Availability
001
DOOR, ACCESS (WHT) WPL 203188 Contact Us For Availability
001
(ALM) WPL 203188L Contact Us For Availability
001
(H. WHEAT) WPL 203188M Contact Us For Availability
001
LABEL, LINT SCREEN INSTR. WPL Y313340 Contact Us For Availability
001
DUCT, OUTLET ASSY. ----S WPL Y307112 Contact Us For Availability
002
STRAP, GROUND WPL Y312184 Contact Us For Availability
002
THERMISTOR TEMP. CONTROL PART NOT USED. MDE/G WPL 306056 Contact Us For Availability
002
LABEL, INSTRUCTION WPL 314941 Contact Us For Availability
002
CONE, COMBUSTION WPL Y308549 Contact Us For Availability
002
SCREW, No.8-32 X 3/8 INCH WPL Y314322 Contact Us For Availability
002
SCREEN, LINT WPL 307108 Contact Us For Availability
003
INTERNAL ORIFICE (LP) WPL NLA Contact Us For Availability
003
MOTOR PULLEY - 50 CYCLE WPL 305186 Contact Us For Availability
003
BLOCK, TERMINAL WPL 400008 Contact Us For Availability
003
PART NOT USED WPL 314942 Contact Us For Availability
003
FRONT, TUMBLER (W/SEAL) WPL 307109 Contact Us For Availability
004
CLIP, WIRE HARNESS WPL Y310376 Contact Us For Availability
004
BRACKET, TERMINAL BLOCK WPL Y312904 Contact Us For Availability
004
PART NOT AVAILABLE WPL ARI4620A57 Contact Us For Availability
004
THERMOSTAT, MULTI-TEMP PART NOT USED. MDG26CT WPL 306966 Contact Us For Availability
004
TIME ADJUSTMENT PEG WPL 314335 Contact Us For Availability
004
HINGE WPL 307099 Contact Us For Availability
004
SCREW WPL Y314062 Contact Us For Availability
005
HOUSING, BLOWER WPL Y312893 Contact Us For Availability
005
HANDLE (WHT) WPL 314946 Contact Us For Availability
005
(ALM) WPL 314972 Contact Us For Availability
005
THERMOSTAT, MULTI-TEMP PART NOT USED. MDE26CT WPL 306967 Contact Us For Availability
005
RETURN SPRING WPL 314331 Contact Us For Availability
005
TIMER 240-50 WPL Y305758 Contact Us For Availability
005
FASTENER WPL 215003 Contact Us For Availability
006
WIRE, GROUND WPL 901220 Contact Us For Availability
006
SCREW WPL 304971 Contact Us For Availability
006
COVER, THERMOSTAT PART NOT USED (MDE ONLY) WPL 315122 Contact Us For Availability
006
E CLIP WPL Y312270 Contact Us For Availability
006
DOOR ASSY. COMPLETE (WHT) WPL Y307111 Contact Us For Availability
007
SCREW WPL Y310632 Contact Us For Availability
007
LABEL, ELECTRICAL INSTR. WPL 214519 Contact Us For Availability
007
PANEL, OUTER (WHT) WPL 314966 Contact Us For Availability
007
BACK-UP PLATE (WHT) WPL 314912 Contact Us For Availability
007
BAFFLE (SHORT) WPL 314803 Contact Us For Availability
008
No.3-3358-8 & 3-3358-9 WPL 306207 Contact Us For Availability
008
PART NOT USED No.3-3358-3, 3-3358-4 & 3-3358- WPL Y303877 Contact Us For Availability
008
PART NOT USED No.3-3358 & 3-3358-6 WPL Y303879 Contact Us For Availability
008
PIPE & BRACKET ASSY. WPL Y303383 Contact Us For Availability
008
WASHER WPL 314158 Contact Us For Availability
009
GROMMET, CORD WPL 211881 Contact Us For Availability
009
SHUT-OFF, GAS VALVE WPL Y303349 Contact Us For Availability
009
LOCK RING, TIMER SHAFT WPL 211790 Contact Us For Availability
009
TRANSFORMER (240V 50HZ) WPL 307928 Contact Us For Availability
009
TUMBLER W/BAFFLES WPL 306663 Contact Us For Availability
009
TUMBLER W/OUT BAFFLES WPL 314802 Contact Us For Availability
010
SET SCREW, PULLEY WPL Y053241 Contact Us For Availability
010
SCREW----NA WPL Y313561 Contact Us For Availability
010
BRACKET, GAS VALVE WPL 314566 Contact Us For Availability
010
TORSION-TIMER KIT WPL 306104 Contact Us For Availability
010
KNURLED NUT WPL Y312702 Contact Us For Availability
010
BACK, TUMBLER (W/SEAL) ---S WPL Y307114 Contact Us For Availability
010
BACK, TUMBLER (W/SEAL) ---S WPL Y308544 Contact Us For Availability
011
HEX NUT ON SWITCH WPL Y312706 Contact Us For Availability
012
DOOR ASSY. COMPLETE (WHT) WPL 308061 Contact Us For Availability
012
GAS VALVE (240V-50HZ) WPL 307927 Contact Us For Availability
012
SEAL, FRONT PANEL WPL 314937 Contact Us For Availability
013
IDLER SPRING ASSEMBLY WPL Y303945 Contact Us For Availability
013
TWIN FASTENER WPL Y313907 Contact Us For Availability
013
KNOB, SELECTOR SWITCH WPL 306938 Contact Us For Availability
014
SCREW & FSTNER ASSY (FT. PNL) WPL 204439 Contact Us For Availability
014
(ALM) WPL 307998L Contact Us For Availability
014
SCREW & FASTENER ASY. WPL 204445 Contact Us For Availability
014
LOCK WASHER WPL 910387 Contact Us For Availability
015
TOP COVER ASSY. (WHT) WPL 307105 Contact Us For Availability
015
SCREW WPL 212949 Contact Us For Availability
016
BASE ASSY. WPL Y303361 Contact Us For Availability
016
BOLT, LOCKING WPL 215559 Contact Us For Availability
016
SLEEVE-ACCESS PANEL STUD WPL 312369 Contact Us For Availability
017
ADJUSTABLE LEG & NUT WPL W10176519 No Longer Available
017
SWITCH & SLIDER BRACKET WPL 314339 Contact Us For Availability
018
SCREW WPL Y310759 Contact Us For Availability
018
ACTUATOR SPRING WPL 314332 Contact Us For Availability
018
WIRE, GROUND WPL 205810 Contact Us For Availability
019
INLET DUCT ASSY. WPL 307119 Contact Us For Availability
019
INLET DUCT ASSY. WPL Y308504 Contact Us For Availability
019
BYPASS SWITCH, MOTOR WPL 305798 Contact Us For Availability
019
DOOR SEAL WPL 314935 Contact Us For Availability
020
BYPASS SWITCH, HEATER WPL Y305799 Contact Us For Availability
020
DOOR, INNER (W/SEAL) WPL 307098 Contact Us For Availability
021
COVER, ACCESS WPL Y312951 Contact Us For Availability
021
CLIP, DOOR LINER (OUTER PNL) WPL Y313910 Contact Us For Availability
022
CONE, COMBUSTION WPL Y303368 Contact Us For Availability
022
CONE, COMBUSTION WPL Y308548 Contact Us For Availability
023
CLAMP, GROUND (W/SCREW) WPL 301548 Contact Us For Availability
023
CONE, EXTENSION (COMBUSTION) WPL Y303841 Contact Us For Availability
023
TIMER MOUNTING BRACKET WPL 314333 Contact Us For Availability
024
RETAINER, HEATER CHAMBER WPL Y312890 Contact Us For Availability
025
TIMER 240-50 WPL 305812 Contact Us For Availability
026
COVER, BLOWER WPL 314778 Contact Us For Availability
026
PART NOT AVAILABLE PART NOT USED WPL 305813 Contact Us For Availability
027
WIRE HARNESS, TIMER WPL 305800 Contact Us For Availability
028
PART NOT AVAILABLE WPL 305870 Contact Us For Availability
029
TORSION TIMER ASSY. COMPLETE WPL 305797 Contact Us For Availability
031
BRACKET, COIN SLIDE WPL 314334 Contact Us For Availability
032
COIN METER ASSY (WHT) WPL 206956 Contact Us For Availability
032
(ALM) WPL 206956L Contact Us For Availability
032
(H. WHEAT) WPL 206956M Contact Us For Availability
033
EXHAUST DUCT ASSY. WPL Y303442 Contact Us For Availability
033
GASKET, METER CASE WPL 214660 Contact Us For Availability
034
SPRING, WIRE HARNESS WPL 410490 Contact Us For Availability
035
RETAINER, WIRE HARNESS WPL Y313262 Contact Us For Availability
036
PART NOT USED WPL 306199 Contact Us For Availability
036
WASHER WPL 910309 Contact Us For Availability
038
COIN BOX (WHT) WPL 205423 Contact Us For Availability
038
(ALM) WPL 205423L Contact Us For Availability
038
(H. WHEAT) WPL 205423M Contact Us For Availability
041
COINAGE DECAL WPL 214648 Contact Us For Availability
043
INDEX WHEEL WPL 314546 Contact Us For Availability
044
ACTUATOR, SWITCH WPL 314548 Contact Us For Availability
× ![]()
