Model Whirlpool MDG16PRBWW GAS DRYER – Common Parts & Diagrams

001
SEAL, SHROUD
SEAL, SHROUD WPL 33001767 Contact Us For Availability
View on Model
001

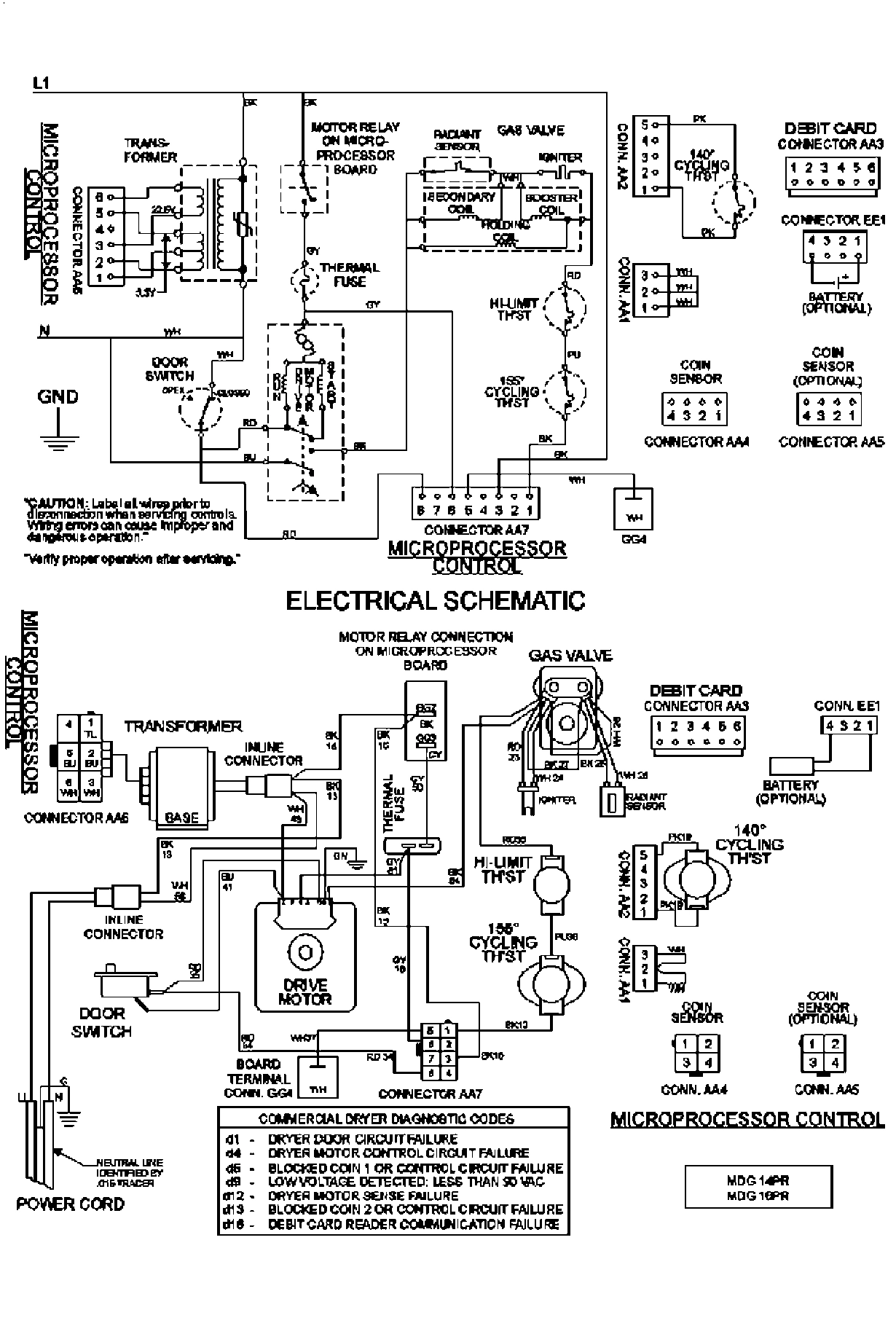

WIRING INFORMATION
WIRING INFORMATION WPL NLA Contact Us For Availability
View on Model
001
COVER, TOP (WHT-AS PK)
COVER, TOP (WHT-AS PK) WPL 33002631 Contact Us For Availability
View on Model
001
READER HARNESS KIT (16``)
READER HARNESS KIT (16``) WPL 33001856 Contact Us For Availability
View on Model
001
CONV KIT (NATURAL TO LP) ----S
CONV KIT (NATURAL TO LP) ----S WPL Y308378 Contact Us For Availability
View on Model
001

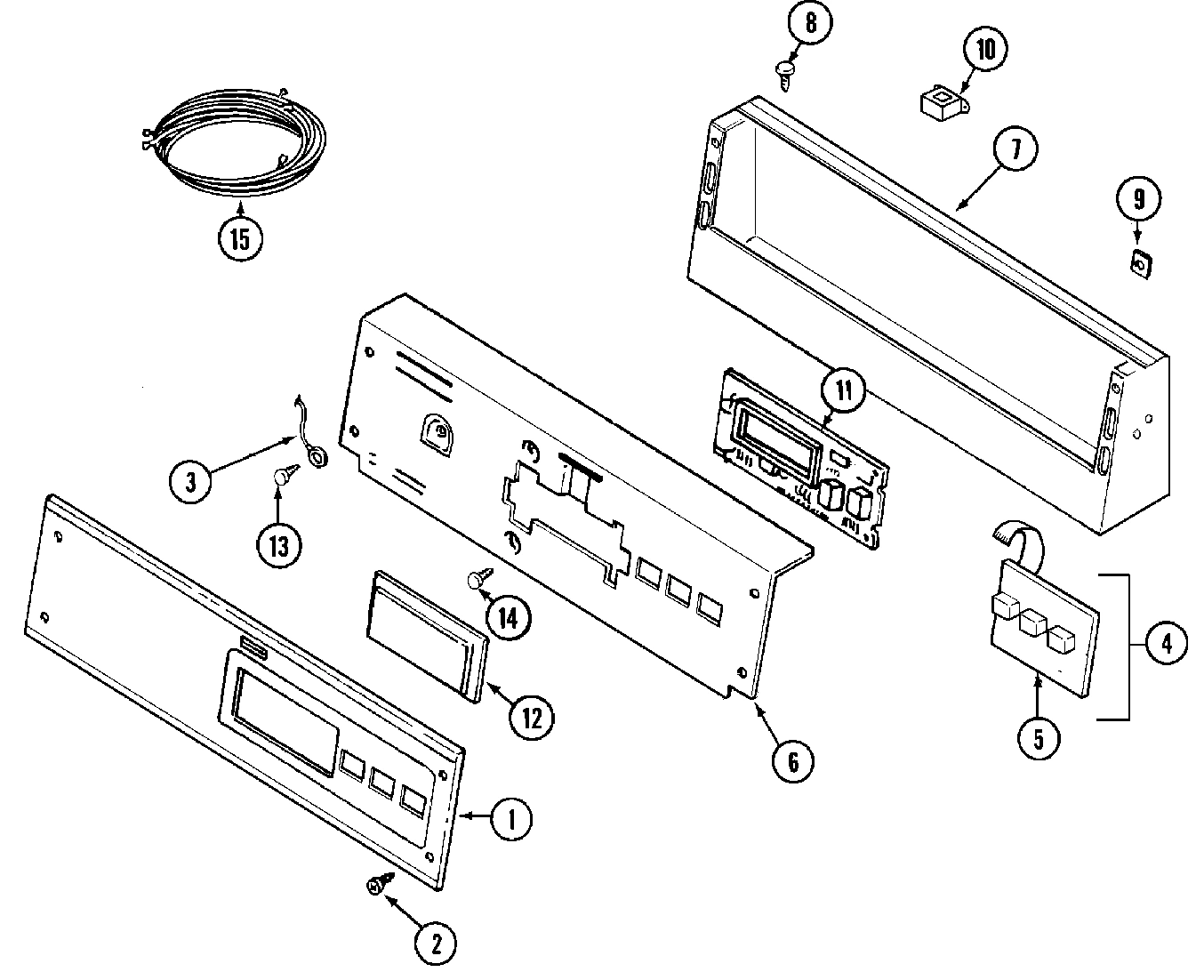

PANEL, CONTROL
PANEL, CONTROL WPL 33001955 Contact Us For Availability
View on Model
002
HOOK, SECURITY
HOOK, SECURITY WPL 33002597 Contact Us For Availability
View on Model
002
COVER, TERMINAL BLOCK
COVER, TERMINAL BLOCK WPL 33001795 Contact Us For Availability
View on Model
002
SCREW, EXHAUST DUCT ASSEMBLY
SCREW, EXHAUST DUCT ASSEMBLY WPL 22002190 Contact Us For Availability
View on Model
002
OUTLET DUCT ASSEMBLY
OUTLET DUCT ASSEMBLY WPL 33001799 Contact Us For Availability
View on Model
002
CONVERSION KIT (LP TO NATURAL)
CONVERSION KIT (LP TO NATURAL) WPL Y308377 Contact Us For Availability
View on Model
003
WIRE, GROUND
WIRE, GROUND WPL 22001959 Contact Us For Availability
View on Model
003
SHROUD (WHT)
SHROUD (WHT) WPL 33001900 Contact Us For Availability
View on Model
003
SCREW, IGNITER
SCREW, IGNITER WPL 304971 Contact Us For Availability
View on Model
004
GROMMET, CORD
GROMMET, CORD WPL 211881 Contact Us For Availability
View on Model
004
CONTROL SWITCH ASSEMBLY
CONTROL SWITCH ASSEMBLY WPL 306694 Contact Us For Availability
View on Model
005
FASTENER
FASTENER WPL 310933 Contact Us For Availability
View on Model
006
DEFLECTOR, WATER (W/ADHESIVE)
DEFLECTOR, WATER (W/ADHESIVE) WPL 22002954 Contact Us For Availability
View on Model
006
BRACKET, BACK (WHT)
BRACKET, BACK (WHT) WPL 33002523 Contact Us For Availability
View on Model
007
RETAINER, WIRE
RETAINER, WIRE WPL 22003298 Contact Us For Availability
View on Model
007
HINGE, PLASTIC
HINGE, PLASTIC WPL 22003367 Contact Us For Availability
View on Model
007
BRACKET, HINGE
BRACKET, HINGE WPL 33001760 Contact Us For Availability
View on Model
007
CONSOLE (WHT)
CONSOLE (WHT) WPL 22003101 Contact Us For Availability
View on Model
008
FRONT, TUMBLER (W/SEAL)
FRONT, TUMBLER (W/SEAL) WPL 33001802 Contact Us For Availability
View on Model
008
CLIP, GROUNDING
CLIP, GROUNDING WPL 22002244 Contact Us For Availability
View on Model
009
CLIP, SCREW
CLIP, SCREW WPL 215003 Contact Us For Availability
View on Model
010
BRACKET, GAS CONTROL
BRACKET, GAS CONTROL WPL 33002710 Contact Us For Availability
View on Model
010
SCREW, TRANSFORMER
SCREW, TRANSFORMER WPL 211251 Contact Us For Availability
View on Model
011
CLIP, LOWER FRONT PANEL
CLIP, LOWER FRONT PANEL WPL 22002239 Contact Us For Availability
View on Model
011
FASTENER, FRONT PANEL
FASTENER, FRONT PANEL WPL 213280 Contact Us For Availability
View on Model
011
PANEL, FRONT (WHT)
PANEL, FRONT (WHT) WPL 33001901 Contact Us For Availability
View on Model
011
STANDOFF, CIRCUIT BOARD
STANDOFF, CIRCUIT BOARD WPL 33001204 Contact Us For Availability
View on Model
012
CLIP, DOOR (DOUBLE)
CLIP, DOOR (DOUBLE) WPL 22002038 Contact Us For Availability
View on Model
012
SCREW, GAS VALVE
SCREW, GAS VALVE WPL Y310632 Contact Us For Availability
View on Model
013
COVER, BLOWER HOUSING
COVER, BLOWER HOUSING WPL 33002711 Contact Us For Availability
View on Model
014
PIPE & BRACKET ASSY.
PIPE & BRACKET ASSY. WPL 33001735 Contact Us For Availability
View on Model
014
SCREW, CONTROL BOARD
SCREW, CONTROL BOARD WPL 215526 Contact Us For Availability
View on Model
015
TUMBLER
TUMBLER WPL 33001794 Contact Us For Availability
View on Model
015
STRIKE, DOOR (MALE)
STRIKE, DOOR (MALE) WPL 33001761 Contact Us For Availability
View on Model
015
WIRE HARNESS
WIRE HARNESS WPL 22003818 Contact Us For Availability
View on Model
016
HARNESS, PR SERVICE
HARNESS, PR SERVICE WPL 22001973 Contact Us For Availability
View on Model
016
READER HARNESS KIT
READER HARNESS KIT WPL 22004100 Contact Us For Availability
View on Model
016
INLET DUCT ASSEMBLY
INLET DUCT ASSEMBLY WPL 33001810 Contact Us For Availability
View on Model
017
SCREW, BAFFLE
SCREW, BAFFLE WPL 33001788 Contact Us For Availability
View on Model
017
PLUG, INNER DOOR
PLUG, INNER DOOR WPL 33001763 Contact Us For Availability
View on Model
018
DOOR, INNER (WHT)
DOOR, INNER (WHT) WPL 33001899 Contact Us For Availability
View on Model
018
BACK, TUMBLER (W/SEAL)
BACK, TUMBLER (W/SEAL) WPL 33001801 Contact Us For Availability
View on Model
018
CLIP, WIRE HARNESS
CLIP, WIRE HARNESS WPL Y310376 Contact Us For Availability
View on Model
019
DOOR, OUTER (WHT)
DOOR, OUTER (WHT) WPL 33001904 Contact Us For Availability
View on Model
019
PLUG FOR SPRING
PLUG FOR SPRING WPL 33002461 Contact Us For Availability
View on Model
019
CONE ASSY., COMBUSTION
CONE ASSY., COMBUSTION WPL 33001835 Contact Us For Availability
View on Model
020
CONE, EXTENSION (COMBUSTION)
CONE, EXTENSION (COMBUSTION) WPL Y303841 Contact Us For Availability
View on Model
021
RETAINER, HEATER CHAMBER
RETAINER, HEATER CHAMBER WPL Y312890 Contact Us For Availability
View on Model
022
SCREW No.8-18AB WAFER HD
SCREW No.8-18AB WAFER HD WPL 22002063 Contact Us For Availability
View on Model
022
BEARING, IDLER ASSEMBLY
BEARING, IDLER ASSEMBLY WPL 33001783 Contact Us For Availability
View on Model
022
CAP, GAS PIPE
CAP, GAS PIPE WPL 33001693 Contact Us For Availability
View on Model
026
SUPPORT, MOTOR
SUPPORT, MOTOR WPL 33002466 Contact Us For Availability
View on Model
027
SCREW, MOTOR & BLOWER
SCREW, MOTOR & BLOWER WPL Y313561 Contact Us For Availability
View on Model
030
RETAINER, WIRE
RETAINER, WIRE WPL 315471 Contact Us For Availability
View on Model
031
SPRING, WIRE HARNESS
SPRING, WIRE HARNESS WPL 410490 Contact Us For Availability
View on Model
032
ADJUSTABLE LEG & NUT
ADJUSTABLE LEG & NUT WPL W10176519 No Longer Available
View on Model
