Model Whirlpool MDG16CSAXW GAS DRYER – Common Parts & Diagrams

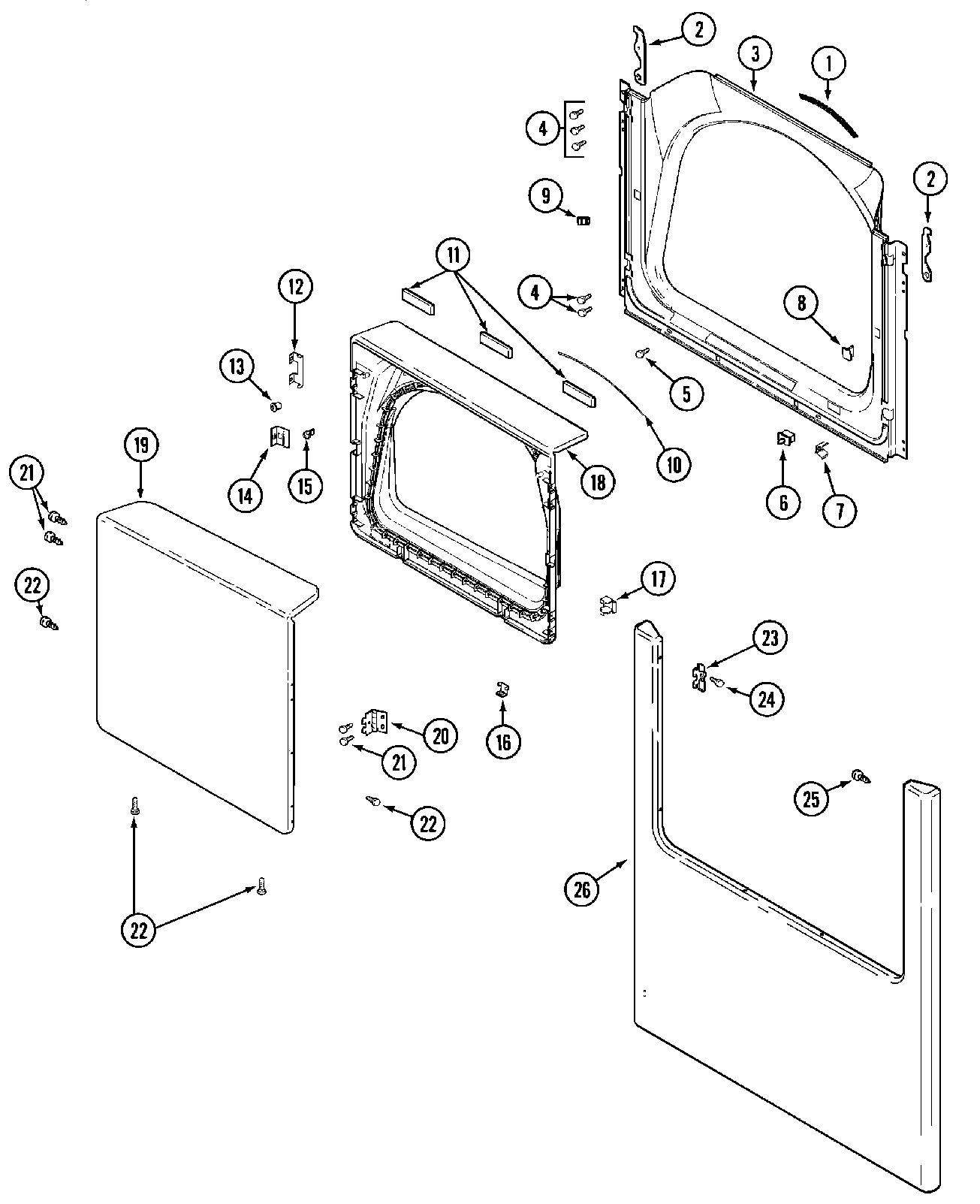

03 - DOOR

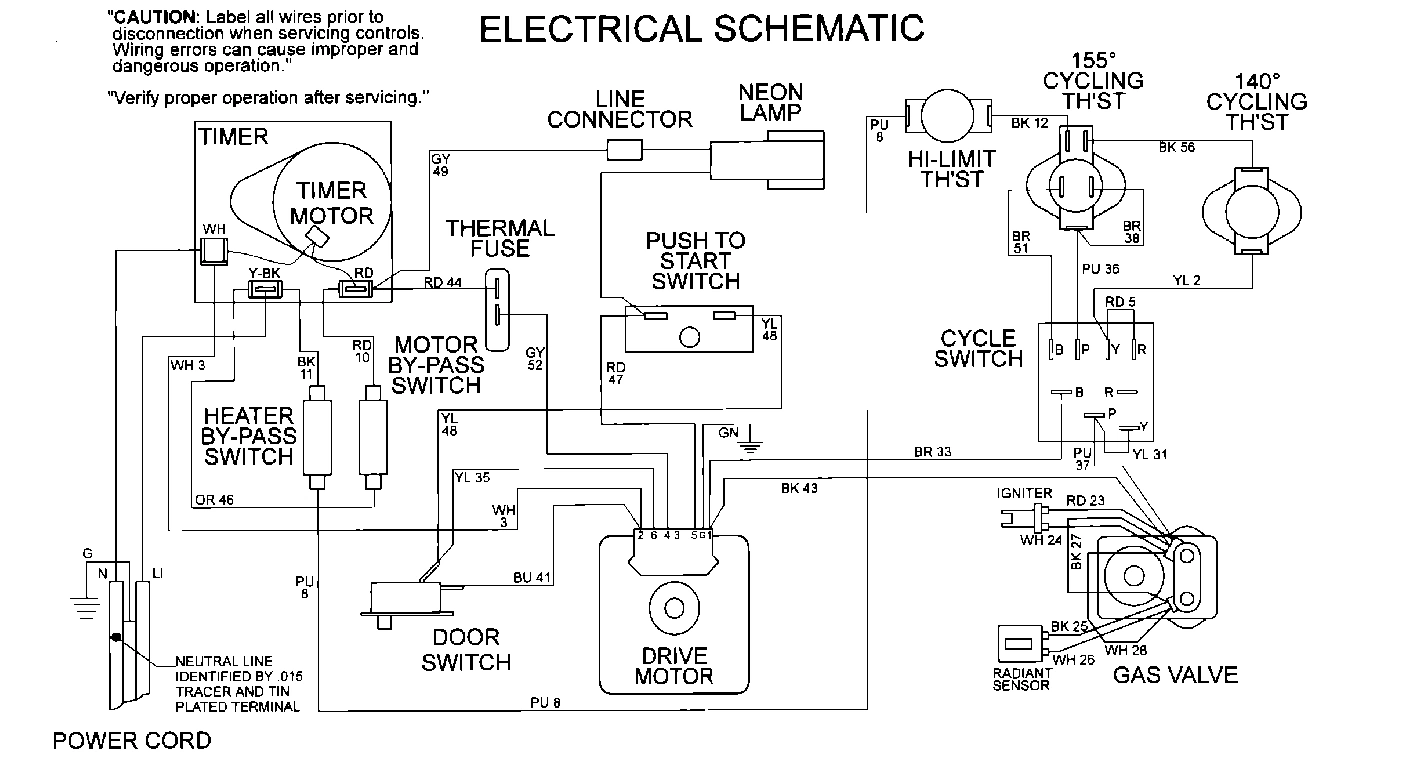

07 - WIRING INFORMATION

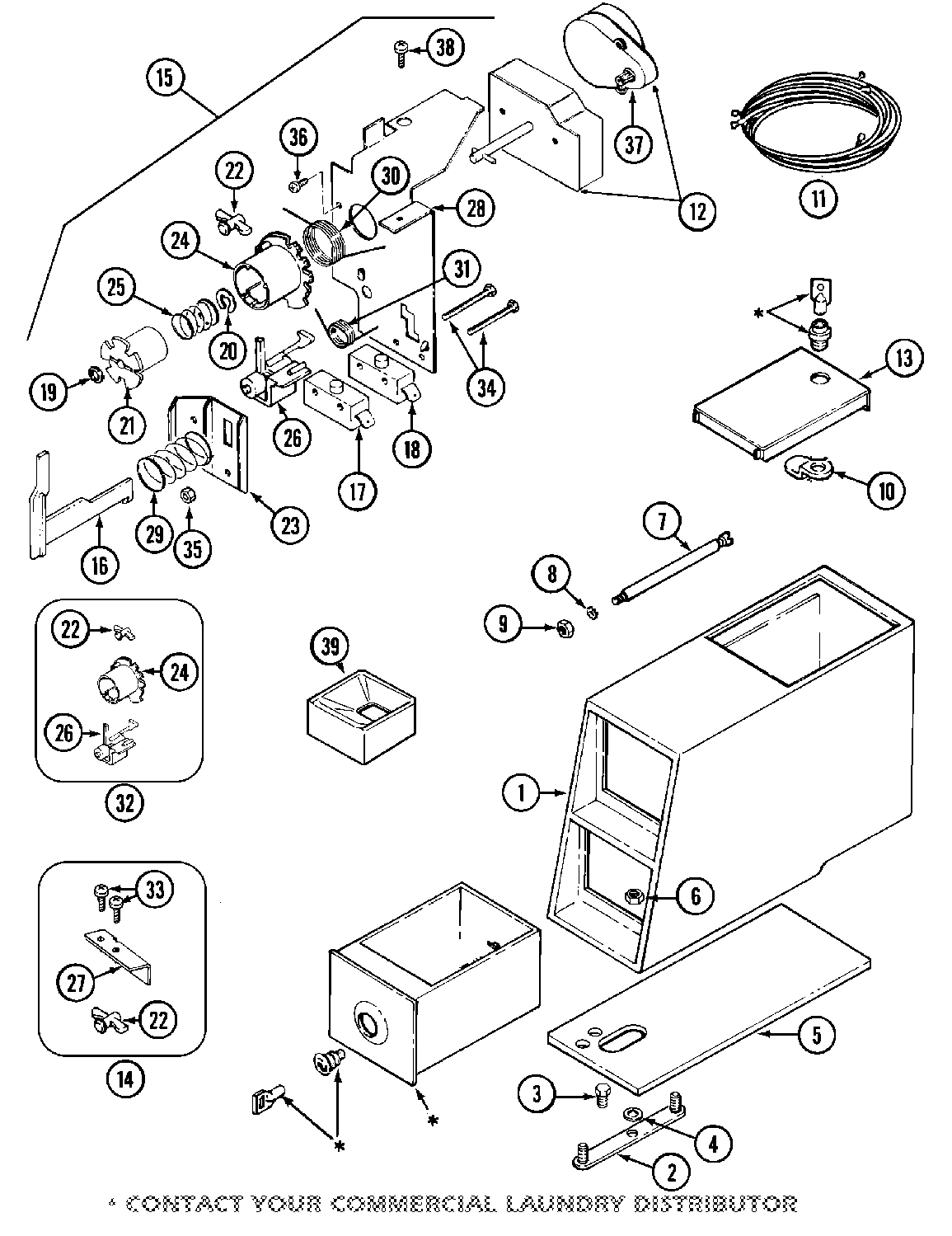

02 - CONTROL CENTER

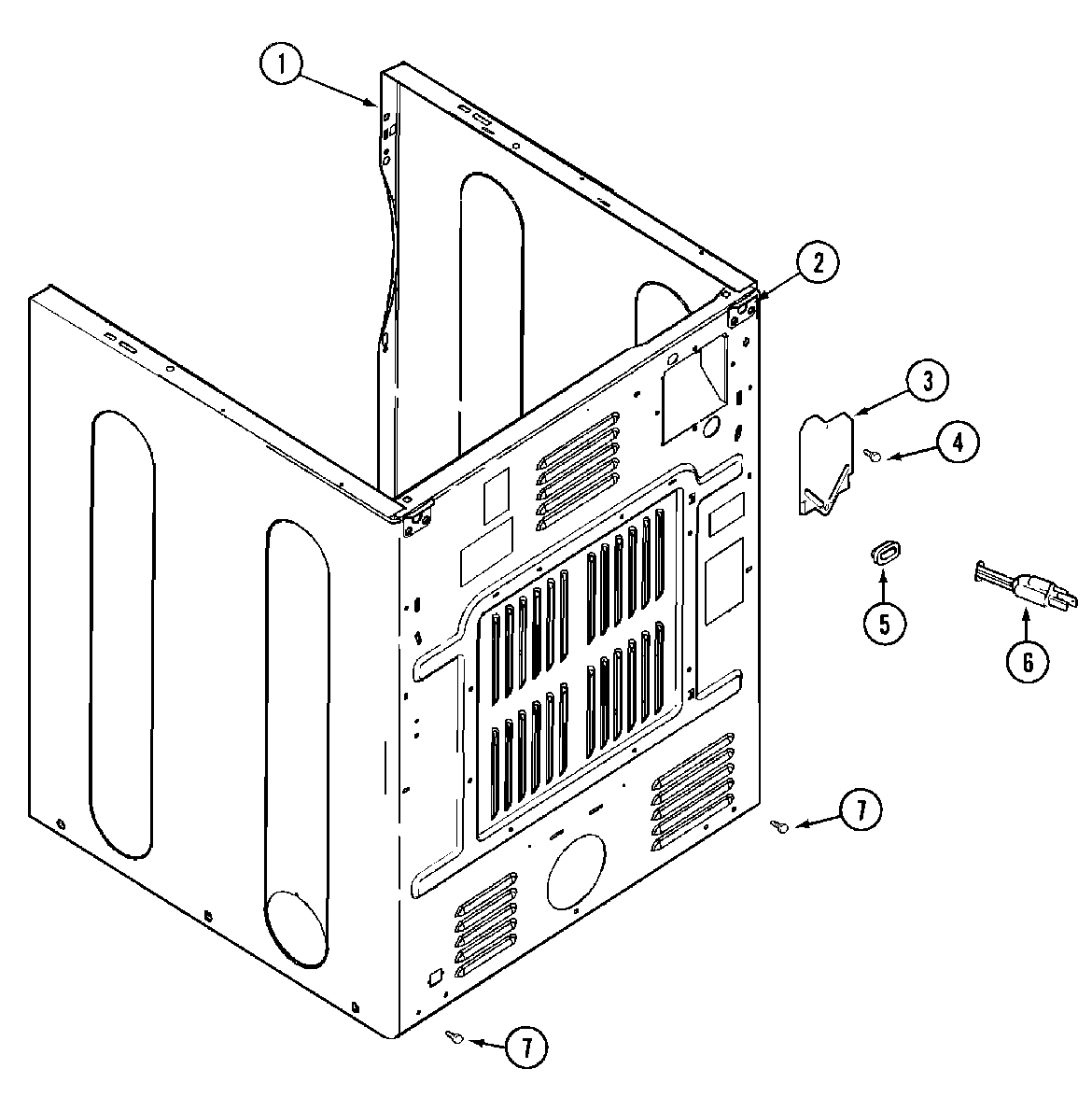

04 - CABINET-REAR

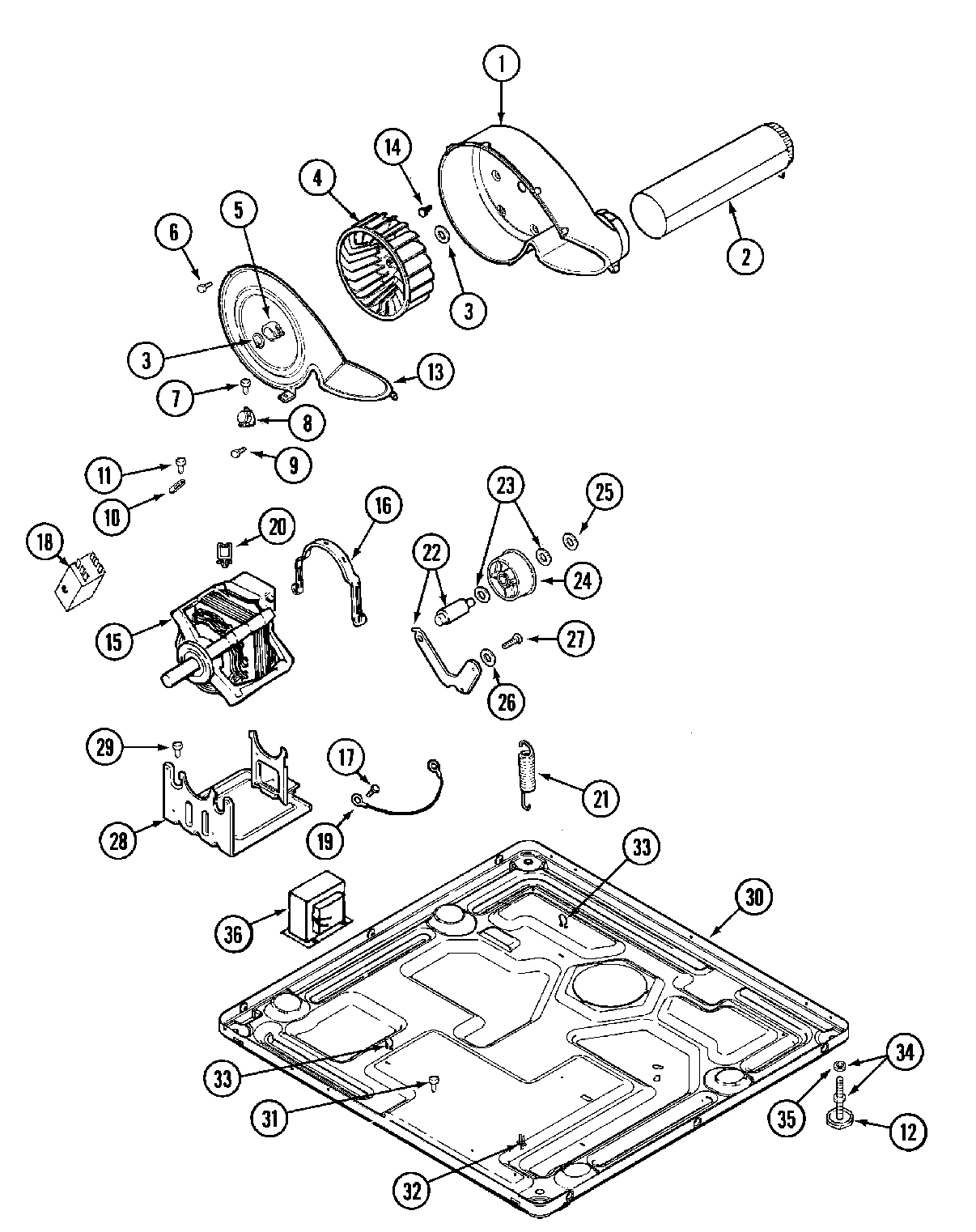

06 - MOTOR DRIVE

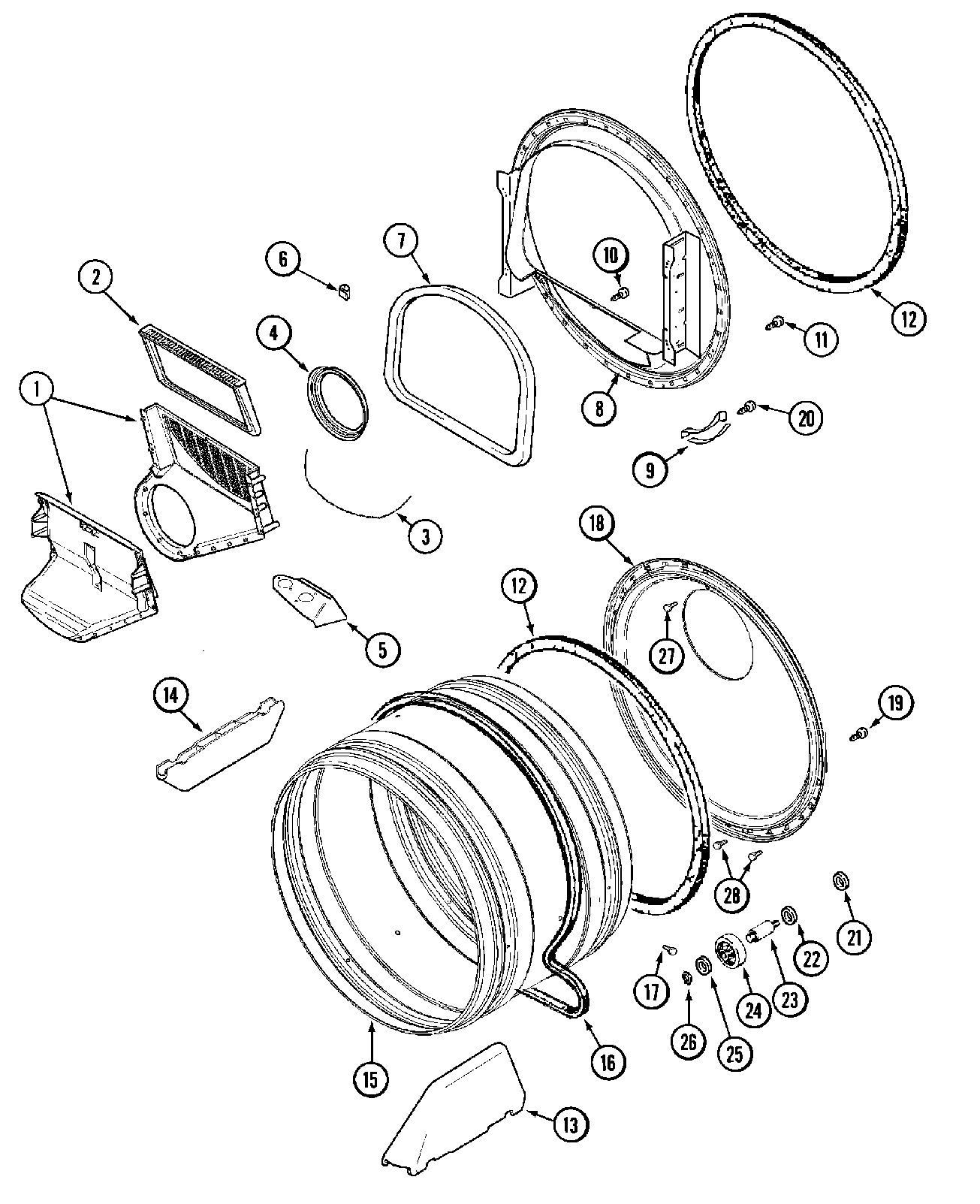

08 - TUMBLER

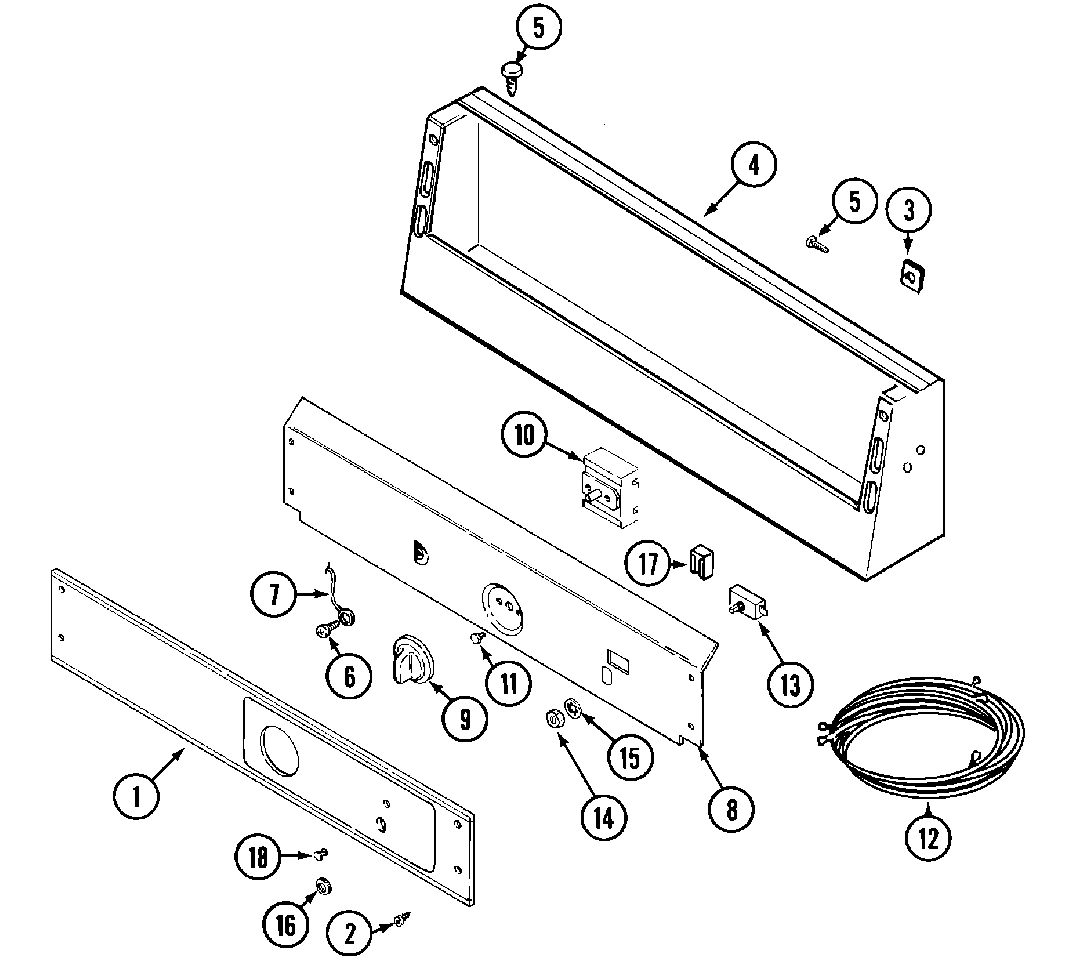

01 - CONTROL PANEL
05 - GAS VALVE
Common parts from model Whirlpool MDG16CSAXW GAS DRYER
001
VAULT, COIN (ALM) (ORIGINAL COIN VAULT NLA US WPL 22002479 Contact Us For Availability
001
OUTLET DUCT ASSEMBLY WPL 33001799 Contact Us For Availability
001
CONV KIT (NATURAL TO LP) ----S WPL Y308378 Contact Us For Availability
002
STRAP, MOUNTING WPL 22001810 Contact Us For Availability
002
HINGE, PLASTIC WPL 22003367 Contact Us For Availability
002
DUCT ASSY., EXHAUST WPL 33001800 Contact Us For Availability
002
CONVERSION KIT (LP TO NATURAL) WPL Y308377 Contact Us For Availability
003
COVER, TERMINAL BLOCK WPL 33001795 Contact Us For Availability
003
SCREW, IGNITER WPL 304971 Contact Us For Availability
004
WASHER, STRAP SCREW WPL 910309 Contact Us For Availability
004
SCREW, TERMINAL BLOCK COVER WPL Y912873 Contact Us For Availability
004
SEAL, BLOWER WPL 33001758 Contact Us For Availability
004
CONSOLE (WHT) WPL 22002329 Contact Us For Availability
004
CONSOLE (ALM) WPL 22002330 Contact Us For Availability
004
CONSOLE (WHT) WPL 22003089 Contact Us For Availability
005
SCREW, SHROUD & OUTLET DUCT WPL 33001768 Contact Us For Availability
005
GASKET, CONTROL CENTER (WHT) WPL 22002072 Contact Us For Availability
005
GASKET, CONTROL CENTER (ALM) WPL 22002073 Contact Us For Availability
005
GROMMET, CORD WPL 211881 Contact Us For Availability
005
GROMMET, CORD WPL 216183 Contact Us For Availability
005
GROMMET, CORD WPL 22002532 Contact Us For Availability
005
COVER, THERMOSTAT (ELEC ONLY) WPL 33001837 Contact Us For Availability
006
SWITCH, DOOR WPL 33002167 Contact Us For Availability
006
SWITCH, DOOR WPL 33002239 Contact Us For Availability
006
CORD, POWER (EXPORT) WPL 308966 Contact Us For Availability
006
CORD, POWER WPL 33001284 Contact Us For Availability
006
CORD, POWER (AS WRAPPED) WPL 33001689 Contact Us For Availability
006
CLIP, WIRE HARNESS WPL Y310376 Contact Us For Availability
006
VALVE, GAS (240V-50HZ) WPL 307927 Contact Us For Availability
007
BRACKET, HINGE WPL 33001760 Contact Us For Availability
007
SEAL, SHROUD WPL 33001767 Contact Us For Availability
007
WIRE, GROUND WPL 205810 Contact Us For Availability
008
FRONT, TUMBLER (W/SEAL) WPL 33001802 Contact Us For Availability
008
LOCKWASHER, LOCKING BOLT WPL 910387 Contact Us For Availability
008
THERMOSTAT, MULTI-TEMP WPL 306966 Contact Us For Availability
008
BRACKET, BACK (WHT) WPL 33001959 Contact Us For Availability
008
BRACKET, BACK (WHT) WPL 33002522 Contact Us For Availability
009
SCREW, GAS VALVE WPL Y313561 Contact Us For Availability
009
KNOB, SELECTOR SWITCH WPL 306938 Contact Us For Availability
010
SWITCH, CYCLE SELECTOR WPL 33002276 Contact Us For Availability
011
PAD, DOOR WPL 33001268 Contact Us For Availability
011
WIRE HARNESS, TIMER WPL 33001195 Contact Us For Availability
012
CLIP, DOOR (DOUBLE) WPL 22002038 Contact Us For Availability

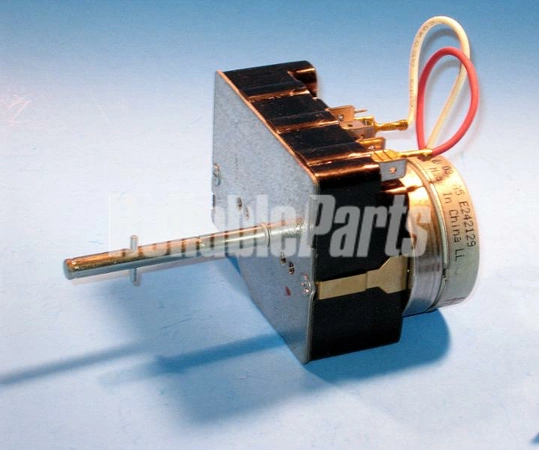

012
TIMER (240V-50HZ) WPL 33001274 Contact Us For Availability
012
WIRE HARNESS, MAIN WPL 33001963 Contact Us For Availability
012
WIRE HARNESS, MAIN WPL 33002244 Contact Us For Availability
012
WIRE HARNESS, MAIN WPL 33002245 Contact Us For Availability
013
BUSHING, INNER DOOR WPL 33001771 Contact Us For Availability
013
GROMMET, DOUBLE WPL 22001881 Contact Us For Availability
013
LATCH, ACCESS DOOR WPL 22001882 Contact Us For Availability
013
SCREW WPL 22001883 Contact Us For Availability
013
DOOR, ACCESS (WHT) WPL 22001910 Contact Us For Availability
013
DOOR, ACCESS (ALM) WPL 22001911 Contact Us For Availability
013
COVER, BLOWER HOUSING WPL 33001796 Contact Us For Availability
014
ACTUATOR KIT WPL 33001688 Contact Us For Availability
014
SCREW, BLOWER HOUSING WPL 314818 Contact Us For Availability
014
NUT, SWITCH WPL Y312706 Contact Us For Availability
014
PIPE & BRACKET ASSY. WPL 33001735 Contact Us For Availability
015
STRIKE, DOOR (MALE) WPL 33001761 Contact Us For Availability
015
TORSION TIMER ASSEMBLY WPL 33001275 Contact Us For Availability
015
TORSION TIMER ASSY. (240-50HZ) WPL 33001276 Contact Us For Availability
015
TUMBLER WPL 33001794 Contact Us For Availability
016
CLIP, DOOR (SINGLE) WPL 22002039 Contact Us For Availability
016
NUT, KNURLED WPL Y312702 Contact Us For Availability
016
INLET DUCT ASSEMBLY WPL 33001810 Contact Us For Availability
017
PLUG, INNER DOOR WPL 33001763 Contact Us For Availability
017
SWITCH, BY-PASS (MOTOR) WPL 305798 Contact Us For Availability
017
SCREW, BAFFLE WPL 33001788 Contact Us For Availability
017
LAMP, INDICATOR WPL 204075 Contact Us For Availability
018
DOOR, INNER (WHT) WPL 33001899 Contact Us For Availability
018
(ALM) WPL 33001908 Contact Us For Availability
018
SWITCH, BY-PASS (HEATER) WPL Y305799 Contact Us For Availability
018
BACK, TUMBLER (W/SEAL) WPL 33001801 Contact Us For Availability
019
DOOR, OUTER (WHT) WPL 33001904 Contact Us For Availability
019
RETAINER, SPRING WPL 211790 Contact Us For Availability
019
WIRE, GROUND WPL 901220 Contact Us For Availability
019
SCREW (No.10-3/8``) WPL 33002190 Contact Us For Availability
019
MANUAL, SERVICE-NO REFUND WPL 16009021 Contact Us For Availability
019
CONE ASSY., COMBUSTION WPL 33001835 Contact Us For Availability
019
CONE ASSY., COMBUSTION WPL 33001946 Contact Us For Availability
020
CONE, EXTENSION (COMBUSTION) WPL NLA Contact Us For Availability
020
CLIP, SPRING RETAINER WPL Y312270 Contact Us For Availability
020
CONE, EXTENSION (COMBUSTION) WPL Y303841 Contact Us For Availability
021
DRIVER, INDEX WHEEL WPL 314330 Contact Us For Availability
021
GROMMET WPL 33002157 Contact Us For Availability
021
PLUG FOR SPRING WPL 33002461 Contact Us For Availability
021
RETAINER, HEATER CHAMBER WPL Y312890 Contact Us For Availability
022
SCREW No.8-18AB WAFER HD WPL 22002063 Contact Us For Availability
022
PEG, TINE ADJUSTMENT WPL 314335 Contact Us For Availability
022
CAP, GAS PIPE WPL 33001693 Contact Us For Availability
023
(ALM) WPL 33001765 Contact Us For Availability
023
BRACKET, SWITCH & SLIDER WPL 314339 Contact Us For Availability
024
WHEEL, INDEX WPL 314546 Contact Us For Availability
024
BEARING, IDLER ASSEMBLY WPL 33001783 Contact Us For Availability
025
CLIP, GROUNDING WPL 22002244 Contact Us For Availability
026
FASTENER, FRONT PANEL WPL 213280 Contact Us For Availability
026
CLIP, LOWER FRONT PANEL WPL 22002239 Contact Us For Availability
026
PANEL, FRONT (WHT) WPL 33001901 Contact Us For Availability
026
ACTUATOR, SWITCH WPL 314548 Contact Us For Availability
027
BRACKET, COIN SLIDE WPL 33001708 Contact Us For Availability
027
SCREW, INLET DUCT WPL 210932 Contact Us For Availability
028
BRACKET, TIMER WPL 33001207 Contact Us For Availability
028
SUPPORT, MOTOR WPL 33001752 Contact Us For Availability
028
SUPPORT, MOTOR WPL 33002466 Contact Us For Availability
030
SPRING, TORSION RETURN WPL 314331 Contact Us For Availability
030
BASE, (LWR) WPL 33002622 Contact Us For Availability
031
SPRING, ACTUATOR WPL 314332 Contact Us For Availability
032
ACTUATOR KIT WPL 306104 Contact Us For Availability
032
RETAINER, WIRE WPL 315471 Contact Us For Availability
033
SPRING, WIRE HARNESS WPL 410490 Contact Us For Availability
034
ADJUSTABLE LEG & NUT WPL W10176519 No Longer Available
034
SCREW, BY-PASS SWITCHES WPL 315277 Contact Us For Availability
036
TRANSFORMER WPL 33001948 Contact Us For Availability
037
MOTOR, TIMER WPL Y308991 Contact Us For Availability
039
WELD ASSY., FUNNEL WPL 22002533 Contact Us For Availability
039
BOLT, CARRIAGE WPL 22002534 Contact Us For Availability
040
PLATE, ADAPTOR (WHT) (REMOVED AT SERIES 21 WPL 22001917 Contact Us For Availability
041
WPL 22001904 WPL 22001904 Contact Us For Availability
× ![]()
