Model Whirlpool MDG14PNAWW GAS DRYER – Common Parts & Diagrams
01 - CONTROL PANEL

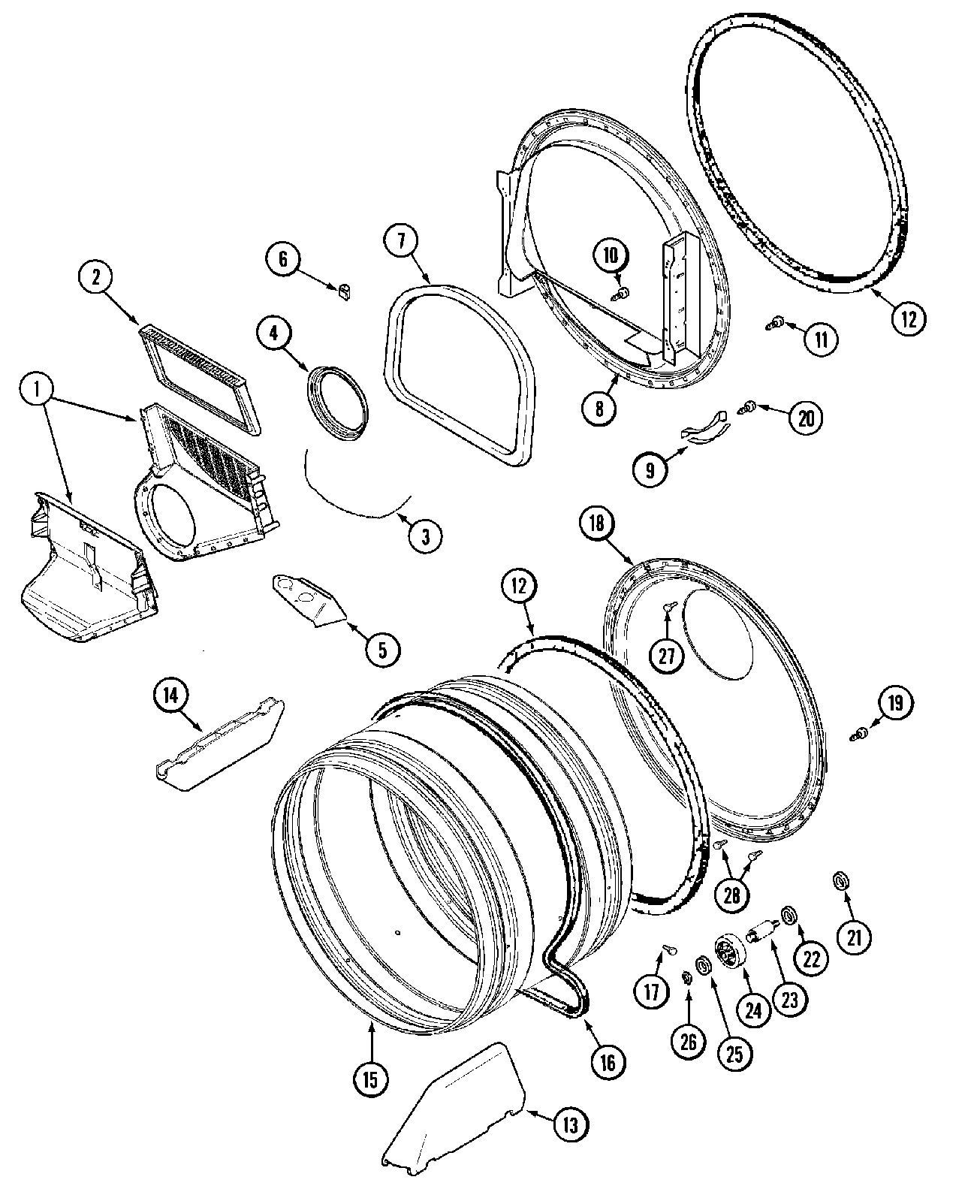

08 - TUMBLER

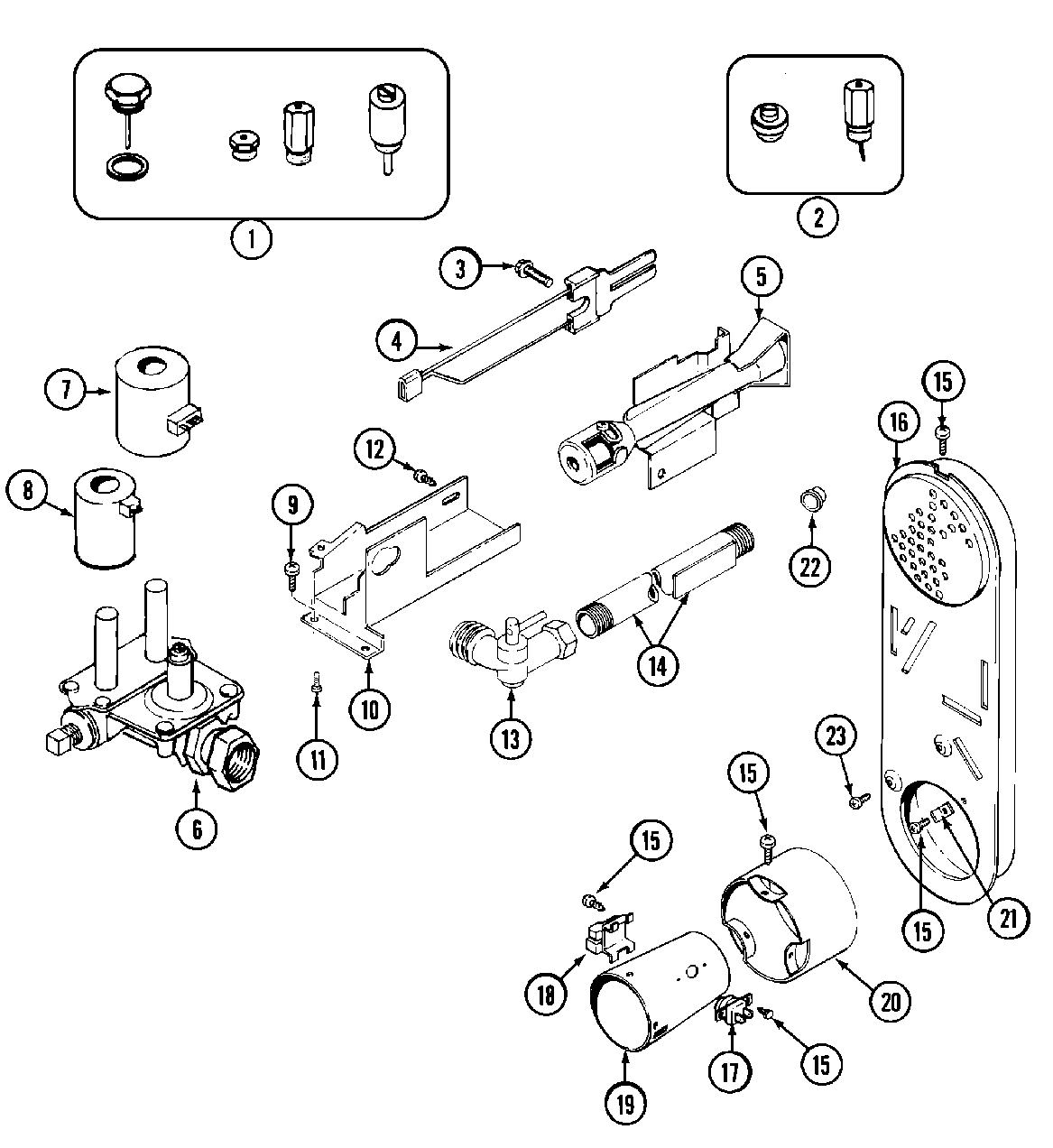

05 - GAS VALVE

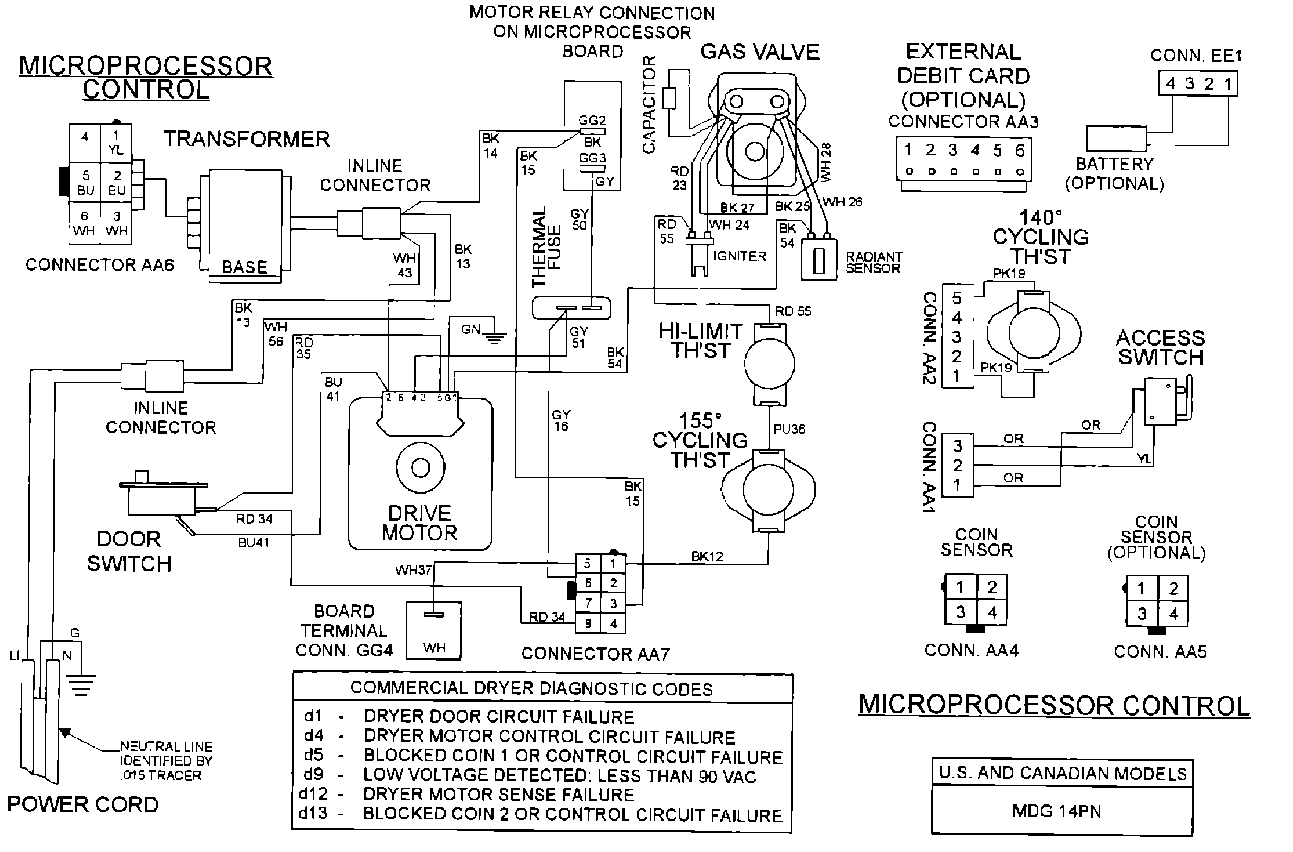

07 - WIRING INFORMATION

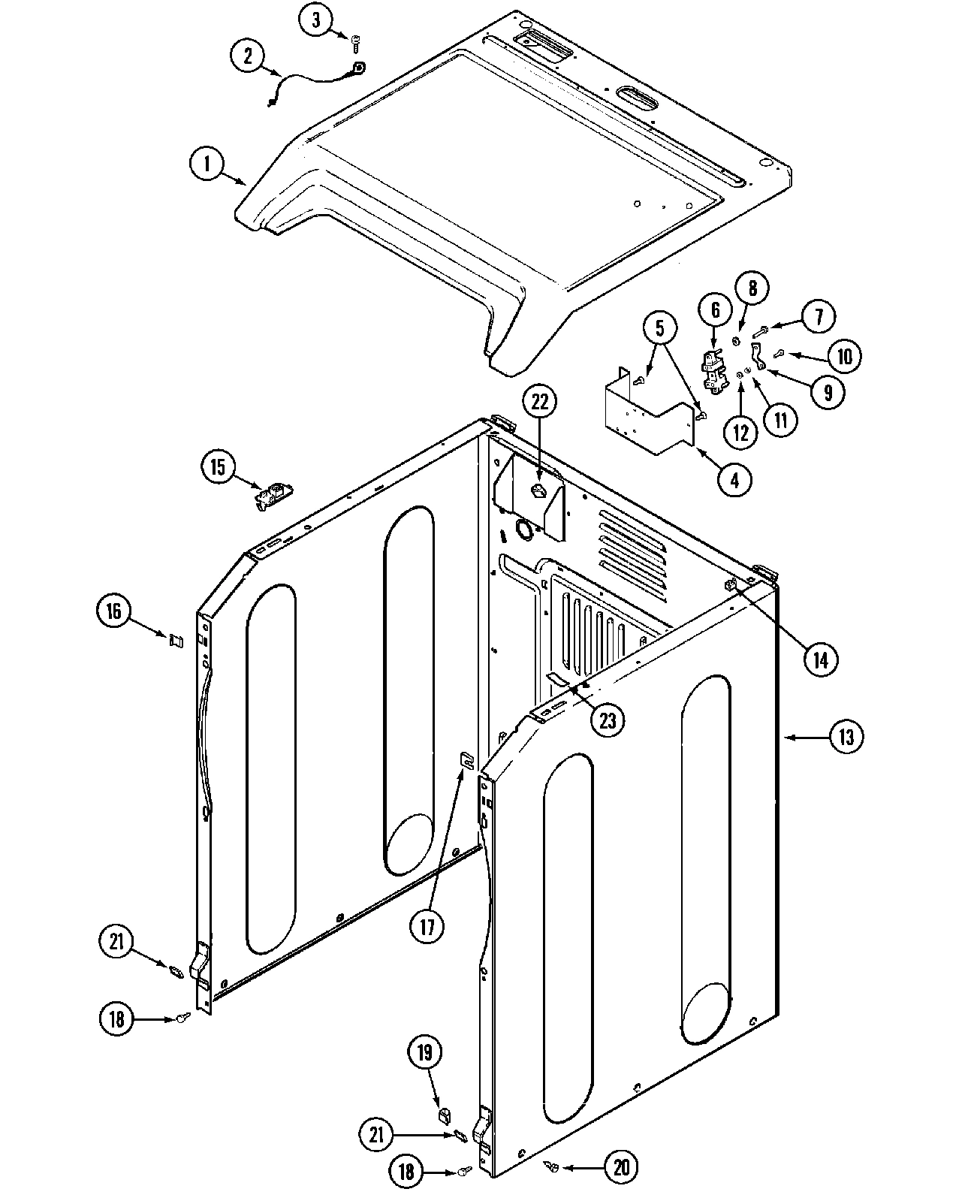

02 - CABINET-FRONT

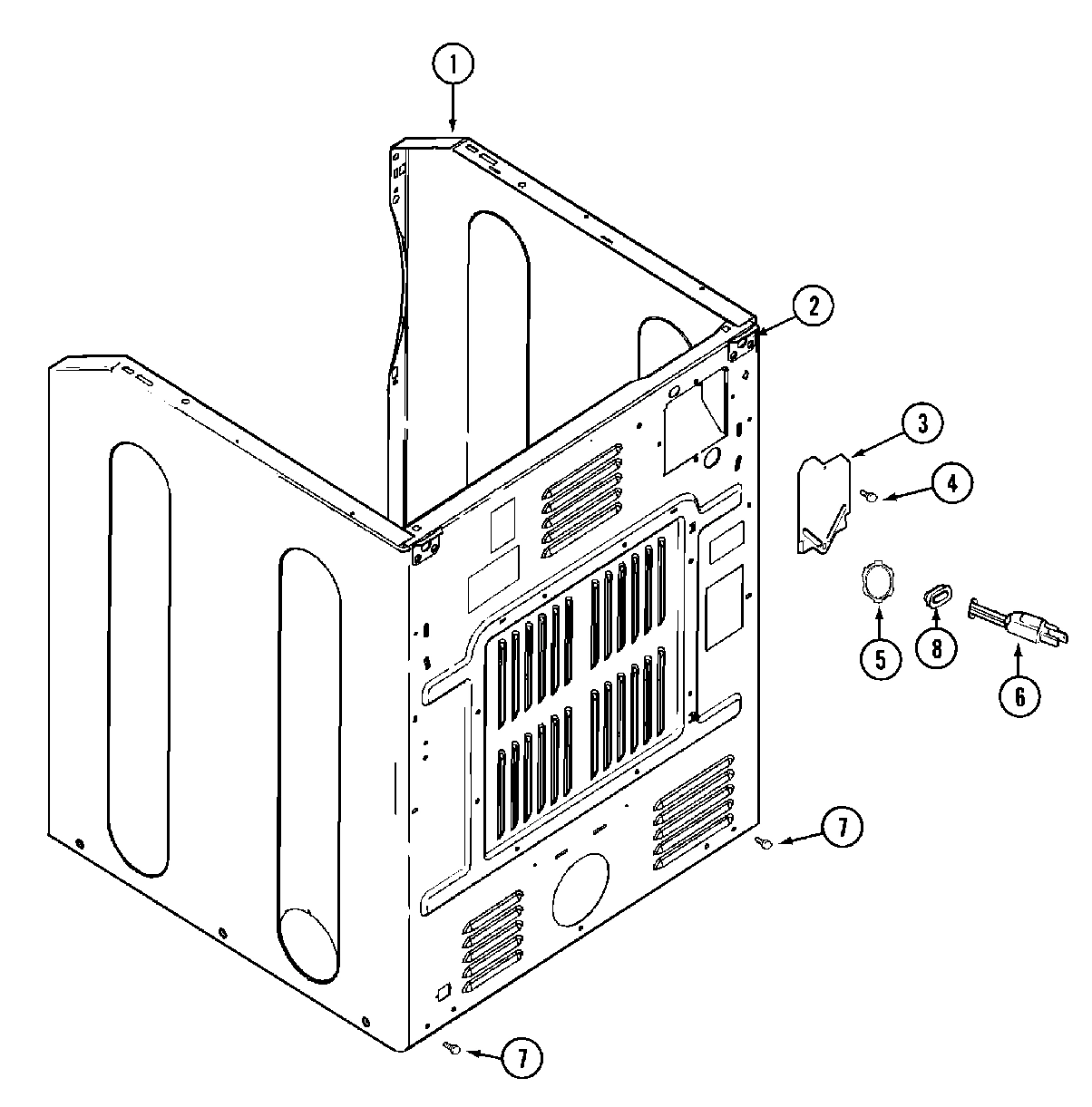

04 - CABINET-REAR

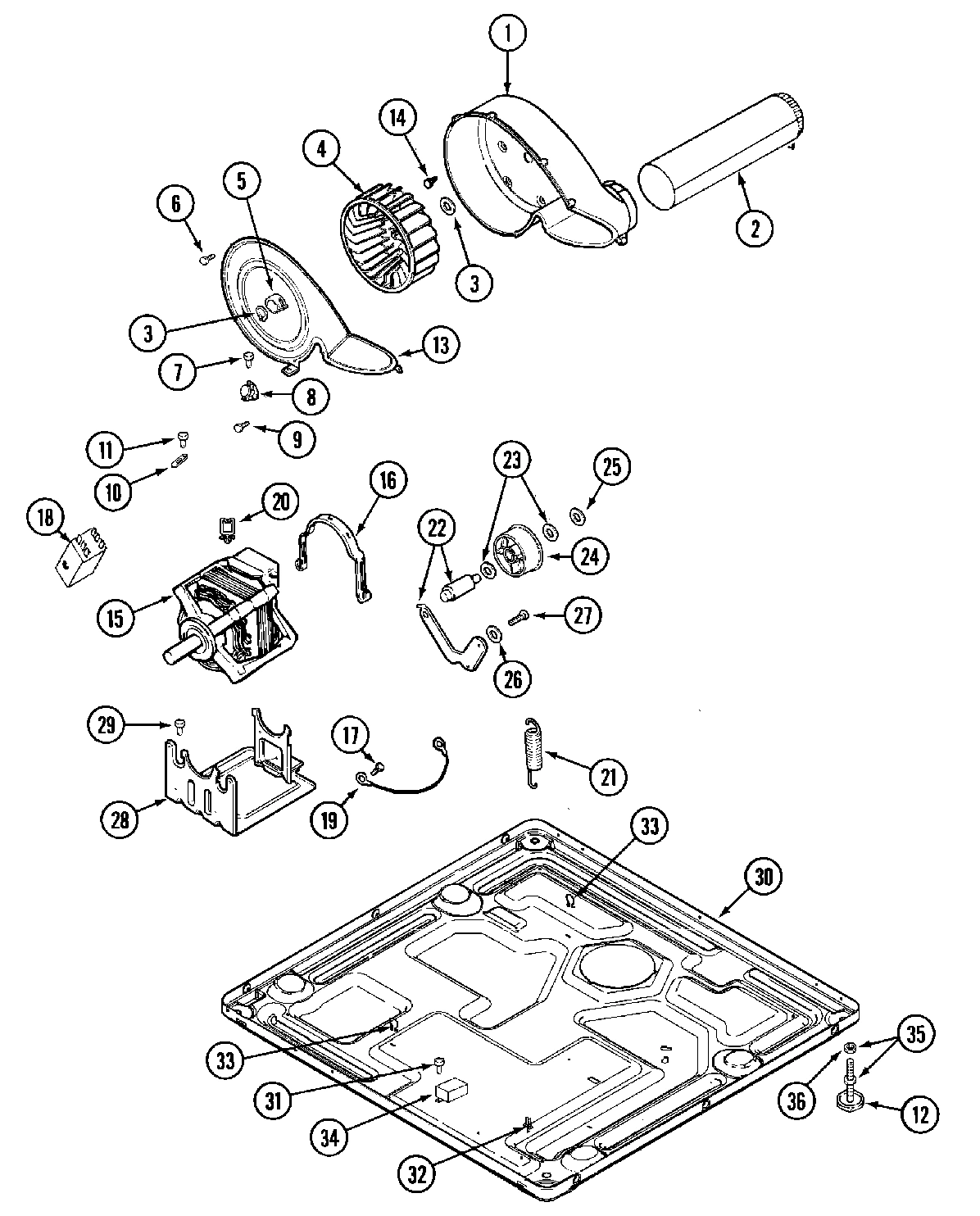

06 - MOTOR DRIVE

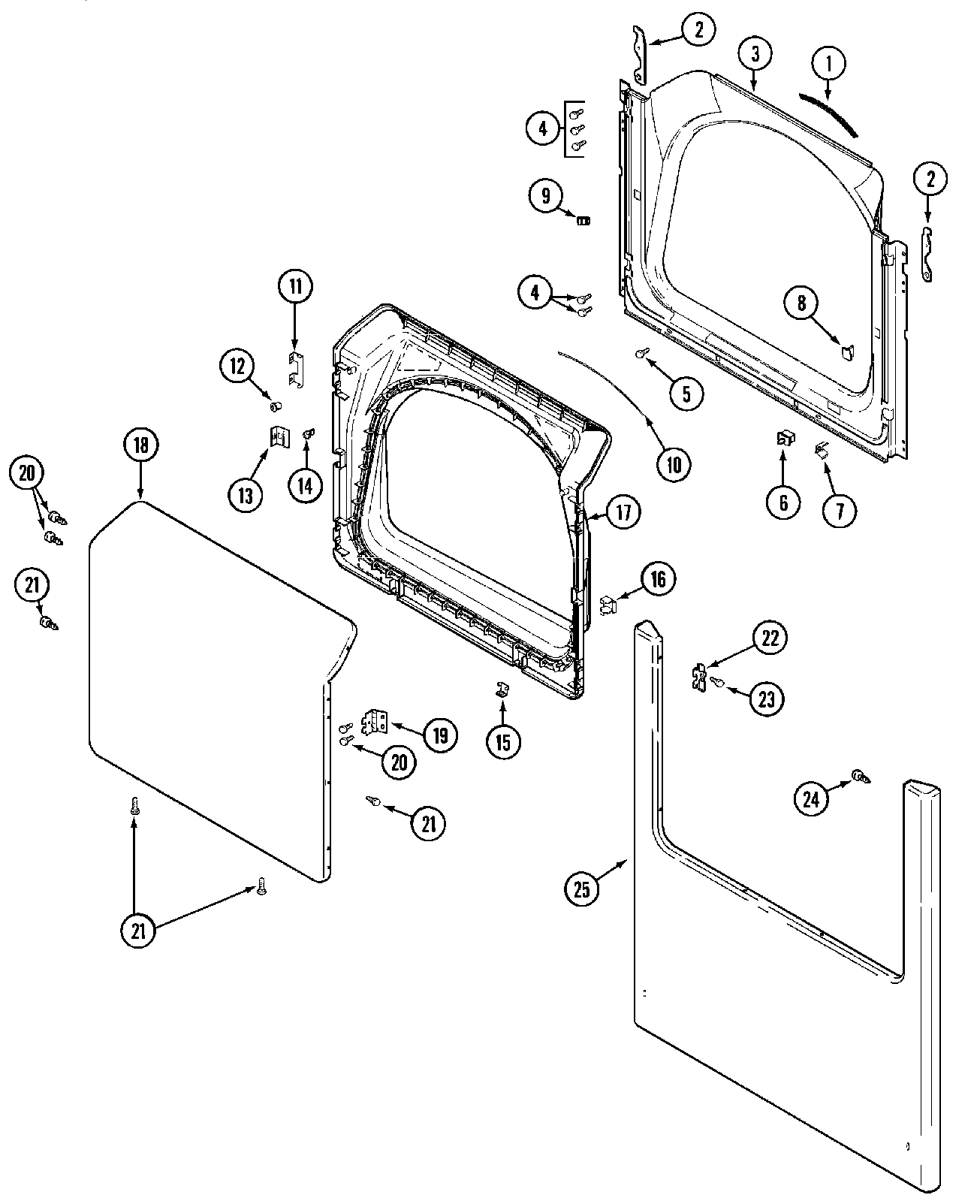

03 - DOOR
Common parts from model Whirlpool MDG14PNAWW GAS DRYER
001
OUTLET DUCT ASSEMBLY WPL 33001799 Contact Us For Availability
001
SEAL, SHROUD WPL 33001767 Contact Us For Availability
001
CONV KIT (NATURAL TO LP) ----S WPL Y308378 Contact Us For Availability
001
COVER, TOP (WHT) WPL 33001865 Contact Us For Availability
001
COVER, TOP (WHT-AS PK) WPL 33002627 Contact Us For Availability
001
CABINET ASSY. (WHT AS PK) WPL 22003639 Contact Us For Availability
001
CABINET, ASSY. (WHT-AS PK) WPL 33002626 Contact Us For Availability
002
CONVERSION KIT (LP TO NATURAL) WPL Y308377 Contact Us For Availability
002
WIRE, GROUND WPL 22001959 Contact Us For Availability
002
HINGE, PLASTIC WPL 22003367 Contact Us For Availability
002
DUCT ASSY., EXHAUST WPL 33001800 Contact Us For Availability
002
HOOK, SECURITY WPL 22002247 Contact Us For Availability
003
SCREW, IGNITER WPL 304971 Contact Us For Availability
003
COVER, TERMINAL BLOCK WPL 33001795 Contact Us For Availability
003
SHROUD (WHT) WPL 33001778 Contact Us For Availability
004
SEAL, BLOWER WPL 33001758 Contact Us For Availability
005
COVER, THERMOSTAT (ELEC ONLY) WPL 33001837 Contact Us For Availability
005
LOCKNUT, EARED FOR CANADIAN WPL 33001425 Contact Us For Availability
005
SCREW, SHROUD & OUTLET DUCT WPL 33001768 Contact Us For Availability
006
DEFLECTOR, WATER (W/ADHESIVE) WPL 22001511 Contact Us For Availability
006
BRACKET, BACK (WHT) WPL 33001956 Contact Us For Availability
006
BRACKET, BACK (WHT) WPL 33002523 Contact Us For Availability
006
CORD, POWER (CANADA) WPL 305168 Contact Us For Availability
007
CONSOLE (WHT) WPL 22003101 Contact Us For Availability
007
CONSOLE (WHT) WPL 33001957 Contact Us For Availability
007
BRACKET, HINGE WPL 33001760 Contact Us For Availability
008
FRONT, TUMBLER (W/SEAL) WPL 33001802 Contact Us For Availability
008
PLUG, DOOR CATCH WPL NLA Contact Us For Availability
008
GROMMET, CORD WPL 33002053 Contact Us For Availability
009
CLIP, SCREW WPL 215003 Contact Us For Availability
009
STRAP, GROUND WPL Y312184 Contact Us For Availability
010
SCREW, TRANSFORMER WPL 211251 Contact Us For Availability
011
STANDOFF, CIRCUIT BOARD WPL 33001204 Contact Us For Availability
011
CLIP, DOOR (DOUBLE) WPL 22002038 Contact Us For Availability
012
BUSHING, INNER DOOR WPL 33001771 Contact Us For Availability
013
SHUT-OFF, GAS VALVE WPL Y303349 Contact Us For Availability
013
COVER, BLOWER HOUSING WPL 33001796 Contact Us For Availability
014
SCREW, CONTROL BOARD WPL 215526 Contact Us For Availability
014
PIPE & BRACKET ASSY. WPL 33001735 Contact Us For Availability
014
FASTENER WPL 310933 Contact Us For Availability
014
SCREW, BLOWER HOUSING WPL 314818 Contact Us For Availability
014
STRIKE, DOOR (MALE) WPL 33001761 Contact Us For Availability
015
READER HARNESS KIT (16``) WPL 33001856 Contact Us For Availability
015
WIRE HARNESS, MAIN WPL 33001878 Contact Us For Availability
015
TUMBLER WPL 33001794 Contact Us For Availability
015
PIN, LOCATOR WPL 33001872 Contact Us For Availability
015
CLIP, DOOR (SINGLE) WPL 22002039 Contact Us For Availability
016
INLET DUCT ASSEMBLY WPL 33001810 Contact Us For Availability
016
PLUG, INNER DOOR WPL 33001763 Contact Us For Availability
017
HARNESS, SERVICE WPL 33002090 Contact Us For Availability
017
SCREW, BAFFLE WPL 33001788 Contact Us For Availability
017
DOOR, INNER/ W SEAL (WHT) WPL 33001750 Contact Us For Availability
018
BACK, TUMBLER (W/SEAL) WPL 33001801 Contact Us For Availability
018
DOOR, OUTER (WHT-W/DAMPER) WPL 22001979 Contact Us For Availability
019
SCREW (No.10-3/8``) WPL 33002190 Contact Us For Availability
019
CONE ASSY., COMBUSTION WPL 33001835 Contact Us For Availability
019
WIRE, GROUND WPL 901220 Contact Us For Availability
020
CLIP, WIRE HARNESS WPL Y310376 Contact Us For Availability
020
CONE, EXTENSION (COMBUSTION) WPL Y303841 Contact Us For Availability
021
RETAINER, HEATER CHAMBER WPL Y312890 Contact Us For Availability
021
FASTENER, FRONT PANEL WPL 213280 Contact Us For Availability
021
GROMMET WPL 33002157 Contact Us For Availability
021
PLUG FOR SPRING WPL 33002461 Contact Us For Availability
021
SCREW No.8-18AB WAFER HD WPL 22002063 Contact Us For Availability
022
CAP, GAS PIPE WPL 33001693 Contact Us For Availability
022
CLIP, WIRE HARNESS WPL 33002073 Contact Us For Availability
023
STRAP, TOP COVER SUPPORT WPL 33001836 Contact Us For Availability
024
BEARING, IDLER ASSEMBLY WPL 33001783 Contact Us For Availability
024
CLIP, GROUNDING WPL 22002244 Contact Us For Availability
025
CLIP, LOWER FRONT PANEL WPL 22002239 Contact Us For Availability
025
PANEL, FRONT (WHT) WPL 22002241 Contact Us For Availability
027
SCREW, INLET DUCT WPL 210932 Contact Us For Availability
028
SUPPORT, MOTOR WPL 33001752 Contact Us For Availability
028
SUPPORT, MOTOR WPL 33002466 Contact Us For Availability
029
SCREW, MOTOR & BLOWER WPL Y313561 Contact Us For Availability
030
BASE, (LWR) WPL 33002622 Contact Us For Availability
032
RETAINER, WIRE WPL 315471 Contact Us For Availability
033
SPRING, WIRE HARNESS WPL 410490 Contact Us For Availability
034
RELAY, HEATER WPL 306199 Contact Us For Availability
035
ADJUSTABLE LEG & NUT WPL W10176519 No Longer Available
× ![]()
