Model Whirlpool MDG14PDAAW GAS DRYER – Common Parts & Diagrams
02 - CONTROL CENTER

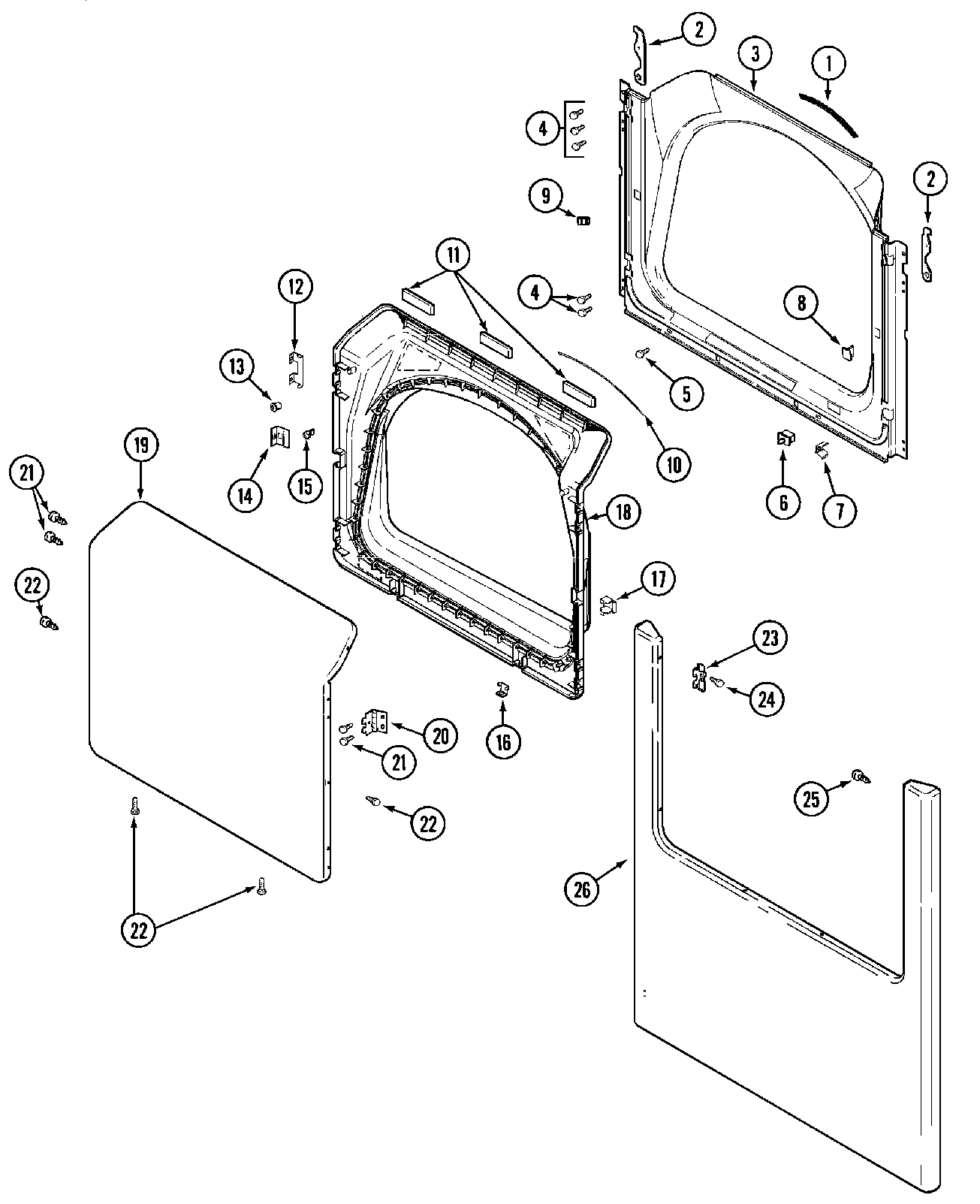

04 - DOOR

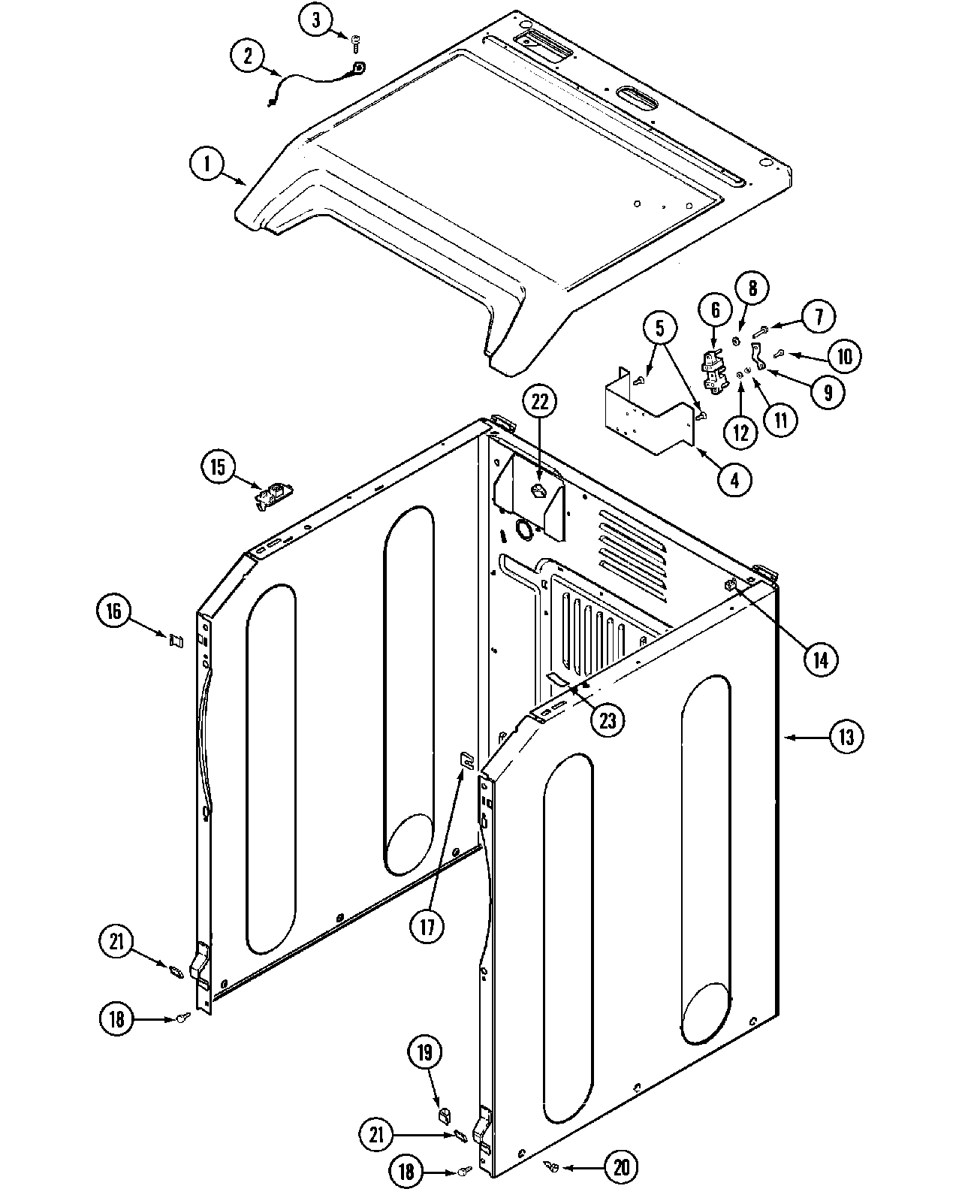

03 - CABINET-FRONT
06 - GAS VALVE

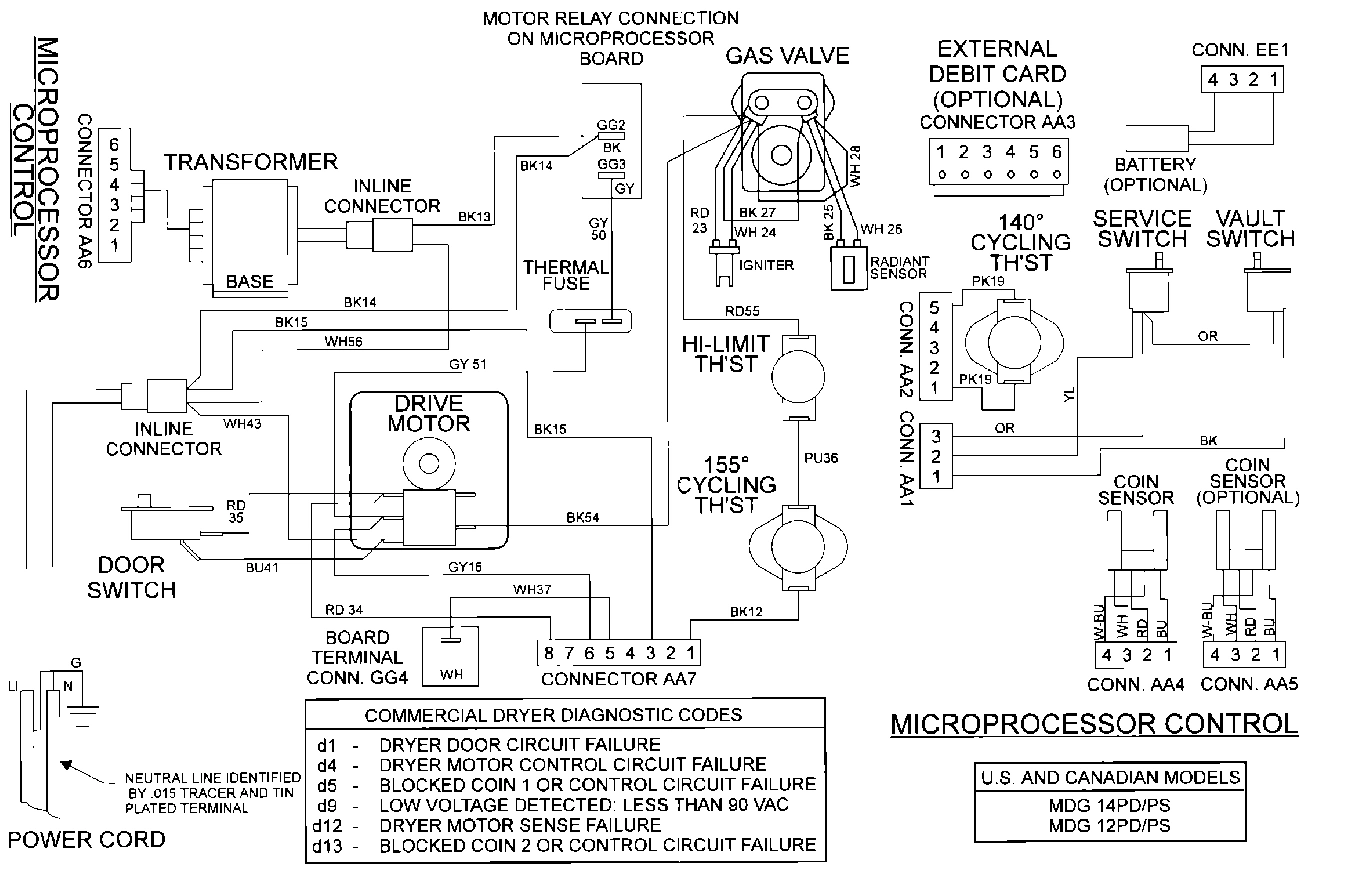

08 - WIRING INFORMATION

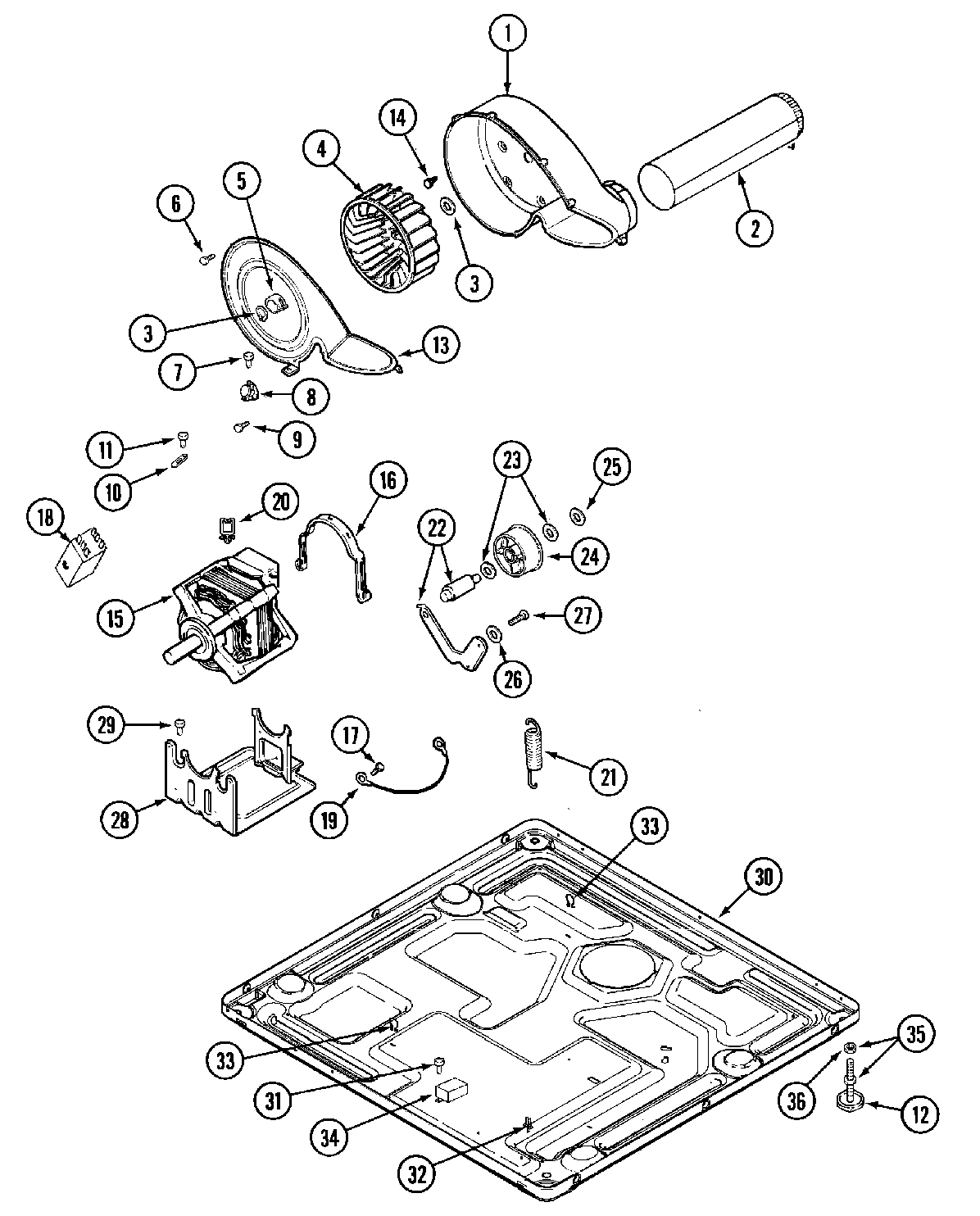

07 - MOTOR DRIVE

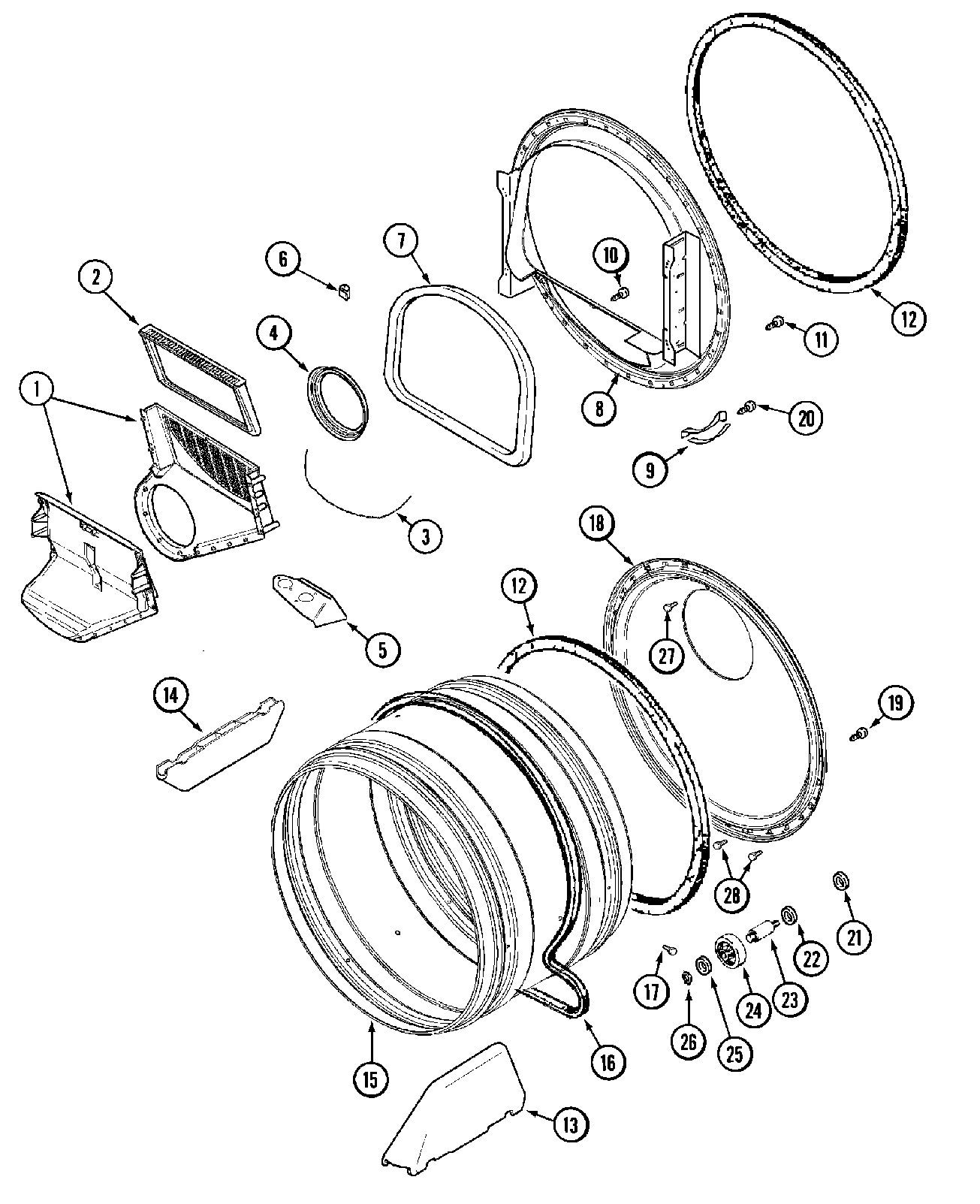

09 - TUMBLER

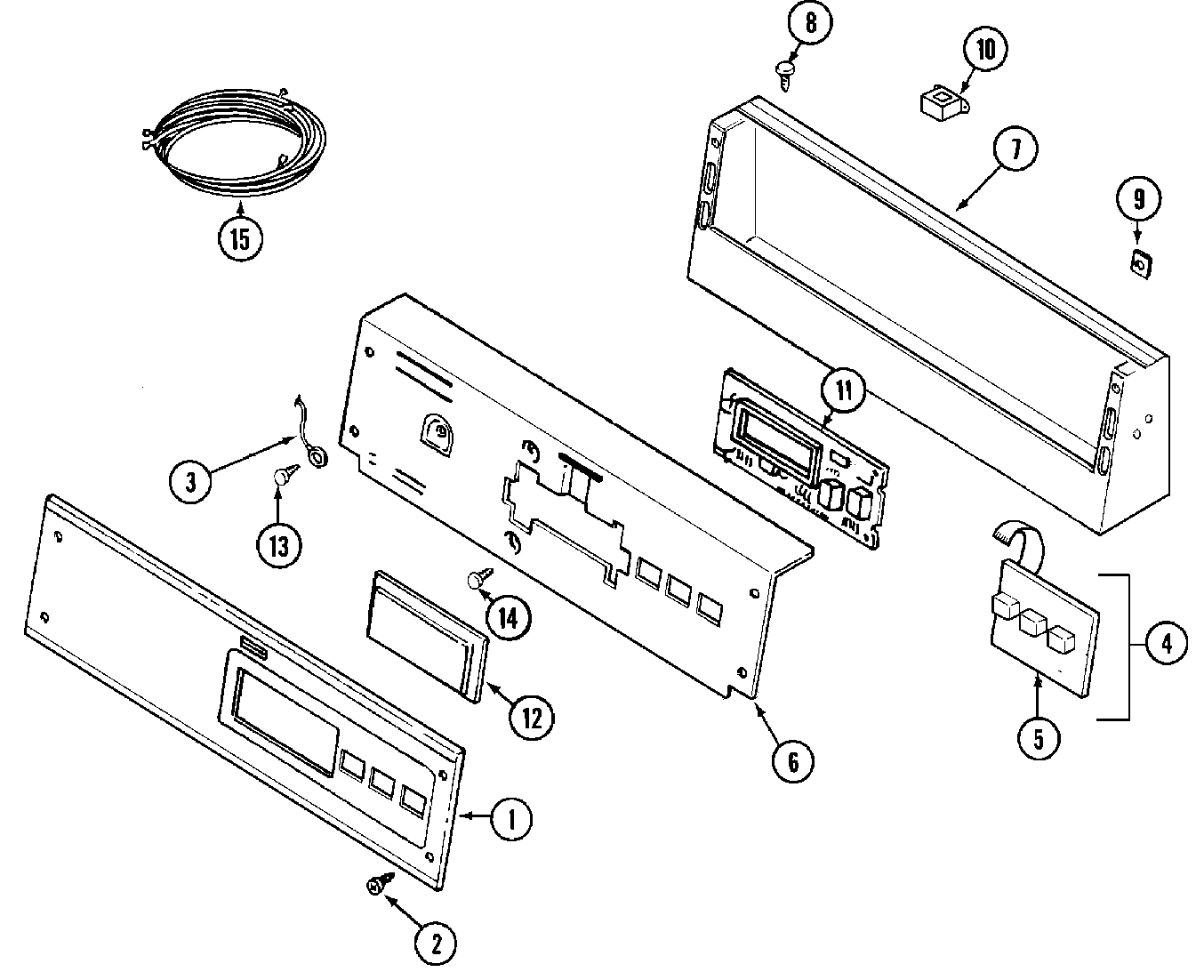

01 - CONTROL PANEL

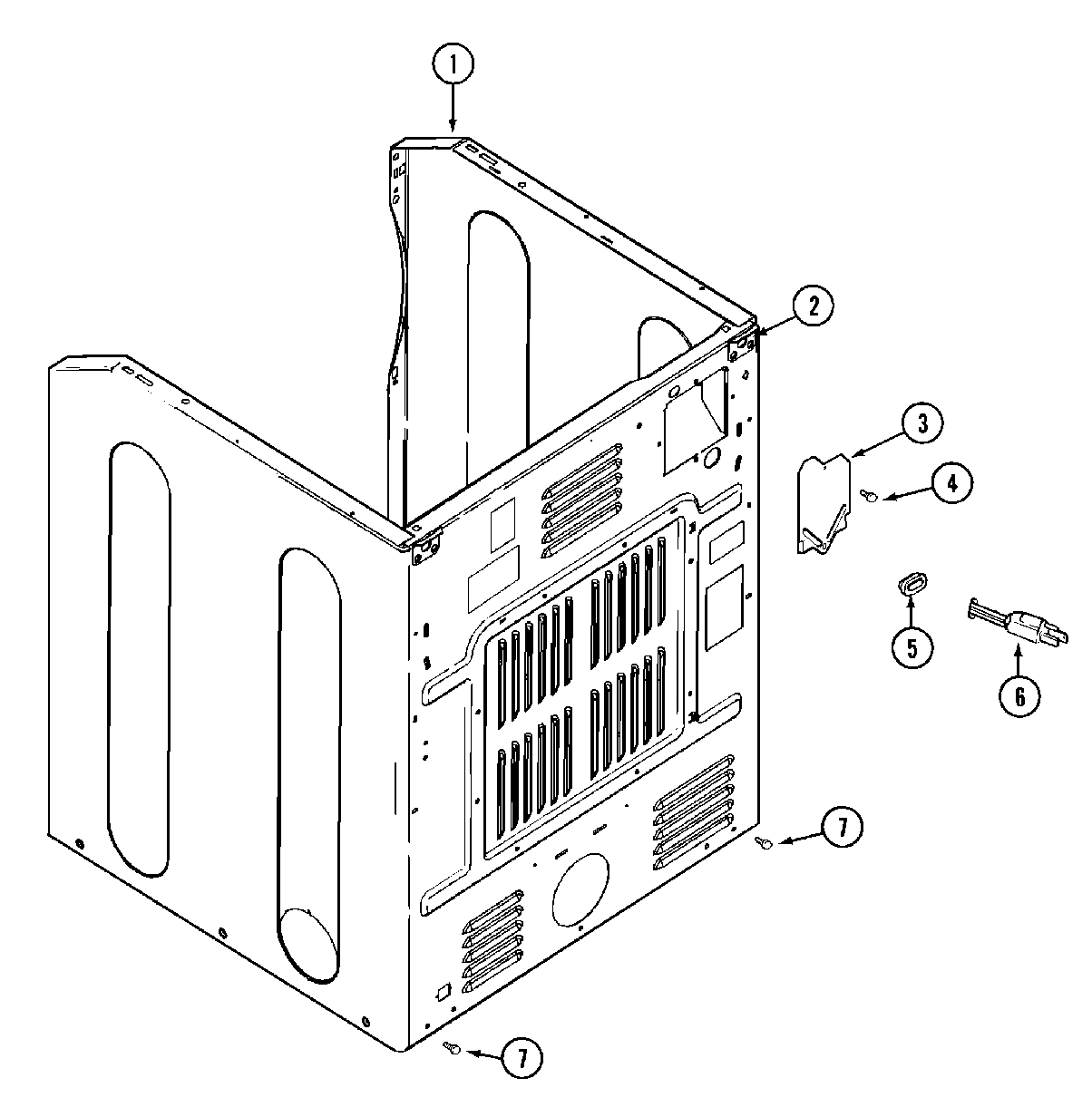

05 - CABINET-REAR
Common parts from model Whirlpool MDG14PDAAW GAS DRYER
001
COVER, TOP (WHT) WPL 33001797 Contact Us For Availability
001
COVER, TOP (WHT-AS PK) WPL 33002629 Contact Us For Availability
001
COVER, TOP (BSQ-AS PK) WPL 33002630 Contact Us For Availability
001
CONV KIT (NATURAL TO LP) ----S WPL Y308378 Contact Us For Availability
001
OUTLET DUCT ASSEMBLY WPL 33001799 Contact Us For Availability
001
PANEL, CONTROL WPL 33001784 Contact Us For Availability
002
BRACKET, CABINET HINGE WPL NLA Contact Us For Availability
002
HOOK, SECURITY WPL 22002033 Contact Us For Availability
002
CONVERSION KIT (LP TO NATURAL) WPL Y308377 Contact Us For Availability
002
DUCT ASSY., EXHAUST WPL 33001800 Contact Us For Availability
002
HINGE, PLASTIC WPL 22003367 Contact Us For Availability
003
SHROUD (WHT) WPL 33001778 Contact Us For Availability
003
(ALM) WPL 33001779 Contact Us For Availability
003
WIRE, GROUND WPL 22001959 Contact Us For Availability
003
SCREW, IGNITER WPL 304971 Contact Us For Availability
003
COVER, TERMINAL BLOCK WPL 33001795 Contact Us For Availability
004
SEAL, BLOWER WPL 33001758 Contact Us For Availability
004
CONTROL SWITCH ASSEMBLY WPL 306694 Contact Us For Availability
005
GASKET, CONTROL CENTER (WHT) WPL 22002072 Contact Us For Availability
005
(ALM) WPL 22002073 Contact Us For Availability
005
(BSQ) WPL 22002618 Contact Us For Availability
005
SCREW, SHROUD & OUTLET DUCT WPL 33001768 Contact Us For Availability
005
COVER, THERMOSTAT (ELEC ONLY) WPL 33001837 Contact Us For Availability
005
GROMMET, CORD WPL 211881 Contact Us For Availability
006
CLIP, WIRE HARNESS WPL Y310376 Contact Us For Availability
006
DEFLECTOR, WATER (W/ADHESIVE) WPL 22001511 Contact Us For Availability
006
BRACKET, BACK (WHT) WPL 33001785 Contact Us For Availability
006
BRACKET, BACK (ALM) WPL 33001786 Contact Us For Availability
006
BRACKET, BACK (BSQ) WPL 33002429 Contact Us For Availability
006
BRACKET, BACK (WHT) WPL 33002519 Contact Us For Availability
007
BOLT, LOCKING WPL 213035 Contact Us For Availability
007
SEAL, SHROUD WPL 33001767 Contact Us For Availability
007
BRACKET, HINGE WPL 33001760 Contact Us For Availability
007
CONSOLE (WHT) WPL 22002329 Contact Us For Availability
007
CONSOLE (ALM) WPL 22002330 Contact Us For Availability
007
CONSOLE (BSQ) WPL 22002889 Contact Us For Availability
007
CONSOLE (BSQ) WPL 22003088 Contact Us For Availability
007
CONSOLE (WHT) WPL 22003089 Contact Us For Availability
008
FRONT, TUMBLER (W/SEAL) WPL 33001802 Contact Us For Availability
008
LOCKWASHER, LOCKING BOLT WPL 910181 Contact Us For Availability
009
STRAP, GROUND WPL Y312184 Contact Us For Availability
009
CLIP, SCREW WPL 215003 Contact Us For Availability
010
SCREW, TRANSFORMER WPL 211251 Contact Us For Availability
011
SINGLE FACEPLATE WPL 22002144 Contact Us For Availability
011
PAD, DOOR WPL 33001268 Contact Us For Availability
011
SPACER CIRCUIT BOARD WPL Y215513 Contact Us For Availability
012
BUTTON, RETURN WPL 216200 Contact Us For Availability
012
CLIP, DOOR (DOUBLE) WPL 22002038 Contact Us For Availability
013
DOOR, ACCESS (WHT) WPL 22001910 Contact Us For Availability
013
(ALM) WPL 22001911 Contact Us For Availability
013
(BSQ) WPL 22002886 Contact Us For Availability
013
TIMER ACCESS DOOR ASSY (WHITE) WPL 22003679 Contact Us For Availability
013
TIMER ACCESS DOOR ASSY(BISQUE) WPL 22003692 Contact Us For Availability
013
BUSHING, INNER DOOR WPL 33001771 Contact Us For Availability
013
CABINET ASSY. (WHT AS PK) WPL 22003639 Contact Us For Availability
013
SHUT-OFF, GAS VALVE WPL Y303349 Contact Us For Availability
013
COVER, BLOWER HOUSING WPL 33001796 Contact Us For Availability
014
FASTENER WPL 310933 Contact Us For Availability
014
PIPE & BRACKET ASSY. WPL 33001735 Contact Us For Availability
014
SCREW, BLOWER HOUSING WPL 314818 Contact Us For Availability
014
SCREW, CONTROL BOARD WPL 215526 Contact Us For Availability
015
STRIKE, DOOR (MALE) WPL 33001761 Contact Us For Availability
015
LOCATOR, PIN WPL 33001757 Contact Us For Availability
015
TUMBLER WPL 33001794 Contact Us For Availability
015
WIRE HARNESS, MAIN WPL 33001774 Contact Us For Availability
016
SCREW, COIN DROP WPL 216068 Contact Us For Availability
016
CLIP, DOOR (SINGLE) WPL 22002039 Contact Us For Availability
016
INLET DUCT ASSEMBLY WPL 33001810 Contact Us For Availability
017
BRACKET, SWITCH WPL 22001404 Contact Us For Availability
017
PLUG, INNER DOOR WPL 33001763 Contact Us For Availability
017
SCREW, BAFFLE WPL 33001788 Contact Us For Availability
018
DOOR, INNER/ W SEAL (WHT) WPL 33001750 Contact Us For Availability
018
(W/SEAL-ALM) WPL 33001751 Contact Us For Availability
018
SWITCH, MOTOR WPL Y303877 Contact Us For Availability
018
BACK, TUMBLER (W/SEAL) WPL 33001801 Contact Us For Availability
019
HARNESS, SENSOR SWITCH WPL 22001966 Contact Us For Availability
019
DOOR, OUTER (WHT-W/DAMPER) WPL 22001979 Contact Us For Availability
019
(ALM-W/DAMPER) WPL 22001980 Contact Us For Availability
019
(BSQ-W/DAMPER) WPL 22002660 Contact Us For Availability
019
CONE ASSY., COMBUSTION WPL 33001835 Contact Us For Availability
019
WIRE, GROUND WPL 901220 Contact Us For Availability
019
SCREW (No.10-3/8``) WPL 33002190 Contact Us For Availability
020
CONE, EXTENSION (COMBUSTION) WPL Y303841 Contact Us For Availability
021
FASTENER, FRONT PANEL WPL 213280 Contact Us For Availability
021
CLIP, LOWER FRONT PANEL WPL 22002239 Contact Us For Availability
021
RETAINER, HEATER CHAMBER WPL Y312890 Contact Us For Availability
021
GROMMET WPL 33002157 Contact Us For Availability
021
PLUG FOR SPRING WPL 33002461 Contact Us For Availability
022
SCREW No.8-18AB WAFER HD WPL 22002063 Contact Us For Availability
022
(BSQ) WPL 33002351 Contact Us For Availability
022
CAP, GAS PIPE WPL 33001693 Contact Us For Availability
023
(ALM) WPL 33001765 Contact Us For Availability
023
(BSQ) WPL 33002349 Contact Us For Availability
023
STRAP, TOP COVER SUPPORT WPL 33001836 Contact Us For Availability
024
BEARING, IDLER ASSEMBLY WPL 33001783 Contact Us For Availability
025
CLIP, GROUNDING WPL 22002244 Contact Us For Availability
026
PANEL, FRONT (WHT) WPL 22002087 Contact Us For Availability
026
PANEL, FRONT (WHT) WPL 22002241 Contact Us For Availability
026
(ALM) WPL 22002242 Contact Us For Availability
026
(BSQ) WPL 22002663 Contact Us For Availability
027
SCREW, INLET DUCT WPL 210932 Contact Us For Availability
028
SUPPORT, MOTOR WPL 33001752 Contact Us For Availability
028
SUPPORT, MOTOR WPL 33002466 Contact Us For Availability
029
SCREW, MOTOR & BLOWER WPL Y313561 Contact Us For Availability
030
BASE, (LWR) WPL 33002622 Contact Us For Availability
032
RETAINER, WIRE WPL 315471 Contact Us For Availability
033
SPRING, WIRE HARNESS WPL 410490 Contact Us For Availability
034
RELAY, HEATER WPL 306199 Contact Us For Availability
035
ADJUSTABLE LEG & NUT WPL W10176519 No Longer Available
× ![]()
