Model Whirlpool MDG13PDBBL GAS DRYER – Common Parts & Diagrams
05 - TUMBLER
06 - GAS VALVE

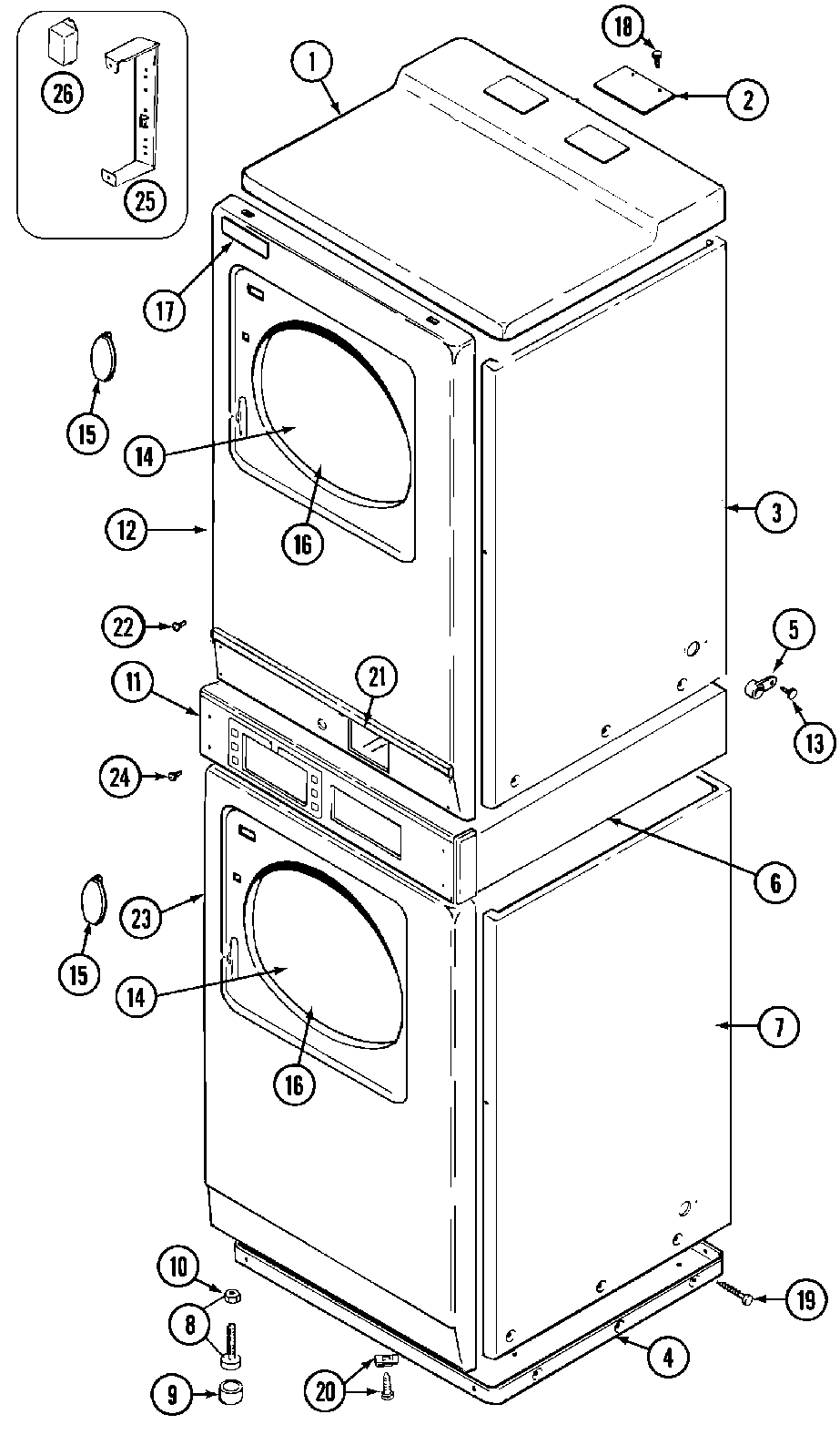

02 - FRONT

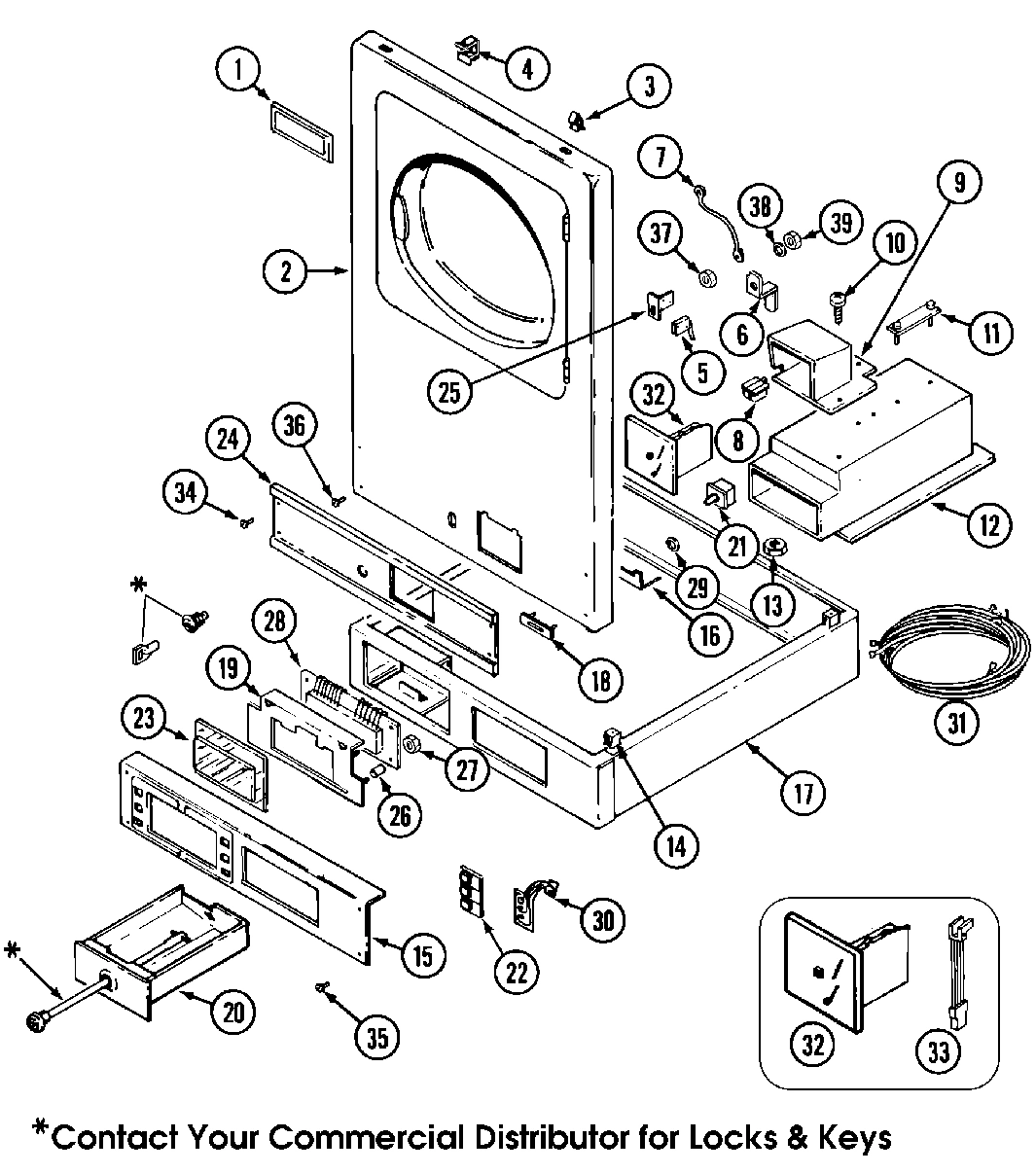

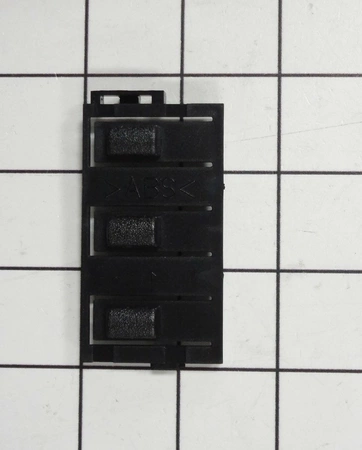

01 - CONTROLS & UPPER PANEL

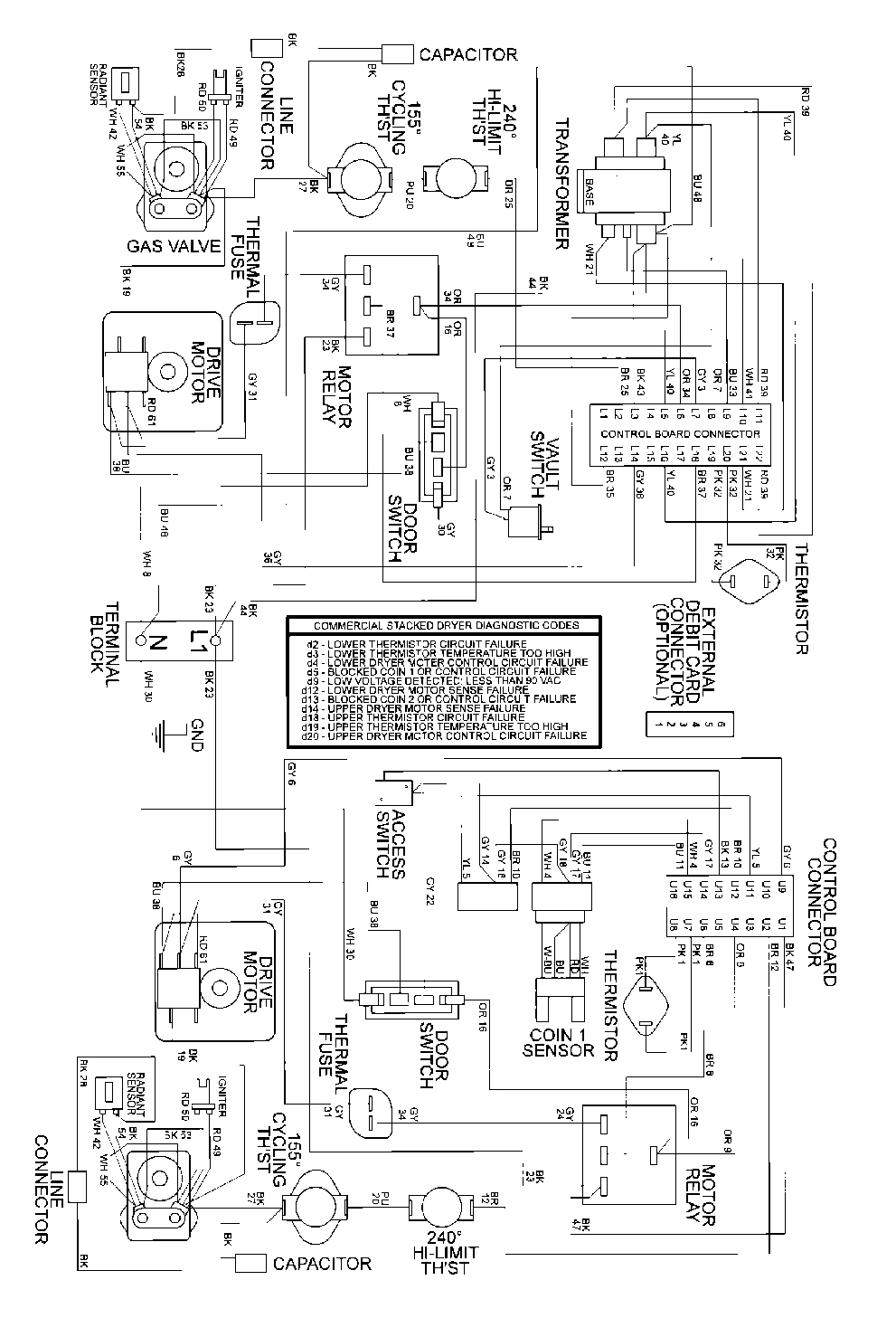

08 - WIRING INFORMATION

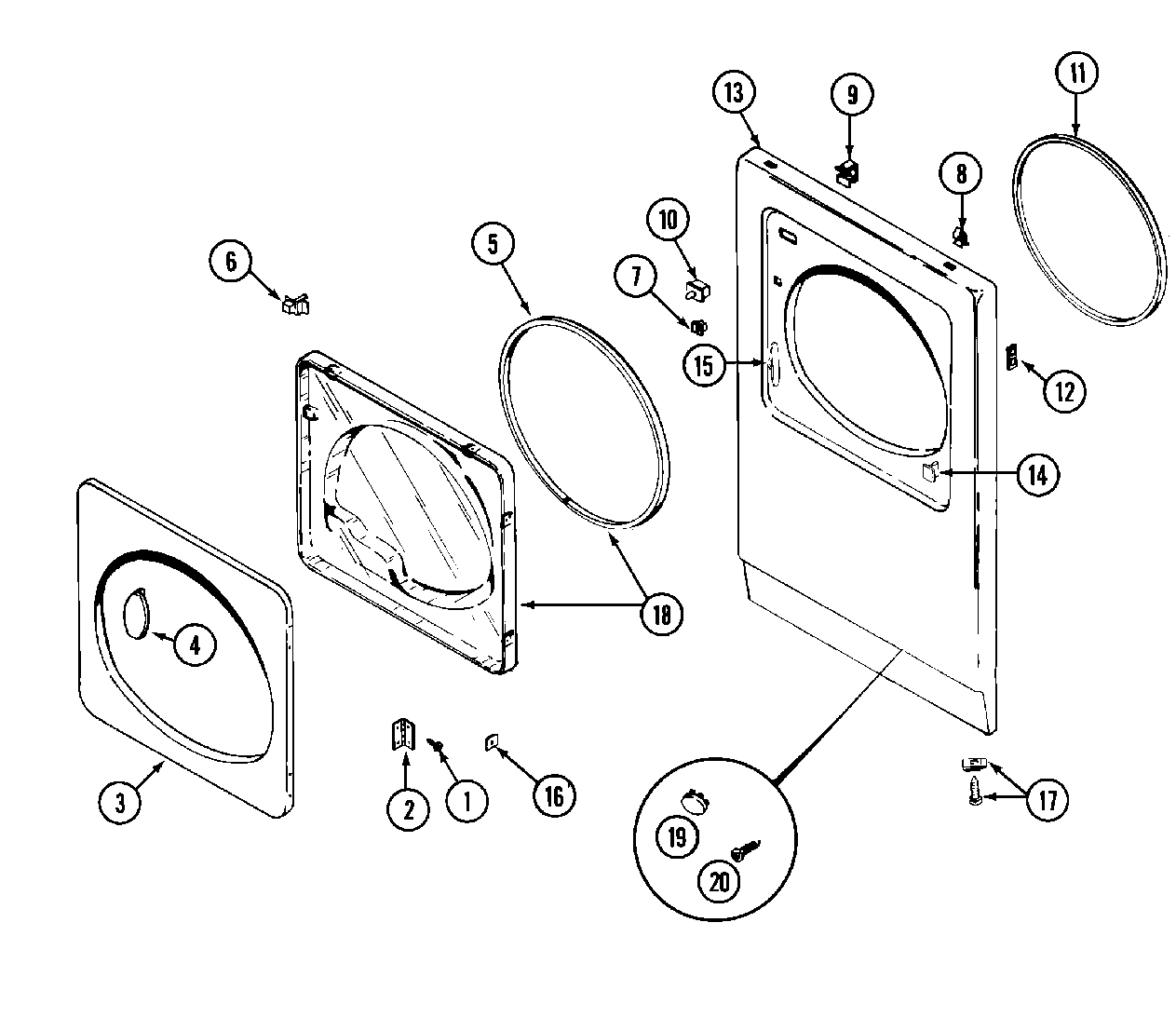

03 - DOOR

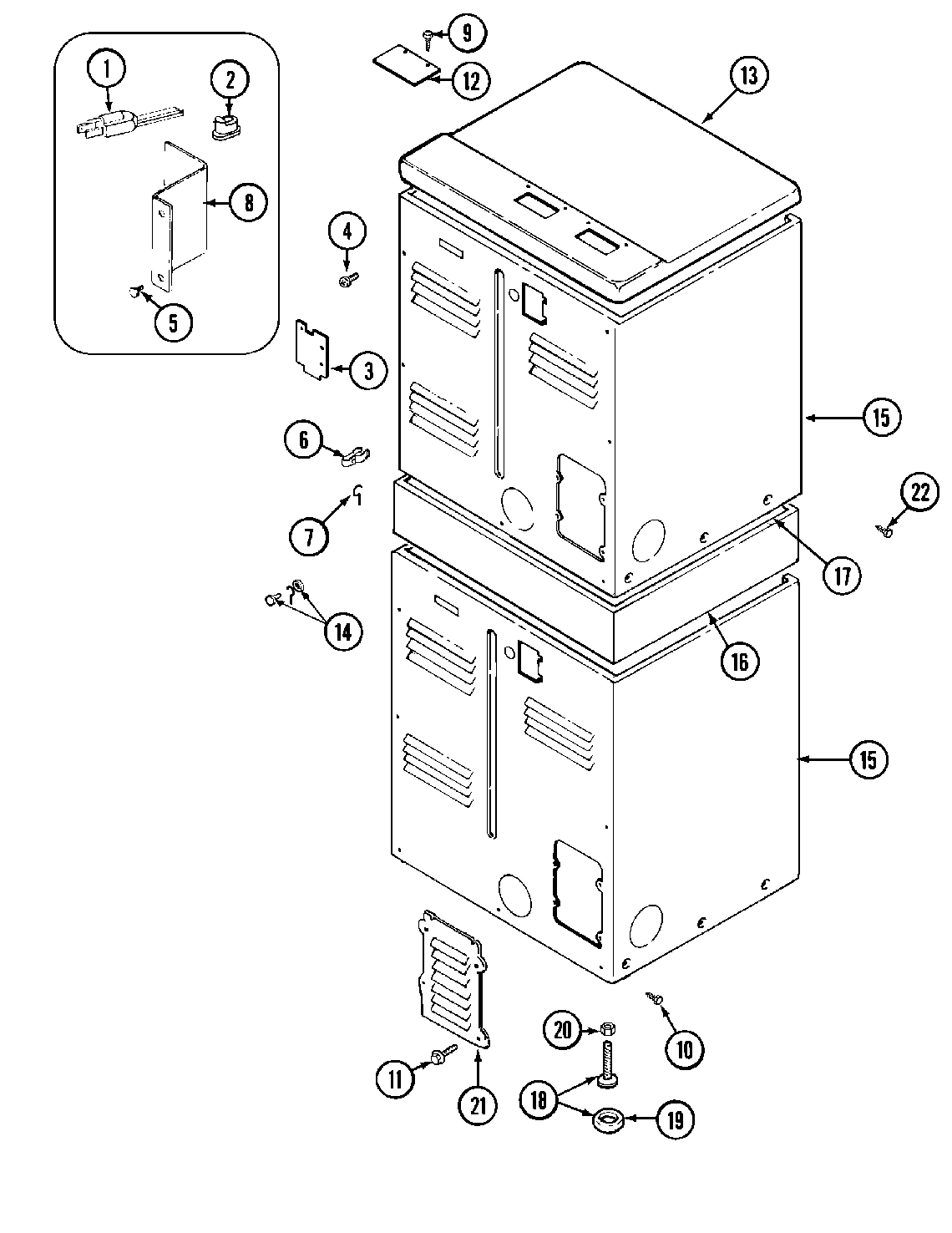

04 - REAR

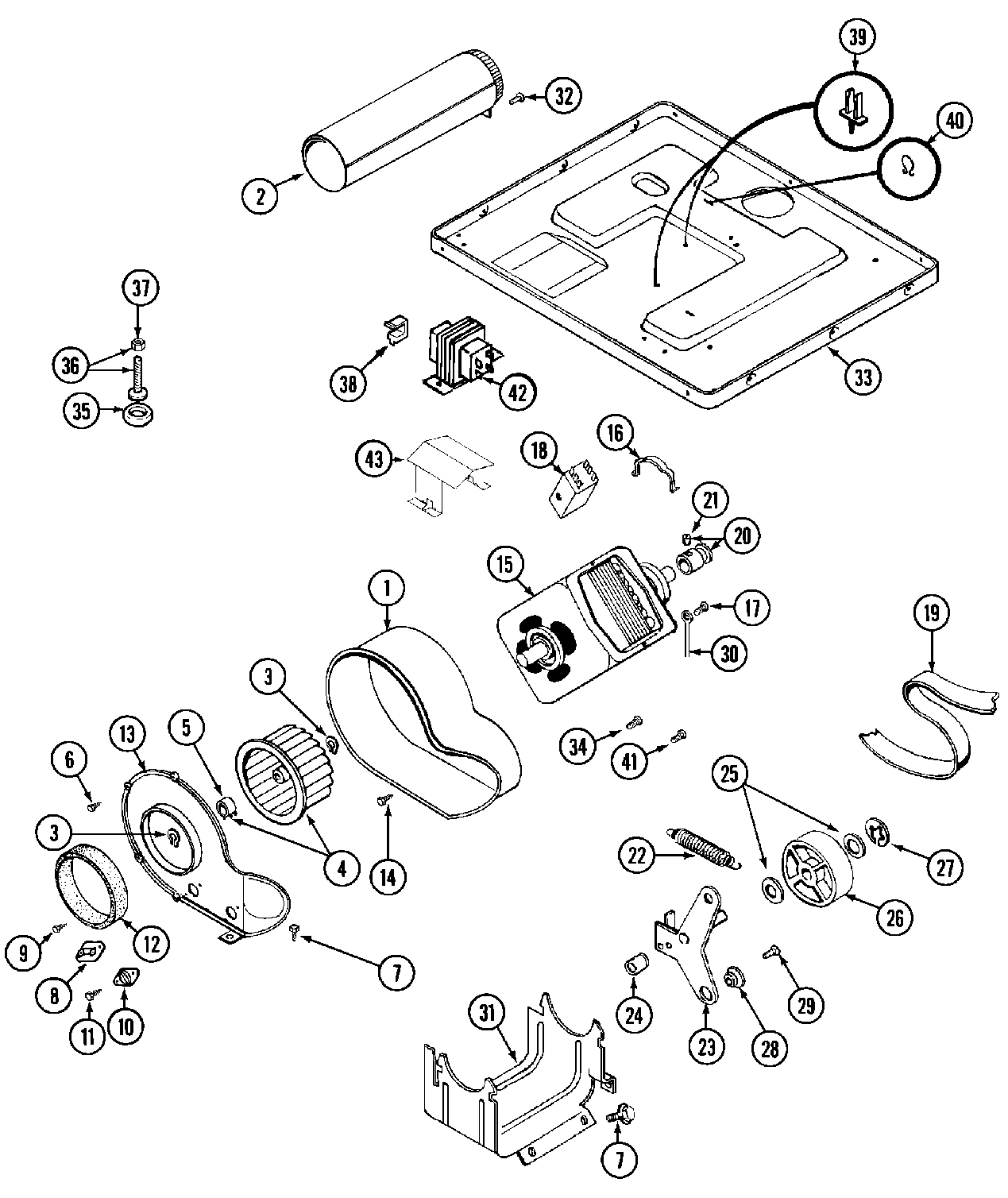

07 - MOTOR DRIVE
Common parts from model Whirlpool MDG13PDBBL GAS DRYER
001
HOUSING, BLOWER WPL Y312893 Contact Us For Availability
001
CONVERSION KIT (NAT TO LP) WPL Y308378 Contact Us For Availability
001
NAMEPLATE WPL 33001711 Contact Us For Availability
001
SCREW WPL Y314062 Contact Us For Availability
001
CORD, POWER WPL 33001246 Contact Us For Availability
002
CONVERSION KIT (LP TO NAT.) WPL Y308377 Contact Us For Availability
002
HINGE, DOOR WPL 33001230 Contact Us For Availability
002
GROMMET, POWER CORD WPL 211881 Contact Us For Availability
002
EXHAUST DUCT ASSEMBLY WPL Y303442 Contact Us For Availability
003
SCREW, IGNITER WPL 304971 Contact Us For Availability
003
PANEL, OUTER DOOR (WHT) WPL 314967 Contact Us For Availability
003
COVER, TERMINAL WPL Y312905 Contact Us For Availability
004
HANDLE, DOOR (WHT) WPL 314939 Contact Us For Availability
004
(ALM) WPL 314974 Contact Us For Availability
005
SCREW, SWITCH WPL 912012 Contact Us For Availability
005
SWITCH, ACCESS WPL Y306232 Contact Us For Availability
005
SEAL, DOOR WPL 33001192 Contact Us For Availability
006
SCREW, SUPPORT WPL 314663 Contact Us For Availability
006
CAM, LOCKING WPL 314625 Contact Us For Availability
006
CLAMP, GROUND (W/SCREW) WPL 301548 Contact Us For Availability
006
SCREW, CLAMP WPL 313122 Contact Us For Availability
007
SCREW, HOUSING COVER BRKT WPL Y313561 Contact Us For Availability
007
GROUND WIRE, LOCK WPL Y306712 Contact Us For Availability
008
CHUTE, COIN WPL 314635 Contact Us For Availability
008
BRACKET, TERMINAL WPL Y312904 Contact Us For Availability
008
THERMISTOR, TEMP. CONTROL WPL 307208 Contact Us For Availability
010
BRACKET, GAS VALVE WPL 314566 Contact Us For Availability
010
BOLT, COIN DROP COVER WPL 314654 Contact Us For Availability
010
SWITCH, DOOR WPL 33001420 Contact Us For Availability
011
BAFFLE (SHORT) WPL 33001012 Contact Us For Availability
011
STRAP, MOUNTING WPL 22001810 Contact Us For Availability
011
SEAL, FRONT PANEL WPL 314937 Contact Us For Availability
012
WASHER, BAFFLE SCREW WPL 314158 Contact Us For Availability
012
LOCKWASHER, VAULT ASSEMBLY WPL 910387 Contact Us For Availability
013
DRYER TUMBLER, W/O BAFFLES WPL 33001108 Contact Us For Availability
013
SHUT-OFF, GAS VALVE WPL Y303349 Contact Us For Availability
013
(UPR-WHT) WPL 33001447 Contact Us For Availability
013
COVER, BLOWER HOUSING WPL 314778 Contact Us For Availability
014
SCREW, TUMBLER BAFFLE WPL Y310759 Contact Us For Availability
014
PIPE & BRACKET ASSEMBLY WPL Y303383 Contact Us For Availability
014
SCREW, BLOWER HOUSING WPL 314818 Contact Us For Availability
015
BACK, TUMBLER (W/SEAL) WPL 33001178 Contact Us For Availability
015
COVER, HINGE HOLE (WHT) WPL 33001175 Contact Us For Availability
015
(ALM) WPL 33001176 Contact Us For Availability
016
INLET DUCT ASSEMBLY WPL Y308504 Contact Us For Availability
016
BRACKET, COIN DROP WPL 314631 Contact Us For Availability
016
CLIP, INNER DOOR SCREW WPL Y313910 Contact Us For Availability
017
FASTENER, SPACER ASSEMBLY WPL 310933 Contact Us For Availability
018
PANEL, CLEAR INNER (W/SEAL) WPL 33001203 Contact Us For Availability
018
STRAP, COIN ACCEPTOR WPL 306233 Contact Us For Availability
018
(PROD. No. 303358-8 & 303358-9) WPL 306207 Contact Us For Availability
018
SWITCH, MOTOR EXTERNAL START (PROD. No. 30335 WPL Y303877 Contact Us For Availability
018
SWITCH, MOTOR EXTERNAL START (PROD. No. 30335 WPL Y303879 Contact Us For Availability
019
COMBUSTION CONE ASSEMBLY WPL Y308548 Contact Us For Availability
019
PLUG, FRONT PANEL (WHT) WPL 33001614 Contact Us For Availability
019
(ALM) WPL 33001615 Contact Us For Availability
019
PLATE, CONTROL MOUNTING WPL 33001201 Contact Us For Availability
019
SCREW, PLATE WPL 910186 Contact Us For Availability
020
EXTENSION, CONE (W/SCREWS) WPL Y303841 Contact Us For Availability
020
SCREW, SIGHT HOLE WPL 315489 Contact Us For Availability
020
TRAY, COIN (WHT) WPL 308143 Contact Us For Availability
020
(ALM) WPL 308143L Contact Us For Availability
020
PULLEY, MOTOR (W/SET SCREW) WPL Y305185 Contact Us For Availability
021
RETAINER, HEATER CHAMBER WPL Y312890 Contact Us For Availability
021
COVER, ACCESS WPL Y312951 Contact Us For Availability
021
SCREW, SET WPL Y053241 Contact Us For Availability
022
IDLER SPRING ASSEMBLY WPL Y303945 Contact Us For Availability
023
COVER, DISPLAY WPL 33001209 Contact Us For Availability
025
BRACKET, RELAY WPL 314627 Contact Us For Availability
025
BRACKET, ACCESS SWITCH WPL 314634 Contact Us For Availability
026
RELAY, MOTOR WPL 206824 Contact Us For Availability
026
STAND-OFF, CONTROL BOARD WPL 33001204 Contact Us For Availability
028
CIRCUIT BOARD ASSEMBLY WPL 33001747 Contact Us For Availability
030
GROUND WIRE WPL 901220 Contact Us For Availability
031
SUPPORT, MOTOR WPL NLA Contact Us For Availability
031
STRAP, HARNESS WPL 910768 Contact Us For Availability
031
GROMMET, STRAIN RELIEF WPL 314522 Contact Us For Availability
031
WIRE HARNESS, MAIN (UPR) WPL 33001404 Contact Us For Availability
031
(LWR) WPL 33001405 Contact Us For Availability
031
(LWR) WPL 33001407 Contact Us For Availability
032
SCREW, EXHAUST DUCT WPL Y310632 Contact Us For Availability
032
REJECTOR ASSEMBLY (25 CENTS) WPL 308121 Contact Us For Availability
032
(CAN-25 CENTS) WPL Y308123 Contact Us For Availability
033
BASE ASSEMBLY (UPR) WPL 306261 Contact Us For Availability
033
(LWR) WPL 306530 Contact Us For Availability
033
SCREW, SWITCH ASSEMBLY WPL 315427 Contact Us For Availability
033
OPTIC SWITCH ASSEMBLY WPL 33001025 Contact Us For Availability
036
SC WPL 314666 Contact Us For Availability
038
CLIP, CABLE WPL Y310376 Contact Us For Availability
039
WPL 22001355 WPL 22001355 Contact Us For Availability
039
RETAINER, WIRE HARNESS WPL 315471 Contact Us For Availability
040
SPRING, WIRE HARNESS WPL 410490 Contact Us For Availability
042
TRANSFORMER WPL 33001205 Contact Us For Availability
043
WPL 315218 WPL 315218 Contact Us For Availability
× ![]()
