Model Whirlpool MDG13CSAKL GAS DRYER – Common Parts & Diagrams

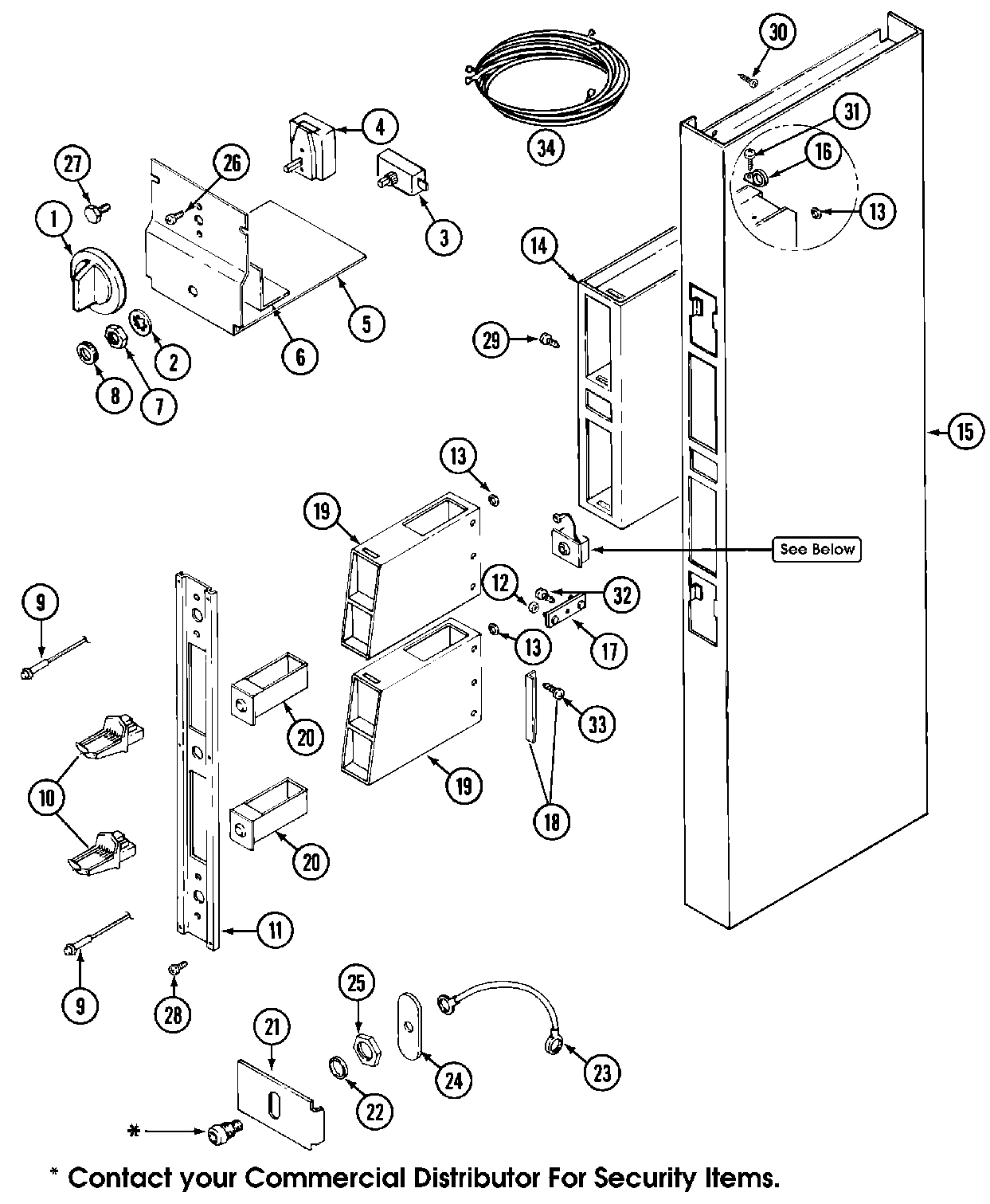

01 - CONTROL CENTER SHROUD
06 - TUMBLER

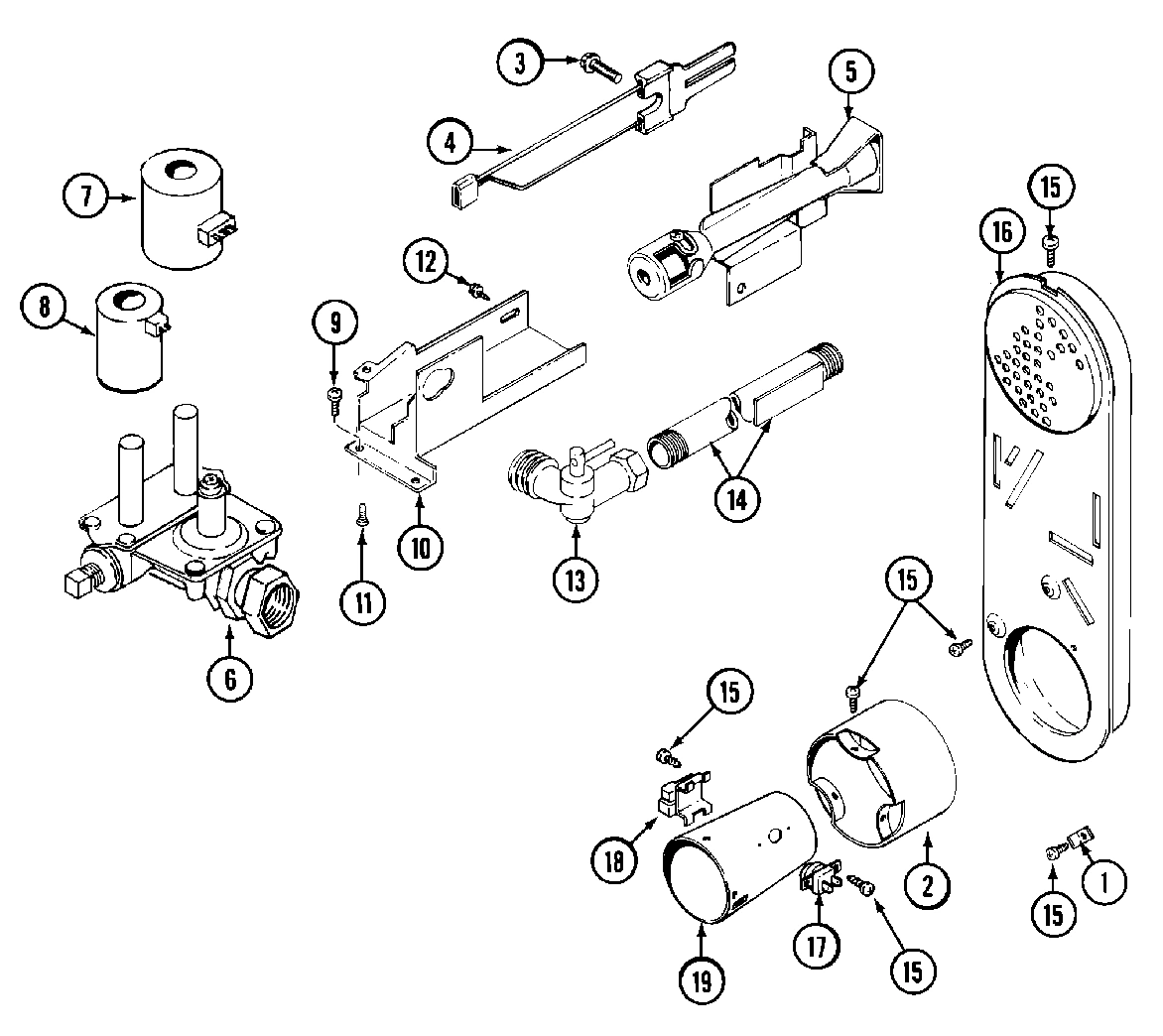

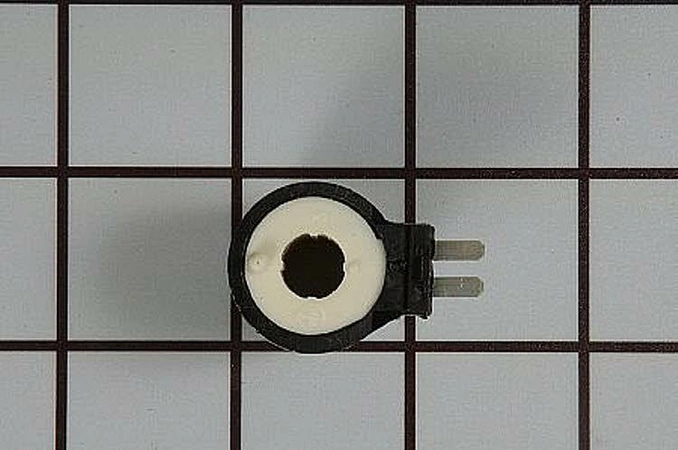

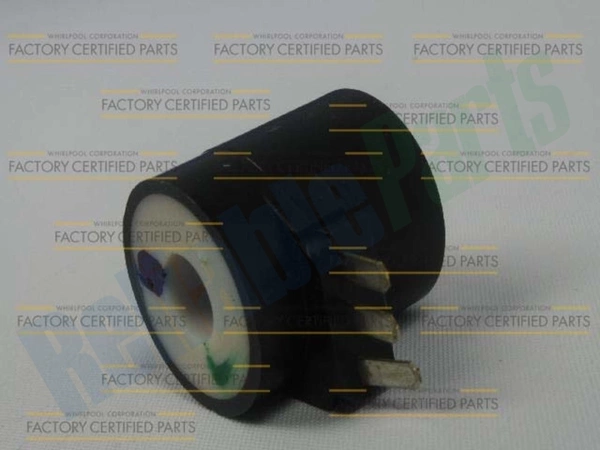

08 - GAS VALVE

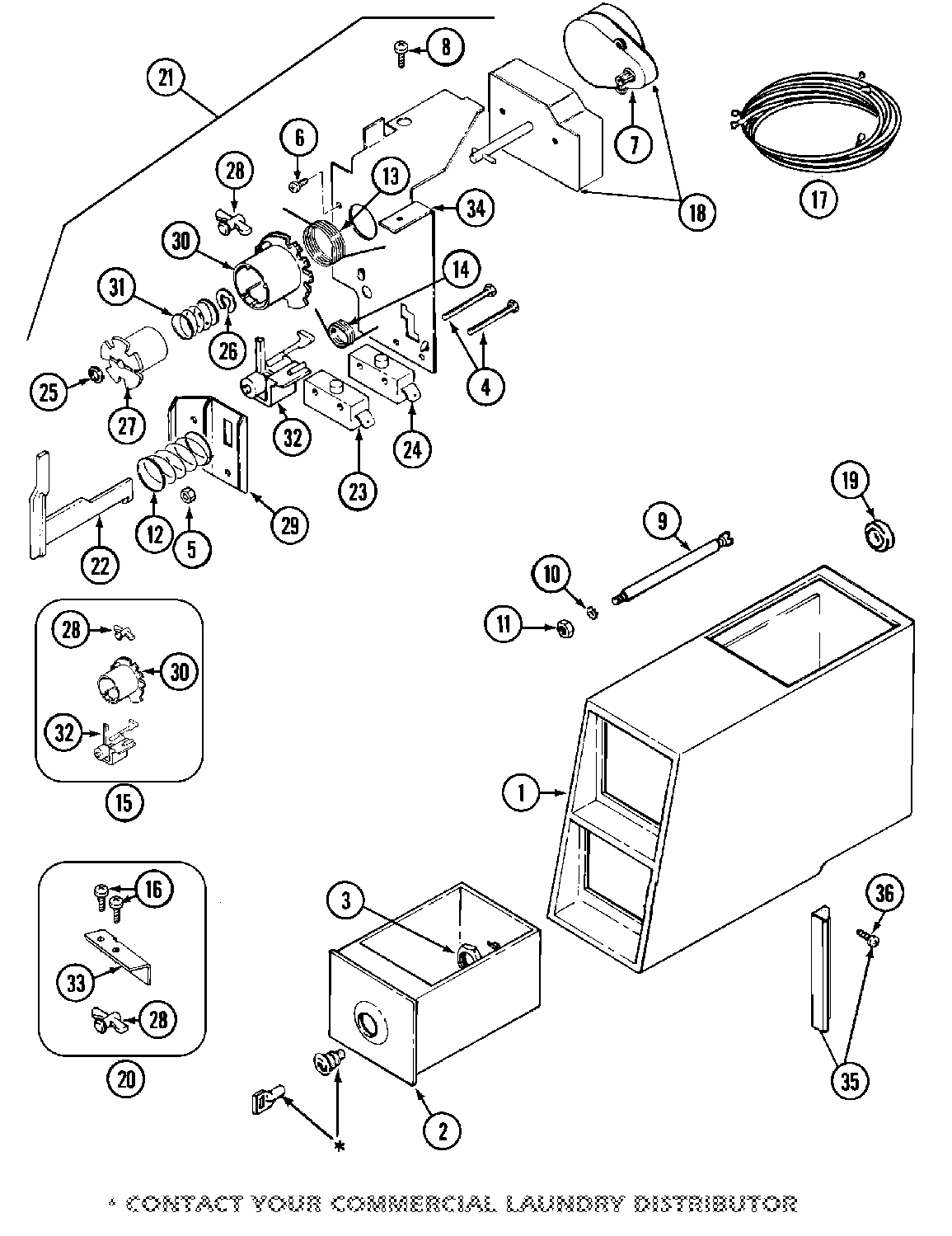

02 - CONTROL CENTER

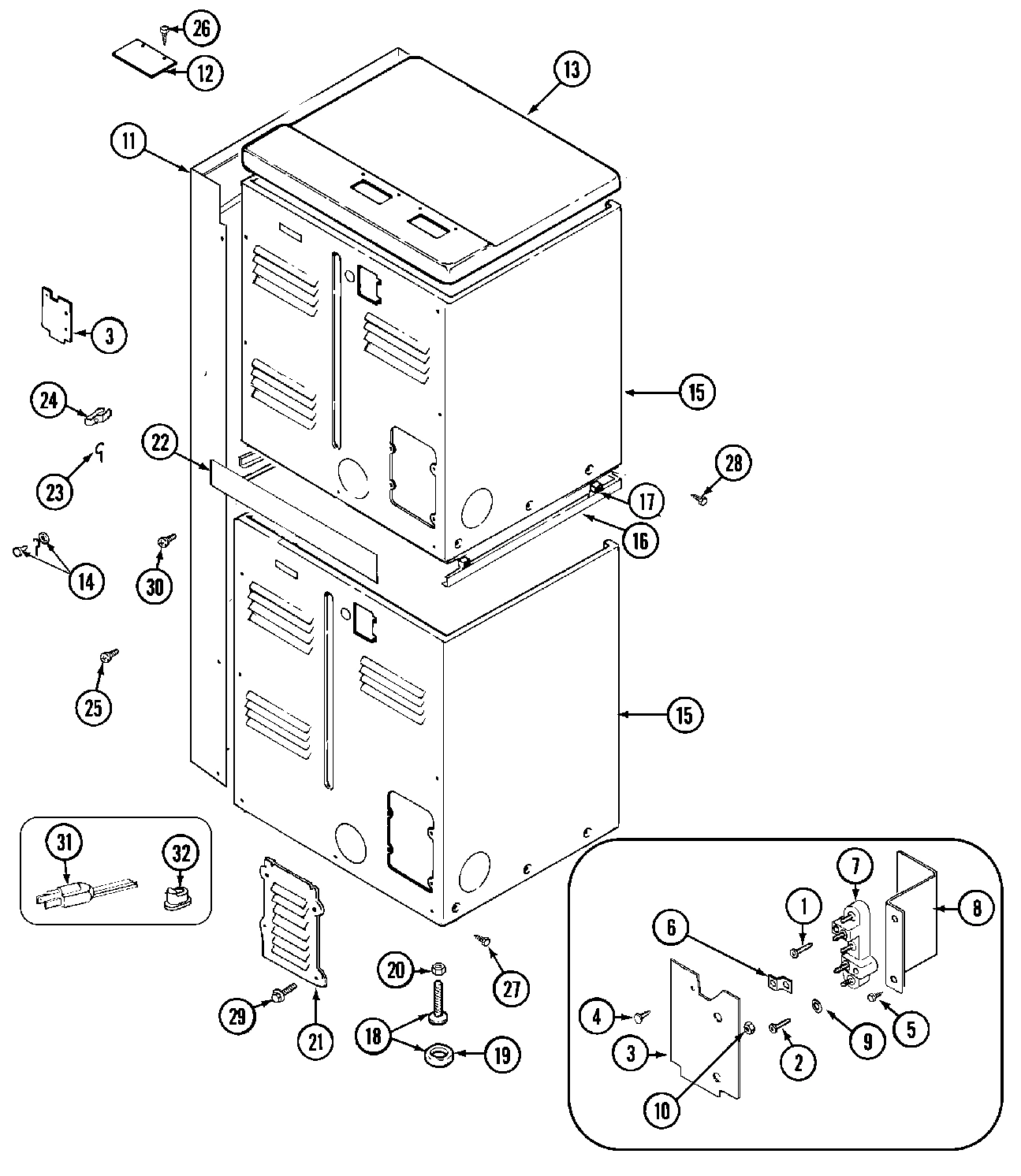

05 - REAR

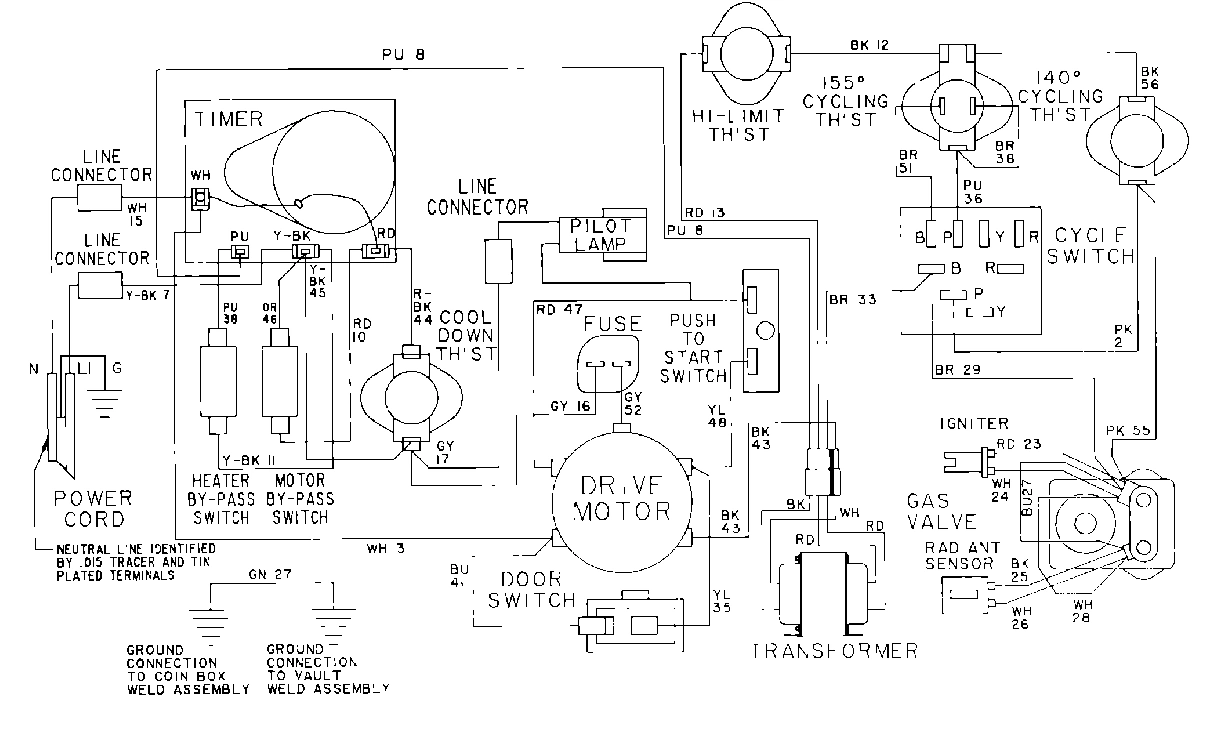

09 - WIRING INFORMATION

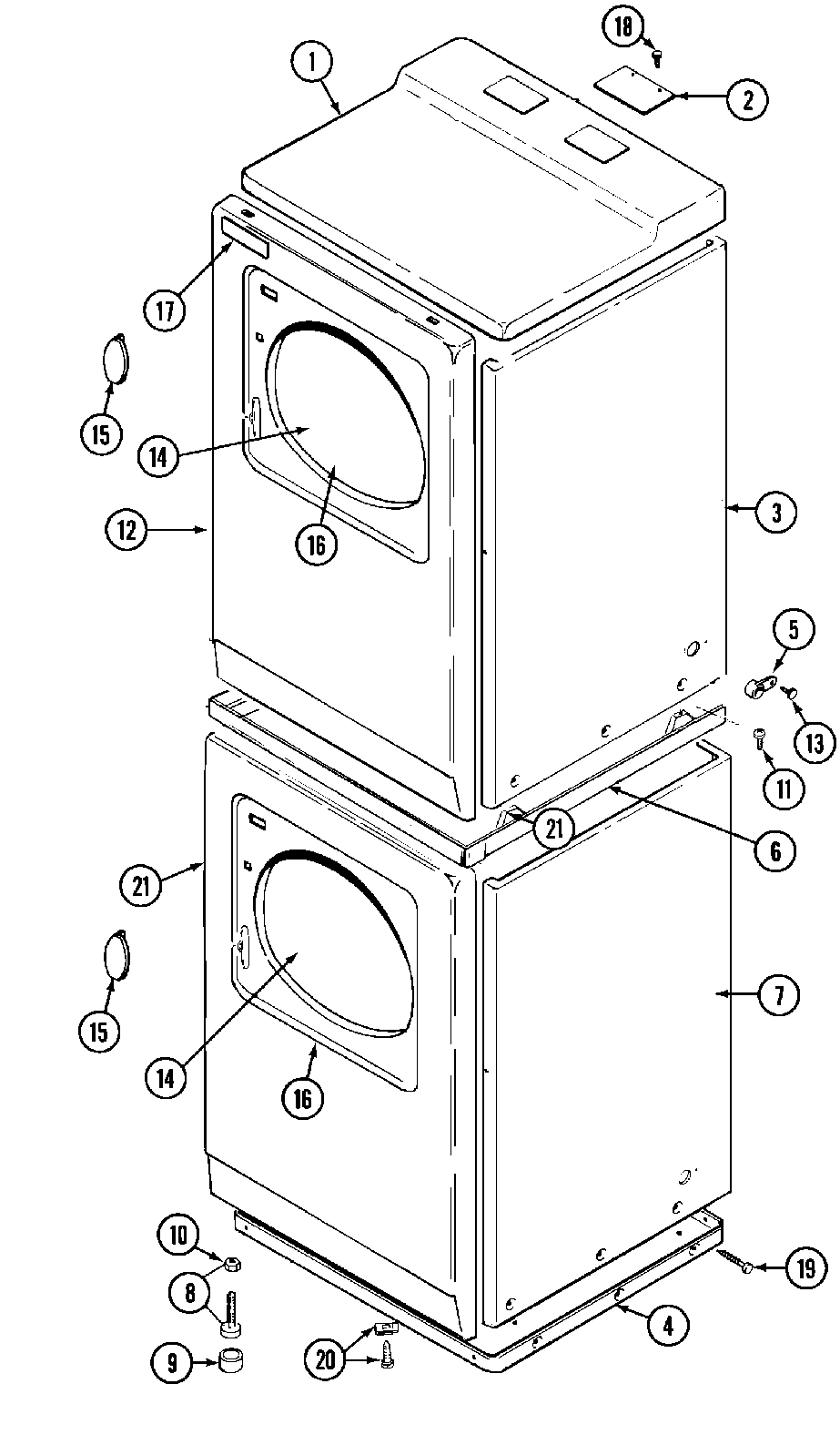

03 - FRONT

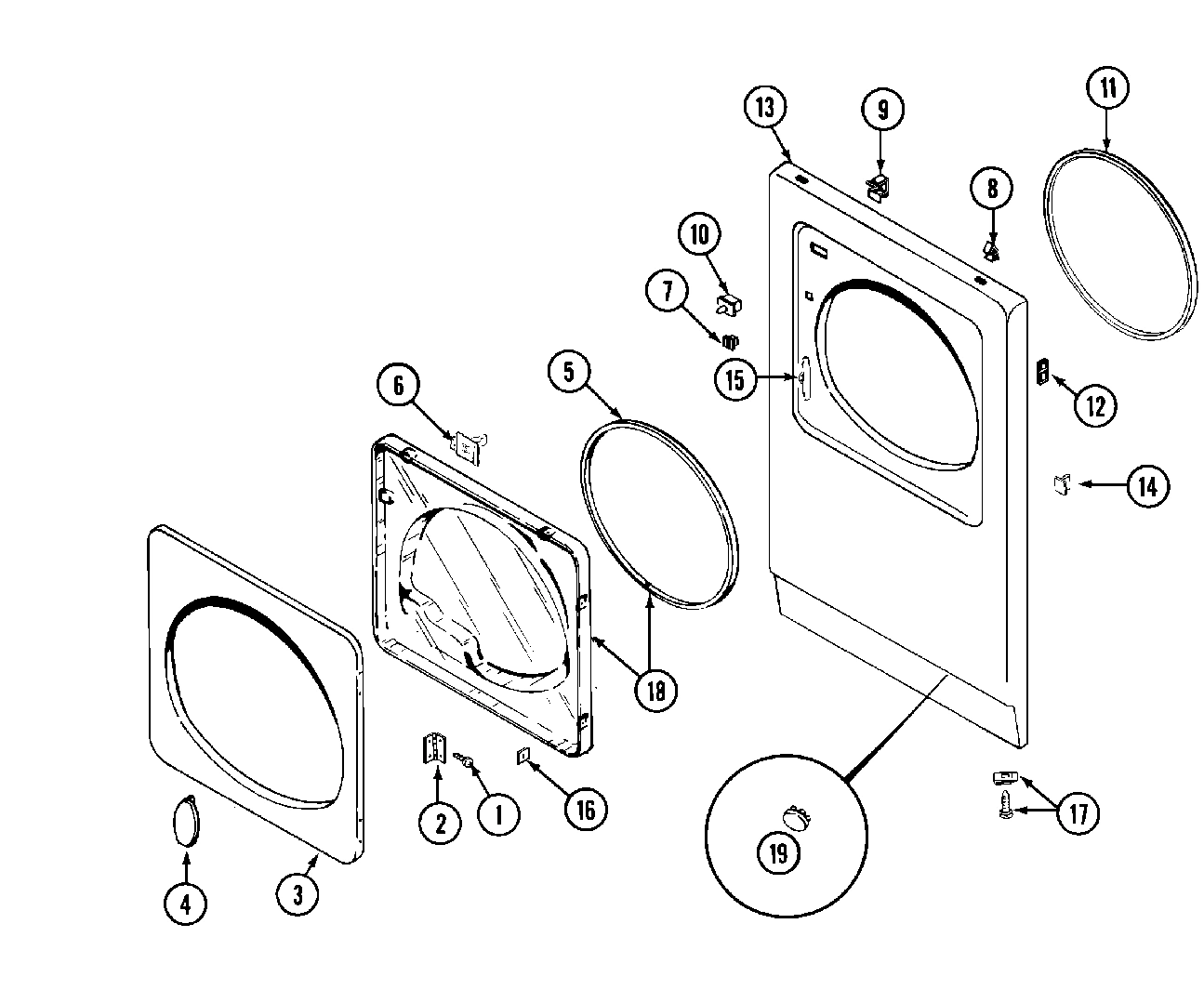

04 - DOOR

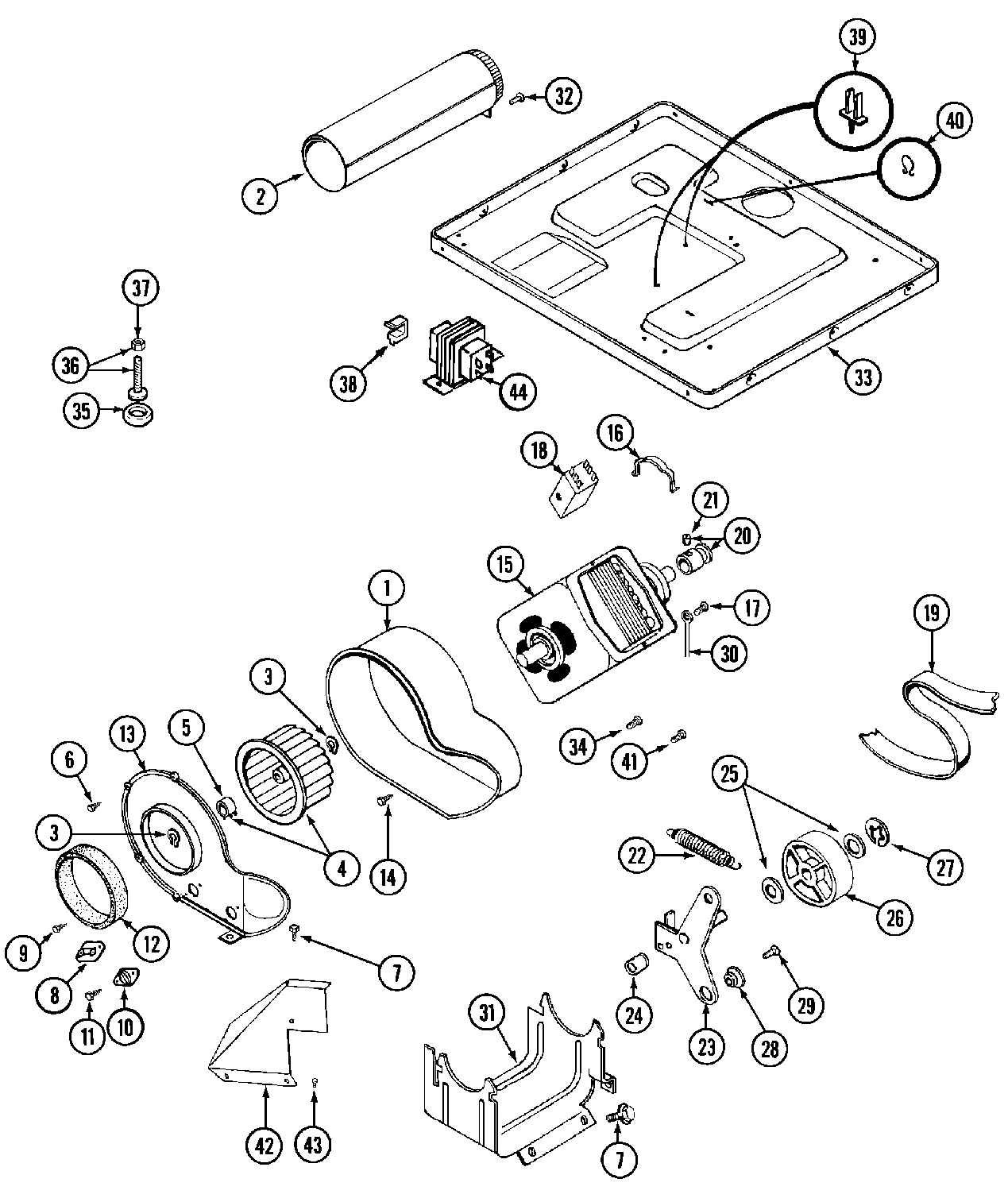

07 - MOTOR DRIVE
Common parts from model Whirlpool MDG13CSAKL GAS DRYER
001
HOUSING, BLOWER WPL Y312893 Contact Us For Availability
001
OUTLET DUCT ASSEMBLY WPL 33001016 Contact Us For Availability
001
RETAINER, HEATER CHAMBER WPL Y312890 Contact Us For Availability
001
SCREW, DOOR HINGE & PANEL WPL Y314062 Contact Us For Availability
002
BOX, COIN (ALM) WPL 205423L Contact Us For Availability
002
FILTER, LINT WPL 33001170 Contact Us For Availability
002
HINGE, DOOR WPL 33001230 Contact Us For Availability
002
EXHAUST DUCT ASSEMBLY WPL Y303442 Contact Us For Availability
003
SCREW, IGNITER WPL 304971 Contact Us For Availability
003
COVER, TERMINAL WPL Y312905 Contact Us For Availability
004
SCREW, BY-PASS SWITCHES WPL 315277 Contact Us For Availability
004
HANDLE, DOOR (ALM) WPL 314974 Contact Us For Availability
005
STOP, CABLE WPL 910768 Contact Us For Availability
005
FRONT, TUMBLER (W/SEAL) WPL 33001179 Contact Us For Availability
005
SEAL, DOOR WPL 33001192 Contact Us For Availability
006
VALVE, GAS (240V-50) WPL 307927 Contact Us For Availability
006
STRAP, GROUNDING WPL Y312184 Contact Us For Availability
007
SCREW, HOUSING COVER WPL Y313561 Contact Us For Availability
007
MOTOR, TIMER (240-50) WPL 306527 Contact Us For Availability
008
BRACKET, TERMINAL BLOCK WPL Y312904 Contact Us For Availability
008
THERMOSTAT, CYCLING (155 DEG.) WPL 306966 Contact Us For Availability
008
THERMOSTAT, CYCLING (155 DEG.) WPL 306967 Contact Us For Availability
008
JUMPER WIRE, THERMOSTAT WPL 33001306 Contact Us For Availability
008
THERMOSTAT, PERMANENT PRESS WPL Y303225 Contact Us For Availability
009
BOLT, LOCKING WPL 215559 Contact Us For Availability
010
BRACKET, GAS VALVE WPL 314566 Contact Us For Availability
010
LOCKWASHER, LOCKING BOLT WPL 910387 Contact Us For Availability
011
BAFFLE (SHORT) WPL 33001012 Contact Us For Availability
011
SCREW, TOP DRYER WPL 314663 Contact Us For Availability
011
SEAL, FRONT PANEL WPL 314937 Contact Us For Availability
012
WASHER, BAFFLE WPL 314158 Contact Us For Availability
013
DRYER TUMBLER, W/O BAFFLES WPL 33001108 Contact Us For Availability
013
SHUT-OFF, GAS VALVE WPL Y303349 Contact Us For Availability
013
SPRING, TORSION RETURN WPL 314331 Contact Us For Availability
013
COVER, BLOWER HOUSING WPL 314847 Contact Us For Availability
014
SCREW, TUMBLER BAFFLE WPL Y310759 Contact Us For Availability
014
VAULT ASSEMBLY WPL 305534 Contact Us For Availability
014
PIPE & BRACKET ASSEMBLY WPL Y303383 Contact Us For Availability
014
SPRING, ACTUATOR WPL 314332 Contact Us For Availability
014
SCREW, BLOWER HOUSING WPL 314818 Contact Us For Availability
015
BACK, TUMBLER (W/SEAL) WPL 33001178 Contact Us For Availability
015
ACTUATOR KIT WPL 306104 Contact Us For Availability
015
COVER, HINGE HOLE (ALM) WPL 33001176 Contact Us For Availability
015
MOTOR 240-50 WPL Y304656 Contact Us For Availability
016
INLET DUCT ASSEMBLY WPL Y308504 Contact Us For Availability
016
FASTENER, INNER DOOR WPL Y313910 Contact Us For Availability
017
STRAP, MOUNTING WPL 22001810 Contact Us For Availability
017
WIRE HARNESS, TIMER WPL 305800 Contact Us For Availability
017
NAMEPLATE WPL 33001711 Contact Us For Availability
018
TIMER WPL 33001722 Contact Us For Availability
018
PANEL, CLEAR INNER (W/SEAL) WPL 33001203 Contact Us For Availability
018
(PROD. No. 303358-8 & 303358-9) WPL 306207 Contact Us For Availability
018
SWITCH, MOTOR EXTERNAL START (PROD. No. 30335 WPL Y303877 Contact Us For Availability
018
SWITCH, MOTOR EXTERNAL START (PROD. No. 30335 WPL Y303879 Contact Us For Availability
019
GROMMET, CASE OPENING WPL Y313671 Contact Us For Availability
019
CONE, COMBUSTION WPL Y308549 Contact Us For Availability
019
PLUG, FRONT PANEL (ALM) WPL 33001615 Contact Us For Availability
020
PULLEY, MOTOR (W/SET SCREW) WPL 305186 Contact Us For Availability
021
PLATE, LATCH WPL 313428 Contact Us For Availability
021
TIMER ASSY., TORSION WPL 33001721 Contact Us For Availability
021
FASTENER, SUPPORT ASSEMBLY WPL 310933 Contact Us For Availability
021
COVER, ACCESS WPL Y312951 Contact Us For Availability
021
SET SCREW, PULLEY WPL Y053241 Contact Us For Availability
022
IDLER SPRING ASSEMBLY WPL Y303945 Contact Us For Availability
023
GROUND WIRE, LATCH WPL Y303981 Contact Us For Availability
023
SWITCH, BY-PASS (MOTOR) WPL 305798 Contact Us For Availability
024
SWITCH, BY-PASS (HEATER) WPL Y305799 Contact Us For Availability
024
CLAMP, GROUND (W/SCREW) WPL 301548 Contact Us For Availability
025
RETAINER, SPRING WPL 211790 Contact Us For Availability
026
CLIP, SPRING RETAINER WPL Y312270 Contact Us For Availability
027
DRIVER, INDEX WHEEL WPL 314330 Contact Us For Availability
028
PEG, TIME ADJUSTMENT WPL 314335 Contact Us For Availability
029
BRACKET, SWITCH & SLIDER WPL 314339 Contact Us For Availability
030
GROUND WIRE WPL 901220 Contact Us For Availability
030
WHEEL, INDEX WPL 314546 Contact Us For Availability
031
SUPPORT, MOTOR WPL NLA Contact Us For Availability
032
ACTUATOR, SWITCH WPL 314548 Contact Us For Availability
032
GROMMET, CORD EXPORT WPL 216183 Contact Us For Availability
033
BRACKET, COIN SLIDE WPL 314334 Contact Us For Availability
033
BASE ASSEMBLY (LWR) WPL 306530 Contact Us For Availability
033
(UPR) WPL Y307482 Contact Us For Availability
034
WIRE HARNESS, MAIN (UPR) WPL 33001564 Contact Us For Availability
034
(LWR) WPL 33001565 Contact Us For Availability
034
BRACKET, TIMER WPL 314333 Contact Us For Availability
036
SCREW, METER STOP WPL Y014872 Contact Us For Availability
038
CL WPL Y310376 Contact Us For Availability
039
WPL 315471 WPL 315471 Contact Us For Availability
040
WPL 410490 WPL 410490 Contact Us For Availability
042
WPL 315122 WPL 315122 Contact Us For Availability
043
WPL Y310632 WPL Y310632 Contact Us For Availability
044
WPL 307928 WPL 307928 Contact Us For Availability
× ![]()
