Model Whirlpool MDG12PSBAW ELECTRIC DRYER – Common Parts & Diagrams
06 - TUMBLER

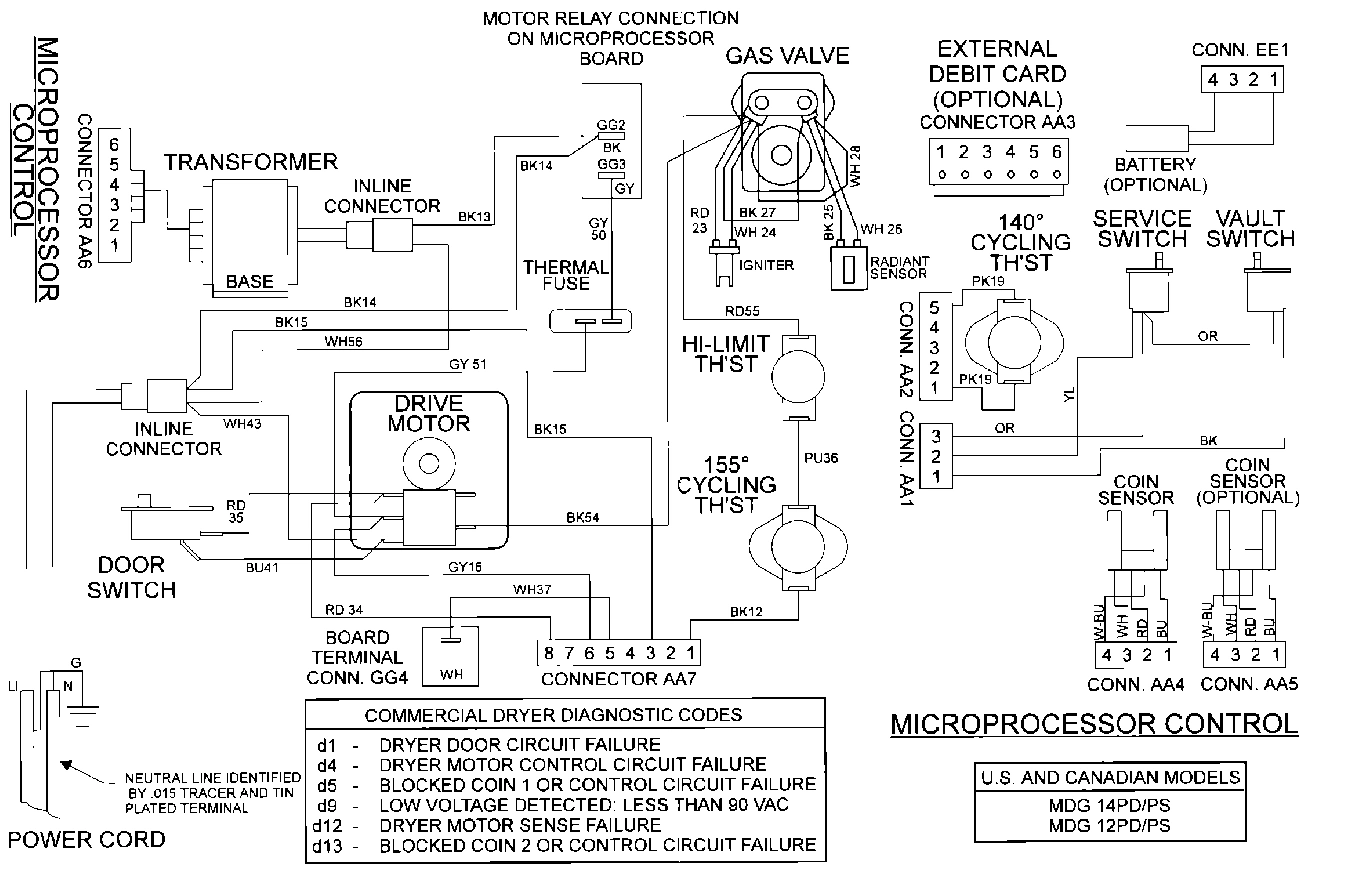

09 - WIRING INFORMATION

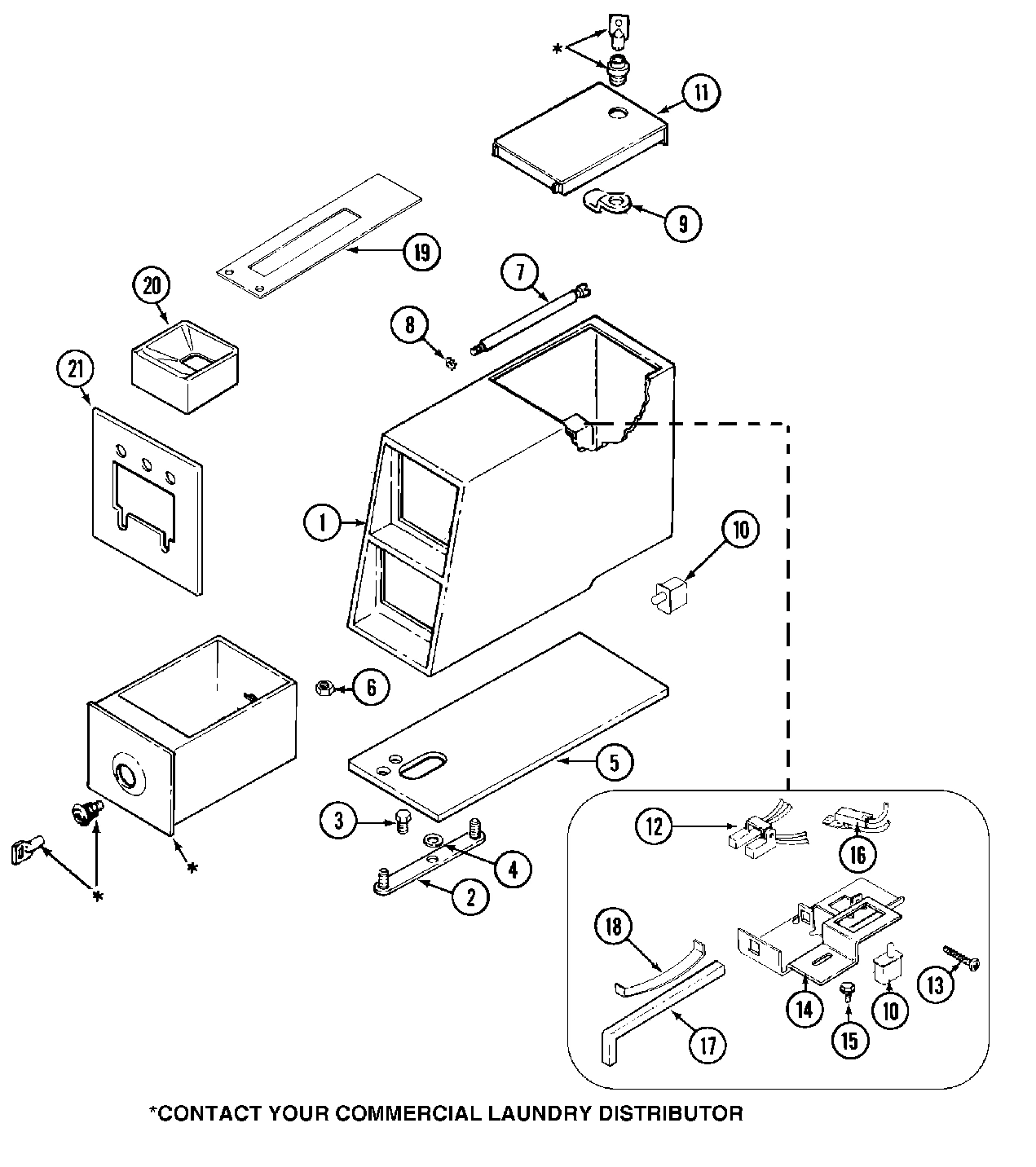

02 - CONTROL CENTER

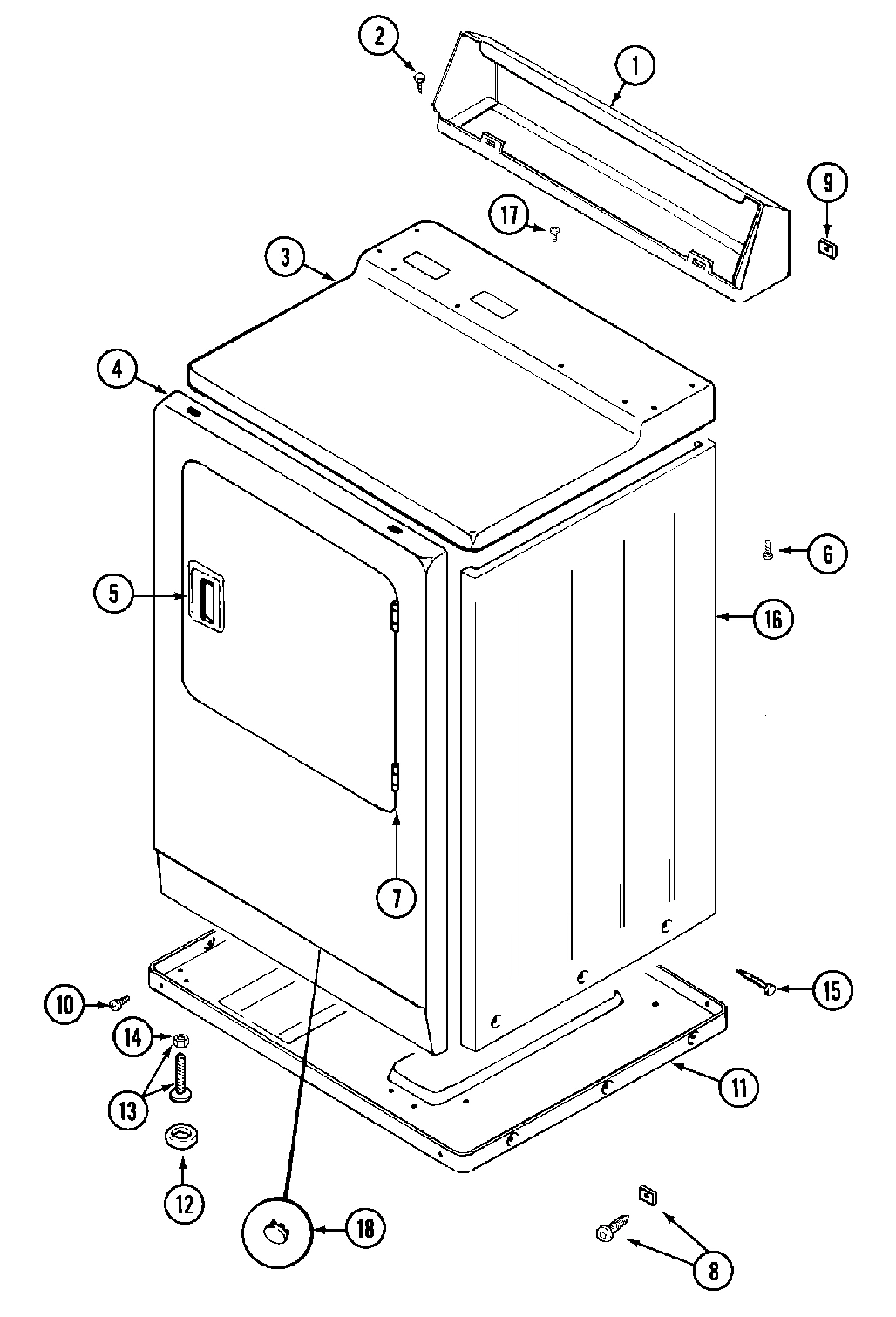

03 - CABINET-FRONT

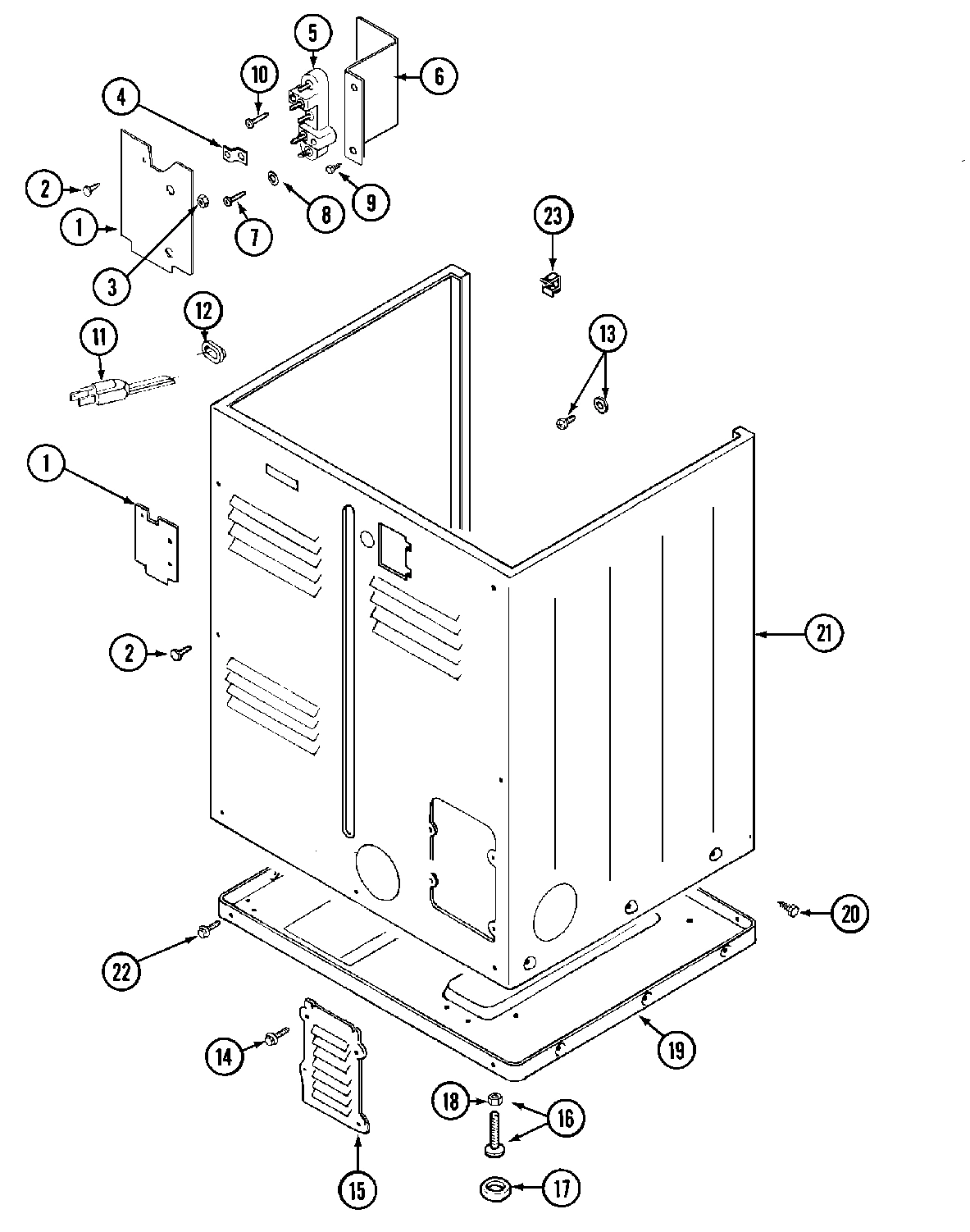

05 - CABINET-REAR

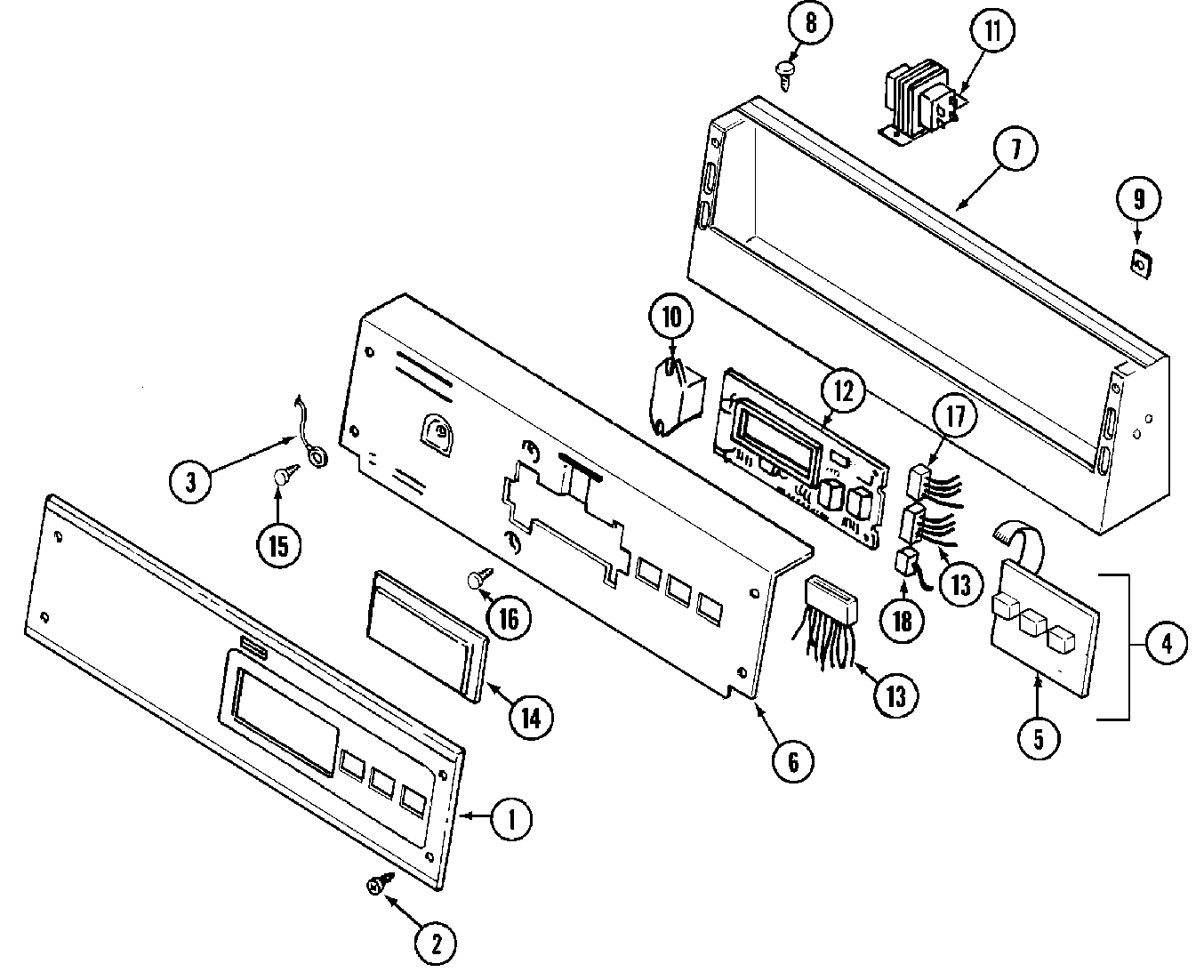

01 - CONTROL PANEL

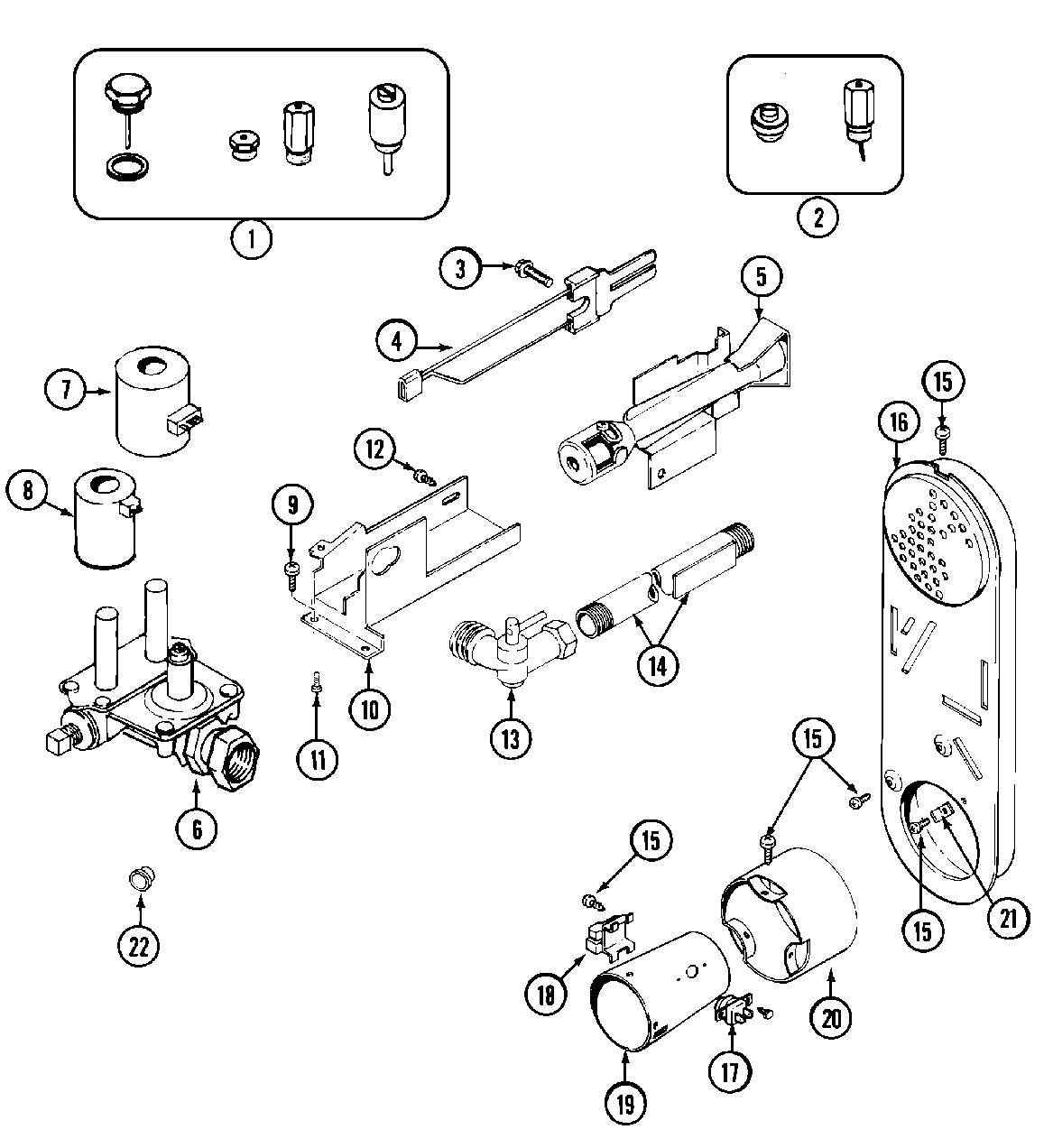

07 - GAS VALVE

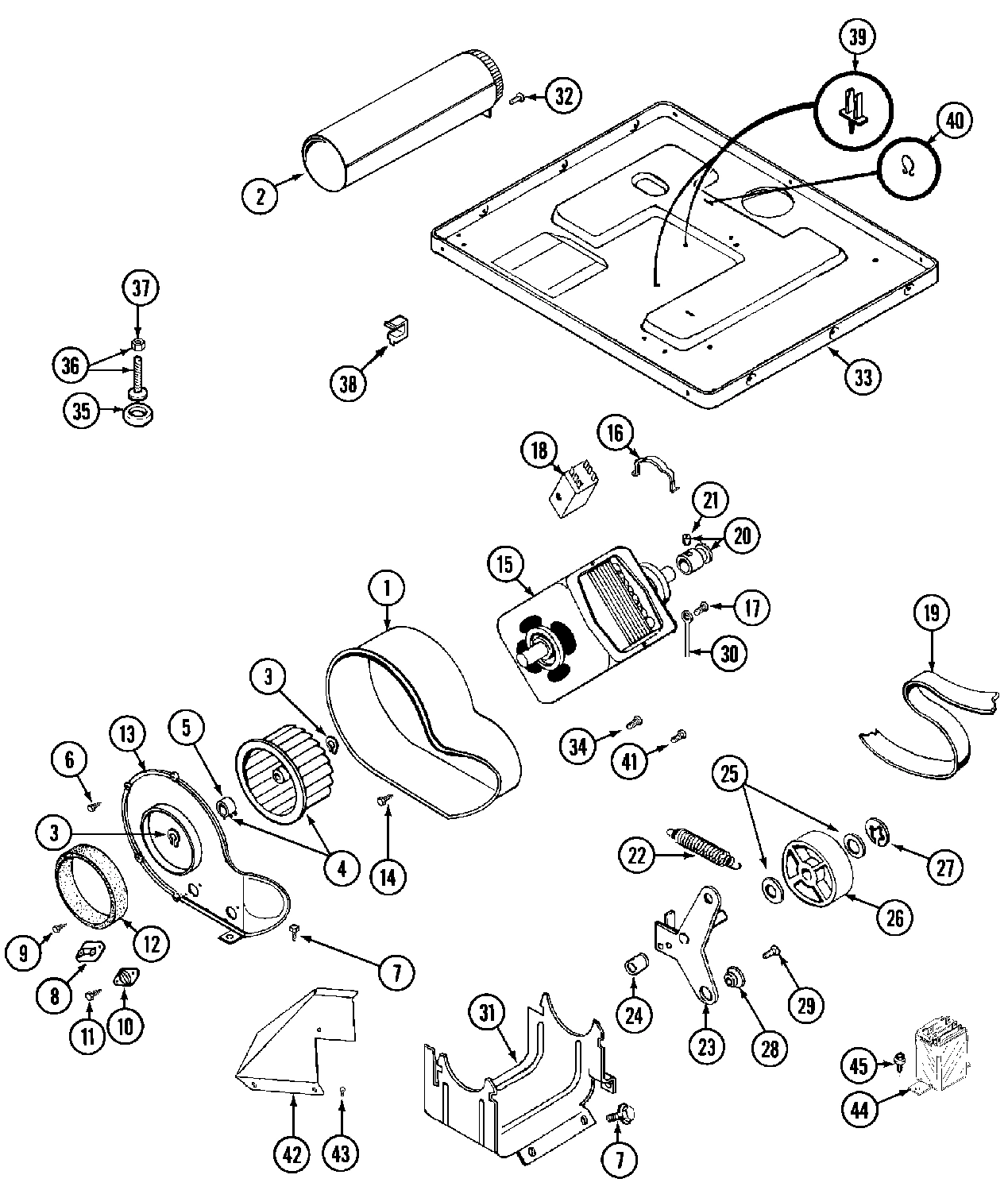

08 - MOTOR DRIVE
04 - DOOR
Common parts from model Whirlpool MDG12PSBAW ELECTRIC DRYER
001
HOUSING, BLOWER WPL Y312893 Contact Us For Availability
001
COVER, TERMINAL WPL Y312905 Contact Us For Availability
001
PANEL, CONTROL WPL 33001737 Contact Us For Availability
001
CONVERSION KIT (NAT TO LP) WPL Y308378 Contact Us For Availability
001
SCREW,HINGE,DOOR,& PANEL WPL Y314062 Contact Us For Availability
002
STRAP, MOUNTING WPL 22001810 Contact Us For Availability
002
HINGE, DOOR WPL 33001230 Contact Us For Availability
002
CONVERSION KIT (LP TO NAT.) WPL Y308377 Contact Us For Availability
002
EXHAUST DUCT ASSEMBLY WPL Y303442 Contact Us For Availability
003
COVER, TOP (WHT) WPL 33001740 Contact Us For Availability
003
WIRE, GROUND WPL 22001959 Contact Us For Availability
003
SCREW, IGNITER WPL 304971 Contact Us For Availability
003
DOOR (WHT) WPL 33001240 Contact Us For Availability
004
WASHER, STRAP SCREW WPL 910309 Contact Us For Availability
004
STRAP, GROUND WPL Y312184 Contact Us For Availability
004
CONTROL SWITCH ASSEMBLY WPL 306694 Contact Us For Availability
005
HANDLE, DOOR (WHT) WPL 33001241 Contact Us For Availability
005
GASKET, COIN VAULT (WHT) WPL 22001870 Contact Us For Availability
005
SEAL, DOOR WPL 33001131 Contact Us For Availability
006
SCREW, TOP COVER WPL 214354 Contact Us For Availability
006
BRACKET, TERMINAL BLOCK WPL Y312904 Contact Us For Availability
006
PLATE, BACK-UP (WHT) WPL 33001736 Contact Us For Availability
006
PLUG, DOOR (WHT) WPL 33001132 Contact Us For Availability
007
SCREW, HOUSING COVER WPL Y313561 Contact Us For Availability
008
LOCKWASHER, LOCKING BOLT WPL 910387 Contact Us For Availability
009
FASTENER, CONSOLE WPL 215075 Contact Us For Availability
009
CLIP, CABLE WPL Y310376 Contact Us For Availability
009
CLIP, SCREW WPL 215003 Contact Us For Availability
010
SCREW, SENSOR SWITCH WPL 912012 Contact Us For Availability
010
RELAY, MOTOR (SPST) WPL 206824 Contact Us For Availability
010
BRACKET, GAS VALVE WPL 314566 Contact Us For Availability
011
DOOR, ACCESS (WHT) WPL 22001910 Contact Us For Availability
011
CORD, POWER WPL 305168 Contact Us For Availability
011
LOCKNUT, EARED FOR CANADIAN WPL 33001425 Contact Us For Availability
011
SEAL, FRONT PANEL WPL 314937 Contact Us For Availability
012
GROMMET, CORD WPL 211881 Contact Us For Availability
012
STANDOFF, CIRCUIT BOARD WPL 33001204 Contact Us For Availability
013
CONNECTOR, EDGEBOARD WPL 314531 Contact Us For Availability
013
WIRE HARNESS, MAIN WPL 33001743 Contact Us For Availability
013
WIRE HARNESS, MAIN WPL 33001879 Contact Us For Availability
013
SHUT-OFF, GAS VALVE WPL Y303349 Contact Us For Availability
013
COVER, BLOWER HOUSING WPL 314778 Contact Us For Availability
014
SCREW, TUMBLER BAFFLE WPL Y310759 Contact Us For Availability
014
PLUG, DOOR CATCH WPL NLA Contact Us For Availability
014
BRACKET, SENSOR SWITCH WPL 33001253 Contact Us For Availability
014
PIPE & BRACKET ASSEMBLY WPL Y303383 Contact Us For Availability
014
SCREW, BLOWER HOUSING WPL 314818 Contact Us For Availability
015
BACK, TUMBLER (W/SEAL) WPL 33001178 Contact Us For Availability
015
CLIP, BRACKET SCREW WPL 211605 Contact Us For Availability
015
COVER, ACCESS WPL Y312951 Contact Us For Availability
015
COVER, HINGE HOLE (WHT) WPL 33001175 Contact Us For Availability
016
SCREW, CONTROL BOARD WPL 215526 Contact Us For Availability
016
INLET DUCT ASSEMBLY WPL Y308504 Contact Us For Availability
016
FASTENER, INNER DOOR WPL Y313910 Contact Us For Availability
017
ROD, ACTUATOR WPL 216442 Contact Us For Availability
018
HARNESS, SENSOR SWITCH WPL 22001966 Contact Us For Availability
018
SPRING, SWITCH ROD WPL 33001252 Contact Us For Availability
018
PLUG, FRONT PANEL (WHT) WPL 33001614 Contact Us For Availability
018
CONNECTOR, EDGEBOARD WPL 22001361 Contact Us For Availability
018
(PROD. No. 303358-8 & 303358-9) WPL 306207 Contact Us For Availability
018
SWITCH, MOTOR EXTERNAL START (No.303358-2, 30 WPL Y303877 Contact Us For Availability
018
SWITCH, MOTOR EXTERNAL START (PROD. No. 30335 WPL Y303879 Contact Us For Availability
018
DOOR, INNER (W/SEAL) WPL 33001243 Contact Us For Availability
019
ACTUATOR KIT WPL 22001812 Contact Us For Availability
019
BASE ASSEMBLY WPL Y303361 Contact Us For Availability
019
COMBUSTION CONE ASSEMBLY WPL Y308548 Contact Us For Availability
020
EXTENSION, CONE (W/SCREWS) WPL Y303841 Contact Us For Availability
020
PULLEY, MOTOR (W/SET SCREW) WPL Y305185 Contact Us For Availability
021
PLATE, ADAPTER (WHT) WPL 22001879 Contact Us For Availability
021
RETAINER, HEATER CHAMBER WPL Y312890 Contact Us For Availability
021
SCREW, SET WPL Y053241 Contact Us For Availability
022
CAP, GAS PIPE WPL 33001693 Contact Us For Availability
022
IDLER SPRING ASSEMBLY WPL Y303945 Contact Us For Availability
030
WIRE, GROUND WPL 901220 Contact Us For Availability
033
BASE ASSEMBLY WPL Y305084 Contact Us For Availability
036
ADJUSTABLE LEG & NUT WPL W10176519 No Longer Available
039
RETAINER, WIRE WPL 315471 Contact Us For Availability
040
SPRING, WIRE HARNESS WPL 410490 Contact Us For Availability
042
COVER, THERMOSTAT WPL 315122 Contact Us For Availability
043
SCREW, THERMOSTAT COVER WPL Y310632 Contact Us For Availability
044
RELAY, HEATER WPL 306199 Contact Us For Availability
× ![]()
