Model Whirlpool MDG11CSAGL GAS DRYER – Common Parts & Diagrams

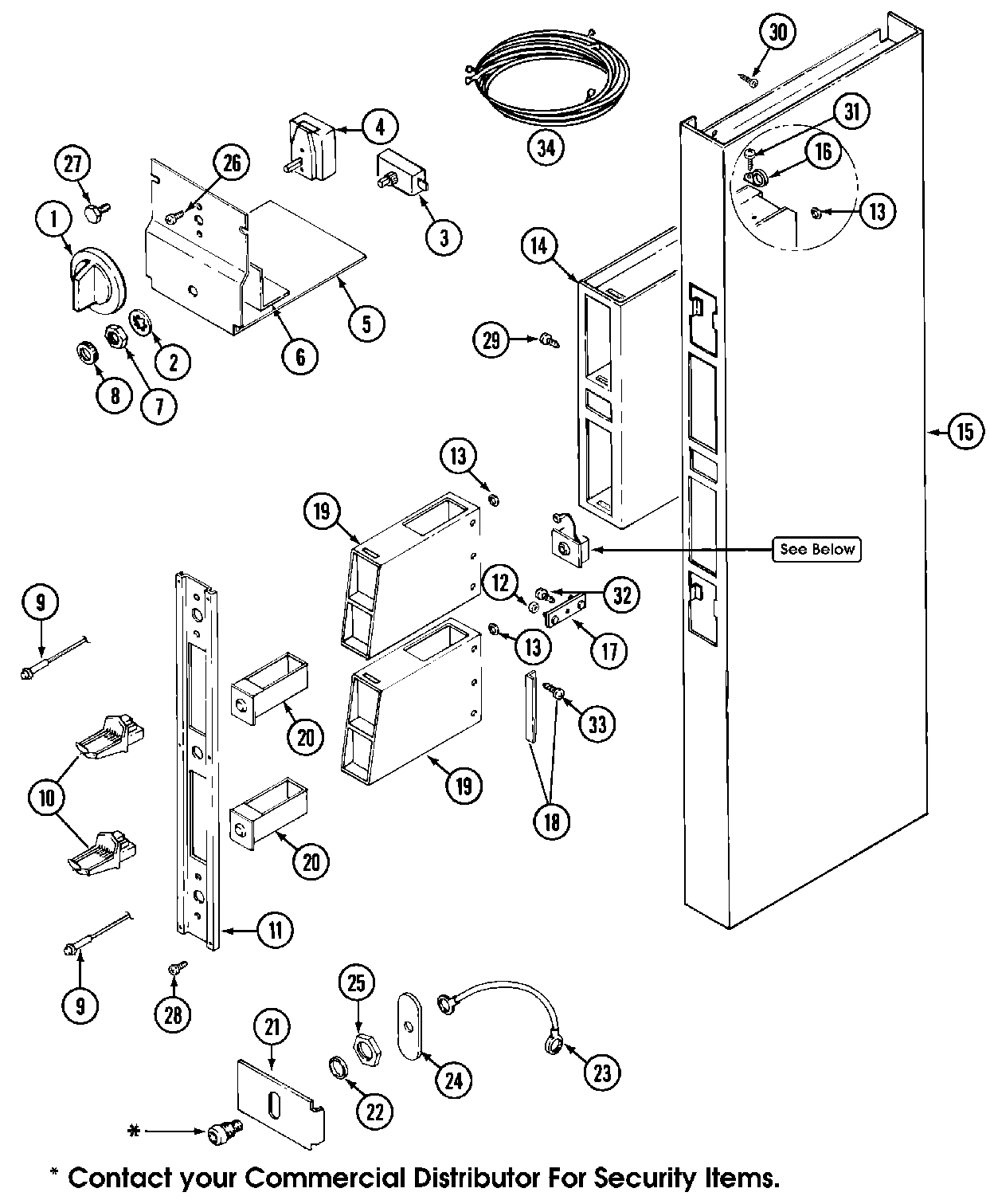

01 - CONTROL CENTER SHROUD

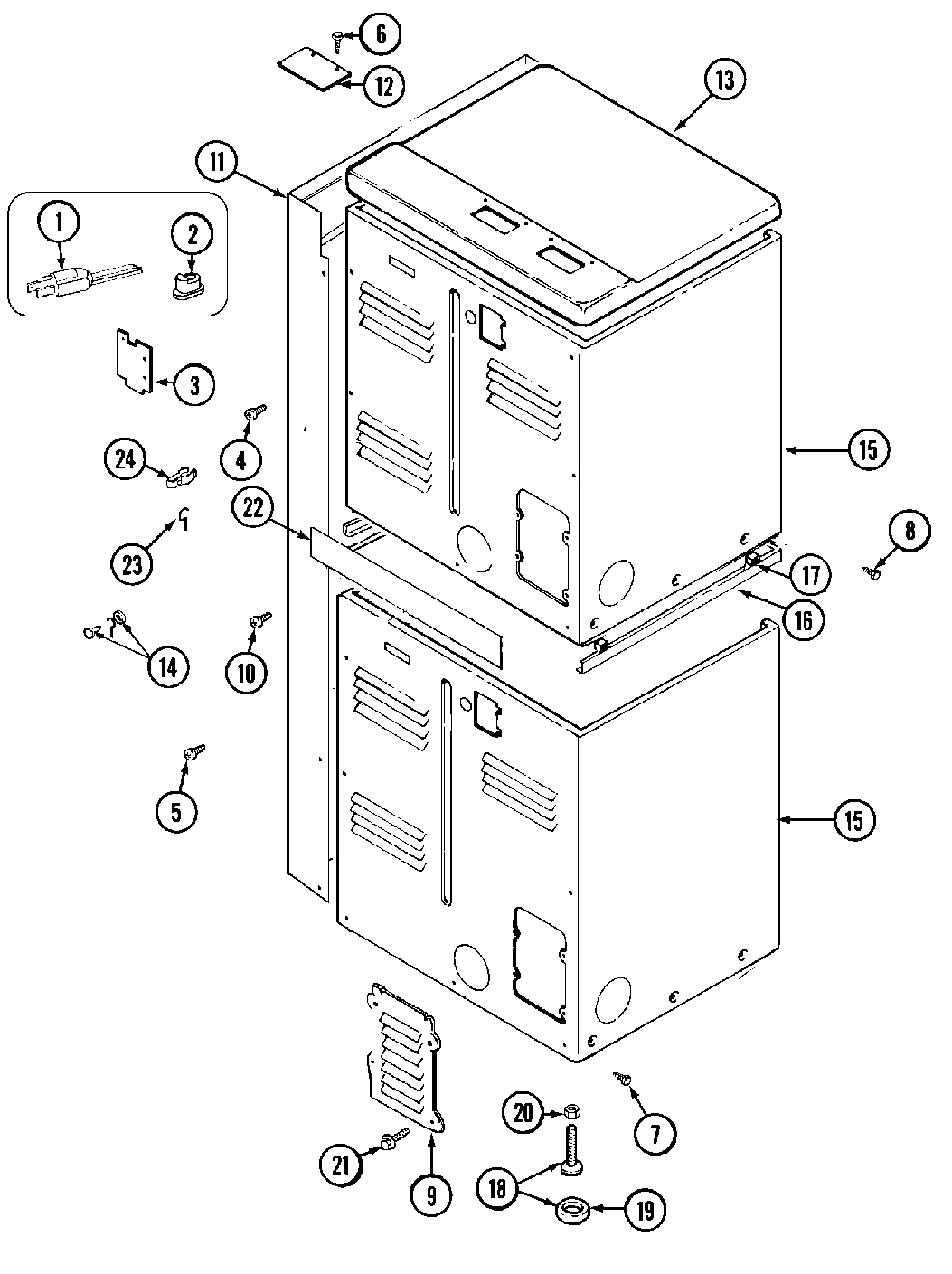

03 - REAR VIEW
04 - TUMBLER

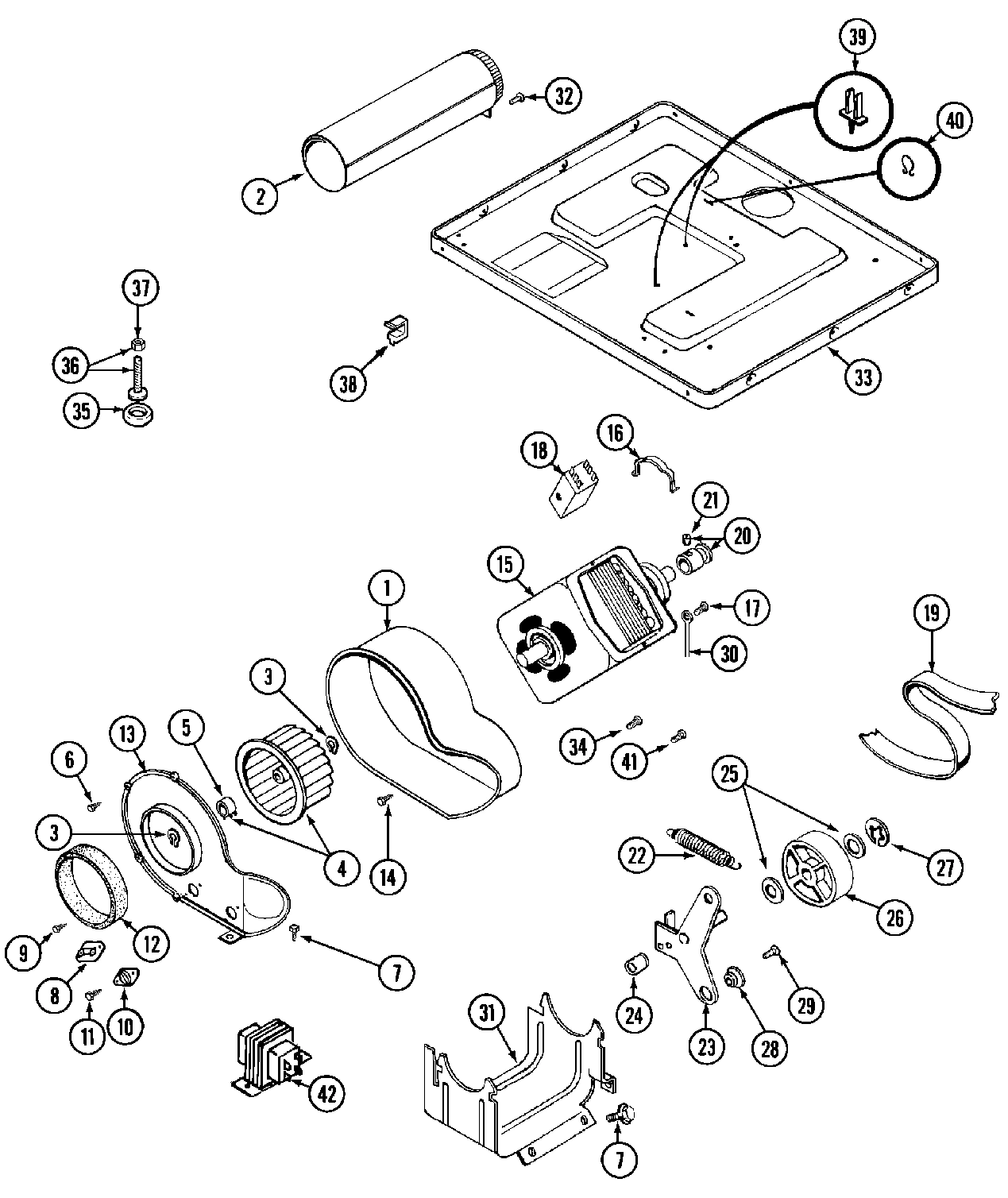

06 - MOTOR DRIVE

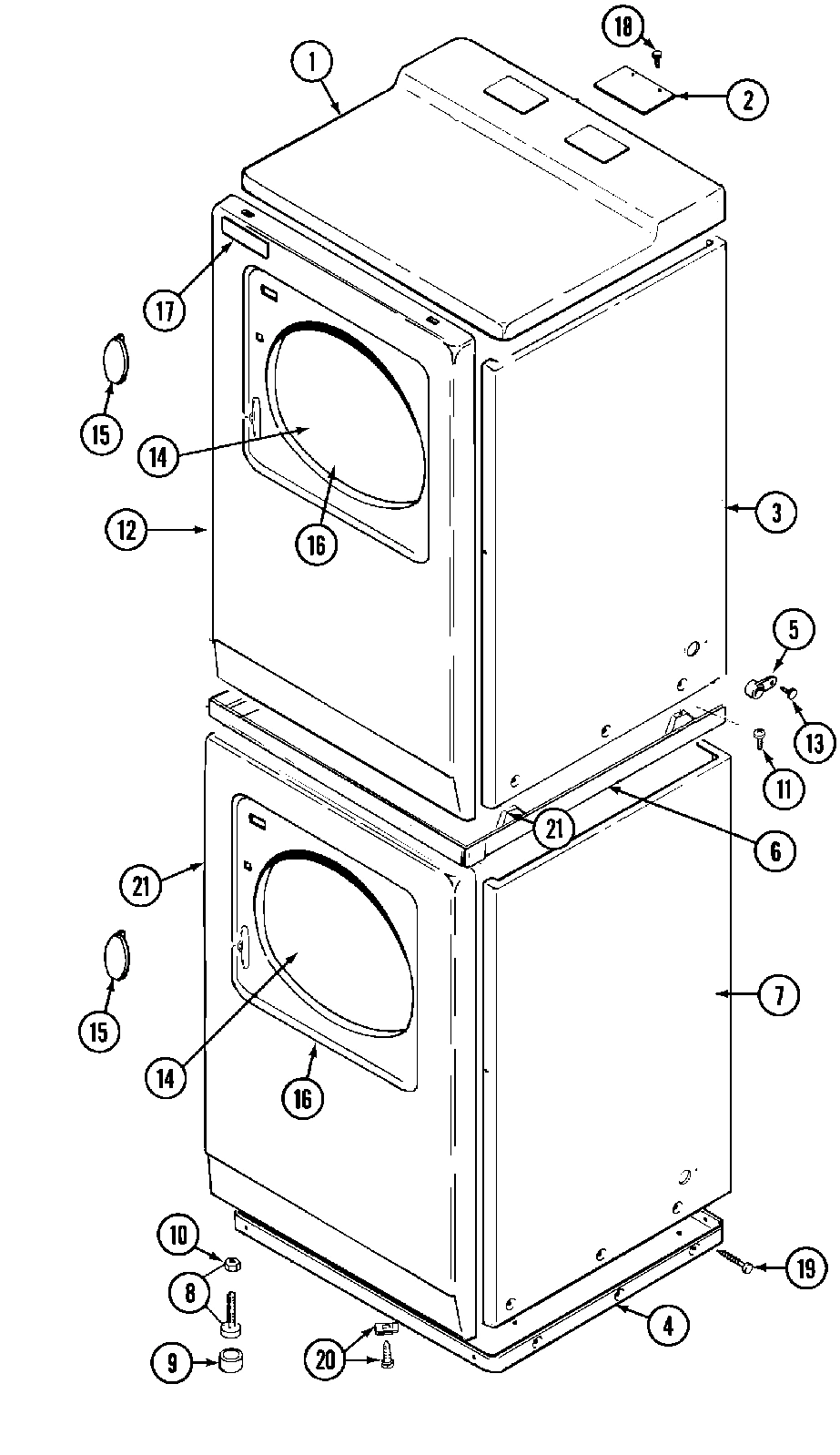

08 - FRONT VIEW

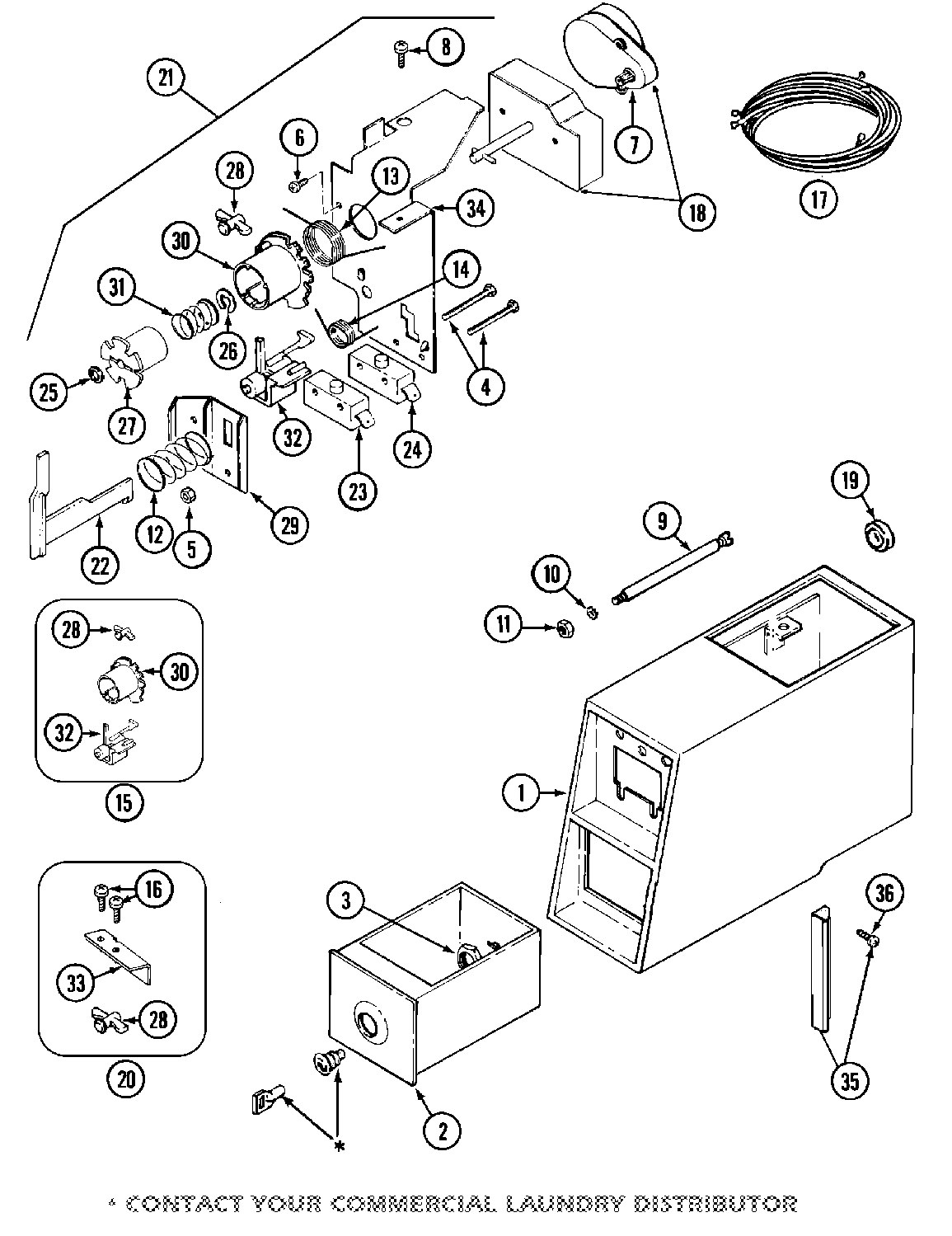

07 - CONTROL CENTER

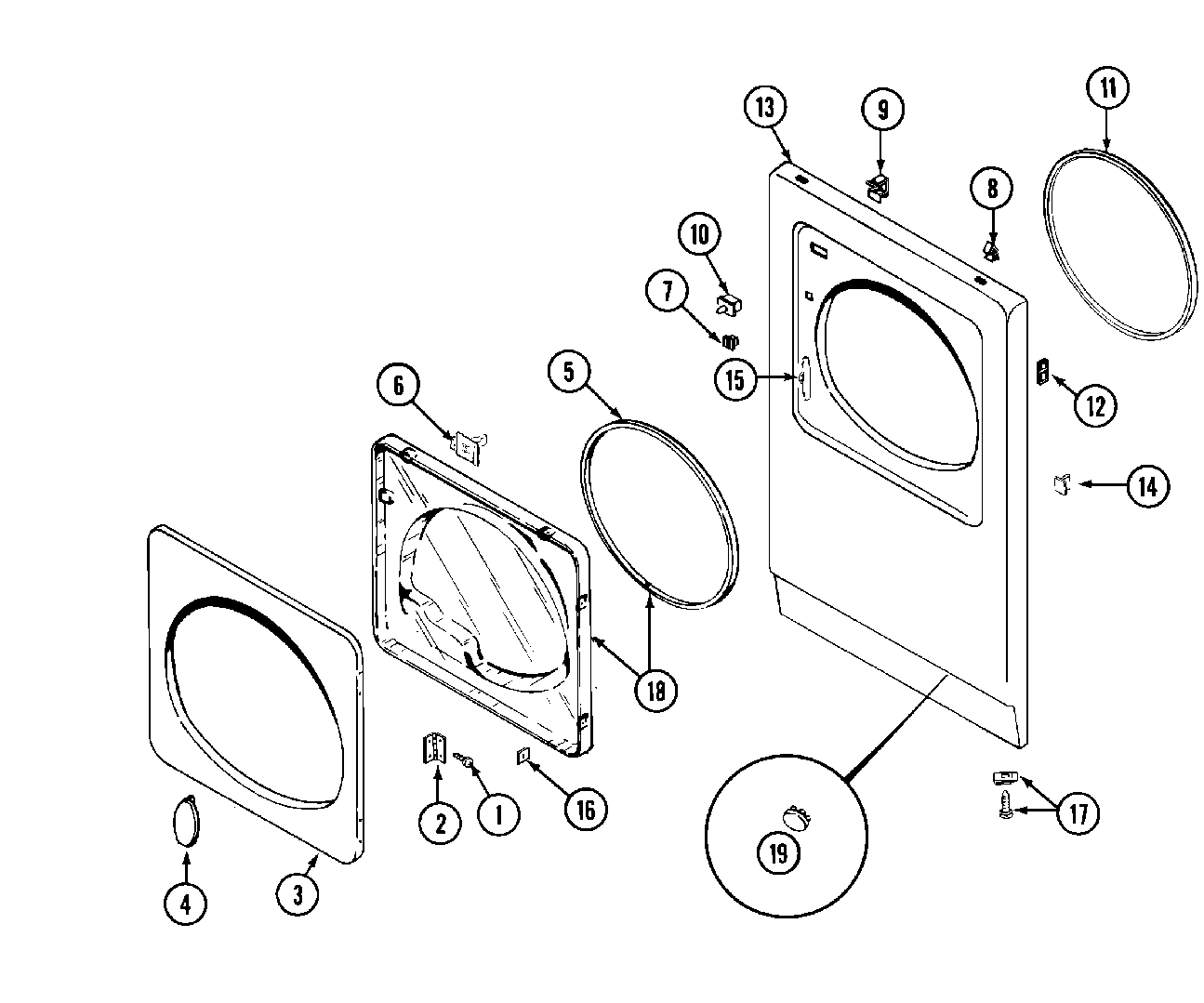

02 - DOOR
05 - GAS VALVE
Common parts from model Whirlpool MDG11CSAGL GAS DRYER
001
HOUSING, BLOWER WPL Y312893 Contact Us For Availability
001
CASE, COIN METER (WHT) WPL Y307081 Contact Us For Availability
001
CORD, POWER (EXPORT) WPL 308966 Contact Us For Availability
001
CORD, POWER WPL 33001285 Contact Us For Availability
001
TOP COVER ASSY. (WHT) WPL 33001165 Contact Us For Availability
001
DUCT ASSY., OUTLET WPL 33001016 Contact Us For Availability
001
SCREW,HINGE,DOOR,& PANEL WPL Y314062 Contact Us For Availability
001
CONV KIT (NATURAL TO LP) ----S WPL Y308378 Contact Us For Availability
002
BOX, COIN (WHT) WPL 205423 Contact Us For Availability
002
(ALM) WPL 205423L Contact Us For Availability
002
FILTER, LINT WPL 33001170 Contact Us For Availability
002
EXHAUST DUCT ASSY. WPL Y303442 Contact Us For Availability
002
HINGE, DOOR WPL 33001230 Contact Us For Availability
002
CONVERSION KIT (LP TO NATURAL) WPL Y308377 Contact Us For Availability
003
COVER, TERMINAL WPL Y312905 Contact Us For Availability
003
PANEL, OUTER (WHT) WPL 314967 Contact Us For Availability
003
SCREW, IGNITER WPL 304971 Contact Us For Availability
004
BASE ASSY. WPL 306530 Contact Us For Availability
004
HANDLE, DOOR (WHT) WPL 314939 Contact Us For Availability
004
(ALM) WPL 314974 Contact Us For Availability
004
SCREW, BY-PASS SWITCHES WPL 315277 Contact Us For Availability
005
CABLE STOP WPL 910768 Contact Us For Availability
005
FRONT, TUMBLER (W/SEAL) WPL 33001179 Contact Us For Availability
005
SEAL, DOOR WPL 33001192 Contact Us For Availability
006
SCREW, SPACER ASSY. WPL Y310632 Contact Us For Availability
006
(WHT) WPL 33001302 Contact Us For Availability
006
VALVE, GAS WPL 307927 Contact Us For Availability
007
MOTOR, TIMER (240V 50HZ) WPL 306527 Contact Us For Availability
008
THERMOSTAT, CYCLING (155 DEG.) WPL 306966 Contact Us For Availability
008
WIRE HARNESS, THERMOSTATS WPL 33001306 Contact Us For Availability
008
THERMOSTAT, PERMANENT PRESS WPL Y303225 Contact Us For Availability
009
SCREW, GAS VALVE WPL Y313561 Contact Us For Availability
009
CLIP, CABLE WPL Y310376 Contact Us For Availability
009
BOLT, LOCKING WPL 215559 Contact Us For Availability
010
LOCKWASHER, LOCKING BOLT WPL 910387 Contact Us For Availability
010
BRACKET, GAS VALVE WPL 314566 Contact Us For Availability
011
PANEL, VAULT WPL 315037 Contact Us For Availability
011
BAFFLE (SHORT) WPL 33001012 Contact Us For Availability
011
SCREW, TOP DRYER WPL 314663 Contact Us For Availability
011
SEAL, FRONT PANEL WPL 314937 Contact Us For Availability
012
WASHER, BAFFLE SCREW WPL 314158 Contact Us For Availability
013
DRYER TUMBLER, W/O BAFFLES WPL 33001108 Contact Us For Availability
013
COVER, BLOWER HOUSING WPL 314847 Contact Us For Availability
013
SPRING, TORSION RETURN WPL 314331 Contact Us For Availability
013
SHUT-OFF, GAS VALVE WPL Y303349 Contact Us For Availability
014
SCREW, TUMBLER BAFFLE WPL Y310759 Contact Us For Availability
014
VAULT ASSEMBLY WPL 305534 Contact Us For Availability
014
SCREW, BLOWER HOUSING WPL 314818 Contact Us For Availability
014
SPRING, ACTUATOR WPL 314332 Contact Us For Availability
014
PIPE & BRACKET ASSY. WPL Y303383 Contact Us For Availability
015
BACK, TUMBLER (W/SEAL) WPL 33001178 Contact Us For Availability
015
MOTOR (240V 50HZ) WPL Y304656 Contact Us For Availability
015
ACTUATOR KIT WPL 306104 Contact Us For Availability
015
COVER, HINGE HOLE (WHT) WPL 33001175 Contact Us For Availability
015
(ALM) WPL 33001176 Contact Us For Availability
016
FASTENER, INNER DOOR WPL Y313910 Contact Us For Availability
016
INLET DUCT ASSY. WPL Y308504 Contact Us For Availability
017
SCREW & FASTENER ASSEMBLY WPL 204439 Contact Us For Availability
017
WIRE HARNESS, TIMER WPL 305800 Contact Us For Availability
018
(PROD. No. 303358-8 & 303358-9) WPL 306207 Contact Us For Availability
018
SWITCH, MOTOR START (PROD. No. 303358-2, 3033 WPL Y303877 Contact Us For Availability
018
SWITCH, MOTOR START (PROD. No. 303358 & 30335 WPL Y303879 Contact Us For Availability
018
PANEL, CLEAR INNER (W/SEAL) WPL 33001203 Contact Us For Availability
018
TIMER (240V 50HZ) WPL 305812 Contact Us For Availability
019
GROMMET, CASE OPENING WPL Y313671 Contact Us For Availability
019
PLUG, SIGHT HOLE (WHT) WPL 33001132 Contact Us For Availability
019
(ALM) WPL 33001168 Contact Us For Availability
019
COMBUSTION CONE ASSY. WPL Y308549 Contact Us For Availability
020
EXTENSION, UPPER CONE WPL NLA Contact Us For Availability
020
MOTOR PULLEY - 50 CYCLE WPL 305186 Contact Us For Availability
020
PULLEY, MOTOR (W/SET SCREW) WPL Y305185 Contact Us For Availability
021
PLATE, LATCH WPL 313428 Contact Us For Availability
021
FASTENER, SUPPORT ASSY. WPL 310933 Contact Us For Availability
021
COVER, ACCESS WPL Y312951 Contact Us For Availability
021
SCREW, SET WPL Y053241 Contact Us For Availability
021
TORSION TIMER ASSY. WPL 305831 Contact Us For Availability
021
RETAINER, HEATER CHAMBER WPL Y312890 Contact Us For Availability
022
IDLER SPRING ASSY. WPL Y303945 Contact Us For Availability
023
GROUND WIRE, LATCH WPL Y303981 Contact Us For Availability
023
SWITCH, BY-PASS (MOTOR) WPL 305798 Contact Us For Availability
024
CLAMP, GROUND (W/SCREW) WPL 301548 Contact Us For Availability
024
SWITCH, BY-PASS (HEATER) WPL Y305799 Contact Us For Availability
025
RETAINING, SPRING WPL 211790 Contact Us For Availability
026
CLIP, SPRING RETAINER WPL Y312270 Contact Us For Availability
027
DRIVER, INDEX WHEEL WPL 314330 Contact Us For Availability
028
PEG, TIME ADJUSTMENT WPL 314335 Contact Us For Availability
029
BRACKET, SWITCH & SLIDER WPL 314339 Contact Us For Availability
030
WIRE, GROUND WPL 901220 Contact Us For Availability
030
WHEEL, INDEX WPL 314546 Contact Us For Availability
032
ACTUATOR, WHEEL WPL 314548 Contact Us For Availability
033
(UPPER) WPL Y307482 Contact Us For Availability
033
BRACKET, COIN SLIDE WPL 314334 Contact Us For Availability
034
(LWR) WPL Y307463 Contact Us For Availability
034
BRACKET, TIMER WPL 314333 Contact Us For Availability
036
SCREW, METER STOP WPL Y014872 Contact Us For Availability
039
RETAINER, WIRE HARNESS WPL 315471 Contact Us For Availability
040
SPRIN WPL 410490 Contact Us For Availability
042
WPL 307928 WPL 307928 Contact Us For Availability
× ![]()
