Model Whirlpool MDG10MNEGW GAS DRYER – Common Parts & Diagrams
02 - CABINET (FRONT)

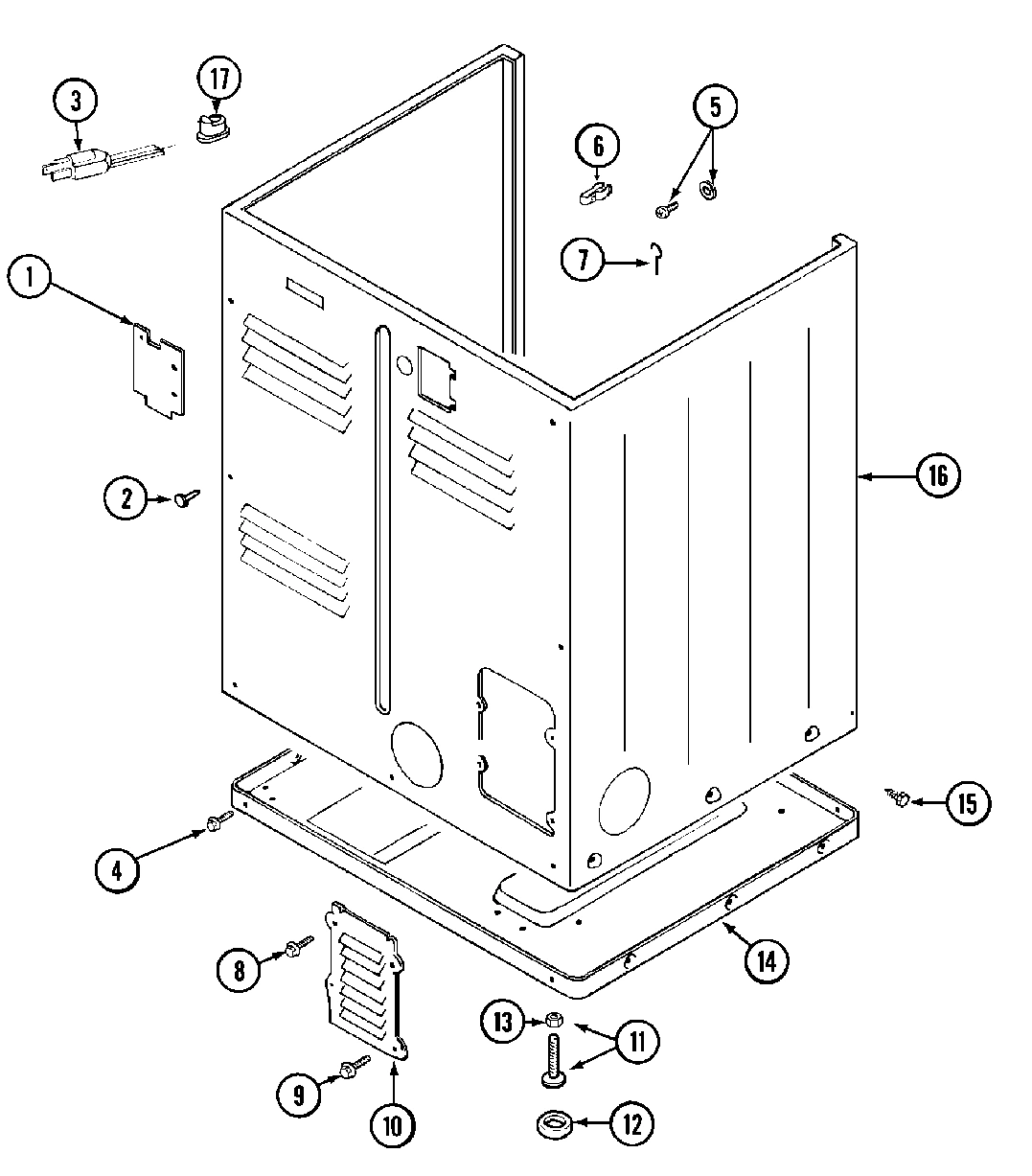

04 - CABINET (REAR)

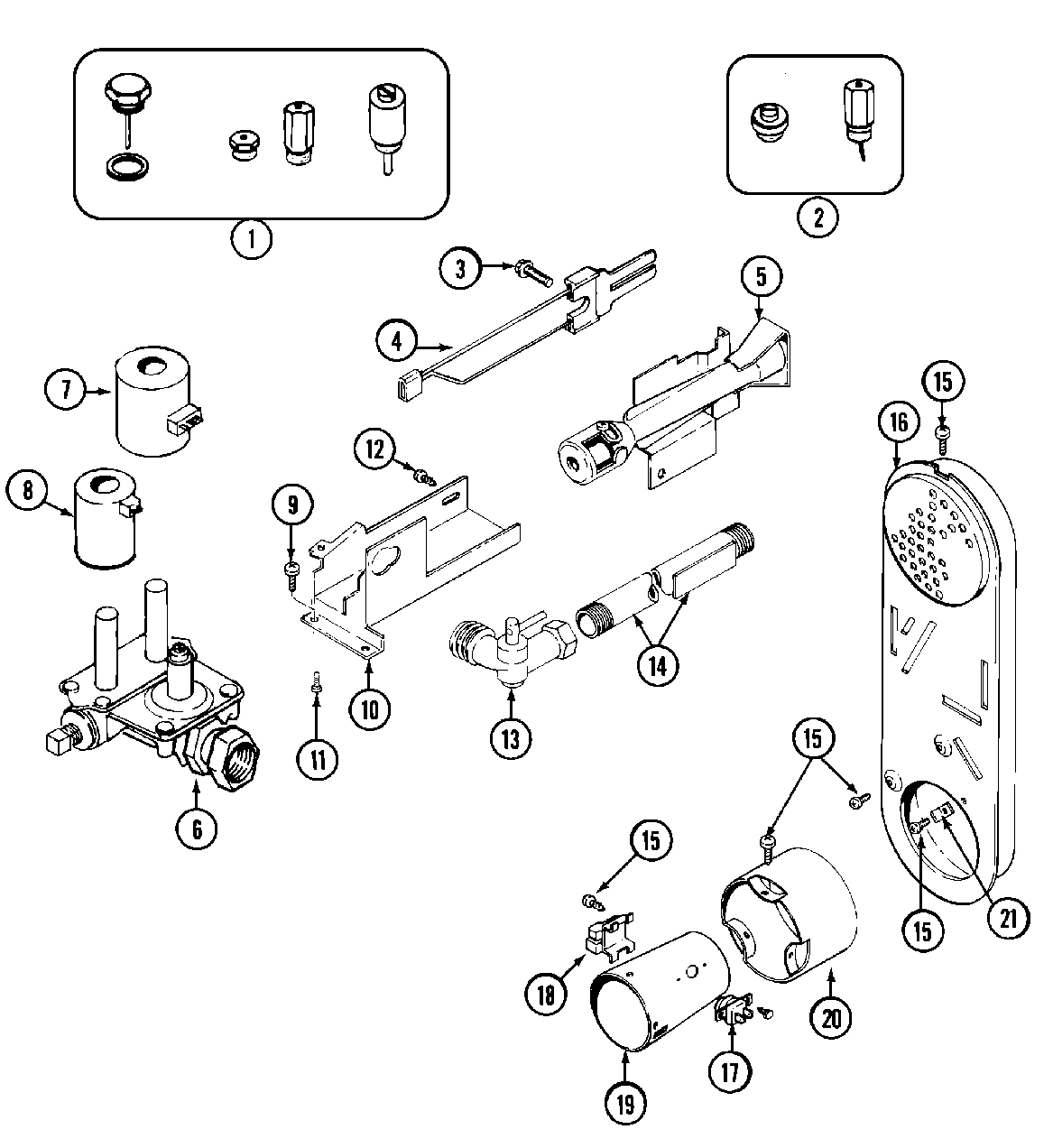

06 - GAS VALVE

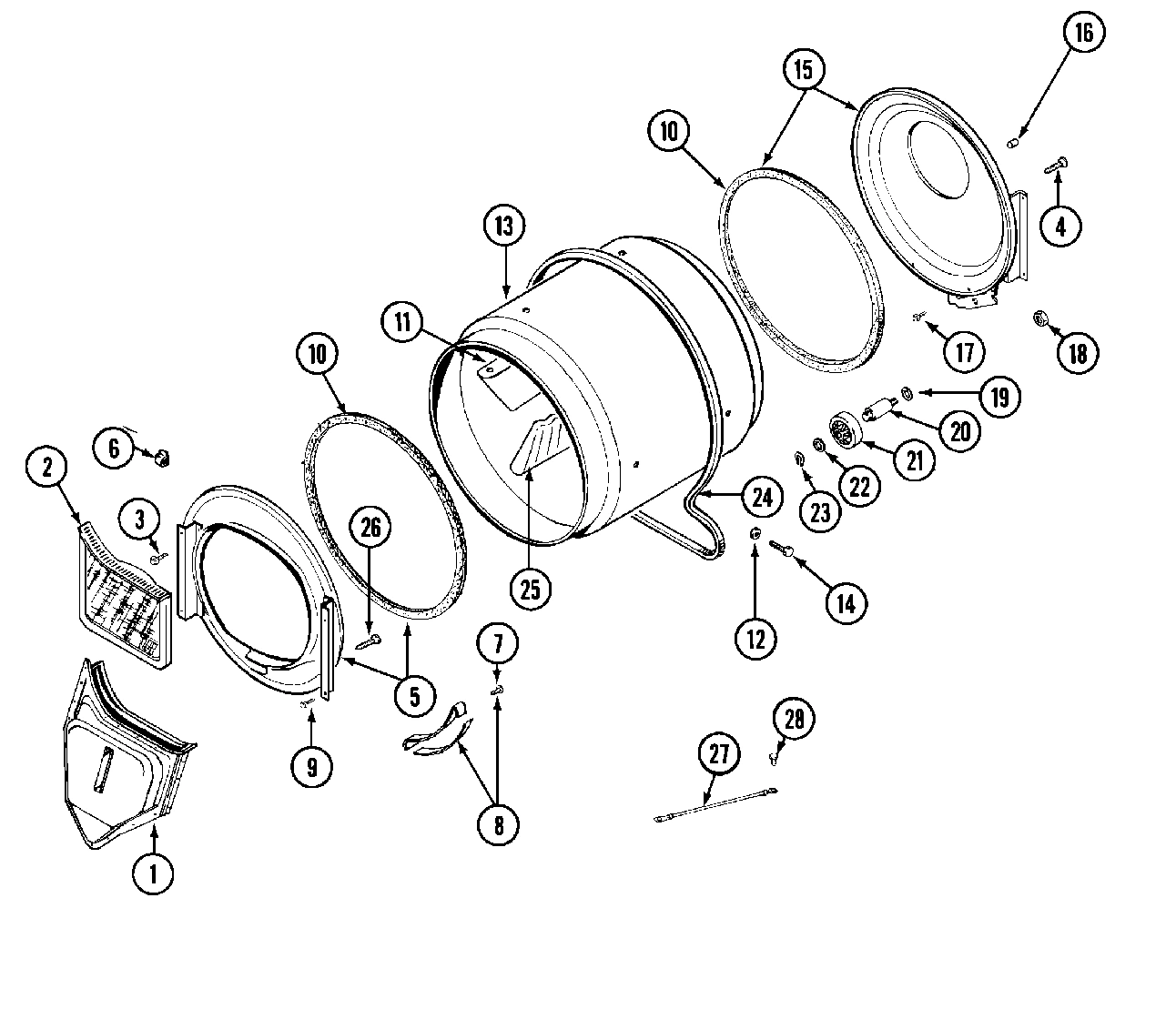

05 - TUMBLER

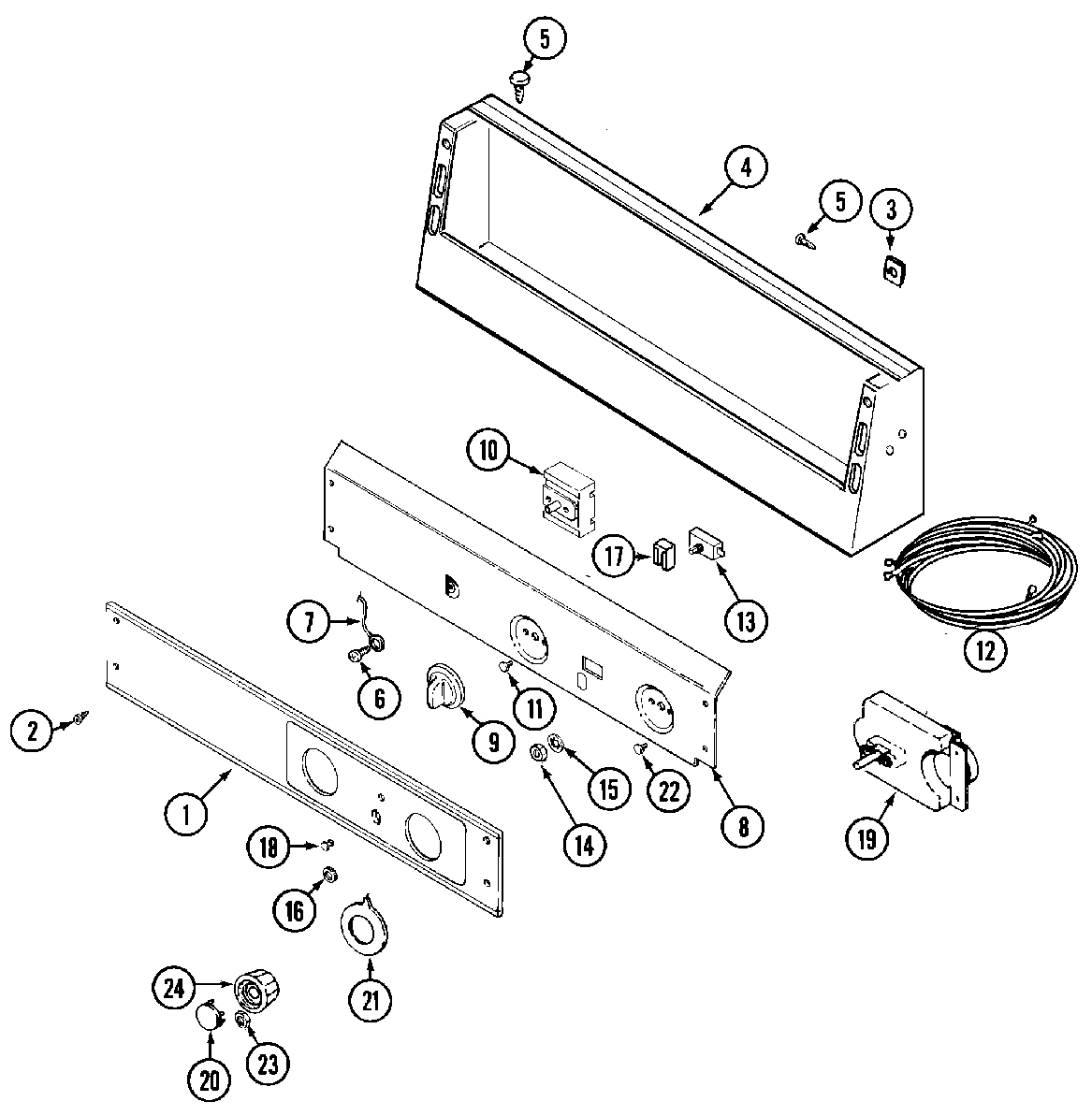

01 - CONTROL PANEL

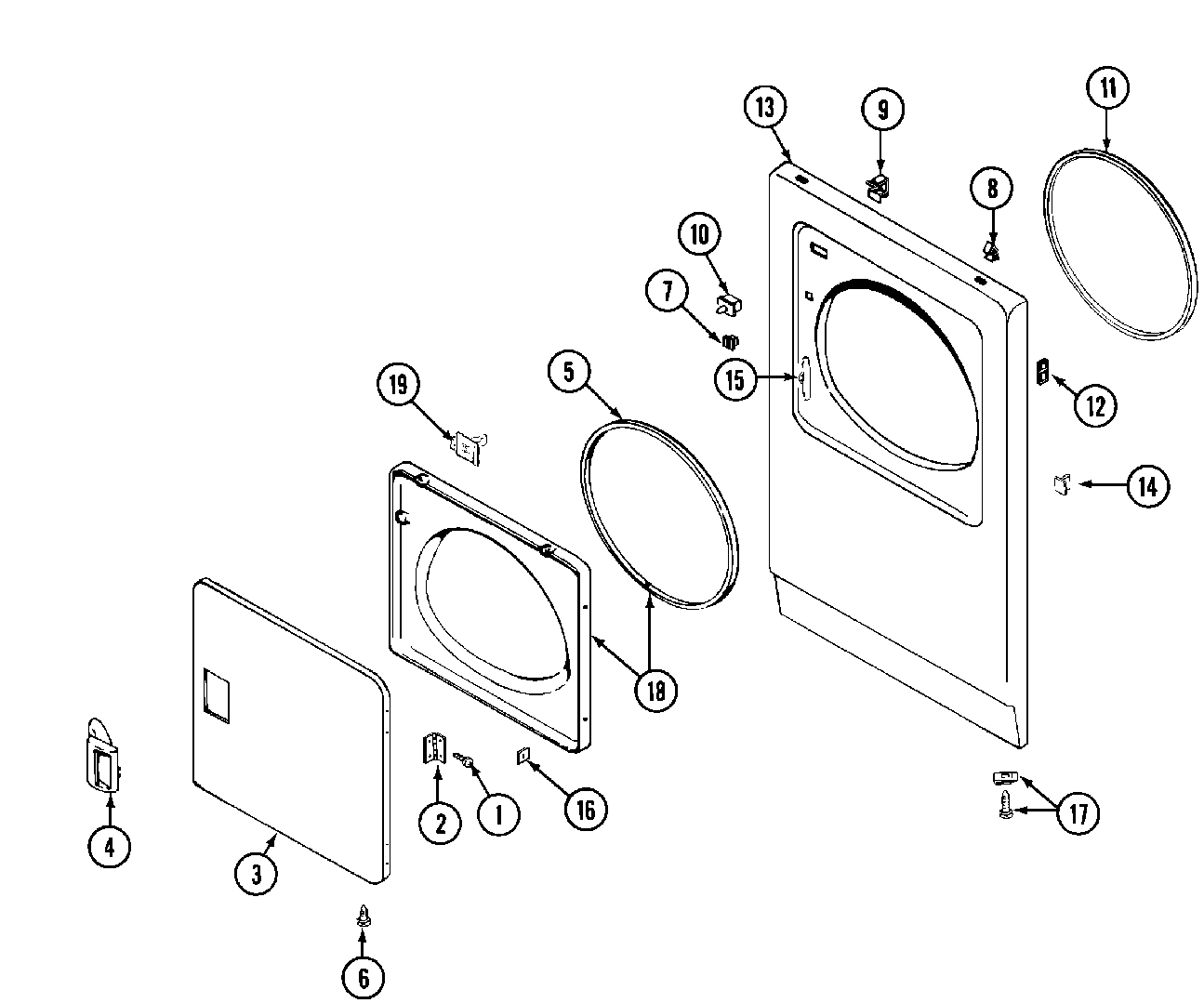

03 - DOOR

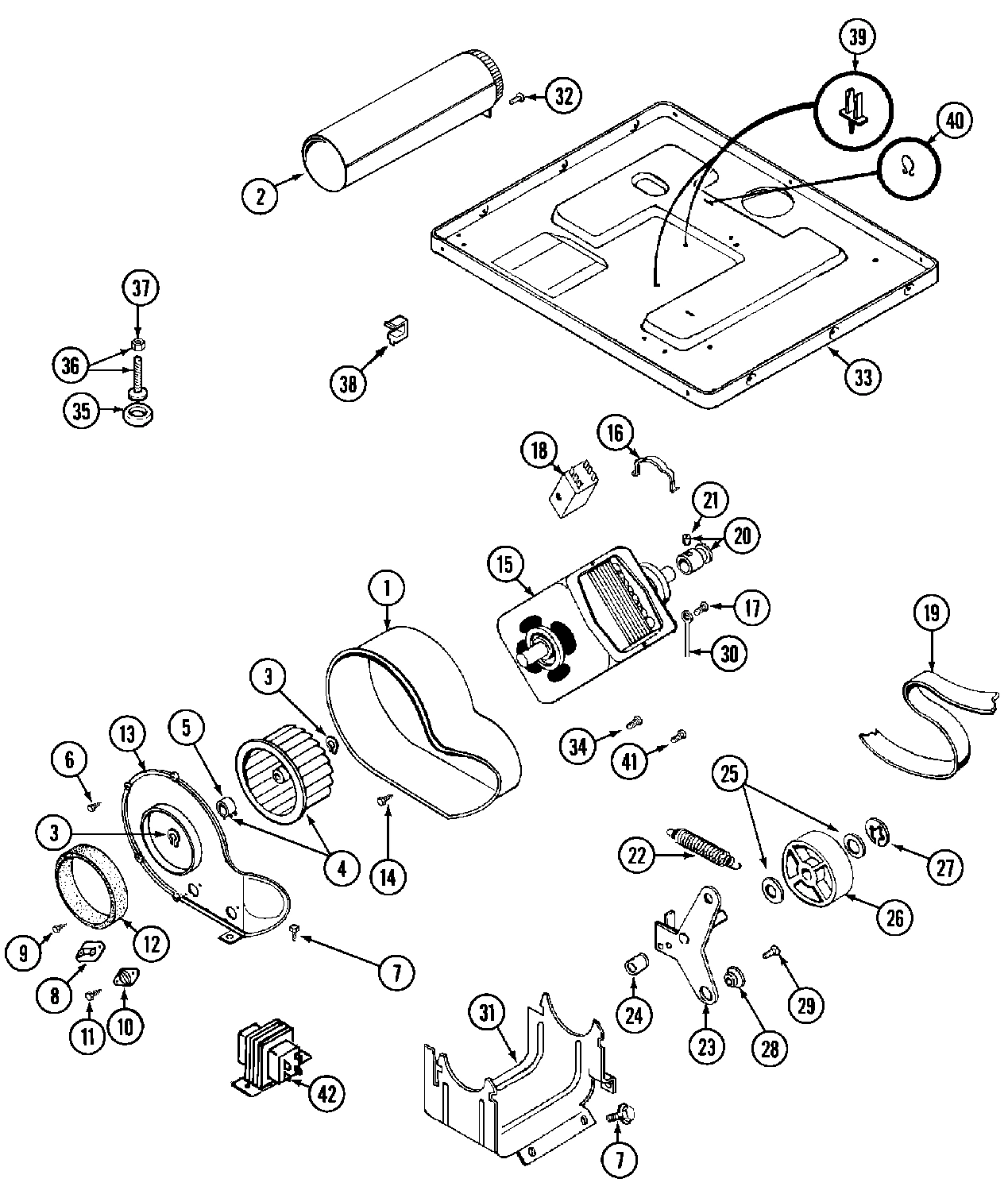

07 - MOTOR DRIVE
Common parts from model Whirlpool MDG10MNEGW GAS DRYER
001
HOUSING, BLOWER WPL Y312893 Contact Us For Availability
001
COVER, TERMINAL WPL Y312905 Contact Us For Availability
001
CONVERSION KIT (NAT TO LP) WPL Y308378 Contact Us For Availability
001
OUTLET DUCT ASSEMBLY WPL 33001016 Contact Us For Availability
001
PANEL, CONTROL WPL 33001021 Contact Us For Availability
001
SCREW, DOOR HINGE & PANEL WPL Y314062 Contact Us For Availability
002
CONVERSION KIT (LP TO NAT.) WPL Y308377 Contact Us For Availability
002
FILTER, LINT WPL 33001170 Contact Us For Availability
002
HINGE, DOOR WPL 33001230 Contact Us For Availability
002
EXHAUST DUCT ASSEMBLY WPL Y303442 Contact Us For Availability
003
CORD, POWER (EXPORT) WPL 308966 Contact Us For Availability
003
CORD, POWER WPL 33001284 Contact Us For Availability
003
CORD, POWER WPL 33001285 Contact Us For Availability
003
SCREW, IGNITER WPL 304971 Contact Us For Availability
003
FASTENER, CONTROL PANEL WPL 215003 Contact Us For Availability
003
DOOR (WHT) WPL 33001240 Contact Us For Availability
004
HANDLE, DOOR (WHT) WPL 33001241 Contact Us For Availability
004
CONSOLE (WHT) WPL 33001280 Contact Us For Availability
005
FRONT, TUMBLER (W/SEAL) WPL 33001179 Contact Us For Availability
005
SEAL, DOOR WPL 33001131 Contact Us For Availability
006
PLUG, DOOR (WHT) WPL 33001132 Contact Us For Availability
006
CLAMP, GROUND (W/SCREW) WPL 301548 Contact Us For Availability
006
VALVE, GAS WPL 307927 Contact Us For Availability
007
SCREW, HOUSING COVER WPL Y313561 Contact Us For Availability
007
WIRE, GROUND WPL 204807 Contact Us For Availability
007
WIRE, GROUND WPL 205810 Contact Us For Availability
008
THERMOSTAT, CYCLING (155 DEG.) WPL 306966 Contact Us For Availability
009
KNOB, SELECTOR WPL 306938 Contact Us For Availability
010
COVER, ACCESS WPL Y312951 Contact Us For Availability
010
BRACKET, GAS VALVE WPL 314566 Contact Us For Availability
011
BAFFLE (SHORT) WPL 33001012 Contact Us For Availability
011
SEAL, FRONT PANEL WPL 314937 Contact Us For Availability
012
WASHER, BAFFLE WPL 314158 Contact Us For Availability
012
WIRE HARNESS, MAIN WPL 308510 Contact Us For Availability
012
WIRE HARNESS, MAIN WPL 33001522 Contact Us For Availability
012
WIRE HARNESS, MAIN WPL 33001524 Contact Us For Availability
013
SHUT-OFF, GAS VALVE WPL Y303349 Contact Us For Availability
013
DRYER TUMBLER, W/O BAFFLES WPL 33001108 Contact Us For Availability
013
COVER, BLOWER HOUSING WPL 314778 Contact Us For Availability
014
SCREW, TUMBLER BAFFLE WPL Y310759 Contact Us For Availability
014
BASE ASSEMBLY WPL Y303361 Contact Us For Availability
014
PIPE & BRACKET ASSEMBLY WPL Y303383 Contact Us For Availability
014
NUT, SWITCH WPL Y312706 Contact Us For Availability
015
BACK, TUMBLER (W/SEAL) WPL 33001178 Contact Us For Availability
015
COVER, HINGE HOLE (WHT) WPL 33001175 Contact Us For Availability
015
(240V-50HZ) WPL Y304656 Contact Us For Availability
016
INLET DUCT ASSEMBLY WPL Y308504 Contact Us For Availability
016
NUT, KNURLED WPL Y312702 Contact Us For Availability
016
FASTENER, INNER DOOR WPL Y313910 Contact Us For Availability
017
GROMMET, CORD WPL 211881 Contact Us For Availability
017
LIGHT, INDICATOR WPL 204075 Contact Us For Availability
017
SCREW & FASTENER ASSEMBLY WPL 204439 Contact Us For Availability
018
DOOR, INNER (W/SEAL) WPL 33001243 Contact Us For Availability
018
(PROD. No. 303358-8 & 303358-9) WPL 306207 Contact Us For Availability
018
SWITCH, MOTOR EXTERNAL START (PROD. No. 30335 WPL Y303877 Contact Us For Availability
018
SWITCH, MOTOR EXTERNAL START (PROD. No. 30335 WPL Y303879 Contact Us For Availability
019
COMBUSTION CONE ASSEMBLY WPL Y308548 Contact Us For Availability
019
TIMER WPL 305214 Contact Us For Availability
019
(240V-50HZ) WPL Y305758 Contact Us For Availability
020
CONE, EXTENSION (W/SCREWS) WPL Y303841 Contact Us For Availability
020
PULLEY, MOTOR (W/SET SCREW) WPL 305186 Contact Us For Availability
020
PULLEY, MOTOR (W/SET SCREW) WPL Y305185 Contact Us For Availability
021
RETAINER, HEATER CHAMBER WPL Y312890 Contact Us For Availability
021
SKIRT, TIMER DIAL WPL 314725 Contact Us For Availability
021
SKIRT, TIMER DIAL WPL 33001500 Contact Us For Availability
021
SCREW, SET WPL Y053241 Contact Us For Availability
022
IDLER SPRING ASSEMBLY WPL Y303945 Contact Us For Availability
030
WIRE, GROUND WPL 901220 Contact Us For Availability
031
SUPPORT, MOTOR WPL NLA Contact Us For Availability
032
SCREW, EXHAUST DUCT WPL Y310632 Contact Us For Availability
033
BASE ASSEMBLY WPL Y305084 Contact Us For Availability
036
ADJUSTABLE LEG & NUT WPL W10176519 No Longer Available
038
CLIP, CABLE WPL Y310376 Contact Us For Availability
039
RETAINER, WIRE WPL 315471 Contact Us For Availability
040
SPRING, WIRE HARNESS WPL 410490 Contact Us For Availability
042
TRANSFORM WPL 307928 Contact Us For Availability
× ![]()
