Model Whirlpool MDG10DAABW GAS DRYER – Common Parts & Diagrams
06 - TUMBLER

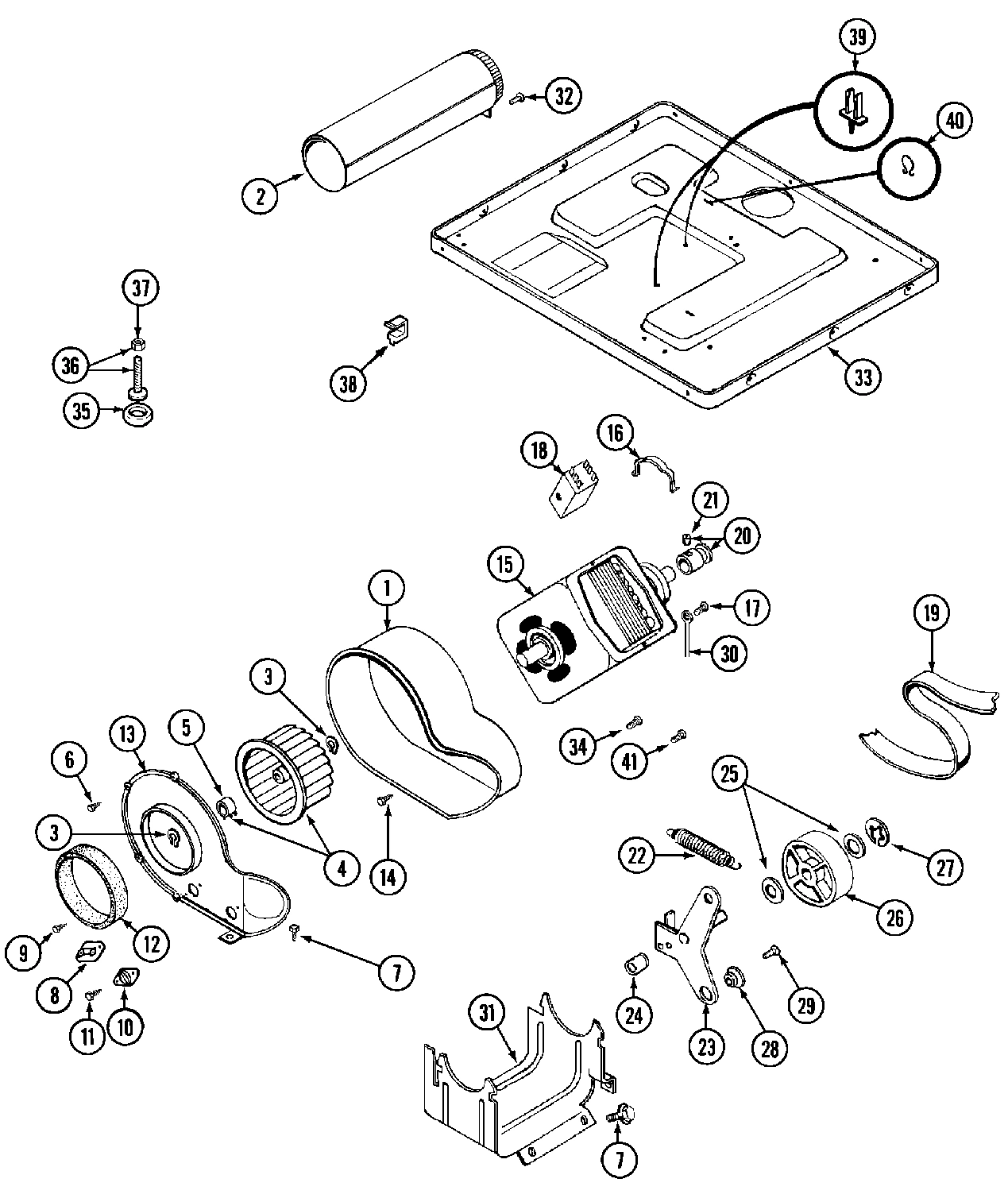

08 - MOTOR DRIVE

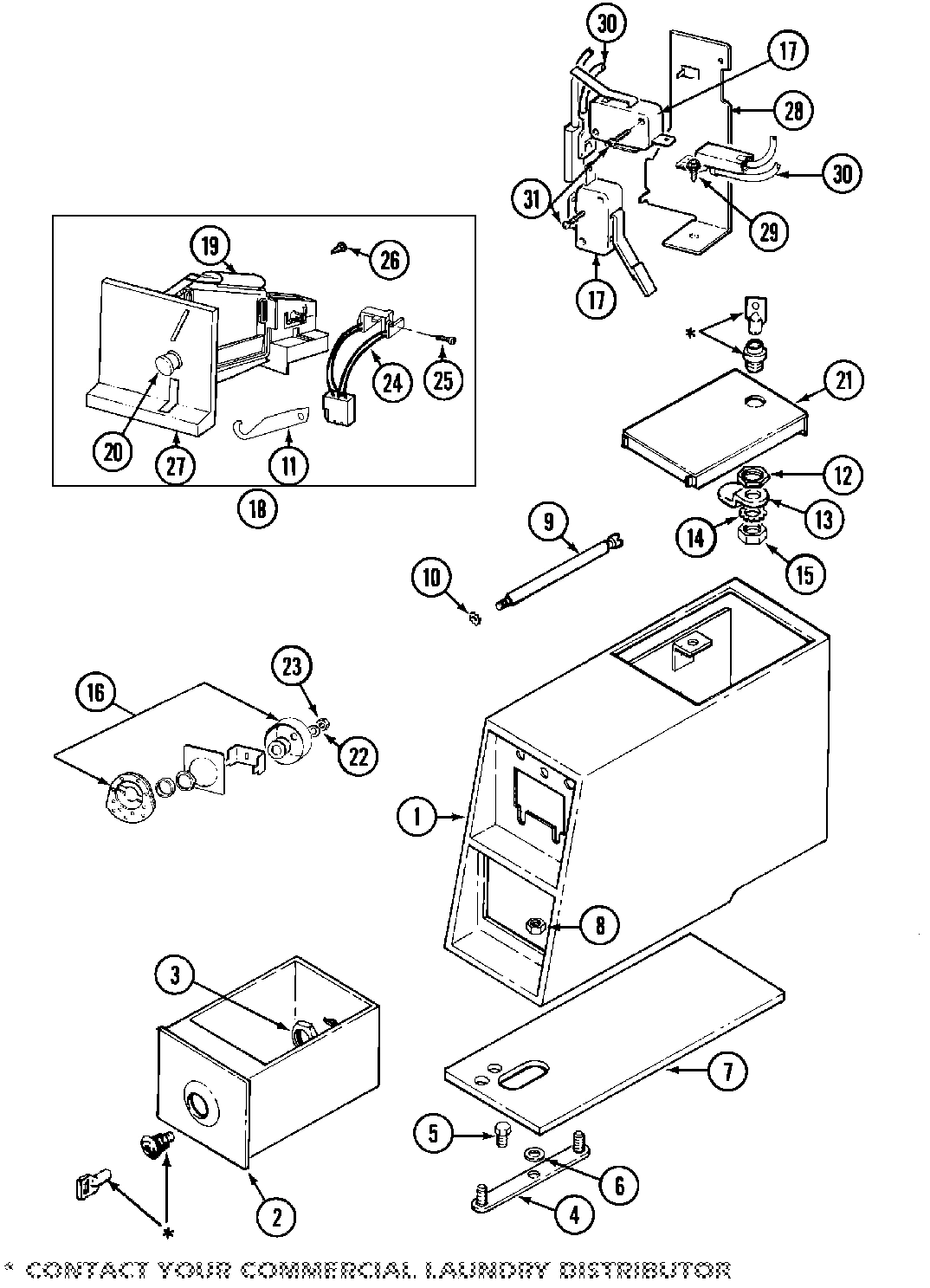

02 - CONTROL CENTER
04 - DOOR

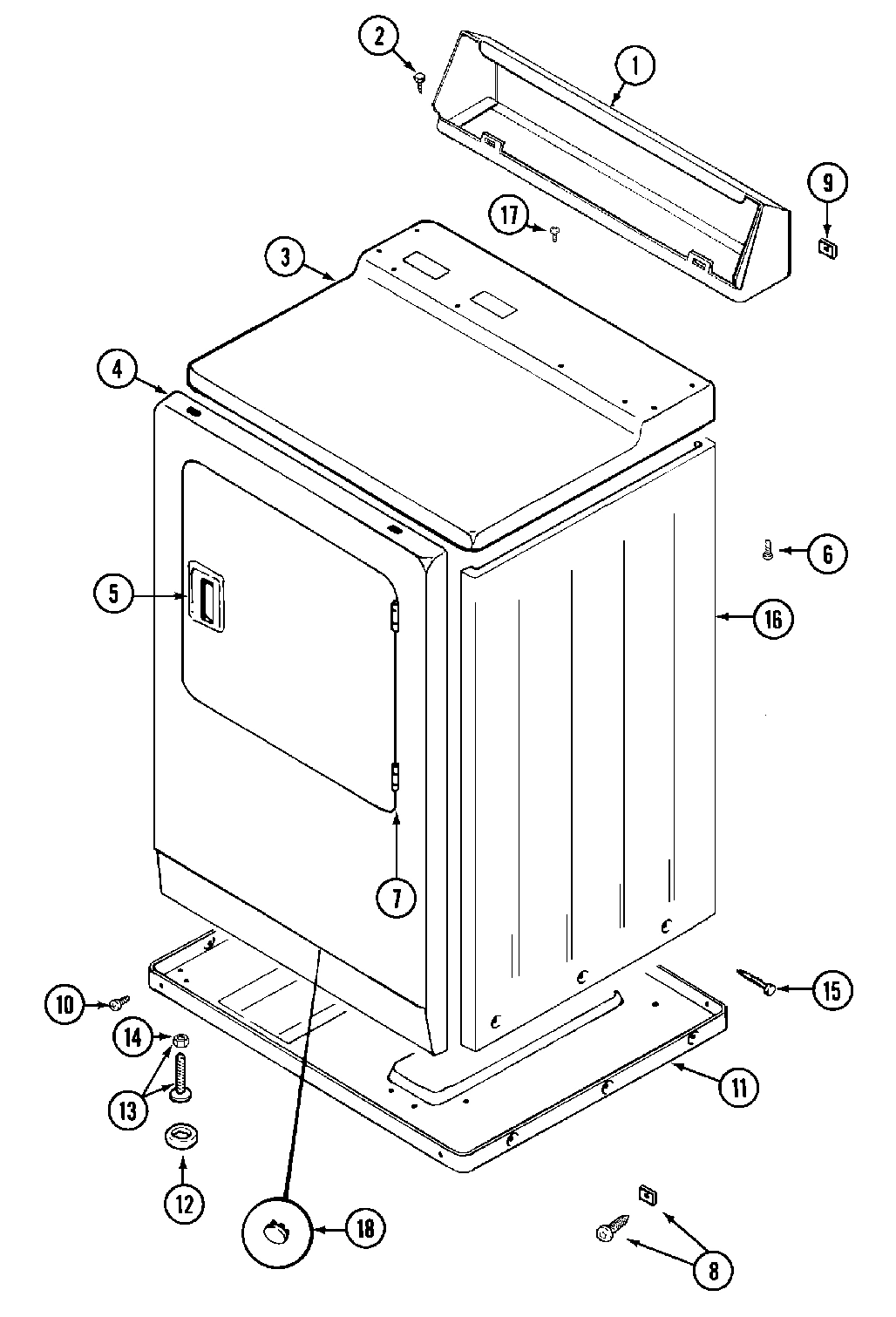

03 - CABINET (FRONT)

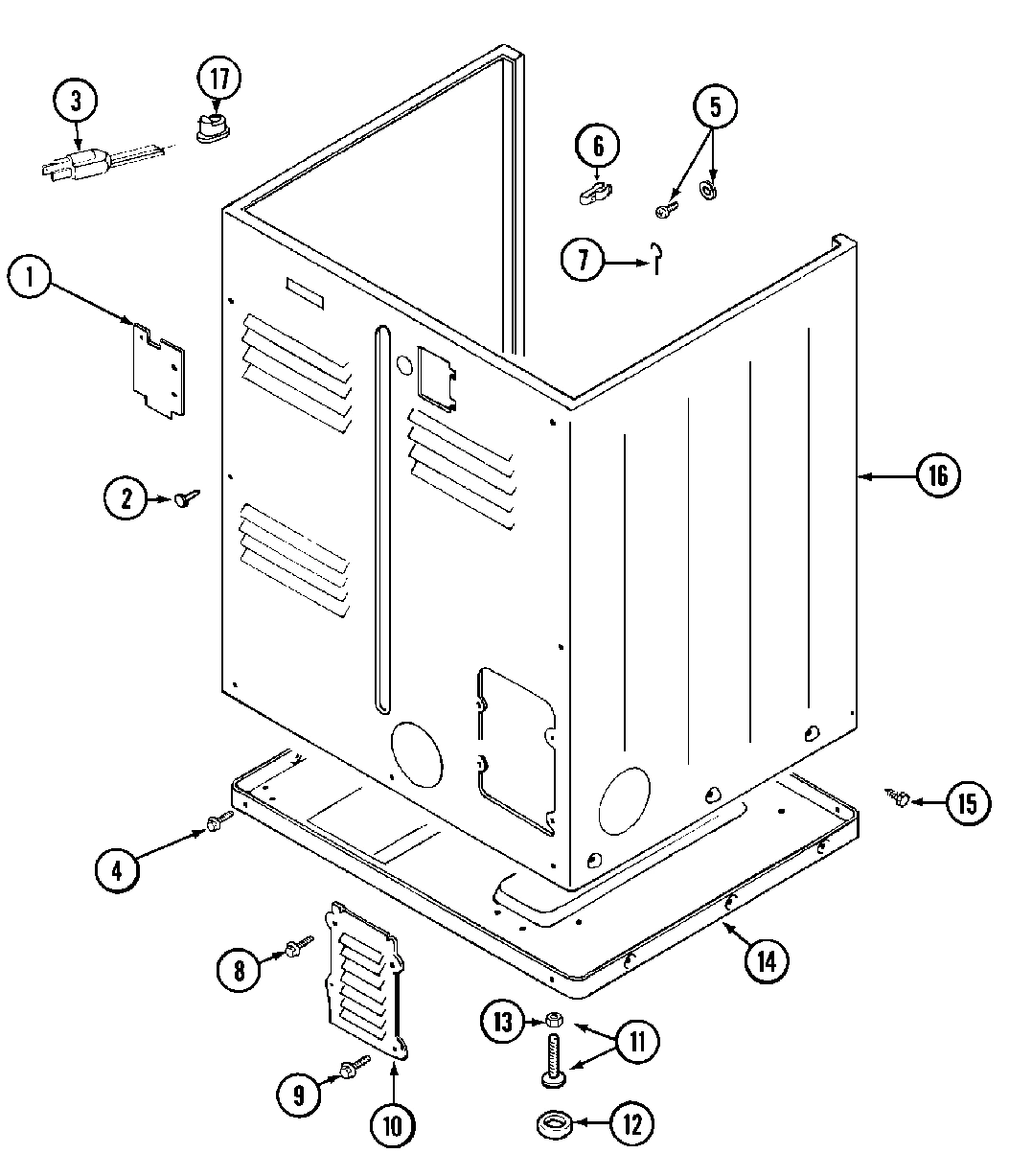

05 - CABINET (REAR)
07 - GAS VALVE

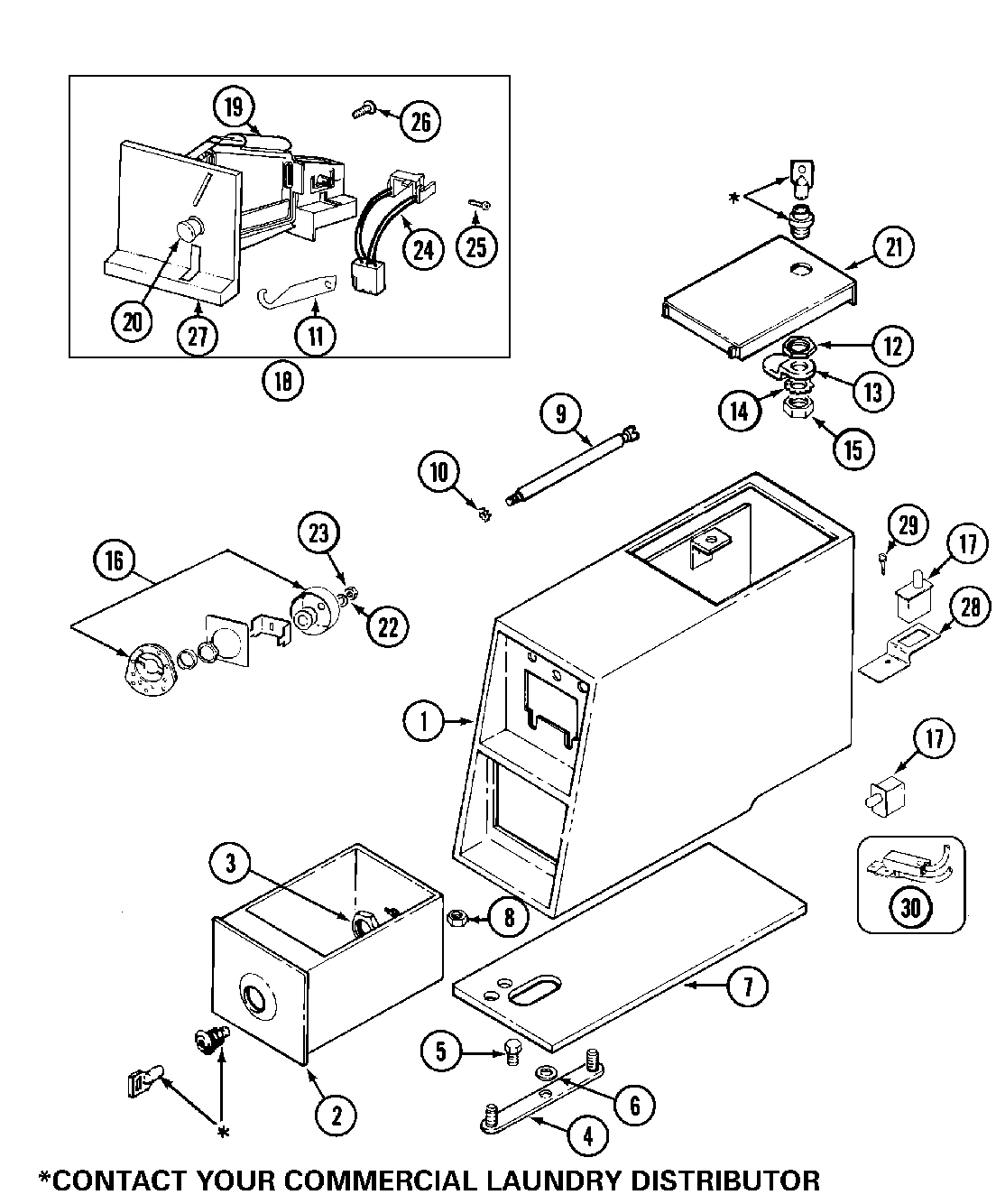

09 - CONTROL CNTR (SERIAL SUFFIX KB & AFTER)

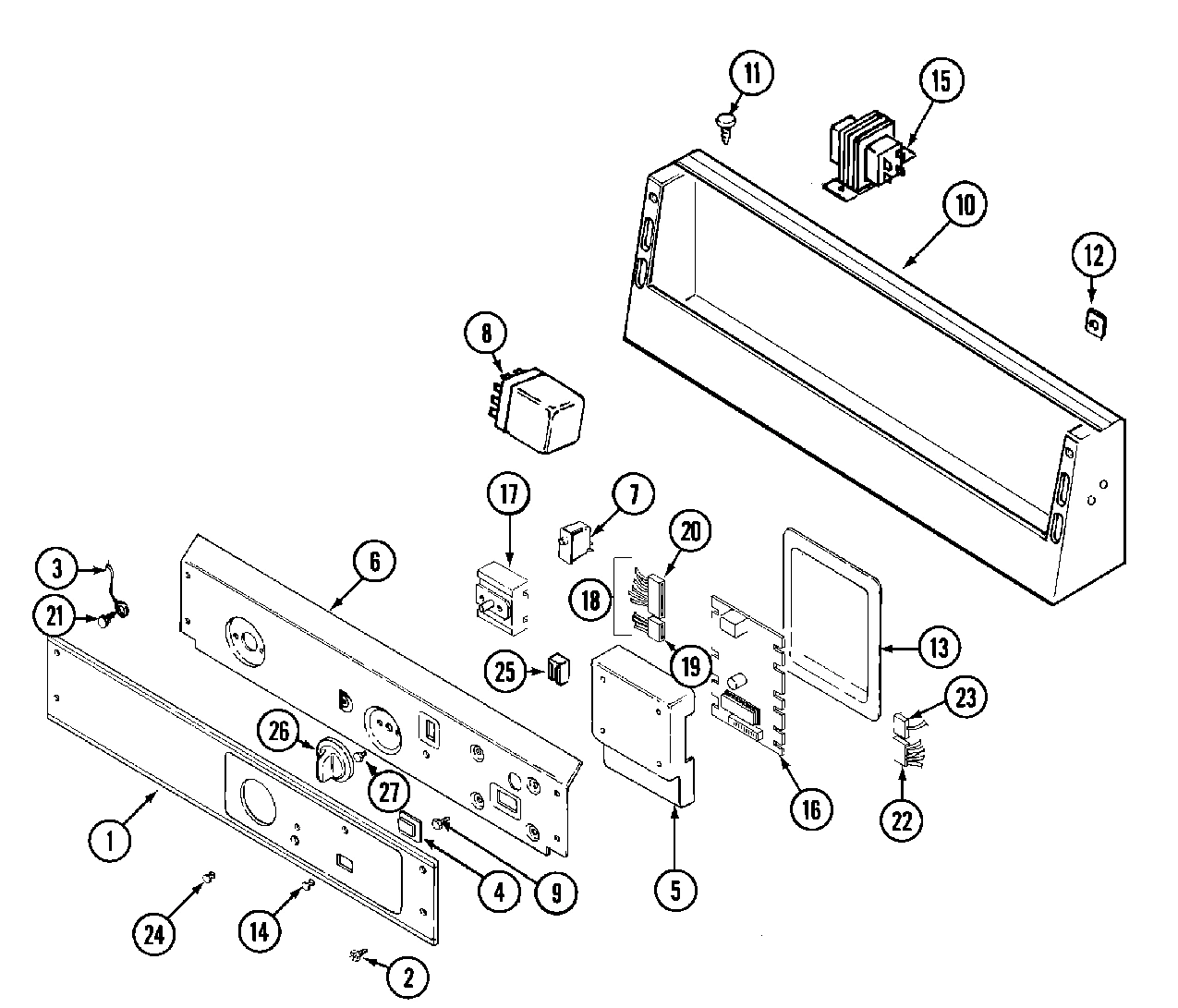

01 - CONTROL PANEL
Common parts from model Whirlpool MDG10DAABW GAS DRYER
001
HOUSING, BLOWER WPL Y312893 Contact Us For Availability
001
CASE, COIN METER (WHT) WPL 207940 Contact Us For Availability
001
(ALM) WPL 207940L Contact Us For Availability
001
SCREW,HINGE,DOOR,& PANEL WPL Y314062 Contact Us For Availability
001
COVER, TERMINAL WPL Y312905 Contact Us For Availability
001
CONVERSION KIT (NAT TO LP) WPL Y308378 Contact Us For Availability
001
CASE, COIN METER (WHT) WPL 22001407 Contact Us For Availability
001
(ALM) WPL 22001408 Contact Us For Availability
002
EXHAUST DUCT ASSEMBLY WPL Y303442 Contact Us For Availability
002
BOX, COIN (WHT) WPL 207912 Contact Us For Availability
002
(ALM) WPL 207912L Contact Us For Availability
002
CONVERSION KIT (LP TO NAT.) WPL Y308377 Contact Us For Availability
003
DOOR (WHT) WPL 33001240 Contact Us For Availability
003
(ALM) WPL 33001257 Contact Us For Availability
003
COVER, TOP (WHT) WPL 33001163 Contact Us For Availability
003
(ALM) WPL 33001164 Contact Us For Availability
003
CORD, POWER WPL 33001284 Contact Us For Availability
003
SCREW, IGNITER WPL 304971 Contact Us For Availability
003
WIRE, GROUND WPL 205810 Contact Us For Availability
004
HANDLE, DOOR (WHT) WPL 33001241 Contact Us For Availability
004
SCREW, CABINET WPL Y310632 Contact Us For Availability
005
(ALM) WPL 33001254 Contact Us For Availability
005
SEAL, DOOR WPL 33001131 Contact Us For Availability
006
WASHER, STRAP SCREW WPL 910309 Contact Us For Availability
006
SCREW, TOP COVER WPL 214354 Contact Us For Availability
006
CLAMP, GROUND & SCREW WPL 301548 Contact Us For Availability
006
PLATE, BACK-UP (WHT) WPL 315343 Contact Us For Availability
007
GASKET, METER CASE WPL 214660 Contact Us For Availability
007
HINGE, DOOR WPL 33001230 Contact Us For Availability
007
WIRE, GROUND WPL 204807 Contact Us For Availability
008
THERMOSTAT, CYCLING (155 DEG.) WPL 306966 Contact Us For Availability
008
THERMOSTAT, COOL DOWN WPL 308211 Contact Us For Availability
008
SCREW & FASTENER ASSEMBLY WPL 204439 Contact Us For Availability
009
SCREW, GAS VALVE ASSEMBLY WPL Y313561 Contact Us For Availability
009
CLIP, CABLE WPL Y310376 Contact Us For Availability
009
BOLT, LOCKING WPL 213035 Contact Us For Availability
009
FASTENER, CONTROL PANEL WPL 215075 Contact Us For Availability
009
SCREW BOARD ENCLOSURE WPL 312956 Contact Us For Availability
010
LOCKWASHER, LOCKING BOLT WPL 910181 Contact Us For Availability
010
COVER, ACCESS WPL Y312951 Contact Us For Availability
010
BRACKET, GAS VALVE WPL 314566 Contact Us For Availability
011
ADJUSTABLE LEG & NUT WPL W10176519 No Longer Available
011
SPRING, RETURN BUTTON WPL 216011 Contact Us For Availability
011
SEAL, FRONT PANEL WPL 314937 Contact Us For Availability
012
CLIP, SCREW WPL 215003 Contact Us For Availability
013
DRYER TUMBLER, W/O BAFFLES WPL 33001108 Contact Us For Availability
013
COVER, BLOWER HOUSING WPL 314847 Contact Us For Availability
013
SHUT-OFF, GAS VALVE WPL Y303349 Contact Us For Availability
014
SCREW, TUMBLER BAFFLE WPL Y310759 Contact Us For Availability
014
BASE ASSEMBLY WPL Y303361 Contact Us For Availability
014
PIPE & BRACKET ASSEMBLY WPL Y303383 Contact Us For Availability
015
BACK, TUMBLER (W/SEAL) WPL 33001178 Contact Us For Availability
015
COVER, HINGE HOLE (WHT) WPL 33001175 Contact Us For Availability
015
(ALM) WPL 33001176 Contact Us For Availability
016
FASTENER, INNER DOOR WPL Y313910 Contact Us For Availability
016
INLET DUCT ASSEMBLY WPL Y308504 Contact Us For Availability
017
GROMMET, CORD WPL 211881 Contact Us For Availability
018
(PROD. No. 303358-8 & 303358-9) WPL 306207 Contact Us For Availability
018
SWITCH, MOTOR EXTERNAL START (PROD. No. 30335 WPL Y303877 Contact Us For Availability
018
SWITCH, MOTOR EXTERNAL START (PROD. No. 30335 WPL Y303879 Contact Us For Availability
018
COIN DROP ASSEMBLY WPL 207948 Contact Us For Availability
018
PLUG, SIGHT HOLE (WHT) WPL 33001132 Contact Us For Availability
018
(ALM) WPL 33001168 Contact Us For Availability
018
DOOR, INNER (W/SEAL) WPL 33001243 Contact Us For Availability
019
COIN DROP WPL 207947 Contact Us For Availability
019
DROP, COIN (CAN.) WPL 207949 Contact Us For Availability
019
COMBUSTION CONE ASSEMBLY WPL Y308548 Contact Us For Availability
019
CONNECTOR, EDGEBOARD WPL 314529 Contact Us For Availability
020
PULLEY, MOTOR (W/SET SCREW) WPL Y305185 Contact Us For Availability
020
BUTTON, RETURN WPL 216200 Contact Us For Availability
020
EXTENSION, CONE (W/SCREWS) WPL Y303841 Contact Us For Availability
021
SCREW, SET WPL Y053241 Contact Us For Availability
021
DOOR, ACCESS (WHT) WPL 204216 Contact Us For Availability
021
(ALM) WPL 204216L Contact Us For Availability
021
RETAINER, HEATER CHAMBER WPL Y312890 Contact Us For Availability
022
CONNECTOR, EDGEBOARD----NA WPL NLA Contact Us For Availability
022
IDLER SPRING ASSEMBLY WPL Y303945 Contact Us For Availability
022
OPTIC SWITCH ASSEMBLY WPL 206799 Contact Us For Availability
023
NUT, LOCK CAM WPL 22001355 Contact Us For Availability
023
HARNESS, WIRE WPL 208045 Contact Us For Availability
023
LOCKWASHER, DOUBLE ``D`` WPL 216203 Contact Us For Availability
023
CONNECTOR, EDGEBOARD WPL 22001361 Contact Us For Availability
025
LIGHT, INDICATOR WPL 204075 Contact Us For Availability
026
SCREW, COIN DROP WPL 216068 Contact Us For Availability
026
KNOB, SELECTOR WPL 306938 Contact Us For Availability
027
PLATE, MOUNTING WPL 216010 Contact Us For Availability
028
BRACKET, SENSOR SWITCH WPL 22001404 Contact Us For Availability
030
WIRE, GROUND WPL 901220 Contact Us For Availability
031
SCREW, SENSOR SWITCH WPL 912012 Contact Us For Availability
033
BASE ASSEMBLY WPL Y305084 Contact Us For Availability
039
RETAINER, WIRE WPL 315471 Contact Us For Availability
040
SPRING, WIRE HARNESS WPL 410490 Contact Us For Availability
× ![]()
