Model Whirlpool LIT677973 Range – Common Parts & Diagrams

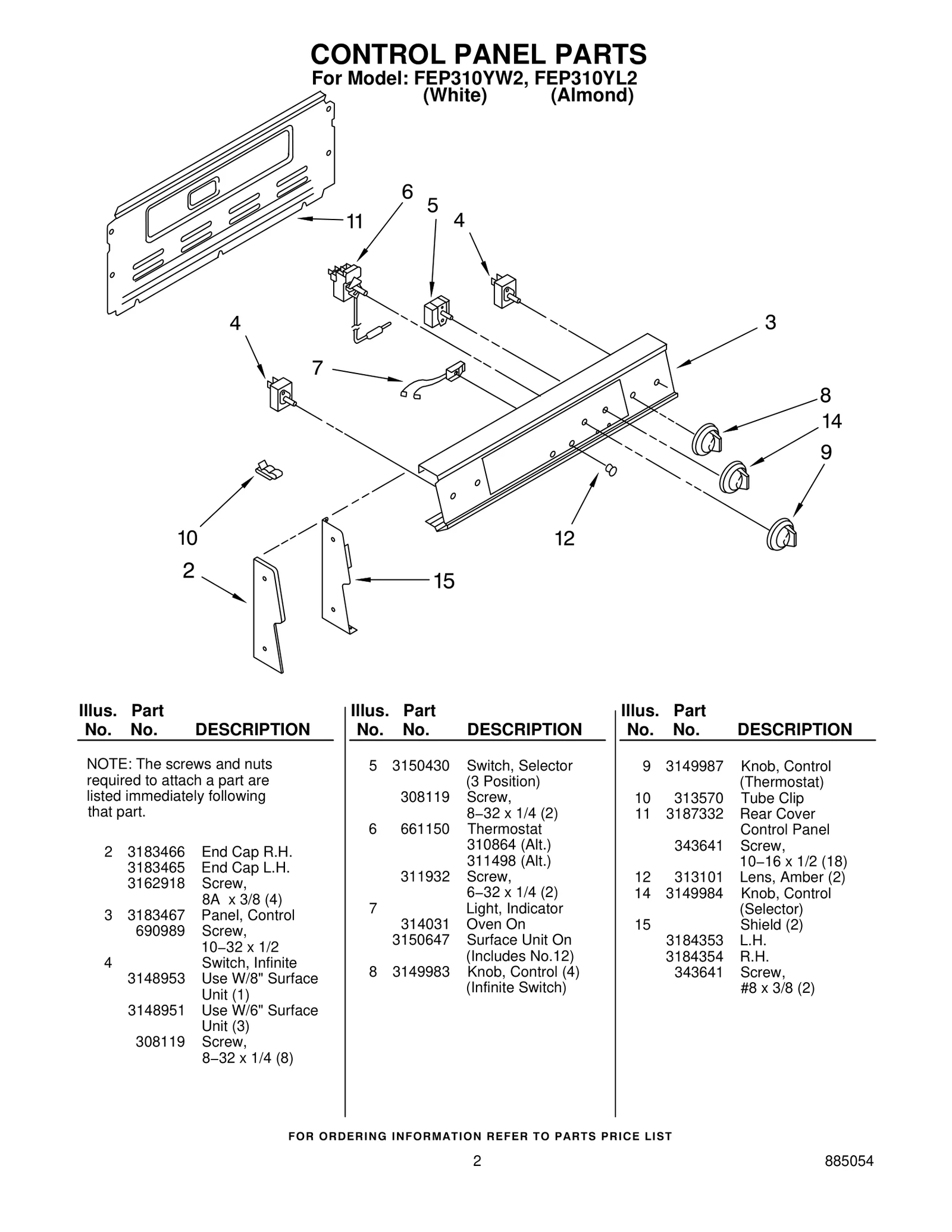

CONTROL PANEL PARTS
CONTROL PANEL PARTS
CONTROL PANEL PARTS
CONTROL PANEL PARTS
COOKTOP PARTS
COOKTOP PARTS
COOKTOP PARTS
COOKTOP PARTS
COOKTOP PARTS
CONTROL PANEL PARTS
OVEN DOOR PARTS
DOOR AND DRAWER PARTS
DOOR AND DRAWER PARTS
DOOR AND DRAWER PARTS
DOOR PARTS
CONTROL PANEL PARTS
CONTROL PANEL PARTS
CONTROL PANEL PARTS
CONTROL PANEL PARTS
CONTROL PANEL PARTS
COOKTOP PARTS
CONTROL PANEL PARTS
INTERNAL OVEN PARTS
OVEN PARTS
UNIT PARTS
OVEN PARTS
DOOR PARTS
DOOR AND DRAWER PARTS
DOOR PARTS
OVEN PARTS
OVEN PARTS
OVEN PARTS
UNIT PARTS
OVEN PARTS
OVEN PARTS
OVEN DOOR PARTS
WIRING HARNESS PARTS
OPTIONAL PARTS NOT INCLUDED
OPTIONAL PARTS NOT INCLUDED
WIRING HARNESS PARTS
WIRING HARNESS PARTS
UNIT PARTS
UNIT PARTS
UNIT PARTS
UNIT PARTS
WIRING HARNESS PARTS
WIRING HARNESS PARTS
WIRING HARNESS PARTS
OPTIONAL PARTS NOT INCLUDED
OPTIONAL PARTS NOT INCLUDED
WIRING HARNESS PARTS
WIRING HARNESS PARTS
WIRING HARNESS PARTS
WIRING HARNESS PARTS
WIRING HARNESS PARTS
OPTIONAL PARTS NOT INCLUDED
OPTIONAL PARTS NOT INCLUDED
OPTIONAL PARTS NOT INCLUDED
OPTIONAL PARTS NOT INCLUDED
Common parts from model Whirlpool LIT677973 Range
1
Liner, Oven Door WPL 3172219 Contact Us For Availability
1
End Trim R.H. WPL 3183092 Contact Us For Availability
1
End Trim L.H. WPL 3183093 Contact Us For Availability
1
End Trim R.H. WPL 3187671 Contact Us For Availability
1
End Trim L.H. WPL 3187672 Contact Us For Availability
1
Support, Burner Box (2) WPL 310718 Contact Us For Availability
1
End Cap — L.H. WPL 3148445 Contact Us For Availability
1
End Cap — R.H. WPL 3148444 Contact Us For Availability
1
Main Chassis — White WPL 330086 Contact Us For Availability
1
Main Chassis — Almond WPL 330090 Contact Us For Availability
1
Liner, Door WPL 3170712 Contact Us For Availability
1
Harness, WPL 3169148 Contact Us For Availability
1
Harness, WPL 3169336 Contact Us For Availability
1
Bracket, Mounting (2) WPL 3169420 Contact Us For Availability
1
Harness, Wire WPL 3182750 Contact Us For Availability
1
Harness, Wire WPL 3149881 Contact Us For Availability
1
Harness, WPL 3169506 Contact Us For Availability
1
Harness, WPL 3169485 Contact Us For Availability
2
Seal, Glass WPL 3148183 Contact Us For Availability
2
Rail L.H. WPL 3149256 Contact Us For Availability
2
Retainer, Insulation WPL 3148160 Contact Us For Availability
2
Screw, 10A x 1/2 (2) WPL 307748 Contact Us For Availability
2
End Cap R.H. WPL 3187791 Contact Us For Availability
2
End Cap L.H. WPL 3187792 Contact Us For Availability
2
Screw, 8BT x 1/4 (4) WPL 254225 Contact Us For Availability
2
End Cap R.H. WPL 3150441 Contact Us For Availability
2
End Cap L.H. WPL 3150442 Contact Us For Availability
2
Burner Box WPL 311021 Contact Us For Availability
2
Trim, Top WPL 3148616 Contact Us For Availability
2
Tube, Vent WPL 3169109 Contact Us For Availability
2
Screw WPL 312318 Contact Us For Availability
2
Tube, Vent WPL 3169144 Contact Us For Availability
2
Sping, Panel (2) WPL 307958 Contact Us For Availability
2
Harness, Wire WPL 3185666 Contact Us For Availability
2
Rail R.H. WPL 3149255 Contact Us For Availability
2
Harness, WPL 313550 Contact Us For Availability
2
Harness, Wire WPL 3169147 Contact Us For Availability
2
Harness, WPL 3169450 Contact Us For Availability
3
Bumper, Door (4) WPL 3148182 Contact Us For Availability
3
Motor, Timer WPL 309822 Contact Us For Availability
3
Shield, Switch WPL 310716 Contact Us For Availability
3
Trim, Center WPL 3183358 Contact Us For Availability
3
Bracket, Mounting WPL 307957 Contact Us For Availability
3
Leg Leveling (4) WPL 3169499 Contact Us For Availability
3
Glass, Inner WPL 3169202 Contact Us For Availability
3
Harness, Wire WPL 313464 Contact Us For Availability
3
Glide, Front (2) WPL 3149257 Contact Us For Availability
3
Harness, WPL 3183408 Contact Us For Availability
3
Bracket, Mounting WPL 3169548 Contact Us For Availability
3
Harness, WPL 3169550 Contact Us For Availability
3
Harness, WPL 3169551 Contact Us For Availability
4
Screw WPL 3185647 Contact Us For Availability
4
Panel, Glass WPL 3148186 Contact Us For Availability
4
Support, Cooktop WPL 310717 Contact Us For Availability
4
Trim, Bottom WPL 3184045 Contact Us For Availability
4
Frame, Front WPL 3176714 Contact Us For Availability
4
Screw (1) WPL 3150537 Contact Us For Availability
4
Frame, Front WPL 3176718 Contact Us For Availability
4
Baffle, Insulation WPL 3148287 Contact Us For Availability
4
Harness, Wire WPL 3182747 Contact Us For Availability
5
Clip, Handle Mtg. (2) WPL 3148282 Contact Us For Availability
5
Glass, Timer WPL 313513 Contact Us For Availability
5
Glass, Timer WPL 3169549 Contact Us For Availability
5
Screw (2) WPL 342043 Contact Us For Availability
5
Bracket WPL 3184170 Contact Us For Availability
5
Pin, Hinge (2) WPL 307985 Contact Us For Availability
5
Screw, 10−32 x 7/16 (2) WPL 3150532 Contact Us For Availability
5
Handle, Door WPL 3184128 Contact Us For Availability
5
Insulation Tray WPL 3185944 Contact Us For Availability
5
Screw WPL 309133 Contact Us For Availability
5
Clamp, Tube WPL 313570 Contact Us For Availability
6
Knob, Latch WPL 3148684 Contact Us For Availability
6
Bushing WPL 258109 Contact Us For Availability
6
Panel, Control WPL 3182830 Contact Us For Availability
6
Seal, Door WPL 3169283 Contact Us For Availability
6
Screw, 10−16 x 1 (2) WPL 98884 Contact Us For Availability
6
Seal, Door WPL 3169251 Contact Us For Availability
6
Door Top, vent WPL 3169515 Contact Us For Availability
6
Side Wrapper — Right Side WPL 3185954 Contact Us For Availability
6
Side Wrapper — Left Side WPL 3185957 Contact Us For Availability
6
Clip, Wire WPL 311311 Contact Us For Availability
6
Adapter, Terminal WPL 3147832 Contact Us For Availability
7
(White) (Almond) WPL N/S Contact Us For Availability
7
Timer, Control WPL 661458 Contact Us For Availability
7
Clamp, Wire WPL 3169449 Contact Us For Availability
7
Cover, Top Rear WPL 3147565 Contact Us For Availability
7
Thermostat, Oven WPL 3169306 Contact Us For Availability
7
Pushnut (2) WPL 308306 Contact Us For Availability
7
Ground Strap WPL 308498 Contact Us For Availability
7
Clip WPL 313660 Contact Us For Availability
7
Support, Side Wrapper (4) WPL 311774 Contact Us For Availability
7
Ground Strap WPL 3169573 Contact Us For Availability
8
Switch, Selector WPL 3150430 Contact Us For Availability
8
Knob, (3) Timer WPL 3169182 Contact Us For Availability
8
Frame, Door WPL 3148235 Contact Us For Availability
8
Cooktop, Brushed Chrome WPL 3183904 Contact Us For Availability
8
Hinge, R.H. WPL 3176710 Contact Us For Availability
8
Hinge, L.H. WPL 3176711 Contact Us For Availability
8
Bracket, Service WPL 3150190 Contact Us For Availability
8
Frame, Door WPL 3188997 Contact Us For Availability
8
Screw (4) WPL 3149253 Contact Us For Availability
8
Baffle, Top Insulation WPL 3183796 Contact Us For Availability
9
Light, Indicator WPL 314031 Contact Us For Availability
9
Panel, Control WPL 3188679 Contact Us For Availability
9
Panel, Control WPL 3169532 Contact Us For Availability
9
Panel, Control WPL 3188678 Contact Us For Availability
9
Oven (30" Pyro) WPL 3176612 Contact Us For Availability
9
Screw (3) WPL 311056 Contact Us For Availability
9
Glide, Rear (2) WPL 307980 Contact Us For Availability
9
Side Trim R.S. WPL 310689 Contact Us For Availability
9
Side Trim L.S. WPL 310685 Contact Us For Availability
9
Oven (30" Pyro) WPL 3176611 Contact Us For Availability
9
Panel, Drawer WPL 307935 Contact Us For Availability
9
Glass, Outer Pano WPL 3148185 Contact Us For Availability
9
Panel, Drawer WPL 3169422 Contact Us For Availability
10
Spring (8) WPL 3149191 Contact Us For Availability
10
Lens, Light WPL 313101 Contact Us For Availability
10
Panel, Control WPL 3185692 Contact Us For Availability
10
Cover, Rear WPL 3148975 Contact Us For Availability
10
Panel, Drawer — Black WPL 3169432 Contact Us For Availability
10
Oven, 30" Continuous Clean WPL 3184219 Contact Us For Availability
10
Oven, 30" Conventional WPL 3182032 Contact Us For Availability
11
Handle, Snap−In — Black WPL 3150615 Contact Us For Availability
11
Screw (5) WPL 3149333 Contact Us For Availability
11
Top, Door Frame WPL 3148223 Contact Us For Availability
11
Screw (2) WPL 308119 Contact Us For Availability
11
Switch, Selector WPL 3169311 Contact Us For Availability
11
Switch, Selector WPL 3169310 Contact Us For Availability
11
Knob, Thermostat WPL 3183106 Contact Us For Availability
11
Cover, Service WPL 307972 Contact Us For Availability
12
Thermostat, 0ven WPL 3169302 Contact Us For Availability
12
Knob, Selector WPL 3183109 Contact Us For Availability
12
Thermostat, 0ven WPL 3169526 Contact Us For Availability
12
Use W/6" Surface Unit (2) WPL 3148968 Contact Us For Availability
12
Spring, Door Stop WPL 308207 Contact Us For Availability
12
Drawer, Utility WPL 327887 Contact Us For Availability
12
Bracket, Oven Mounting (2) WPL 310713 Contact Us For Availability
12
Support, Foot (2) WPL 3169418 Contact Us For Availability
13
Indicator Light — Surface Unit On WPL 3169457 Contact Us For Availability
13
Light, (1) WPL 3148719 Contact Us For Availability
13
(1) WPL 3150662 Contact Us For Availability
13
Indicator, Light WPL 313462 Contact Us For Availability
13
Trim, End Cap WPL 3149900 Contact Us For Availability
13
Protector (2) WPL 309329 Contact Us For Availability
13
Cover, Foot (2) WPL 3169448 Contact Us For Availability
14
Knob, Control (4) WPL 3183118 Contact Us For Availability
14
Insulation WPL 3147951 Contact Us For Availability
14
Lens, Indicator WPL 313602 Contact Us For Availability
14
Support, Top Rail WPL 312752 Contact Us For Availability
14
New Avocado WPL 261889 Contact Us For Availability
14
Coffee (Uncut) WPL 261887 Contact Us For Availability
14
Thinner (1 Gal.) REFINISHING MATERIAL WPL 799351 Contact Us For Availability
14
Rack, Oven (2) WPL 308173 Contact Us For Availability
14
Insulation WPL 3147954 Contact Us For Availability
15
Knob, Control WPL 3183103 Contact Us For Availability
15
Knob, Control WPL 3149987 Contact Us For Availability
15
Knob, Control WPL 3188724 Contact Us For Availability
15
Knob, Control WPL 3149988 Contact Us For Availability
15
Bracket, Oven Mounting WPL 311220 Contact Us For Availability
15
Hinge, Ear — Right Side WPL 3185662 Contact Us For Availability
15
Hinge, Ear — Left Side WPL 3185663 Contact Us For Availability
15
Rack, Oven WPL 308172 Contact Us For Availability
16
Vent, Tube WPL 3169365 Contact Us For Availability
16
Plate, Side Panel (2) WPL 310659 Contact Us For Availability
17
Rear Cover Control Panel WPL 3187332 Contact Us For Availability
17
Channel Arm (2) WPL 3185665 Contact Us For Availability
18
Handle, Oven Door WPL 3148228 Contact Us For Availability
19
Shield, Glass (2) WPL 313608 Contact Us For Availability
19
Channel, Arm (2) WPL 3176708 Contact Us For Availability
19
Channel, Arm (2) WPL 3176709 Contact Us For Availability
20
Knob, Control WPL 3183115 Contact Us For Availability
20
Knob, Control WPL 3149984 Contact Us For Availability
20
Knob, Control WPL 3149986 Contact Us For Availability
20
Block, Balance WPL 3149258 Contact Us For Availability
20
Spring, Door Stop (2) WPL 311092 Contact Us For Availability
21
Knob, Selector WPL 3183112 Contact Us For Availability
21
Medallion, Surface Unit WPL 309195 Contact Us For Availability
21
Ring, Retainer (2) WPL 307594 Contact Us For Availability
22
Knob, Control (4) WPL 3183120 Contact Us For Availability
22
Spring, Oven Door (2) WPL 308127 Contact Us For Availability
22
Clip, Mounting (2) WPL 3149190 Contact Us For Availability
23
Knob, Timer (3) WPL 3169181 Contact Us For Availability
23
Bracket, Sensor WPL 3147830 Contact Us For Availability
23
Extension, Vent WPL 310835 Contact Us For Availability
24
Thermostat WPL 3185885 Contact Us For Availability
24
Support, L.H. Post WPL 313196 Contact Us For Availability
24
Support, R.H. Post WPL 313197 Contact Us For Availability
24
Eliminator, Smoke WPL 310840 Contact Us For Availability
25
Plug, Button WPL 308535 Contact Us For Availability
25
Plate Cover WPL 310662 Contact Us For Availability
26
Plug Button, (2) WPL 3169107 Contact Us For Availability
30
Switch, Door WPL 310345 Contact Us For Availability
30
Snubber, Door (2) WPL 309111 Contact Us For Availability
31
Cover, Side — Right Side WPL 3149027 Contact Us For Availability
31
Cover, Side — Left Side WPL 3149028 Contact Us For Availability
32
Support, Chassis WPL 3147646 Contact Us For Availability
32
Screw, 10−12 x 7/8 (2) WPL 308043 Contact Us For Availability
33
Screw (3) WPL 98520 Contact Us For Availability
33
Shield, Box WPL 3149006 Contact Us For Availability
33
Cover, Bottom & Top WPL 3185945 Contact Us For Availability
34
Vent, Box WPL 3169278 Contact Us For Availability
35
Switch, Broil WPL 314209 Contact Us For Availability
35
Insulation, Wrapper WPL 3169093 Contact Us For Availability
35
Insulation, Oven Back WPL 3169094 Contact Us For Availability
35
Screw, Black 8−15 x 1/2 (3) WPL 309029 Contact Us For Availability
35
Grill, Bottom WPL 310668 Contact Us For Availability
36
Screw WPL 314215 Contact Us For Availability
36
Switch, Bake WPL 314210 Contact Us For Availability
38
Rack, Oven WPL 3185641 Contact Us For Availability
39
Rack, Oven WPL 3185640 Contact Us For Availability
40
Panel, Back WPL 3182052 Contact Us For Availability
41
Cover, Rear WPL 3185960 Contact Us For Availability
42
Button, Plug WPL 3182814 Contact Us For Availability
44
Plate, Cover WPL 3183005 Contact Us For Availability
46
Plate, Cover WPL 3184208 Contact Us For Availability
46
Insulation, Back WPL 311458 Contact Us For Availability
OPT-1
Wire, Black WPL 242828 Contact Us For Availability
OPT-1
(White) (Almond) WPL 307981 Contact Us For Availability
OPT-2
Wire, Black WPL 242820 Contact Us For Availability
OPT-3
Wire, Blue WPL 242821 Contact Us For Availability
OPT-4
Wire, Brown WPL 242822 Contact Us For Availability
OPT-5
Wire, Brown WPL 242830 Contact Us For Availability
OPT-6
Wire, Green WPL 242823 Contact Us For Availability
OPT-7
Wire, Orange WPL 242824 Contact Us For Availability
OPT-8
Wire, Red WPL 242829 Contact Us For Availability
OPT-9
Wire, Red WPL 242825 Contact Us For Availability
OPT-10
Wire, Red WPL 242831 Contact Us For Availability
OPT-11
Wire, White WPL 242826 Contact Us For Availability
OPT-12
Wire, Yellow WPL 242827 Contact Us For Availability
OPT-13
Wire, Yellow WPL 242832 Contact Us For Availability
OPT-17
Coffee WPL 72108 Contact Us For Availability
OPT-19
Toast WPL 72112 Contact Us For Availability
OPT-24
New Avocado WPL 261888 Contact Us For Availability
OPT-25
Coffee WPL 261886 Contact Us For Availability
OPT-26
Harvest Gold WPL 261890 Contact Us For Availability
OPT-27
Toast WPL 285365 Contact Us For Availability
OPT-28
Platinum WPL 285366 Contact Us For Availability
OPT-29
Following Parts Not Illustrated WPL 309961 Contact Us For Availability
OPT-31
Leveler WPL 206925 Contact Us For Availability
OPT-32
White (Uncut) WPL 799344 Contact Us For Availability
OPT-33
Almond (Uncut) WPL 978883 Contact Us For Availability
OPT-34
Harvest Gold WPL 261891 Contact Us For Availability
OPT-35
Toast (Uncut) WPL 285367 Contact Us For Availability
OPT-36
Platinum (Uncut) WPL 285368 Contact Us For Availability
OPT-37
Kit, Porcelain WPL 799832 Contact Us For Availability
OPT-39
Grease WPL 261582 Contact Us For Availability
OPT-43
Foil, Aluminum WPL 241430 Contact Us For Availability
OPT-73
Clip, Harness WPL 312804 Contact Us For Availability
× ![]()
Login and Registration Form
