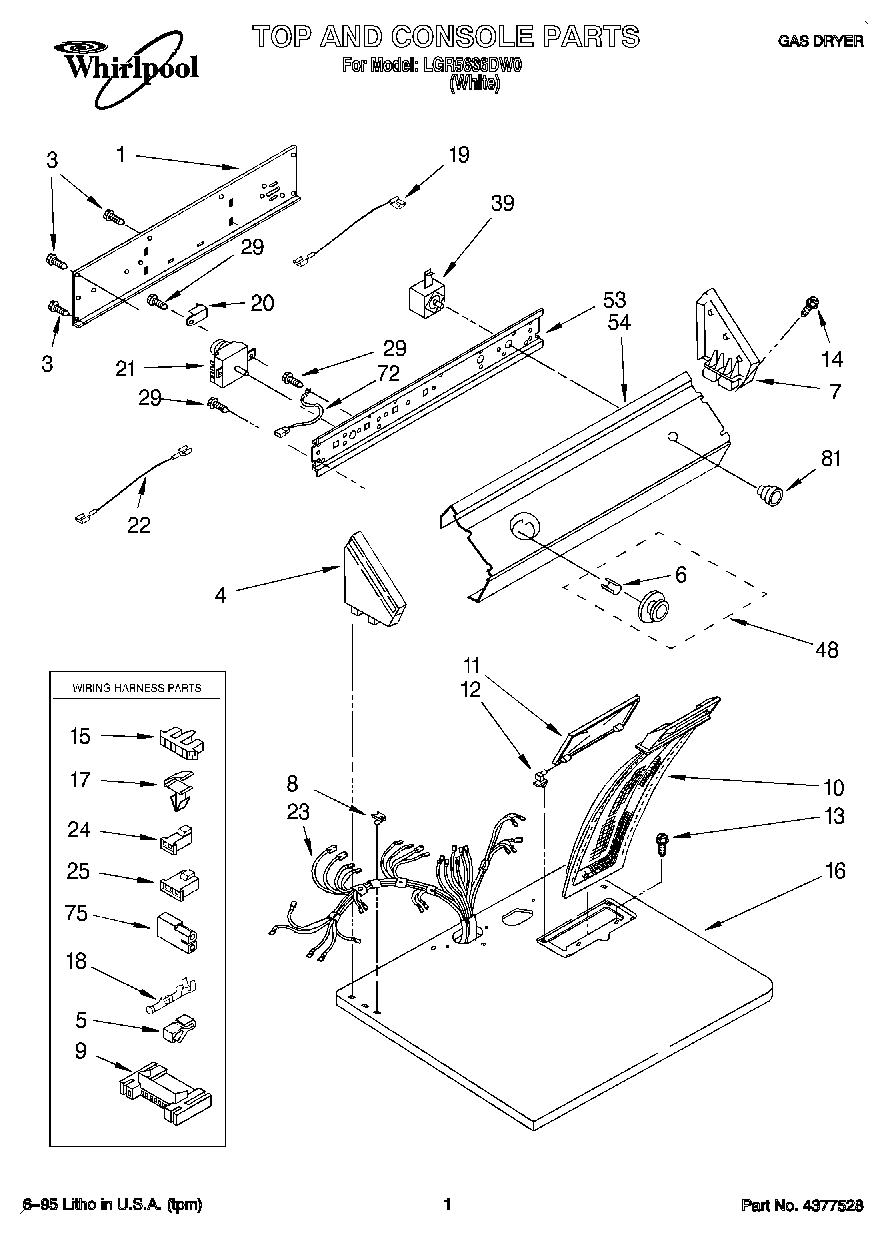

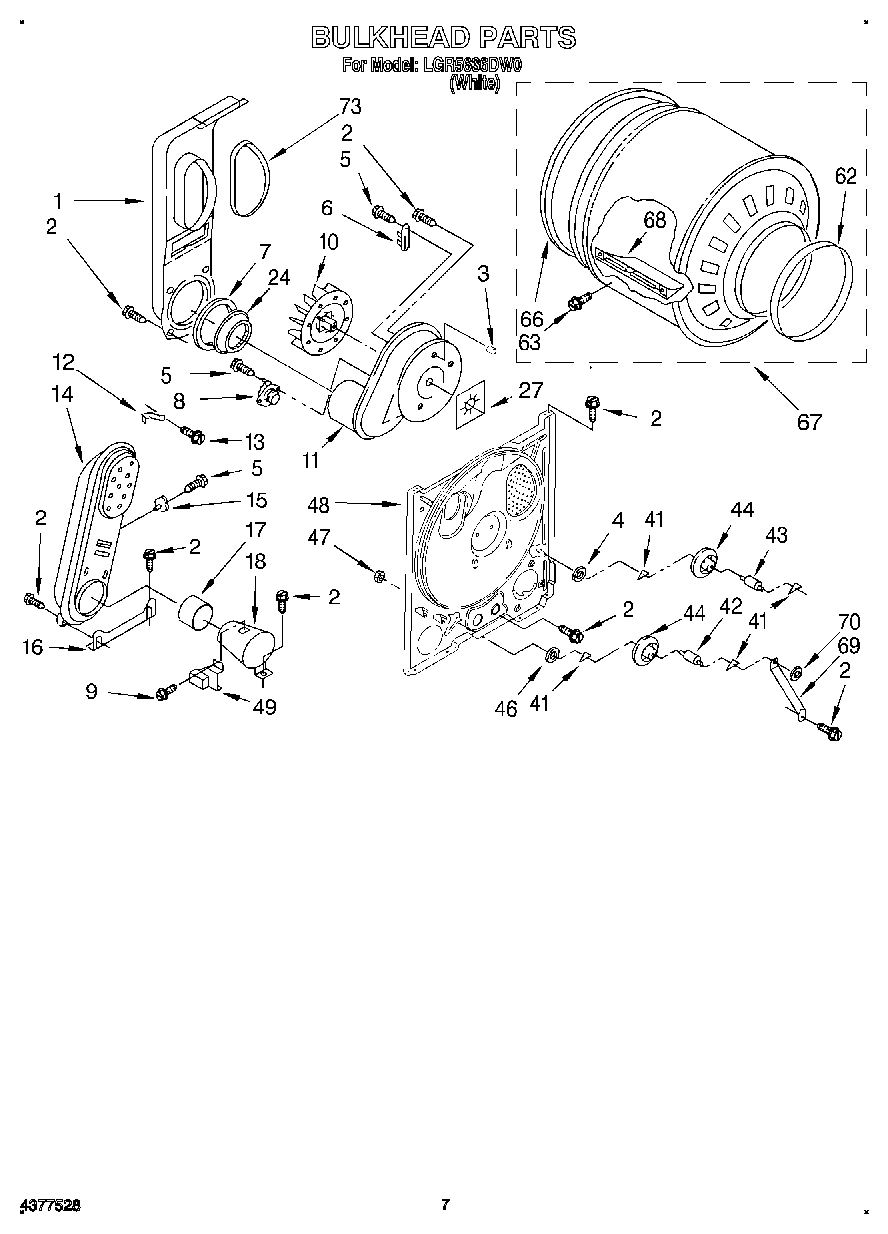

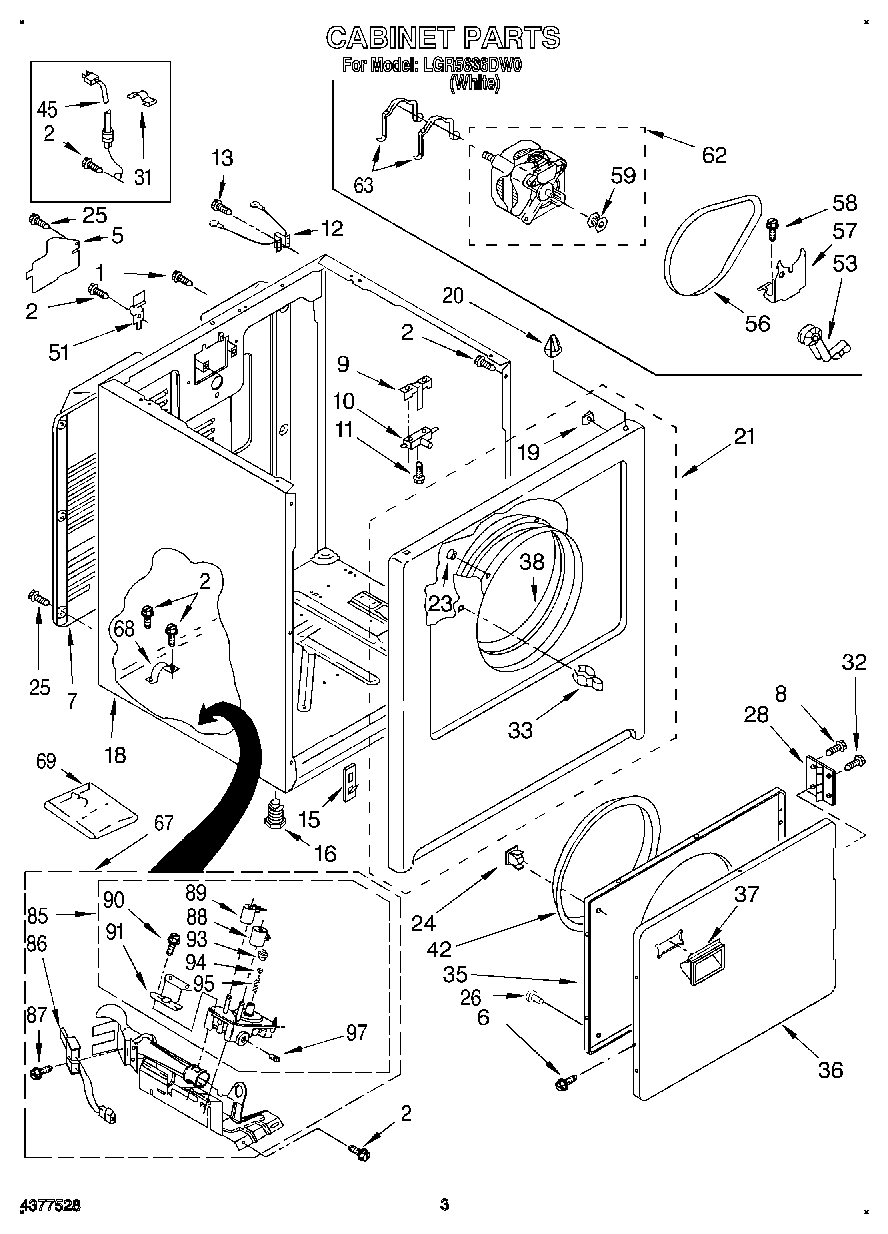

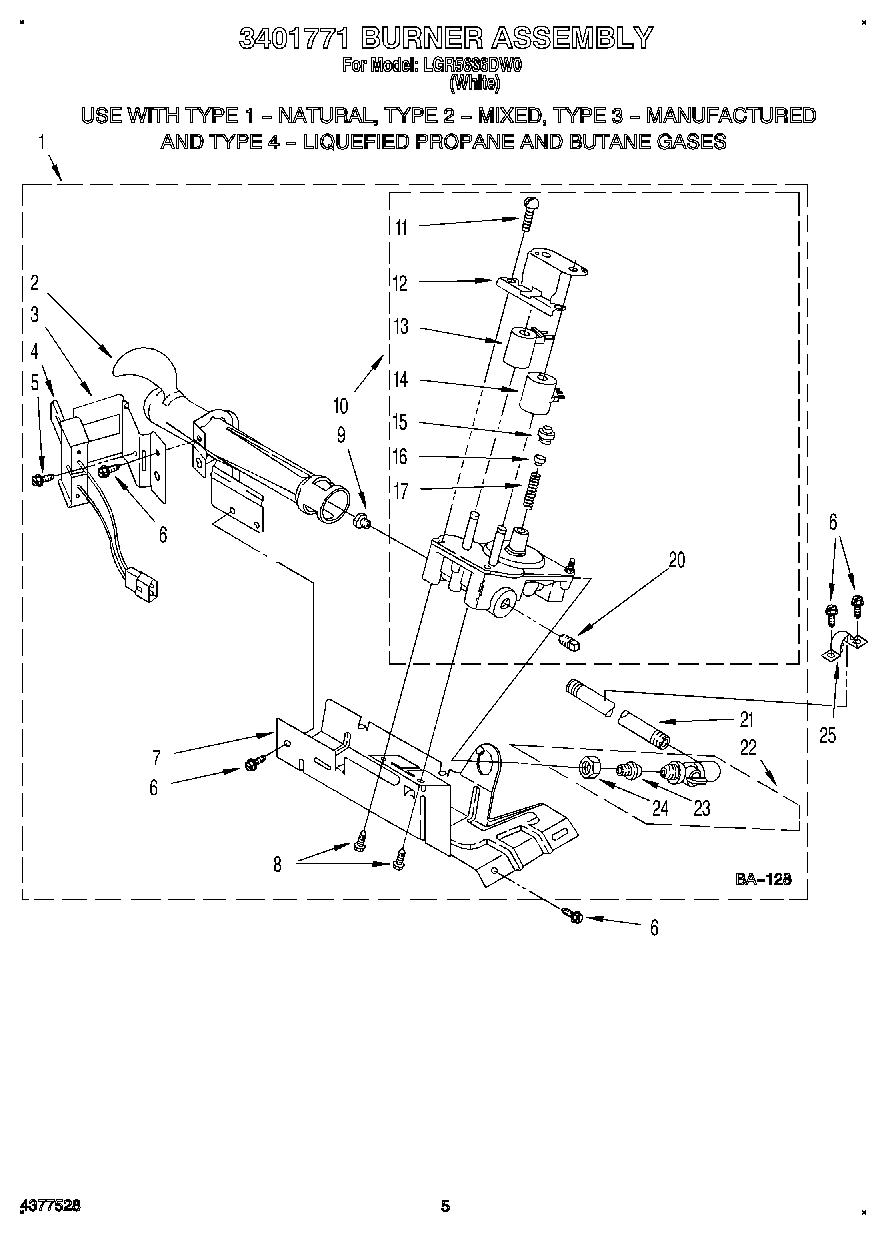

Model Whirlpool LGR5636DW0 GAS DRYER – Common Parts &amp; Diagrams

350938 Whirlpool Spray Gun Backorder WPL 350938 $49.86

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Instructions, Installation WPL LIT3395337 Contact Us For Availability

Guide, Use & Care WPL LIT3401092 Contact Us For Availability

Label, Wiring Diagram WPL LIT3401728 Contact Us For Availability

Dryer WPL LIT677818 Contact Us For Availability

1

W11117429 Whirlpool Chute Assembly In Stock WPL W11117429 $103.74

1

Panel, Rear Console WPL 3397545 Contact Us For Availability

2

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.91

3

W10491983 Whirlpool Tine Tip Backorder WPL W10491983 $5.74

4

WP3388703 Whirlpool Washer Backorder WPL WP3388703 $4.67

4

Cap, End (L.H.) WPL 3358531 Contact Us For Availability

5

W11736322 Whirlpool Cover Assembly Backorder WPL W11736322 $39.44

5

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.91

5

Clip, Retainer WPL 689180 Contact Us For Availability

6

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $8.99

6

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $4.98

6

Plug, Front Panel (White) WPL 3394975 Contact Us For Availability

7

W11415783 Whirlpool Seal In Stock WPL W11415783 $8.78

7

Cap, End (R.H.) WPL 3358516 Contact Us For Availability

8

WP3387134 Whirlpool Dryer Cycling Thermostat In Stock WPL WP3387134 $26.78

8

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $4.82

9

3395683 Whirlpool Connector Backorder WPL 3395683 $37.04

9

WP229742 Whirlpool Gas Orifice Backorder WPL WP229742 $22.94

9

WP234826 Whirlpool Gas Orifice In Stock WPL WP234826 $22.99

9

WP234868 Whirlpool Gas Orifice Backorder WPL WP234868 $22.94

9

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $4.99

9

WP691581 Whirlpool Actuator In Stock WPL WP691581 $7.99

10

WP349639 Whirlpool Lint Filter In Stock WPL WP349639 $30.54

10

WP694089 Whirlpool Dryer Blower Wheel In Stock WPL WP694089 $23.48

11

694421 Whirlpool Screw Assembly Backorder WPL 694421 $8.13

11

Cover, Lint Screen (White) WPL 688150 Contact Us For Availability

11

Housing, Blower WPL 695081 Contact Us For Availability

279771 Whirlpool Clip Backorder WPL 279771 $9.33

694538 Whirlpool Bracket Backorder WPL 694538 $51.47

WPW10044470 Whirlpool Hinge Assembly In Stock WPL WPW10044470 $5.99

WPW10044480 Whirlpool Hinge Assembly In Stock WPL WPW10044480 $5.99

13

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.89

13

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $4.99

14

279834 Whirlpool Dryer Gas Valve Solenoid Coi In Stock WPL 279834 $26.92

14

WP388326 Whirlpool Screw Backorder WPL WP388326 $4.82

15

W10854425 Whirlpool Dryer Front Panel Bottom In Stock WPL W10854425 $7.99

15

W11568973 Whirlpool Thermostat Fix Backorder WPL W11568973 $10.13

15

Connector, Timer WPL 3397269 Contact Us For Availability

16

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.99

16

Top (White) WPL 3396022 Contact Us For Availability

16

Support, Heater Box WPL 348484 Contact Us For Availability

17

WP3394427 Whirlpool Clip In Stock WPL WP3394427 $4.82

18

279900 Whirlpool Box O/S1 Backorder WPL 279900 $213.99

18

WP94614 Whirlpool Terminal Backorder WPL WP94614 $4.82

19

WP98234 Whirlpool Nut In Stock WPL WP98234 $5.99

19

Wire, Jumper (Black) WPL 3393814 Contact Us For Availability

19

Wire, Jumper (Blue) WPL 3401690 Contact Us For Availability

20

W10295523 Whirlpool Plug Backorder WPL W10295523 $15.58

20

WP694419 Whirlpool Buzzer Adjuster Backorder WPL WP694419 $88.11

21

WP3976569 Whirlpool Timer In Stock WPL WP3976569 $245.98

21

Pipe, Gas Supply WPL 233273 Contact Us For Availability

22

Valve & Union, Shut-Off WPL 345062 Contact Us For Availability

22

Wire, Jumper (Lt. Blue/Black) WPL 3401689 Contact Us For Availability

23

3393767 Whirlpool Pipe Backorder WPL 3393767 $90.96

23

Harness, Wiring WPL 3401612 Contact Us For Availability

24

W11233063 Whirlpool Shield Assembly Backorder WPL W11233063 $14.02

24

Nut, Compression WPL 233076 Contact Us For Availability

24

Connector, 2-Position (Gas Valve) WPL 3399964 Contact Us For Availability

341029 Whirlpool Clamp Backorder WPL 341029 $8.13

49572A Whirlpool Dryer Propane Gas Conversion In Stock WPL 49572A $19.99

WP693995 Whirlpool Screw In Stock WPL WP693995 $7.99

Connector, 3-Position (Gas Valve) WPL 3399963 Contact Us For Availability

26

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $66.43

27

Seal, Blower Shaft WPL 3392123 Contact Us For Availability

29

WPW10139210 Whirlpool Screw In Stock WPL WPW10139210 $4.99

39

WP3404233 Whirlpool Dryer Starter Switch In Stock WPL WP3404233 $71.89

41

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $5.98

42

WP3390733 Whirlpool Door Seal Assembly Backorder WPL WP3390733 $77.54

42

WPW10359270 Whirlpool Dryer Drum Roller Shaft In Stock WPL WPW10359270 $57.82

43

WPW10359269 Whirlpool Dryer Shaft Support Rol In Stock WPL WPW10359269 $56.99

44

349241T Whirlpool Dryer Drum Support Roller K In Stock WPL 349241T $20.99

46

WP348197 Whirlpool Washer Assembly Backorder WPL WP348197 $4.82

47

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $4.99

48

WP3957752 Whirlpool Knob Backorder WPL WP3957752 $37.23

48

Bulkhead WPL 3399464 Contact Us For Availability

49

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $37.50

53

WP691366 Whirlpool Dryer Idler Pulley Assembl In Stock WPL WP691366 $8.58

53

Bracket, Control WPL 3396293 Contact Us For Availability

54

Panel, Control WPL 3403650 Contact Us For Availability

57

WP348780 Whirlpool Base In Stock WPL WP348780 $74.99

62

WP3394509 Whirlpool Bearing Ring In Stock WPL WP3394509 $80.86

63

WPW10109200 Whirlpool Screw In Stock WPL WPW10109200 $4.99

66

Seal, Rear Drum WPL 3397509 Contact Us For Availability

67

Drum Assembly WPL 3396778 Contact Us For Availability

68

WP342847 Whirlpool Drum Baffle Backorder WPL WP342847 $97.97

69

W11684613 Whirlpool Bracket Backorder WPL W11684613 $13.15

70

WP90296 Whirlpool Clip Backorder WPL WP90296 $4.82

72

Wire, Ground WPL 690853 Contact Us For Availability

73

Seal WPL 3398160 Contact Us For Availability

75

Receptacle, Latching (2-Way) (Uses Terminal 9 WPL 717252 Contact Us For Availability

81

Knob, Push To Start WPL 3396160 Contact Us For Availability

93

WP694424 Whirlpool Limiter In Stock WPL WP694424 $17.77

94

WP694423 Whirlpool Regulator Backorder WPL WP694423 $4.82

95

WP694422 Whirlpool Spring Backorder WPL WP694422 $16.83
