Model Whirlpool LG3001XPW0 GAS DRYER – Common Parts & Diagrams

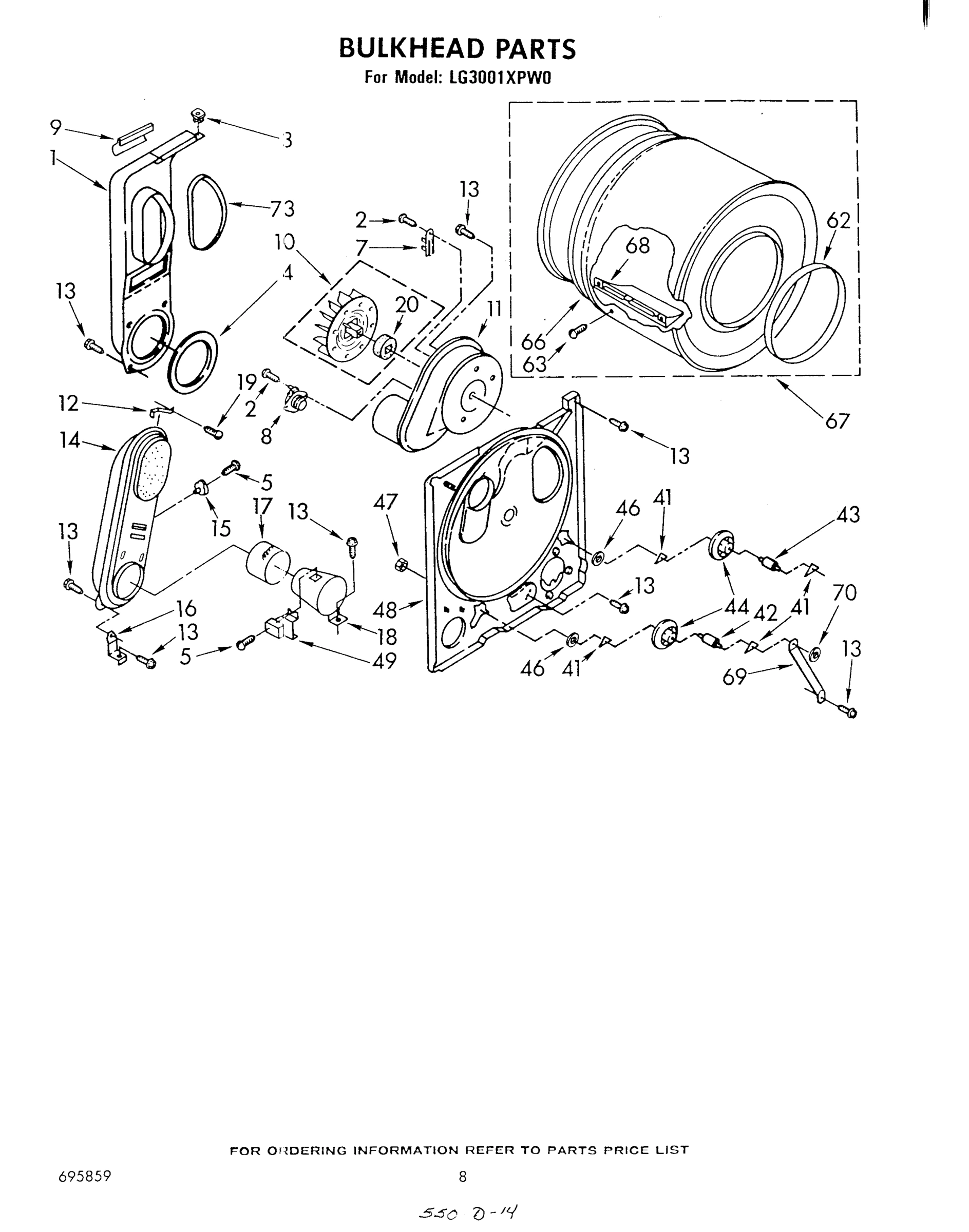

05 - BULKHEAD

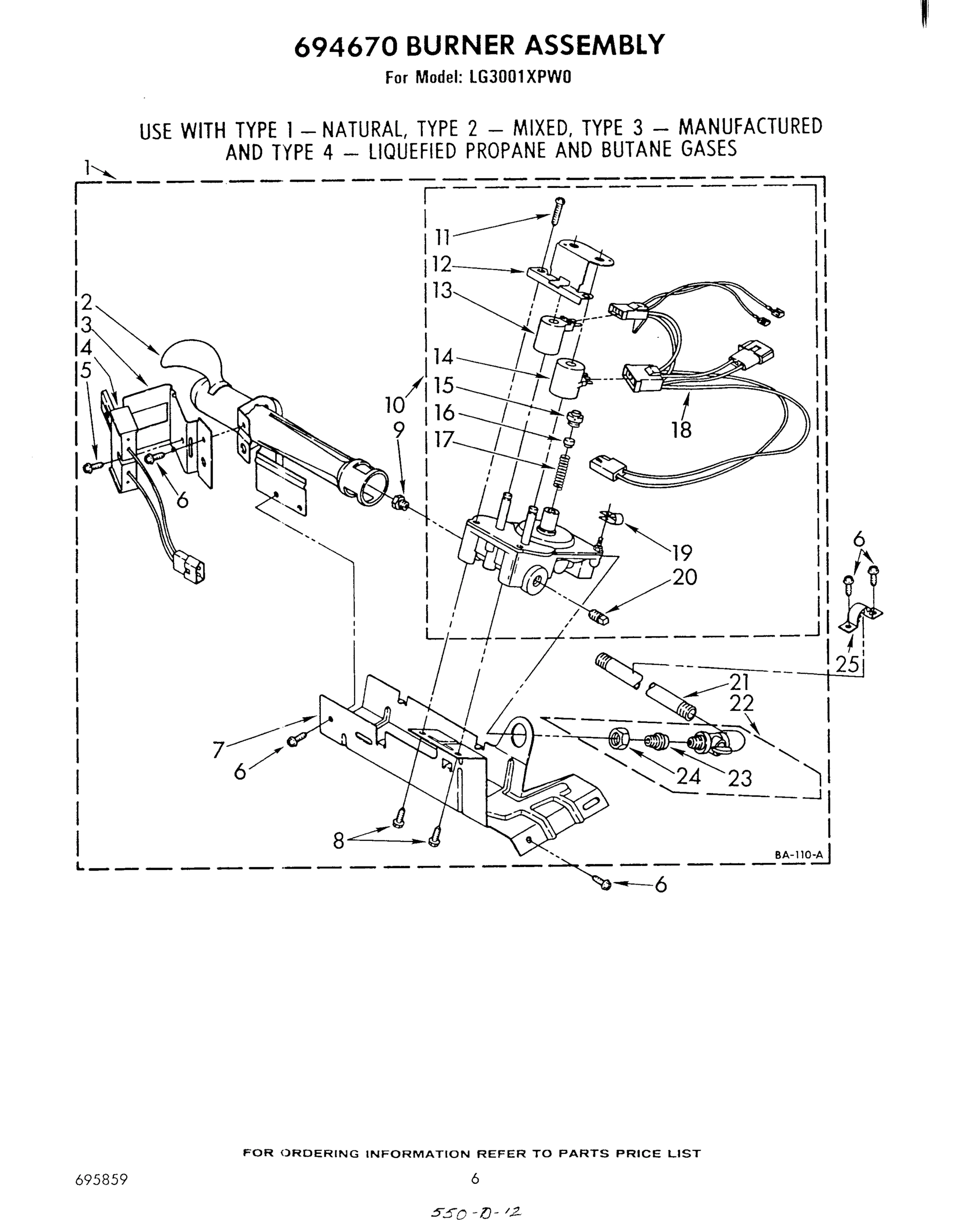

04 - 694670 BURNER

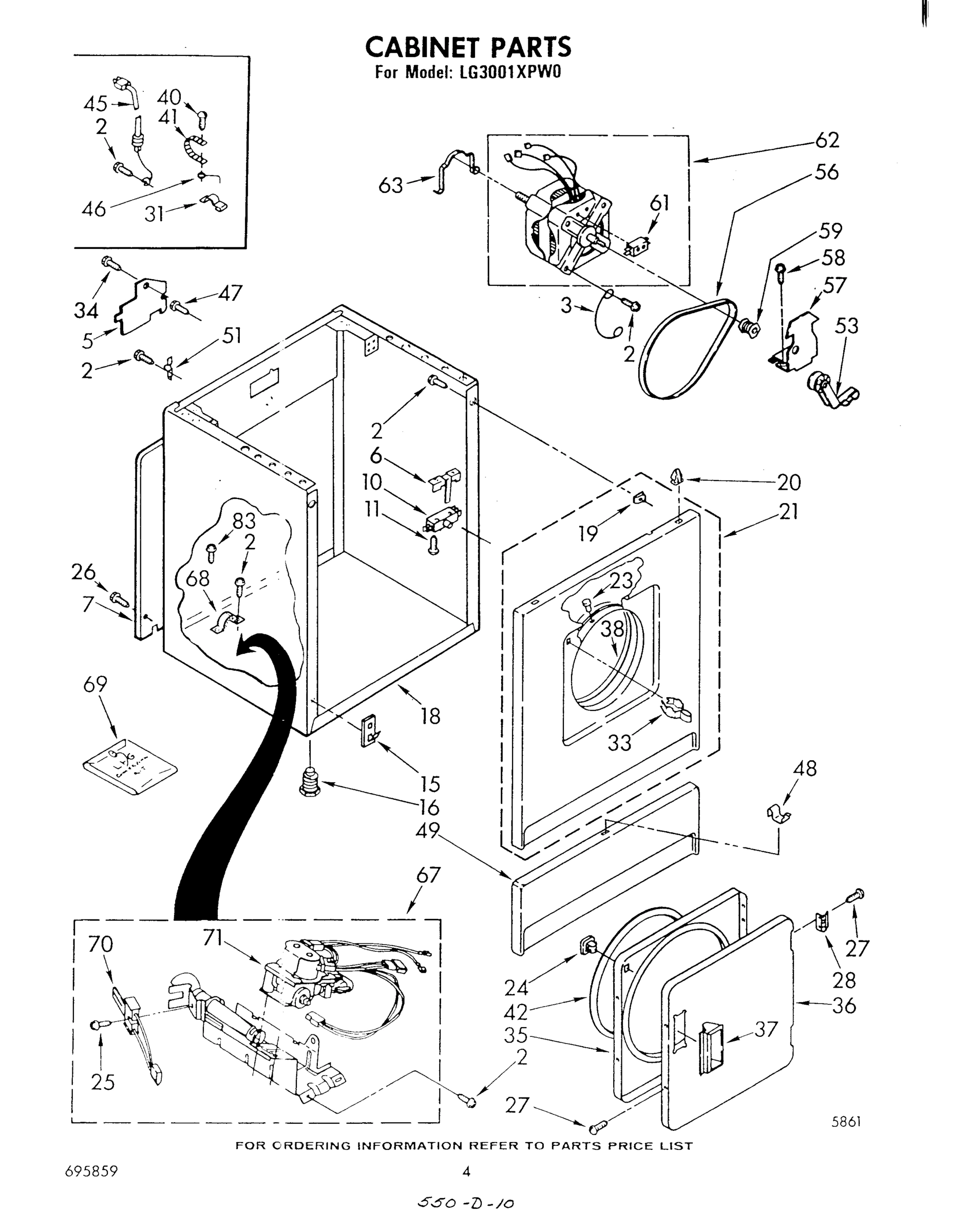

03 - CABINET

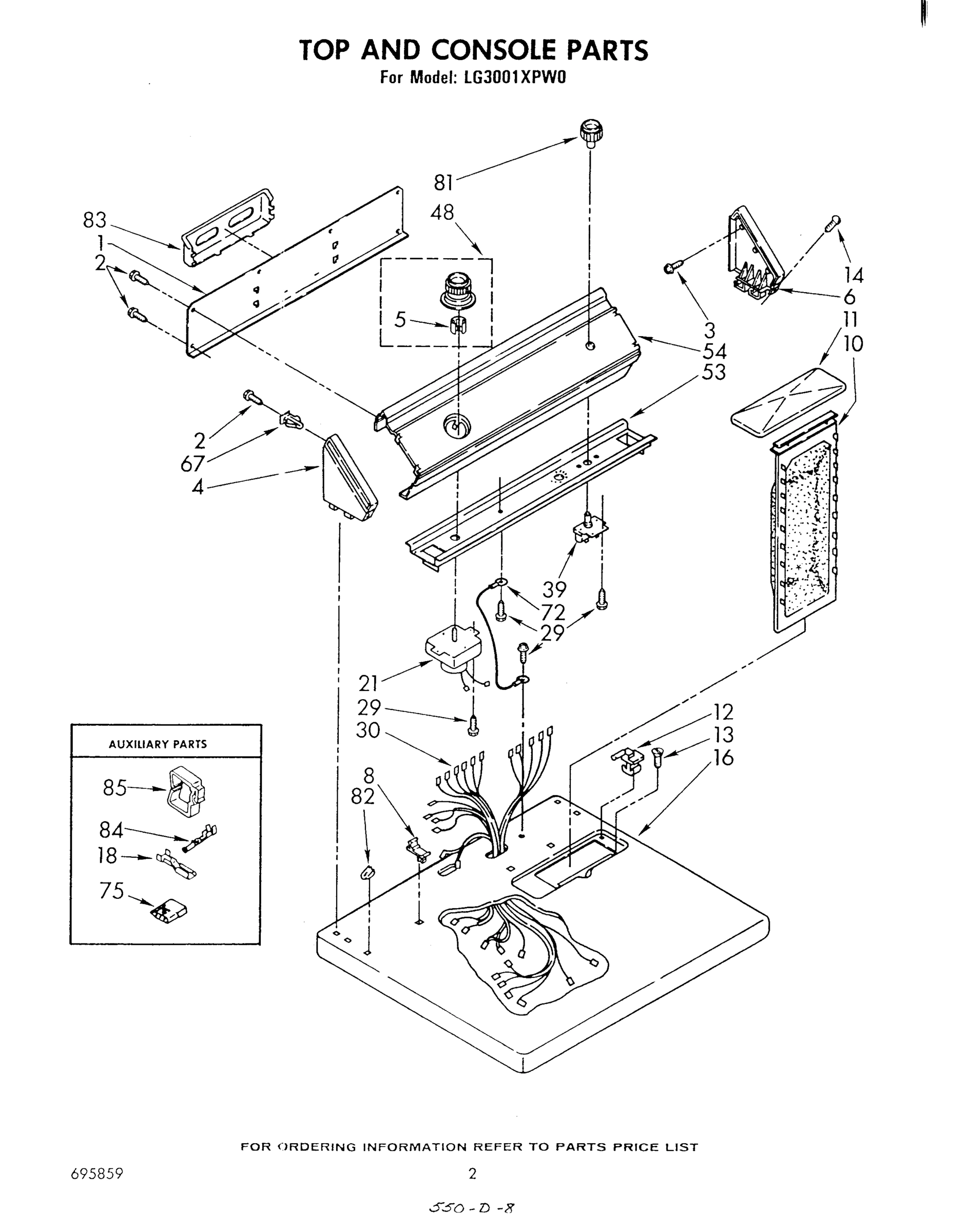

02 - TOP AND CONSOLE, LITERATURE AND OPTIONAL
Common parts from model Whirlpool LG3001XPW0 GAS DRYER
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
Leveler (Thinner) WPL 350941 Contact Us For Availability
Automatic Washer (Belt Drive) WPL LIT677813 Contact Us For Availability
Dryer WPL LIT677818 Contact Us For Availability
Compactor WPL LIT677821 Contact Us For Availability
Dishwasher WPL LIT677967 Contact Us For Availability
Guide, Use & Care WPL LIT693685 Contact Us For Availability
Guide, Dryer WPL LIT693849 Contact Us For Availability
Instructions, Installation WPL LIT694344 Contact Us For Availability
List, Service Parts WPL LIT695859 Contact Us For Availability
1
Panel, Rear Console WPL 386367 Contact Us For Availability
3
Wire, Ground (Motor) WPL 690236 Contact Us For Availability
3
Screw, 13-16 x 5/8 WPL 355326 Contact Us For Availability
4
Cap, End (L.H.) WPL 63790 Contact Us For Availability
6
Cap , End (R.H.) WPL 63796 Contact Us For Availability
7
Panel, Rear WPL 347736 Contact Us For Availability
8
Stop, Push-In (2) WPL 358472 Contact Us For Availability
9
Orifice, Burner (Type 3) WPL 15419 Contact Us For Availability
9
Orifice, Burner (Type 2) WPL 15775 Contact Us For Availability
10
SCREEN WPL 339392 Contact Us For Availability
11
Cover, Lint Screen (White) WPL 688150 Contact Us For Availability
14
Screw, 8-18 x 1 WPL 64211 Contact Us For Availability
15
Thermostat, 205~F (96.1~C) (Alt.) WPL 341196 Contact Us For Availability
15
Clip, Toe Panel (2) WPL 690625 Contact Us For Availability
16
Top (White) WPL 695507 Contact Us For Availability
18
Cabinet (White) WPL 690847 Contact Us For Availability
19
Clip, Harness WPL 694510 Contact Us For Availability
21
Pipe, Gas Supply WPL 233273 Contact Us For Availability
21
Upper Front Panel (White) WPL 693202 Contact Us For Availability
21
Timer Assembly, 60 Hz. WPL 687952 Contact Us For Availability
22
Valve & Union, Shut-Off WPL 345062 Contact Us For Availability
24
Nut, Compression WPL 233076 Contact Us For Availability
30
Harness, Wiring WPL 695358 Contact Us For Availability
39
Switch, Push-To-Start (Alt.) WPL 346364 Contact Us For Availability
39
Switch, Push-To-Start WPL 660936 Contact Us For Availability
39
Switch, Push-To-Start (Alt.) WPL 692021 Contact Us For Availability
40
Screw, 10-24 x 1 WPL 132848 Contact Us For Availability
41
Strap, Ground WPL 22965 Contact Us For Availability
46
Wire, Ground WPL 364089 Contact Us For Availability
48
Timer Knob & Dial WPL 695556 Contact Us For Availability
49
Panel, Toe (White) WPL 237035 Contact Us For Availability
53
Bracket, Control WPL 386627 Contact Us For Availability
54
PANEL, CONTROL WPL 695959 Contact Us For Availability
62
Clip WPL 90015 Contact Us For Availability
67
Nut, Push-In (4) WPL 689559 Contact Us For Availability
67
Burner Assembly, 60 Hz. (Refer to Pages 6 & 7 WPL 694670 Contact Us For Availability
69
Kit, Conversion Type 1 To Type 3 (MFG. Gas) WPL 279243 Contact Us For Availability
72
Wire, Ground WPL 690853 Contact Us For Availability
75
Receptacle, 3-Way Terminal (Use W/94614) WPL 353425 Contact Us For Availability
81
Knob, Push-To-Start WPL 696075 Contact Us For Availability
82
Nut, Push-In (2) WPL 358473 Contact Us For Availability
83
Screw, B WPL 343826 Contact Us For Availability
83
Rack, Literature WPL 63020 Contact Us For Availability
85
Clip, Harness Retainer WPL 688412 Contact Us For Availability
× ![]()
