Model Whirlpool LG3001XMW0 GAS DRYER – Common Parts & Diagrams

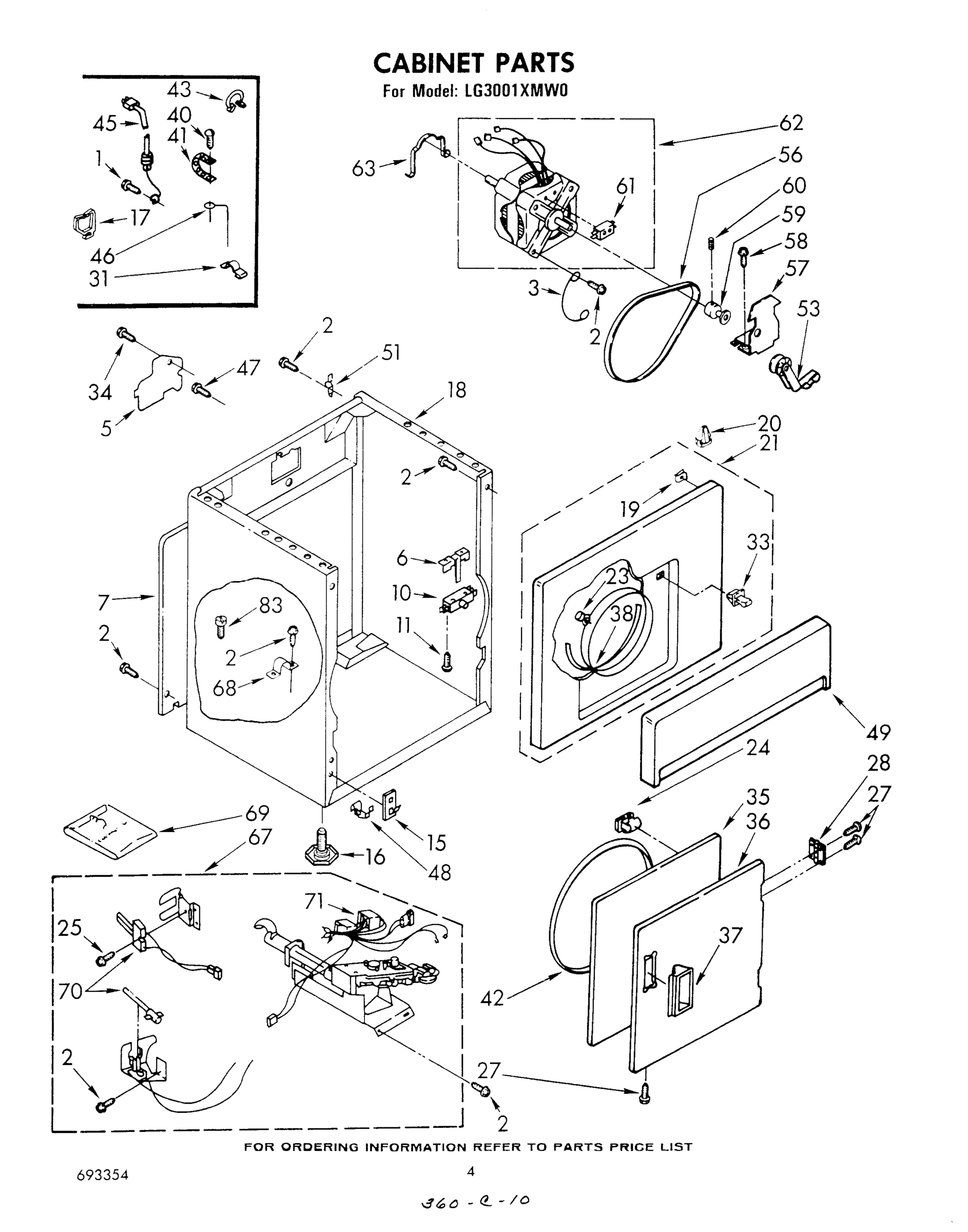

03 - CABINET

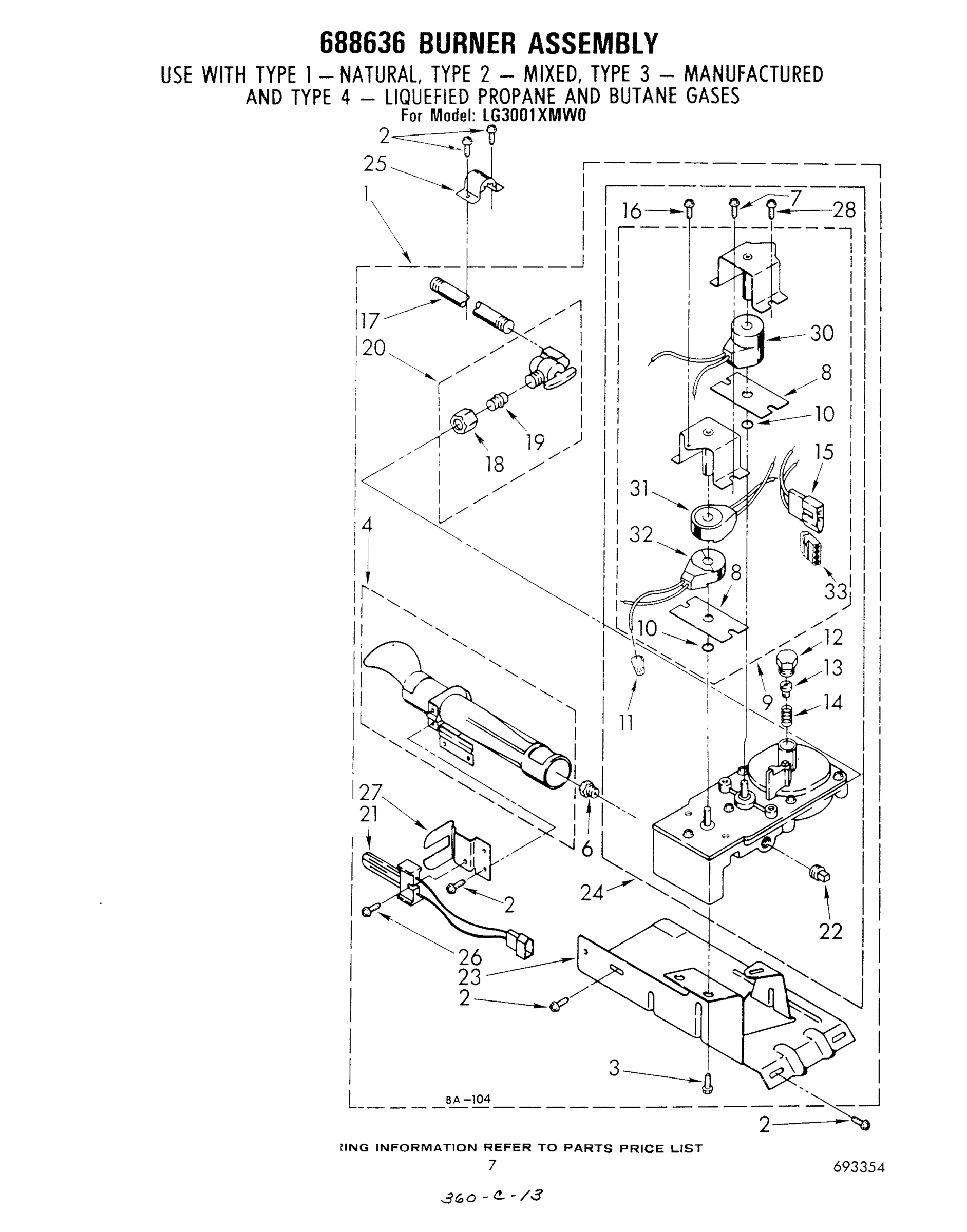

05 - 688636 BURNER

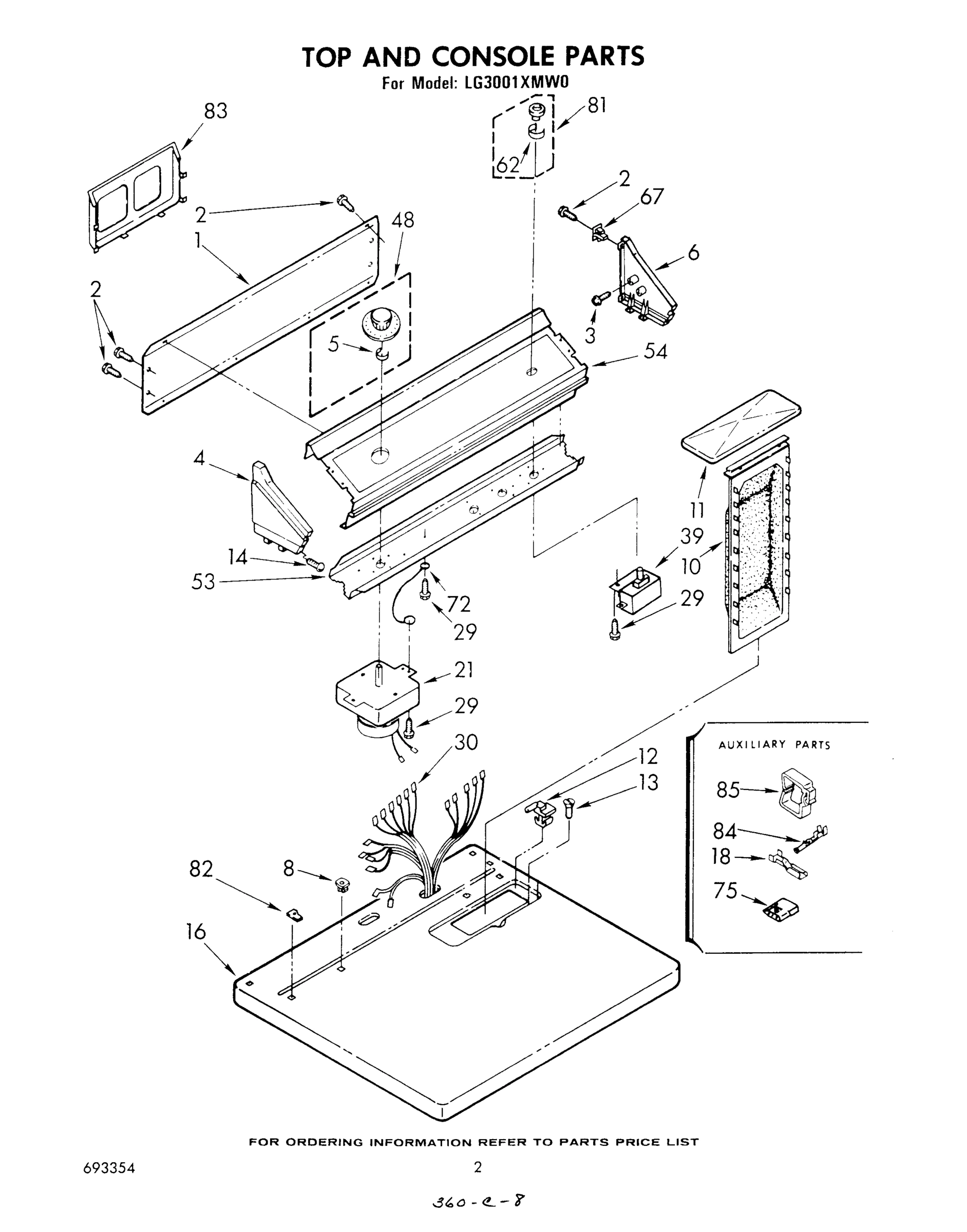

02 - TOP AND CONSOLE , LITERATURE AND OPTIONAL

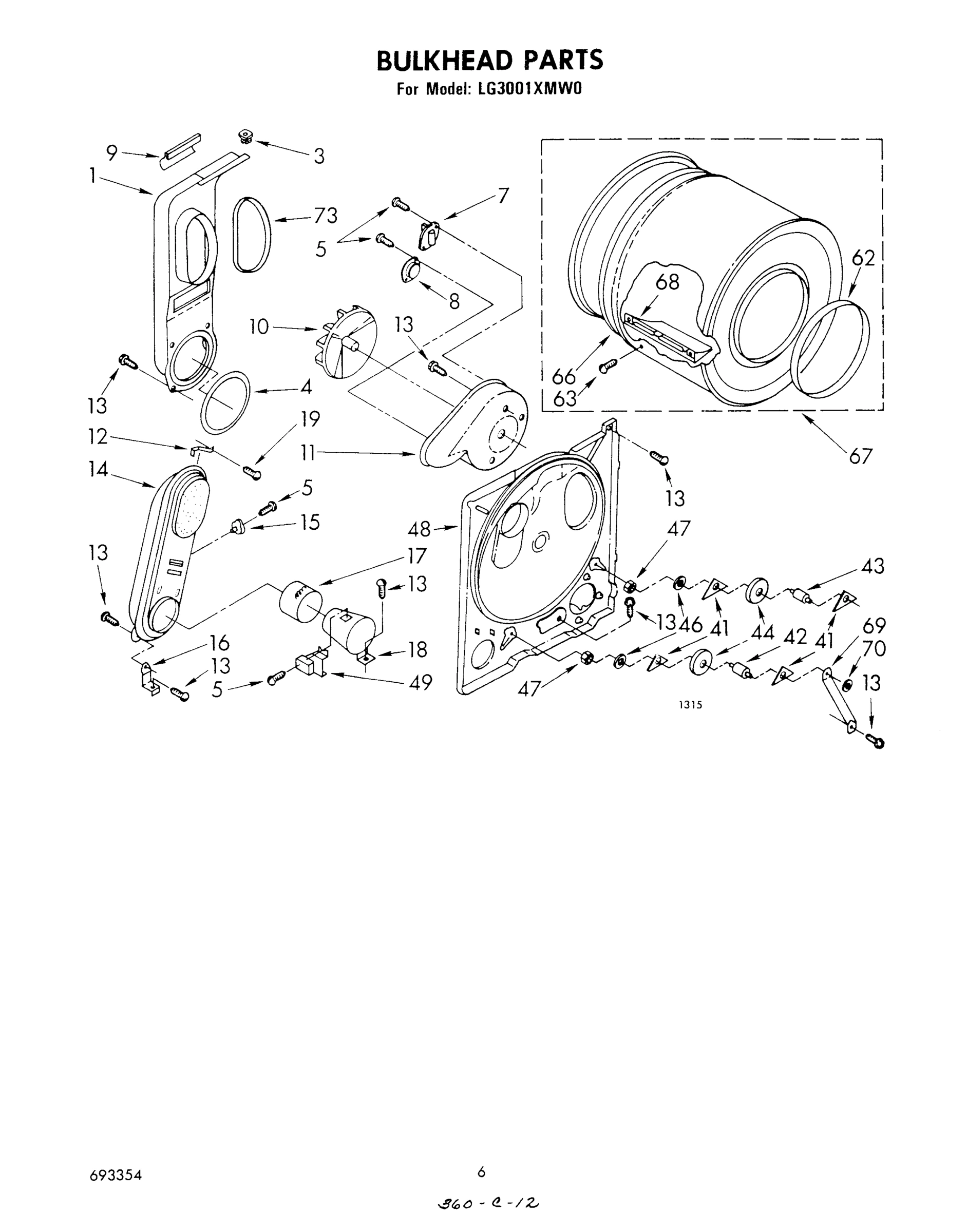

04 - BULKHEAD

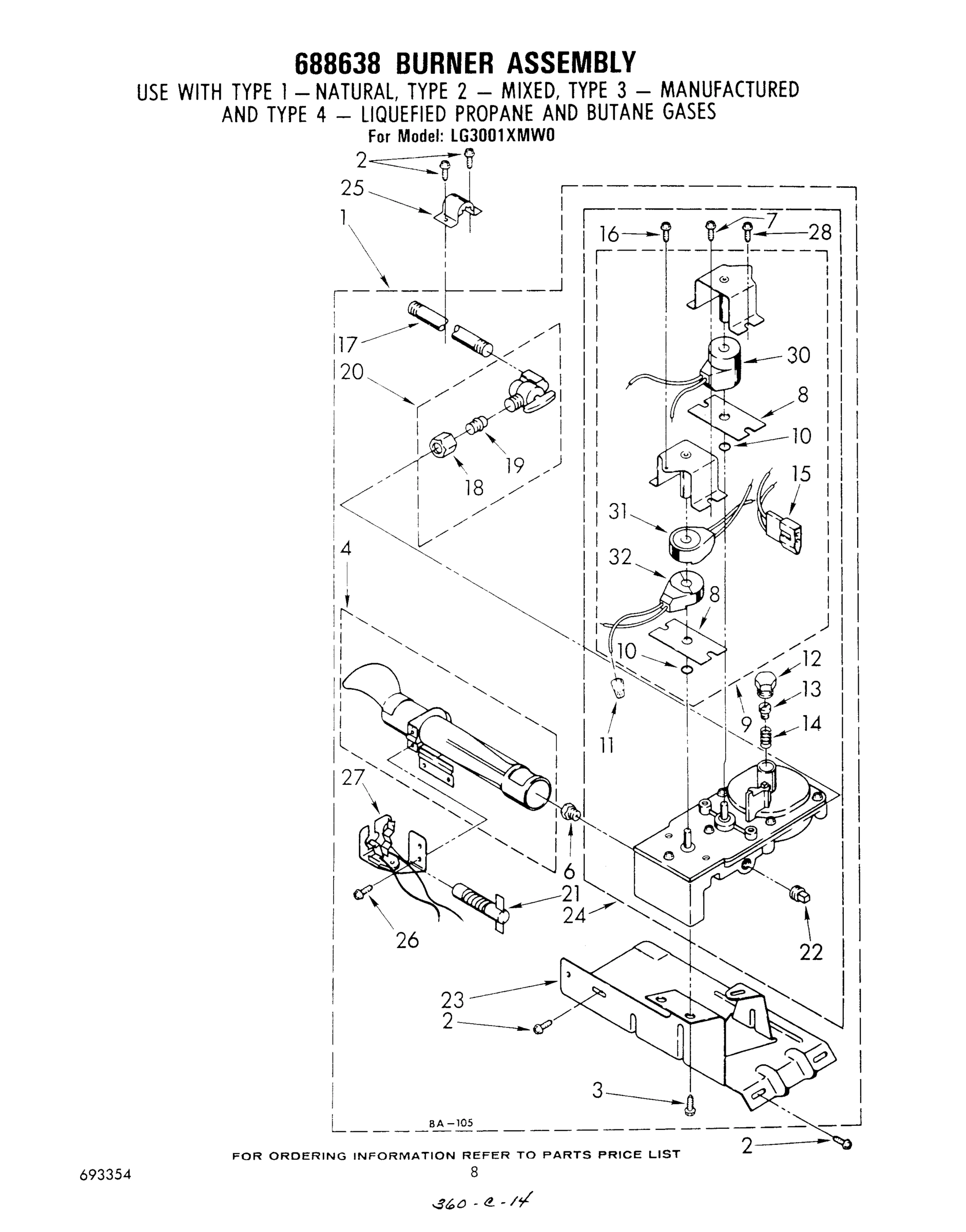

06 - 688638 BURNER
Common parts from model Whirlpool LG3001XMW0 GAS DRYER
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
1
Burner Assembly, 60 Hz. (Type 1, 2 & 3) (Whit WPL 688638 Contact Us For Availability
1
Burner Assembly, 60 Hz. (Type 1, 2 & 3) (Whit WPL 688636 Contact Us For Availability
1
Panel, Rear Console WPL 358470 Contact Us For Availability
3
Screw, 13-16 x 5/8 WPL 355326 Contact Us For Availability
4
Cap, End (L.H.) (White) WPL 377314 Contact Us For Availability
6
Orifice, Burner (Type 3) WPL 234661 Contact Us For Availability
6
Orifice, Burner (Type 2) WPL 234870 Contact Us For Availability
6
Orifice, Burner (Type 4 (Butane)) WPL 299372 Contact Us For Availability
6
Cap , End (R.H.) (White) WPL 377315 Contact Us For Availability
8
Plate (2) WPL 338869 Contact Us For Availability
8
Stop, Push-In (2) WPL 358472 Contact Us For Availability
9
BURNER-GAS WPL 685947 Contact Us For Availability
10
SCREEN WPL 339392 Contact Us For Availability
10
Ring, ``O`` (2) WPL 296302 Contact Us For Availability
11
Connector, Wire (3) WPL 340140 Contact Us For Availability
11
Cover, Lint Screen (White) WPL 688150 Contact Us For Availability
11
Housing, Blower WPL 688880 Contact Us For Availability
12
Screw, Leak Limiter WPL 338868 Contact Us For Availability
13
Screw, Regulator Adjustment WPL 99996 Contact Us For Availability
14
Spring, Regulator WPL 339226 Contact Us For Availability
14
Screw, 8-18 x 1 WPL 358225 Contact Us For Availability
15
Thermostat, 205~F (121.1~C) (Alt.) WPL 341196 Contact Us For Availability
15
Thermostat, 205~F (121.1~C) (Alt.) WPL 338471 Contact Us For Availability
15
Thermostat, 205~F (121.1~C) WPL 660036 Contact Us For Availability
16
Screw, 6-20 x 5/16 WPL 98487 Contact Us For Availability
16
top (white) WPL 688479 Contact Us For Availability
16
Support, Heater Box (2) WPL 337445 Contact Us For Availability
17
Pipe, Gas Supply WPL 233273 Contact Us For Availability
18
Nut, Compression WPL 233076 Contact Us For Availability
20
Shut-Off Valve & Union Assembly WPL 345062 Contact Us For Availability
21
Timer Assembly, 60 Hz. WPL 687952 Contact Us For Availability
23
Baseplate WPL 338455 Contact Us For Availability
24
BURNER-GAS WPL 688631 Contact Us For Availability
24
Valve Assembly, 60 Hz. WPL 688616 Contact Us For Availability
28
Screw, 8-32 x 5/8 (2) WPL 340182 Contact Us For Availability
30
Coil Assembly (Main) WPL 348376 Contact Us For Availability
30
Harness, Wiring WPL 688852 Contact Us For Availability
31
Coil Assembly (Hold) WPL 348375 Contact Us For Availability
32
Kit, Conversion (Type 1 To Type 3) WPL 279243 Contact Us For Availability
32
Coil Assembly (Assist) WPL 348374 Contact Us For Availability
33
Receptacle, 2 Way WPL 717252 Contact Us For Availability
39
Switch, Push-To-Start (Alt.) WPL 346364 Contact Us For Availability
39
Switch, Push-To-Start WPL 660936 Contact Us For Availability
39
Switch, Push-To-Start (Alt.) WPL 692021 Contact Us For Availability
48
Timer Knob Assembly WPL 691760 Contact Us For Availability
48
Bulkhead WPL 685769 Contact Us For Availability
53
Bracket, Control WPL 359708 Contact Us For Availability
54
Panel, Control WPL 688346 Contact Us For Availability
62
Clip WPL 90015 Contact Us For Availability
63
Screw, 11-16 x 7/8 WPL 690372 Contact Us For Availability
67
Nut, Push-In (4) WPL 689559 Contact Us For Availability
69
Bracket, Support WPL 348945 Contact Us For Availability
72
Wire, Ground WPL 690853 Contact Us For Availability
75
Receptacle, 3-Way Terminal (Use W/94614) WPL 353425 Contact Us For Availability
81
Pushbutton Assembly WPL 346218 Contact Us For Availability
82
Nut, Push-In (2) WPL 358473 Contact Us For Availability
83
WPL 343826 WPL 343826 Contact Us For Availability
83
Rack, Literature WPL 357645 Contact Us For Availability
85
Leveler (Thinner) WPL 350941 Contact Us For Availability
85
Clip, Harness Retainer WPL 688412 Contact Us For Availability
85
Instructions, Installation WPL 688644 Contact Us For Availability
85
Guide, Use & Care WPL 691273 Contact Us For Availability
85
List, Service Parts WPL 693354 Contact Us For Availability
85
Guide, Dryer WPL 693849 Contact Us For Availability
85
Thinner (1 Gal.) WPL 799351 Contact Us For Availability
× ![]()
