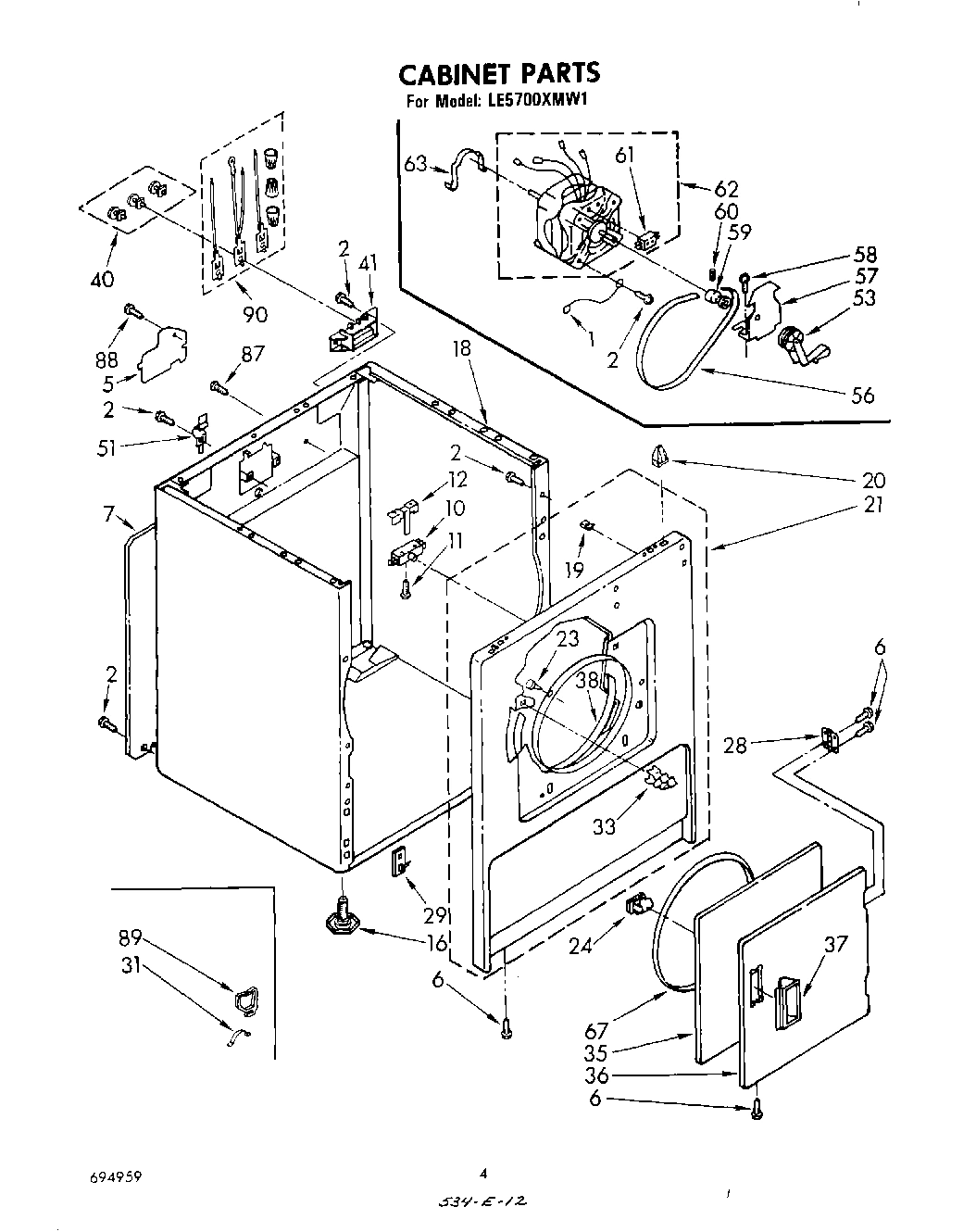

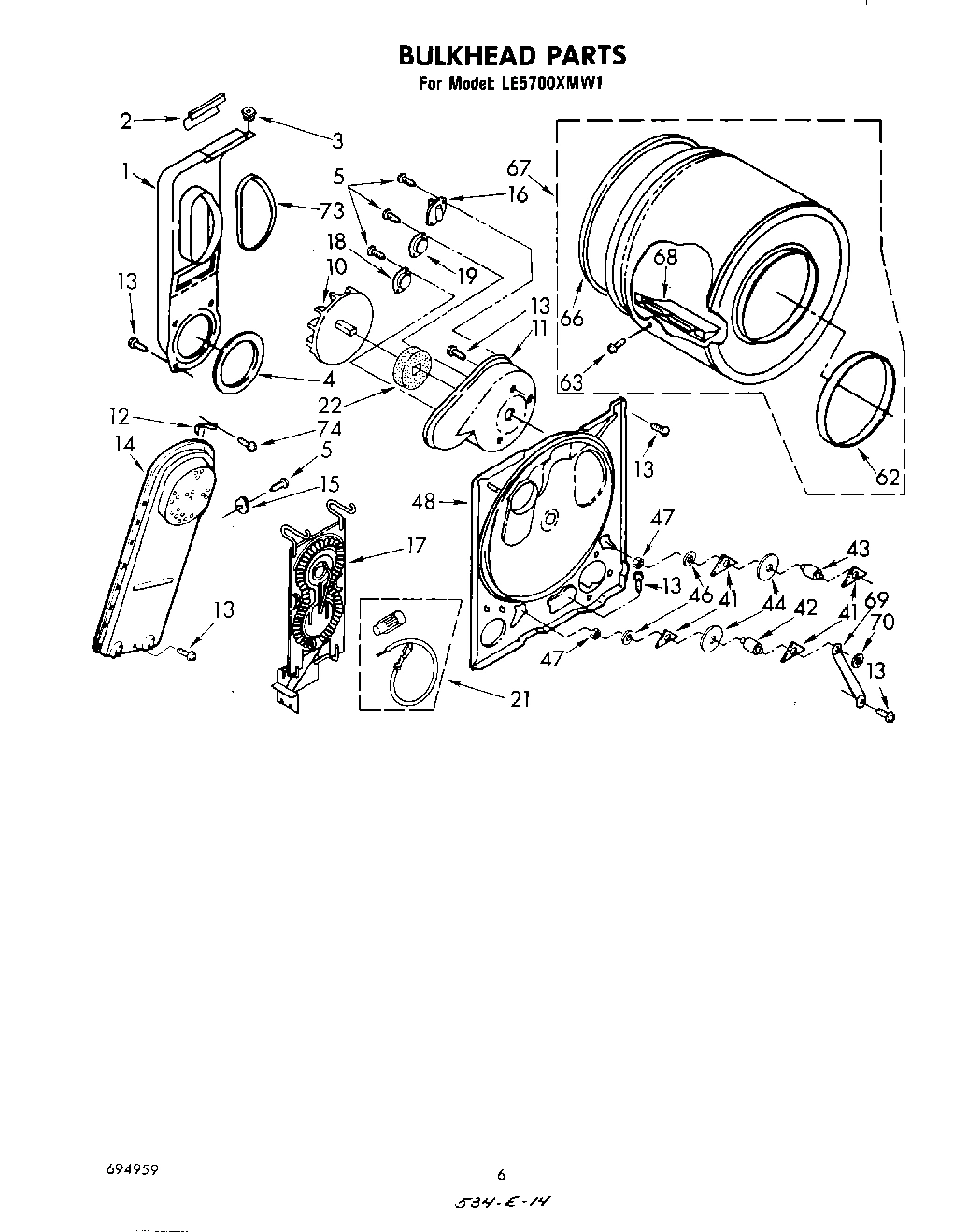

Model Whirlpool LE5700XMW1 ELECTRIC DRYER – Common Parts &amp; Diagrams

350938 Whirlpool Spray Gun Backorder WPL 350938 $49.86

350956 Whirlpool Spray Assembly In Stock WPL 350956 $29.99

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $15.99

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $15.74

WP72107 Whirlpool Touchup In Stock WPL WP72107 $14.61

WPL 799344 WPL 799344 Contact Us For Availability

1

279505 Whirlpool Chute Backorder WPL 279505 $197.13

1

Wire, Ground (Motor) WPL 690236 Contact Us For Availability

2

686770 Whirlpool Support Bracket Backorder WPL 686770 $8.05

2

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $3.52

3

98460 Whirlpool Nut Backorder WPL 98460 $8.89

4

W11415783 Whirlpool Seal In Stock WPL W11415783 $8.78

5

W11736322 Whirlpool Cover Assembly Backorder WPL W11736322 $39.44

5

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.91

6

WP694091 Whirlpool Screw Backorder WPL WP694091 $4.82

6

Screw, 8-18 WPL 358225 Contact Us For Availability

7

Clip WPL 90015 Contact Us For Availability

7

Panel, Rear WPL 346368 Contact Us For Availability

10

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $27.54

10

WP694089 Whirlpool Dryer Blower Wheel In Stock WPL WP694089 $23.48

10

SCREEN WPL 339392 Contact Us For Availability

WP98129 Whirlpool Screw Backorder WPL WP98129 $4.82

Cover, Lint Screen (White) WPL 688150 Contact Us For Availability

Cover, Lint Screen (Almond) WPL 689310 Contact Us For Availability

Cover, Lint Screen (Golden Harvest) WPL 689313 Contact Us For Availability

Cover, Lint Screen (Toast) WPL 695022 Contact Us For Availability

Cover, Lint Screen (Platinum) WPL 695023 Contact Us For Availability

Housing, Blower WPL 348494 Contact Us For Availability

279771 Whirlpool Clip Backorder WPL 279771 $9.33

WP691581 Whirlpool Actuator In Stock WPL WP691581 $7.99

WPW10044470 Whirlpool Hinge Assembly In Stock WPL WPW10044470 $5.99

WPW10044480 Whirlpool Hinge Assembly In Stock WPL WPW10044480 $5.99

13

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.89

13

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.91

14

Box, Heater WPL 685457 Contact Us For Availability

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.99

WP3390719 Whirlpool Dryer Thermal Fuse In Stock WPL WP3390719 $11.99

top (white) WPL 688479 Contact Us For Availability

Top (Almond) WPL 689449 Contact Us For Availability

Top (Golden Harvest) WPL 689452 Contact Us For Availability

Top (Toast) WPL 694983 Contact Us For Availability

Top (Platinum) WPL 694984 Contact Us For Availability

17

WP4391960 Whirlpool Dryer Heating Element In Stock WPL WP4391960 $42.78

Control Knob, Temperature WPL 690292 Contact Us For Availability

Cabinet (White) WPL 690847 Contact Us For Availability

Cabinet (Almond) WPL 690848 Contact Us For Availability

Cabinet (Golden Harvest) WPL 690851 Contact Us For Availability

Cabinet (Toast) WPL 694874 Contact Us For Availability

Cabinet (Platinum) WPL 694875 Contact Us For Availability

19

WP694674 Whirlpool Cycling Thermostat In Stock WPL WP694674 $33.63

19

WP98234 Whirlpool Nut In Stock WPL WP98234 $5.99

20

WP18776 Whirlpool Lock In Stock WPL WP18776 $11.99

279457 Whirlpool Dryer Heating Element Wide S In Stock WPL 279457 $4.99

Timer, 60 Hz. WPL 687950 Contact Us For Availability

Upper Front Panel Assembly (White) WPL 693197 Contact Us For Availability

Upper Front Panel Assembly (Almond) WPL 693198 Contact Us For Availability

Upper Front Panel Assembly (Golden Harvest) WPL 693201 Contact Us For Availability

Upper Front Panel Assembly (Toast) WPL 695259 Contact Us For Availability

Upper Front Panel Assembly (Platinum) WPL 695260 Contact Us For Availability

22

Seal, Blower WPL 694630 Contact Us For Availability

23

279220 Whirlpool Clip In Stock WPL 279220 $18.99

24

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $4.99

28

WP348023 Whirlpool Hinge Backorder WPL WP348023 $4.82

29

W10854425 Whirlpool Dryer Front Panel Bottom In Stock WPL W10854425 $7.99

29

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $4.99

30

Nut, Push-In (2) WPL 358473 Contact Us For Availability

31

8528351 Whirlpool Clip Backorder WPL 8528351 $50.83

31

Harness, Wiring (60 Hz.) WPL 693291 Contact Us For Availability

35

280077 Whirlpool Door Backorder WPL 280077 $116.66

WP348205 Whirlpool Door Backorder WPL WP348205 $91.02

Door, Front (Almond) WPL 689314 Contact Us For Availability

Door Front (Golden Harvest) WPL 689319 Contact Us For Availability

Door, Front (Toast) WPL 695247 Contact Us For Availability

Door, Front (Platinum) WPL 695248 Contact Us For Availability

WP686711 Whirlpool Door Handle In Stock WPL WP686711 $4.72

Handle, Door (Almond) WPL 689306 Contact Us For Availability

Handle, Door (Golden Harvest) WPL 689584 Contact Us For Availability

Handle, Door (Platinum) WPL 695286 Contact Us For Availability

38

279264 Whirlpool Bearing and Seal Kit In Stock WPL 279264 $60.99

39

Switch, Push-To-Start (Alt.) WPL 346364 Contact Us For Availability

39

Switch, Push-To-Start WPL 660936 Contact Us For Availability

39

Switch, Push-To-Start (Alt.) WPL 692021 Contact Us For Availability

40

279393 Whirlpool Terminal Block Screw and Nut In Stock WPL 279393 $18.53

41

279320 Whirlpool Dryer Rear Terminal Block Ki In Stock WPL 279320 $33.61

41

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $5.98

42

WPW10359270 Whirlpool Dryer Drum Roller Shaft In Stock WPL WPW10359270 $57.82

43

WPW10359269 Whirlpool Dryer Shaft Support Rol In Stock WPL WPW10359269 $56.99

44

349241T Whirlpool Dryer Drum Support Roller K In Stock WPL 349241T $20.99

46

WP348197 Whirlpool Washer Assembly Backorder WPL WP348197 $4.82

47

WP358160 Whirlpool Nut Backorder WPL WP358160 $4.82

48

Timer Knob Assembly WPL 690201 Contact Us For Availability

48

Bulkhead WPL 685769 Contact Us For Availability

51

WP8066217 Whirlpool Hinge Backorder WPL WP8066217 $4.82

53

WP691366 Whirlpool Dryer Idler Pulley Assembl In Stock WPL WP691366 $8.58

53

Bracket, Control WPL 359708 Contact Us For Availability

54

Panel, Control WPL 690419 Contact Us For Availability

56

341241 Whirlpool Dryer Drum Belt In Stock WPL 341241 $15.75

57

WP348780 Whirlpool Base In Stock WPL WP348780 $74.99

58

3400500 Whirlpool Screw In Stock WPL 3400500 $8.89

59

W11233559 Whirlpool Motor Pulley Backorder WPL W11233559 $72.06

60

WPL 690046 WPL 690046 Contact Us For Availability

61

279827 Whirlpool Dryer Drive Motor In Stock WPL 279827 $139.99

62

WP3394508 Whirlpool Bearing Ring In Stock WPL WP3394508 $79.99

62

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $4.98

63

WP660658 Whirlpool Clamp In Stock WPL WP660658 $8.99

63

Screw, 11-16 x 7/8 WPL 690372 Contact Us For Availability

66

239087 Whirlpool Dryer Rear Drum Seal Green S In Stock WPL 239087 $46.99

67

3396775 Whirlpool Drum Assembly Backorder WPL 3396775 $246.94

67

W11613302 Whirlpool Door Seal In Stock WPL W11613302 $33.70

67

Clip, Push-On (4) WPL 98084 Contact Us For Availability

68

WP342847 Whirlpool Drum Baffle Backorder WPL WP342847 $97.97

69

Bracket, Support WPL 348945 Contact Us For Availability

70

WP90296 Whirlpool Clip Backorder WPL WP90296 $4.82

72

Wire, Ground WPL 690853 Contact Us For Availability

73

WP339956 Whirlpool Foam Seal In Stock WPL WP339956 $4.98

79

Switch, Temperature WPL 348686 Contact Us For Availability

81

Button Assembly WPL 689857 Contact Us For Availability

83

Rack, Literature WPL 357645 Contact Us For Availability

89

WPL 688412 WPL 688412 Contact Us For Availability

90

279318 Whirlpool Terminal In Stock WPL 279318 $46.99
