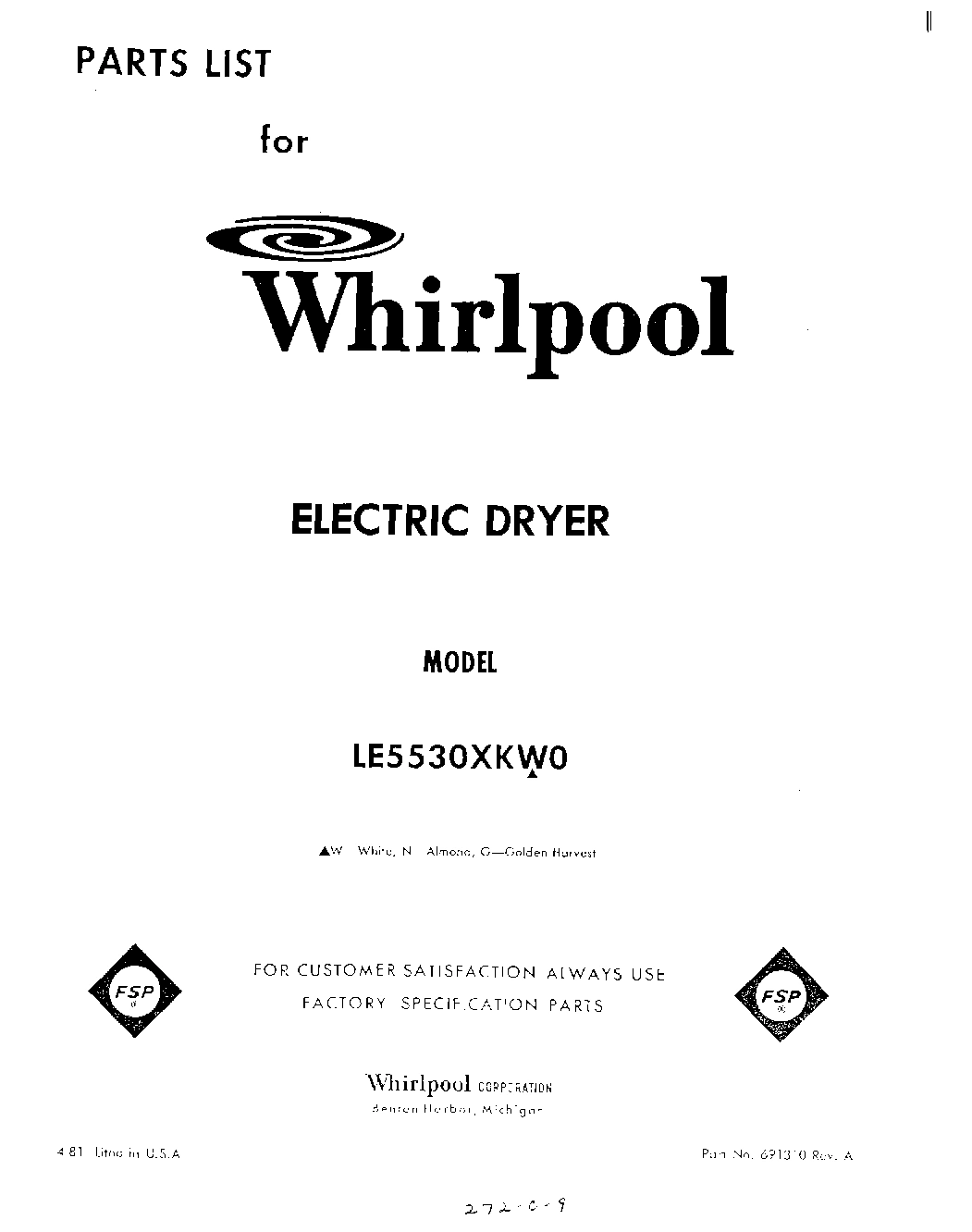

Model Whirlpool LE5530XKW0 ELECTRIC DRYER – Common Parts & Diagrams

WPL 799344
WPL 799344 WPL 799344 Contact Us For Availability
View on Model
1
Wire, Ground (Motor)
Wire, Ground (Motor) WPL 690236 Contact Us For Availability
View on Model
6
Screw
Screw WPL 689791 Contact Us For Availability
View on Model
7
Panel, Rear
Panel, Rear WPL 346368 Contact Us For Availability
View on Model
10
SCREEN
SCREEN WPL 339392 Contact Us For Availability
View on Model
11
Housing, Blower
Housing, Blower WPL 348494 Contact Us For Availability
View on Model
14
Box, Heater
Box, Heater WPL 685457 Contact Us For Availability
View on Model
18
Control Knob Assembly
Control Knob Assembly WPL 690292 Contact Us For Availability
View on Model
18
Cabinet (White)
Cabinet (White) WPL 690847 Contact Us For Availability
View on Model
18
Cabinet (Almond)
Cabinet (Almond) WPL 690848 Contact Us For Availability
View on Model
18
Cabinet (Golden Harvest)
Cabinet (Golden Harvest) WPL 690851 Contact Us For Availability
View on Model
21
Timer Assembly, 60 Hz.
Timer Assembly, 60 Hz. WPL 687950 Contact Us For Availability
View on Model
21
Panel Assembly (White)
Panel Assembly (White) WPL 348390 Contact Us For Availability
View on Model
21
Panel Assembly (Almond)
Panel Assembly (Almond) WPL 689294 Contact Us For Availability
View on Model
21
Panel Assembly (Golden Harvest)
Panel Assembly (Golden Harvest) WPL 689299 Contact Us For Availability
View on Model
30
Nut, Push-In (2)
Nut, Push-In (2) WPL 358473 Contact Us For Availability
View on Model
31
Harness (Electric)
Harness (Electric) WPL 691444 Contact Us For Availability
View on Model
36
Door, Front (Almond)
Door, Front (Almond) WPL 689314 Contact Us For Availability
View on Model
36
Door Front (Golden Harvest)
Door Front (Golden Harvest) WPL 689319 Contact Us For Availability
View on Model
37
Handle, Door (Almond)
Handle, Door (Almond) WPL 689306 Contact Us For Availability
View on Model
37
Handle, Door (Golden Harvest)
Handle, Door (Golden Harvest) WPL 689584 Contact Us For Availability
View on Model
39
Switch, Push-To-Start
Switch, Push-To-Start WPL 346364 Contact Us For Availability
View on Model
48
Timer Knob Assembly
Timer Knob Assembly WPL 690201 Contact Us For Availability
View on Model
48
Bulkhead
Bulkhead WPL 685769 Contact Us For Availability
View on Model
53
Bracket, Control
Bracket, Control WPL 359708 Contact Us For Availability
View on Model
54
Panel, Control
Panel, Control WPL 691678 Contact Us For Availability
View on Model
60
Set Screw
Set Screw WPL 690046 Contact Us For Availability
View on Model
63
Clip
Clip WPL 90015 Contact Us For Availability
View on Model
63
Screw, 11-16 x 7/8
Screw, 11-16 x 7/8 WPL 690372 Contact Us For Availability
View on Model
67
Nut, Push-In (4)
Nut, Push-In (4) WPL 689559 Contact Us For Availability
View on Model
69
Bracket, Support
Bracket, Support WPL 348945 Contact Us For Availability
View on Model
72
Wire, Ground
Wire, Ground WPL 690853 Contact Us For Availability
View on Model
79
Switch, Rotary
Switch, Rotary WPL 348686 Contact Us For Availability
View on Model
81
Button Control
Button Control WPL 689857 Contact Us For Availability
View on Model
83
Instructions, Wiring
Instructions, Wiring WPL 230083 Contact Us For Availability
View on Model
83
Golden Harvest
Golden Harvest WPL 261890 Contact Us For Availability
View on Model
83
Instructions, Harness Rework
Instructions, Harness Rework WPL 339896 Contact Us For Availability
View on Model
83
Instructions, Installation
Instructions, Installation WPL 340704 Contact Us For Availability
View on Model
83
Leveler (Thinner) Paint, Touch-Up
Leveler (Thinner) Paint, Touch-Up WPL 350941 Contact Us For Availability
View on Model
83
Rack, Literature
Rack, Literature WPL 357645 Contact Us For Availability
View on Model
83
Instructions, Installation
Instructions, Installation WPL 688643 Contact Us For Availability
View on Model
83
Guide, Dryer
Guide, Dryer WPL 688898 Contact Us For Availability
View on Model
83
Use & Care Guide
Use & Care Guide WPL 690726 Contact Us For Availability
View on Model
83
List, Parts
List, Parts WPL 691310 Contact Us For Availability
View on Model
83
WPL 799351
WPL 799351 WPL 799351 Contact Us For Availability
View on Model
88
Clip, Reta
Clip, Reta WPL 688412 Contact Us For Availability
View on Model
