Model Whirlpool KUDV24SEBL1 – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350956 Whirlpool Spray Assembly In Stock WPL 350956 $29.99

4317824 Whirlpool Dishwasher 5' 3-Wire Power In Stock WPL 4317824 $11.99

4378867 Whirlpool Dishwasher Panel Backorder WPL 4378867 $230.99

4378968 Whirlpool Dishwasher Mounting Bracket Backorder WPL 4378968 $36.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $18.58

WP72107 Whirlpool Touchup In Stock WPL WP72107 $14.61

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Frameless (White) WPL 4378861 Contact Us For Availability

Door Frameless Kits (Black) WPL 4378862 Contact Us For Availability

Frameless (Almond) WPL 4378863 Contact Us For Availability

Door Framed Kits (White) WPL 4378864 Contact Us For Availability

Door Framed Kits (Black) WPL 4378865 Contact Us For Availability

Door Framed Kits (Almond) WPL 4378866 Contact Us For Availability

Side Panel Kits (Black) WPL 4378868 Contact Us For Availability

Side Panel Kits (Almond) WPL 4378869 Contact Us For Availability

Almond (Uncut) WPL 978883 Contact Us For Availability

Guide, Use & Care WPL LIT9743096 Contact Us For Availability

Instructions, Installation WPL LIT9743128 Contact Us For Availability

Tech Sheet WPL LIT9743409 Contact Us For Availability

Energy Guide WPL LIT9743523 Contact Us For Availability

1

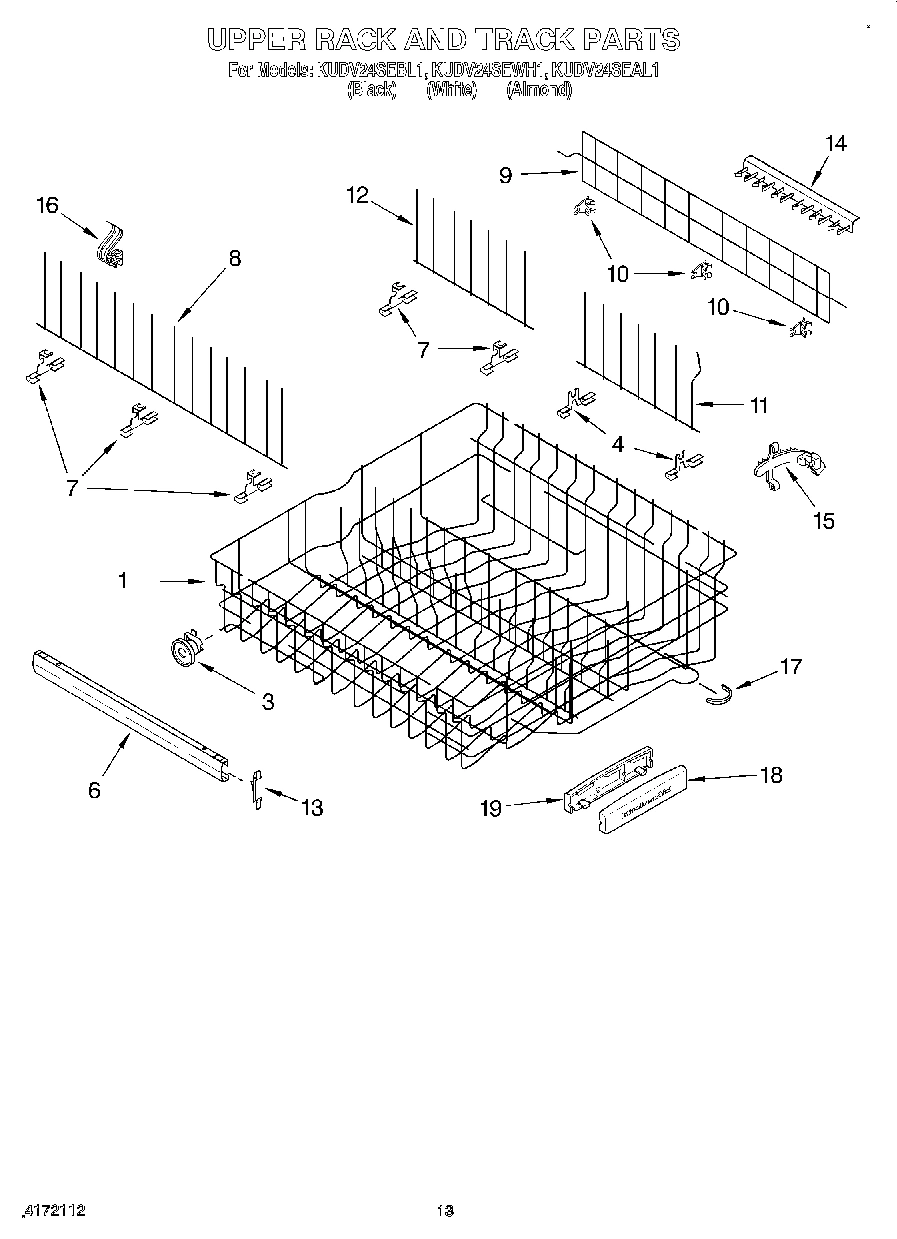

WPW10253040 Whirlpool Dishwasher Dish Rack In Stock WPL WPW10253040 $286.99

1

Cap, Dispenser WPL 9743399 Contact Us For Availability

1

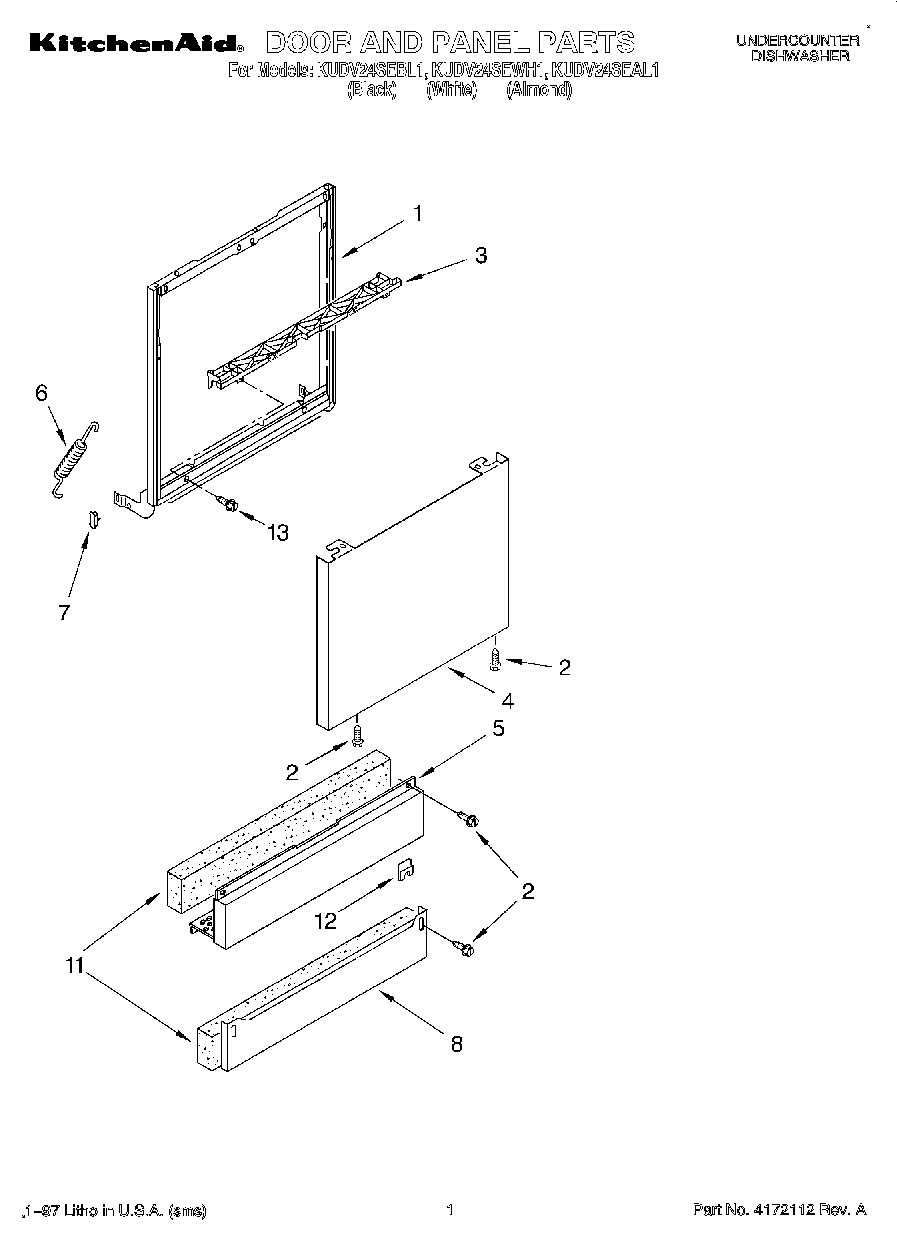

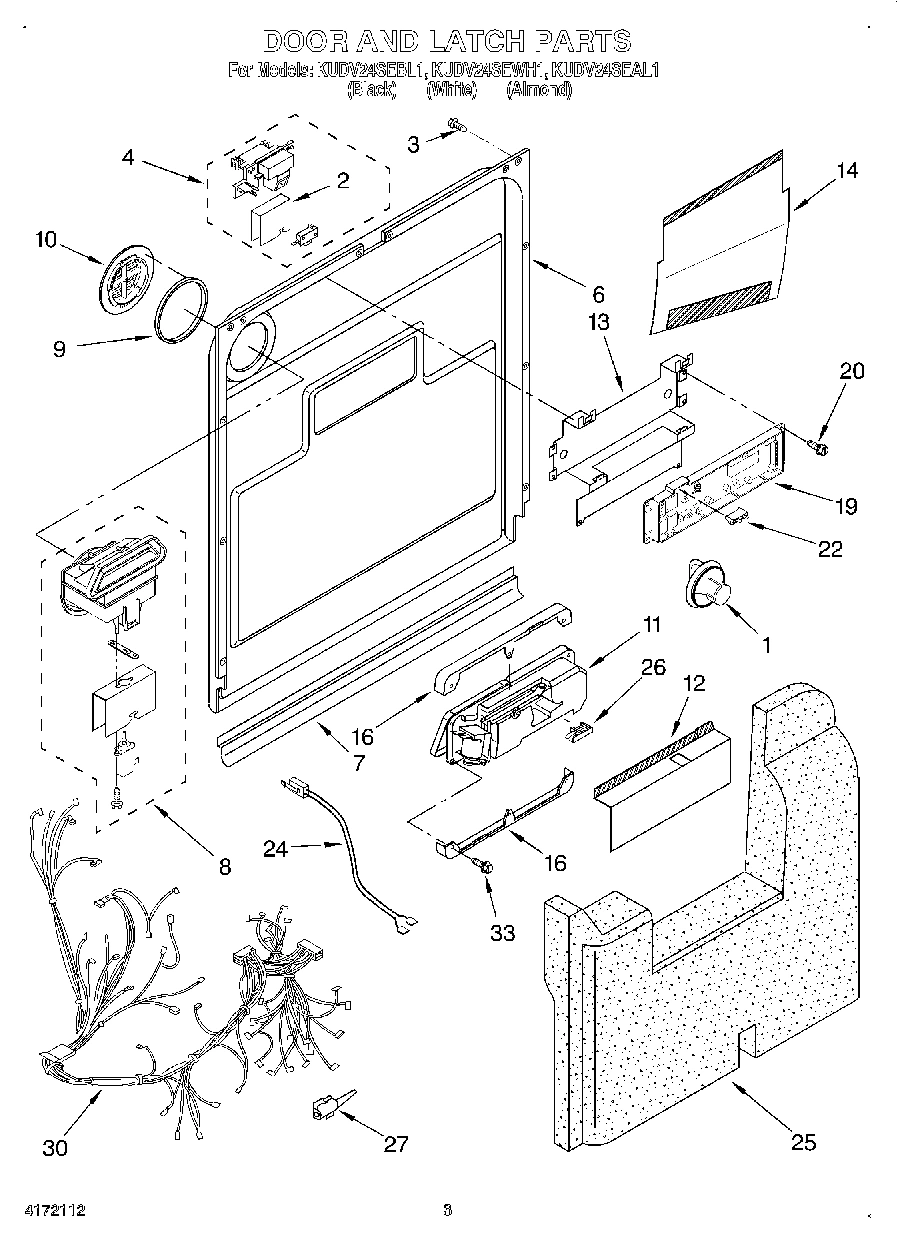

Door Frame WPL 9743028 Contact Us For Availability

1

Wash Arm Assembly WPL 9742947 Contact Us For Availability

1

Plate, Perforated (Also Order Item 30) See No WPL 9740982 Contact Us For Availability

1

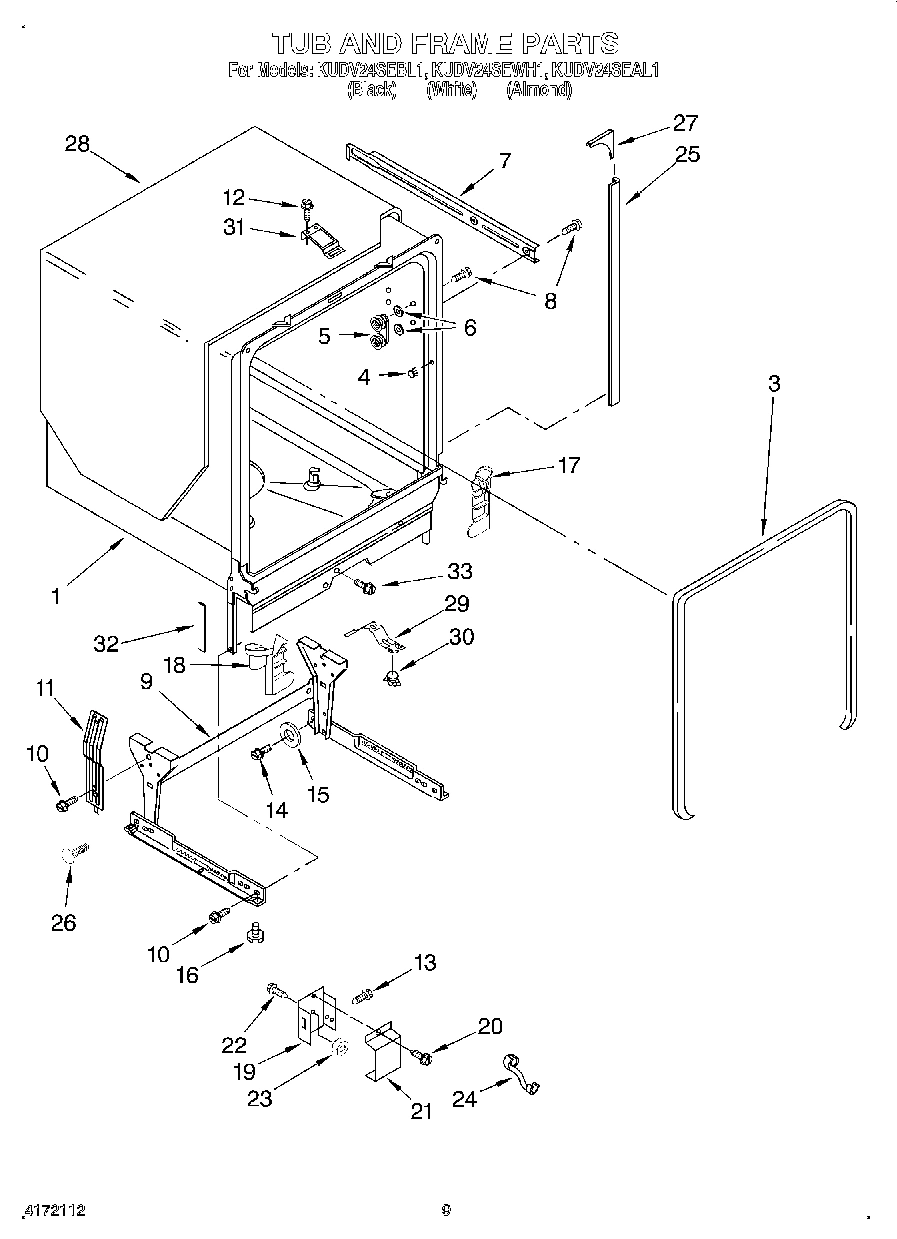

Tub Assembly WPL 9742605 Contact Us For Availability

1

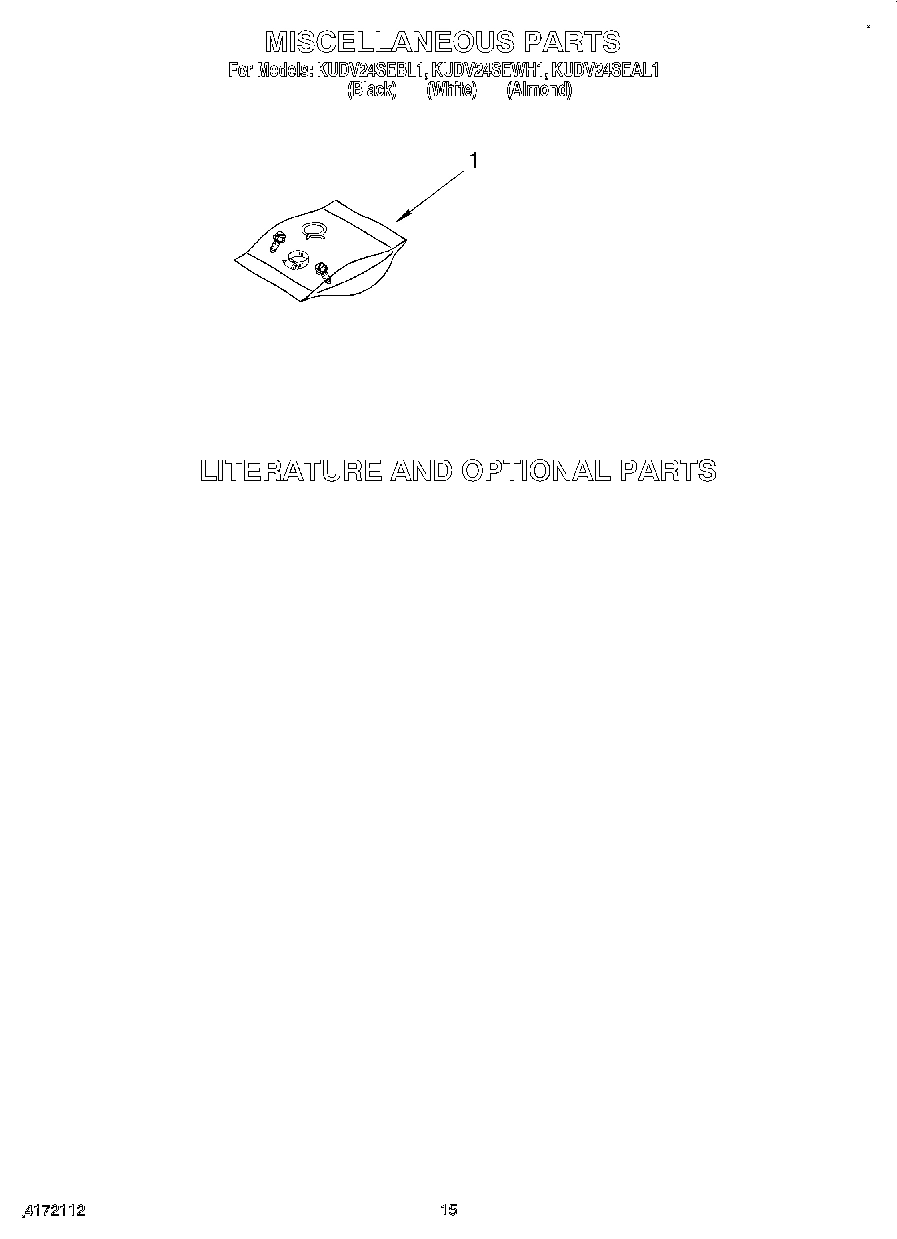

Miscellanous Parts Bag (Includes 2 Screws & 2 WPL 3369816 Contact Us For Availability

2

WP302868 Whirlpool Screw In Stock WPL WP302868 $3.52

2

WP717273 Whirlpool Dishwasher Rubber Washer In Stock WPL WP717273 $3.91

2

WP9742945 Whirlpool Spray Arm Nut In Stock WPL WP9742945 $4.75

2

Hose, Inlet WPL 9742727 Contact Us For Availability

2

Insert (White Model) WPL 9743379 Contact Us For Availability

2

Insert (Almond Model) WPL 9743380 Contact Us For Availability

2

Base, Inlet (Includes Items 1 & 5) (Also Orde WPL 3367173 Contact Us For Availability

3

W11196317 Whirlpool Dishwasher Door Gasket In Stock WPL W11196317 $98.99

3

WP8268807 Whirlpool Dishwasher Upper Wheel In Stock WPL WP8268807 $8.80

3

WP9741232 Whirlpool Dishwasher Screw In Stock WPL WP9741232 $4.99

3

Wheel Assembly (2) Lower Rack (8) WPL 9743007 Contact Us For Availability

3

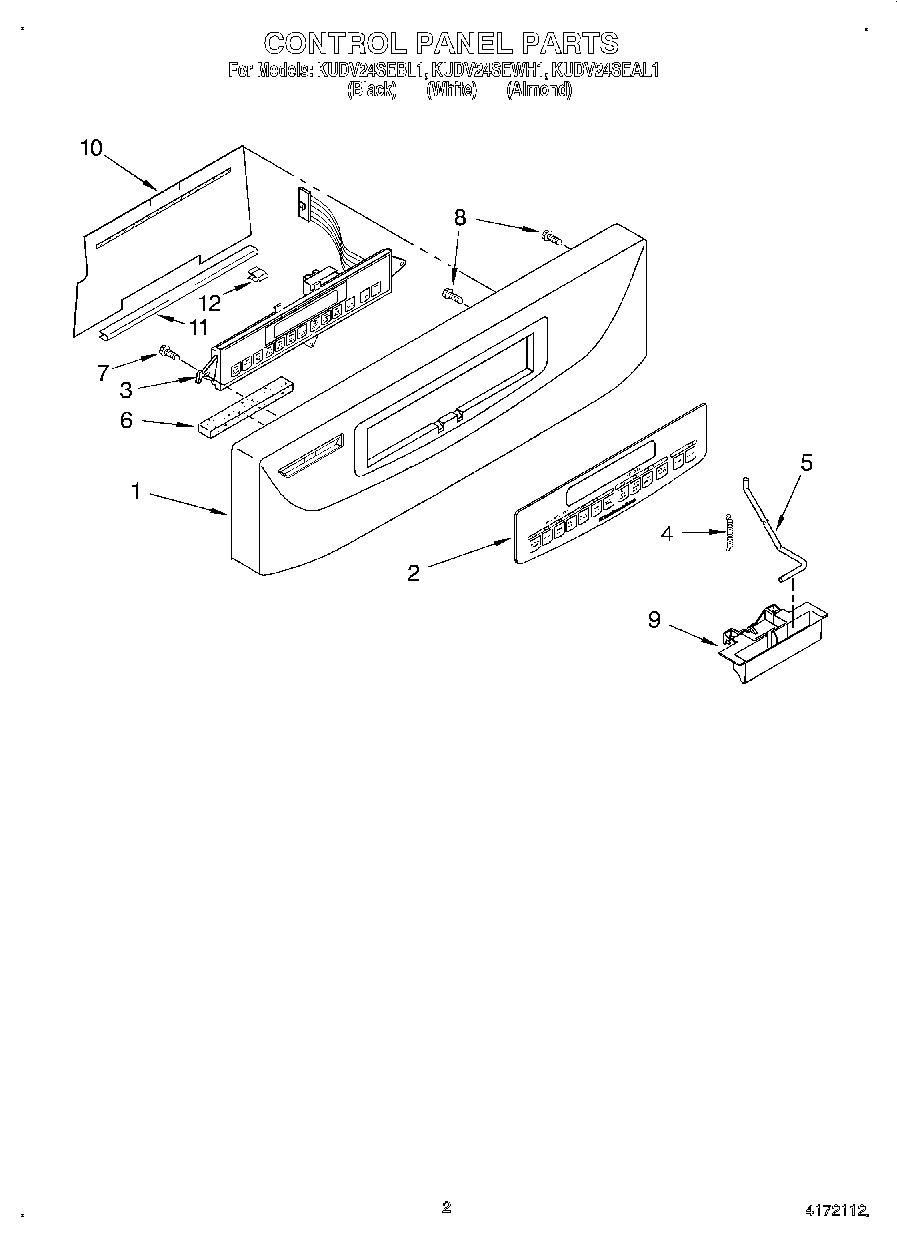

Switch, Panel (User Interface) WPL 9742673 Contact Us For Availability

3

Strainer (Coarse) WPL 9742646 Contact Us For Availability

3

Water Inlet Assembly (Includes Items 4 & 5) WPL 9742783 Contact Us For Availability

4

WP302710 Whirlpool Dishwasher Ring Seal Backorder WPL WP302710 $6.37

4

WP9742946 Whirlpool Dishwasher Spray Arm Bear In Stock WPL WP9742946 $13.99

4

WP9743016 Whirlpool Dishwasher Tine Pivot Backorder WPL WP9743016 $6.70

4

Gasket WPL 9742787 Contact Us For Availability

4

Spring, Handle WPL 9743350 Contact Us For Availability

4

Plug Tub (2) WPL 9742788 Contact Us For Availability

5

WP3376846 Whirlpool Seal In Stock WPL WP3376846 $11.74

5

Wheel & Mount Assembly (Also Order Item 6) WPL 9743468 Contact Us For Availability

5

Link, Handle WPL 9743351 Contact Us For Availability

5

Ball, Check WPL 302709 Contact Us For Availability

5

Bezel, Inlet WPL 9742786 Contact Us For Availability

6

WP3385089 Whirlpool Track In Stock WPL WP3385089 $63.60

6

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $4.99

6

WP9743002 Whirlpool Dishwasher Gasket In Stock WPL WP9743002 $8.99

6

Flexrow (2) WPL 9743548 Contact Us For Availability

6

Sponge, Vent WPL 9743412 Contact Us For Availability

6

``O`` Ring WPL 95080 Contact Us For Availability

7

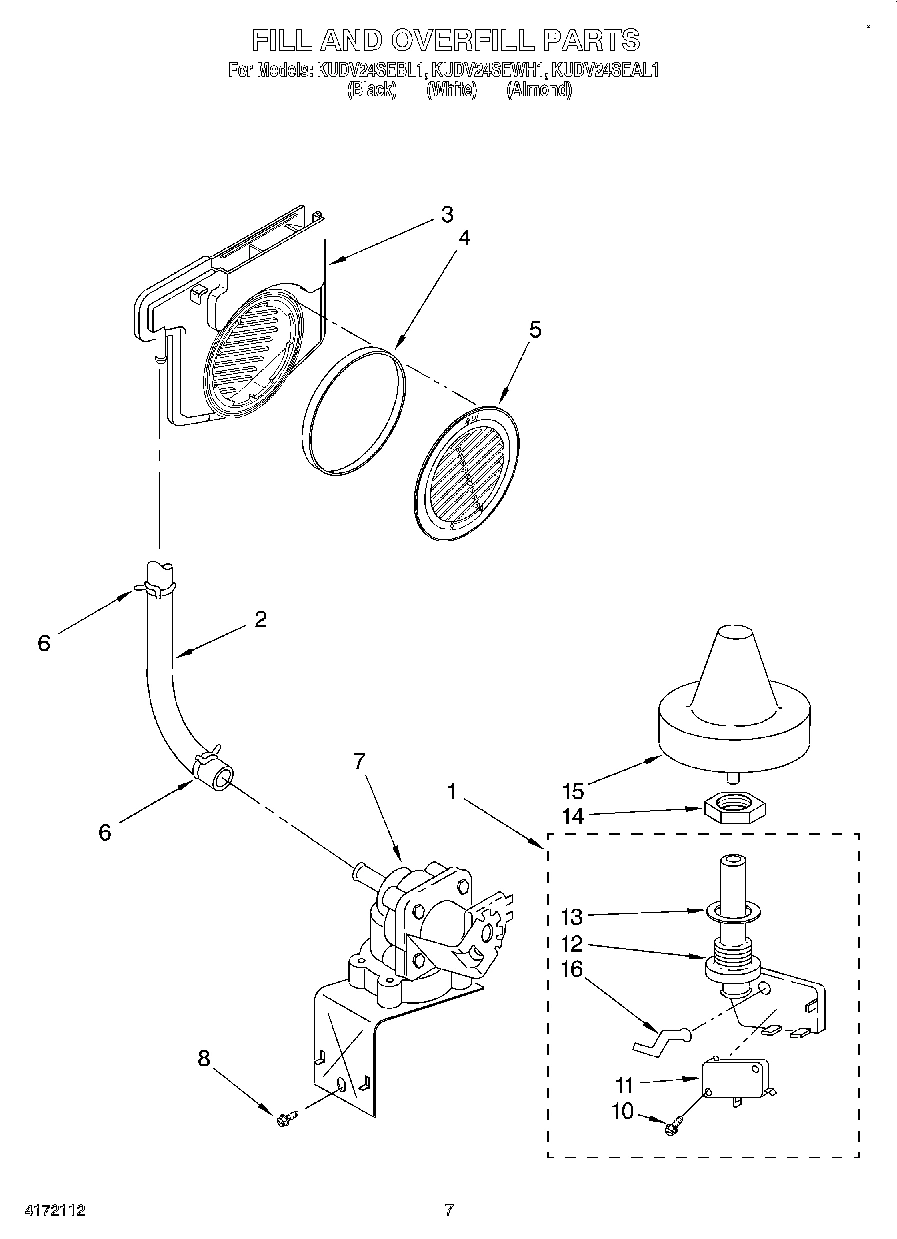

W10844024 Whirlpool Water Inlet Valve In Stock WPL W10844024 $47.79

7

WP304231 Whirlpool Dishwasher Screw Backorder WPL WP304231 $4.82

7

WP3373234 Whirlpool Dishwasher Bearing Backorder WPL WP3373234 $6.62

7

WP719929 Whirlpool Dishwasher Check Ball Backorder WPL WP719929 $6.64

7

WP8268816 Whirlpool Tine Row Clip In Stock WPL WP8268816 $8.99

7

Tub Stiffener WPL 3378056 Contact Us For Availability

8

WPW10348409 Whirlpool Screw In Stock WPL WPW10348409 $3.91

8

WPW10349488 Whirlpool Screw In Stock WPL WPW10349488 $4.82

8

Tine Row WPL 3377429 Contact Us For Availability

9

WP9743903 Whirlpool Dishwasher Handle In Stock WPL WP9743903 $90.98

9

Gasket, Vent WPL 9742782 Contact Us For Availability

9

Filter Assembly WPL 9742968 Contact Us For Availability

9

Rear Support Assembly WPL 9743149 Contact Us For Availability

9

Cupshelf WPL 3377419 Contact Us For Availability

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.91

WP9743019 Whirlpool Dishwasher Clip In Stock WPL WP9743019 $6.99

Barrier, Display WPL 9743440 Contact Us For Availability

Screw WPL 3400001 Contact Us For Availability

Screw WPL 4159424 Contact Us For Availability

Retainer, Flexrow (2) WPL 3368629 Contact Us For Availability

Tine Row, Upper (Multi Position) WPL 3377443 Contact Us For Availability

Retainer, Barrier WPL 9743444 Contact Us For Availability

Connector Tub To Brace WPL 9742610 Contact Us For Availability

WP3371152 Whirlpool Dishwasher Screw Backorder WPL WP3371152 $4.82

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.91

Clip, Retainer WPL 9743442 Contact Us For Availability

Tine Row, Upper Mini WPL 3377439 Contact Us For Availability

WP302711 Whirlpool Dishwasher Ring Seal In Stock WPL WP302711 $24.03

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $4.99

WP8531743 Whirlpool Dishwasher Float Switch B In Stock WPL WP8531743 $36.85

Stop, Track (4) WPL 9743472 Contact Us For Availability

8194582 Whirlpool Dishwasher Outlet Backorder WPL 8194582 $70.61

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $4.82

Nut, Standpipe WPL 4161596 Contact Us For Availability

Screw (2) WPL 3370389 Contact Us For Availability

Holder, Stemware (2) WPL 3377604 Contact Us For Availability

675238 Whirlpool Check Valve In Stock WPL 675238 $58.47

Float & Retainer Assembly WPL 9743070 Contact Us For Availability

Wheel, Leg WPL 302819 Contact Us For Availability

Positioner WPL 9743018 Contact Us For Availability

8193716 Whirlpool Leveling Leg Backorder WPL 8193716 $57.34

Gasket, Pump WPL 717000 Contact Us For Availability

Seal, Tube WPL 9742953 Contact Us For Availability

Clip, No Flip (4) WPL 3377464 Contact Us For Availability

Lever, Overflow Switch WPL 4171116 Contact Us For Availability

17

4172127 Whirlpool Dishwasher Bottom Door Seal In Stock WPL 4172127 $56.99

17

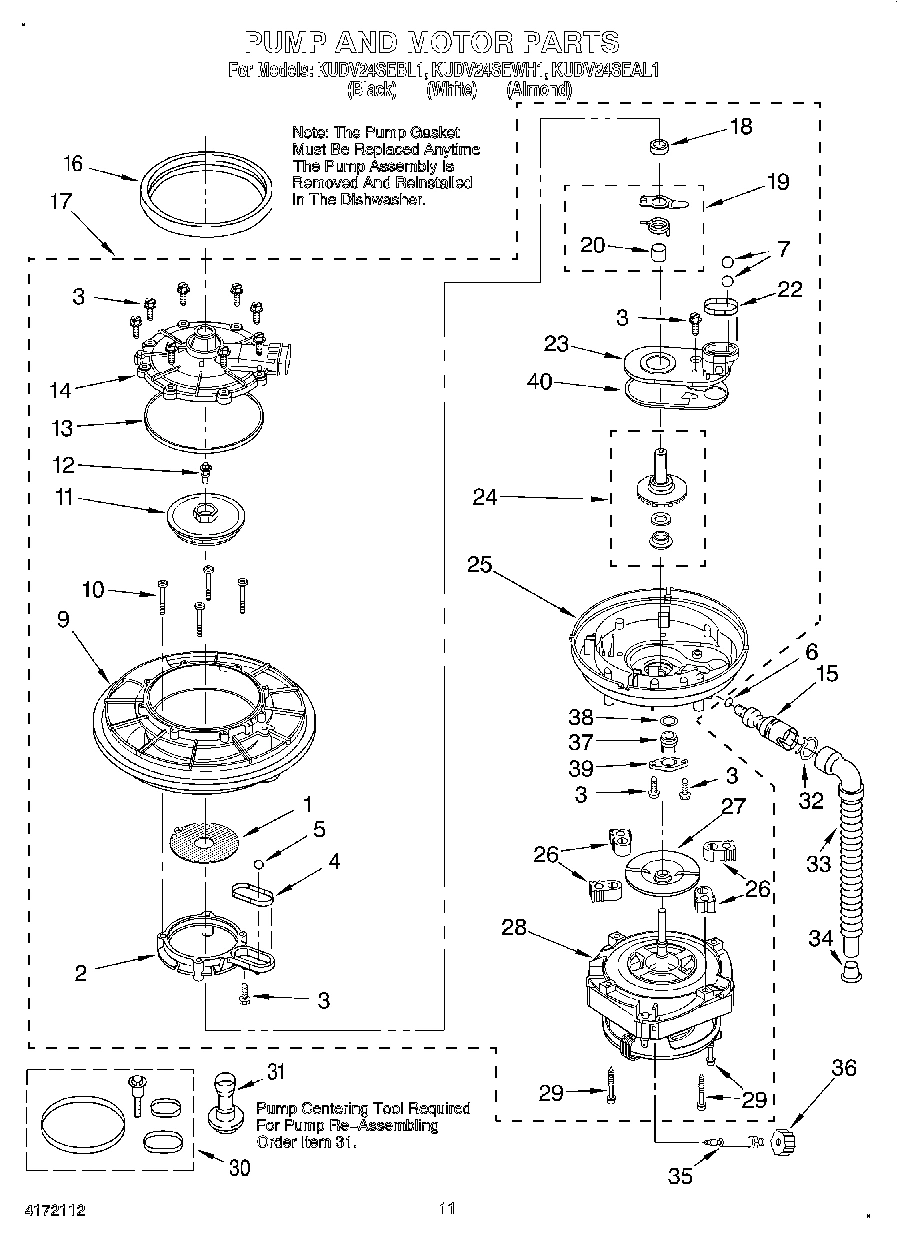

W10428773 Whirlpool Pump and Motor Assembly Backorder WPL W10428773 $319.20

17

Protector, Sprayarm Guard WPL 9742999 Contact Us For Availability

18

Bushing, Grind WPL 302707 Contact Us For Availability

18

Handle, Dishrack Front WPL 9743010 Contact Us For Availability

19

675806 Whirlpool Dishwasher Pump Impeller and In Stock WPL 675806 $98.99

19

Box, Terminal WPL 3370292 Contact Us For Availability

19

Handle, Dishrack Rear WPL 9743011 Contact Us For Availability

20

Sleeve, Drain Impeller WPL 302705 Contact Us For Availability

20

Screw WPL 3369138 Contact Us For Availability

21

Cover, Terminal Box WPL 300068 Contact Us For Availability

22

WP250830 Whirlpool Refrigerator Screw Backorder WPL WP250830 $4.82

22

Seal, Drain Cover WPL 302704 Contact Us For Availability

23

WP488130 Whirlpool Air Conditioner Nut Backorder WPL WP488130 $4.67

23

Cover, Drain (Also Order Item 30 & 40) See No WPL 3376845 Contact Us For Availability

24

Relief, Strain WPL 3370307 Contact Us For Availability

25

Base, Pump (Also Order Item 30) See Note A. WPL 3376157 Contact Us For Availability

25

Trim Strip, Tub WPL 9743460 Contact Us For Availability

26

WP304666 Whirlpool Dishwasher Retainer In Stock WPL WP304666 $17.99

26

WP3367197 Whirlpool Dishwasher Support Backorder WPL WP3367197 $4.55

27

3376405 Whirlpool Dishwasher Elbow Backorder WPL 3376405 $10.13

27

W10909679 Whirlpool Dishwasher Slinger Backorder WPL W10909679 $13.36

27

Corner Trim, Tub WPL 9742789 Contact Us For Availability

28

W11086533 Whirlpool Dishwasher Shield In Stock WPL W11086533 $17.77

28

Motor & Fan (Assembly) (Includes Item 27) (Al WPL 3376765 Contact Us For Availability

29

9742648 Whirlpool Dishwasher Stat Bracket Backorder WPL 9742648 $39.26

29

Screw (4) WPL 3369331 Contact Us For Availability

30

WP661566 Whirlpool High Limit Thermostat In Stock WPL WP661566 $17.99

30

Pump Seal Kit (Includes Items 4, 12, 13 & 22) WPL 675703 Contact Us For Availability

31

Tool, Pump Centering WPL 303918 Contact Us For Availability

31

Strike, Latch WPL 9742722 Contact Us For Availability

32

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $4.98

32

Pad, Friction WPL 9743406 Contact Us For Availability

33

WP3374077 Whirlpool Dishwasher Drain Hose In Stock WPL WP3374077 $58.88

33

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $6.83

34

3371748 Whirlpool Dishwasher Cap Backorder WPL 3371748 $6.55

35

Shaft, Absorber WPL 3374757 Contact Us For Availability

36

Weight, Absorber WPL 3374756 Contact Us For Availability

37

Thermostat WPL 3378083 Contact Us For Availability

38

Seal, O-Ring WPL 3376723 Contact Us For Availability

39

WP3376358 Whirlpool Dishwasher Retainer Backorder WPL WP3376358 $6.68

40

WP9740674 Whirlpool Dishwasher Gasket Backorder WPL WP9740674 $4.82
