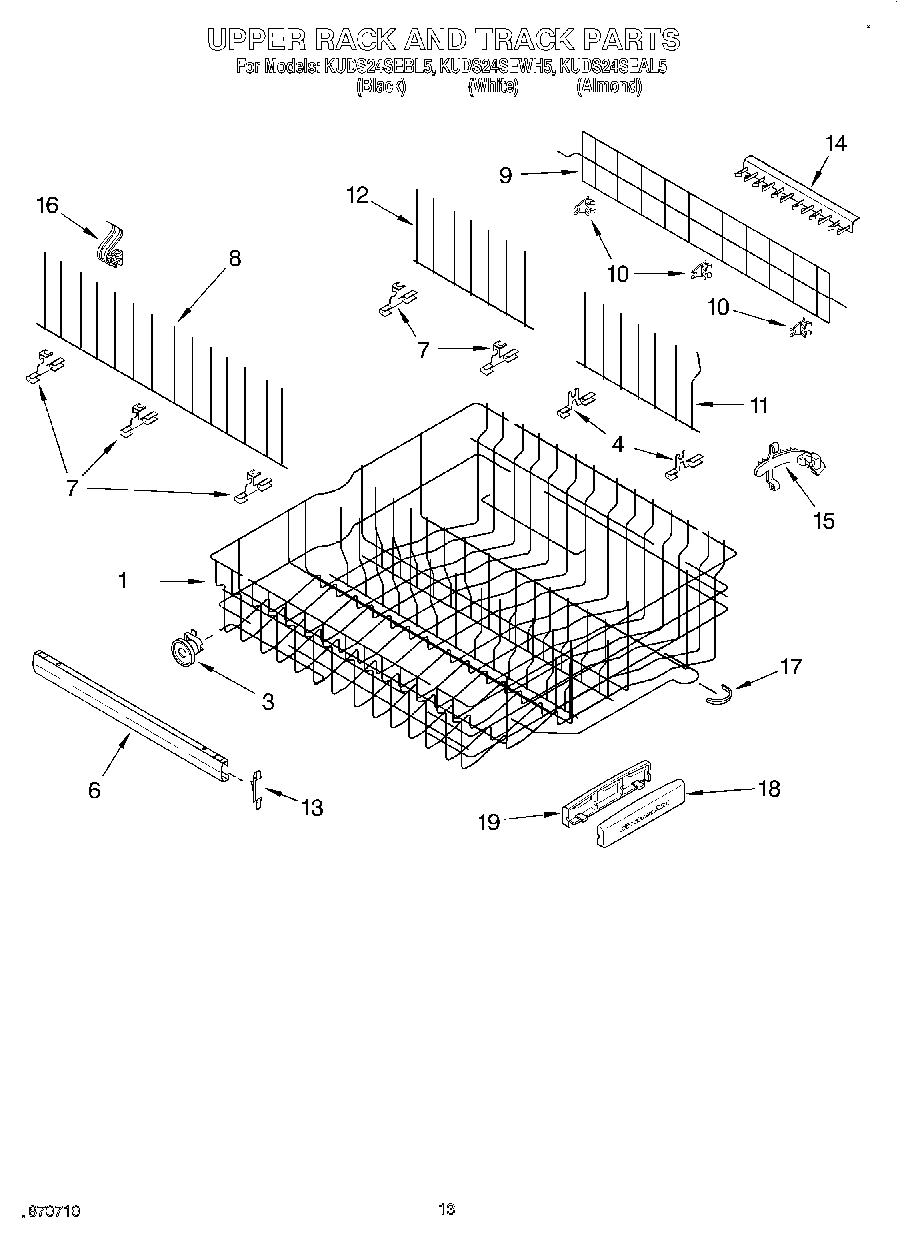

Model Whirlpool KUDS24SEWH5 – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350956 Whirlpool Spray Assembly In Stock WPL 350956 $29.99

4317824 Whirlpool Dishwasher 5' 3-Wire Power In Stock WPL 4317824 $11.99

4378968 Whirlpool Dishwasher Mounting Bracket Backorder WPL 4378968 $36.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $18.58

WP72107 Whirlpool Touchup In Stock WPL WP72107 $14.61

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Instructions, Installation WPL LIT9743822 Contact Us For Availability

1

Cap, Dispenser WPL 9743399 Contact Us For Availability

1

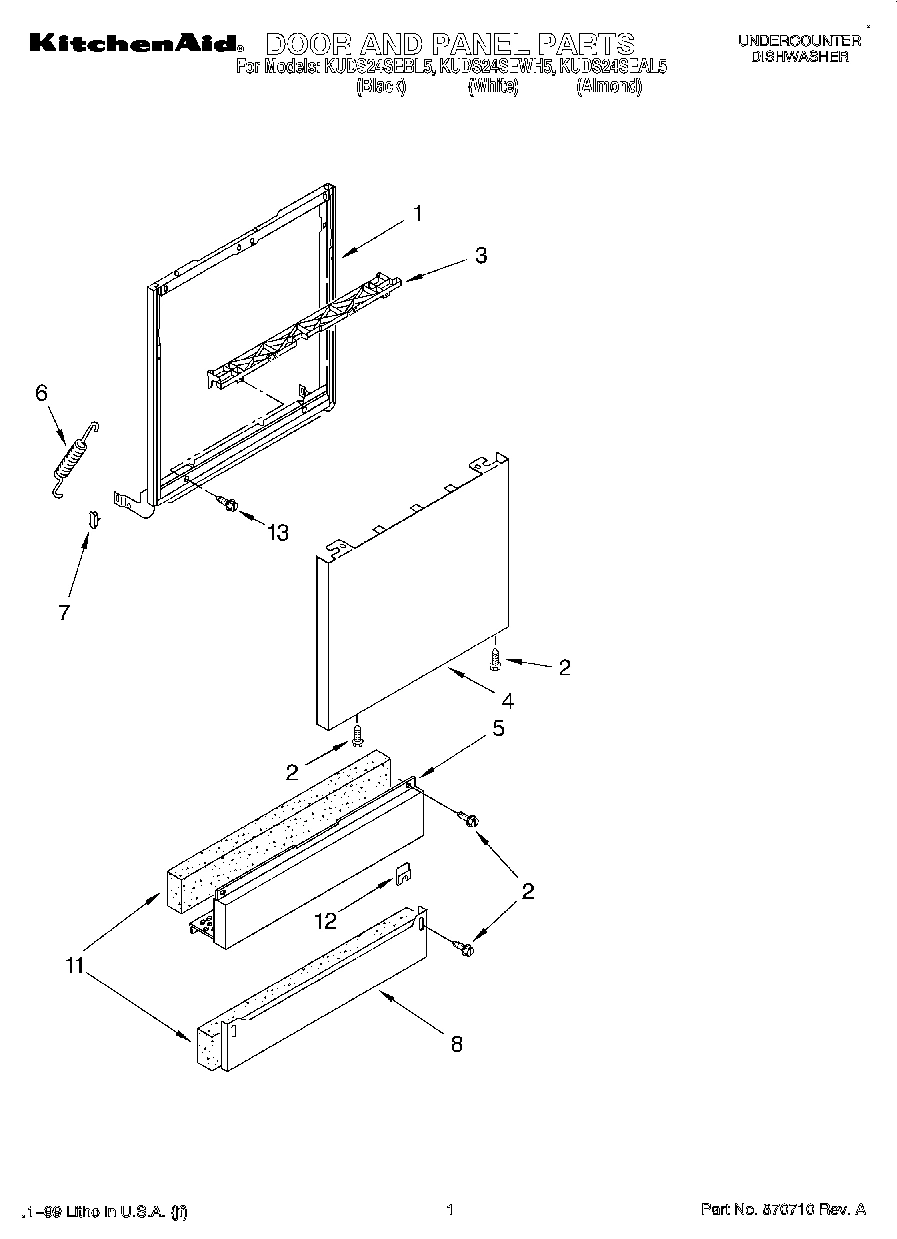

Door Frame WPL 9743028 Contact Us For Availability

1

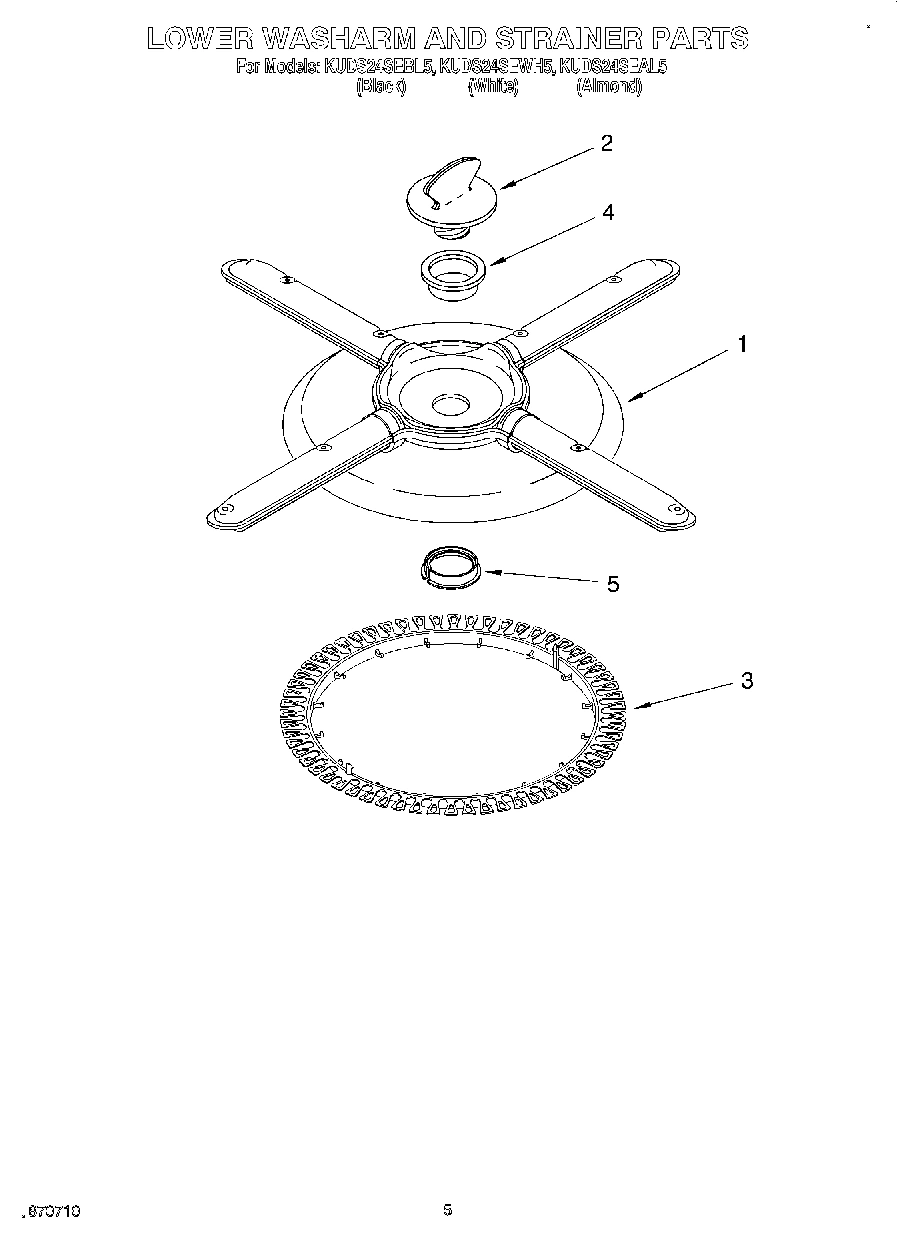

Wash Arm Assembly WPL 9742947 Contact Us For Availability

1

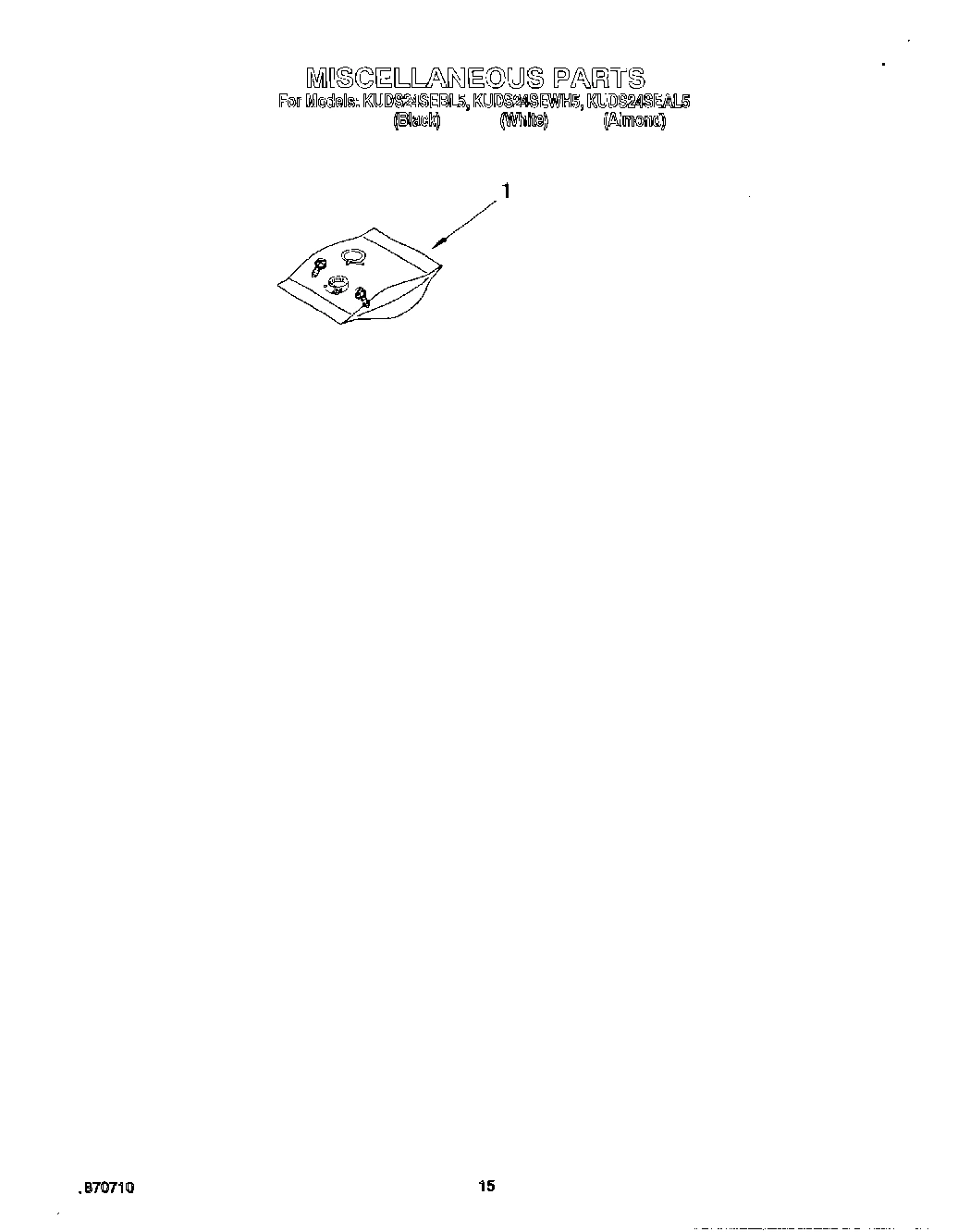

Miscellanous Parts Bag (Includes 2 Screws & 2 WPL 3369816 Contact Us For Availability

1

Plate, Perforated (Also Order Item 30) See No WPL 9740982 Contact Us For Availability

1

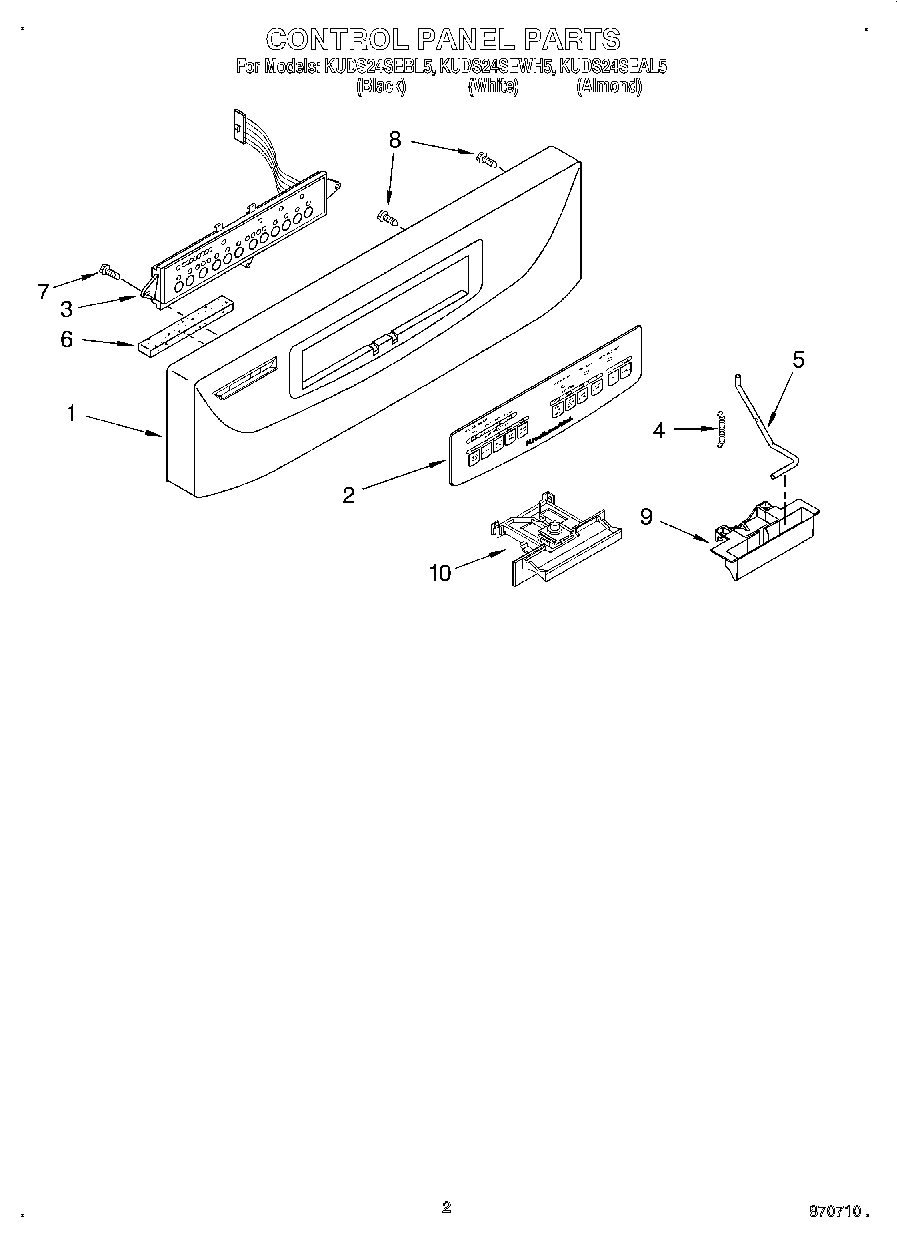

Console (Also order item No.2) (Black Model) WPL 9743753 Contact Us For Availability

1

Console (Also Order Item 2) (White Model) WPL 9743754 Contact Us For Availability

1

Console (Also Order Item 2) (Almond Model) WPL 9743755 Contact Us For Availability

1

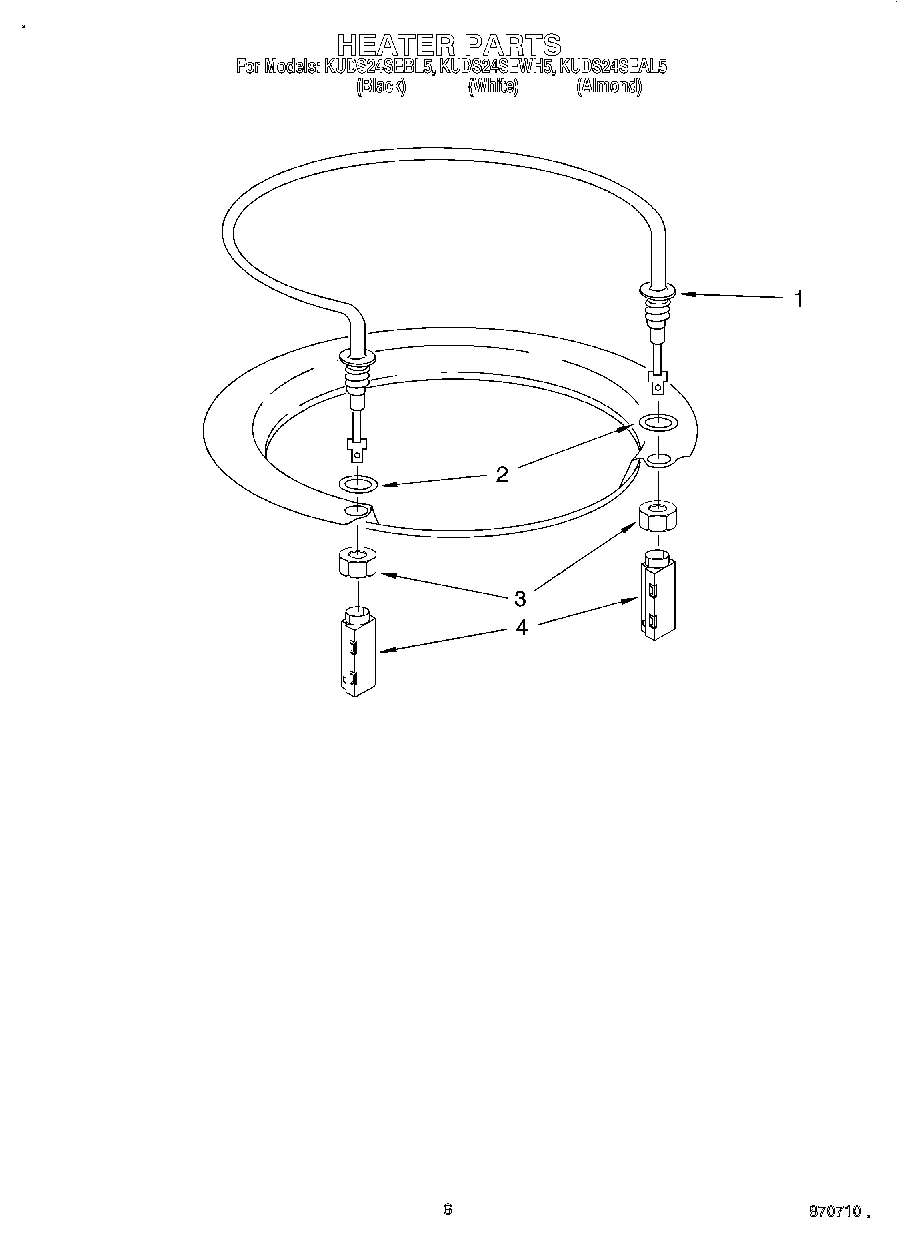

Heater Element Assembly (Also Includes Item 2 WPL 9743495 Contact Us For Availability

2

WP302868 Whirlpool Screw In Stock WPL WP302868 $3.52

2

WP717273 Whirlpool Dishwasher Rubber Washer In Stock WPL WP717273 $3.91

2

WP9742945 Whirlpool Spray Arm Nut In Stock WPL WP9742945 $4.75

2

WPW10349488 Whirlpool Screw In Stock WPL WPW10349488 $4.82

2

Insert (White Model) WPL 9743376 Contact Us For Availability

2

Insert (Black Model) WPL 9743375 Contact Us For Availability

2

Hose, Inlet WPL 9742727 Contact Us For Availability

2

Base, Inlet (Includes Items 1 & 5) (Also Orde WPL 3367173 Contact Us For Availability

2

Switch WPL 3369325 Contact Us For Availability

2

Insert (Almond Model) WPL 9743377 Contact Us For Availability

3

WP9741232 Whirlpool Dishwasher Screw In Stock WPL WP9741232 $4.99

3

WP9743241 Whirlpool Dishwasher Membrane Switc Backorder WPL WP9743241 $168.24

3

Door Seal WPL 9743590 Contact Us For Availability

3

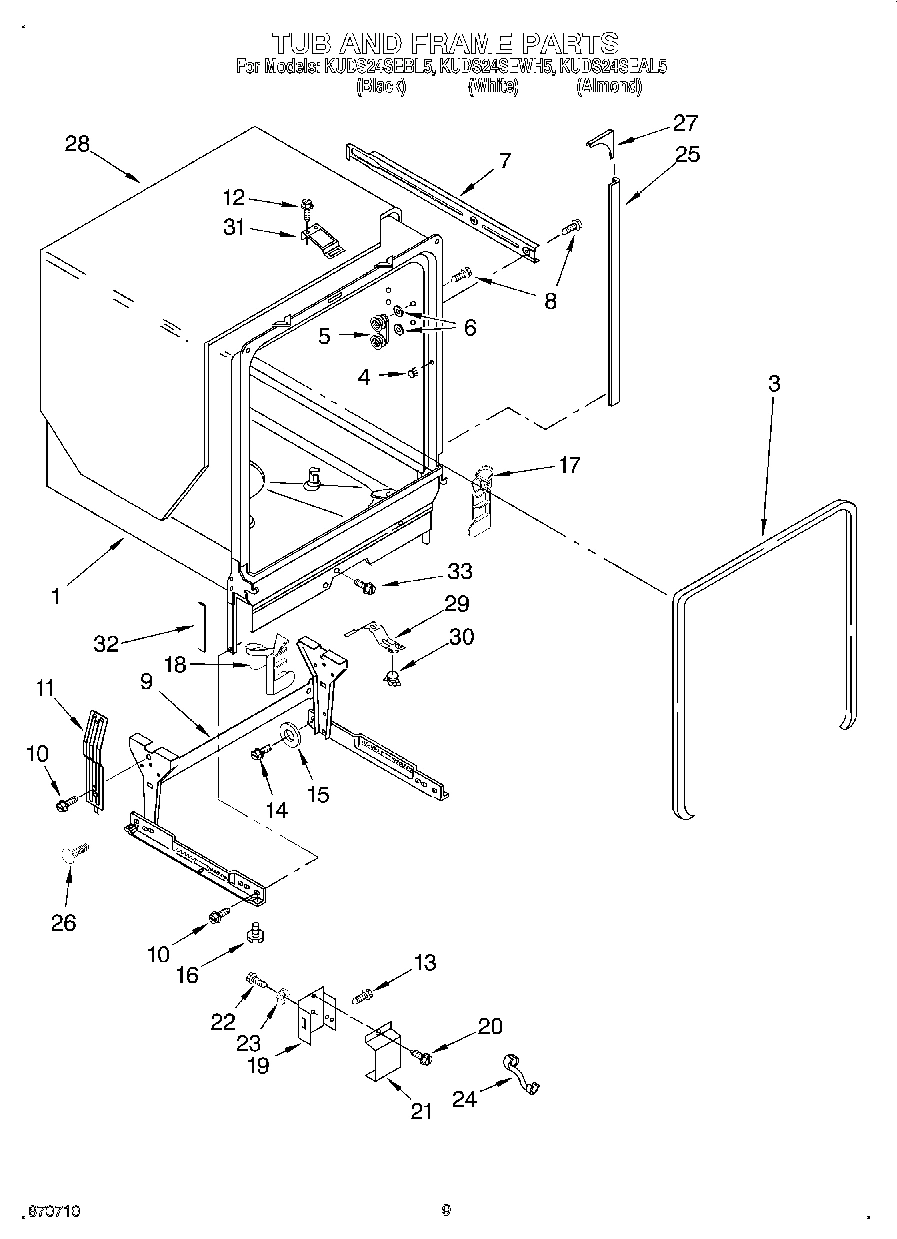

Wheel & Transport Assembly WPL 8051252 Contact Us For Availability

3

Strainer (Coarse) WPL 9742646 Contact Us For Availability

3

Nut, Heater Element WPL 9743039 Contact Us For Availability

4

WP302710 Whirlpool Dishwasher Ring Seal Backorder WPL WP302710 $6.37

4

WP9742946 Whirlpool Dishwasher Spray Arm Bear In Stock WPL WP9742946 $13.99

4

WP9743016 Whirlpool Dishwasher Tine Pivot Backorder WPL WP9743016 $6.70

4

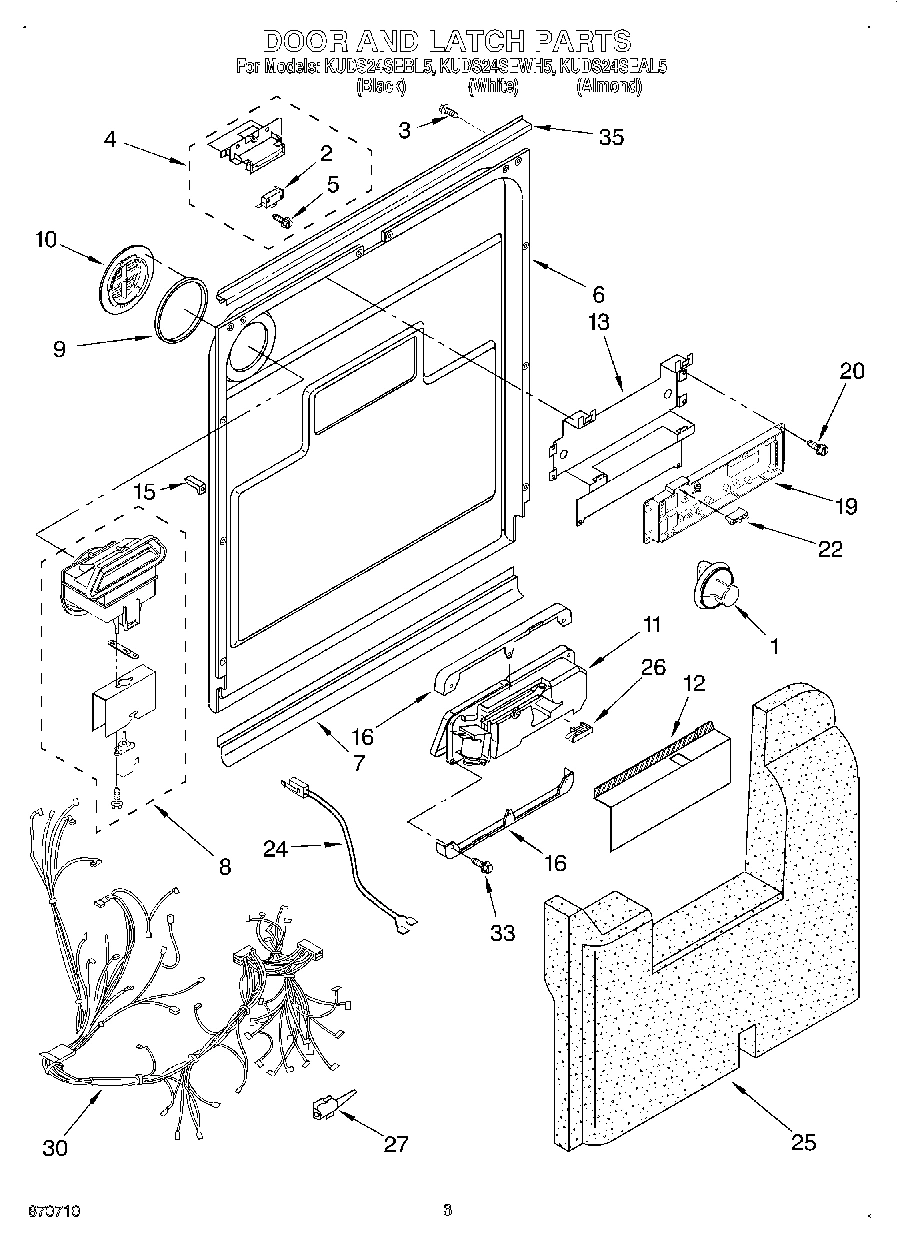

Latch, Bolt Assy. (Includes Item 2) WPL 3380654 Contact Us For Availability

4

Gasket WPL 9742787 Contact Us For Availability

4

Spring, Handle WPL 9743573 Contact Us For Availability

4

Panel Front (White Model) WPL 3379376 Contact Us For Availability

4

Panel Front (Black Model) WPL 3379375 Contact Us For Availability

4

Basket Half, Silverware WPL 9743574 Contact Us For Availability

4

Pod, Terminal Heater WPL 9743166 Contact Us For Availability

5

WP3376846 Whirlpool Seal In Stock WPL WP3376846 $11.74

5

WP8539324 Whirlpool Dishwasher Upper Spray Ar In Stock WPL WP8539324 $4.49

5

Link, Handle WPL 9743572 Contact Us For Availability

5

Wheel & Mount Assembly (Also Order Item 6) WPL 9743468 Contact Us For Availability

5

Ball, Check WPL 302709 Contact Us For Availability

5

Screw WPL 3400404 Contact Us For Availability

6

675808 Whirlpool Dishwasher Middle Spray Arm In Stock WPL 675808 $32.84

6

WP9743002 Whirlpool Dishwasher Gasket In Stock WPL WP9743002 $8.99

6

``O`` Ring WPL 95080 Contact Us For Availability

6

Inner Door Mastic Assembly (Also Includes Ite WPL 9742353 Contact Us For Availability

6

Sponge, Vent WPL 9743412 Contact Us For Availability

7

4172127 Whirlpool Dishwasher Bottom Door Seal In Stock WPL 4172127 $56.99

7

WP304231 Whirlpool Dishwasher Screw Backorder WPL WP304231 $4.82

7

WP3373234 Whirlpool Dishwasher Bearing Backorder WPL WP3373234 $6.62

7

WP3378186 Whirlpool Dishwasher Holder In Stock WPL WP3378186 $22.85

7

WP719929 Whirlpool Dishwasher Check Ball Backorder WPL WP719929 $6.64

7

Pivot, Folddown WPL 3379955 Contact Us For Availability

8

WPW10348409 Whirlpool Screw In Stock WPL WPW10348409 $3.91

8

Vent Assembly (Also Order Item 9) WPL 9742770 Contact Us For Availability

9

WP9743903 Whirlpool Dishwasher Handle In Stock WPL WP9743903 $90.98

9

Gasket, Vent WPL 9742782 Contact Us For Availability

9

Filter Assembly WPL 9742968 Contact Us For Availability

9

Connector (Includes Items 13, 14 & 15) WPL 9743473 Contact Us For Availability

WP9743019 Whirlpool Dishwasher Clip In Stock WPL WP9743019 $6.99

Latch Lever Asm. WPL 3380655 Contact Us For Availability

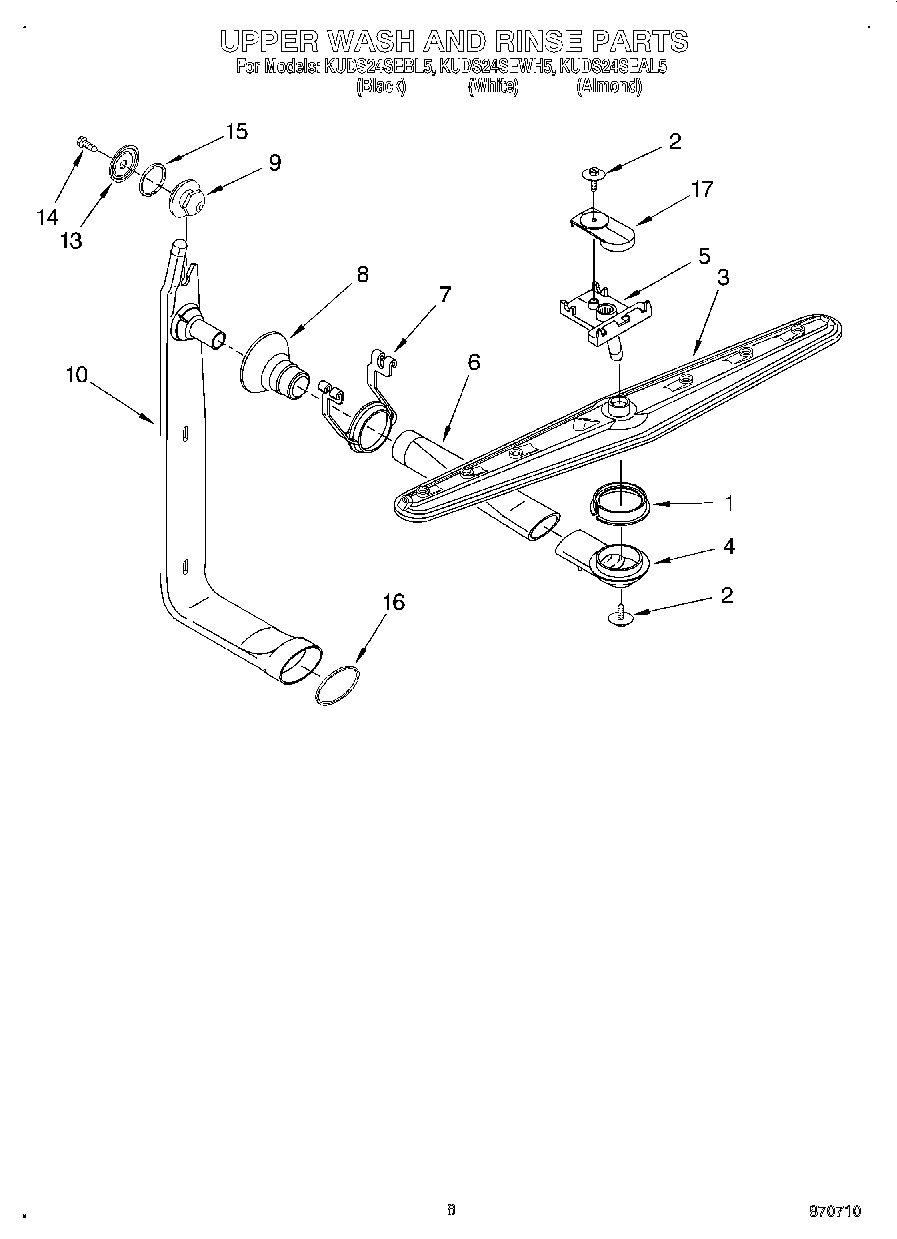

Feed Tube Assembly WPL 9742950 Contact Us For Availability

Screw WPL 3400001 Contact Us For Availability

Deflector, Vent (Also Order Item 9) WPL 9742780 Contact Us For Availability

WPW10616003 Whirlpool Dishwasher Dispenser As Backorder WPL WPW10616003 $230.50

Retainer, Flexrow (2) WPL 3368629 Contact Us For Availability

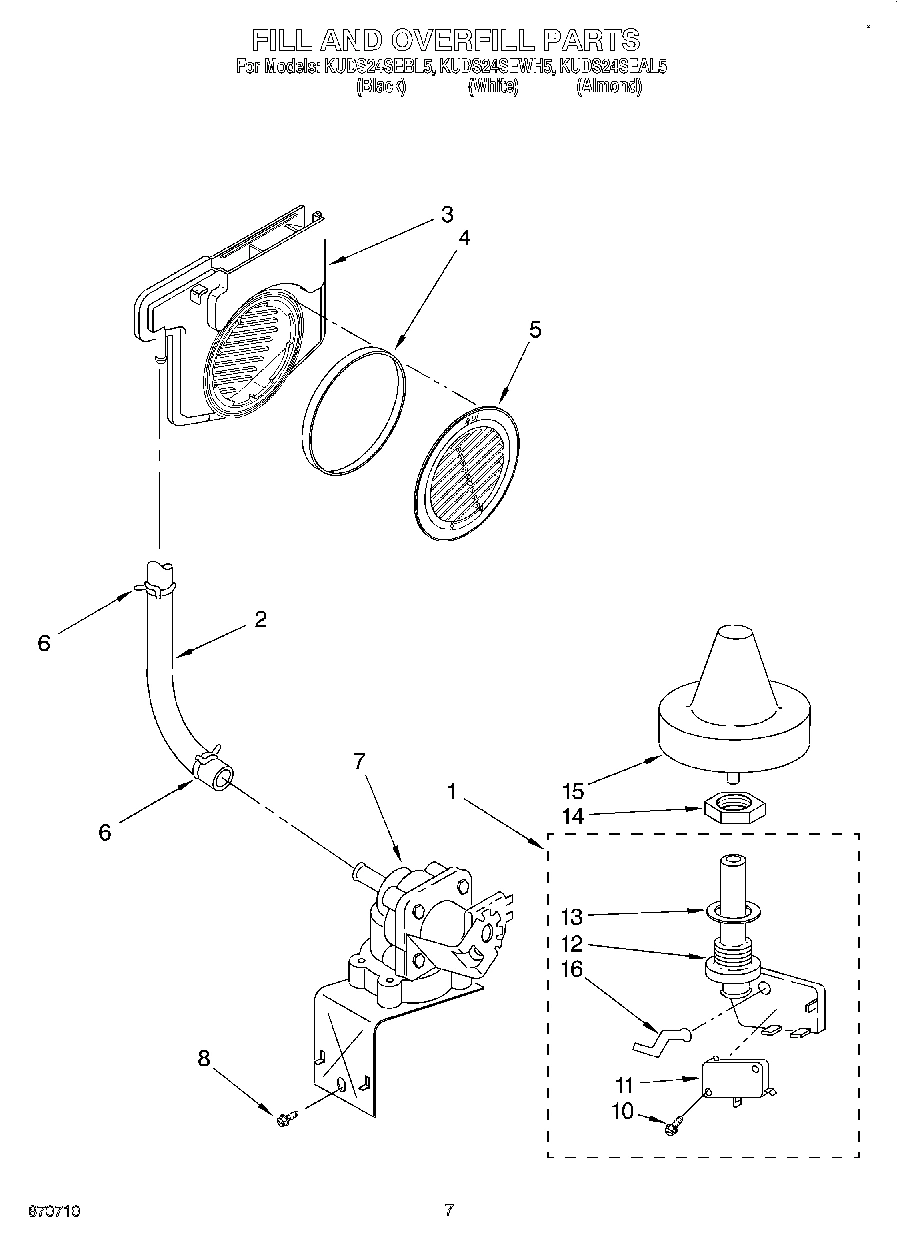

Switch, Overfill Control WPL 9743413 Contact Us For Availability

Tine Row, Upper (Multi Position) WPL 3377443 Contact Us For Availability

12

WP3371152 Whirlpool Dishwasher Screw Backorder WPL WP3371152 $4.82

12

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.91

12

Shield, Dispenser WPL 9743450 Contact Us For Availability

WP302711 Whirlpool Dishwasher Ring Seal In Stock WPL WP302711 $24.03

Track Stop (4) WPL 3379941 Contact Us For Availability

Washer WPL 9743475 Contact Us For Availability

Bracket, Controls WPL 9742623 Contact Us For Availability

14

8194582 Whirlpool Dishwasher Outlet Backorder WPL 8194582 $70.61

14

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $4.82

14

WP9741998 Whirlpool Dishwasher Nut Backorder WPL WP9741998 $4.82

675238 Whirlpool Check Valve In Stock WPL 675238 $58.47

Float & Retainer Assembly WPL 9743070 Contact Us For Availability

Wheel, Leg WPL 302819 Contact Us For Availability

Gasket, Connector WPL 9743474 Contact Us For Availability

Guide, Door WPL 9743487 Contact Us For Availability

Gasket, Pump WPL 717000 Contact Us For Availability

Seal, Tube WPL 9742953 Contact Us For Availability

Clip, No Flip (4) WPL 3377464 Contact Us For Availability

Bracket, Dispenser (2) WPL 9743486 Contact Us For Availability

17

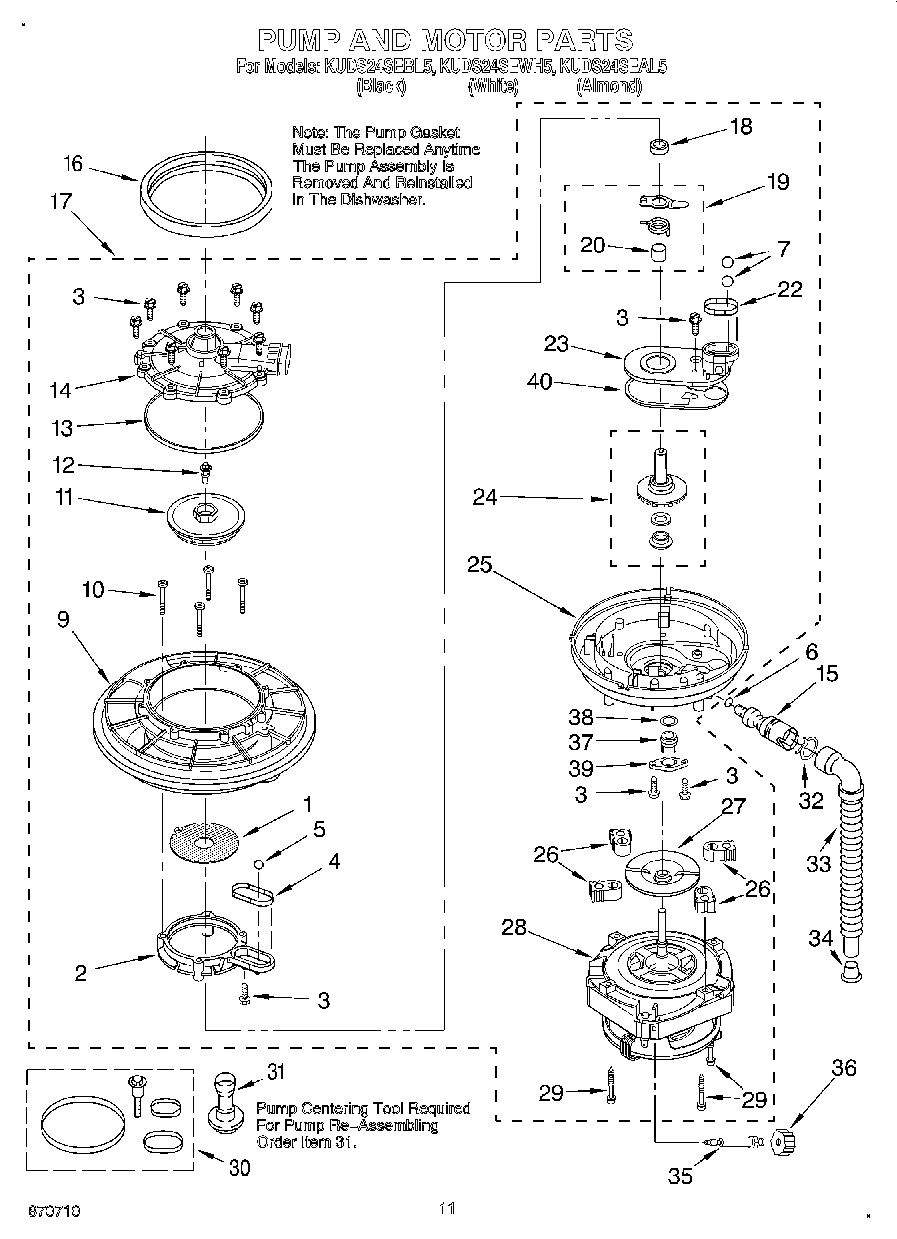

W10428773 Whirlpool Pump and Motor Assembly Backorder WPL W10428773 $319.20

17

WP8268812 Whirlpool Dishwasher Mounting Assem In Stock WPL WP8268812 $9.99

18

Bushing, Grind WPL 302707 Contact Us For Availability

19

675806 Whirlpool Dishwasher Pump Impeller and In Stock WPL 675806 $98.99

19

Control, Electronic WPL 8051136 Contact Us For Availability

20

WP3177991 Whirlpool Screw Backorder WPL WP3177991 $4.82

20

Sleeve, Drain Impeller WPL 3378139 Contact Us For Availability

21

Cover, Terminal Box WPL 300068 Contact Us For Availability

22

WP3400014 Whirlpool Dishwasher Screw Backorder WPL WP3400014 $4.82

22

Seal, Drain Cover WPL 302704 Contact Us For Availability

22

Fuse Thermal Electronic WPL 9743451 Contact Us For Availability

23

WP3378128 Whirlpool Dishwasher Washer Backorder WPL WP3378128 $4.82

23

Cover, Drain (Also Order Item 30 & 40) See No WPL 3378207 Contact Us For Availability

24

Dispenser, Wiring Harness WPL 9743154 Contact Us For Availability

25

Base, Pump (Also Order Item 30) See Note A. WPL 3376157 Contact Us For Availability

25

Sound Absorber WPL 9742397 Contact Us For Availability

26

WP3367197 Whirlpool Dishwasher Support Backorder WPL WP3367197 $4.55

26

Sensor, Rinse Aid WPL 9742852 Contact Us For Availability

27

3376405 Whirlpool Dishwasher Elbow Backorder WPL 3376405 $10.13

27

W10909679 Whirlpool Dishwasher Slinger Backorder WPL W10909679 $13.36

28

Motor & Fan (Assembly) (Includes Item 27) (Al WPL 3377333 Contact Us For Availability

29

9742648 Whirlpool Dishwasher Stat Bracket Backorder WPL 9742648 $39.26

29

Screw (4) WPL 3369331 Contact Us For Availability

30

WP661566 Whirlpool High Limit Thermostat In Stock WPL WP661566 $17.99

30

Pump Seal Kit (Includes Items 4, 12, 13 & 22) WPL 675703 Contact Us For Availability

30

Wiring Harness, Main WPL 9743981 Contact Us For Availability

31

Tool, Pump Centering WPL 303918 Contact Us For Availability

32

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $4.98

33

WP3374077 Whirlpool Dishwasher Drain Hose In Stock WPL WP3374077 $58.88

33

Screw (6) WPL 3400700 Contact Us For Availability

34

3371748 Whirlpool Dishwasher Cap Backorder WPL 3371748 $6.55

35

Shaft, Absorber WPL 3374757 Contact Us For Availability

35

Seal, Console/Door WPL 9743806 Contact Us For Availability

36

Weight, Absorber WPL 3378202 Contact Us For Availability

37

Thermostat WPL 3378083 Contact Us For Availability

38

Seal, O-Ring WPL 3376723 Contact Us For Availability

39

WP3376358 Whirlpool Dishwasher Retainer Backorder WPL WP3376358 $6.68

40

WP9740674 Whirlpool Dishwasher Gasket Backorder WPL WP9740674 $4.82
