Model Whirlpool KTRS25QDWH00 – Common Parts & Diagrams

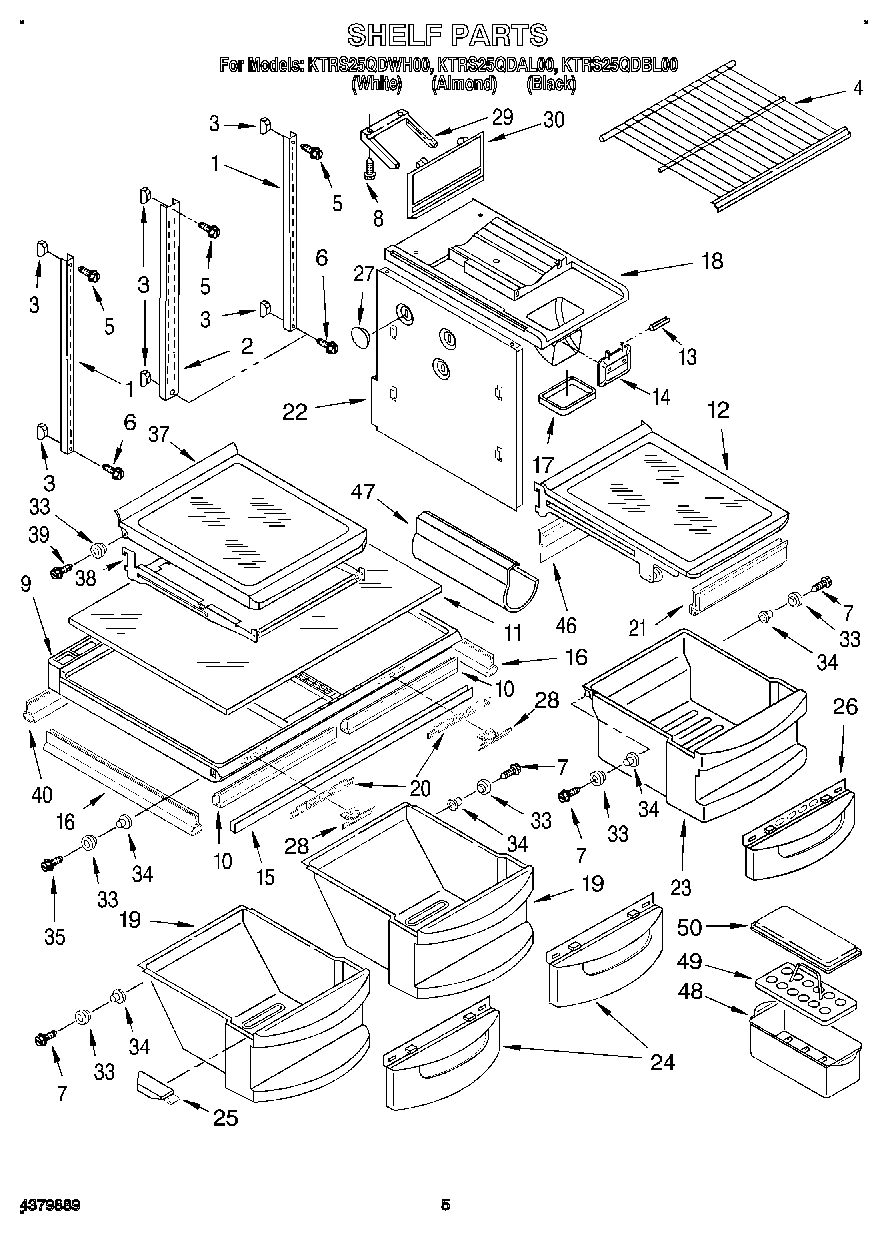

03 - SHELF

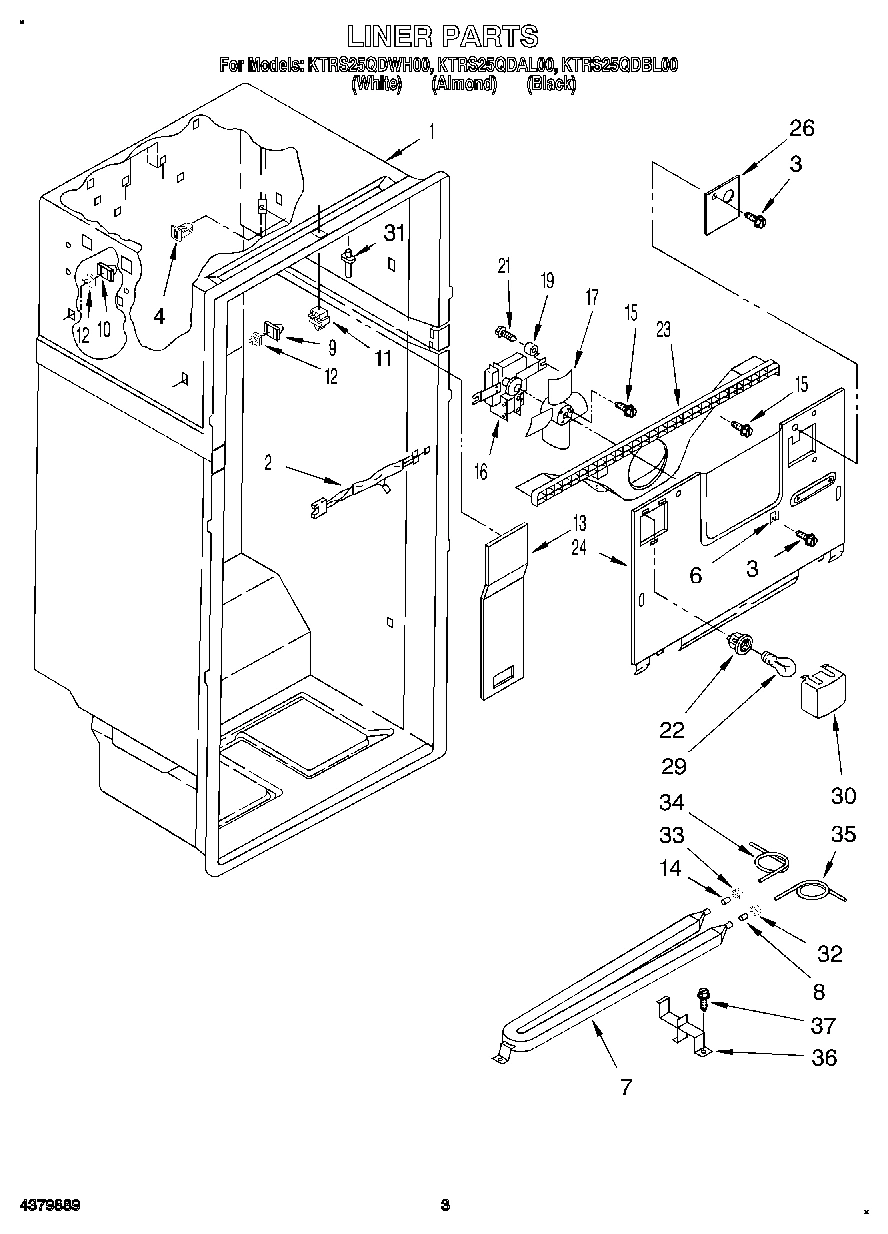

02 - LINER

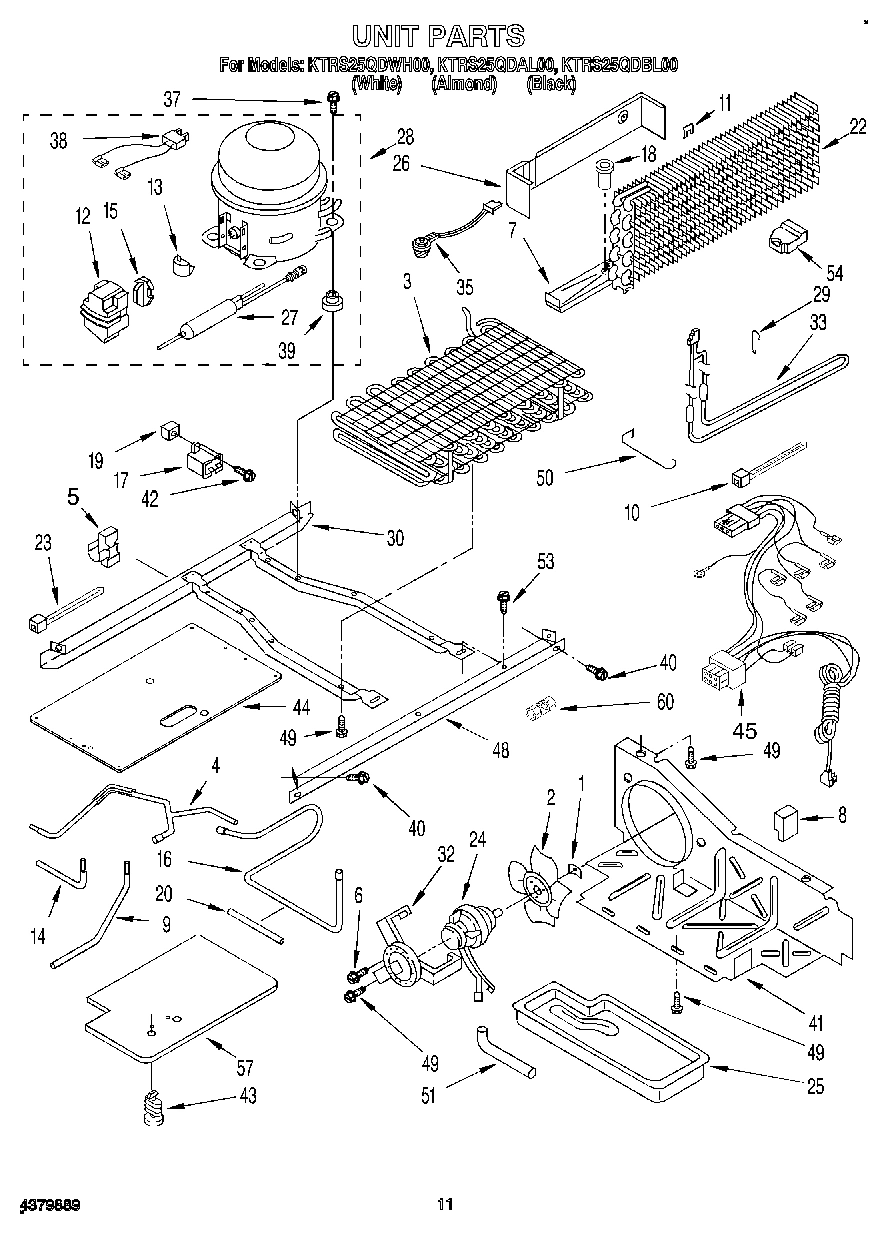

07 - UNIT

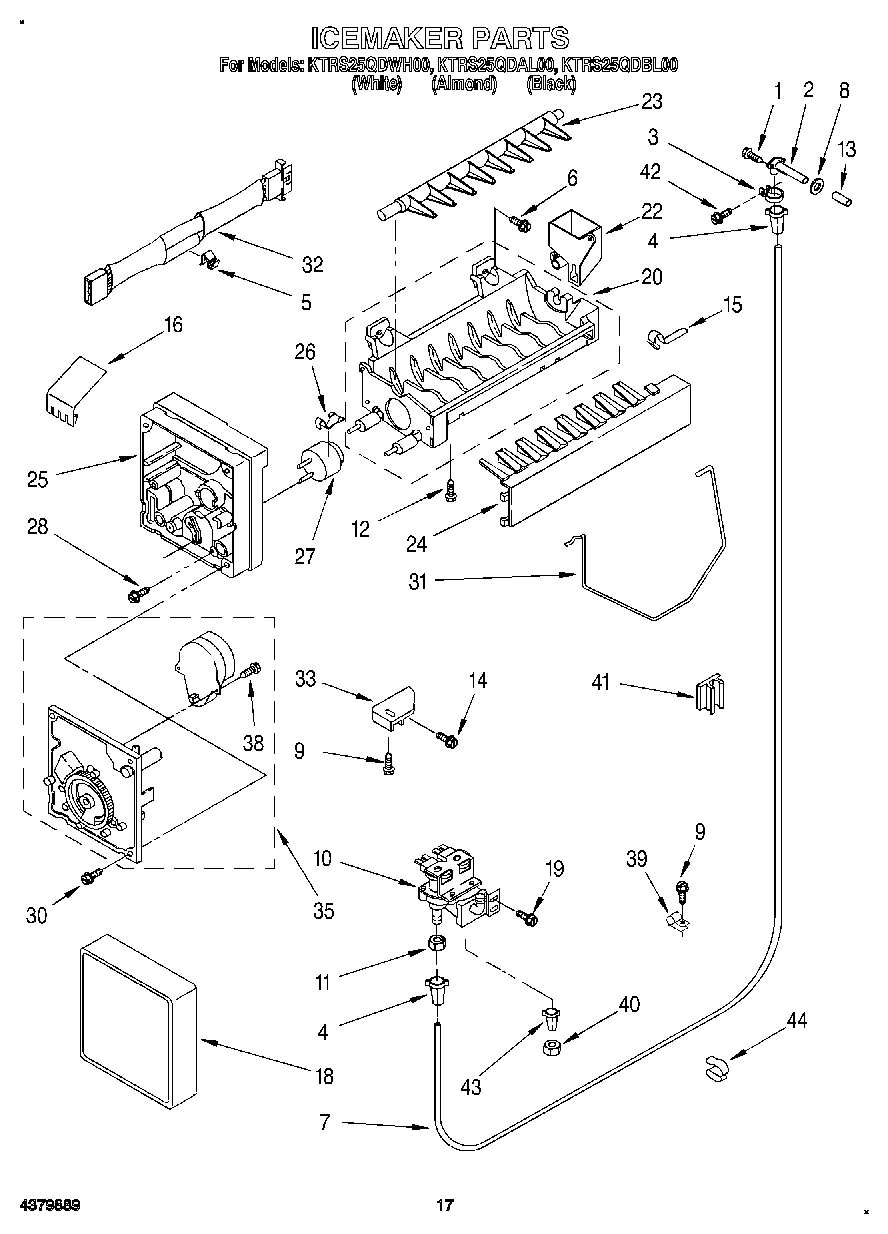

10 - ICEMAKER, LIT/OPTIONAL

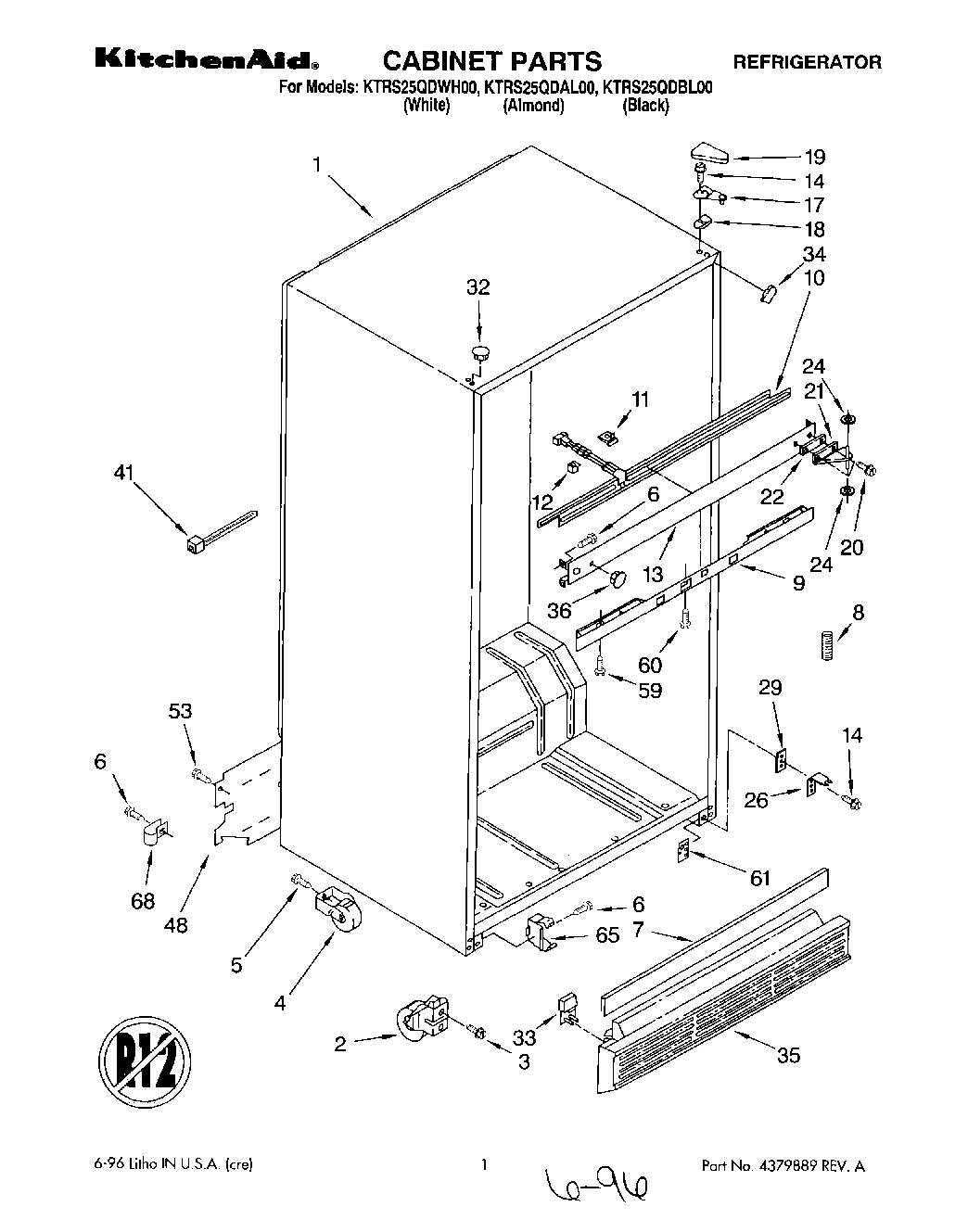

01 - CABINET

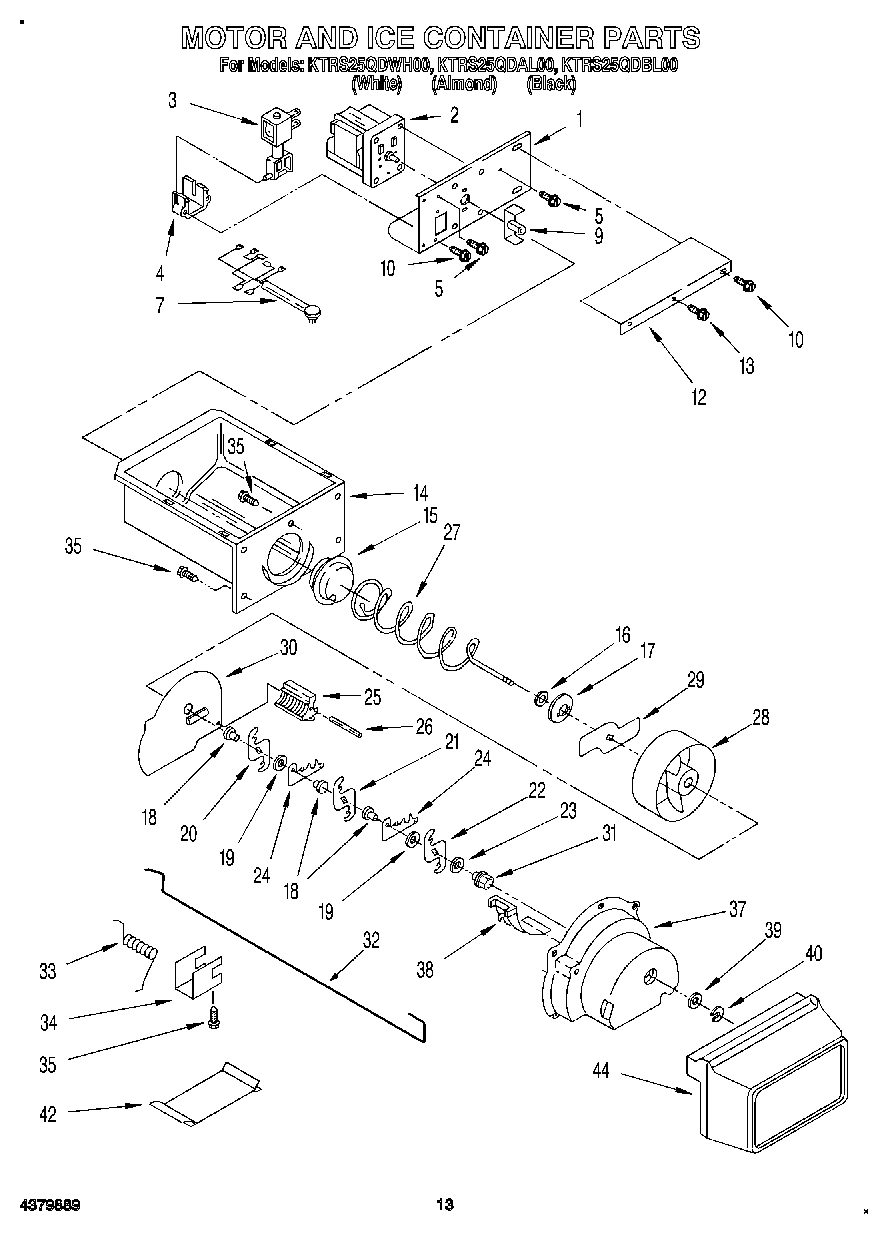

08 - MOTOR AND ICE CONTAINER

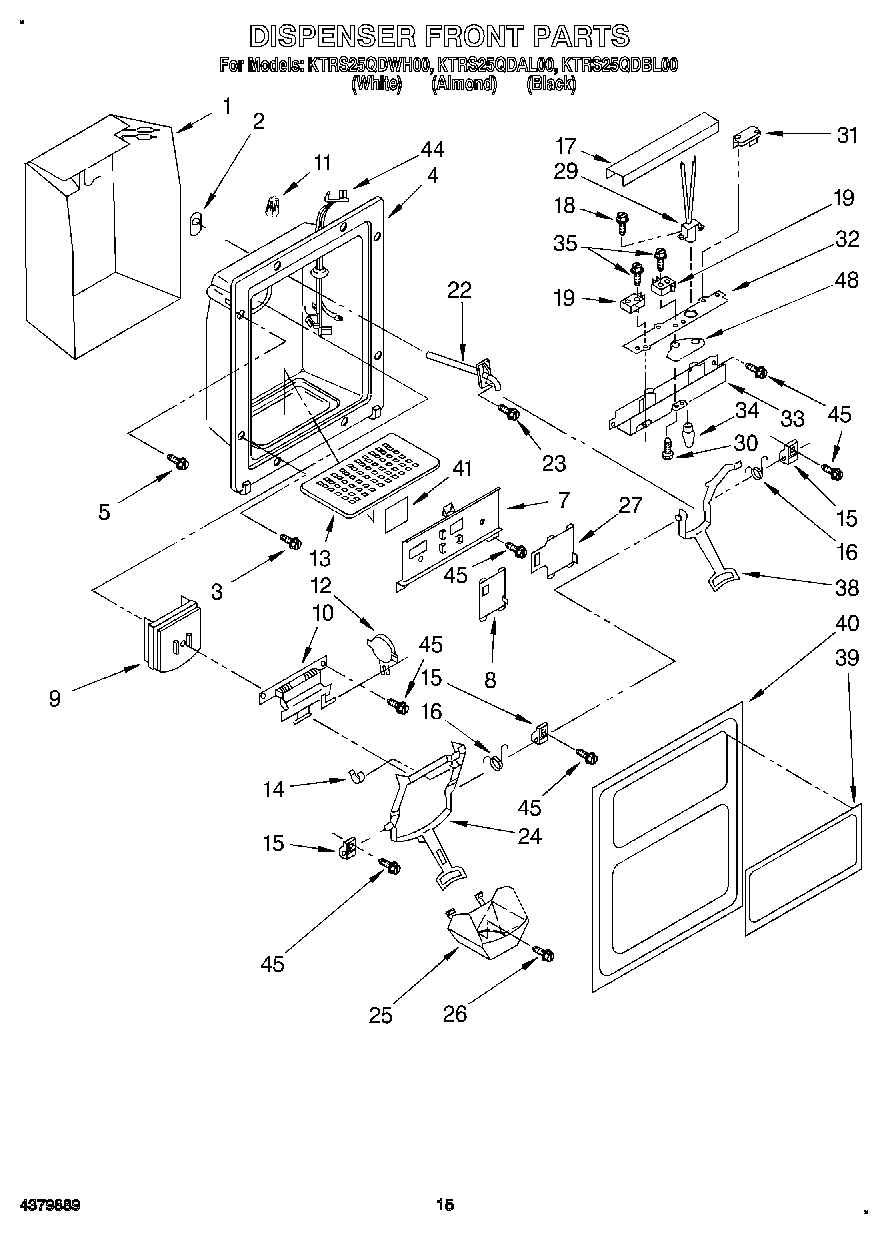

09 - DISPENSER FRONT

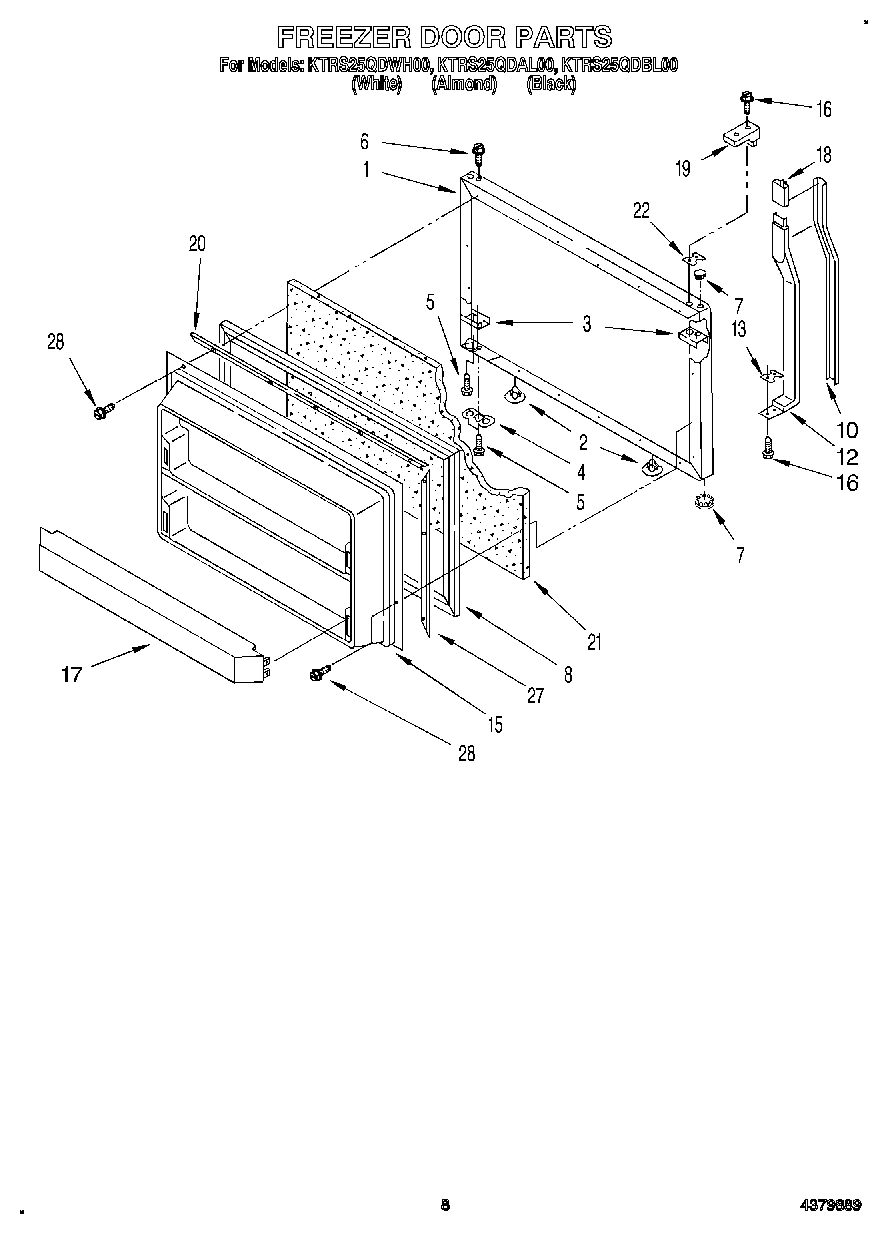

05 - FREEZER DOOR

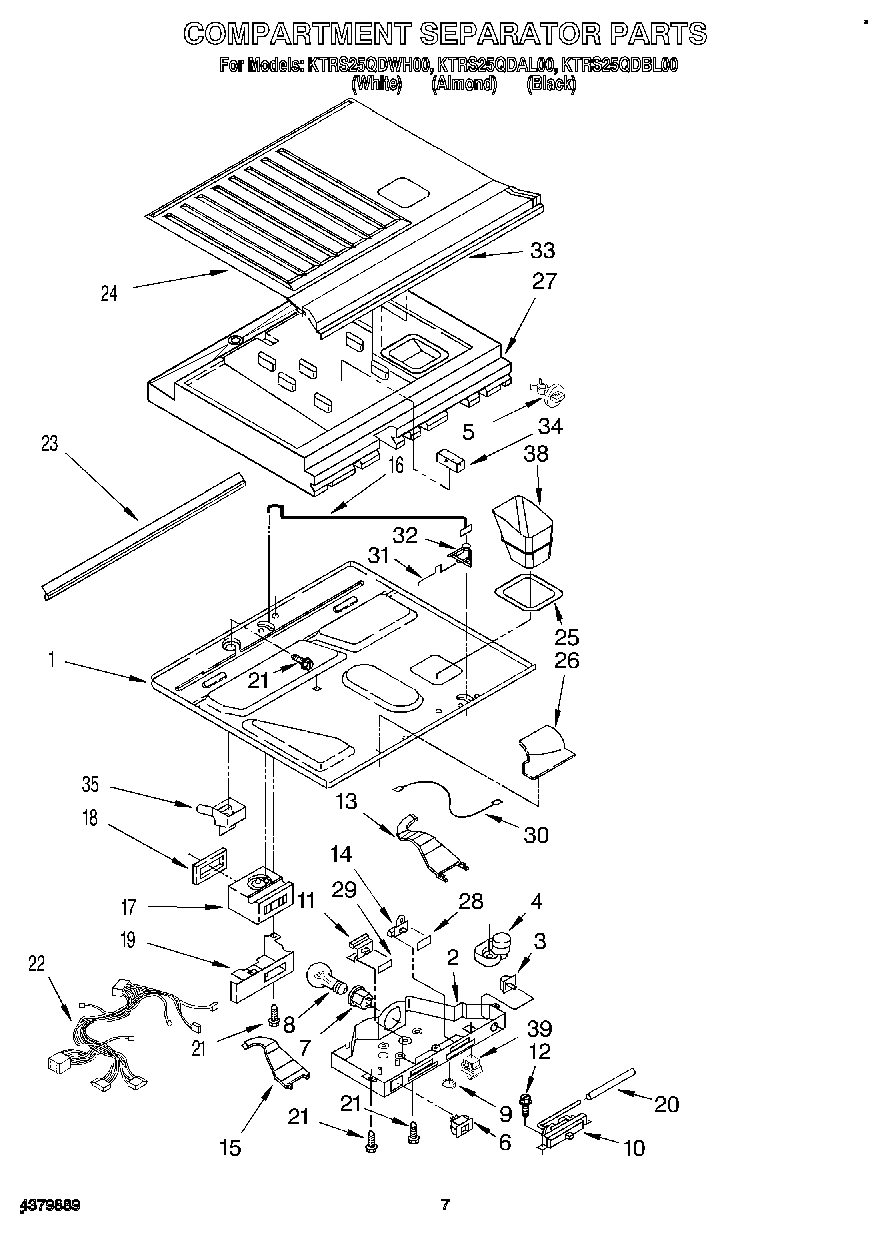

04 - COMPARTMENT SEPARATOR

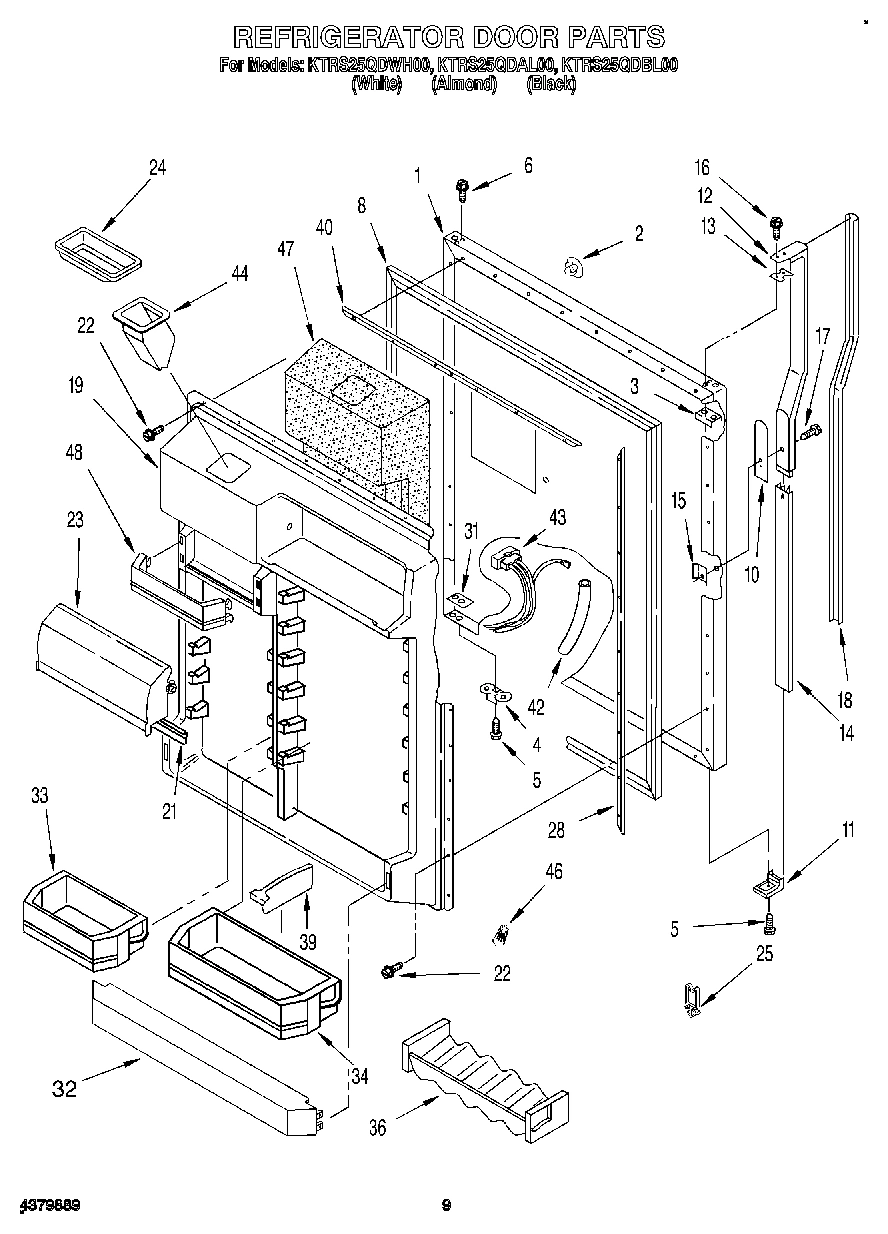

06 - REFRIGERATOR DOOR
Common parts from model Whirlpool KTRS25QDWH00
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2169005 WPL LIT2169005 Contact Us For Availability
WPL LIT2173458 WPL LIT2173458 Contact Us For Availability
WPL LIT2176905 WPL LIT2176905 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI112997A Contact Us For Availability
1
Bracket, Motor WPL 2160608 Contact Us For Availability
1
Heater, Dispenser WPL 2149097 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Whi WPL 2159164 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Alm WPL 2159167 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Bla WPL 2161856 Contact Us For Availability
1
Bottom, Compartment Separator WPL 2172831 Contact Us For Availability
1
Panel, Refrigerator Door (Includes Insulation WPL 2180093 Contact Us For Availability
1
Panel, Refrigerator Door (Includes Insulation WPL 2180094 Contact Us For Availability
1
Panel, Refrigerator Door (Includes Insulation WPL 2180095 Contact Us For Availability
2
Wiring, Fan Motor WPL 1127626 Contact Us For Availability
2
Roller, Front WPL 2174748 Contact Us For Availability
2
Grommet WPL 987048 Contact Us For Availability
2
Hole Plug (2) (Black) WPL 1110485 Contact Us For Availability
2
Hole Plug (2) (White) WPL 534927 Contact Us For Availability
2
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
2
Box, Control WPL 2174828 Contact Us For Availability
2
Hole Plug (Almond) WPL 1122654 Contact Us For Availability
3
Screw WPL 489432 Contact Us For Availability
4
Housing, Dispenser (Black) WPL 1107943 Contact Us For Availability
4
Housing, Dispenser (White) WPL 1124715 Contact Us For Availability
4
Housing, Dispenser (Almond) WPL 1125969 Contact Us For Availability
4
Bracket, Door Stop WPL 944035 Contact Us For Availability
4
Bracket, Door Stop WPL 2155332 Contact Us For Availability
5
Clip, Thermostat Tube Retention WPL 2172812 Contact Us For Availability
6
Switch, Toggle WPL 1125964 Contact Us For Availability
7
Deck Rail Cover WPL 2174745 Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2160610 Contact Us For Availability
7
Frame, Slides (Black) WPL 2152716 Contact Us For Availability
7
Frame, Slides (White) WPL 2152717 Contact Us For Availability
7
Frame, Slides (Almond) WPL 2152718 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
8
Spring WPL 983659 Contact Us For Availability
8
Slide, Cube/Crush Switch (Black) WPL 2152719 Contact Us For Availability
8
Slide, Cube/Crush Switch (White) WPL 2152720 Contact Us For Availability
8
Slide, Cube/Crush Switch (Almond) WPL 2152721 Contact Us For Availability
8
Door Gasket Magnetic WPL 2177229 Contact Us For Availability
8
Door Gasket, Magnetic WPL 2177233 Contact Us For Availability
9
Door, Ice WPL 2147168 Contact Us For Availability
9
Control, Front Cover WPL 2179546 Contact Us For Availability
10
Door Mechanism Assembly (Includes Item 9) WPL 2147167 Contact Us For Availability
10
Heater, Mullion WPL 2154069 Contact Us For Availability
10
Insert, Handle (White) WPL 2161568 Contact Us For Availability
10
Insert, Handle (Almond) WPL 2161569 Contact Us For Availability
10
Insert, Handle (Black) WPL 2161853 Contact Us For Availability
10
Thermostat WPL 2159753 Contact Us For Availability
10
Spacer Door WPL 1107650 Contact Us For Availability
11
Clip, Rail (4) WPL 2149060 Contact Us For Availability
11
Wire Connector WPL 2160754 Contact Us For Availability
11
Slide, Thermostat WPL 1125513 Contact Us For Availability
11
End Cap Bottom WPL 1107236 Contact Us For Availability
12
Spacer (3) WPL 2149077 Contact Us For Availability
12
Cover, Motor WPL 2160609 Contact Us For Availability
12
Handle, Center WPL 2161509 Contact Us For Availability
12
Handle, Center WPL 2161508 Contact Us For Availability
13
Grille, Overflow (For Black Model) WPL 983900 Contact Us For Availability
13
Tube, Water Inlet WPL 2174755 Contact Us For Availability
13
Center Rail (Black) WPL 2173821 Contact Us For Availability
13
Center Rail (White) WPL 2174743 Contact Us For Availability
13
Grille, Overflow (For White Model) WPL 1126120 Contact Us For Availability
13
Grille, Overflow (For Almond Model) WPL 1126121 Contact Us For Availability
13
Spacer WPL 1107192 Contact Us For Availability
13
Light, Bar Left WPL 2160640 Contact Us For Availability
13
Shim, Handle WPL 2151813 Contact Us For Availability
14
Ice Container WPL 2160601 Contact Us For Availability
14
Clip, Bearing (2) WPL 987917 Contact Us For Availability
14
Slide, Air Control WPL 1125578 Contact Us For Availability
14
Retainer, Insert WPL 1107209 Contact Us For Availability
15
Relay (See Overload) WPL ARI112999A Contact Us For Availability
15
Clip WPL 652604 Contact Us For Availability
15
Bearing, Lever (3) WPL 983697 Contact Us For Availability
15
Interior Door Panel WPL 1125739 Contact Us For Availability
15
Light, Bar Right WPL 2160641 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Tube, Suction WPL 2162473 Contact Us For Availability
16
Air Deflector WPL 2160751 Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
16
Rod, Connecting WPL 1126158 Contact Us For Availability
17
Running Capacitor WPL 2169137 Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
17
Shield, Wiring WPL 2147165 Contact Us For Availability
17
Air Diffuser Assembly WPL 2157252 Contact Us For Availability
18
Shim, Hinge Top WPL 1123515 Contact Us For Availability
18
Drain Fitting WPL 2172811 Contact Us For Availability
18
Retainer, Insert WPL 2161570 Contact Us For Availability
18
Gasket, Air Diffuser WPL 2157255 Contact Us For Availability
18
Insert, Handle (White) WPL 2161513 Contact Us For Availability
18
Insert, Handle (Almond) WPL 2161514 Contact Us For Availability
18
Insert, Handle (Black) WPL 2161851 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
19
Hinge Cover (Almond) WPL 2160404 Contact Us For Availability
19
End Cap WPL 1125788 Contact Us For Availability
19
Cover, Air Diffuser WPL 1108176 Contact Us For Availability
19
Interior Door Panel WPL 2177357 Contact Us For Availability
21
Kit, Foam Slab (Required When Replacing Exter WPL 876029 Contact Us For Availability
21
Gasket, Door Utility WPL 2183037 Contact Us For Availability
21
Hinge, Center WPL 2151453 Contact Us For Availability
22
Evaporator WPL 2174780 Contact Us For Availability
22
Shim, Hinge Center WPL 836155 Contact Us For Availability
22
Spacer, Handle WPL 1125789 Contact Us For Availability
22
Wiring Assembly, Control Box WPL 2160637 Contact Us For Availability
23
Gasket, Bottom Separator WPL 2159734 Contact Us For Availability
23
Compartment Door WPL 2183047 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
24
Lever, Ice Dispenser (White) WPL 1124719 Contact Us For Availability
24
Lever, Ice Dispenser (Almond) WPL 1125973 Contact Us For Availability
24
Lever, Ice Dispenser (Black) WPL 1127420 Contact Us For Availability
24
Separator, Compartment (Rear) WPL 2168577 Contact Us For Availability
24
Butter, Tray WPL 1125936 Contact Us For Availability
25
Guide, Ice (White) WPL 1124730 Contact Us For Availability
25
Tray, Evaporator WPL 1110674 Contact Us For Availability
25
Guide, Ice (Black) WPL 1119035 Contact Us For Availability
25
Guide, Ice (Almond) WPL 1126026 Contact Us For Availability
25
Gasket, Ice Chute WPL 2160616 Contact Us For Availability
25
Clip WPL 2168567 Contact Us For Availability
26
Heat Shield WPL 1116511 Contact Us For Availability
26
Hinge Butt, Bottom WPL 2172813 Contact Us For Availability
26
Screw (For White And Almond Models) WPL 488892 Contact Us For Availability
26
Screw (For Black Model) WPL 489197 Contact Us For Availability
26
Insulation, Filler WPL 1108196 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
27
Conveyor WPL 2160602 Contact Us For Availability
27
Slide, Light Switch (Black) WPL 2152724 Contact Us For Availability
27
Slide, Light Switch (White) WPL 2152726 Contact Us For Availability
27
Slide, Light Switch (Almond) WPL 2152727 Contact Us For Availability
27
Retainer, Gasket WPL 1121120 Contact Us For Availability
27
Insulation, Compartment Separator WPL 2160627 Contact Us For Availability
28
Window, Air Control WPL 1125579 Contact Us For Availability
28
Retainer, Gasket WPL 1123245 Contact Us For Availability
29
Spacer, Bottom WPL 2172743 Contact Us For Availability
29
Support, Heater WPL 851358 Contact Us For Availability
29
Lamp Holder WPL 2147131 Contact Us For Availability
29
Window, Thermostat WPL 1125580 Contact Us For Availability
30
Screw WPL 488361 Contact Us For Availability
30
Wire Assembly WPL 2160799 Contact Us For Availability
31
Short Rod WPL 2160752 Contact Us For Availability
31
Tap, Plate WPL 2155335 Contact Us For Availability
32
Fan, Motor Bracket WPL 548695 Contact Us For Availability
32
Hole Plug (Almond) WPL 2151653 Contact Us For Availability
32
Control Arm WPL 2160775 Contact Us For Availability
32
Insulator, Control Bracket WPL 2147164 Contact Us For Availability
32
Trivet, Door WPL 2171357 Contact Us For Availability
32
Pivot Arm WPL 1125581 Contact Us For Availability
33
Heater, Defrost WPL 2162021 Contact Us For Availability
33
Corner Filler, Grille (Black) WPL 1118078 Contact Us For Availability
33
Corner Filler, Grille (White) WPL 1125665 Contact Us For Availability
33
Corner Filler, Grille (Almond) WPL 1125670 Contact Us For Availability
33
Bracket, Control WPL 2147163 Contact Us For Availability
33
Separator, Compartment (Top) (Front) WPL 1115189 Contact Us For Availability
33
Door Bin (Narrow) WPL 2171067 Contact Us For Availability
34
Eyelet, Roller WPL 2174478 Contact Us For Availability
34
Filler, Wrap Corner (White) WPL 1118058 Contact Us For Availability
34
Filler, Wrap Corner (Almond) WPL 1118059 Contact Us For Availability
34
Filler, Wrap Corner (Black) WPL 2162679 Contact Us For Availability
34
Rubber Strip WPL 2168582 Contact Us For Availability
34
Door Bin (Wide) WPL 2171063 Contact Us For Availability
35
Grille (Black) WPL 2160687 Contact Us For Availability
35
Grille (Almond) WPL 2160758 Contact Us For Availability
35
Grille (White) WPL 2168620 Contact Us For Availability
35
Screw WPL 489360 Contact Us For Availability
35
Cup, Drain WPL 937065 Contact Us For Availability
36
Hole Plug WPL 1129062 Contact Us For Availability
36
Holder, Beverage WPL 1125981 Contact Us For Availability
38
Lever, Water Dis WPL 2177148 Contact Us For Availability
38
WPL 2177151 WPL 2177151 Contact Us For Availability
38
WPL 2177152 WPL 2177152 Contact Us For Availability
38
Ice Chute, (Seperator) WPL 2160634 Contact Us For Availability
39
WPL 2174336 WPL 2174336 Contact Us For Availability
39
WPL 2174337 WPL 2174337 Contact Us For Availability
39
WPL 2174338 WPL 2174338 Contact Us For Availability
39
Load Lock WPL 2171283 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
40
WPL 2179384 WPL 2179384 Contact Us For Availability
40
WPL 2179385 WPL 2179385 Contact Us For Availability
40
WPL 2179386 WPL 2179386 Contact Us For Availability
40
Retainer, Gasket WPL 1121119 Contact Us For Availability
41
Air Baffle WPL 2162457 Contact Us For Availability
41
WPL 2147172 WPL 2147172 Contact Us For Availability
42
Housing Filler WPL 2152700 Contact Us For Availability
42
Tube-Door Wiring WPL 2160673 Contact Us For Availability
43
Insert WPL 1129177 Contact Us For Availability
43
Plug, Crossover WPL 2174771 Contact Us For Availability
44
Bottom Plate WPL 2157364 Contact Us For Availability
44
Clip (2) WPL 934011 Contact Us For Availability
44
Front Cover, Ice Container WPL 2170853 Contact Us For Availability
44
WPL 2147166 WPL 2147166 Contact Us For Availability
44
Ice Chute WPL 2160684 Contact Us For Availability
45
Wire Assembly WPL 2176859 Contact Us For Availability
46
Connector-Wire WPL 2160674 Contact Us For Availability
47
Insulation, Dispenser WPL 2160683 Contact Us For Availability
48
WPL 625834 WPL 625834 Contact Us For Availability
48
Cover, Unit WPL 2157366 Contact Us For Availability
48
Trivet, Door WPL 2171372 Contact Us For Availability
51
Tube, Drain WPL 2183033 Contact Us For Availability
54
Wedge, Air Baffle WPL 2174787 Contact Us For Availability
57
Cover, Unit Bottom WPL 2157369 Contact Us For Availability
60
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
60
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
61
Tap-Plate, Bottom Hinge WPL 2157315 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
WPL 799344 WPL 799344 Contact Us For Availability
100
Door Removal Instructions WPL 2168575 Contact Us For Availability
100
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
100
WPL 799833 WPL 799833 Contact Us For Availability
100
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
