Model Whirlpool KTRS25QDAL01 – Common Parts & Diagrams

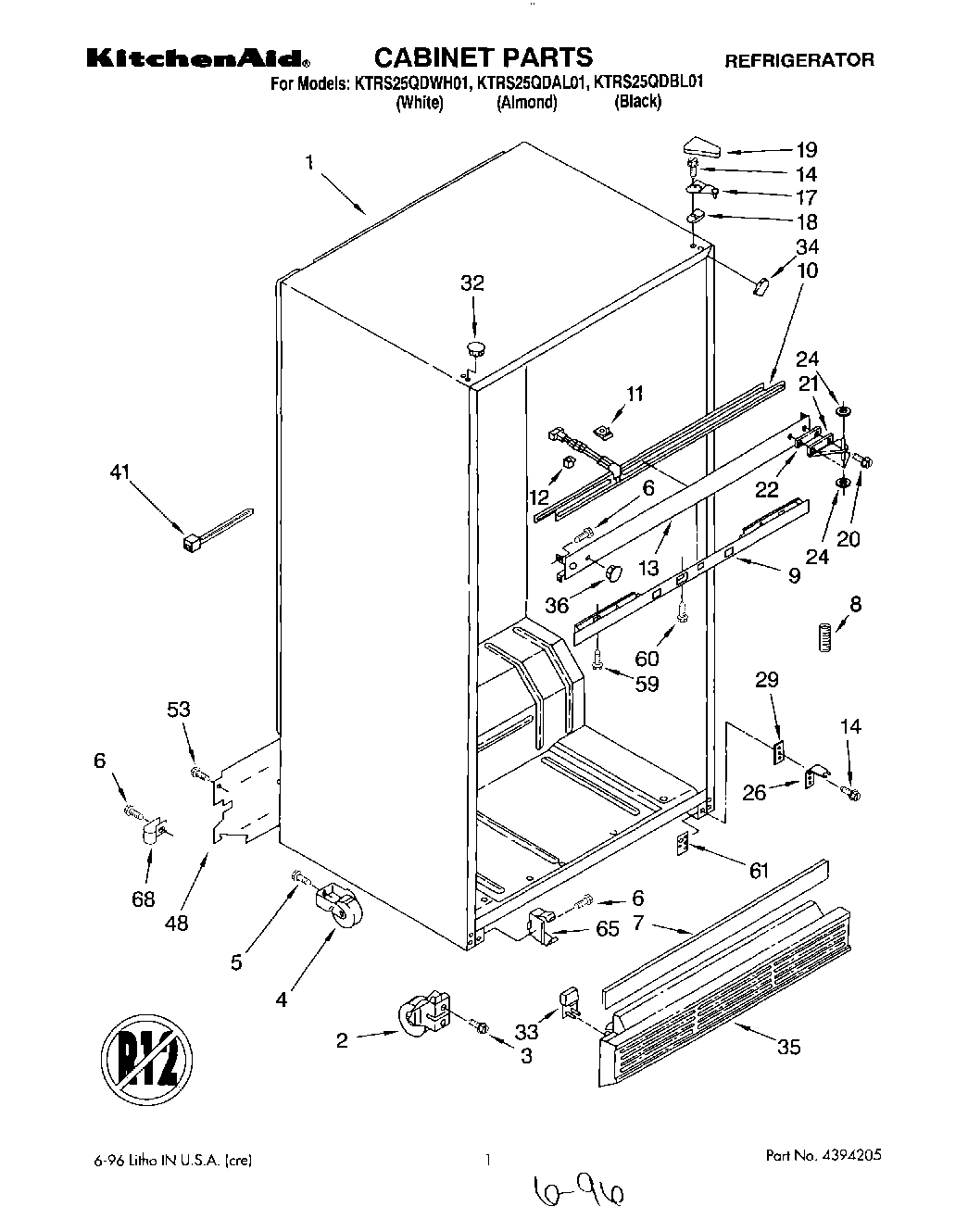

01 - CABINET

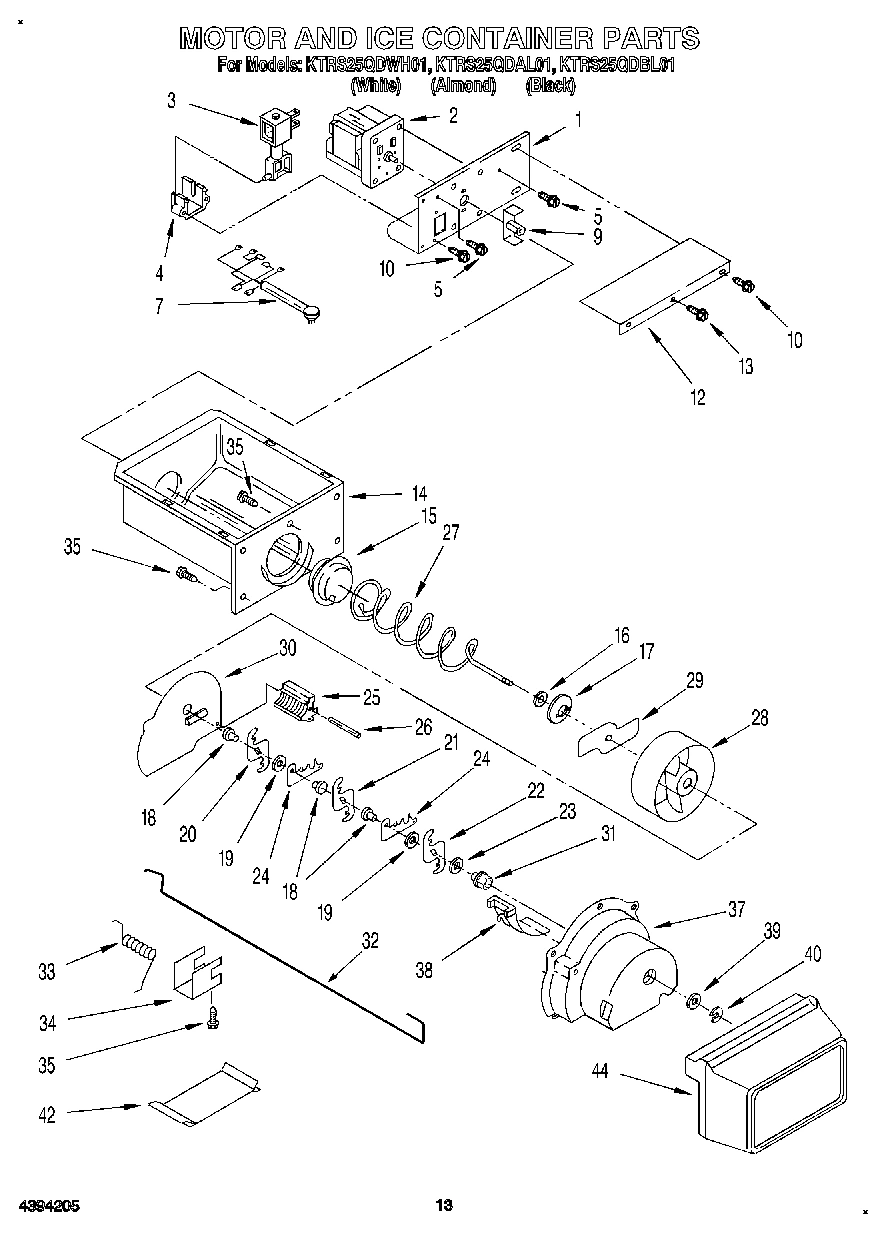

08 - MOTOR AND ICE CONTAINER

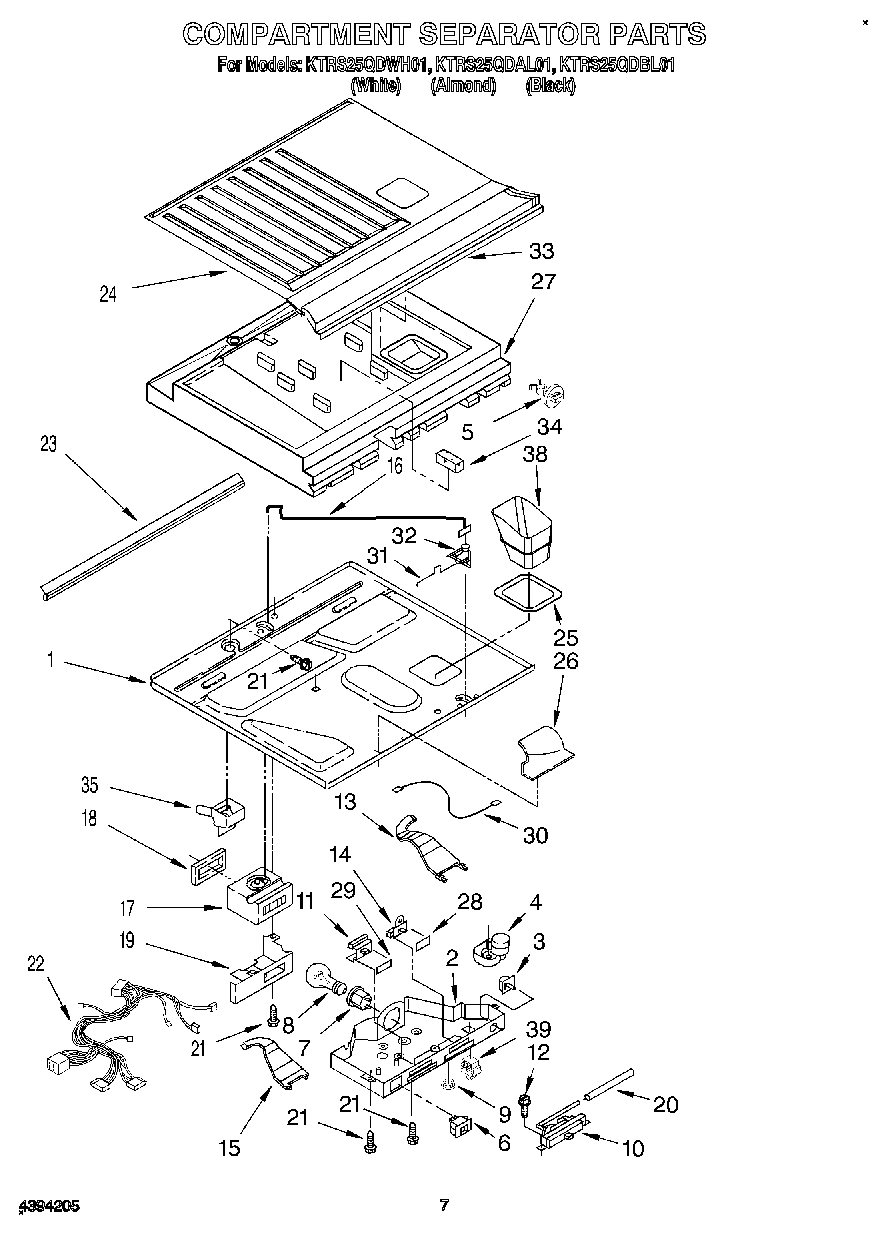

04 - COMPARTMENT SEPARATOR

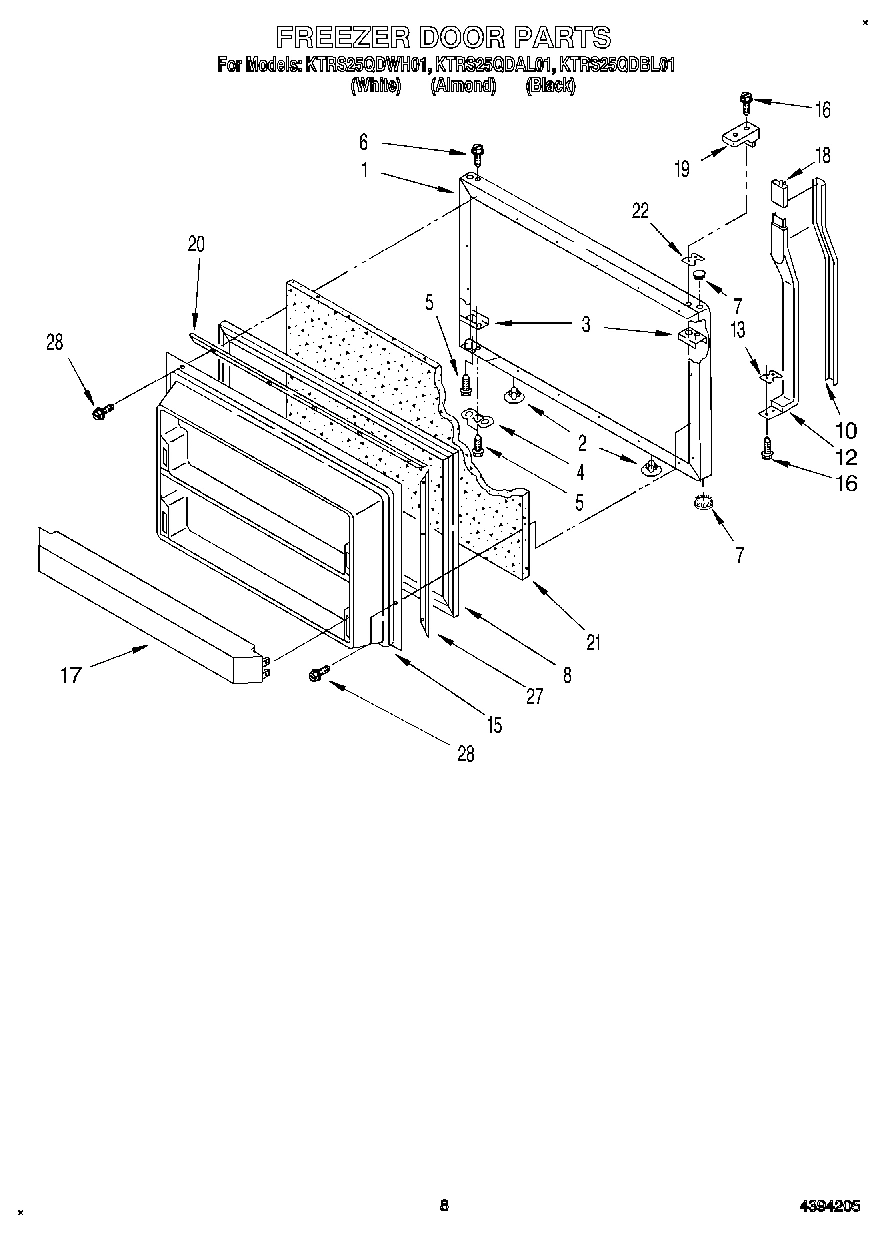

05 - FREEZER DOOR

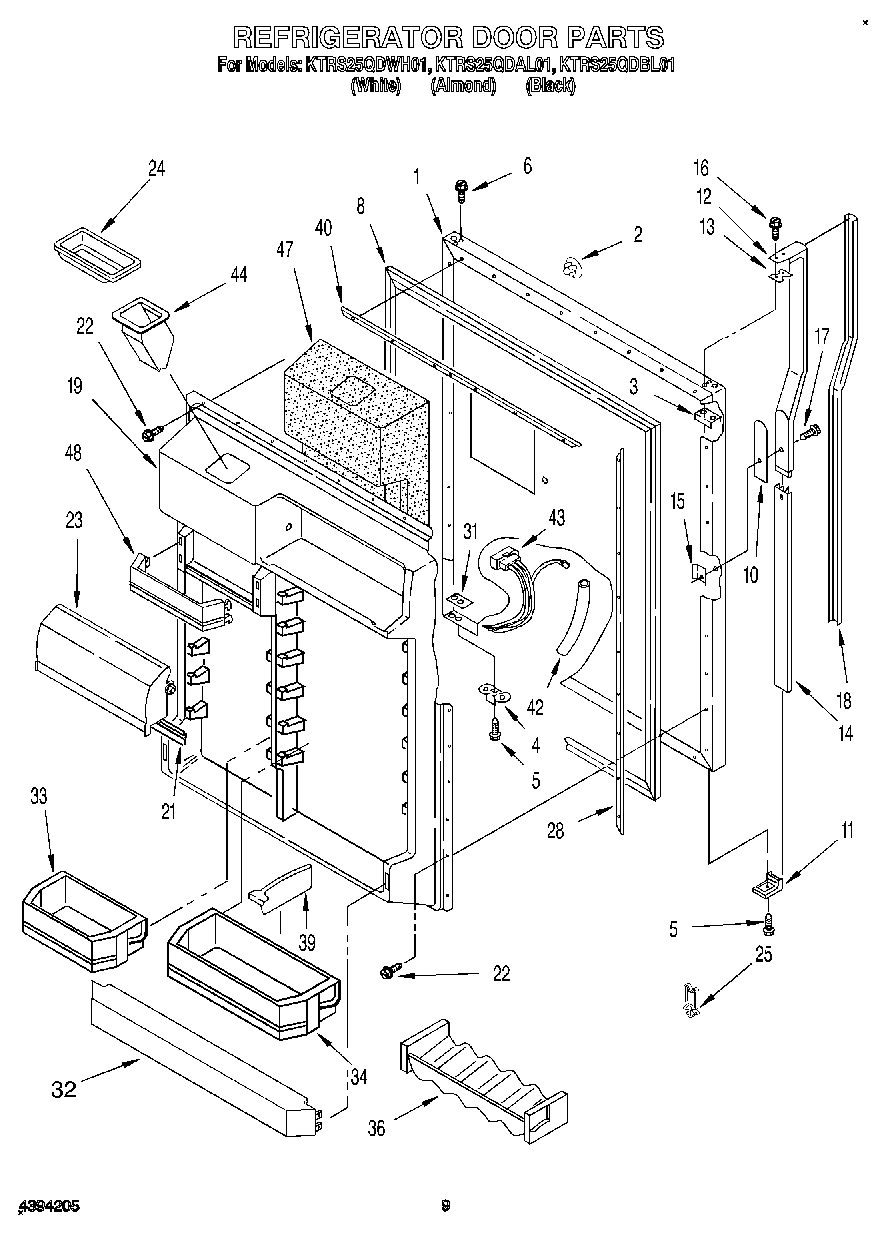

06 - REFRIGERATOR DOOR

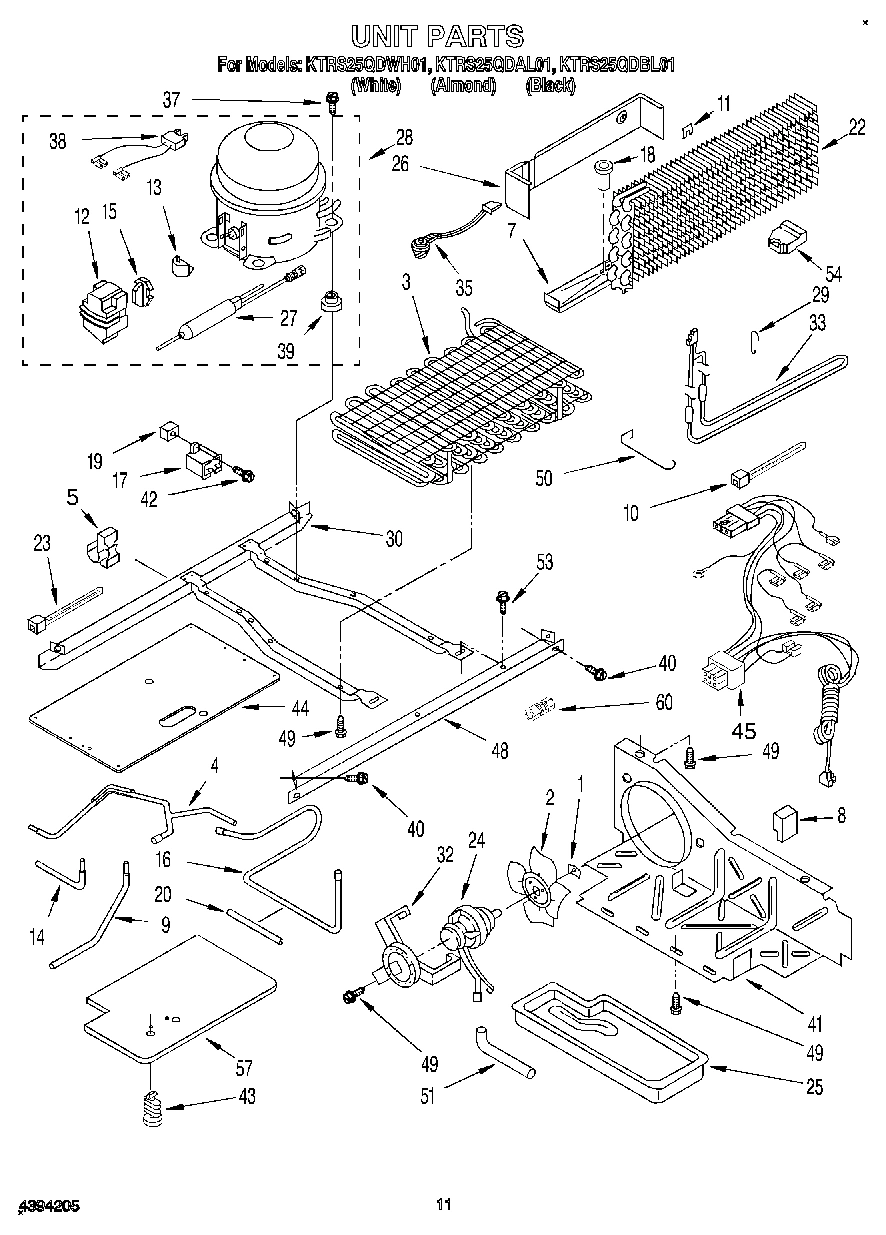

07 - UNIT

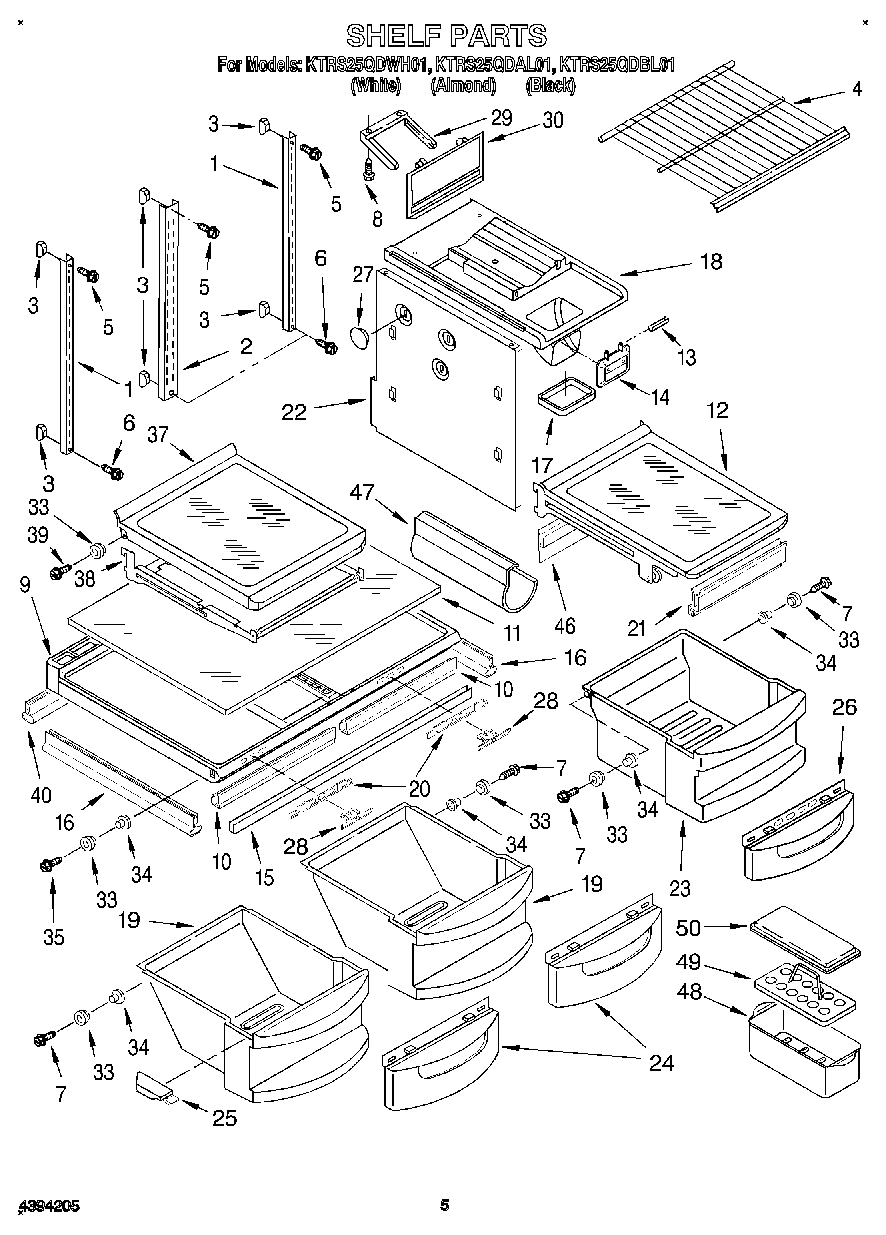

03 - SHELF

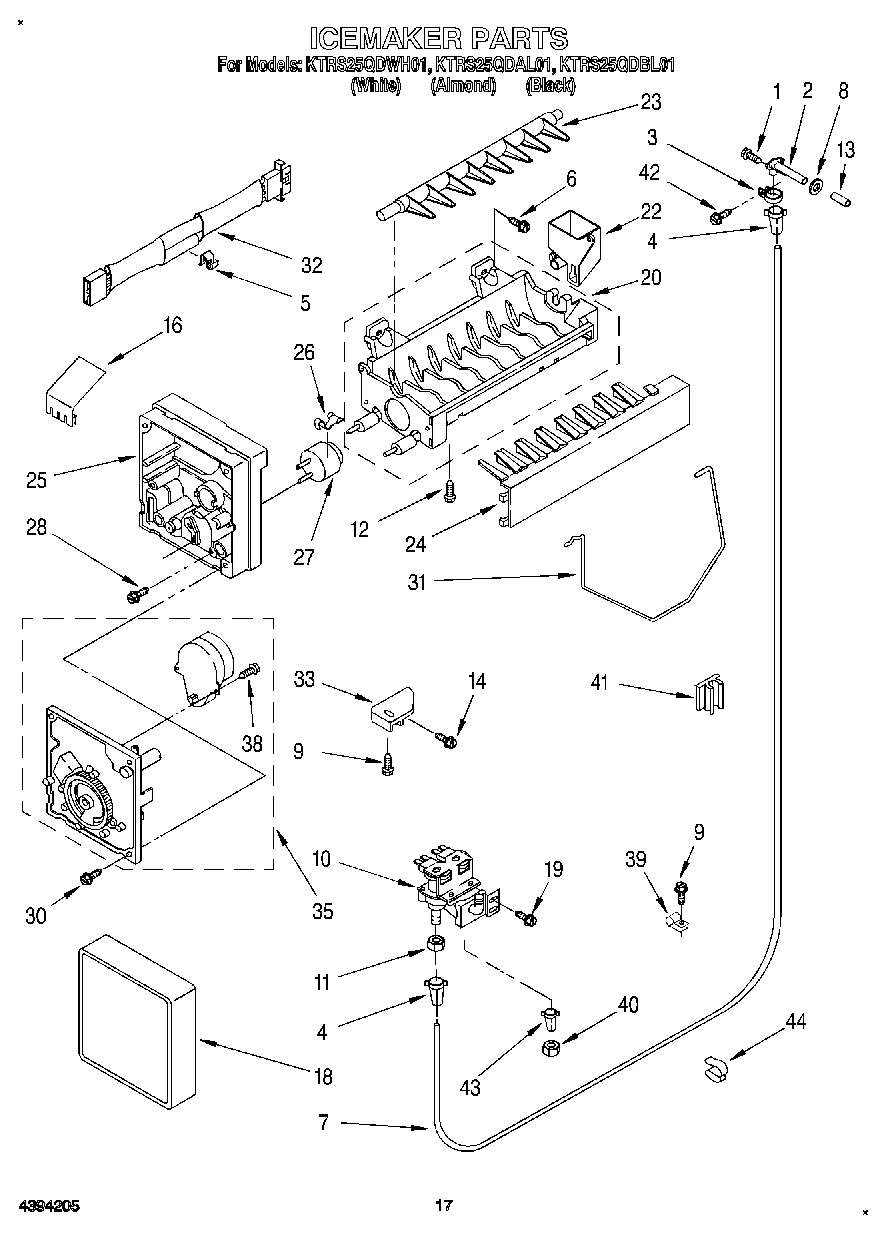

10 - ICEMAKER, LIT/OPTIONAL

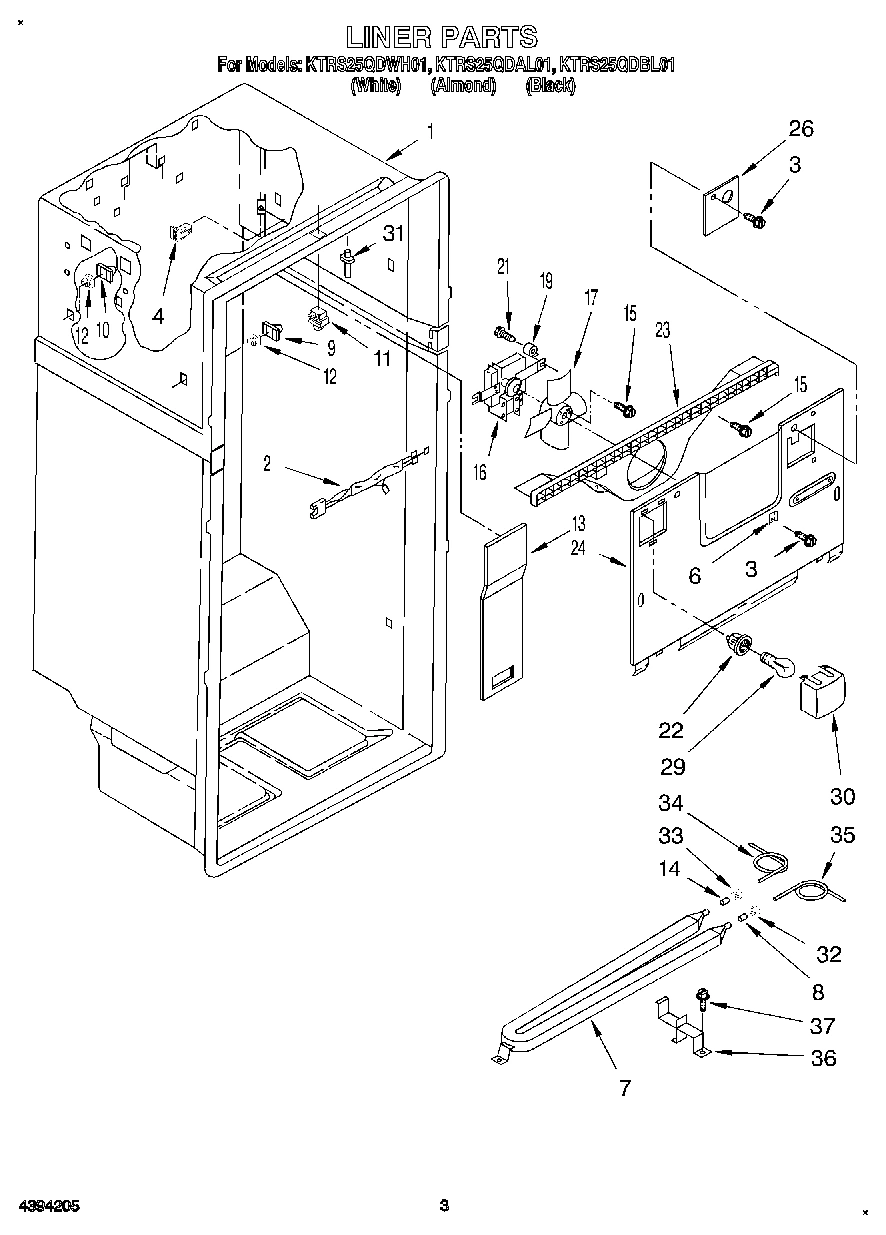

02 - LINER

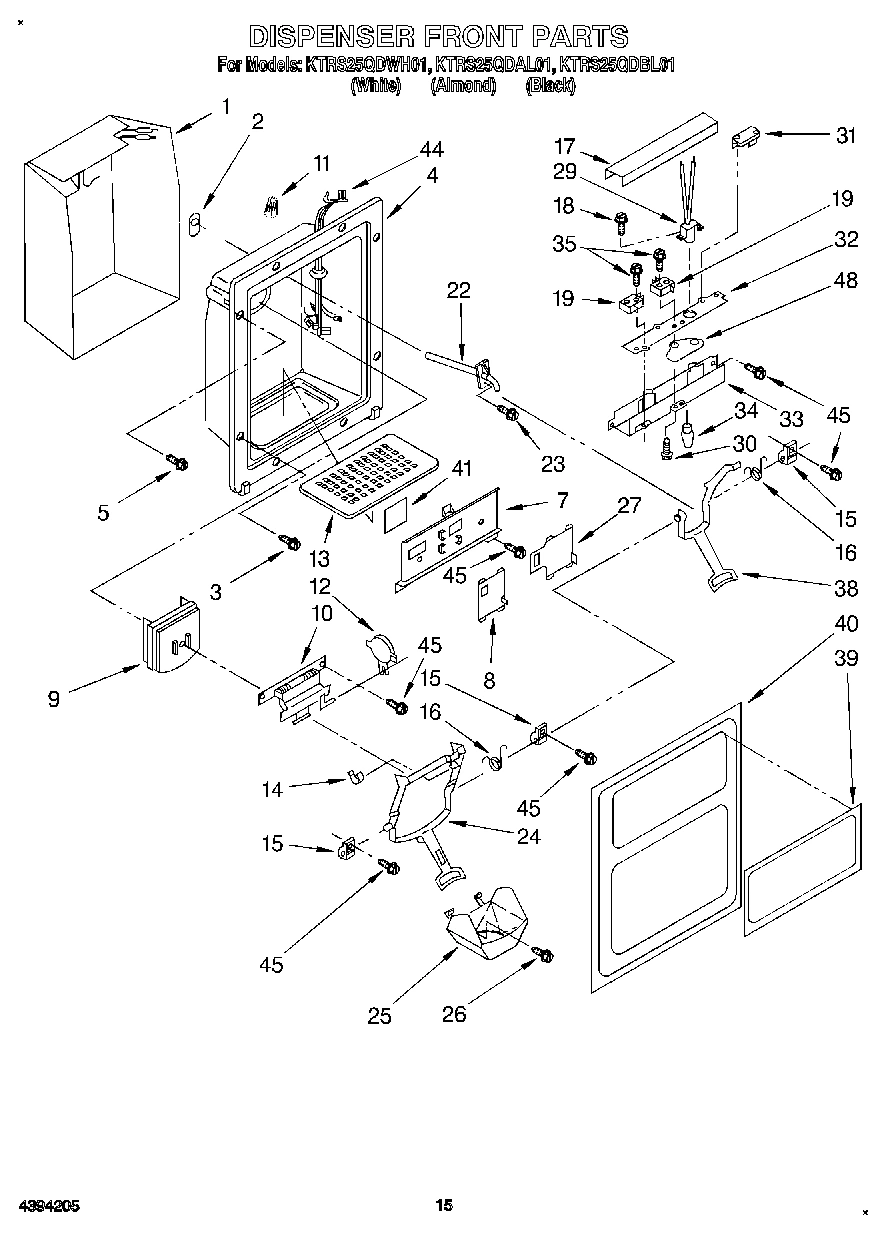

09 - DISPENSER FRONT
Common parts from model Whirlpool KTRS25QDAL01
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2173458 WPL LIT2173458 Contact Us For Availability
WPL LIT2173946 WPL LIT2173946 Contact Us For Availability
WPL LIT2176905 WPL LIT2176905 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Whi WPL 2159164 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Alm WPL 2159167 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Bla WPL 2161856 Contact Us For Availability
1
Panel, Refrigerator Door (Includes Insulation WPL 2180093 Contact Us For Availability
1
Panel, Refrigerator Door (Includes Insulation WPL 2180094 Contact Us For Availability
1
Panel, Refrigerator Door (Includes Insulation WPL 2180095 Contact Us For Availability
1
Shelf, Ladder (2) WPL 1118102 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI112989A Contact Us For Availability
1
Heater, Dispenser WPL 2149097 Contact Us For Availability
2
Wiring, Fan Motor WPL 1127626 Contact Us For Availability
2
Hole Plug (2) (Black) WPL 1110485 Contact Us For Availability
2
Hole Plug (2) (White) WPL 534927 Contact Us For Availability
2
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
2
Hole Plug (Almond) WPL 1122654 Contact Us For Availability
2
Fan, Blade WPL 851732 Contact Us For Availability
2
Shelf Ladder, Center WPL 1118101 Contact Us For Availability
2
Grommet WPL 987048 Contact Us For Availability
3
Condenser Assembly WPL 2164504 Contact Us For Availability
4
Bracket, Door Stop WPL 944035 Contact Us For Availability
4
Bracket, Door Stop WPL 2155332 Contact Us For Availability
4
Tube, Discharge WPL 2162475 Contact Us For Availability
4
Shelf, Freezer (Top) WPL 2160696 Contact Us For Availability
4
Grommet (2) WPL 2172803 Contact Us For Availability
4
Housing, Dispenser (Black) WPL 1107943 Contact Us For Availability
4
Housing, Dispenser (White) WPL 1124715 Contact Us For Availability
4
Housing, Dispenser (Almond) WPL 1125969 Contact Us For Availability
5
Clip, Wire WPL 2155658 Contact Us For Availability
5
Screw, 8-32 x 1-1/4 WPL 489345 Contact Us For Availability
6
Screw WPL 489414 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
7
Drain Pan WPL 1114597 Contact Us For Availability
7
Reservoir-Water WPL 2160600 Contact Us For Availability
7
Frame, Slides (Black) WPL 2152716 Contact Us For Availability
7
Frame, Slides (White) WPL 2152717 Contact Us For Availability
7
Frame, Slides (Almond) WPL 2152718 Contact Us For Availability
8
Door Gasket, Magnetic WPL 1121202 Contact Us For Availability
8
Door Gasket, Magnetic WPL 1121176 Contact Us For Availability
8
Insert, Air Baffle WPL 2176796 Contact Us For Availability
8
Slide, Cube/Crush Switch (Black) WPL 2152719 Contact Us For Availability
8
Slide, Cube/Crush Switch (White) WPL 2152720 Contact Us For Availability
8
Slide, Cube/Crush Switch (Almond) WPL 2152721 Contact Us For Availability
9
Door, Ice WPL 2147168 Contact Us For Availability
9
Tube, Condenser To Heat Loop WPL 2154032 Contact Us For Availability
9
Pan Cover & Roller Assembly WPL 2174132 Contact Us For Availability
9
Stud (2) WPL 946356 Contact Us For Availability
10
Door Mechanism Assembly (Includes Item 9) WPL 2147167 Contact Us For Availability
10
Insert, Handle (White) WPL 2161568 Contact Us For Availability
10
Insert, Handle (Almond) WPL 2161569 Contact Us For Availability
10
Insert, Handle (Black) WPL 2161853 Contact Us For Availability
10
Spacer Door WPL 1107650 Contact Us For Availability
11
End Cap Bottom WPL 1107236 Contact Us For Availability
11
Glass, Crisper Cover WPL 2174145 Contact Us For Availability
11
Wire Connector WPL 2160754 Contact Us For Availability
12
Handle, Center WPL 2161509 Contact Us For Availability
12
Handle, Center WPL 2161508 Contact Us For Availability
12
Pan Shelf & Roller Assembly WPL 2174386 Contact Us For Availability
12
Support Stud (4) WPL 946355 Contact Us For Availability
13
Grille, Overflow (For Black Model) WPL 983900 Contact Us For Availability
13
Tube, Water Inlet WPL 2174755 Contact Us For Availability
13
Spacer WPL 1107192 Contact Us For Availability
13
Shim, Handle WPL 2151813 Contact Us For Availability
13
Roll Pin WPL 489395 Contact Us For Availability
13
Cover, Air Duct WPL 2168581 Contact Us For Availability
13
Grille, Overflow (For White Model) WPL 1126120 Contact Us For Availability
13
Grille, Overflow (For Almond Model) WPL 1126121 Contact Us For Availability
14
Retainer, Insert WPL 1107209 Contact Us For Availability
14
Door-Platform WPL 2160613 Contact Us For Availability
14
Insert WPL 1129177 Contact Us For Availability
14
Clip, Bearing (2) WPL 987917 Contact Us For Availability
15
Interior Door Panel WPL 2183180 Contact Us For Availability
15
Relay (See Overload) WPL ARI112990A Contact Us For Availability
15
Crisper Support WPL 2179449 Contact Us For Availability
15
Bearing, Lever (3) WPL 983697 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Tube, Suction WPL 2162473 Contact Us For Availability
16
Gasket, Pan Cover (Side) WPL 2179252 Contact Us For Availability
16
Air Deflector WPL 2160751 Contact Us For Availability
17
Running Capacitor WPL 2169137 Contact Us For Availability
17
Gasket-Platform WPL 2160615 Contact Us For Availability
17
Shield, Wiring WPL 2147165 Contact Us For Availability
18
Shim, Hinge Top WPL 1123515 Contact Us For Availability
18
Retainer, Insert WPL 2161570 Contact Us For Availability
18
Insert, Handle (White) WPL 2161513 Contact Us For Availability
18
Insert, Handle (Almond) WPL 2161514 Contact Us For Availability
18
Insert, Handle (Black) WPL 2161851 Contact Us For Availability
18
Drain Fitting WPL 2172811 Contact Us For Availability
18
Platform-Ice Container WPL 2160612 Contact Us For Availability
19
End Cap WPL 1125788 Contact Us For Availability
19
Interior Door Panel WPL 2177357 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
19
Pan, Crisper (Includes Rollers) WPL 2174072 Contact Us For Availability
19
Grommet (2) WPL 531933 Contact Us For Availability
20
Slide, Humidity WPL 2174257 Contact Us For Availability
21
Gasket, Door Utility WPL 2183037 Contact Us For Availability
21
Gasket-Front WPL 2174400 Contact Us For Availability
21
Screw WPL 489168 Contact Us For Availability
22
Wiring Assembly, Control Box WPL 2160637 Contact Us For Availability
22
Spacer, Handle WPL 1125789 Contact Us For Availability
22
Evaporator WPL 2174780 Contact Us For Availability
22
Support Wall I/M WPL 2160620 Contact Us For Availability
23
Gasket, Bottom Separator WPL 2159734 Contact Us For Availability
23
Compartment Door WPL 2183043 Contact Us For Availability
23
Meat Pan WPL 2174087 Contact Us For Availability
23
Scroll, Fan WPL 1114593 Contact Us For Availability
24
Separator, Compartment (Rear) WPL 2168577 Contact Us For Availability
24
Butter, Tray WPL 1125936 Contact Us For Availability
24
Window, Crisper Pan WPL 2174073 Contact Us For Availability
24
Evaporator Cover WPL 2160649 Contact Us For Availability
24
Lever, Ice Dispenser (White) WPL 1124719 Contact Us For Availability
24
Lever, Ice Dispenser (Almond) WPL 1125973 Contact Us For Availability
24
Lever, Ice Dispenser (Black) WPL 1127420 Contact Us For Availability
25
Guide, Ice (White) WPL 1124730 Contact Us For Availability
25
Gasket, Ice Chute WPL 2160616 Contact Us For Availability
25
Clip WPL 2168567 Contact Us For Availability
25
Tray, Evaporator WPL 1110674 Contact Us For Availability
25
Cap, Crisper Pan (Left Side) WPL 2174258 Contact Us For Availability
25
Cap, Crisper Pan (Right Side) WPL 2174259 Contact Us For Availability
25
Guide, Ice (Black) WPL 1119035 Contact Us For Availability
25
Guide, Ice (Almond) WPL 1126026 Contact Us For Availability
26
Insulation, Filler WPL 1108196 Contact Us For Availability
26
Heat Shield WPL 1116511 Contact Us For Availability
26
Window, Meat Pan WPL 2174088 Contact Us For Availability
26
Screw (For White And Almond Models) WPL 488892 Contact Us For Availability
26
Screw (For Black Model) WPL 489197 Contact Us For Availability
27
Insulation, Compartment Separator WPL 2160627 Contact Us For Availability
27
Retainer, Gasket WPL 1121120 Contact Us For Availability
27
Anchor-Screw I/M WPL 2160621 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
27
Slide, Light Switch (Black) WPL 2152724 Contact Us For Availability
27
Slide, Light Switch (White) WPL 2152726 Contact Us For Availability
27
Slide, Light Switch (Almond) WPL 2152727 Contact Us For Availability
28
Window, Air Control WPL 1125579 Contact Us For Availability
28
Retainer, Gasket WPL 1123245 Contact Us For Availability
28
Button, Humidity Control WPL 2174253 Contact Us For Availability
29
Window, Thermostat WPL 1125580 Contact Us For Availability
29
Support, Heater WPL 851358 Contact Us For Availability
29
Slide, Ice Compartment WPL 1115380 Contact Us For Availability
29
Lamp Holder WPL 2147131 Contact Us For Availability
30
Wire Assembly WPL 2160799 Contact Us For Availability
30
Door, Ice Compartment WPL 2173904 Contact Us For Availability
30
Light Lens WPL 2174443 Contact Us For Availability
30
Screw WPL 488361 Contact Us For Availability
31
Short Rod WPL 2160752 Contact Us For Availability
31
Tap, Plate WPL 2155335 Contact Us For Availability
32
Pivot Arm WPL 1125581 Contact Us For Availability
32
Trivet, Door WPL 2171357 Contact Us For Availability
32
Fan, Motor Bracket WPL 548695 Contact Us For Availability
32
Nut, Compression WPL 1129179 Contact Us For Availability
32
Insulator, Control Bracket WPL 2147164 Contact Us For Availability
33
Separator, Compartment (Top) (Front) WPL 1115189 Contact Us For Availability
33
Door Bin (Narrow) WPL 2171067 Contact Us For Availability
33
Heater, Defrost WPL 2162021 Contact Us For Availability
33
Roller WPL 2174388 Contact Us For Availability
33
Nut, Compression WPL 1108005 Contact Us For Availability
33
Bracket, Control WPL 2147163 Contact Us For Availability
34
Eyelet, Roller WPL 2174478 Contact Us For Availability
34
Rubber Strip WPL 2168582 Contact Us For Availability
34
Door Bin (Wide) WPL 2171063 Contact Us For Availability
35
Cup, Drain WPL 937065 Contact Us For Availability
35
Tube, Water WPL 2160794 Contact Us For Availability
35
Screw, WPL 489155 Contact Us For Availability
36
Holder, Beverage WPL 1125981 Contact Us For Availability
36
Bracket, Water Reservoir WPL 2168550 Contact Us For Availability
37
Shelf, Spillguard WPL 2174018 Contact Us For Availability
37
Screw WPL 488280 Contact Us For Availability
38
Ice Chute, (Seperator) WPL 2160634 Contact Us For Availability
38
Frame & Roller Assembly WPL 2174020 Contact Us For Availability
38
Lever, Water Di WPL 2177148 Contact Us For Availability
38
WPL 2177151 WPL 2177151 Contact Us For Availability
38
WPL 2177152 WPL 2177152 Contact Us For Availability
39
Load Lock WPL 2171283 Contact Us For Availability
39
Screw WPL 489439 Contact Us For Availability
39
WPL 2174336 WPL 2174336 Contact Us For Availability
39
WPL 2174337 WPL 2174337 Contact Us For Availability
39
WPL 2174338 WPL 2174338 Contact Us For Availability
40
Retainer, Gasket WPL 1121119 Contact Us For Availability
40
Gasket, Pan Cover-Rear WPL 2179250 Contact Us For Availability
40
WPL 2179384 WPL 2179384 Contact Us For Availability
40
WPL 2179385 WPL 2179385 Contact Us For Availability
40
WPL 2179386 WPL 2179386 Contact Us For Availability
41
Air Baffle WPL 2162457 Contact Us For Availability
41
WPL 2147172 WPL 2147172 Contact Us For Availability
42
Tube-Door Wiring WPL 2160673 Contact Us For Availability
43
Plug, Crossover WPL 2174771 Contact Us For Availability
44
Ice Chute WPL 2160684 Contact Us For Availability
44
Bottom Plate WPL 2157364 Contact Us For Availability
44
Clip (2) WPL 934011 Contact Us For Availability
44
WPL 2147166 WPL 2147166 Contact Us For Availability
45
Wire Assembly WPL 2176859 Contact Us For Availability
46
Gasket-Rear WPL 2179565 Contact Us For Availability
47
Insulation, Dispenser WPL 2160683 Contact Us For Availability
48
WPL 625834 WPL 625834 Contact Us For Availability
48
Trivet, Door WPL 2171372 Contact Us For Availability
50
Cover, Egg Bin WPL 2169935 Contact Us For Availability
51
Tube, Drain WPL 2183033 Contact Us For Availability
54
Wedge, Air Baffle WPL 2174787 Contact Us For Availability
57
Cover, Unit Bottom WPL 2157369 Contact Us For Availability
60
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
60
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
WPL 799344 WPL 799344 Contact Us For Availability
100
Door Removal Instructions WPL 2168575 Contact Us For Availability
100
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
100
WPL 799833 WPL 799833 Contact Us For Availability
100
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
