Model Whirlpool KSRS27QGAL01 REFRIGERATOR – Common Parts & Diagrams

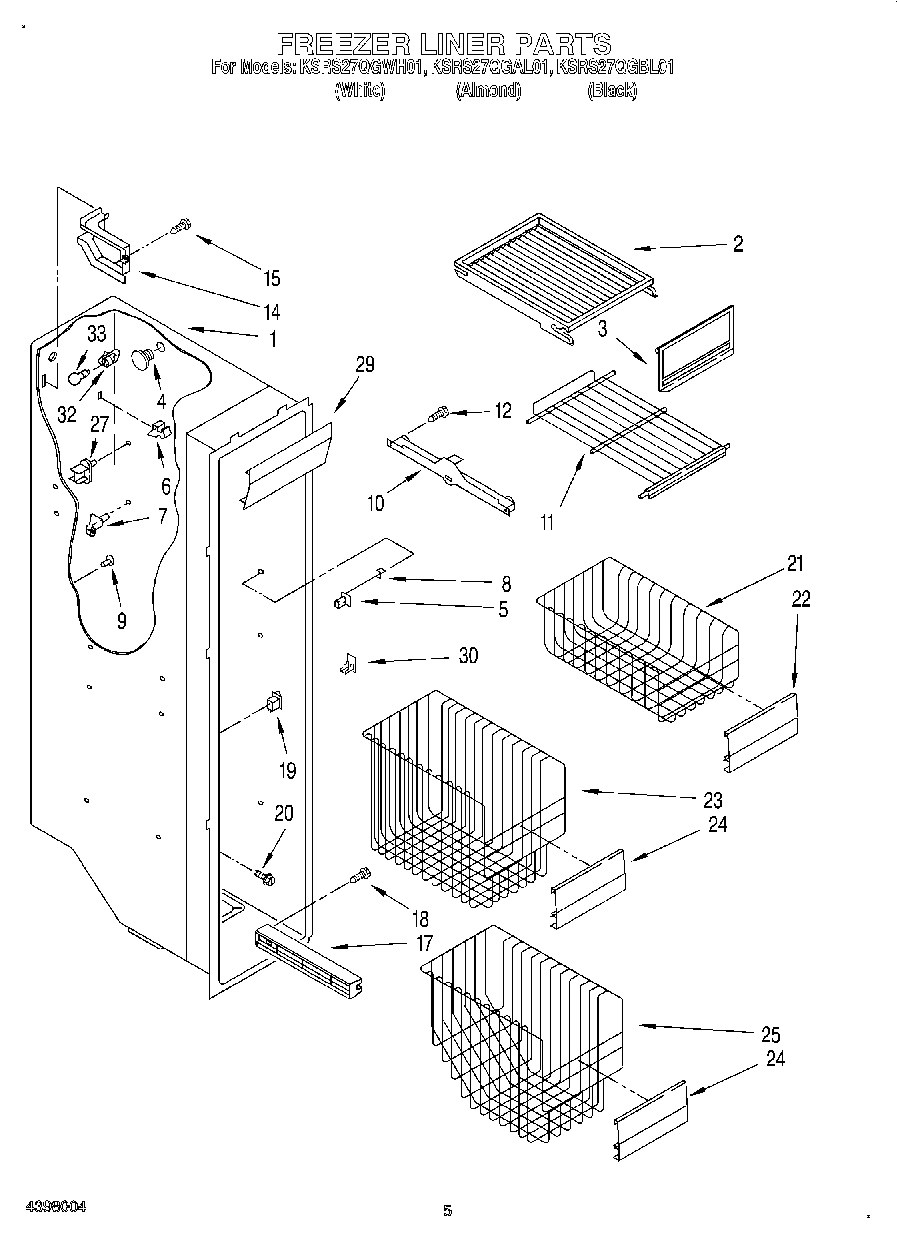

04 - FREEZER LINER

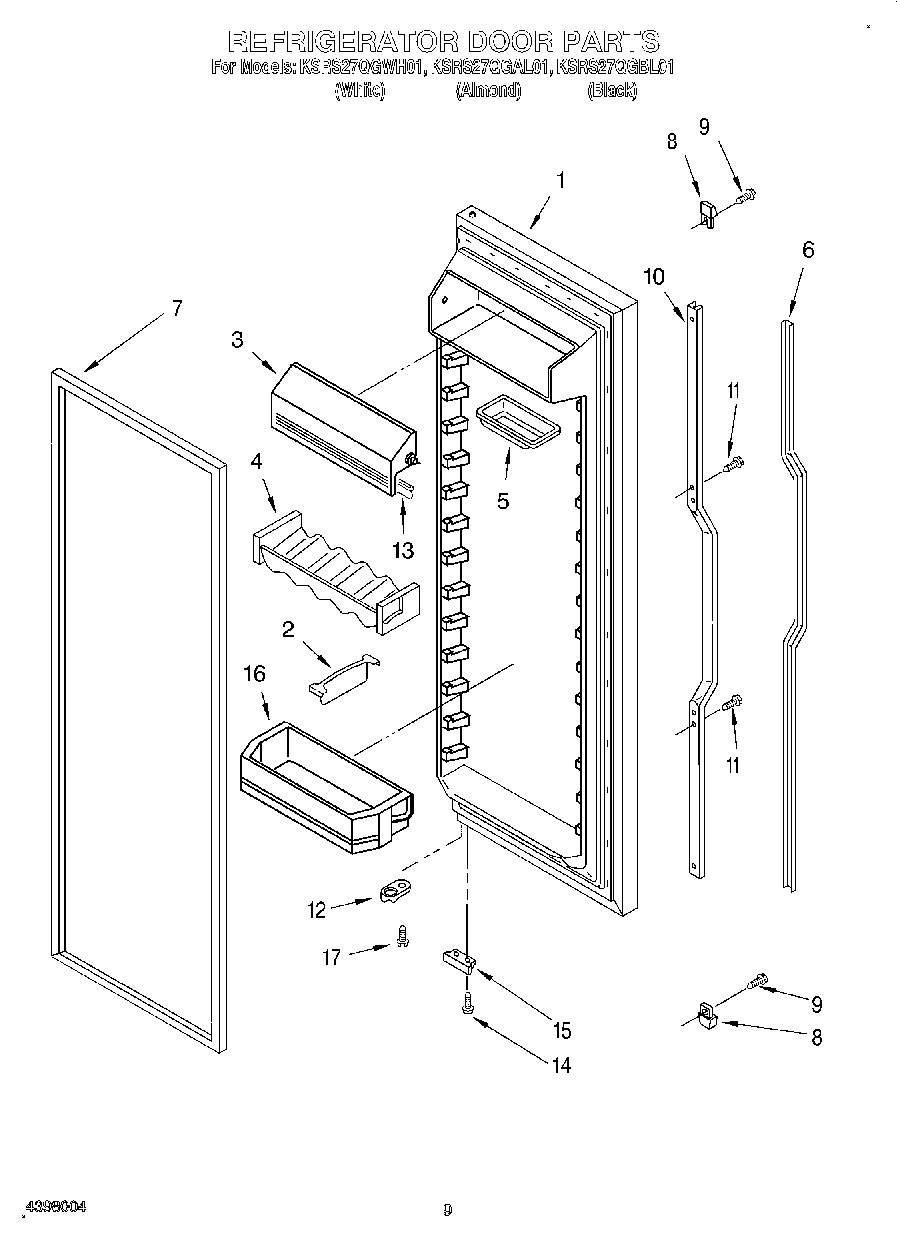

06 - REFRIGERATOR DOOR

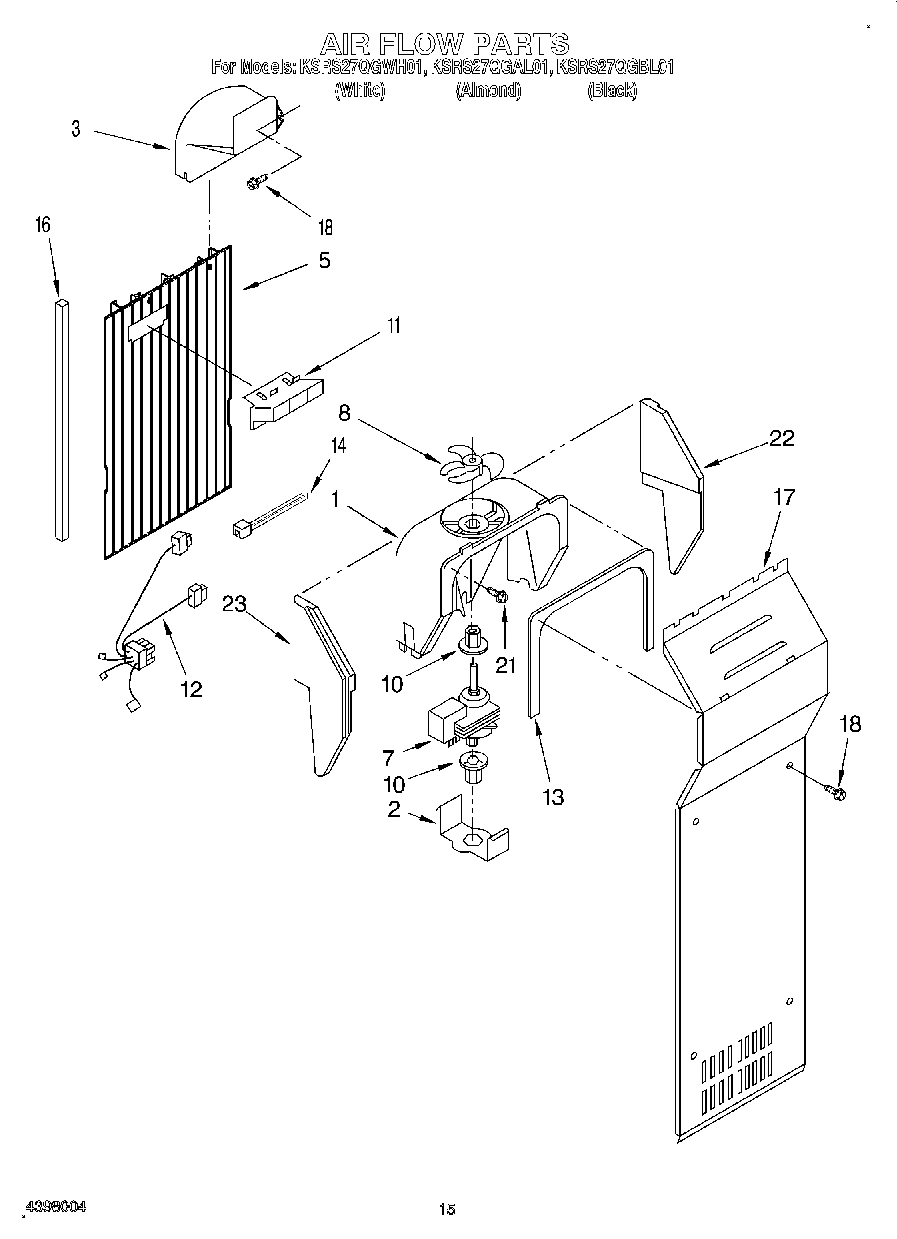

09 - AIR FLOW

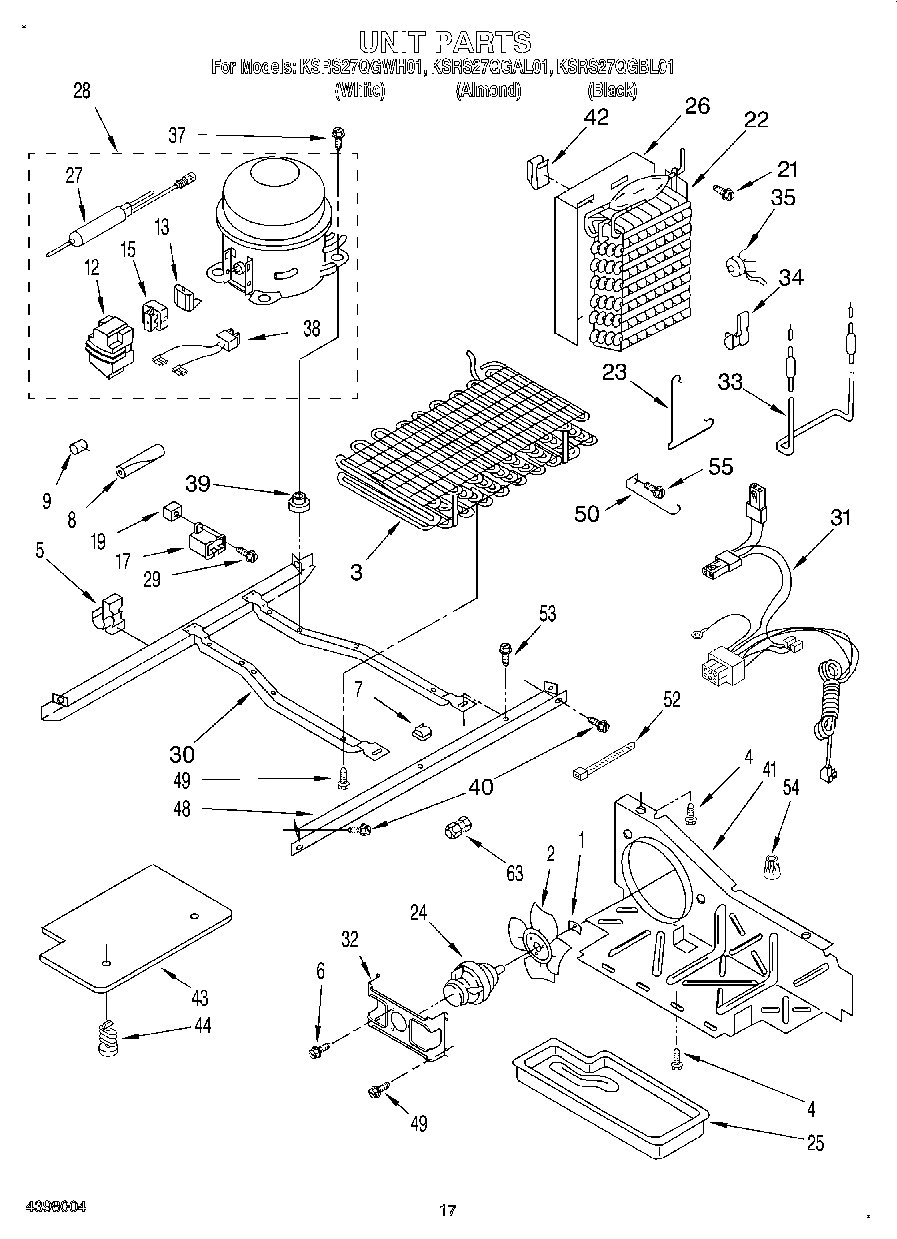

11 - UNIT

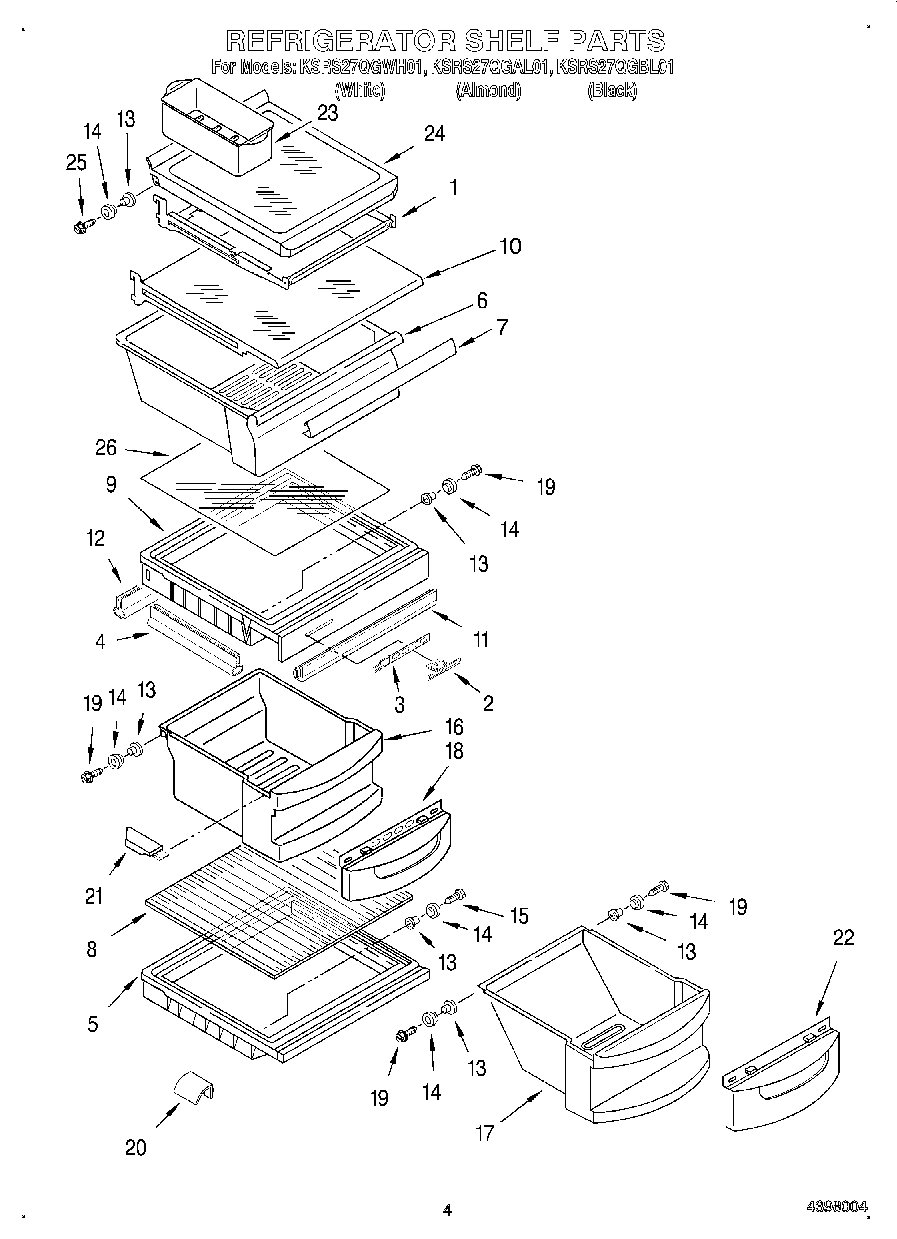

03 - REFRIGERATOR SHELF

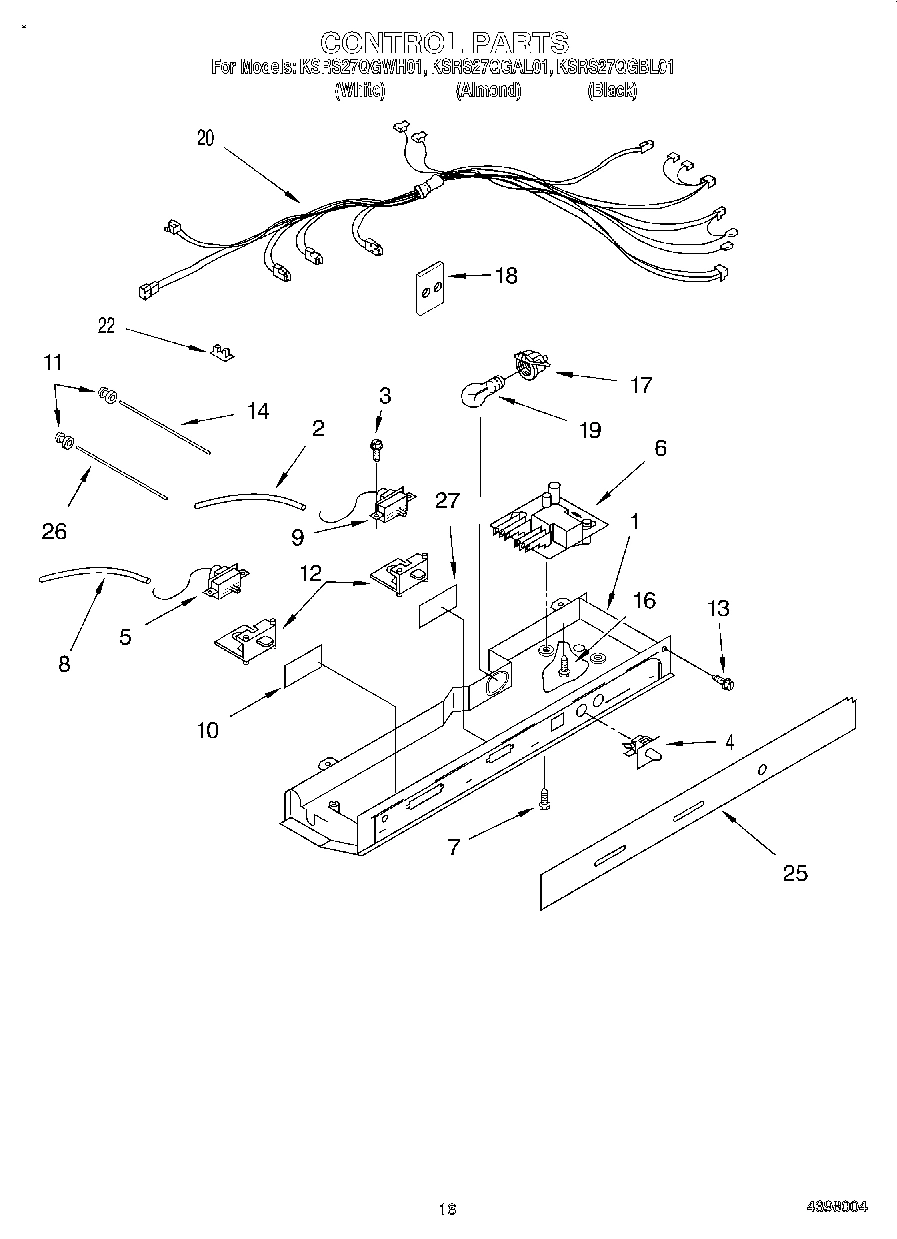

10 - CONTROL

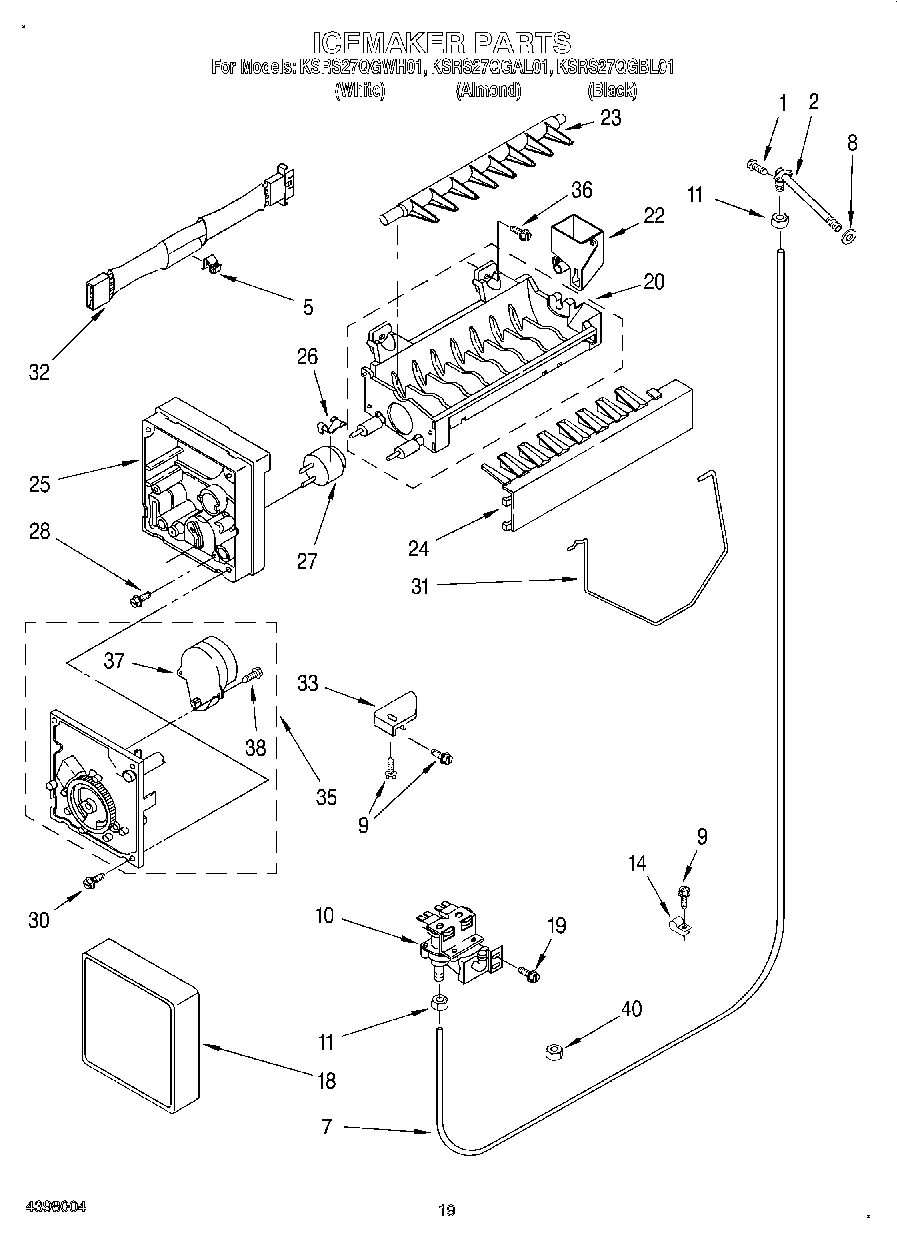

12 - ICEMAKER, LIT/OPTIONAL

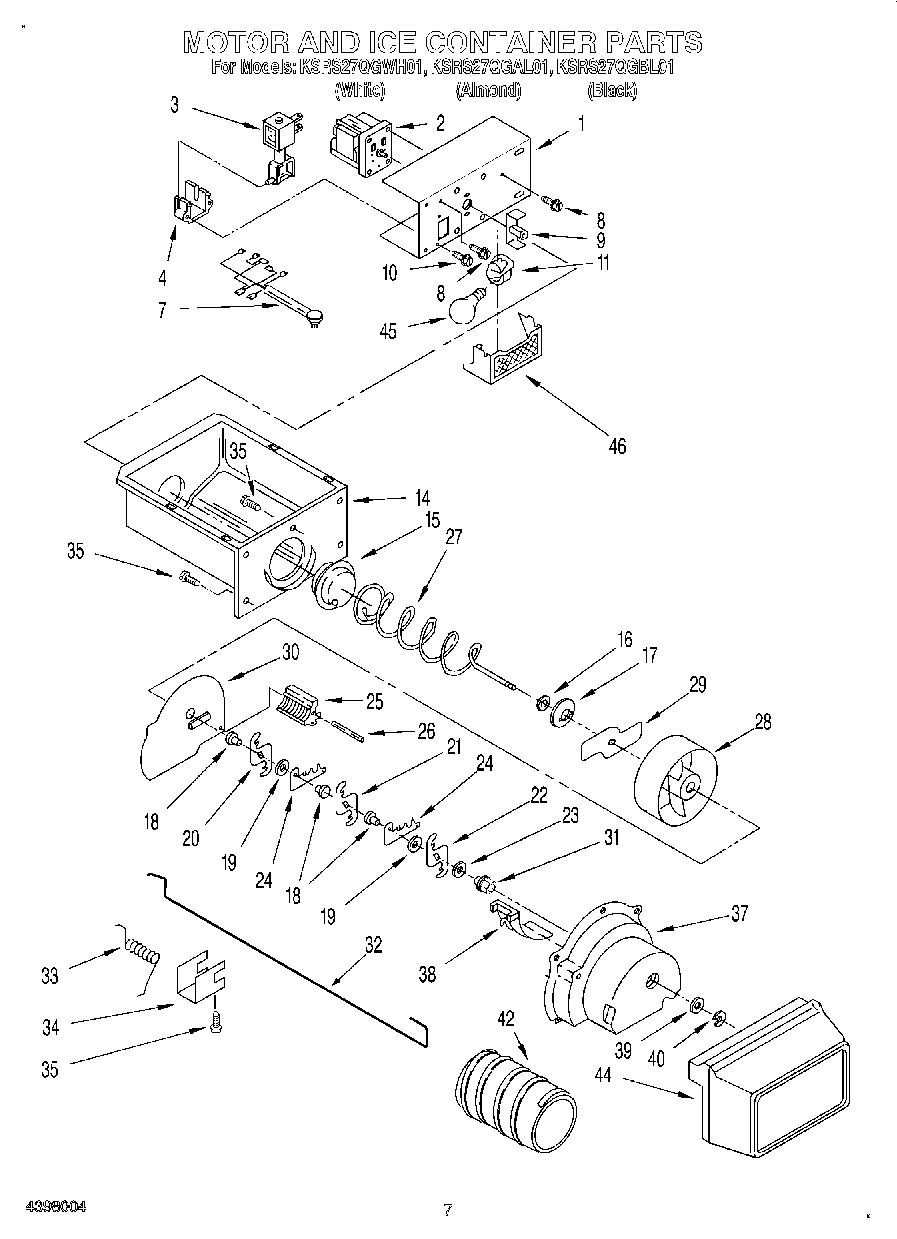

05 - MOTOR AND ICE CONTAINER

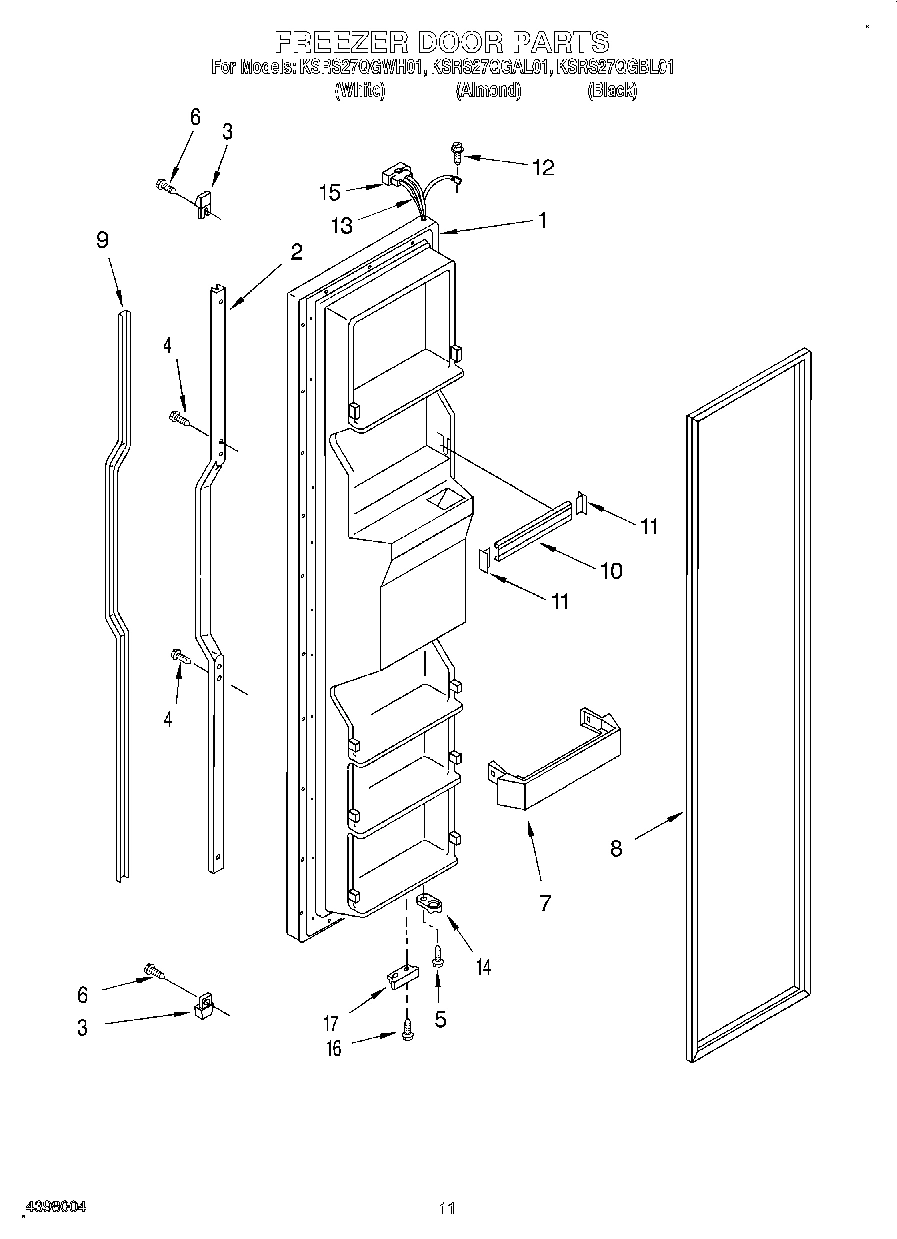

07 - FREEZER DOOR

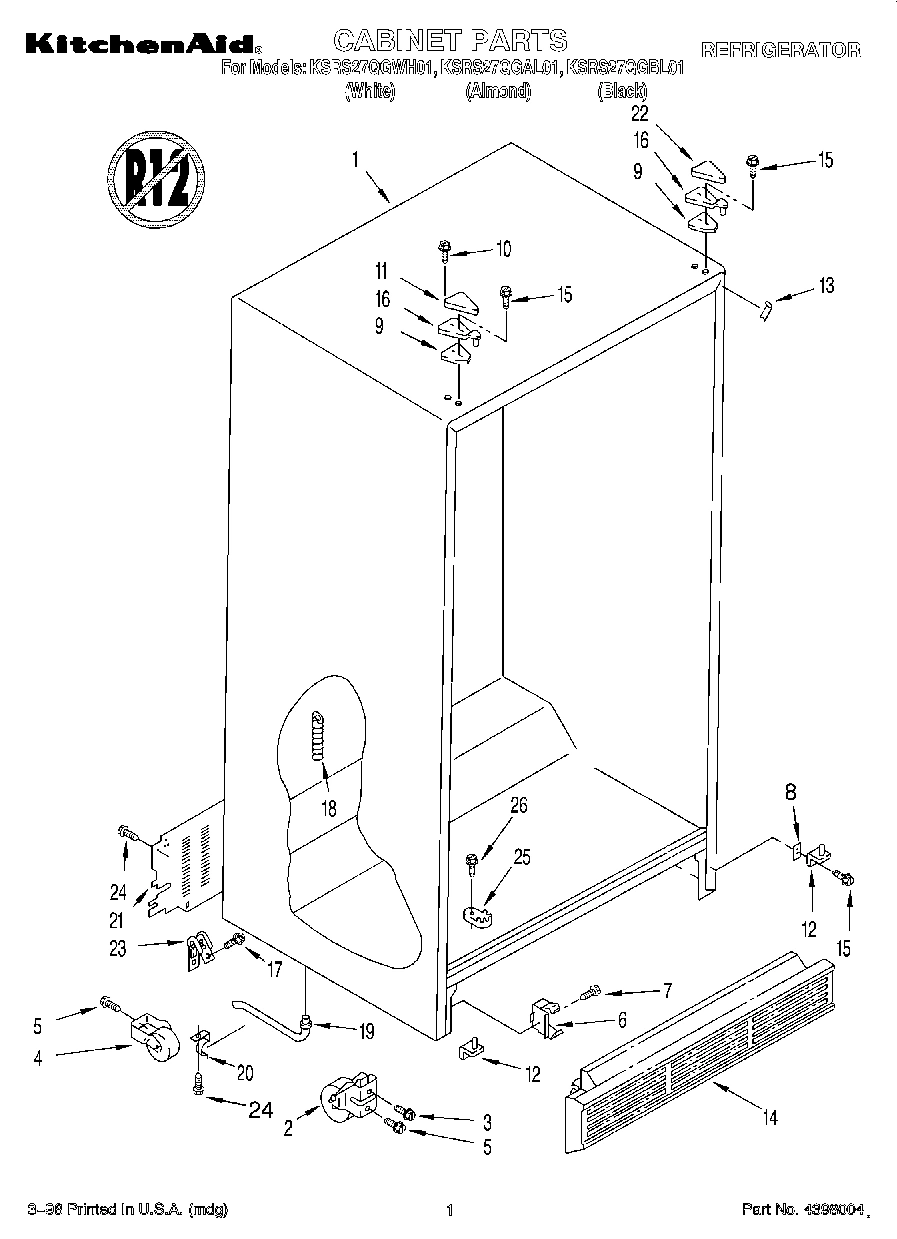

01 - CABINET

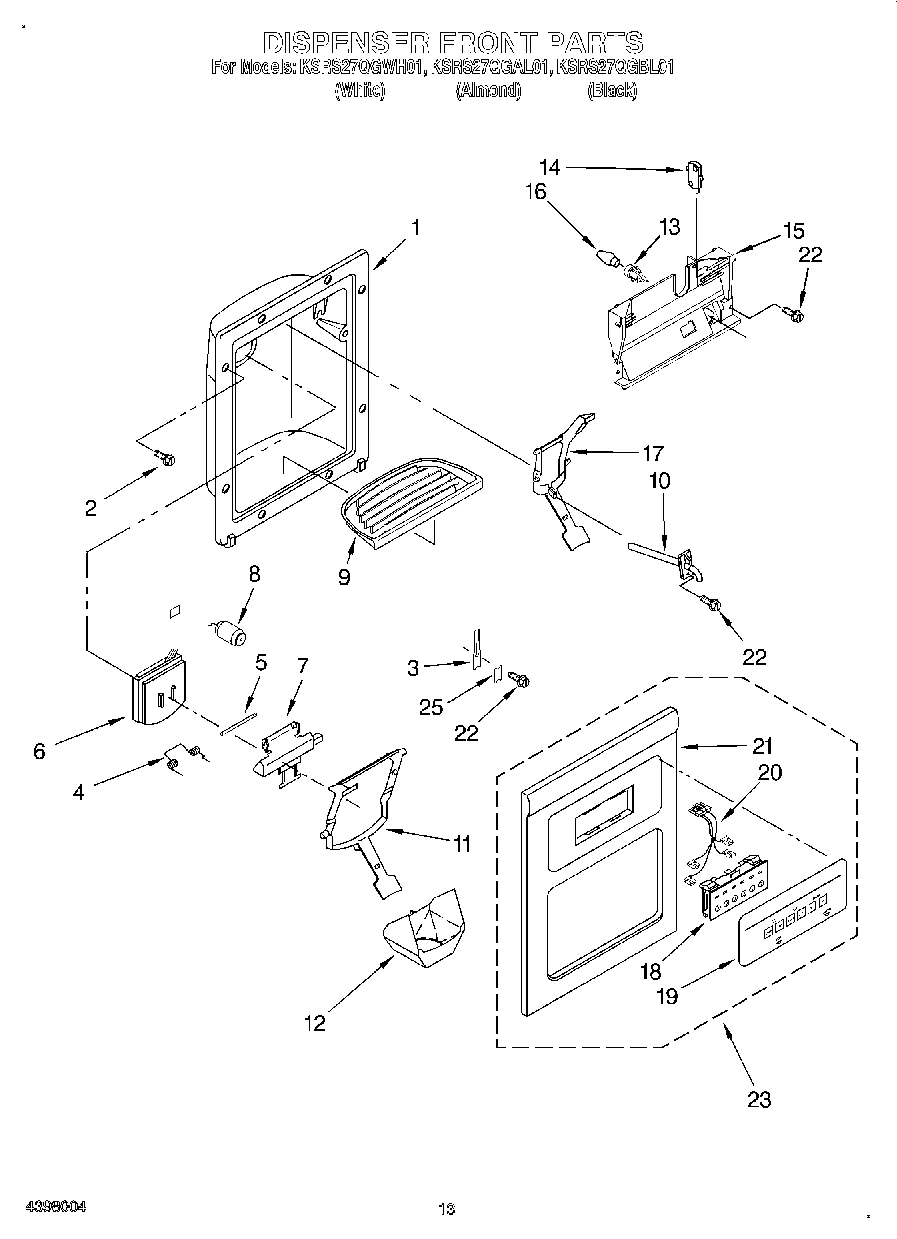

08 - DISPENSER FRONT

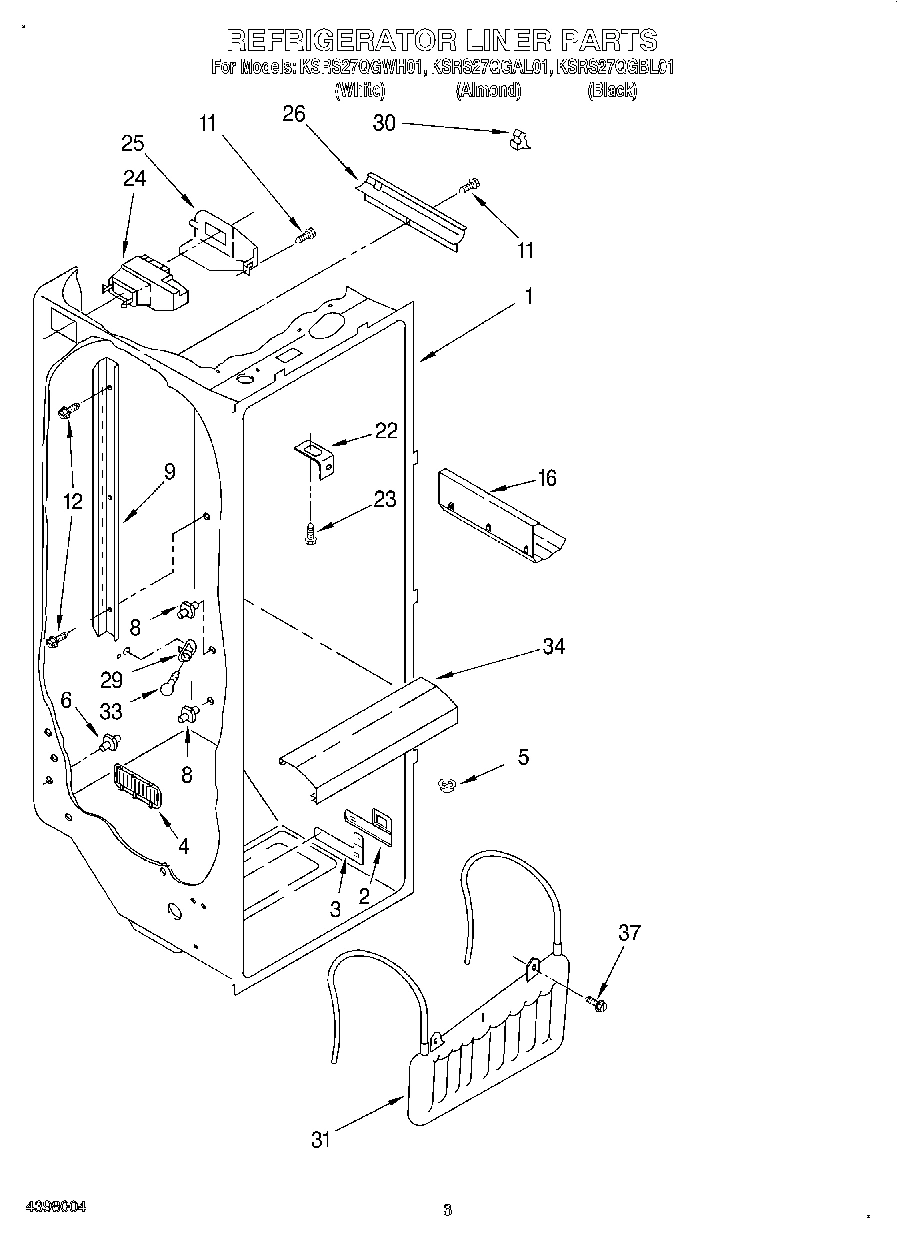

02 - REFRIGERATOR LINER
Common parts from model Whirlpool KSRS27QGAL01 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Bracket, Motor WPL 2183726 Contact Us For Availability
1
Freezer Door (Includes No.8 And Dispenser Fro WPL 2182904 Contact Us For Availability
1
Freezer Door (Includes No.8 And Dispenser Fro WPL 2182905 Contact Us For Availability
1
Freezer Door (Includes No.8 And Dispenser Fro WPL 2198266 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI103756A Contact Us For Availability
1
Housing, Dispenser (Not a Serviceable Part) WPL ARI103759A Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI103757A Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Retainer, Insert (Black) WPL 2194777B Contact Us For Availability
2
Retainer, Insert (Almond) WPL 2194777N Contact Us For Availability
2
Retainer, Insert (White) WPL 2194777W Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
3
SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
3
End Cap (2) (Black) WPL 2194778B Contact Us For Availability
3
End Cap (2) (Almond) WPL 2194778N Contact Us For Availability
3
End Cap (2) (White) WPL 2194778W Contact Us For Availability
4
Louver WPL 2182147 Contact Us For Availability
6
Door, Ice WPL 2180205 Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2169490 Contact Us For Availability
7
Shelf Bin (4) WPL 2171070 Contact Us For Availability
7
Door Mechanism Assembly WPL 2180208 Contact Us For Availability
8
Delay Mechanism WPL 2180223 Contact Us For Availability
9
Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2174250 Contact Us For Availability
9
Grommet (2) WPL 2176134 Contact Us For Availability
9
Grille, Overflow (White) WPL 2180323 Contact Us For Availability
9
Insert, Handle (White) WPL 2173825 Contact Us For Availability
9
Insert, Handle (Almond) WPL 2173828 Contact Us For Availability
9
Insert, Handle (Black) WPL 2173829 Contact Us For Availability
9
Shim, Hinge Top WPL 2196048 Contact Us For Availability
9
Grille, Overflow (Almond) WPL 2180324 Contact Us For Availability
9
Ladder, Shelf (2) WPL 2181796 Contact Us For Availability
10
Screw WPL 489284 Contact Us For Availability
11
Lever, Ice Dispenser (White (White Shadow Pad WPL 2180259 Contact Us For Availability
11
Hinge Cover (White) WPL 1129262 Contact Us For Availability
11
Hinge Cover (Almond) WPL 2150343 Contact Us For Availability
11
Hinge Cover (Black) WPL 2151694 Contact Us For Availability
11
Lever, Ice Dispenser (Almond (Almond Shadow P WPL 2180260 Contact Us For Availability
11
Lever, Ice Dispenser (Black (Storm Grey Pad)) WPL 2180261 Contact Us For Availability
13
Eyelet, Roller WPL 2174478 Contact Us For Availability
13
Wire Harness WPL 2180229 Contact Us For Availability
13
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
13
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
13
Filler, Wrapper (Black) WPL 1127272 Contact Us For Availability
14
Grille (Black) WPL 2155485 Contact Us For Availability
14
Light Bar (RC) WPL 2179920 Contact Us For Availability
14
Grille (White) WPL 2155486 Contact Us For Availability
14
Grille (Almond) WPL 2155487 Contact Us For Availability
16
Shelf Bin (4) WPL 2171062 Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
17
Bracket, Door Stop WPL 2155331 Contact Us For Availability
17
Lever, Water Dispenser (Almond (Almond Shadow WPL 2180269 Contact Us For Availability
18
Window, Crisper WPL 2174076 Contact Us For Availability
19
Overlay, Front Cover (White) WPL 2180368 Contact Us For Availability
19
Overlay, Front Cover (Almond) WPL 2180369 Contact Us For Availability
19
Overlay, Front Cover (Black) WPL 2180370 Contact Us For Availability
21
Front Cover, Housing (Not Available, Order No WPL ARI103760A Contact Us For Availability
22
Hinge Cover (Black) WPL 2155938 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2180396 Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2180397 Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2180398 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
37
Screw (2) WPL 488280 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
44
Front Cover, Ice Container WPL 2171708 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
100
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
100
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
100
KIT, WPL 799833 Contact Us For Availability
100
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
