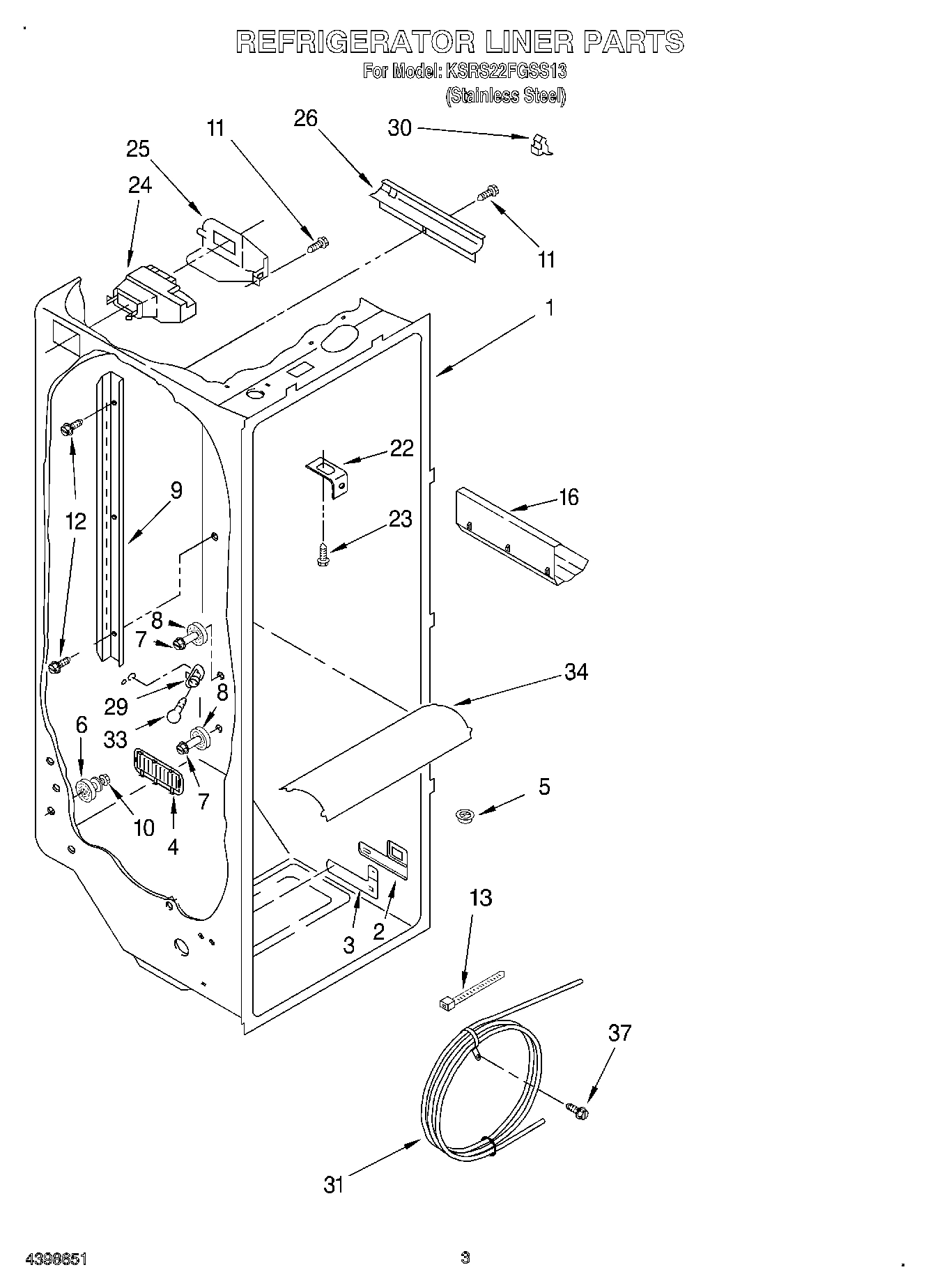

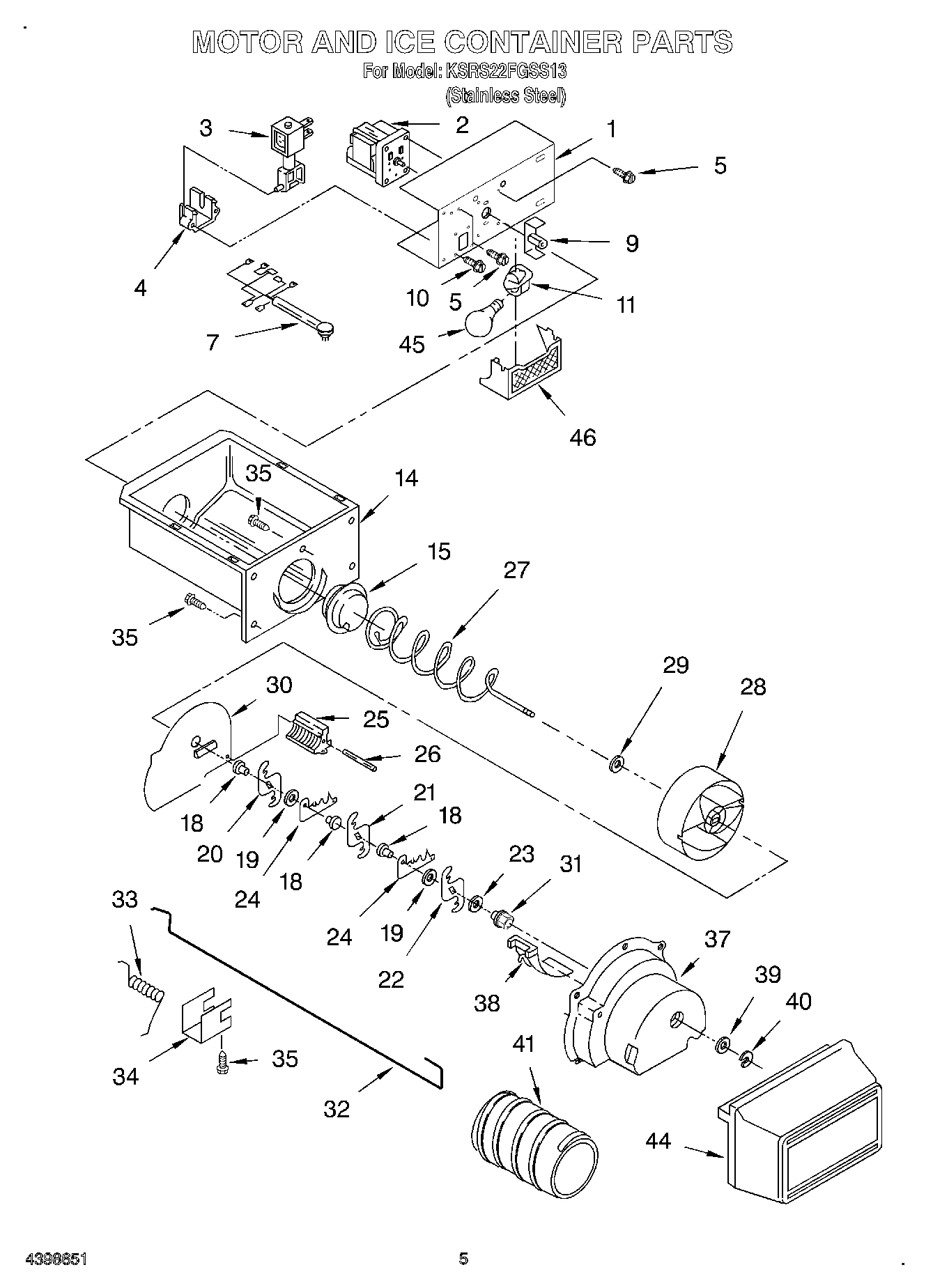

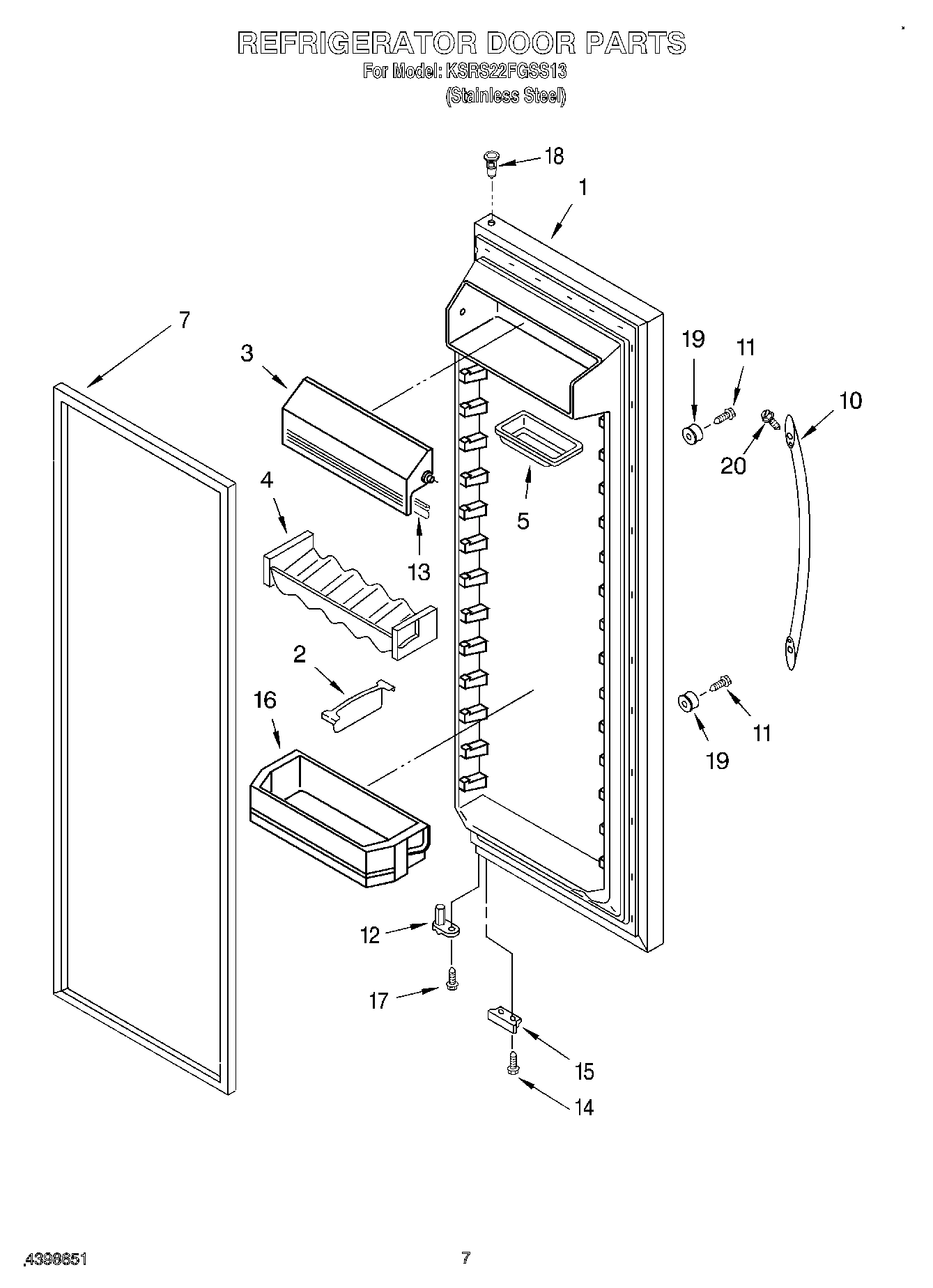

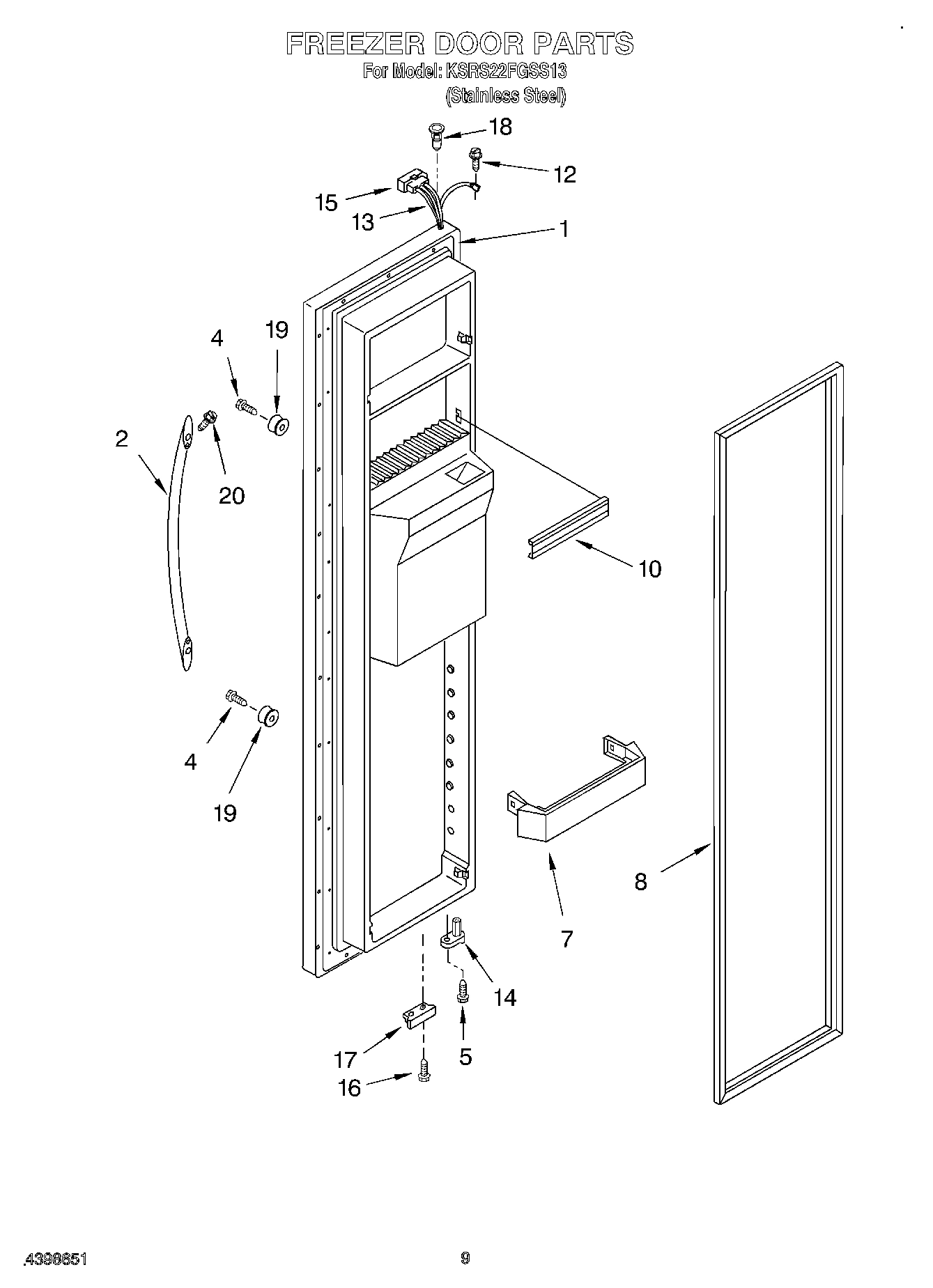

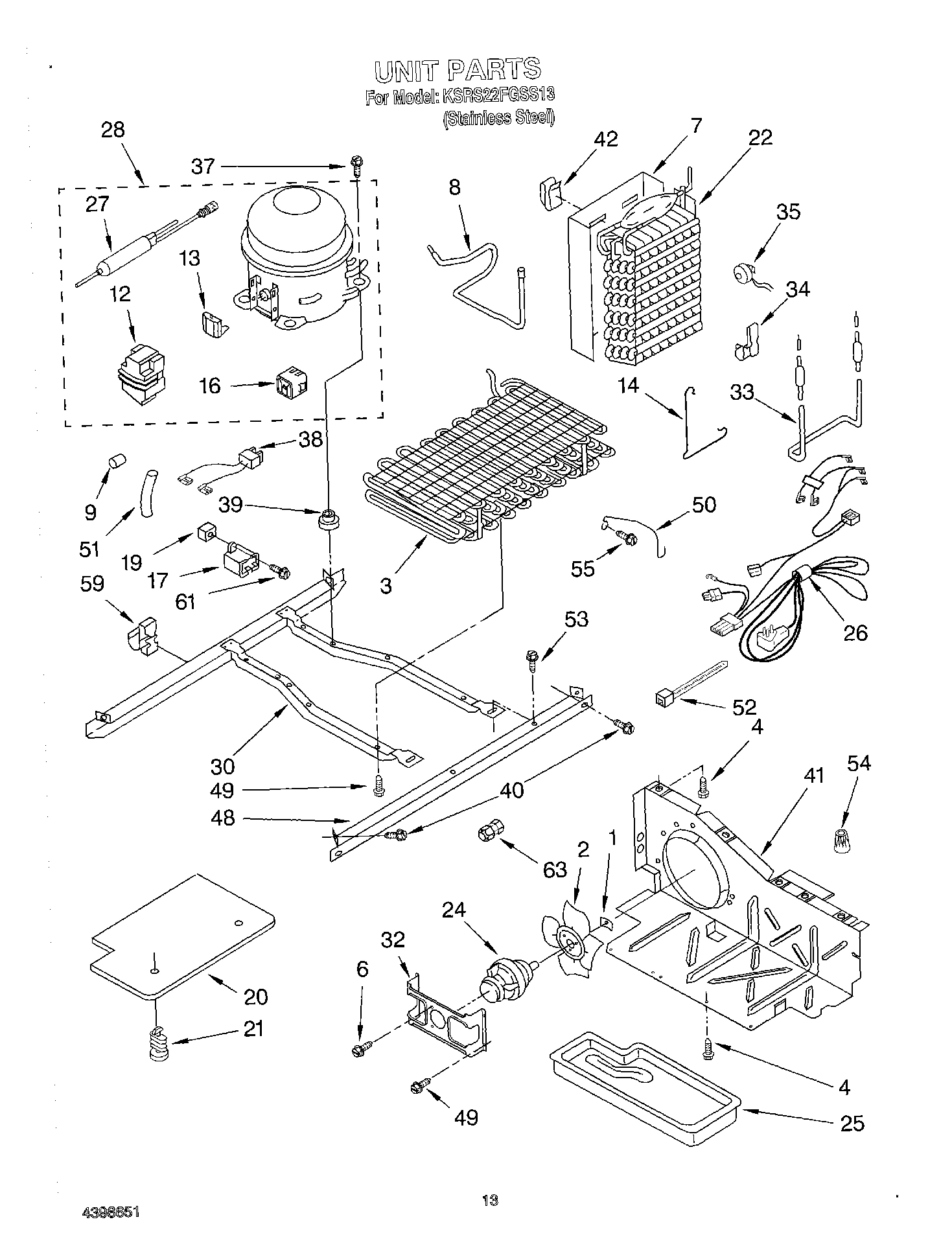

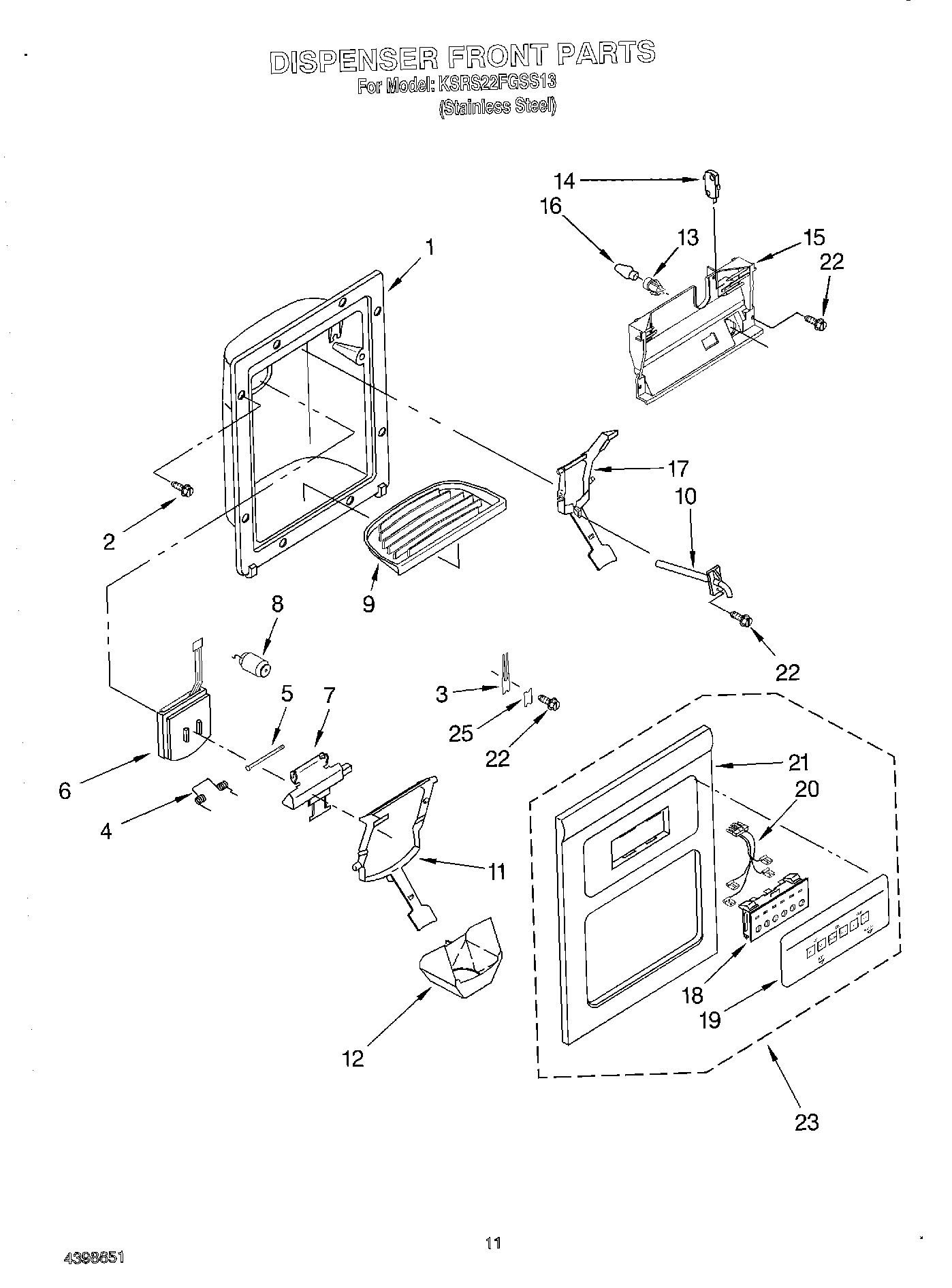

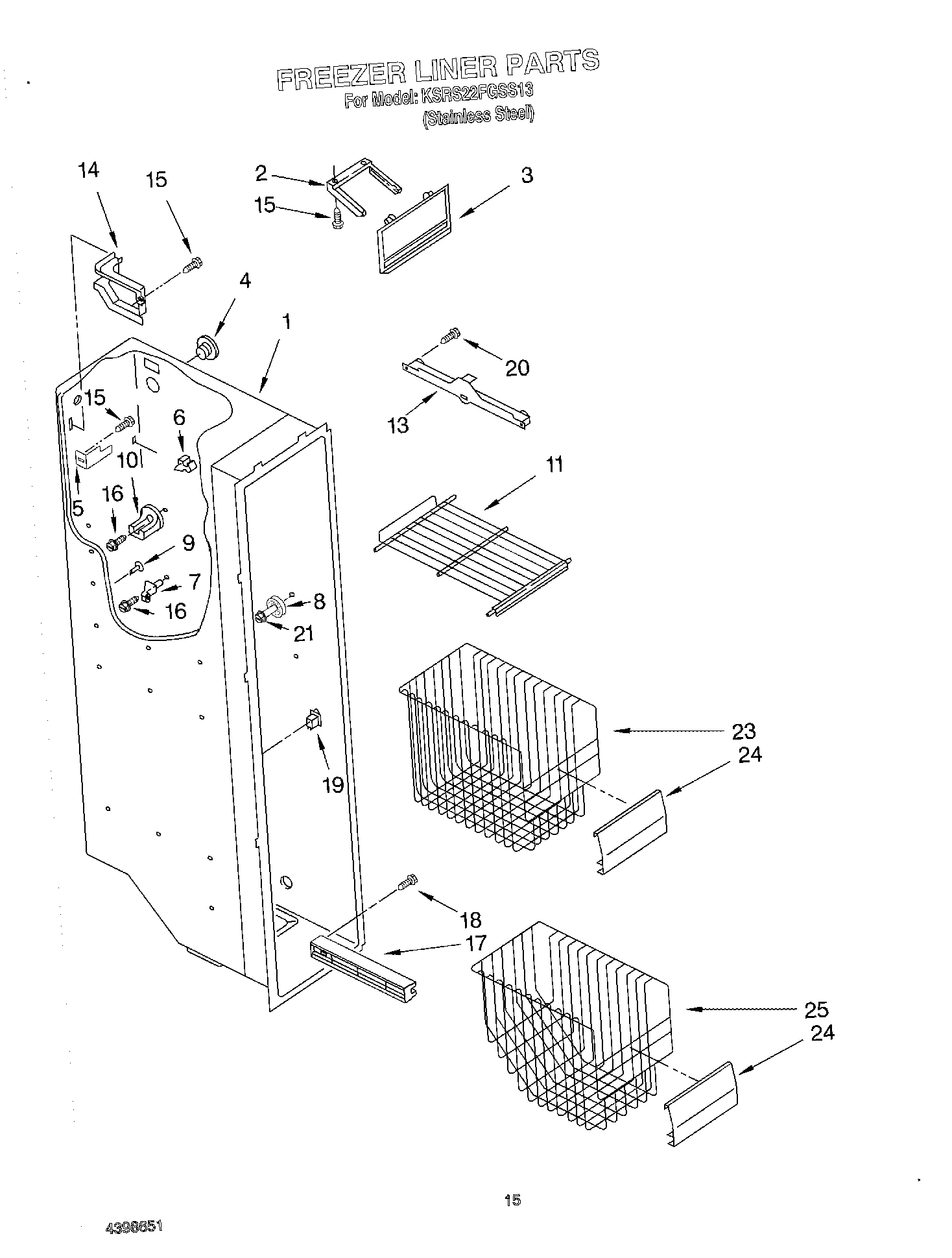

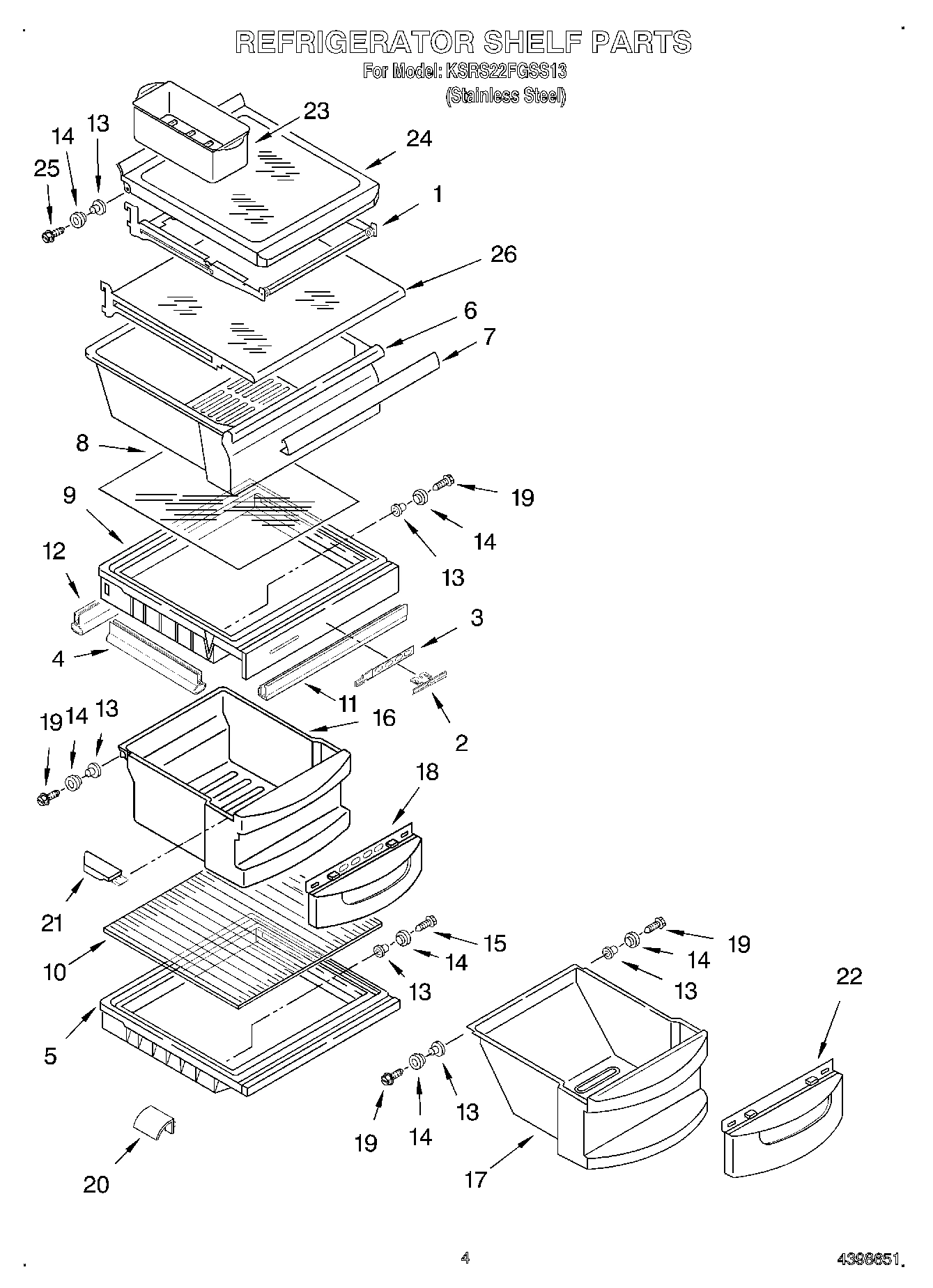

Model Whirlpool KSRS22FGSS13 – Common Parts &amp; Diagrams

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $4.82

1

Freezer Door (Includes No.8 And Dispenser Fro WPL 2205911 Contact Us For Availability

1

Shelf Assembly, Cantilever (2) WPL 2195978 Contact Us For Availability

1

Refrigerator Door (Includes No.7) WPL 2203452 Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $62.28

2

WP2196157 Whirlpool Fill Tube In Stock WPL WP2196157 $5.99

2

Blade, Fan WPL 2190685 Contact Us For Availability

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

2

Button, Humidity WPL 2174253 Contact Us For Availability

2

Load Lock WPL 2195497 Contact Us For Availability

3

2171712 Whirlpool Refrigerator Ice Door Backorder WPL 2171712 $47.55

3

2174252 Whirlpool Refrigerator Slide Backorder WPL 2174252 $9.71

3

WP2152713 Whirlpool Refrigerator Solenoid In Stock WPL WP2152713 $172.77

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $11.99

3

WP2313637 Whirlpool Cutting Grid Assembly In Stock WPL WP2313637 $235.99

3

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability

3

Condenser Assembly WPL 2204242B Contact Us For Availability

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $27.81

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $25.38

4

Gasket, Side (2) WPL 2174273 Contact Us For Availability

4

Beverage Holder WPL 2193409 Contact Us For Availability

5

2171846 Whirlpool Refrigerator Release Valve Backorder WPL 2171846 $14.02

5

WP2161491 Whirlpool Crisper Drawer Cover In Stock WPL WP2161491 $142.48

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $11.99

5

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $3.91

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $6.90

5

Tray, Butter WPL 2165792 Contact Us For Availability

6

681390 Whirlpool Refrigerator Screw Backorder WPL 681390 $8.39

6

W11223328 Whirlpool Refrigerator Shelf Stud In Stock WPL W11223328 $14.99

6

W11497323 Whirlpool Snack Pan Backorder WPL W11497323 $139.99

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $5.99

7

2159081 Whirlpool Refrigerator Door Gasket Backorder WPL 2159081 $242.52

7

W10823511 Whirlpool Refrigerator Water Tube In Stock WPL W10823511 $15.88

7

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $67.13

7

Shelf Bin (4) WPL 2171071 Contact Us For Availability

7

Heat Shield And Drain Pan WPL 2149293 Contact Us For Availability

8

2159080 Whirlpool Refrigerator Door Gasket In Stock WPL 2159080 $219.73

8

2205764 Whirlpool Refrigerator Tube Backorder WPL 2205764 $56.81

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $30.99

8

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $6.50

8

Glass, Cover WPL 2189526 Contact Us For Availability

9

WP2158826 Whirlpool Refrigerator Dampener In Stock WPL WP2158826 $0.91

9

WP2161460 Whirlpool Refrigerator Thermostat Backorder WPL WP2161460 $176.93

9

WP2180325 Whirlpool Dispenser Grille In Stock WPL WP2180325 $53.99

9

Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2174250 Contact Us For Availability

9

Grommet (4) WPL 2176134 Contact Us For Availability

W10408179 Whirlpool Ice Maker Water Inlet Fil In Stock WPL W10408179 $96.99

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $4.96

WPW10307490 Whirlpool Door Trim Assembly In Stock WPL WPW10307490 $13.16

Stud, Rear WPL 2196207 Contact Us For Availability

Handle WPL 2204454 Contact Us For Availability

Glass, Cover WPL 2174148 Contact Us For Availability

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $64.58

WP1125528 Whirlpool Refrigerator Gasket Backorder WPL WP1125528 $100.57

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $4.99

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $7.60

2161466 Whirlpool Refrigerator Slide Backorder WPL 2161466 $14.02

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $64.83

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $8.97

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $4.60

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $6.83

Nut, Compression WPL 2200083 Contact Us For Availability

Gasket, (Rear) WPL 2174274 Contact Us For Availability

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $67.59

4387535 Whirlpool Refrigerator Compressor Rel In Stock WPL 4387535 $90.78

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $81.92

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $90.95

Eyelet, Roller WPL 2174478 Contact Us For Availability

Wire Harness WPL 2187269 Contact Us For Availability

Gasket, Door Compartment WPL 2159124 Contact Us For Availability

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $10.72

WP2196089 Whirlpool Refrigerator Container In Stock WPL WP2196089 $134.99

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $7.20

WP489483 Whirlpool Screw In Stock WPL WP489483 $7.58

Light Bar (RC) WPL 2179920 Contact Us For Availability

Clip, Defrost Heater WPL 2161324 Contact Us For Availability

Roller WPL 2188212 Contact Us For Availability

W10749708 Whirlpool Refrigerator Coupling Backorder WPL W10749708 $15.42

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $15.58

WP489497 Whirlpool Screw In Stock WPL WP489497 $6.75

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $7.55

COVER, LIGHT LENS WPL 2200096 Contact Us For Availability

Bracket, Door Stop WPL 2195952 Contact Us For Availability

16

WP2179227 Whirlpool Refrigerator Crisper Pan Backorder WPL WP2179227 $132.84

16

WP2196046 Whirlpool Refrigerator Door Hinge Backorder WPL WP2196046 $70.35

16

Shelf Bin (4) WPL 2171063 Contact Us For Availability

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $4.82

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $122.18

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $5.99

Capacitor (Production) WPL 2169137 Contact Us For Availability

Meat Pan (Includes 13, 14, 19, & 22) WPL 2179231 Contact Us For Availability

2172931 Whirlpool Refrigerator Shield Backorder WPL 2172931 $48.27

W11233072 Whirlpool Screw In Stock WPL W11233072 $19.85

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $6.99

WP2180236 Whirlpool Refrigerator Switch Backorder WPL WP2180236 $189.29

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $9.65

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $4.82

Window, Crisper WPL 2174076 Contact Us For Availability

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $19.72

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $8.89

WP489261 Whirlpool Refrigerator Screw Backorder WPL WP489261 $4.82

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $13.89

Stud, Handle WPL 2203690 Contact Us For Availability

Screw Grommet WPL 509812 Contact Us For Availability

2176095 Whirlpool Refrigerator Deflector Backorder WPL 2176095 $59.87

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $176.99

Unit Cover, Bottom WPL 2182057 Contact Us For Availability

Set Screw WPL 98654 Contact Us For Availability

21

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $7.11

21

Cap, Crisper Pan (Left Side) WPL 2174258 Contact Us For Availability

21

Cap, Crisper Pan (Right Side) WPL 2174259 Contact Us For Availability

WP2188822 Whirlpool Refrigerator Evaporator In Stock WPL WP2188822 $250.47

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $29.99

Hinge Cover (Black) WPL 2155938 Contact Us For Availability

Window, Meat Pan WPL 2174362 Contact Us For Availability

23

W10136387A Whirlpool Refrigerator Egg Contain In Stock WPL W10136387A $10.99

23

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $6.87

23

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $59.71

24

W10822259 Whirlpool Refrigerator Condenser Fa In Stock WPL W10822259 $165.99

24

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $55.70

24

Shelf & Roller Assembly WPL 2174021 Contact Us For Availability

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $14.02

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $7.19

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $68.41

Tray, Evaporator WPL 2154114 Contact Us For Availability

Screw WPL 489439 Contact Us For Availability

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $16.09

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $31.65

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $6.88

Harness, Intermediate WPL 2188346 Contact Us For Availability

Shelf, Snack Bin WPL 2208298 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $31.99

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350942 Whirlpool Spray Paint Backorder WPL 350942 $49.86

350956 Whirlpool Spray Assembly In Stock WPL 350956 $29.99

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $16.99

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $30.99

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $27.29

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $53.03

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $18.58

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $37.99

WP2186443 Whirlpool Water Filter Housing In Stock WPL WP2186443 $68.99

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $75.04

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $111.80

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $30.85

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $71.99

WP72107 Whirlpool Touchup In Stock WPL WP72107 $14.61

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

WPL 799344 WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

Cement Alumilastic) WPL 542369 Contact Us For Availability

28

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $14.99

28

W10309990 Whirlpool Refrigerator Compressor In Stock WPL W10309990 $403.72

29

WP3400912 Whirlpool Refrigerator Washer Backorder WPL WP3400912 $4.82

29

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $4.82

30

2304903 Whirlpool Refrigerator Frame Backorder WPL 2304903 $166.45

30

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $20.97

30

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $3.91

31

W11342242 Whirlpool Refrigerator Ice Level Ar In Stock WPL W11342242 $43.68

31

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $4.82

32

W11596045 Whirlpool Refrigerator Control Arm In Stock WPL W11596045 $19.99

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $7.28

32

WP2187464 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187464 $88.98

33

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $12.12

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $16.99

33

WP2323197 Whirlpool Refrigerator Heater Backorder WPL WP2323197 $81.01

34

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $6.92

34

Light Lens WPL 2203266 Contact Us For Availability

34

Clip WPL 2161330 Contact Us For Availability

35

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $23.99

37

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $71.99

37

Screw WPL 489387 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $6.83

38

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $4.82

38

WP2172890 Whirlpool Refrigerator Wire Backorder WPL WP2172890 $4.82

39

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $8.89

39

W11661108 Whirlpool Grommet Backorder WPL W11661108 $9.12

40

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $6.83

40

WP489236 Whirlpool Refrigerator Ring In Stock WPL WP489236 $7.64

40

Nut, Compression WPL 1129179 Contact Us For Availability

41

W10896764 Whirlpool Refrigerator Air Baffle In Stock WPL W10896764 $63.81

42

Clip, Heat WPL 2155547 Contact Us For Availability

44

Front Cover, Ice Container WPL 2171709 Contact Us For Availability

46

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $65.24

48

Unit Mounting Rail WPL 2149717 Contact Us For Availability

49

Screw WPL 488624 Contact Us For Availability

50

Guard, Fan WPL 2186496 Contact Us For Availability

51

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $13.22

52

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $4.99

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $4.82

54

Wire Connector WPL 850145 Contact Us For Availability

55

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $4.82

59

Clip, Wire & Tube WPL 2208280 Contact Us For Availability

61

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.89

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $37.88

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $82.11

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $86.15

WP4318044 Whirlpool Refrigerator Connector Backorder WPL WP4318044 $5.73

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

100

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $130.99
