Model Whirlpool KSRP22QDWH00 REFRIGERATOR – Common Parts & Diagrams

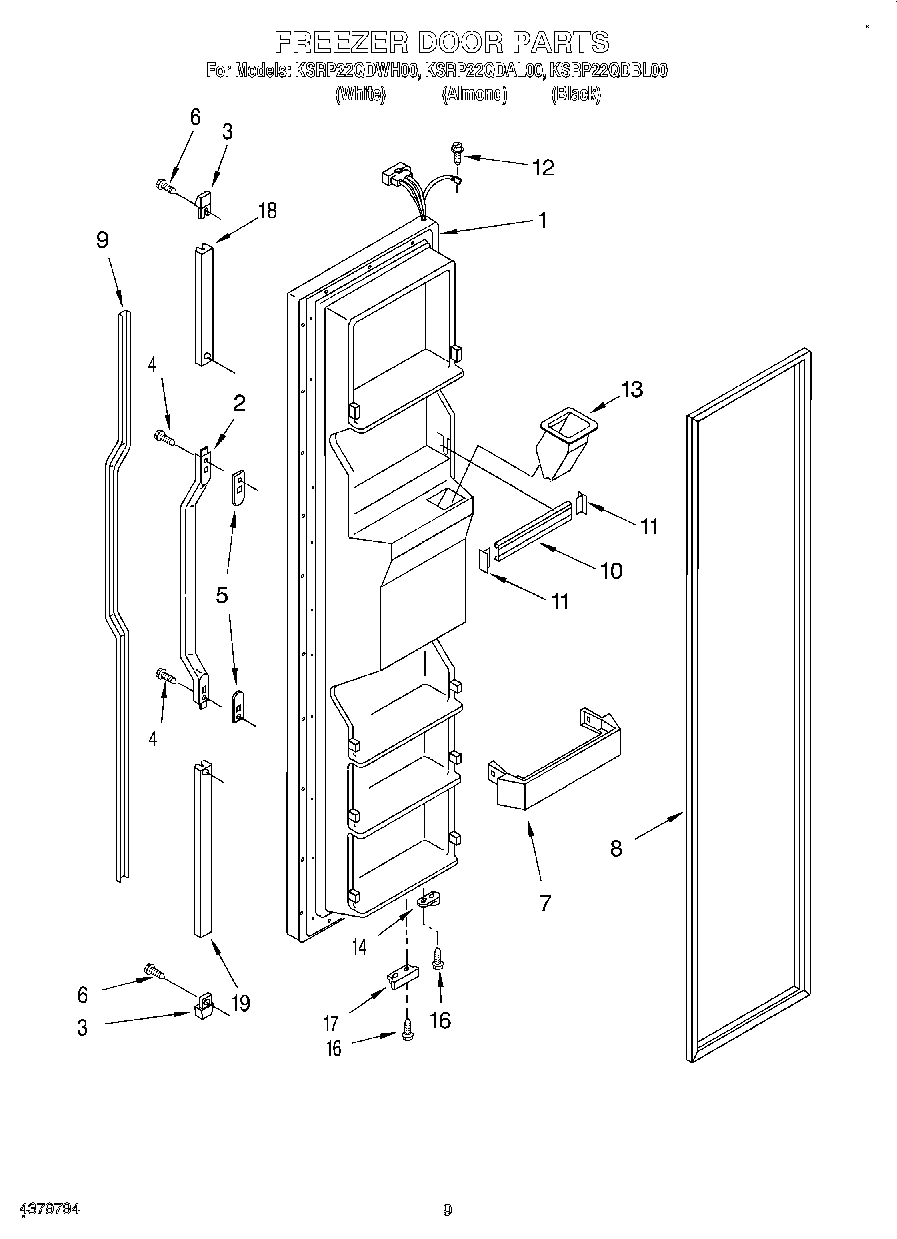

06 - FREEZER DOOR

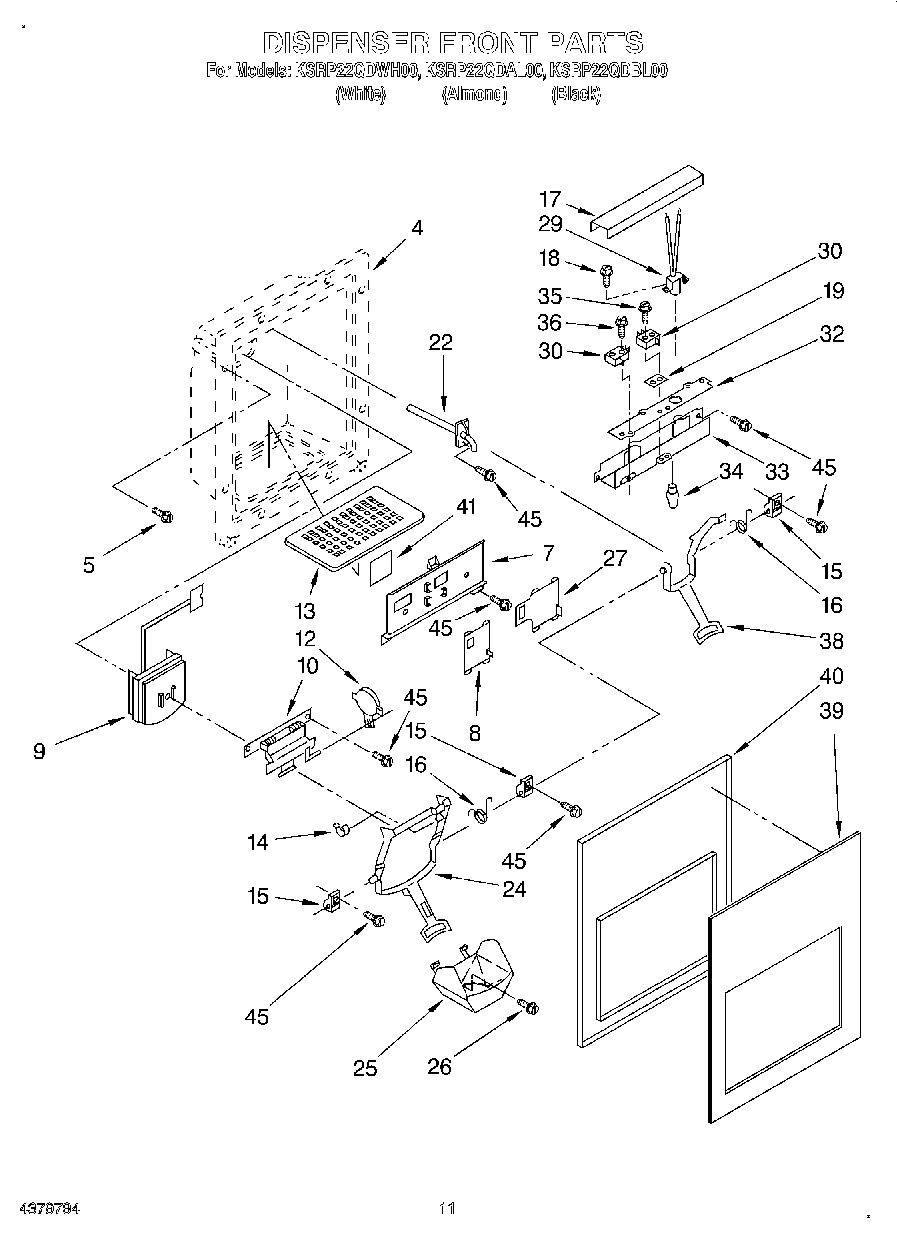

07 - DISPENSER FRONT

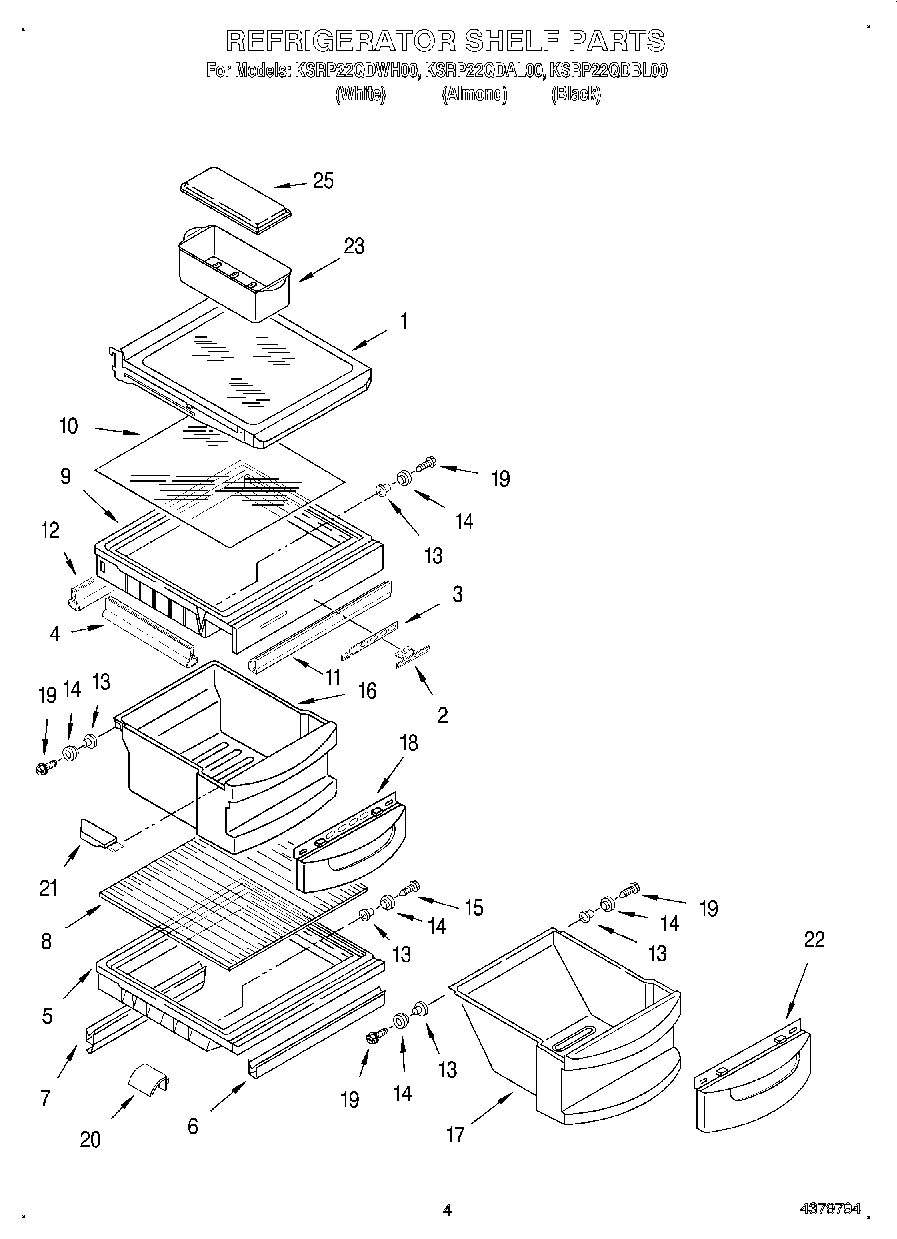

03 - REFRIGERATOR SHELF

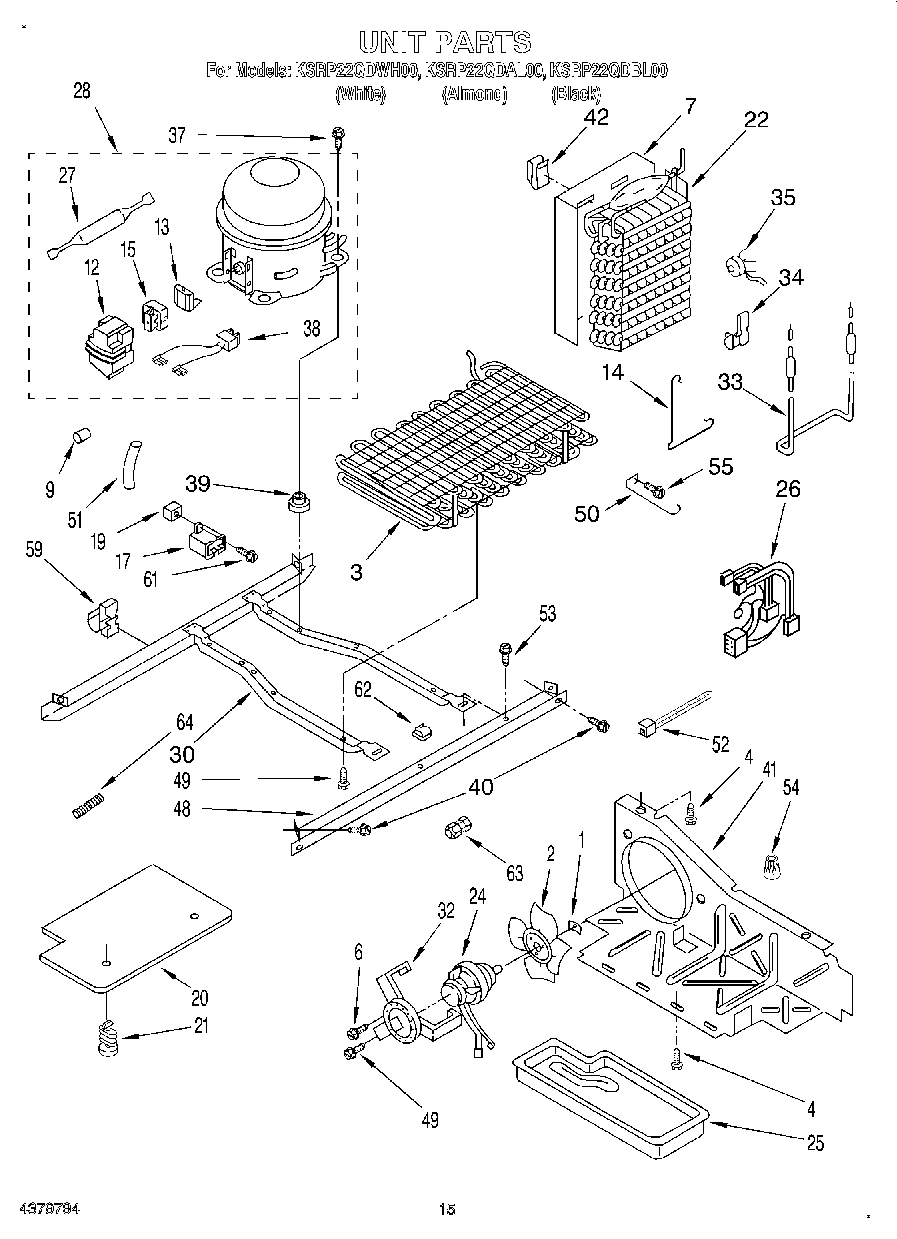

10 - UNIT

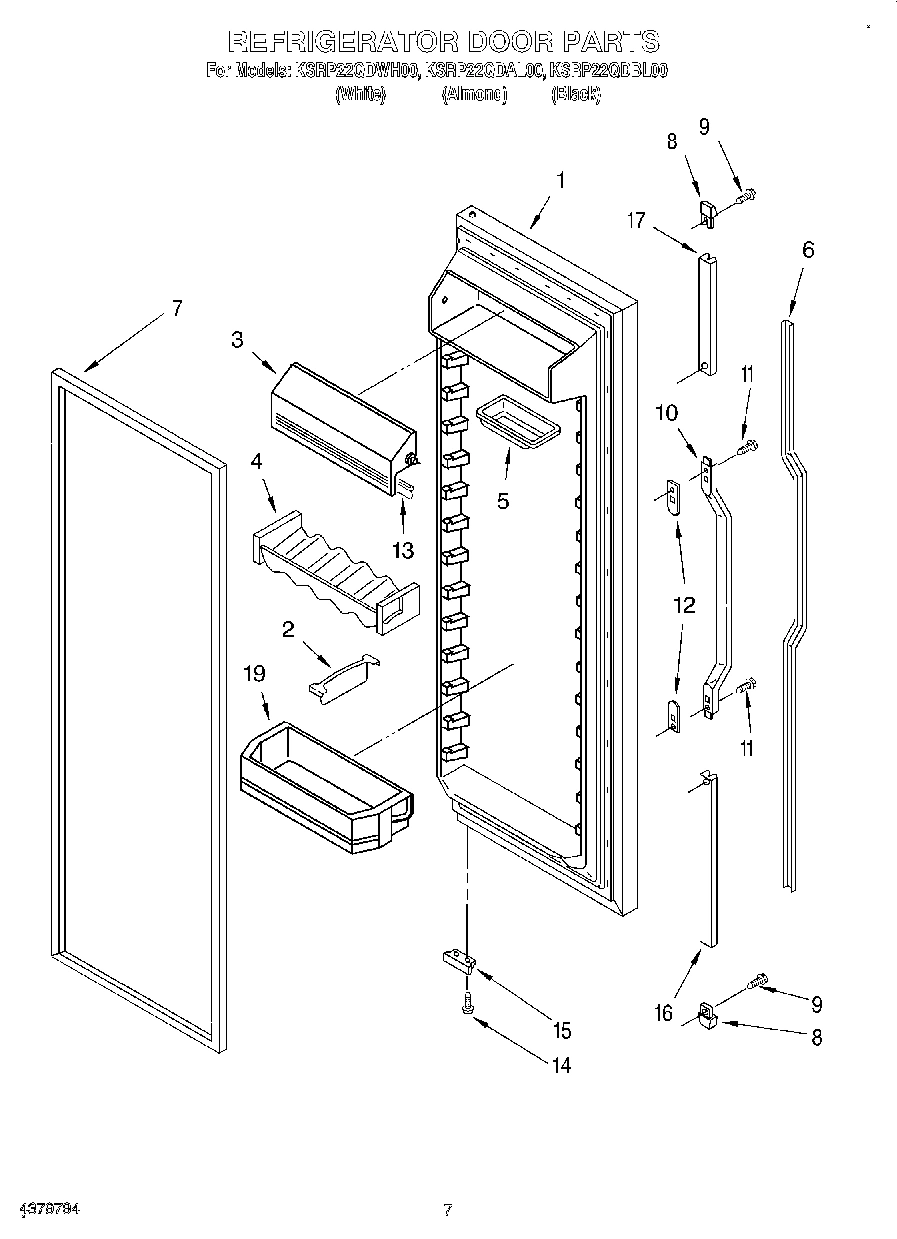

05 - REFRIGERATOR DOOR

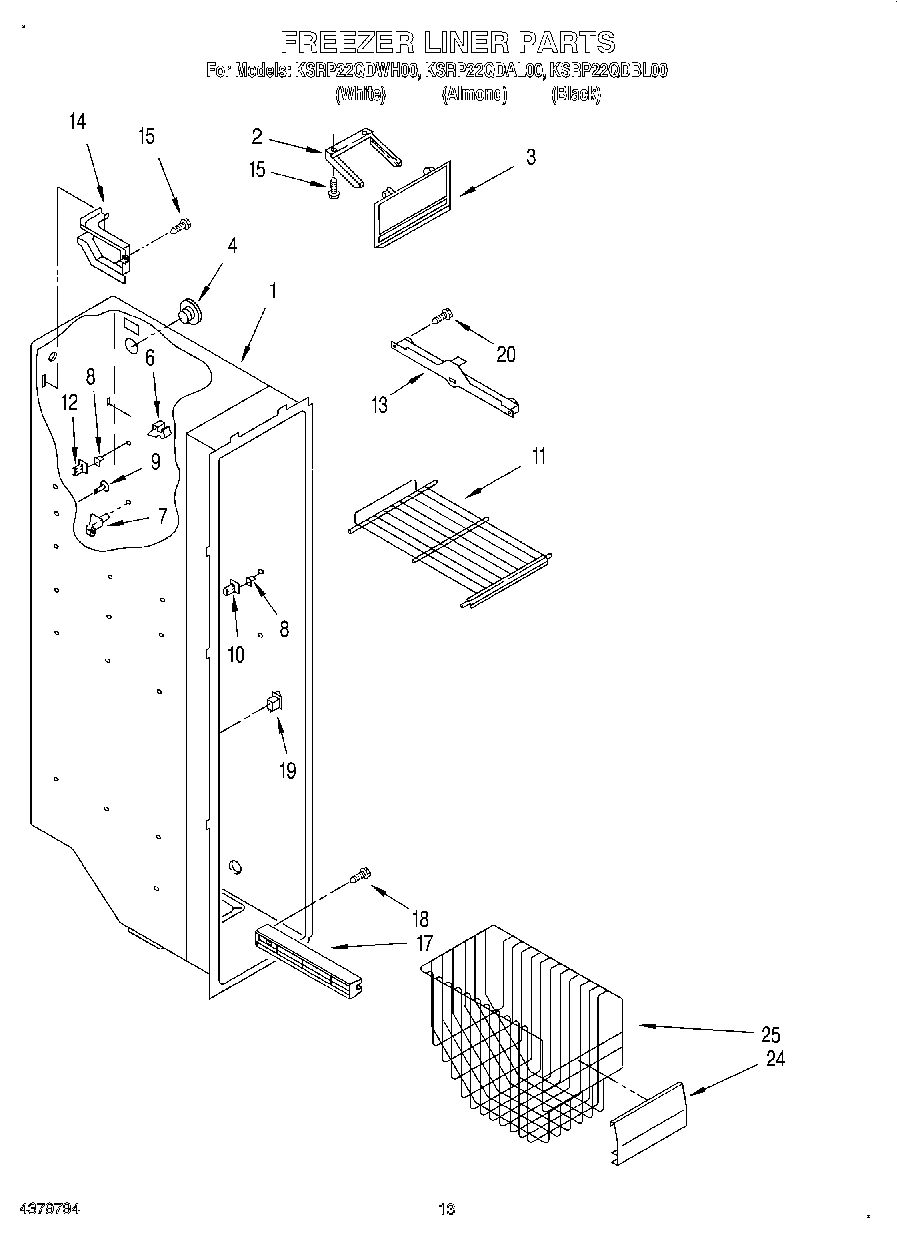

08 - FREEZER LINER

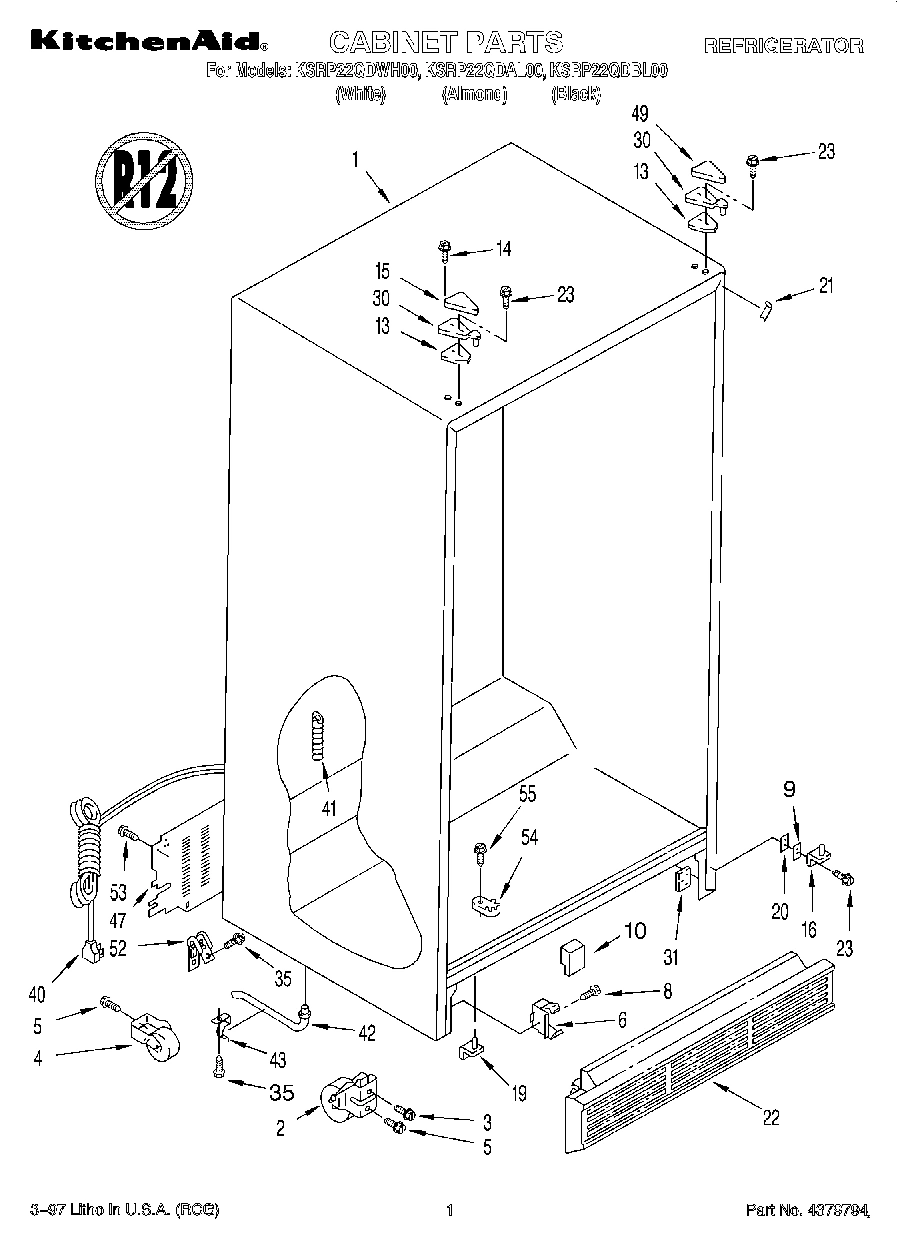

01 - CABINET

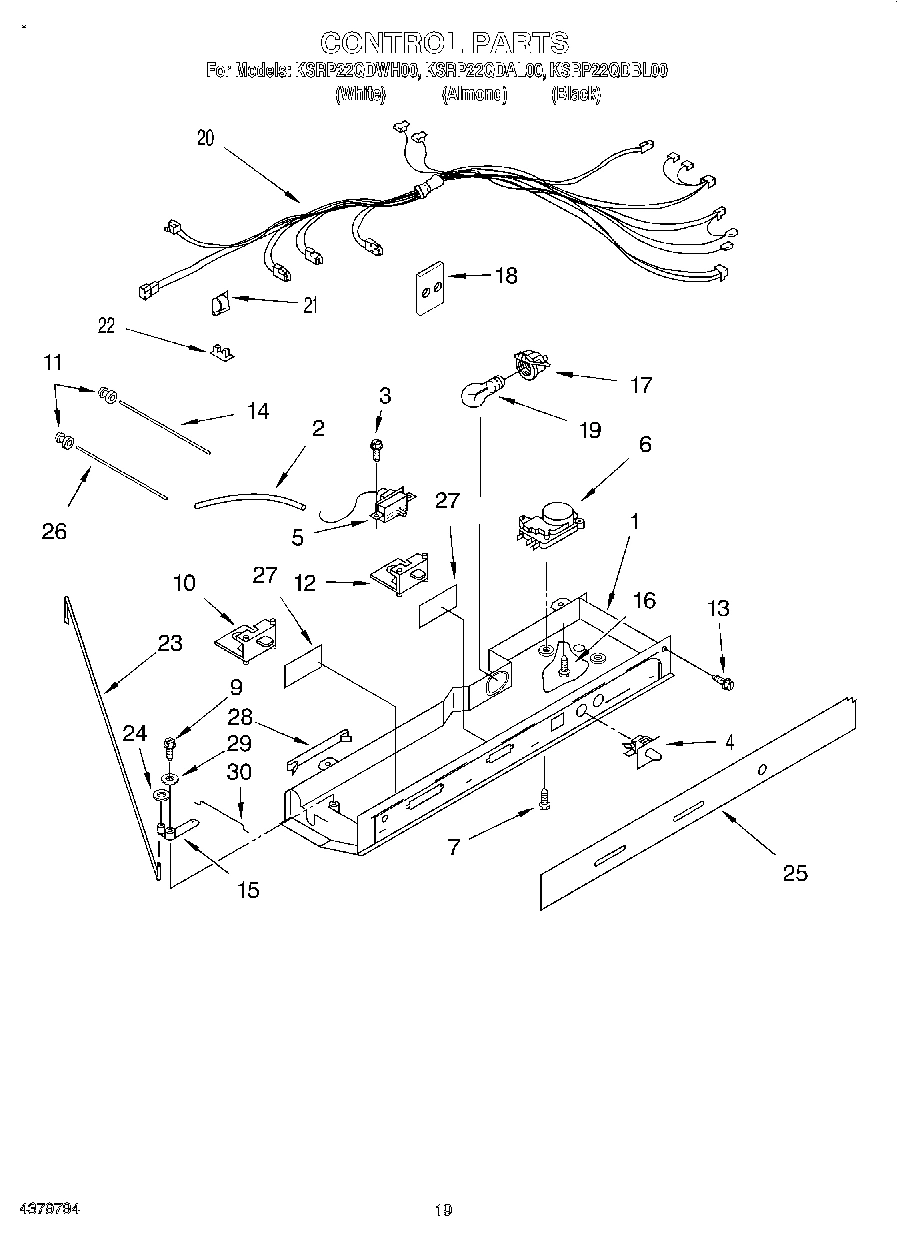

12 - CONTROL, LIT/OPTIONAL

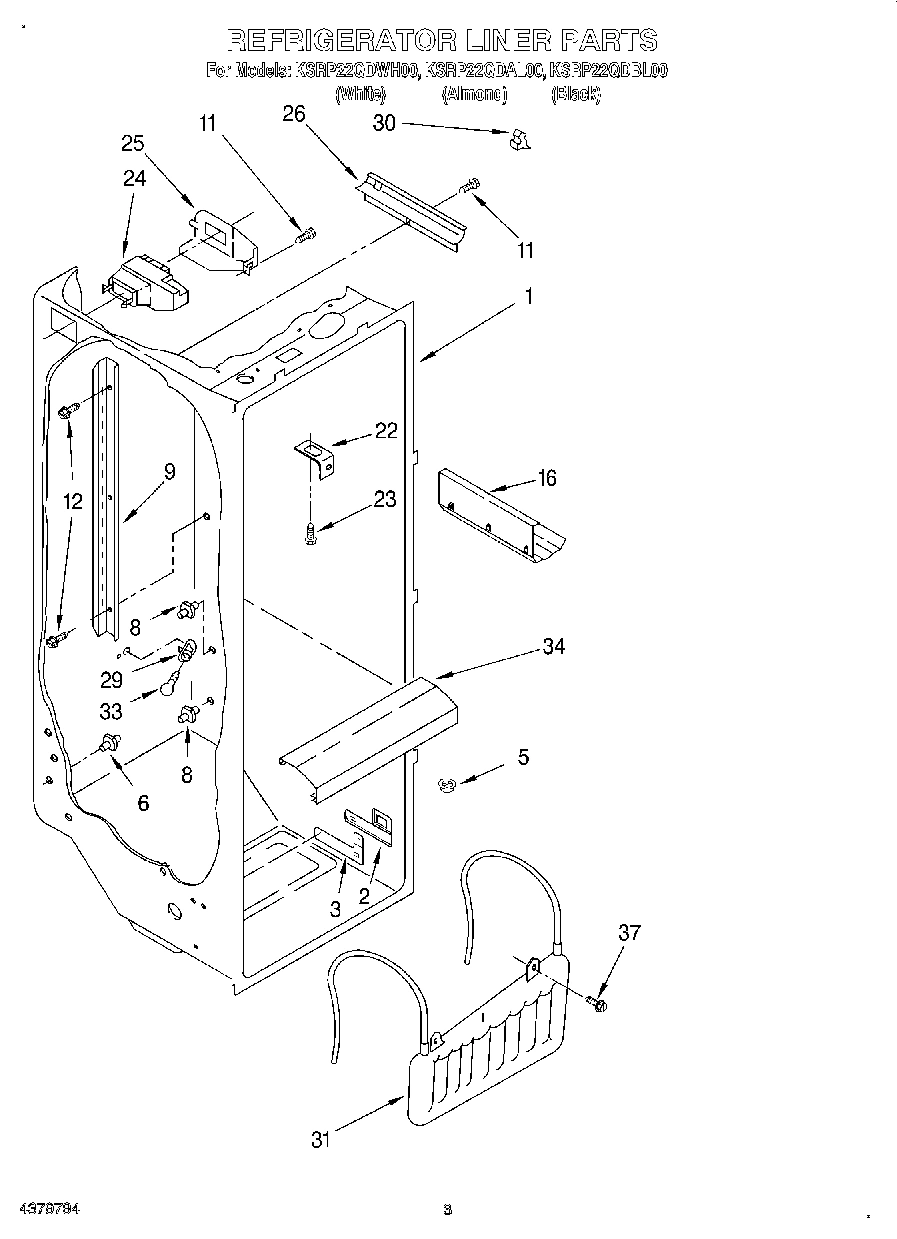

02 - REFRIGERATOR LINER

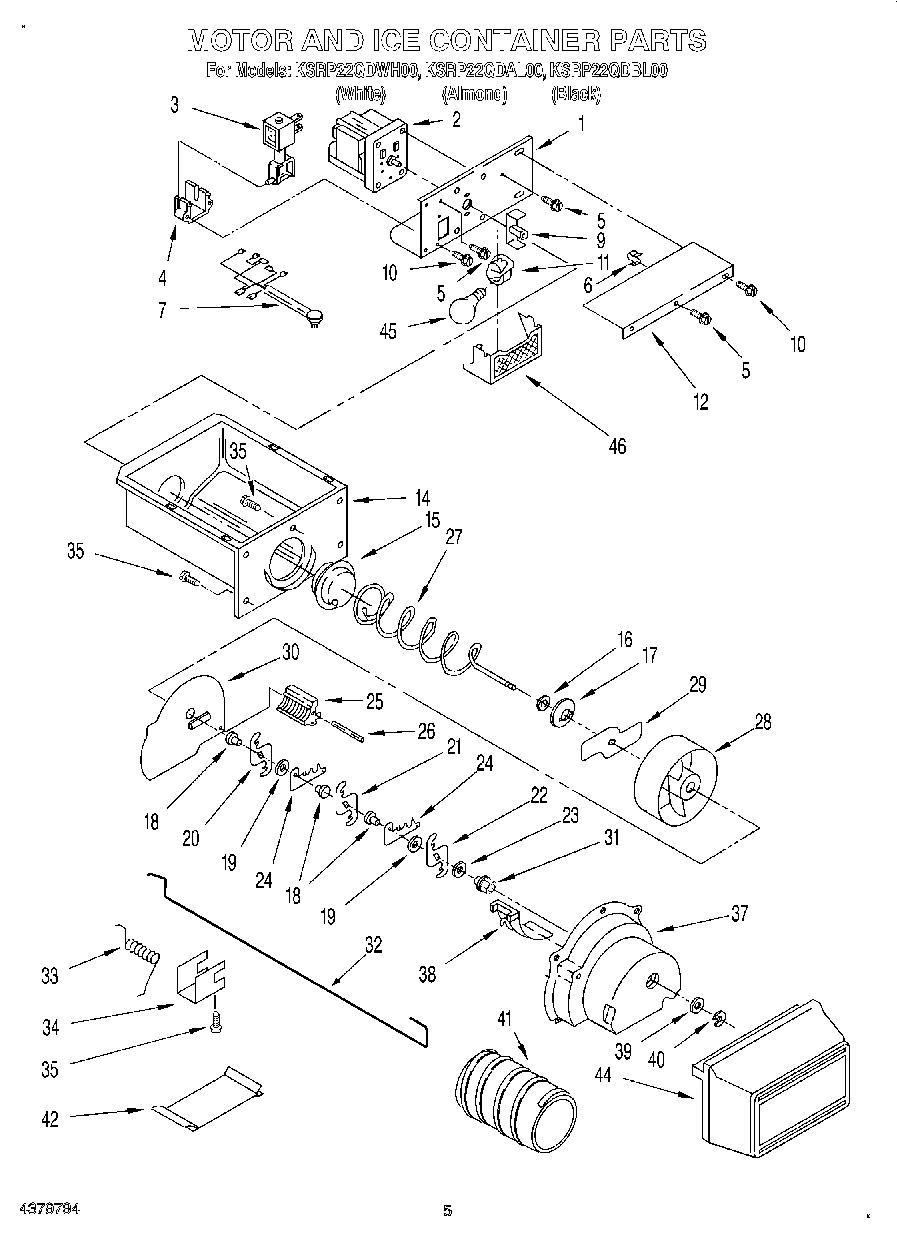

04 - MOTOR AND ICE CONTAINER
09 - AIR FLOW

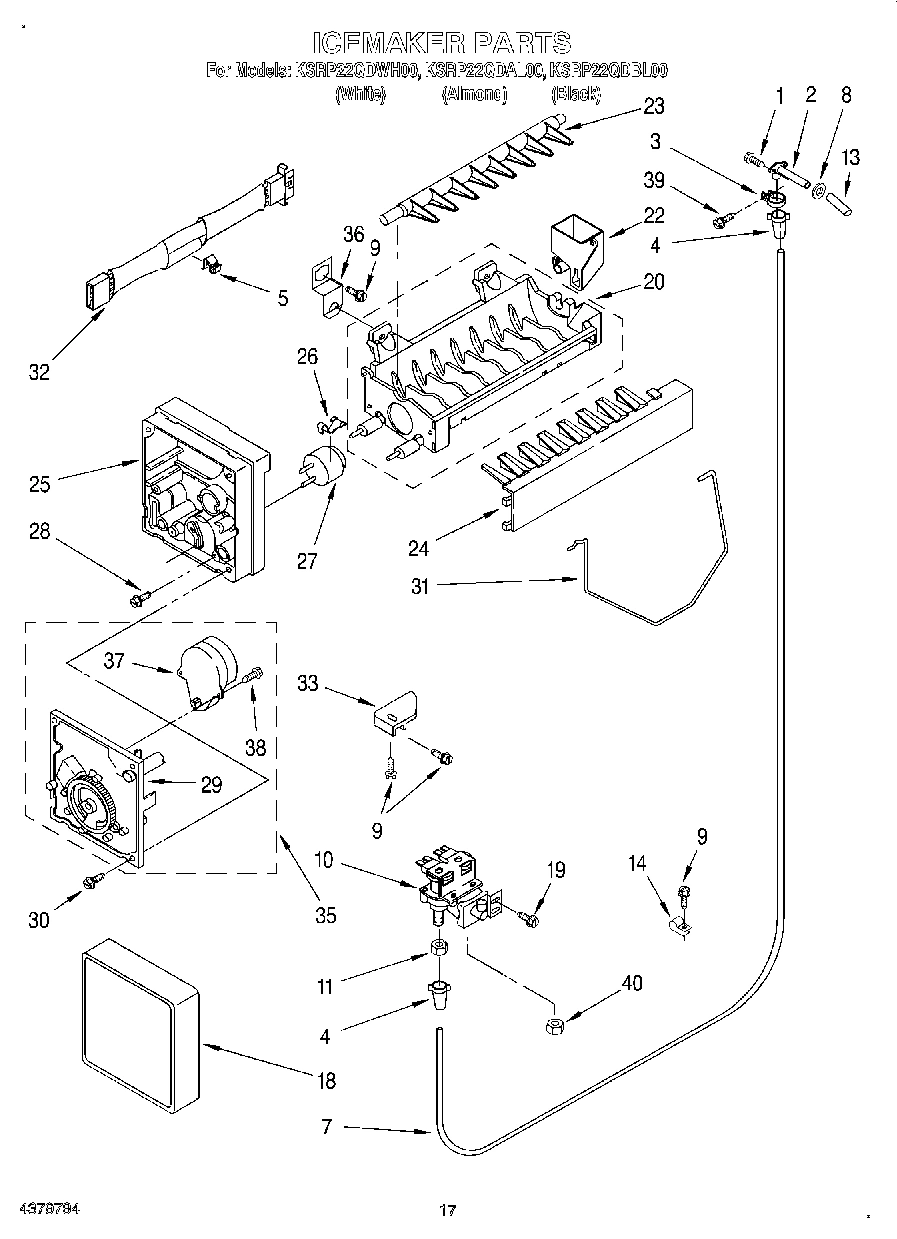

11 - ICEMAKER
Common parts from model Whirlpool KSRP22QDWH00 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2161476 WPL LIT2161476 Contact Us For Availability
WPL LIT2176838 WPL LIT2176838 Contact Us For Availability
WPL LIT2180060 WPL LIT2180060 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
1
Refrigerator Door (Includes No.7) (White) WPL 2171090 Contact Us For Availability
1
Refrigerator Door (Includes No.7) (Almond) WPL 2171091 Contact Us For Availability
1
Refrigerator Door (Includes No.7) (Black) WPL 2177198 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI100125A Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI100122A Contact Us For Availability
1
Control Box WPL 2175511 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI100123A Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Load, Lock (4) WPL 2171283 Contact Us For Availability
2
Slide, Ice Door WPL 1115380 Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
3
Door, Compartment WPL 2171078 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
4
Holder, Beverage WPL 1125981 Contact Us For Availability
5
Butter, Tray WPL 1125936 Contact Us For Availability
5
Thermostat WPL 2175515 Contact Us For Availability
6
Insert, Handle (White) WPL 1117950 Contact Us For Availability
6
Insert, Handle (Almond) WPL 1117951 Contact Us For Availability
6
Insert, Handle (Black) WPL 2177137 Contact Us For Availability
6
Defrost Timer (10 Hr.) WPL 2162046 Contact Us For Availability
6
Diffuser, Air Duct WPL 2149544 Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2169490 Contact Us For Availability
8
End Cap, Handle WPL 1107341 Contact Us For Availability
8
Support, Stud (2) WPL 946355 Contact Us For Availability
9
Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2174250 Contact Us For Availability
9
Grommet (4) WPL 2176134 Contact Us For Availability
9
Screw WPL 489075 Contact Us For Availability
9
Shim WPL 836196 Contact Us For Availability
9
Ladder, Shelf (2) WPL 2171995 Contact Us For Availability
10
Handle Assembly WPL 1107215 Contact Us For Availability
10
Stud, Front WPL 946356 Contact Us For Availability
10
Insert, Air Baffle WPL 2176796 Contact Us For Availability
11
Shelf (2) WPL 2174265 Contact Us For Availability
11
Grommet, Light Bar WPL 2172906 Contact Us For Availability
12
Spacer, Handle WPL 1107651 Contact Us For Availability
12
Stud, Rear WPL 1106982 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2161478 Contact Us For Availability
13
Tube, Water Inlet WPL 2171943 Contact Us For Availability
13
Eyelet, Roller WPL 2174478 Contact Us For Availability
13
Shim, Hinge Top WPL 1123515 Contact Us For Availability
13
Gasket, Door Compartment WPL 2159124 Contact Us For Availability
14
Light Bar (RC) WPL 2179920 Contact Us For Availability
14
Clip, Defrost Heater WPL 2161324 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
14
Screw WPL 489284 Contact Us For Availability
15
Hinge Cover (White) WPL 1129262 Contact Us For Availability
15
Bracket, Door Stop (Chrome) WPL 2155332 Contact Us For Availability
15
Bracket, Door Stop (Black) WPL 2155334 Contact Us For Availability
15
Hinge Cover (Almond) WPL 2150343 Contact Us For Availability
15
Hinge Cover (Black) WPL 2151694 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Retainer, Insert (Bottom) WPL 1117953 Contact Us For Availability
16
Hinge Bottom (R.H) (Black) WPL 2155320 Contact Us For Availability
16
Hinge Bottom (R.H) (Chrome) WPL 2155321 Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
17
Retainer, Insert WPL 1107241 Contact Us For Availability
17
Shelf Track (Left Side (2)) WPL 2171777 Contact Us For Availability
17
Shelf Track (Right Side (2)) WPL 2171778 Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
18
Window, Crisper WPL 2174076 Contact Us For Availability
19
Spacer WPL 625834 Contact Us For Availability
19
Shelf Bin (4) WPL 2171063 Contact Us For Availability
19
Acrylic Panel Kit (Black) WPL 4210348 Contact Us For Availability
19
Acrylic Panel Kit (Almond) WPL 4211147 Contact Us For Availability
19
Acrylic Panel Kit (White) WPL 4211148 Contact Us For Availability
19
Trim Kit WPL 4318336 Contact Us For Availability
19
Handle Inserts (Black) WPL 4318339 Contact Us For Availability
19
Handle Inserts (Woodgrain) WPL 4318340 Contact Us For Availability
19
Handle Inserts (Black Grille Kit) WPL 4318417 Contact Us For Availability
19
Hinge Bottom (L.H) (Black) WPL 2155322 Contact Us For Availability
19
Hinge Bottom (L.H) (Chrome) WPL 2155323 Contact Us For Availability
20
Spacer, Hinge WPL 1129868 Contact Us For Availability
20
Control Box Harness WPL 2149186 Contact Us For Availability
21
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
21
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
21
Filler, Wrapper (Black) WPL 1127272 Contact Us For Availability
22
Grille (Black) WPL 2155476 Contact Us For Availability
22
Grille (White) WPL 2155477 Contact Us For Availability
22
Grille (Almond) WPL 2155478 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
24
Front, Basket WPL 2171768 Contact Us For Availability
24
Fastener, Push-On WPL 489391 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
25
Guide, Ice (White) WPL 1124730 Contact Us For Availability
25
Tray, Evaporator WPL 2154114 Contact Us For Availability
25
Basket, Lower WPL 2171699 Contact Us For Availability
25
Escutcheon, Control Box WPL 2175514 Contact Us For Availability
26
Harness, Intermediate WPL 2181709 Contact Us For Availability
26
Light Bar (FC) WPL 2179921 Contact Us For Availability
27
Window WPL 2175513 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
28
Clip, Control Box WPL 1125811 Contact Us For Availability
30
WPL 876029 WPL 876029 Contact Us For Availability
30
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
30
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
30
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
30
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
30
KIT, EVAPORATOR REPAIR (ALUMINUM WPL 799833 Contact Us For Availability
30
WPL 978883 WPL 978883 Contact Us For Availability
31
Tap Plate (2) WPL 2147310 Contact Us For Availability
32
Bracket, Fan Motor WPL 548695 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
36
Clip, Support WPL 2155021 Contact Us For Availability
37
Screw (2) WPL 488280 Contact Us For Availability
40
Cord, Service WPL 937360 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
42
Clip, Heat WPL 2155547 Contact Us For Availability
42
Housing WPL 2152700 Contact Us For Availability
44
Front Cover, Ice Container WPL 2171709 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
49
Hinge Cover (Black) WPL 2155938 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
52
Wire Tie WPL 851095 Contact Us For Availability
54
Wire Connector WPL 850145 Contact Us For Availability
59
Clip, Wire & Tube WPL 2155658 Contact Us For Availability
62
Clip, Tube (3) WPL 934011 Contact Us For Availability
64
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
64
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
64
Tube, Spring WPL 983659 Contact Us For Availability
× ![]()
