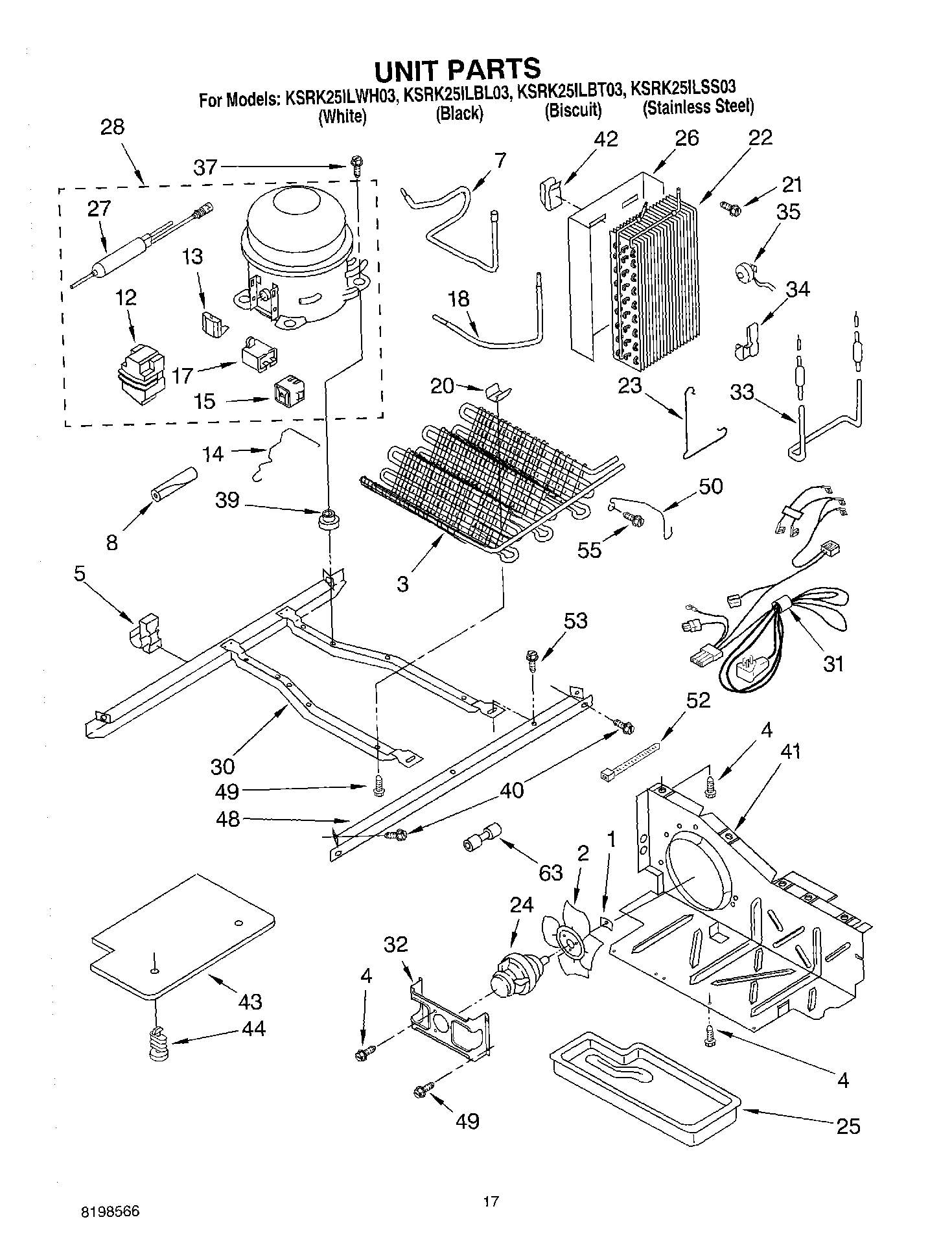

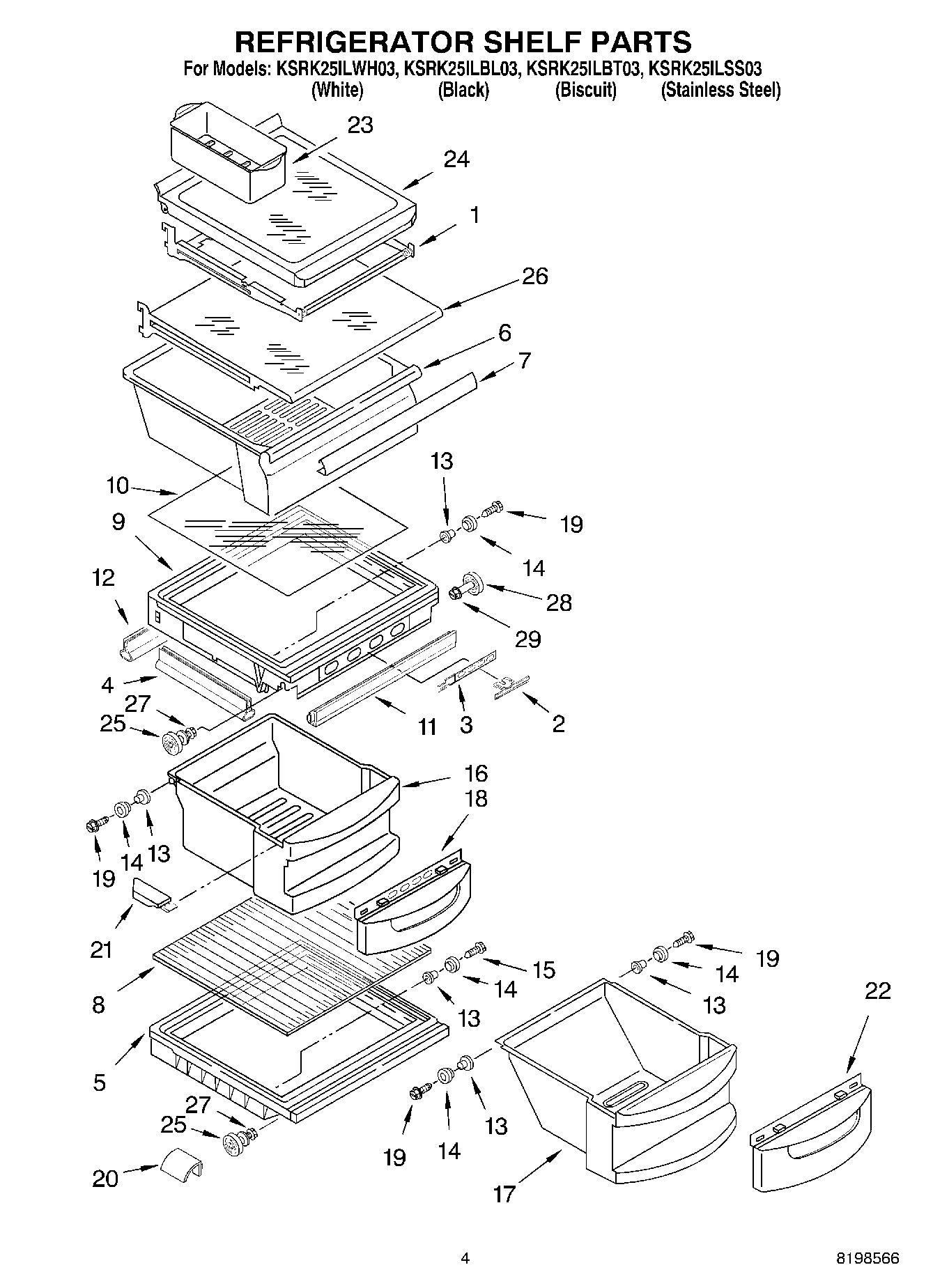

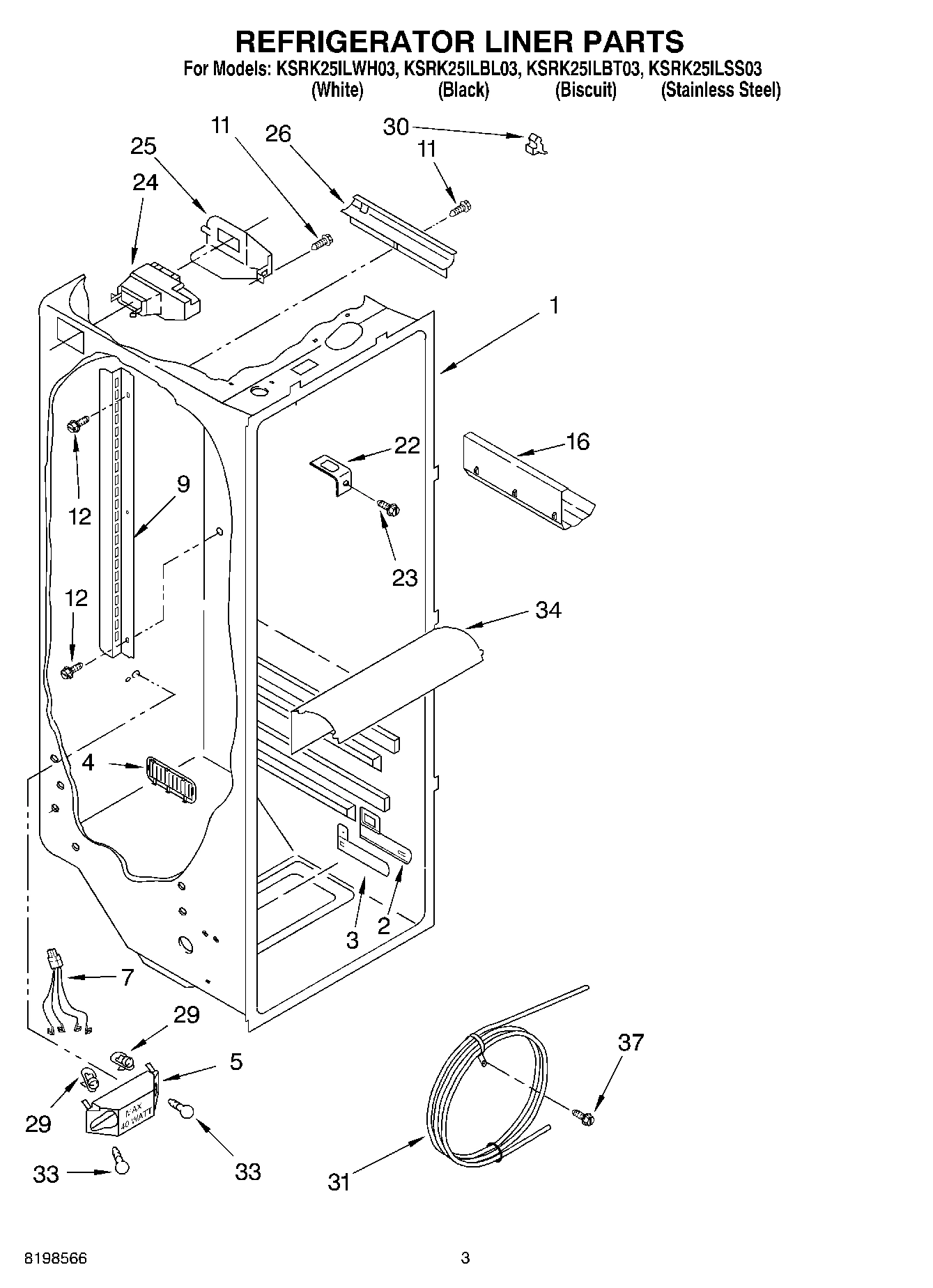

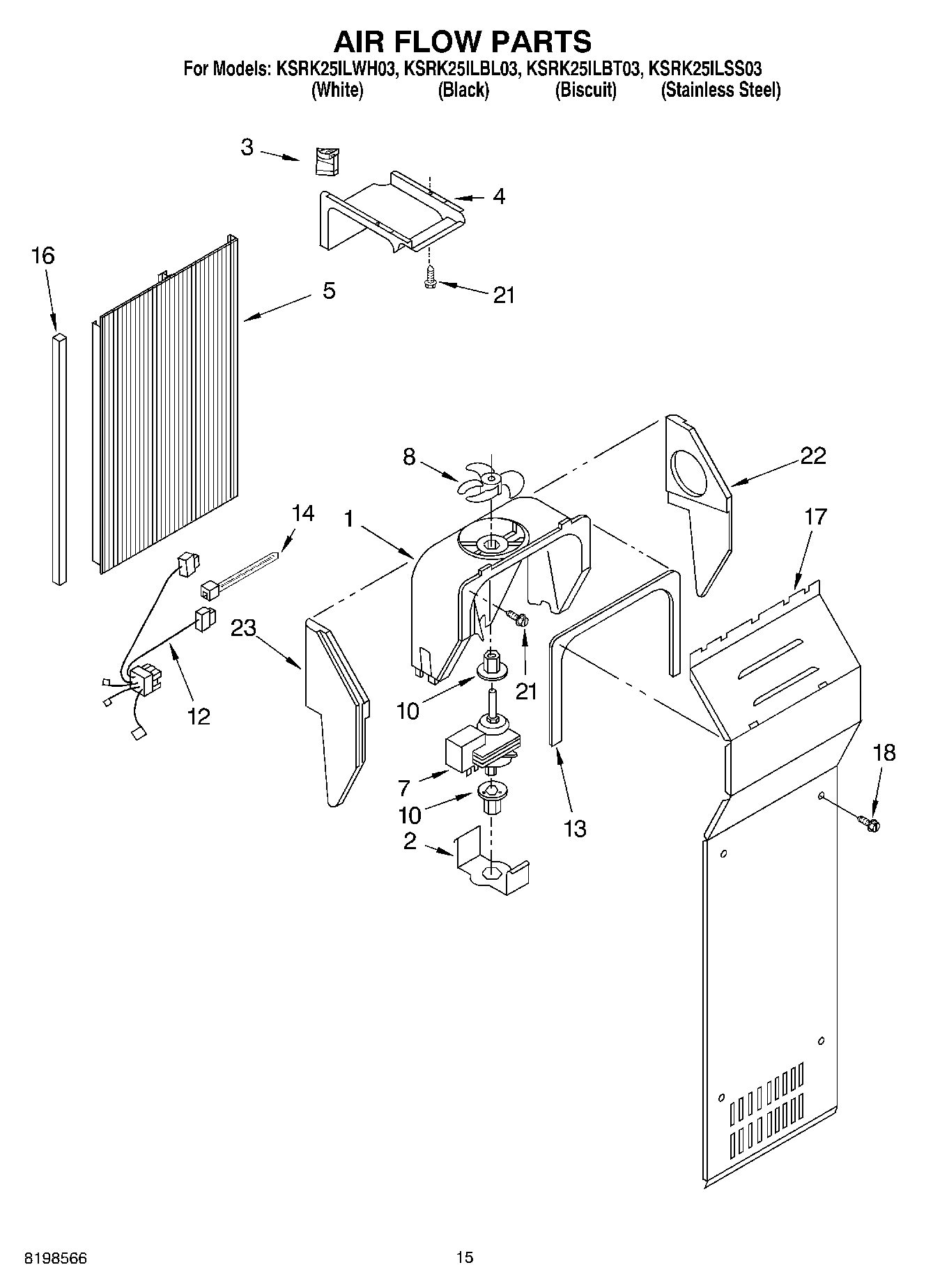

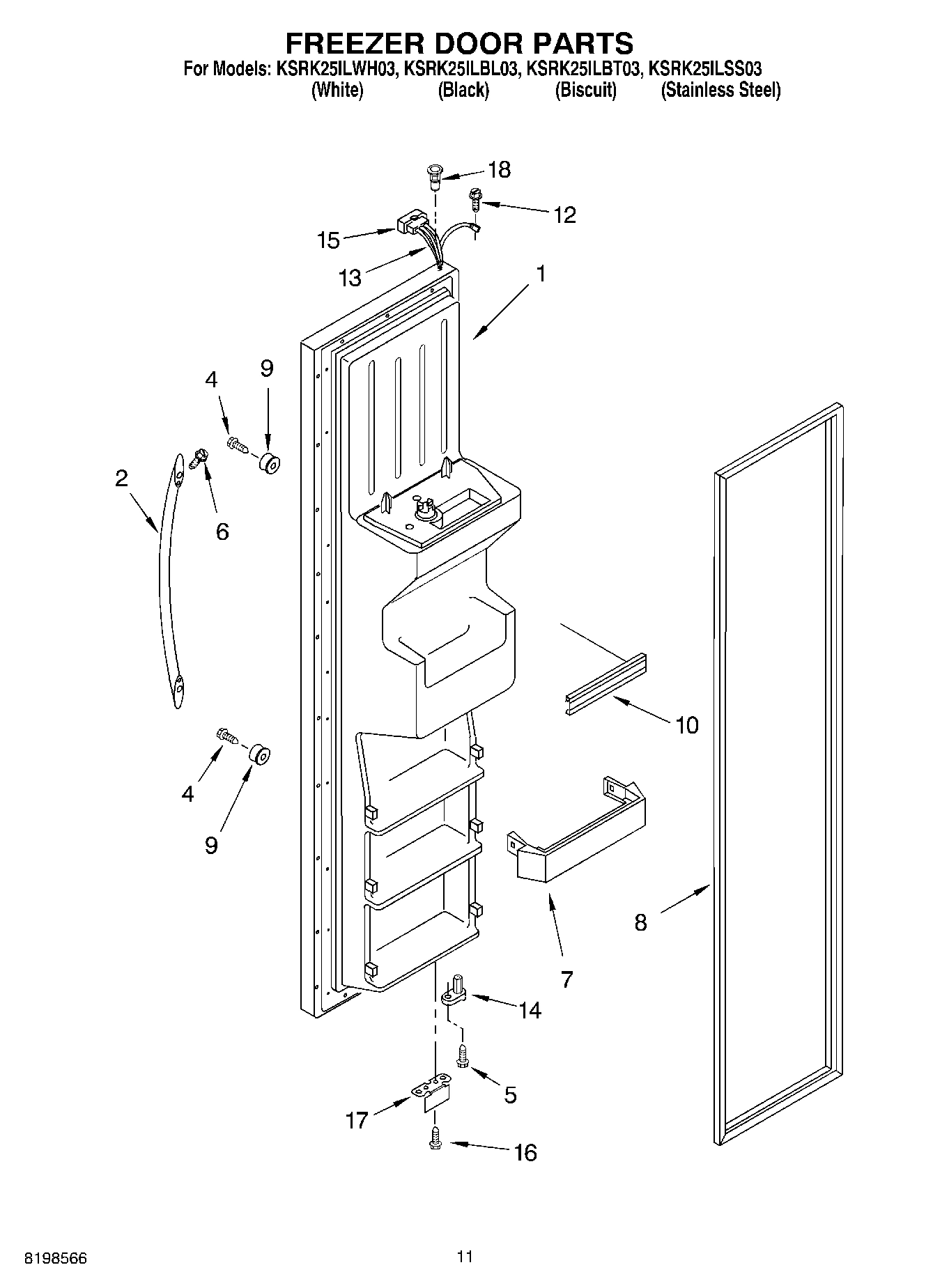

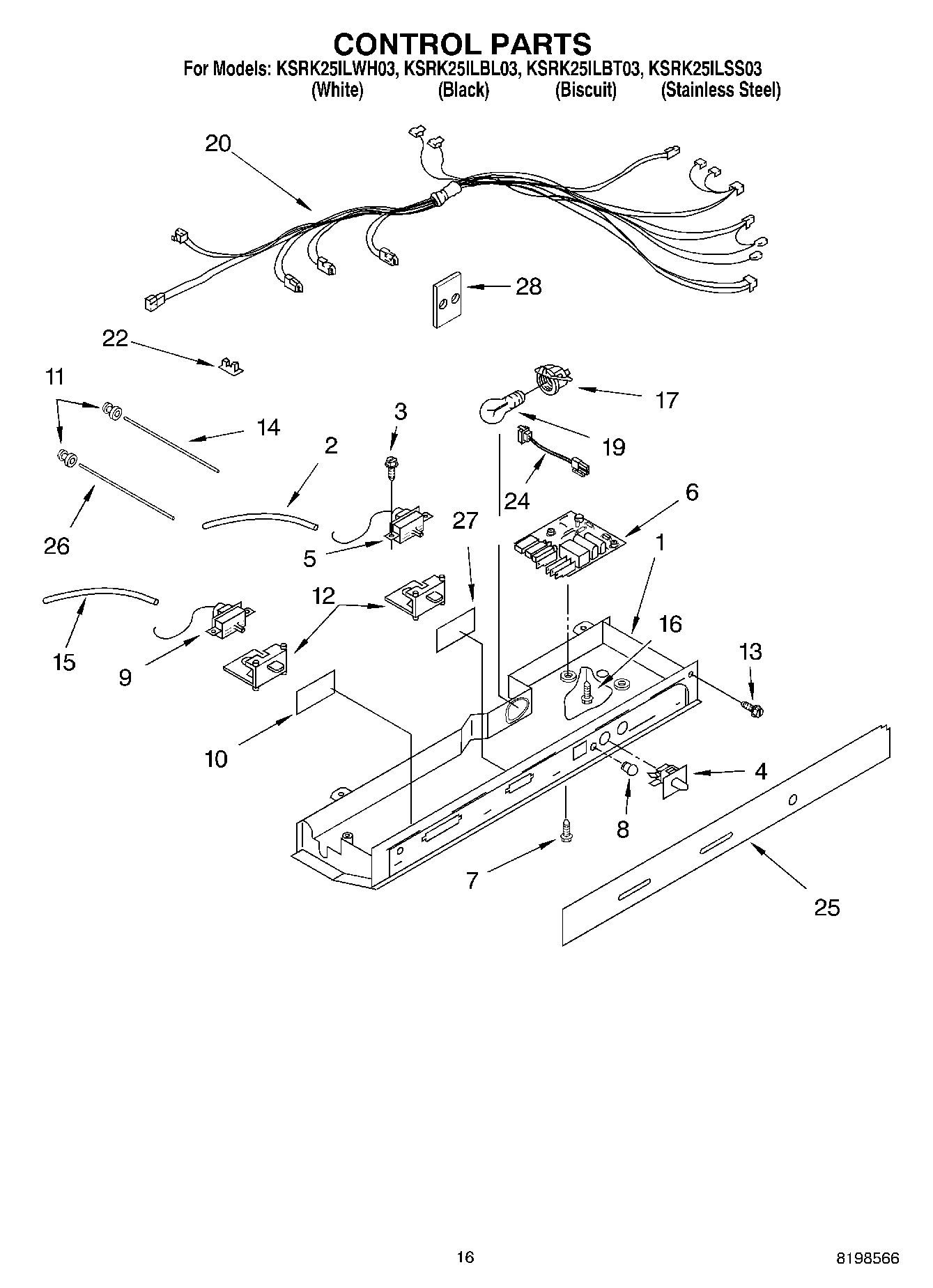

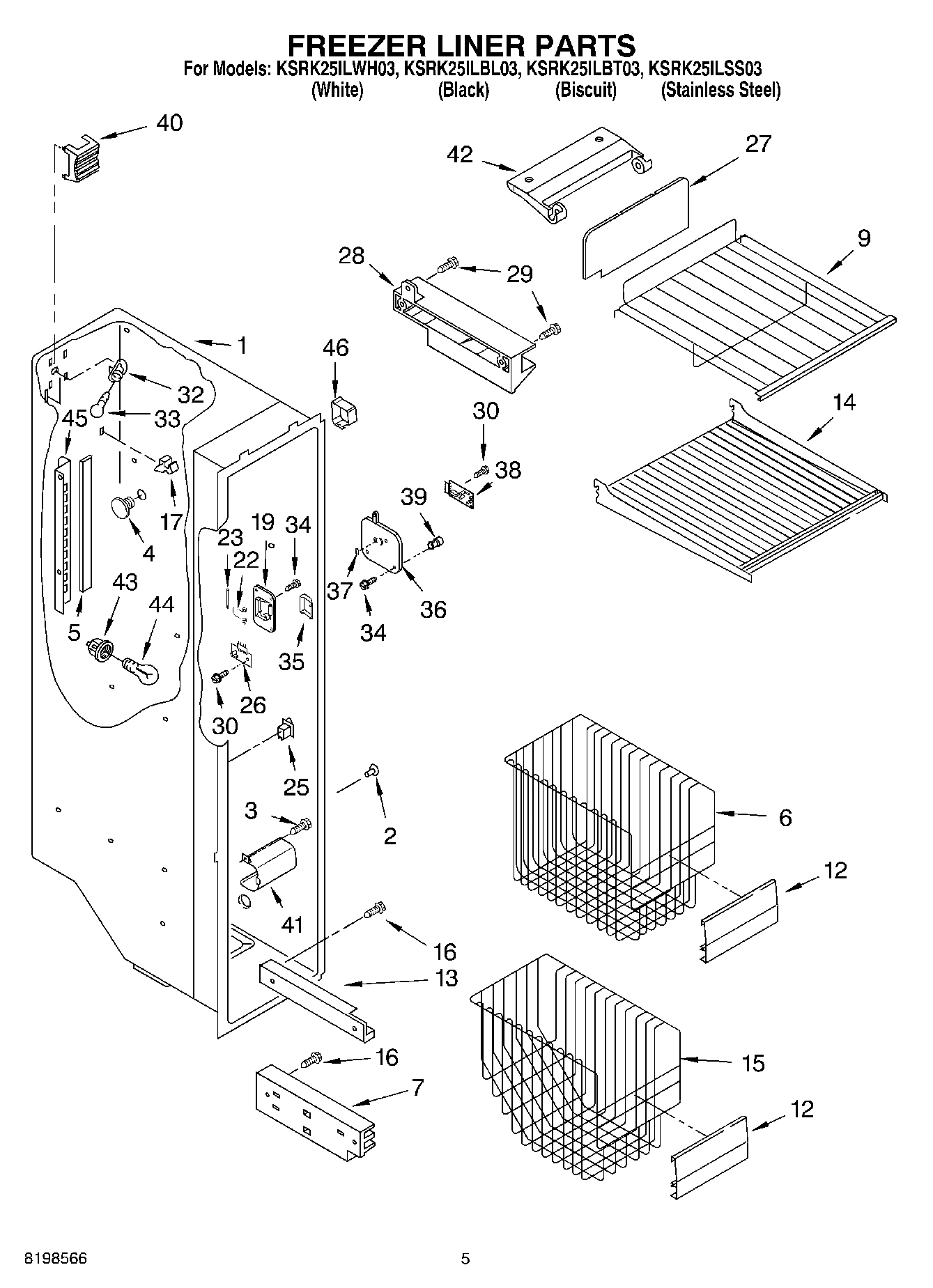

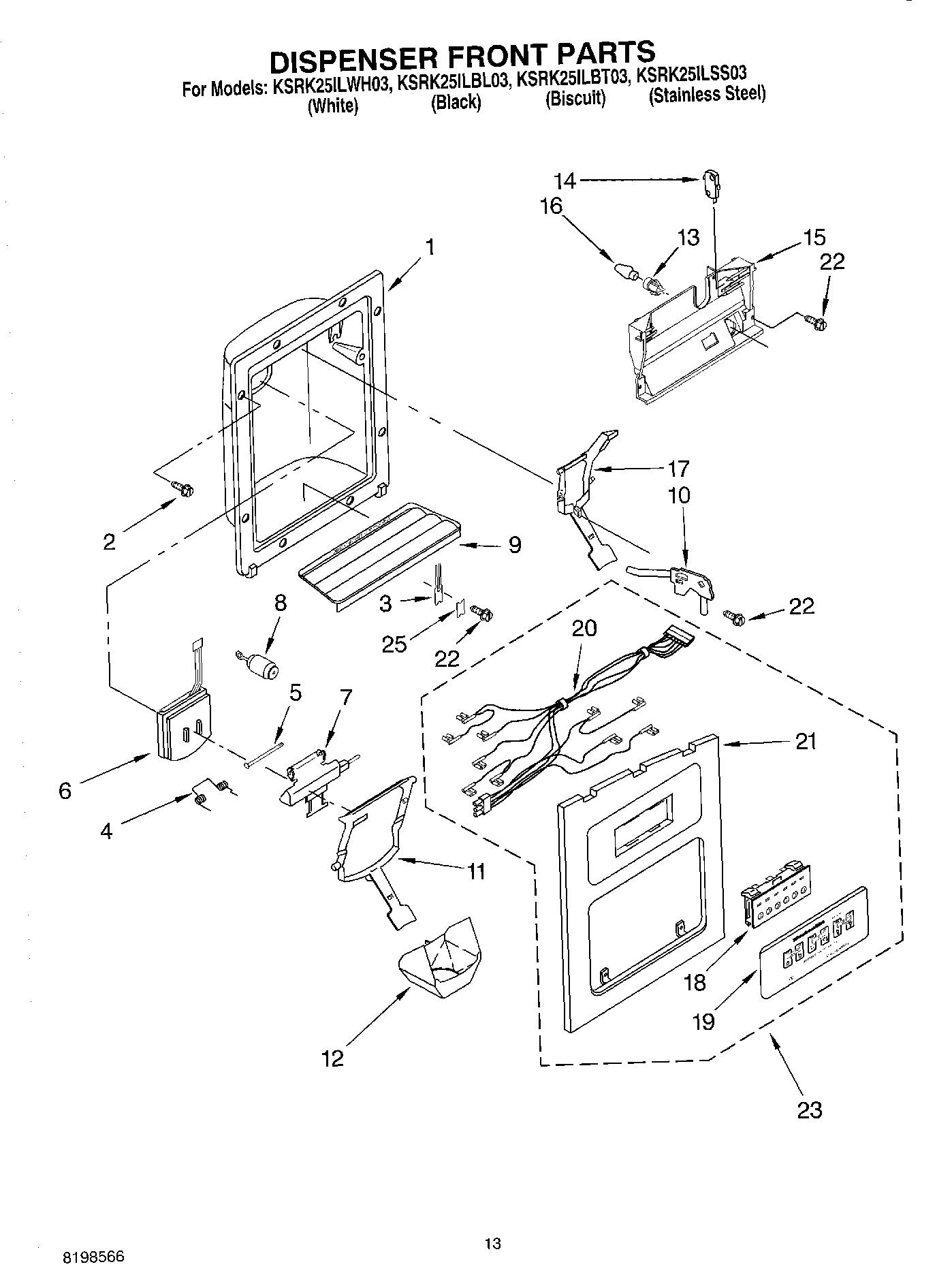

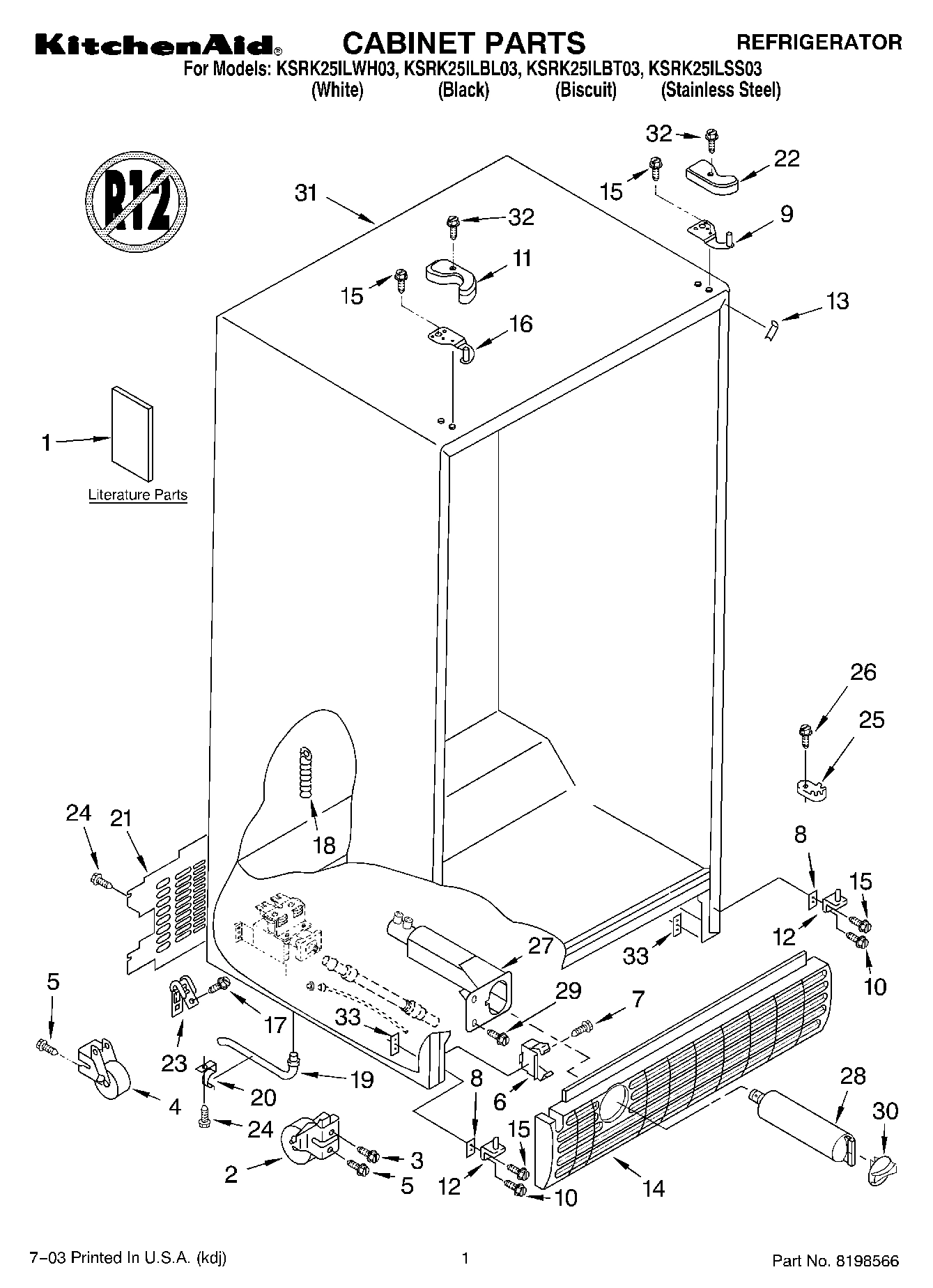

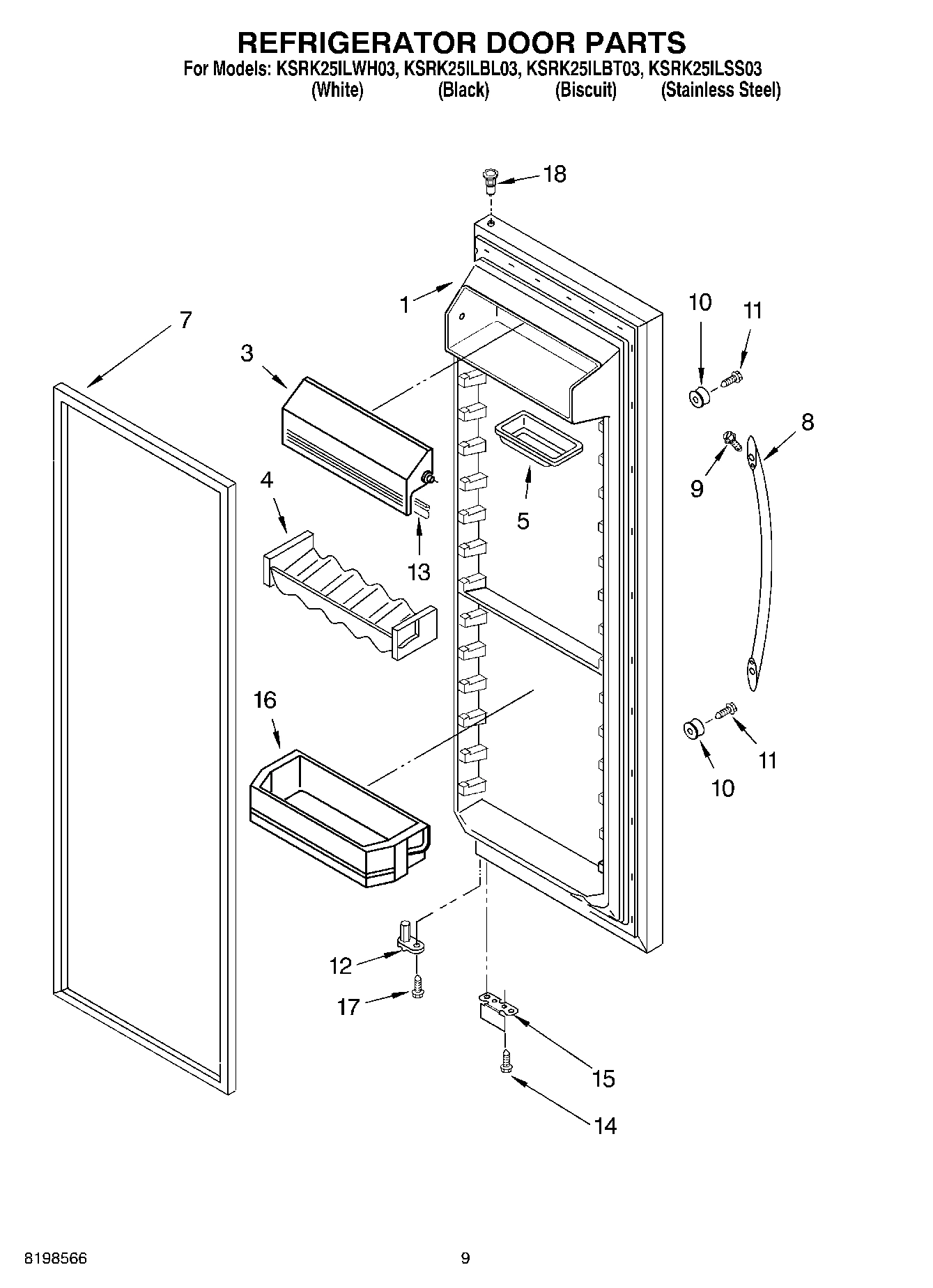

Model Whirlpool KSRK25ILBT03 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350942 Whirlpool Spray Paint Backorder WPL 350942 $49.86

350956 Whirlpool Spray Assembly In Stock WPL 350956 $29.99

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $16.99

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $30.99

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $27.29

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $53.03

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $18.58

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $75.04

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $111.80

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $30.85

WP72107 Whirlpool Touchup In Stock WPL WP72107 $14.61

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

WPL 799344 WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

1

WP2182120 Whirlpool Refrigerator Scroll Fan Backorder WPL WP2182120 $71.16

1

WP2198573 Whirlpool Refrigerator Ice Bin Backorder WPL WP2198573 $183.99

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $4.82

1

Liner (Not A Serviceable Part) WPL ARI98762A3 Contact Us For Availability

1

Liner (Not A Seviceable Part) WPL ARI98763A2 Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $62.28

2

WP2256096 Whirlpool Refrigerator Fitting In Stock WPL WP2256096 $130.70

2

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $5.99

2

Fan, Blade WPL 2190685 Contact Us For Availability

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

2

Crusher Bin WPL 2212367 Contact Us For Availability

3

W10142289 Whirlpool Air Conditioner Screw Backorder WPL W10142289 $6.10

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $11.99

3

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability

3

Condenser Assembly WPL 2204484 Contact Us For Availability

4

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $13.22

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $27.81

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $25.38

4

Louver WPL 2182147 Contact Us For Availability

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $8.89

5

WP2161460 Whirlpool Refrigerator Thermostat Backorder WPL WP2161460 $176.93

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $11.99

5

WP2223357 Whirlpool Refrigerator Cover In Stock WPL WP2223357 $242.61

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $6.90

5

Bracket, Dual Crisper Light WPL 2256035 Contact Us For Availability

5

Gasket WPL 2198697 Contact Us For Availability

5

Clip, Wire & Tube WPL 2208280 Contact Us For Availability

6

W11497323 Whirlpool Snack Pan Backorder WPL W11497323 $139.99

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $5.99

6

Cover, Crusher WPL 2255460 Contact Us For Availability

6

Basket, Tall WPL 2223539 Contact Us For Availability

7

2311637 Whirlpool Refrigerator Wire Harness Backorder WPL 2311637 $100.16

7

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $67.13

7

TUBE, SUCTION WPL 2205765 Contact Us For Availability

7

Track, Basket- Dual (Right Side) WPL 2223708 Contact Us For Availability

7

Track, Basket- Dual (Left Side) WPL 2223709 Contact Us For Availability

8

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $13.22

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $6.99

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $30.99

8

COVER, LIGHT LENS WPL 2200096 Contact Us For Availability

8

Glass, Cover WPL 2255144 Contact Us For Availability

9

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $62.99

9

WP2206670B Whirlpool Dispenser Tray In Stock WPL WP2206670B $24.99

9

WP2206670T Whirlpool Refrigerator Grille Backorder WPL WP2206670T $44.34

9

WP2206670W Whirlpool Dispenser Tray In Stock WPL WP2206670W $54.67

9

Ladder, Shelf (2) WPL 2206273 Contact Us For Availability

9

Shelf, Slide Out Upper WPL 2211746 Contact Us For Availability

10

2172940 Whirlpool Window Backorder WPL 2172940 $13.22

10

W10856122 Whirlpool Refrigerator Screw Backorder WPL W10856122 $4.82

10

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $4.96

2203407T Whirlpool Refrigerator Cover Backorder WPL 2203407T $12.83

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $13.08

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $14.39

Lever, Ice Dispenser (White) WPL 2180259 Contact Us For Availability

Block, Blade WPL 2198602 Contact Us For Availability

Grommet, Light Bar WPL 2172906 Contact Us For Availability

2161466 Whirlpool Refrigerator Slide Backorder WPL 2161466 $14.02

2305580K Whirlpool Refrigerator Basket Trim Backorder WPL 2305580K $38.71

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $31.65

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $64.83

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $8.97

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $3.91

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $67.59

WP4387835 Whirlpool Refrigerator Overload In Stock WPL WP4387835 $74.99

NLA:SCREW Backorder WPL WPW10141645 $4.82

Eyelet, Roller WPL 2174478 Contact Us For Availability

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability

Wire Harness WPL 2206178 Contact Us For Availability

Shelf Track (Left Side) WPL 2223704 Contact Us For Availability

2223314 Whirlpool Refrigerator Clip Backorder WPL 2223314 $8.90

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $10.72

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $4.60

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $6.87

Light Bar (RC) WPL 2179920 Contact Us For Availability

Shelf WPL 2205837 Contact Us For Availability

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $15.58

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $6.90

WP489497 Whirlpool Screw In Stock WPL WP489497 $6.75

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $7.55

Basket, Sloped WPL 2223535 Contact Us For Availability

Start Device, Combination (Start Relay and Ov WPL 2220475 Contact Us For Availability

W10759522 Whirlpool Screw Backorder WPL W10759522 $4.82

W10777924 Whirlpool Refrigerator Wine Rack Backorder WPL W10777924 $14.29

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $62.57

WP2220457 Whirlpool Refrigerator Ice Bin Coup In Stock WPL WP2220457 $12.79

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $6.90

WP2206629B Whirlpool Refrigerator Bracket Backorder WPL WP2206629B $23.94

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $4.82

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $122.18

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $5.99

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $6.74

WPW10152858 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152858 $62.59

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $34.99

Meat Pan (Includes 13, 14, 19, & 22) WPL 2223359 Contact Us For Availability

W11233072 Whirlpool Screw In Stock WPL W11233072 $19.85

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $9.65

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $4.82

Window, Crisper WPL 2174076 Contact Us For Availability

Tube, Condenser to Heat Loop WPL 2255798 Contact Us For Availability

19

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $19.72

19

WP2198587 Whirlpool Refrigerator Cover Backorder WPL WP2198587 $67.24

20

W10683556 Whirlpool Refrigerator Clip Backorder WPL W10683556 $12.26

20

Control Box Harness WPL 2216587 Contact Us For Availability

21

2223285 Whirlpool Refrigerator Cap Backorder WPL 2223285 $14.02

21

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $4.82

21

Cap, Crisper Pan (Right Side) WPL 2223286 Contact Us For Availability

2198671 Whirlpool Refrigerator Screw In Stock WPL 2198671 $6.84

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $287.76

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $59.45

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $19.99

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $14.54

WP2256085 Whirlpool Refrigerator Retainer Backorder WPL WP2256085 $23.85

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $29.99

CLIP, WIRING WPL 1115375 Contact Us For Availability

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $10.62

WP488488 Whirlpool Refrigerator Screw Backorder WPL WP488488 $4.82

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $59.71

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $6.83

Front Cover Assembly (Includes Items 18, 19, WPL 2220092W Contact Us For Availability

Clamp WPL 2161324 Contact Us For Availability

W10822259 Whirlpool Refrigerator Condenser Fa In Stock WPL W10822259 $165.99

W10853646 Whirlpool Indicator Light In Stock WPL W10853646 $88.98

WP2209751 Whirlpool Refrigerator Air Diffuser In Stock WPL WP2209751 $243.56

Holder WPL 2212369 Contact Us For Availability

W11223328 Whirlpool Refrigerator Shelf Stud In Stock WPL W11223328 $14.99

W11457217 Whirlpool Refrigerator Rocker Switc In Stock WPL W11457217 $17.77

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $7.19

WP2212240 Whirlpool Refrigerator Cover Backorder WPL WP2212240 $93.96

WP2220458 Whirlpool Drive Cam In Stock WPL WP2220458 $14.99

WPW10614158 Whirlpool Refrigerator Evaporator In Stock WPL WPW10614158 $74.67

Escutcheon, Control Box WPL 2219879 Contact Us For Availability

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $16.09

W11629974-includeCORE Whirlpool W11629974 Ref Backorder WPL W11629974-includeCORE $263.39

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $6.59

WP489483 Whirlpool Screw In Stock WPL WP489483 $7.58

Light Bar (FC) WPL 2179921 Contact Us For Availability

Heat Shield WPL 2256150 Contact Us For Availability

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $37.99

WP2186443 Whirlpool Water Filter Housing In Stock WPL WP2186443 $68.99

WP2212370 Whirlpool Washer Backorder WPL WP2212370 $14.75

WP2255720 Whirlpool Refrigerator Ice Maker Do Backorder WPL WP2255720 $53.45

Window WPL 2172941 Contact Us For Availability

2172931 Whirlpool Refrigerator Shield Backorder WPL 2172931 $48.27

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $14.99

W10309994 Whirlpool Refrigerator Compressor In Stock WPL W10309994 $487.99

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $6.50

Slide, Ice Maker Mounting WPL 2212321 Contact Us For Availability

29

W10852956 Whirlpool Refrigerator Spring In Stock WPL W10852956 $15.99

29

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $4.82

29

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $4.82

2006254 Whirlpool Refrigerator Screw Backorder WPL 2006254 $8.68

2304904 Whirlpool Frame Assembly Backorder WPL 2304904 $184.77

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $42.99

WP2186494T Whirlpool Water Filter Cap In Stock WPL WP2186494T $7.99

WP2186494W Whirlpool Water Filter Cap Backorder WPL WP2186494W $36.34

WP2188917 Whirlpool Drive Shaft In Stock WPL WP2188917 $69.83

31

WP2256126 Whirlpool Refrigerator Reservoir In Stock WPL WP2256126 $123.79

31

Unit, Harness WPL 2187510 Contact Us For Availability

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $67.99

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $7.28

WP2187467 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187467 $88.98

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $6.84

33

WP2212322 Whirlpool Refrigerator Bracket In Stock WPL WP2212322 $70.78

33

WP2323198 Whirlpool Refrigerator Heater In Stock WPL WP2323198 $45.79

34

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $7.55

34

Light Lens WPL 2209769 Contact Us For Availability

34

Clip WPL 2161330 Contact Us For Availability

35

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $28.99

35

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $23.99

36

WP2212365 Whirlpool Refrigerator Sleeve Backorder WPL WP2212365 $20.81

36

Cover, Receiver WPL 2198588 Contact Us For Availability

37

2315398 Whirlpool Refrigerator Slide Backorder WPL 2315398 $7.18

37

Screw WPL 488280 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $6.83

39

876811 Whirlpool Grommet Backorder WPL 876811 $4.82

39

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $4.99

39

WP4387558 Whirlpool Refrigerator Compressor G Backorder WPL WP4387558 $4.82

40

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $6.83

40

Light Shield WPL 2198589 Contact Us For Availability

41

W10896764 Whirlpool Refrigerator Air Baffle In Stock WPL W10896764 $63.81

41

Light Lens WPL 2212340 Contact Us For Availability

42

WP2198641 Whirlpool Refrigerator Ice Maker Co Backorder WPL WP2198641 $6.99

42

Clip, Heat Shield WPL 2155547 Contact Us For Availability

43

WPW10119935 Whirlpool Refrigerator Socket In Stock WPL WPW10119935 $66.40

43

Unit Cover, Bottom WPL 2206281 Contact Us For Availability

44

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $7.11

44

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $9.81

45

Ladder (Left Side) WPL 2198609 Contact Us For Availability

45

Ladder (Right Side) WPL 2198610 Contact Us For Availability

46

Shield, Wiring WPL 2219878 Contact Us For Availability

48

2305374 Whirlpool Refrigerator Unit Rail Backorder WPL 2305374 $54.42

49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $8.89

50

Guard, Fan WPL 2186495 Contact Us For Availability

52

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $4.99

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $4.82

55

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $13.89

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $37.88

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $82.11

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $86.15

WP4373559 Whirlpool Fitting In Stock WPL WP4373559 $32.99

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

Following Parts Not Illustrated and Optional WPL ARI98768A2 Contact Us For Availability

REFRIGERANT CHARGE 5.00 oz. (R-134A WPL ARI98769A8 Contact Us For Availability

100

2198597 Whirlpool Refrigerator Ice Maker In Stock WPL 2198597 $162.99
