Model Whirlpool KSRG22FTST00 REFRIGERATOR – Common Parts &amp; Diagrams

285006 Whirlpool Spray In Stock WPL 285006 $31.65

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350942 Whirlpool Spray Paint Backorder WPL 350942 $49.86

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $16.99

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $30.99

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $18.58

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $49.86

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $75.04

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $111.80

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $30.85

WPL 80051 WPL 80051 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (WHI WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

PAINT, PRESSURIZED SPRAY (12 oz.) PAINT, BULK WPL 799340 Contact Us For Availability

WPL 799833 WPL 799833 Contact Us For Availability

WPL 8171358 WPL 8171358 Contact Us For Availability

WPL 8201806 WPL 8201806 Contact Us For Availability

WPL ARI96869A9 WPL ARI96869A9 Contact Us For Availability

WPL ARI96870A5 WPL ARI96870A5 Contact Us For Availability

1

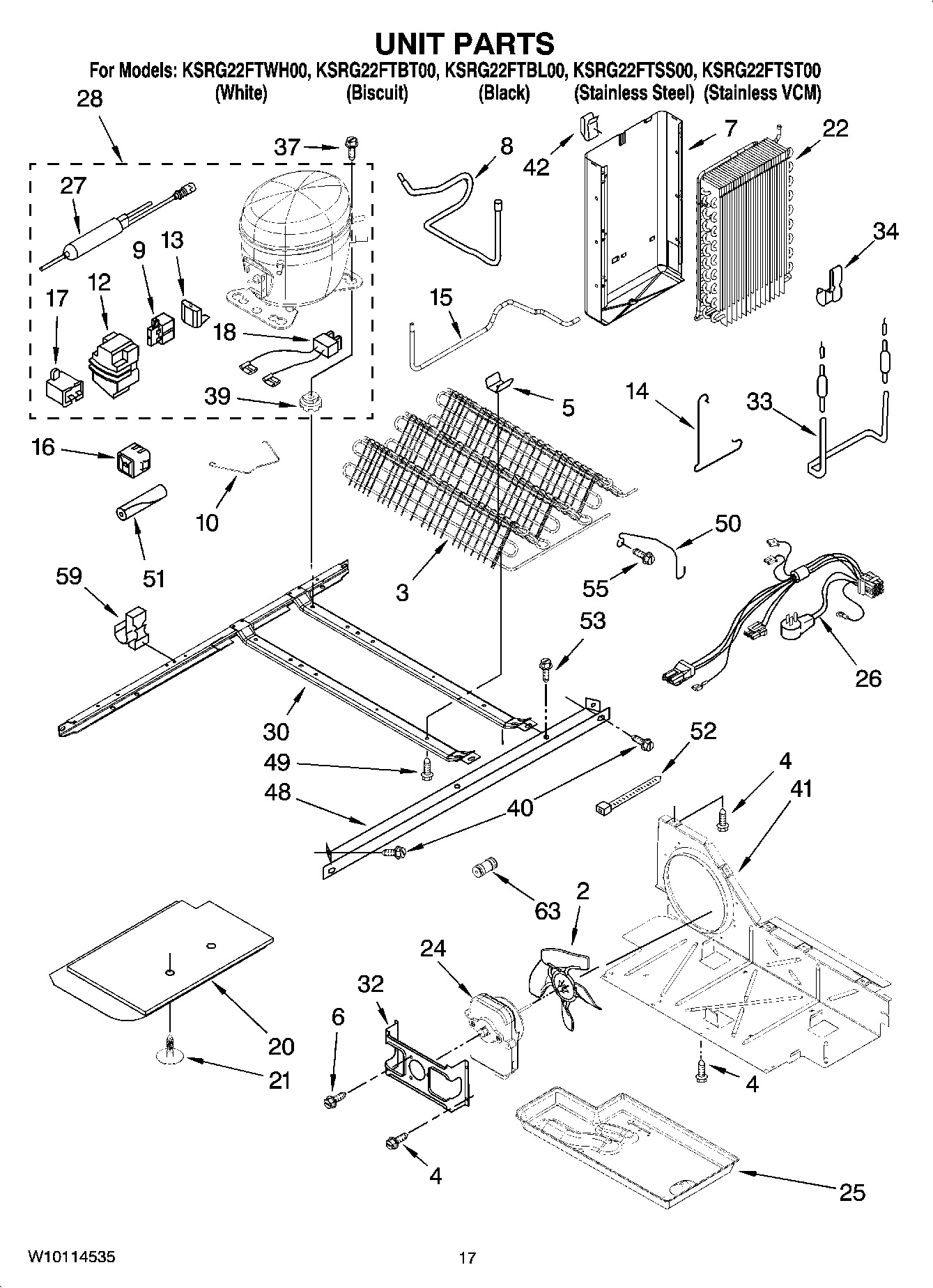

W11254898 Whirlpool Refrigerator Scroll Fan Backorder WPL W11254898 $212.50

1

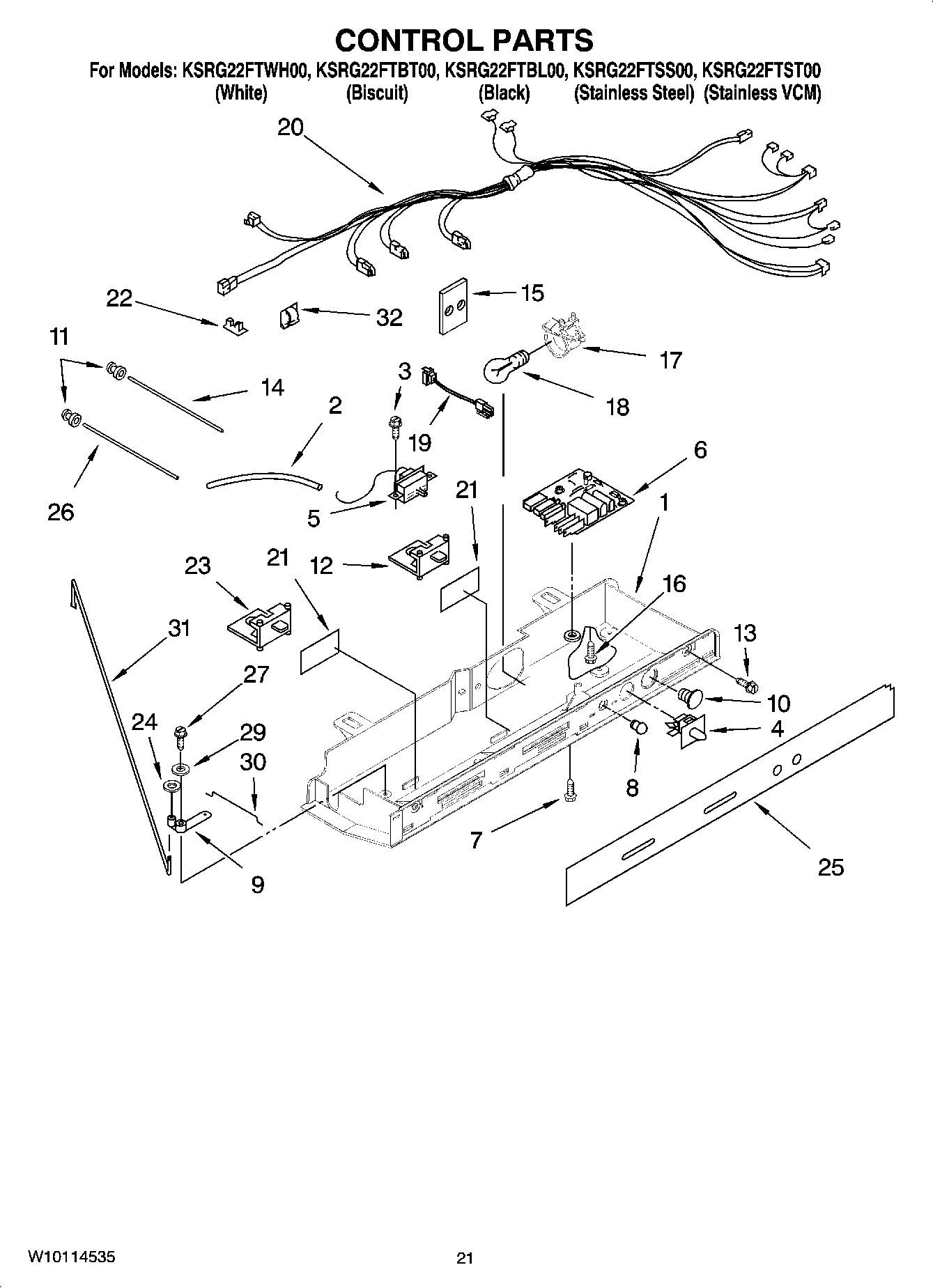

Control Box WPL 8201785 Contact Us For Availability

2

W11458267 Whirlpool Refrigerator Fan Blade In Stock WPL W11458267 $13.99

2

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $4.82

2

WP2256096 Whirlpool Refrigerator Fitting In Stock WPL WP2256096 $130.70

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

3

2006254 Whirlpool Refrigerator Screw Backorder WPL 2006254 $8.68

3

2324712 Whirlpool Refrigerator Condenser Backorder WPL 2324712 $208.07

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $11.99

4

2313359 Whirlpool Refrigerator Air Duct Backorder WPL 2313359 $71.47

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $27.81

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $25.38

4

Washer WPL 2258220 Contact Us For Availability

5

W10683556 Whirlpool Refrigerator Clip Backorder WPL W10683556 $12.26

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $8.89

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $11.99

5

WP2223357 Whirlpool Refrigerator Cover In Stock WPL WP2223357 $242.61

5

WP2315562 Whirlpool Refrigerator Thermostat In Stock WPL WP2315562 $69.81

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $6.90

5

Dish, Butter WPL 2165792K Contact Us For Availability

6

W11223328 Whirlpool Refrigerator Shelf Stud In Stock WPL W11223328 $14.99

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $5.99

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $8.99

6

WP8533993 Whirlpool Refrigerator Screw Backorder WPL WP8533993 $6.83

6

WPW10366605-includeCORE Whirlpool WPW10366605 Backorder WPL WPW10366605-includeCORE $280.46

6

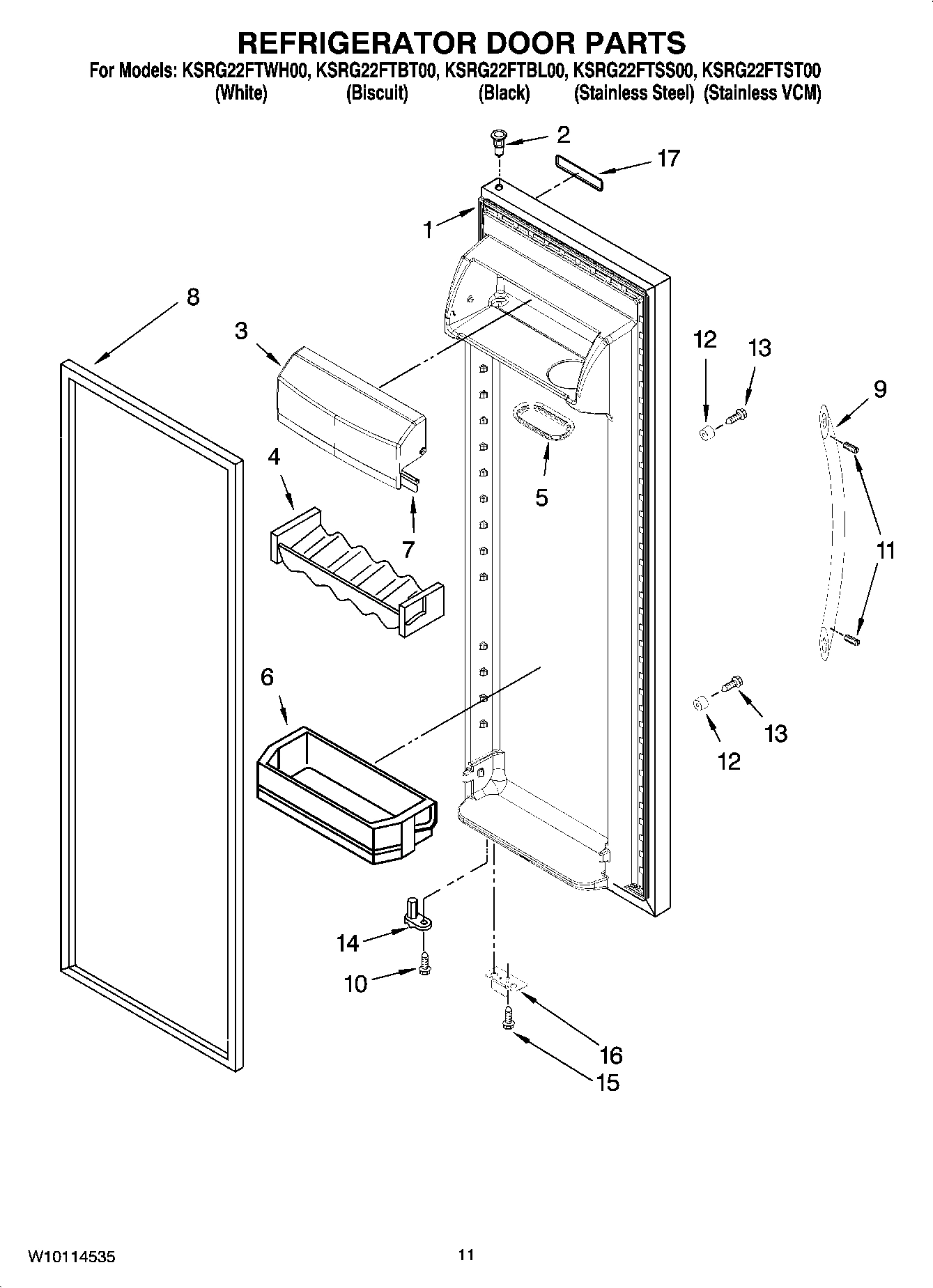

Door Bin (4) WPL 2171063K Contact Us For Availability

7

489392 Whirlpool Refrigerator Screw Backorder WPL 489392 $8.89

7

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $9.65

7

WP2315549 Whirlpool Refrigerator Evaporator M In Stock WPL WP2315549 $244.60

7

Thimble-Top (For Stainless Steel Model) WPL 2301049 Contact Us For Availability

7

Heat Shield And Drain Pan WPL 2304288 Contact Us For Availability

8

2205764 Whirlpool Refrigerator Tube Backorder WPL 2205764 $56.81

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $6.99

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $30.99

8

COVER, LIGHT LENS WPL 2200096 Contact Us For Availability

8

Glass, Cover WPL 2255144 Contact Us For Availability

9

2161306 Whirlpool Refrigerator Arm Pivot Backorder WPL 2161306 $7.10

9

WP2206671B Whirlpool Refrigerator Grille In Stock WPL WP2206671B $53.99

9

WP2206671W Whirlpool Refrigerator Grille In Stock WPL WP2206671W $54.49

9

Blade, Fixed WPL 2257020 Contact Us For Availability

9

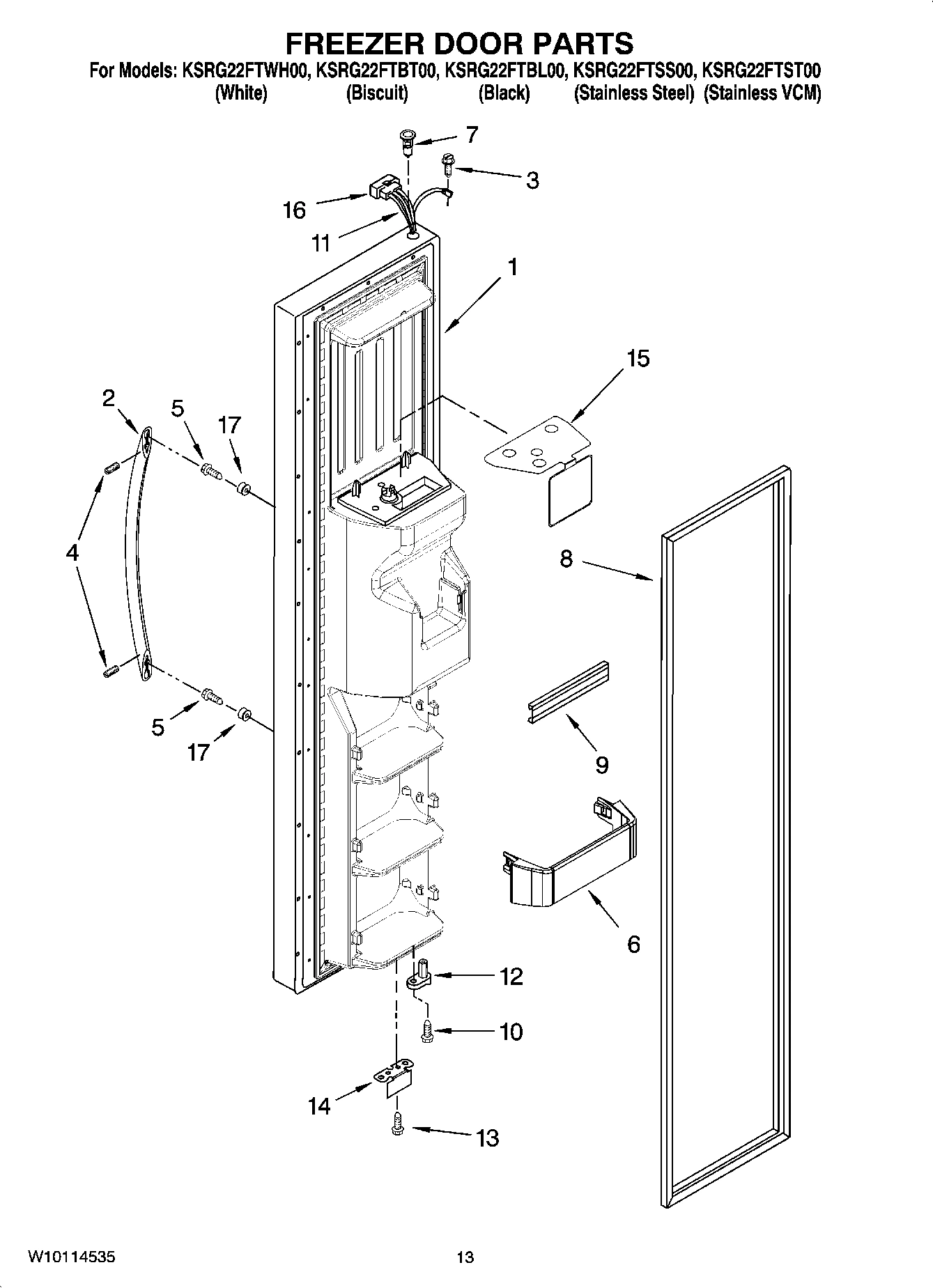

Handle (Includes 11) (Stainless Steel) WPL 2319727S Contact Us For Availability

9

Handle (Includes 11) (Black) WPL 2319727B Contact Us For Availability

9

Shim (2) WPL 2209697 Contact Us For Availability

9

Relay (Service Only) WPL 2183454 Contact Us For Availability

2223313 Whirlpool Clip Backorder WPL 2223313 $7.60

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $13.22

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $57.37

W10822681 Whirlpool Refrigerator Water Inlet In Stock WPL W10822681 $127.99

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $4.96

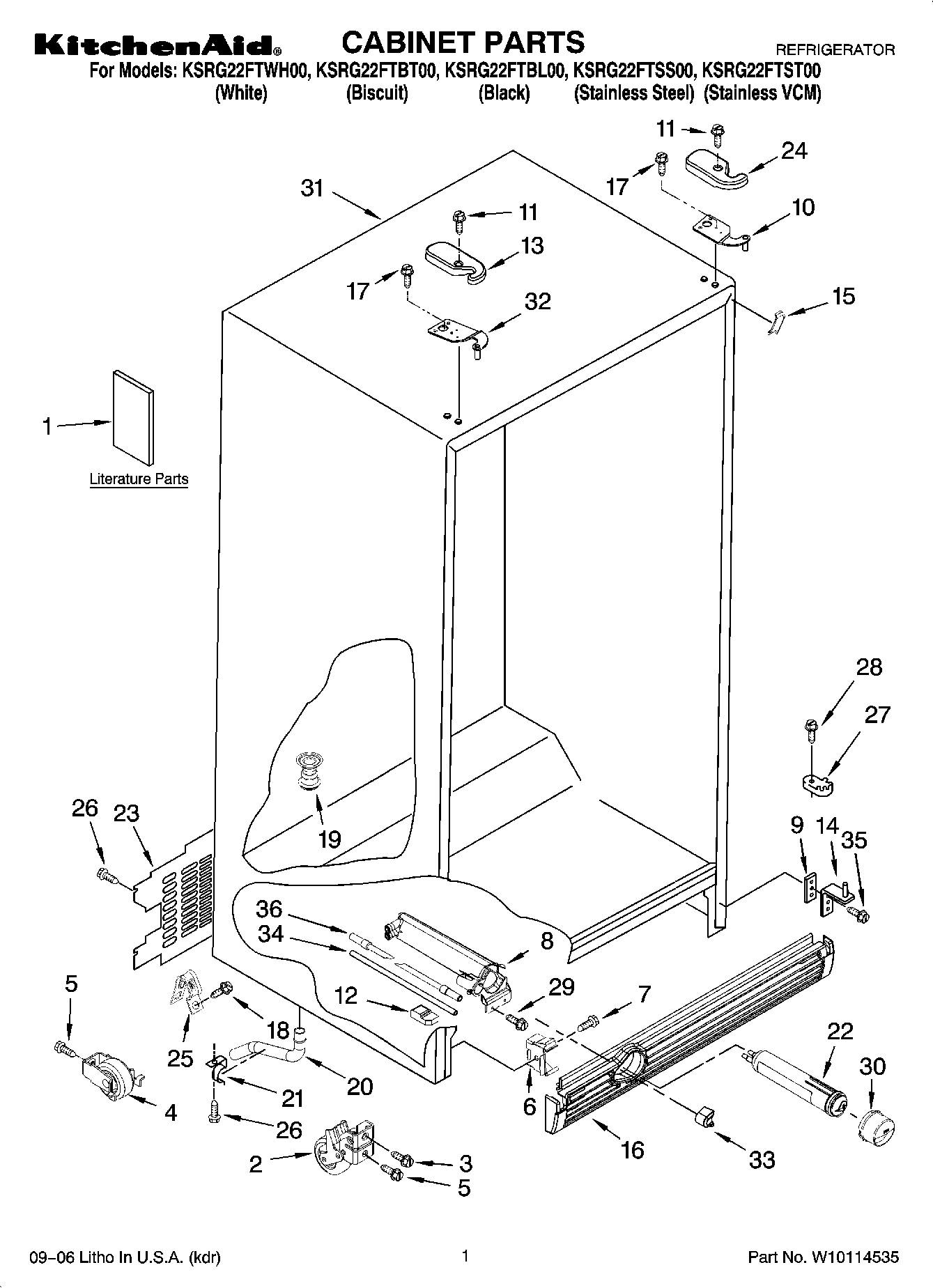

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $62.99

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $4.82

W11366418 Whirlpool Screw In Stock WPL W11366418 $11.84

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $6.84

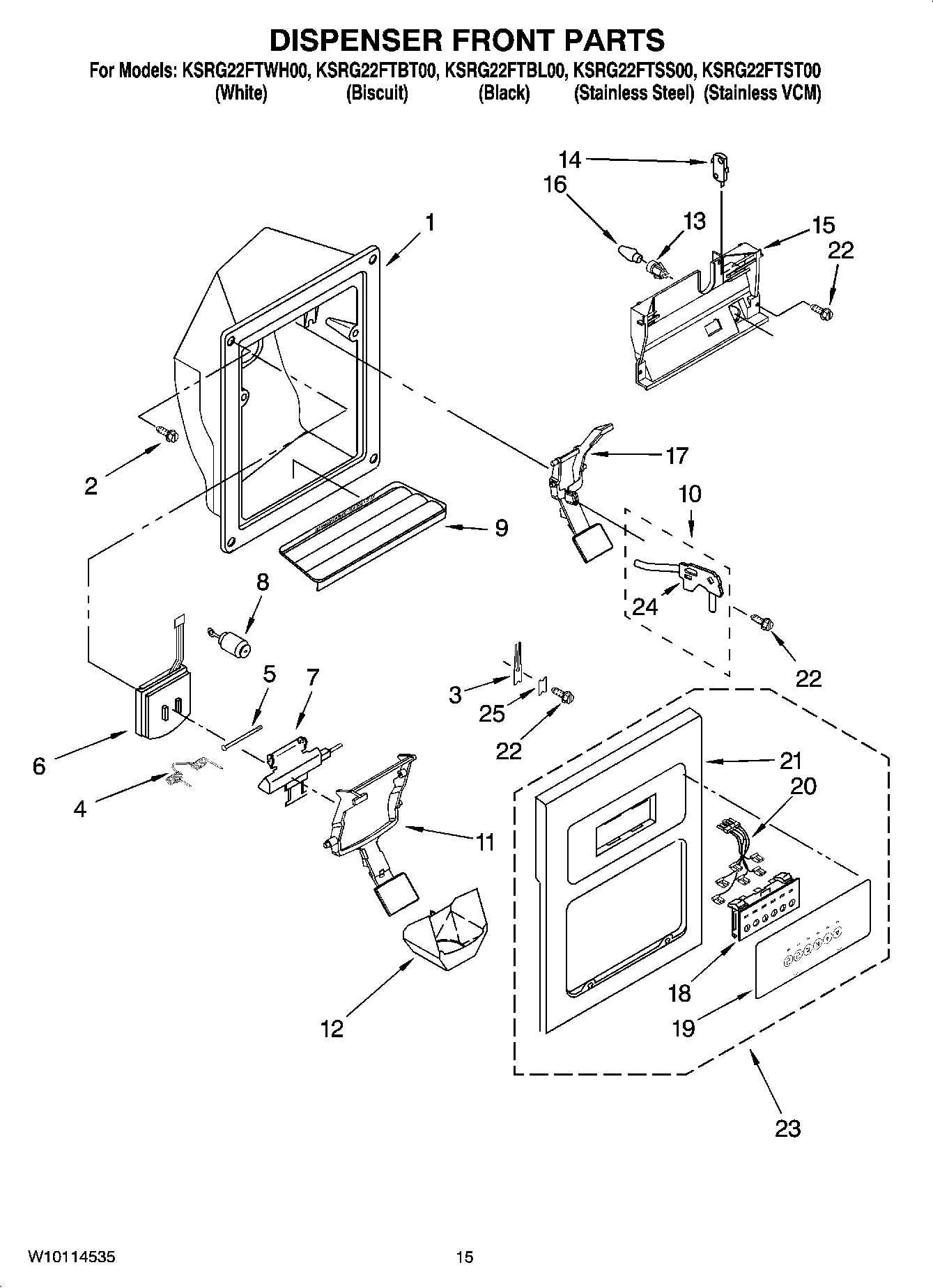

Lever, Ice Dispenser (White) WPL 2180259 Contact Us For Availability

Block, Blade WPL 2198602 Contact Us For Availability

Grommet, Light Bar WPL 2172906 Contact Us For Availability

2161466 Whirlpool Refrigerator Slide Backorder WPL 2161466 $14.02

2310237 Whirlpool Refrigerator Wire Harness Backorder WPL 2310237 $75.44

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $31.65

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $64.83

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $8.97

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $4.60

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $67.59

2203407T Whirlpool Refrigerator Cover Backorder WPL 2203407T $12.83

WP2187145 Whirlpool Refrigerator Overload Backorder WPL WP2187145 $99.46

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $13.08

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $14.39

NLA:SCREW Backorder WPL WPW10141645 $4.82

Track, Basket (Right Side) WPL 2301289 Contact Us For Availability

Eyelet, Roller WPL 2174478 Contact Us For Availability

Track, Basket (Left Side) WPL 2301290 Contact Us For Availability

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $10.72

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $6.87

Light, Bar WPL 2179920 Contact Us For Availability

Clip, Defrost Heater WPL 2161324 Contact Us For Availability

2172931 Whirlpool Refrigerator Shield Backorder WPL 2172931 $48.27

2261599 Whirlpool Refrigerator Tube Backorder WPL 2261599 $165.76

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $6.90

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $7.55

Filler, Wrapper (White) WPL 2304846 Contact Us For Availability

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $58.83

W10896198 Whirlpool Refrigerator Start Device Backorder WPL W10896198 $121.71

W11629923 Whirlpool Coupling In Stock WPL W11629923 $15.99

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $15.58

WP2206629B Whirlpool Refrigerator Bracket Backorder WPL WP2206629B $23.94

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $7.20

WP488488 Whirlpool Refrigerator Screw Backorder WPL WP488488 $4.82

Crisper Pan (Includes 13, 14 18, 19 & 21) WPL 2301481 Contact Us For Availability

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $16.09

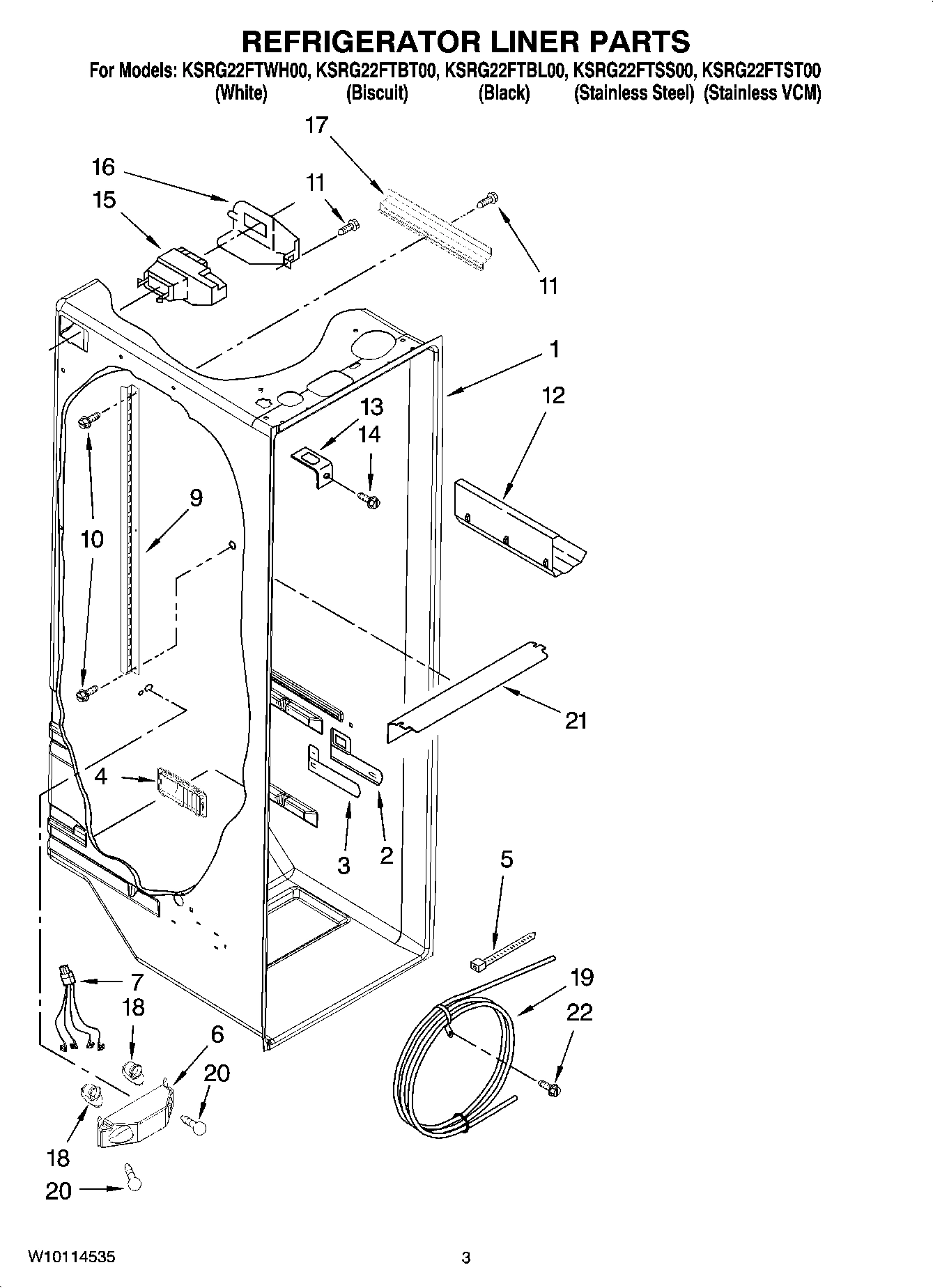

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $67.99

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $122.18

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $6.74

WPW10152858 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152858 $62.59

WPW10170540 Whirlpool Screw In Stock WPL WPW10170540 $6.75

WPW10243392 Whirlpool Dishwasher Nameplate Backorder WPL WPW10243392 $50.14

WPW10243393 Whirlpool Dishwasher Nameplate Backorder WPL WPW10243393 $47.62

Meat Pan (Includes 13, 14, 19 & 22) WPL 2301482 Contact Us For Availability

Nameplate (Gray) WPL W10046610 Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $9.81

WP2172890 Whirlpool Refrigerator Wire Backorder WPL WP2172890 $4.82

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $4.82

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $5.99

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $4.82

Window, Crisper WPL 2174076 Contact Us For Availability

W10853646 Whirlpool Indicator Light In Stock WPL W10853646 $88.98

WP2198587 Whirlpool Refrigerator Cover Backorder WPL WP2198587 $67.24

WP2256126 Whirlpool Refrigerator Reservoir In Stock WPL WP2256126 $123.79

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $13.89

2311632 Whirlpool Refrigerator Wire Harness Backorder WPL 2311632 $126.86

W11115203 Whirlpool Control Panel Backorder WPL W11115203 $353.07

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $19.72

WPW10122550 Whirlpool Refrigerator Ice Mold Backorder WPL WPW10122550 $143.04

2223285 Whirlpool Refrigerator Cap Backorder WPL 2223285 $14.02

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $7.11

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $4.82

Cap, Crisper Pan (Right Side) WPL 2223286 Contact Us For Availability

Window WPL 2175513 Contact Us For Availability

everydrop® Filter 3 EDR3RXD1 Whirlpool Refri In Stock WPL EDR3RXD1 $65.79

WP2188822 Whirlpool Refrigerator Evaporator In Stock WPL WP2188822 $250.47

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $59.45

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $29.99

CLIP, WIRING WPL 1115375 Contact Us For Availability

2181741 Whirlpool Refrigerator Slide Backorder WPL 2181741 $64.64

626753 Whirlpool Refrigerator Ejector Arm Backorder WPL 626753 $9.15

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $10.62

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $6.83

W10297245 Whirlpool Refrigerator Arm Stripper Backorder WPL W10297245 $50.37

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $85.91

WP2188919 Whirlpool Refrigerator Holder In Stock WPL WP2188919 $5.99

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $19.99

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $14.54

WP2304673 Whirlpool Refrigerator Bracket Backorder WPL WP2304673 $9.19

Fastner, Push-On WPL 489391 Contact Us For Availability

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $7.19

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $68.41

WPW10614158 Whirlpool Refrigerator Evaporator In Stock WPL WPW10614158 $74.67

Escutcheon, Control Box WPL 2318958 Contact Us For Availability

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $6.59

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $6.88

WPW10309395 Whirlpool Refrigerator Wire Harne Backorder WPL WPW10309395 $209.77

Light Bar WPL 2179921 Contact Us For Availability

27

627068 Whirlpool Refrigerator Screw Backorder WPL 627068 $8.05

27

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $71.99

27

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $17.56

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $14.99

W10309990 Whirlpool Refrigerator Compressor In Stock WPL W10309990 $403.72

WP489483 Whirlpool Screw In Stock WPL WP489483 $7.58

Slide, Ice Maker WPL 2212321 Contact Us For Availability

29

489203 Whirlpool Refrigerator Washer Backorder WPL 489203 $6.47

29

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $4.82

2161307 Whirlpool Refrigerator Rod Backorder WPL 2161307 $8.63

2304903 Whirlpool Refrigerator Frame Backorder WPL 2304903 $166.45

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $67.13

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $3.91

31

2161308 Whirlpool Refrigerator Rod Backorder WPL 2161308 $118.15

WP1115374 Whirlpool Refrigerator Clip Backorder WPL WP1115374 $4.82

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $7.28

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $62.57

WPW10309401 Whirlpool Refrigerator Wire Harne Backorder WPL WPW10309401 $90.20

33

2260503W Whirlpool Refrigerator Button Backorder WPL 2260503W $23.69

33

WP2323197 Whirlpool Refrigerator Heater Backorder WPL WP2323197 $81.01

33

Bracket, Icemaker Mounting WPL 2212317 Contact Us For Availability

34

W11623163 Whirlpool Refrigerator Clip Backorder WPL W11623163 $7.27

34

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $7.55

35

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $71.99

35

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $28.99

36

WP2304697 Whirlpool Refrigerator Water Tube Backorder WPL WP2304697 $86.14

36

WP2315559 Whirlpool Motor Coupling In Stock WPL WP2315559 $50.80

37

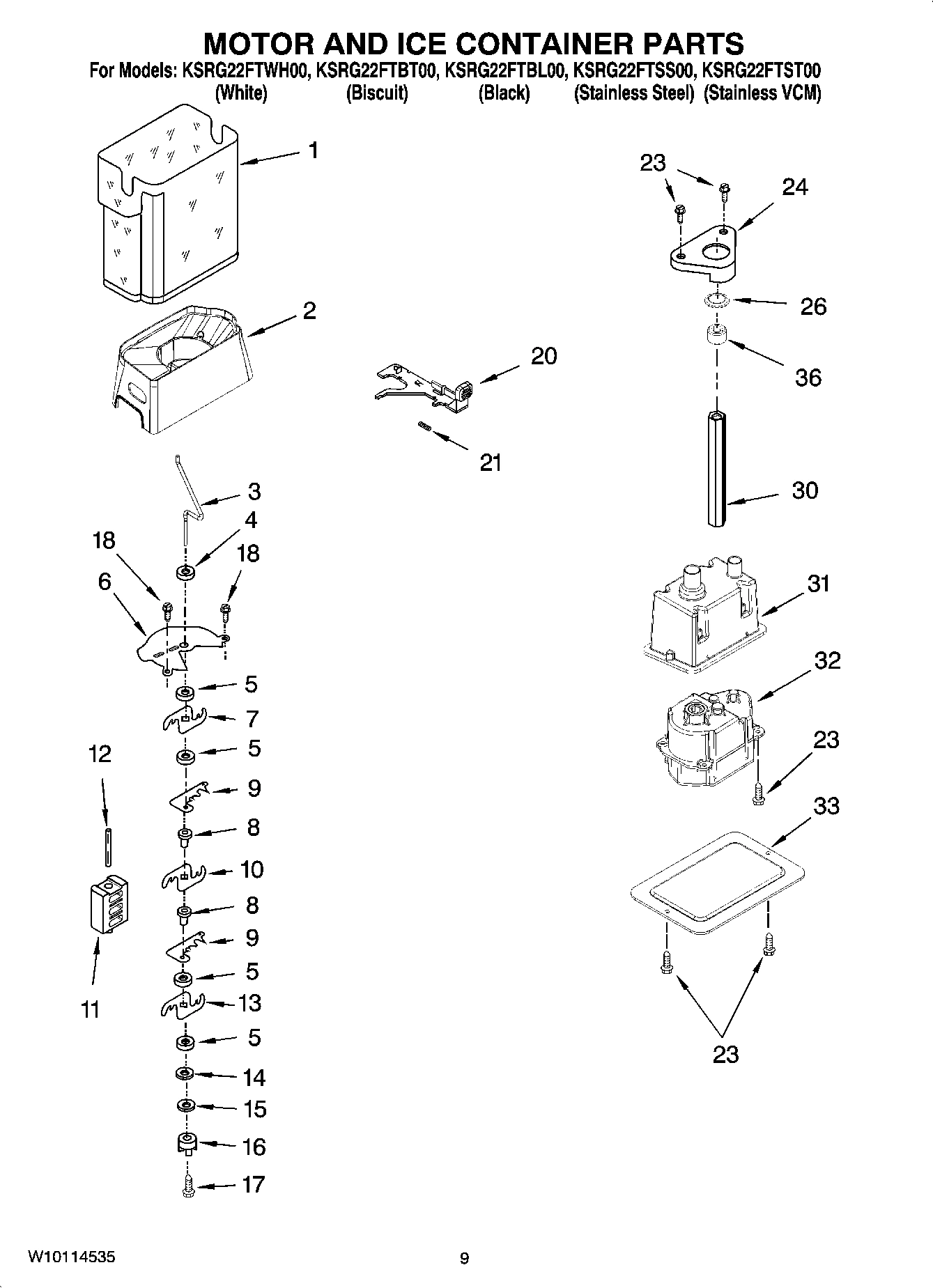

Motor WPL ARI96868A7 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $6.83

39

876811 Whirlpool Grommet Backorder WPL 876811 $4.82

39

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $4.99

39

WP4387558 Whirlpool Refrigerator Compressor G Backorder WPL WP4387558 $4.82

40

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $6.83

41

W10896764 Whirlpool Refrigerator Air Baffle In Stock WPL W10896764 $63.81

42

WP2198641 Whirlpool Refrigerator Ice Maker Co Backorder WPL WP2198641 $6.99

42

Clip, Heat WPL 2155547 Contact Us For Availability

45

Ladder (Right Side) WPL 2212316 Contact Us For Availability

46

Shield, Wiring WPL 2219878 Contact Us For Availability

48

Unit Mounting Rail WPL 2149718 Contact Us For Availability

49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $8.89

50

Guard, Fan WPL 2260516 Contact Us For Availability

51

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $13.22

52

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $4.99

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $4.82

55

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $4.82

59

Clip, Wire & Tube WPL 2208280 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $37.88

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $82.11

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $86.15

WP4373559 Whirlpool Fitting In Stock WPL WP4373559 $32.99

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

Following Parts Not Illustrated WPL ARI96865A2 Contact Us For Availability

and Optional Parts Not Included WPL ARI96866A6 Contact Us For Availability

REFRIGERANT CHARGE 5.0 oz. (R-134) WPL ARI96867A2 Contact Us For Availability

100

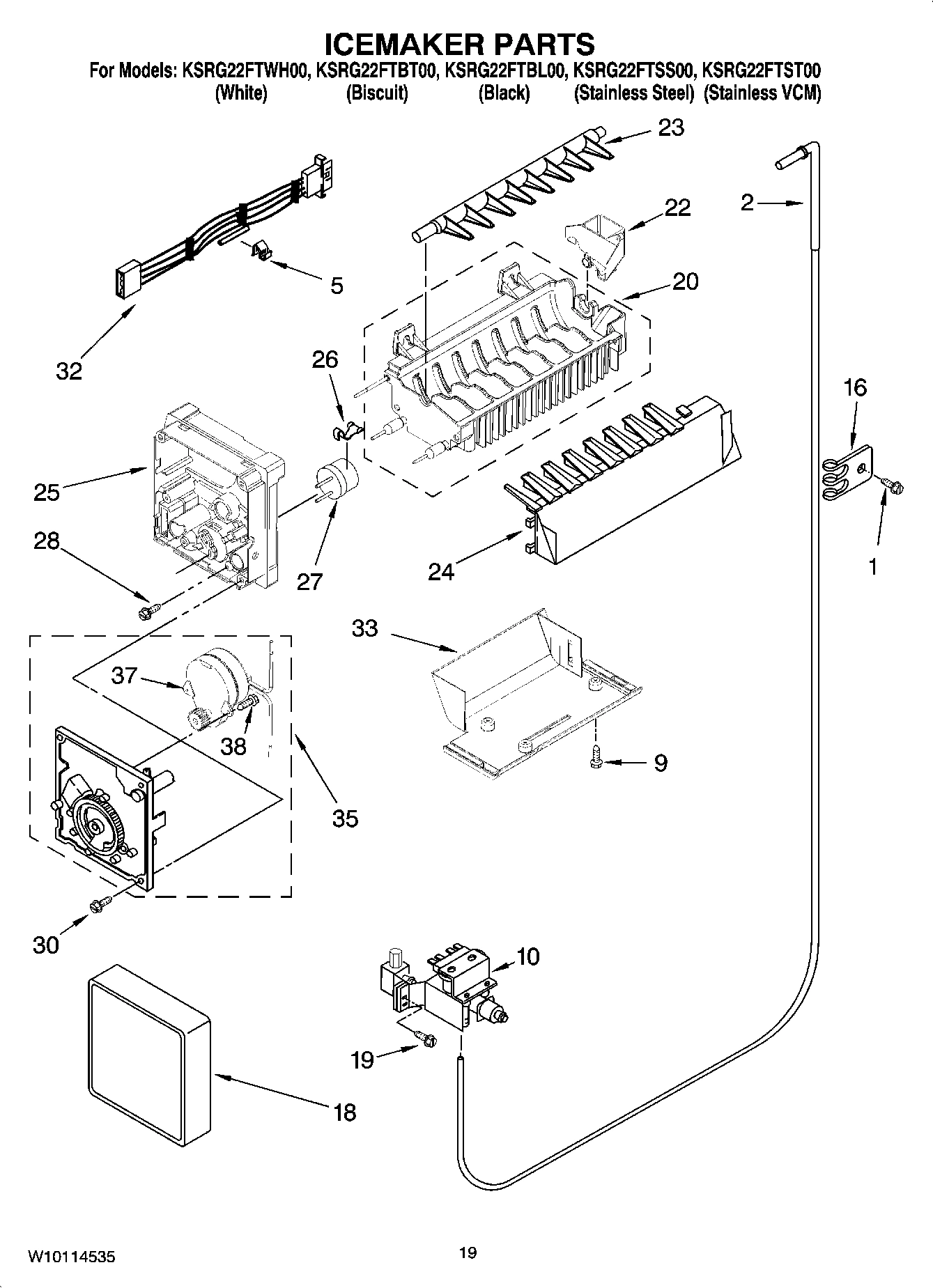

WPW10190961 Whirlpool Ice Maker In Stock WPL WPW10190961 $157.99
