Model Whirlpool KSRE22FHBT01 – Common Parts & Diagrams

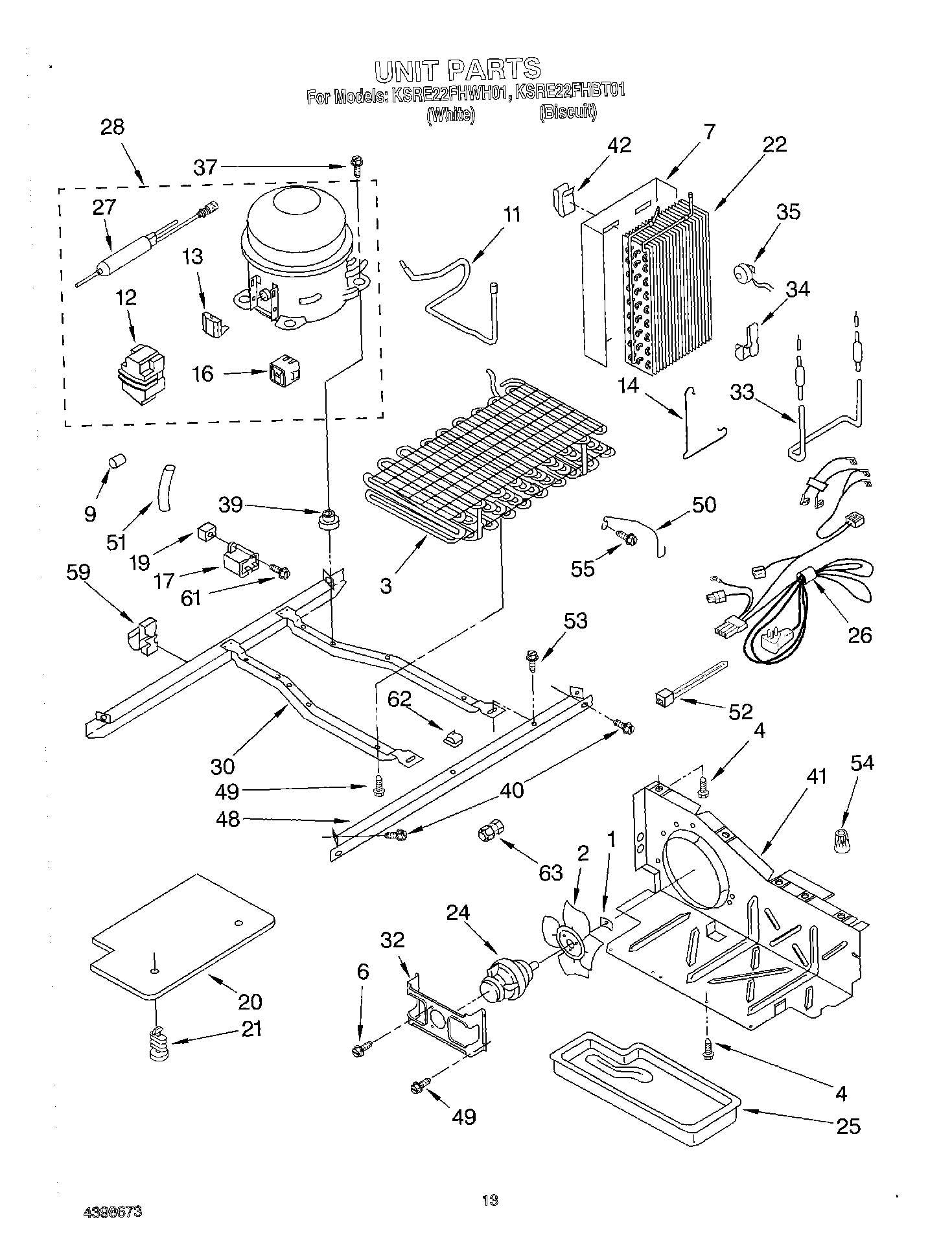

08 - UNIT
10 - AIR FLOW

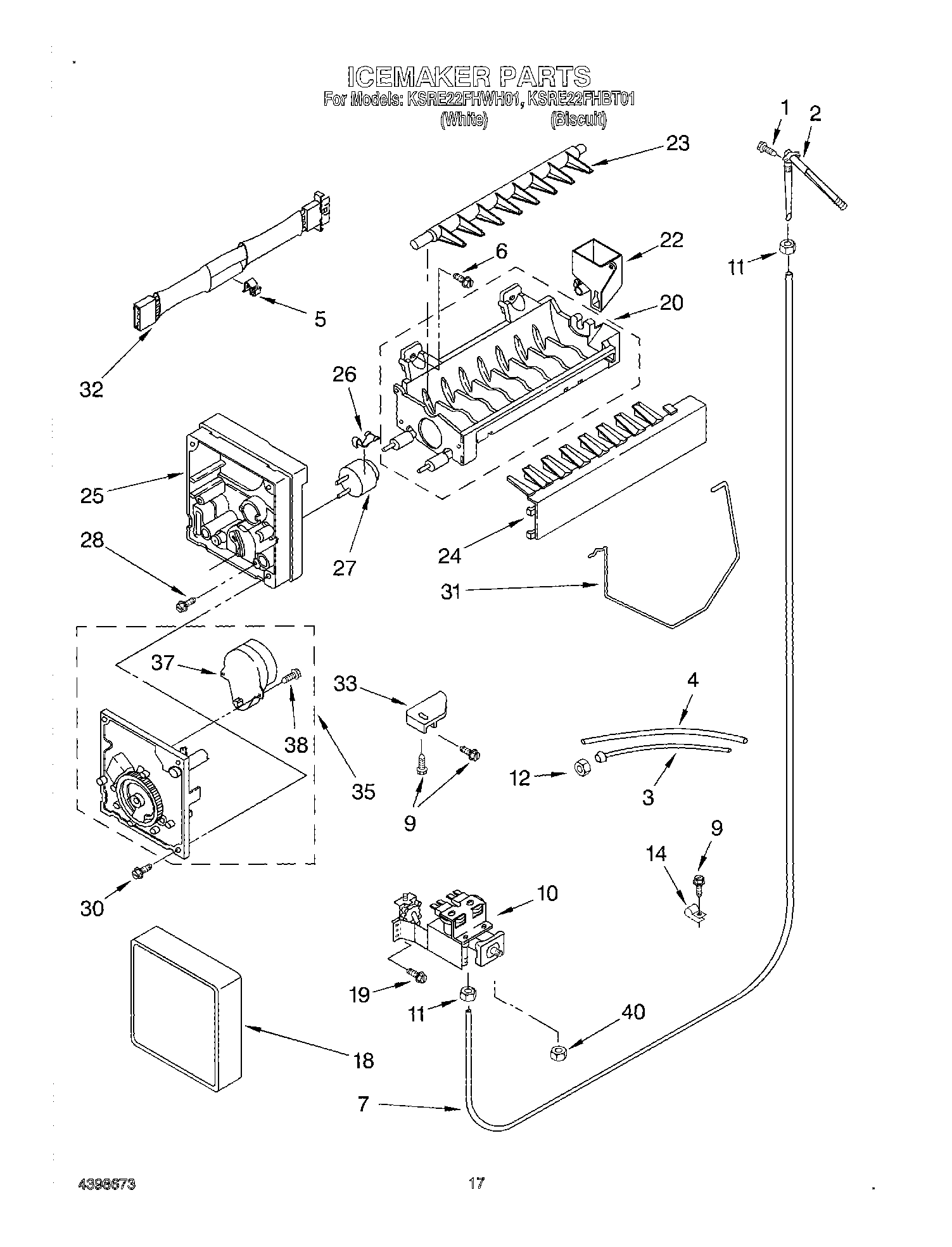

11 - ICE MAKER

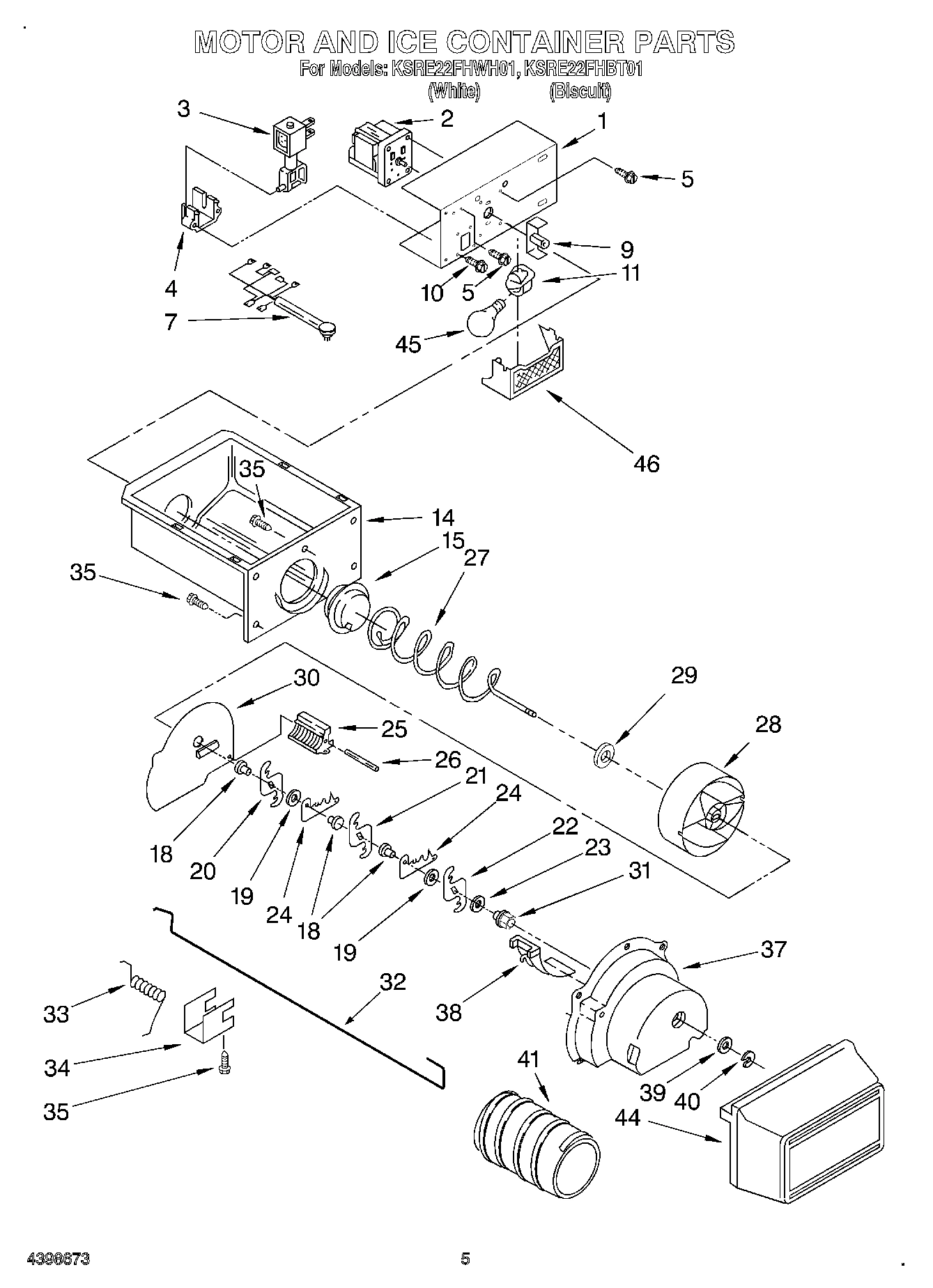

04 - MOTOR AND ICE CONTAINER

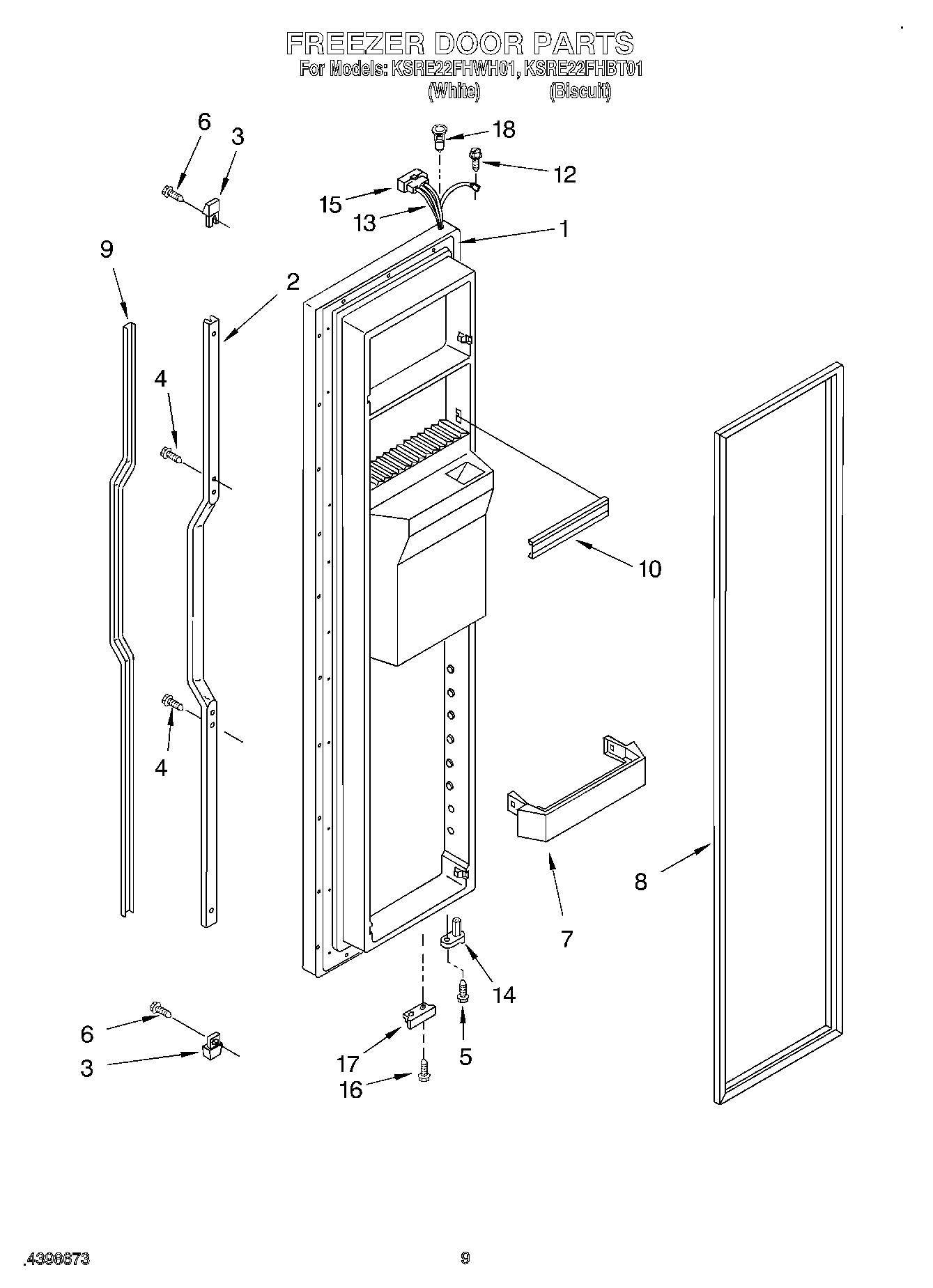

06 - FREEZER DOOR

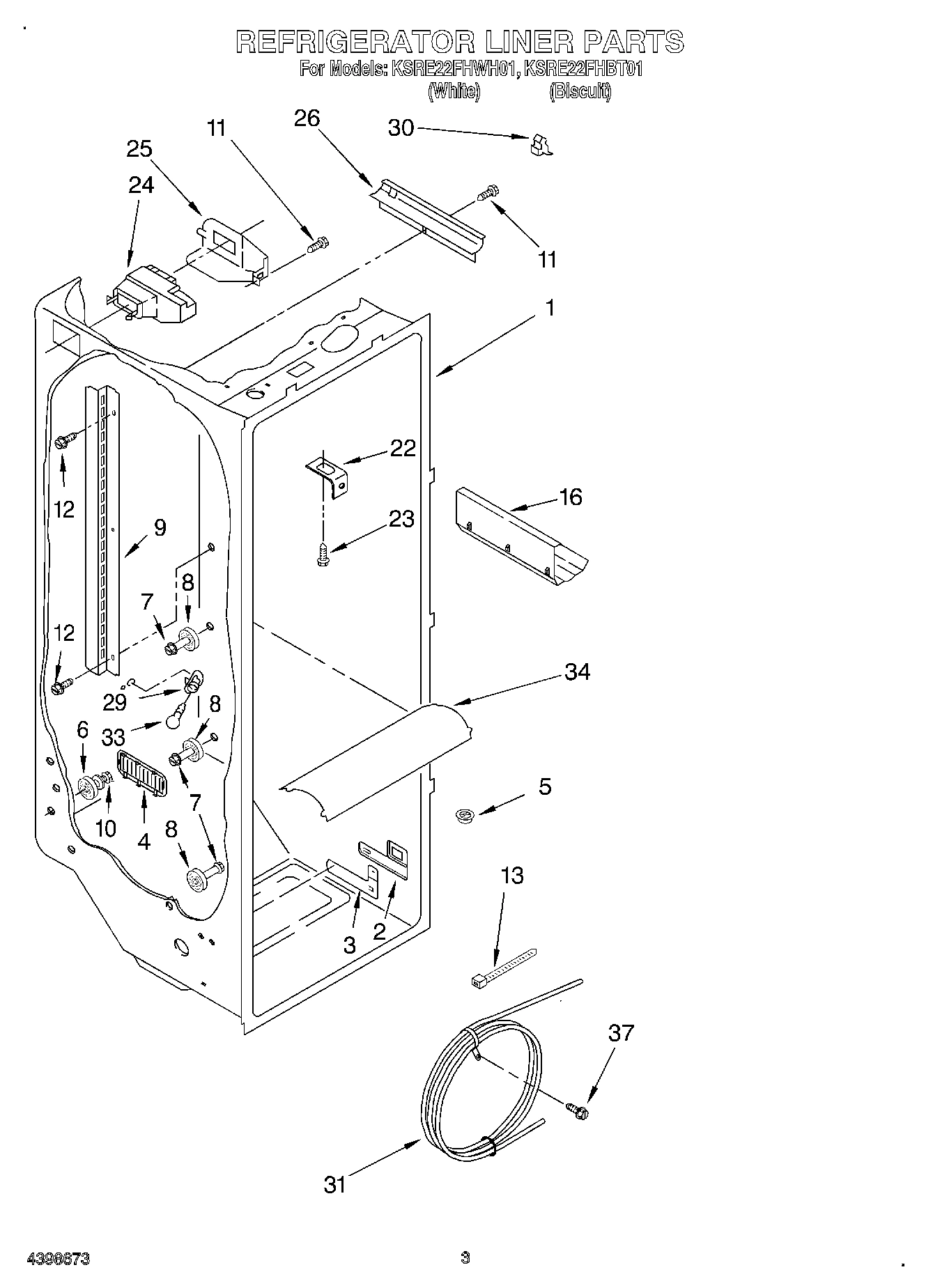

02 - REFRIGERATOR LINER

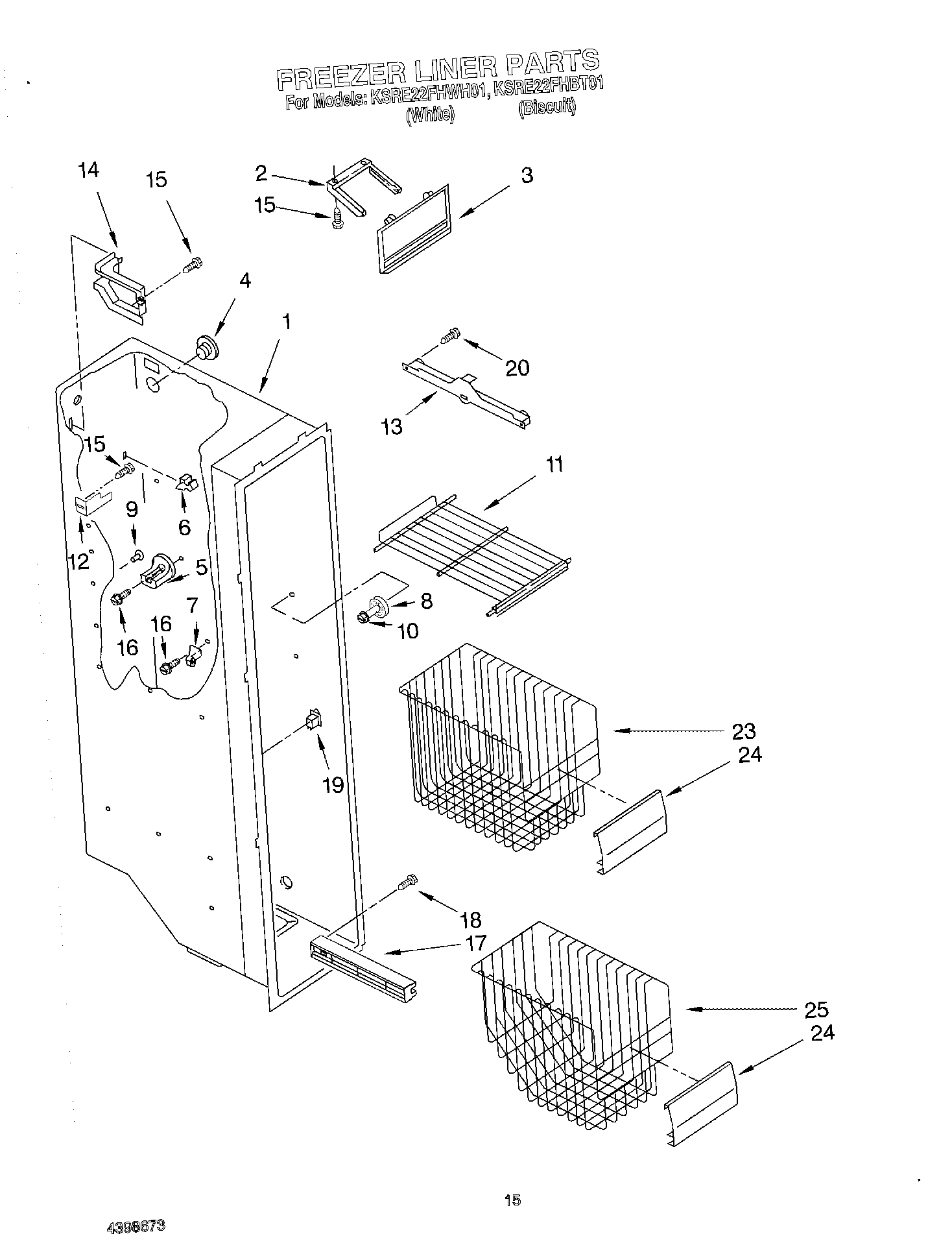

09 - FREEZER LINER

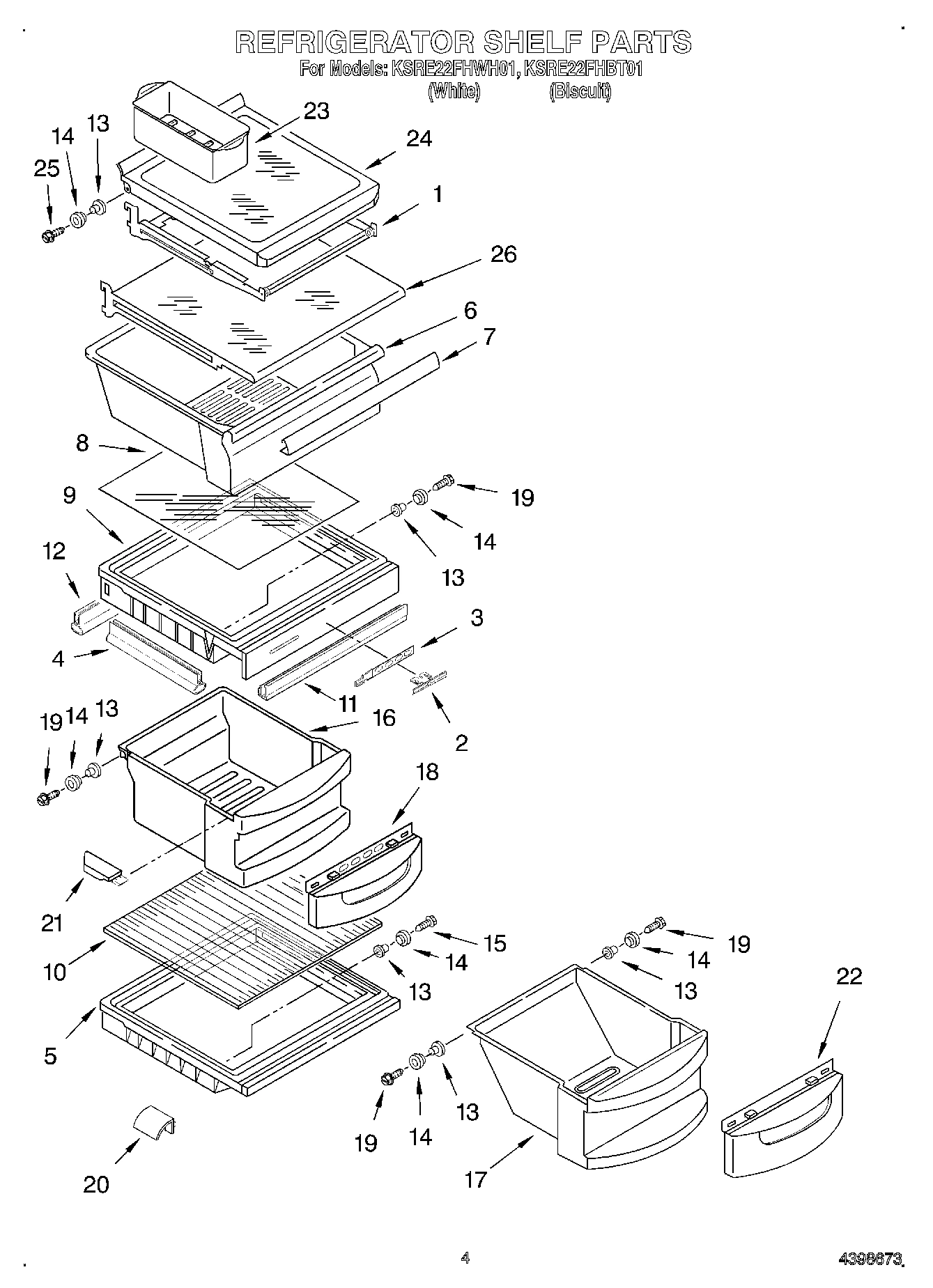

03 - REFRIGERATOR SHELF

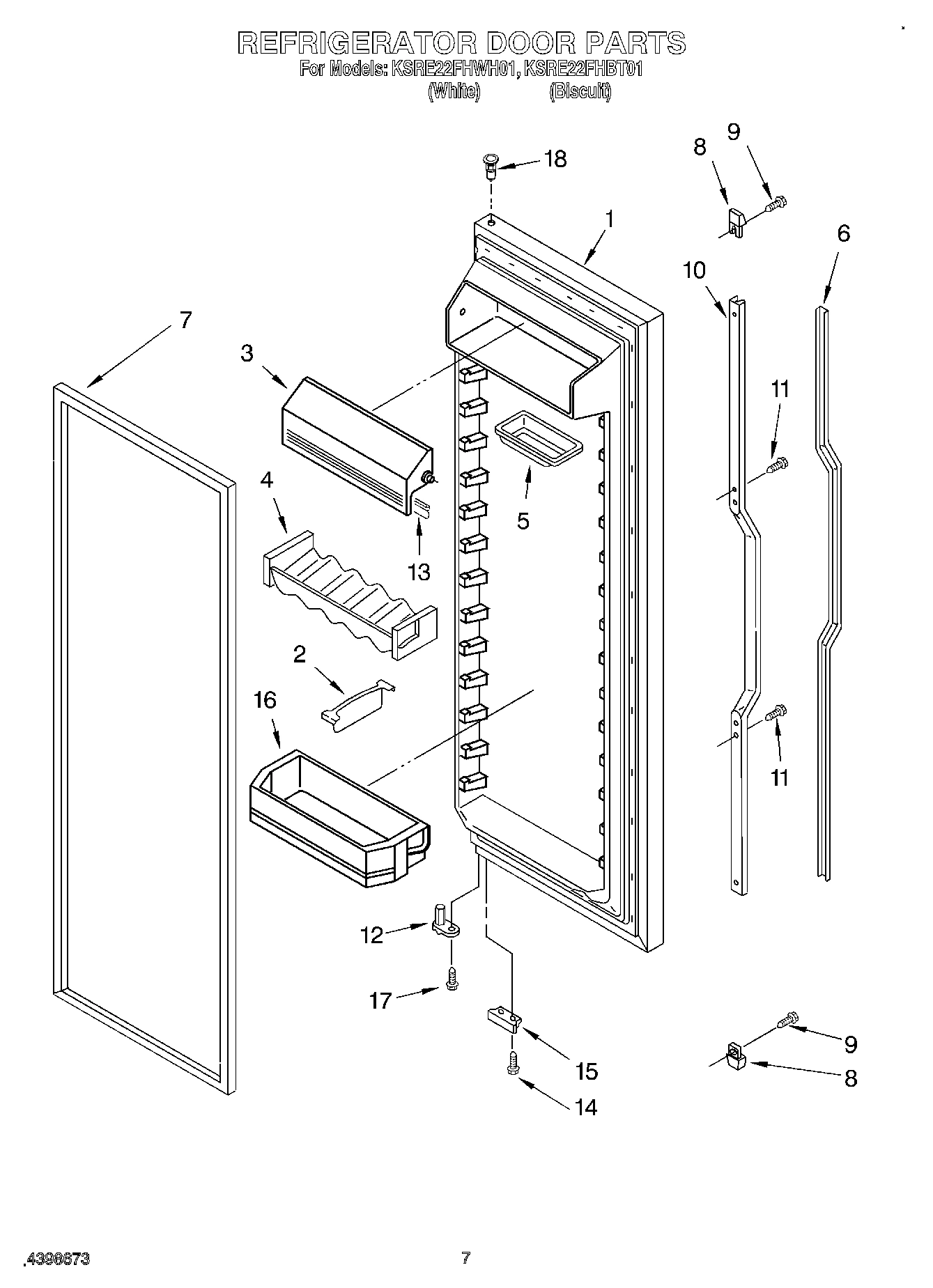

05 - REFRIGERATOR DOOR

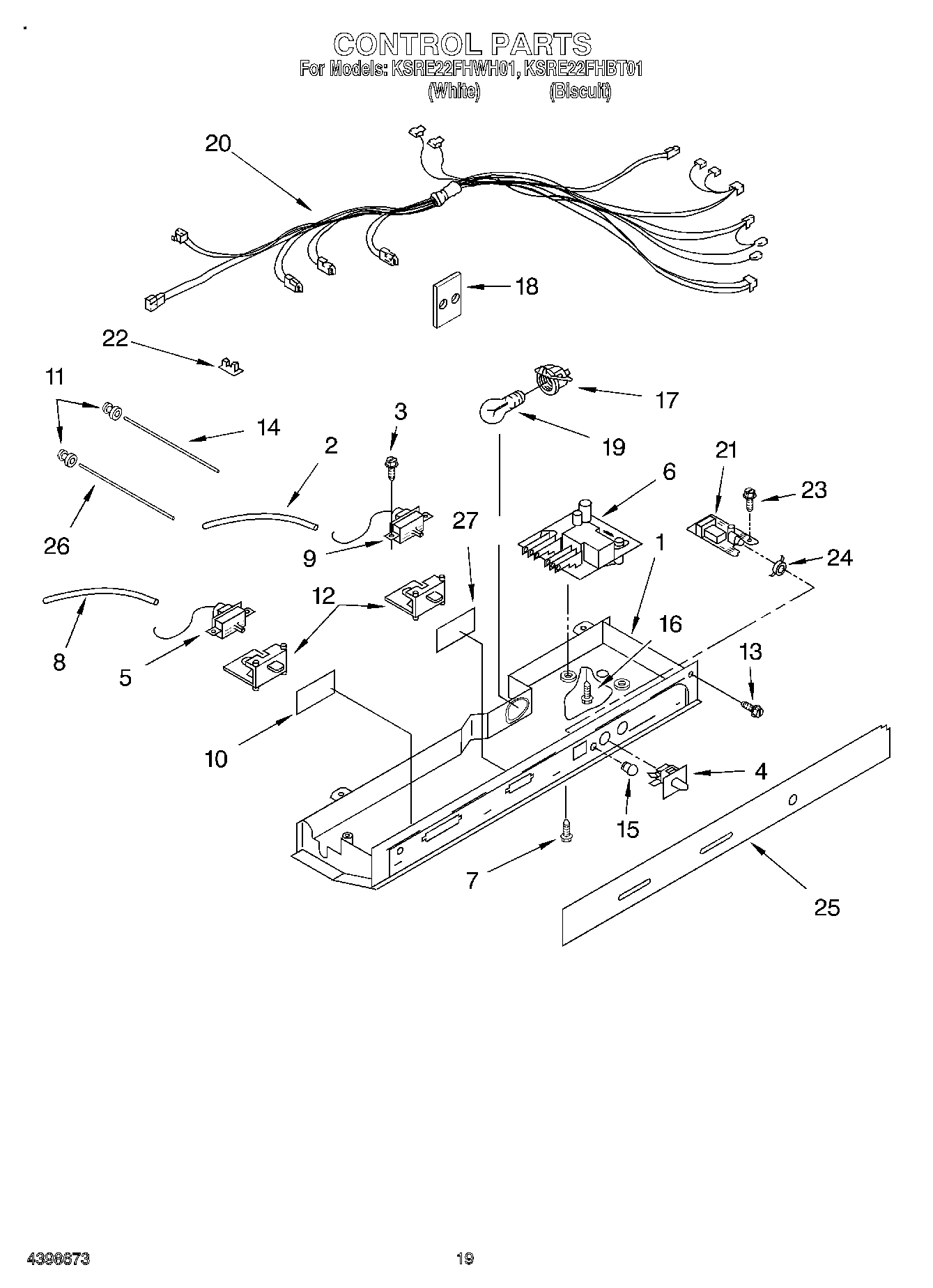

12 - CONTROL, OPTIONAL

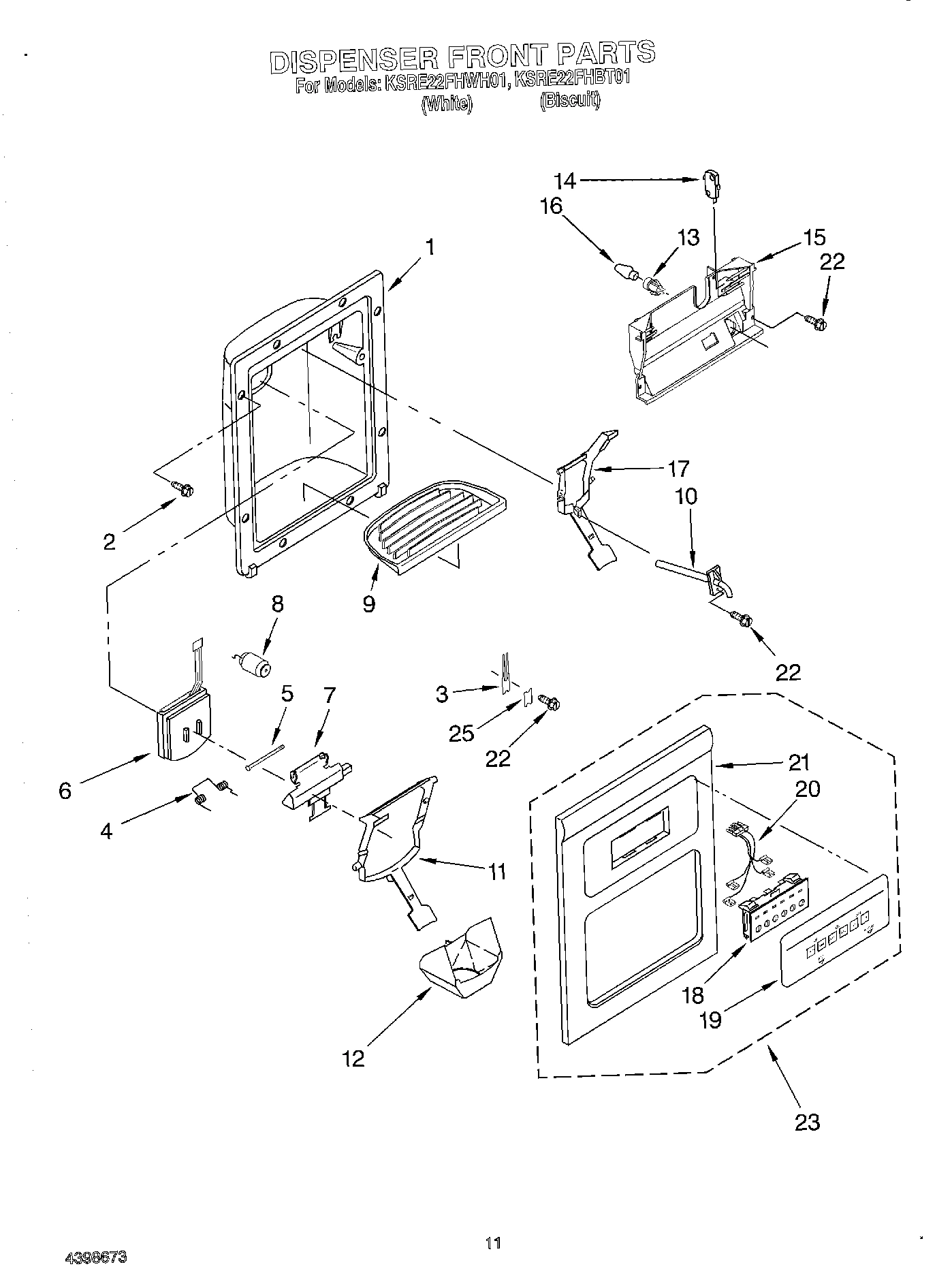

07 - DISPENSER FRONT

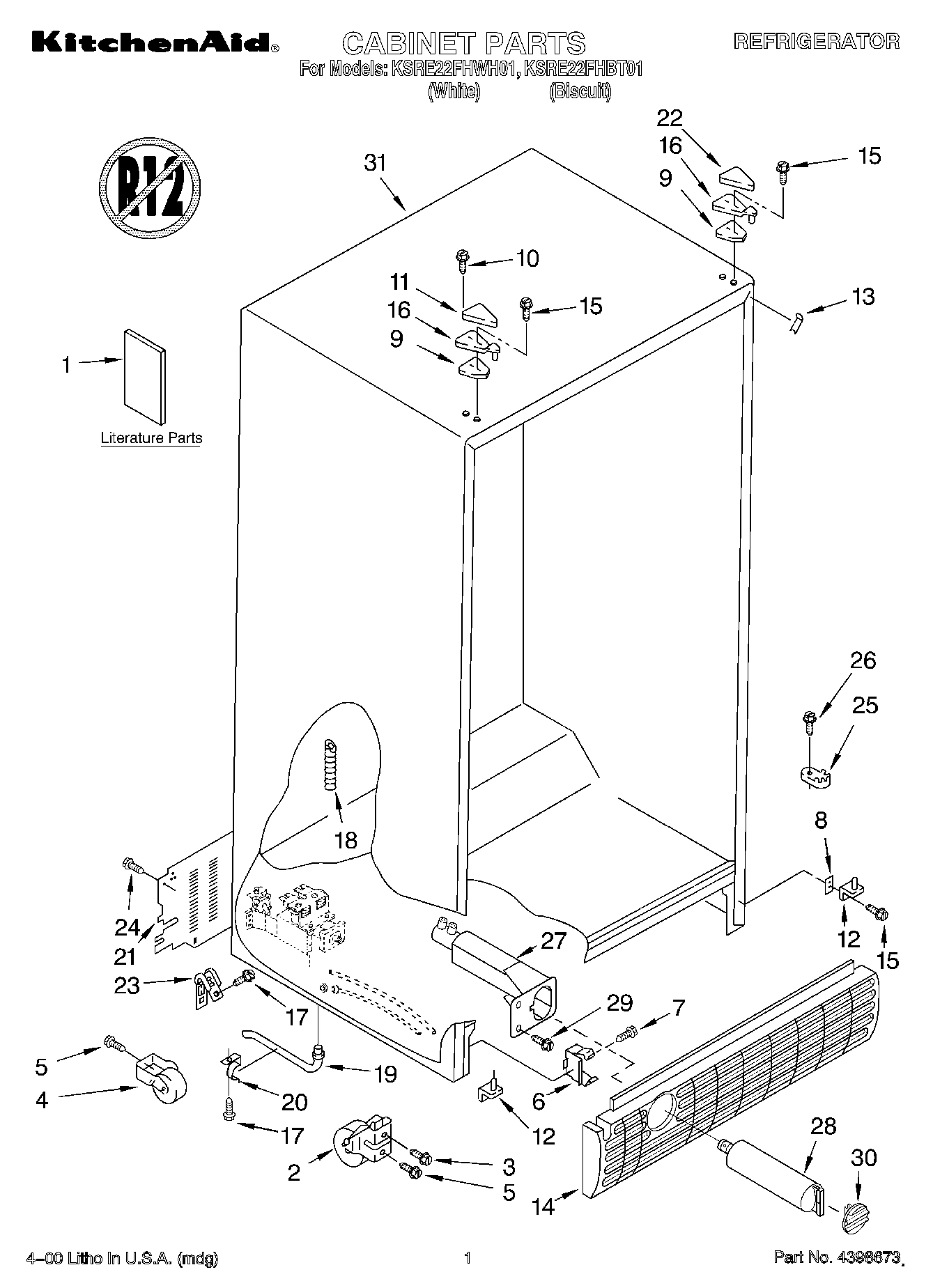

01 - CABINET, LITERATURE
Common parts from model Whirlpool KSRE22FHBT01
Service & Wiring Sheet WPL LIT2200278 Contact Us For Availability
Energy Label WPL LIT2206419 Contact Us For Availability
Modular Icemaker Service Sheet WPL LIT628370 Contact Us For Availability
1
Refrigerator Door (Includes No.7) (Biscuit) WPL 2194200T Contact Us For Availability
1
Refrigerator Door (Includes No.7) (White) WPL 2194200W Contact Us For Availability
1
Housing, Dispenser (Not a Serviceable Part) WPL ARI96122A7 Contact Us For Availability
1
LITERATURE PARTS WPL ARI96119A1 Contact Us For Availability
1
Use & Care Guide WPL LIT2206106 Contact Us For Availability
2
Blade, Fan WPL 2190685 Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Load Lock WPL 2195497 Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
3
SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
4
Beverage Holder WPL 2193409 Contact Us For Availability
5
Stud, Rear WPL 2196207 Contact Us For Availability
5
Tray, Butter WPL 2165792 Contact Us For Availability
6
Insert, Handle (White) WPL 2173830 Contact Us For Availability
6
Insert, Handle (Biscuit) WPL 2200434 Contact Us For Availability
6
Door, Ice WPL 2180205 Contact Us For Availability
7
Door Mechanism Assembly WPL 2180208 Contact Us For Availability
8
Glass, Cover WPL 2189526 Contact Us For Availability
8
End Cap, Handle (Biscuit) WPL 2194778T Contact Us For Availability
8
End Cap, Handle (White) WPL 2194778W Contact Us For Availability
8
Delay Mechanism WPL 2180223 Contact Us For Availability
9
Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2174250 Contact Us For Availability
9
Grommet (4) WPL 2176134 Contact Us For Availability
9
Grille, Overflow (White) WPL 2180323 Contact Us For Availability
9
Grille, Overflow (Biscuit) WPL 2186860 Contact Us For Availability
9
Shim, Hinge Top WPL 2196048 Contact Us For Availability
10
Glass, Cover WPL 2174148 Contact Us For Availability
10
Retainer, Insert (Biscuit) WPL 2194776T Contact Us For Availability
10
Retainer, Insert (White) WPL 2194776W Contact Us For Availability
10
Screw WPL 489284 Contact Us For Availability
11
Lever, Ice Dispenser (White (White Shadow Pad WPL 2180259 Contact Us For Availability
11
Hinge Cover (White) WPL 1129262 Contact Us For Availability
11
Grommet, Light Bar WPL 2172906 Contact Us For Availability
11
Lever, Ice Dispenser (Biscuit (Almond Shadow WPL 2186850 Contact Us For Availability
11
Hinge Cover (Biscuit) WPL 2186858 Contact Us For Availability
12
Gasket, (Rear) WPL 2174274 Contact Us For Availability
13
Eyelet, Roller WPL 2174478 Contact Us For Availability
13
Filler, Wrapper (White) WPL 2196094 Contact Us For Availability
13
Gasket, Door Compartment WPL 2159124 Contact Us For Availability
13
Filler, Wrapper (Biscuit) WPL 2196150 Contact Us For Availability
14
Light Bar (RC) WPL 2179920 Contact Us For Availability
14
Clip, Defrost Heater WPL 2161324 Contact Us For Availability
14
Roller WPL 2188212 Contact Us For Availability
15
COVER, LIGHT LENS WPL 2200096 Contact Us For Availability
16
Shelf Bin (4) WPL 2171063 Contact Us For Availability
17
Bracket, Door Stop WPL 2195950 Contact Us For Availability
17
Meat Pan (Includes 13, 14, 19, & 22) WPL 2179231 Contact Us For Availability
18
Window, Crisper WPL 2174076 Contact Us For Availability
19
Overlay, Front Cover (Biscuit) WPL 2186514T Contact Us For Availability
19
Overlay, Front Cover (White) WPL 2186514W Contact Us For Availability
20
Unit Cover, Bottom WPL 2182057 Contact Us For Availability
20
Control Box Harness WPL 2200442 Contact Us For Availability
21
Cap, Crisper Pan (Left Side) WPL 2174258 Contact Us For Availability
21
Cap, Crisper Pan (Right Side) WPL 2174259 Contact Us For Availability
21
P.C. Board Filter Indicator WPL 2203384 Contact Us For Availability
21
Front Cover, Housing (Not Available, Order No WPL ARI96123A7 Contact Us For Availability
22
Window, Meat Pan WPL 2174362 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2186510T Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2186510W Contact Us For Availability
24
Shelf & Roller Assembly WPL 2174021 Contact Us For Availability
24
Retainer, Light Lens WPL 2200097 Contact Us For Availability
25
Screw WPL 489439 Contact Us For Availability
25
Escutcheon, Control Box WPL 2200099 Contact Us For Availability
26
Shelf, Snack Bin WPL 2208298 Contact Us For Availability
26
Light Bar (FC) WPL 2179921 Contact Us For Availability
27
WPL 876029 WPL 876029 Contact Us For Availability
27
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
27
WPL 799344 WPL 799344 Contact Us For Availability
27
Torx Key WPL 1117510 Contact Us For Availability
27
Window WPL 2172941 Contact Us For Availability
27
PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability
27
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
27
WPL 799340 WPL 799340 Contact Us For Availability
27
WPL 799833 WPL 799833 Contact Us For Availability
27
WPL 978883 WPL 978883 Contact Us For Availability
31
Cabinet (Not A Serviceable Part) WPL ARI96120A1 Contact Us For Availability
34
Light Lens WPL 2203266 Contact Us For Availability
44
Front Cover, Ice Container WPL 2171709 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
× ![]()
