Model Whirlpool KSRB25QABL00 – Common Parts & Diagrams

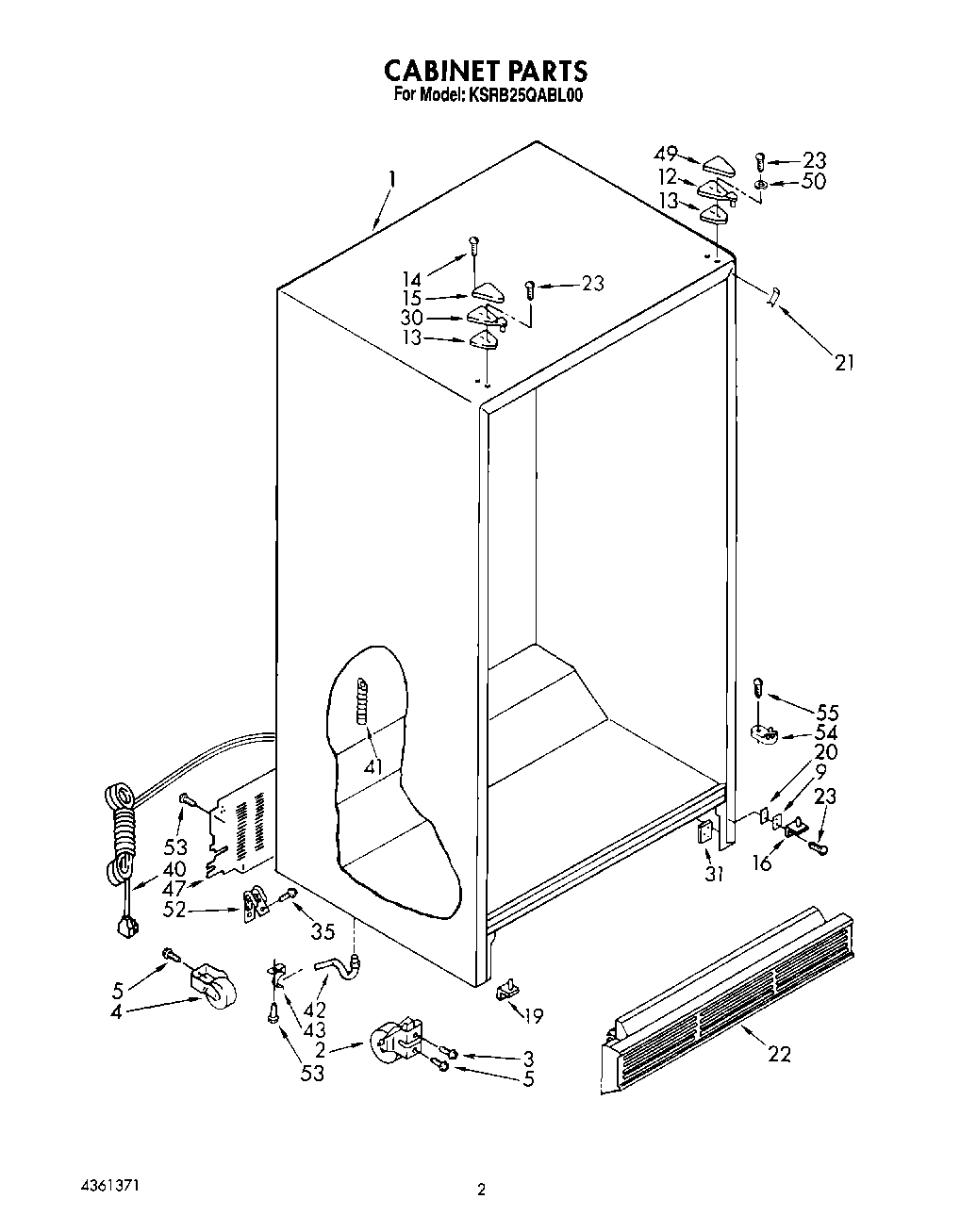

02 - CABINET

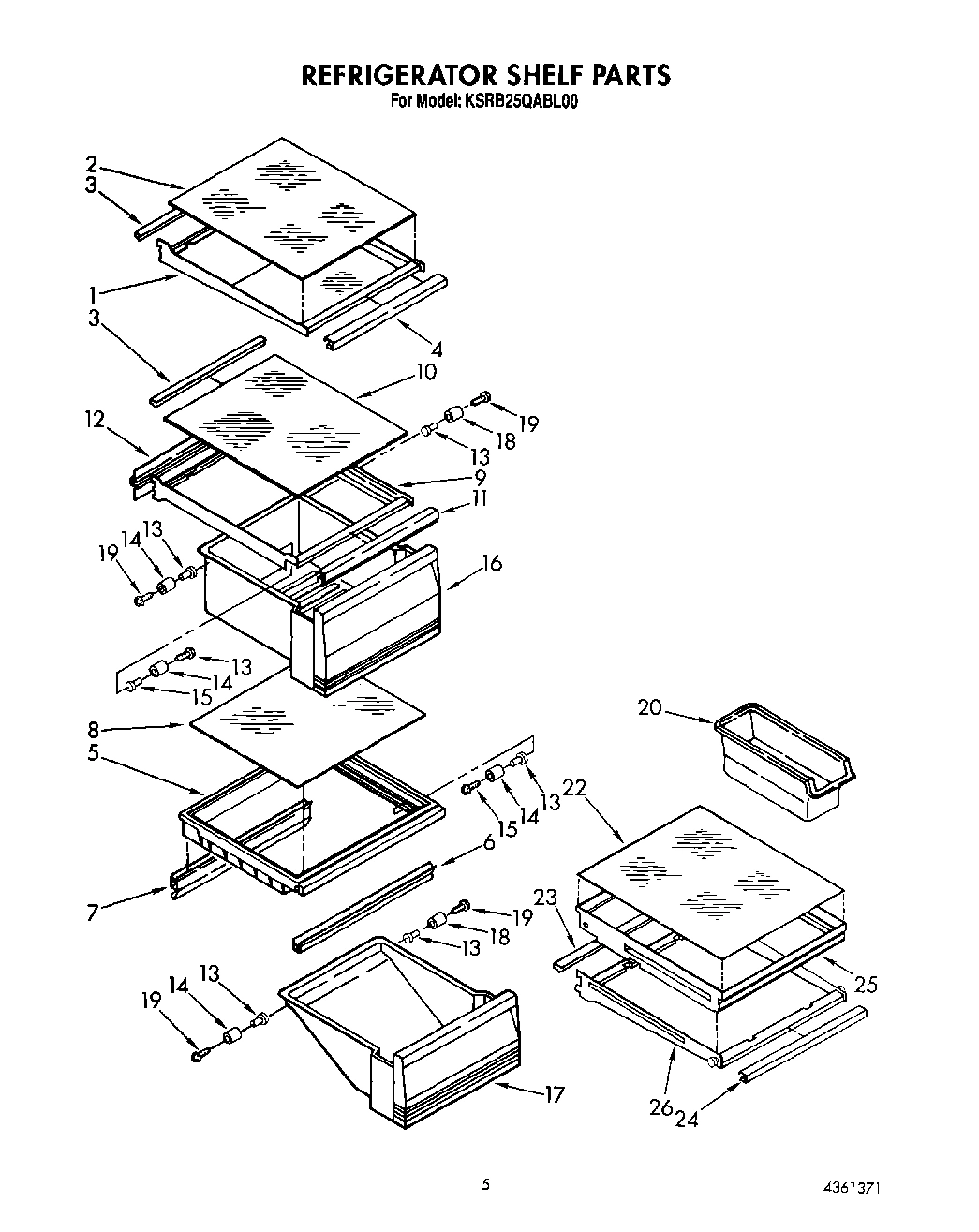

04 - REFRIGERATOR SHELF

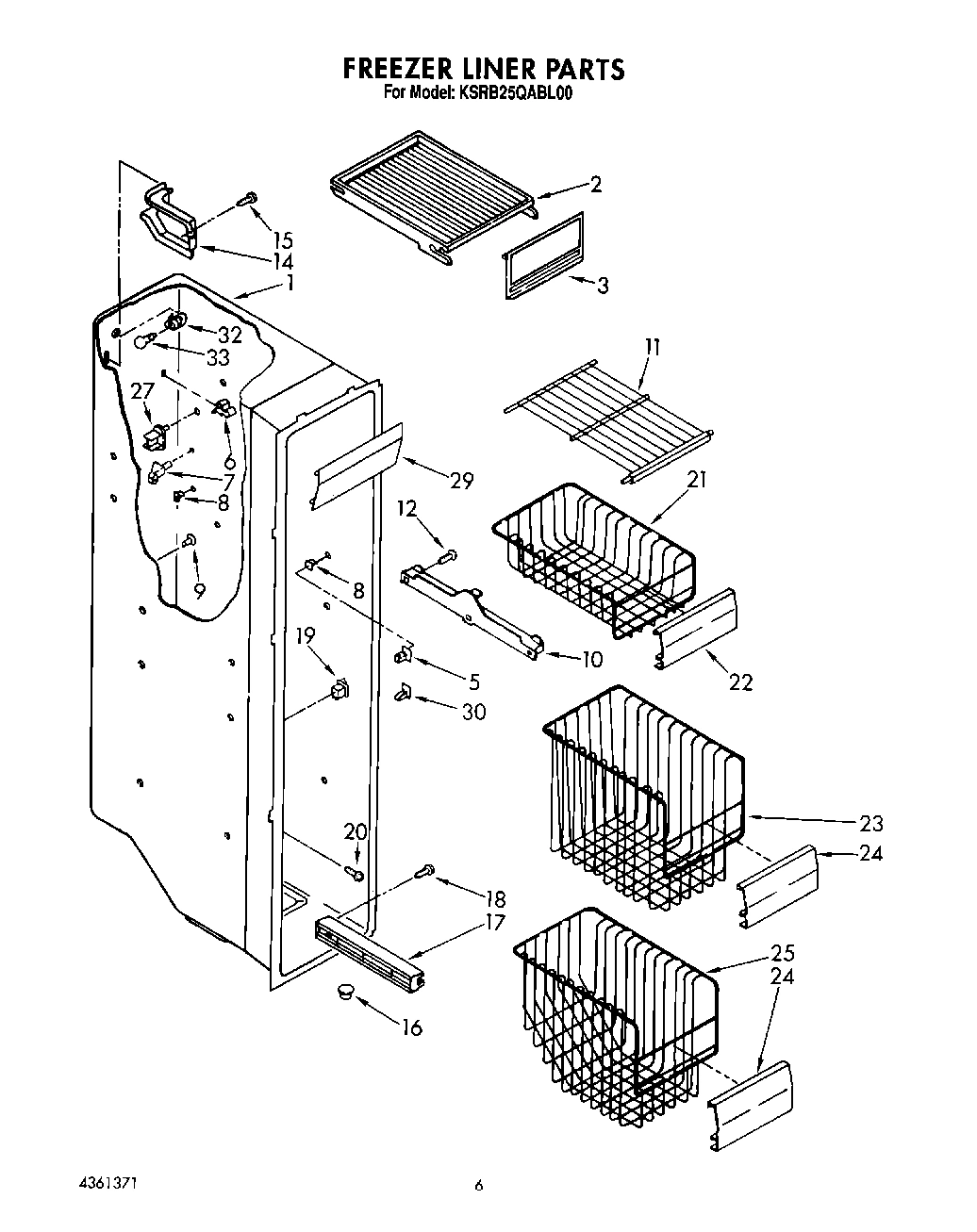

05 - FREEZER LINER

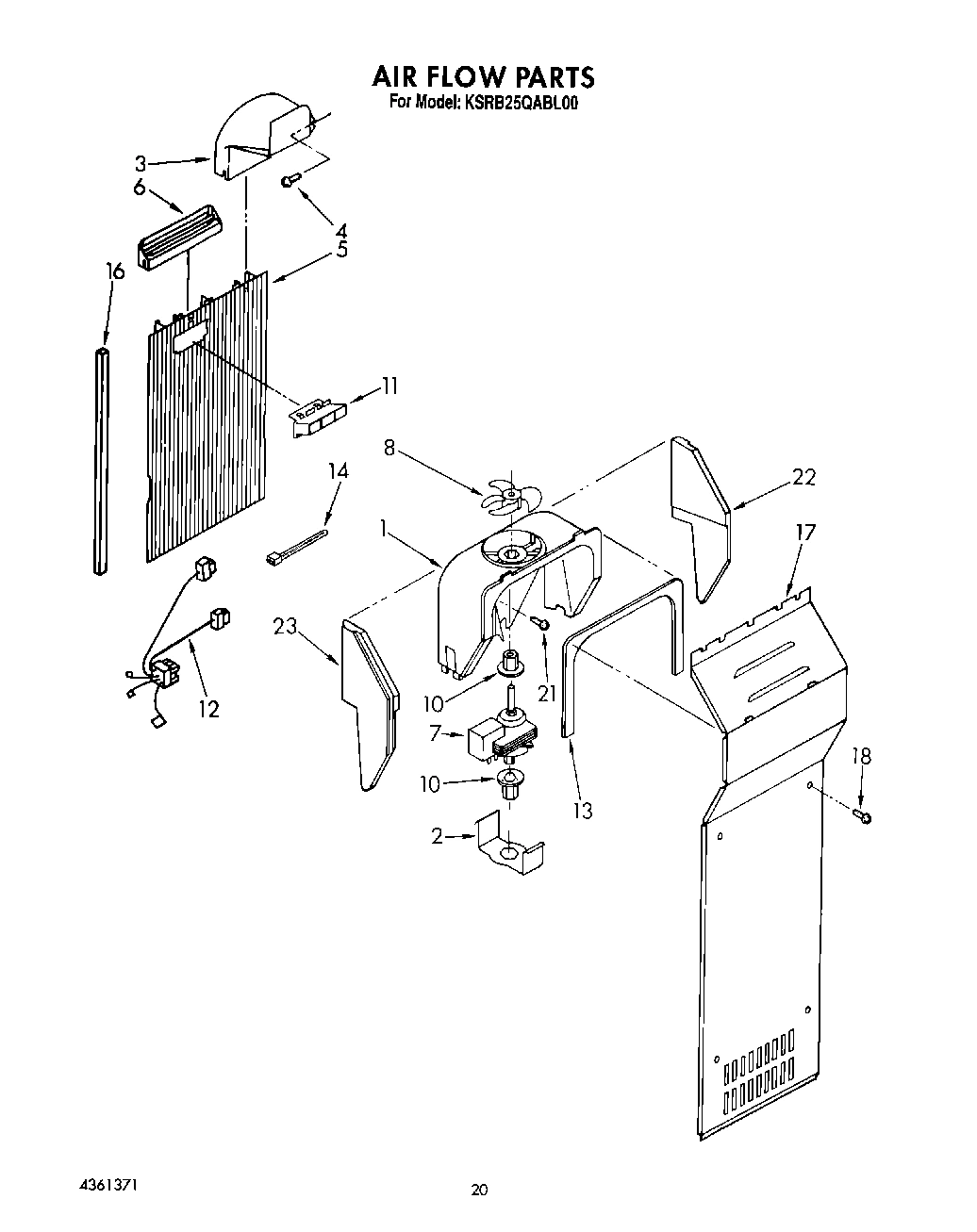

12 - AIR FLOW

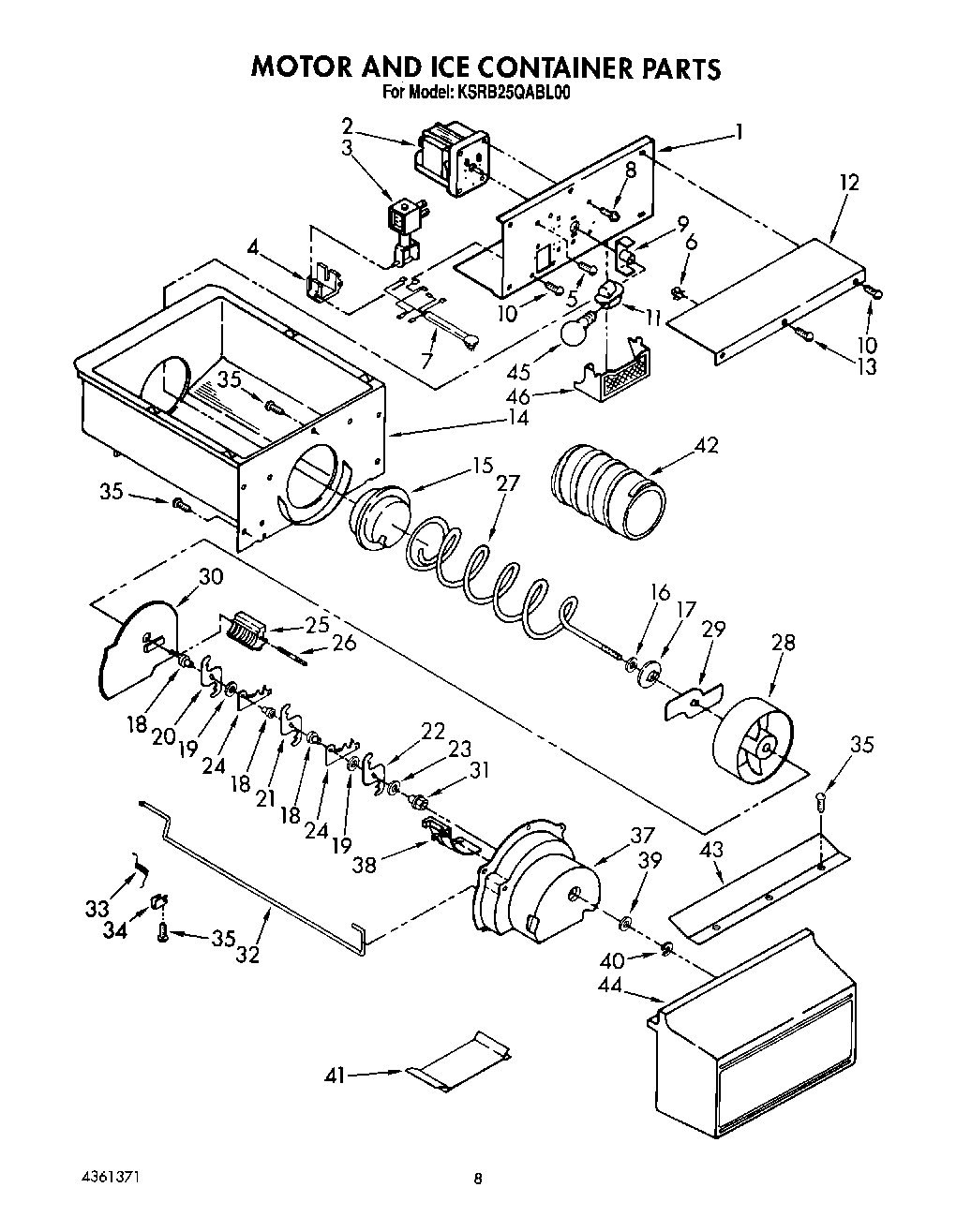

06 - MOTOR AND ICE CONTAINER, LIT/OPTIONAL

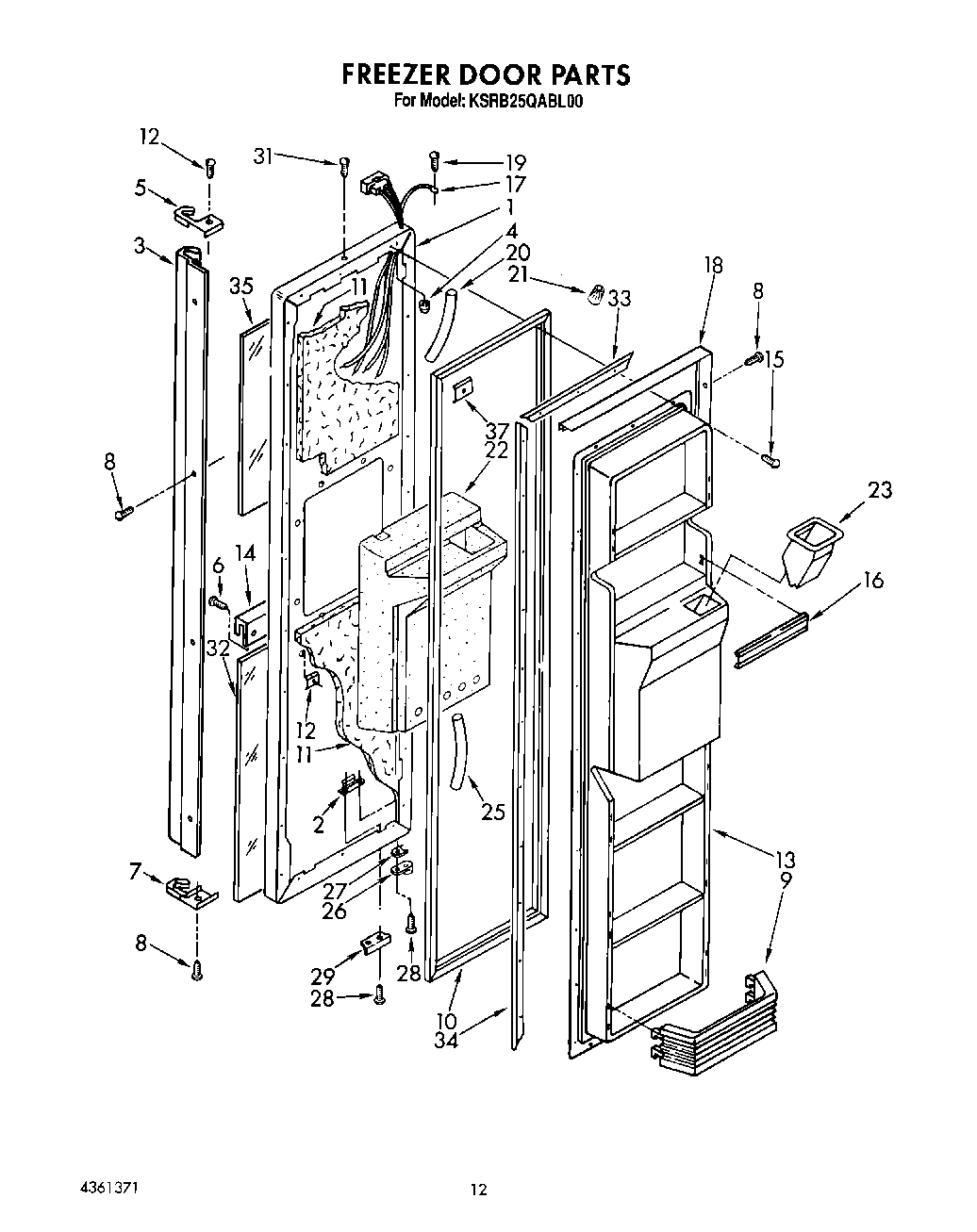

08 - FREEZER DOOR

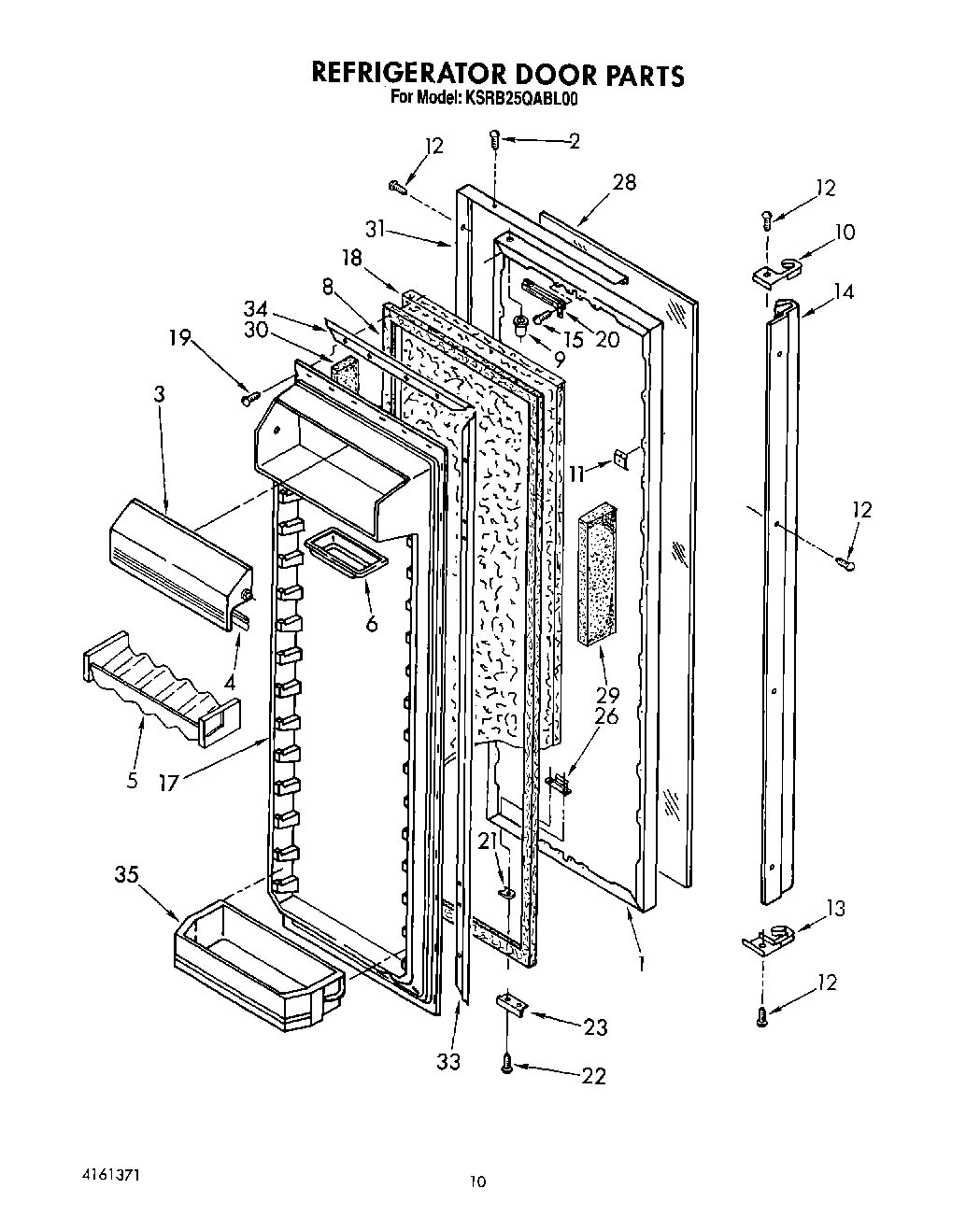

07 - REFRIGERATOR DOOR

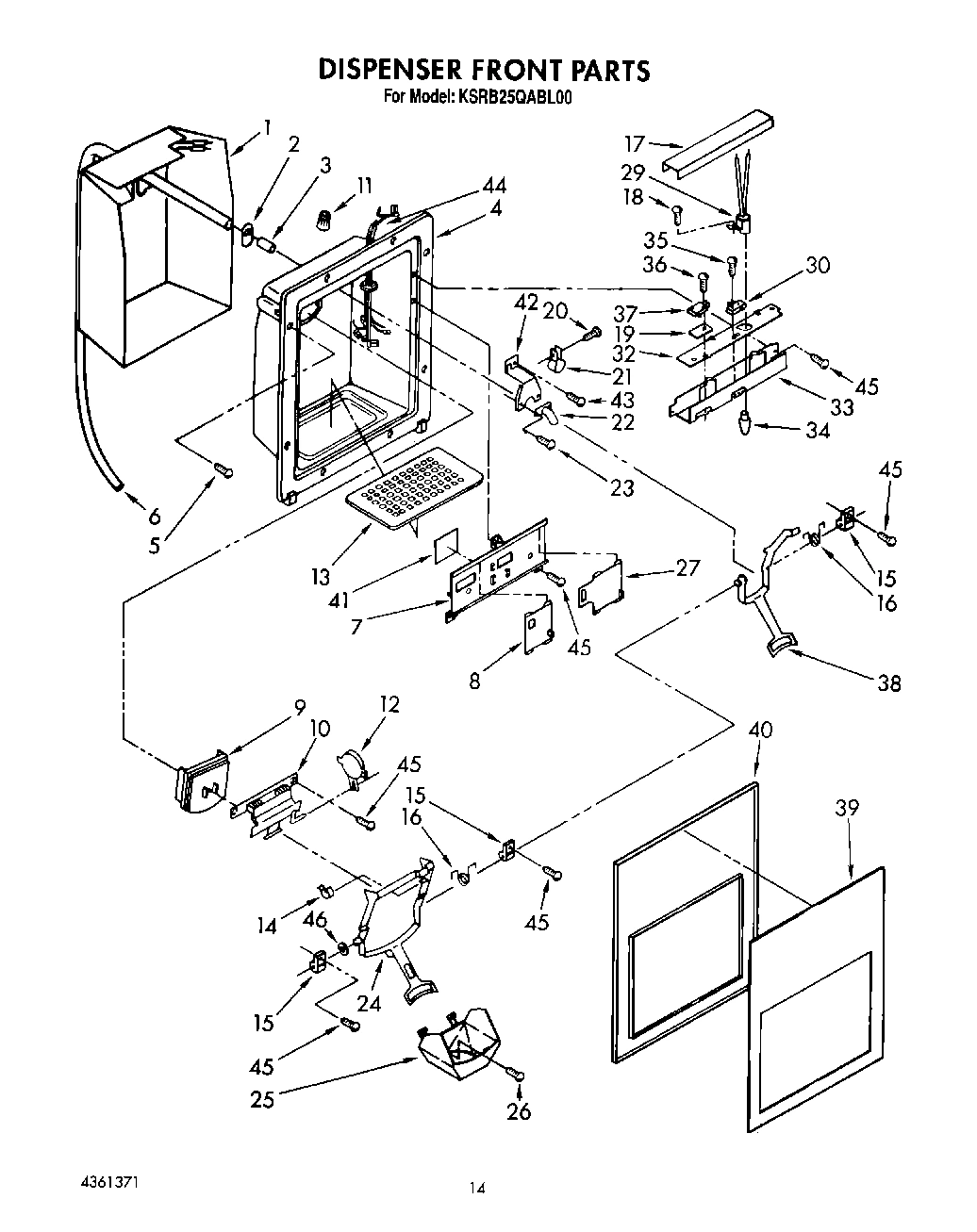

09 - DISPENSER FRONT

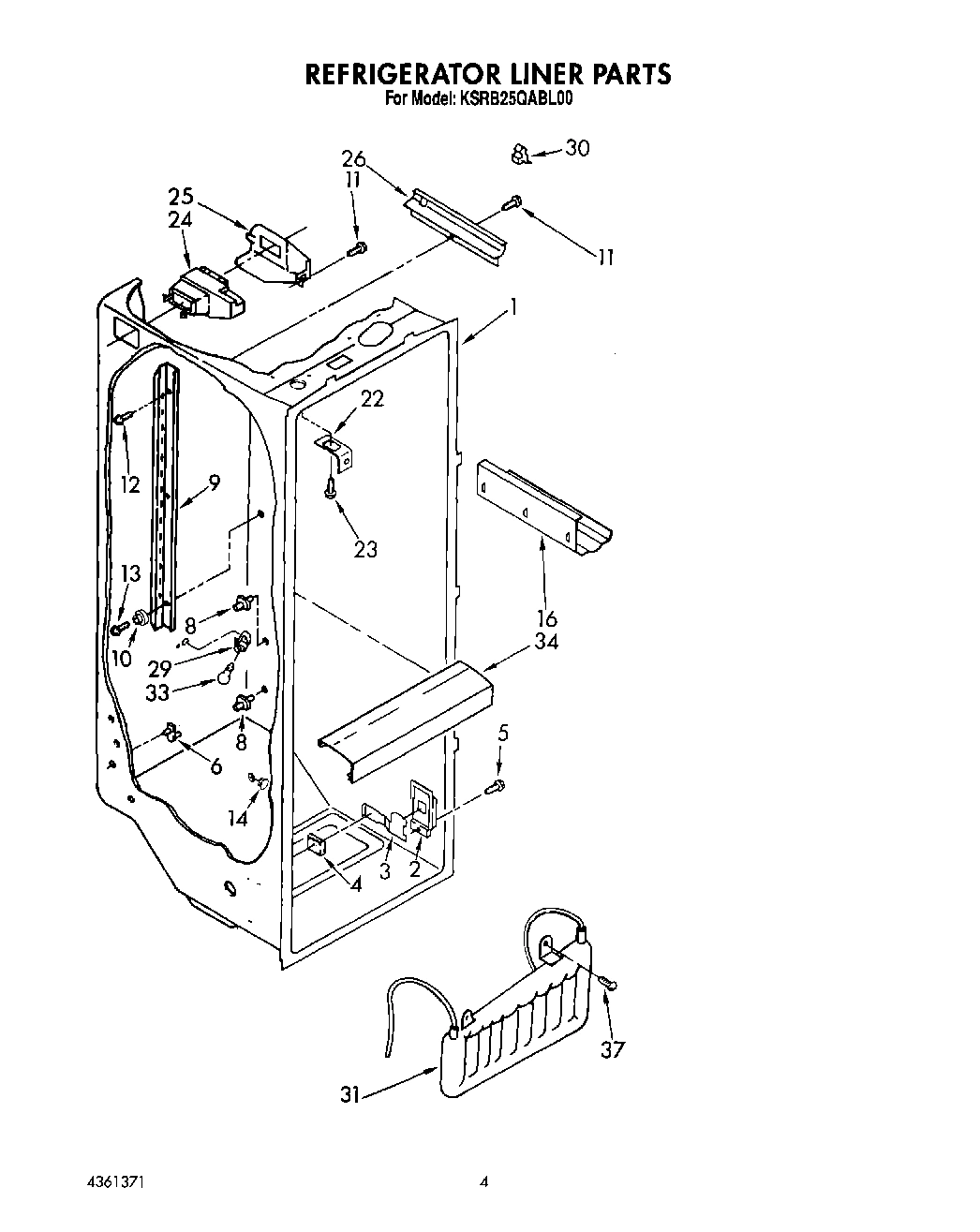

03 - REFRIGERATOR LINER

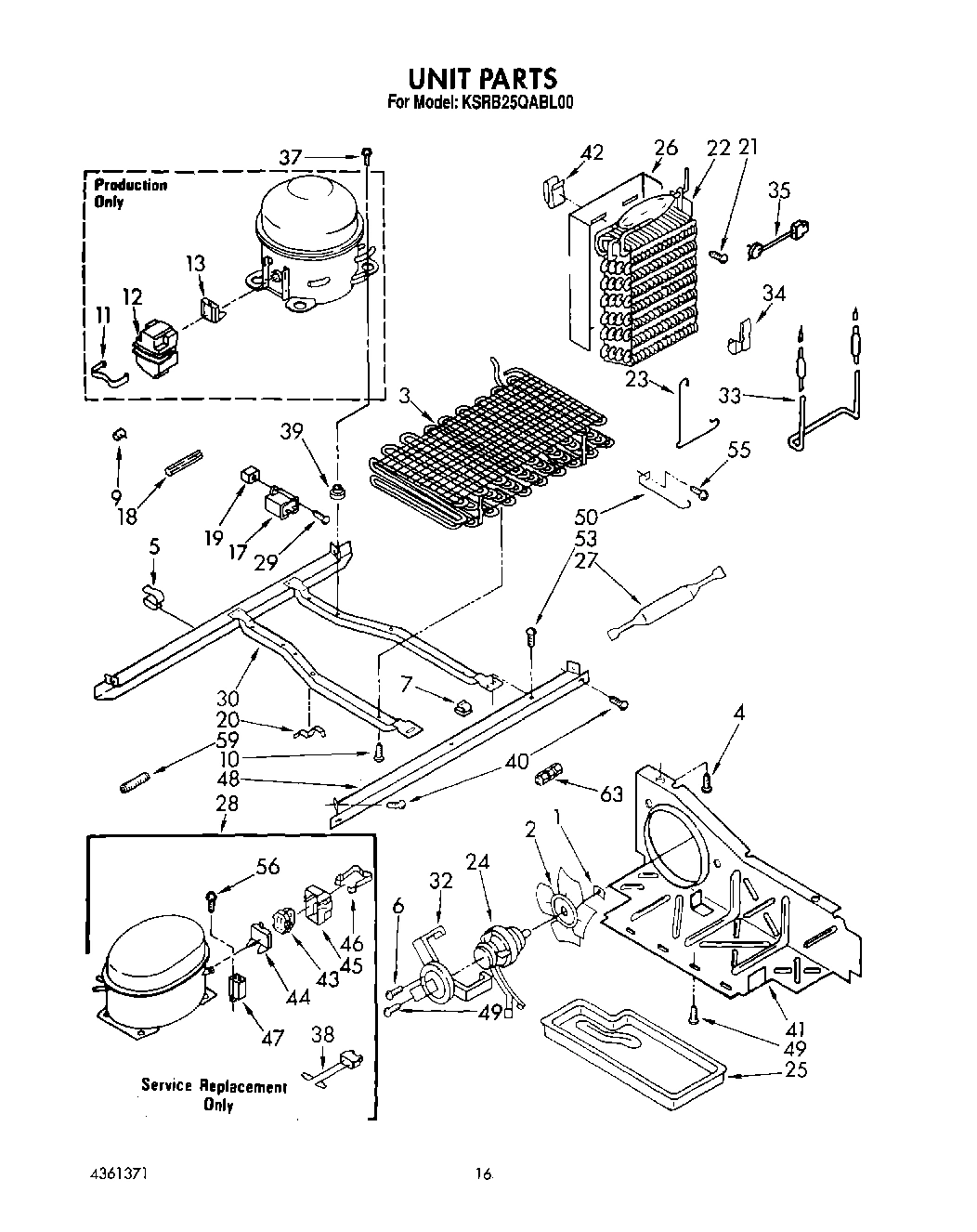

10 - UNIT

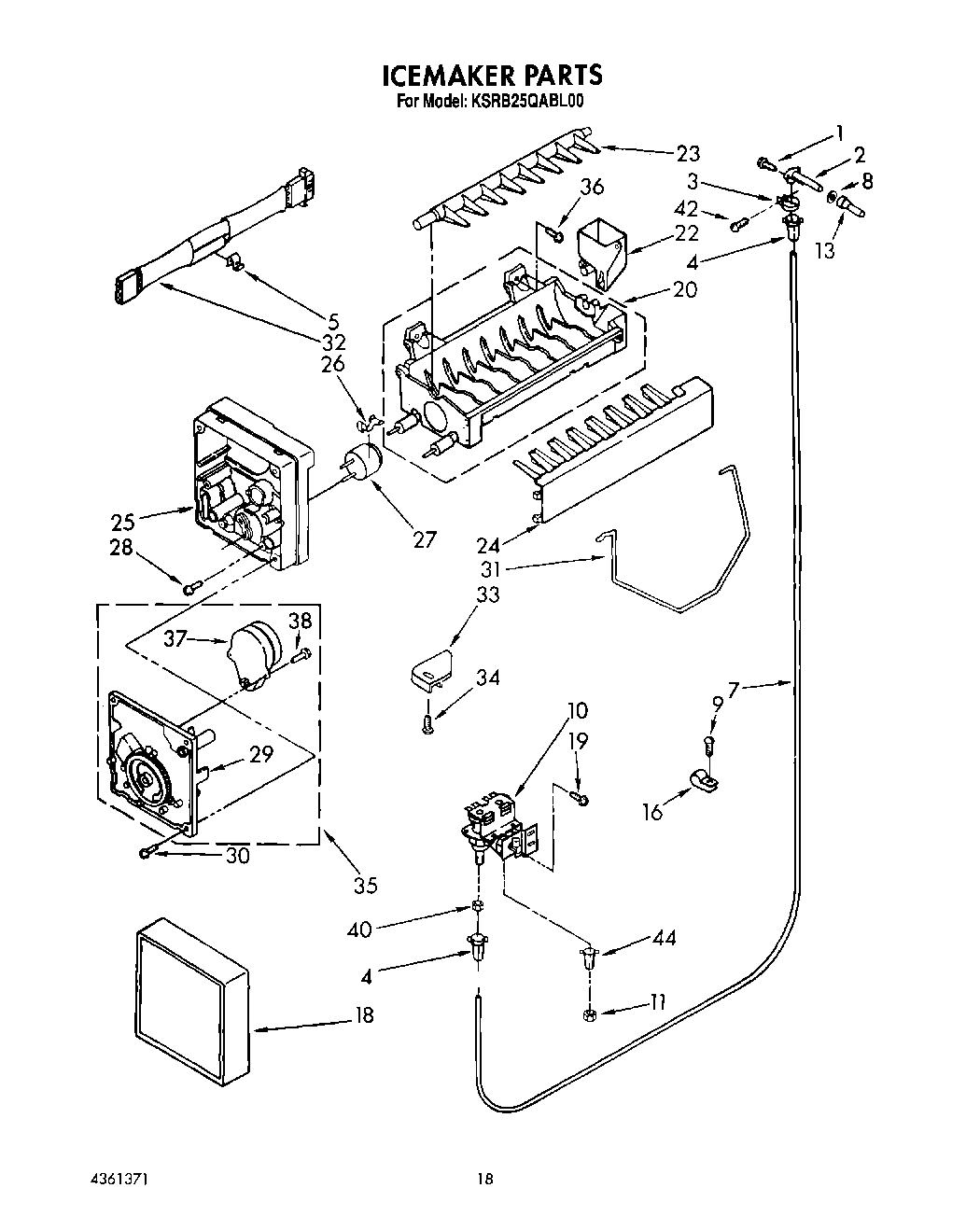

11 - ICEMAKER

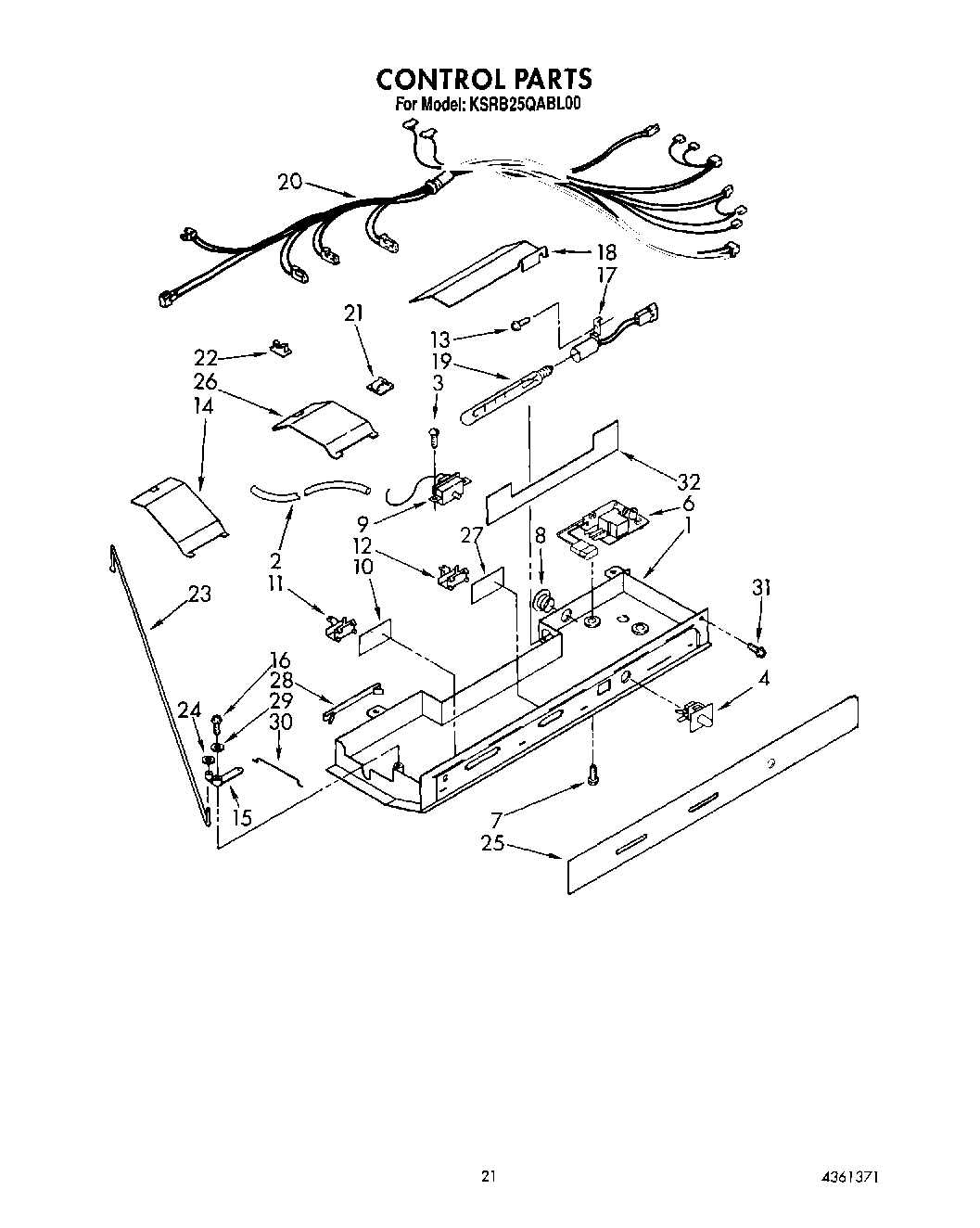

13 - CONTROL
Common parts from model Whirlpool KSRB25QABL00
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2155177 WPL LIT2155177 Contact Us For Availability
WPL LIT2161585 WPL LIT2161585 Contact Us For Availability
WPL LIT2161900 WPL LIT2161900 Contact Us For Availability
WPL LIT4361371 WPL LIT4361371 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
WPL LIT787808 WPL LIT787808 Contact Us For Availability
1
Bracket, Motor WPL 1118386 Contact Us For Availability
1
Freezer, Door Panel (Also Order Item 11) (Bla WPL 1117980 Contact Us For Availability
1
Refrigerator, Door Panel (Black (Also Order I WPL 1117975 Contact Us For Availability
1
Heater, Dispenser WPL 2154789 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI94847A2 Contact Us For Availability
1
Control Box WPL 2155693 Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Screw WPL 489376 Contact Us For Availability
2
Grommet WPL 987048 Contact Us For Availability
2
Escutcheon, Meat Pan Control WPL 985468 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
3
Door, Compartment WPL 1125733 Contact Us For Availability
3
Slide, Meat Pan Control WPL 984102 Contact Us For Availability
3
Condenser Assembly WPL 2154011 Contact Us For Availability
4
Seal, Hinge Pin WPL 939886 Contact Us For Availability
4
Gasket, Utility Door WPL 1125695 Contact Us For Availability
4
Housing, Dispenser WPL 1107943 Contact Us For Availability
4
Pad, Foam WPL 992358 Contact Us For Availability
5
Air Duct Freezer WPL 2155575 Contact Us For Availability
5
Screw (2) WPL 487523 Contact Us For Availability
5
Holder, Beverage WPL 1125981 Contact Us For Availability
5
Clip, Wire WPL 2155658 Contact Us For Availability
6
Diffuser Air Duct WPL 1110666 Contact Us For Availability
6
Screw, 8 x 7/16 WPL 489374 Contact Us For Availability
6
Butter, Tray WPL 1125936 Contact Us For Availability
6
Stud, Pan Cover WPL 1125675 Contact Us For Availability
6
Defrost Timer WPL 2162347 Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2149192 Contact Us For Availability
7
Frame, Slides WPL 2152716 Contact Us For Availability
7
Clip, Tube (3) WPL 934011 Contact Us For Availability
8
Door Gasket, Magnetic WPL 1125929 Contact Us For Availability
8
Slide, Cube/Crush Switch WPL 2152719 Contact Us For Availability
9
Door, Ice WPL 2147168 Contact Us For Availability
9
Shelf Bin (4) WPL 1125676 Contact Us For Availability
9
Cap, Hinge Sleeve WPL 509929 Contact Us For Availability
9
Screw, 8 x 1/2 WPL 486214 Contact Us For Availability
9
Ladder, Shelf (2) WPL 1116794 Contact Us For Availability
10
Door Mechanism Assembly (Includes Item 9) WPL 2147167 Contact Us For Availability
10
Grommet, Fan (2) WPL 2155589 Contact Us For Availability
10
End Cap, Top WPL 1125918 Contact Us For Availability
10
Door Gasket, Magnetic WPL 1125928 Contact Us For Availability
10
Stud, Shelf (2) WPL 658944 Contact Us For Availability
10
Window WPL 1126028 Contact Us For Availability
11
Screw Anchor (2) WPL 941242 Contact Us For Availability
11
Wire Connector WPL 850145 Contact Us For Availability
11
Spring, Relay Case WPL 943322 Contact Us For Availability
11
Slide, Air Control WPL 1125592 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2161327 Contact Us For Availability
12
Cover, Motor WPL 1115339 Contact Us For Availability
12
Screw (2) WPL 489112 Contact Us For Availability
12
Case, Relay WPL 1105055 Contact Us For Availability
12
Slide, Thermostat WPL 1125591 Contact Us For Availability
13
Grille, Overflow WPL 983900 Contact Us For Availability
13
End Cap, Bottom WPL 1125917 Contact Us For Availability
13
Panel, Interior Door WPL 1125608 Contact Us For Availability
13
Screw (2) WPL 487559 Contact Us For Availability
13
Overload WPL 2154757 Contact Us For Availability
13
Tube, Water Inlet WPL 2155247 Contact Us For Availability
14
Handle WPL 1125914 Contact Us For Availability
14
Trim, Dispenser WPL 1125980 Contact Us For Availability
14
Clip, Bearing (2) WPL 987917 Contact Us For Availability
14
Light Bar WPL 1118072 Contact Us For Availability
15
Bearing, Lever (3) WPL 983697 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
16
Trim, Door Shelf WPL 1126495 Contact Us For Availability
16
Rack, Wine & Egg WPL 1126137 Contact Us For Availability
17
Cover, Evaporator WPL 2155612 Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
17
Harness, Door (Includes Item 18) WPL 1119212 Contact Us For Availability
17
Panel, Interior Door WPL 1117905 Contact Us For Availability
17
Shield, Wiring WPL 2147165 Contact Us For Availability
17
Light Socket WPL 1110690 Contact Us For Availability
18
Foam Insulation (Required When Replacing Exte WPL 876029 Contact Us For Availability
18
Trim, Door WPL 1125916 Contact Us For Availability
18
Cover WPL 628355 Contact Us For Availability
18
Heat Shield WPL 1118033 Contact Us For Availability
19
Spacer WPL 625834 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
20
Tube, Door Wiring WPL 1119060 Contact Us For Availability
20
Door Closer, Upper Cam WPL 1117898 Contact Us For Availability
20
Clip, Unit Cover (2) WPL 548744 Contact Us For Availability
20
Control Box Harness WPL 2155694 Contact Us For Availability
21
Wire Connector WPL 227991 Contact Us For Availability
22
Insulation, Dispenser WPL 1119038 Contact Us For Availability
22
Evaporator WPL 2155501 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Chute, Ice WPL 1119036 Contact Us For Availability
23
Bracket, Door Stop WPL 1115906 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
24
Lever Assembly, Ice Dispenser WPL 1127421 Contact Us For Availability
24
Fastener, Push-On WPL 489391 Contact Us For Availability
25
Tube, Door Wiring WPL 2147080 Contact Us For Availability
25
Guide, Ice WPL 1119035 Contact Us For Availability
25
Tray, Evaporator WPL 1110674 Contact Us For Availability
25
Escutcheon, Control Box WPL 2155695 Contact Us For Availability
26
Tap Plate WPL 988402 Contact Us For Availability
26
Screw WPL 489197 Contact Us For Availability
26
Heat Shield WPL 2149294 Contact Us For Availability
26
Light Bar WPL 1126089 Contact Us For Availability
27
Slide, Light Switch WPL 2152724 Contact Us For Availability
27
Window WPL 1126027 Contact Us For Availability
28
Black Glass WPL 1126015 Contact Us For Availability
28
Compressor (Includes Items 38, 43, 44, 45, 46 WPL 4317959 Contact Us For Availability
28
Clip, Control Box WPL 1125811 Contact Us For Availability
29
Light Lens WPL 1115389 Contact Us For Availability
29
Dike, Door Handle Side WPL 1126149 Contact Us For Availability
29
Lamp Holder WPL 2147131 Contact Us For Availability
30
Stud, R.S. Rear WPL 1106982 Contact Us For Availability
30
Dike, Door Hinge Side WPL 1126150 Contact Us For Availability
30
Switch WPL 1127898 Contact Us For Availability
31
Trim, Door WPL 1117900 Contact Us For Availability
32
Black Glass, Lower WPL 1126017 Contact Us For Availability
32
Insulator, Control Bracket WPL 2147164 Contact Us For Availability
32
Fan, Motor Bracket WPL 2162062 Contact Us For Availability
32
Heat Shield WPL 1127141 Contact Us For Availability
33
Heater, Defrost WPL 2161323 Contact Us For Availability
33
Gasket Retainer, Top & Bottom WPL 1118306 Contact Us For Availability
33
Gasket Retainer, Side (2) WPL 1118302 Contact Us For Availability
33
Bracket, Control WPL 2147163 Contact Us For Availability
34
Gasket Retainer, Top & Bottom WPL 1118301 Contact Us For Availability
34
Light Lens WPL 1125586 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
34
Screw, 8-32 x 27/64 WPL 489365 Contact Us For Availability
35
Black Glass, Upper WPL 1126016 Contact Us For Availability
35
Shelf Bin (4) WPL 1125555 Contact Us For Availability
35
Screw (2) WPL 488361 Contact Us For Availability
36
Screw, WPL 489155 Contact Us For Availability
37
Screw (2) WPL 488280 Contact Us For Availability
37
Screw WPL 489387 Contact Us For Availability
38
Lever Assembly, Water Dispenser WPL 1115349 Contact Us For Availability
39
Insert, Cover WPL 1125803 Contact Us For Availability
39
Grommet (4) WPL 2162067 Contact Us For Availability
40
Cover, Housing (Includes Item 39) WPL 1125807 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
41
Housing Filler WPL 2152700 Contact Us For Availability
41
Heat Shield, Frame WPL 2147172 Contact Us For Availability
42
Bracket, Water WPL 987049 Contact Us For Availability
42
Clip, Heat Shield WPL 2155547 Contact Us For Availability
43
Ice Deflector WPL 1119043 Contact Us For Availability
43
Screw, 8-18 x 3/4 WPL 488316 Contact Us For Availability
43
Relay (Order Overload, No.44, To Obtain Relay WPL ARI94849A2 Contact Us For Availability
44
Front Cover, Ice Container WPL 1126036 Contact Us For Availability
44
Wiring Harness, Door WPL 2147166 Contact Us For Availability
44
Insert, Tube WPL 1129177 Contact Us For Availability
44
Overload WPL 1118841 Contact Us For Availability
45
Cover WPL 1108115 Contact Us For Availability
46
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
46
WPL 799344 WPL 799344 Contact Us For Availability
46
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
46
Transformer (115-230 Volt) WPL 515393 Contact Us For Availability
46
WPL 542639 WPL 542639 Contact Us For Availability
46
WPL 799340 WPL 799340 Contact Us For Availability
46
WPL 799833 WPL 799833 Contact Us For Availability
46
WPL 978883 WPL 978883 Contact Us For Availability
46
WPL 983359 WPL 983359 Contact Us For Availability
46
Washer (Repair) WPL 489336 Contact Us For Availability
46
Strap WPL 938384 Contact Us For Availability
49
Hinge Cover WPL 2155938 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
59
Spring-Tube WPL 983659 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
