Model Whirlpool KSRB22QGBL00 REFRIGERATOR – Common Parts & Diagrams

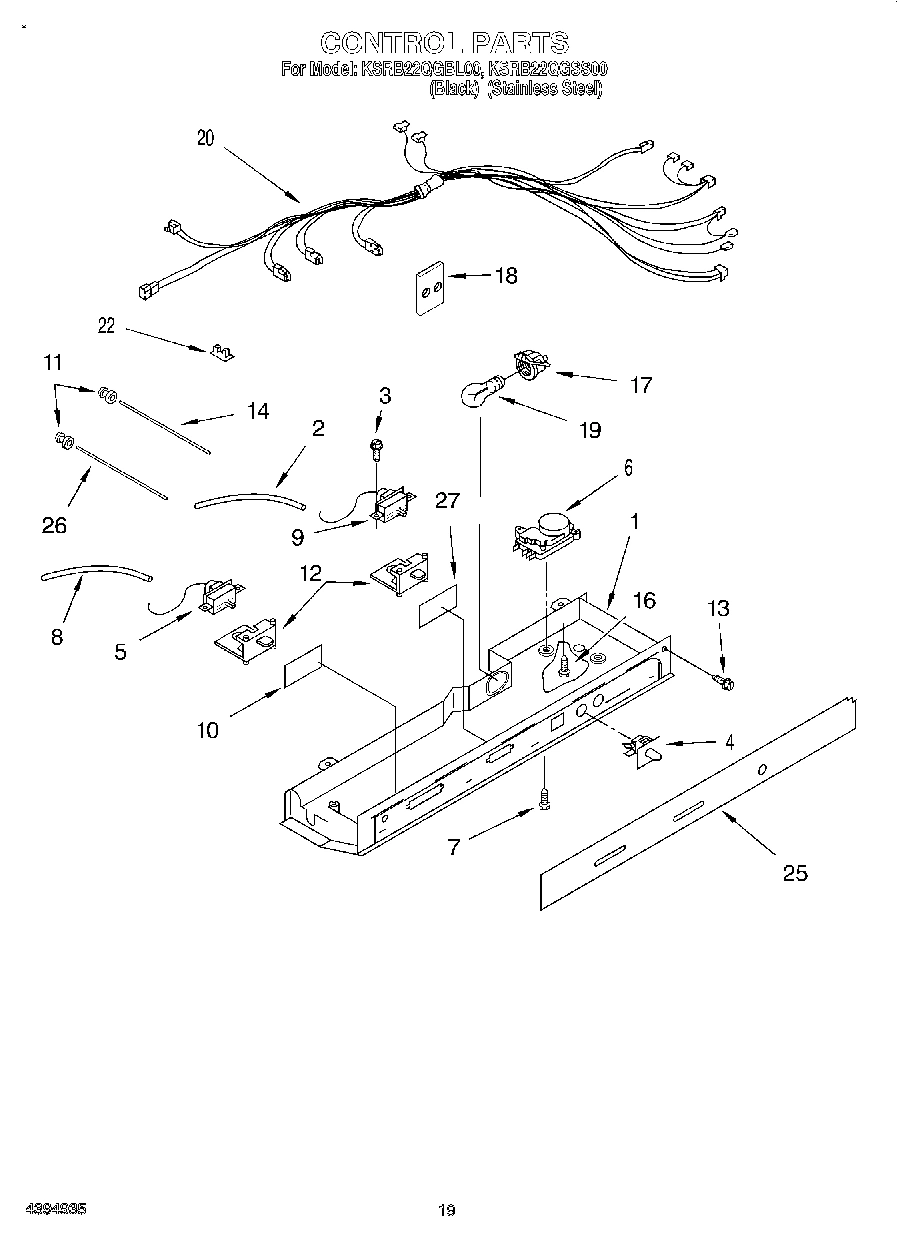

12 - CONTROL, LIT/OPTIONAL

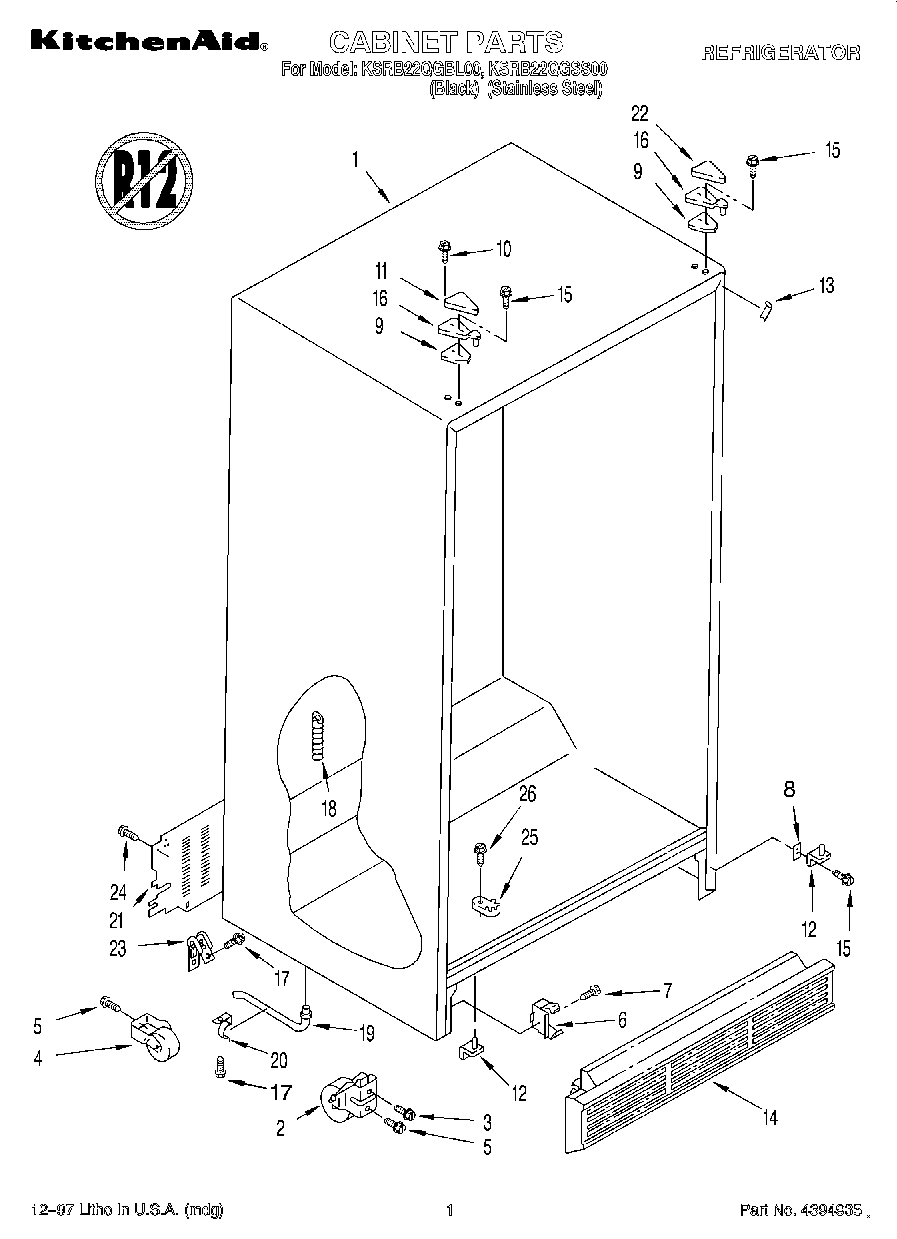

01 - CABINET

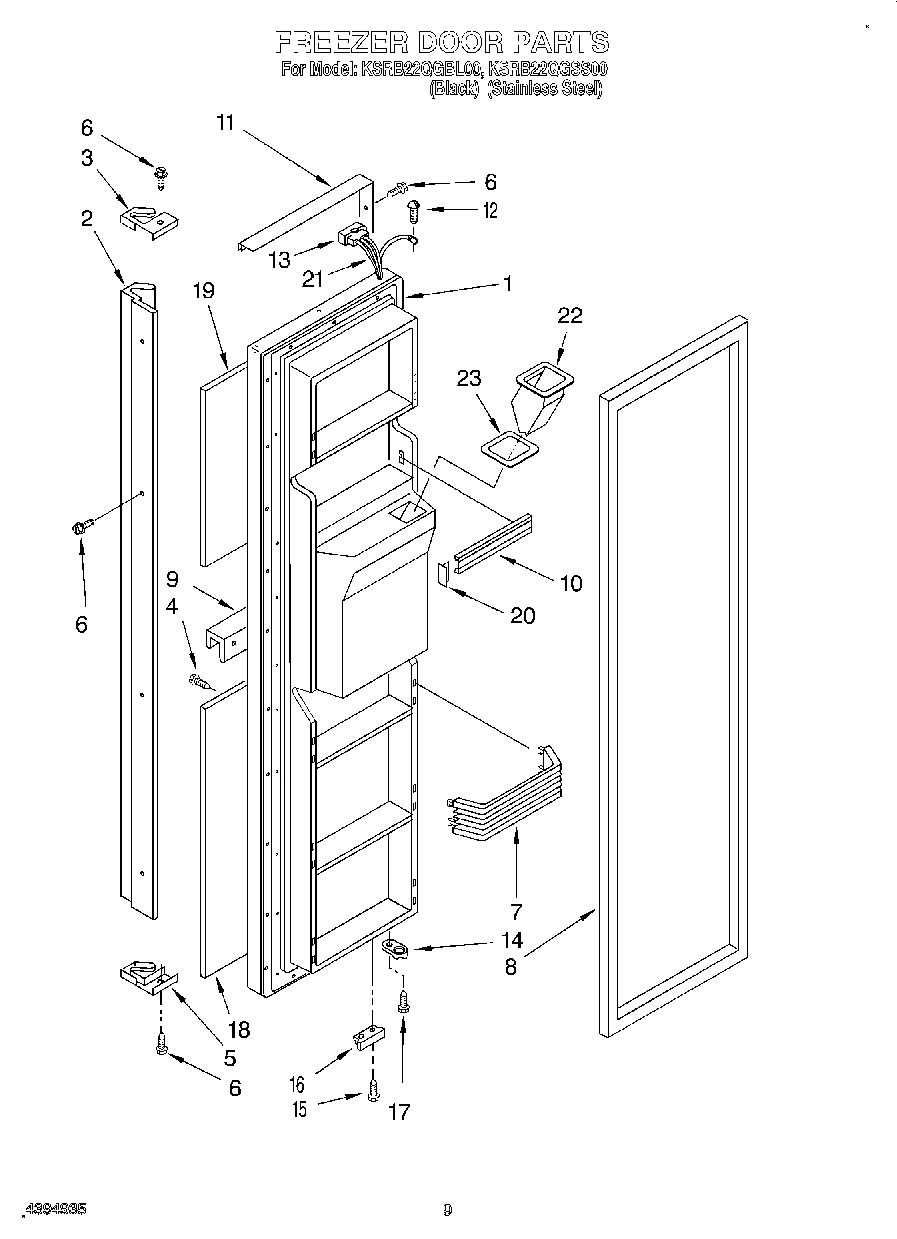

06 - FREEZER DOOR

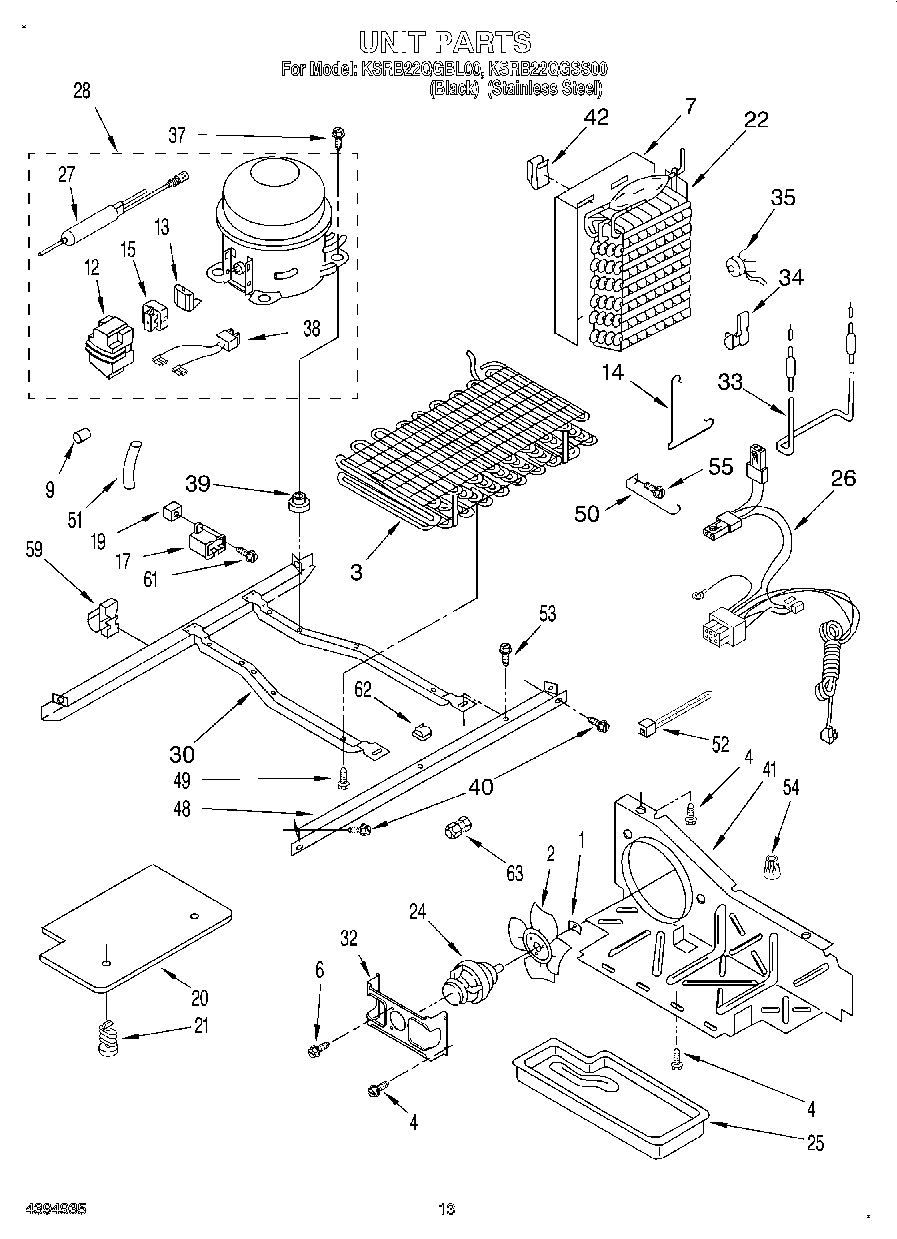

08 - UNIT
10 - AIR FLOW

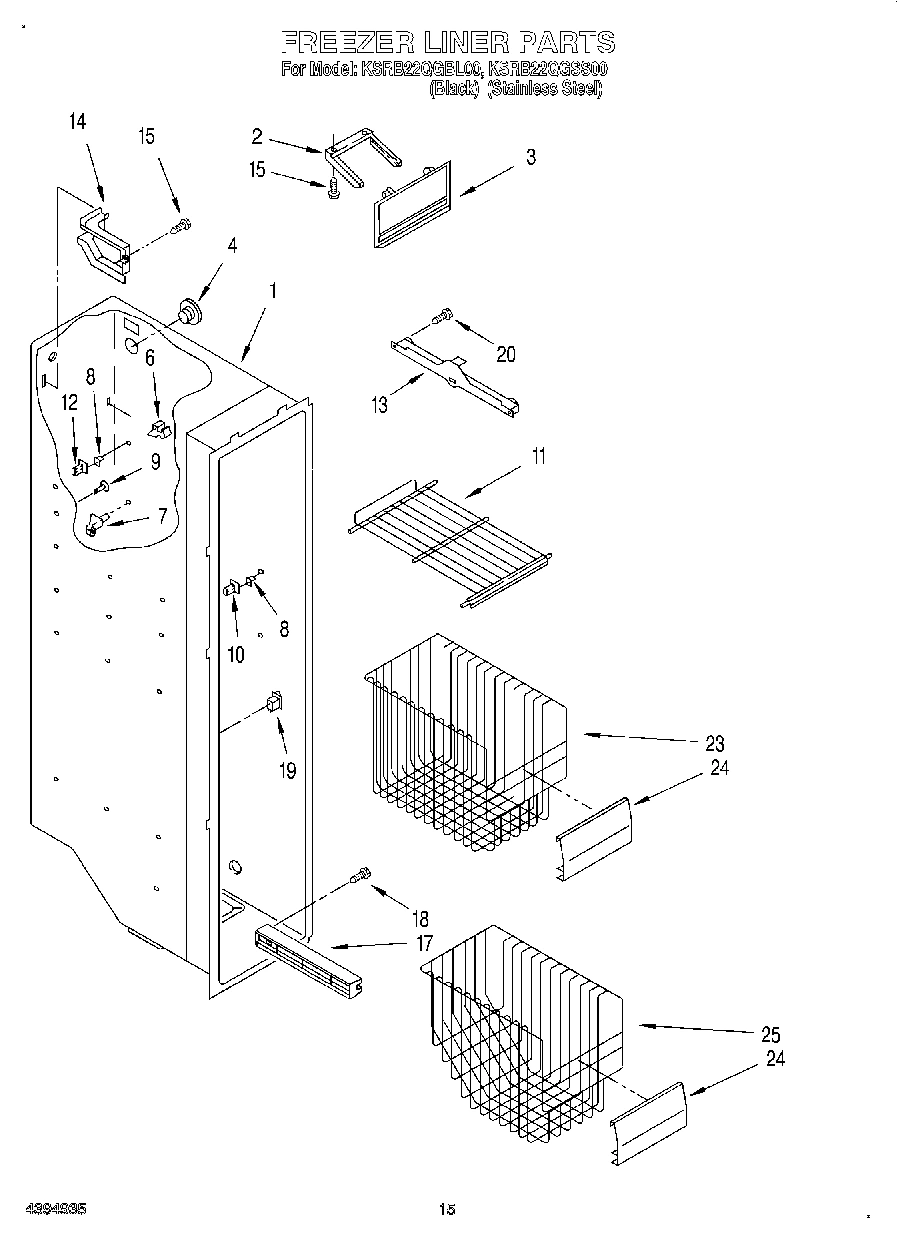

09 - FREEZER LINER

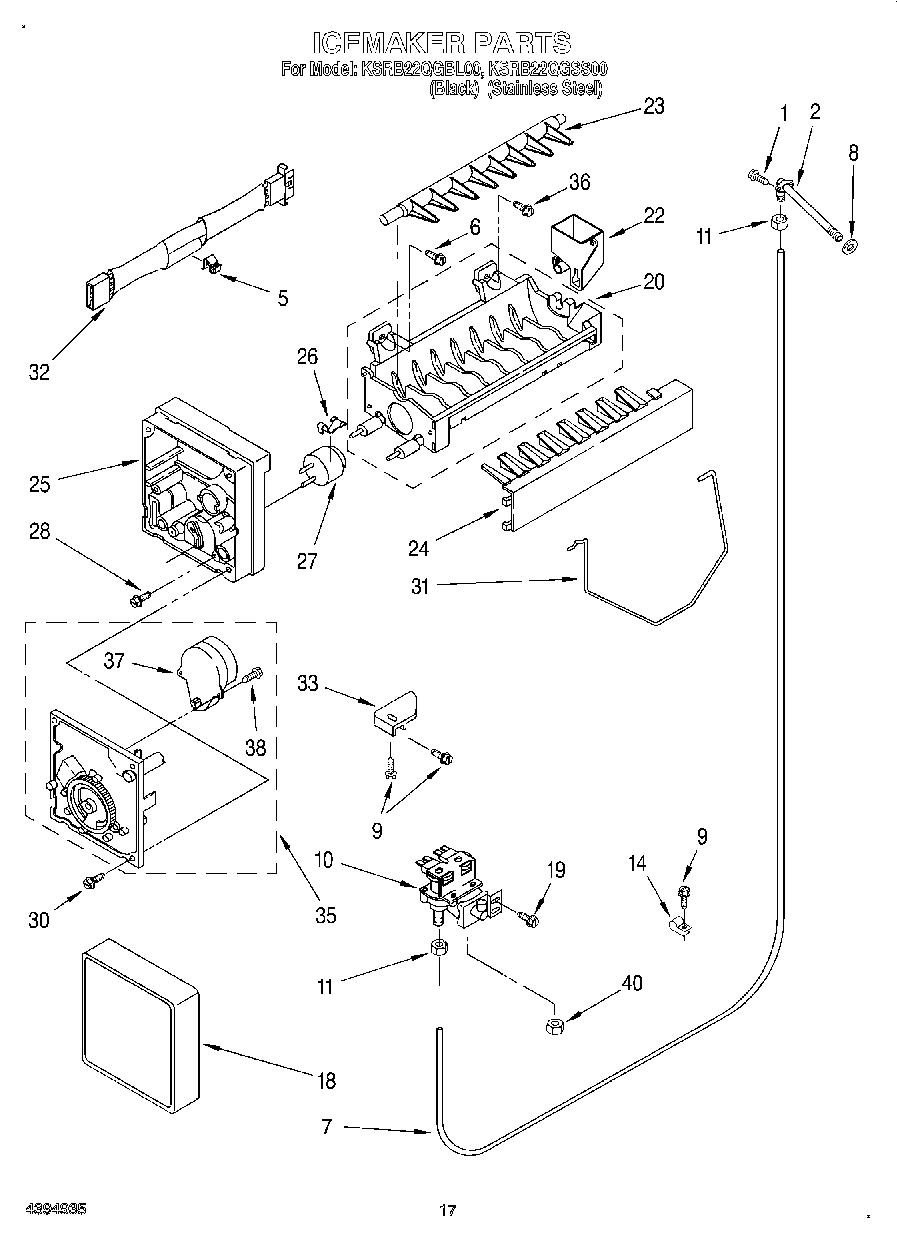

11 - ICEMAKER

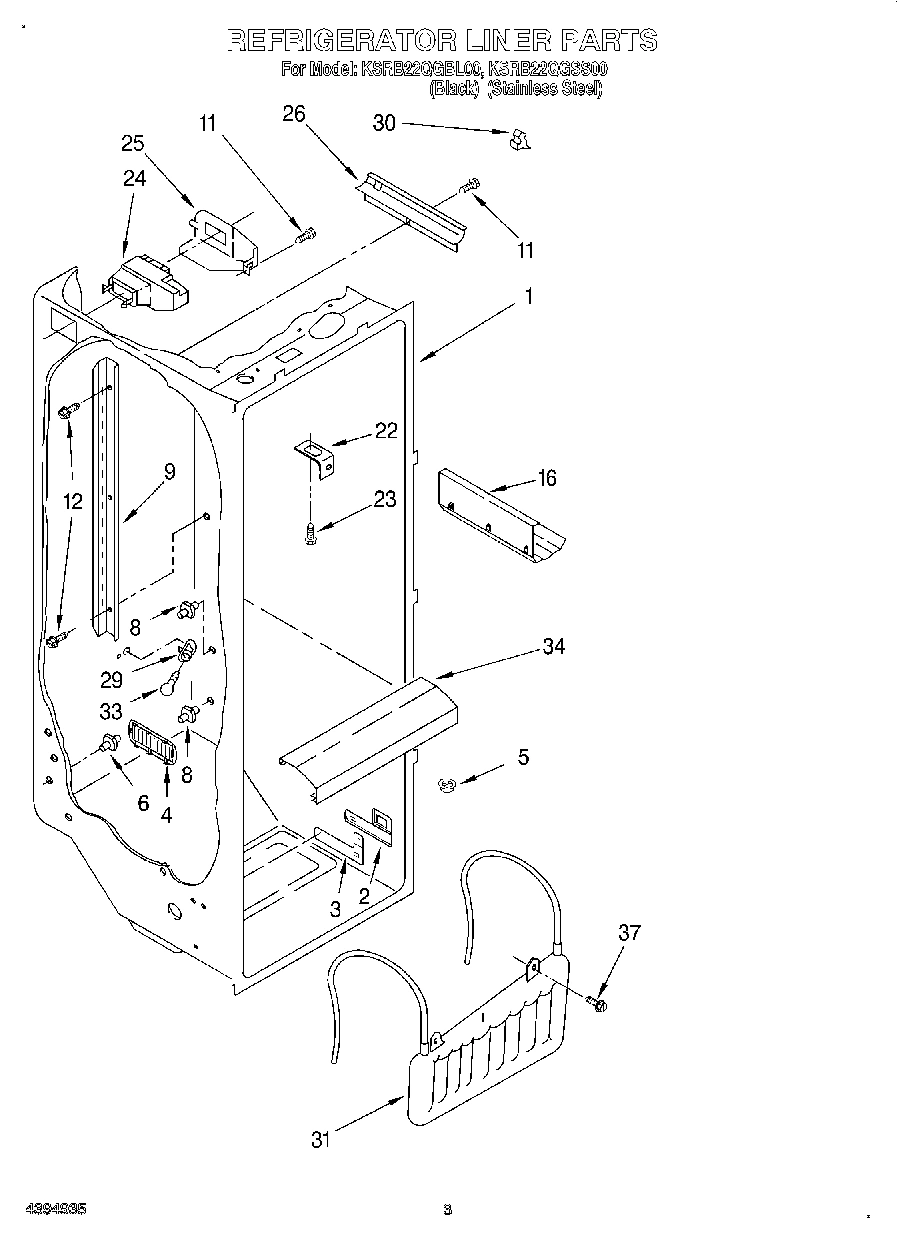

02 - REFRIGERATOR LINER

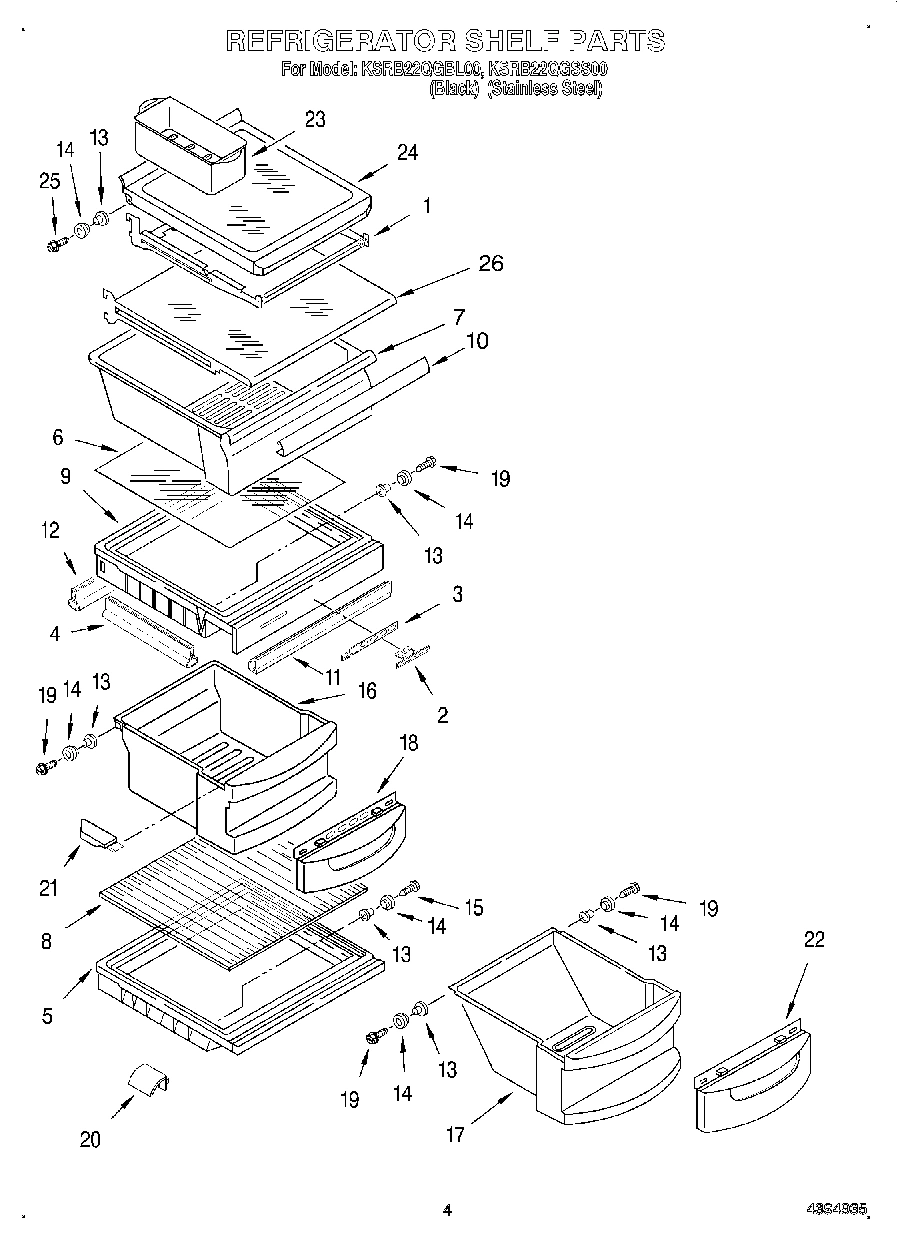

03 - REFRIGERATOR SHELF

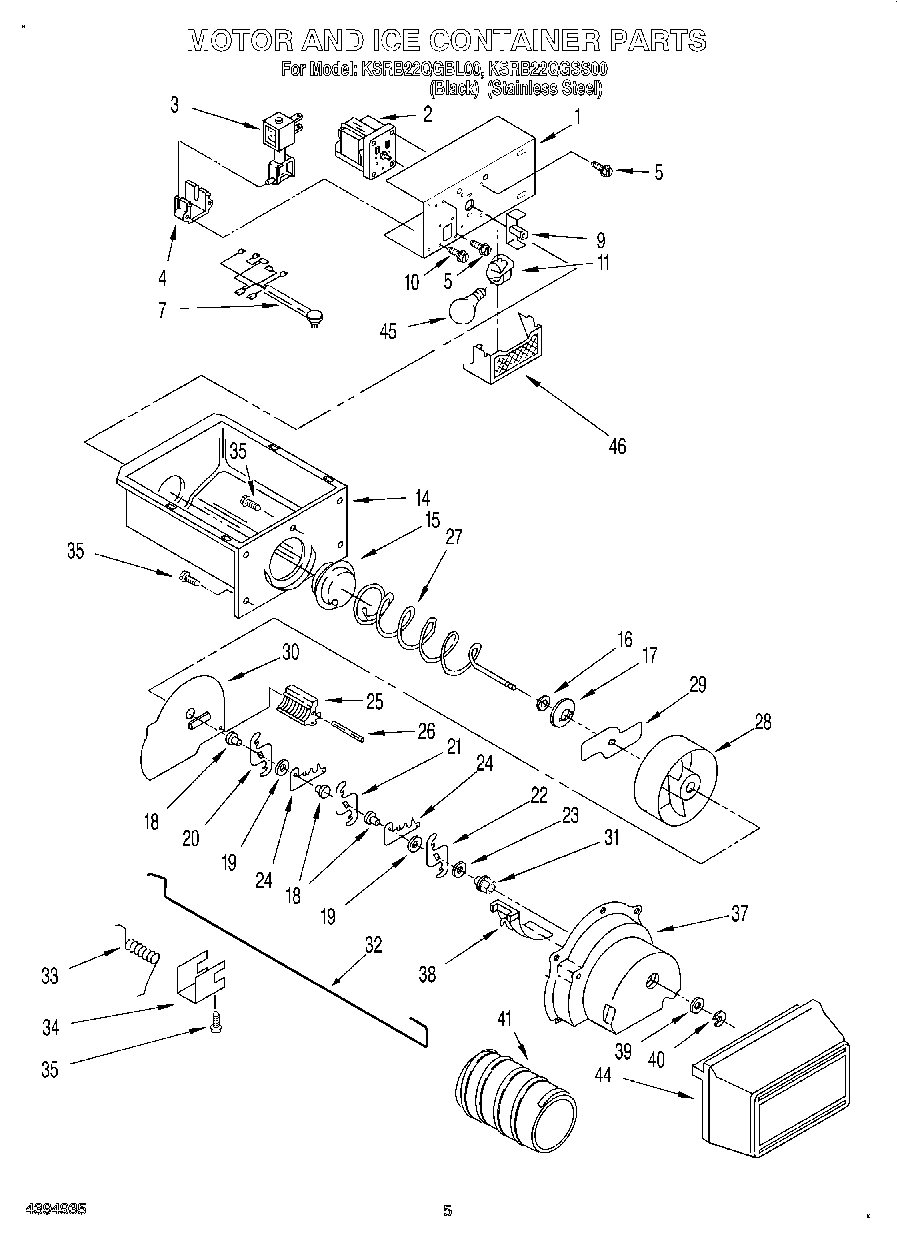

04 - MOTOR AND ICE CONTAINER

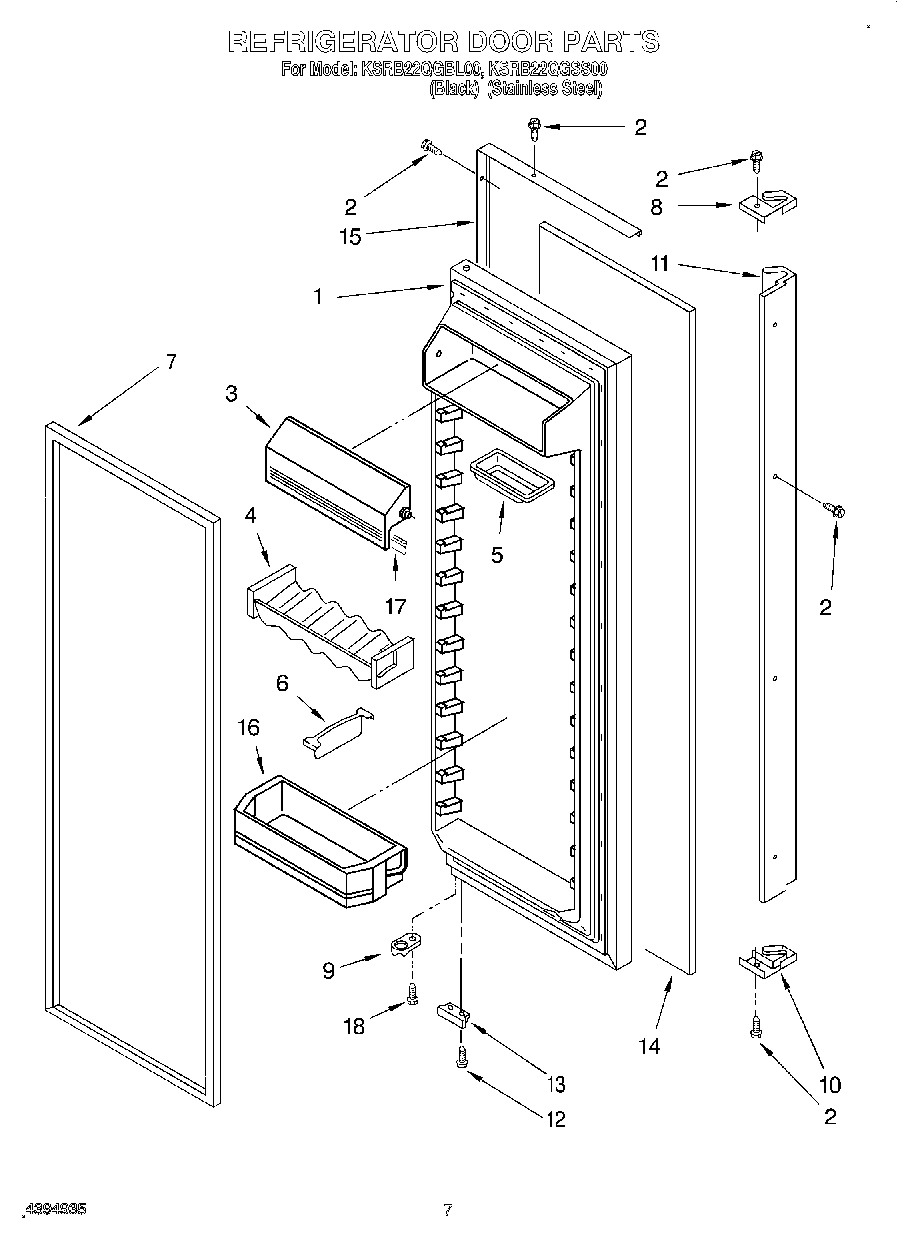

05 - REFRIGERATOR DOOR

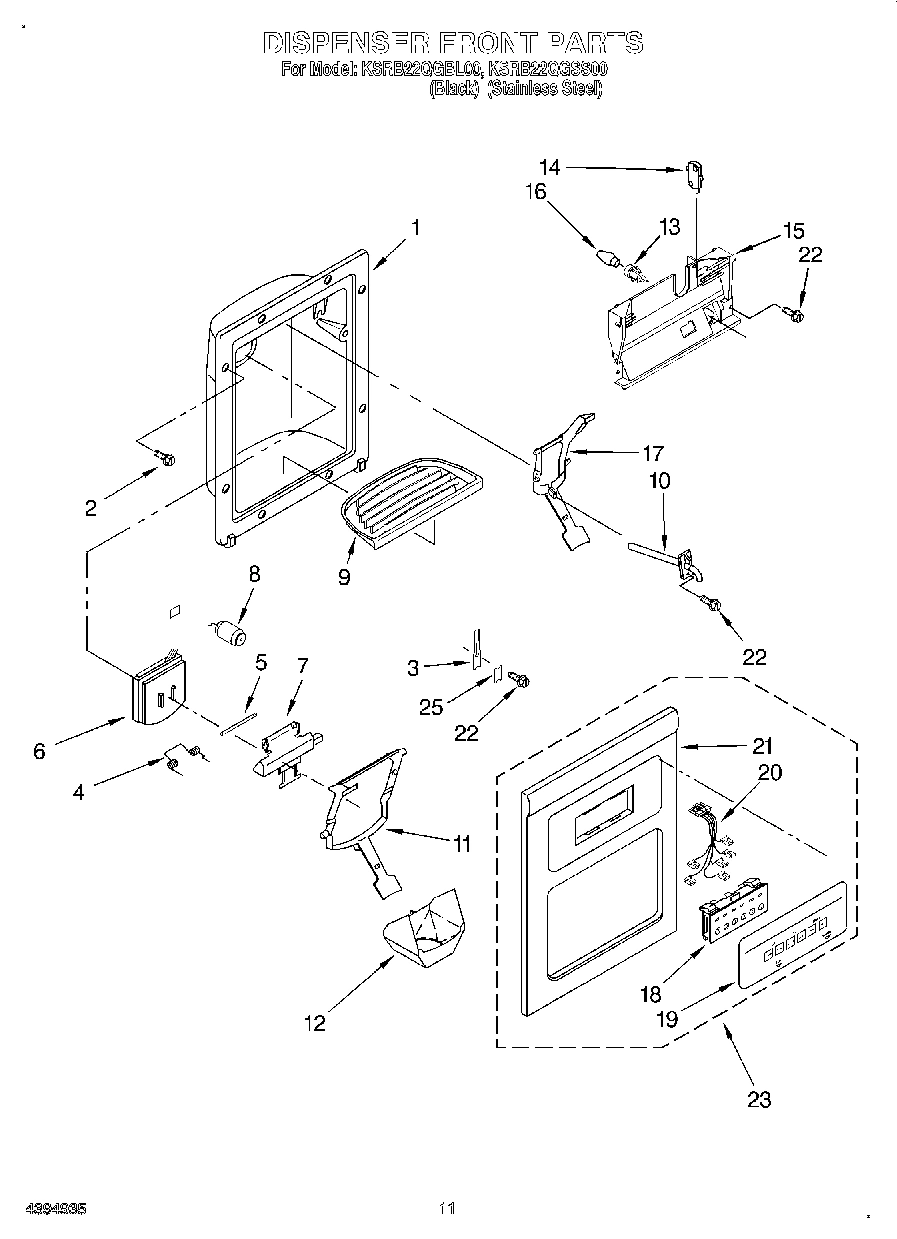

07 - DISPENSER FRONT
Common parts from model Whirlpool KSRB22QGBL00 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI94485A6 Contact Us For Availability
1
Shelf Assembly, Cantilever (3) WPL 2174023 Contact Us For Availability
1
Bracket, Motor WPL 2183728 Contact Us For Availability
1
Refrigerator Door (Includes No.7) WPL 2194957 Contact Us For Availability
1
Housing, Dispenser (Not a Serviceable Part) WPL ARI94486A9 Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Button, Humidity WPL 2174253 Contact Us For Availability
2
Screw WPL 489481 Contact Us For Availability
3
SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
4
Louver WPL 2182147 Contact Us For Availability
4
Gasket, Side (2) WPL 2174273 Contact Us For Availability
4
Beverage Holder WPL 2193409 Contact Us For Availability
5
Tray, Butter WPL 2165792 Contact Us For Availability
6
Glass, Pan Cover WPL 2174148 Contact Us For Availability
6
Load Lock WPL 2195497 Contact Us For Availability
6
Door, Ice WPL 2180205 Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2169490 Contact Us For Availability
7
Door Mechanism Assembly WPL 2180208 Contact Us For Availability
8
Glass, Cover WPL 2189526 Contact Us For Availability
8
End Cap, Top WPL 2198100 Contact Us For Availability
8
Delay Mechanism WPL 2180223 Contact Us For Availability
9
Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2174250 Contact Us For Availability
9
Grommet (4) WPL 2176134 Contact Us For Availability
9
Ladder, Shelf (2) WPL 2181796 Contact Us For Availability
10
End Cap, Bottom WPL 2198098 Contact Us For Availability
11
Handle WPL 2194947 Contact Us For Availability
11
Lever, Ice Dispenser WPL 2180261 Contact Us For Availability
12
Gasket, (Rear) WPL 2174274 Contact Us For Availability
13
Bracket, Door Stop (Chrome) WPL 2195950 Contact Us For Availability
13
Eyelet, Roller WPL 2174478 Contact Us For Availability
13
Bracket, Door Stop (Black) WPL 2195952 Contact Us For Availability
14
Grille WPL 2155476 Contact Us For Availability
14
Light Bar (RC) WPL 2179920 Contact Us For Availability
14
Clip, Defrost Heater WPL 2161324 Contact Us For Availability
14
Roller WPL 2174388 Contact Us For Availability
14
Panel (Black Glass) WPL 1126018 Contact Us For Availability
14
Panel (Stainless Steel) WPL 2194931 Contact Us For Availability
15
Trim, Door WPL 2194949 Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
16
Shelf Bin (4) WPL 2171063 Contact Us For Availability
17
Meat Pan (Includes 13, 14, 19, & 22) WPL 2179231 Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
17
Gasket, Door Compartment WPL 2159124 Contact Us For Availability
18
Window, Crisper WPL 2174076 Contact Us For Availability
19
Plaque, Front Cover WPL 2180367 Contact Us For Availability
20
Unit Cover, Bottom WPL 2182057 Contact Us For Availability
21
Cap, Crisper Pan (Left Side) WPL 2174258 Contact Us For Availability
21
Cap, Crisper Pan (Right Side) WPL 2174259 Contact Us For Availability
21
Front Cover, Housing (Not Available, Order No WPL ARI94487A8 Contact Us For Availability
22
Hinge Cover WPL 2155938 Contact Us For Availability
22
Window, Meat Pan WPL 2174362 Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2180395 Contact Us For Availability
24
Front, Basket WPL 2171768 Contact Us For Availability
24
Shelf & Roller Assembly WPL 2174021 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
25
Basket, Lower WPL 2181762 Contact Us For Availability
25
Screw WPL 489439 Contact Us For Availability
26
Shelf, Snack Pan WPL 2198277 Contact Us For Availability
27
KIT, WPL 876029 Contact Us For Availability
27
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
27
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
36
Screw WPL 489486 Contact Us For Availability
37
Screw (2) WPL 488280 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
44
Front Cover, Ice Container WPL 2171709 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
× ![]()
