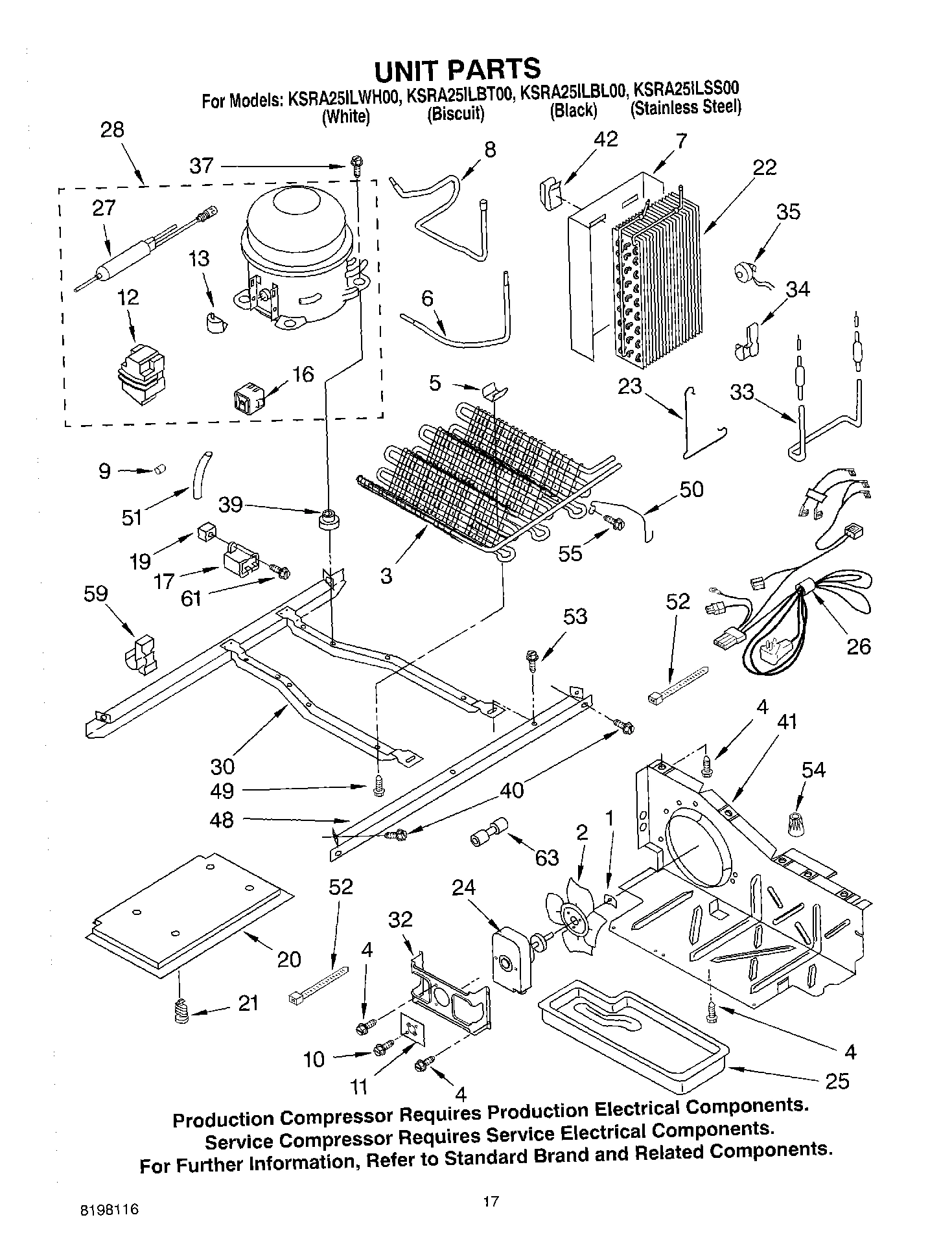

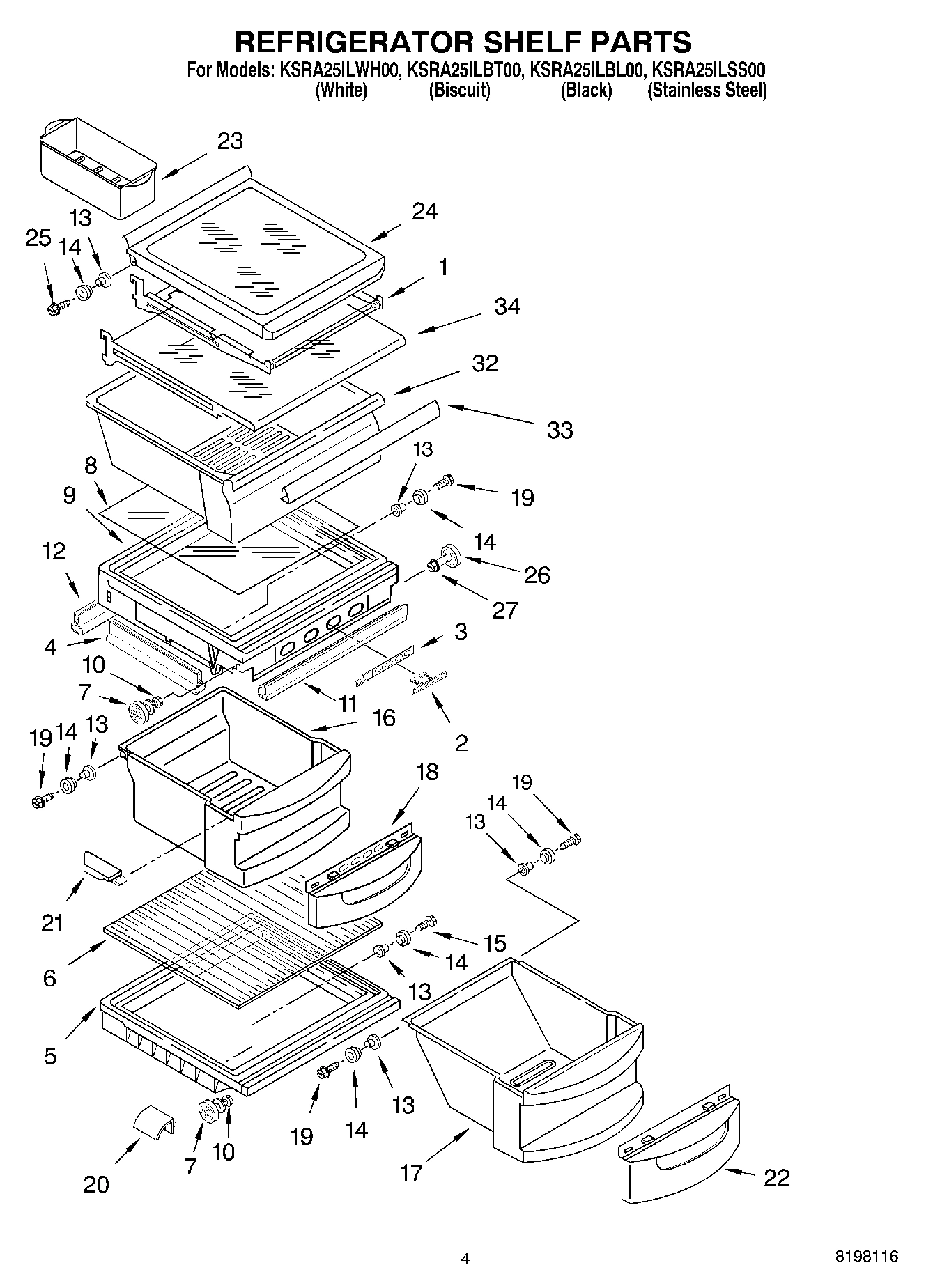

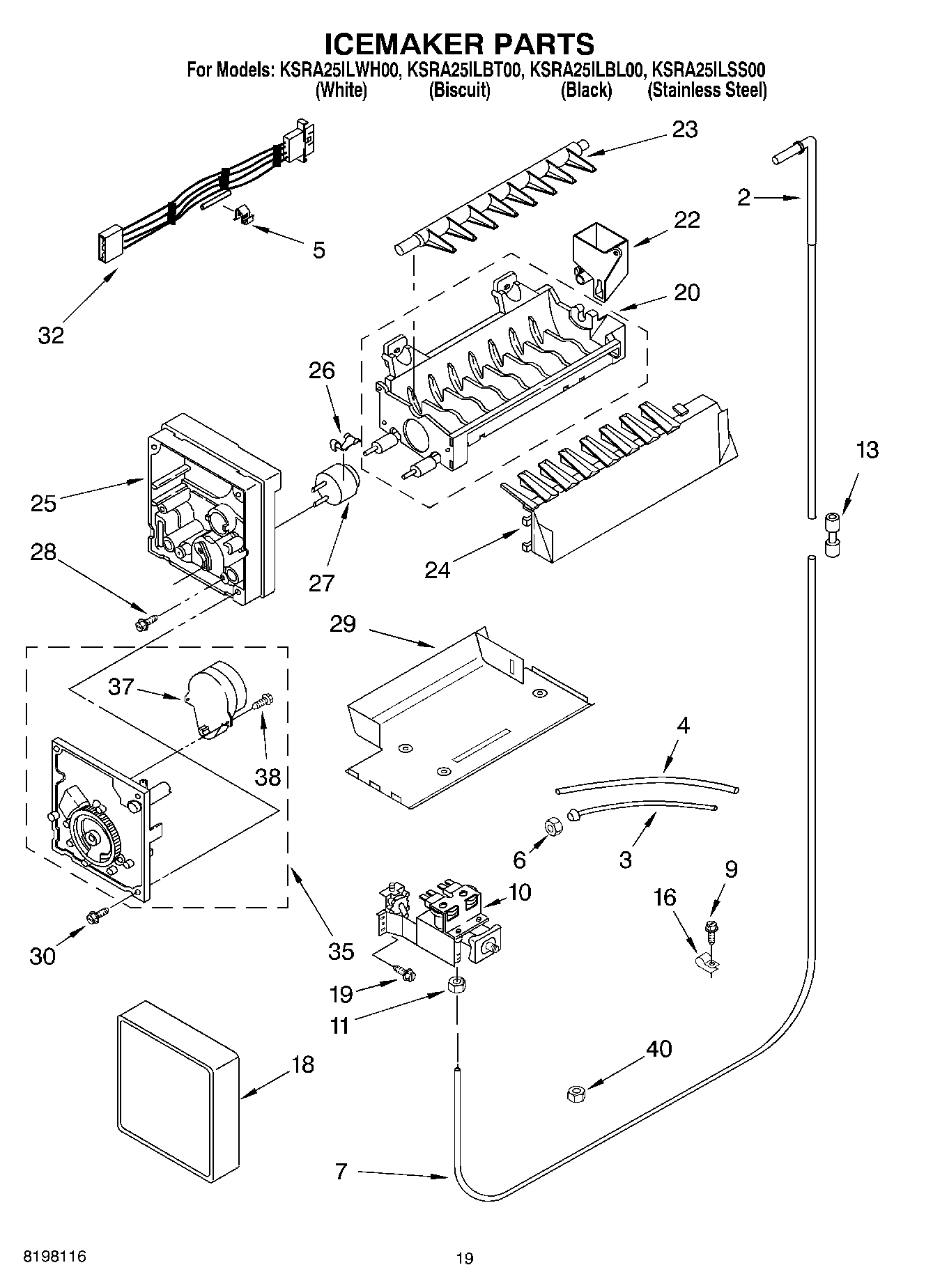

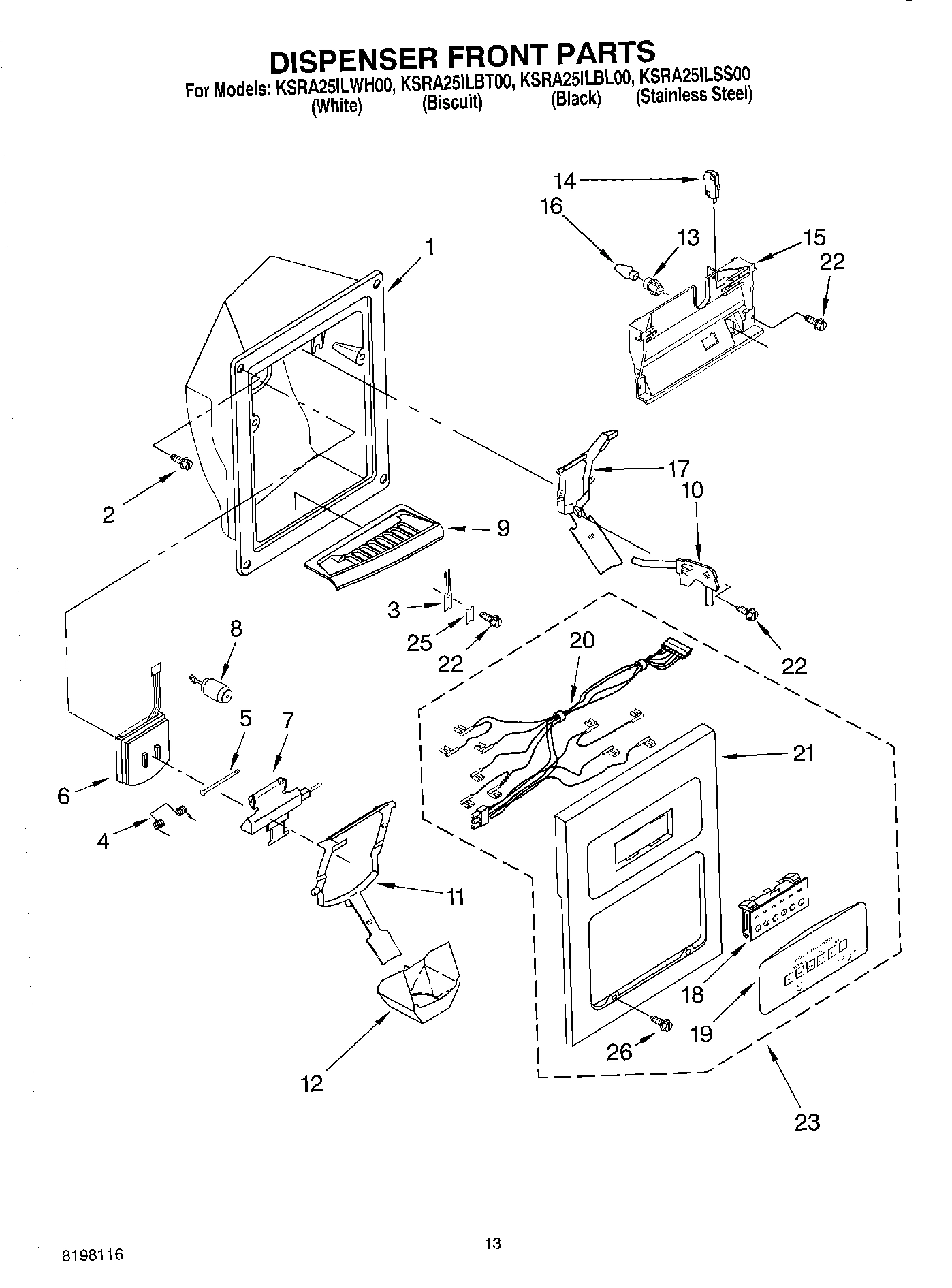

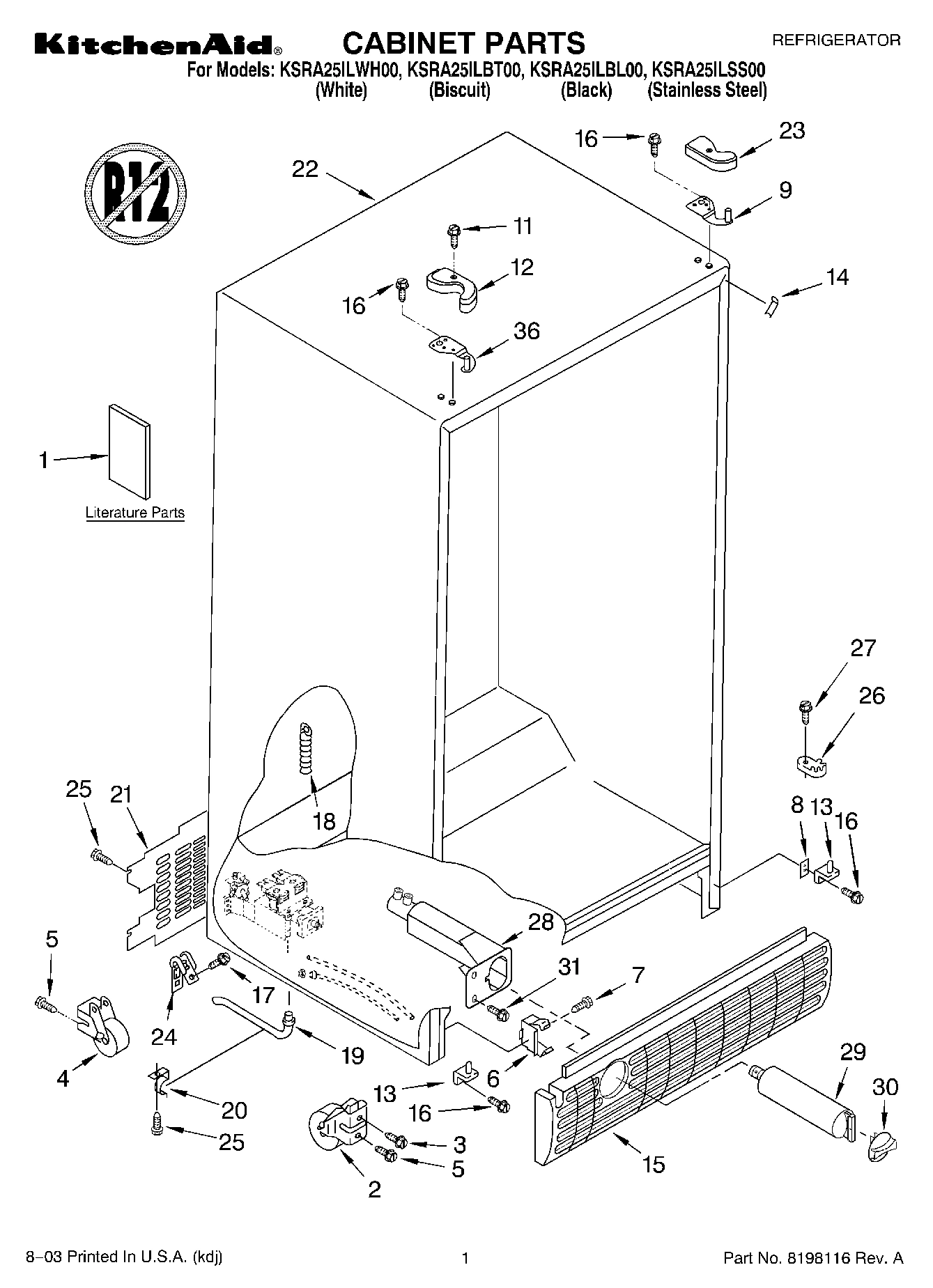

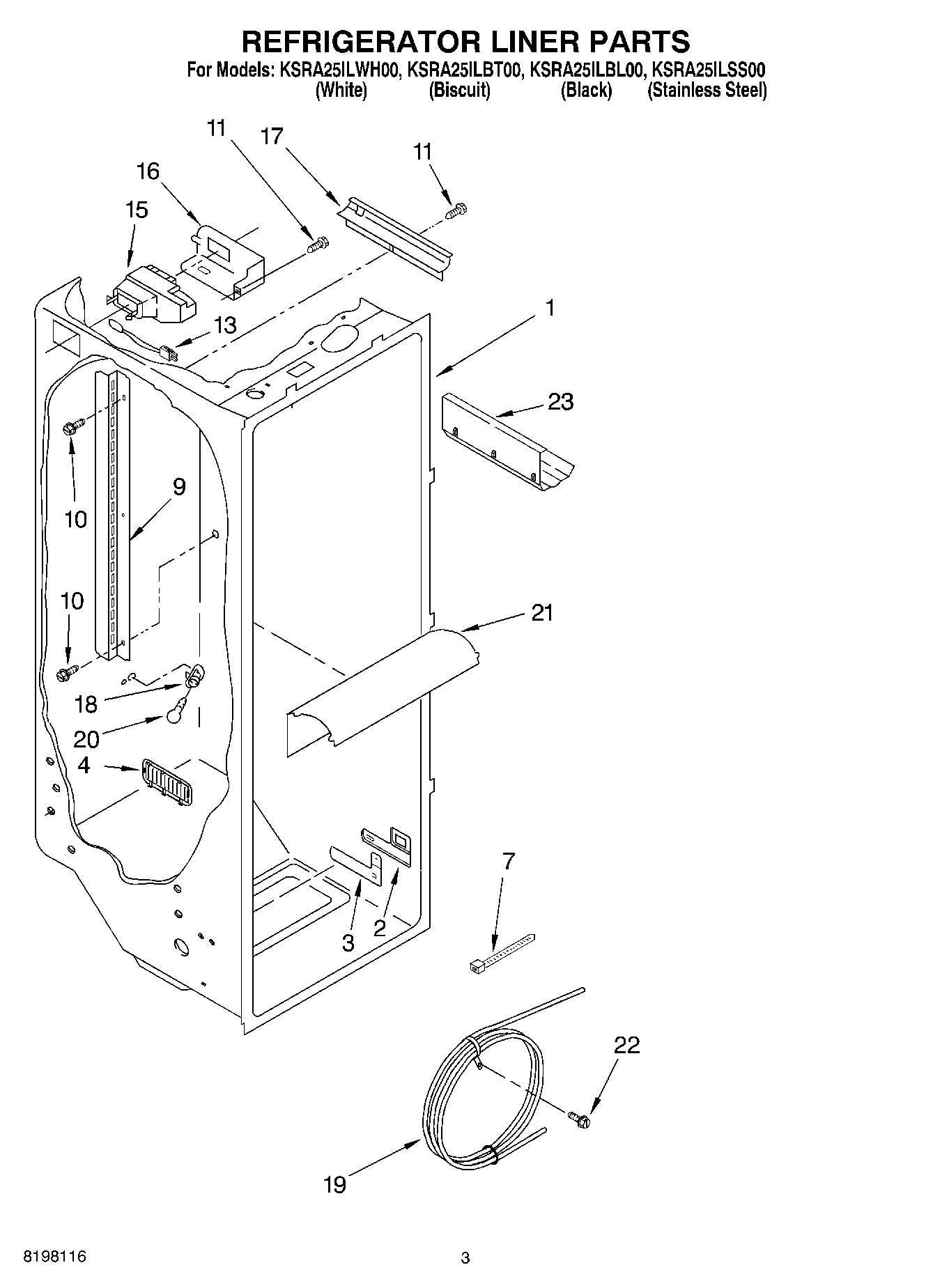

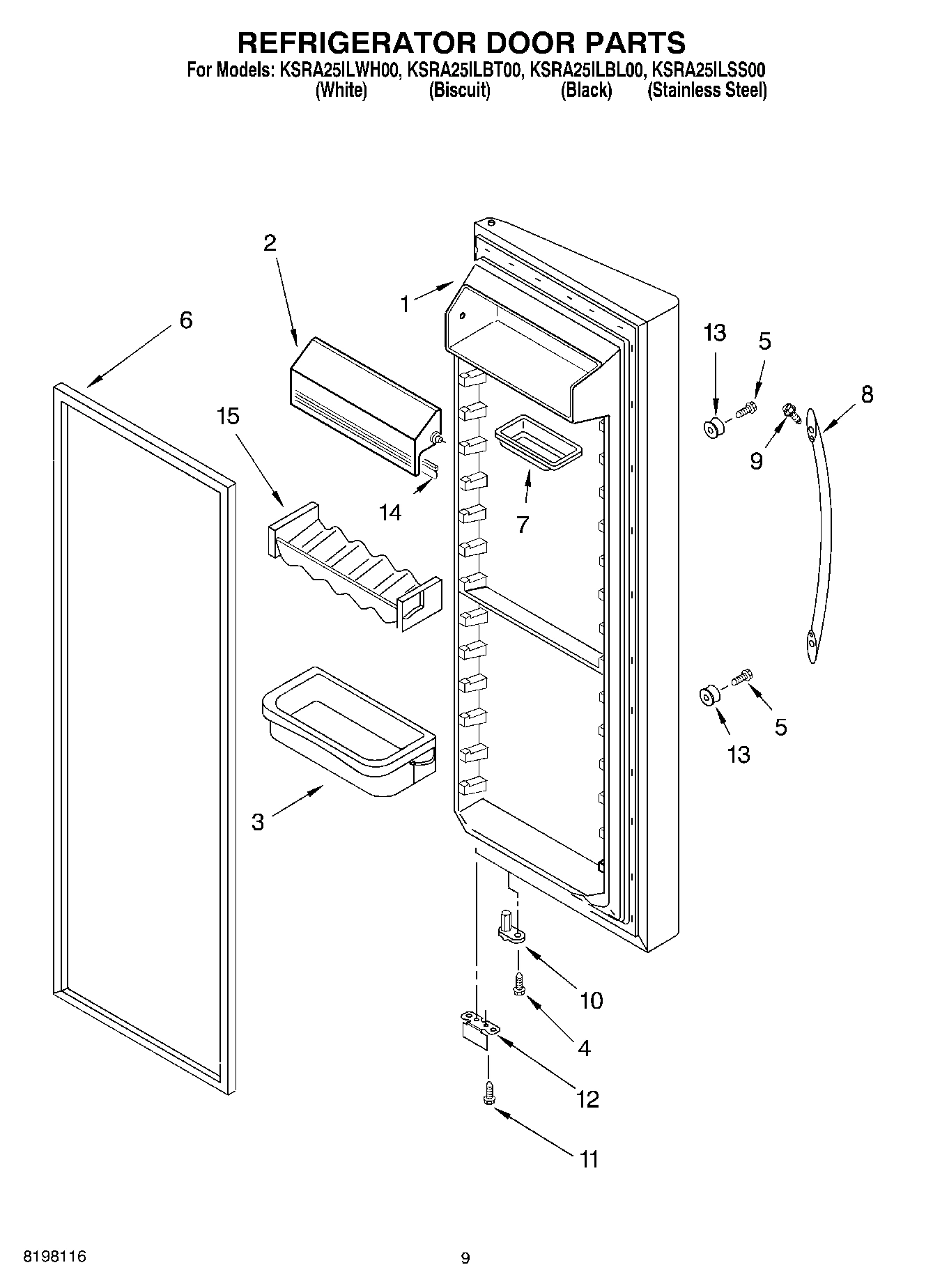

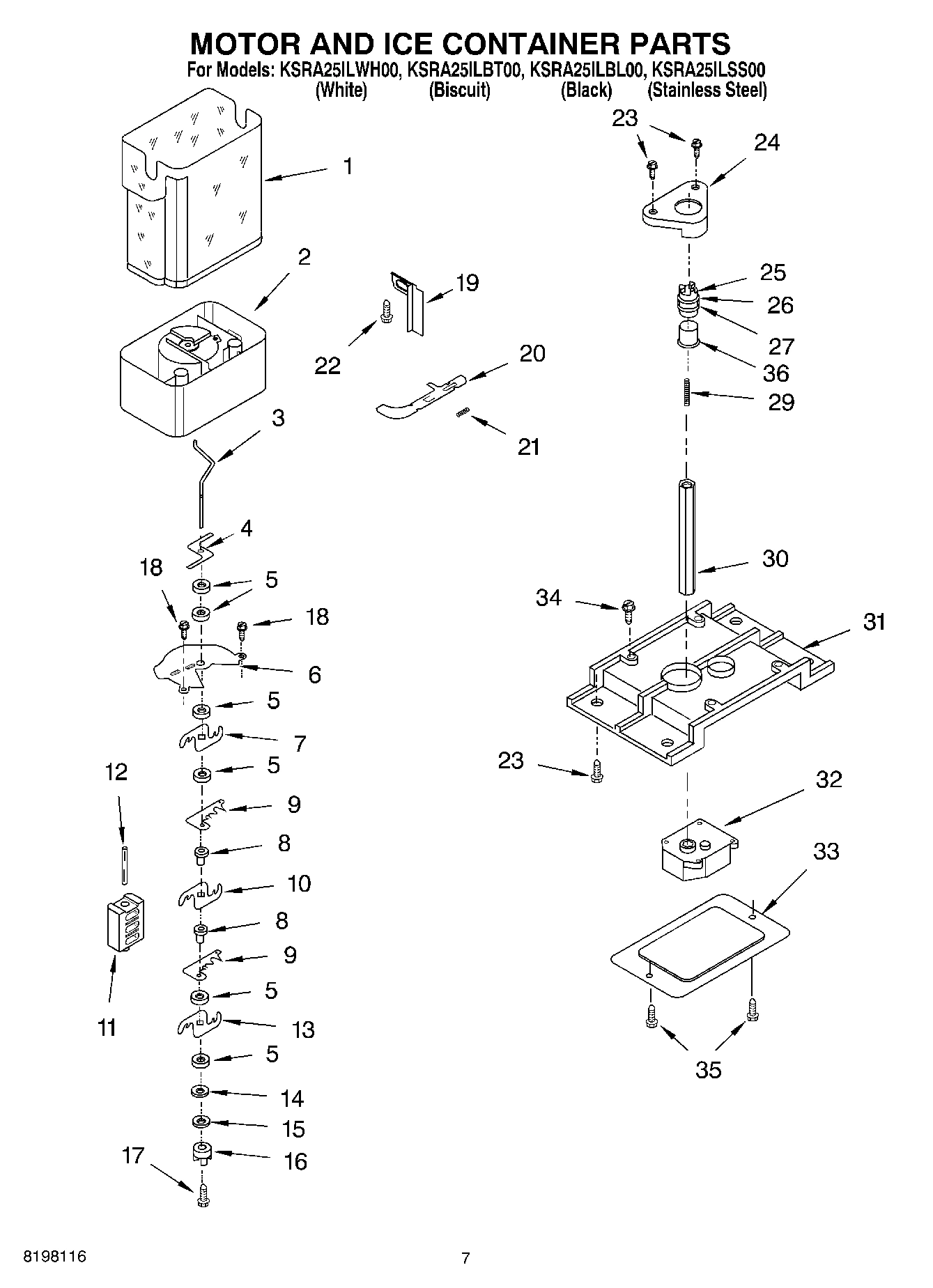

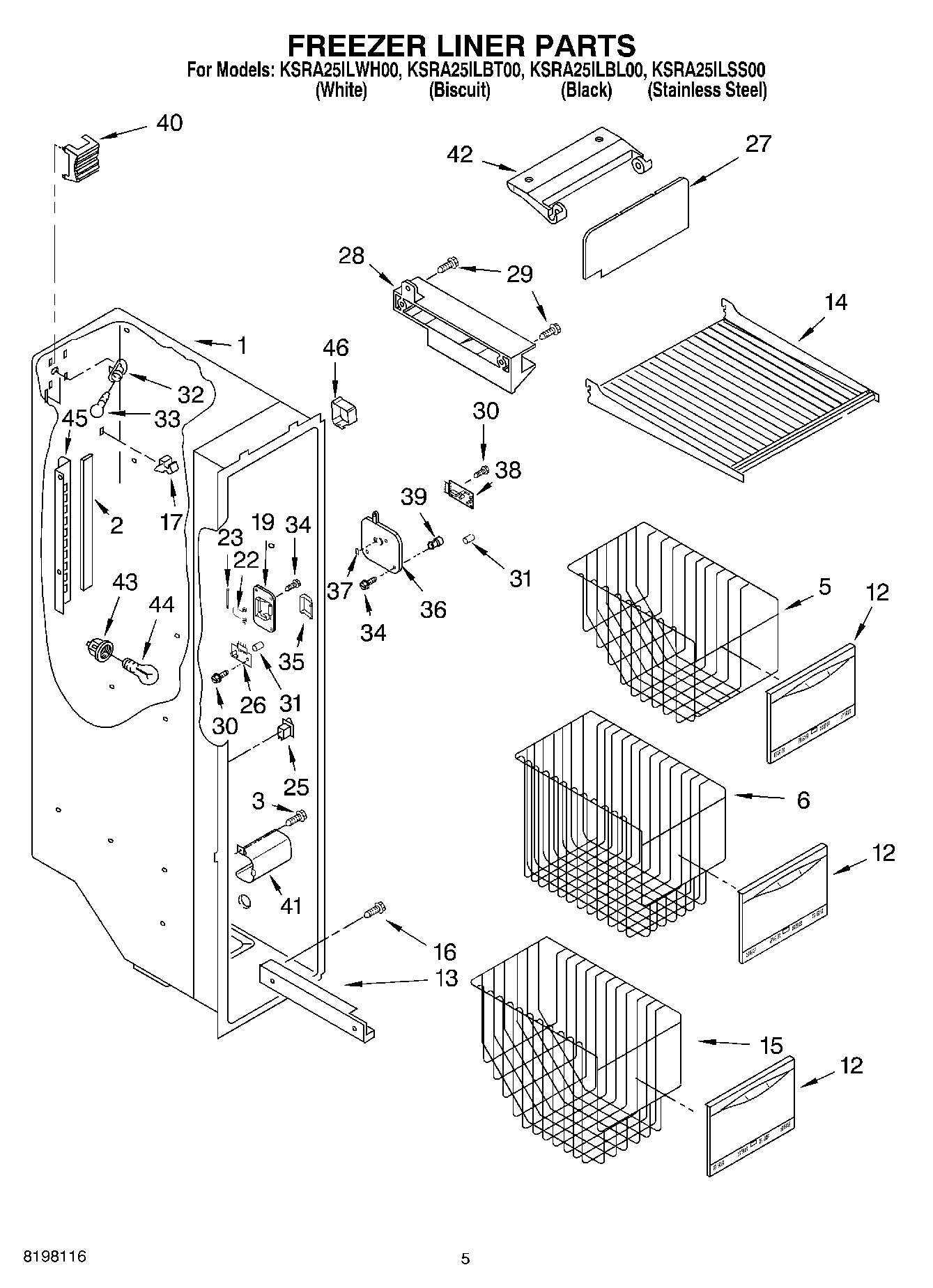

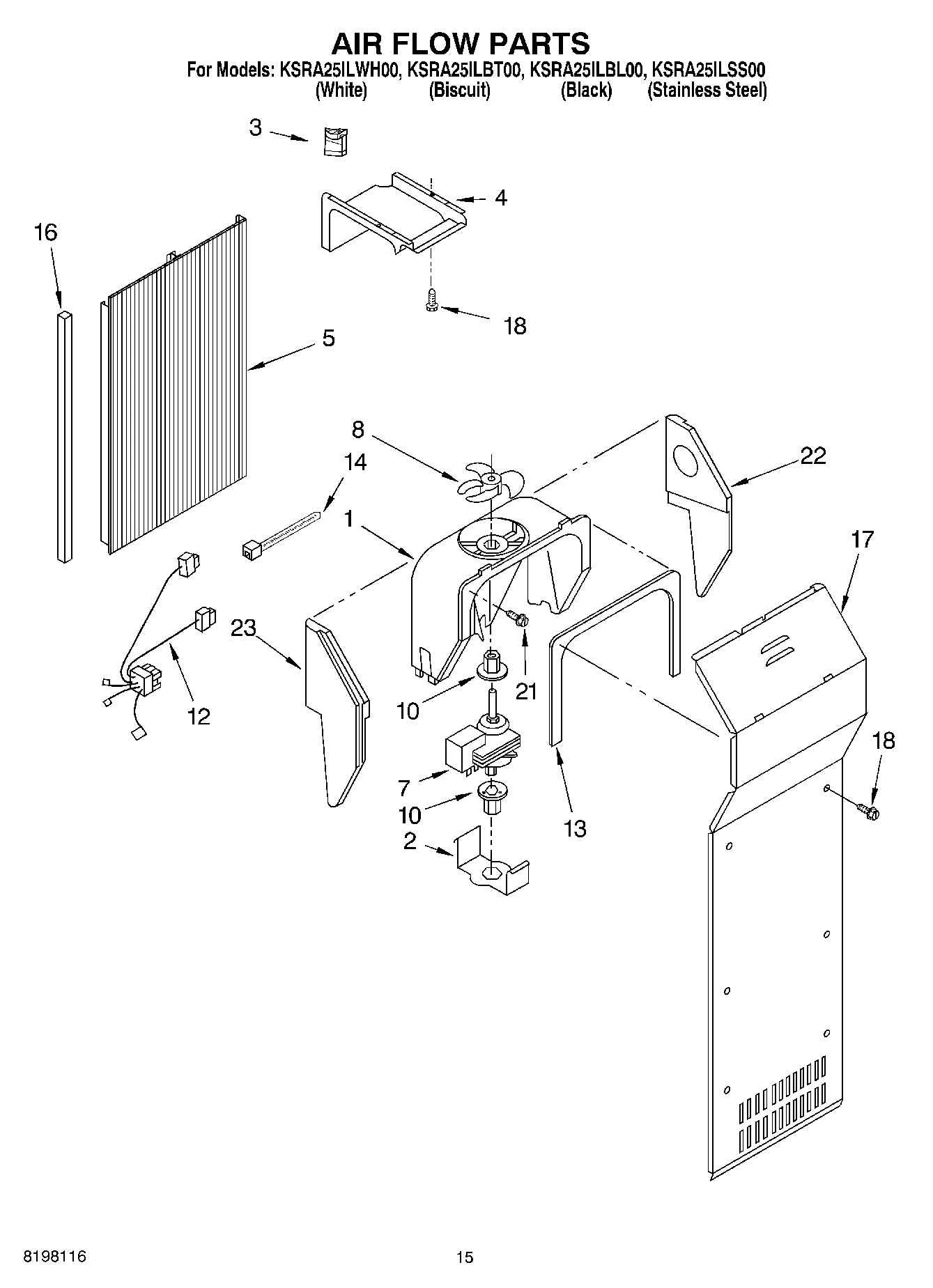

Model Whirlpool KSRA25ILBT00 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350942 Whirlpool Spray Paint Backorder WPL 350942 $49.86

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $16.99

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $30.99

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $27.29

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $53.03

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $18.58

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $49.86

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $75.04

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $111.80

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $30.85

WPL 80051 WPL 80051 Contact Us For Availability

WPL 876029 WPL 876029 Contact Us For Availability

WPL 479502 WPL 479502 Contact Us For Availability

WPL 799344 WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

1

WP2182120 Whirlpool Refrigerator Scroll Fan Backorder WPL WP2182120 $71.16

1

WP2198573 Whirlpool Refrigerator Ice Bin Backorder WPL WP2198573 $183.99

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $4.82

1

Liner (Not A Serviceable Part) WPL ARI93565A7 Contact Us For Availability

1

Liner (Not A Seviceable Part) WPL ARI93566A9 Contact Us For Availability

1

Refrigerator Door (Includes Item 6) (Black) WPL 2206779B Contact Us For Availability

1

Refrigerator Door (Includes Item 6) (Stainles WPL 2206779SB Contact Us For Availability

1

Refrigerator Door (Includes Item 6) (Biscuit) WPL 2206779T Contact Us For Availability

1

Refrigerator Door (Includes Item 6) (White) WPL 2206779W Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $62.28

2

WP2313637 Whirlpool Cutting Grid Assembly In Stock WPL WP2313637 $235.99

2

Fan, Blade WPL 2190685 Contact Us For Availability

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

2

Crusher Bin WPL 2212367 Contact Us For Availability

2

Gasket WPL 2198697 Contact Us For Availability

3

W10142289 Whirlpool Air Conditioner Screw Backorder WPL W10142289 $6.10

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $11.99

3

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability

3

Shelf Bin (4) WPL 2205821 Contact Us For Availability

3

Condenser Assembly WPL 2204484 Contact Us For Availability

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $25.38

4

Louver WPL 2182147 Contact Us For Availability

5

W10683556 Whirlpool Refrigerator Clip Backorder WPL W10683556 $12.26

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $8.89

5

WP2161491 Whirlpool Crisper Drawer Cover In Stock WPL WP2161491 $142.48

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $11.99

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $6.90

5

Dispenser Harness WPL 2206178 Contact Us For Availability

5

Basket WPL 2205834 Contact Us For Availability

6

2159075 Whirlpool Door Gasket Seal In Stock WPL 2159075 $240.61

6

2159083 Whirlpool Gasket Door In Stock WPL 2159083 $254.76

6

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $15.58

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $5.99

6

Tube, Condenser to Heat Loop WPL 2211760 Contact Us For Availability

6

Basket, Tall WPL 2205833 Contact Us For Availability

7

W11223328 Whirlpool Refrigerator Shelf Stud In Stock WPL W11223328 $14.99

7

Butter, Dish WPL 2165792 Contact Us For Availability

7

Heat Shield And Drain Pan WPL 2149294 Contact Us For Availability

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $6.99

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $30.99

8

TUBE, SUCTION WPL 2205765 Contact Us For Availability

8

Shim (1) WPL 2209697 Contact Us For Availability

8

Handle (Black) WPL 2204454B Contact Us For Availability

8

Handle (Stainless) WPL 2204454S Contact Us For Availability

8

Handle (Biscuit) WPL 2204454T Contact Us For Availability

8

Handle (White) WPL 2204454W Contact Us For Availability

9

WP2158826 Whirlpool Refrigerator Dampener In Stock WPL WP2158826 $0.91

9

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $62.99

9

WP2207007B Whirlpool Refrigerator Grille In Stock WPL WP2207007B $45.74

9

Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2174250 Contact Us For Availability

9

Grille, Overflow (White) WPL 2207007W Contact Us For Availability

9

Grille, Overflow (Biscuit) WPL 2207007T Contact Us For Availability

9

Shelf Ladder WPL 2206273 Contact Us For Availability

9

Set Screw WPL 98654 Contact Us For Availability

8281160 Whirlpool Screw Backorder WPL 8281160 $5.46

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $4.96

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $4.60

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $3.91

WP489483 Whirlpool Screw In Stock WPL WP489483 $7.58

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $7.60

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $6.84

Lever, Ice Dispenser (White (White Shadow Pad WPL 2180259 Contact Us For Availability

Block, Blade WPL 2198602 Contact Us For Availability

Bracket, Insert WPL 2216997 Contact Us For Availability

2203407T Whirlpool Refrigerator Cover Backorder WPL 2203407T $12.83

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $31.65

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $64.83

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $8.97

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $13.08

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $14.39

WP2205826K Whirlpool Refrigerator Front Baske Backorder WPL WP2205826K $40.79

Gasket, (Rear) WPL 2174274 Contact Us For Availability

Bracket, Door Stop (Chrome) WPL 2200082 Contact Us For Availability

Bracket, Door Stop (Black) WPL 2200082B Contact Us For Availability

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $67.59

WP2188819 Whirlpool Thermistor In Stock WPL WP2188819 $23.99

WP2198677 Whirlpool Refrigerator Connector In Stock WPL WP2198677 $15.57

WP4387835 Whirlpool Refrigerator Overload In Stock WPL WP4387835 $74.99

Eyelet, Roller WPL 2174478 Contact Us For Availability

Shelf Track (Left Side) WPL 2181759 Contact Us For Availability

Shelf Track (Right Side) WPL 2181760 Contact Us For Availability

Stud, Handle WPL 2203690 Contact Us For Availability

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $10.72

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $6.87

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability

Roller WPL 2188212 Contact Us For Availability

Shelf WPL 2205837 Contact Us For Availability

Gasket WPL 2159124 Contact Us For Availability

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $6.90

WP2216112 Whirlpool Damper Control Assembly In Stock WPL WP2216112 $221.99

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $4.99

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $7.55

Basket, Sloped WPL 2205832 Contact Us For Availability

Beverage Holder WPL 2193409 Contact Us For Availability

W10759522 Whirlpool Screw Backorder WPL W10759522 $4.82

WP2179227 Whirlpool Refrigerator Crisper Pan In Stock WPL WP2179227 $132.84

WP2212240 Whirlpool Refrigerator Cover Backorder WPL WP2212240 $93.96

WP2220457 Whirlpool Refrigerator Ice Bin Coup In Stock WPL WP2220457 $12.79

WP489497 Whirlpool Screw In Stock WPL WP489497 $6.75

Start Device, Combination (Start Relay and Ov WPL 2212194 Contact Us For Availability

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $16.09

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $6.90

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $4.82

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $122.18

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $5.99

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $6.74

WPW10152858 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152858 $62.59

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $34.99

Meat Pan (Includes 13, 14, 19, & 22) WPL 2179231 Contact Us For Availability

18

W11233072 Whirlpool Screw In Stock WPL W11233072 $19.85

18

Window, Crisper WPL 2174076 Contact Us For Availability

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $19.72

WP2198587 Whirlpool Refrigerator Cover Backorder WPL WP2198587 $67.24

WP2256126 Whirlpool Refrigerator Reservoir In Stock WPL WP2256126 $123.79

WP489261 Whirlpool Refrigerator Screw Backorder WPL WP489261 $4.82

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $13.89

Screw Grommet WPL 509812 Contact Us For Availability

20

2176095 Whirlpool Refrigerator Deflector Backorder WPL 2176095 $59.87

20

Unit Cover, Bottom WPL 2206281 Contact Us For Availability

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $7.11

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $4.82

Light Lens WPL 2254920 Contact Us For Availability

Cap, Crisper Pan (Left Side) WPL 2174258 Contact Us For Availability

Cap, Crisper Pan (Right Side) WPL 2174259 Contact Us For Availability

2198671 Whirlpool Refrigerator Screw In Stock WPL 2198671 $6.84

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $287.76

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $59.45

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $29.99

Window, Meat Pan WPL 2174362 Contact Us For Availability

Screw WPL 488280 Contact Us For Availability

W10136387A Whirlpool Refrigerator Egg Contain In Stock WPL W10136387A $10.99

W10777924 Whirlpool Refrigerator Wine Rack Backorder WPL W10777924 $14.29

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $10.62

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $19.99

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $14.54

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $59.71

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $6.83

Clip WPL 2161324 Contact Us For Availability

24

W10124096 Whirlpool Refrigerator Condenser Fa In Stock WPL W10124096 $89.49

24

Holder WPL 2212369 Contact Us For Availability

24

Shelf & Roller Assembly WPL 2174021 Contact Us For Availability

W11457217 Whirlpool Refrigerator Rocker Switc In Stock WPL W11457217 $17.77

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $7.19

WP2220458 Whirlpool Drive Cam In Stock WPL WP2220458 $14.99

WPW10614158 Whirlpool Refrigerator Evaporator In Stock WPL WPW10614158 $74.67

Overlay, Control Box WPL 2220255 Contact Us For Availability

Screw WPL 489439 Contact Us For Availability

W11629974-includeCORE Whirlpool W11629974 Ref Backorder WPL W11629974-includeCORE $263.39

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $6.50

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $6.59

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $4.82

Harness, Unit WPL 2187425 Contact Us For Availability

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $37.99

WP2212370 Whirlpool Washer Backorder WPL WP2212370 $14.75

WP2255720 Whirlpool Refrigerator Ice Maker Do Backorder WPL WP2255720 $53.45

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $4.99

28

W10309994 Whirlpool Refrigerator Compressor In Stock WPL W10309994 $487.99

28

WP2186443 Whirlpool Water Filter Housing In Stock WPL WP2186443 $68.99

28

Slide, Ice Maker Mounting WPL 2212321 Contact Us For Availability

29

W10852956 Whirlpool Refrigerator Spring In Stock WPL W10852956 $15.99

29

WP2212322 Whirlpool Refrigerator Bracket In Stock WPL WP2212322 $70.78

30

2006254 Whirlpool Refrigerator Screw Backorder WPL 2006254 $8.68

30

2304904 Whirlpool Frame Assembly Backorder WPL 2304904 $184.77

30

WP2188917 Whirlpool Drive Shaft In Stock WPL WP2188917 $69.83

31

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $4.82

31

Tube, P.C. Board WPL 2198665 Contact Us For Availability

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $67.99

W11497323 Whirlpool Snack Pan Backorder WPL W11497323 $139.99

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $7.28

WP2187467 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187467 $88.98

33

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $67.13

33

WP2323198 Whirlpool Refrigerator Heater In Stock WPL WP2323198 $45.79

34

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $7.55

34

Shelf, Snack Pan WPL 2206346 Contact Us For Availability

34

Clip, Heater WPL 2161330 Contact Us For Availability

35

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $28.99

35

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $23.99

36

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $62.57

36

WP2212365 Whirlpool Refrigerator Sleeve Backorder WPL WP2212365 $20.81

36

Cover, Receiver WPL 2198588 Contact Us For Availability

37

2315398 Whirlpool Refrigerator Slide Backorder WPL 2315398 $7.18

37

Screw WPL 489473 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $6.83

39

W11661108 Whirlpool Grommet Backorder WPL W11661108 $9.12

39

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $4.99

39

WP4387558 Whirlpool Refrigerator Compressor G Backorder WPL WP4387558 $4.82

40

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $6.83

40

Light Shield WPL 2198589 Contact Us For Availability

41

W10896764 Whirlpool Refrigerator Air Baffle In Stock WPL W10896764 $63.81

41

Light Lens WPL 2212340 Contact Us For Availability

42

WP2198641 Whirlpool Refrigerator Ice Maker Co Backorder WPL WP2198641 $6.99

42

Clip, Heat WPL 2155547 Contact Us For Availability

43

WPW10119935 Whirlpool Refrigerator Socket In Stock WPL WPW10119935 $66.40

44

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $9.81

45

Ladder (Left Side) WPL 2198609 Contact Us For Availability

45

Ladder (Right Side) WPL 2198610 Contact Us For Availability

46

Shield, Wiring WPL 2219878 Contact Us For Availability

48

2305374 Whirlpool Refrigerator Unit Rail Backorder WPL 2305374 $54.42

49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $8.89

50

Guard, Fan WPL 2186495 Contact Us For Availability

51

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $13.22

52

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $4.99

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $4.82

54

Wire Connector WPL 850145 Contact Us For Availability

55

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $4.82

59

Clip, Wire & Tube WPL 2208280 Contact Us For Availability

61

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.89

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $37.88

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $82.11

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $86.15

WP4373559 Whirlpool Fitting In Stock WPL WP4373559 $32.99

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

Following Parts Not Illustrated and Opti WPL ARI93571A8 Contact Us For Availability

WPL ARI93572A6 WPL ARI93572A6 Contact Us For Availability
