Model Whirlpool KSFS25FKWH02 REFRIGERATOR – Common Parts & Diagrams
03 - REFRIGERATOR SHELF PARTS
04 - FREEZER LINER PARTS

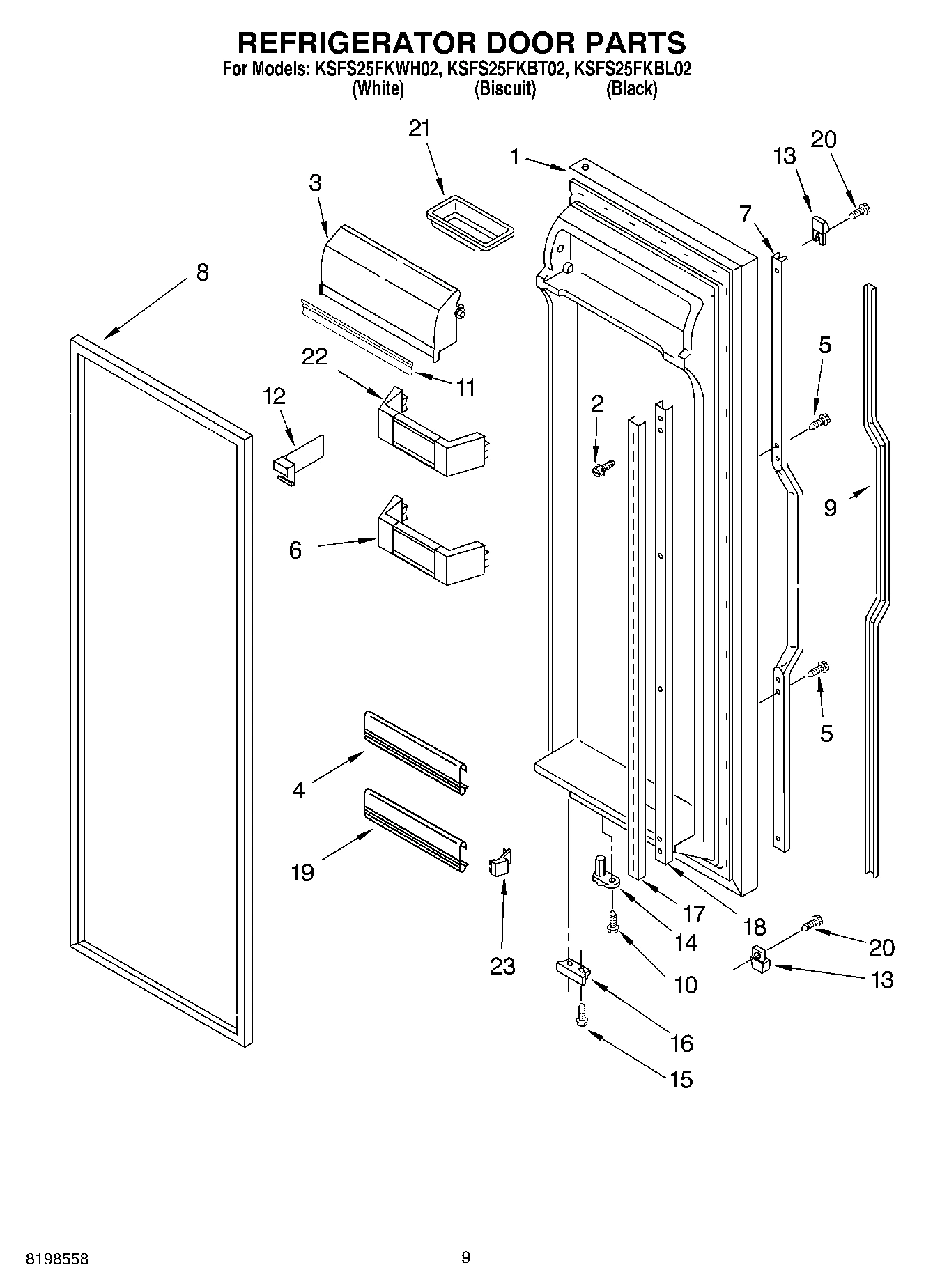

06 - REFRIGERATOR DOOR PARTS

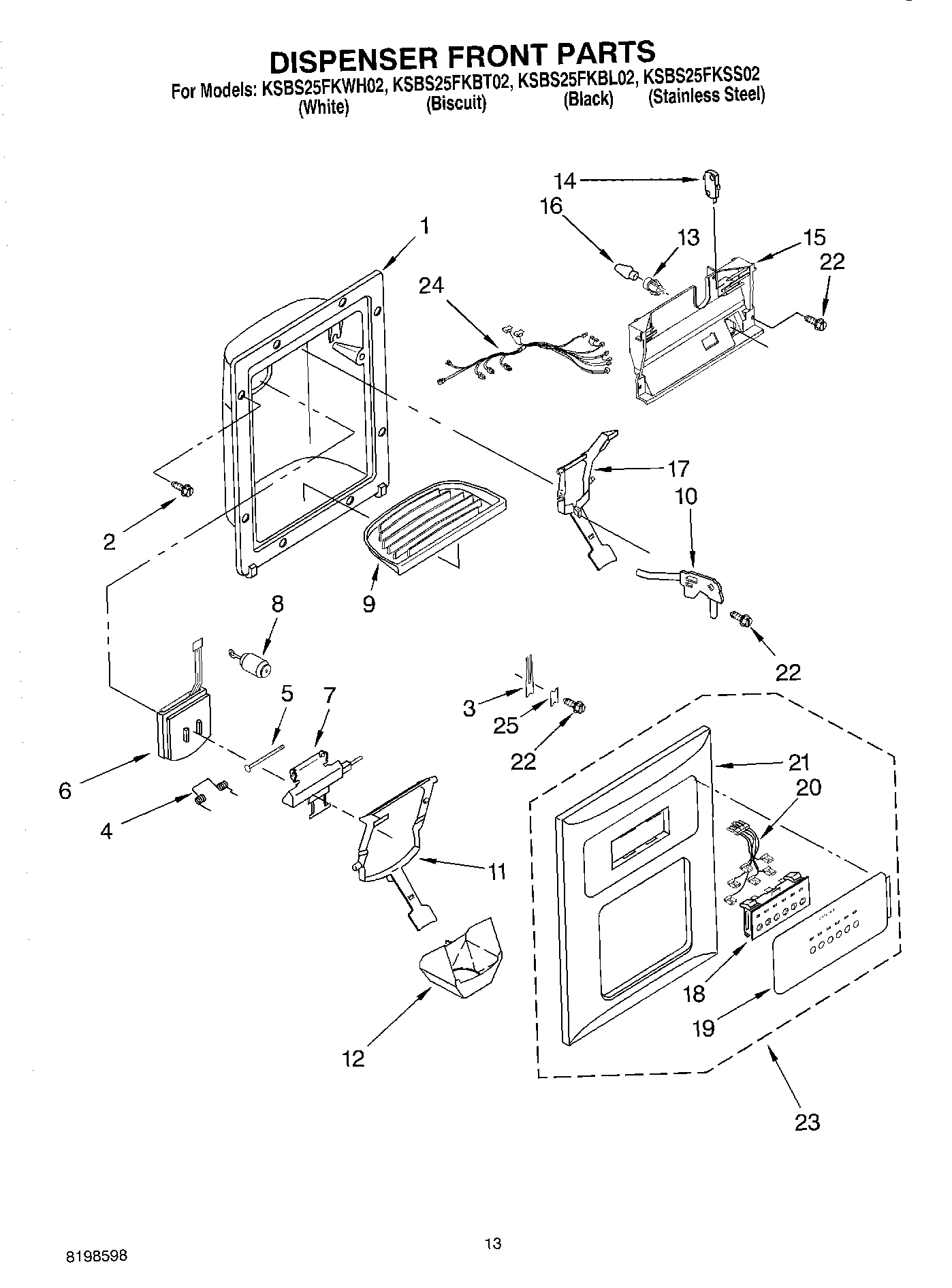

08 - DISPENSER FRONT PARTS

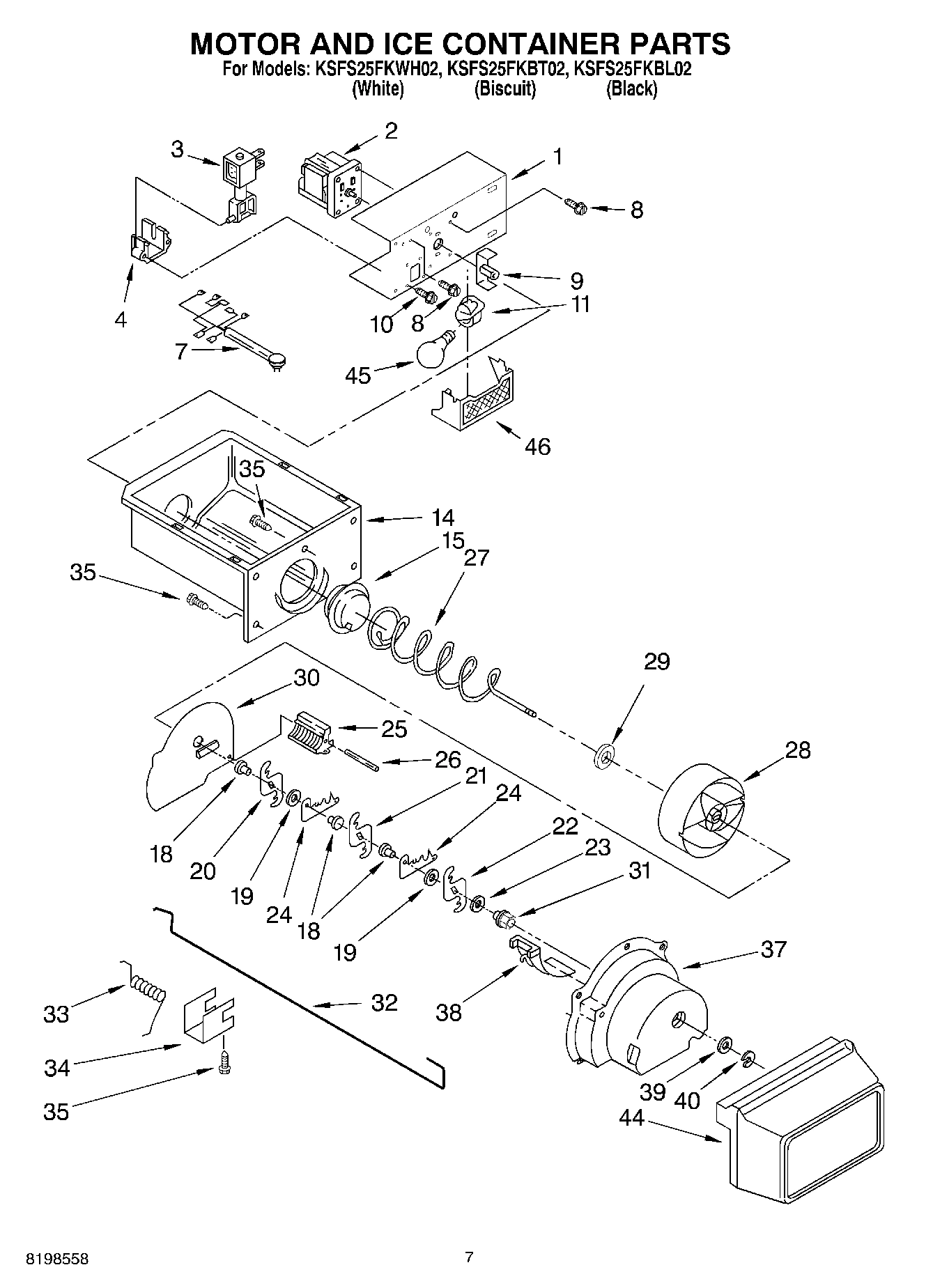

05 - MOTOR AND ICE CONTAINER PARTS

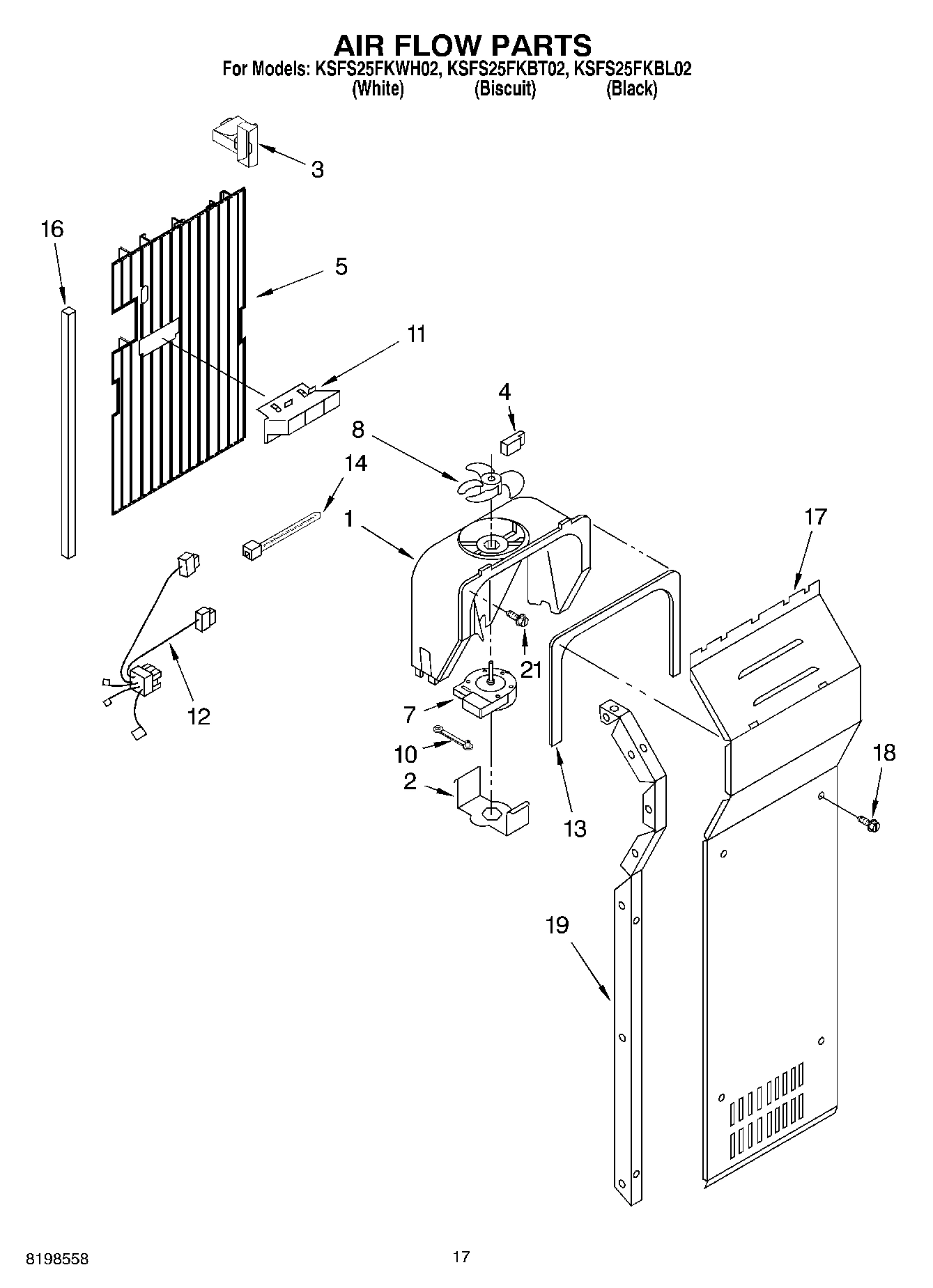

10 - AIR FLOW PARTS

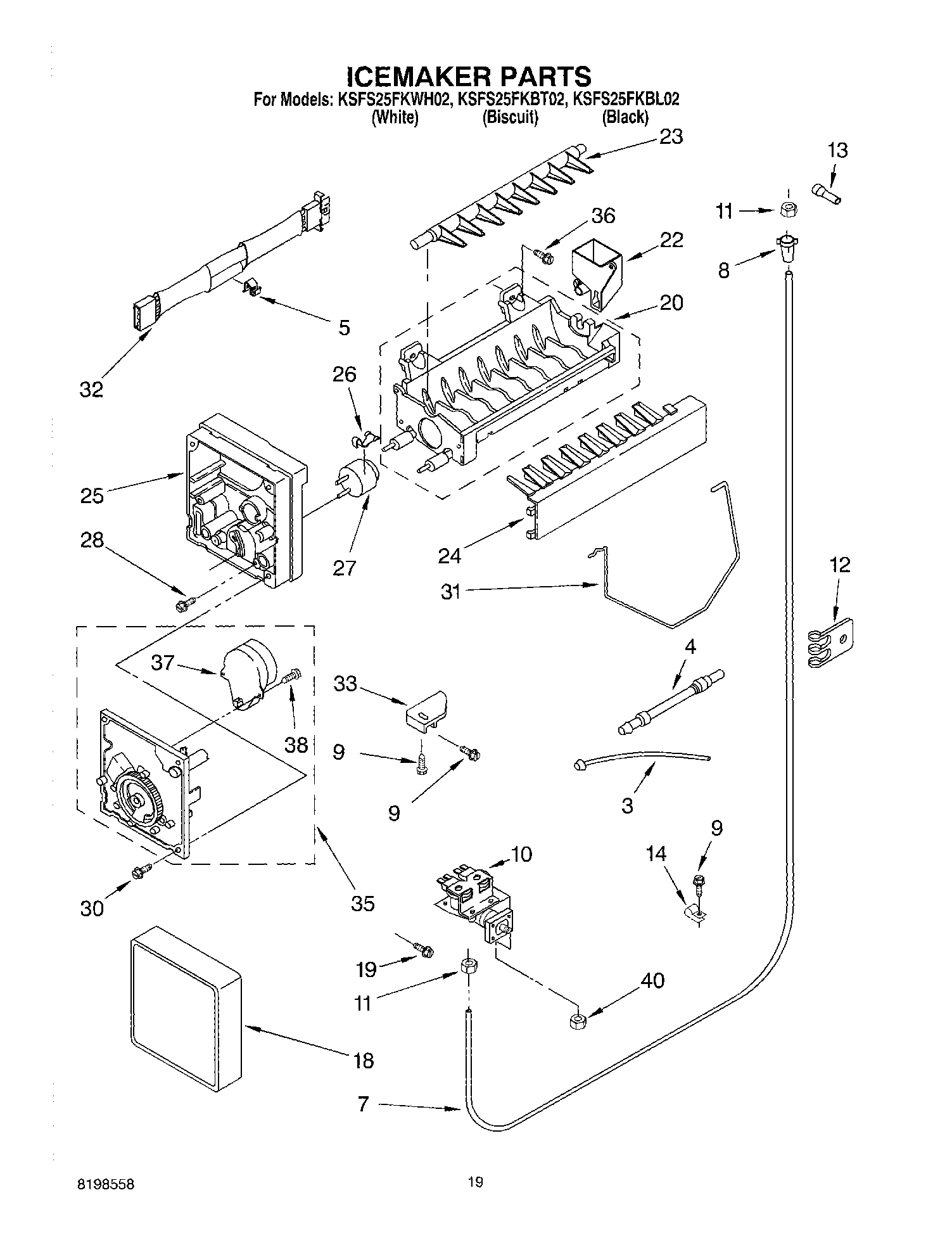

12 - ICEMAKER PARTS - PARTS NOT ILLUSTRATED

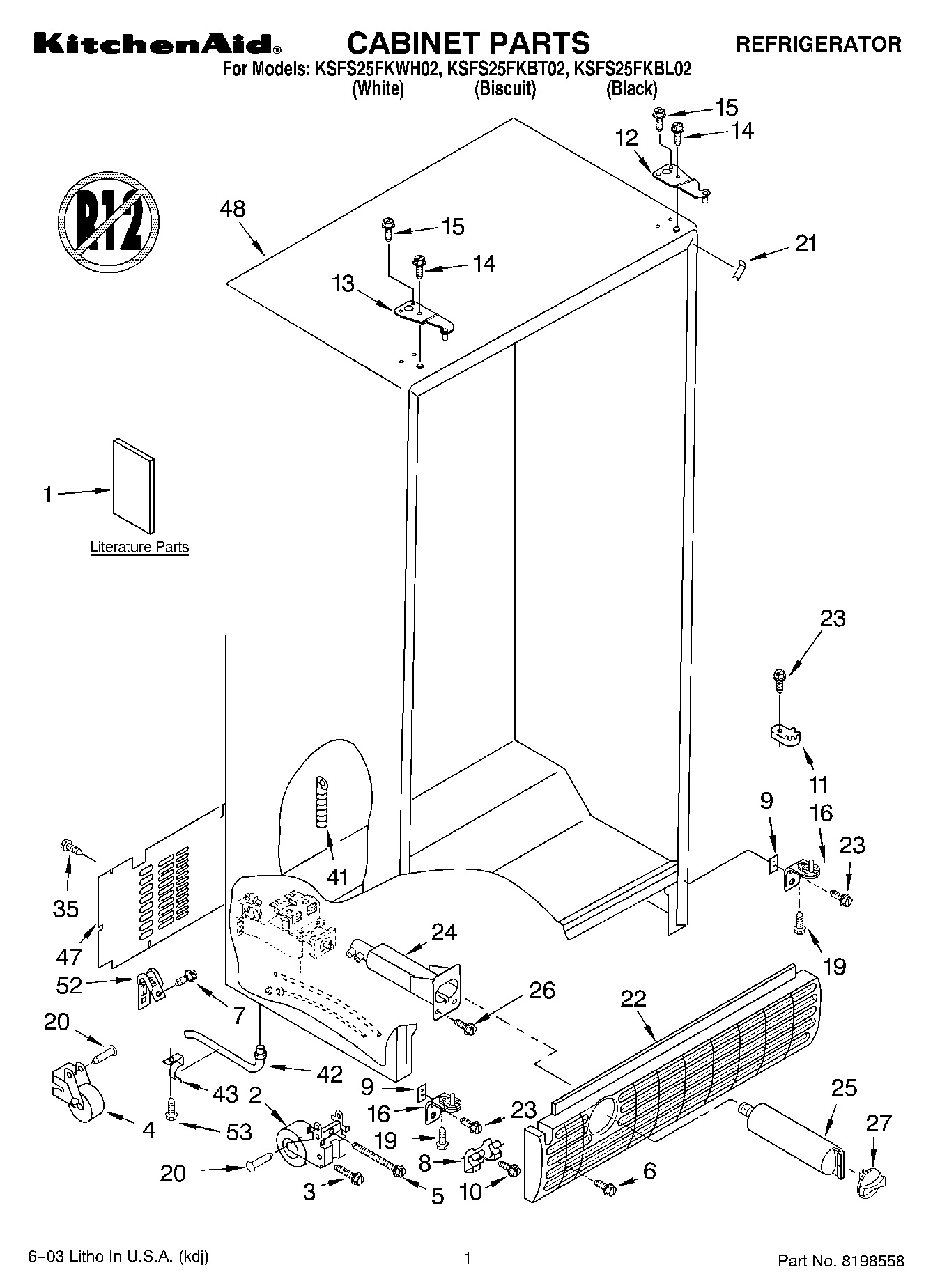

01 - CABINET PARTS

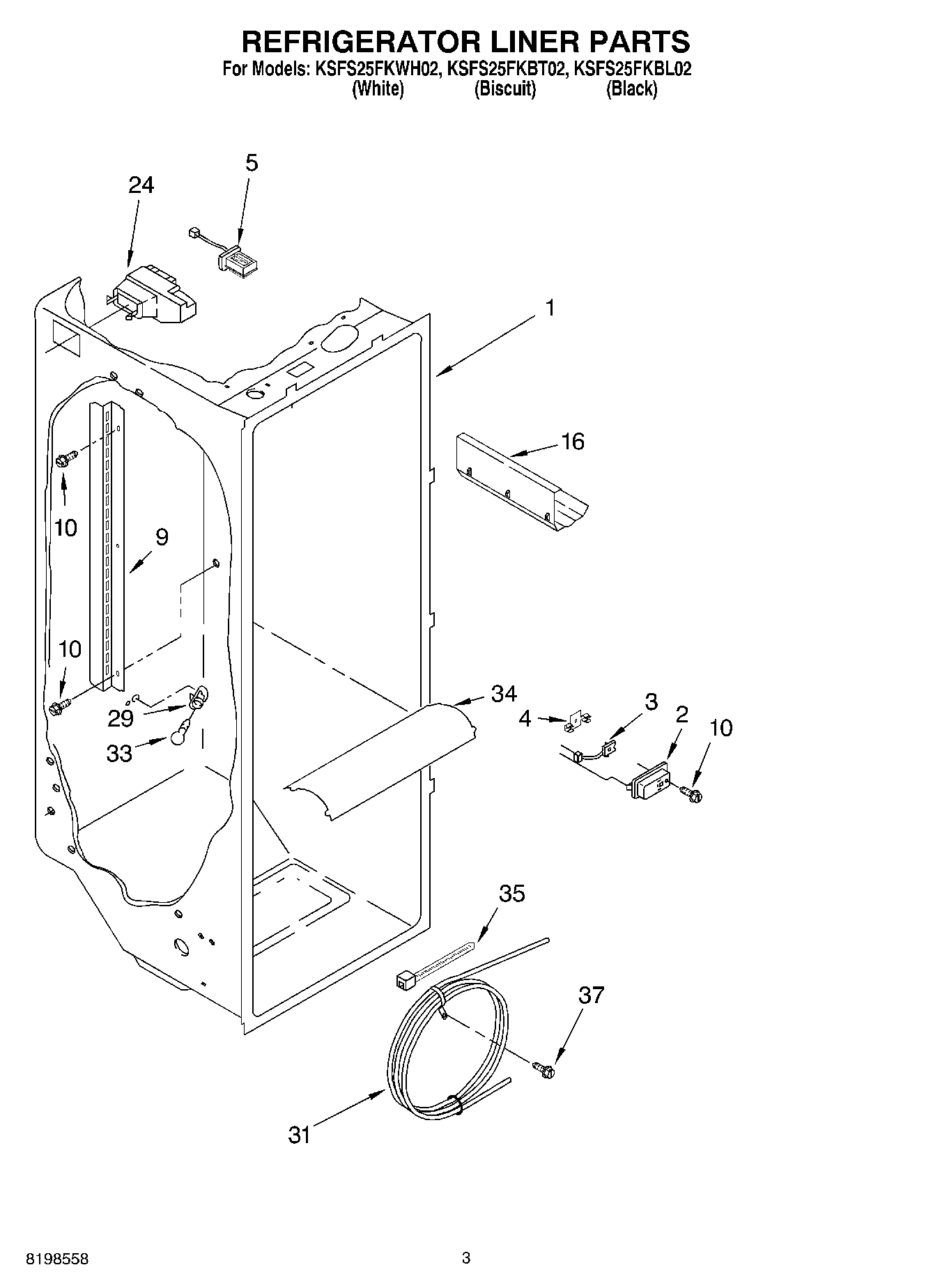

02 - REFRIGERATOR LINER PARTS

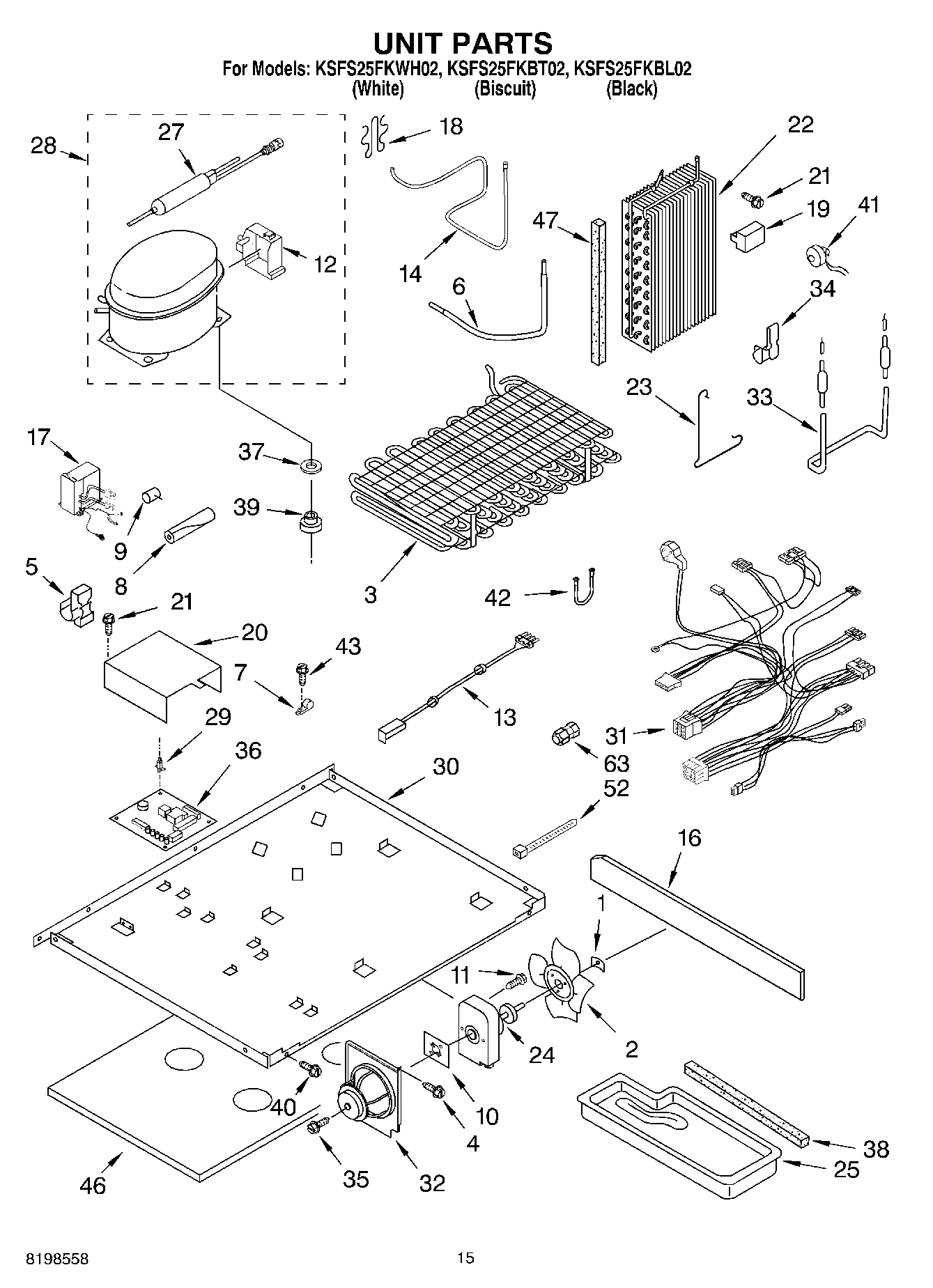

09 - UNIT PARTS

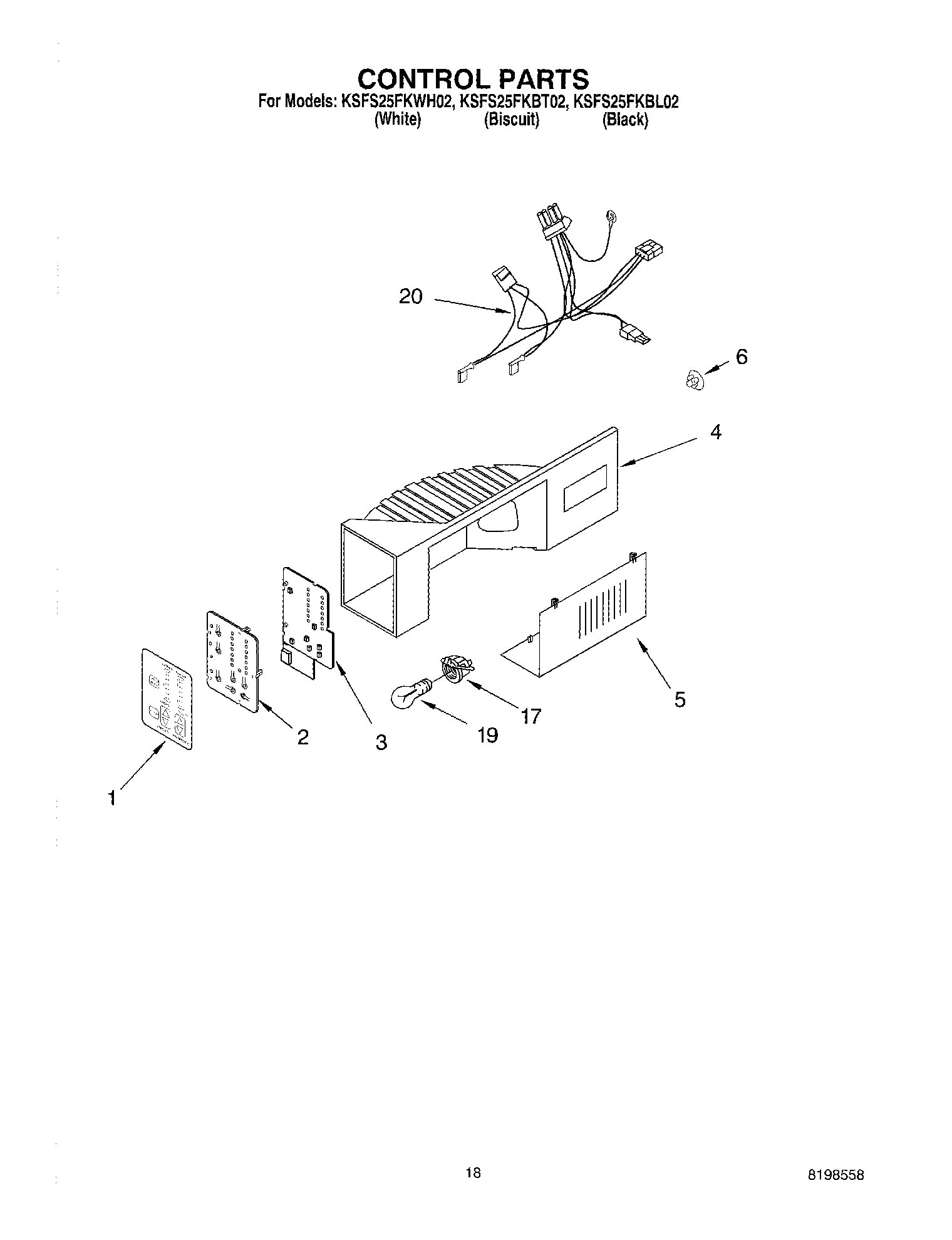

11 - CONTROL PARTS

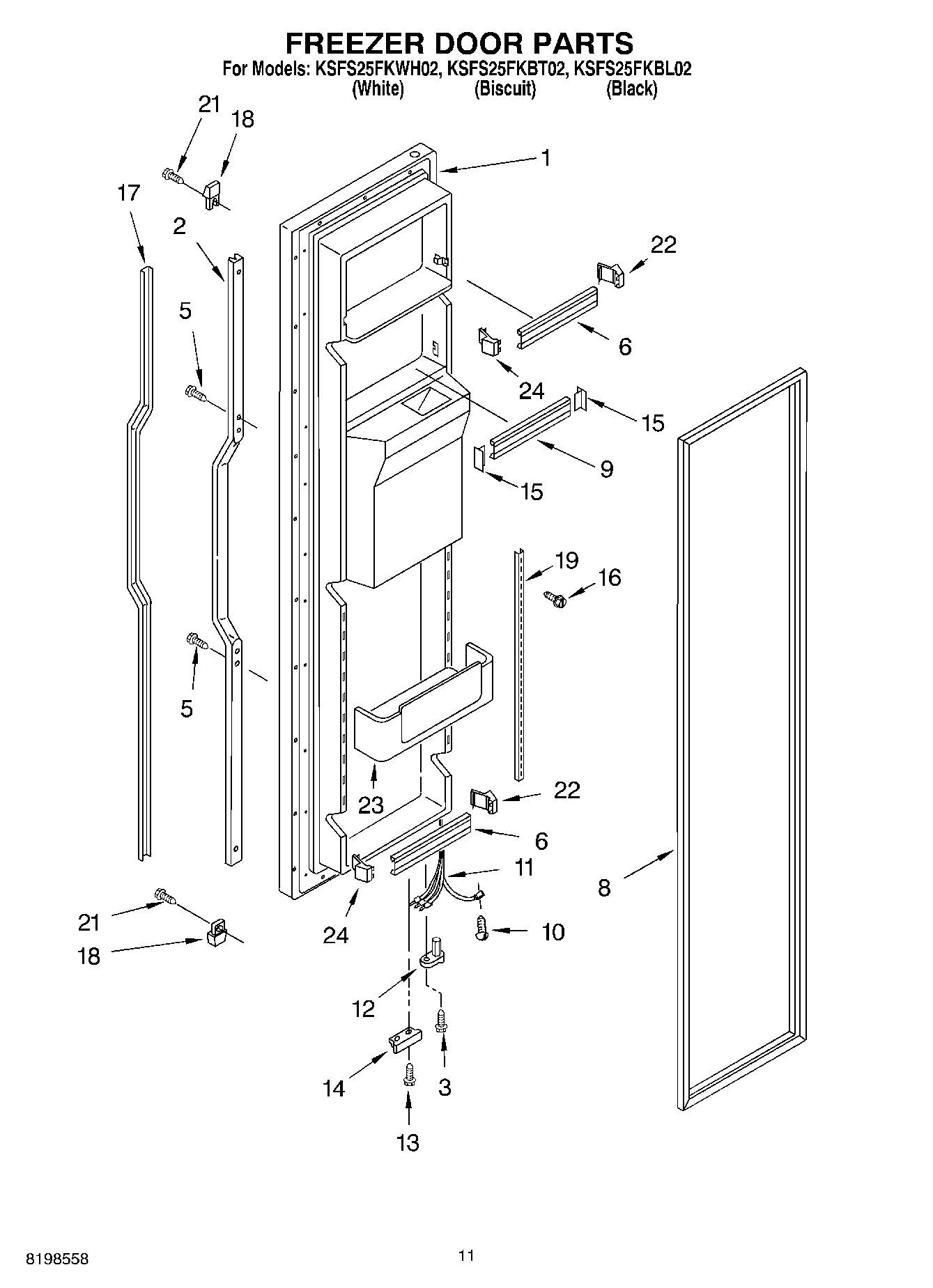

07 - FREEZER DOOR PARTS
Common parts from model Whirlpool KSFS25FKWH02 REFRIGERATOR
LITERATURE PARTS WPL ARI92178A3 Contact Us For Availability
1
Literature Parts (Use & Care Guide) WPL LIT2221544 Contact Us For Availability
1
Literature Parts (Service & Wiring Sheet) WPL LIT2221548 Contact Us For Availability
1
Literature Parts (Energy Label) WPL LIT2260953 Contact Us For Availability
1
Modular Icemaker Service Sheet WPL LIT628370 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI92180A3 Contact Us For Availability
1
Overlay WPL 2203081 Contact Us For Availability
1
Freezer Door (Includes Item 8 And Dispenser F WPL 2214469B Contact Us For Availability
1
Freezer Door (Includes Item 8 And Dispenser F WPL 2214469T Contact Us For Availability
1
Freezer Door (Includes Item 8 And Dispenser F WPL 2214469W Contact Us For Availability
2
Fan, Blade WPL 2190685 Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Front Roller (2) WPL 2203007 Contact Us For Availability
2
Retainer, Circuit Board WPL 2221538 Contact Us For Availability
2
Retainer, Handle (Black) WPL 2203106B Contact Us For Availability
2
Retainer, Handle (Biscuit) WPL 2203106T Contact Us For Availability
2
Retainer, Handle (White) WPL 2203106W Contact Us For Availability
3
Bolt WPL 3400512 Contact Us For Availability
3
Condenser Assembly WPL 2205983 Contact Us For Availability
3
Circuit Board, Interface WPL 2214765 Contact Us For Availability
4
Trim, Door Shelf WPL 2256010 Contact Us For Availability
4
Clip, Thermistor WPL 2209204 Contact Us For Availability
4
Roller (Rear) (2) WPL 2203008 Contact Us For Availability
4
Control Box WPL 2199717 Contact Us For Availability
5
Bolt WPL 3400511 Contact Us For Availability
5
Clip, Wire & Tube WPL 2208280 Contact Us For Availability
5
Light Lens WPL 2203108 Contact Us For Availability
6
Tube, Condenser to Heat Loop WPL 2214366 Contact Us For Availability
6
Trim, Door Shelf WPL 2199990 Contact Us For Availability
8
Glass, Cover WPL 2203038 Contact Us For Availability
8
Clip WPL 2209558 Contact Us For Availability
8
Door Gasket, Magnetic (Mist Beige) WPL 2221304 Contact Us For Availability
8
Door Gasket, Magnetic (Black) WPL 2221309 Contact Us For Availability
9
Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2174250 Contact Us For Availability
9
Grille, Overflow (White) WPL 2180323 Contact Us For Availability
9
Ladder, Shelf WPL 2181796 Contact Us For Availability
9
Trim, Door Shelf WPL 2199991 Contact Us For Availability
10
Valve, Solenoid WPL 2199838 Contact Us For Availability
10
Bracket, Insert WPL 2210750 Contact Us For Availability
11
Lever, Ice Dispenser (White (White Shadow Pad WPL 2180259 Contact Us For Availability
11
Wiring Harness WPL 2187667 Contact Us For Availability
13
Eyelet, Roller WPL 2174478 Contact Us For Availability
13
Tube, Water Inlet WPL 2203024 Contact Us For Availability
13
Wire Assembly WPL 2187390 Contact Us For Availability
14
Tube Suction WPL 2214365 Contact Us For Availability
14
Bracket, Door Stop (Chrome) WPL 2210774 Contact Us For Availability
14
Bracket, Door Stop (Black) WPL 2214451 Contact Us For Availability
16
Hinge & Cam Assy. WPL 2208137 Contact Us For Availability
16
Extension, Air Baffle WPL 2203020 Contact Us For Availability
17
Insert, Handle (Black) WPL 2203107B Contact Us For Availability
17
Insert, Handle (Biscuit) WPL 2203107T Contact Us For Availability
17
Insert, Handle (White) WPL 2203107W Contact Us For Availability
18
Clip, Compressor Mounting (4) WPL 2163787 Contact Us For Availability
18
End Cap, Handle (Black) WPL 2194778B Contact Us For Availability
18
End Cap, Handle (Biscuit) WPL 2194778T Contact Us For Availability
18
End Cap, Handle (White) WPL 2194778W Contact Us For Availability
19
Trim, Door Shelf WPL 2203087 Contact Us For Availability
19
Block, Evaporator WPL 2208183 Contact Us For Availability
19
Ladder, Shelf Assembly (2) WPL 2208147 Contact Us For Availability
20
Control Box Harness WPL 2214376 Contact Us For Availability
20
Housing, Control Board WPL 2257354 Contact Us For Availability
21
Filler, Wrapper (Black) WPL 2203067B Contact Us For Availability
21
Filler, Wrapper (Biscuit) WPL 2203067T Contact Us For Availability
21
Filler, Wrapper (White) WPL 2203067W Contact Us For Availability
22
Grille (Black) WPL 2199904B Contact Us For Availability
22
Window, Meat Pan WPL 2174076 Contact Us For Availability
22
Stop, Roller WPL 1113169 Contact Us For Availability
22
Grille (Biscuit) WPL 2199904T Contact Us For Availability
22
Grille (White) WPL 2199904W Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Bin, Door (2) WPL 2199992 Contact Us For Availability
24
Air Diffuser Assembly WPL 2214367 Contact Us For Availability
24
Endcap WPL 2195917 Contact Us For Availability
29
Handle, Beverage WPL 2203029 Contact Us For Availability
30
Unit Mounting Plate WPL 2223711 Contact Us For Availability
31
Harness, Main Control WPL 2187664 Contact Us For Availability
32
Fan, Motor Bracket WPL 2208157 Contact Us For Availability
34
Light Lens WPL 2203266 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
36
Board, Control WPL 2252095 Contact Us For Availability
37
Washer WPL 680975 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
40
Screw WPL 3400515 Contact Us For Availability
42
Extension Tube WPL 2199954 Contact Us For Availability
42
Tube, Heat Loop WPL 2199806 Contact Us For Availability
46
Insulation, Mounting Plate WPL 2223712 Contact Us For Availability
47
Cover, Unit WPL 2214385 Contact Us For Availability
47
Side Support WPL 2203160 Contact Us For Availability
48
Cabinet (Not A Serviceable Part) WPL ARI92179A9 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
63
FOLLOWING PARTS NOT ILLUSTRATED WPL ARI92186A4 Contact Us For Availability
63
and Optional Parts Not Included WPL ARI92187A6 Contact Us For Availability
63
REFRIGERANT CHARGE 6.00 oz. (R-134A) WPL ARI92188A7 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
WPL 799344 WPL 799344 Contact Us For Availability
100
Torx Key WPL 1117510 Contact Us For Availability
100
Ice Crusher Mechanism Assembly WPL 2160606 Contact Us For Availability
100
Ice Contianer Assembly WPL 2199894 Contact Us For Availability
100
PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability
100
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
100
WPL 799340 WPL 799340 Contact Us For Availability
100
WPL 799833 WPL 799833 Contact Us For Availability
100
WPL ARI92189A6 WPL ARI92189A6 Contact Us For Availability
100
WPL ARI92190A1 WPL ARI92190A1 Contact Us For Availability
100
WPL ARI92191A4 WPL ARI92191A4 Contact Us For Availability
100
WPL ARI92192A4 WPL ARI92192A4 Contact Us For Availability
× ![]()
