Model Whirlpool KGYL400WAL0 – Common Parts &amp; Diagrams

350938 Whirlpool Spray Gun In Stock WPL 350938 $28.93

350956 Whirlpool Spray Assembly In Stock WPL 350956 $17.07

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.79

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $146.78

WP72107 Whirlpool Touchup In Stock WPL WP72107 $6.60

Leveler (Thinner) WPL 350941 Contact Us For Availability

Almond (Uncut) WPL 978883 Contact Us For Availability

Guide, Dryer WPL LIT3387320 Contact Us For Availability

Guide, Use & Care WPL LIT3392982 Contact Us For Availability

Instructions, Installation WPL LIT3395322 Contact Us For Availability

List, Service Parts WPL LIT3395961 Contact Us For Availability

1

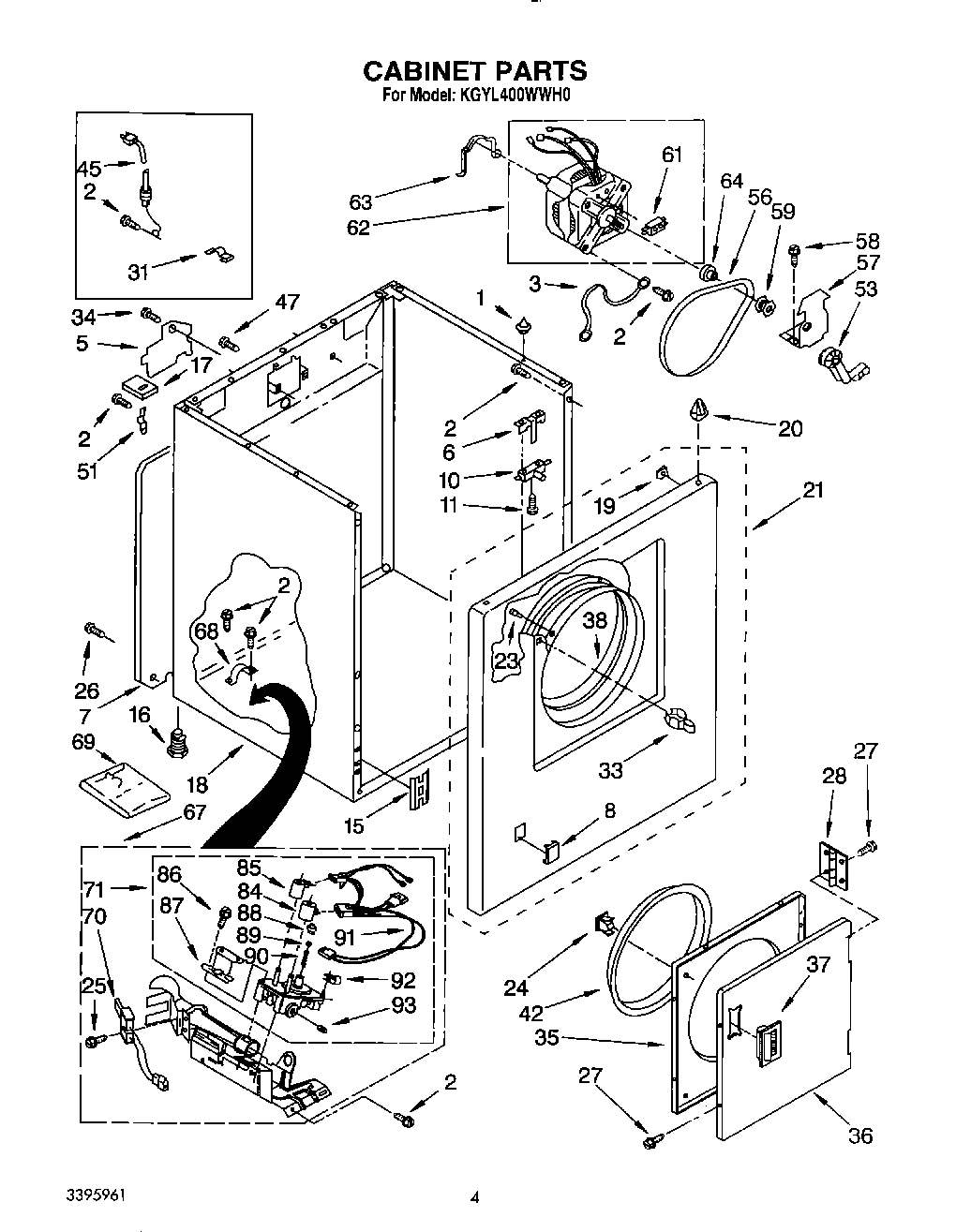

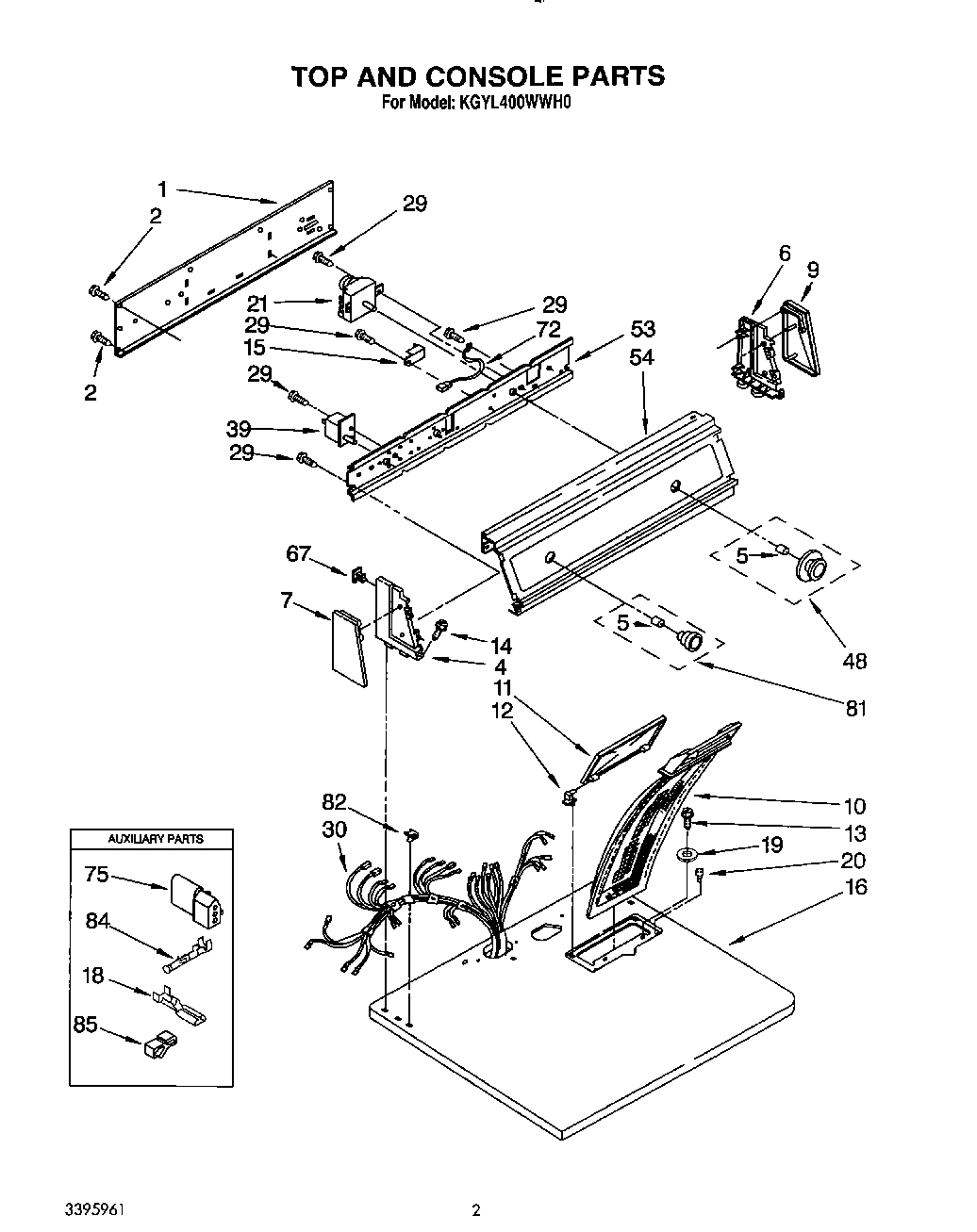

Panel, Rear Console WPL 3388889 Contact Us For Availability

1

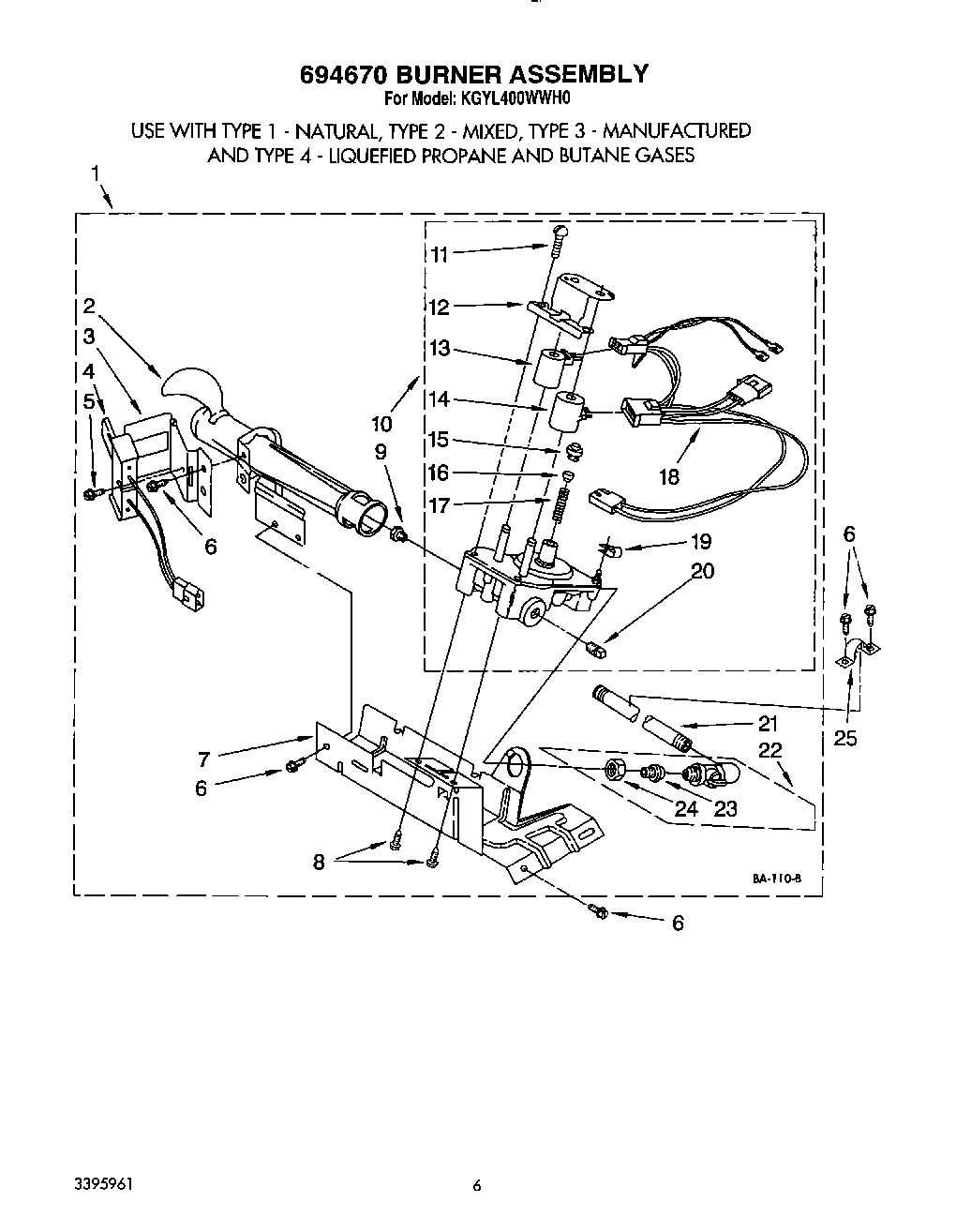

Burner Assembly 60 Hz. (Type 1, 2 & 3) (White WPL 694670 Contact Us For Availability

2

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $3.22

2

WP693140 Whirlpool Burner Backorder WPL WP693140 $84.00

3

WP694298 Whirlpool Bracket Backorder WPL WP694298 $15.66

4

279311 Whirlpool Dryer Flat Igniter Assembly In Stock WPL 279311 $36.46

4

Cap, End (L.H.) WPL 3354640 Contact Us For Availability

5

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $4.53

5

WPW10366705 Whirlpool Screw In Stock WPL WPW10366705 $2.75

6

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.46

6

WP691581 Whirlpool Actuator In Stock WPL WP691581 $4.20

6

Cap, End (R.H.) WPL 3354646 Contact Us For Availability

7

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $8.94

7

Trim, Endcap (L.H.) WPL 3353685 Contact Us For Availability

7

Base, Burner WPL 693986 Contact Us For Availability

8

WP3387134 Whirlpool Dryer Cycling Thermostat In Stock WPL WP3387134 $20.29

8

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.46

8

Plug, Front Panel (White) WPL 3394975 Contact Us For Availability

9

WP229742 Whirlpool Gas Orifice Backorder WPL WP229742 $15.45

9

WP234826 Whirlpool Gas Orifice In Stock WPL WP234826 $15.45

9

WP234868 Whirlpool Gas Orifice Backorder WPL WP234868 $15.45

9

Trim, Endcap (R.H.) WPL 3353678 Contact Us For Availability

9

Orifice, Burner (Type 3) WPL 15419 Contact Us For Availability

9

Orifice, Burner (Type 2) WPL 15775 Contact Us For Availability

10

279923 Whirlpool Gas Valve In Stock WPL 279923 $169.13

10

339392V Whirlpool Dryer Lint Filter Screen In Stock WPL 339392V $22.03

10

WP694089 Whirlpool Dryer Blower Wheel In Stock WPL WP694089 $23.03

11

694421 Whirlpool Screw Assembly Backorder WPL 694421 $11.80

11

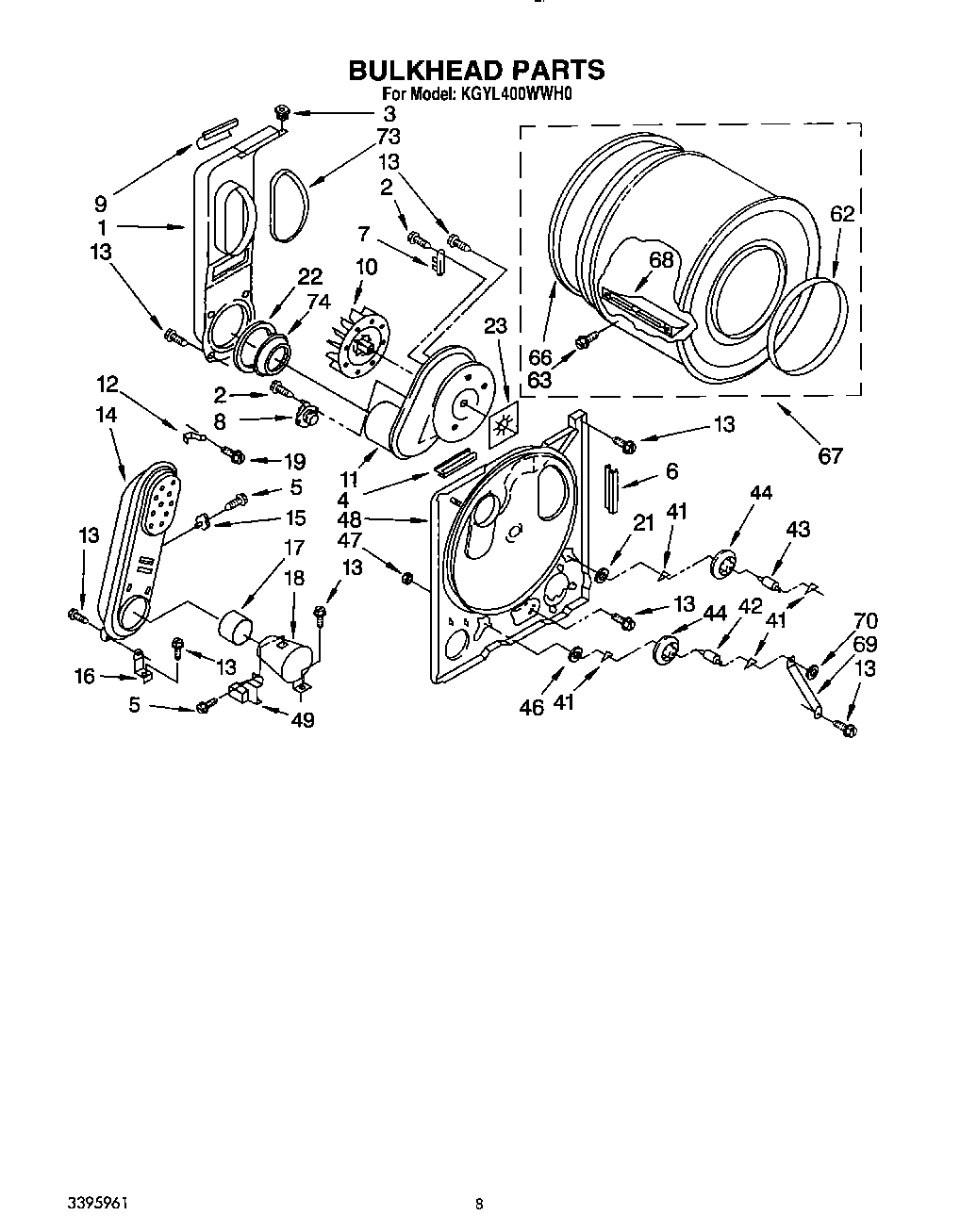

Housing, Blower WPL 695081 Contact Us For Availability

11

Cover, Lint Screen WPL 691205 Contact Us For Availability

279771 Whirlpool Clip Backorder WPL 279771 $9.66

694538 Whirlpool Bracket Backorder WPL 694538 $62.30

WPW10044470 Whirlpool Hinge Assembly In Stock WPL WPW10044470 $4.19

WPW10044480 Whirlpool Hinge Assembly In Stock WPL WPW10044480 $4.19

13

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $9.14

14

279834 Whirlpool Dryer Gas Valve Solenoid Coi In Stock WPL 279834 $20.40

14

Screw, 8-18 x 1 WPL 64211 Contact Us For Availability

W10854425 Whirlpool Dryer Front Panel Bottom In Stock WPL W10854425 $7.58

WP694419 Whirlpool Buzzer Adjuster Backorder WPL WP694419 $60.62

(Alt.) WPL 341196 Contact Us For Availability

(Alt.) WPL 338471 Contact Us For Availability

Thermostat, 205~F (96.1~C) WPL 660036 Contact Us For Availability

16

Support, Heater Box (2) WPL 337445 Contact Us For Availability

16

Top (White) WPL 3393374 Contact Us For Availability

16

Top (Almond) WPL 3393375 Contact Us For Availability

18

279900 Whirlpool Box O/S1 Backorder WPL 279900 $171.06

18

WP3401850 Whirlpool Wire Harness Backorder WPL WP3401850 $171.90

18

WP94614 Whirlpool Terminal Backorder WPL WP94614 $3.22

19

WP98234 Whirlpool Nut In Stock WPL WP98234 $5.86

19

Washer WPL 237446 Contact Us For Availability

19

Clip, Harness WPL 694510 Contact Us For Availability

20

W10295523 Whirlpool Plug Backorder WPL W10295523 $13.77

20

WP18776 Whirlpool Lock In Stock WPL WP18776 $5.44

20

Bumper, Lint Lid WPL 297535 Contact Us For Availability

21

WP3388703 Whirlpool Washer Backorder WPL WP3388703 $4.92

21

WP3394762 Whirlpool Timer Backorder WPL WP3394762 $194.86

21

Pipe, Gas Supply WPL 233273 Contact Us For Availability

22

W11415783 Whirlpool Seal In Stock WPL W11415783 $8.33

22

Valve & Union, Shut-Off WPL 345062 Contact Us For Availability

23

3393767 Whirlpool Pipe Backorder WPL 3393767 $69.67

23

Seal, Blower Shaft WPL 3392123 Contact Us For Availability

24

WP3389441 Whirlpool Door Catch In Stock WPL WP3389441 $4.53

24

Nut, Compression WPL 233076 Contact Us For Availability

25

341029 Whirlpool Clamp Backorder WPL 341029 $11.80

25

49572A Whirlpool Dryer Propane Gas Conversion In Stock WPL 49572A $19.56

25

Conversion Kit Type 1 (Natural) To Type 3 (Ma WPL 279243 Contact Us For Availability

28

WP348023 Whirlpool Hinge Backorder WPL WP348023 $4.19

29

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $3.46

30

Harness, Wiring WPL 3395992 Contact Us For Availability

34

WP693995 Whirlpool Screw In Stock WPL WP693995 $2.85

36

WP348205 Whirlpool Door Backorder WPL WP348205 $68.10

37

WP686711 Whirlpool Door Handle In Stock WPL WP686711 $4.27

37

Handle, Door (Almond) WPL 689308 Contact Us For Availability

39

Switch, Push To Start WPL 348314 Contact Us For Availability

41

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $5.53

42

WPW10359270 Whirlpool Dryer Drum Roller Shaft In Stock WPL WPW10359270 $35.08

43

WPW10359269 Whirlpool Dryer Shaft Support Rol In Stock WPL WPW10359269 $34.97

44

WPW10314173 Whirlpool Dryer Drum Support Whee In Stock WPL WPW10314173 $13.98

46

WP348197 Whirlpool Washer Assembly Backorder WPL WP348197 $3.22

47

WP358160 Whirlpool Nut Backorder WPL WP358160 $4.77

48

Bulkhead WPL 685775 Contact Us For Availability

48

Timer Knob & Clip WPL 3389725 Contact Us For Availability

49

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $40.93

53

WP691366 Whirlpool Dryer Idler Pulley Assembl In Stock WPL WP691366 $8.75

53

Bracket, Control WPL 3396009 Contact Us For Availability

54

Panel, Control WPL 3395980 Contact Us For Availability

57

WP348780 Whirlpool Base In Stock WPL WP348780 $37.41

62

WP3394508 Whirlpool Bearing Ring In Stock WPL WP3394508 $49.34

63

Screw, 11-16 x 7/8 WPL 690372 Contact Us For Availability

64

WP3393657 Whirlpool Belt Retainer Backorder WPL WP3393657 $62.33

66

239087 Whirlpool Dryer Rear Drum Seal Green S In Stock WPL 239087 $26.52

67

3396775 Whirlpool Drum Assembly Backorder WPL 3396775 $275.53

67

WP689559 Whirlpool Nut Backorder WPL WP689559 $5.76

68

WP342847 Whirlpool Drum Baffle Backorder WPL WP342847 $59.84

69

Bracket, Support WPL 348945 Contact Us For Availability

70

WP90296 Whirlpool Clip Backorder WPL WP90296 $3.22

72

Wire, Ground WPL 690853 Contact Us For Availability

73

WP339956 Whirlpool Foam Seal In Stock WPL WP339956 $4.53

74

W11233063 Whirlpool Shield Assembly Backorder WPL W11233063 $16.76

75

Receptacle, 3-Way WPL 691707 Contact Us For Availability

81

Knob, Push To Start WPL 3390054 Contact Us For Availability

82

Nut, Push-In (2) WPL 358473 Contact Us For Availability

84

WP596797 Whirlpool Terminal Backorder WPL WP596797 $4.77

85

Clip, Harness WPL 689180 Contact Us For Availability

88

WP694424 Whirlpool Limiter In Stock WPL WP694424 $17.32

89

WP694423 Whirlpool Regulator Backorder WPL WP694423 $3.81

90

WP694422 Whirlpool Spring Backorder WPL WP694422 $12.06
