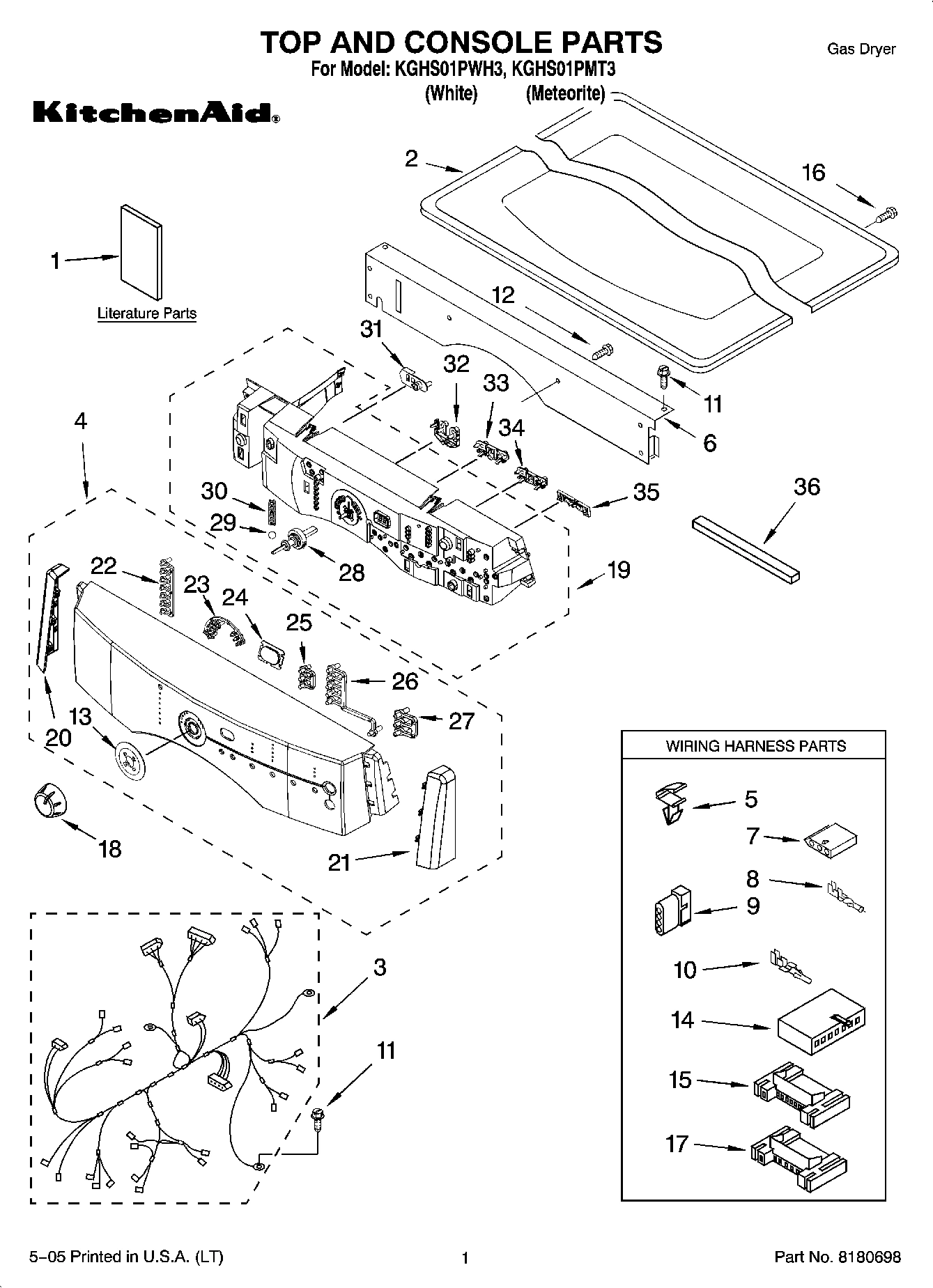

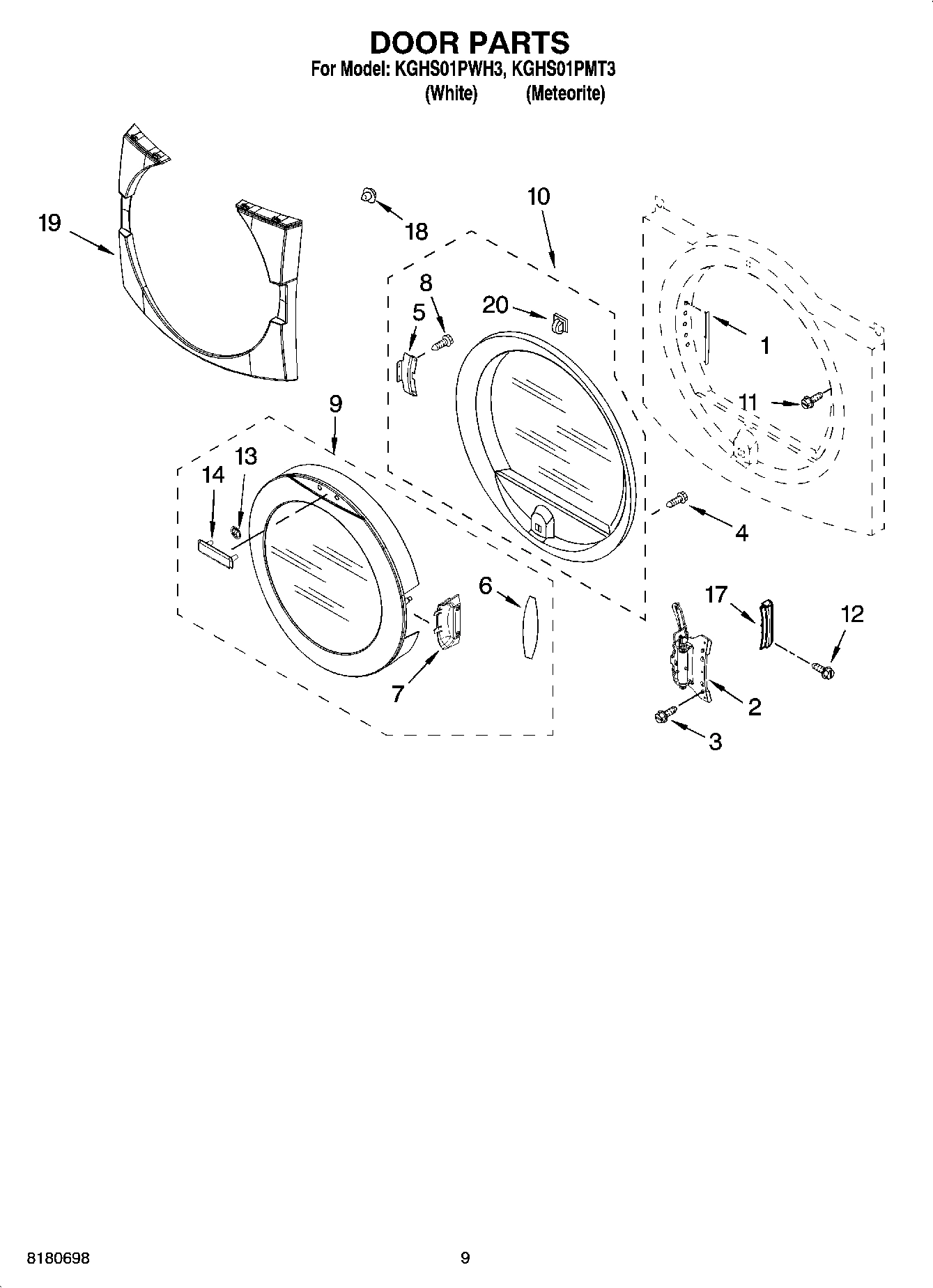

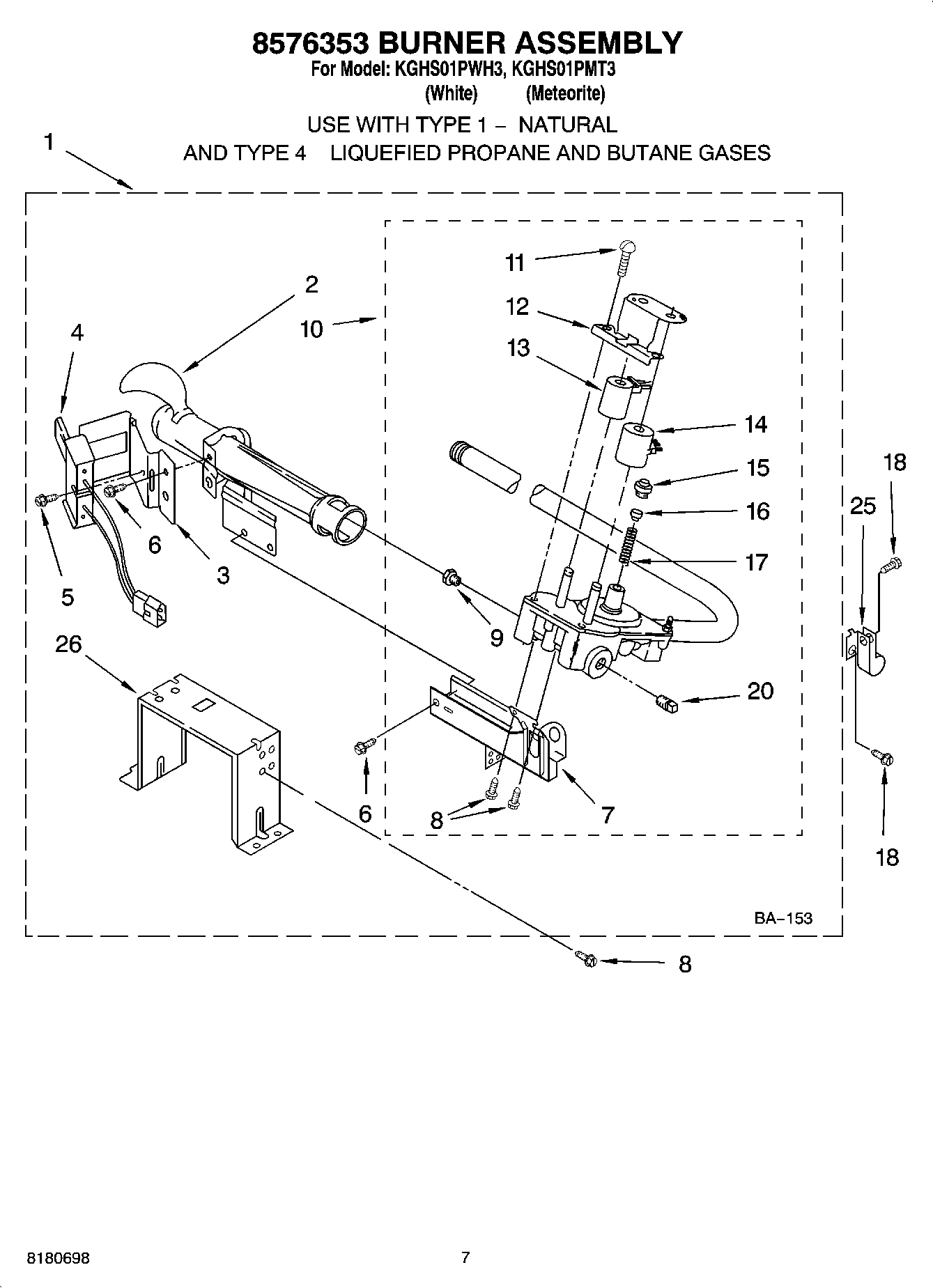

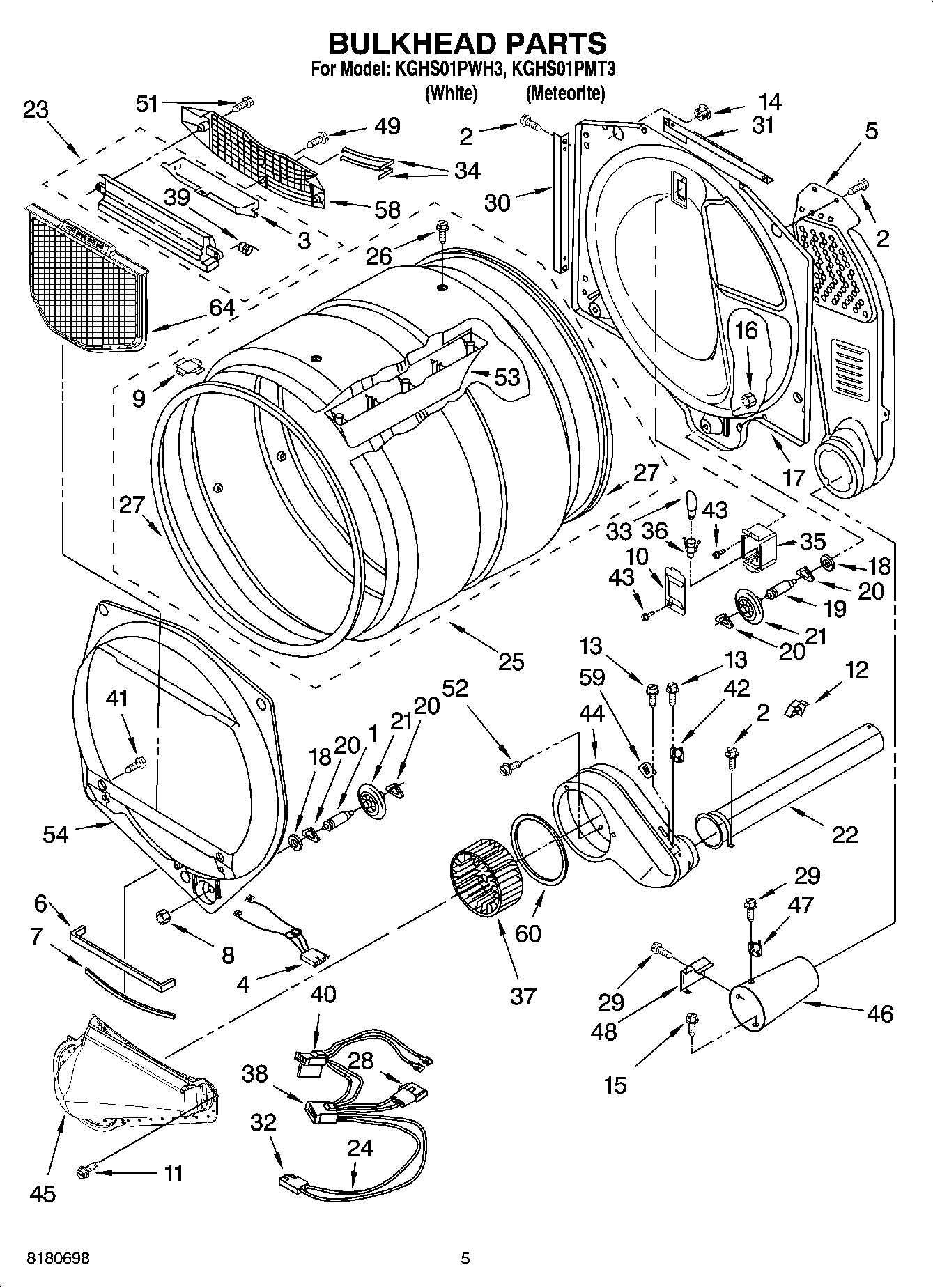

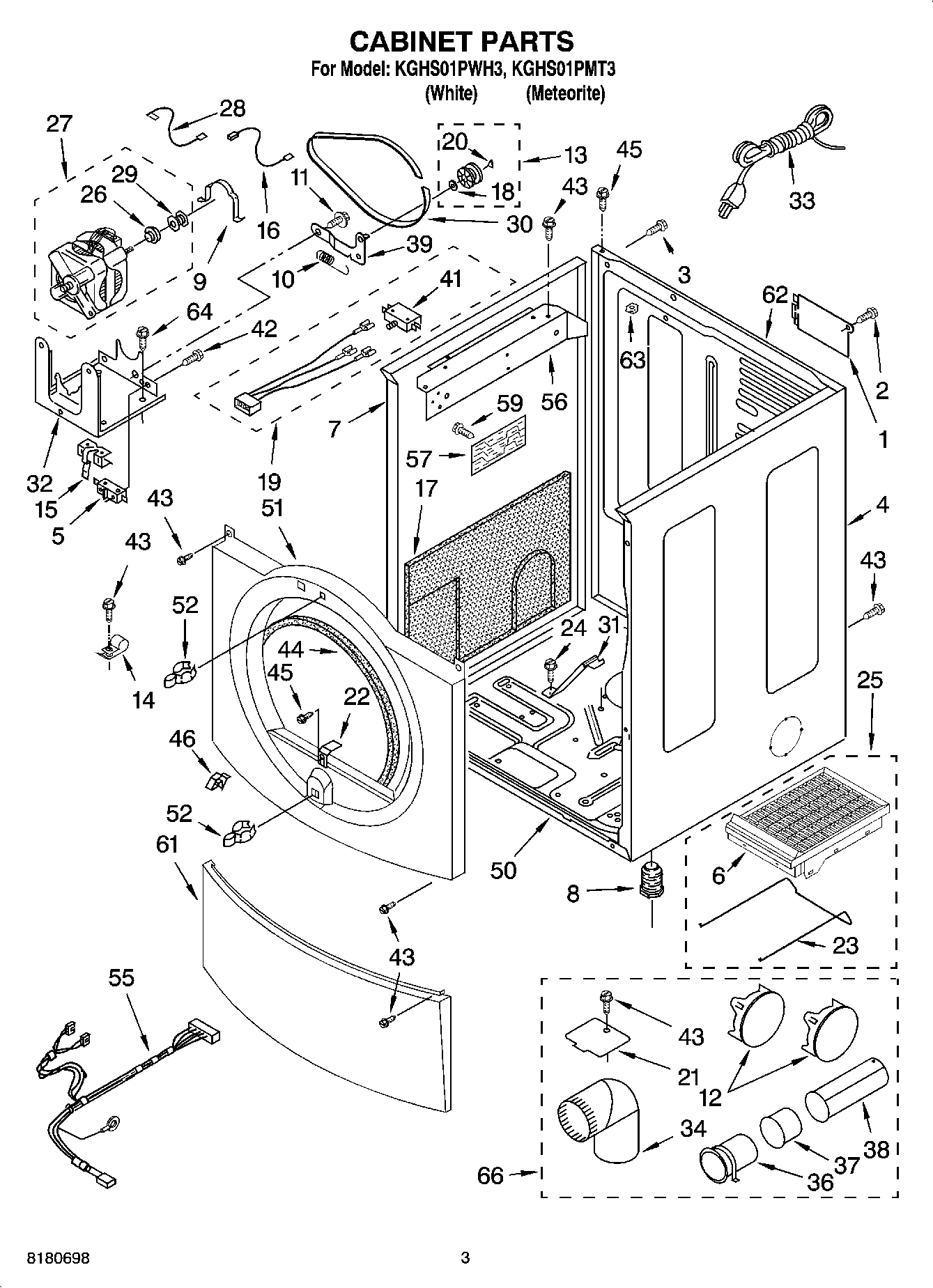

Model Whirlpool KGHS01PMT3 Gas Dryer – Common Parts &amp; Diagrams

350938 Whirlpool Spray Gun Backorder WPL 350938 $49.86

4392067 Whirlpool Dryer Repair Kit In Stock WPL 4392067 $52.99

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

8541503 Whirlpool Stacking Kit In Stock WPL 8541503 $48.67

W10202939 Whirlpool Touch Up Backorder WPL W10202939 $15.74

W11224254 Whirlpool Test Kit In Stock WPL W11224254 $11.79

Kit, Hold Down WPL 8529894 Contact Us For Availability

ACCESSORY PARTS WPL ARI154612A Contact Us For Availability

1

Plug, Strip WPL 8563855 Contact Us For Availability

1

GUIDE, QUICK START WPL 8557330 Contact Us For Availability

1

Use & Care Guide WPL 8562593 Contact Us For Availability

1

Tech Sheet WPL 8563817 Contact Us For Availability

2

Door Hinge Assembly WPL 8559709 Contact Us For Availability

2

Top (White) WPL 8519251 Contact Us For Availability

2

Top (Meteorite) WPL 8539266 Contact Us For Availability

3

W11222846 Whirlpool Door Backorder WPL W11222846 $134.12

3

Harness, Main WPL 8299950 Contact Us For Availability

3

Screw, 10-32 x 3/8 WPL 342043 Contact Us For Availability

4

WP3406653 Whirlpool Wire Harness In Stock WPL WP3406653 $104.68

4

Screw, 8-18 x 5/8 WPL 9742177 Contact Us For Availability

4

Panel, Console (Includes Bezel, Light Indicat WPL 8542706 Contact Us For Availability

4

Panel, Console (Includes Bezel, Light Indicat WPL 8562599 Contact Us For Availability

5

W11168650 Whirlpool Air Duct Backorder WPL W11168650 $99.54

5

WP3394427 Whirlpool Clip In Stock WPL WP3394427 $4.82

5

Bracket, Handle WPL 8529539 Contact Us For Availability

6

WP697813 Whirlpool Seal In Stock WPL WP697813 $4.98

6

Pad, Door Handle WPL 8541011 Contact Us For Availability

6

Bracket, Console WPL 8519271 Contact Us For Availability

7

Handle, Door WPL 8557268 Contact Us For Availability

8

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.99

8

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $4.99

8

WP94614 Whirlpool Terminal Backorder WPL WP94614 $4.82

9

3936144 Whirlpool Connector Backorder WPL 3936144 $14.02

9

8066086 Whirlpool Plug Backorder WPL 8066086 $7.15

9

WP15418 Whirlpool Gas Orifice In Stock WPL WP15418 $16.99

9

WP660658 Whirlpool Clamp In Stock WPL WP660658 $8.99

9

Door & Window Assembly (Includes Illus. 6, 7, WPL 8542697 Contact Us For Availability

10

W11226088 Whirlpool Lens Assembly In Stock WPL W11226088 $16.79

10

Inner Door Assembly (Includes Illus. 5, 8 & 2 WPL 8557501 Contact Us For Availability

WP3389420 Whirlpool Screw In Stock WPL WP3389420 $4.99

WP355515 Whirlpool Screw Backorder WPL WP355515 $4.82

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $3.91

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $4.99

12

WP3388229 Whirlpool Dryer Spring Clip In Stock WPL WP3388229 $4.98

12

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $6.83

13

WP2004333 Whirlpool Refrigerator Nut Backorder WPL WP2004333 $6.88

13

WPW10139210 Whirlpool Screw In Stock WPL WPW10139210 $4.99

13

Bezel, Cycle WPL 8542690 Contact Us For Availability

14

3936150 Whirlpool Connector Backorder WPL 3936150 $59.13

14

8529007 Whirlpool Plug Backorder WPL 8529007 $51.53

14

Medallion WPL 9707516 Contact Us For Availability

15

3395683 Whirlpool Connector Backorder WPL 3395683 $37.04

15

WP694424 Whirlpool Limiter In Stock WPL WP694424 $17.77

15

WP8066120 Whirlpool Lever Assembly Backorder WPL WP8066120 $20.67

WP694423 Whirlpool Regulator Backorder WPL WP694423 $4.82

Wire, Belt Switch WPL 3394081 Contact Us For Availability

Nut, 3/8-16 (L.H.) WPL 3387709 Contact Us For Availability

Screw, 8-18 x 1/2 WPL 8281225 Contact Us For Availability

2203186 Whirlpool Connector Backorder WPL 2203186 $8.09

W11299301 Whirlpool Bulkhead Assembly Backorder WPL W11299301 $151.69

WP694422 Whirlpool Spring Backorder WPL WP694422 $16.83

Cover-Hinge, Rotating (Cashmere Metallic) WPL 8566485 Contact Us For Availability

Cover-Hinge, Rotating (White) WPL 8566486 Contact Us For Availability

W11236646 Whirlpool Washer Assembly In Stock WPL W11236646 $20.83

WPW10121334 Whirlpool Washer In Stock WPL WPW10121334 $4.99

Knob, Assembly WPL 8542701 Contact Us For Availability

Clip, Trim Panel WPL 8547091 Contact Us For Availability

WP8283288 Whirlpool Door Switch In Stock WPL WP8283288 $83.88

WPW10359272 Whirlpool Dryer Drum Support Roll In Stock WPL WPW10359272 $52.55

User Interface (Includes Illus. 28, 29 & 30) WPL 8558455 Contact Us For Availability

Trim & Clip Assembly (Cashmere Metallic) WPL 8542698 Contact Us For Availability

Trim & Clip Assembly (White) WPL 8562596 Contact Us For Availability

WP3389441 Whirlpool Door Catch In Stock WPL WP3389441 $4.98

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $5.98

EndCap (LH) (Meteorite) WPL 8542714 Contact Us For Availability

EndCap (LH) (White) WPL 8562598 Contact Us For Availability

21

WPW10314173 Whirlpool Dryer Drum Support Whee In Stock WPL WPW10314173 $19.51

21

EndCap (RH) (Meteorite) WPL 8542713 Contact Us For Availability

21

EndCap (RH) (White) WPL 8562597 Contact Us For Availability

22

279936 Whirlpool Exhaust Pipe Backorder WPL 279936 $97.26

22

Ramp, Door WPL 8529053 Contact Us For Availability

22

Light Indicator (Status) WPL 8542682 Contact Us For Availability

23

W11129408 Whirlpool Out Housing In Stock WPL W11129408 $53.71

23

Dry Rack Support WPL 8521961 Contact Us For Availability

23

Light Indicator (Cycle) WPL 8542683 Contact Us For Availability

24

WP3401850 Whirlpool Wire Harness Backorder WPL WP3401850 $173.55

24

WP693995 Whirlpool Screw In Stock WPL WP693995 $7.99

24

Lens, Display WPL 8542691 Contact Us For Availability

25

3387561 Whirlpool Clamp Backorder WPL 3387561 $13.22

25

W10545924 Whirlpool Drum Assembly Backorder WPL W10545924 $229.99

25

Light Indicator (Dryness Level) WPL 8542684 Contact Us For Availability

26

WP3393657 Whirlpool Belt Retainer Backorder WPL WP3393657 $85.97

26

WPW10109200 Whirlpool Screw In Stock WPL WPW10109200 $4.99

26

Light Indicator (Temperature) WPL 8542685 Contact Us For Availability

27

280114 Whirlpool Dryer Drum Seal In Stock WPL 280114 $31.56

27

Light Indicator (XCare/EOC) WPL 8542686 Contact Us For Availability

28

3398948 Whirlpool Wire Backorder WPL 3398948 $43.98

28

353424 Whirlpool Connector Backorder WPL 353424 $14.02

28

Shaft, Cycle Selector WPL 8542717 Contact Us For Availability

29

W10837625 Whirlpool Dryer Motor Pulley In Stock WPL W10837625 $55.99

29

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.91

29

Bearing, Knob WPL 8542716 Contact Us For Availability

30

Channel Bracket, Rear Bulkhead (2) WPL 8519221 Contact Us For Availability

30

Spring, Knob WPL 8542715 Contact Us For Availability

31

W10118337 Whirlpool Bracket Assembly Backorder WPL W10118337 $60.53

31

Pushbutton, (Control) (Cashmere Metallic) WPL 8542711 Contact Us For Availability

31

Pushbutton, (Control) (Silver) WPL 8562606 Contact Us For Availability

WP3387118 Whirlpool Base Assembly Backorder WPL WP3387118 $87.42

Plug, 2-Way WPL 717252 Contact Us For Availability

Pushbutton, (Drytime) (Cashmere Metallic) WPL 8542708 Contact Us For Availability

Pushbutton, (Drytime) (White) WPL 8562603 Contact Us For Availability

33

WP22002263 Whirlpool Dryer 10W Light Bulb In Stock WPL WP22002263 $9.99

33

Pushbutton, (Dryness/Temp) (Cashmere Metallic WPL 8542709 Contact Us For Availability

33

Pushbutton, (Dryness/Temp) (W WPL 8562604 Contact Us For Availability

34

WP3387223 Whirlpool Electrode Assembly In Stock WPL WP3387223 $4.60

34

WPL 8542710 WPL 8542710 Contact Us For Availability

34

WPL 8562605 WPL 8562605 Contact Us For Availability

35

3977373 Whirlpool Bracket Backorder WPL 3977373 $66.01

35

WPL 8558454 WPL 8558454 Contact Us For Availability

36

W11700522 Whirlpool Socket Backorder WPL W11700522 $47.31

36

WPL 8066181 WPL 8066181 Contact Us For Availability

37

WP697772 Whirlpool Dryer Blower Wheel In Stock WPL WP697772 $36.97

38

WP3403498 Whirlpool Connector Backorder WPL WP3403498 $4.82

39

WP3394986 Whirlpool Spring Backorder WPL WP3394986 $53.11

40

WP3403499 Whirlpool Connector Backorder WPL WP3403499 $4.55

42

WP8577274 Whirlpool Dryer Thermistor In Stock WPL WP8577274 $29.99

44

W10888146 Whirlpool Housing In Stock WPL W10888146 $41.99

44

WP3387242 Whirlpool Seal In Stock WPL WP3387242 $11.68

45

WPW10128606 Whirlpool Lint Duct Backorder WPL WPW10128606 $124.99

46

WP8066047 Whirlpool Funnel Backorder WPL WP8066047 $96.68

47

W11050897 Whirlpool Dryer High Limit Thermost In Stock WPL W11050897 $7.78

48

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $37.50

49

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $3.52

51

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $3.91

52

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.89

53

Baffle, Drum WPL 697693 Contact Us For Availability

54

Bulkhead, Front WPL 8519245 Contact Us For Availability

55

WPL 8299929 WPL 8299929 Contact Us For Availability

57

WPL 8546219 WPL 8546219 Contact Us For Availability

58

W11086603 Whirlpool Dryer Link Screen Air Gri In Stock WPL W11086603 $16.99

59

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $8.99

60

WP697770 Whirlpool Blower Cover Plate Seal In Stock WPL WP697770 $4.99

63

WP692400 Whirlpool Nut In Stock WPL WP692400 $7.99

64

W10120998 Whirlpool Dryer Lint Screen Filter In Stock WPL W10120998 $34.95
