  • Whirlpool KEYL510BWH1

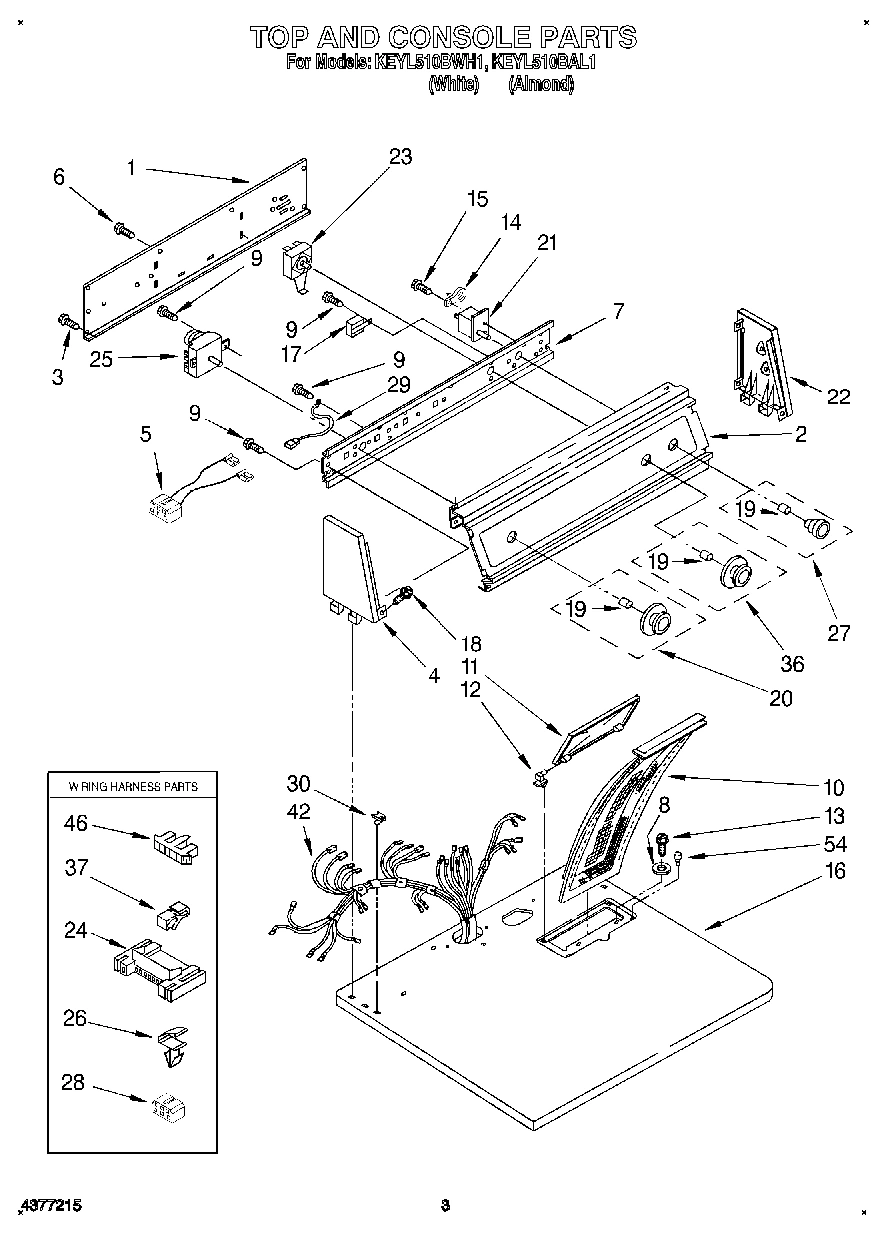

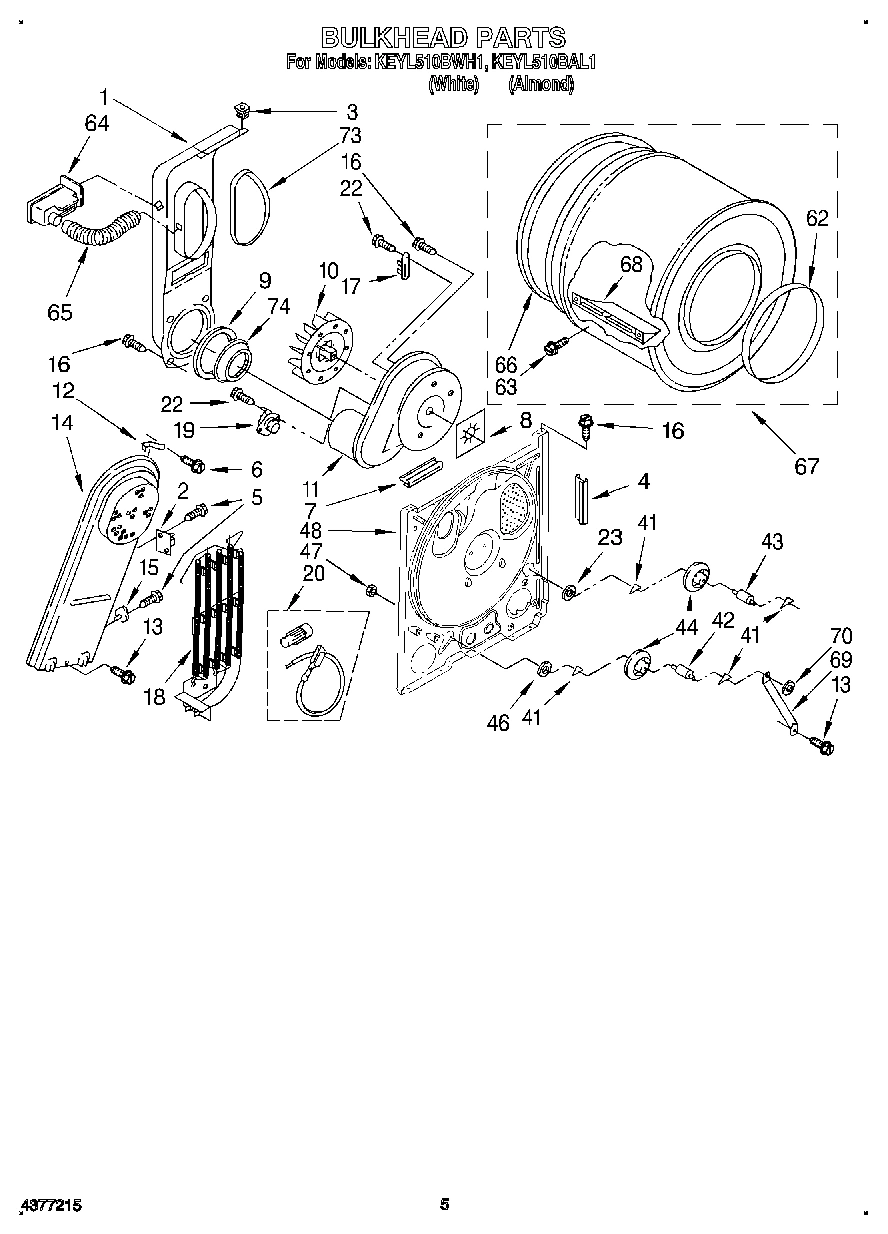

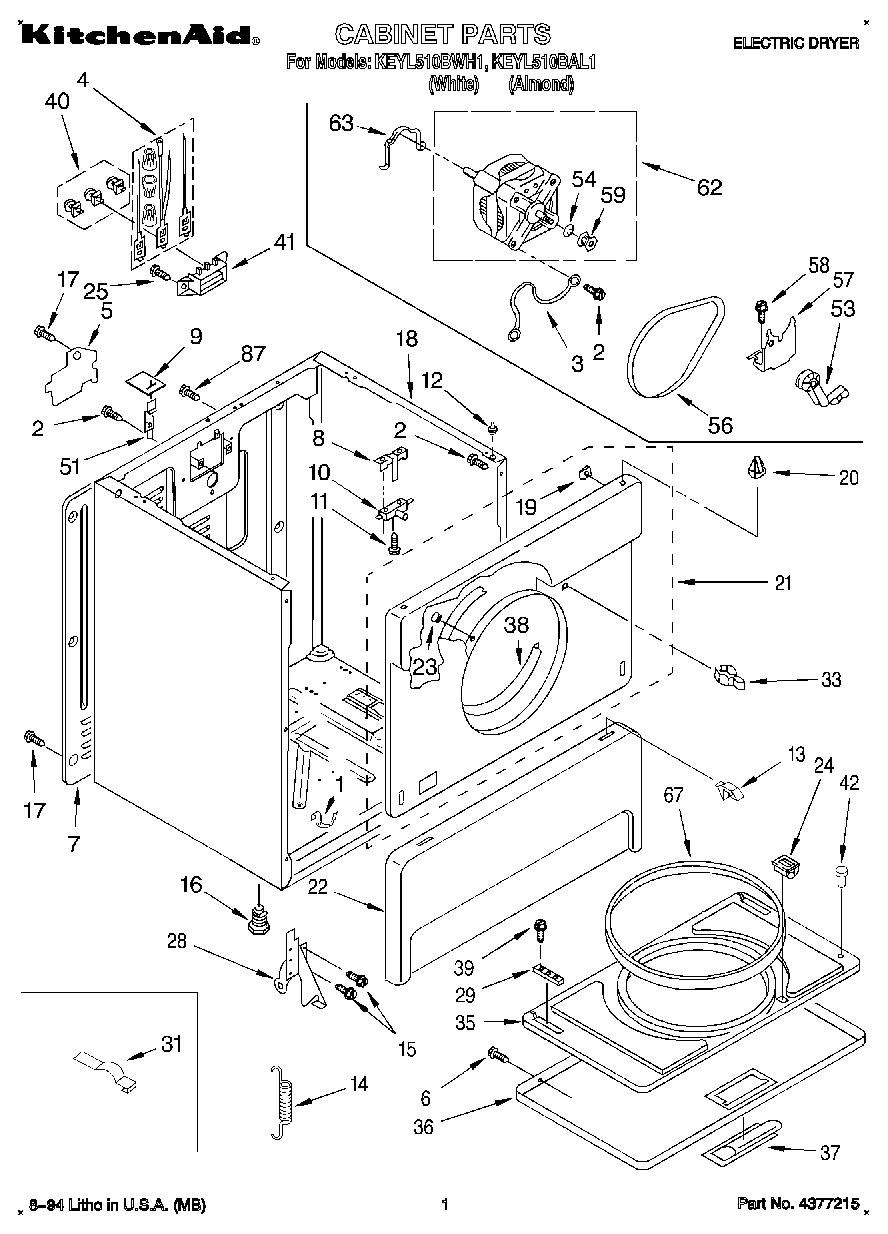

Model Whirlpool KEYL510BWH1 – Common Parts & Diagrams

PAINT, BULK (1 QT.) (WHITE (UNCUT))
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
View on Model
3
Wire, Ground (Motor)
Wire, Ground (Motor) WPL 690236 Contact Us For Availability
View on Model
7
Panel, Rear
Panel, Rear WPL 3396807 Contact Us For Availability
View on Model
10
SCREEN
SCREEN WPL 339392 Contact Us For Availability
View on Model
12
Locator, Top
Locator, Top WPL 98669 Contact Us For Availability
View on Model
14
Spring, Door
Spring, Door WPL 237979 Contact Us For Availability
View on Model
15
Screw
Screw WPL 342043 Contact Us For Availability
View on Model
16
Top (White)
Top (White) WPL 3399162 Contact Us For Availability
View on Model
16
Top (Almond)
Top (Almond) WPL 3399163 Contact Us For Availability
View on Model
18
Screw, Console
Screw, Console WPL 64211 Contact Us For Availability
View on Model
18
Cabinet (Includes Illus. No.`s 5,7,16,41, & 5
Cabinet (Includes Illus. No.`s 5,7,16,41, & 5 WPL 3399580 Contact Us For Availability
View on Model
18
Cabinet (Includes Illus. No.`s 5,7,16,41, & 5
Cabinet (Includes Illus. No.`s 5,7,16,41, & 5 WPL 3399581 Contact Us For Availability
View on Model
20
Knob, Timer
Knob, Timer WPL 3396269 Contact Us For Availability
View on Model
21
Relay, Push-To-Start
Relay, Push-To-Start WPL 3395395 Contact Us For Availability
View on Model
21
Front Panel Assembly (White)
Front Panel Assembly (White) WPL 338012 Contact Us For Availability
View on Model
21
Front Panel Assembly (Almond)
Front Panel Assembly (Almond) WPL 689533 Contact Us For Availability
View on Model
22
Cap, End (R.H.)
Cap, End (R.H.) WPL 3360568 Contact Us For Availability
View on Model
22
Panel, Toe (White)
Panel, Toe (White) WPL 697095 Contact Us For Availability
View on Model
22
Panel, Toe (Almond)
Panel, Toe (Almond) WPL 697096 Contact Us For Availability
View on Model
25
Timer
Timer WPL 3398138 Contact Us For Availability
View on Model
27
Knob, Push To Start
Knob, Push To Start WPL 3390054 Contact Us For Availability
View on Model
28
Hinge, Door (R.H.)
Hinge, Door (R.H.) WPL 687905 Contact Us For Availability
View on Model
28
Connector 6-Circuit
Connector 6-Circuit WPL 3347243 Contact Us For Availability
View on Model
28
Hinge, Door (L.H.)
Hinge, Door (L.H.) WPL 687906 Contact Us For Availability
View on Model
29
Wire, Ground
Wire, Ground WPL 690853 Contact Us For Availability
View on Model
35
Door, Rear
Door, Rear WPL 695954 Contact Us For Availability
View on Model
36
Knob (Control)
Knob (Control) WPL 3363041 Contact Us For Availability
View on Model
36
Door, Front (White)
Door, Front (White) WPL 348728 Contact Us For Availability
View on Model
36
Door, Front (Almond)
Door, Front (Almond) WPL 689330 Contact Us For Availability
View on Model
37
Clip
Clip WPL 689180 Contact Us For Availability
View on Model
37
handle, door (almond)
handle, door (almond) WPL 3390782 Contact Us For Availability
View on Model
42
Harness, Wiring
Harness, Wiring WPL 3399663 Contact Us For Availability
View on Model
46
Connector, Timer
Connector, Timer WPL 3397269 Contact Us For Availability
View on Model
54
Bumper, Lint Lid
Bumper, Lint Lid WPL 297535 Contact Us For Availability
View on Model
