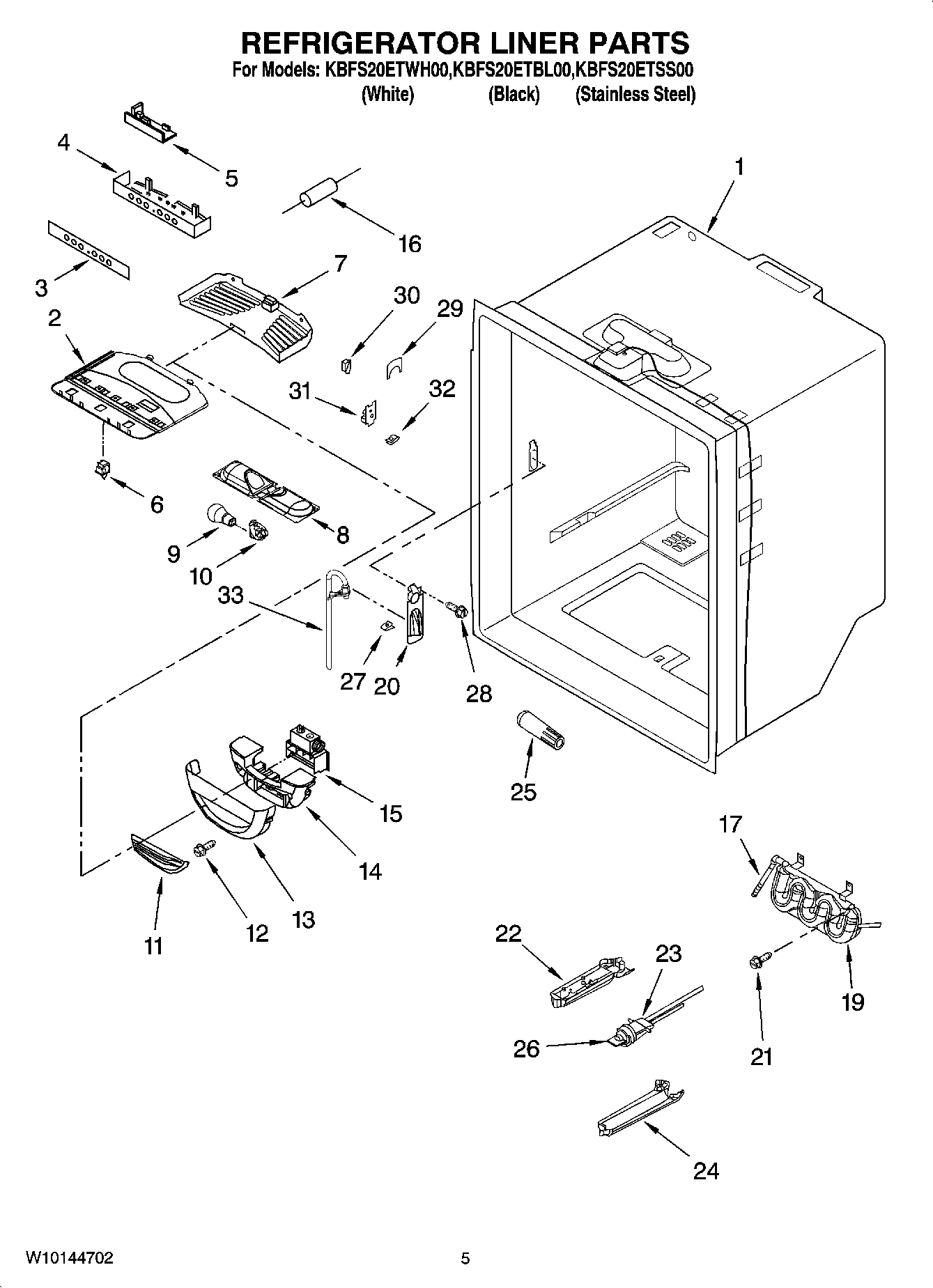

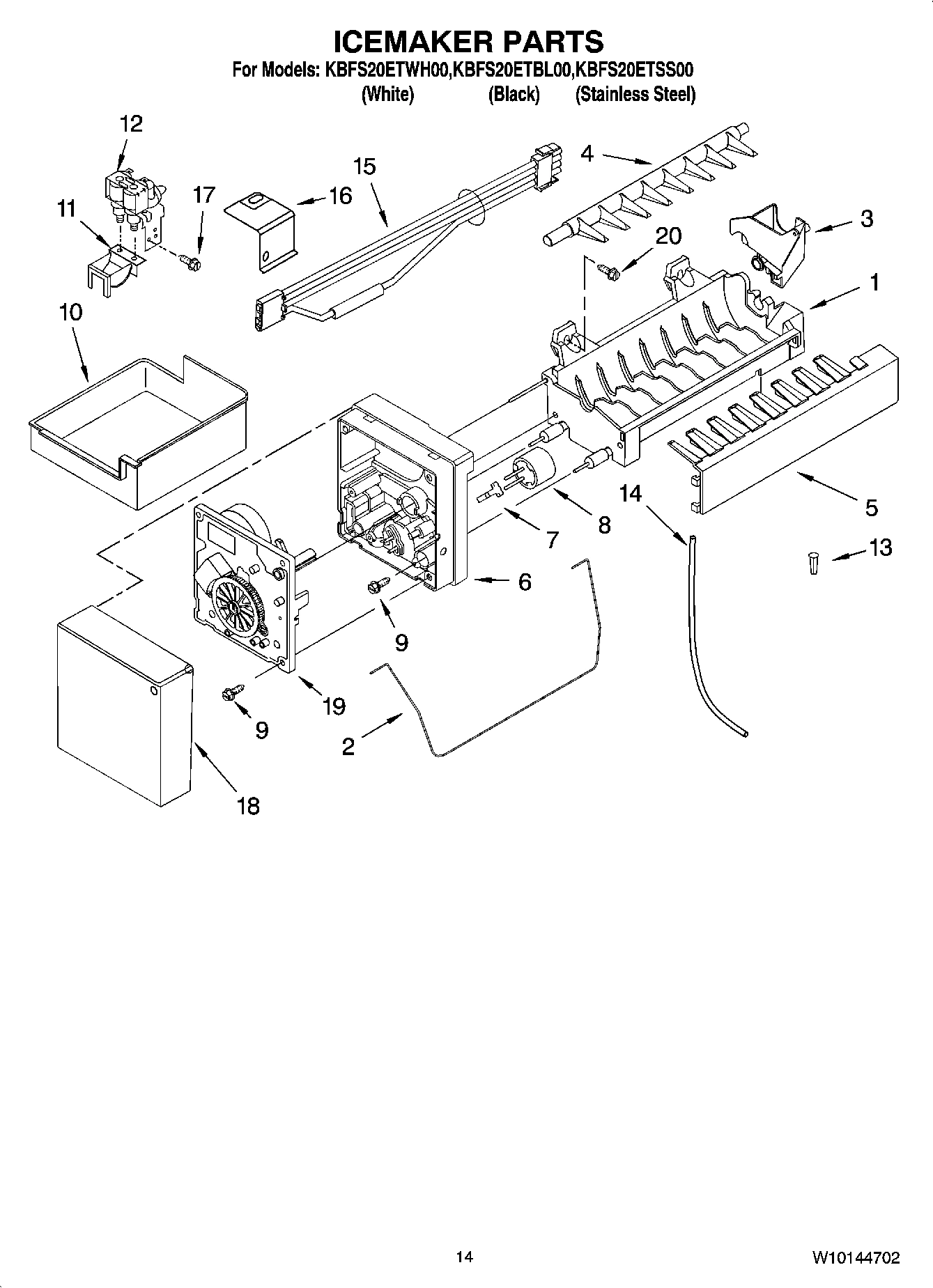

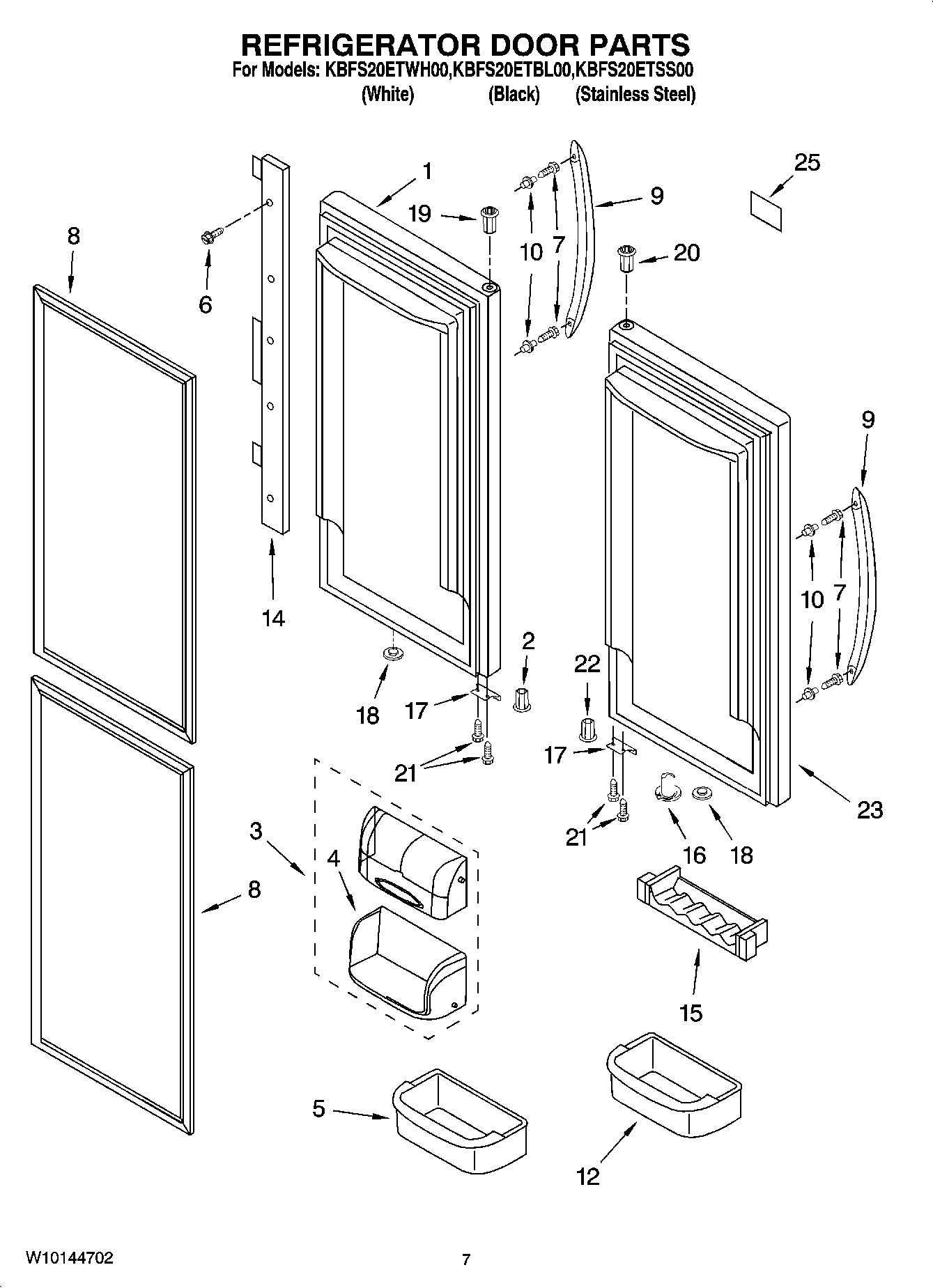

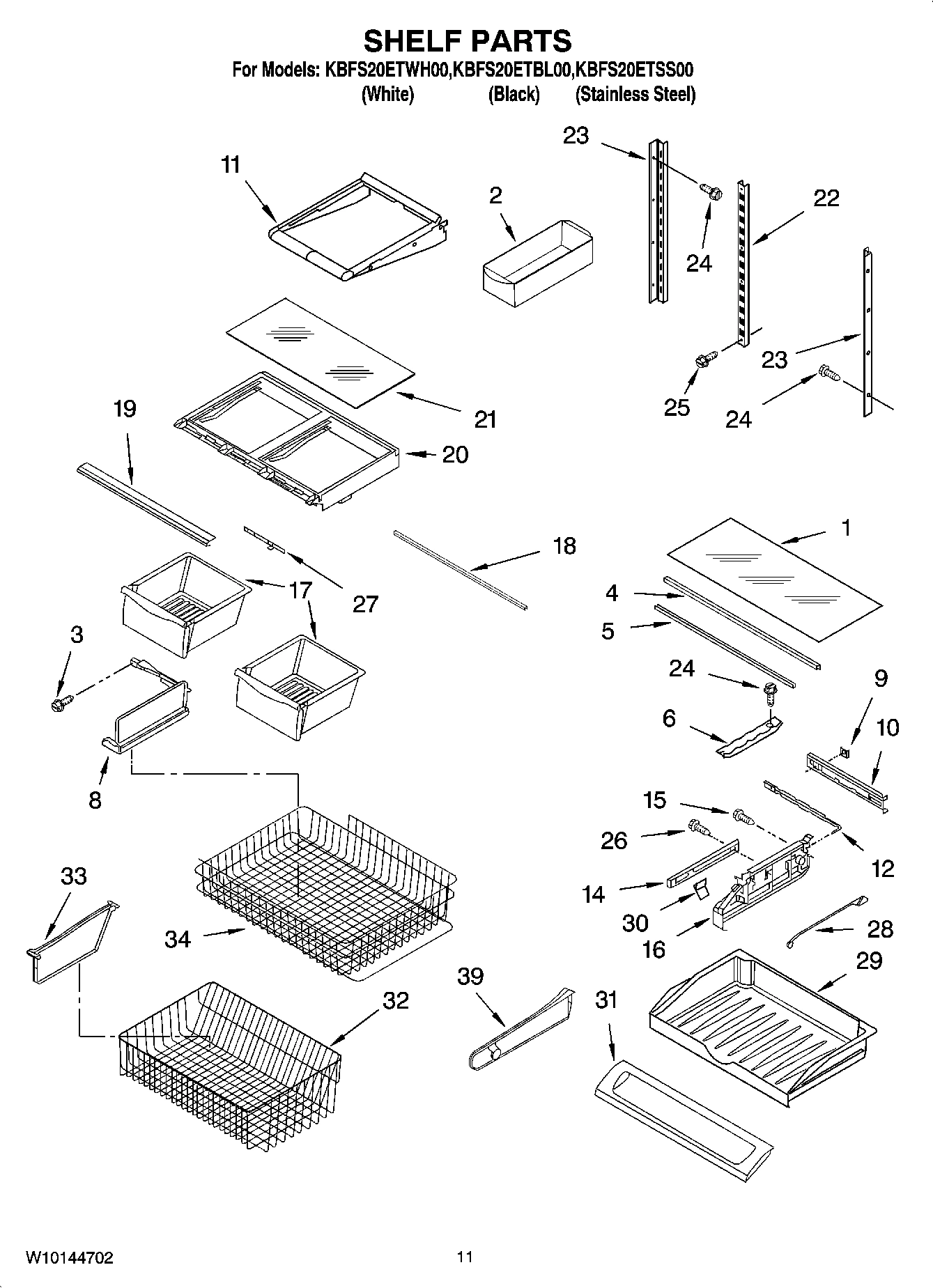

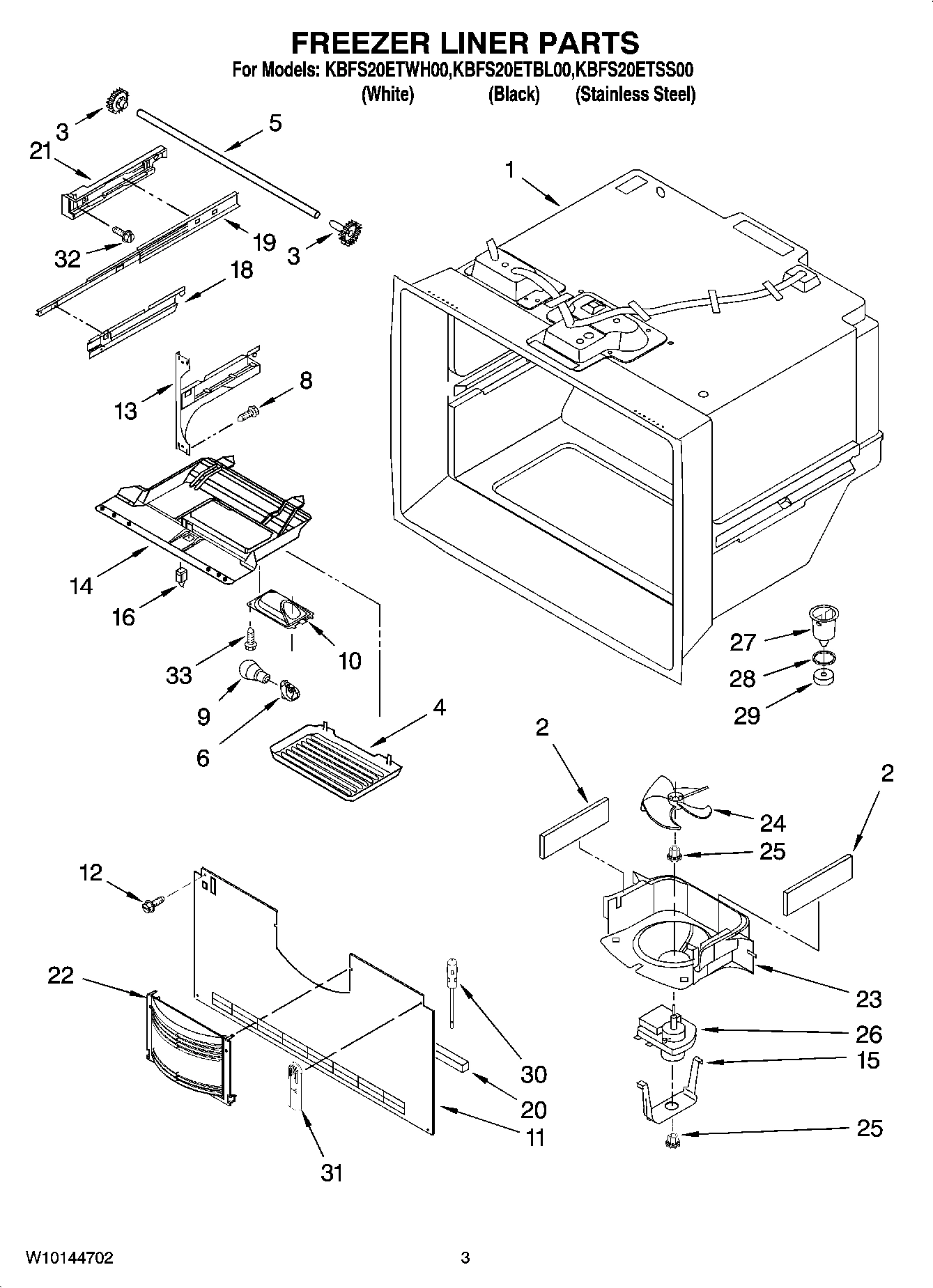

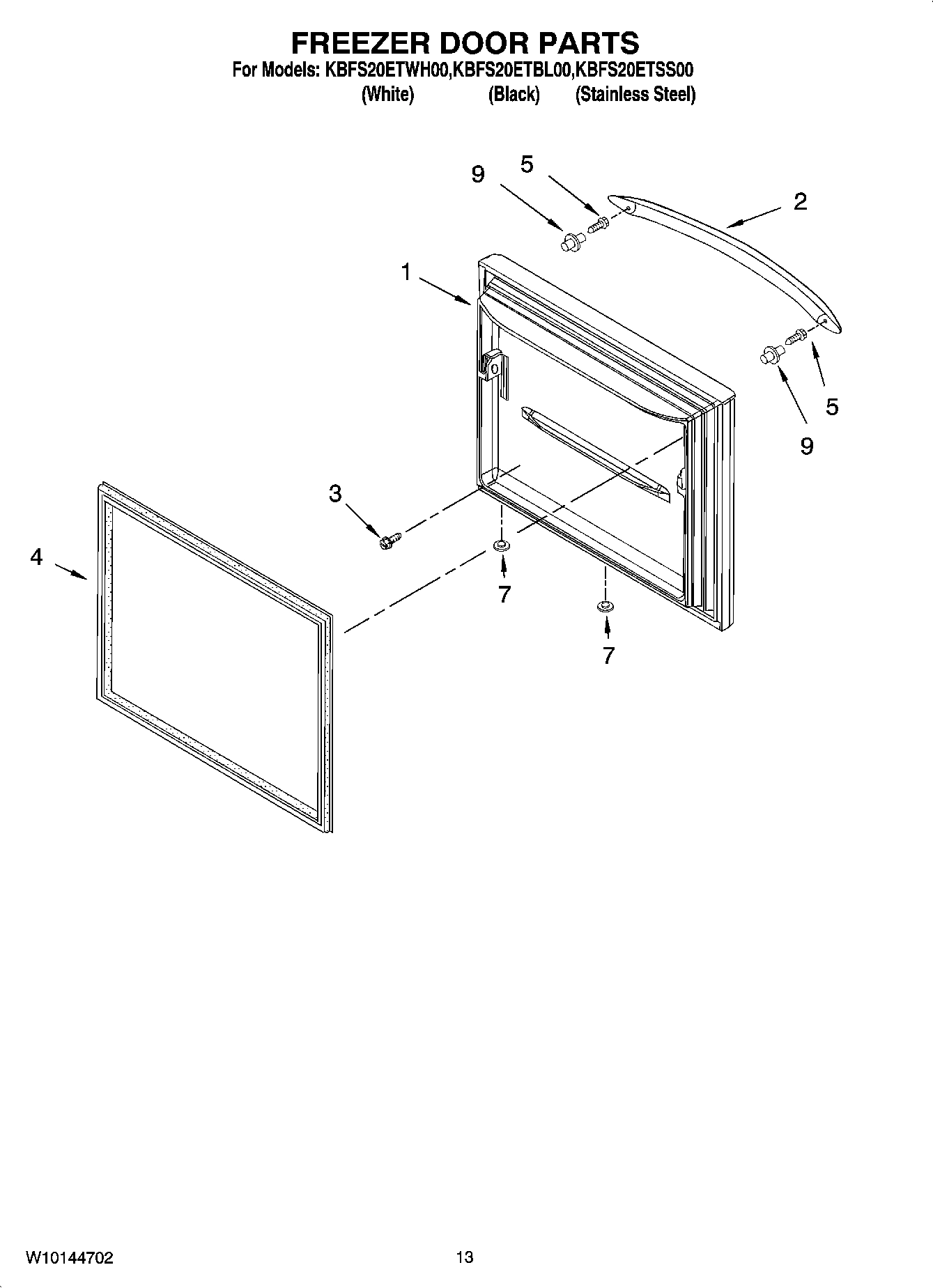

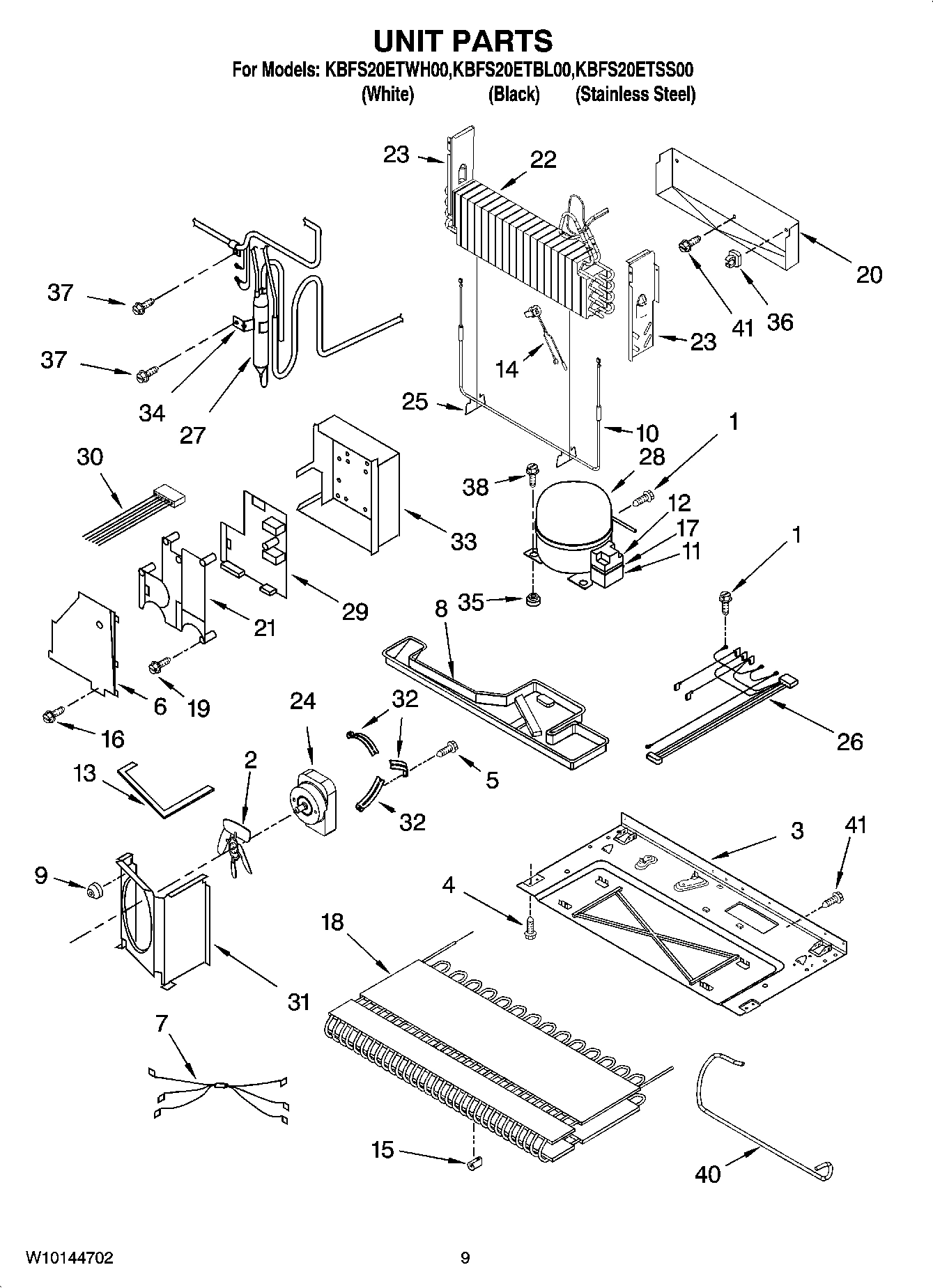

Model Whirlpool KBFS20ETBL00 REFRIGERATOR – Common Parts &amp; Diagrams

285006 Whirlpool Spray In Stock WPL 285006 $31.20

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.72

350942 Whirlpool Spray Paint Backorder WPL 350942 $50.73

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $24.57

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $52.52

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.79

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $6.37

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $146.78

8003RP Whirlpool Refrigerator 25' 1/4" Copper In Stock WPL 8003RP $22.65

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.19

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $118.74

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $37.43

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $33.30

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $40.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $42.85

D7824706Q Whirlpool Refrigerator Ice Maker As In Stock WPL D7824706Q $123.26

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $47.27

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $70.54

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $30.40

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $31.24

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability

WPL ARI153369A WPL ARI153369A Contact Us For Availability

WPL ARI153370A WPL ARI153370A Contact Us For Availability

WPL ARI153371A WPL ARI153371A Contact Us For Availability

WPL ARI153372A WPL ARI153372A Contact Us For Availability

WPL ARI153373A WPL ARI153373A Contact Us For Availability

WPL ARI153374A WPL ARI153374A Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

Following Parts Not Illustrated and Optional WPL ARI153364A Contact Us For Availability

REFRIGERANT CHARGE 5.0 Ozs. (R-134A) WPL ARI153365A Contact Us For Availability

1

12992301 Whirlpool Refrigerator Screw Backorder WPL 12992301 $21.63

1

WP67002332 Whirlpool Refrigerator Glass Pan Backorder WPL WP67002332 $184.97

1

Door, Left (Black) WPL 13024006B Contact Us For Availability

1

Door, Left (White) WPL 13024006W Contact Us For Availability

1

Door, Left (Stainless Steel) WPL W10137005 Contact Us For Availability

1

Mold & Heater Assembly (Not Available Order D WPL ARI153366A Contact Us For Availability

1

Liner (Not A Seviceable Part) WPL ARI153360A Contact Us For Availability

1

Freezer Door (Includes Insulation) (Black) WPL 67004808 Contact Us For Availability

1

Freezer Door (Includes Insulation) (White) WPL 67004810 Contact Us For Availability

1

Freezer Door (Includes Insulation) (Stainless WPL W10136412 Contact Us For Availability

2

W10136387A Whirlpool Refrigerator Egg Contain In Stock WPL W10136387A $7.10

2

W10156818 Whirlpool Refrigerator Fan Blade In Stock WPL W10156818 $37.72

2

W10856123 Whirlpool Refrigerator Gasket Backorder WPL W10856123 $4.51

2

WP2319727W Whirlpool Refrigerator Handle Backorder WPL WP2319727W $178.81

2

WP67002721 Whirlpool Refrigerator Door Bushin Backorder WPL WP67002721 $4.19

2

WP67004028 Whirlpool Refrigerator Shut-Off Ar In Stock WPL WP67004028 $40.88

3

12002497 Whirlpool Refrigerator Drawer Gear K In Stock WPL 12002497 $10.84

3

12991101 Whirlpool Refrigerator Screw Backorder WPL 12991101 $14.93

3

WP12744905 Whirlpool Refrigerator Compressor Backorder WPL WP12744905 $64.71

3

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $19.04

3

Overlay WPL 67005949 Contact Us For Availability

3

SCREW WPL 67001310 Contact Us For Availability

3

Base WPL 67005889 Contact Us For Availability

4

W10436252 Whirlpool Door Gasket In Stock WPL W10436252 $150.60

4

W10443319 Whirlpool Door Gasket In Stock WPL W10443319 $227.17

4

WP627843 Whirlpool Refrigerator Ejector Arm Backorder WPL WP627843 $59.14

4

WP67001279 Whirlpool Refrigerator Dairy Tray Backorder WPL WP67001279 $53.02

4

WP67006010 Whirlpool Refrigerator Shelf Trim Backorder WPL WP67006010 $106.83

4

Cover, Light WPL 67003905 Contact Us For Availability

4

Screw WPL 67006573 Contact Us For Availability

5

W11028221 Whirlpool Refrigerator Shaft In Stock WPL W11028221 $12.86

5

WP12227305WD Whirlpool Drawer Support Backorder WPL WP12227305WD $51.68

5

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $32.35

5

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $3.46

5

WP67004954 Whirlpool Refrigerator Screw Backorder WPL WP67004954 $4.77

5

WPW10371195 Whirlpool Refrigerator Cantilever Backorder WPL WPW10371195 $50.20

6

67005421 Whirlpool Hoist Cover Backorder WPL 67005421 $44.86

6

W11311945 Whirlpool Refrigerator Screw Backorder WPL W11311945 $10.64

6

W11447232 Whirlpool Refrigerator Socket In Stock WPL W11447232 $5.85

6

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $44.78

6

WP67001719 Whirlpool Refrigerator Track Backorder WPL WP67001719 $3.22

7

10712401 Whirlpool Refrigerator Vent Plug (Wh Backorder WPL 10712401 $7.01

7

67004838 Whirlpool Refrigerator Button Vent P Backorder WPL 67004838 $7.35

7

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $5.88

7

Harness, Evap Heater WPL 67005679 Contact Us For Availability

8

W10830189 Whirlpool Refrigerator Door Gasket In Stock WPL W10830189 $145.32

8

W11368721 Whirlpool Refrigerator French Door In Stock WPL W11368721 $121.03

8

WP12579803 Whirlpool Refrigerator Drain Pan Backorder WPL WP12579803 $161.52

8

Thermostat (Not Available -- D7824706Q) WPL ARI153367A Contact Us For Availability

8

Divider, Upper Basket WPL 67004127 Contact Us For Availability

9

67002329 Whirlpool Refrigerator Pantry Gasket Backorder WPL 67002329 $16.76

9

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $4.33

9

WP2319727B Whirlpool Refrigerator Handle Backorder WPL WP2319727B $151.36

9

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $3.46

9

Door Handle (Stainless) WPL 2319727S Contact Us For Availability

9

Grommet (3) WPL 61004743 Contact Us For Availability

12656202 Whirlpool Refrigerator Housing Backorder WPL 12656202 $84.64

WP67001255 Whirlpool Ice Bucket In Stock WPL WP67001255 $85.52

WP67002493 Whirlpool Refrigerator Defrost Hea In Stock WPL WP67002493 $78.91

Stud, Handle WPL 67004790 Contact Us For Availability

Housing, Light WPL 67001035 Contact Us For Availability

12831101 Whirlpool Refrigerator Tube Clamp Backorder WPL 12831101 $11.97

67003900 Whirlpool Refrigerator Insert Damper In Stock WPL 67003900 $4.20

W11727809 Whirlpool Evaporator Cover Backorder WPL W11727809 $37.89

WP65889-4 Whirlpool Refrigerator Capacitor In Stock WPL WP65889-4 $47.49

Shelf, Slide (4) WPL 67005676 Contact Us For Availability

W10613606 Whirlpool Refrigerator Start Device In Stock WPL W10613606 $75.16

WP67003793 Whirlpool Refrigerator Temperature Backorder WPL WP67003793 $32.53

WP67006531 Whirlpool Water Inlet Valve In Stock WPL WP67006531 $132.73

WPW10289498 Whirlpool Refrigerator Cantilever Backorder WPL WPW10289498 $70.46

WP854334 Whirlpool Air Conditioner Sealing St Backorder WPL WP854334 $8.89

WPA3223101 Whirlpool Refrigerator Insert PL Backorder WPL WPA3223101 $4.19

WPW10330991 Whirlpool Refrigerator Bracket In Stock WPL WPW10330991 $67.83

WPW10330993 Whirlpool Refrigerator Bracket Backorder WPL WPW10330993 $72.57

67003906 Whirlpool Refrigerator Control Modul Backorder WPL 67003906 $76.82

WP12722803B Whirlpool Door Guide In Stock WPL WP12722803B $155.02

WP12722803W Whirlpool Door Support In Stock WPL WP12722803W $165.75

WP67003426 Whirlpool Refrigerator Thermostat In Stock WPL WP67003426 $41.64

WPB5705307 Whirlpool Refrigerator Tube Backorder WPL WPB5705307 $7.62

WPW10235370 Whirlpool Refrigerator Glide In Stock WPL WPW10235370 $134.37

67005680 Whirlpool Refrigerator Condenser Gro Backorder WPL 67005680 $16.76

WP67005626 Whirlpool Refrigerator Can Caddy Backorder WPL WP67005626 $67.46

WP67005633 Whirlpool Refrigerator Bracket Backorder WPL WP67005633 $5.76

WP98165 Whirlpool Screw Backorder WPL WP98165 $3.46

WPD7813010 Whirlpool Refrigerator Wire Harnes In Stock WPL WPD7813010 $38.87

W10709801 Whirlpool Refrigerator Screw Backorder WPL W10709801 $14.22

W11396033 Whirlpool Refrigerator Rocker Switc In Stock WPL W11396033 $17.32

WP12656018 Whirlpool Drawer Support In Stock WPL WP12656018 $32.08

WP12656105 Whirlpool Drawer Support In Stock WPL WP12656105 $37.68

WP2256087 Whirlpool Refrigerator Bracket Backorder WPL WP2256087 $62.84

WP67003638 Whirlpool Closing Cam In Stock WPL WP67003638 $4.51

WP67003639 Whirlpool Refrigerator Closer In Stock WPL WP67003639 $33.57

12968202W Whirlpool Refrigerator Door Stop Backorder WPL 12968202W $43.15

681390 Whirlpool Refrigerator Screw Backorder WPL 681390 $14.22

W11708403 Whirlpool Door Stop Backorder WPL W11708403 $5.76

WPW10143396 Whirlpool Refrigerator Crisper Pa Backorder WPL WPW10143396 $167.48

Strap WPL 67007052 Contact Us For Availability

W10251557 Whirlpool Refrigerator Bracket Backorder WPL W10251557 $64.18

WP12227304WD Whirlpool Refrigerator Drawer Su Backorder WPL WP12227304WD $67.18

WP67006131 Whirlpool Refrigerator Condenser Backorder WPL WP67006131 $245.73

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $3.46

67002722 Whirlpool Refrigerator White Door Bu Backorder WPL 67002722 $16.76

Bushing, Door (Upper Left) (Black) WPL 12395501B Contact Us For Availability

Module Assembly (Not Available Order D7824706 WPL ARI153368A Contact Us For Availability

Slide, Drawer (2) WPL 67004863 Contact Us For Availability

Trim, Crisper WPL 67005675 Contact Us For Availability

SCREW WPL 67006550 Contact Us For Availability

67004978 Whirlpool Refrigerator Black Door Bu Backorder WPL 67004978 $12.24

67006564 Whirlpool Refrigerator Screw Backorder WPL 67006564 $3.22

W11451451 Whirlpool Refrigerator Gasket Backorder WPL W11451451 $6.21

W11547653 Whirlpool Refrigerator Drip Tray Backorder WPL W11547653 $45.77

WP67004977 Whirlpool Refrigerator Door Hinge Backorder WPL WP67004977 $4.19

WP67006185 Whirlpool Refrigerator Crisper Fra In Stock WPL WP67006185 $127.05

W10284690 Whirlpool Refrigerator Bracket Backorder WPL W10284690 $46.95

WP67006655 Whirlpool Refrigerator Crisper Gla Backorder WPL WP67006655 $133.16

Bracket, Slide (Right) WPL 67004972 Contact Us For Availability

Spacer WPL 67005719 Contact Us For Availability

12002041 Whirlpool Refrigerator Evaporator Re In Stock WPL 12002041 $221.47

12028601W Whirlpool Refrigerator Hinge Bushin Backorder WPL 12028601W $10.35

WP67002731 Whirlpool Refrigerator Door Bushin Backorder WPL WP67002731 $4.19

WPW10175909 Whirlpool Grille Assembly In Stock WPL WPW10175909 $34.95

Ladder, Center WPL 67003036 Contact Us For Availability

Shroud, Evap.Fan WPL 67002777 Contact Us For Availability

Door, Right (Black) WPL 13024005B Contact Us For Availability

Door, Right (White) WPL 13024005W Contact Us For Availability

Door, Right (Stainless Steel) WPL W10137008 Contact Us For Availability

Ladder, Side WPL 67003037 Contact Us For Availability

Dam (Left Side) WPL 67001083 Contact Us For Availability

Dam (Right Side) WPL 67001084 Contact Us For Availability

67006425 Whirlpool Refrigerator Screw In Stock WPL 67006425 $3.22

M0286708 Whirlpool Refrigerator Holder Nut As Backorder WPL M0286708 $41.67

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $35.14

Motor, Fan WPL 67004432 Contact Us For Availability

W10709795 Whirlpool Refrigerator Screw Backorder WPL W10709795 $12.17

W11673433 Whirlpool Clip Backorder WPL W11673433 $69.92

WP67002780 Whirlpool Refrigerator Grommet Backorder WPL WP67002780 $5.76

WPW10243392 Whirlpool Dishwasher Nameplate Backorder WPL WPW10243392 $51.53

WPW10243393 Whirlpool Dishwasher Nameplate Backorder WPL WPW10243393 $55.66

Nameplate (Grey) WPL W10046610 Contact Us For Availability

26

WP67006415 Whirlpool Refrigerator Screw Backorder WPL WP67006415 $4.05

26

WPW10128551 Whirlpool Evaporator Fan Motor In Stock WPL WPW10128551 $53.43

26

Harness, Unit WPL 13060201 Contact Us For Availability

W10815413 Whirlpool Refrigerator Funnel Backorder WPL W10815413 $29.53

W10819546 Whirlpool Refrigerator Clip Backorder WPL W10819546 $8.08

WP67005864 Whirlpool Humidity Control In Stock WPL WP67005864 $4.19

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $17.11

28

67003794 Whirlpool Refrigerator Temperature C Backorder WPL 67003794 $12.60

28

W10160407 Whirlpool Refrigerator Compressor In Stock WPL W10160407 $453.21

28

WPM0500703 Whirlpool Refrigerator O-Ring Seal Backorder WPL WPM0500703 $6.05

W11490183 Whirlpool Refrigerator Utility Pan Backorder WPL W11490183 $76.29

W11519867 Whirlpool Refrigerator Cover In Stock WPL W11519867 $13.49

WPB8381501 Whirlpool Refrigerator Door Gasket In Stock WPL WPB8381501 $4.19

Control Board WPL 12782027 Contact Us For Availability

12002355 Whirlpool Refrigerator Thermistor Ki In Stock WPL 12002355 $29.84

W11498983 Whirlpool Refrigerator Knob Backorder WPL W11498983 $14.27

WP12575501 Whirlpool Refrigerator Micro Switc Backorder WPL WP12575501 $36.15

Harness, Wiring WPL 12972902 Contact Us For Availability

12707303SP Whirlpool Refrigerator Plate Backorder WPL 12707303SP $51.89

W11176463 Whirlpool Refrigerator Water Tube In Stock WPL W11176463 $47.57

WP67003924 Whirlpool Refrigerator Cover Backorder WPL WP67003924 $4.19

WP67005930 Whirlpool Refrigerator Pantry Draw In Stock WPL WP67005930 $52.39

Shroud WPL 12575305 Contact Us For Availability

67002816 Whirlpool Refrigerator Waterline Cli Backorder WPL 67002816 $17.13

W10503185 Whirlpool Dishwasher Cutlery Basket Backorder WPL W10503185 $67.31

WP489474 Whirlpool Refrigerator Screw Backorder WPL WP489474 $3.51

WP67004953 Whirlpool Refrigerator Bracket Backorder WPL WP67004953 $45.92

67003796 Whirlpool Refrigerator Fiber Acousti Backorder WPL 67003796 $13.18

67005417 Whirlpool Refrigerator Harness F Backorder WPL 67005417 $62.87

W10709797 Whirlpool Refrigerator Screw Backorder WPL W10709797 $14.93

W11677725 Whirlpool Refrigerator Guide Backorder WPL W11677725 $14.41

Harness, Damper Control WPL 8208197 Contact Us For Availability

Following Parts Not Illustrated WPL ARI153363A Contact Us For Availability

Harness, Lights (Freezer) WPL 67006095 Contact Us For Availability

Following Parts Not Illustrated WPL ARI153361A Contact Us For Availability

Divider, Lower Basket WPL 67004812 Contact Us For Availability

Box, Control WPL 67005718 Contact Us For Availability

34

10547003 Whirlpool Refrigerator Dryer Clip Backorder WPL 10547003 $7.15

34

Basket, Freezer (Upper) WPL 67004988 Contact Us For Availability

35

67003493 Whirlpool Refrigerator Compressor Gr Backorder WPL 67003493 $16.76

36

Clip, Evaporator WPL 10623002 Contact Us For Availability

37

WP33001882 Whirlpool Screw Backorder WPL WP33001882 $56.40

38

12846902 Whirlpool Refrigerator Screw Backorder WPL 12846902 $14.22

39

WP67002321 Whirlpool Refrigerator Divider Pan Backorder WPL WP67002321 $19.01

40

WP12866903 Whirlpool Refrigerator Discharge T Backorder WPL WP12866903 $90.37
