Model Huebsch HWNKX2SP115CW01 Washer – Common Parts & Diagrams

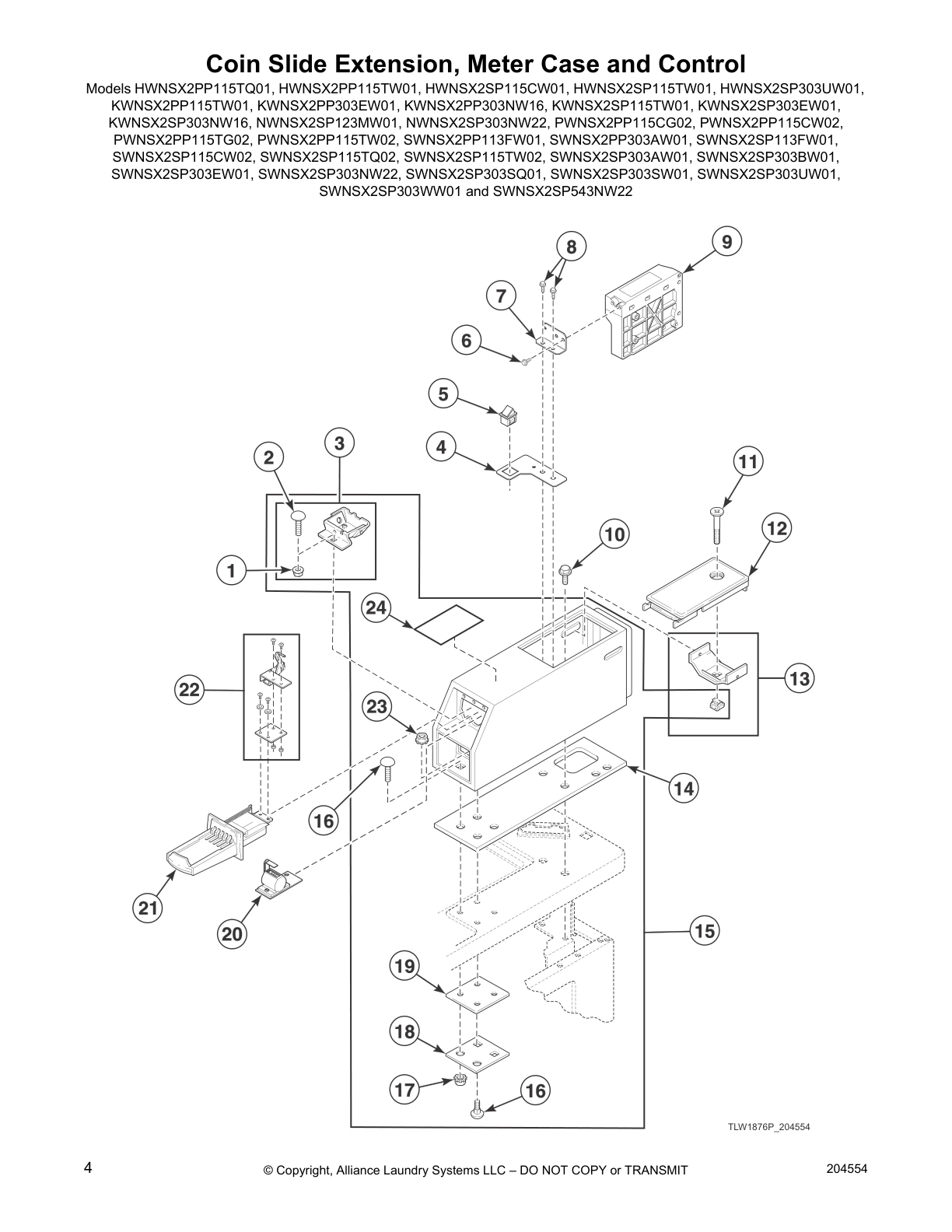

Coin Slide Extension, Meter Case and Control

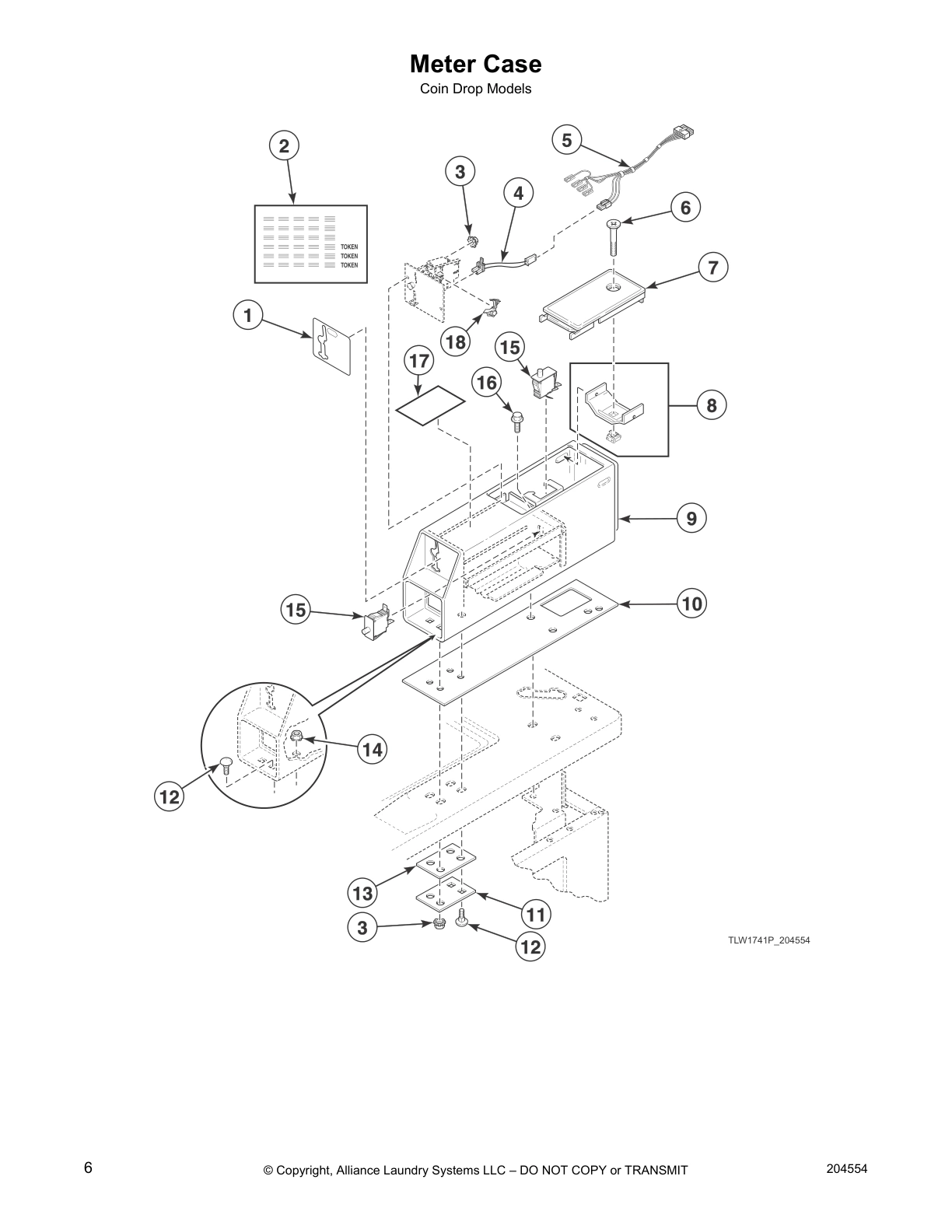

Meter Case

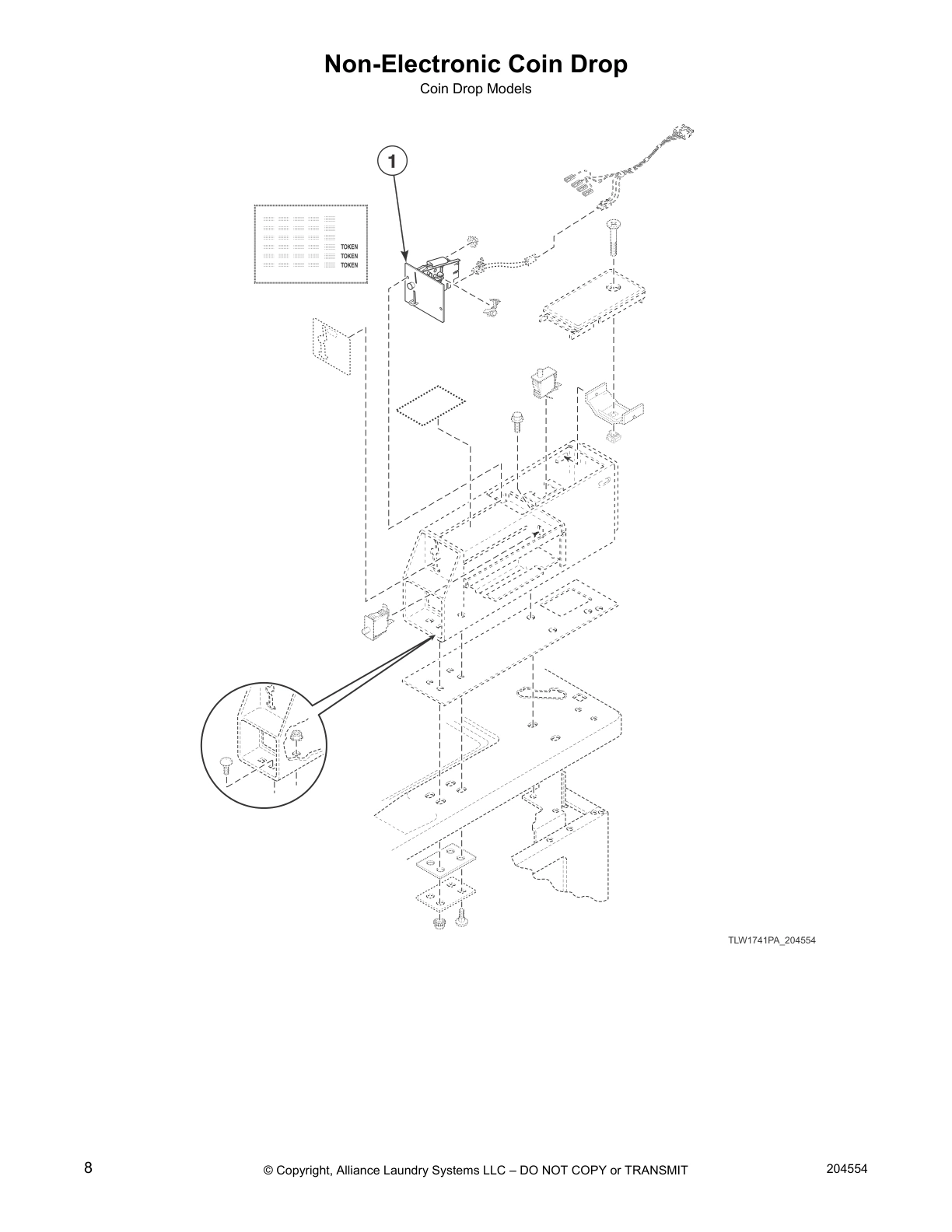

Non-Electronic Coin Drop

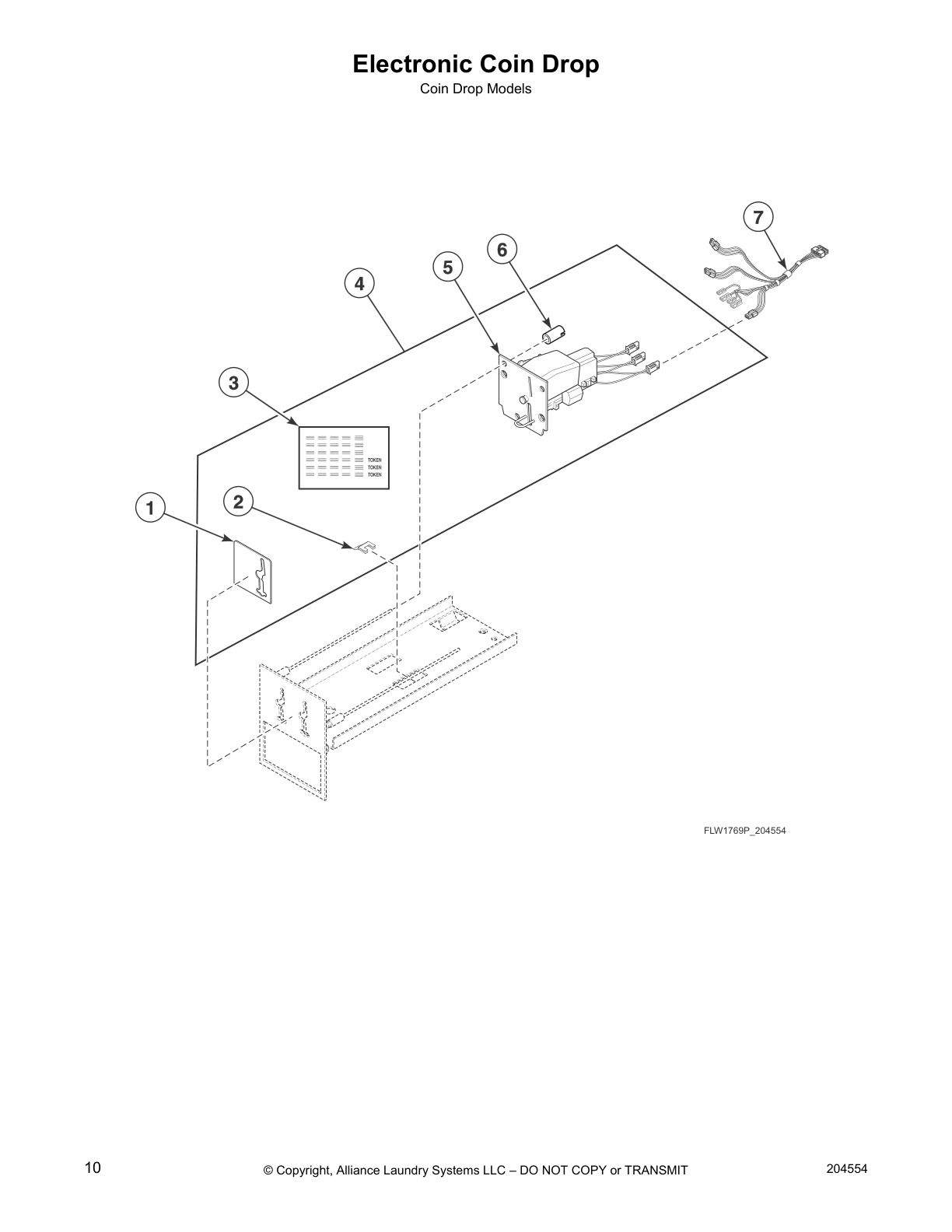

Electronic Coin Drop

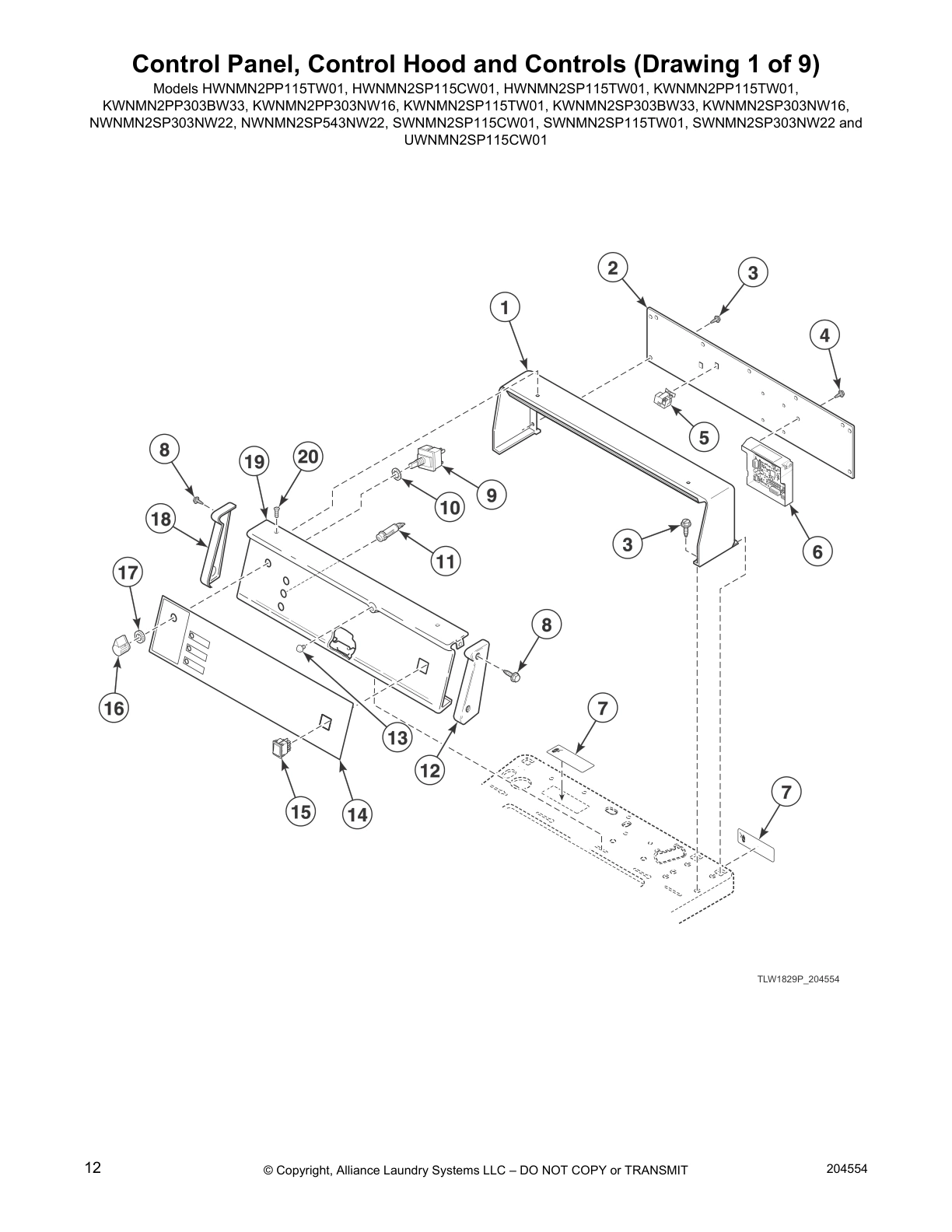

Control Panel, Control Hood and Controls (Drawing 1 of 9)

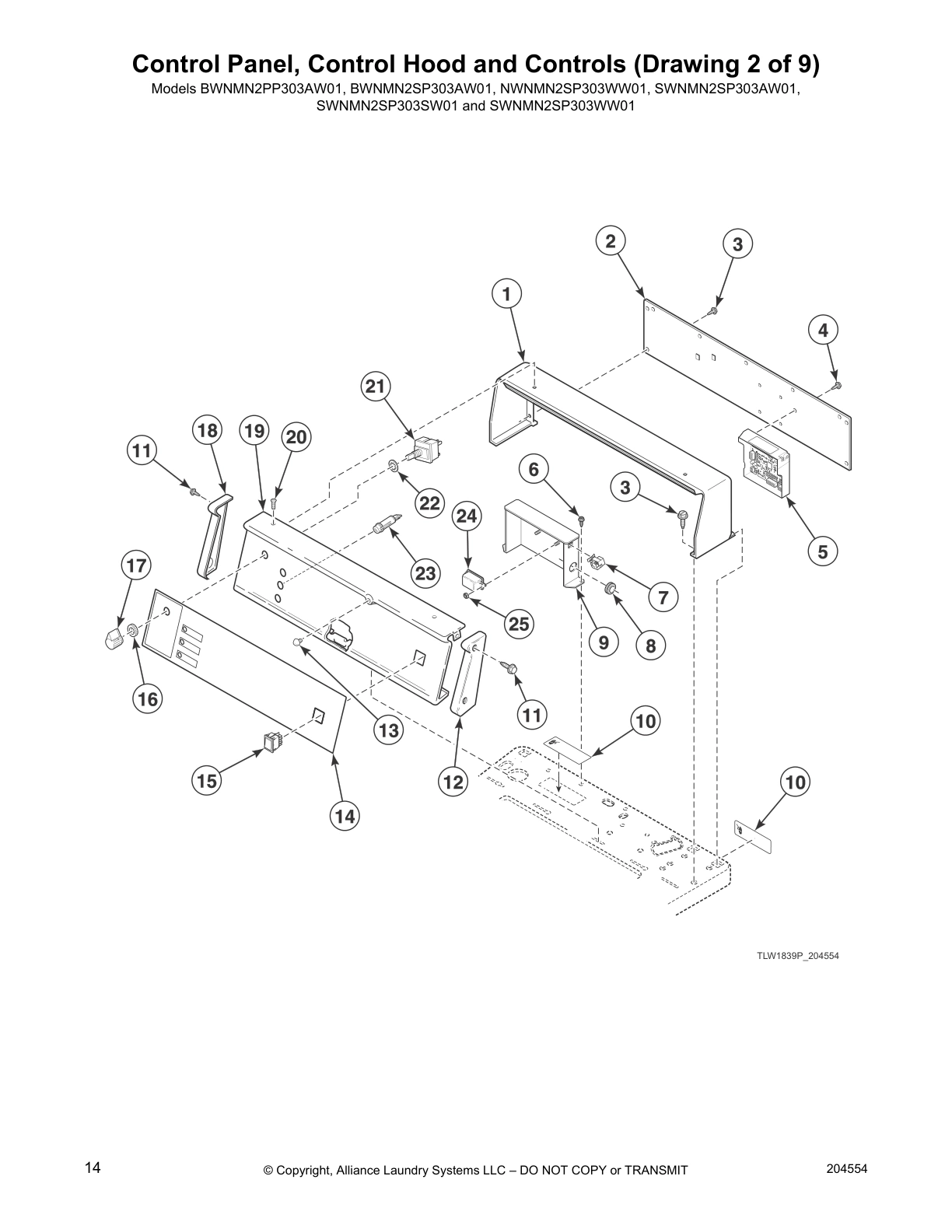

Control Panel, Control Hood and Controls (Drawing 2 of 9)

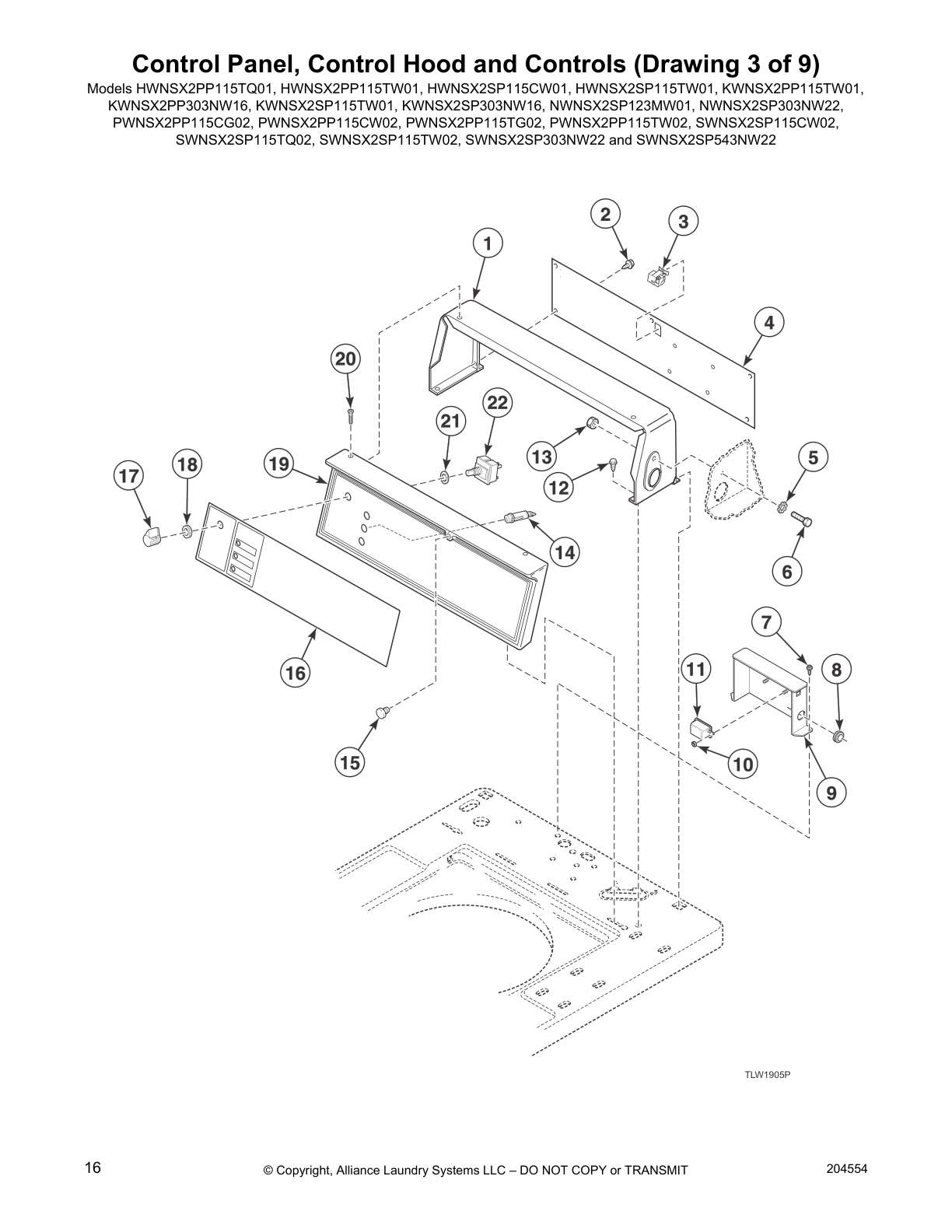

Control Panel, Control Hood and Controls (Drawing 3 of 9)

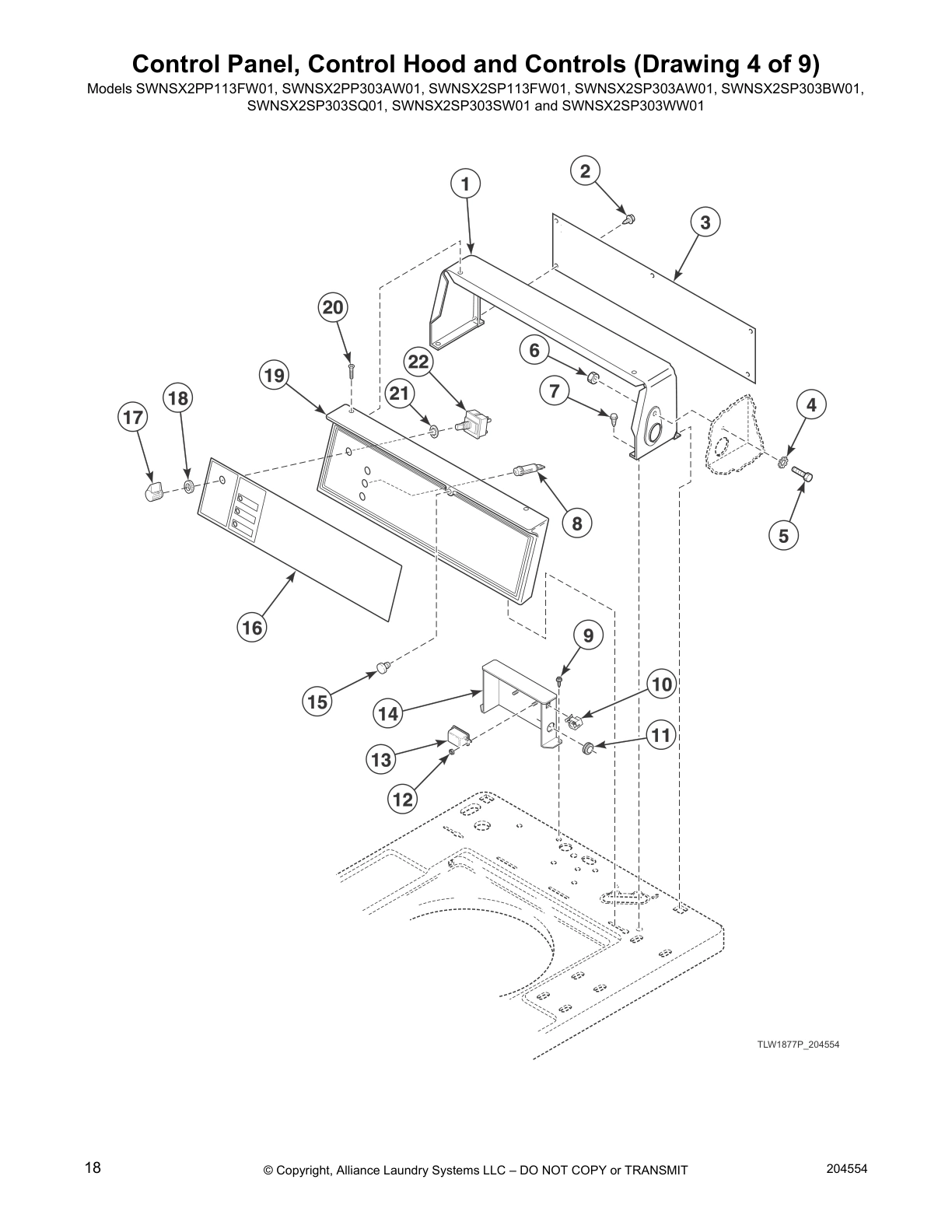

Control Panel, Control Hood and Controls (Drawing 4 of 9)

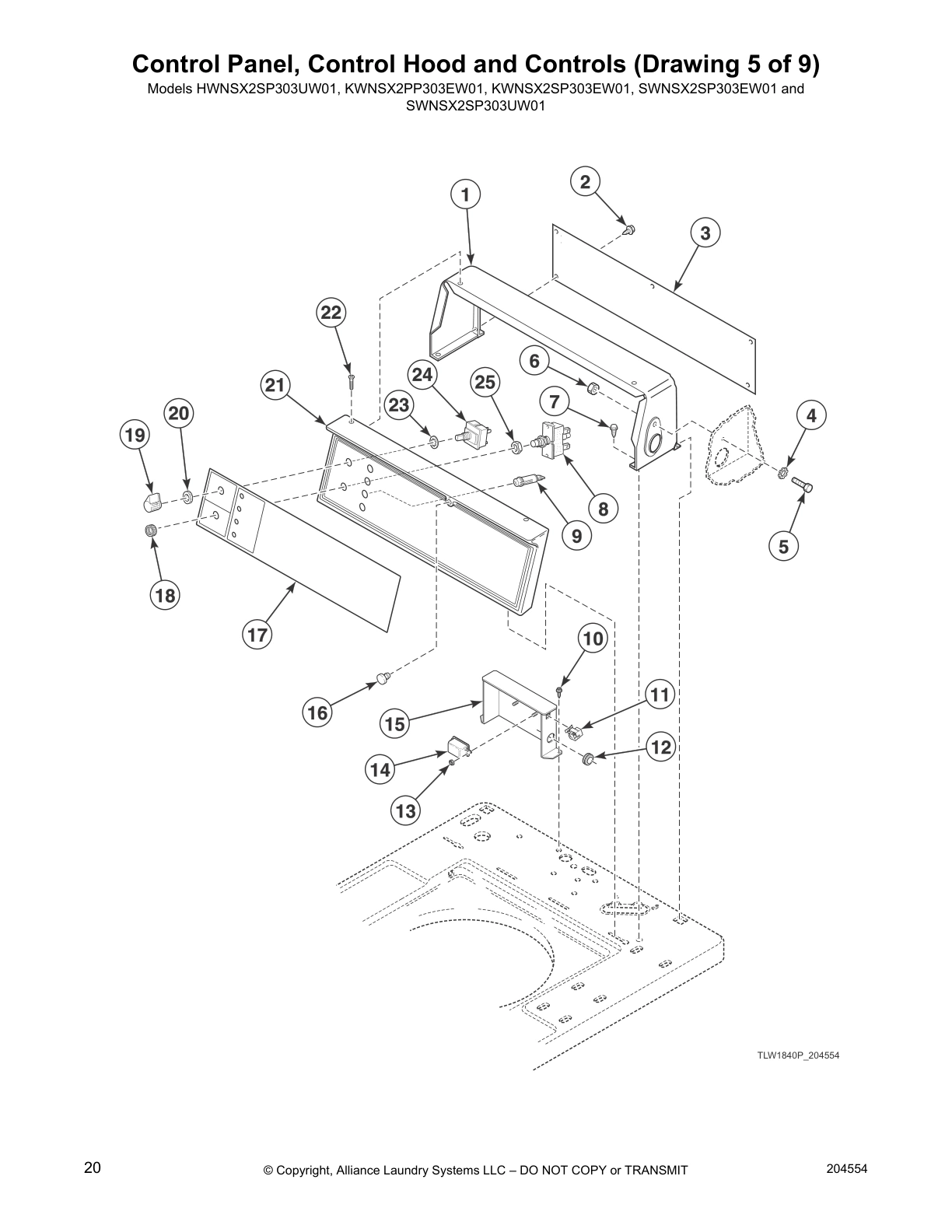

Control Panel, Control Hood and Controls (Drawing 5 of 9)

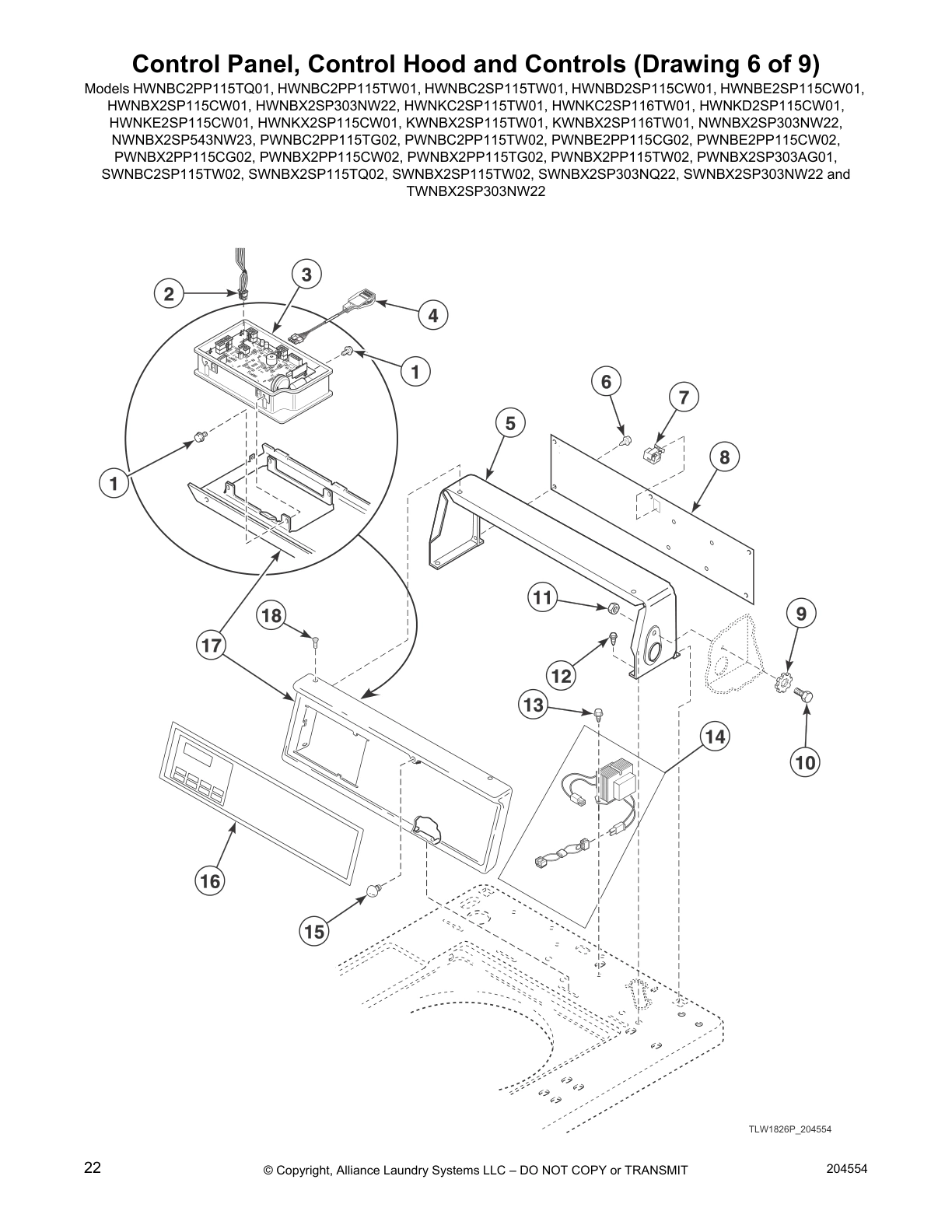

Control Panel, Control Hood and Controls (Drawing 6 of 9)

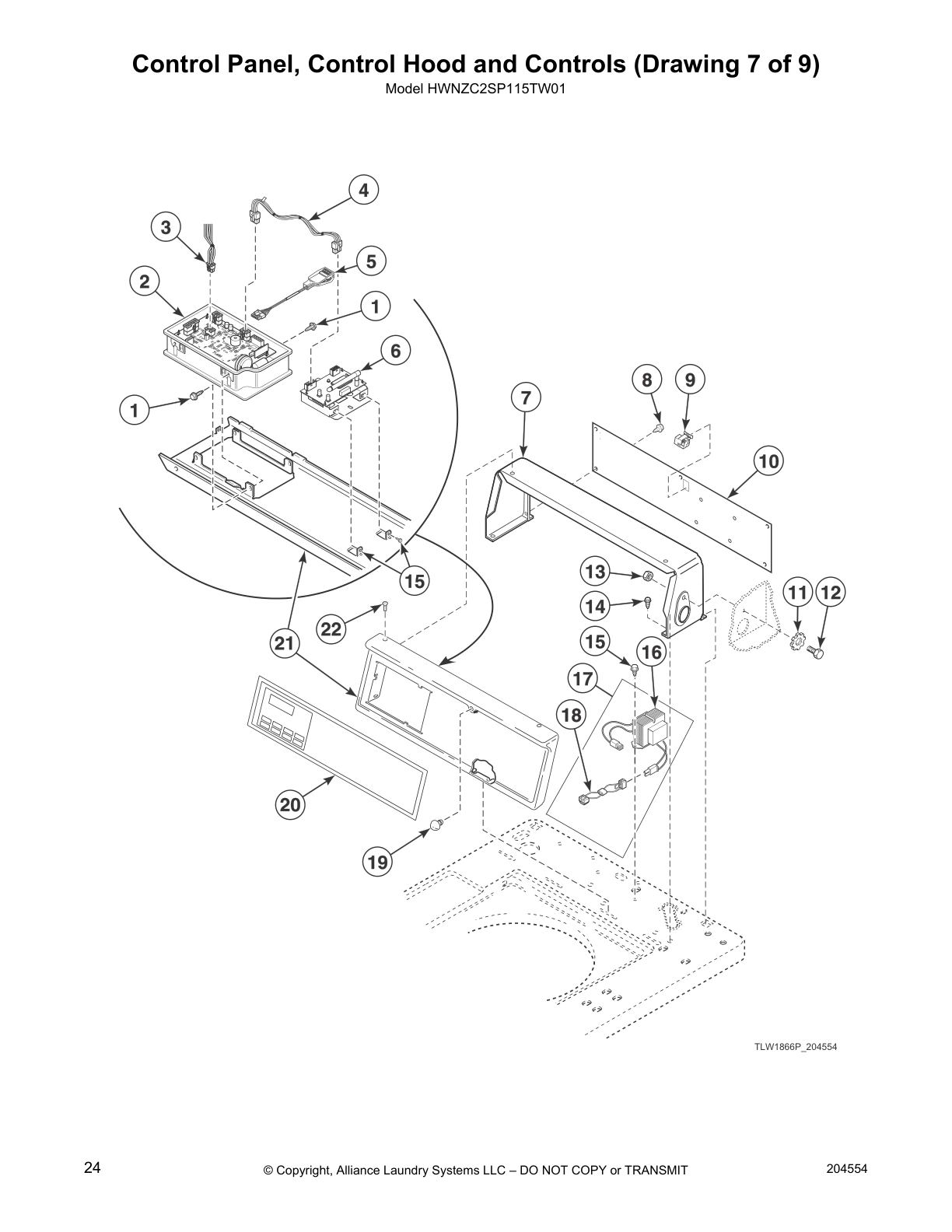

Control Panel, Control Hood and Controls (Drawing 7 of 9)

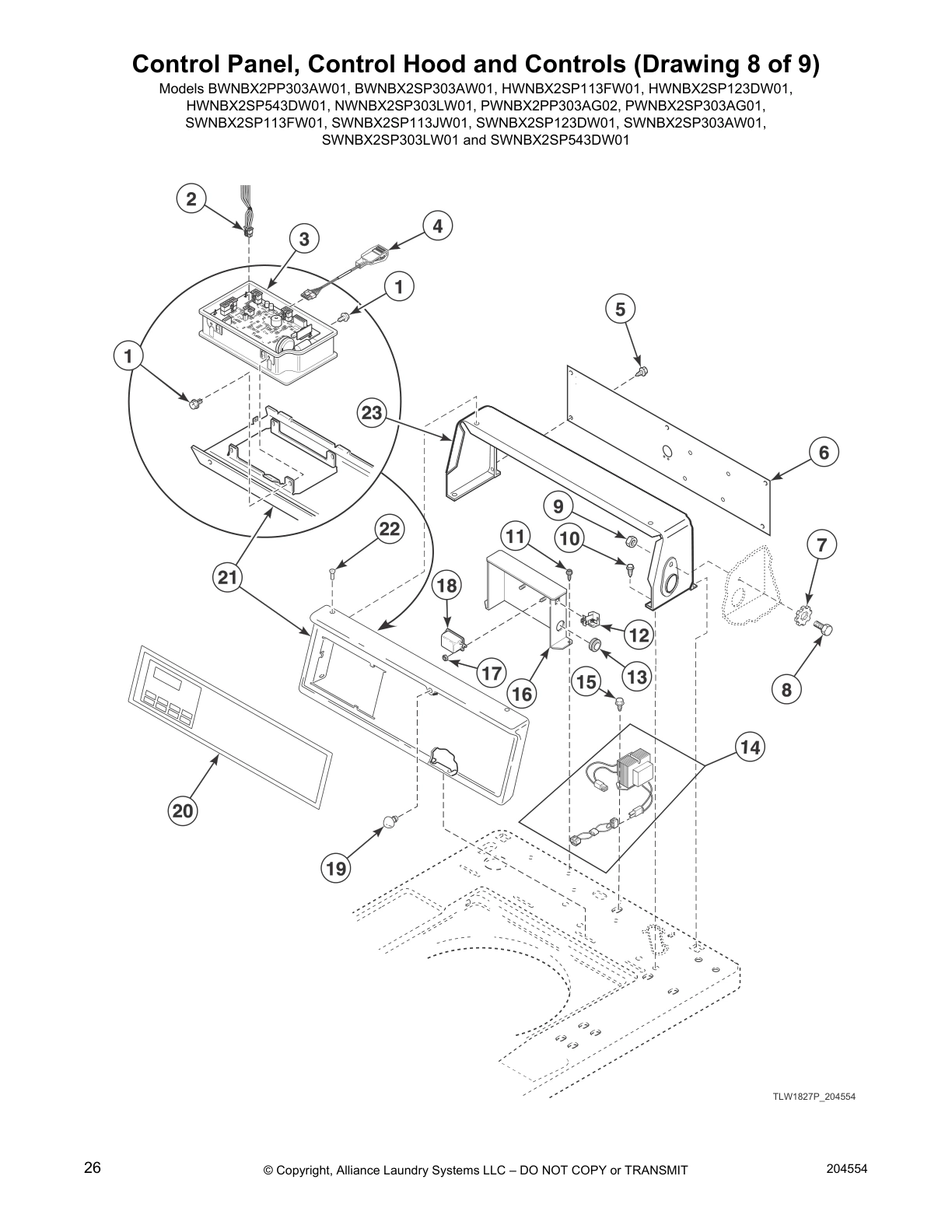

Control Panel, Control Hood and Controls (Drawing 8 of 9)

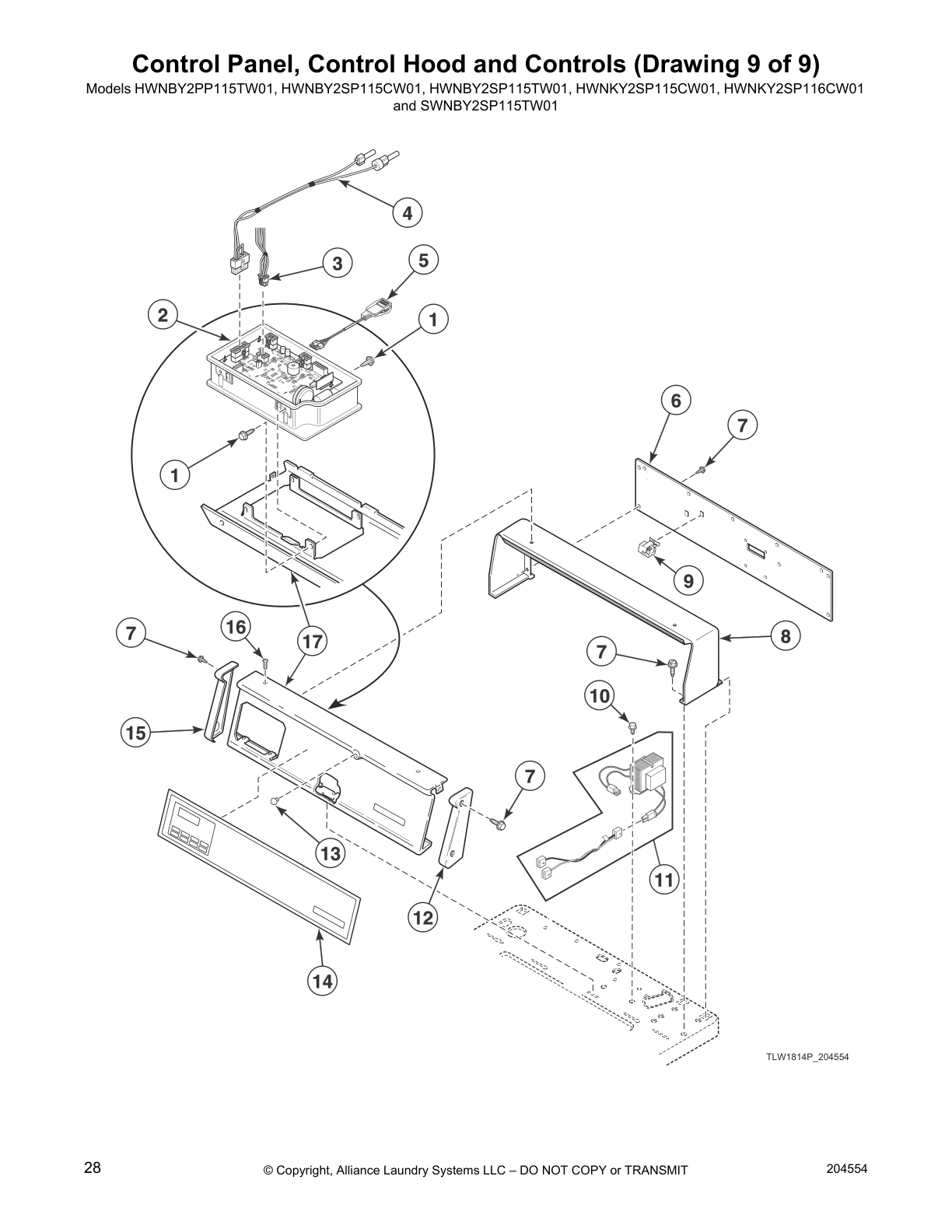

Control Panel, Control Hood and Controls (Drawing 9 of 9)

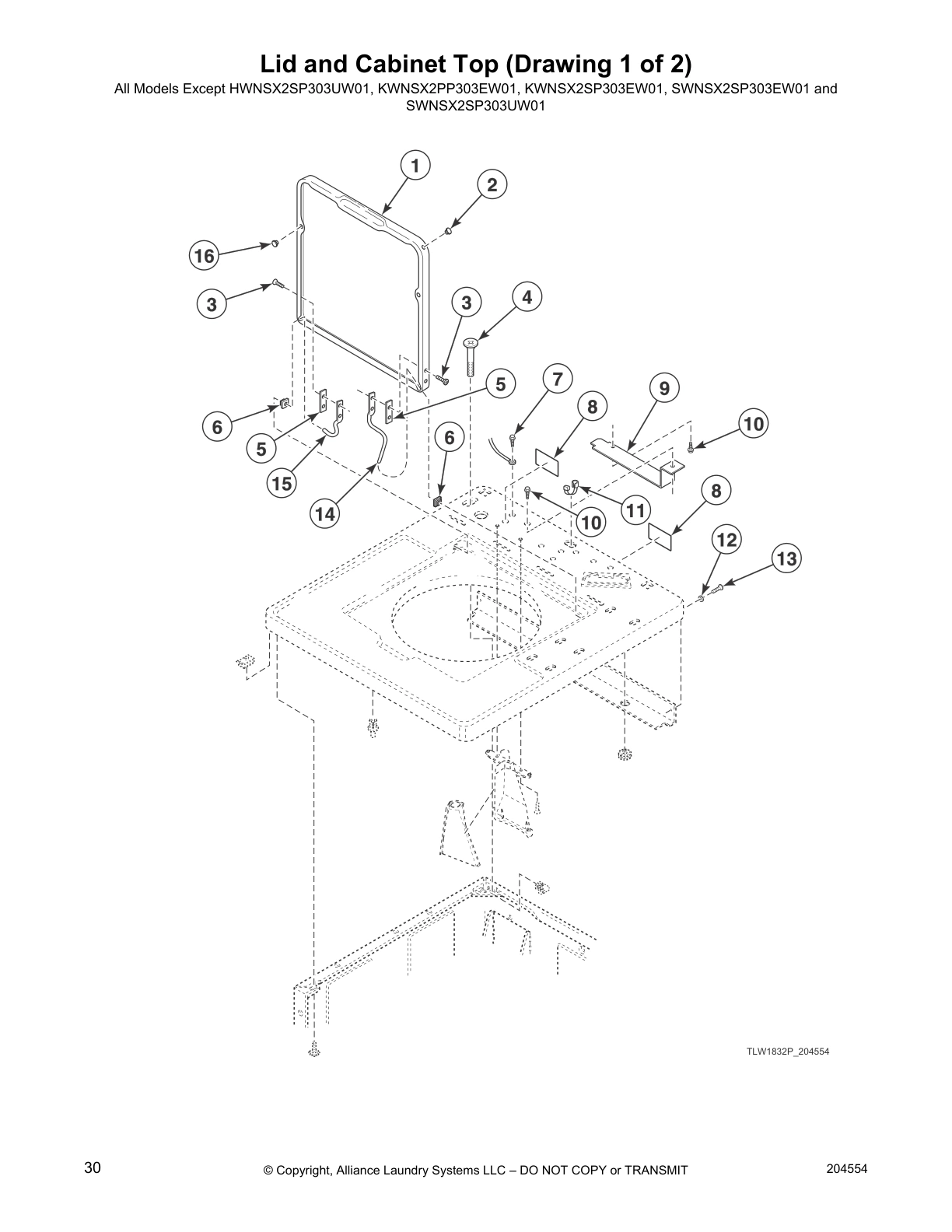

Lid and Cabinet Top (Drawing 1 of 2)

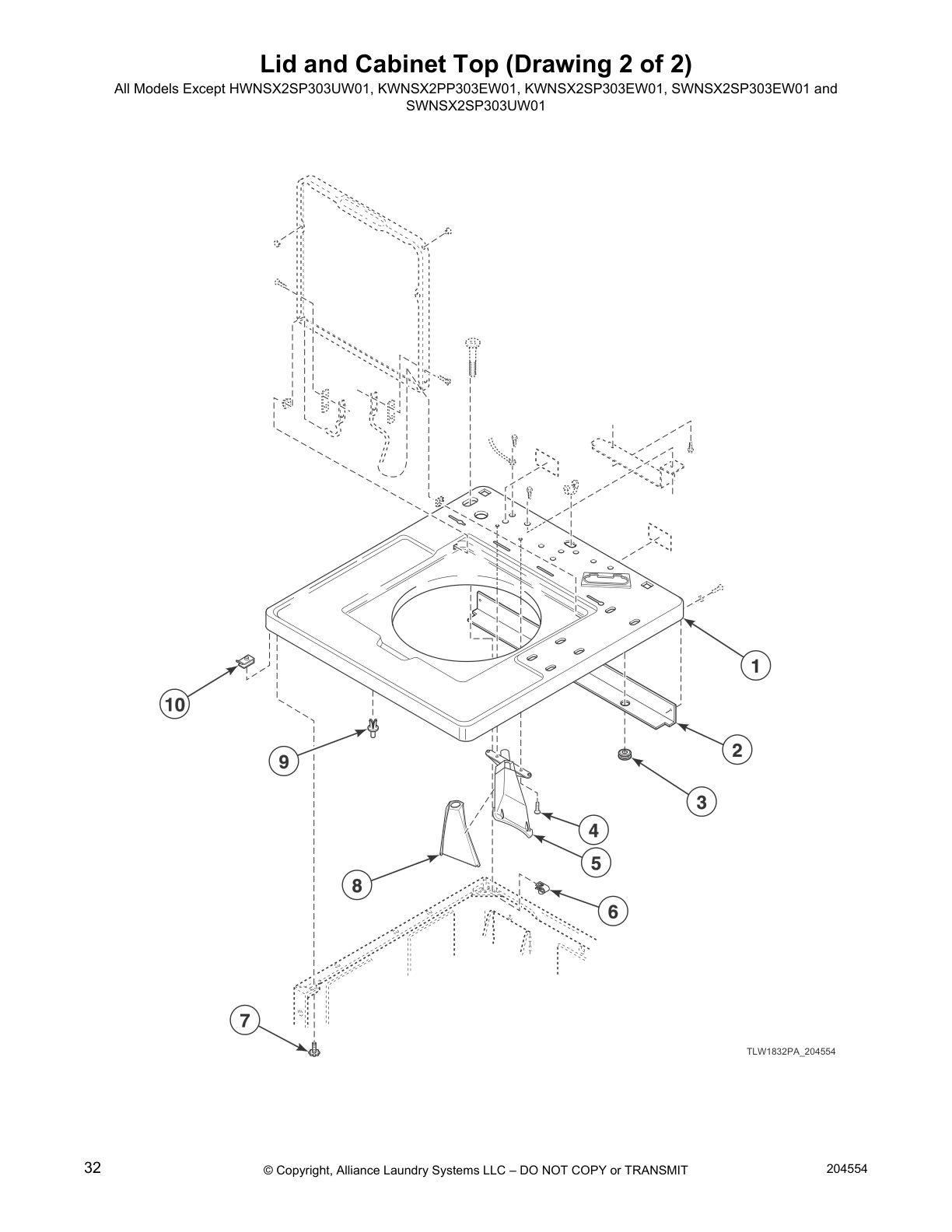

Lid and Cabinet Top (Drawing 2 of 2)

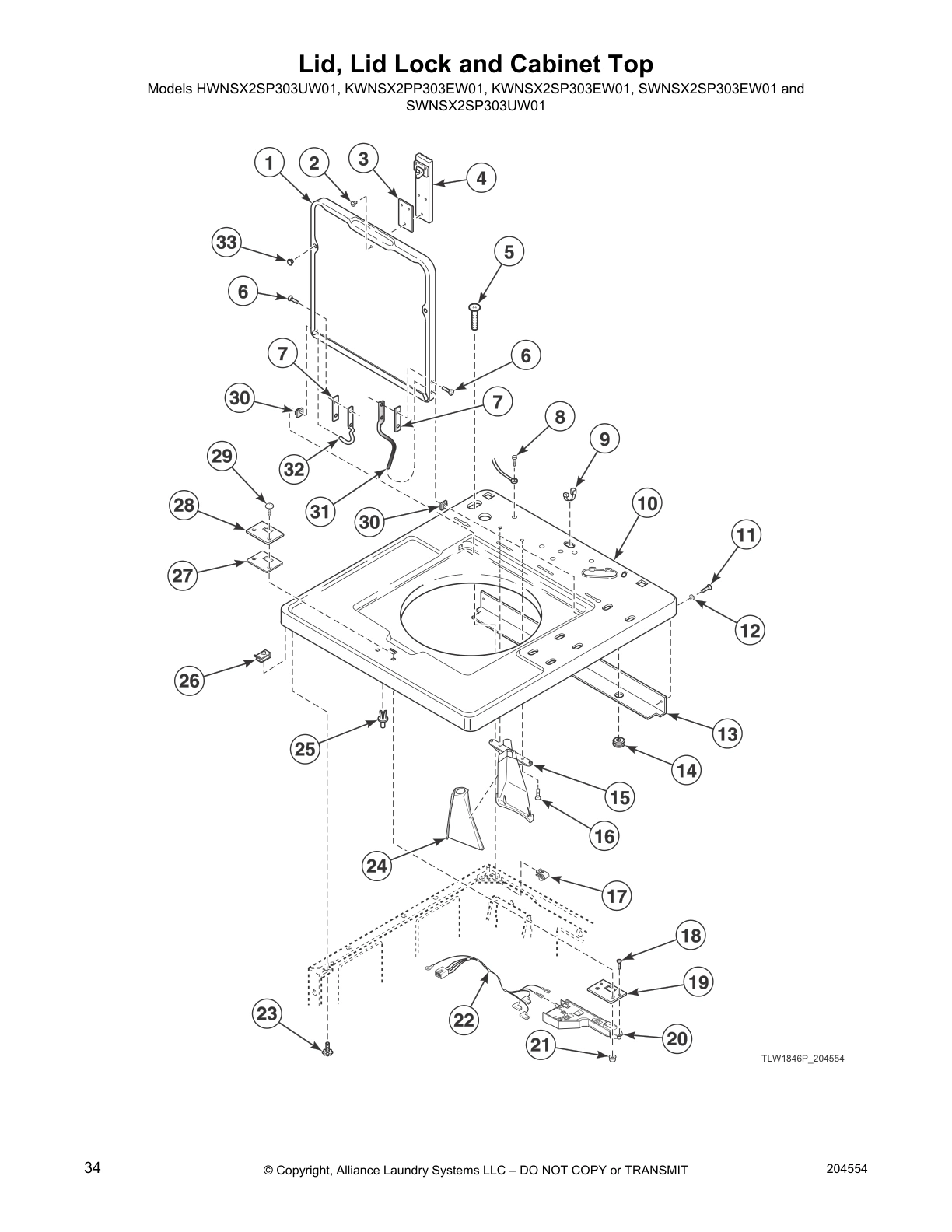

Lid, Lid Lock and Cabinet Top

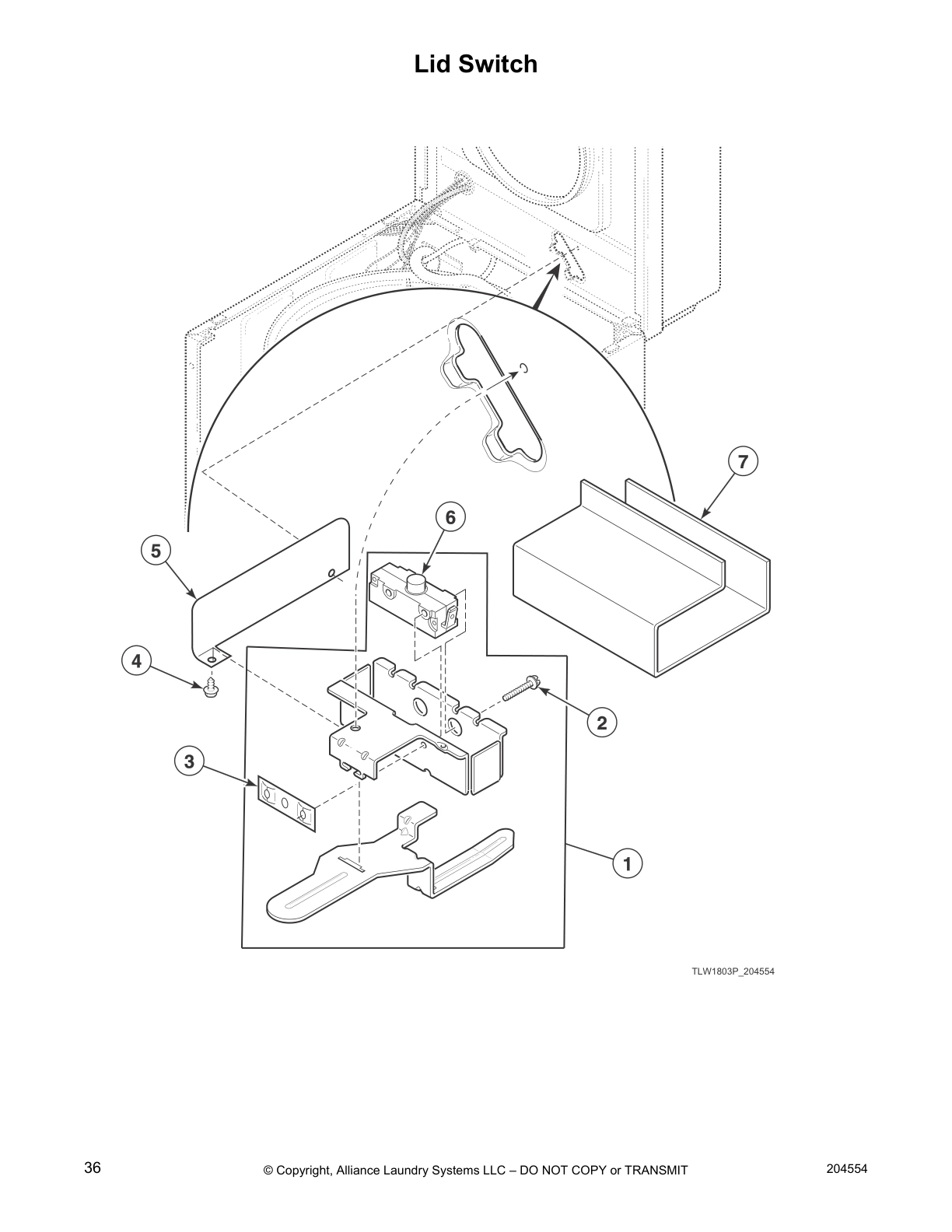

Lid Switch
Mixing Valve (Drawing 1 of 2)

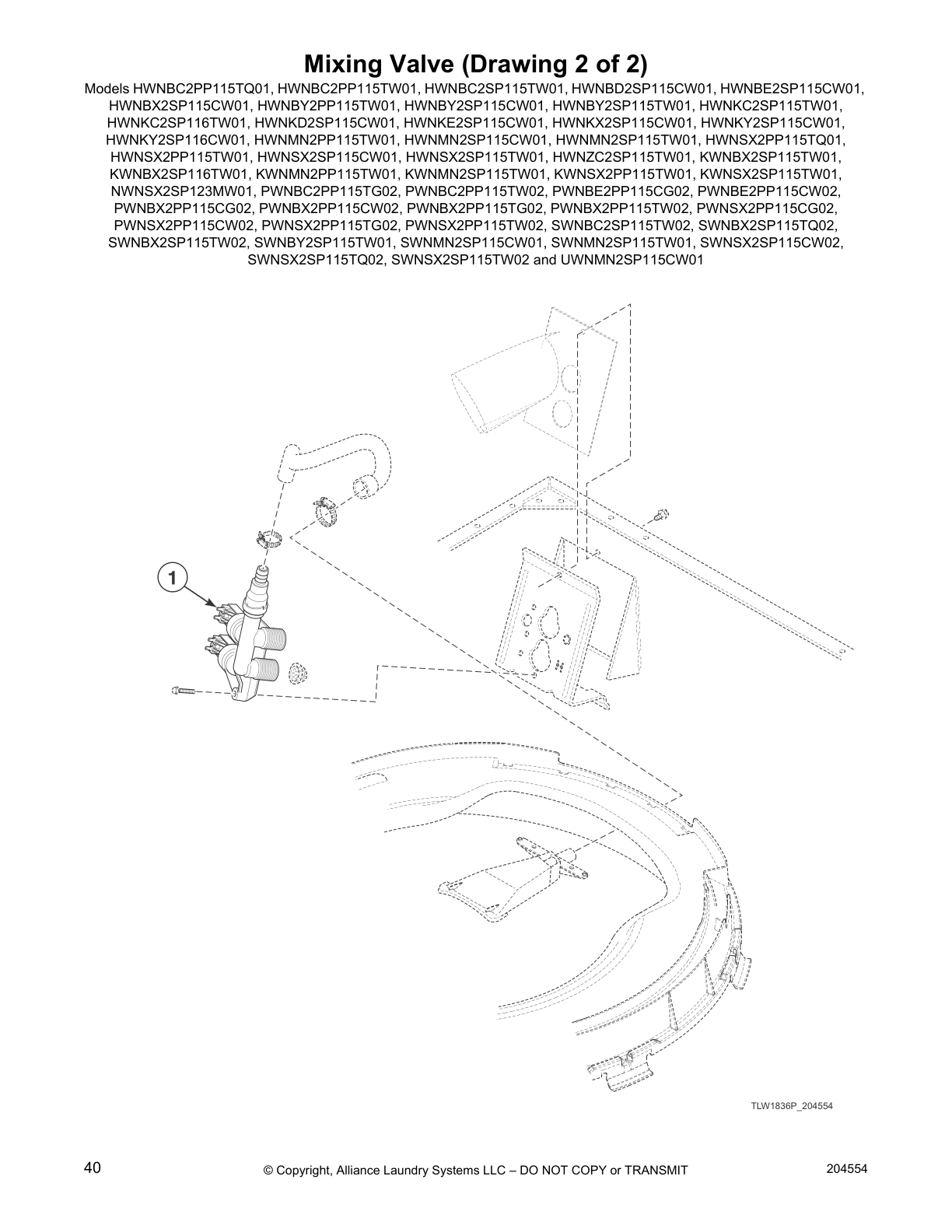

Mixing Valve (Drawing 2 of 2)

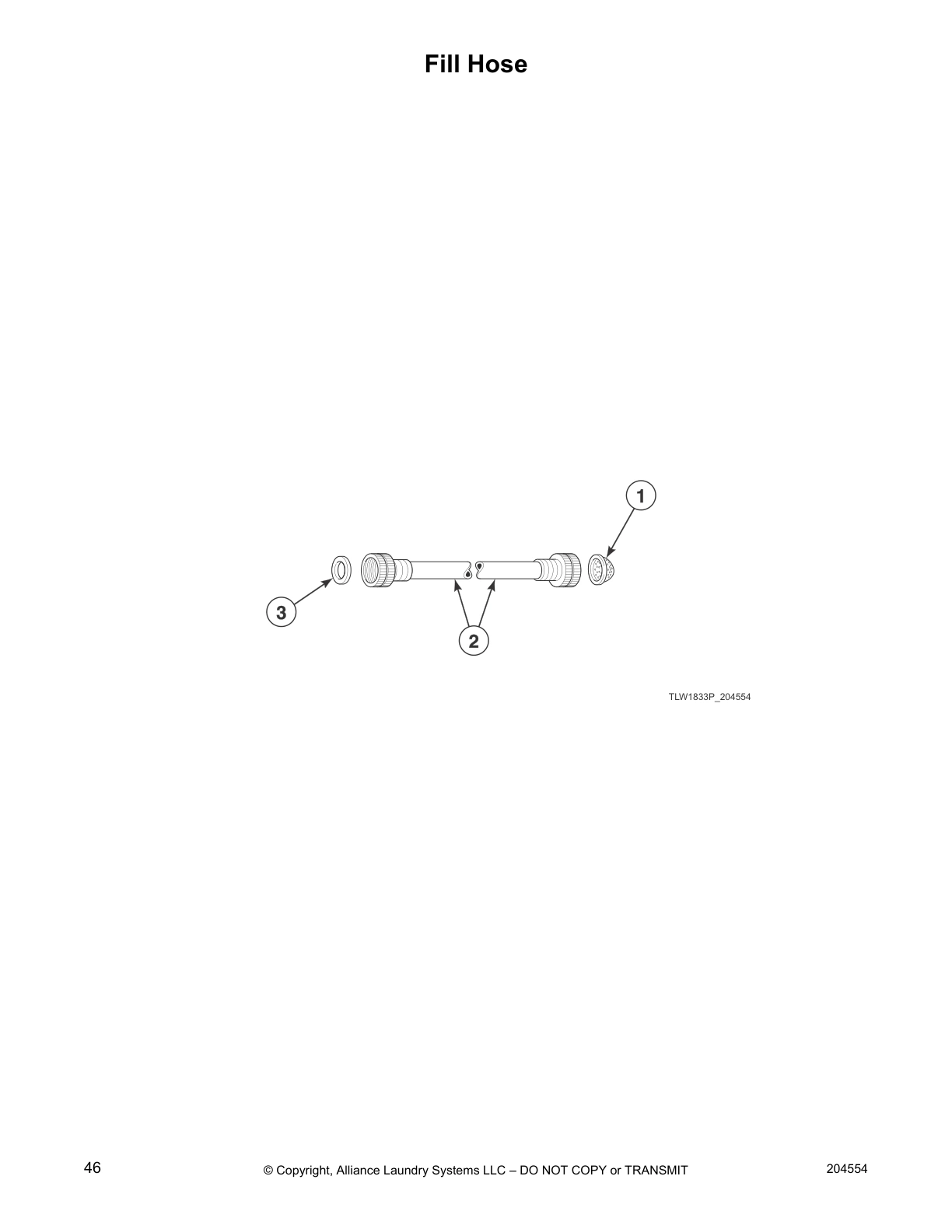

Fill Hose

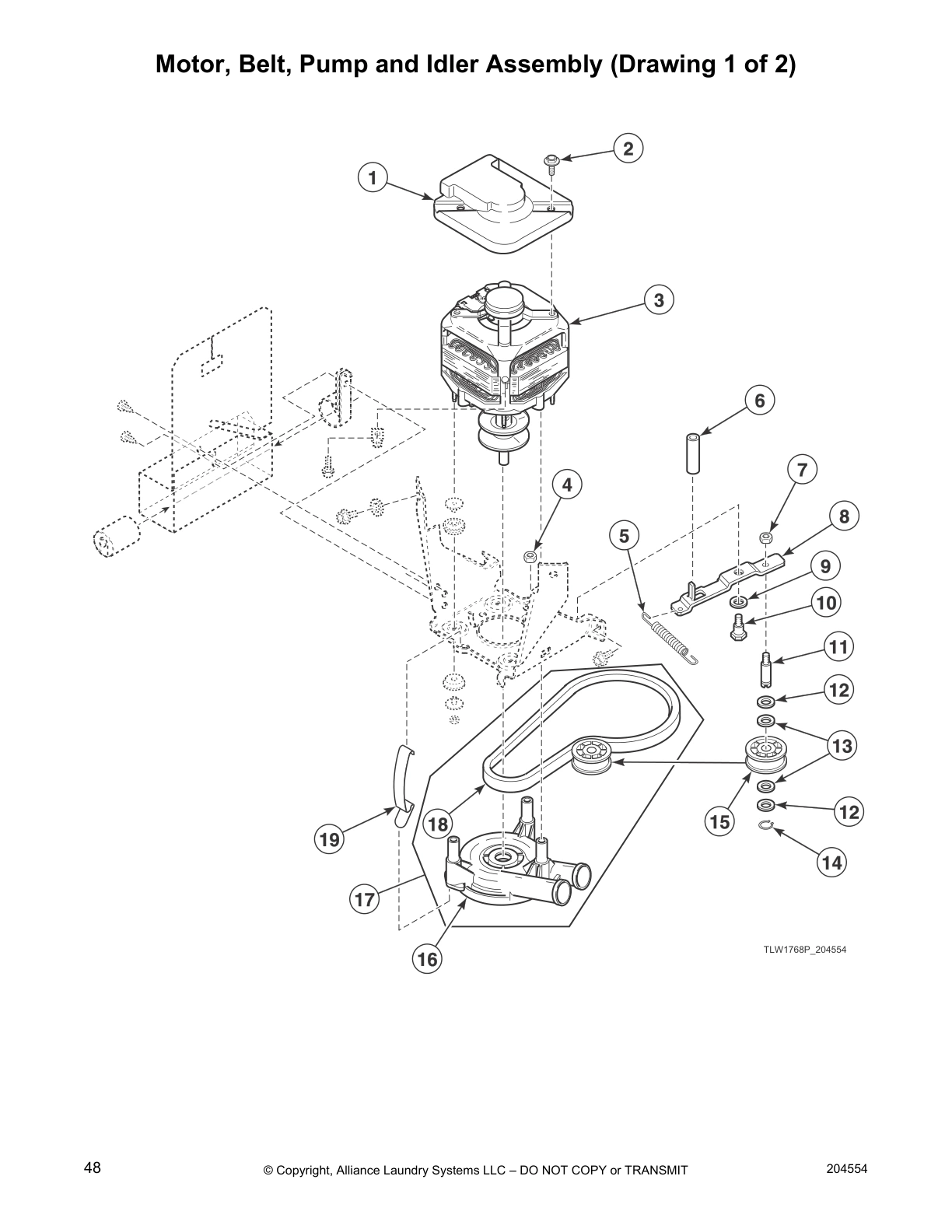

Motor, Belt, Pump and Idler Assembly (Drawing 1 of 2)

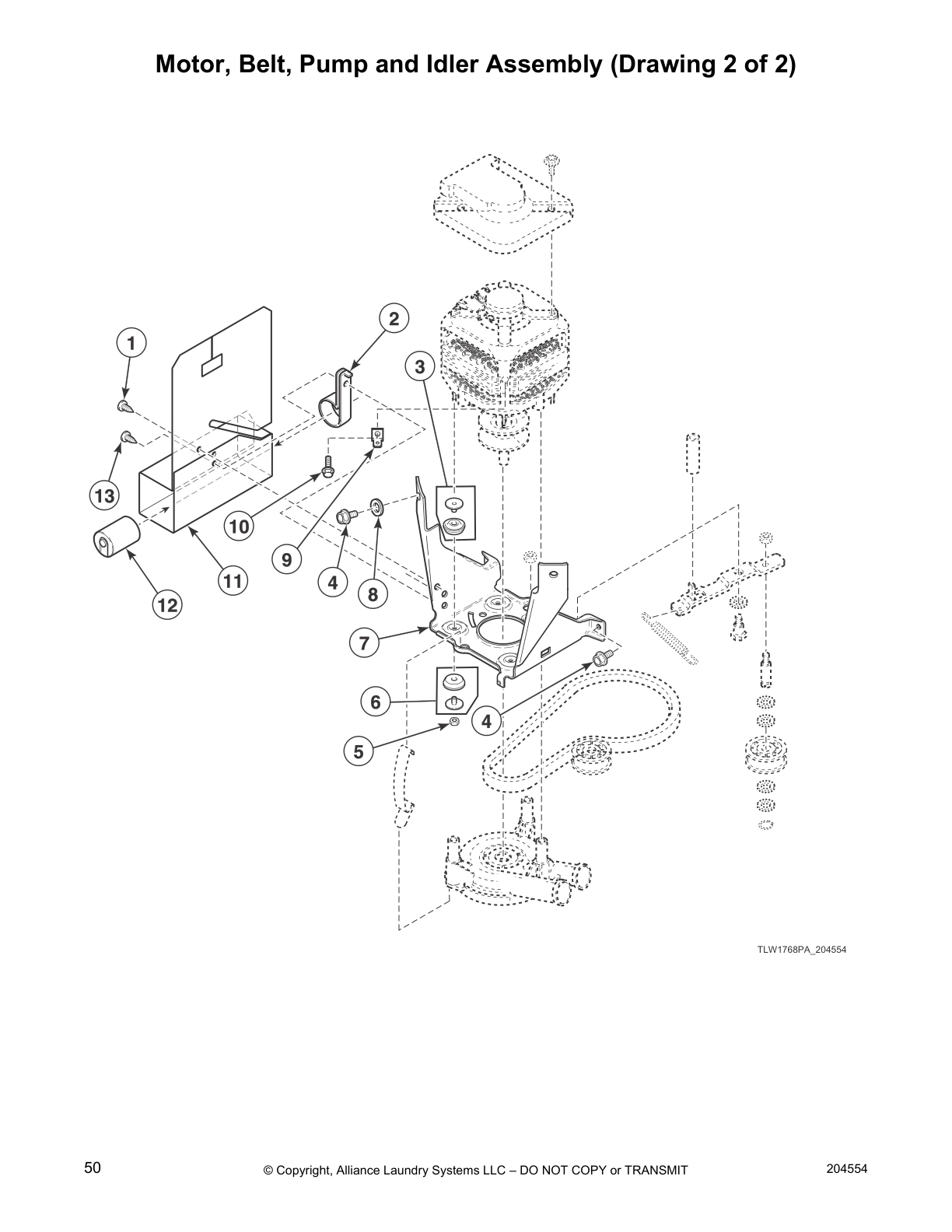

Motor, Belt, Pump and Idler Assembly (Drawing 2 of 2)

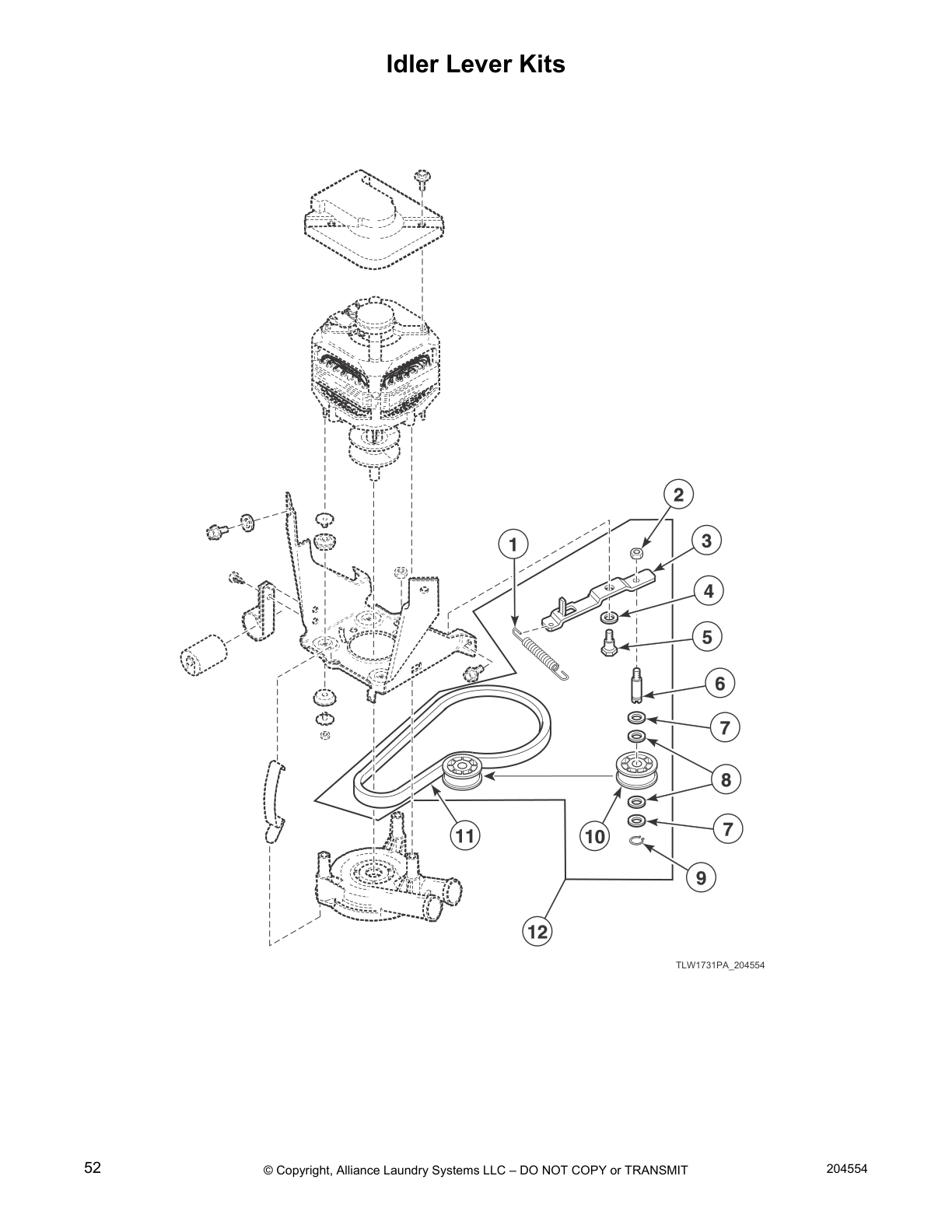

Idler Lever Kits

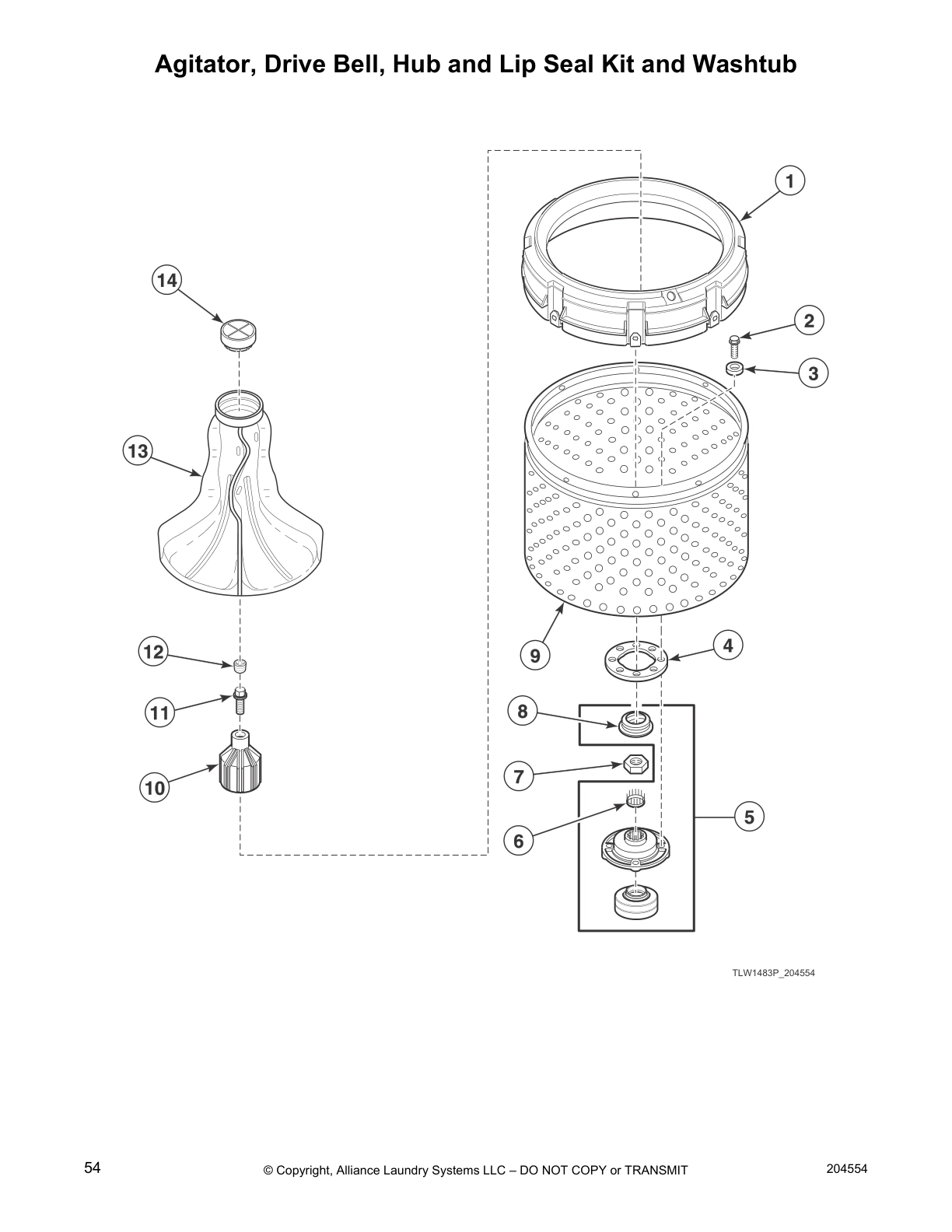

Agitator, Drive Bell, Hub and Lip Seal Kit and Washtub

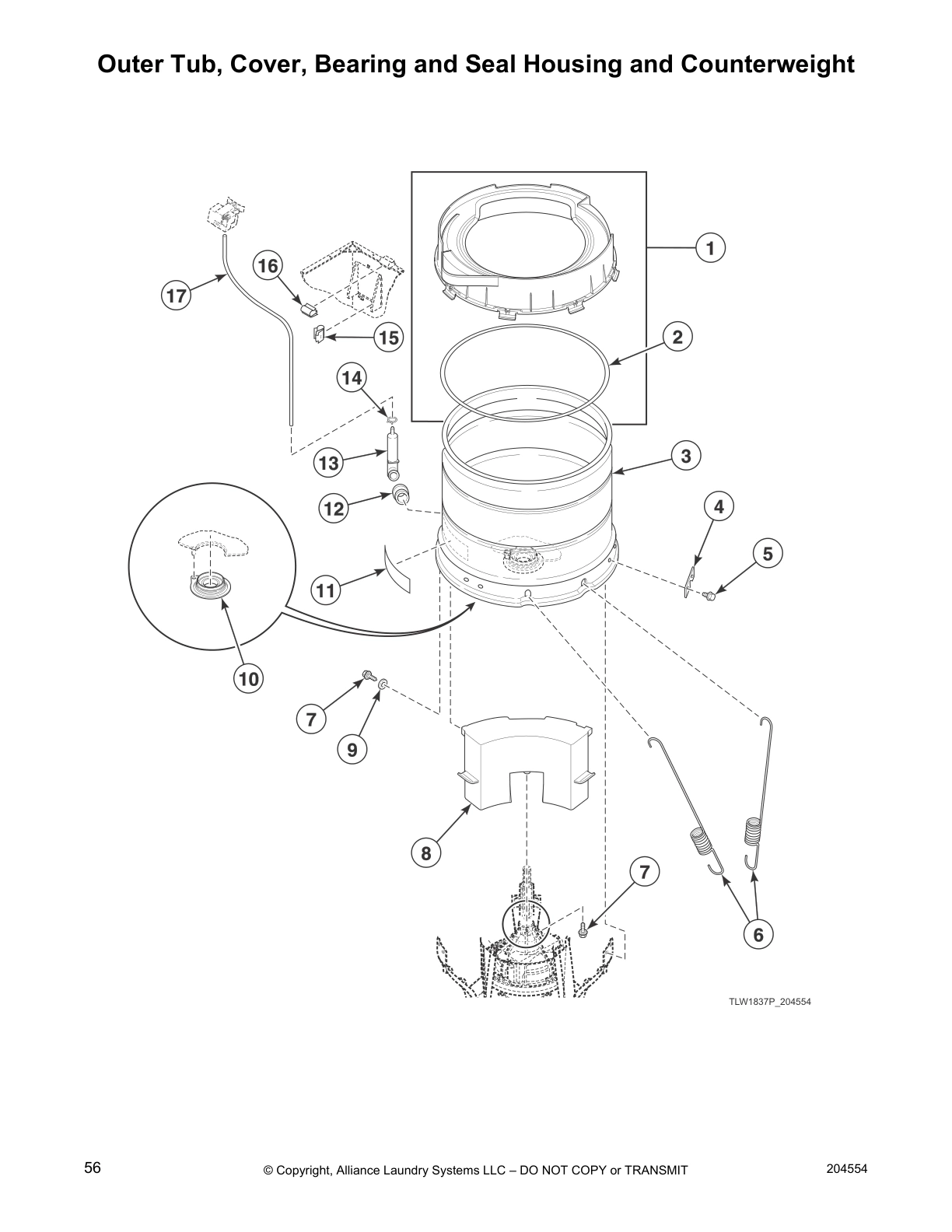

Outer Tub, Cover, Bearing and Seal Housing and Counterweight

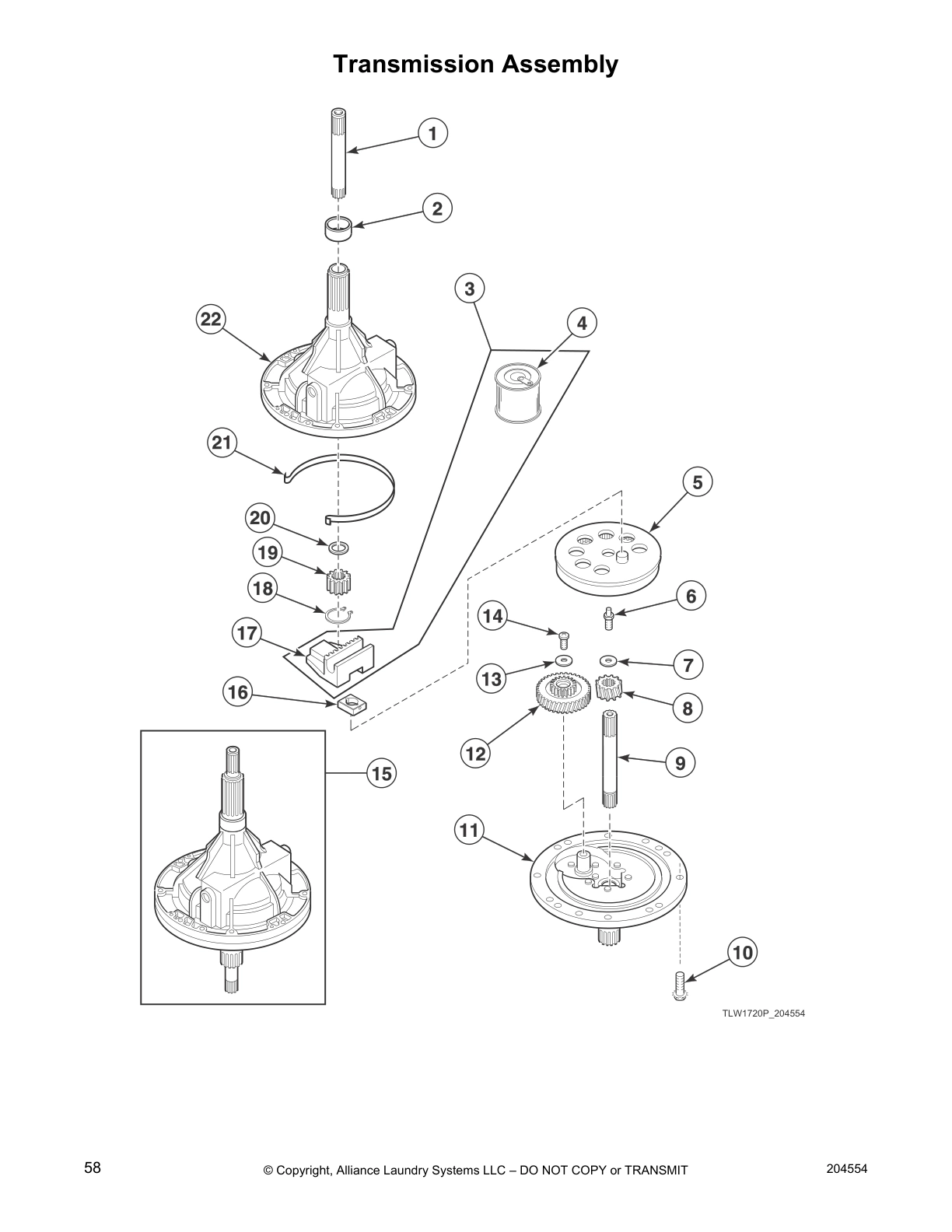

Transmission Assembly

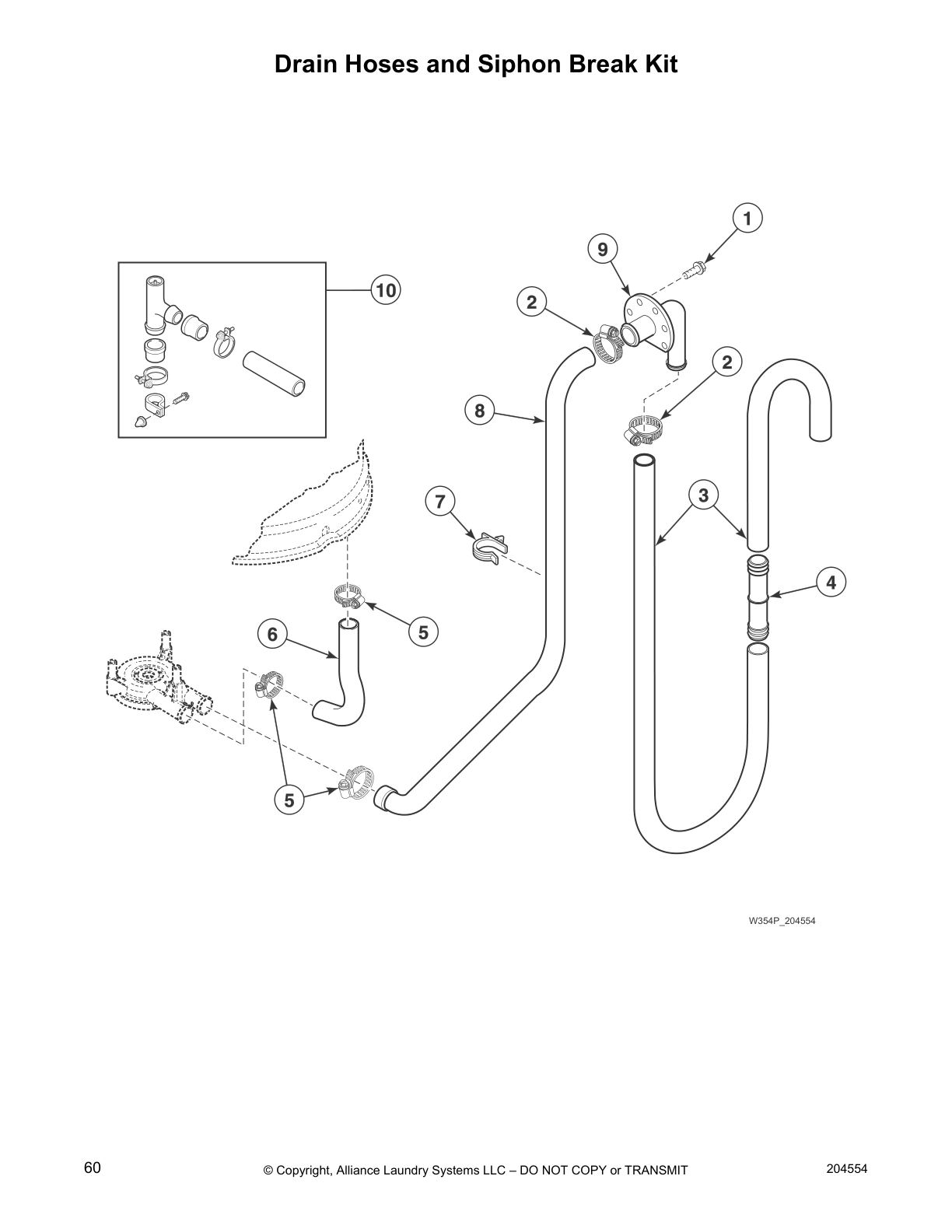

Drain Hoses and Siphon Break Kit

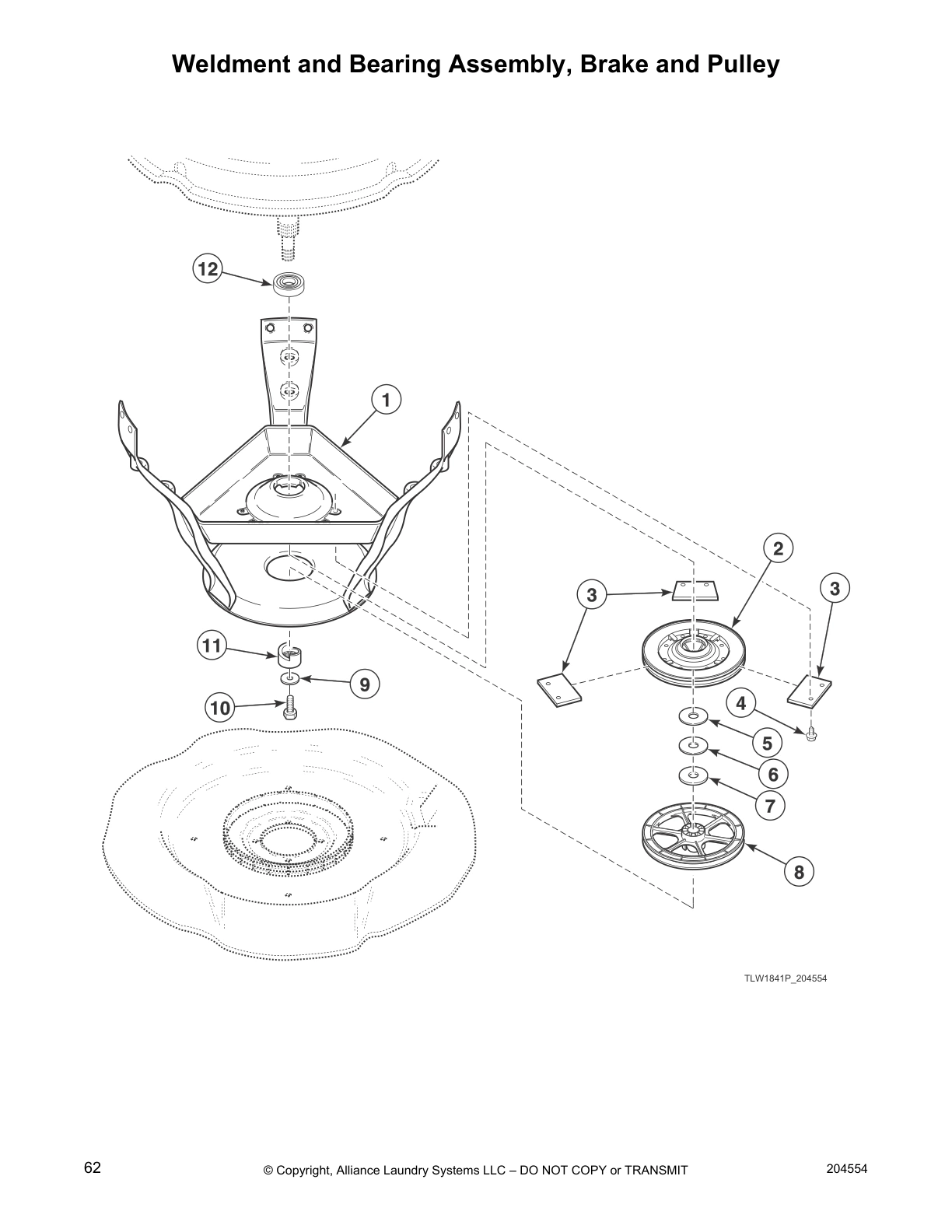

Weldment and Bearing Assembly, Brake and Pulley

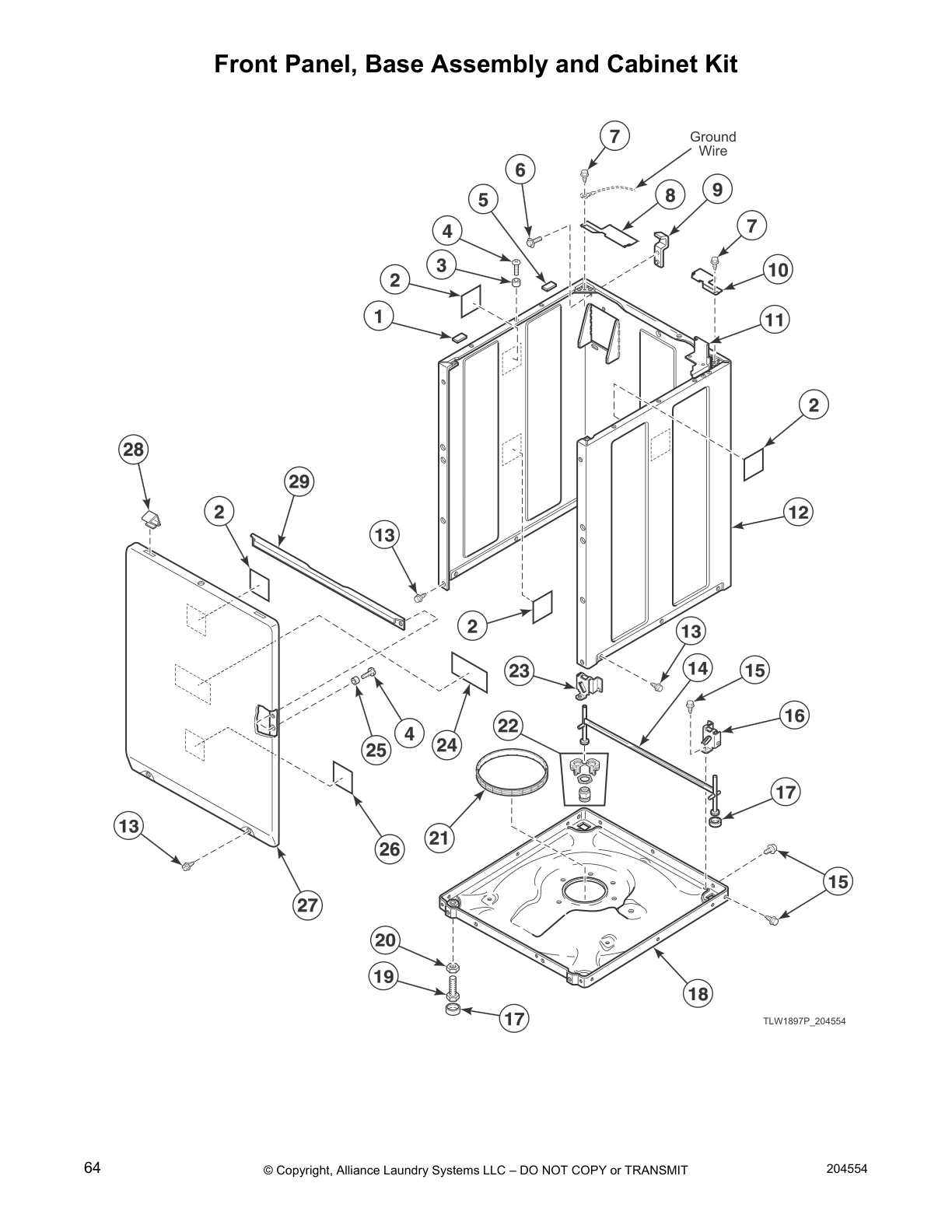

Front Panel, Base Assembly and Cabinet Kit

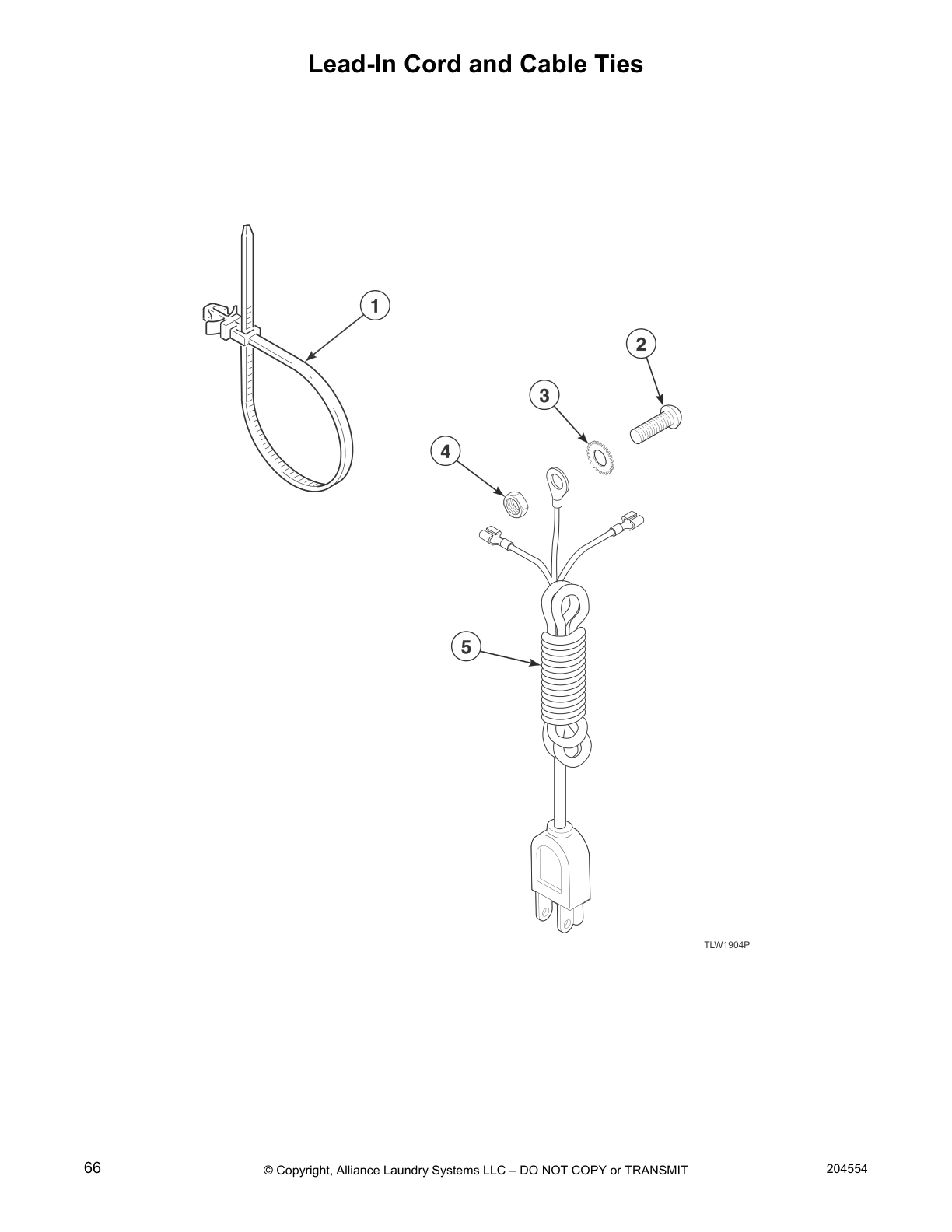

Lead-In Cord and Cable Ties

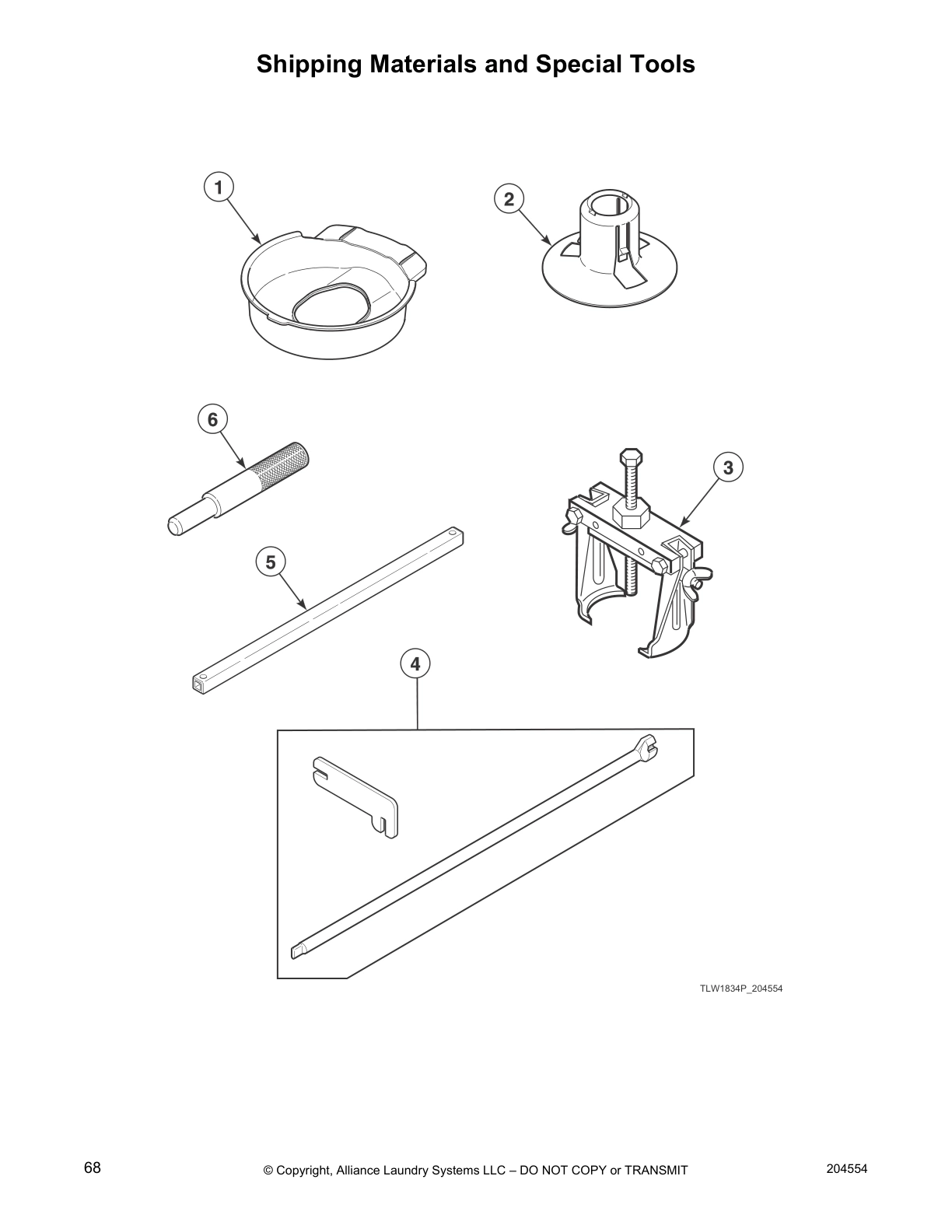

Shipping Materials and Special Tools

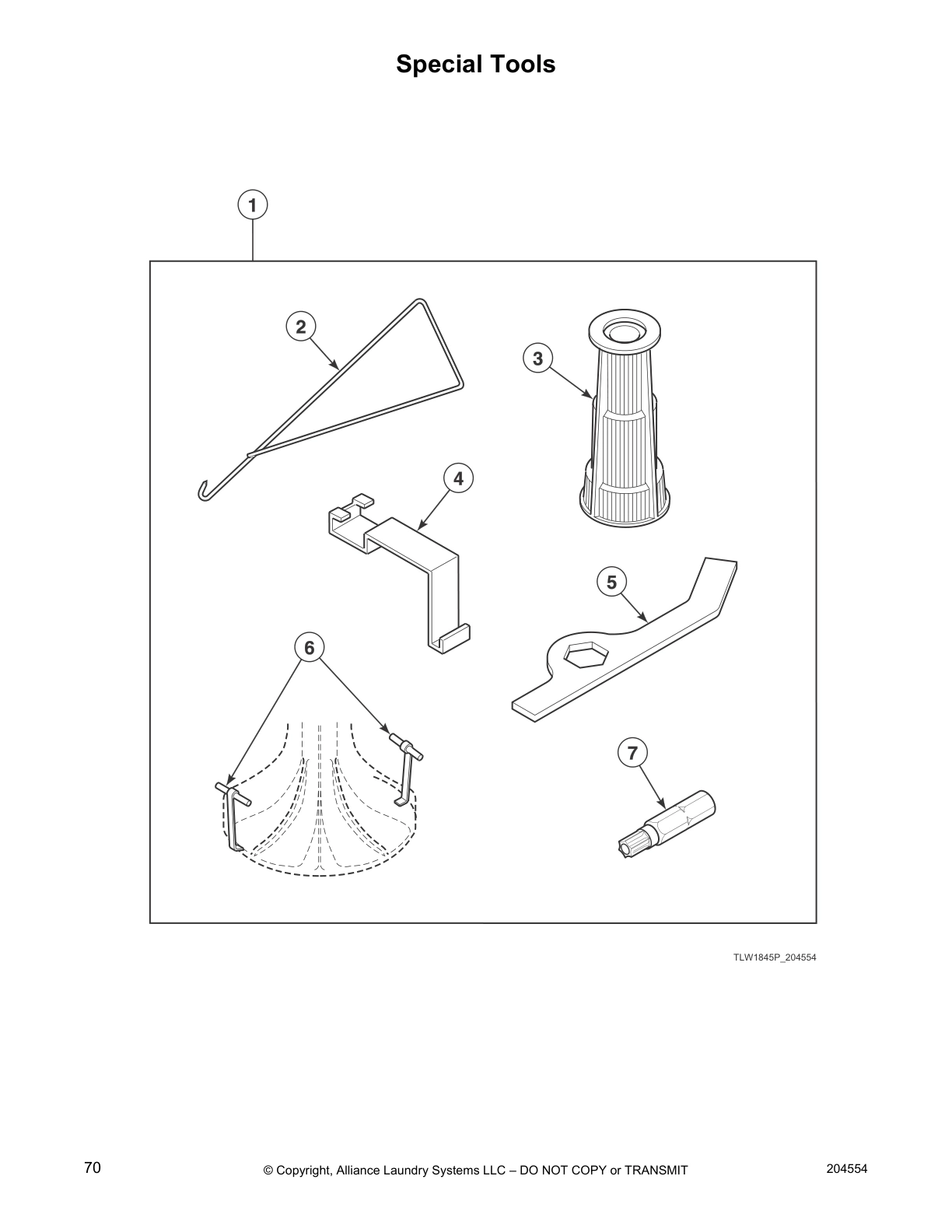

Special Tools

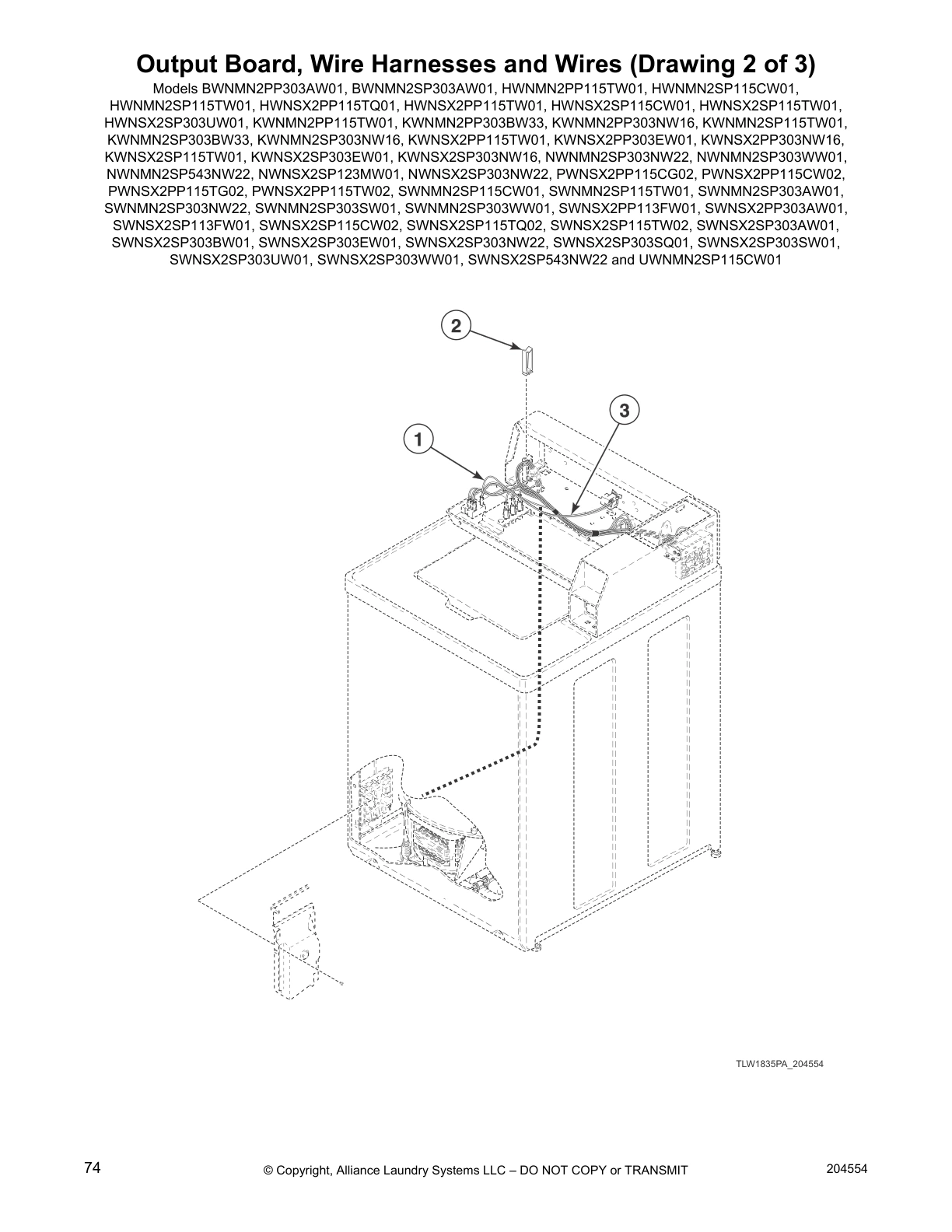

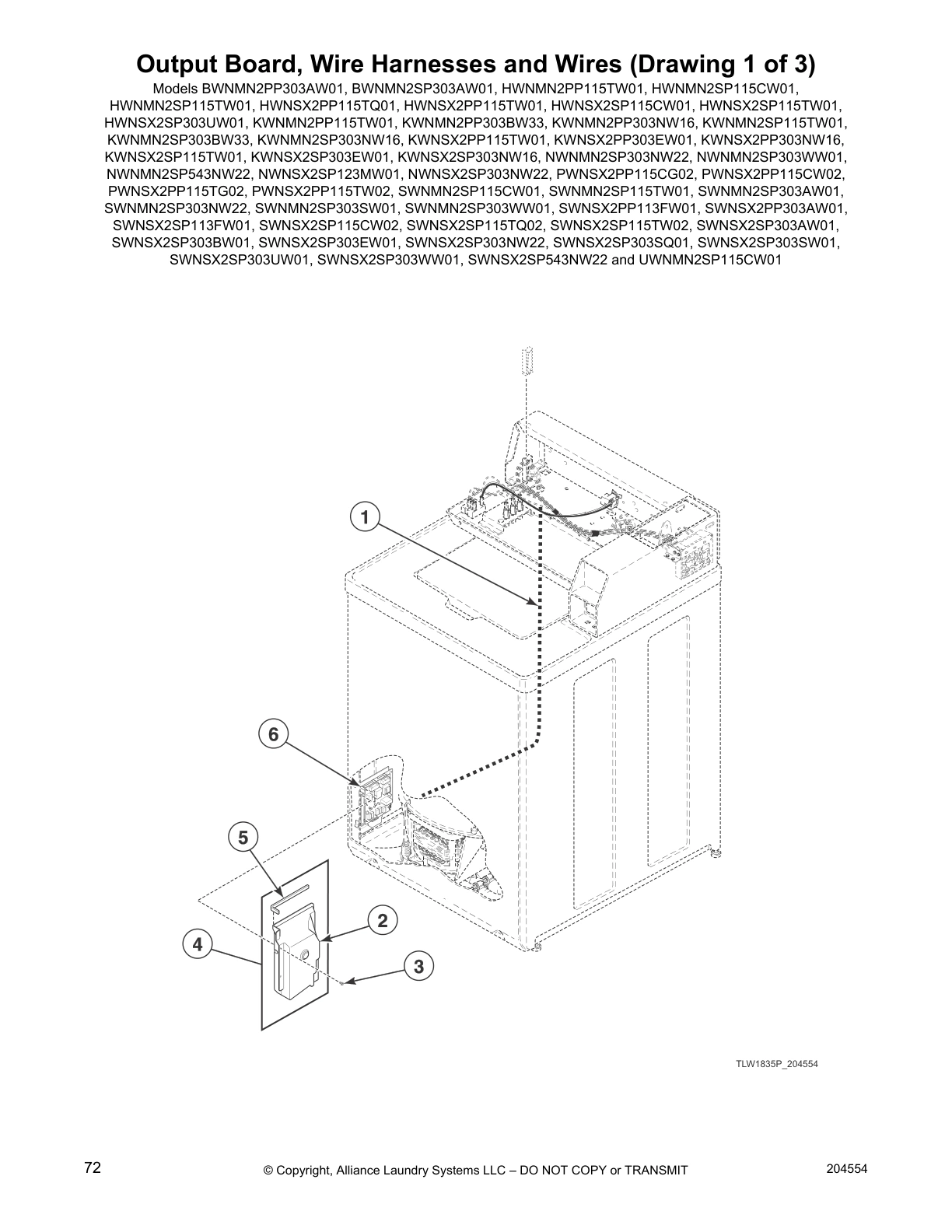

Output Board, Wire Harnesses and Wires (Drawing 1 of 3)
Output Board, Wire Harnesses and Wires (Drawing 2 of 3)

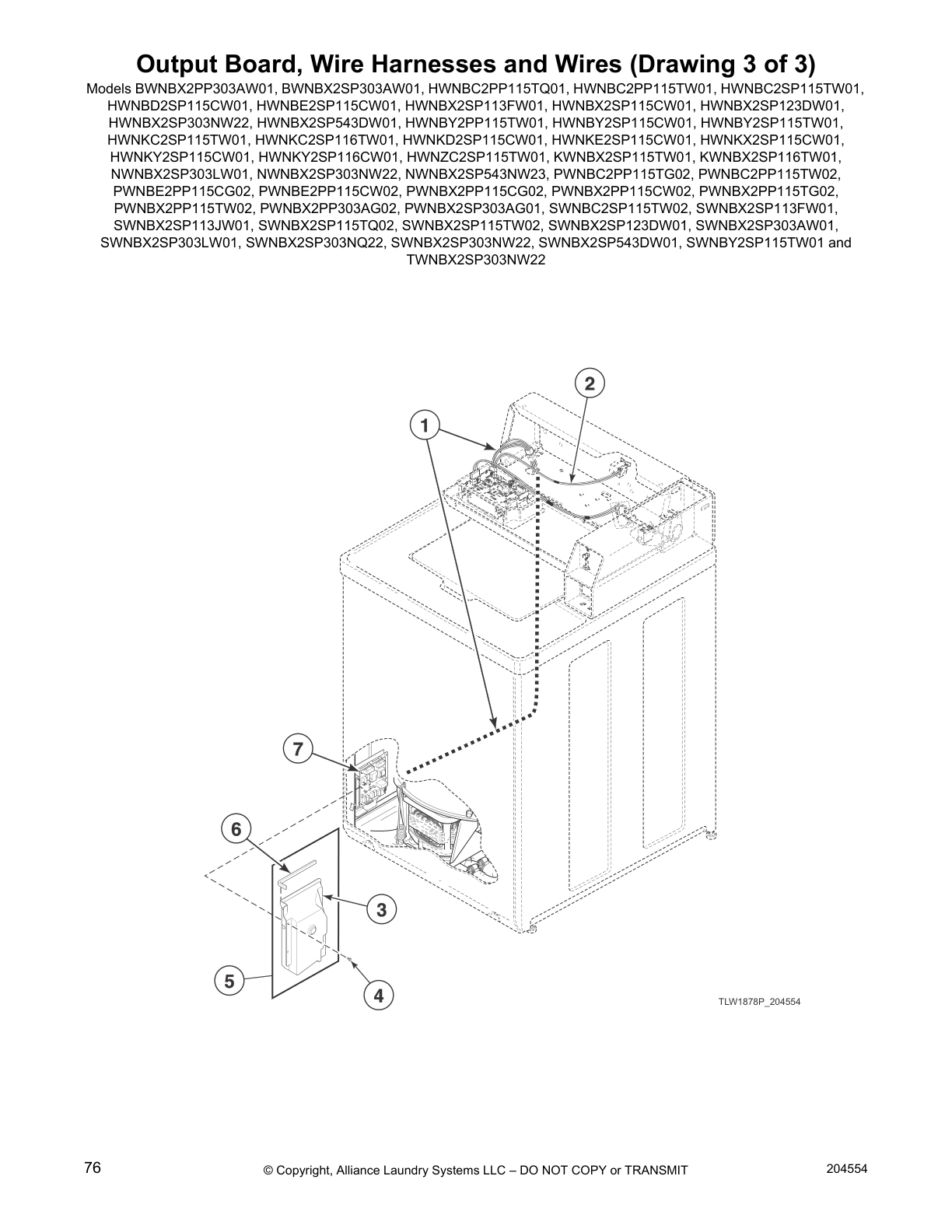

Output Board, Wire Harnesses and Wires (Drawing 3 of 3)
Common parts from model Huebsch HWNKX2SP115CW01 Washer
7
Output Board Cover Gasket SPQ 202964 Contact Us For Availability
NI
SPQ 70441601P SPQ 70441601P Contact Us For Availability
× ![]()
