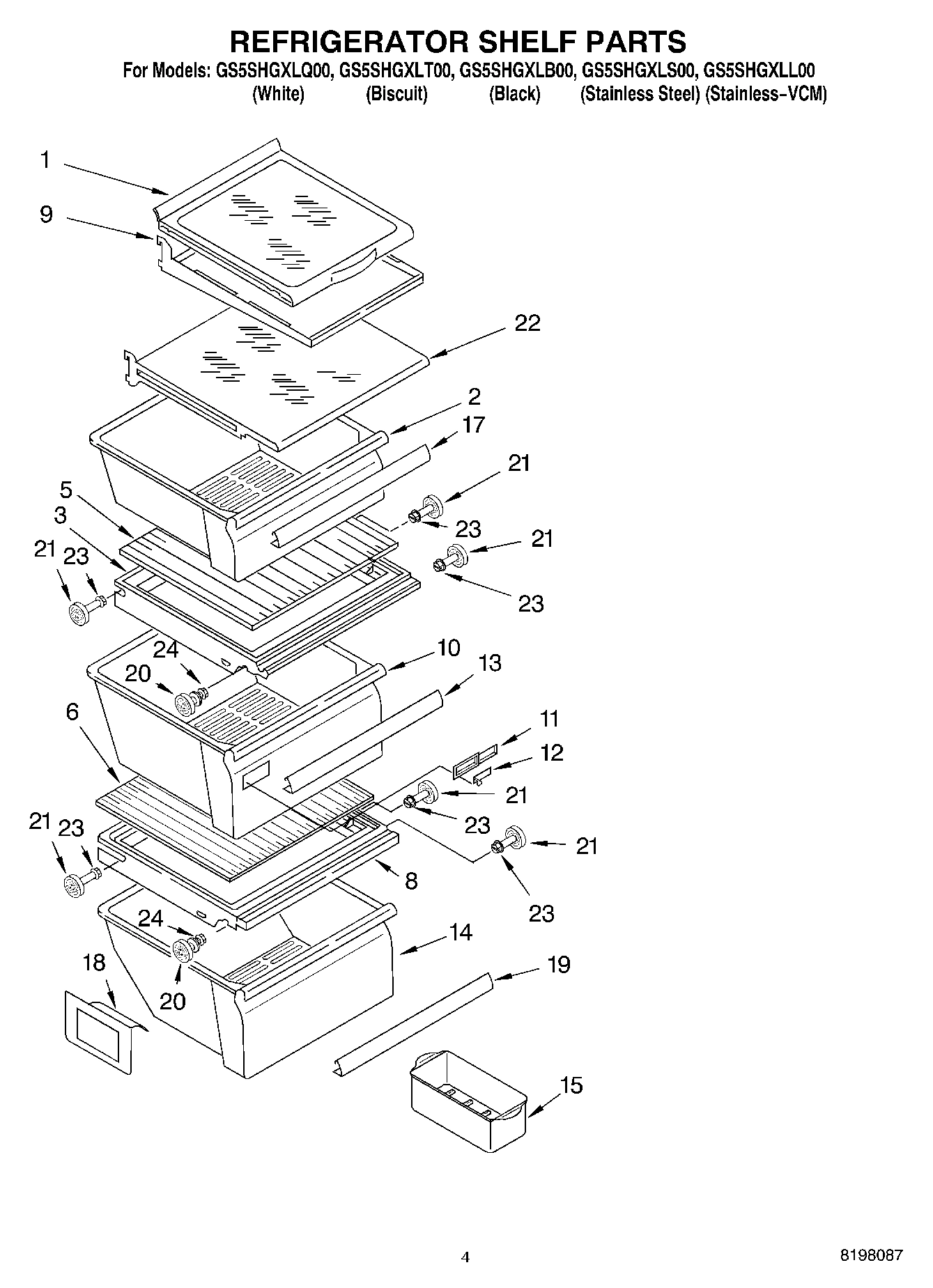

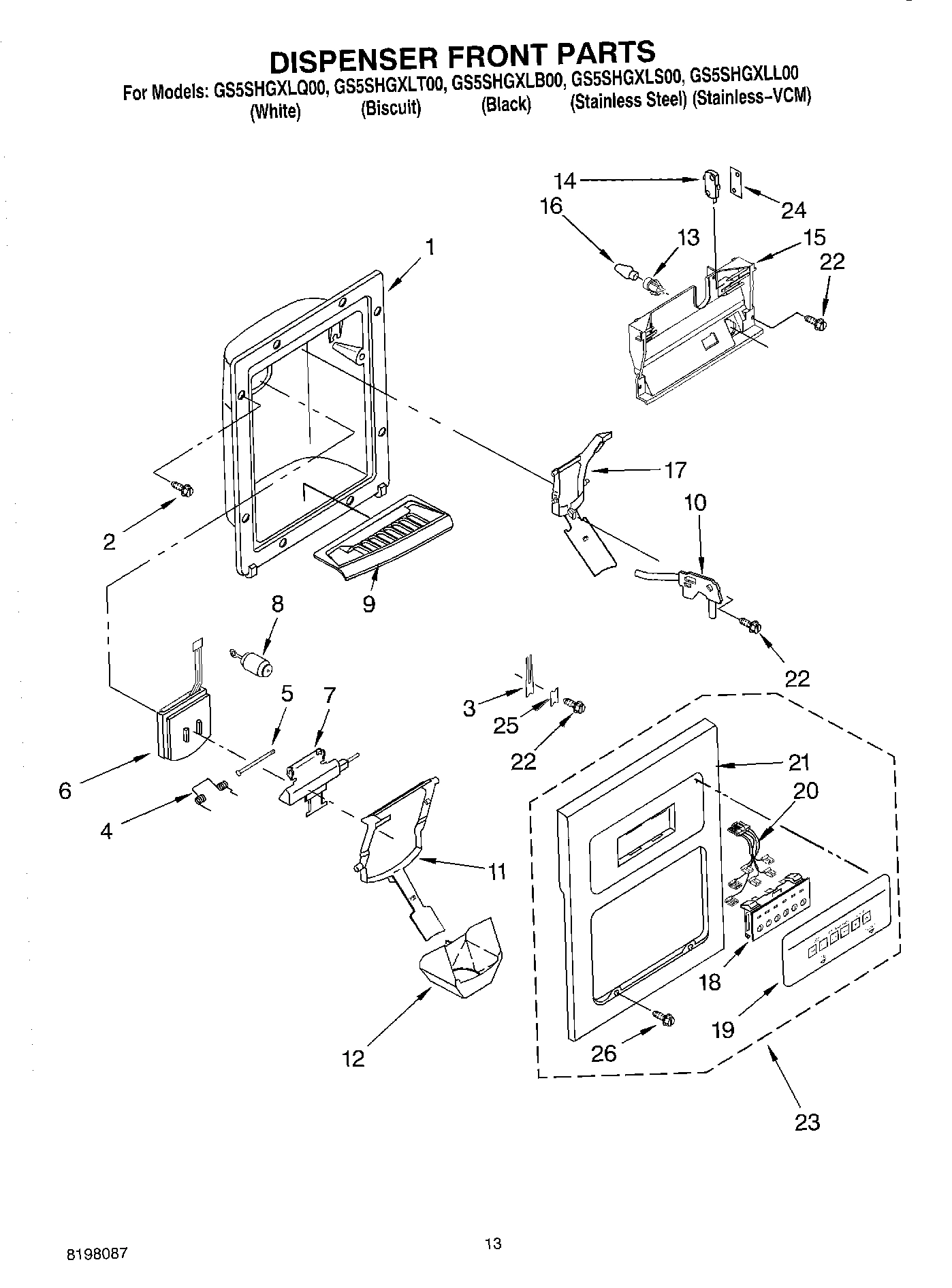

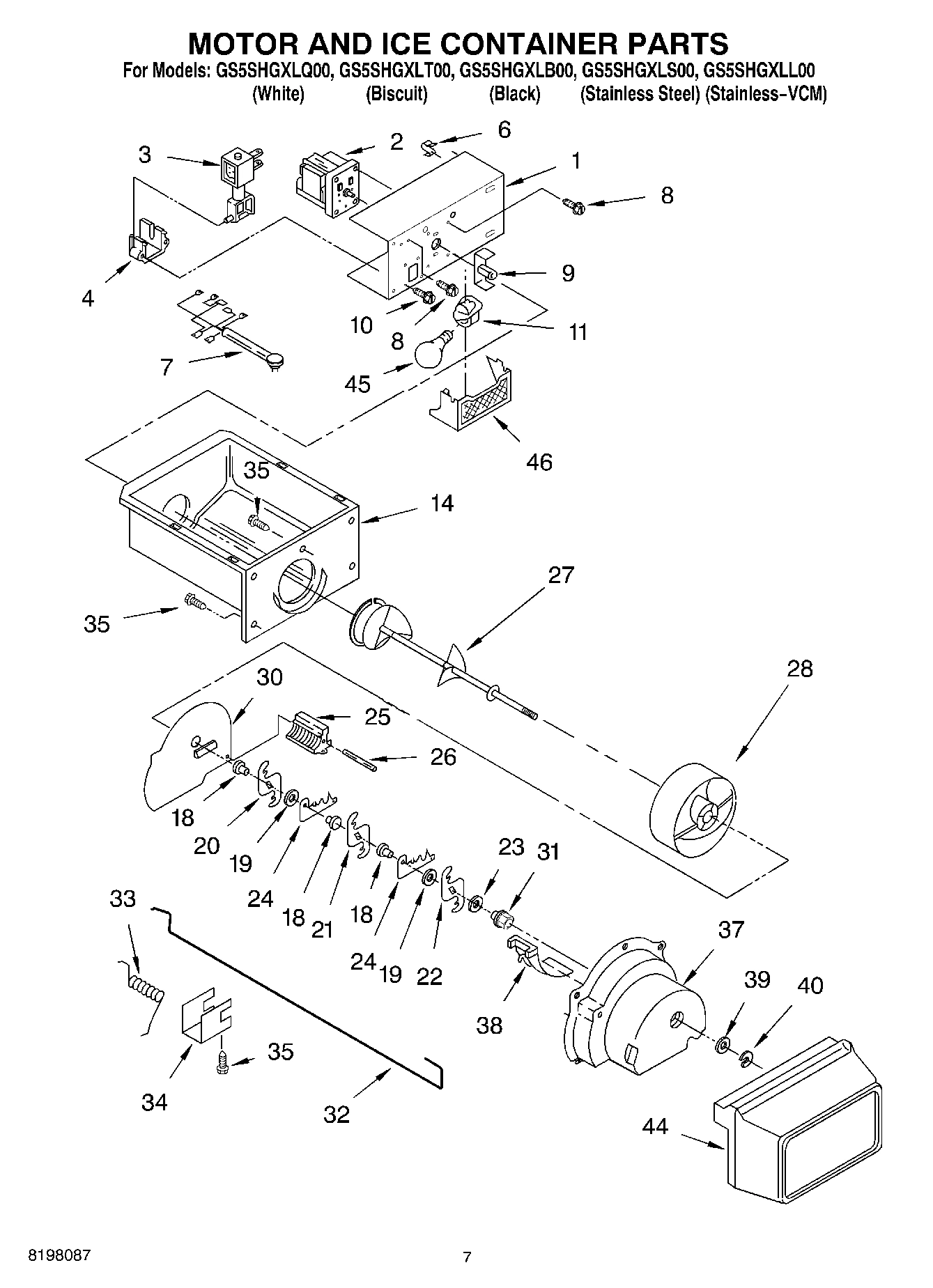

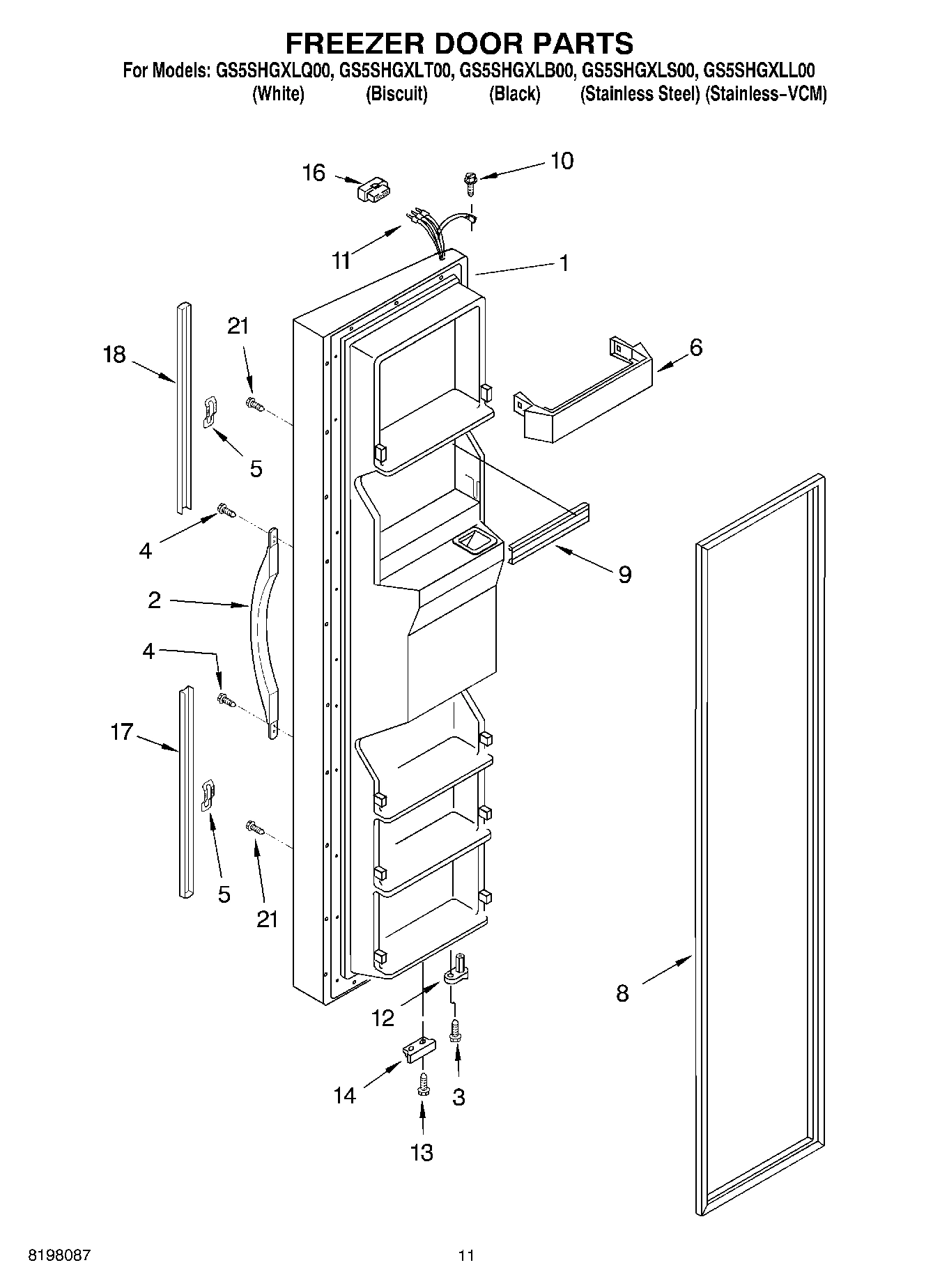

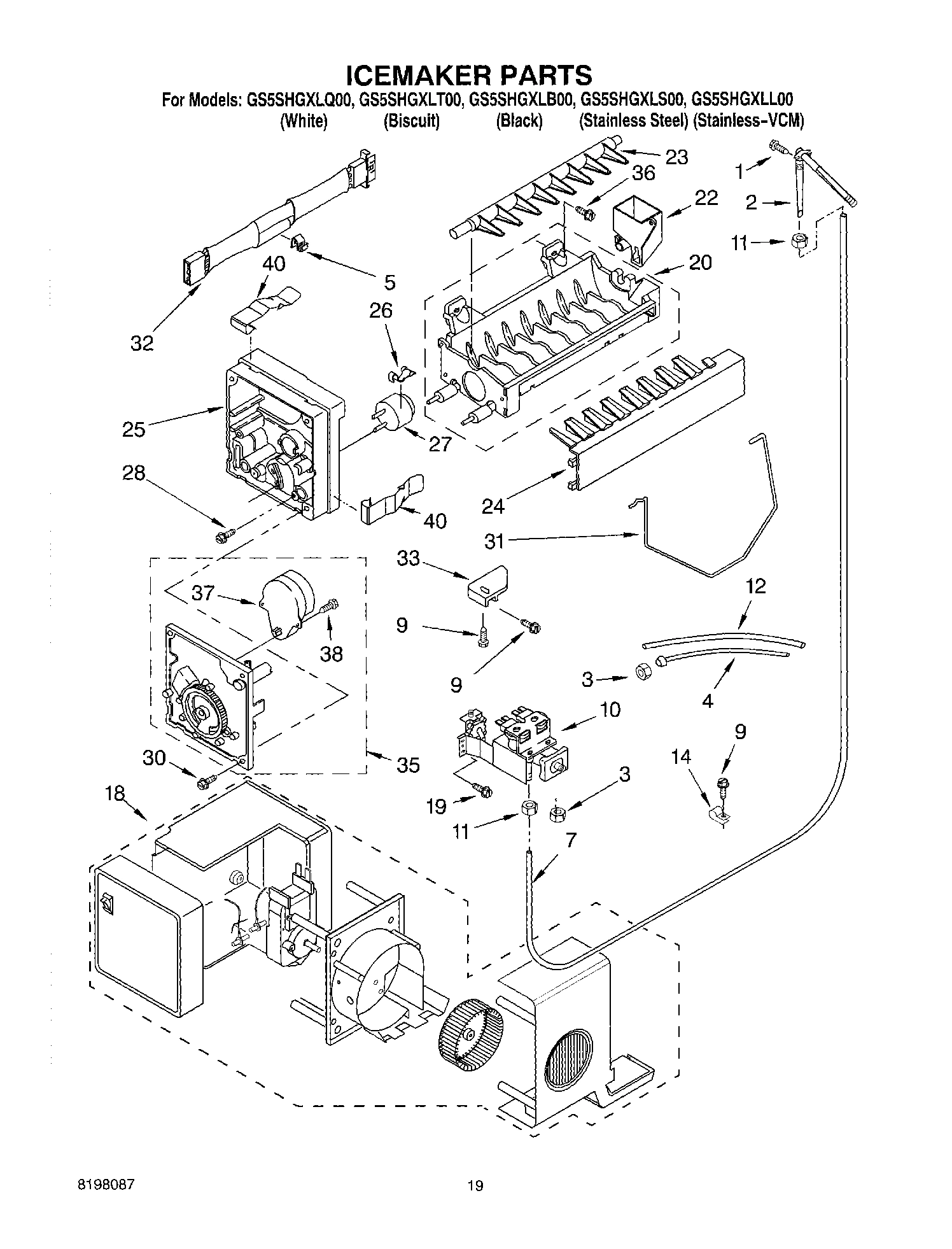

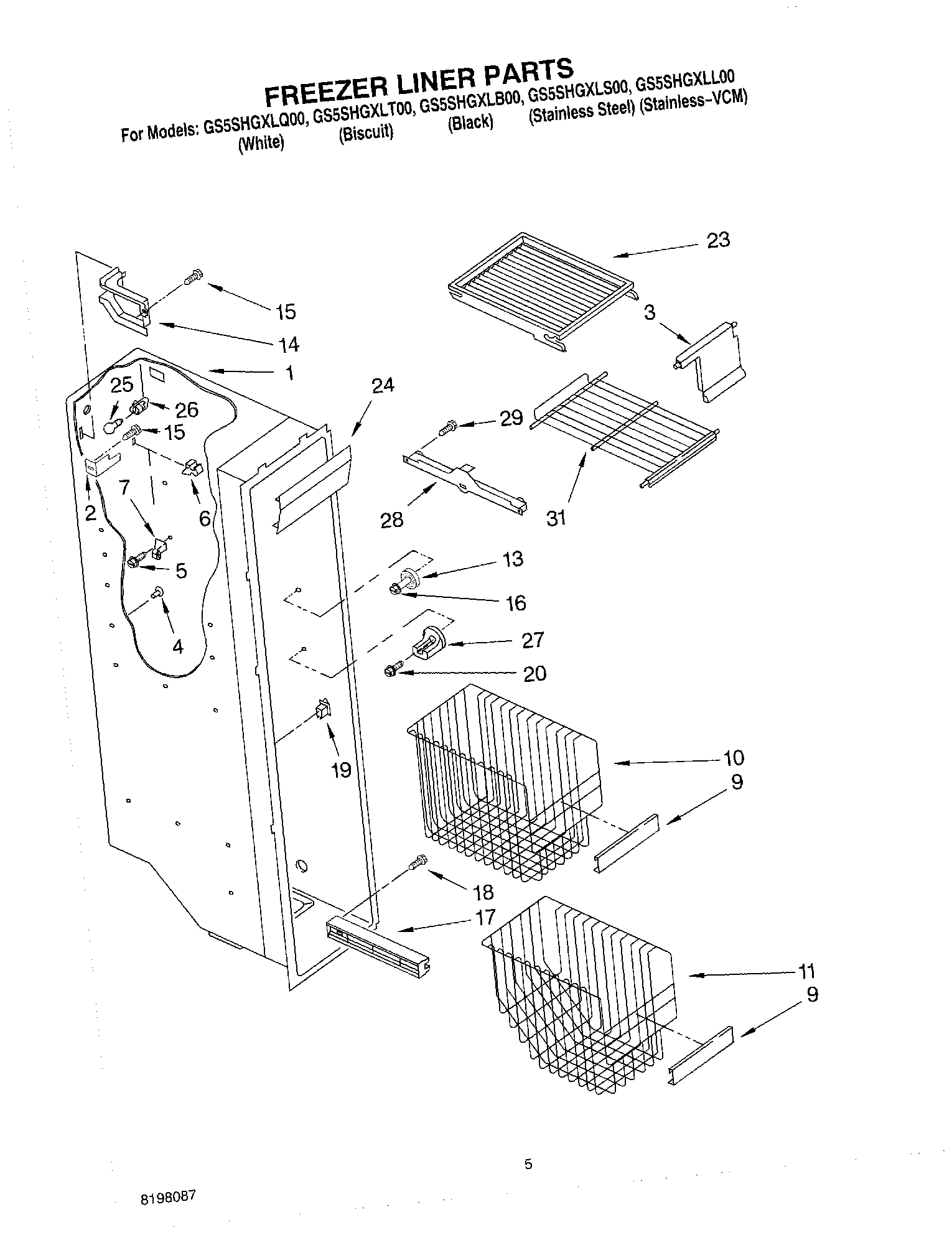

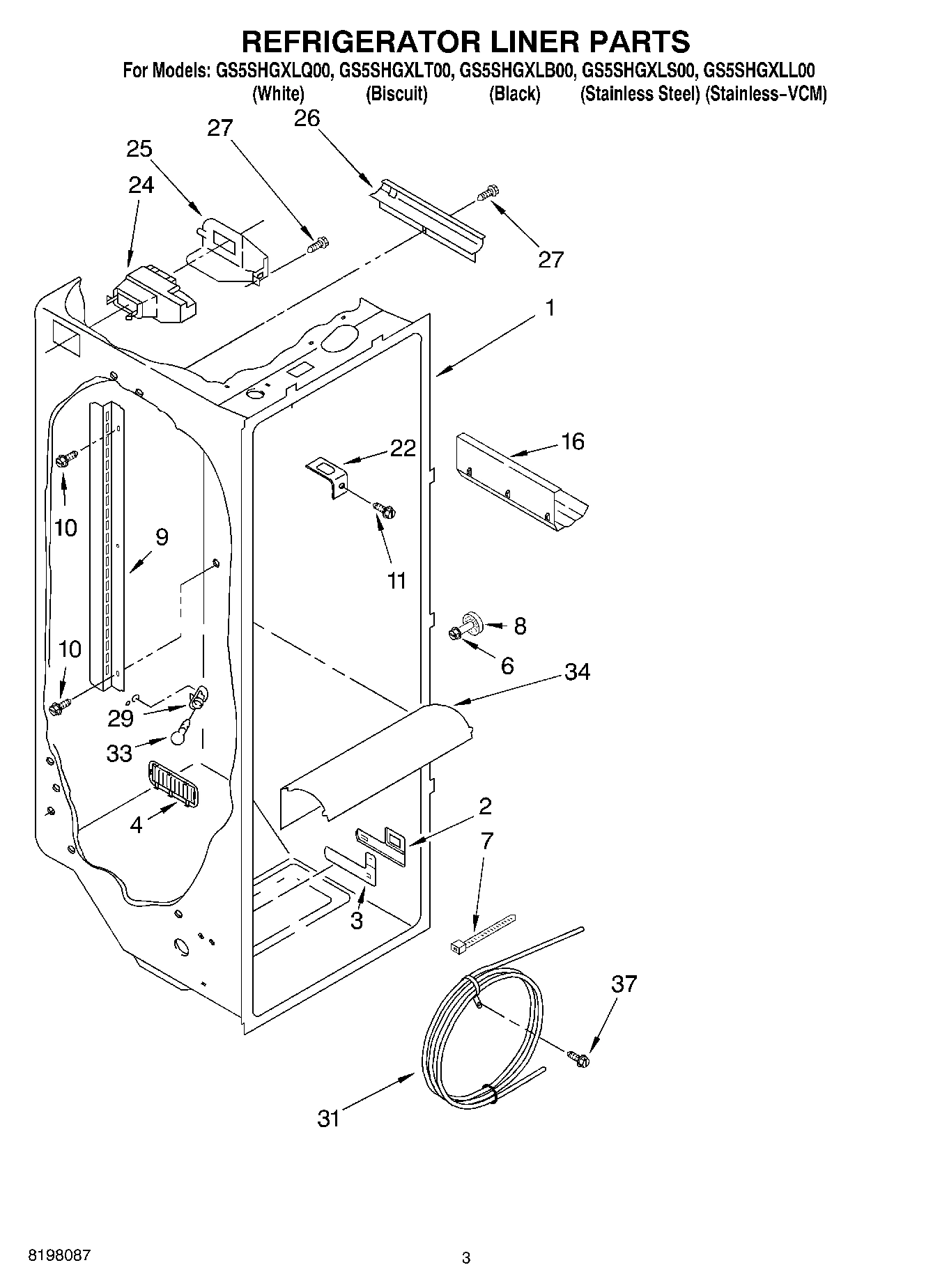

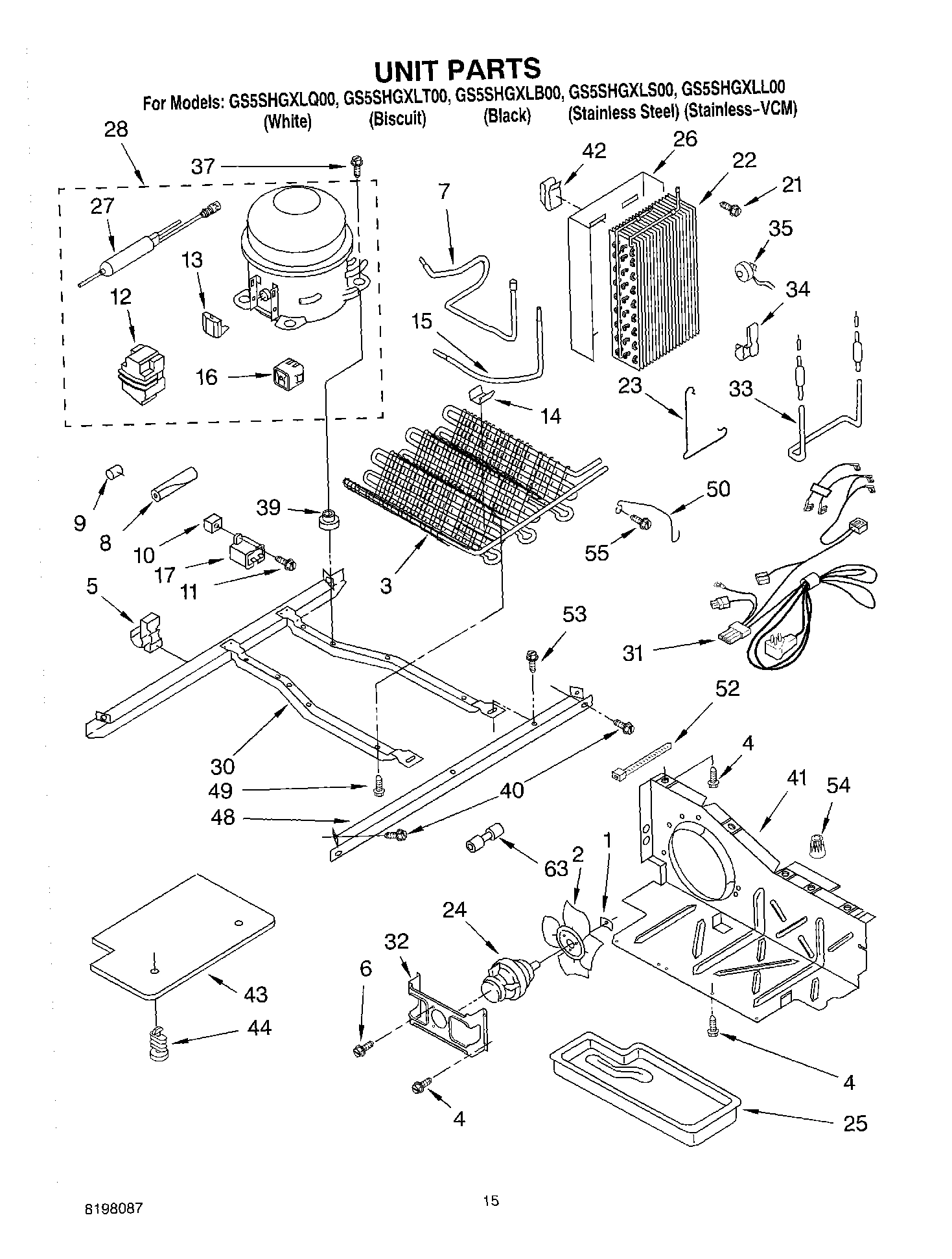

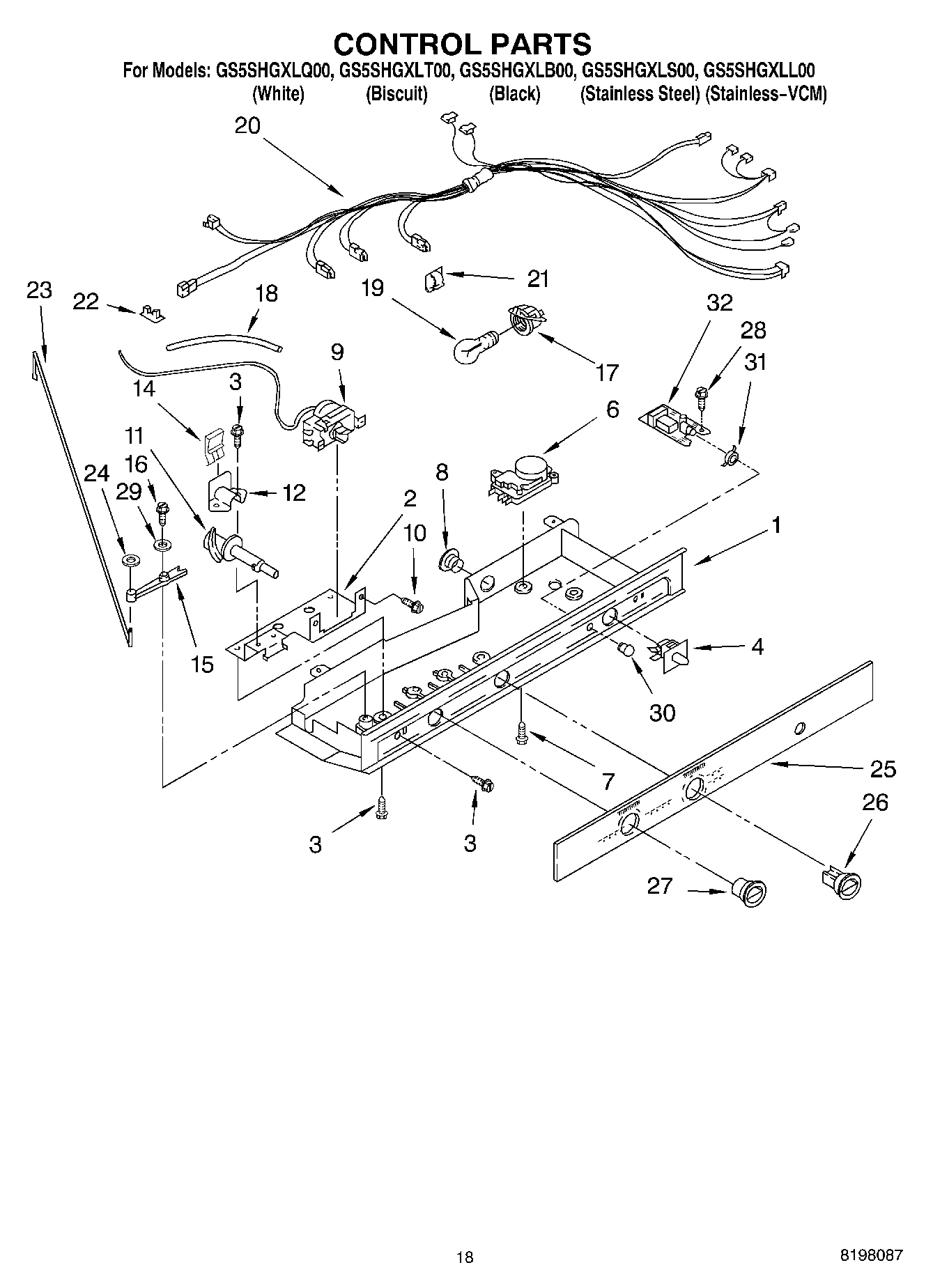

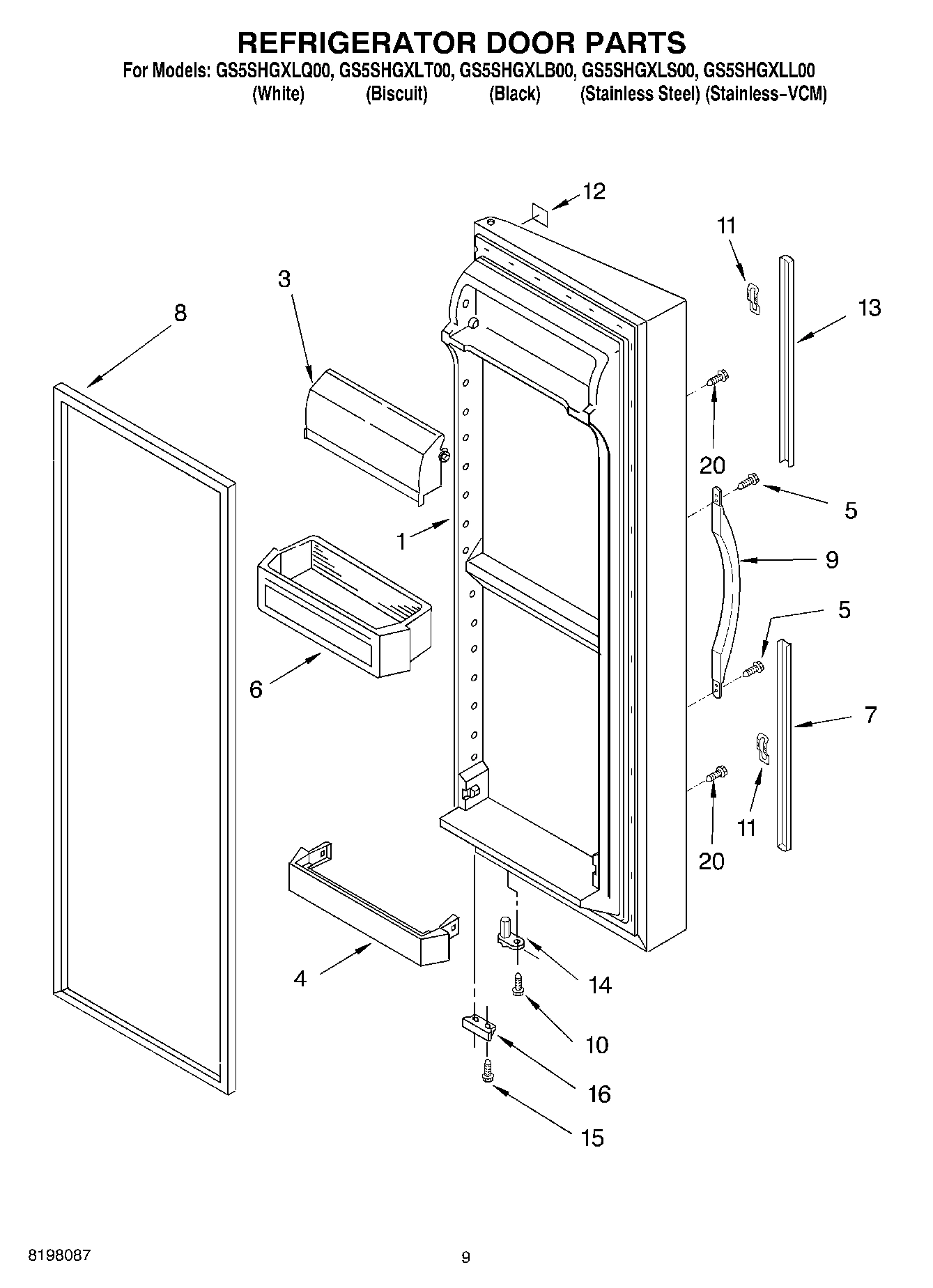

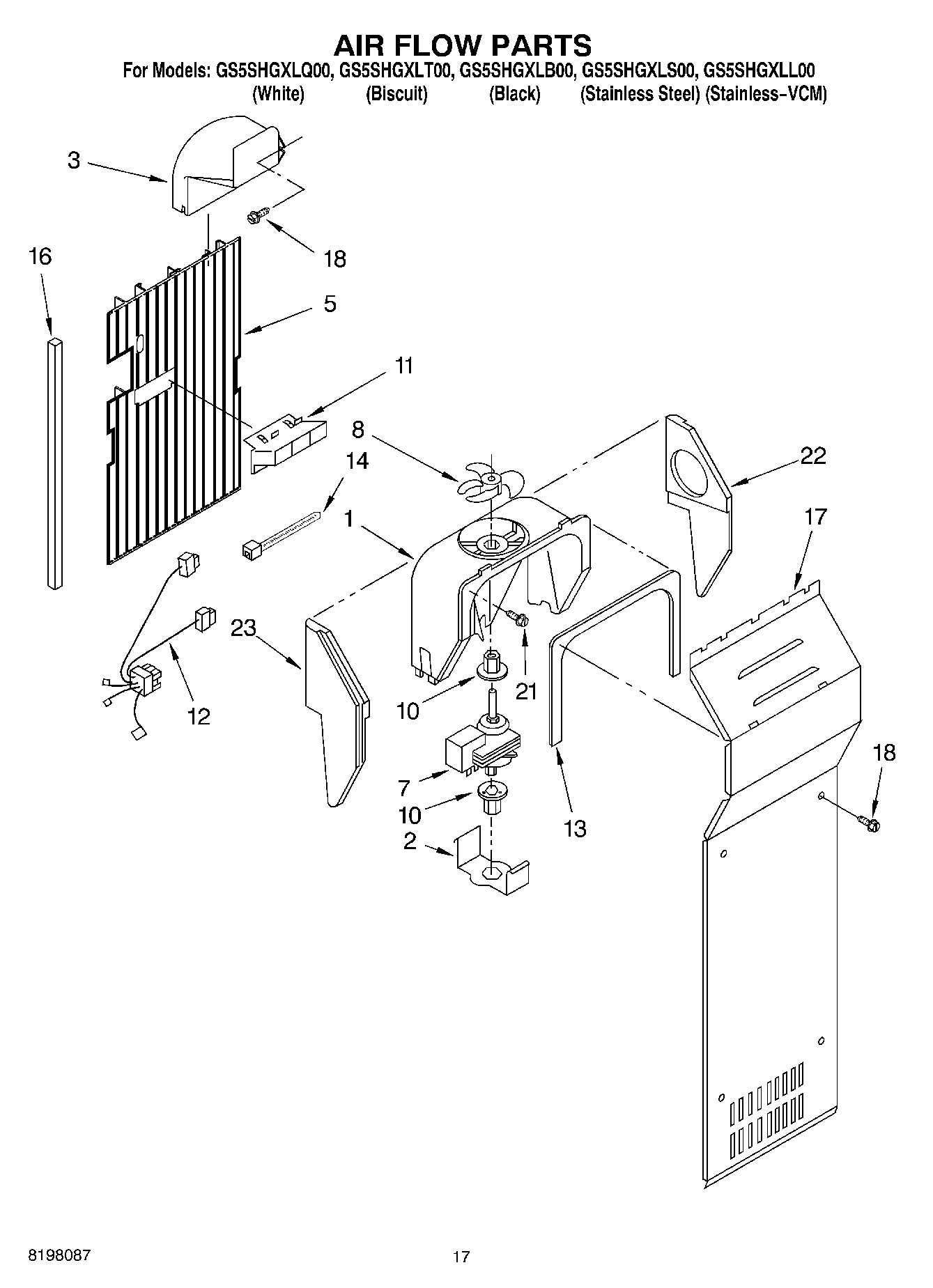

Model Whirlpool GS5SHGXLL00 REFRIGERATOR – Common Parts &amp; Diagrams

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $4.82

1

WPW10141748 Whirlpool Refrigerator Glass Shel Backorder WPL WPW10141748 $210.57

1

Refrigerator Door (Includes Item No.8) (Black WPL 2207026B Contact Us For Availability

1

Refrigerator Door (Includes Item No.8) (Stain WPL 2207026LB Contact Us For Availability

1

Refrigerator Door (Includes Item No.8) (Stain WPL 2207026SB Contact Us For Availability

1

Refrigerator Door (Includes Item No.8) (Biscu WPL 2207026T Contact Us For Availability

1

Refrigerator Door (Includes Item No.8) (White WPL 2207026W Contact Us For Availability

1

Freezer Door (Includes Item No.8 And Dispense WPL 2220412B Contact Us For Availability

1

Freezer Door (Includes Item No.8 And Dispense WPL 2220412LB Contact Us For Availability

1

Freezer Door (Includes Item No.8 And Dispense WPL 2220412SB Contact Us For Availability

1

Freezer Door (Includes Item No.8 And Dispense WPL 2220412T Contact Us For Availability

1

Freezer Door (Includes Item No.8 And Dispense WPL 2220412W Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $62.28

2

W11497323 Whirlpool Snack Pan Backorder WPL W11497323 $139.99

2

WP2196157 Whirlpool Fill Tube In Stock WPL WP2196157 $5.99

2

WP2217185B Whirlpool Refrigerator Handle Backorder WPL WP2217185B $119.30

2

WP3196175 Whirlpool Screw In Stock WPL WP3196175 $4.99

2

Fan, Blade WPL 2190685 Contact Us For Availability

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

2

Mounting Bracket WPL 1110629 Contact Us For Availability

2

Handle, Center (Biscuit) WPL 2217185T Contact Us For Availability

2

Handle, Center (White) WPL 2217185W Contact Us For Availability

3

W10508993 Whirlpool Refrigerator Cover Pan In Stock WPL W10508993 $201.86

3

WP2152713 Whirlpool Refrigerator Solenoid In Stock WPL WP2152713 $172.77

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $11.99

3

WP2256101 Whirlpool Dairy Door In Stock WPL WP2256101 $72.67

3

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability

3

Air Scoop WPL 2161231 Contact Us For Availability

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $27.81

4

WP2156022 Whirlpool Refrigerator Door Trim In Stock WPL WP2156022 $57.99

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $25.38

4

Grommet WPL 2176134 Contact Us For Availability

5

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $177.48

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $11.99

5

WP489491 Whirlpool Refrigerator Screw Backorder WPL WP489491 $4.82

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $6.90

5

Air Duct Freezer WPL 2203593 Contact Us For Availability

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $5.99

6

WP2171157 Whirlpool Shelf Trim Backorder WPL WP2171157 $43.33

6

WPW10321304 Whirlpool Refrigerator Door Shelf In Stock WPL WPW10321304 $30.99

7

4389144 Whirlpool Refrigerator Evaporator Fan In Stock WPL 4389144 $62.77

7

TUBE, SUCTION WPL 2205765 Contact Us For Availability

8

2159074 Whirlpool Door Gasket Seal In Stock WPL 2159074 $234.99

8

2159075 Whirlpool Door Gasket Seal In Stock WPL 2159075 $240.61

8

2159082 Whirlpool Refrigerator Door Gasket Bl In Stock WPL 2159082 $228.51

8

2159083 Whirlpool Gasket Door In Stock WPL 2159083 $254.76

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $30.99

8

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $3.91

8

Cover, Meat Pan WPL 2217039 Contact Us For Availability

9

WP2198202 Whirlpool Refrigerator Temperature In Stock WPL WP2198202 $63.66

9

WP2207007B Whirlpool Refrigerator Grille In Stock WPL WP2207007B $45.74

9

WPW10307490 Whirlpool Door Trim Assembly In Stock WPL WPW10307490 $13.16

9

Grille, Overflow (White) WPL 2207007W Contact Us For Availability

9

Shim (1) WPL 2209697 Contact Us For Availability

9

Grille, Overflow (Biscuit) WPL 2207007T Contact Us For Availability

9

Frame, Shelf WPL 2195975 Contact Us For Availability

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $4.96

WP2188656 Whirlpool Refrigerator Crisper Clea In Stock WPL WP2188656 $100.89

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $4.82

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $6.83

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $4.82

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $64.58

2311641 Whirlpool Refrigerator Wire Harness Backorder WPL 2311641 $152.63

WP2179343 Whirlpool Refrigerator Control Body Backorder WPL WP2179343 $22.47

WP2182195 Whirlpool Refrigerator Cam Backorder WPL WP2182195 $6.63

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $42.99

WP2186494T Whirlpool Water Filter Cap In Stock WPL WP2186494T $7.99

WP2186494W Whirlpool Water Filter Cap Backorder WPL WP2186494W $36.34

WP2195327 Whirlpool Refrigerator Clip Backorder WPL WP2195327 $4.82

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $7.60

Lever, Ice Dispenser (Black) WPL 2203562B Contact Us For Availability

Lever, Ice Dispenser (Biscuit) WPL 2203562T Contact Us For Availability

1110560 Whirlpool Refrigerator Bearing Backorder WPL 1110560 $7.12

W11234406 Whirlpool Refrigerator Wire Harness Backorder WPL W11234406 $83.53

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $20.20

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $8.97

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $62.57

Nameplate WPL 2220214 Contact Us For Availability

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $67.59

WP2155789 Whirlpool Refrigerator Gasket Backorder WPL WP2155789 $4.82

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $62.99

WP4387835 Whirlpool Refrigerator Overload In Stock WPL WP4387835 $74.99

WP489483 Whirlpool Screw In Stock WPL WP489483 $7.58

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $10.72

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $4.60

WP2188664 Whirlpool Refrigerator Meat Crisper In Stock WPL WP2188664 $57.82

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $4.99

Bracket, Door Stop (Chrome) WPL 2200082 Contact Us For Availability

Bracket, Door Stop (Black) WPL 2200082B Contact Us For Availability

2203407T Whirlpool Refrigerator Cover Backorder WPL 2203407T $12.83

W10136387A Whirlpool Refrigerator Egg Contain In Stock WPL W10136387A $10.99

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $13.08

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $14.39

Tube, Condenser to Heat Loop WPL 2211760 Contact Us For Availability

Pivot Arm WPL 1110559 Contact Us For Availability

16

4388500 Whirlpool Refrigerator Gasket Backorder WPL 4388500 $57.18

16

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $15.58

2203561W Whirlpool Refrigerator Dispenser Arm Backorder WPL 2203561W $65.67

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $67.13

WP2186443 Whirlpool Water Filter Housing In Stock WPL WP2186443 $68.99

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $122.18

Lever, Water Dispenser (Black) WPL 2203561B Contact Us For Availability

Lever, Water Dispenser (Biscuit) WPL 2203561T Contact Us For Availability

Extension, Bottom (Black) WPL 2217186B Contact Us For Availability

Extension, Bottom (Biscuit) WPL 2217186T Contact Us For Availability

Extension, Bottom (White) WPL 2217186W Contact Us For Availability

Cover, Evaporator WPL 2203841 Contact Us For Availability

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $56.13

W11233072 Whirlpool Screw In Stock WPL W11233072 $19.85

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $6.99

Extension, Top (Black) WPL 2217187B Contact Us For Availability

Extension, Top (Biscuit) WPL 2217187T Contact Us For Availability

Extension, Top (White) WPL 2217187W Contact Us For Availability

19

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $8.89

19

WP2179234 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179234 $55.94

20

W11223328 Whirlpool Refrigerator Shelf Stud In Stock WPL W11223328 $14.99

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $6.50

WP3400852 Whirlpool Refrigerator Screw Backorder WPL WP3400852 $6.83

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $4.82

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability

4388358 Whirlpool Refrigerator Support Bracke Backorder WPL 4388358 $20.18

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $29.99

Grille (Biscuit) WPL 2198468T Contact Us For Availability

Shelf, Snack Bin WPL 2206347 Contact Us For Availability

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $4.99

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $6.87

WP489497 Whirlpool Screw In Stock WPL WP489497 $6.75

Clamp WPL 2161324 Contact Us For Availability

2171705 Whirlpool Refrigerator Light Lens Backorder WPL 2171705 $71.86

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $55.70

WP3-24004-109 Whirlpool Refrigerator Screw Backorder WPL WP3-24004-109 $4.82

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $6.84

Spacer, Switch (2) WPL 625834 Contact Us For Availability

Fastener, Push-On WPL 489285 Contact Us For Availability

25

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $58.83

25

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $14.02

25

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $7.19

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $16.09

2182111 Whirlpool Refrigerator Thermal Knob Backorder WPL 2182111 $18.73

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $31.65

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $4.82

27

Knob, Air Control WPL 2197871 Contact Us For Availability

27

Stud, Rear WPL 2196207 Contact Us For Availability

28

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $49.99

28

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $81.92

28

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $90.95

30

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $20.97

30

COVER, LIGHT LENS WPL 2200096 Contact Us For Availability

31

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $4.82

31

WP2174267 Whirlpool Refrigerator Wire Shelf Backorder WPL WP2174267 $58.88

31

WPW10401596 Whirlpool Refrigerator Wire Shelf In Stock WPL WPW10401596 $69.99

32

W11596045 Whirlpool Refrigerator Control Arm In Stock WPL W11596045 $19.99

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $7.28

33

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $12.12

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $16.99

33

WP2323198 Whirlpool Refrigerator Heater In Stock WPL WP2323198 $45.79

34

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $6.92

34

Light Lens WPL 2254920 Contact Us For Availability

34

Clip WPL 2161330 Contact Us For Availability

35

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $5.99

35

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $23.99

37

Screw WPL 489473 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $6.83

38

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $4.82

39

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $8.89

39

W11661108 Whirlpool Grommet Backorder WPL W11661108 $9.12

40

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $6.83

40

WP489236 Whirlpool Refrigerator Ring In Stock WPL WP489236 $7.64

41

W10896764 Whirlpool Refrigerator Air Baffle In Stock WPL W10896764 $63.81

42

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $19.72

42

Clip, Heat Shield WPL 2155547 Contact Us For Availability

43

Unit Cover, Bottom WPL 2206281 Contact Us For Availability

44

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $7.11

46

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $65.24

48

2305374 Whirlpool Refrigerator Unit Rail Backorder WPL 2305374 $54.42

49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $8.89

49

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $19.99

49

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $14.54

50

Guard, Fan WPL 2186495 Contact Us For Availability

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $4.82

54

Wire Connector WPL 227991 Contact Us For Availability

55

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $13.89

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $37.88

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $82.11

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $86.15

WP4373559 Whirlpool Fitting In Stock WPL WP4373559 $32.99

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $31.99

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350942 Whirlpool Spray Paint Backorder WPL 350942 $49.86

350956 Whirlpool Spray Assembly In Stock WPL 350956 $29.99

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $130.99

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $16.99

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $30.99

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $27.29

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $53.03

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $18.58

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $75.04

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $111.80

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $30.85

WP72107 Whirlpool Touchup In Stock WPL WP72107 $14.61

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

WPL 799344 WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability
