Model Whirlpool GR9FHMXVB00 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350942 Whirlpool Spray Paint Backorder WPL 350942 $49.86

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $16.99

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $30.99

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $27.29

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $53.03

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $18.58

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $37.88

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $82.11

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $86.15

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $75.04

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $111.80

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $30.85

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

1

WP488878 Whirlpool Refrigerator Tube Clamp Backorder WPL WP488878 $7.20

1

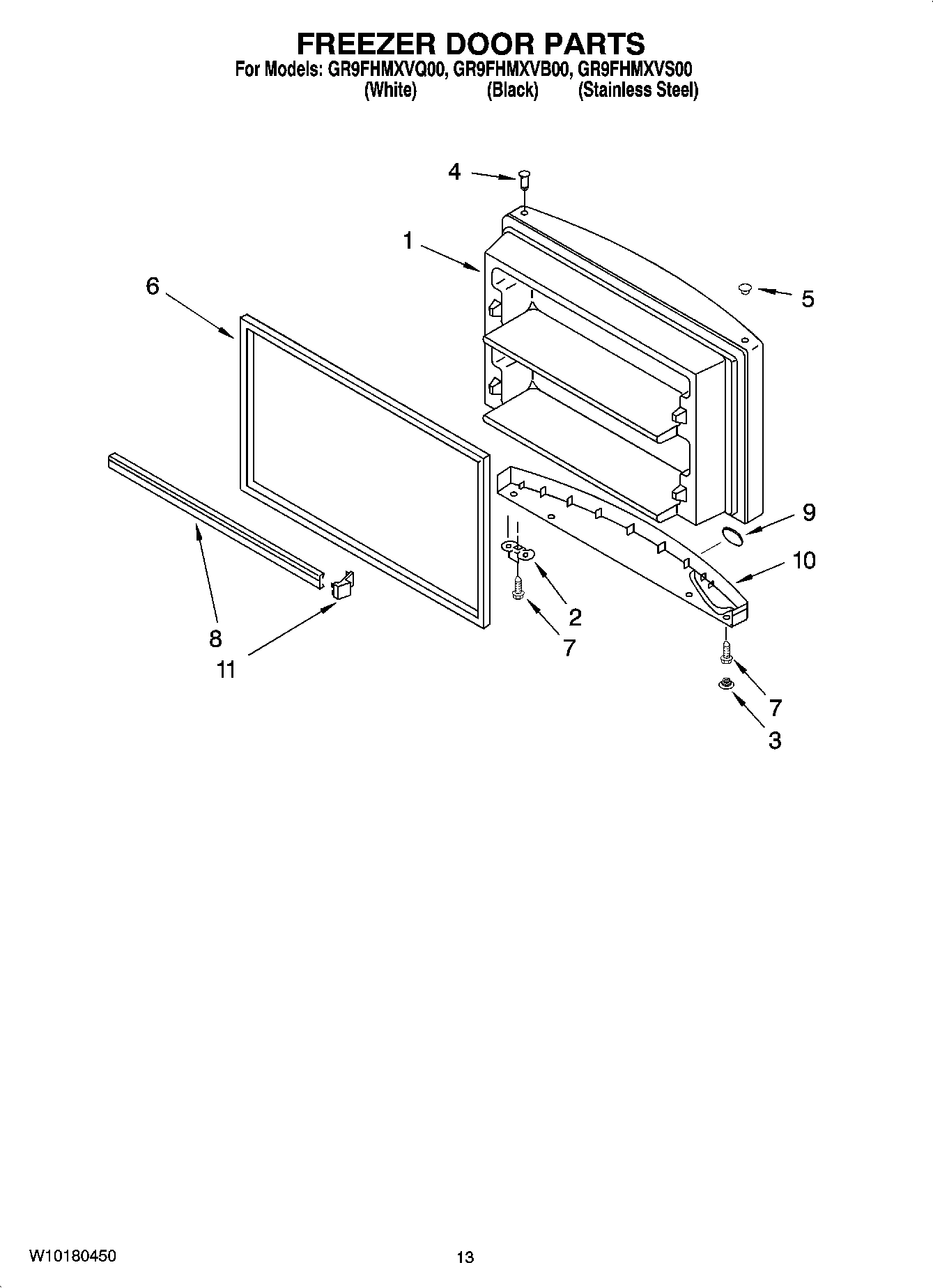

Freezer Door (Includes Illus. 4 & 6) (White) WPL 2205399 Contact Us For Availability

1

Freezer Door (Includes Illus. 4 & 6) (Black) WPL 2205402 Contact Us For Availability

1

Freezer Door (Includes Illus. 4 & 6) (Stainle WPL 2212495 Contact Us For Availability

1

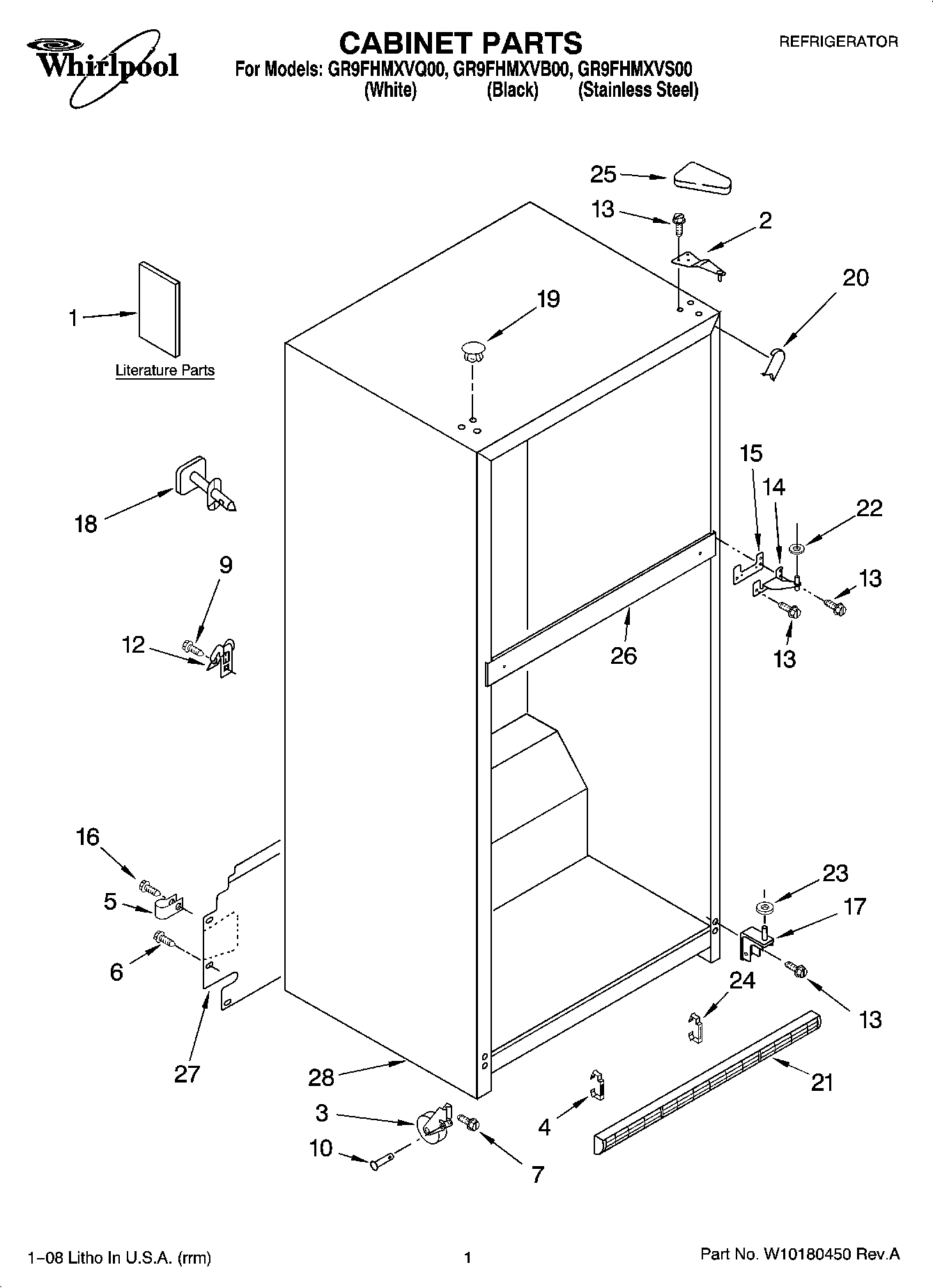

Modular Icemaker Service Sheet WPL 2225623 Contact Us For Availability

1

DO-IT-YOURSELF MANUAL, REF./ FZR. WPL 677969 Contact Us For Availability

1

Following May Be Purchased DO-IT-YOURSELF REP WPL ARI68727A1 Contact Us For Availability

1

Use & Care Guide (Bilingual) WPL W10131409 Contact Us For Availability

1

Use & Care Guide (Trilingual) WPL W10131417 Contact Us For Availability

1

Service & Wiring Sheet WPL W10142143 Contact Us For Availability

1

Energy Label WPL W10178120 Contact Us For Availability

1

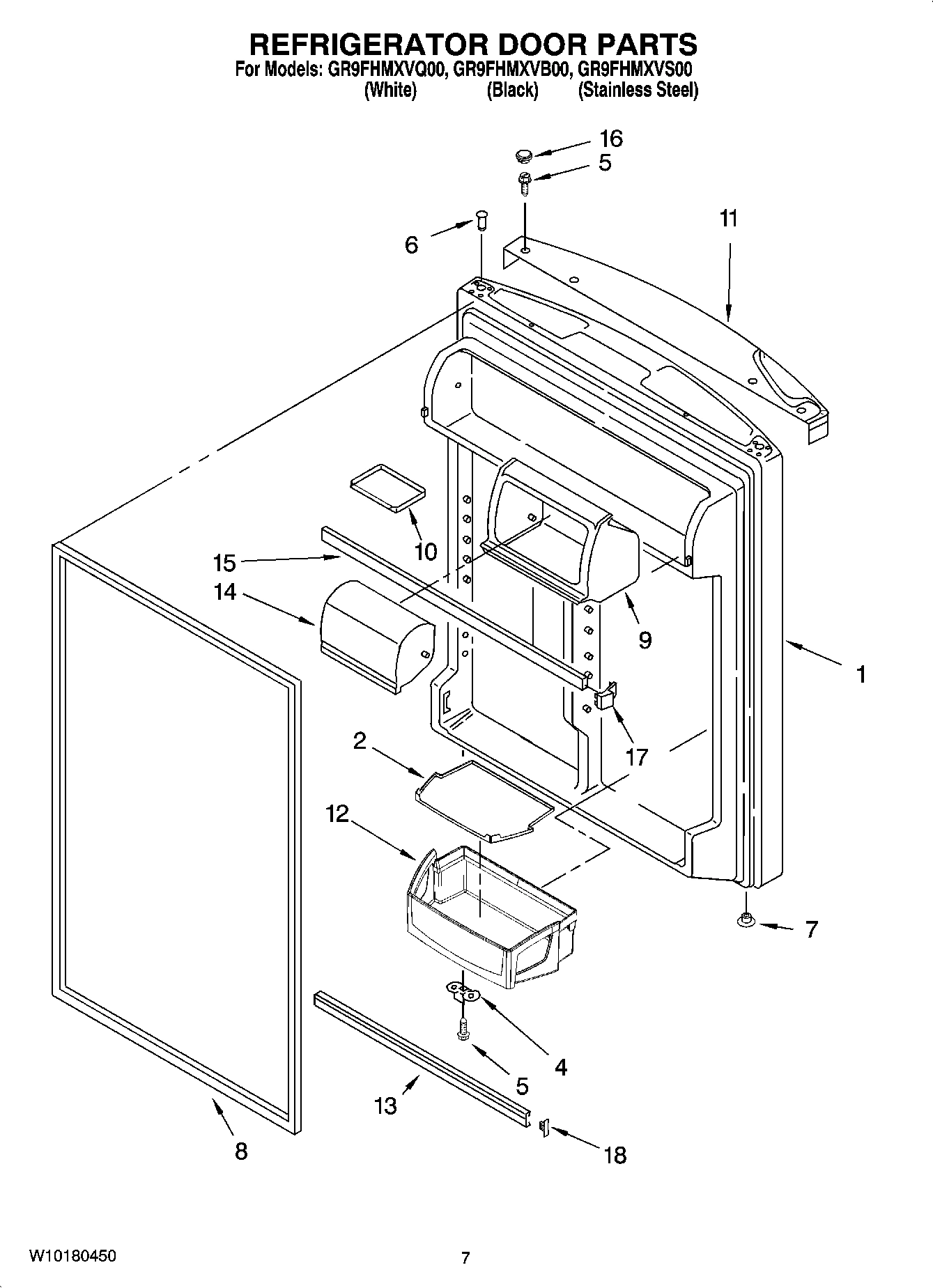

Refrigerator Door (Includes Illus. 6 & 8) (Wh WPL 2205395 Contact Us For Availability

1

Refrigerator Door (Includes Illus. 6 & 8) (Bl WPL 2205398 Contact Us For Availability

1

Refrigerator Door (Includes Illus. 6 & 8) (St WPL 2218280 Contact Us For Availability

2

WP2261963 Whirlpool Refrigerator Door Hinge In Stock WPL WP2261963 $84.99

2

Mat, Door Bin WPL 2300430 Contact Us For Availability

3

2163762 Whirlpool Refrigerator Cup Assembly Backorder WPL 2163762 $6.49

3

WP2166108 Whirlpool Refrigerator Cabinet Roll In Stock WPL WP2166108 $18.99

3

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $6.90

3

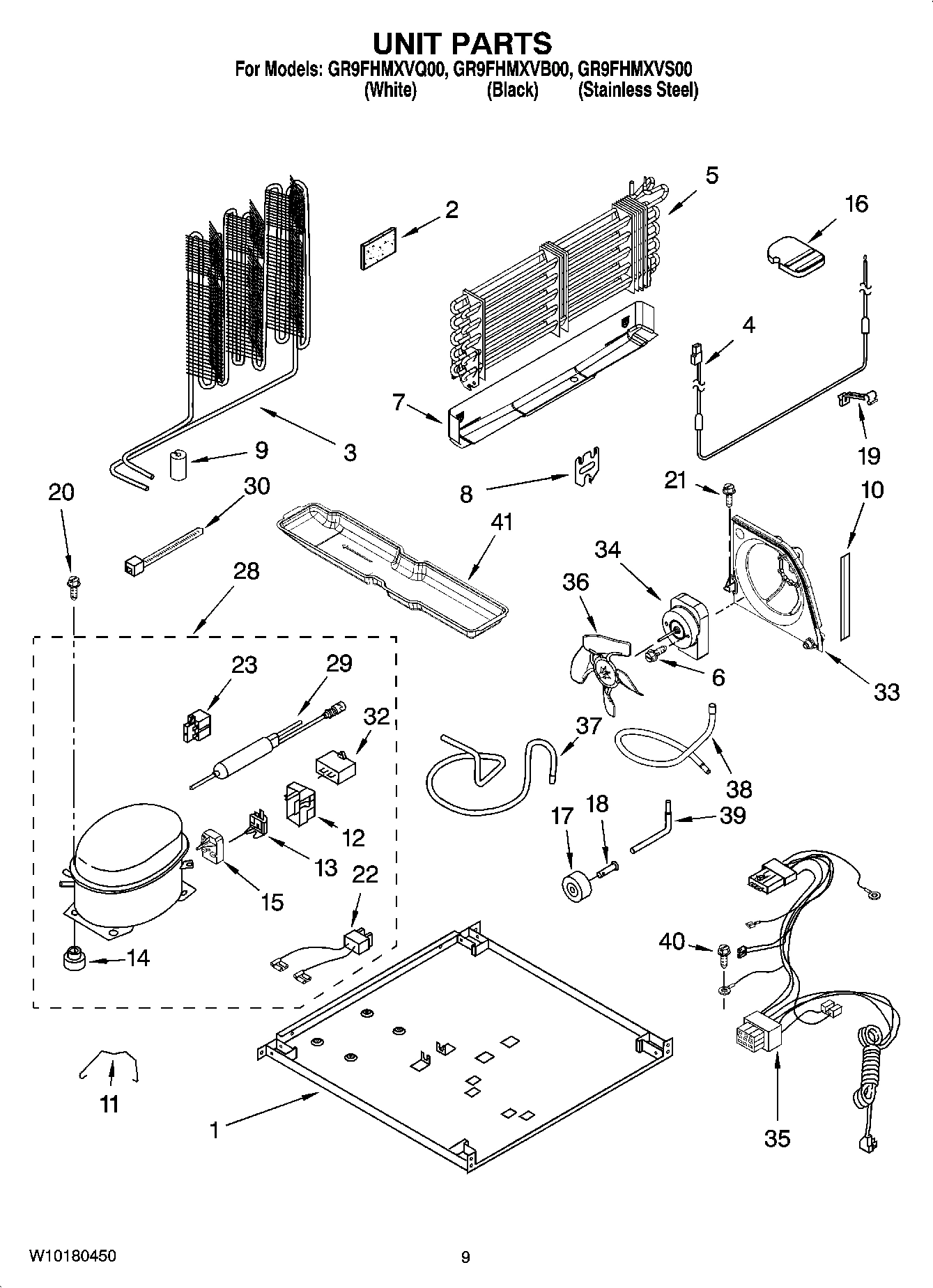

Condenser WPL 2214960 Contact Us For Availability

4

W11745278 Whirlpool Bracket In Stock WPL W11745278 $8.47

4

WP2304099-includeCORE Whirlpool WP2304099 Ref Backorder WPL WP2304099-includeCORE $260.62

4

WP2315531 Whirlpool Refrigerator Heater In Stock WPL WP2315531 $105.74

4

CLIP, GRILLE WPL 2189356 Contact Us For Availability

5

WP2315576 Whirlpool Water Inlet Valve In Stock WPL WP2315576 $51.99

5

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $7.20

5

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $3.91

6

2159327 Whirlpool Refrigerator Door Gasket In Stock WPL 2159327 $92.99

6

2177304 Whirlpool Refrigerator FIP Gasket In Stock WPL 2177304 $200.34

6

WP2183003 Whirlpool Thimble In Stock WPL WP2183003 $4.98

6

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $4.82

7

2210495 Whirlpool Refrigerator Clip Backorder WPL 2210495 $59.69

7

WP2212648 Whirlpool Refrigerator Hinge Sleeve In Stock WPL WP2212648 $4.82

7

WP2212651 Whirlpool Refrigerator Button Plug Backorder WPL WP2212651 $14.62

7

WP3400504 Whirlpool Refrigerator Screw Backorder WPL WP3400504 $4.82

8

2159057 Whirlpool Refrigerator Fresh Food Doo In Stock WPL 2159057 $136.79

8

2177305 Whirlpool Refrigerator Door FIP Gaske In Stock WPL 2177305 $230.67

8

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $4.82

8

Trim, Door Shelf (2) WPL 2195946 Contact Us For Availability

9

W10852725 Whirlpool Refrigerator Grommet In Stock WPL W10852725 $5.99

9

WP489442 Whirlpool Refrigerator Screw Backorder WPL WP489442 $6.83

9

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $5.99

9

Nameplate WPL 2220214 Contact Us For Availability

9

Housing Compartment WPL 2210566 Contact Us For Availability

WP2315539 Whirlpool Refrigerator Evaporator F In Stock WPL WP2315539 $51.50

Tray, Door WPL 2159302 Contact Us For Availability

Handle (White) WPL 2225090 Contact Us For Availability

Handle (Black) WPL 2225158 Contact Us For Availability

WP2163777 Whirlpool Refrigerator Fan Blade In Stock WPL WP2163777 $59.57

WP2195916K Whirlpool End Cap In Stock WPL WP2195916K $8.71

Handle (White) WPL 2212689 Contact Us For Availability

Handle (Black) WPL 2221652 Contact Us For Availability

12

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $8.91

12

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $59.71

12

Bin, Door (3) WPL 2300447 Contact Us For Availability

13

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $55.70

13

WP489497 Whirlpool Screw In Stock WPL WP489497 $6.75

13

WPW10421484 Whirlpool Refrigerator Door Trim In Stock WPL WPW10421484 $61.90

14

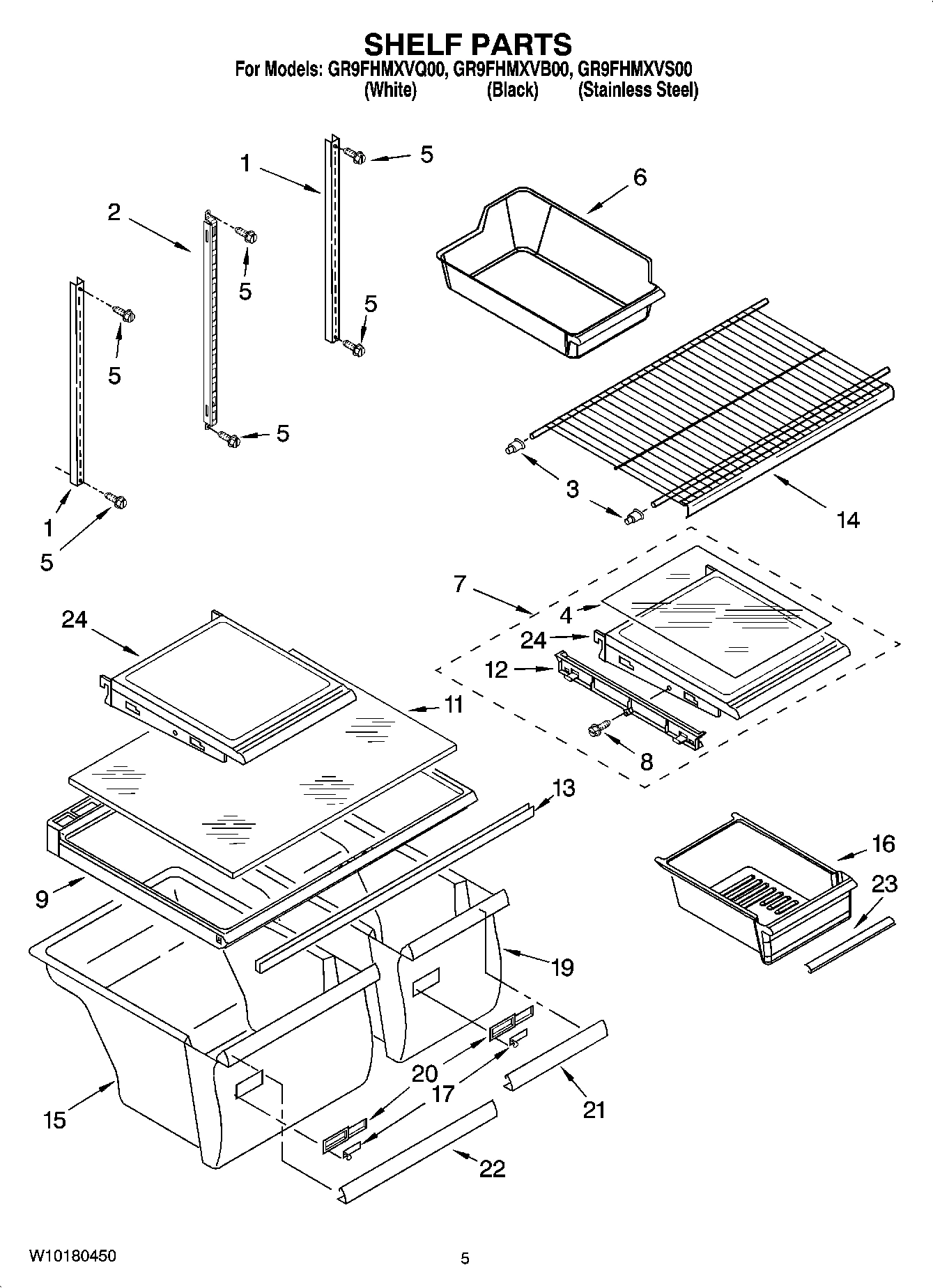

WP2176275 Whirlpool Refrigerator Wire Shelf Backorder WPL WP2176275 $86.42

14

WP2254618 Whirlpool Center Door Hinge In Stock WPL WP2254618 $49.58

14

DOOR COMPARTMENT WPL 2218109 Contact Us For Availability

15

WP2183852 Whirlpool Refrigerator Shim Backorder WPL WP2183852 $6.71

15

WP2225929 Whirlpool Refrigerator Start Device Backorder WPL WP2225929 $90.99

15

TRIM, DOOR SHELF WPL 2159312 Contact Us For Availability

Support Block WPL 2201184 Contact Us For Availability

Cover, Evaporator WPL 2320191 Contact Us For Availability

Hole Plug, Handle (White) WPL 2204837 Contact Us For Availability

Hole Plug, Handle (Black) WPL 2204840 Contact Us For Availability

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $14.99

WP2254473 Whirlpool Refrigerator Door Hinge In Stock WPL WP2254473 $5.99

Slide, Humidity Control WPL 2176222 Contact Us For Availability

Endcap, Door Trim WPL 2177340 Contact Us For Availability

18

W11594405 Whirlpool Axle In Stock WPL W11594405 $8.90

18

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $5.47

18

Fitting, Water Tube (Not Serviced) WPL ARI68728A9 Contact Us For Availability

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $17.77

WP2151652 Whirlpool Refrigerator Button Plug In Stock WPL WP2151652 $14.52

WP2183998 Whirlpool Refrigerator Button Plug Backorder WPL WP2183998 $11.61

WP627792 Whirlpool Refrigerator Shut Off Arm Backorder WPL WP627792 $57.65

Clip, Heater WPL 2182338 Contact Us For Availability

20

W11252732 Whirlpool Refrigerator Filler Backorder WPL W11252732 $7.84

20

WP2212446 Whirlpool Refrigerator Control Body In Stock WPL WP2212446 $46.99

20

WPW10283959 Whirlpool Refrigerator Filler In Stock WPL WPW10283959 $5.99

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $16.99

WP2254386 Whirlpool Refrigerator Grille Backorder WPL WP2254386 $65.24

Cover, Air Diffuser WPL 2176281 Contact Us For Availability

Grille (Includes Illus. 4 & 24) (Black) WPL 2254388 Contact Us For Availability

Trim, Crisper Pan WPL 2195340 Contact Us For Availability

22

WP2195341 Whirlpool Refrigerator Pan Trim Backorder WPL WP2195341 $55.91

22

WP489467 Whirlpool Hinge Shim In Stock WPL WP489467 $5.99

23

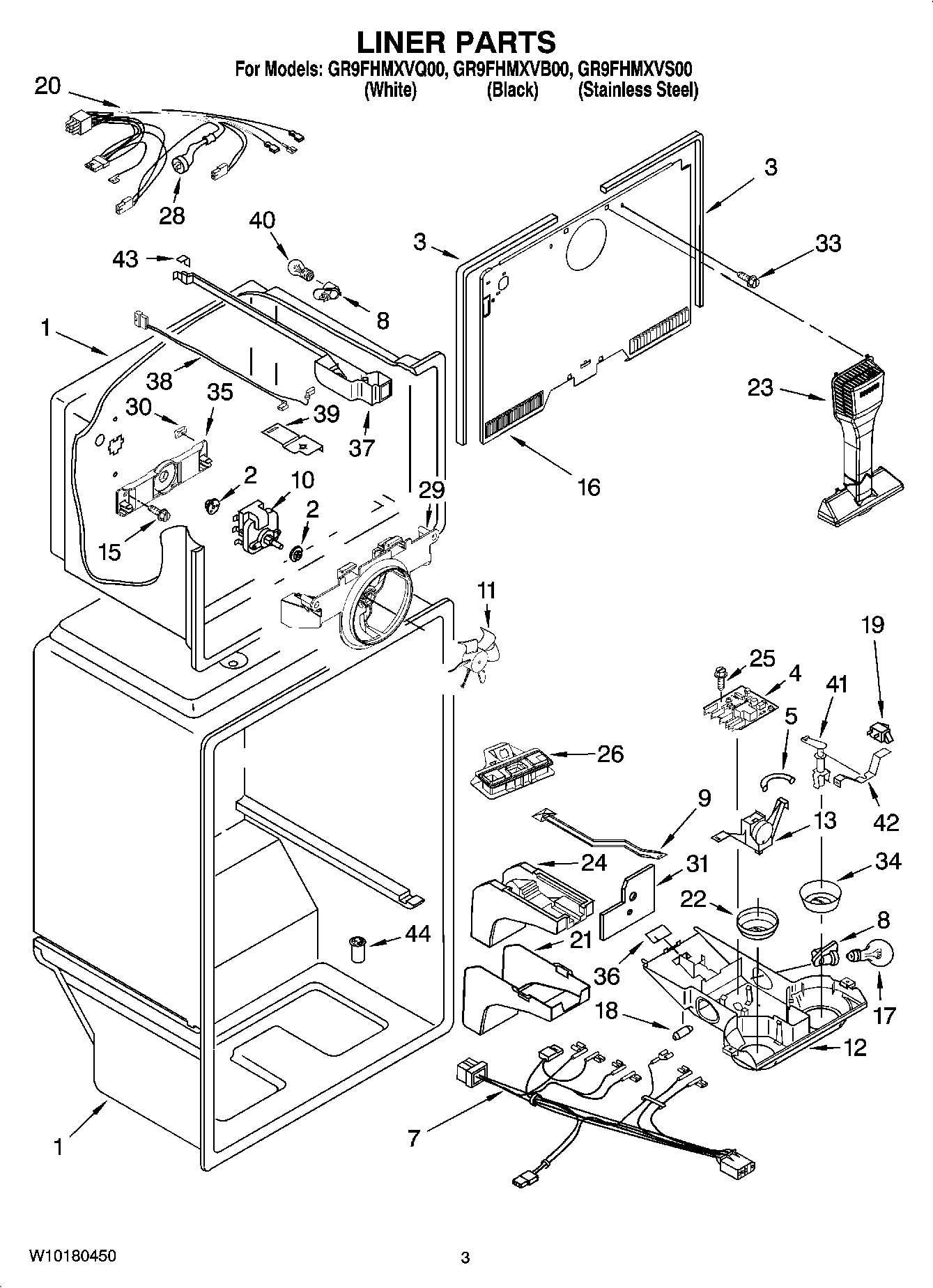

WP2254354 Whirlpool Refrigerator Air Tower Backorder WPL WP2254354 $71.14

23

WP487576 Whirlpool Washer In Stock WPL WP487576 $5.99

24

2254385 Whirlpool Refrigerator Clip Backorder WPL 2254385 $58.09

24

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $6.83

24

WP2189452 Whirlpool Refrigerator Diffuser Backorder WPL WP2189452 $82.12

25

WP2213360 Whirlpool Refrigerator Cover Backorder WPL WP2213360 $12.19

25

WP2213363 Whirlpool Refrigerator Cover Backorder WPL WP2213363 $11.53

26

Air Separator Assembly WPL 2210390 Contact Us For Availability

26

Rail, Center (Not Serviced) WPL ARI68729A8 Contact Us For Availability

27

Cover, Unit WPL 2254578 Contact Us For Availability

28

WP2321800 Whirlpool Refrigerator Bimetallic D In Stock WPL WP2321800 $63.99

28

Cabinet, (Not A Serviceable Part) WPL ARI68730A1 Contact Us For Availability

29

BRACKET, FAN MOTOR WPL 2254453 Contact Us For Availability

33

WP2315541 Whirlpool Refrigerator Air Baffle Backorder WPL WP2315541 $52.87

33

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $4.82

34

Knob, Damper WPL 2302536 Contact Us For Availability

35

2254454 Whirlpool Refrigerator Bracket Backorder WPL 2254454 $51.32

37

Housing Base WPL 2300417 Contact Us For Availability

41

WP2254574 Whirlpool Refrigerator Evaporator T Backorder WPL WP2254574 $103.72

44

WP2210509 Whirlpool Refrigerator Tub Valve Backorder WPL WP2210509 $62.27
