Model Whirlpool GLER5434BW0 – Common Parts & Diagrams
04 - BULKHEAD

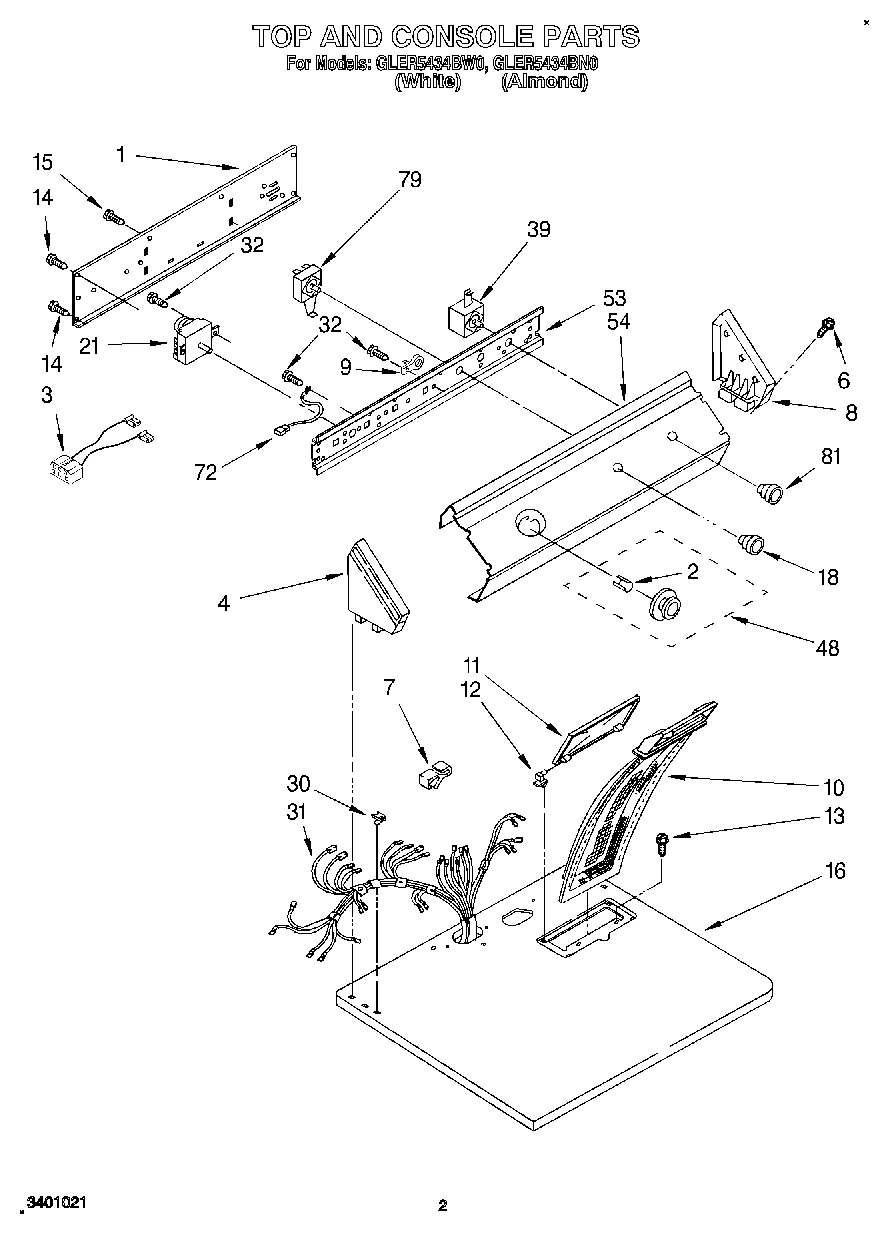

02 - TOP AND CONSOLE, LIT/OPTIONAL

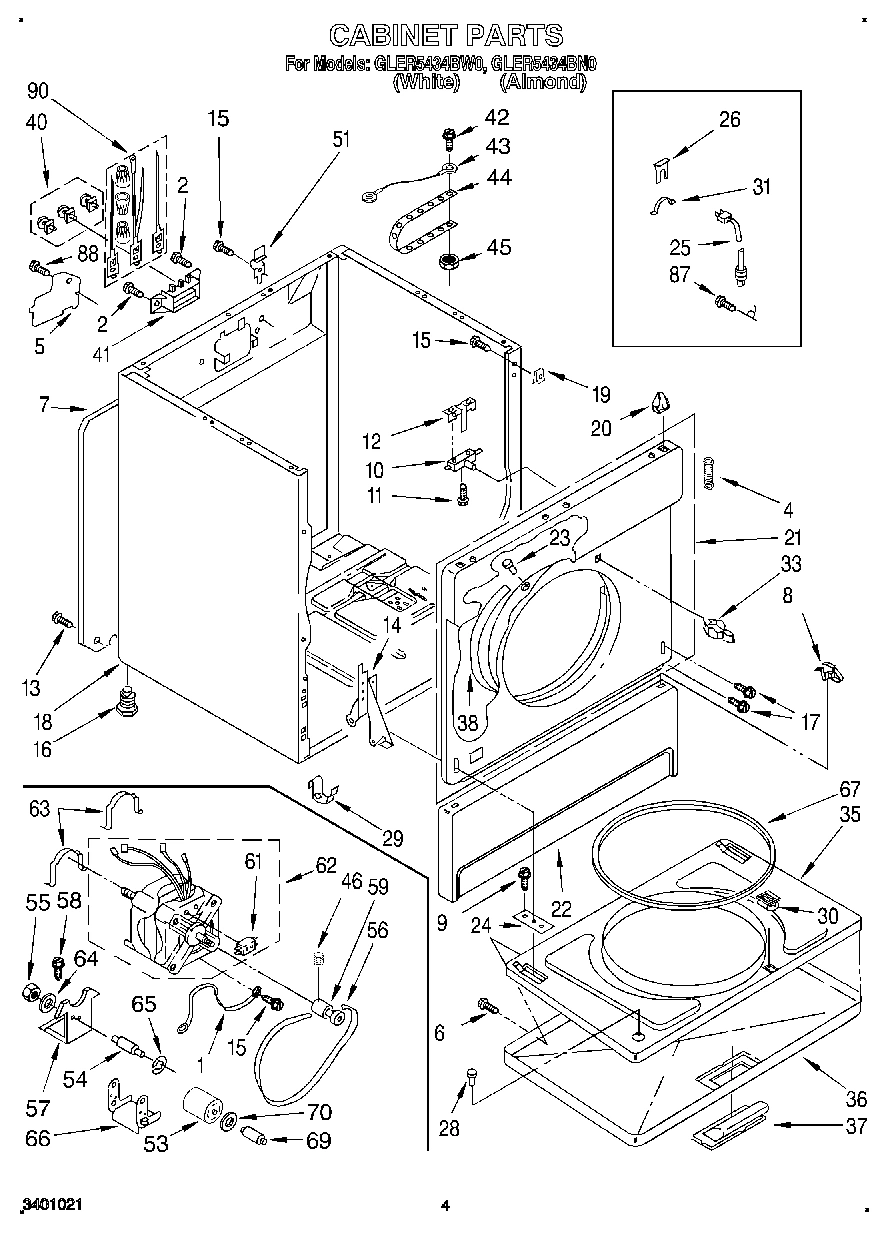

03 - CABINET
Common parts from model Whirlpool GLER5434BW0
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
1
Wire, Ground (Motor) WPL 690236 Contact Us For Availability
4
Spring, Door (2) WPL 237979 Contact Us For Availability
7
Panel, Rear WPL 346368 Contact Us For Availability
8
Cap, End (R.H.) (White) WPL 3358516 Contact Us For Availability
8
Cap, End (R.H.) (Almond) WPL 3358517 Contact Us For Availability
10
SCREEN WPL 339392 Contact Us For Availability
11
Cover, Lint Screen (White) WPL 688150 Contact Us For Availability
11
Cover, Lint Screen (Almond) WPL 689310 Contact Us For Availability
14
Hinge, R.H. WPL 687905 Contact Us For Availability
14
Hinge, L.H. WPL 687906 Contact Us For Availability
16
Top (White) WPL 3396022 Contact Us For Availability
16
Top (Almond) WPL 3396023 Contact Us For Availability
17
Screw, 10-32 x 1/2 WPL 342043 Contact Us For Availability
18
Cabinet (White) WPL 3394109 Contact Us For Availability
18
Cabinet (Almond) WPL 3394110 Contact Us For Availability
21
Upper Front Panel (White) WPL 338012 Contact Us For Availability
21
Upper Front Panel (Almond) WPL 689533 Contact Us For Availability
22
Panel, Toe (White) WPL 692427 Contact Us For Availability
22
Panel, Toe (Almond) WPL 692428 Contact Us For Availability
25
Cord, Power WPL 3387258 Contact Us For Availability
31
Harness, Wiring (Includes 3397659 Terminal Bl WPL 3401145 Contact Us For Availability
35
Door, Rear WPL 695954 Contact Us For Availability
36
Door, Front (White) WPL 348728 Contact Us For Availability
36
Door, Front (Almond) WPL 689330 Contact Us For Availability
37
Handle, Door (Almond) WPL 690271 Contact Us For Availability
42
Screw, 10-24 x 1 WPL 132848 Contact Us For Availability
43
Wire, Ground WPL 685449 Contact Us For Availability
44
Strap, Ground WPL 22965 Contact Us For Availability
46
Screw, Set WPL 690046 Contact Us For Availability
53
Bracket, Control WPL 3396293 Contact Us For Availability
54
Panel, Control (White) WPL 3401060 Contact Us For Availability
54
Panel, Control (Almond) WPL 3401062 Contact Us For Availability
54
Shaft, Shifter WPL 345234 Contact Us For Availability
55
Nut, 3/8 x 24 WPL 124925 Contact Us For Availability
64
WPL 120382 WPL 120382 Contact Us For Availability
66
WPL 345263 WPL 345263 Contact Us For Availability
69
WPL 687121 WPL 687121 Contact Us For Availability
70
WPL 345323 WPL 345323 Contact Us For Availability
72
Wire, Ground WPL 690853 Contact Us For Availability
79
Switch, Cycle Selection WPL 3354281 Contact Us For Availability
81
Knob, Push To Start WPL 3396160 Contact Us For Availability
× ![]()
