Model Whirlpool GGW9868KL3 27`` GAS DRYER – Common Parts &amp; Diagrams

1

Instructions, Installation WPL 3979174 Contact Us For Availability

1

DIY WPL 677818 Contact Us For Availability

1

Guide, Use & Care WPL 8528148 Contact Us For Availability

1

Tech Sheet WPL 8541837 Contact Us For Availability

1

Following May Be Purchased DO-IT-YOURSELF REP WPL ARI148817A Contact Us For Availability

2

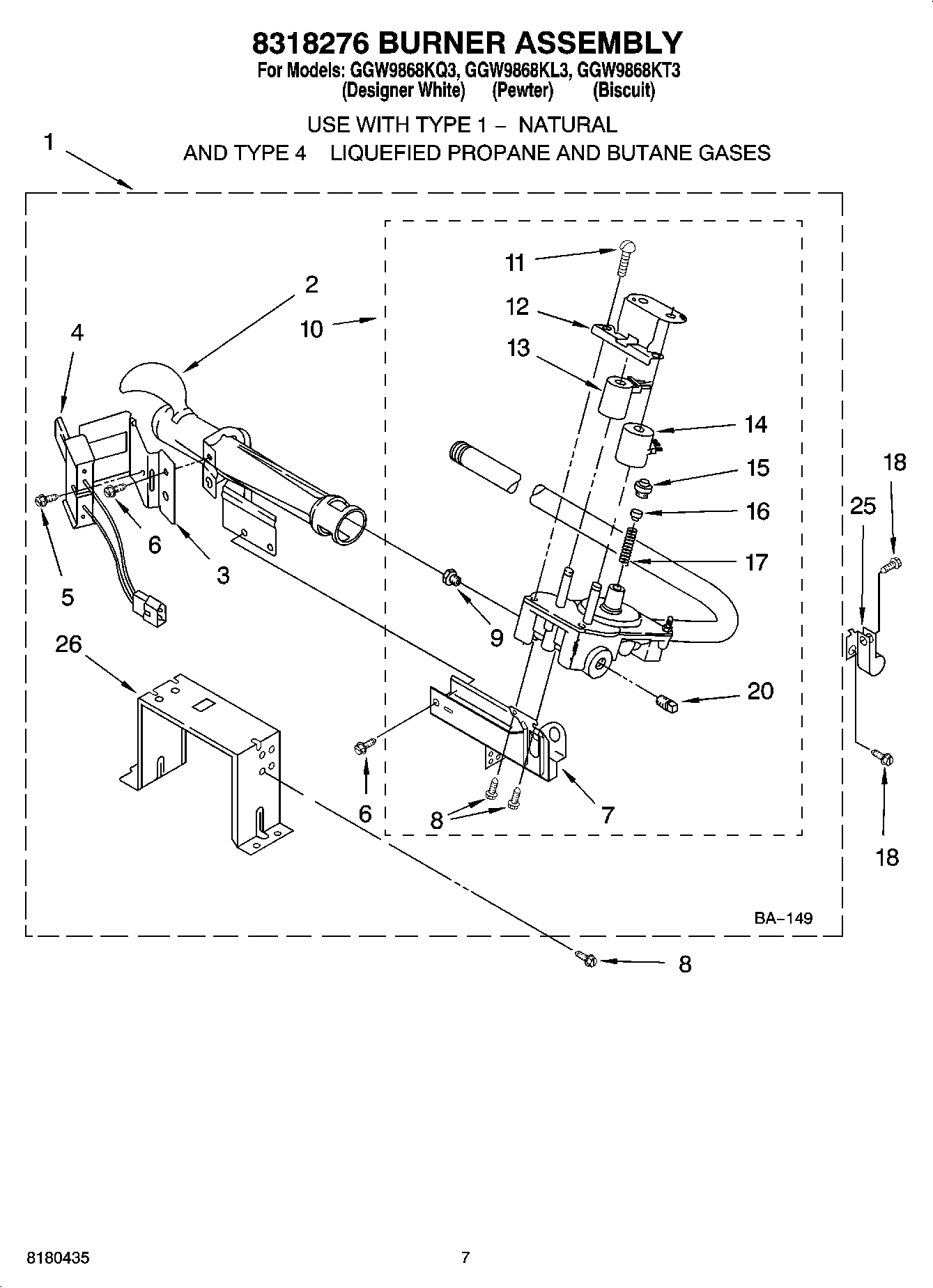

WP693140 Whirlpool Burner Backorder WPL WP693140 $124.13

2

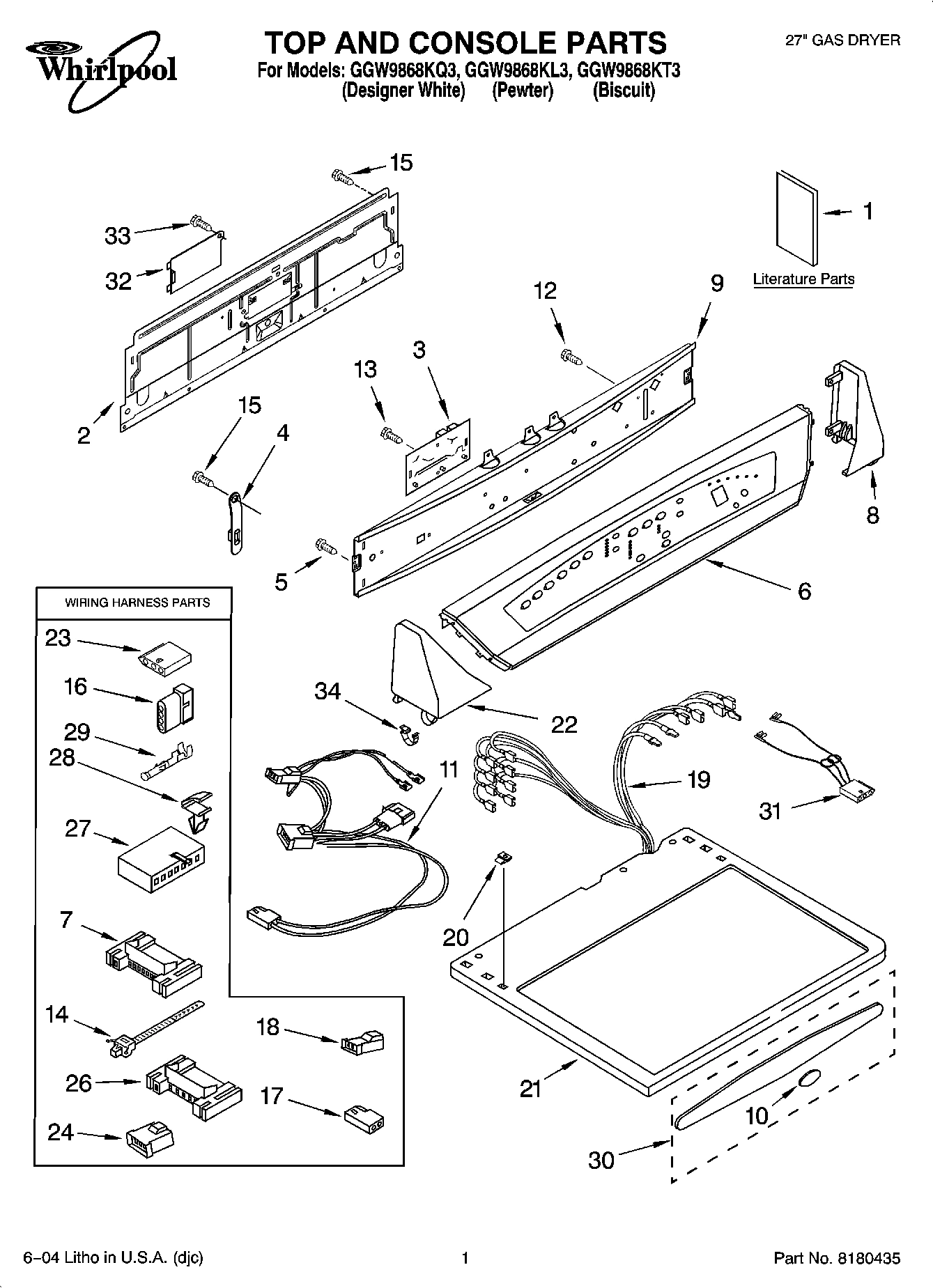

Panel, Rear Console WPL 8274338 Contact Us For Availability

3

WP694298 Whirlpool Bracket Backorder WPL WP694298 $15.81

3

Control Board WPL 3980061 Contact Us For Availability

4

279311 Whirlpool Dryer Flat Igniter Assembly In Stock WPL 279311 $44.99

4

WP3394986 Whirlpool Spring Backorder WPL WP3394986 $53.11

4

WP8568314 Whirlpool Strap Backorder WPL WP8568314 $4.82

5

W11168650 Whirlpool Air Duct Backorder WPL W11168650 $99.54

5

WP304231 Whirlpool Dishwasher Screw Backorder WPL WP304231 $4.82

5

WPW10366705 Whirlpool Screw In Stock WPL WPW10366705 $4.99

6

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.91

6

WP697813 Whirlpool Seal In Stock WPL WP697813 $4.98

6

Panel, Console (Includes Keyswitch) (Pearl) WPL 3978825 Contact Us For Availability

6

Panel, Console (Includes Keyswitch) (Pewter) WPL 3978826 Contact Us For Availability

7

3395683 Whirlpool Connector Backorder WPL 3395683 $37.04

7

Base, Burner WPL 3389871 Contact Us For Availability

8

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.99

8

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $4.99

8

WP693995 Whirlpool Screw In Stock WPL WP693995 $7.99

8

Cap, End (R.H.) (White) WPL 8299686 Contact Us For Availability

8

Cap, End (R.H.) (Biscuit) WPL 8299687 Contact Us For Availability

8

Cap, End (R.H.) (Pewter) WPL 8299688 Contact Us For Availability

9

8066086 Whirlpool Plug Backorder WPL 8066086 $7.15

9

WP229742 Whirlpool Gas Orifice Backorder WPL WP229742 $22.94

9

WP234826 Whirlpool Gas Orifice In Stock WPL WP234826 $22.99

9

WP234868 Whirlpool Gas Orifice Backorder WPL WP234868 $22.94

9

WP660658 Whirlpool Clamp In Stock WPL WP660658 $8.99

9

Bracket, Control WPL 8299690 Contact Us For Availability

10

WP8318281 Whirlpool Gas Valve Backorder WPL WP8318281 $246.68

10

Medallion WPL 8316751 Contact Us For Availability

11

694421 Whirlpool Screw Assembly Backorder WPL 694421 $8.13

11

WP3389420 Whirlpool Screw In Stock WPL WP3389420 $4.99

11

WP3401850 Whirlpool Wire Harness Backorder WPL WP3401850 $173.55

12

3400073 Whirlpool Screw Backorder WPL 3400073 $5.85

12

694538 Whirlpool Bracket Backorder WPL 694538 $51.47

13

3400826 Whirlpool Screw Backorder WPL 3400826 $5.51

14

279834 Whirlpool Dryer Gas Valve Solenoid Coi In Stock WPL 279834 $26.92

14

WP3391018 Whirlpool Wire Tie Backorder WPL WP3391018 $20.96

15

WP694424 Whirlpool Limiter In Stock WPL WP694424 $17.77

16

3398948 Whirlpool Wire Backorder WPL 3398948 $43.98

16

353424 Whirlpool Connector Backorder WPL 353424 $14.02

16

WP694423 Whirlpool Regulator Backorder WPL WP694423 $4.82

17

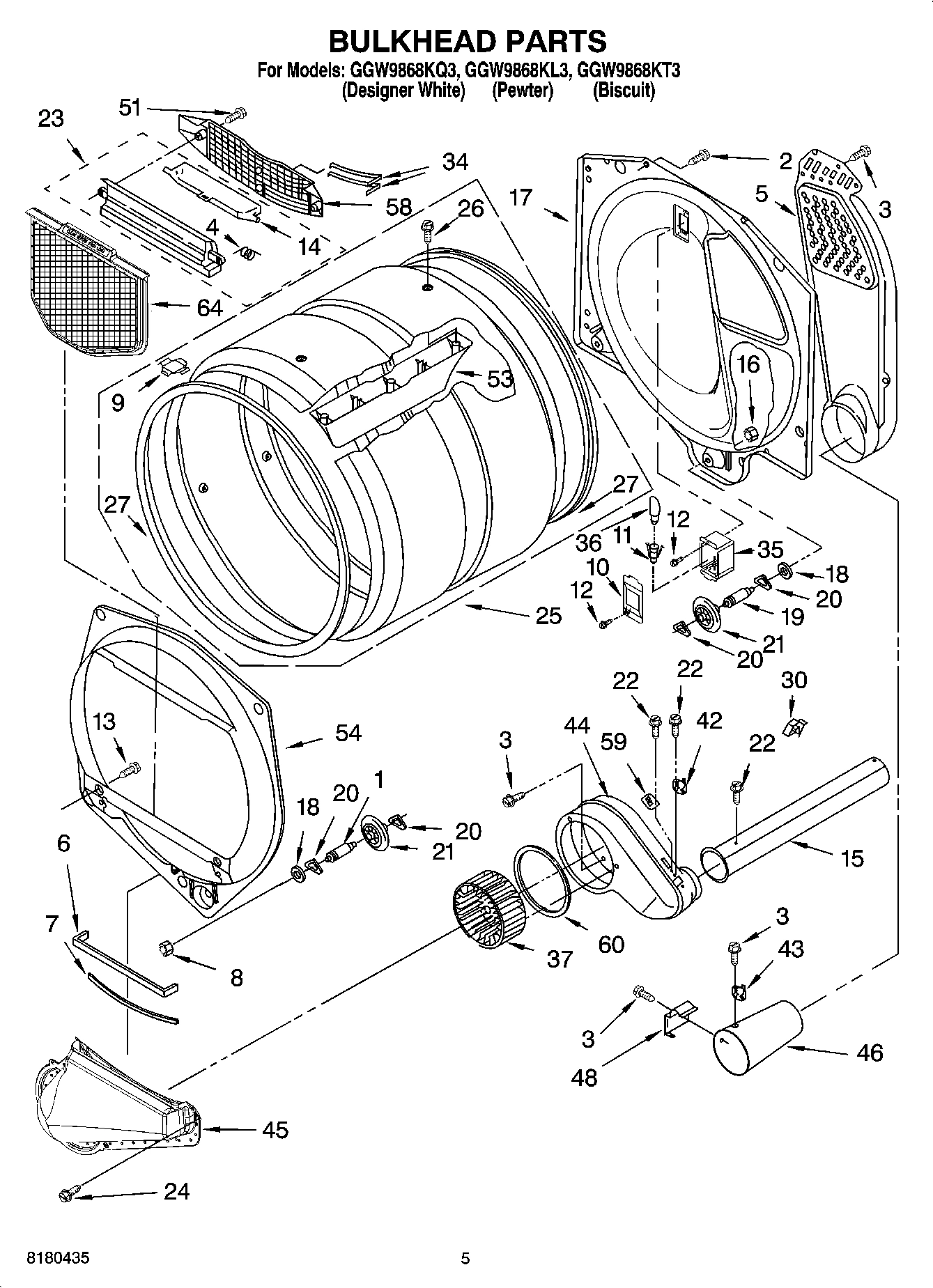

W11299301 Whirlpool Bulkhead Assembly Backorder WPL W11299301 $151.69

17

WP694422 Whirlpool Spring Backorder WPL WP694422 $16.83

17

Receptacle, 2 Way WPL 717252 Contact Us For Availability

18

WP3403499 Whirlpool Connector Backorder WPL WP3403499 $4.55

18

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $3.91

18

WPW10121334 Whirlpool Washer In Stock WPL WPW10121334 $4.99

19

WP297092 Whirlpool Clip In Stock WPL WP297092 $8.99

19

Harness, Wiring WPL 8299949 Contact Us For Availability

20

W10295523 Whirlpool Plug Backorder WPL W10295523 $15.58

20

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $4.82

WP3387559 Whirlpool Door Hinge In Stock WPL WP3387559 $80.99

WP3387560 Whirlpool Door Hinge In Stock WPL WP3387560 $74.77

Top (White) WPL 3978832 Contact Us For Availability

Top (Biscuit) WPL 3978833 Contact Us For Availability

Top (Pewter) WPL 3978837 Contact Us For Availability

WP3387565 Whirlpool Door Spring In Stock WPL WP3387565 $25.62

Cap, End (L.H.) (White) WPL 8299683 Contact Us For Availability

Cap, End (L.H.) (Biscuit) WPL 8299684 Contact Us For Availability

Cap, End (L.H.) (Pewter) WPL 8299685 Contact Us For Availability

23

3936144 Whirlpool Connector Backorder WPL 3936144 $14.02

23

WP8066120 Whirlpool Lever Assembly Backorder WPL WP8066120 $20.67

24

WP3403498 Whirlpool Connector Backorder WPL WP3403498 $4.82

24

Wire, Belt Switch WPL 3394081 Contact Us For Availability

25

3387561 Whirlpool Clamp Backorder WPL 3387561 $13.22

2203186 Whirlpool Connector Backorder WPL 2203186 $8.09

49572A Whirlpool Dryer Propane Gas Conversion In Stock WPL 49572A $19.99

WP3393657 Whirlpool Belt Retainer Backorder WPL WP3393657 $85.97

Bracket, Support WPL 3389889 Contact Us For Availability

FOLLOWING PARTS NOT ILLUSTRATED WPL ARI148819A Contact Us For Availability

27

3936150 Whirlpool Connector Backorder WPL 3936150 $59.13

28

WP3394427 Whirlpool Clip In Stock WPL WP3394427 $4.82

29

W10837625 Whirlpool Dryer Motor Pulley In Stock WPL W10837625 $55.99

29

WP94614 Whirlpool Terminal Backorder WPL WP94614 $4.82

30

Medallion Assembly (Sage) WPL 8521943 Contact Us For Availability

30

Medallion Assembly (Pewter) WPL 8521944 Contact Us For Availability

31

WP3406653 Whirlpool Wire Harness In Stock WPL WP3406653 $104.68

32

W10819767 Whirlpool Cover Backorder WPL W10819767 $70.98

32

WP3387118 Whirlpool Base Assembly Backorder WPL WP3387118 $87.42

33

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.91

34

693152 Whirlpool Bumper In Stock WPL 693152 $11.45

34

WP3387223 Whirlpool Electrode Assembly In Stock WPL WP3387223 $4.60

34

WP8312709 Whirlpool Endcap Clip In Stock WPL WP8312709 $10.99

35

3977373 Whirlpool Bracket Backorder WPL 3977373 $66.01

37

WP697772 Whirlpool Dryer Blower Wheel In Stock WPL WP697772 $36.97

41

WP3406107 Whirlpool Dryer Door Switch In Stock WPL WP3406107 $26.86

44

WP3387242 Whirlpool Seal In Stock WPL WP3387242 $11.68

46

WP3388229 Whirlpool Dryer Spring Clip In Stock WPL WP3388229 $4.98

48

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $37.50

51

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $3.91

53

Baffle, Drum WPL 697693 Contact Us For Availability

54

WP697557 Whirlpool Bulkhead Assembly Backorder WPL WP697557 $129.39

58

W11086603 Whirlpool Dryer Link Screen Air Gri In Stock WPL W11086603 $16.99

59

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $8.99

60

WP697770 Whirlpool Blower Cover Plate Seal In Stock WPL WP697770 $4.99

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350938 Whirlpool Spray Gun Backorder WPL 350938 $49.86

4392067 Whirlpool Dryer Repair Kit In Stock WPL 4392067 $52.99

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $16.99

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $30.99

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

W10120998 Whirlpool Dryer Lint Screen Filter In Stock WPL W10120998 $34.95

W11224254 Whirlpool Test Kit In Stock WPL W11224254 $11.79

WP4396174 Whirlpool Touch-Up Paint Backorder WPL WP4396174 $15.74

WPL 799344 WPL 799344 Contact Us For Availability

KIT, HOLD DOWN (GAS DRYER MOBILE HOME INSTALL WPL 346764 Contact Us For Availability

PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability

WPL 4396175 WPL 4396175 Contact Us For Availability

WPL ARI148818A WPL ARI148818A Contact Us For Availability
