Model Whirlpool GDG27CS WASHER – Common Parts & Diagrams

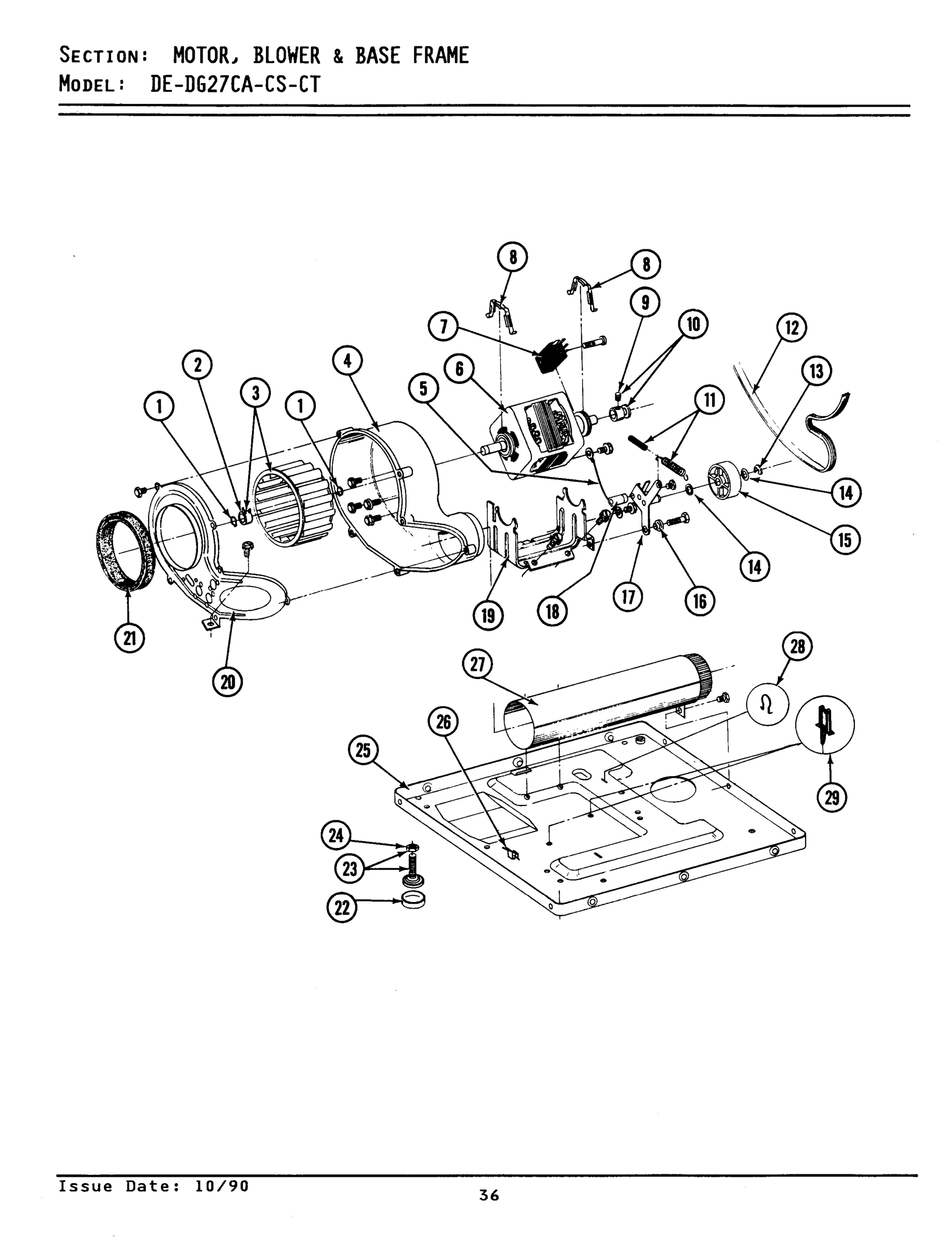

02 - MOTOR, BLOWER & BASE FRAME

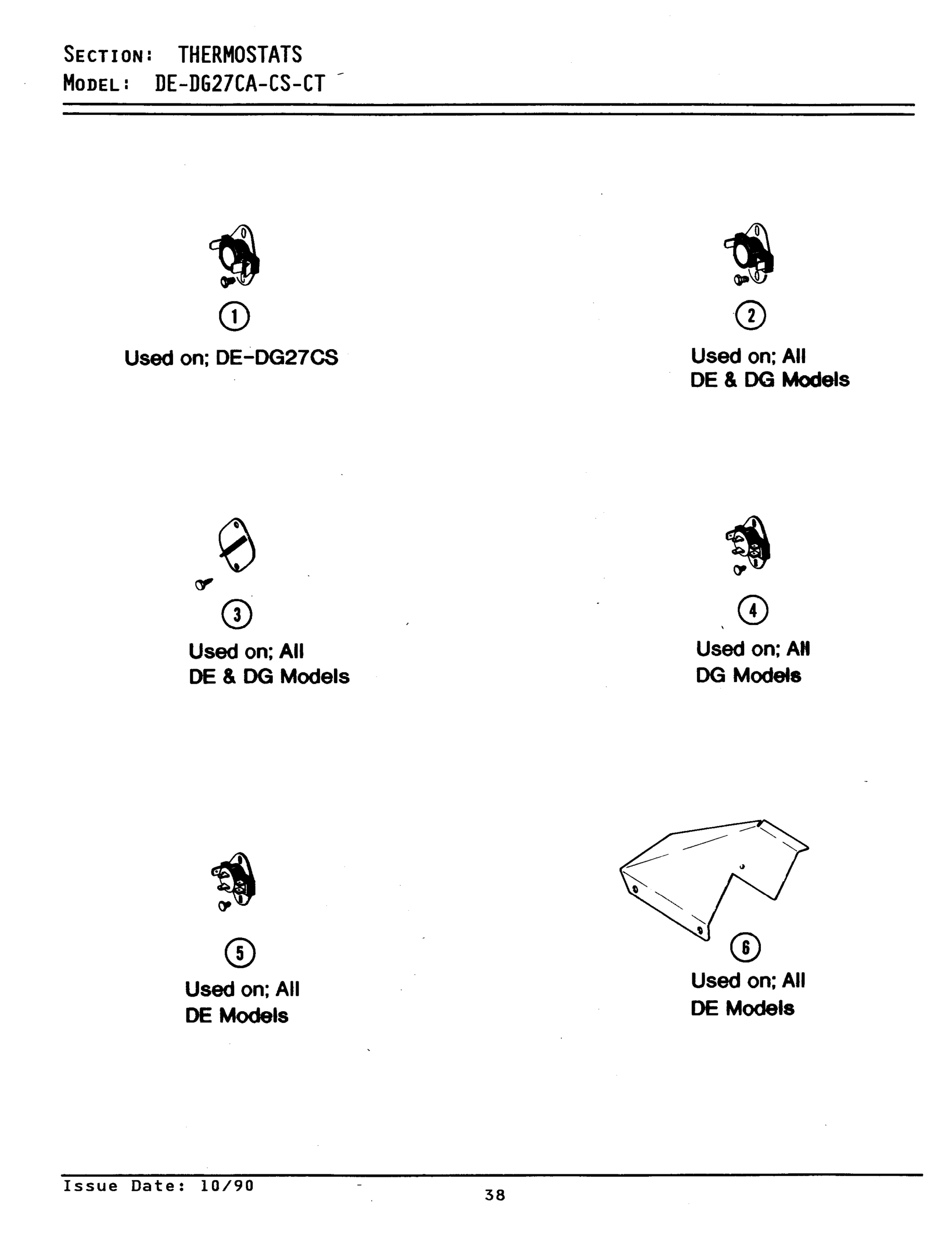

03 - THERMOSTATS

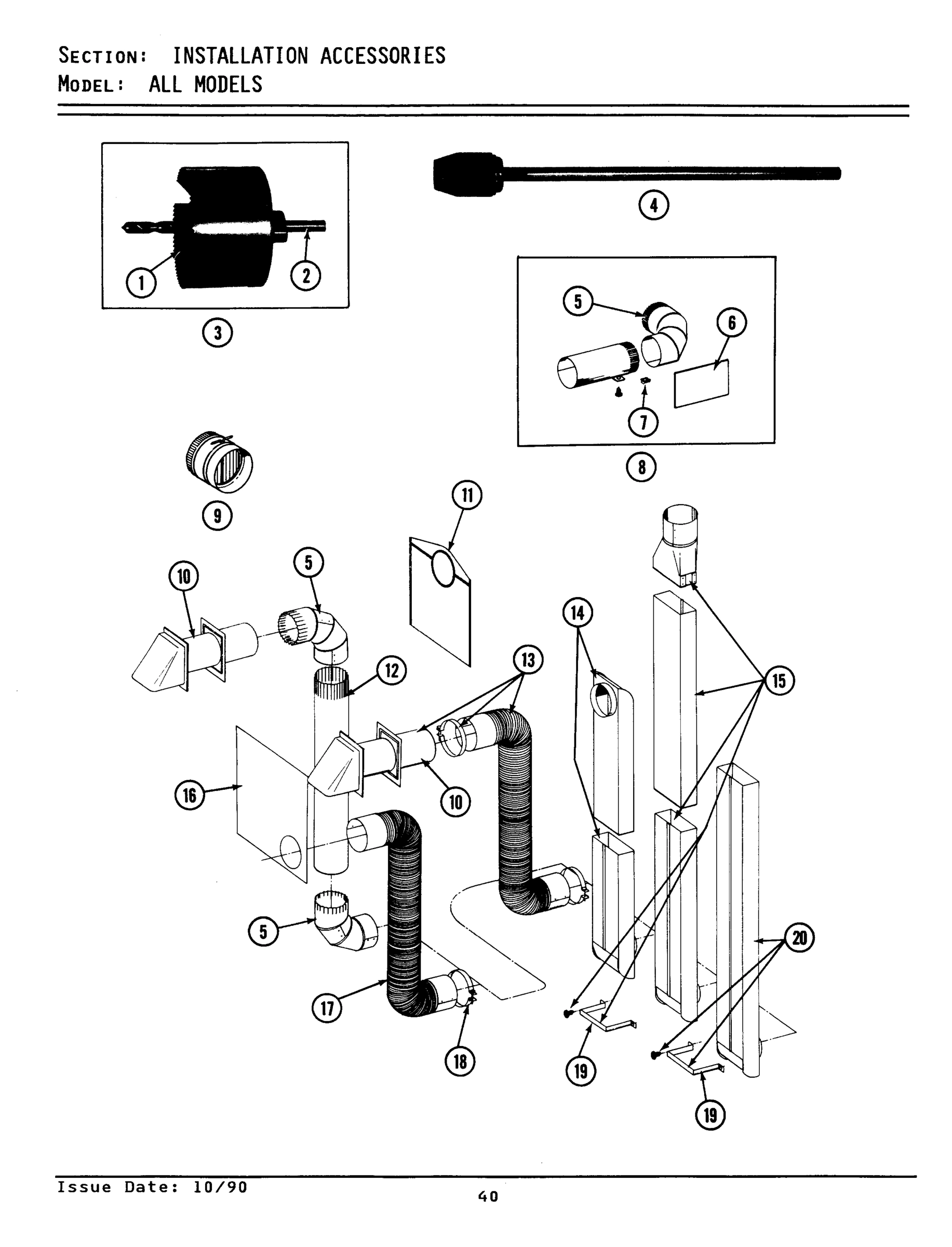

04 - INSTALLATION ACCESSORIES

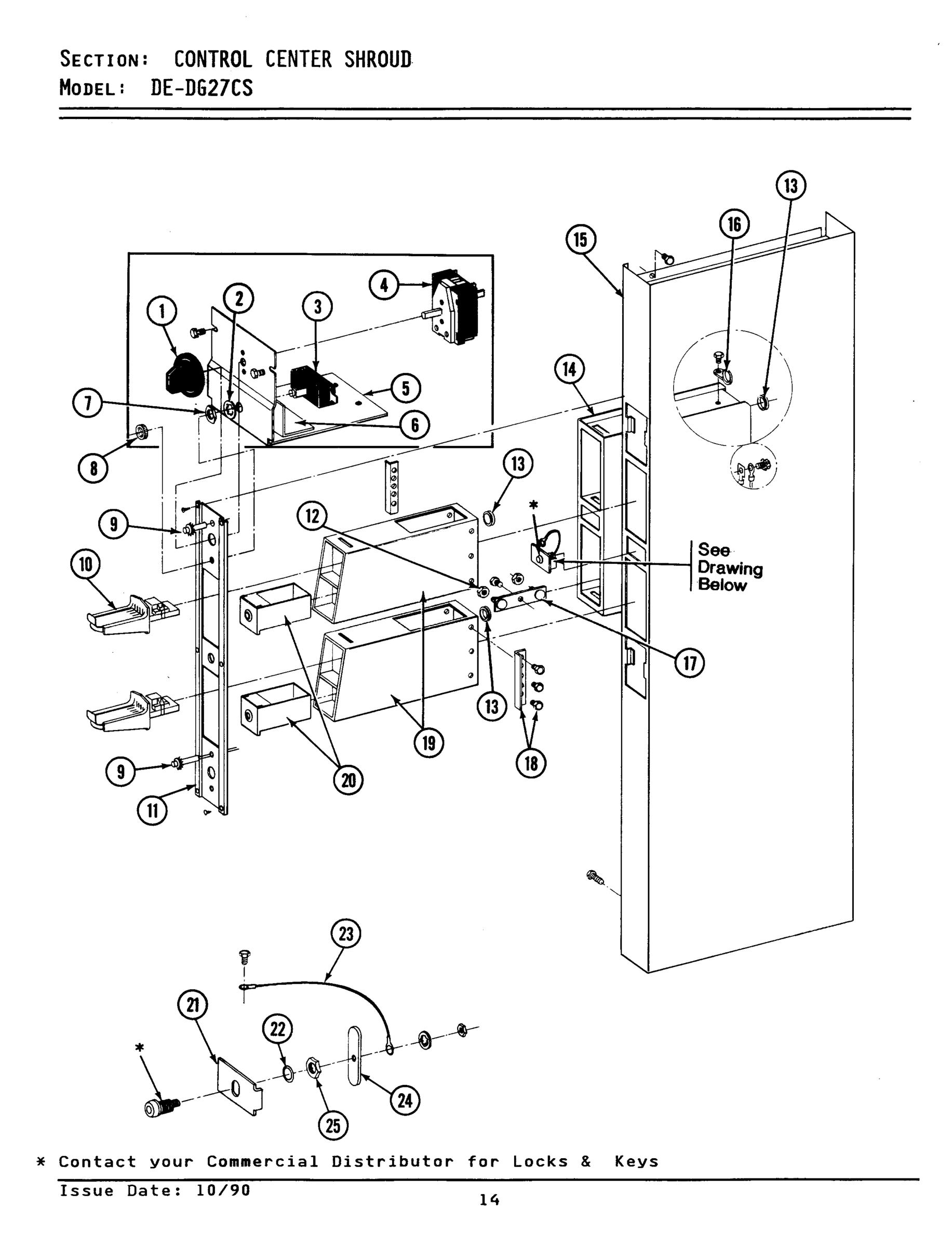

07 - CONTROL CENTER SHROUD

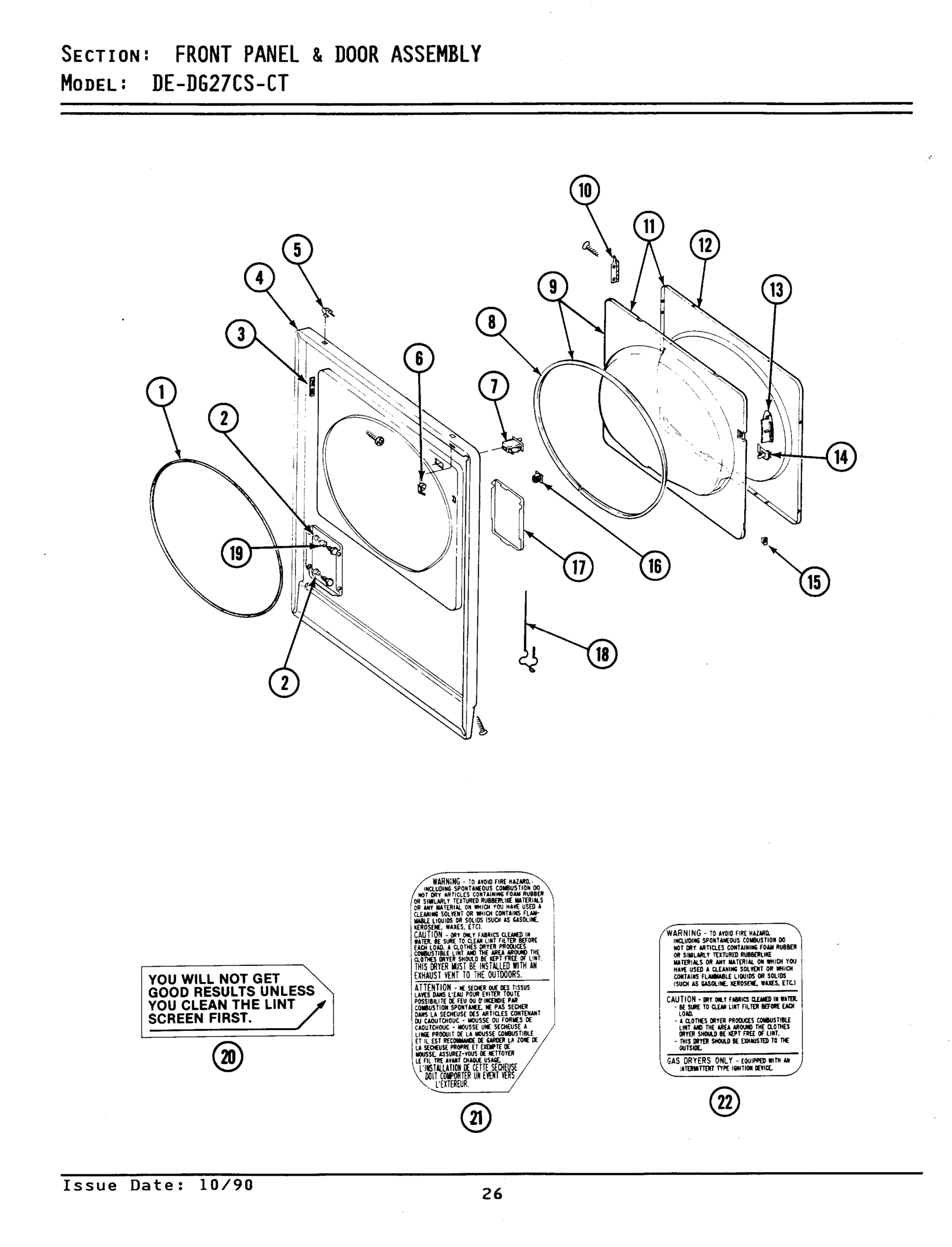

10 - FRONT PANEL & DOOR ASSEMBLY

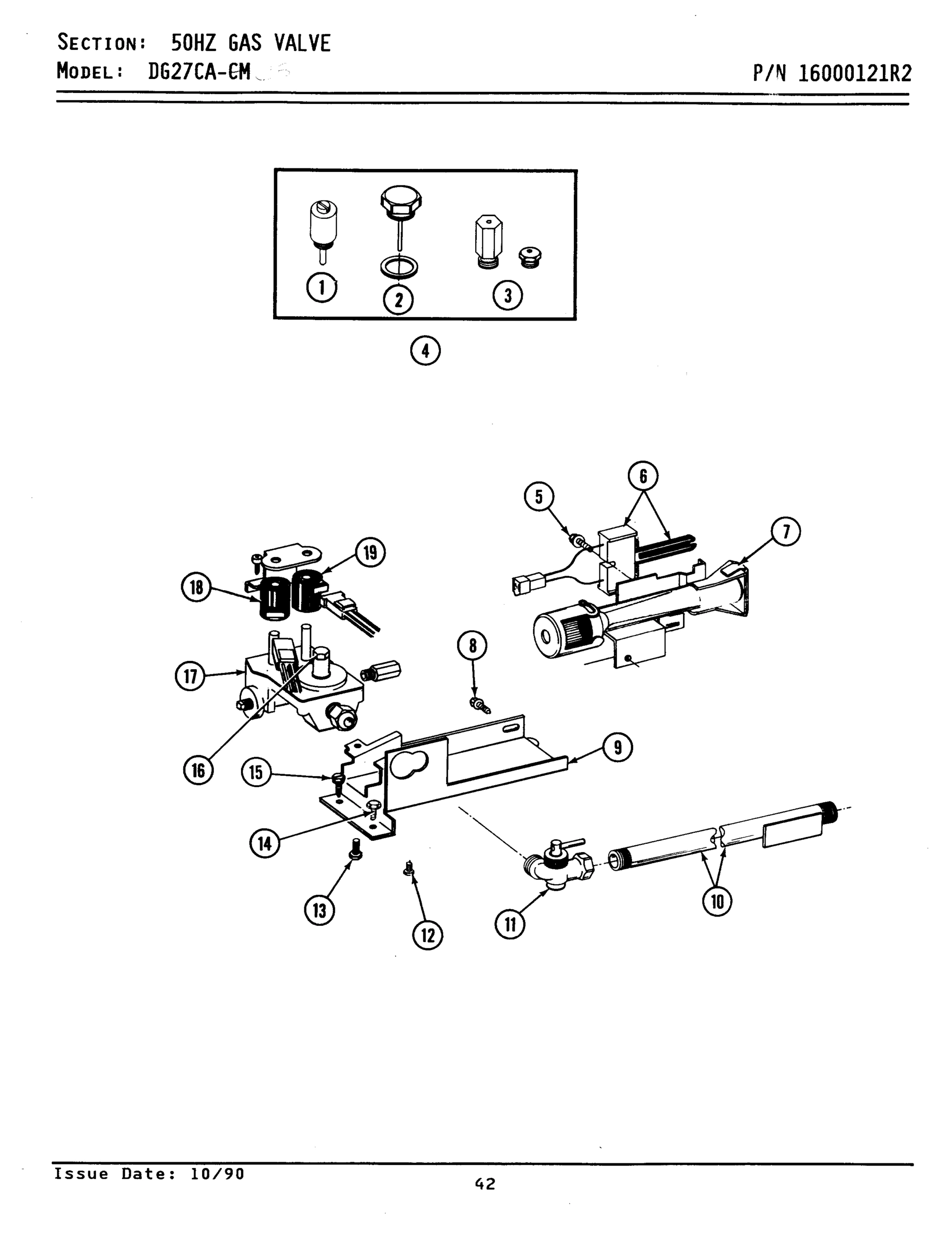

12 - 50HZ GAS VALVE

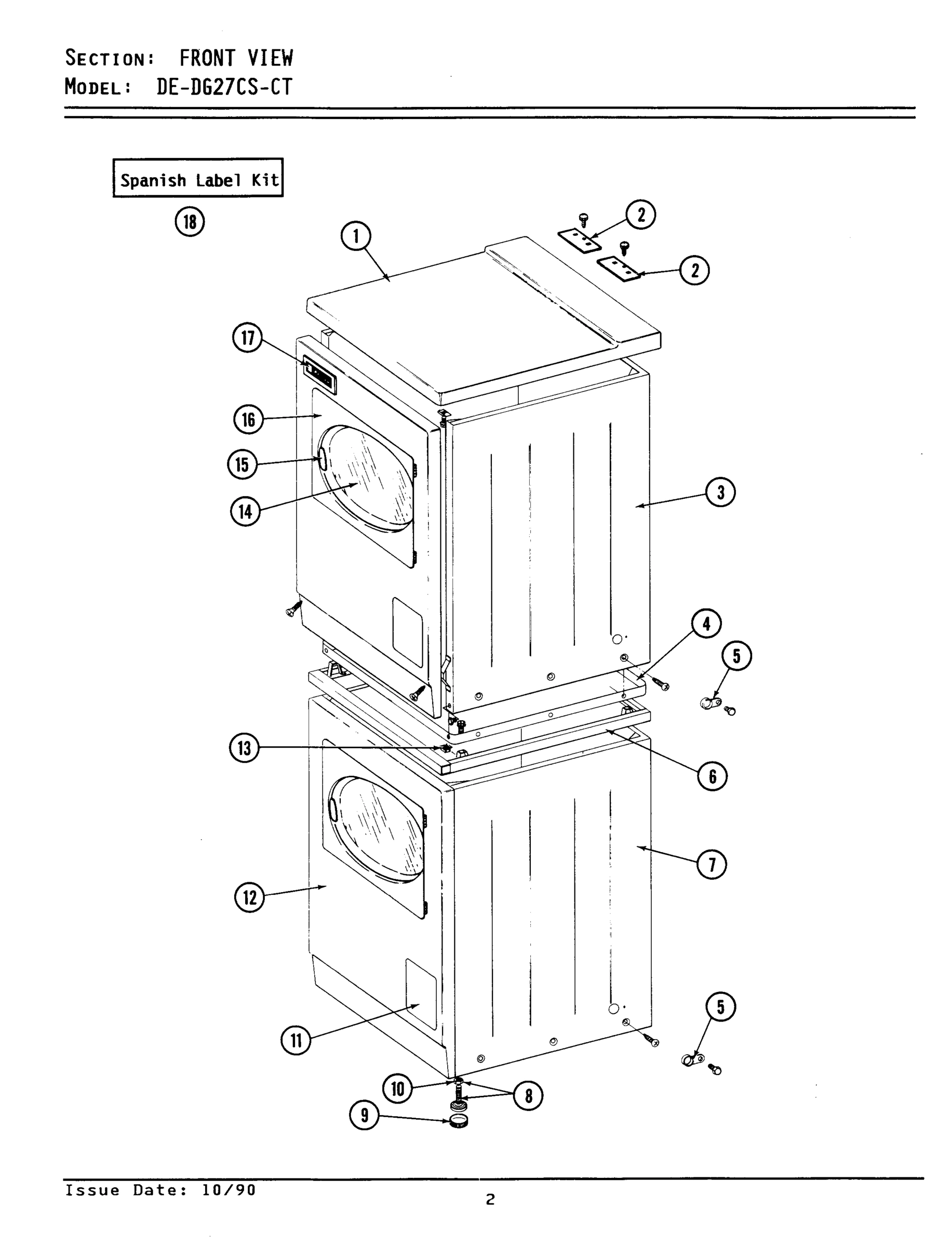

05 - FRONT VIEW

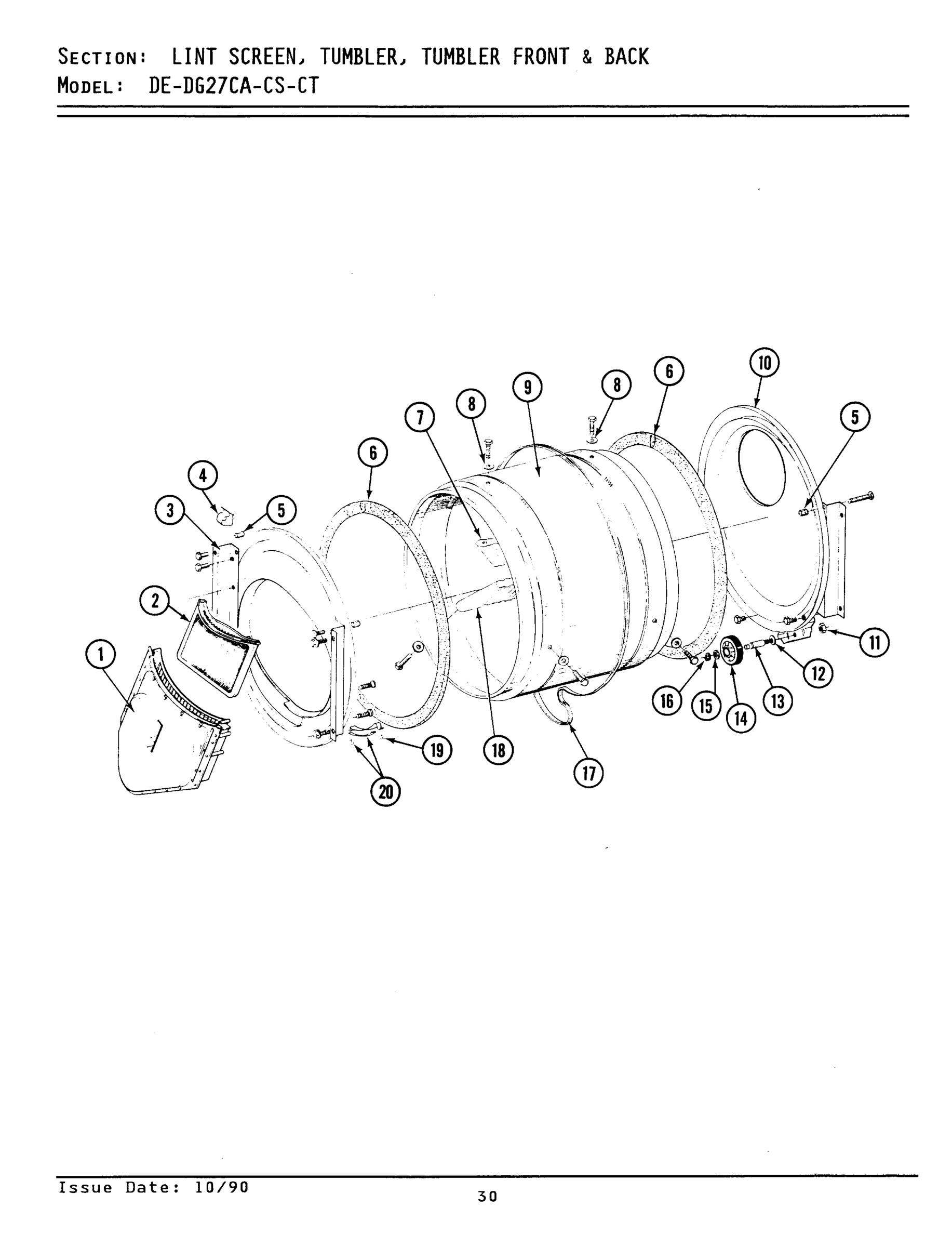

01 - LINT SCREEN, TUMBLER (FRONT & BACK)

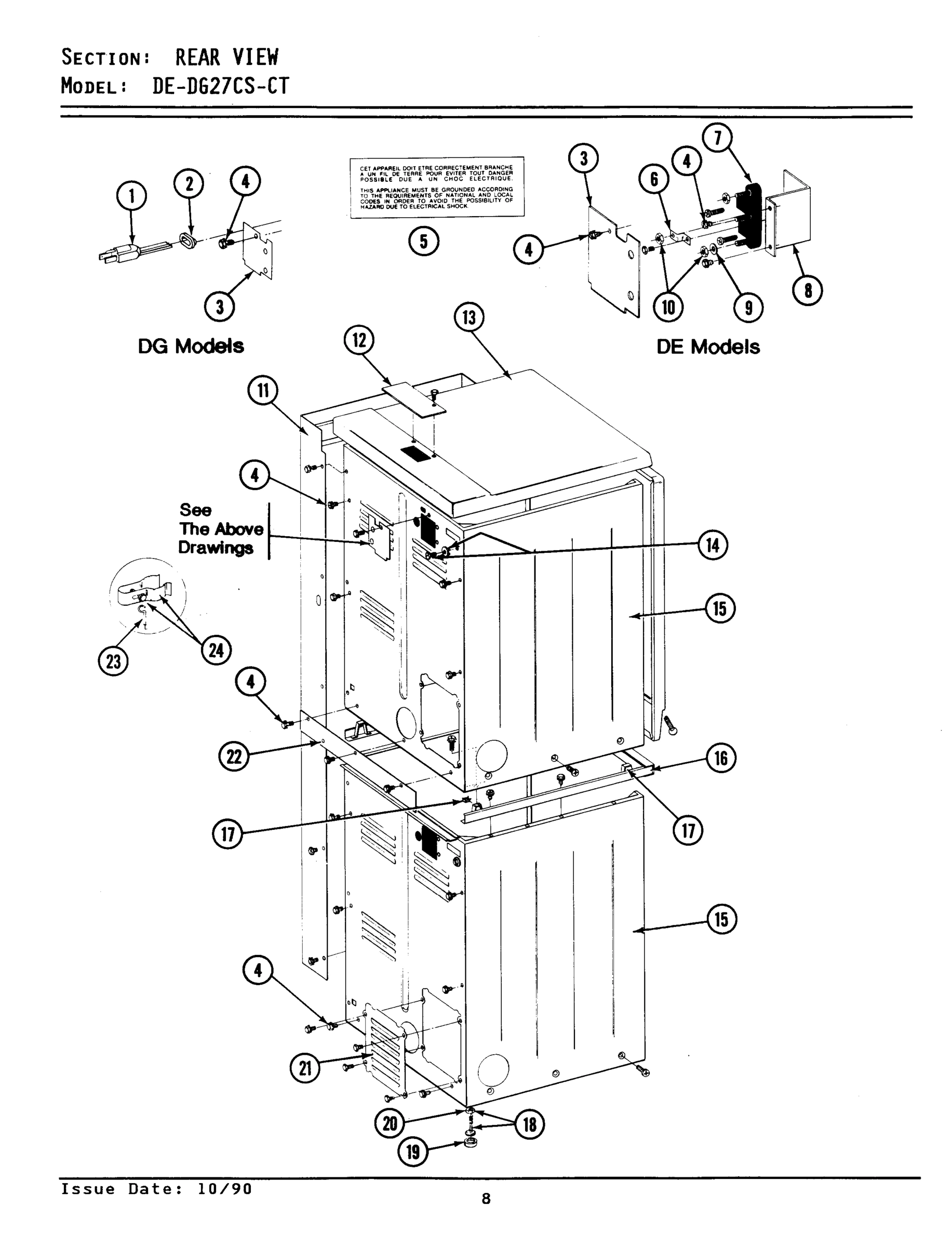

06 - REAR VIEW

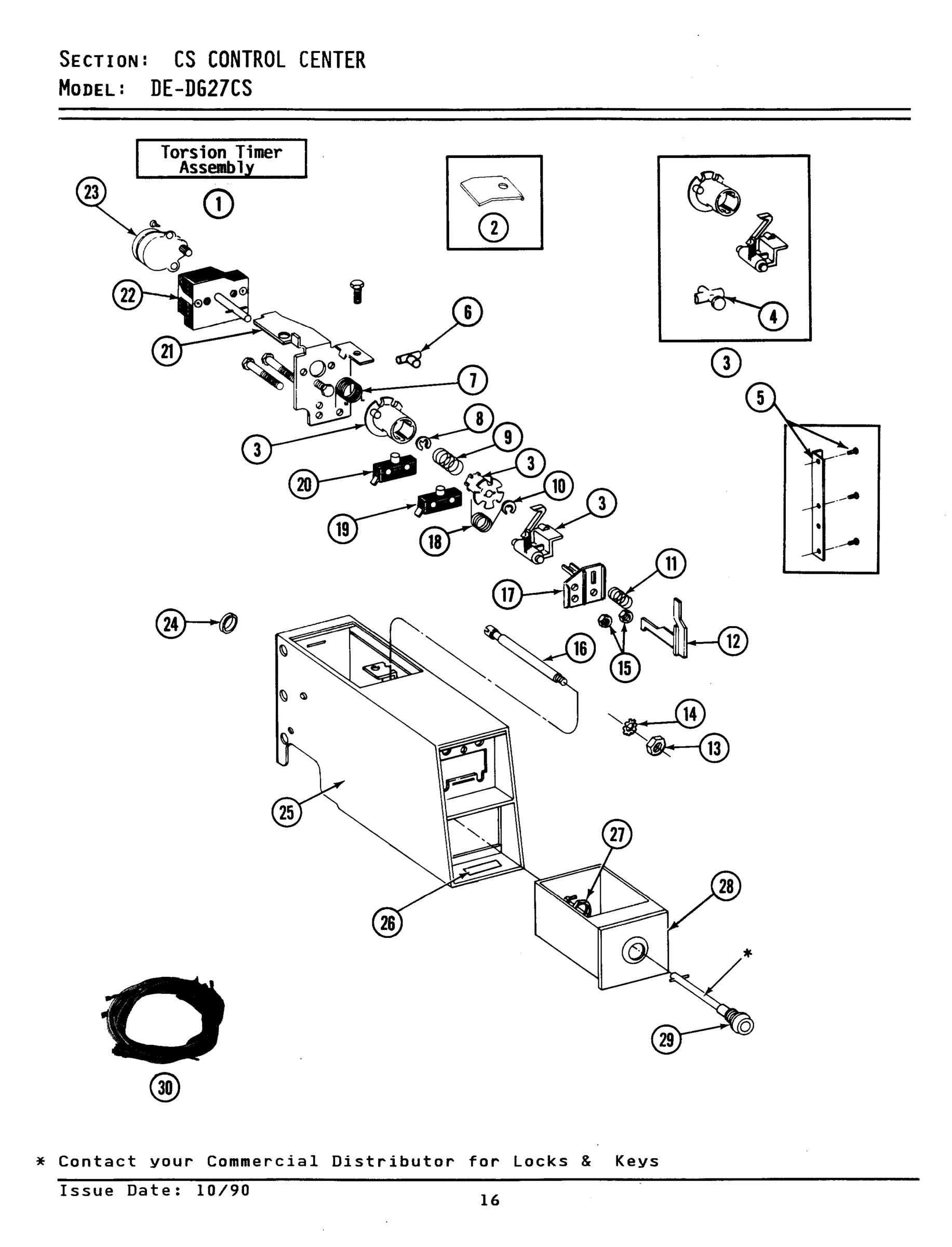

08 - CONTROL CENTER

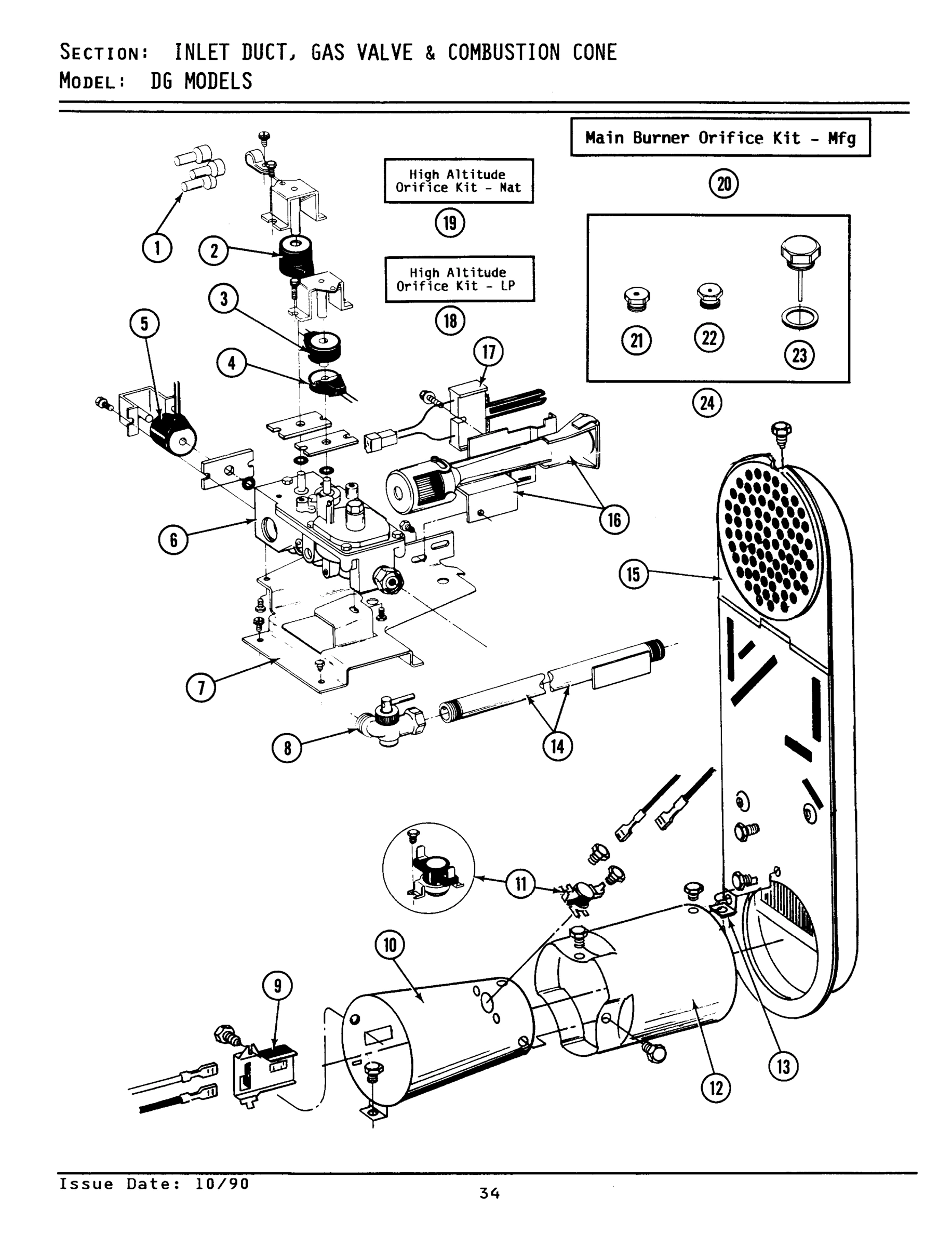

11 - INLET DUCT, GAS VALVE & COMBUSTION CONE
13 - 50HZ CONVERSION LIST

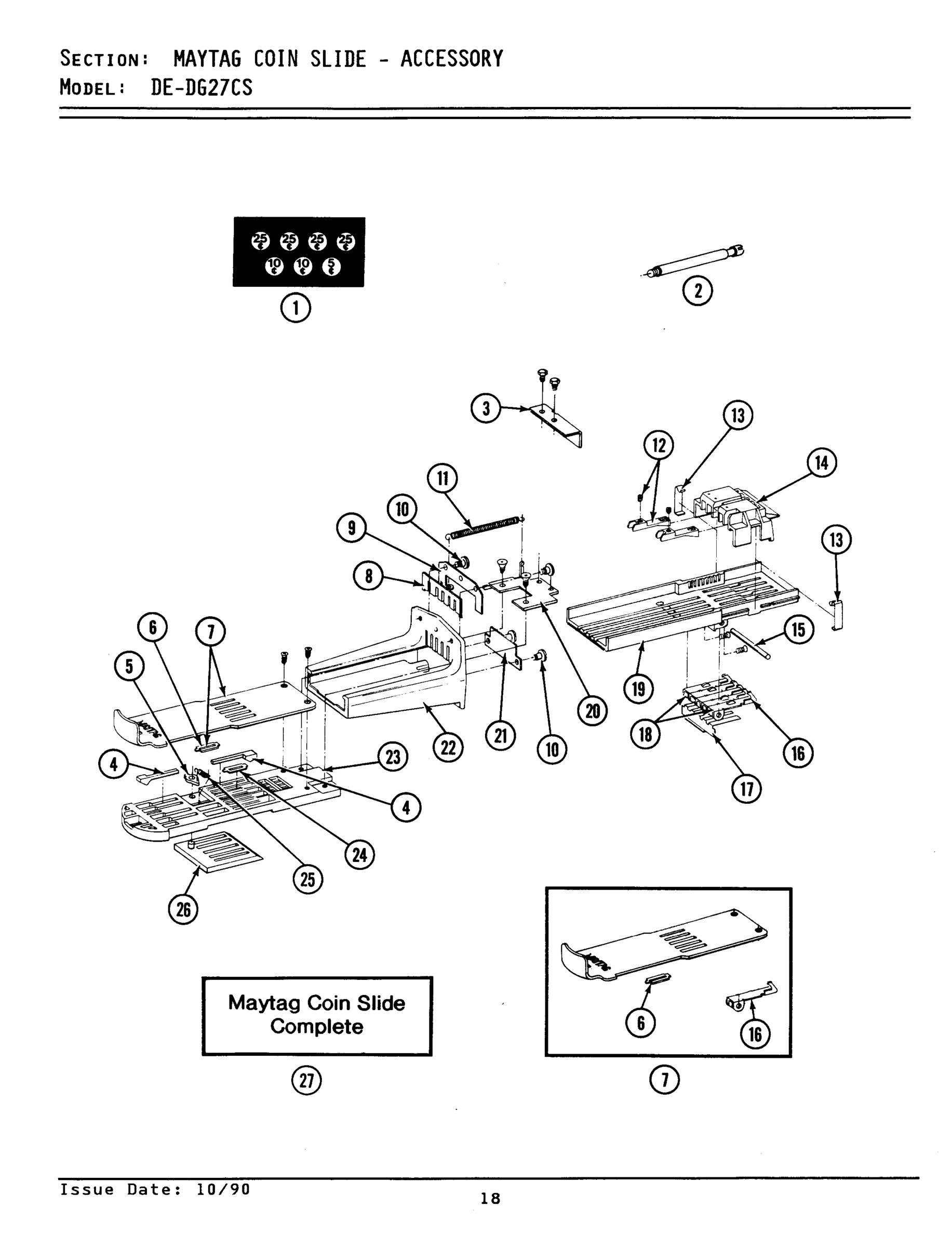

09 - MAYTAG COIN SLIDE-ACCESSORY
Common parts from model Whirlpool GDG27CS WASHER
001
THERMOSTAT, PERM. PRESS WPL Y303225 Contact Us For Availability
001
KNOB FOR SELECTOR SWITCH WPL 205663 Contact Us For Availability
001
SEAL, FRONT PANEL WPL 314937 Contact Us For Availability
001
PLUG, BLOCKING (LPG REGULATOR) WPL 306184 Contact Us For Availability
001
DUCT, OUTLET ASSY. ----S WPL Y307112 Contact Us For Availability
001
POWER CORD WPL 302521 Contact Us For Availability
001
TORSION TIMER ASSM COMPLETE WPL 305797 Contact Us For Availability
001
CLOSED CONNECTOR WPL 311546 Contact Us For Availability
001
COINAGE DECAL WPL 214648 Contact Us For Availability
002
SCREEN, LINT WPL 307108 Contact Us For Availability
002
SCREW WPL 211881 Contact Us For Availability
002
BOLT, LOCKING WPL 215559 Contact Us For Availability
002
SECONDARY COIL WPL 305603 Contact Us For Availability
003
TWIN FASTENER WPL Y313907 Contact Us For Availability
003
SCREW & FASTENER ASY. WPL 204445 Contact Us For Availability
003
FRONT, TUMBLER (W/SEAL) WPL 307109 Contact Us For Availability
003
COVER, TERMINAL WPL Y312905 Contact Us For Availability
003
TORSION-TIMER KIT WPL 306104 Contact Us For Availability
003
HOLDING COIL WPL 305604 Contact Us For Availability
003
BRACKET FOR COIN SLIDE WPL 314334 Contact Us For Availability
004
HOUSING, BLOWER WPL Y312893 Contact Us For Availability
004
BASE ASSY. WPL Y303361 Contact Us For Availability
004
CLIP, WIRE HARNESS WPL Y310376 Contact Us For Availability
004
THERMOSTAT, MULTI-TEMP WPL 306966 Contact Us For Availability
004
SWITCH CYCLE SEL WPL 307253 Contact Us For Availability
004
SCREW WPL 212949 Contact Us For Availability
004
SCREW WPL 314663 Contact Us For Availability
005
PART NOT USED WPL 306967 Contact Us For Availability
005
ELBOW, VENTING (4``) WPL Y059131 Contact Us For Availability
005
SWITCH AND RELAY BRACKET WPL Y314261 Contact Us For Availability
005
CABLE STRAP-HARNESS TO BASE WPL 910768 Contact Us For Availability
005
SCREW, No.10 X 3/8 WPL Y014872 Contact Us For Availability
005
LABEL, ELECTRICAL INSTRUCTION WPL 214519 Contact Us For Availability
005
SIDE COIL WPL Y304626 Contact Us For Availability
005
RATCHET ARM WPL 214572 Contact Us For Availability
006
PART NOT USED WPL 315122 Contact Us For Availability
006
INSULATION, EXHAUST DUCT KIT WPL 312302 Contact Us For Availability
006
PART NOT USED WPL Y312184 Contact Us For Availability
006
TIME ADJUSTMENT PEG WPL 314335 Contact Us For Availability
006
GAS VALVE ASSEMBLY WPL Y303777 Contact Us For Availability
007
SWITCH, MOTOR PROD.No.3-3358-2, No.3-3358-4 & WPL Y303877 Contact Us For Availability
007
SWITCH, MOTOR START PROD. No.3-3358 & No.3-33 WPL Y303879 Contact Us For Availability
007
SCREW----NA WPL Y313561 Contact Us For Availability
007
FASTENER, EXHAUST DUCT KIT WPL 213323 Contact Us For Availability
007
HEX NUT ON SWITCH WPL Y312706 Contact Us For Availability
007
BAFFLE (SHORT) WPL 314803 Contact Us For Availability
007
PART NOT USED WPL 400008 Contact Us For Availability
007
RETURN SPRING WPL 314331 Contact Us For Availability
007
GAS VALVE BRACKET WPL 312929 Contact Us For Availability
008
EXHAUST DUCT KIT WPL Y304652 Contact Us For Availability
008
KNURLED NUT WPL Y312702 Contact Us For Availability
008
DOOR SEAL WPL 314935 Contact Us For Availability
008
SHUT-OFF, GAS VALVE WPL Y303349 Contact Us For Availability
008
WASHER WPL 314158 Contact Us For Availability
008
PART NOT USED WPL Y312904 Contact Us For Availability
008
E CLIP WPL Y312270 Contact Us For Availability
008
GATE FOR COIN OPENING WPL 214578 Contact Us For Availability
009
SET SCREW, PULLEY WPL Y053241 Contact Us For Availability
009
INDICATOR LIGHT WPL 303963 Contact Us For Availability
009
BRACKET, GAS VALVE WPL 314566 Contact Us For Availability
009
TUMBLER W/BAFFLES WPL 306663 Contact Us For Availability
009
TUMBLER W/OUT BAFFLES WPL 314802 Contact Us For Availability
010
PULLEY, MOTOR (W/SET SCREW) WPL Y305185 Contact Us For Availability
010
HINGE WPL 307099 Contact Us For Availability
010
SCREW WPL Y314062 Contact Us For Availability
010
BACK, TUMBLER (W/SEAL) ---S WPL Y307114 Contact Us For Availability
010
BACK, TUMBLER (W/SEAL) ---S WPL Y308544 Contact Us For Availability
010
LOCK RING FOR TIMER SHAFT WPL 211790 Contact Us For Availability
010
CONE, COMBUSTION WPL Y303368 Contact Us For Availability
010
CONE, COMBUSTION WPL Y308548 Contact Us For Availability
011
IDLER SPRING ASSEMBLY WPL Y303945 Contact Us For Availability
011
BAG, LINT (DACRON) WPL 311353 Contact Us For Availability
011
VAULT PANEL WPL 315037 Contact Us For Availability
011
RETURN SPRING WPL 214581 Contact Us For Availability
012
PIPE, VENTING WPL Y059130 Contact Us For Availability
012
SCREW & FSTNER ASSY(FRT.PANEL) WPL 204439 Contact Us For Availability
012
FRONT PANEL (ALM) WPL 307998L Contact Us For Availability
012
DOOR W/WIN CUT OUT OUTER WHT WPL 314967 Contact Us For Availability
012
CONE, EXTENSION (COMBUSTION) WPL Y303841 Contact Us For Availability
013
FLEXIBLE VENT KIT WPL Y059143 Contact Us For Availability
013
TOP COVER ASSY. (WHITE) WPL 307104 Contact Us For Availability
013
RETAINER, HEATER CHAMBER WPL Y312890 Contact Us For Availability
013
SPRING CLIP WPL 214589 Contact Us For Availability
014
VENT DUCT ASSY. WPL Y059135 Contact Us For Availability
014
VAULT ASSEMBLY WPL 305534 Contact Us For Availability
014
INNER DOOR WPL 308069 Contact Us For Availability
014
PIPE & BRACKET ASSY. WPL Y303383 Contact Us For Availability
014
LOCK WASHER WPL 910387 Contact Us For Availability
015
HANDLE, DOOR (WHITE) WPL 314939 Contact Us For Availability
015
HANDLE, DOOR (ALMOND) WPL 314974 Contact Us For Availability
015
HANDLE, DOOR (HARVEST WHEAT) WPL 314975 Contact Us For Availability
015
CLIP, DOOR LINER TO OUTER PNL WPL Y313910 Contact Us For Availability
015
CABINET, LOWER (WHITE) WPL 307125 Contact Us For Availability
015
INLET DUCT ASSY. WPL 307119 Contact Us For Availability
016
PLATE, ALUM. WINDOW (15``X20``) WPL Y059134 Contact Us For Availability
016
SCREW WPL Y310632 Contact Us For Availability
017
SCREW WPL 304971 Contact Us For Availability
017
FASTENER WPL 310933 Contact Us For Availability
017
SWITCH AND SLIDER BRACKET WPL 314339 Contact Us For Availability
017
SPRING FOR LOWER GAGE ARM WPL 214596 Contact Us For Availability
018
SCREW WPL Y310759 Contact Us For Availability
018
CLAMP, FLEXIBLE DUCT WPL Y304630 Contact Us For Availability
018
LATCH FOR ACCESS DOOR WPL Y314025 Contact Us For Availability
018
ACTUATOR SPRING WPL 314332 Contact Us For Availability
018
LOWER GAGE ARM ASSEMBLY WPL 205343 Contact Us For Availability
019
RUBBER SLEEVE WPL 312369 Contact Us For Availability
019
BYPASS SWITCH FOR MOTOR WPL 305798 Contact Us For Availability
019
BASE INSERT FOR HOUSING WPL 214594 Contact Us For Availability
020
COVER, BLOWER HOUSING WPL 314847 Contact Us For Availability
020
LABEL, LINT SCREEN INSTRUCTION WPL Y313340 Contact Us For Availability
020
BYPASS SWITCH FOR HEATER WPL Y305799 Contact Us For Availability
020
SCREW WPL 214597 Contact Us For Availability
021
PLATE FOR LATCH WPL 313428 Contact Us For Availability
021
LABEL, INSTRUCTION WPL 314941 Contact Us For Availability
021
COVER, ACCESS WPL Y312951 Contact Us For Availability
021
TIMER MOUNTING BRACKET WPL 314333 Contact Us For Availability
021
SCREW WPL 315277 Contact Us For Availability
022
TIMER WPL 305796 Contact Us For Availability
022
WIRE HARNESS FOR TIMER WPL 305800 Contact Us For Availability
022
TIMER - CANADA RPR WPL 305813 Contact Us For Availability
022
HOUSING FOR COIN SLIDE WPL 214584 Contact Us For Availability
023
GROUND WIRE FOR LATCH WPL Y303981 Contact Us For Availability
023
TIMER MOTOR RPR WPL 305870 Contact Us For Availability
024
GROMMET FOR CONTROL CENTER WPL Y313671 Contact Us For Availability
024
CLAMP, GROUND (W/SCREW) WPL 301548 Contact Us For Availability
024
SCREW - BAFFLE TO TUMBLER WPL 313122 Contact Us For Availability
024
CONVERSION KIT-NAT. TO LPG WPL Y303779 Contact Us For Availability
025
COIN METER WELD ASSEMBLY WPL Y307081 Contact Us For Availability
025
SPRING FOR RATCHET ARM WPL 214582 Contact Us For Availability
026
INSTRUCTION LABEL WPL Y313439 Contact Us For Availability
027
MAYTAG COIN SLIDE WPL NLA Contact Us For Availability
027
EXHAUST DUCT ASSY. WPL Y303442 Contact Us For Availability
028
SPRING, WIRE HARNESS WPL 410490 Contact Us For Availability
028
COIN BOX-WHITE WPL 205423 Contact Us For Availability
028
COIN BOX-ALMOND WPL 205423L Contact Us For Availability
028
COIN BOX-HARVEST WHEAT WPL 205423M Contact Us For Availability
029
RETAINER, WIRE HARNESS WPL Y313262 Contact Us For Availability
NI
GAS VALVE - 120V-50HZ WPL 307927 Contact Us For Availability
NI
MOTOR PULLEY - 50 CYCLE WPL 305186 Contact Us For Availability
NI
TIMER 240-50 WPL 305812 Contact Us For Availability
NI
TRANSFORMER (240V 50HZ) WPL 307928 Contact Us For Availability
NI
MOTOR 240-50 WPL Y304656 Contact Us For Availability
NI
CONE, COMBUSTION WPL Y308549 Contact Us For Availability
× ![]()
