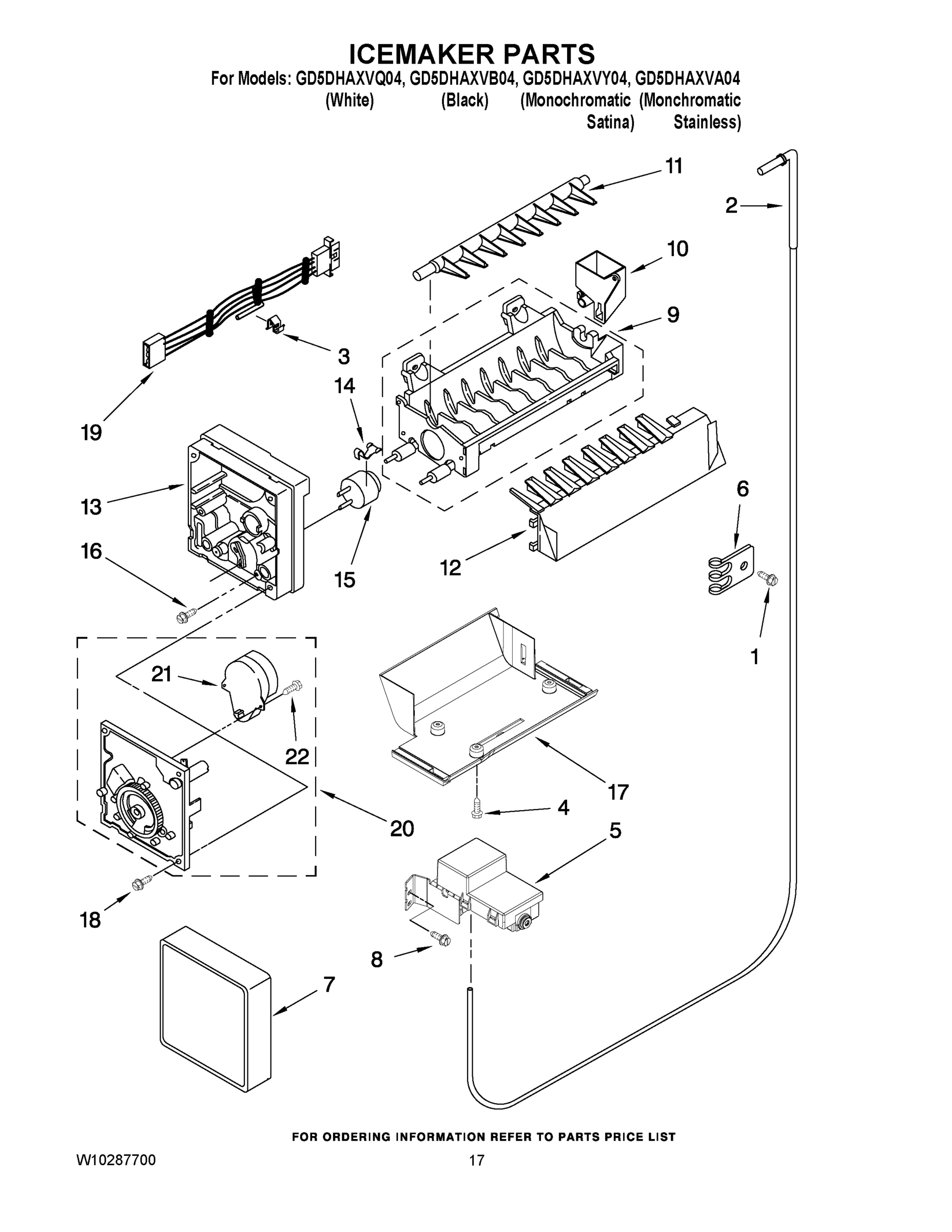

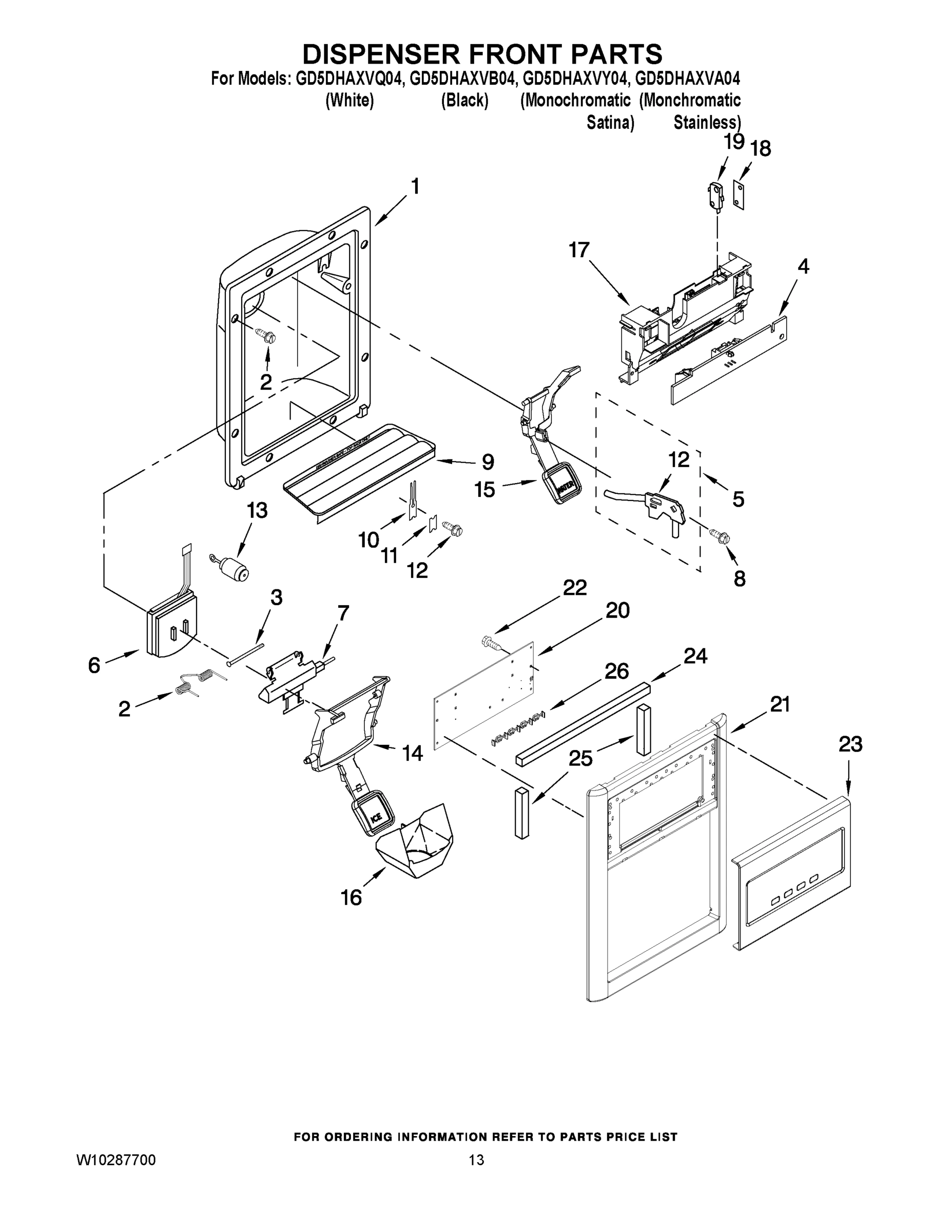

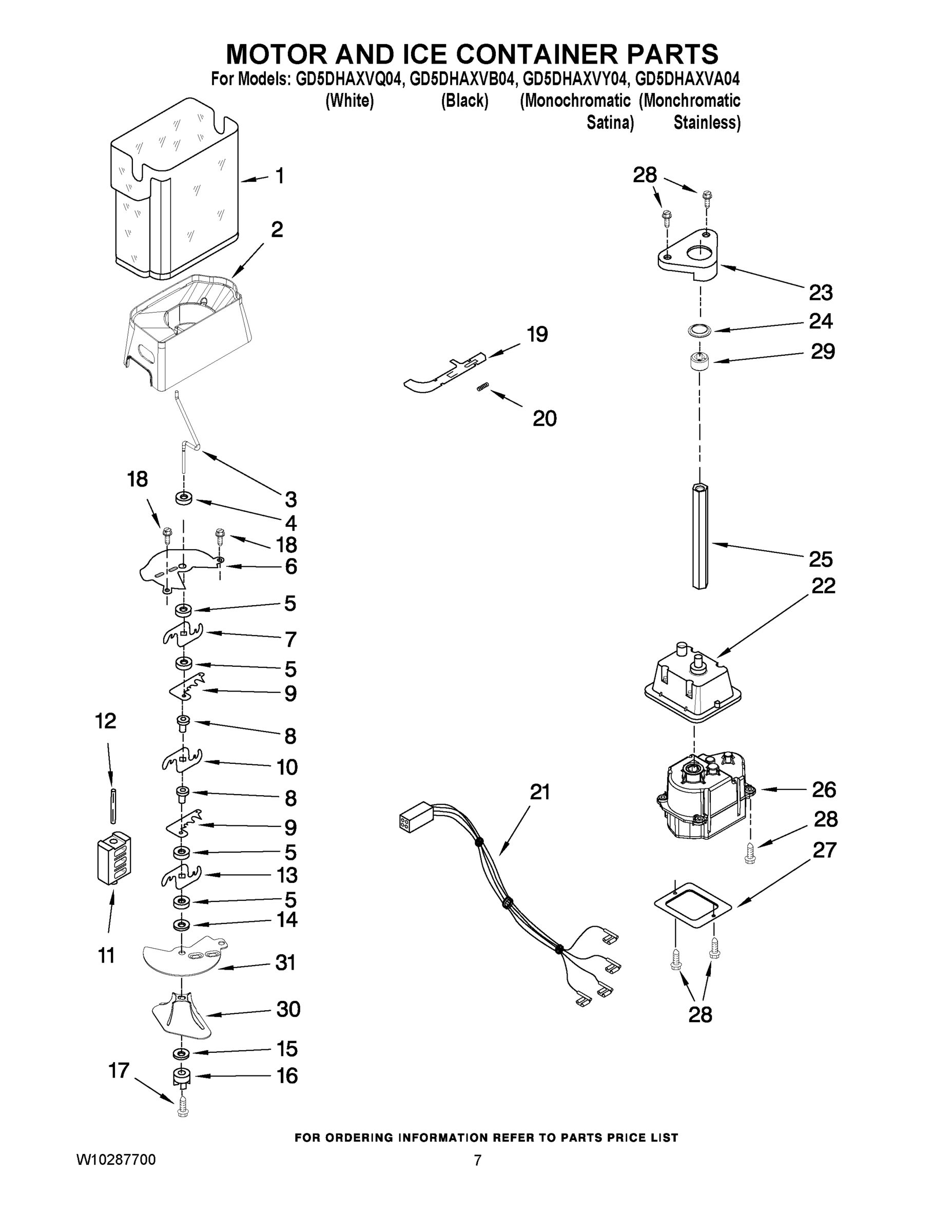

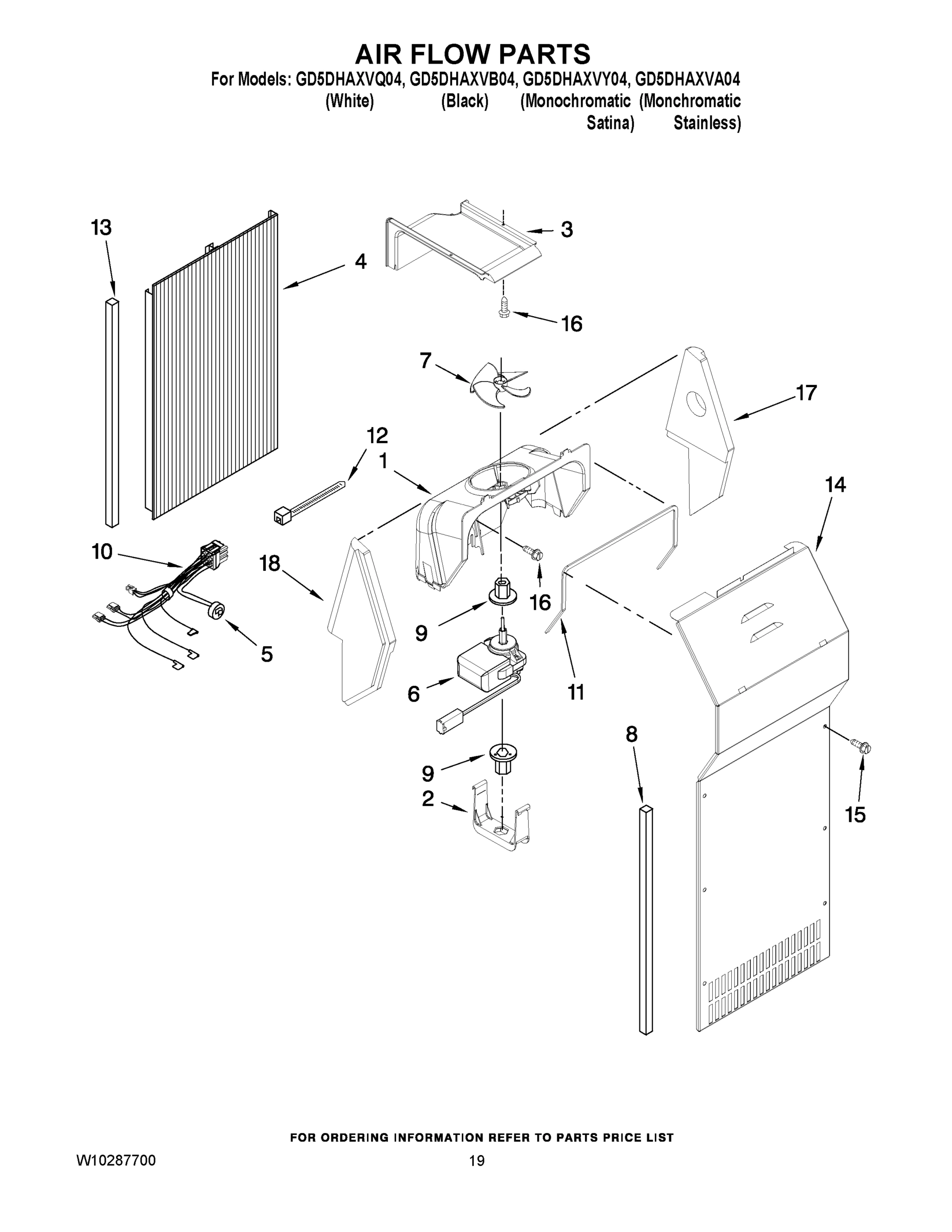

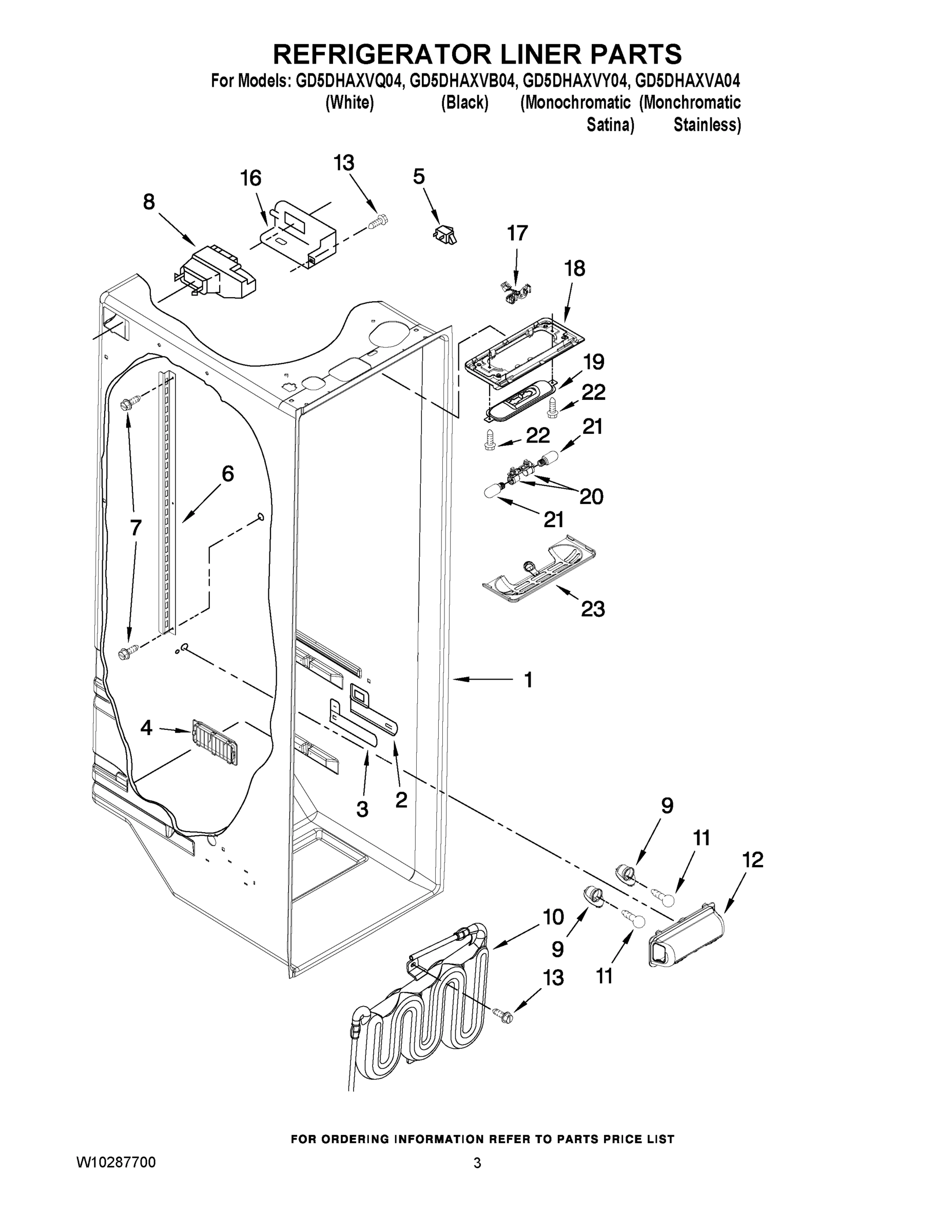

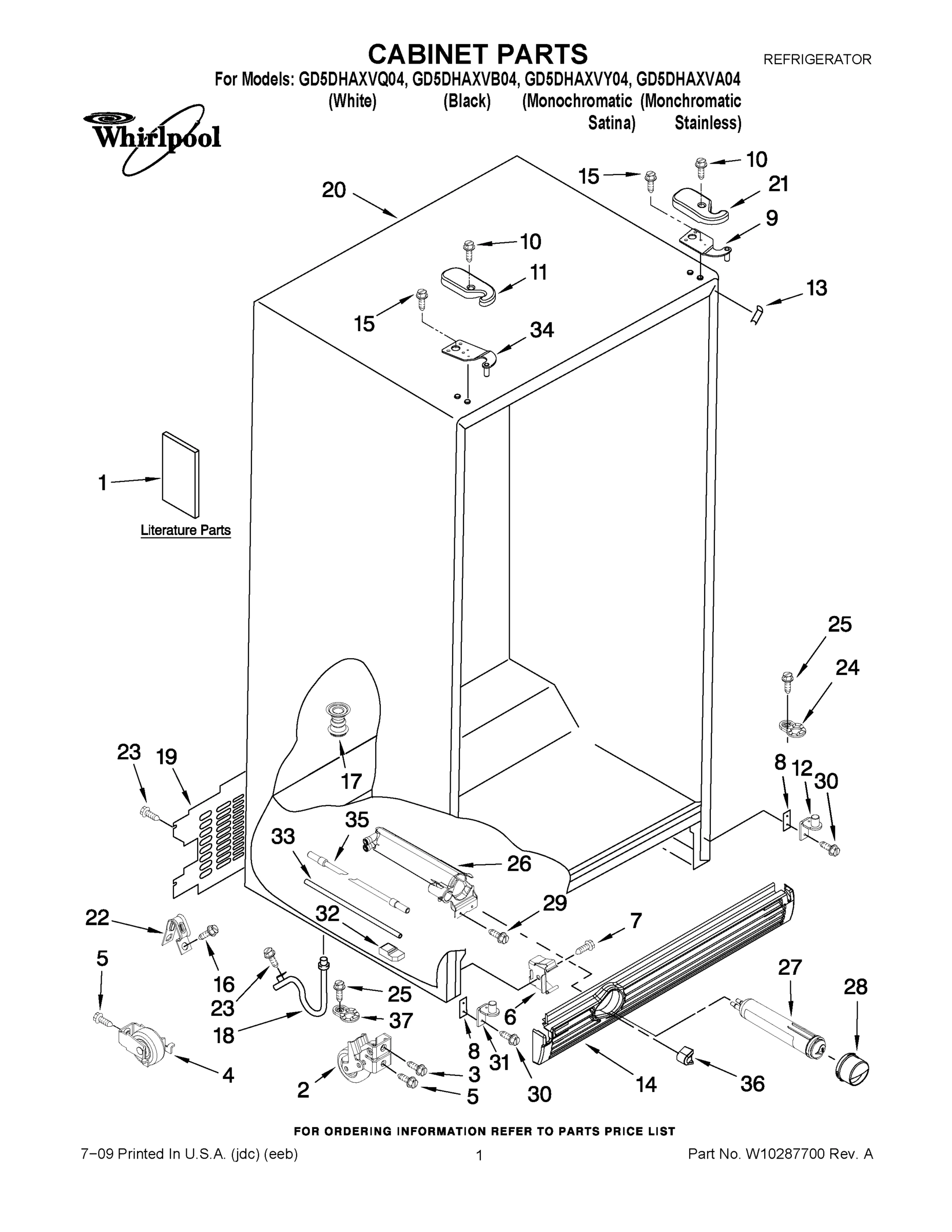

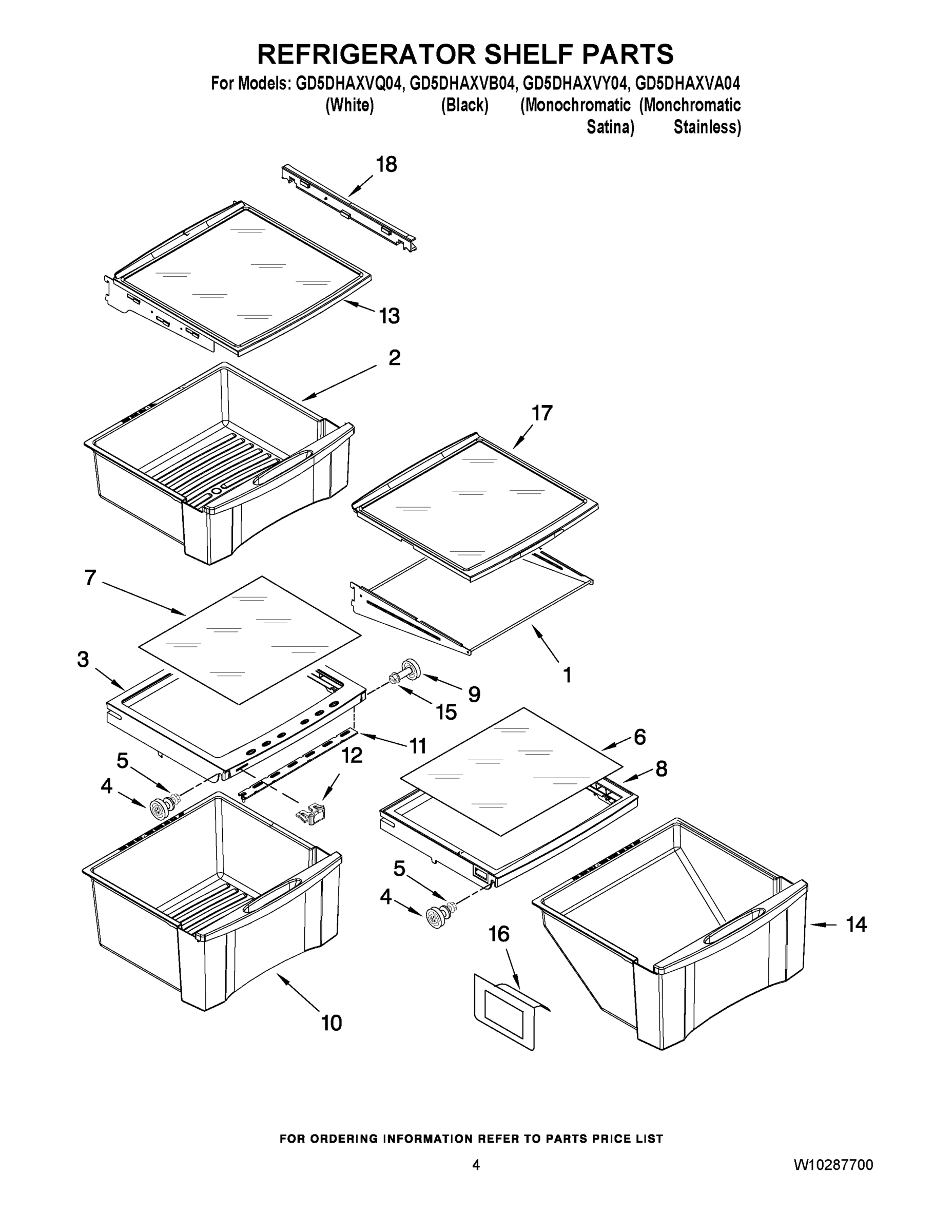

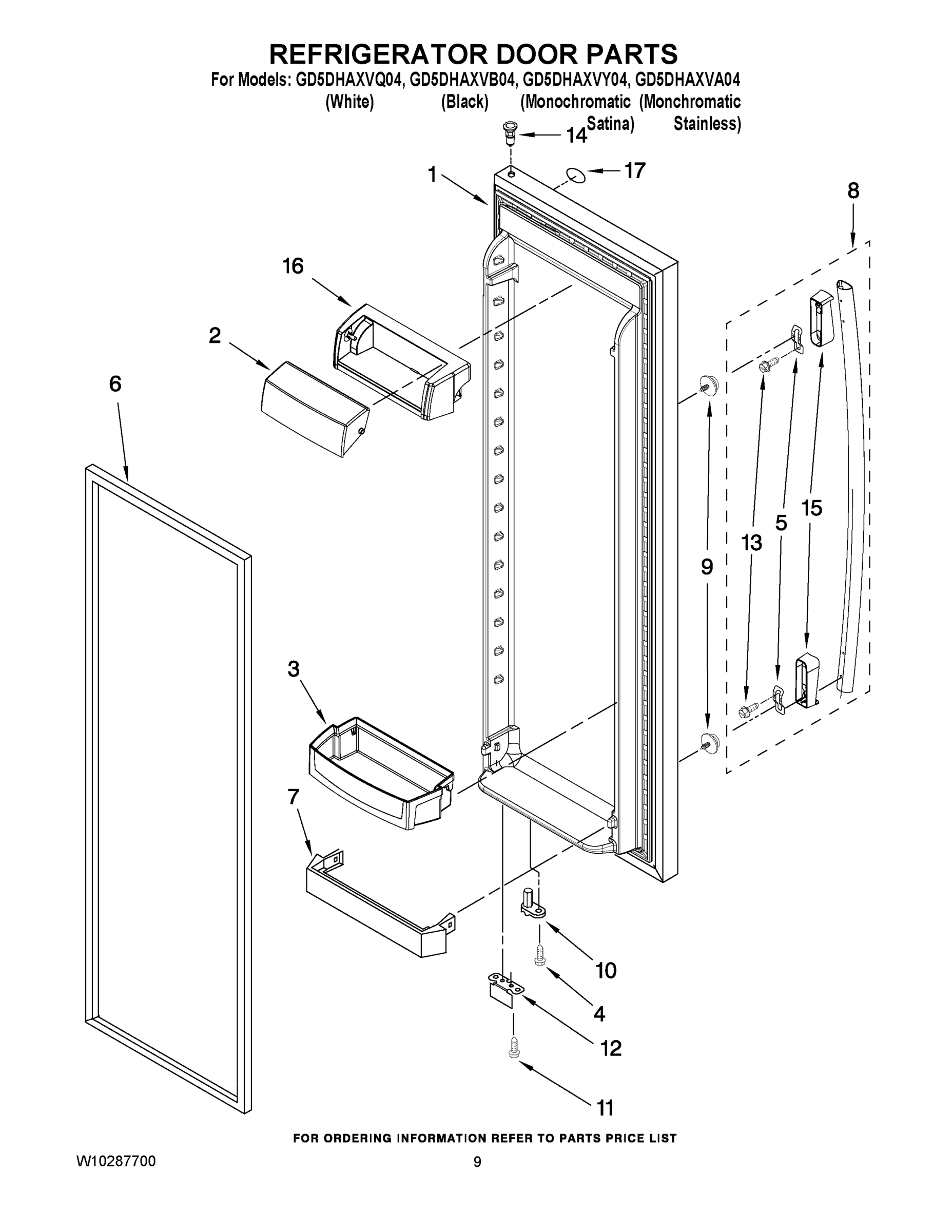

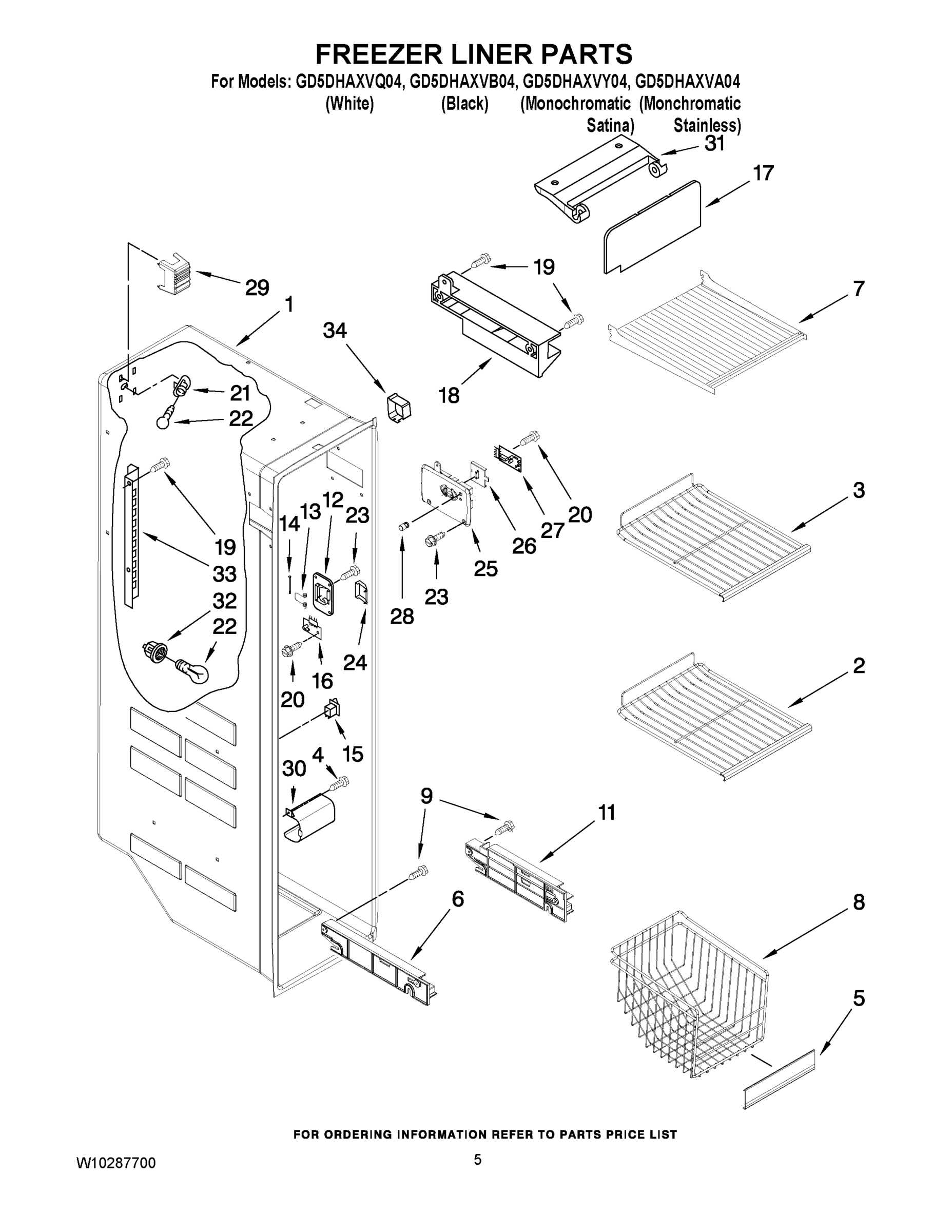

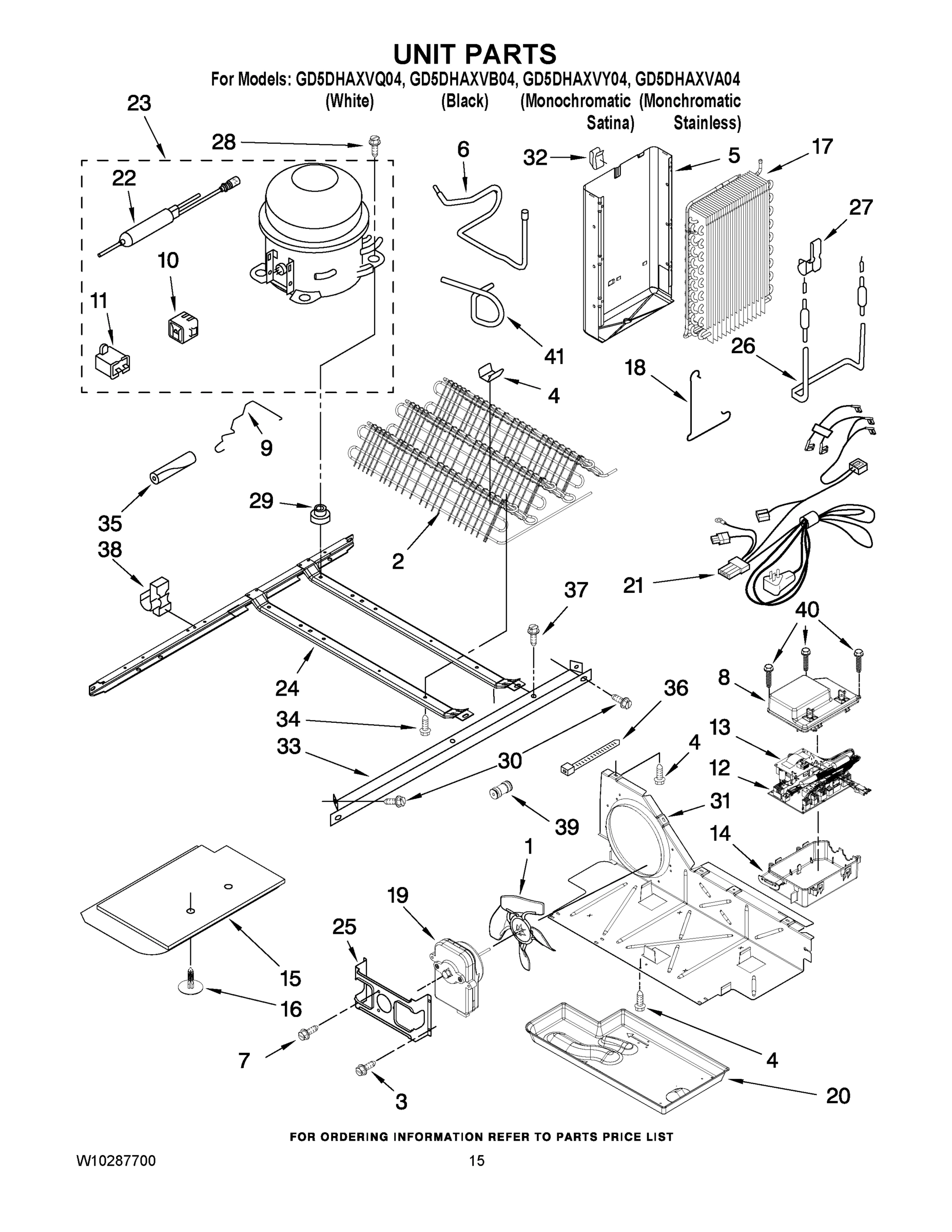

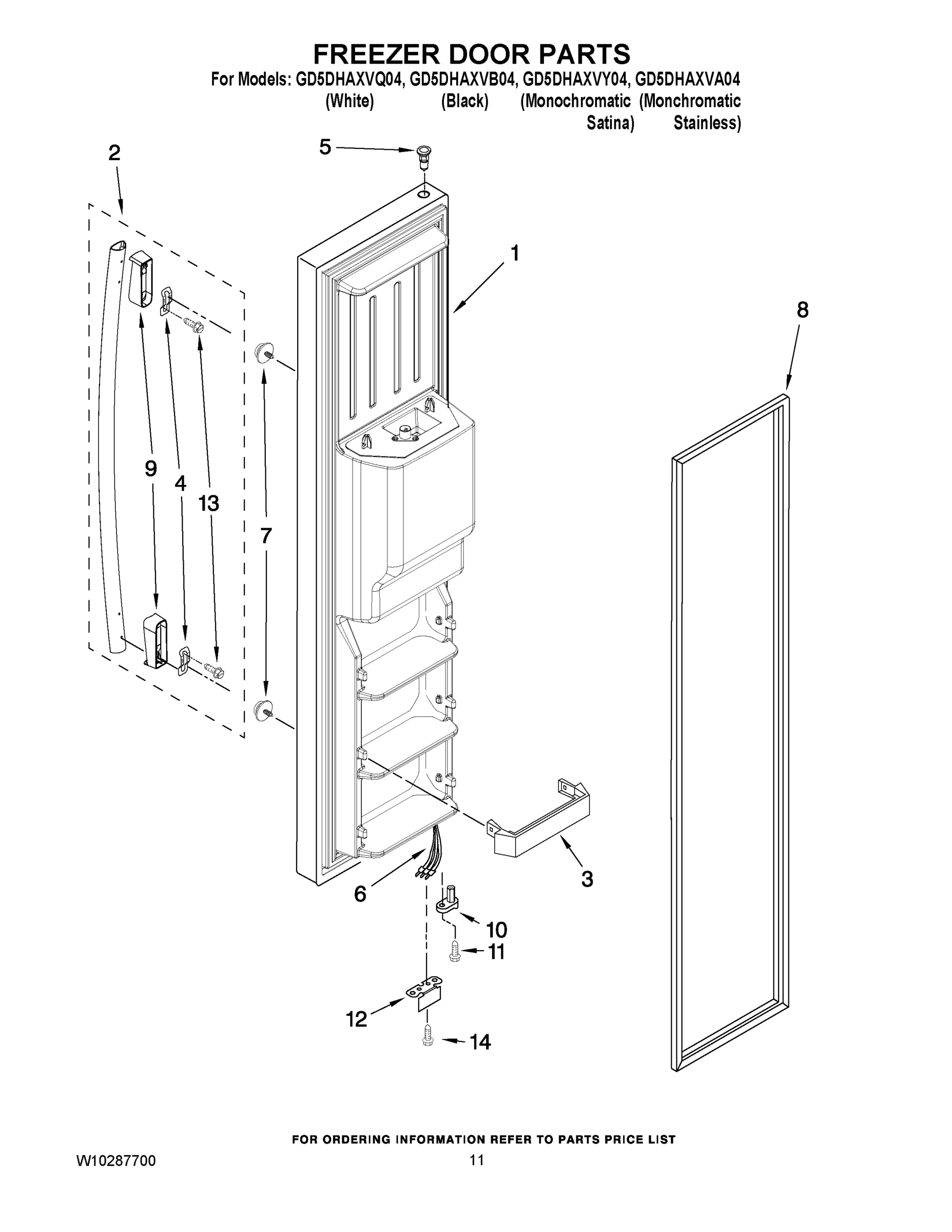

Model Whirlpool GD5DHAXVB04 REFRIGERATOR – Common Parts &amp; Diagrams

1

Ice Bin WPL W10174539 Contact Us For Availability

1

REFRIGERATOR DOOR (INCLUDES ITEM No.6) (WHITE WPL W10174412 Contact Us For Availability

1

REFRIGERATOR DOOR (INCLUDES ITEM No.6) (BLACK WPL W10174415 Contact Us For Availability

1

REFRIGERATOR DOOR (INCLUDES ITEM No.6) (MONO WPL W10174417 Contact Us For Availability

1

REFRIGERATOR DOOR (INCLUDES ITEM No.6) (MONOC WPL W10174419 Contact Us For Availability

1

HOUSING, DISPENSER (NOT SERVICED) WPL NP Contact Us For Availability

2

WP2155590 Whirlpool Refrigerator Retainer Backorder WPL WP2155590 $3.22

2

WPW10224328 Whirlpool Refrigerator Spring Backorder WPL WPW10224328 $37.24

2

Dairy Door WPL 2255421 Contact Us For Availability

2

Fitting, Water Tube WPL 2303216 Contact Us For Availability

3

2182757 Whirlpool Refrigerator Slide Backorder WPL 2182757 $55.66

3

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $8.68

3

WP2317240 Whirlpool Refrigerator Ice Auger In Stock WPL WP2317240 $63.63

3

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $5.91

3

Door Bin (3) WPL W10254149 Contact Us For Availability

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $18.54

4

Washer, Auger WPL 2258220 Contact Us For Availability

4

LED Assy WPL W10245284 Contact Us For Availability

5

8201537 Whirlpool Water Tubing Assembly In Stock WPL 8201537 $59.22

5

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $17.32

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $6.23

5

WP2255411 Whirlpool Refrigerator Clip In Stock WPL WP2255411 $16.85

5

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $23.89

6

2159075 Whirlpool Door Gasket Seal In Stock WPL 2159075 $166.31

6

2159083 Whirlpool Gasket Door In Stock WPL 2159083 $146.01

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $4.51

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $8.82

6

WPW10136734 Whirlpool Refrigerator Door Gaske In Stock WPL WPW10136734 $171.77

6

WPW10236142 Whirlpool Refrigerator Evaporator In Stock WPL WPW10236142 $146.06

6

Shelf Track (Right Side) WPL 2301289 Contact Us For Availability

6

Cover, Crusher WPL 2317248 Contact Us For Availability

6

Shelf Track (Left Side) WPL 2301290 Contact Us For Availability

6

Glass, Meat Cover WPL 2223714 Contact Us For Availability

6

Shelf Ladder WPL 2319866 Contact Us For Availability

7

WP2156022 Whirlpool Refrigerator Door Trim In Stock WPL WP2156022 $40.56

7

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $35.14

7

WP2223591 Whirlpool Refrigerator Glass Shelf Backorder WPL WP2223591 $139.68

7

Support, Ice Door WPL 2304355 Contact Us For Availability

8

W10210942A Whirlpool Refrigerator Handle Backorder WPL W10210942A $56.00

8

W10210943A Whirlpool Refrigerator Handle Backorder WPL W10210943A $56.00

8

W10899382 Whirlpool Refrigerator Damper Contr In Stock WPL W10899382 $127.18

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $5.11

8

WP3400906 Whirlpool Refrigerator Screw Backorder WPL WP3400906 $3.22

8

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $12.28

8

WPW10257120 Whirlpool Refrigerator Handle Backorder WPL WPW10257120 $26.89

9

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $4.51

9

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $38.78

9

WP2206670B Whirlpool Dispenser Tray In Stock WPL WP2206670B $24.71

9

WP2206670W Whirlpool Dispenser Tray In Stock WPL WP2206670W $45.20

9

WPW10288153 Whirlpool Refrigerator Screw In Stock WPL WPW10288153 $3.87

9

Blade, Fixed WPL 2257020 Contact Us For Availability

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $56.83

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $4.15

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $6.17

WP2313162 Whirlpool Refrigerator Start Device Backorder WPL WP2313162 $123.78

WP8281227 Whirlpool Screw Backorder WPL WP8281227 $5.85

Door Closer, Upper Cam WPL 2323535 Contact Us For Availability

2317239 Whirlpool Refrigerator Blade Block Backorder WPL 2317239 $7.44

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $6.17

WP489483 Whirlpool Screw In Stock WPL WP489483 $5.85

WP627843 Whirlpool Refrigerator Ejector Arm Backorder WPL WP627843 $59.14

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $42.24

W10138965 Whirlpool Refrigerator Door Hinge Backorder WPL W10138965 $60.16

W11239891 Whirlpool Refrigerator Light Lens Backorder WPL W11239891 $43.81

WP2198587 Whirlpool Refrigerator Cover In Stock WPL WP2198587 $37.17

WP2206629B Whirlpool Refrigerator Bracket Backorder WPL WP2206629B $17.66

WP2304673 Whirlpool Refrigerator Bracket Backorder WPL WP2304673 $8.13

4388500 Whirlpool Refrigerator Gasket Backorder WPL 4388500 $32.28

W10267047 Whirlpool Screw Backorder WPL W10267047 $14.93

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $31.00

WP2223288 Whirlpool Refrigerator Cantilever S Backorder WPL WP2223288 $290.41

Filler, Wrapper (White) WPL 2304846 Contact Us For Availability

Dashpot, Disp WPL 2205686 Contact Us For Availability

2323186 Whirlpool Refrigerator Housing Backorder WPL 2323186 $44.13

W10155161 Whirlpool Refrigerator Dispenser Ar Backorder WPL W10155161 $88.69

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $4.19

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $6.96

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $2.59

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $5.88

WPW10152853 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152853 $41.18

WPW10152854 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152854 $40.12

COVER, EVAPORATOR (INCLUDES No.8) WPL 2206314 Contact Us For Availability

4389654 Whirlpool Screw Backorder WPL 4389654 $10.90

W10127813 Whirlpool Refrigerator Handle Endca Backorder WPL W10127813 $53.12

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $5.91

WPW10152858 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152858 $41.92

WPW10152859 Whirlpool Refrigerator Dispenser Backorder WPL WPW10152859 $39.20

WPW10191952 Whirlpool Refrigerator Screw Backorder WPL WPW10191952 $5.76

Lever, Water (Apollo Grey) WPL W10155162 Contact Us For Availability

Handle, Endcap (Black) WPL W10127814 Contact Us For Availability

Handle, Endcap (Stainless, All) WPL W10152864 Contact Us For Availability

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $55.60

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $7.35

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.88

W10128735 Whirlpool Refrigerator Cover Backorder WPL W10128735 $104.79

W11629923 Whirlpool Coupling In Stock WPL W11629923 $15.57

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $8.52

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $4.19

Door Compartment WPL 2255420 Contact Us For Availability

2310527 Whirlpool Refrigerator Wire Jumper Backorder WPL 2310527 $104.45

4388358 Whirlpool Refrigerator Support Bracke Backorder WPL 4388358 $17.42

W10728484 Whirlpool Refrigerator Dispenser Co In Stock WPL W10728484 $36.98

W11566763 Whirlpool Fitting In Stock WPL W11566763 $22.78

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $275.26

WP2255720 Whirlpool Refrigerator Ice Maker Do Backorder WPL WP2255720 $49.52

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $6.29

Nameplate WPL 2220214 Contact Us For Availability

BRACKET, ICEMAKER MOUNTING WPL 2303583 Contact Us For Availability

Shelf, Slide Out (2) WPL 2255160 Contact Us For Availability

W11512417 Whirlpool Drain Connector In Stock WPL W11512417 $17.95

WP2223320 Whirlpool Slide Track Pan In Stock WPL WP2223320 $16.85

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $3.22

Spacer, Switch WPL 625834 Contact Us For Availability

Slide, Ice Maker Mounting WPL 2212321 Contact Us For Availability

Clip WPL 2161324 Contact Us For Availability

2223680 Whirlpool Refrigerator Shield Backorder WPL 2223680 $57.97

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $10.27

WP2187467 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187467 $55.72

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $85.46

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $3.22

Latch, Bin WPL 2317277 Contact Us For Availability

20

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $4.19

20

Control, Elek WPL 2321751 Contact Us For Availability

W10136850 Whirlpool Refrigerator Front Cover Backorder WPL W10136850 $118.79

W10171988 Whirlpool Refrigerator Front Cover Backorder WPL W10171988 $242.48

WPA3073101 Whirlpool Light Bulb In Stock WPL WPA3073101 $6.79

Bezel, Disp (Mono Satina) WPL W10139842 Contact Us For Availability

Bezel, Disp (Black) WPL W10136851 Contact Us For Availability

22

2006254 Whirlpool Refrigerator Screw Backorder WPL 2006254 $12.60

22

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $7.10

22

Enclosure, Motor WPL 2322488 Contact Us For Availability

WP2188919 Whirlpool Refrigerator Holder In Stock WPL WP2188919 $4.19

WP2223506 Whirlpool Refrigerator Light Lens Backorder WPL WP2223506 $58.49

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $6.29

Fascia, Disp (Mono Stainless) WPL W10171982 Contact Us For Availability

Fascia, Disp (White) WPL W10136808 Contact Us For Availability

Fascia, Disp (Black) WPL W10139747 Contact Us For Availability

Fascia, Disp (Mono Satina) WPL W10144809 Contact Us For Availability

24

2305571 Whirlpool Gasket Assembly Backorder WPL 2305571 $16.91

24

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $6.14

24

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $16.40

25

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $6.17

25

Cover, Receiver WPL W10173569 Contact Us For Availability

25

Gasket, Disp (2) WPL W10194025 Contact Us For Availability

2315398 Whirlpool Refrigerator Slide Backorder WPL 2315398 $7.44

WP2323198 Whirlpool Refrigerator Heater In Stock WPL WP2323198 $45.34

WPW10121138 Whirlpool Refrigerator Water Filt In Stock WPL WPW10121138 $70.52

Support, Window WPL W10170412 Contact Us For Availability

28

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $2.59

28

WP2260518MG Whirlpool Water Filter Cap Backorder WPL WP2260518MG $32.84

28

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $5.84

29

WP2315559 Whirlpool Motor Coupling In Stock WPL WP2315559 $32.21

29

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $4.77

30

2317243 Whirlpool Refrigerator Wiper Backorder WPL 2317243 $31.49

31

2317250 Whirlpool Refrigerator Divider Backorder WPL 2317250 $22.40

31

WP2198641 Whirlpool Refrigerator Ice Maker Co In Stock WPL WP2198641 $3.22

34

2303234 Whirlpool Refrigerator Shield Backorder WPL 2303234 $59.28

34

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $14.93

34

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $36.39

36

2260503MG Whirlpool Refrigerator Button Backorder WPL 2260503MG $15.50

36

2260503W Whirlpool Refrigerator Button Backorder WPL 2260503W $23.46

37

W10846218 Whirlpool Refrigerator Door Cam Backorder WPL W10846218 $12.14

37

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $5.76

100

Ice Container (Complete) WPL W10174536 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $31.99

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.72

350942 Whirlpool Spray Paint Backorder WPL 350942 $50.73

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.51

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $30.92

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.79

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $6.37

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $146.78

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $49.39

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.19

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $37.43

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $33.30

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $40.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $42.85

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $47.27

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $70.54

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $30.40

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $31.24

PAINT, TOUCH-UP (1/2oz.) (Graphite) WPL 80051 Contact Us For Availability

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability
