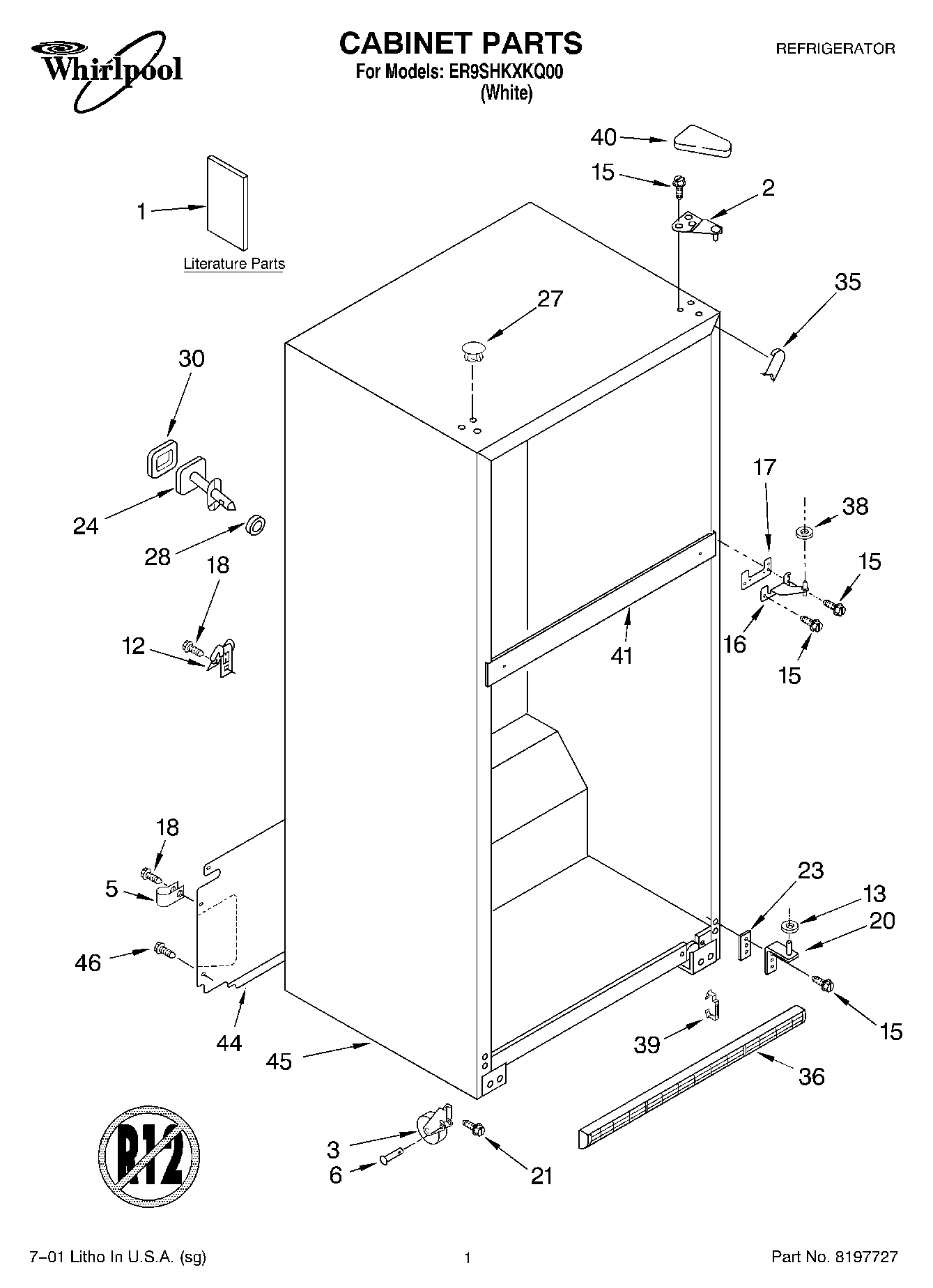

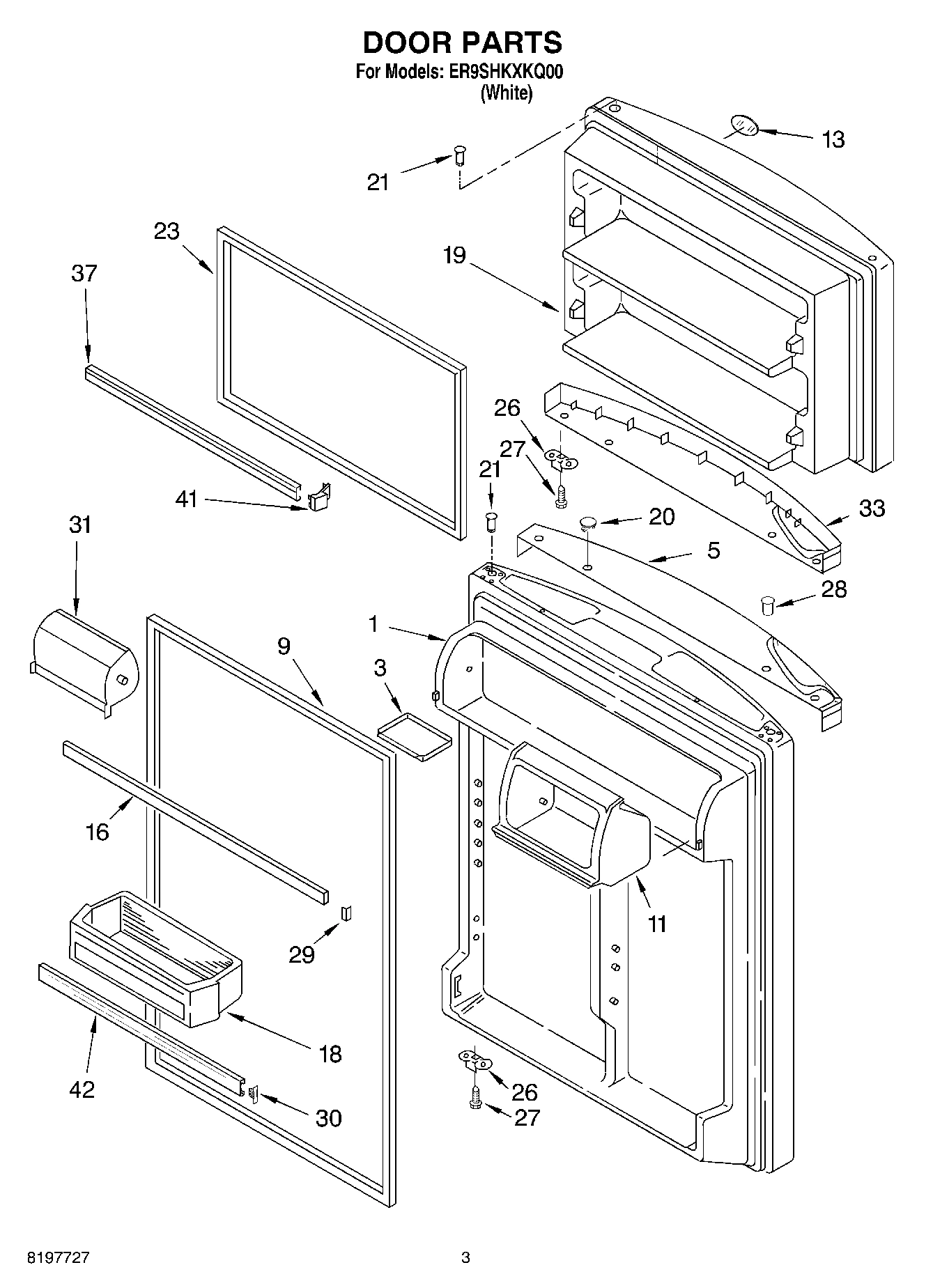

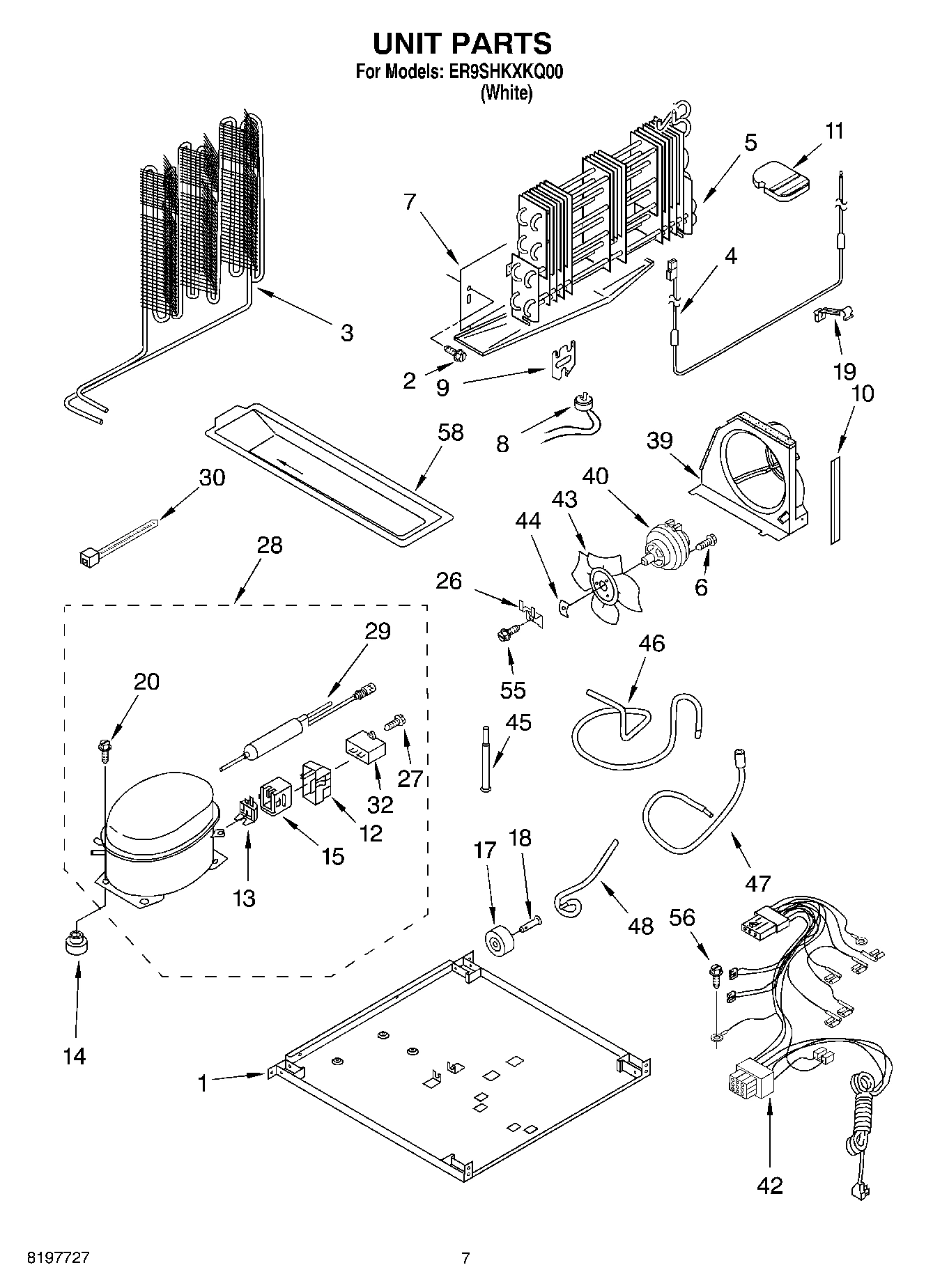

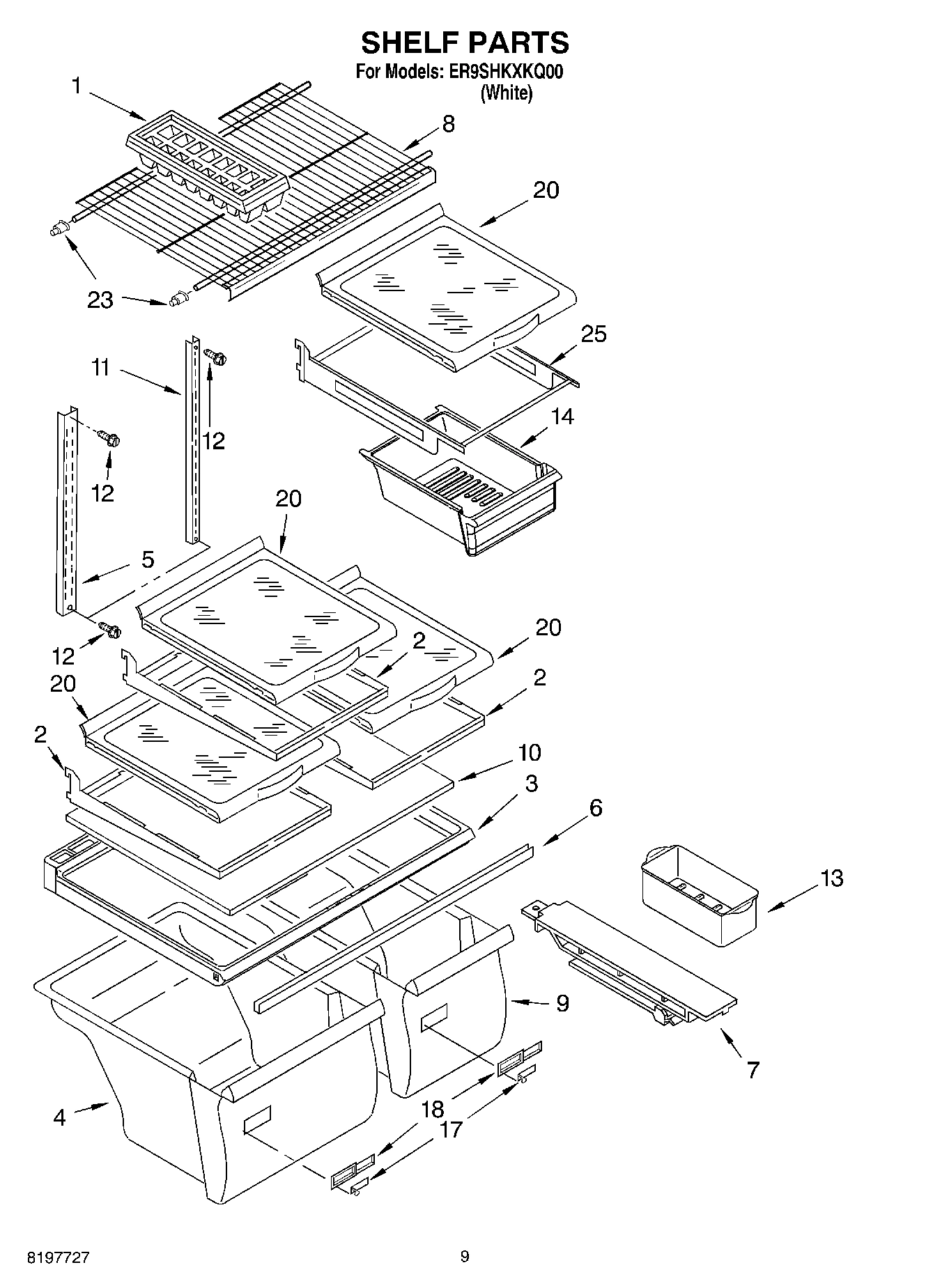

Model Whirlpool ER9SHKXKQ00 TOP MOUNT REFRIGERATOR – Common Parts &amp; Diagrams

1

Refrigerator Door (Includes No.9 & No.21) (Wh WPL 2205395 Contact Us For Availability

2

Frame Assembly, Shelf (3) WPL 2174446 Contact Us For Availability

3

WP2166108 Whirlpool Refrigerator Cabinet Roll In Stock WPL WP2166108 $18.99

3

WP2314548 Whirlpool Refrigerator Cover Backorder WPL WP2314548 $177.47

3

Tray, Door WPL 2159302 Contact Us For Availability

4

W10854037 Whirlpool Refrigerator Crisper Pan In Stock WPL W10854037 $134.62

5

Handle (White) WPL 2212684 Contact Us For Availability

5

Shelf, Ladder WPL 2202821 Contact Us For Availability

6

W11594405 Whirlpool Axle In Stock WPL W11594405 $8.90

6

WP2172748 Whirlpool Drawer Support Backorder WPL WP2172748 $67.10

6

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $5.99

7

WP2163835 Whirlpool Track Assembly In Stock WPL WP2163835 $14.99

8

WP2176275 Whirlpool Refrigerator Wire Shelf Backorder WPL WP2176275 $86.42

9

2159057 Whirlpool Refrigerator Fresh Food Doo In Stock WPL 2159057 $136.79

9

W10856580 Whirlpool Crisper Pan In Stock WPL W10856580 $128.99

10

WP2169921 Whirlpool Refrigerator Glass Shelf Backorder WPL WP2169921 $196.71

WP2163777 Whirlpool Refrigerator Fan Blade In Stock WPL WP2163777 $59.57

Support Block WPL 2201184 Contact Us For Availability

Housing Comp. WPL 2210566 Contact Us For Availability

Shelf, Ladder (2) WPL 2210522 Contact Us For Availability

13

W10136387A Whirlpool Refrigerator Egg Contain In Stock WPL W10136387A $10.99

13

WP2213265 Whirlpool Refrigerator Nameplate Backorder WPL WP2213265 $57.77

13

WP487576 Whirlpool Washer In Stock WPL WP487576 $5.99

14

WP2218127K Whirlpool Meat Pan Backorder WPL WP2218127K $120.99

14

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $4.82

15

WP489497 Whirlpool Screw In Stock WPL WP489497 $6.75

16

TRIM, DOOR SHELF WPL 2159312 Contact Us For Availability

17

WP2183854 Whirlpool Refrigerator Shim Backorder WPL WP2183854 $6.78

17

Slide, Crisper WPL 2176222 Contact Us For Availability

18

WP2212446 Whirlpool Refrigerator Control Body In Stock WPL WP2212446 $46.99

18

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $5.99

18

Door Bin (3) WPL 2204811 Contact Us For Availability

19

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $17.77

19

Clip, Heater WPL 2182338 Contact Us For Availability

19

Freezer Door Panel (Includes 21 & 23) (White) WPL 2205399 Contact Us For Availability

20

WP2254473 Whirlpool Refrigerator Door Hinge In Stock WPL WP2254473 $5.99

20

Hole Plug (White) WPL 2204837 Contact Us For Availability

20

Shelf Assembly, Spillguard (3) WPL 2195346 Contact Us For Availability

21

WP2183003 Whirlpool Thimble In Stock WPL WP2183003 $4.98

21

WP3400504 Whirlpool Refrigerator Screw Backorder WPL WP3400504 $4.82

21

Cover, Air Diffuser WPL 2176281 Contact Us For Availability

2159327 Whirlpool Refrigerator Door Gasket In Stock WPL 2159327 $92.99

2163762 Whirlpool Refrigerator Cup Assembly Backorder WPL 2163762 $6.49

Shim, Bottom Hinge WPL 2172743 Contact Us For Availability

Air Tower WPL 2182340 Contact Us For Availability

24

WP2189452 Whirlpool Refrigerator Diffuser Backorder WPL WP2189452 $82.12

24

Fitting, Water Tube (Not Serviced) WPL ARI41050A5 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $31.99

285006 Whirlpool Spray In Stock WPL 285006 $31.65

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350942 Whirlpool Spray Paint Backorder WPL 350942 $49.86

350956 Whirlpool Spray Assembly In Stock WPL 350956 $29.99

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $16.99

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $30.99

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $27.29

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $53.03

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $18.58

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $141.89

W11729596 Whirlpool Ice Maker Field Install K In Stock WPL W11729596 $116.71

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $75.04

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $111.80

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $30.85

WP72107 Whirlpool Touchup In Stock WPL WP72107 $14.61

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

Pan Shelf, Cantilever WPL 2205161 Contact Us For Availability

PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability

KIT, PORCELAIN R WPL 799832 Contact Us For Availability

WPL 799833 WPL 799833 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

26

W11745278 Whirlpool Bracket In Stock WPL W11745278 $8.47

27

WP2151652 Whirlpool Refrigerator Button Plug In Stock WPL WP2151652 $14.52

27

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $3.91

27

Cover, Hole WPL 2205003 Contact Us For Availability

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $49.99

WP2212648 Whirlpool Refrigerator Hinge Sleeve In Stock WPL WP2212648 $4.82

Installation Kit WPL 482801 Contact Us For Availability

Seal, Front (Not Serviced) WPL ARI41051A8 Contact Us For Availability

29

Plug-Trim WPL 2177340 Contact Us For Availability

30

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $5.47

30

Seal, Rear (Not Serviced) WPL ARI41052A2 Contact Us For Availability

31

Compartment Door WPL 2188398 Contact Us For Availability

32

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $122.18

33

Handle, F.C. (White) WPL 2225090 Contact Us For Availability

35

WPW10283959 Whirlpool Refrigerator Filler In Stock WPL WPW10283959 $5.99

36

WP2254386 Whirlpool Refrigerator Grille Backorder WPL WP2254386 $65.24

37

Trim-Door (2) WPL 2195946 Contact Us For Availability

38

WP489467 Whirlpool Hinge Shim In Stock WPL WP489467 $5.99

39

CLIP, GRILLE WPL 2189356 Contact Us For Availability

40

WP2213360 Whirlpool Refrigerator Cover Backorder WPL WP2213360 $12.19

41

WP2195916K Whirlpool End Cap In Stock WPL WP2195916K $8.71

41

Rail Center (Not Serviced) WPL ARI41053A3 Contact Us For Availability

42

WPW10421484 Whirlpool Refrigerator Door Trim In Stock WPL WPW10421484 $61.90

43

Fan, Blade WPL 2190685 Contact Us For Availability

44

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $4.82

44

Cover, Unit WPL 2202883 Contact Us For Availability

45

Cabinet (Not A Serviceable Part) WPL ARI41054A5 Contact Us For Availability

46

2205533 Whirlpool Refrigerator Tube Backorder WPL 2205533 $62.23

46

WP489442 Whirlpool Refrigerator Screw Backorder WPL WP489442 $6.83

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $37.88

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $82.11

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $86.15

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

Evap. Tray WPL 2210451 Contact Us For Availability

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
