Model Whirlpool ED27PEXHW02 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams
02 - REFRIGERATOR LINER
09 - UNIT

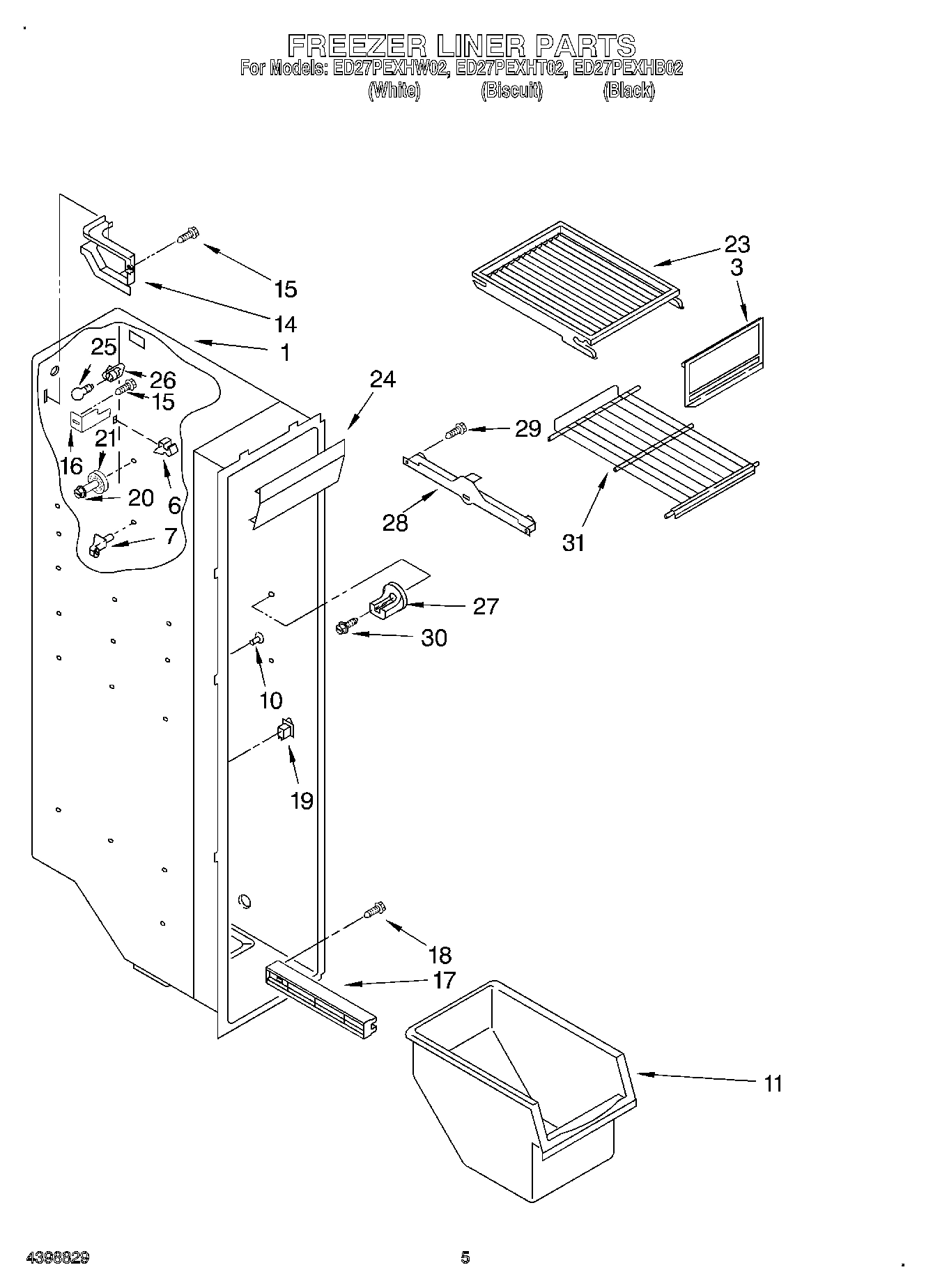

04 - FREEZER LINER

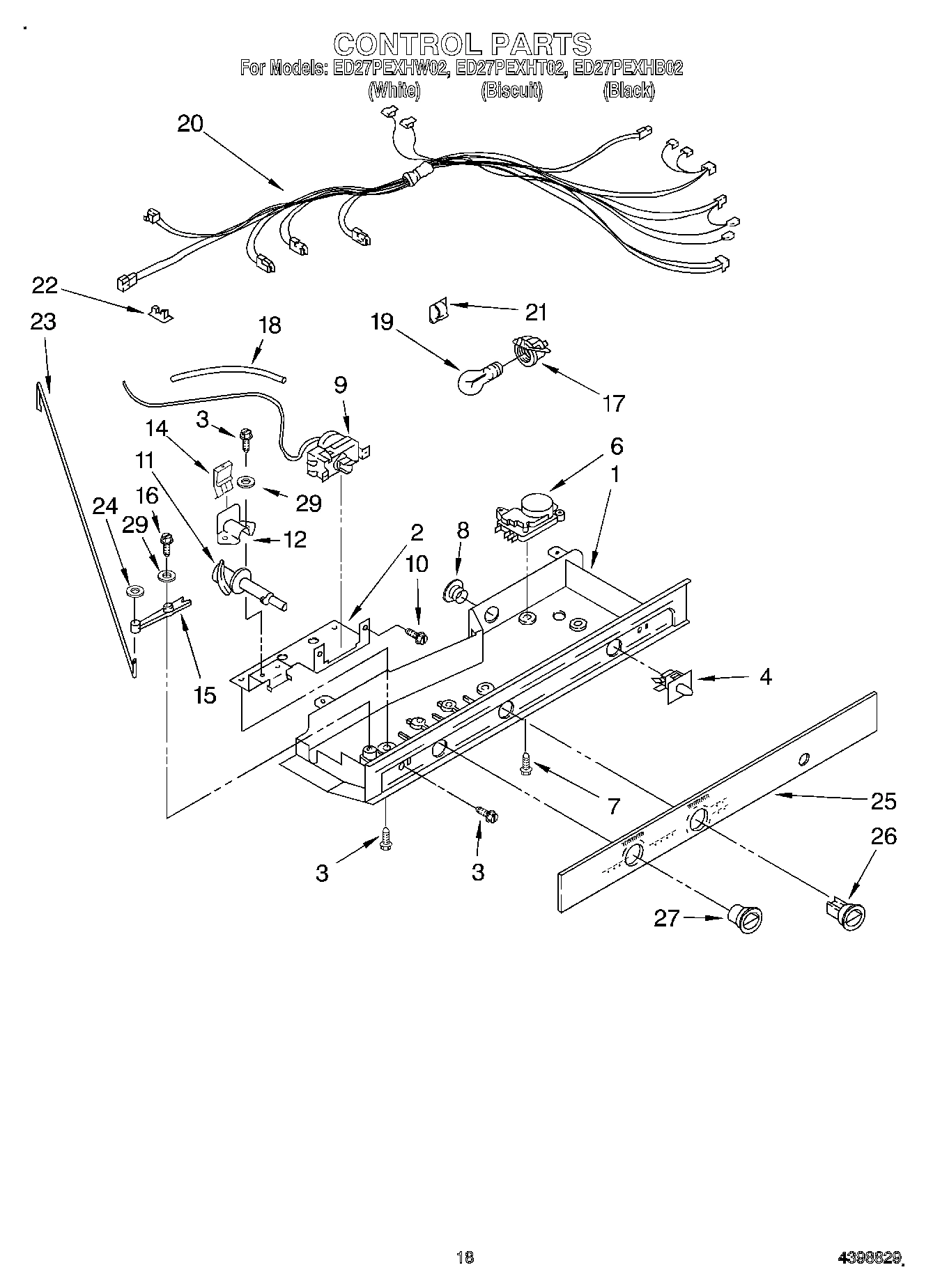

11 - CONTROL

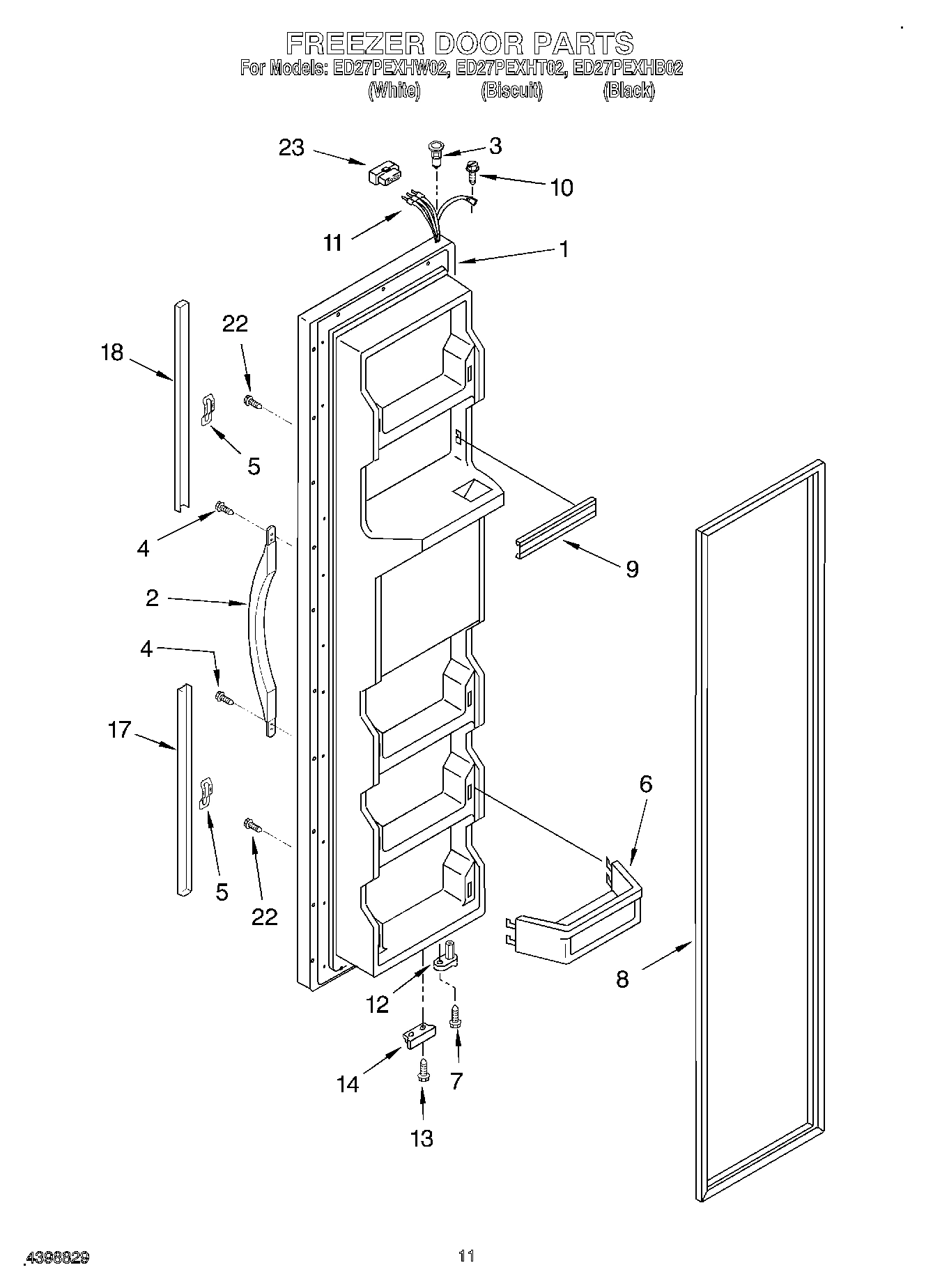

07 - FREEZER DOOR
08 - DISPENSER FRONT

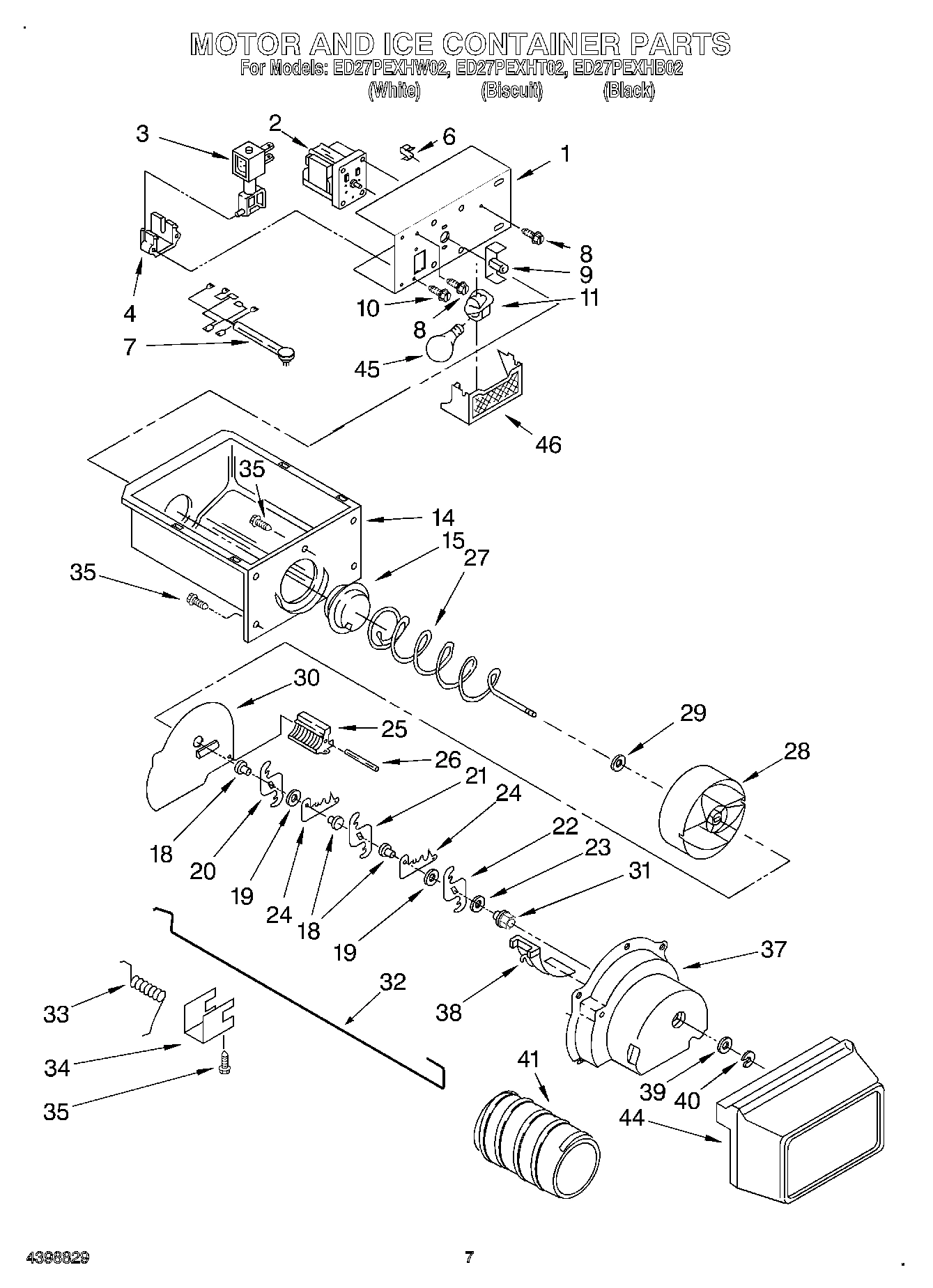

05 - MOTOR AND ICE CONTAINER

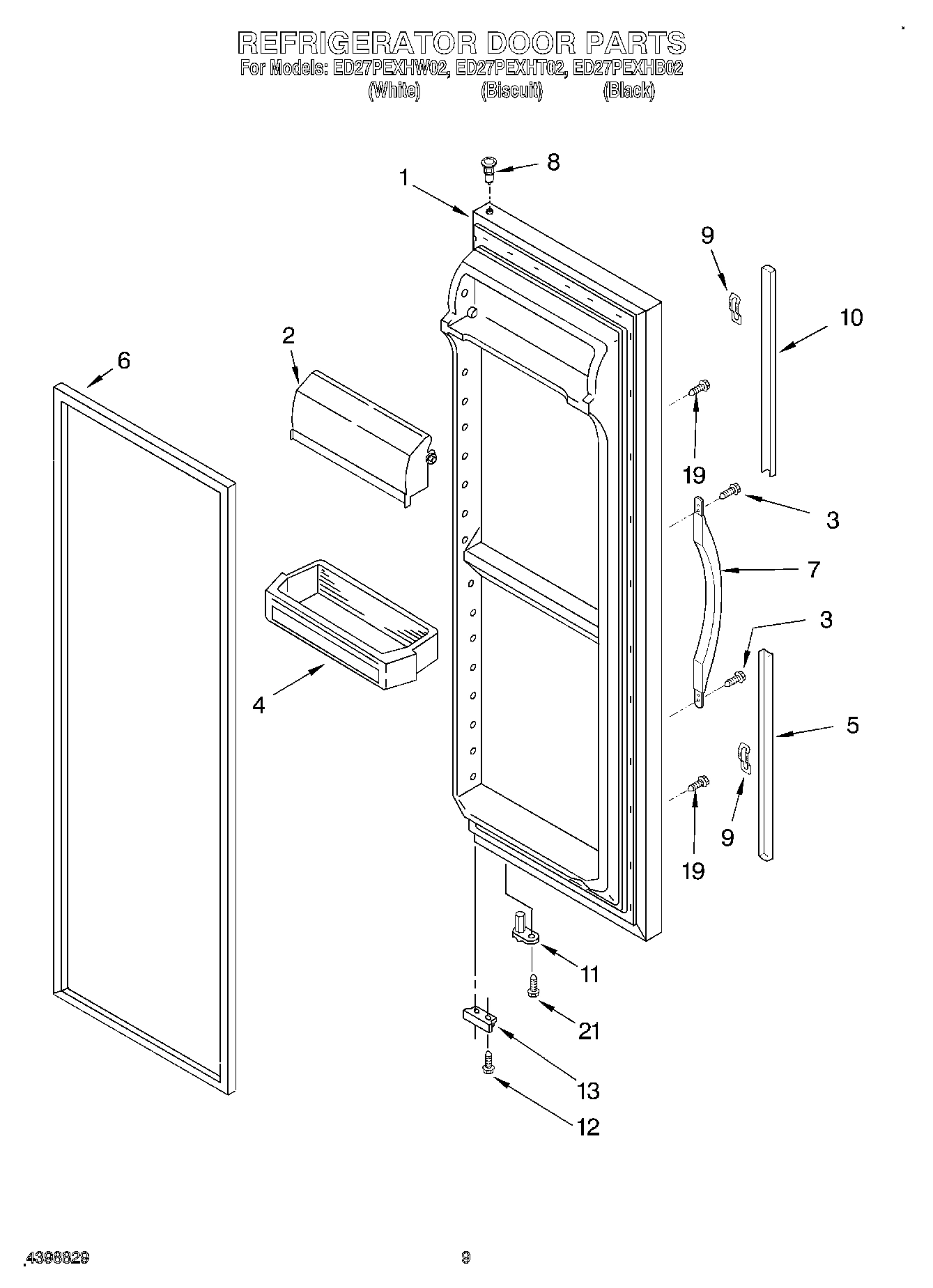

06 - REFRIGERATOR DOOR

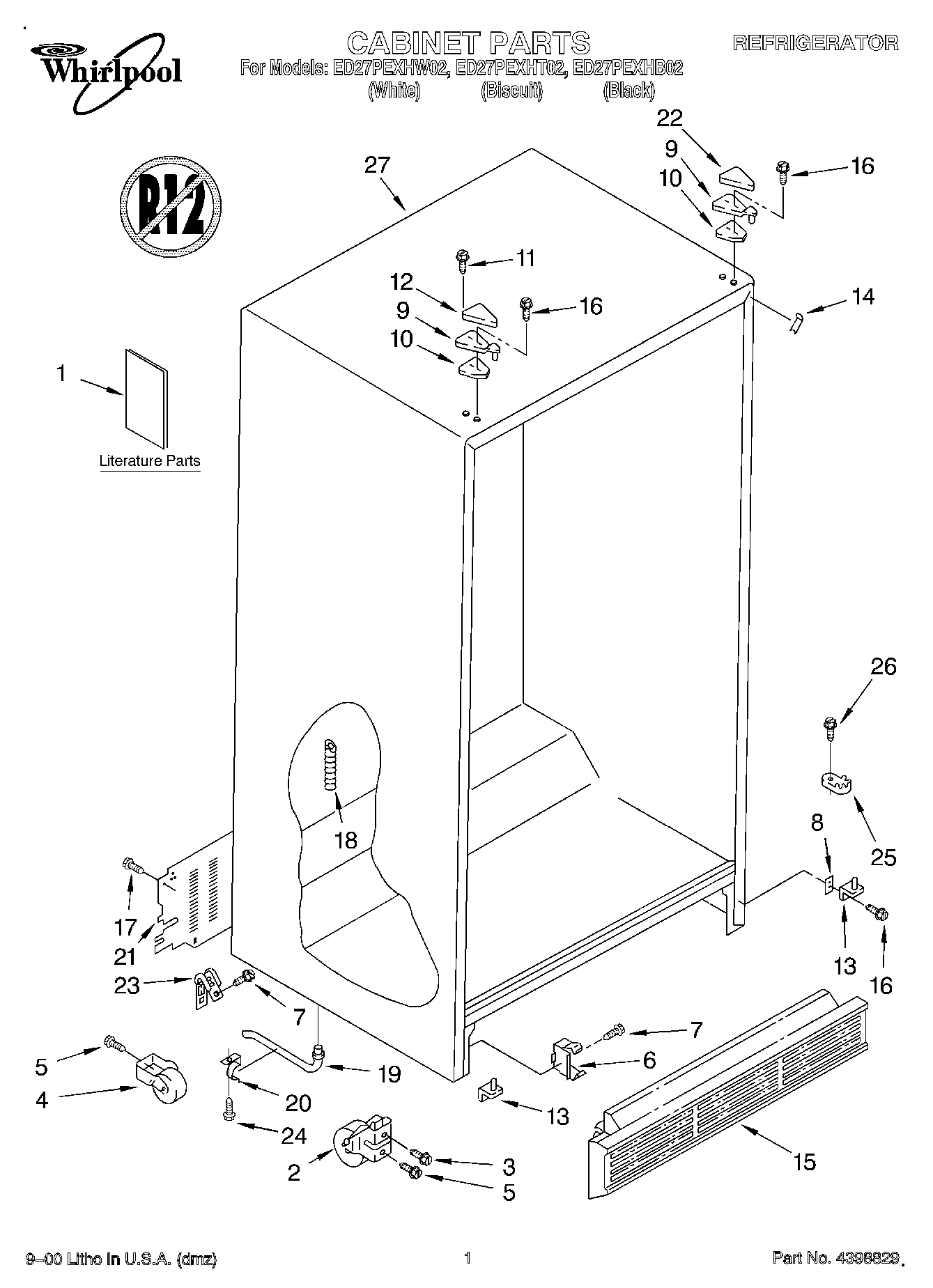

01 - CABINET, LITERATURE

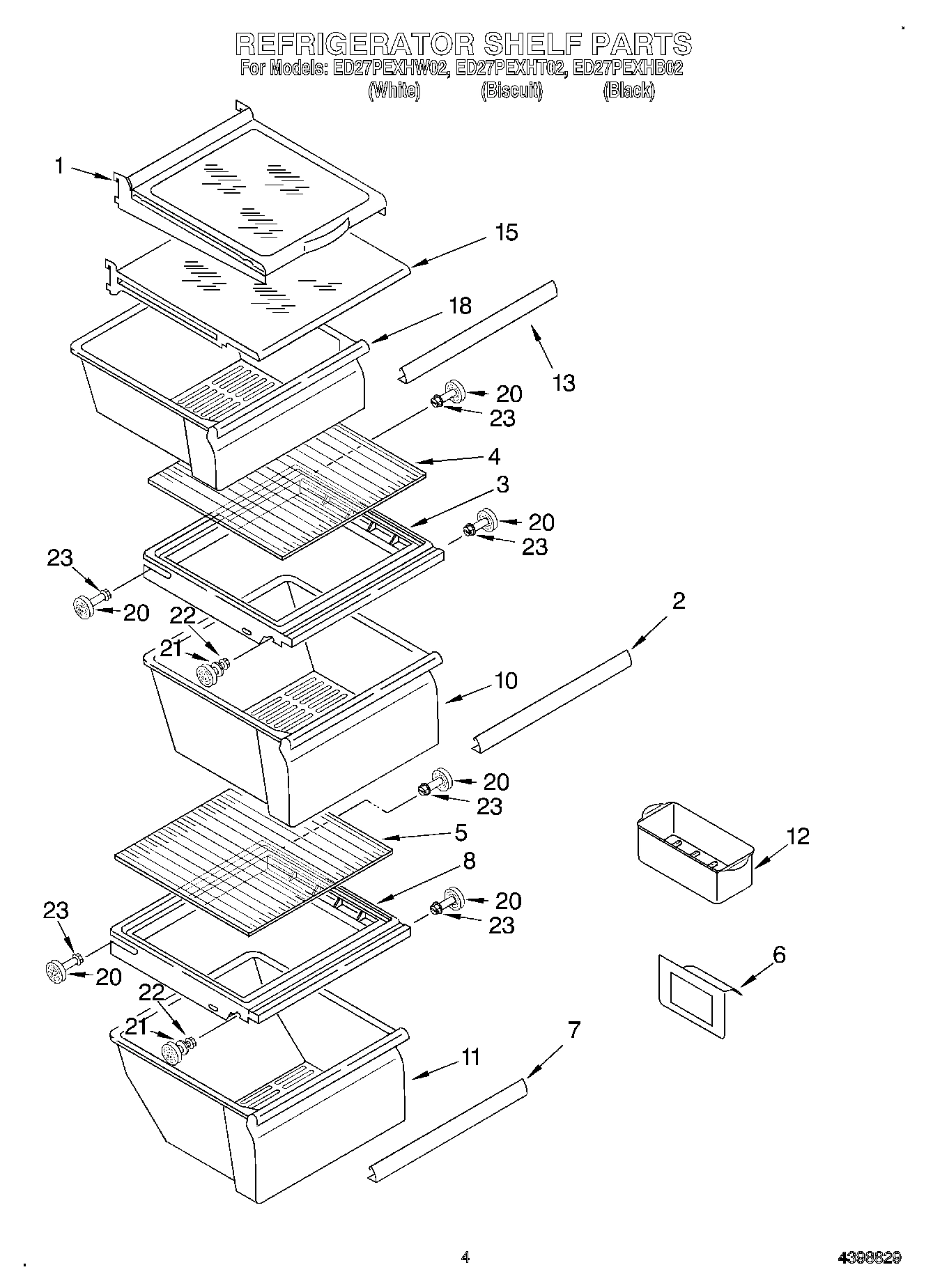

03 - REFRIGERATOR SHELF

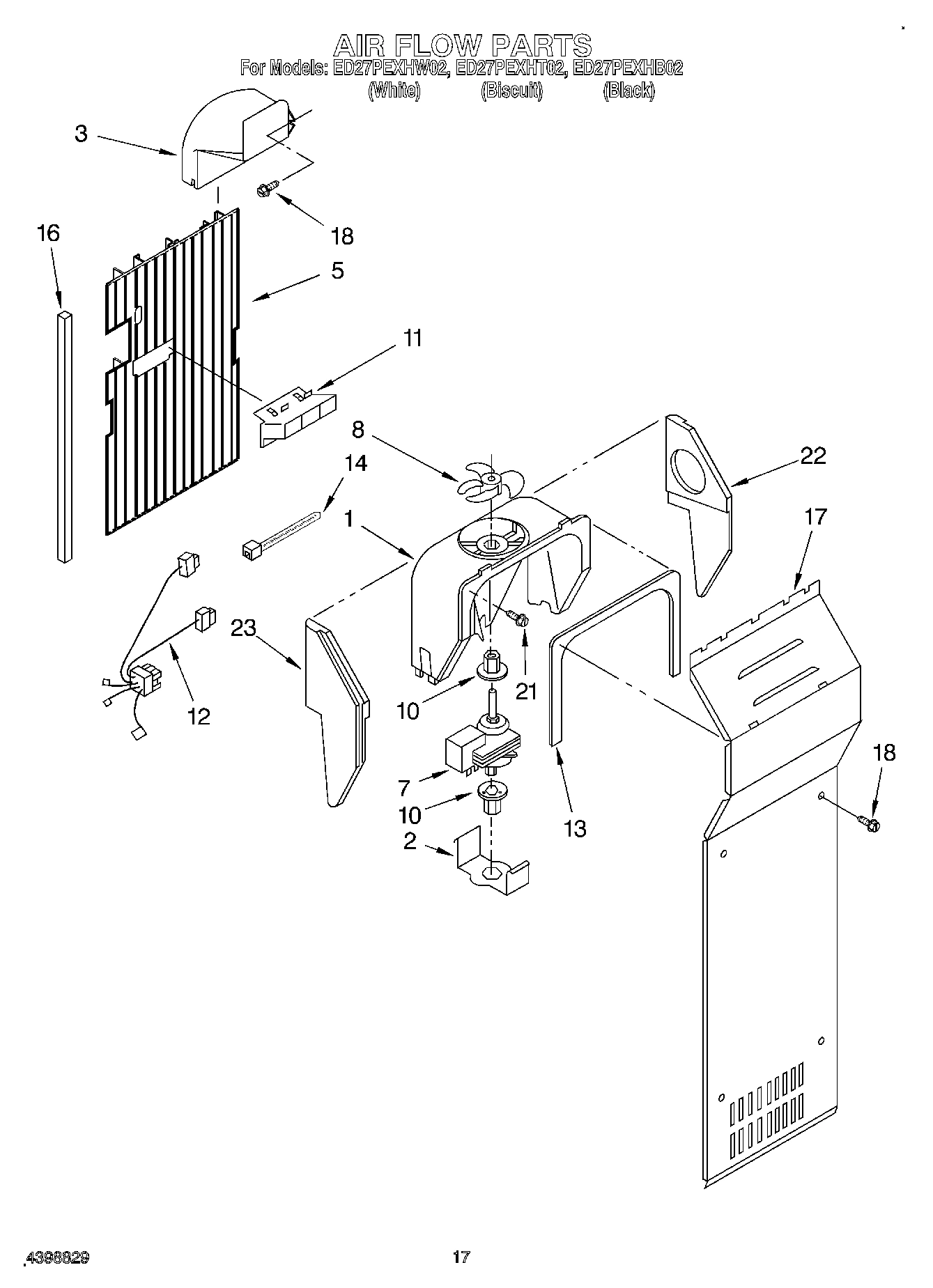

10 - AIR FLOW
12 - ICE MAKER, OPTIONAL
Common parts from model Whirlpool ED27PEXHW02 SIDE BY SIDE REFRIGERATOR
Service & Wiring Sheet WPL LIT2204338 Contact Us For Availability
Energy Label WPL LIT2211857 Contact Us For Availability
Modular Icemaker Service Sheet WPL LIT628730 Contact Us For Availability
1
Use & Care Guide WPL LIT2205958 Contact Us For Availability
1
Shelf, Cantilever (2) WPL 2194281 Contact Us For Availability
2
Blade, Fan WPL 2190685 Contact Us For Availability
2
Handle, Center (Black) WPL 2186649B Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Handle, Center (White) WPL 2186649W Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
2
Trim, Pan WPL 2194905 Contact Us For Availability
3
SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
5
Air Duct Freezer WPL 2203593 Contact Us For Availability
7
Handle, Center (Biscuit) WPL 2186649T Contact Us For Availability
9
Grille, Overflow (White) WPL 2183787W Contact Us For Availability
9
Grille, Overflow (Black) WPL 2183787B Contact Us For Availability
10
Valve, Solenoid WPL 2206123 Contact Us For Availability
10
Grommet WPL 2176134 Contact Us For Availability
10
Extension, Top (Black) WPL 2194973B Contact Us For Availability
10
Extension, Top (Biscuit) WPL 2194973T Contact Us For Availability
10
Shim, Hinge Top WPL 2196048 Contact Us For Availability
11
Lever, Ice Dispenser (Biscuit) WPL 2195089T Contact Us For Availability
11
Screw WPL 489284 Contact Us For Availability
12
Hinge Cover (White) WPL 1129262 Contact Us For Availability
12
Hinge Cover (Black) WPL 2151694 Contact Us For Availability
12
Hinge Cover (Biscuit) WPL 2186858 Contact Us For Availability
13
Bracket, Door Stop WPL 2155331 Contact Us For Availability
14
TUBE, SUCTION WPL 2205765 Contact Us For Availability
14
Filler, Wrapper (White) WPL 2196094 Contact Us For Availability
14
Filler, Wrapper (Black) WPL 2196097 Contact Us For Availability
14
Filler, Wrapper (Biscuit) WPL 2196150 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Shelf, Snack Bin WPL 2206347 Contact Us For Availability
17
Extension, Bottom (White) WPL 2194969W Contact Us For Availability
17
Lever, Water Dispenser (Biscuit) WPL 2195090T Contact Us For Availability
17
Cover, Evaporator WPL 2203841 Contact Us For Availability
22
Hinge Cover (Black) WPL 2155938 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
24
Spacer, Switch (2) WPL 625834 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
27
Knob, Air Control WPL 2197871 Contact Us For Availability
27
Stud WPL 2196207 Contact Us For Availability
27
Cabinet (Not A Serviceable Part) WPL ARI28473A3 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
31
Shelf (2) WPL 2174268 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
100
Torx Key WPL 1117510 Contact Us For Availability
100
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
100
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
100
KIT, EVAPORATOR R WPL 799833 Contact Us For Availability
100
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
