Model Whirlpool ED25PWXAW01 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams
01 - CABINET

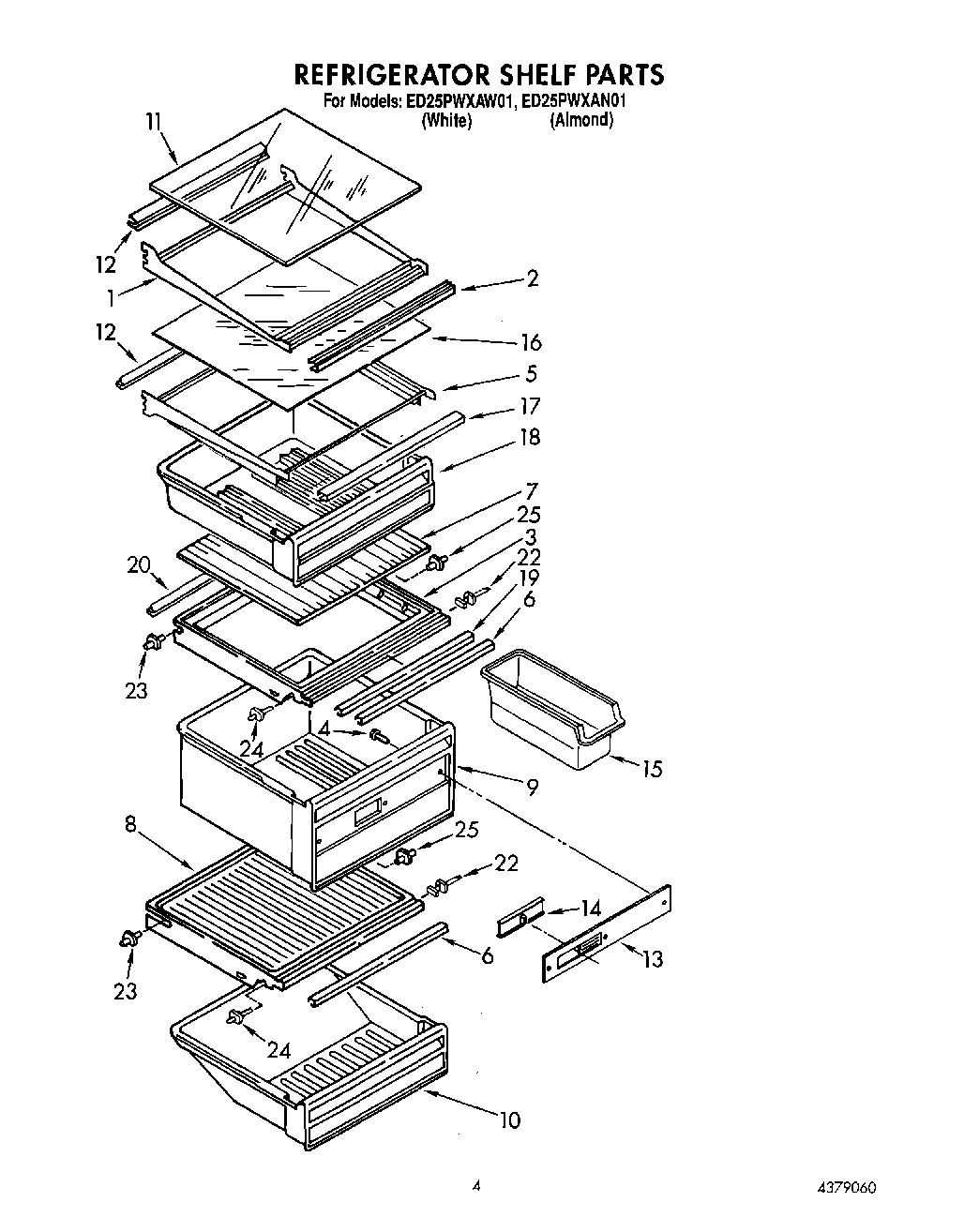

03 - REFRIGERATOR SHELF

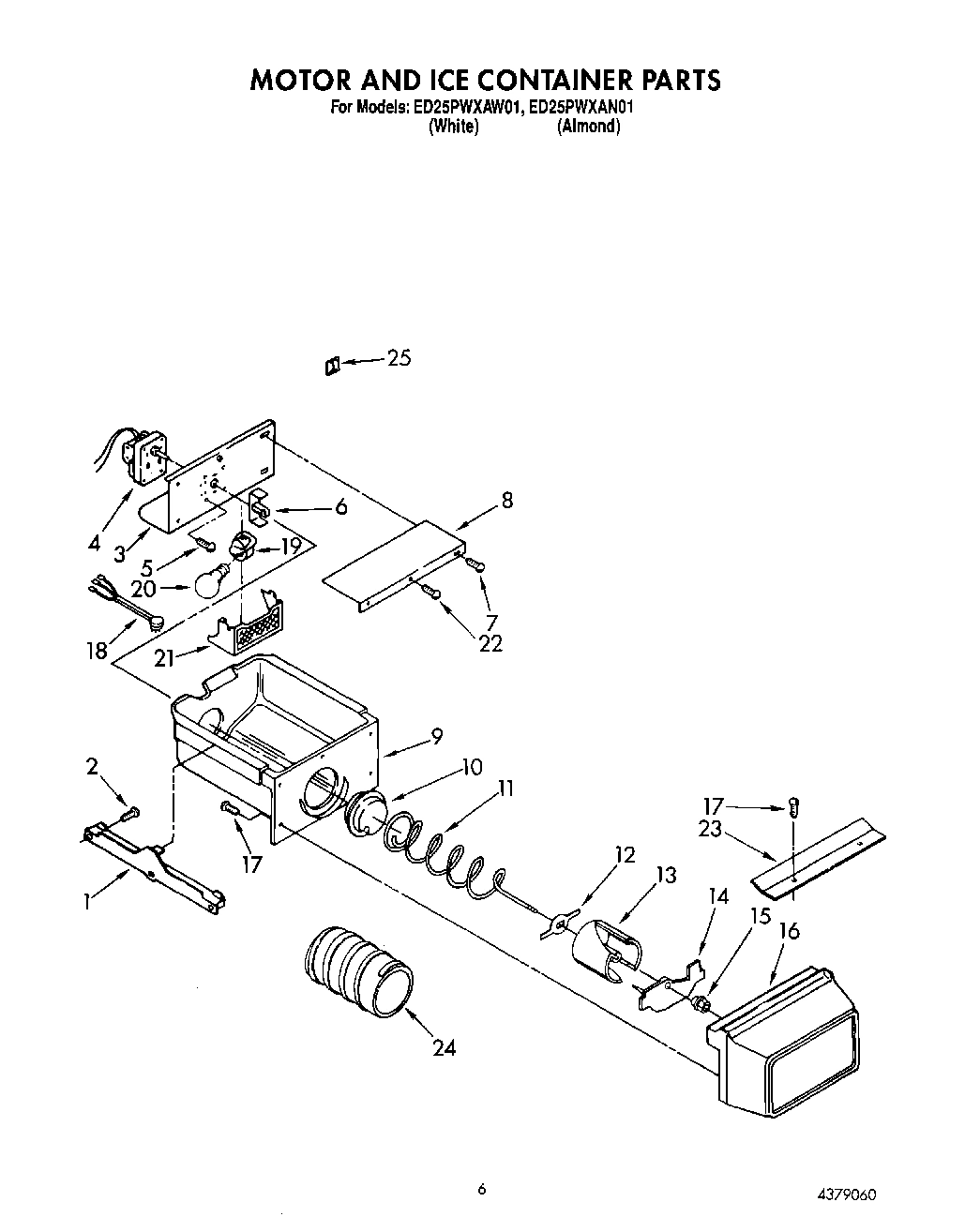

05 - MOTOR AND ICE CONTAINER

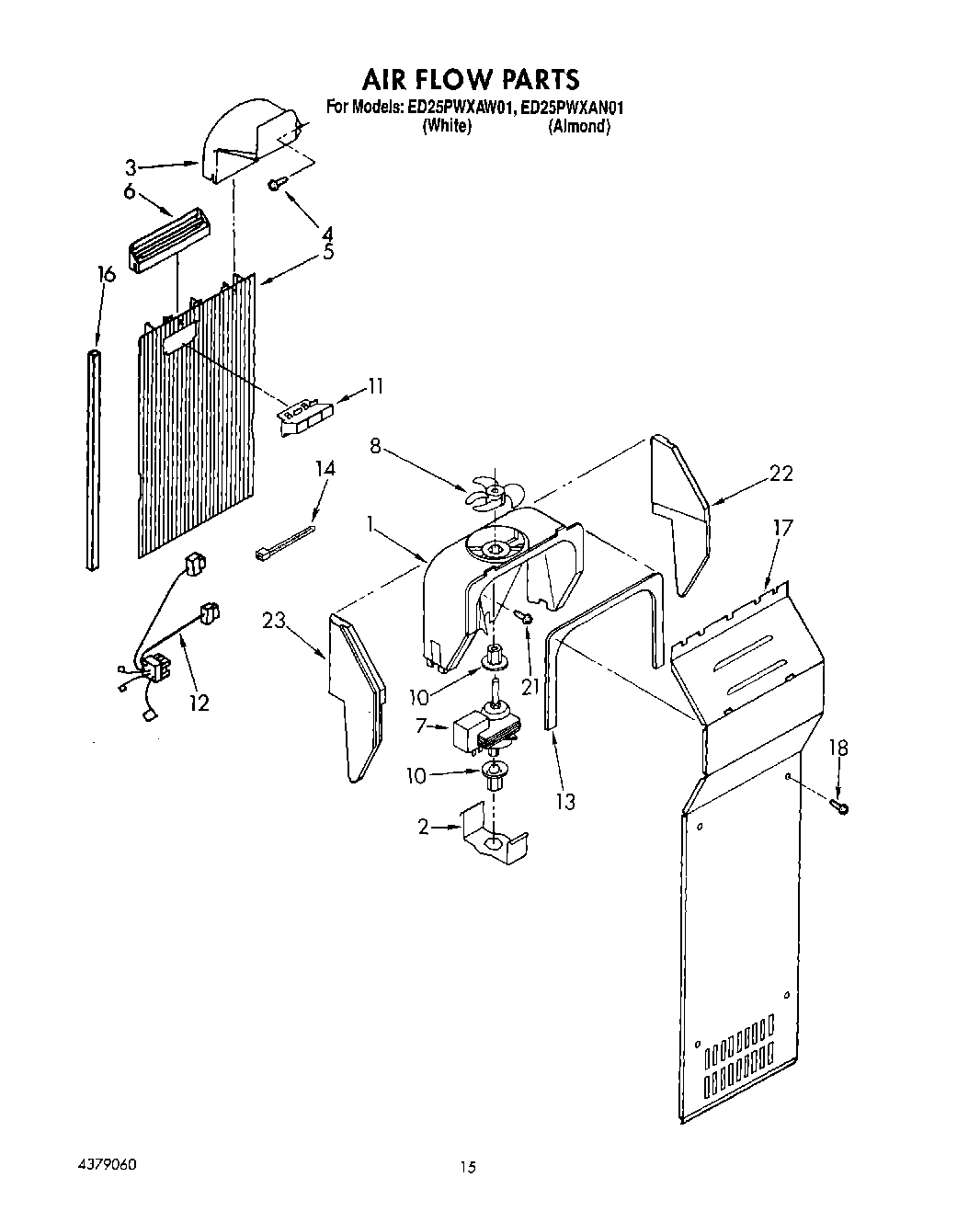

10 - AIR FLOW

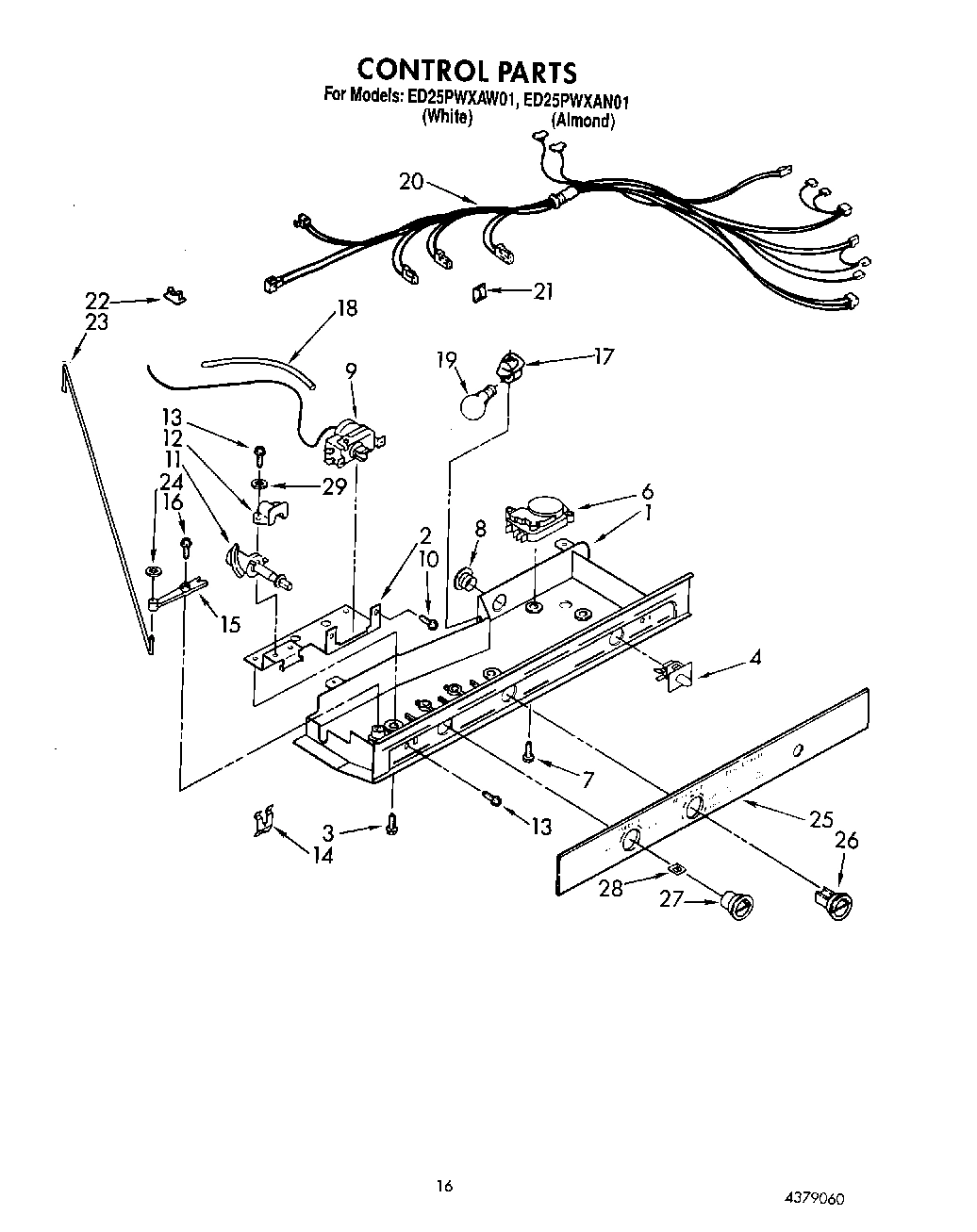

11 - CONTROL

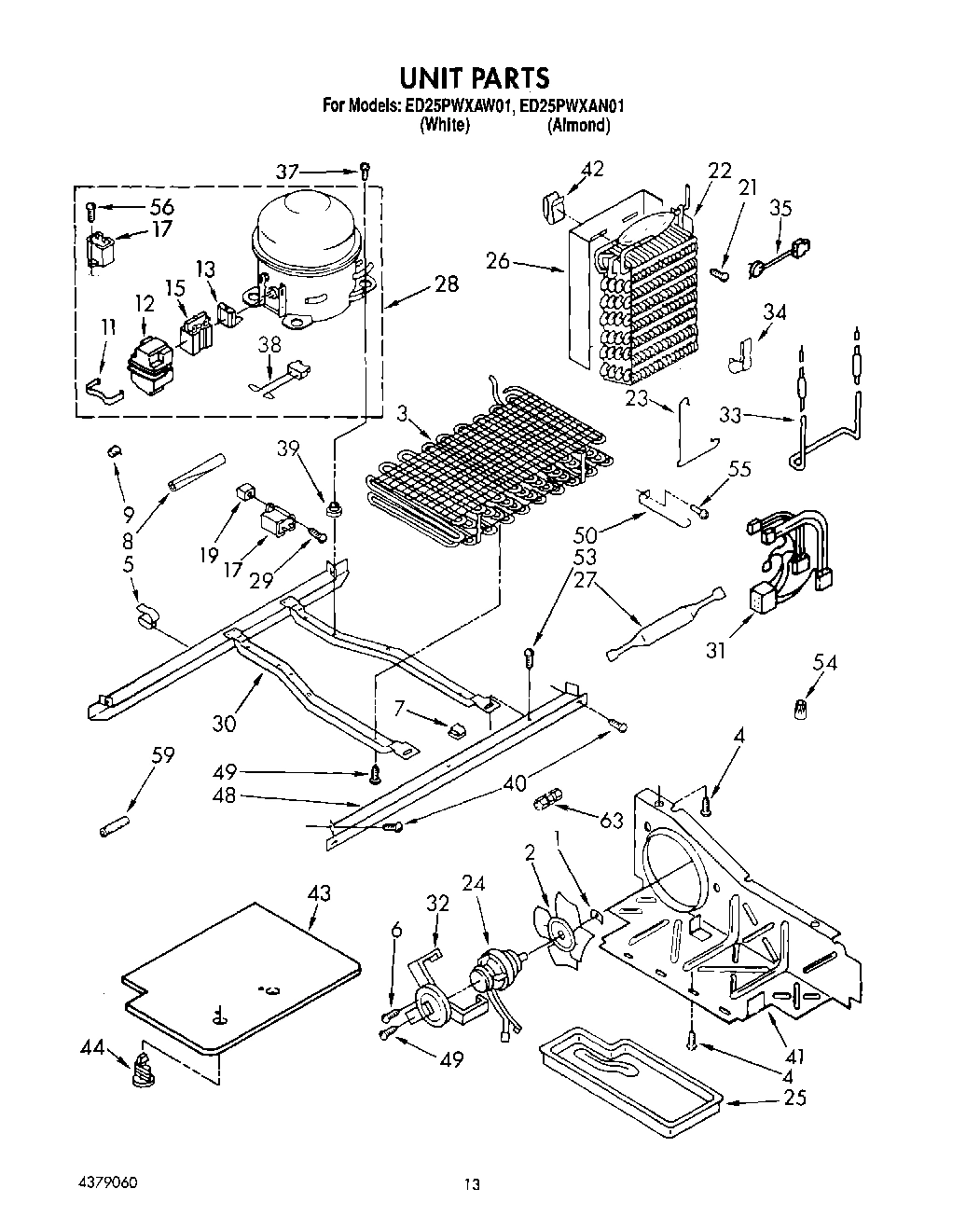

09 - UNIT

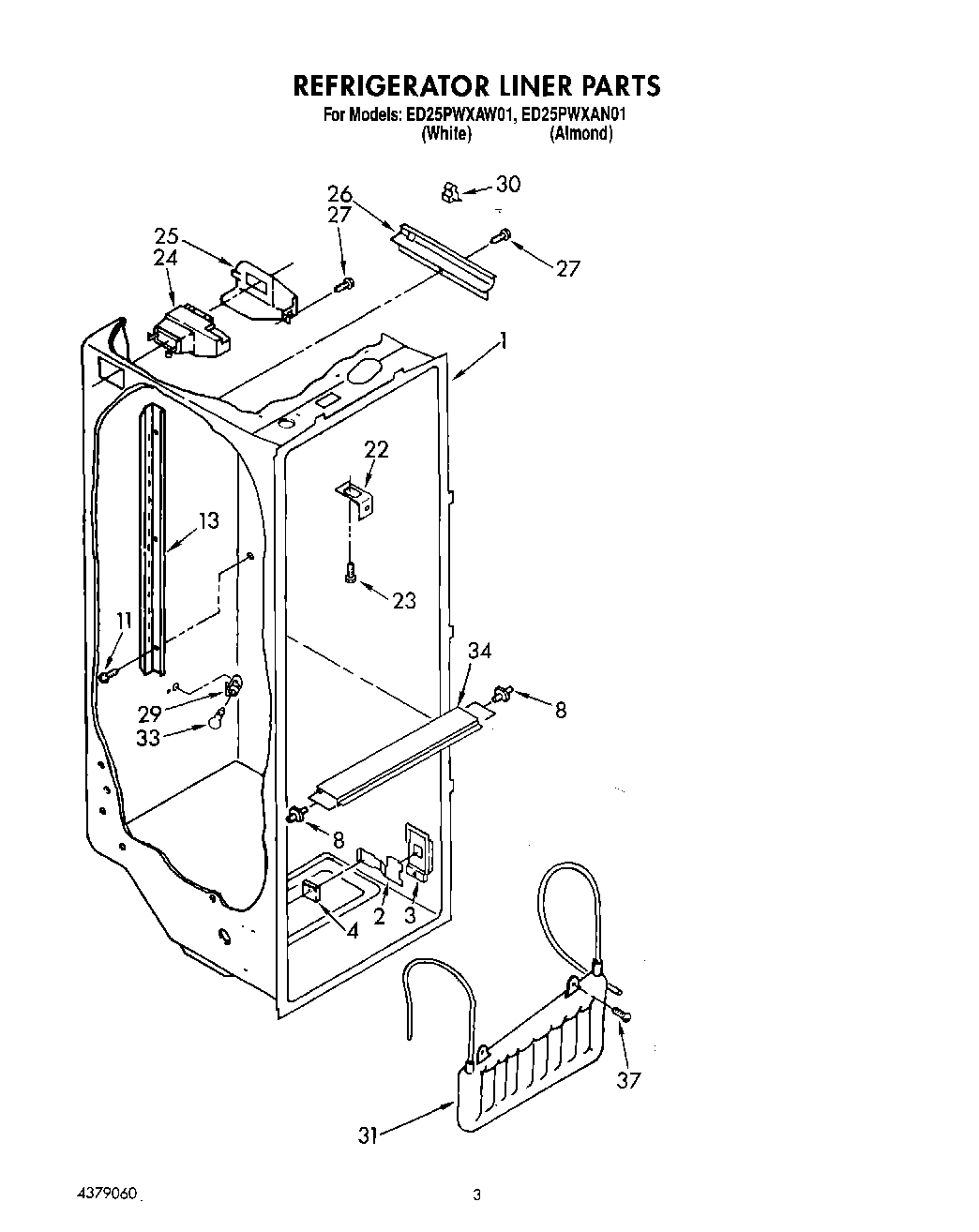

02 - REFRIGERATOR LINER

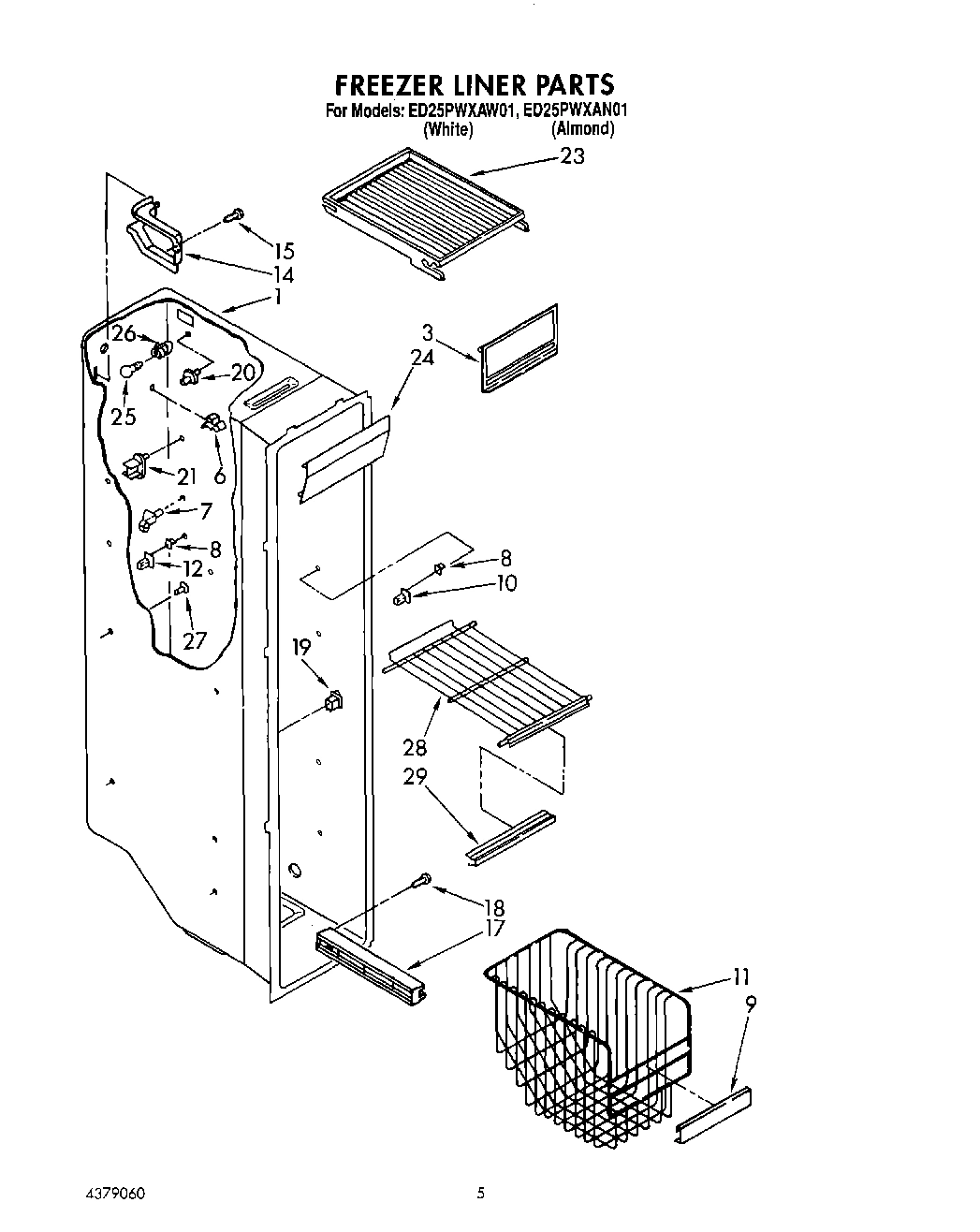

04 - FREEZER LINER

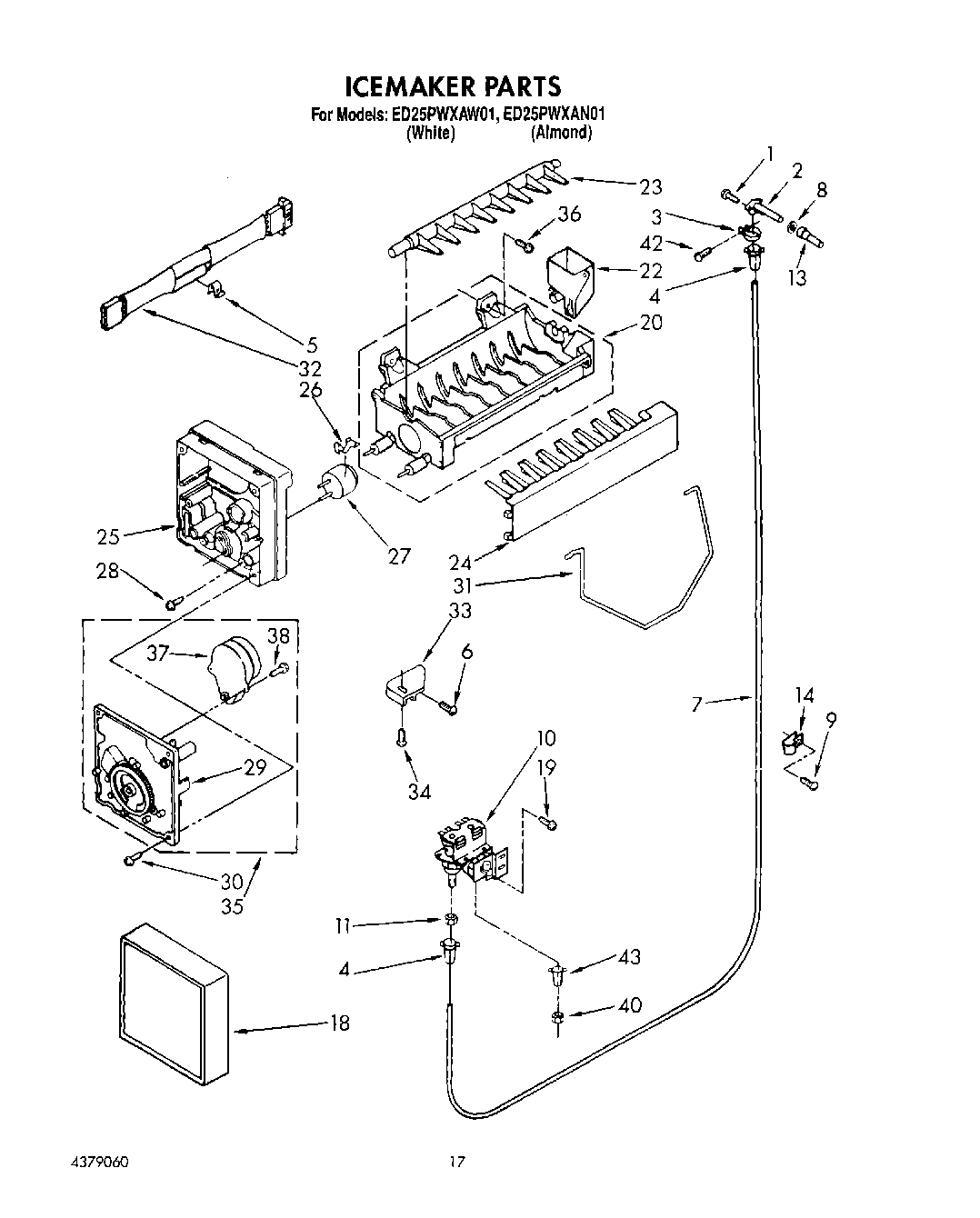

12 - ICEMAKER, LIT/OPTIONAL

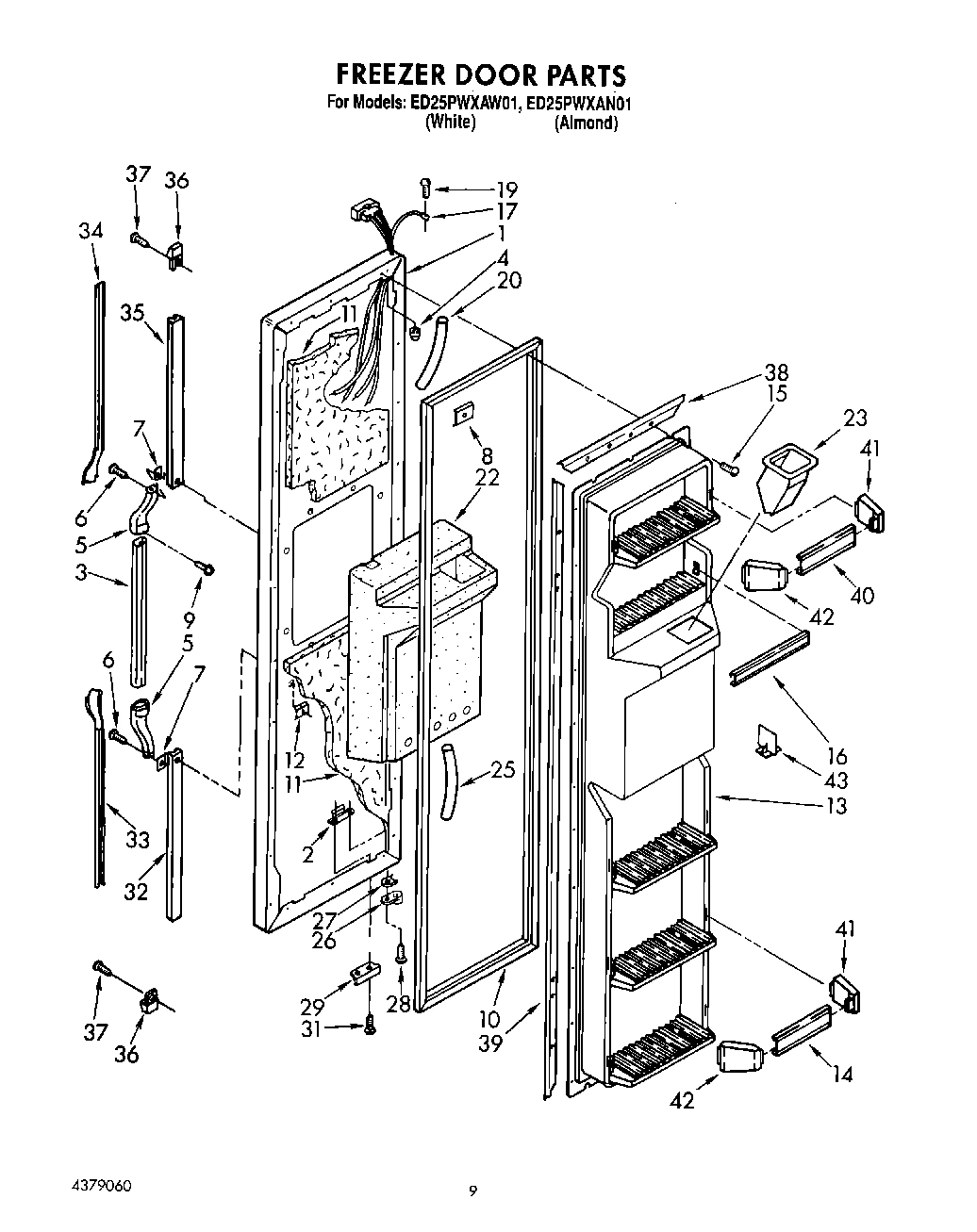

07 - FREEZER DOOR

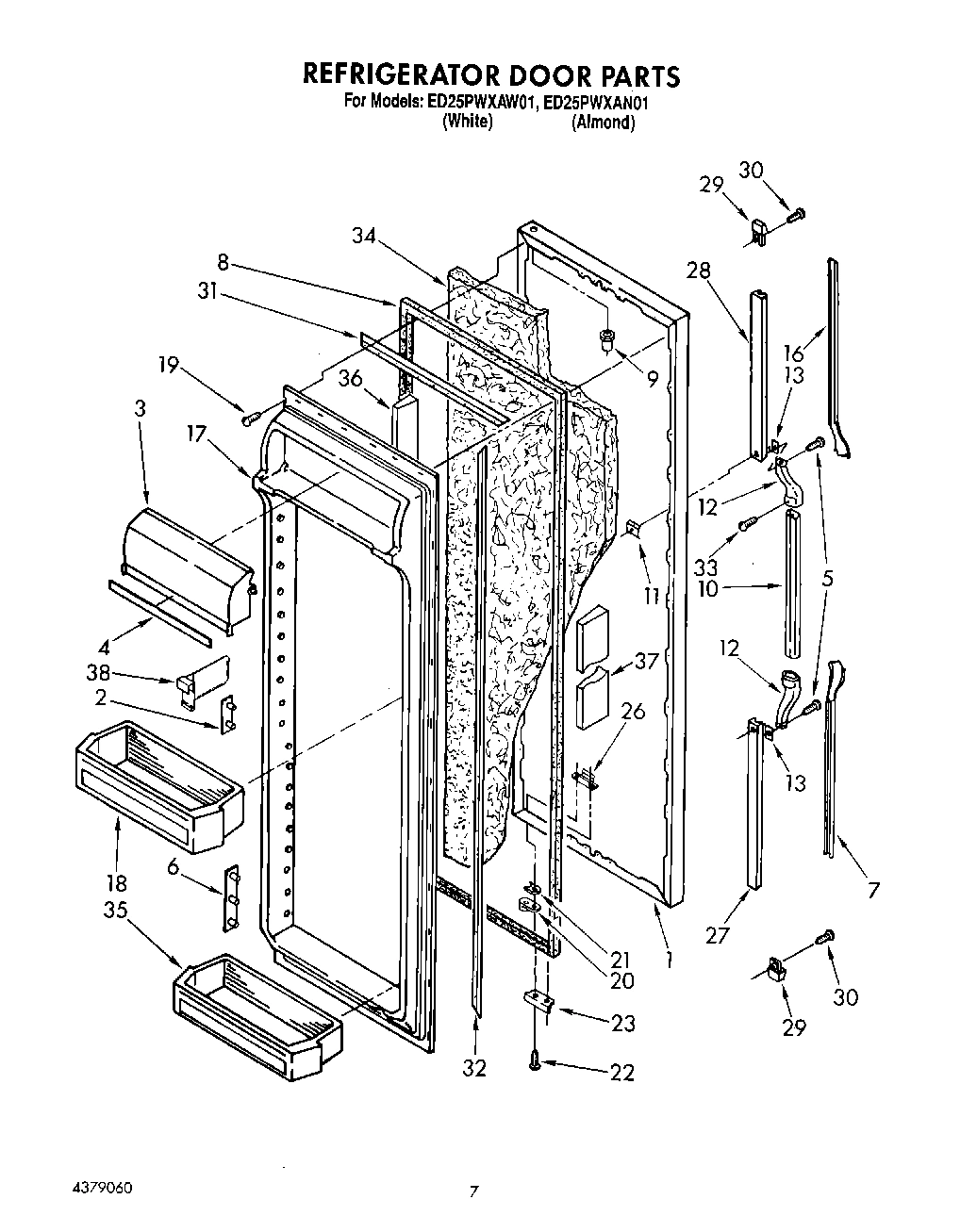

06 - REFRIGERATOR DOOR

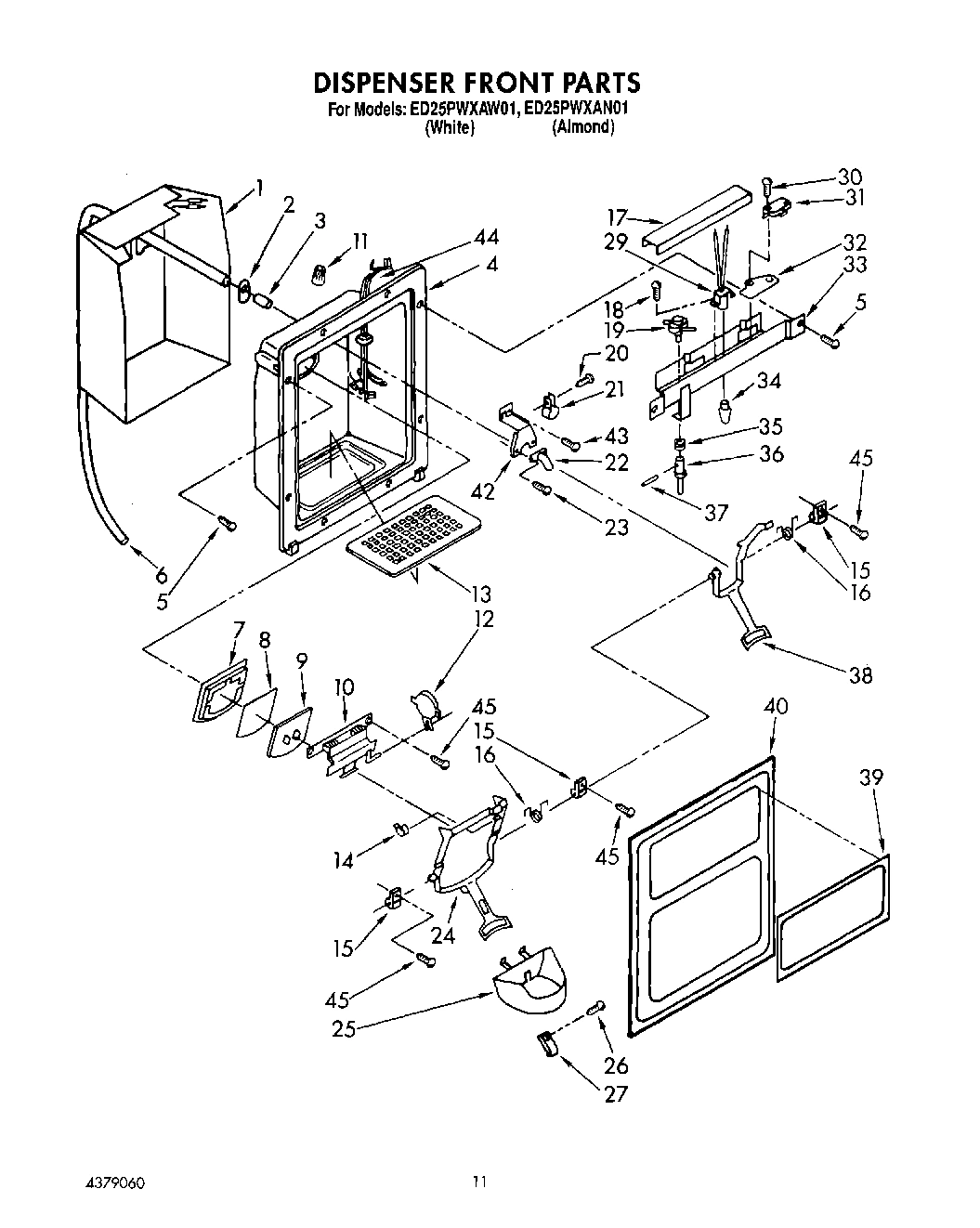

08 - DISPENSER FRONT
Common parts from model Whirlpool ED25PWXAW01 SIDE BY SIDE REFRIGERATOR
WPL LIT2160159 WPL LIT2160159 Contact Us For Availability
WPL LIT2162456 WPL LIT2162456 Contact Us For Availability
WPL LIT2162818 WPL LIT2162818 Contact Us For Availability
WPL LIT4379060 WPL LIT4379060 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
1
Control Box WPL 2157449 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI146052A Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI146053A Contact Us For Availability
1
Freezer, Door Panel (White) WPL 1110652 Contact Us For Availability
1
Freezer, Door Panel (Almond (Also Order Item WPL 1110655 Contact Us For Availability
1
Refrigerator, Door Panel (White) WPL 1110642 Contact Us For Availability
1
Refrigerator, Door Panel (Almond (Also Order WPL 1110645 Contact Us For Availability
1
Heater, Dispenser WPL 2154789 Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Escutcheon, Meat Pan Control WPL 985468 Contact Us For Availability
2
Pin Plate (4) WPL 1118048 Contact Us For Availability
2
Grommet WPL 987048 Contact Us For Availability
3
Screw (2) WPL 489397 Contact Us For Availability
3
Condenser Assembly WPL 2154011 Contact Us For Availability
3
Slide, Meat Pan Control WPL 984102 Contact Us For Availability
3
Door, Ice Compartment WPL 1115254 Contact Us For Availability
3
Door, Compartment WPL 2148702 Contact Us For Availability
4
Pad, Foam WPL 992358 Contact Us For Availability
4
Seal, Hinge Pin WPL 939886 Contact Us For Availability
4
Trim, Compartment Door WPL 1110717 Contact Us For Availability
4
Housing, Dispenser WPL 1107943 Contact Us For Availability
5
Clip, Wire WPL 2155658 Contact Us For Availability
6
Diffuser Air Duct WPL 1110666 Contact Us For Availability
6
Screw WPL 486214 Contact Us For Availability
6
Pin Plate (10) WPL 1116986 Contact Us For Availability
7
Glass, Crisper Cover WPL 1114687 Contact Us For Availability
7
Gasket, Door WPL 983691 Contact Us For Availability
7
Clip, Tube (3) WPL 934011 Contact Us For Availability
7
Insert, Handle (White) WPL 1119361 Contact Us For Availability
7
Insert, Handle (Almond) WPL 1119363 Contact Us For Availability
8
Shield, Ice Door WPL 987121 Contact Us For Availability
8
support stud (8) WPL 946355 Contact Us For Availability
8
Door Gasket, Magnetic WPL 1127309 Contact Us For Availability
9
Door, Ice WPL 983690 Contact Us For Availability
9
Trim, Basket WPL 2148314 Contact Us For Availability
9
Cap, Hinge Sleeve WPL 509929 Contact Us For Availability
10
Grommet, Fan (2) WPL 2155589 Contact Us For Availability
10
Stud, Front (3) WPL 946356 Contact Us For Availability
10
Handle, Center WPL 1118417 Contact Us For Availability
10
Door Gasket, Magnetic WPL 1127310 Contact Us For Availability
10
Door Mechanism Assembly WPL 938669 Contact Us For Availability
11
Cam Assembly WPL 2161250 Contact Us For Availability
11
Strap (Service) WPL 938384 Contact Us For Availability
11
Strap (Production) WPL 943322 Contact Us For Availability
11
Basket, Slope WPL 2152090 Contact Us For Availability
11
Screw Anchor (2) WPL 941242 Contact Us For Availability
11
Wire Connector WPL 850145 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2161327 Contact Us For Availability
12
Cover (Production) WPL 1105055 Contact Us For Availability
12
Cover (Service) WPL 1108115 Contact Us For Availability
12
Stud, Rear (3) WPL 1106982 Contact Us For Availability
12
End Cap, Center Handle WPL 1119359 Contact Us For Availability
13
Grille, Overflow WPL 983900 Contact Us For Availability
13
Shim, Hinge Top WPL 1123515 Contact Us For Availability
13
Overload (Service (Includes Relay)) WPL 1118841 Contact Us For Availability
13
Ladder, Shelf (2) WPL 1116794 Contact Us For Availability
13
Tube, Water Inlet WPL 2155247 Contact Us For Availability
13
Shim WPL 935075 Contact Us For Availability
13
Panel, Interior Door WPL 1124969 Contact Us For Availability
14
Retainer, Damper WPL 938439 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
14
Trim, Shelf (3) WPL 2148320 Contact Us For Availability
14
Clip, Bearing (2) WPL 987917 Contact Us For Availability
15
Hinge Cover (White) WPL 1129262 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Relay (See Overload) WPL ARI146054A Contact Us For Availability
15
Bearing, Lever (3) WPL 983697 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Trim, Door Shelf WPL 2148321 Contact Us For Availability
16
Insert, Handle (White) WPL 1119373 Contact Us For Availability
16
Insert, Handle (Almond) WPL 1119375 Contact Us For Availability
17
Cover, Evaporator WPL 2155612 Contact Us For Availability
17
Shelf Track (Right Side) WPL 1126354 Contact Us For Availability
17
Shelf Track (Left Side) WPL 1126355 Contact Us For Availability
17
Harness, Door WPL 1116960 Contact Us For Availability
17
Panel, Interior Door WPL 1124842 Contact Us For Availability
17
Shield, Wiring WPL 984494 Contact Us For Availability
18
Cover WPL 628355 Contact Us For Availability
18
Shelf Bin (2) WPL 2163336 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
19
Switch, Light WPL 851386 Contact Us For Availability
20
Control Box Harness WPL 2155517 Contact Us For Availability
20
Tube, Door Wiring WPL 1119060 Contact Us For Availability
21
Stud, Shelf (4) WPL 1115386 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
22
Evaporator WPL 2155501 Contact Us For Availability
22
Insulation, Dispenser WPL 1115345 Contact Us For Availability
23
Shelf Stud WPL 1115290 No Longer Available
23
Clamp WPL 2161324 Contact Us For Availability
23
Connecting Rod WPL 1123960 Contact Us For Availability
23
Shelf, Top Compartment WPL 1118294 Contact Us For Availability
23
Chute, Ice WPL 987188 Contact Us For Availability
23
Bracket, Door Stop WPL 1115906 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Light Lens WPL 1115389 Contact Us For Availability
24
Lever Assembly, Ice Dispenser WPL 1127421 Contact Us For Availability
25
Escutcheon Control WPL 2161213 Contact Us For Availability
25
Tray, Evaporator WPL 1110674 Contact Us For Availability
25
Tube, Door Wiring WPL 2147080 Contact Us For Availability
25
Guide, Ice WPL 1118269 Contact Us For Availability
26
Heat Shield WPL 2149294 Contact Us For Availability
26
Tap Plate WPL 988402 Contact Us For Availability
26
Screw WPL 489197 Contact Us For Availability
27
Stop, Glass WPL 1119056 Contact Us For Availability
27
Knob, Air Control WPL 1116853 Contact Us For Availability
27
Grommet (8) WPL 1110779 Contact Us For Availability
27
Also Order Cement Alumilastic WPL 542369 Contact Us For Availability
27
Retainer, Insert (Bottom) WPL 1119360 Contact Us For Availability
28
Knob, Retainer WPL 837444 Contact Us For Availability
28
Compressor (Includes Items 11, 12, 13, 15, 17 WPL 2154562 Contact Us For Availability
28
Shelf (Large 2) WPL 1116956 Contact Us For Availability
28
Retainer, Insert WPL 1119372 Contact Us For Availability
29
Trim, Shelf (3) WPL 1120547 Contact Us For Availability
29
End Cap (2) WPL 2156220 Contact Us For Availability
29
Socket, Lamp WPL 987265 Contact Us For Availability
30
Screw WPL 489075 Contact Us For Availability
30
Screw WPL 488362 Contact Us For Availability
31
Unit, Harness WPL 2149199 Contact Us For Availability
31
Gasket Retainer, Top & Bottom WPL 1118301 Contact Us For Availability
32
Fan, Motor Bracket WPL 2162062 Contact Us For Availability
32
Gasket Retainer, Side (2) WPL 1118302 Contact Us For Availability
32
Insulator, Switch (2) WPL 984683 Contact Us For Availability
33
Heater, Defrost WPL 2161323 Contact Us For Availability
33
Screw (4) WPL 489022 Contact Us For Availability
33
Bracket, Control WPL 1129283 Contact Us For Availability
34
Foam Insulation (Required When Replacing Exte WPL 876029 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
34
Light Lens WPL 1118259 Contact Us For Availability
34
Screw, WPL 489365 Contact Us For Availability
35
Shelf Bin (2) WPL 2163337 Contact Us For Availability
35
Spring, Plunger WPL 983986 Contact Us For Availability
36
Reinforcement, Shelf WPL 1115379 Contact Us For Availability
36
Plunger WPL 1116563 Contact Us For Availability
37
Screw WPL 489387 Contact Us For Availability
37
Screw (2) WPL 488280 Contact Us For Availability
37
Reinforcement, Shelf WPL 1119055 Contact Us For Availability
37
Pin, Retainer WPL 983987 Contact Us For Availability
38
Gasket Retainer, Top & Bottom WPL 1118306 Contact Us For Availability
38
Divider, Bin WPL 2152336 Contact Us For Availability
38
Lever Assembly, Water Dispenser WPL 1115349 Contact Us For Availability
39
Grommet (4) WPL 2162067 Contact Us For Availability
39
Plaque, Front Cover WPL 2150335 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
40
Trim, Door Shelf WPL 2148319 Contact Us For Availability
40
Front Cover, Housing (Includes Item 39) WPL 2150339 Contact Us For Availability
41
End Cap, Trim (4) WPL 1115364 Contact Us For Availability
42
Clip, Heat Shield WPL 2155547 Contact Us For Availability
42
End Cap, Trim (4) WPL 1115333 Contact Us For Availability
42
Bracket, Water WPL 987049 Contact Us For Availability
43
Unit Cover, Bottom WPL 2161363 Contact Us For Availability
43
Insert WPL 1129177 Contact Us For Availability
43
Divider, Shelf WPL 1114380 Contact Us For Availability
43
Screw WPL 488316 Contact Us For Availability
44
Wiring Assembly, Door WPL 2149783 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
54
Wire Connector WPL 227991 Contact Us For Availability
59
Spring-Tube WPL 983659 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
WPL 799344 WPL 799344 Contact Us For Availability
100
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
100
Transformer (115-230 Volt) WPL 515393 Contact Us For Availability
100
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
100
WPL 799340 WPL 799340 Contact Us For Availability
100
WPL 799833 WPL 799833 Contact Us For Availability
100
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
