Model Whirlpool DG23CD WASHER – Common Parts & Diagrams

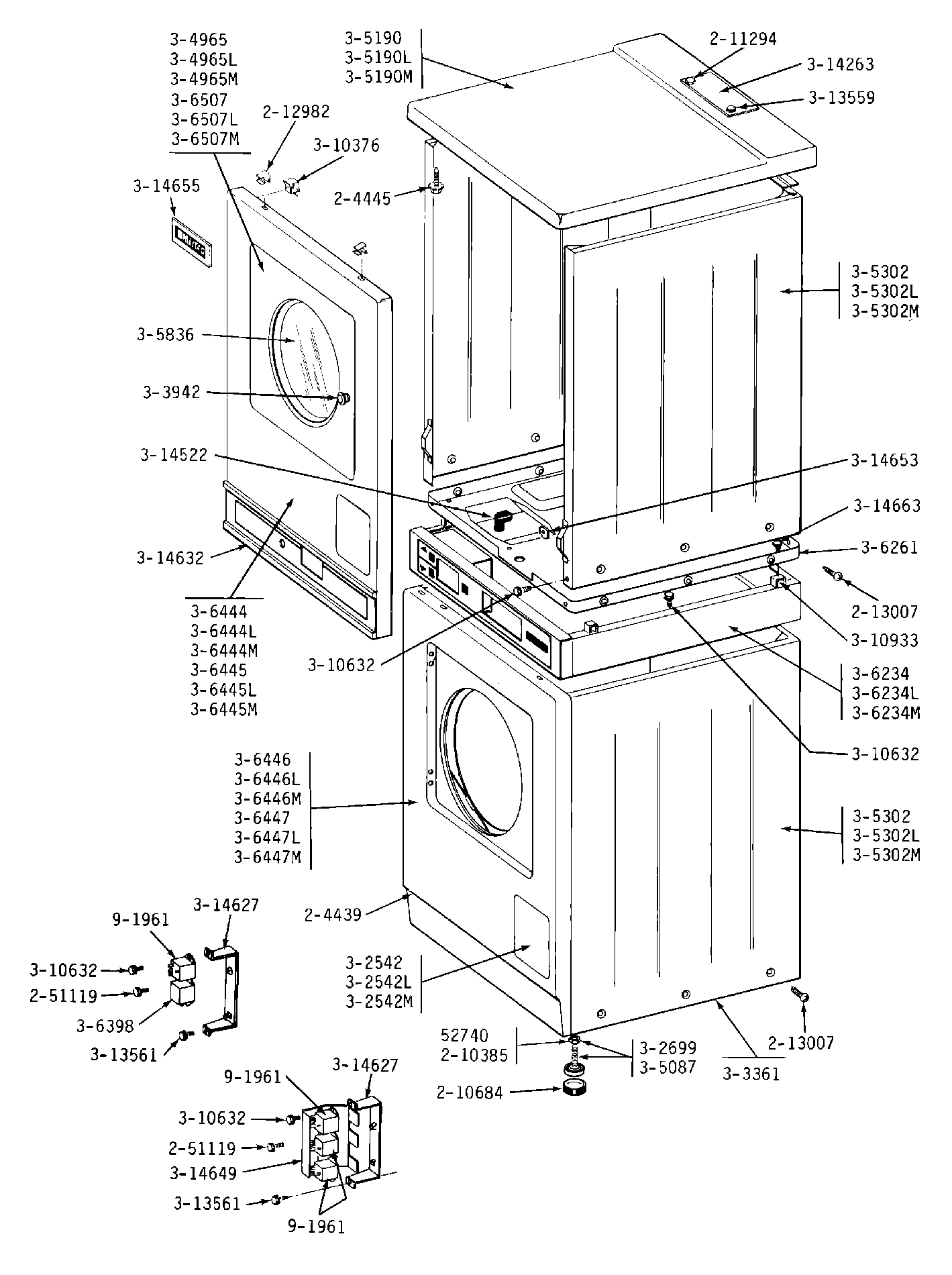

01 - FRONT VIEW

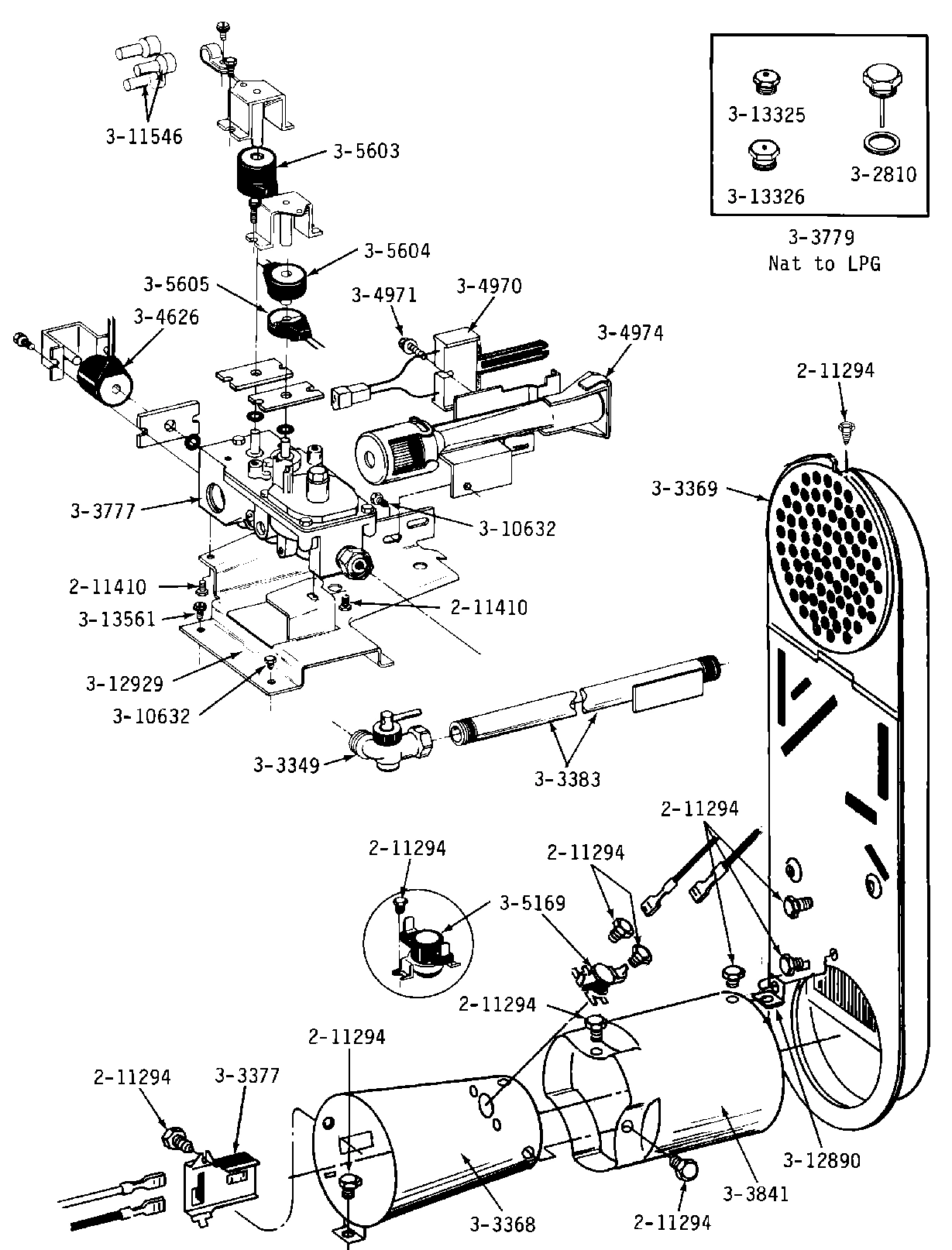

07 - INLET DUCT, GAS VALVE, CONE & EXTENSION

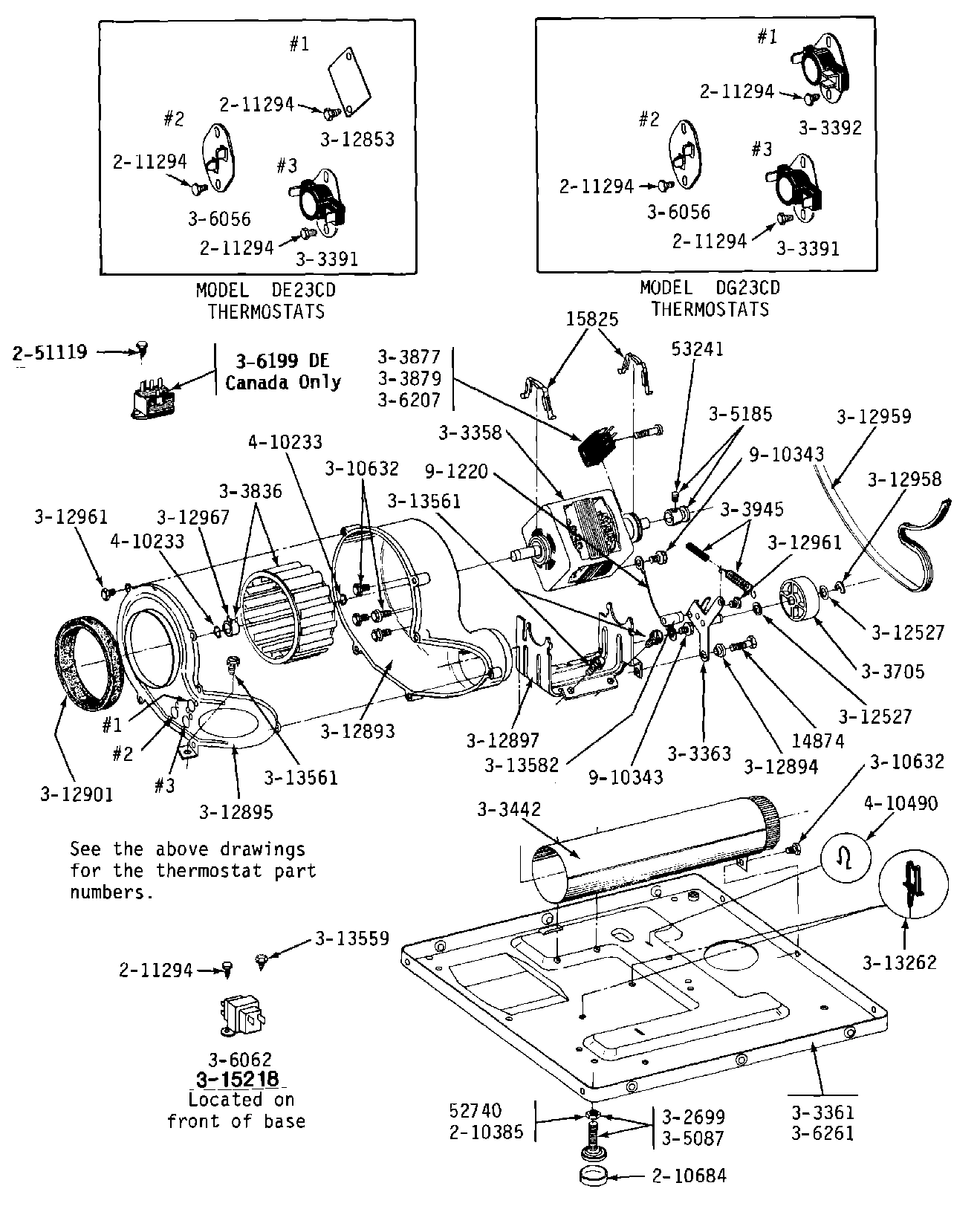

08 - MOTOR, BLOWER, BASE FRAME & THERMOSTATS

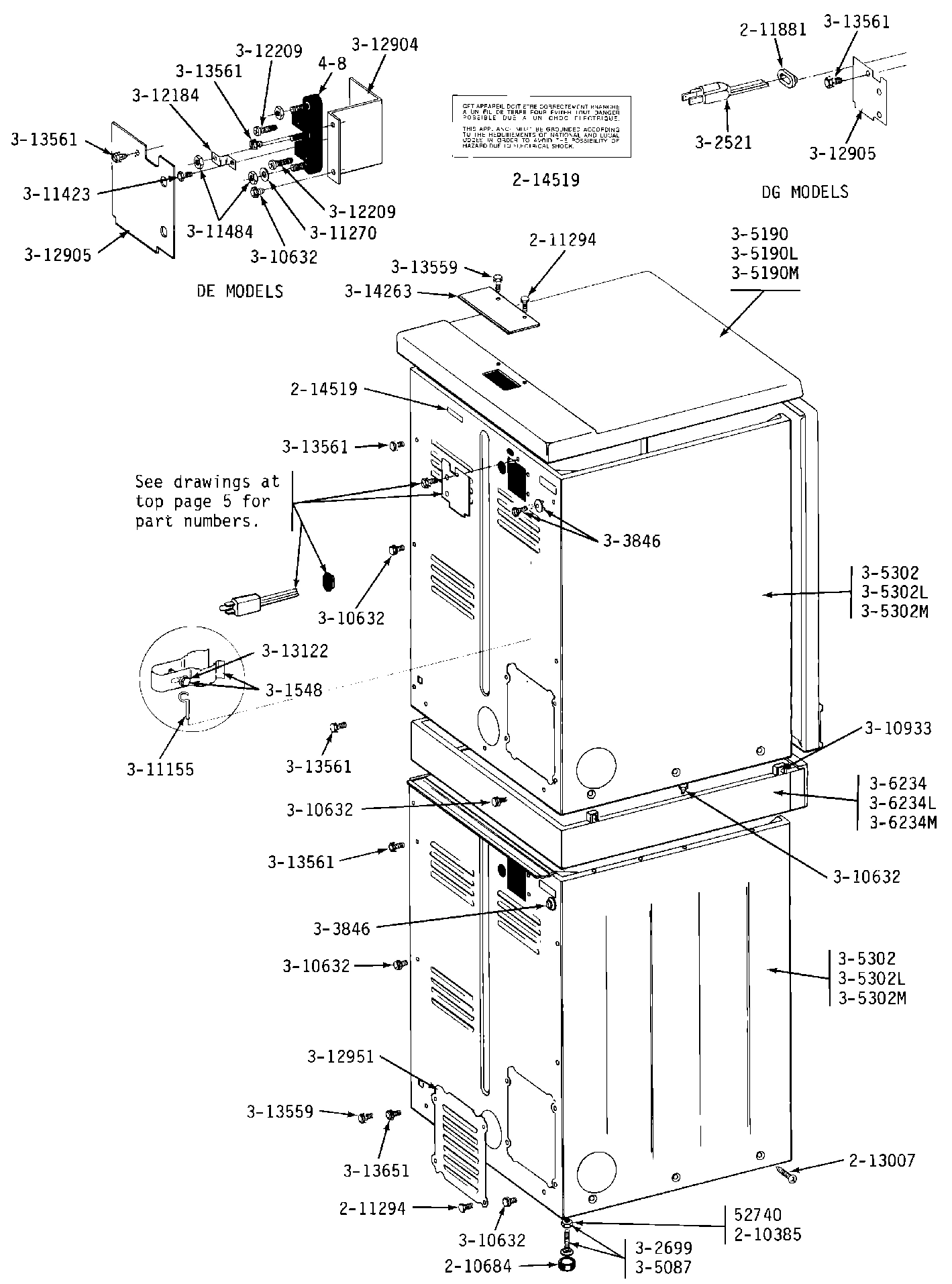

02 - REAR VIEW

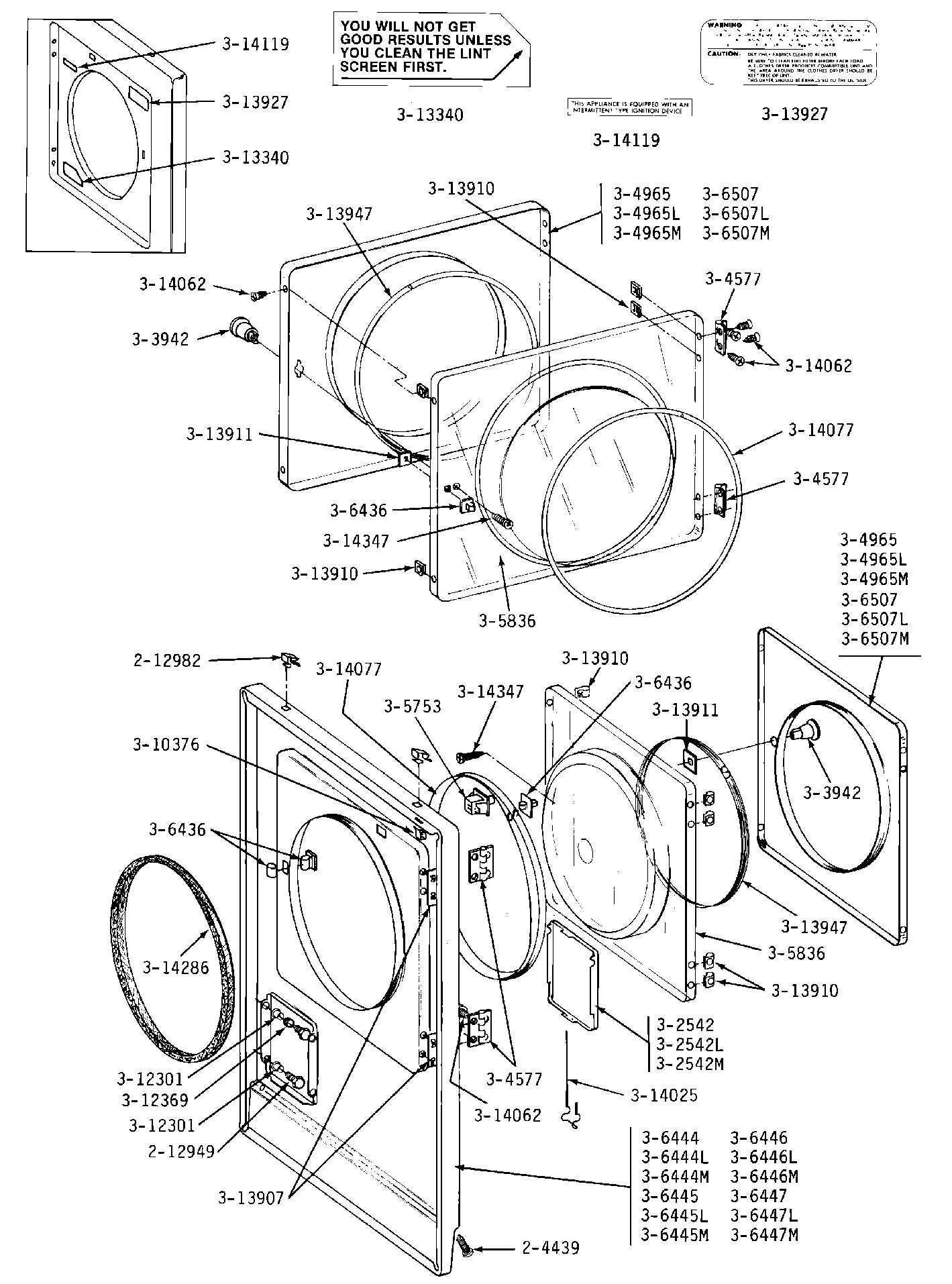

04 - FRONT PANEL & DOOR ASSEMBLY

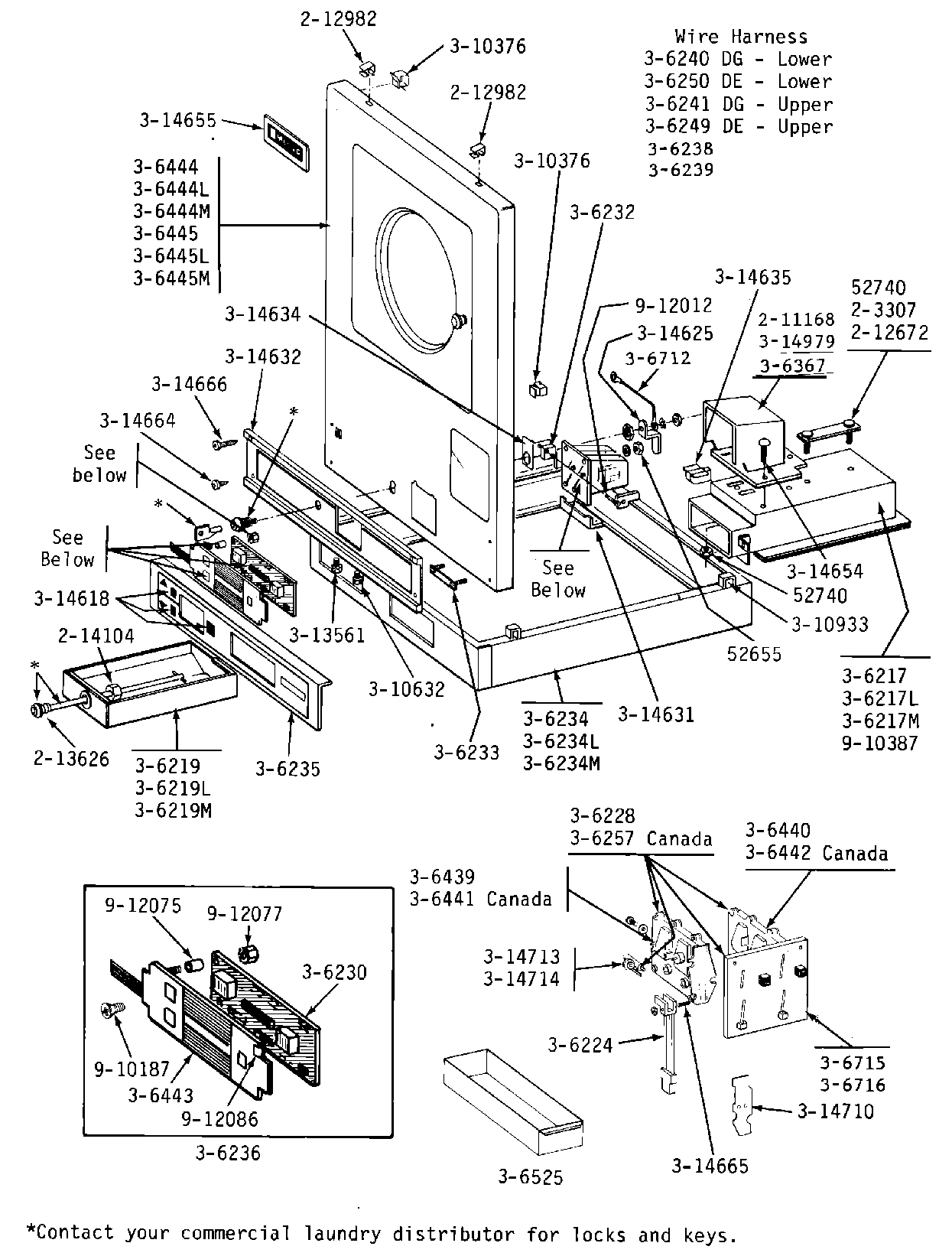

03 - CONTROLS & UPPER DRYER FRONT PANEL

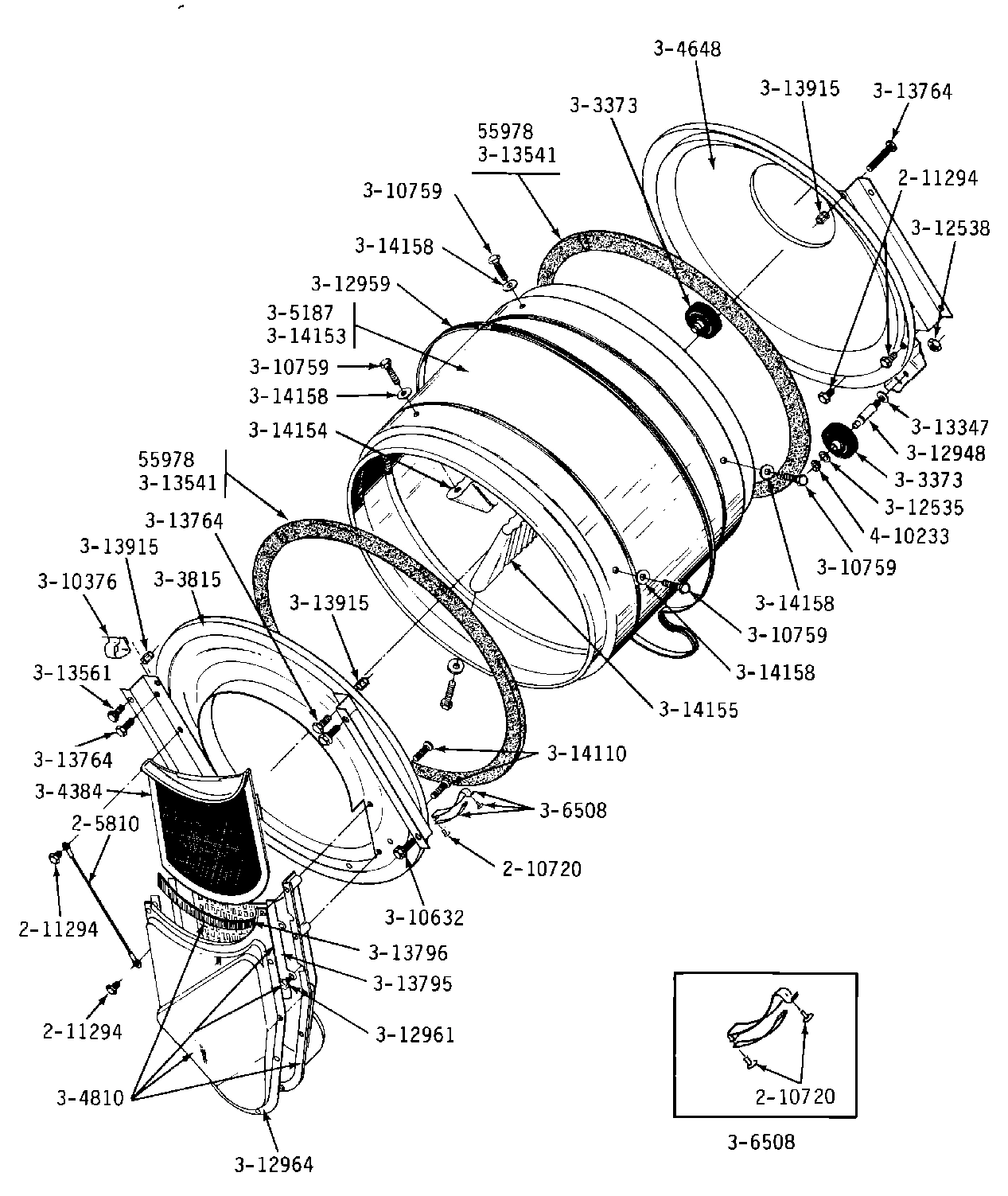

05 - LINT SCREEN, TUMBLER (FRONT & BACK)

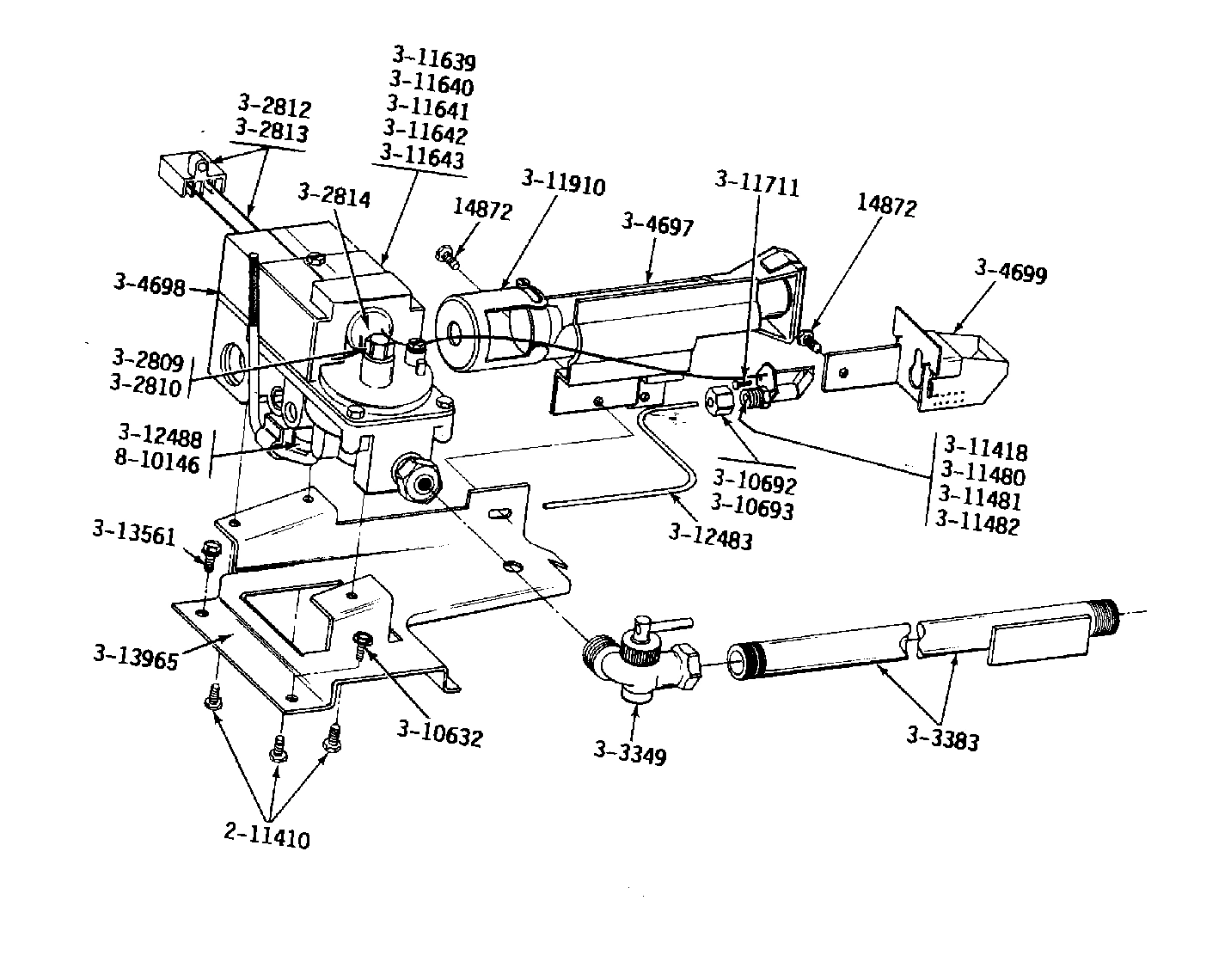

09 - 50HZ GAS VALVE

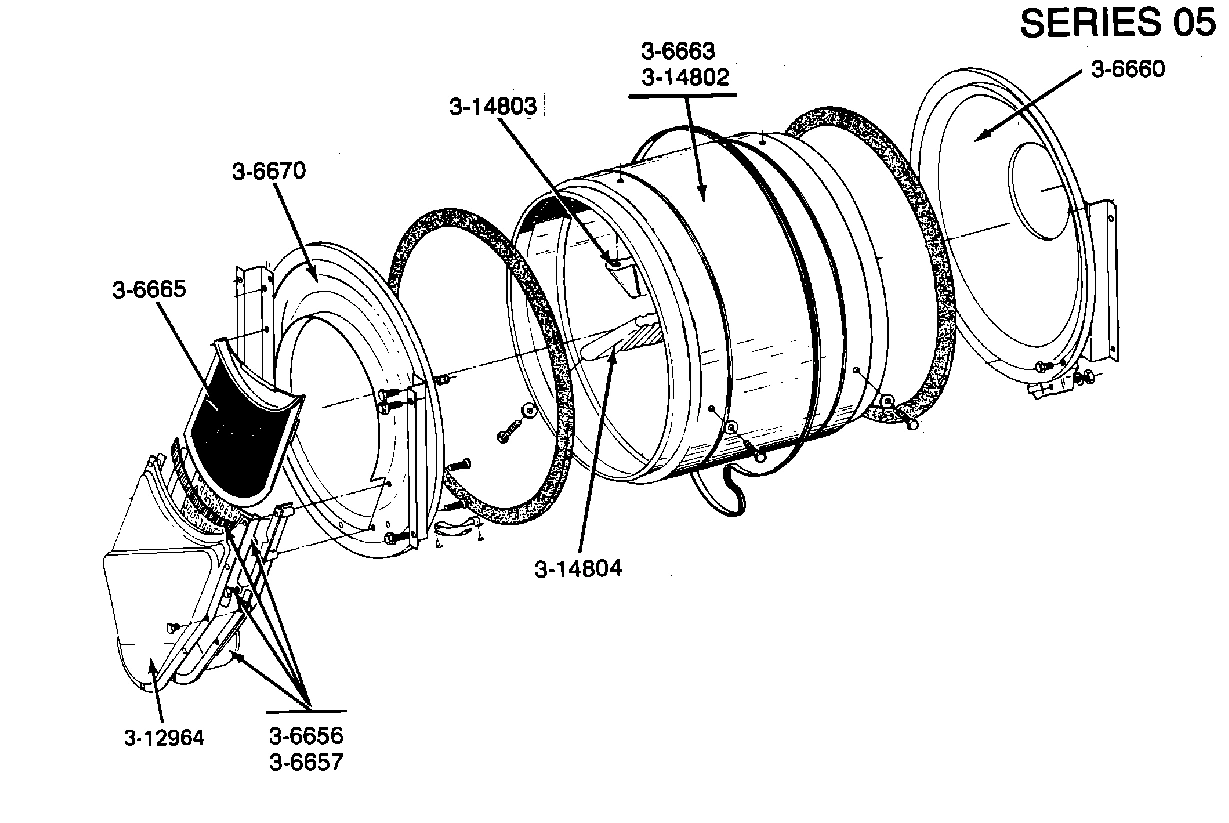

06 - TUMBLER (FRONT & BACK)(SERIES 05)
Common parts from model Whirlpool DG23CD WASHER
001
SCREW & FSTNER ASSY(FRT.PANEL) WPL 204439 Contact Us For Availability
001
RUBBER ADHESIVE, 2 OZ TUBE WPL Y055978 Contact Us For Availability
001
SCREW, No.10 X 3/8 WPL Y014872 Contact Us For Availability
001
OUTLET DUCT & GRID ASSEMBLY WPL 306656 Contact Us For Availability
002
SCREW WPL 212949 Contact Us For Availability
002
WIRE, GROUND WPL 205810 Contact Us For Availability
002
OUTLET DUCT & GRID WPL 306657 Contact Us For Availability
003
TUMBLER BACK WPL Y306660 Contact Us For Availability
004
CONVERSION KIT-LPG TO NAT. WPL 301539 Contact Us For Availability
004
TUMBLER W/BAFFLES WPL 306663 Contact Us For Availability
005
CONE, COMBUSTION WPL Y303368 Contact Us For Availability
005
SET SCREW, PULLEY WPL Y053241 Contact Us For Availability
005
GROMMET, CORD WPL 211881 Contact Us For Availability
006
TUMBLER FRONT----NA WPL NLA Contact Us For Availability
006
INLET DUCT ASSEMBLY (DG) WPL Y303369 Contact Us For Availability
006
TUMBLER FRONT----SUB WPL Y303815 Contact Us For Availability
007
LABEL, ELECTRICAL INSTRUCTION WPL 214519 Contact Us For Availability
007
MAIN BURNER SOLENOID WPL Y302812 Contact Us For Availability
007
TUMBLER W/OUT BAFFLES WPL 314802 Contact Us For Availability
008
CLAMP, GROUND (W/SCREW) WPL 301548 Contact Us For Availability
008
DOOR HINGE ----S WPL Y304577 Contact Us For Availability
008
MAIN BURN. SOLENOID 230-50 WPL Y302813 Contact Us For Availability
008
BAFFLE (SHORT) WPL 314803 Contact Us For Availability
009
DOOR COMPLETE-WHITE WPL 304965 Contact Us For Availability
009
GAS VALVE ASSEMBLY WPL Y303777 Contact Us For Availability
009
POWER CORD WPL 302521 Contact Us For Availability
009
REINFORCING NUT FOR COIN BO WPL 214104 Contact Us For Availability
009
TUMBLER BACK WITH SEAL WPL Y304648 Contact Us For Availability
010
SHUT-OFF, GAS VALVE WPL Y303349 Contact Us For Availability
010
CONVERSION KIT-NAT. TO LPG WPL Y303779 Contact Us For Availability
010
CONVERSION KIT-LPG TO NAT. WPL Y304672 Contact Us For Availability
010
OUTLET DUCT ASSEMBLY---S WPL Y304810 Contact Us For Availability
011
BASE ASSY. WPL Y303361 Contact Us For Availability
011
PIPE & BRACKET ASSY. WPL Y303383 Contact Us For Availability
011
CONE, EXTENSION (COMBUSTION) WPL Y303841 Contact Us For Availability
011
TUMBLER WPL 305187 Contact Us For Availability
012
SIDE COIL WPL Y304626 Contact Us For Availability
012
BURNER ASSEMBLY WPL Y304697 Contact Us For Availability
013
TOP COVER-WHITE WPL Y305190 Contact Us For Availability
013
CLIP, WIRE HARNESS WPL Y310376 Contact Us For Availability
013
COIN TRAY WPL 306219 Contact Us For Availability
013
GAS VALVE (240-50) WPL Y304698 Contact Us For Availability
014
SCREW WPL 304971 Contact Us For Availability
015
SCREW WPL Y310759 Contact Us For Availability
015
SCREW WPL Y310632 Contact Us For Availability
015
EXHAUST DUCT ASSY. WPL Y303442 Contact Us For Availability
016
COIN SENSOR SWITCH WPL Y306224 Contact Us For Availability
016
COMPRESSION NUT WPL 310692 Contact Us For Availability
017
SECONDARY COIL WPL 305603 Contact Us For Availability
017
DUAL COIN ACCEPTOR WPL 306228 Contact Us For Availability
017
COMPRESSION SLEEVE WPL Y310693 Contact Us For Availability
018
HOLDING COIL WPL 305604 Contact Us For Availability
018
SWITCH, MOTOR WPL Y303877 Contact Us For Availability
018
PILOT ORIFICE WPL Y311418 Contact Us For Availability
019
SWITCH, MOTOR START-PROD. WPL Y303879 Contact Us For Availability
019
ACCESS SWITCH WPL Y306232 Contact Us For Availability
019
PILOT ORIFICE (LP) WPL Y311480 Contact Us For Availability
020
IDLER SPRING ASSEMBLY WPL Y303945 Contact Us For Availability
020
COIN ACCEPTOR STRAP WPL 306233 Contact Us For Availability
021
OUTLET DUCT - OUTER HALF WPL Y312964 Contact Us For Availability
021
PILOT ORIFICE-LPG WPL Y311482 Contact Us For Availability
022
PULLEY, MOTOR (W/SET SCREW) WPL Y305185 Contact Us For Availability
022
ORIFICE FOR MAIN BURNER WPL Y311639 Contact Us For Availability
023
CLOSED CONNECTOR WPL 311546 Contact Us For Availability
023
RELAY, HEATER WPL 306199 Contact Us For Availability
024
FRONT PANEL-WHITE WPL Y306447 Contact Us For Availability
024
RETAINER, HEATER CHAMBER WPL Y312890 Contact Us For Availability
024
THERMISTOR TEMP CONTROL WPL 306056 Contact Us For Availability
025
GAS VALVE BRACKET WPL 312929 Contact Us For Availability
025
TRANSFORMER WPL 306062 Contact Us For Availability
026
GUIDE FOR LINT SCREEN WPL Y313795 Contact Us For Availability
027
BASE ASSEMBLY WPL 306261 Contact Us For Availability
027
LINT SEAL WPL Y313796 Contact Us For Availability
027
SCREW WPL Y311711 Contact Us For Availability
028
STRAP, GROUND WPL Y312184 Contact Us For Availability
029
PILOT TUBE WPL Y312483 Contact Us For Availability
030
COVER FOR THERMOSTAT OPENIN WPL Y312853 Contact Us For Availability
030
TUMBLER No. WPL Y314153 Contact Us For Availability
031
HOUSING, BLOWER WPL Y312893 Contact Us For Availability
031
SCREW----NA WPL Y313561 Contact Us For Availability
031
COVER, TERMINAL WPL Y312905 Contact Us For Availability
032
COVER, ACCESS WPL Y312951 Contact Us For Availability
032
SLEEVE-ACCESS PANEL STUD WPL 312369 Contact Us For Availability
033
COVER FOR BLOWER----NA WPL Y312895 Contact Us For Availability
033
SCREW - BAFFLE TO TUMBLER WPL 313122 Contact Us For Availability
033
LABEL, LINT SCREEN INSTRUCTION WPL Y313340 Contact Us For Availability
033
WASHER WPL 314158 Contact Us For Availability
034
TWIN FASTENER WPL Y313907 Contact Us For Availability
034
REJECTOR ASSEMBLY-$.10 WPL 306439 Contact Us For Availability
035
CLIP, DOOR LINER TO OUTER PNL WPL Y313910 Contact Us For Availability
036
DOOR STRIKE RETAINER WPL Y313911 Contact Us For Availability
037
SCREW WPL 314663 Contact Us For Availability
037
INSTRUCTION LABEL WPL Y313927 Contact Us For Availability
038
GASKET FOR WINDOW WPL Y313947 Contact Us For Availability
038
TOUCH PAD ASSEMBLY WPL 306443 Contact Us For Availability
039
LATCH FOR ACCESS DOOR WPL Y314025 Contact Us For Availability
040
RETAINER, WIRE HARNESS WPL Y313262 Contact Us For Availability
040
SCREW WPL Y314062 Contact Us For Availability
041
DOOR SEAL WPL 314077 Contact Us For Availability
043
SEAL FOR FRONT PANEL WPL 314286 Contact Us For Availability
045
SPRING, WIRE HARNESS WPL 410490 Contact Us For Availability
046
STRAIN RELIEF WPL 314522 Contact Us For Availability
046
WIRE, GROUND WPL 901220 Contact Us For Availability
046
GROUND WIRE WPL Y306712 Contact Us For Availability
047
RELAY BRACKET WPL 314627 Contact Us For Availability
048
SHIELD, XFMER WPL 315218 Contact Us For Availability
048
FRONT PLATE ASSY WPL Y306716 Contact Us For Availability
051
FASTENER WPL 310933 Contact Us For Availability
053
RELAY (4 CONTACT) WPL 901961 Contact Us For Availability
053
LENS WPL 314618 Contact Us For Availability
054
LOCKING CAM WPL 314625 Contact Us For Availability
055
BRACKET WPL 314631 Contact Us For Availability
057
ACCESS SWITCH BRACKET WPL 314634 Contact Us For Availability
058
COIN CHUTE WPL 314635 Contact Us For Availability
059
CARRIA WPL 314654 Contact Us For Availability
063
WPL 314666 WPL 314666 Contact Us For Availability
064
WPL 314710 WPL 314710 Contact Us For Availability
065
WPL 314713 WPL 314713 Contact Us For Availability
067
WPL 314979 WPL 314979 Contact Us For Availability
068
WPL 910187 WPL 910187 Contact Us For Availability
069
WPL 912012 WPL 912012 Contact Us For Availability
070
WPL 912075 WPL 912075 Contact Us For Availability
072
WPL 912086 WPL 912086 Contact Us For Availability
× ![]()
